The document discusses view controller containment in iOS. It provides an overview of view controllers and their responsibilities in iOS apps. It describes issues with creating custom container view controllers before iOS 5 and how the iOS 5 containment API addresses these by allowing view controllers to add and remove child view controllers and properly manage view controller lifecycles. It demonstrates how to implement common container view controller behaviors like pushing and popping view controllers using the containment API and discusses best practices to avoid common mistakes with container view controllers.

1. Creating
Container View
Controllers
http://bobmccune.com

2. About...
Bob McCune
‣ MN Developer and Instructor
‣ Owner of TapHarmonic, LLC.
‣ Founded Minnesota CocoaHeads in 2008

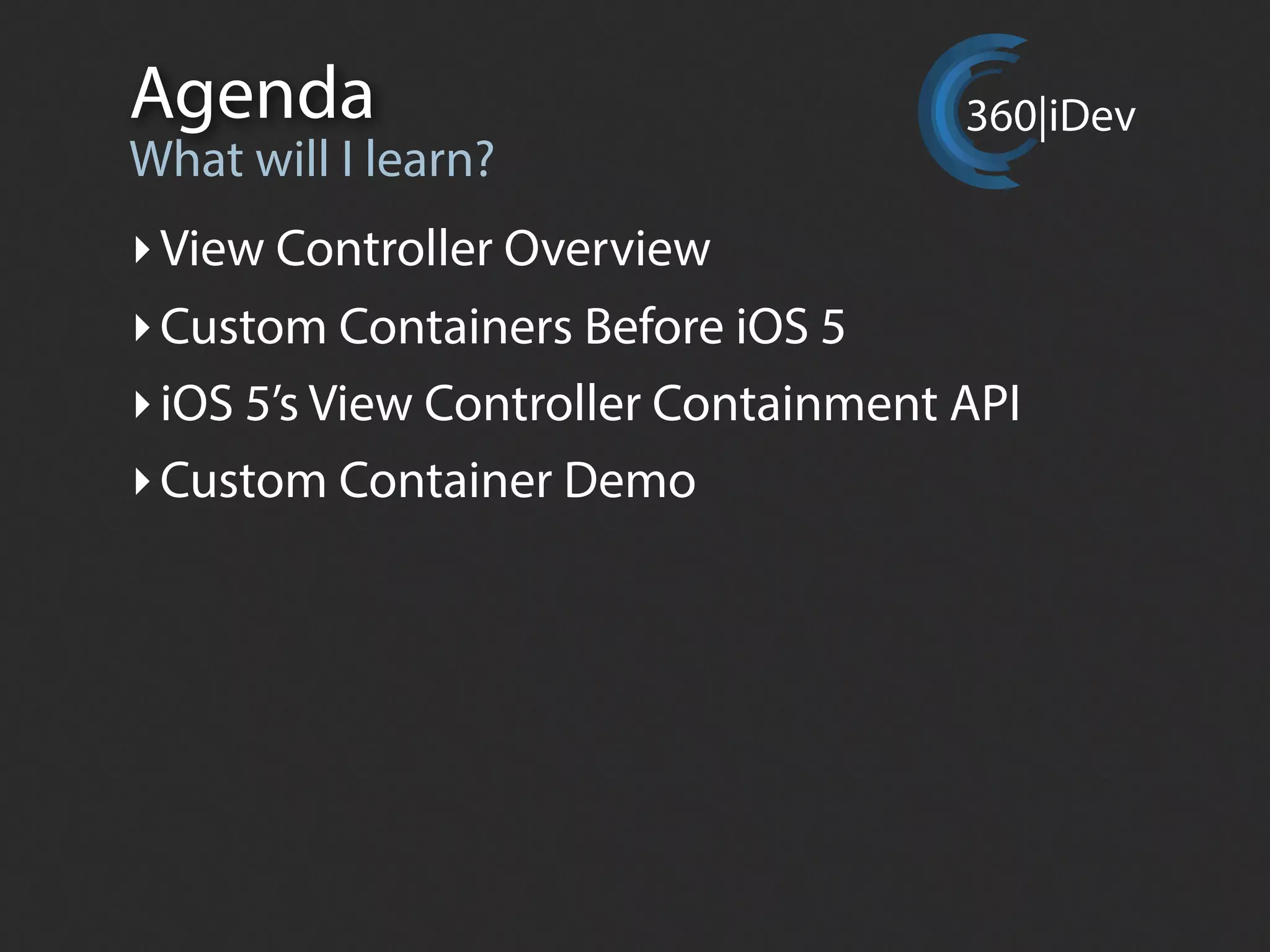

3. Agenda
What will I learn?
‣ View Controller Overview
‣ Custom Containers Before iOS 5
‣ iOS 5’s View Controller Containment API
‣ Custom Container Demo

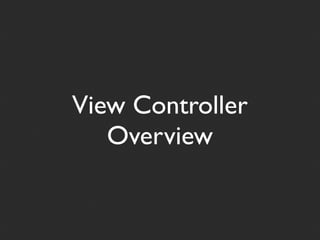

4. View Controller
Overview

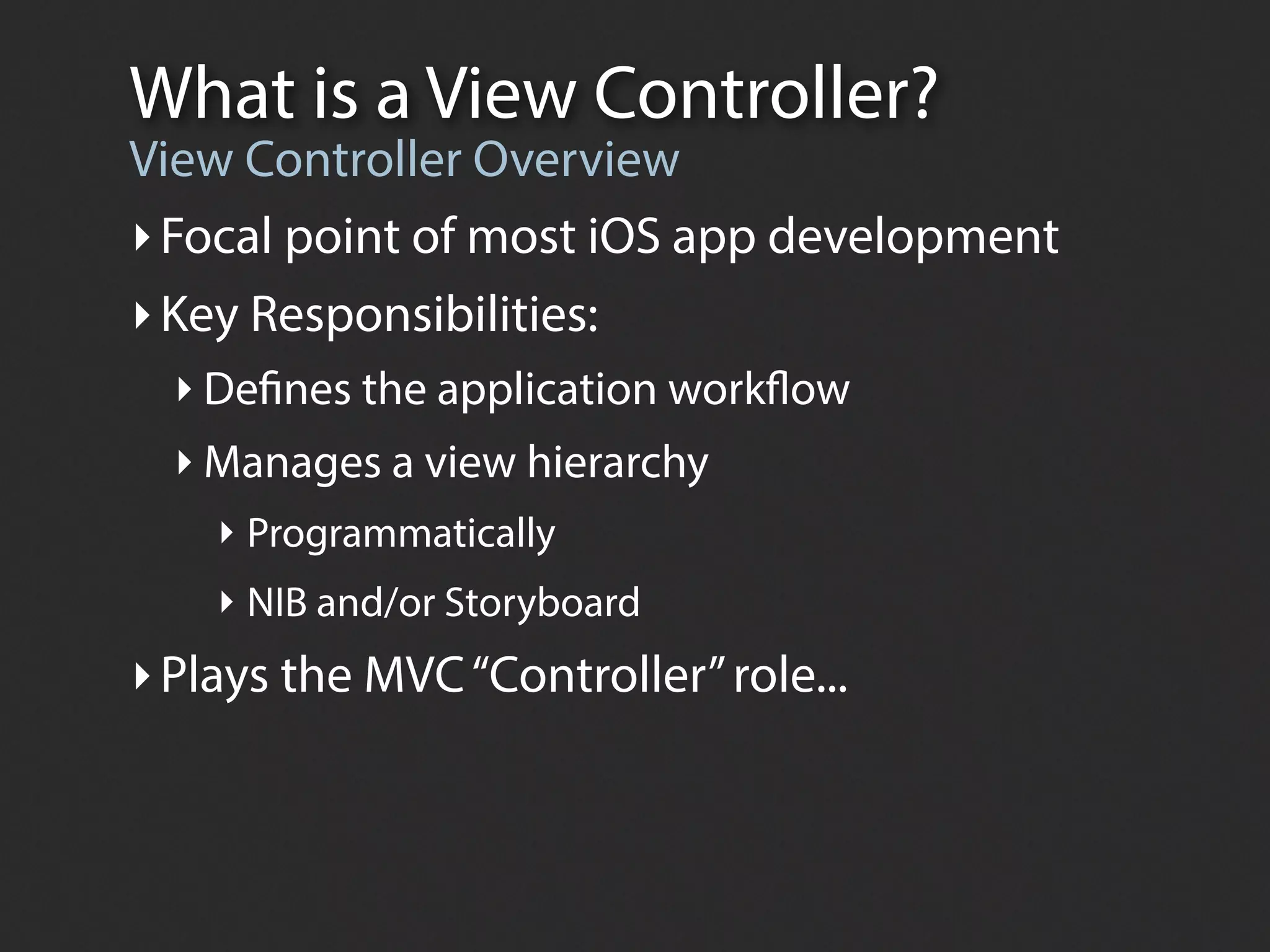

5. What is a View Controller?
View Controller Overview
‣ Focal point of most iOS app development
‣ Key Responsibilities:
‣ Defines the application workflow
‣ Manages a view hierarchy
‣ Programmatically
‣ NIB and/or Storyboard
‣ Plays the MVC “Controller” role...

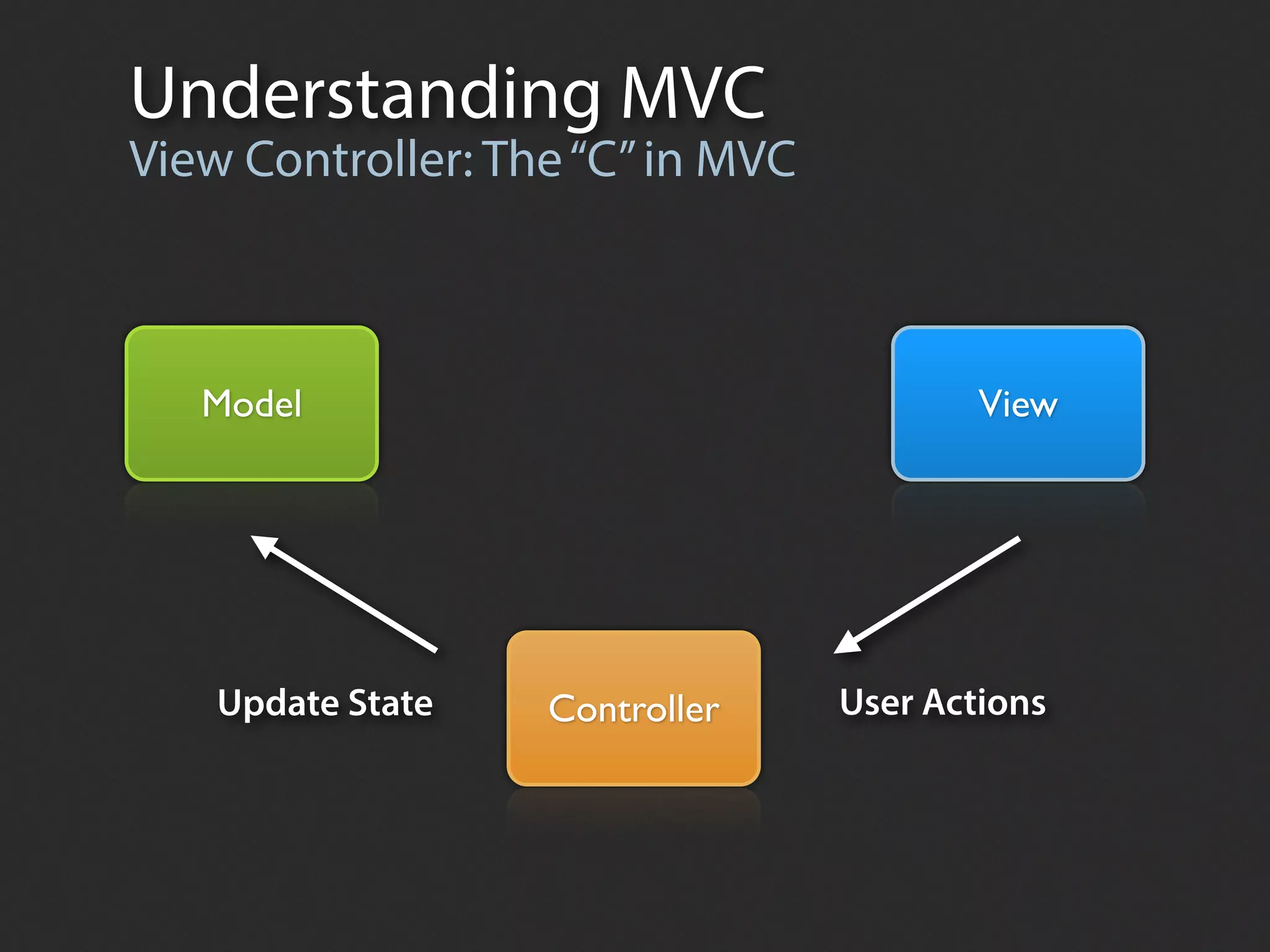

6. Understanding MVC
View Controller: The “C” in MVC
Model View
Update State Controller User Actions

7. Understanding MVC
View Controller: The “C” in MVC
Model View
State Changed Controller Update UI

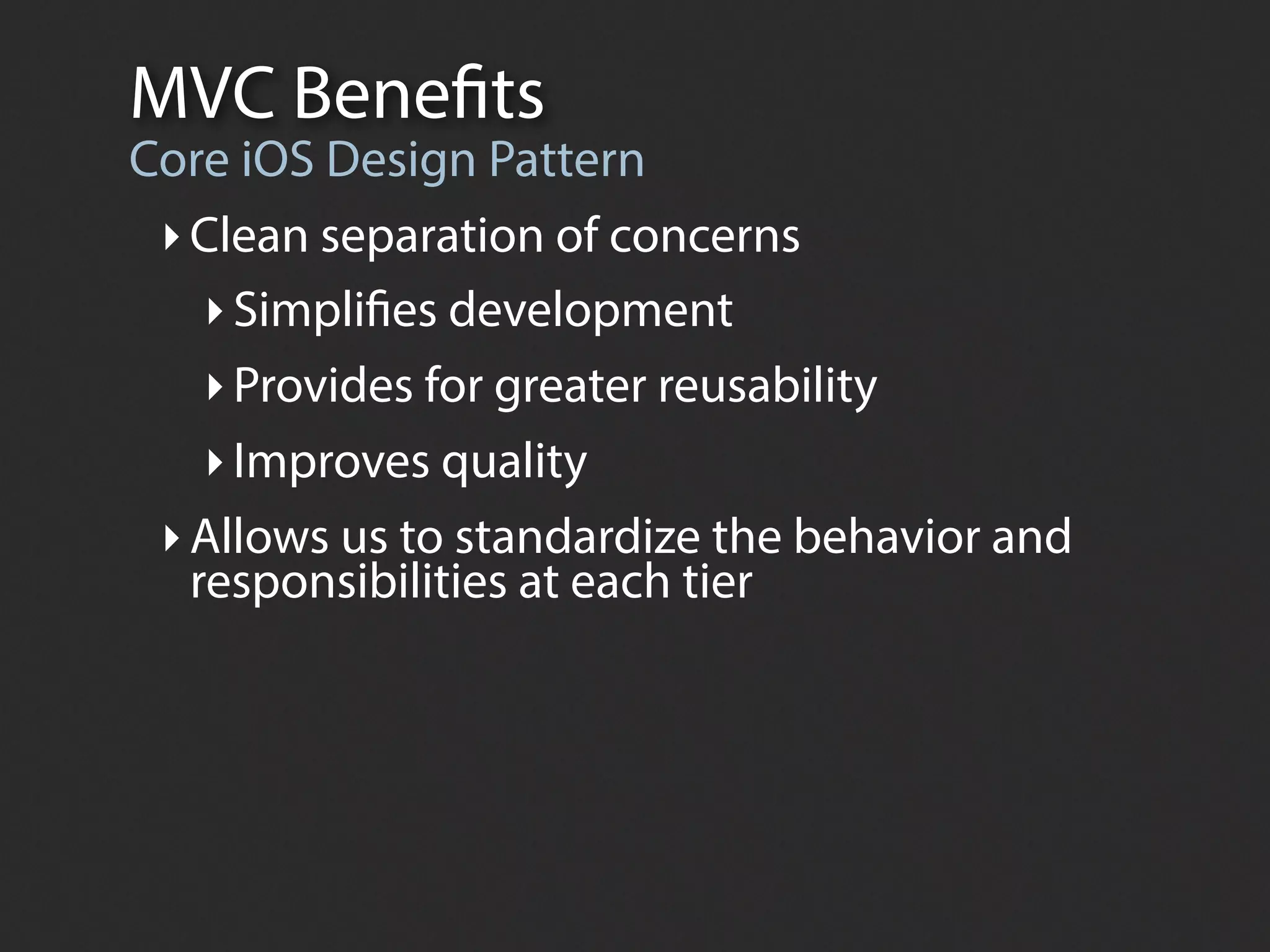

8. MVC Benefits
Core iOS Design Pattern
‣ Clean separation of concerns
‣ Simplifies development
‣ Provides for greater reusability
‣ Improves quality
‣ Allows us to standardize the behavior and
responsibilities at each tier

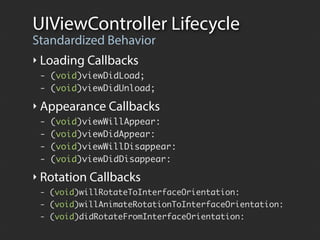

9. UIViewController Lifecycle
Standardized Behavior
‣ Loading Callbacks
- (void)viewDidLoad;
- (void)viewDidUnload;
‣ Appearance Callbacks
- (void)viewWillAppear:
- (void)viewDidAppear:
- (void)viewWillDisappear:
- (void)viewDidDisappear:
‣ Rotation Callbacks
- (void)willRotateToInterfaceOrientation:
- (void)willAnimateRotationToInterfaceOrientation:
- (void)didRotateFromInterfaceOrientation:

10. View Controller Types
Container vs Content
Container Controllers
‣ Manages a hierarchy of child view controllers
UITabBarController
UINavigationController
UISplitViewController
Content Controllers
‣ Manage the individual screens within an app
‣ Can be used in multiple presentation contexts
‣ Manages a “screenful of content”

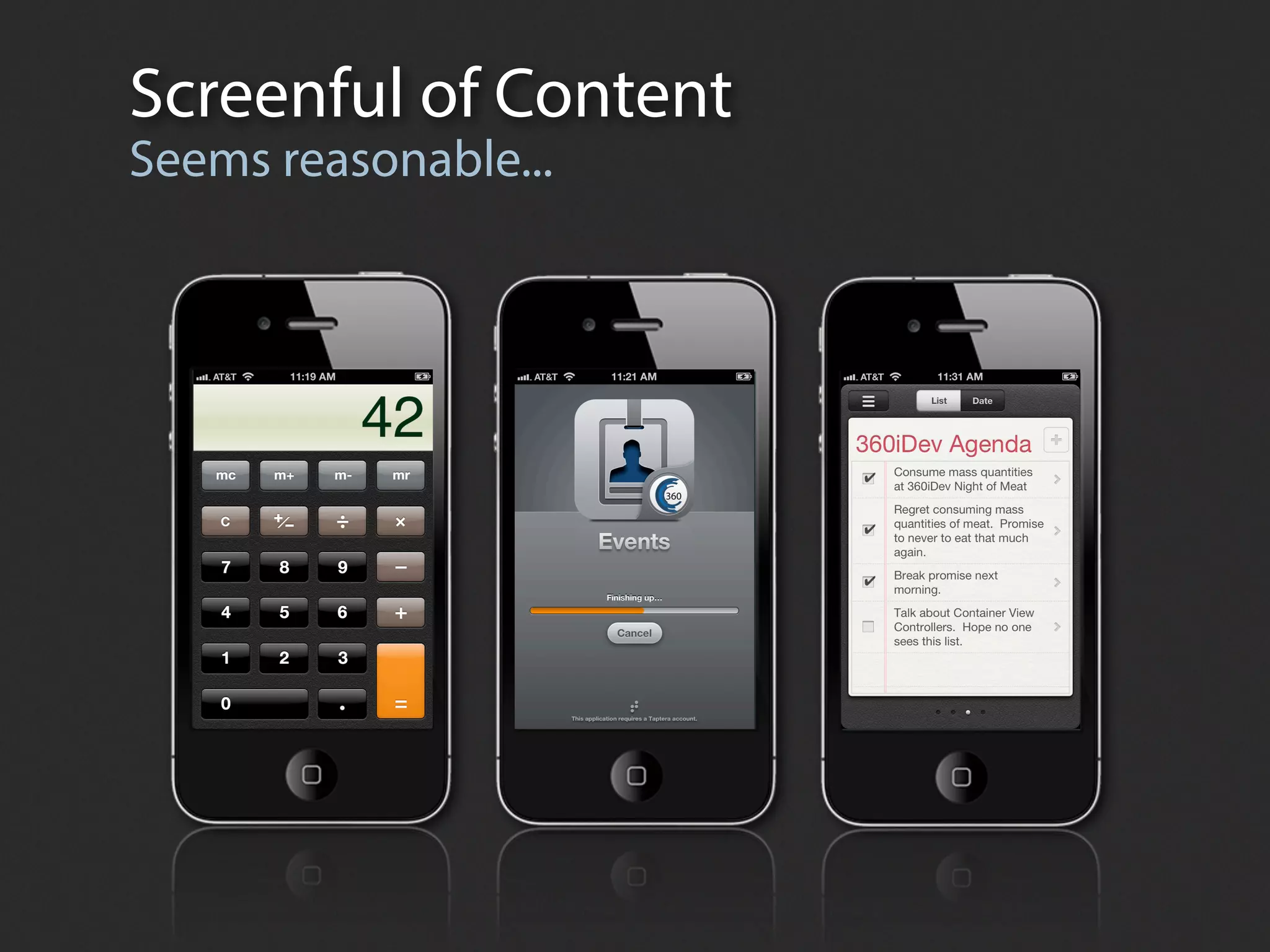

11. Screenful of Content
Seems reasonable...

12. Screenful of Content
Still reasonable?

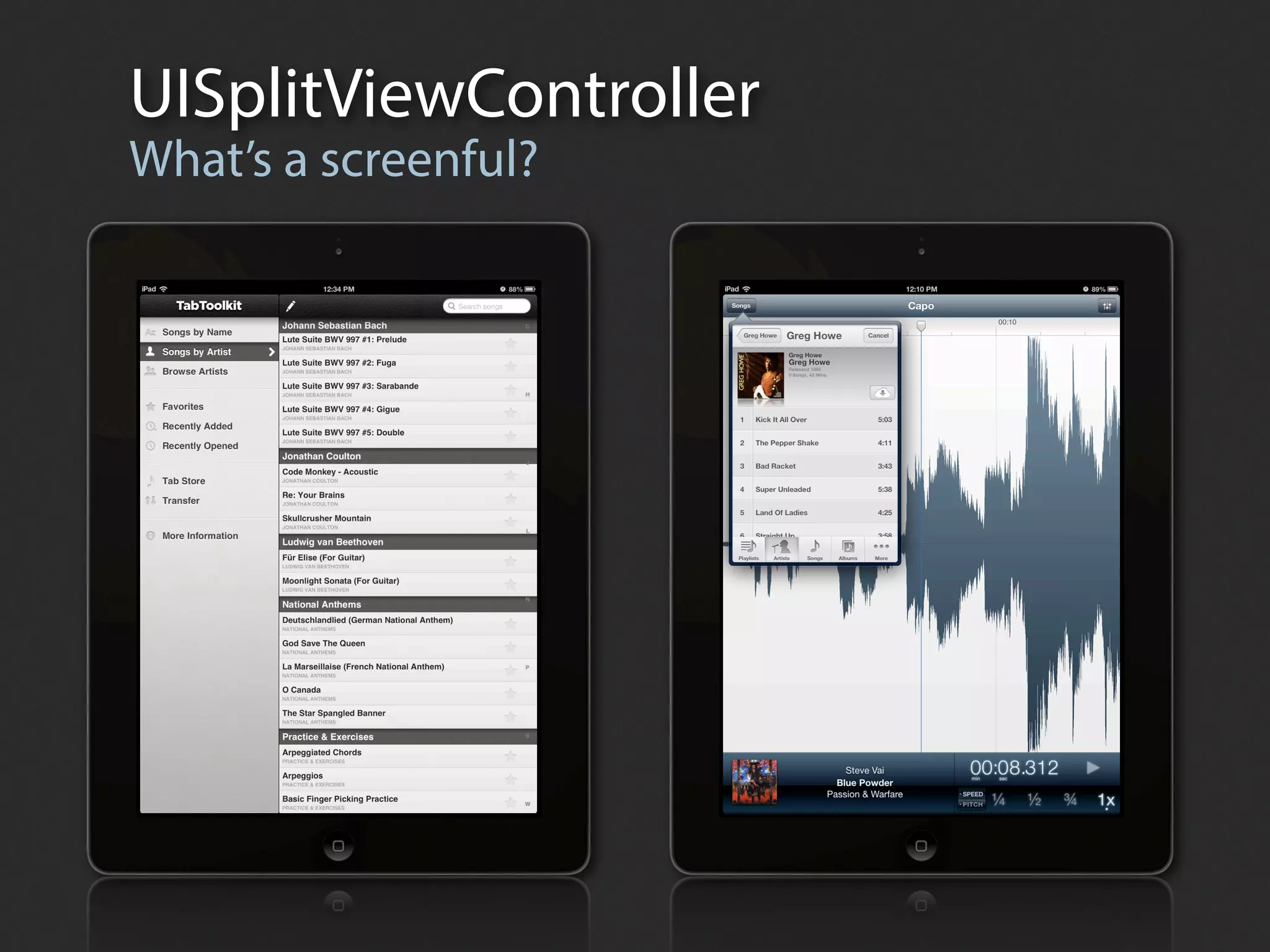

13. UISplitViewController
What’s a screenful?

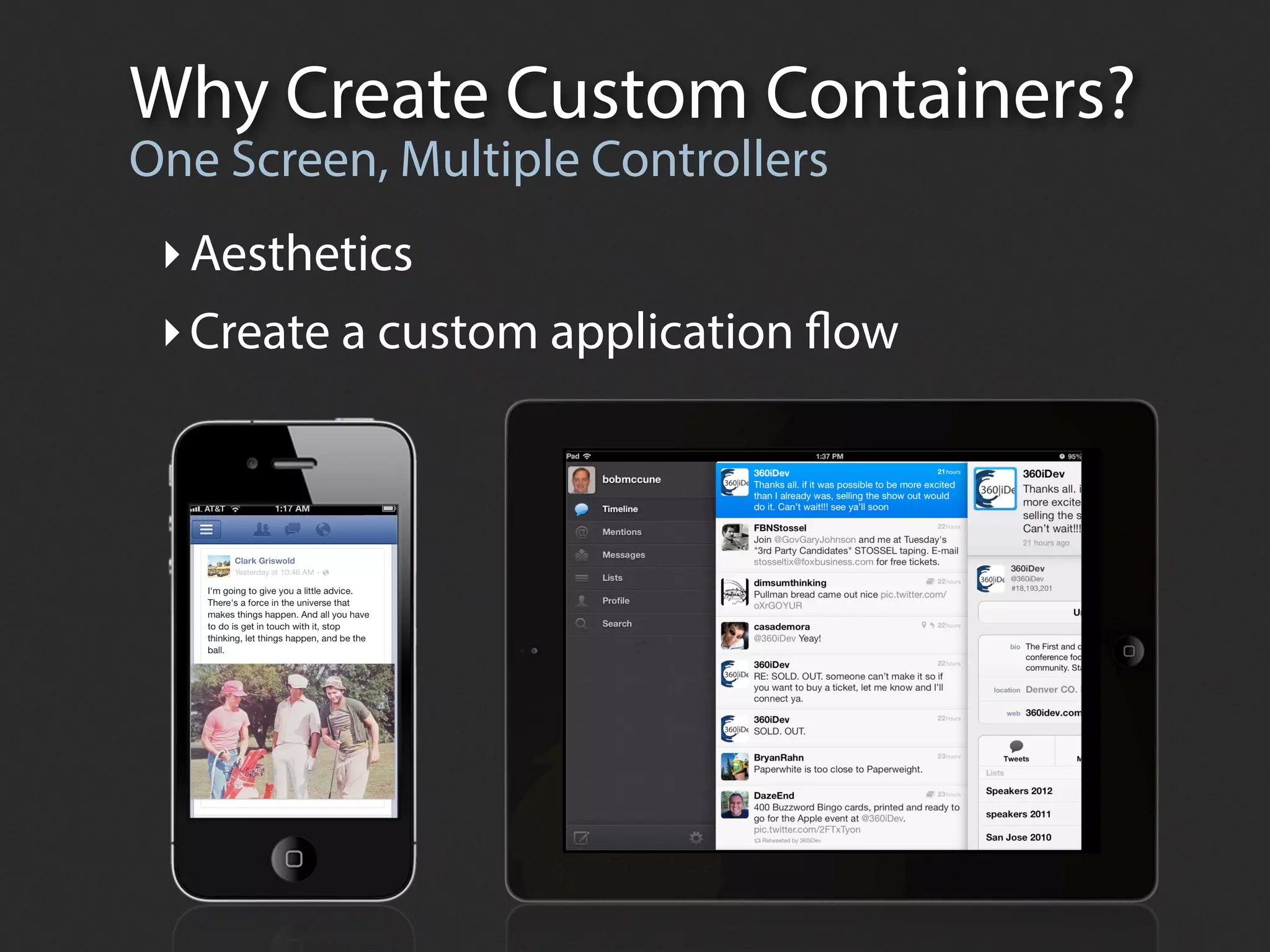

14. Why Create Custom Containers?
One Screen, Multiple Controllers
‣ Aesthetics
‣ Create a custom application flow

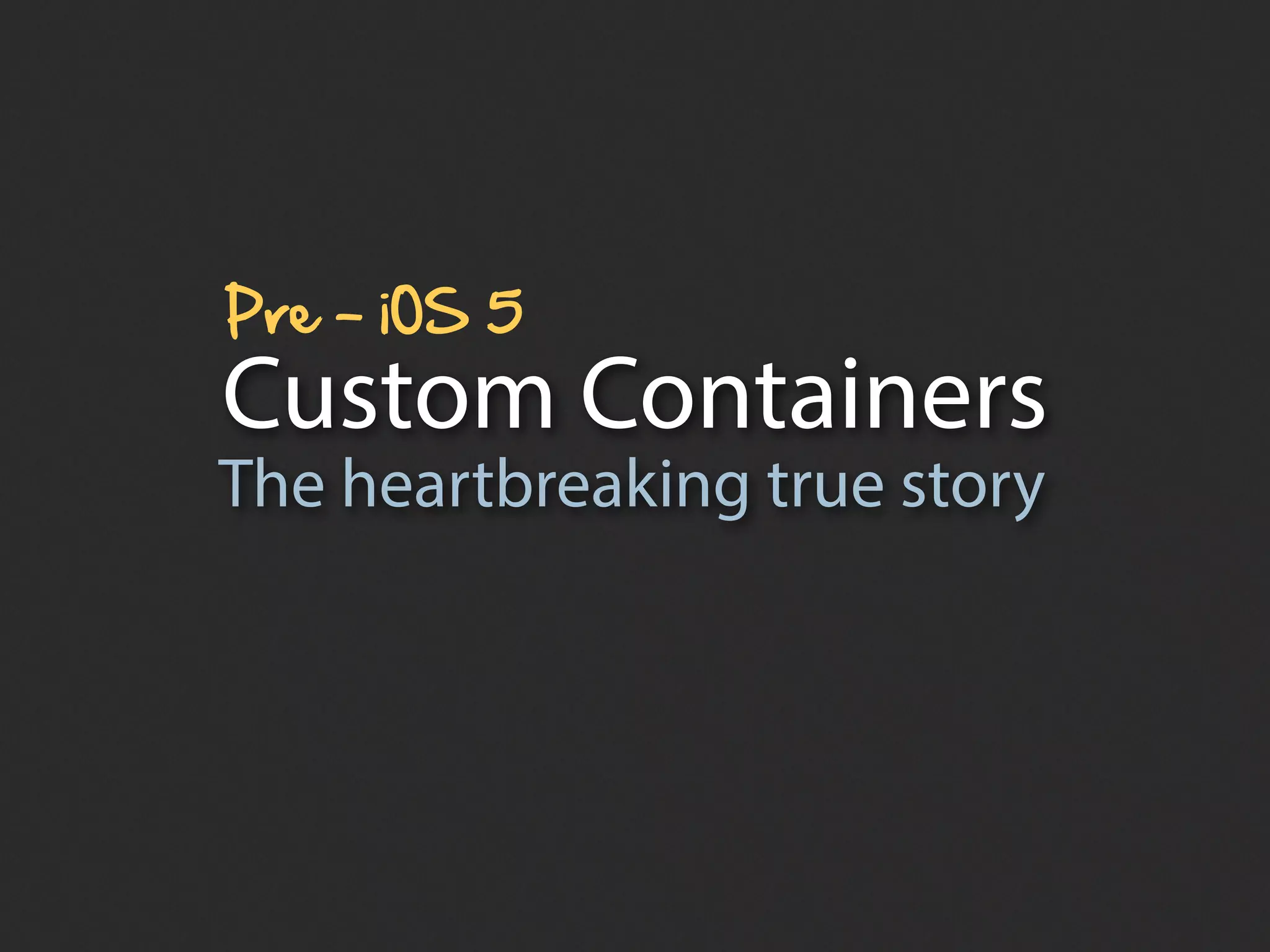

15. Pre -­ iOS 5
Custom Containers
The heartbreaking true story

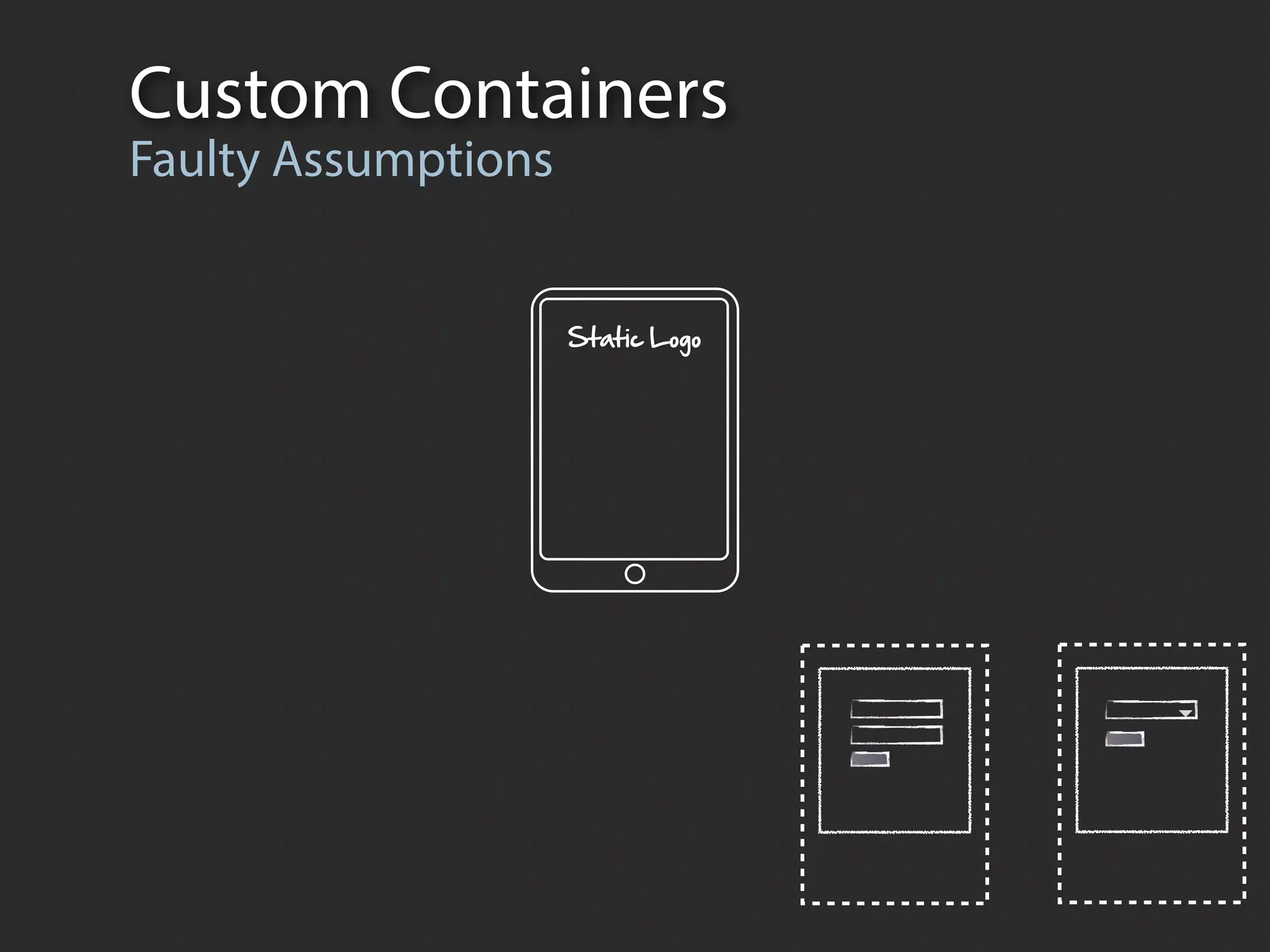

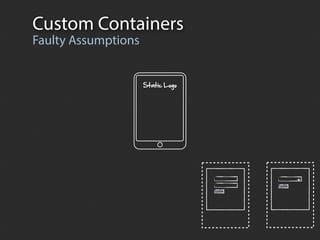

16. Custom Containers
Faulty Assumptions
Static Logo

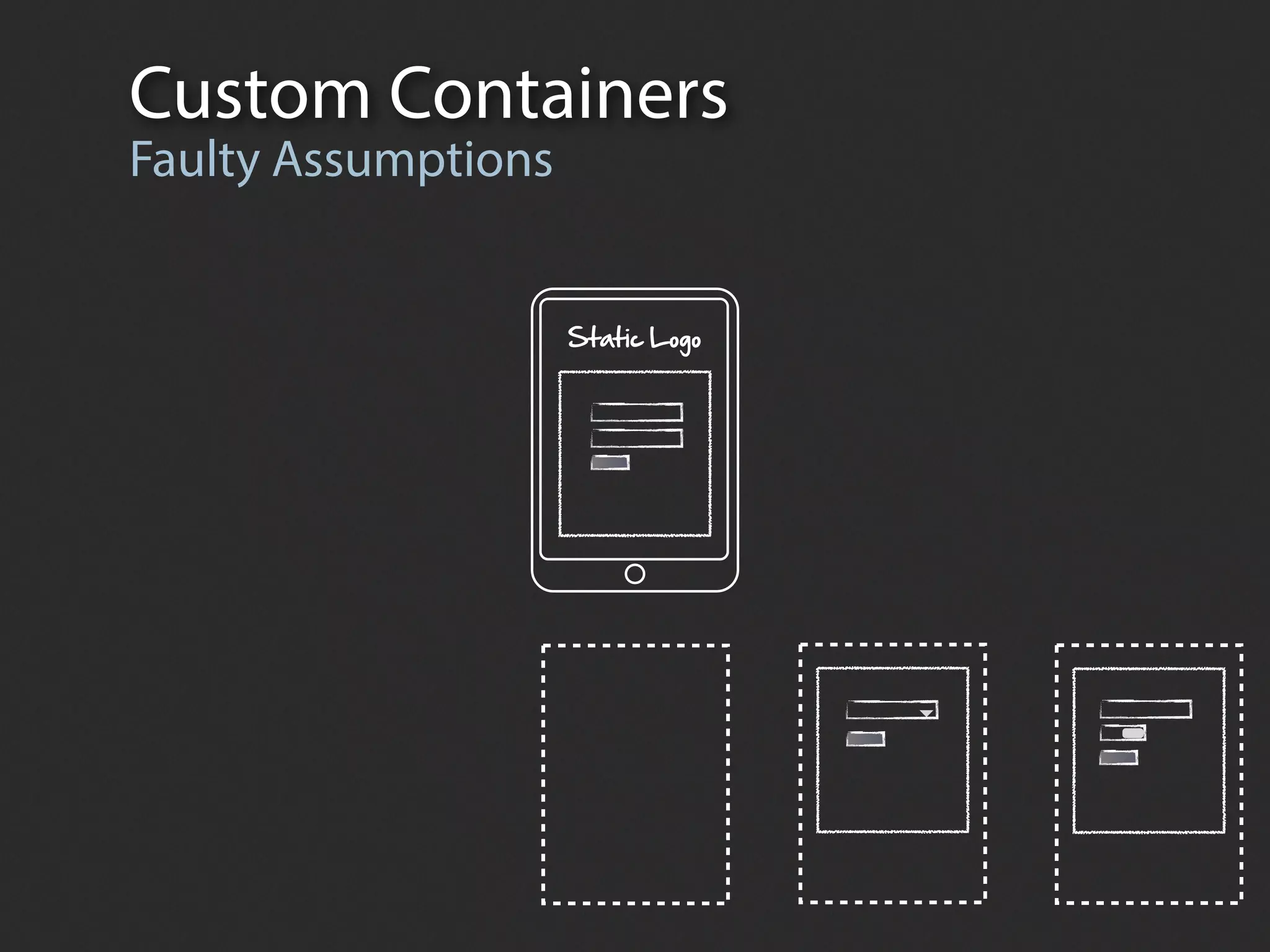

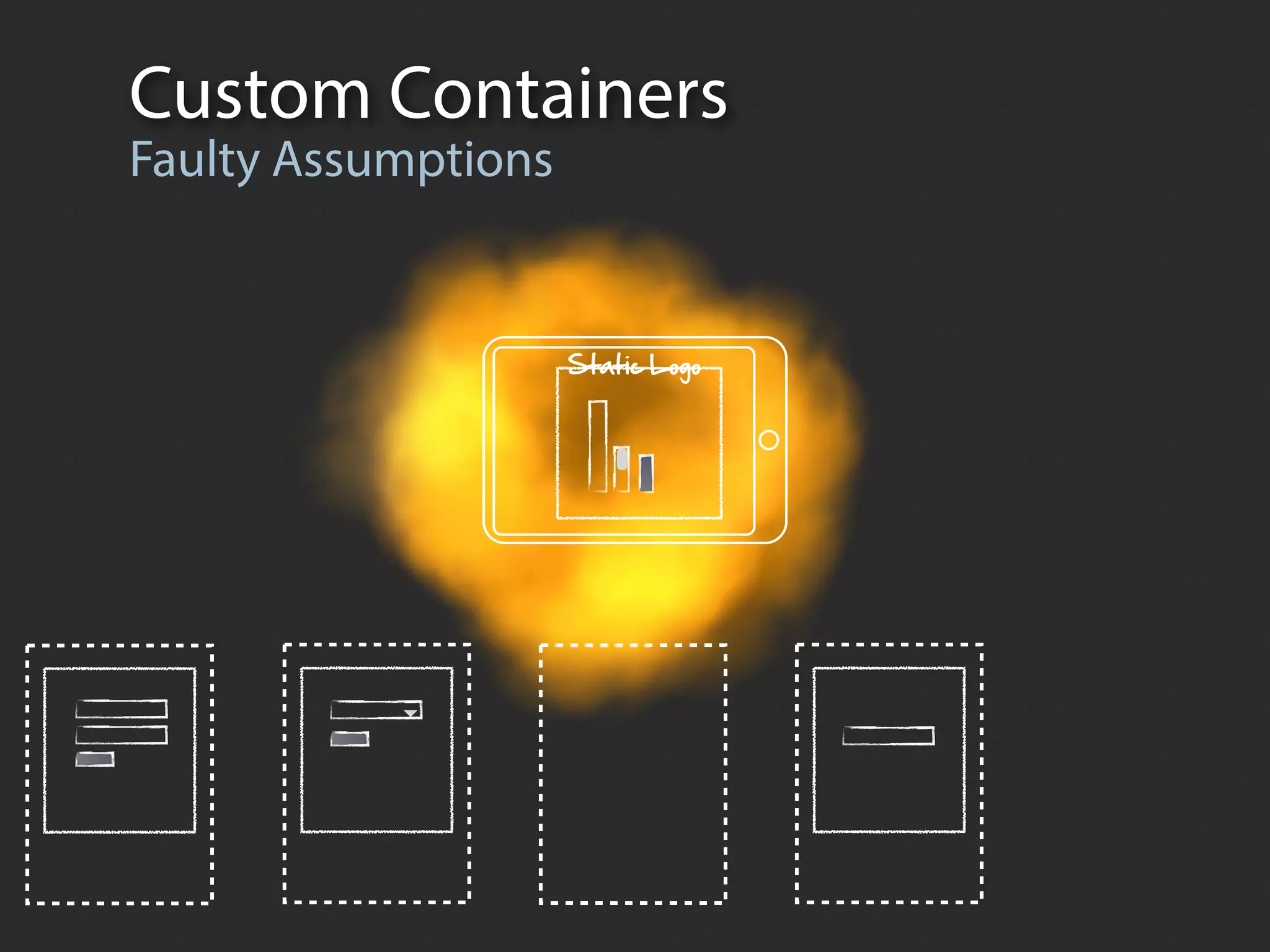

17. Custom Containers
Faulty Assumptions
Static Logo

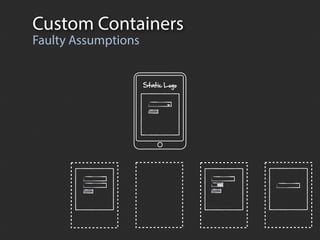

18. Custom Containers
Faulty Assumptions
Static Logo

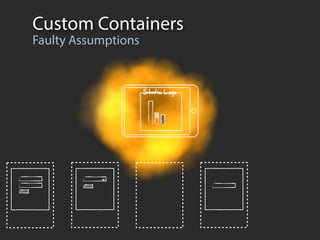

19. Custom Containers
Faulty Assumptions can’t!
No you
Static Logo

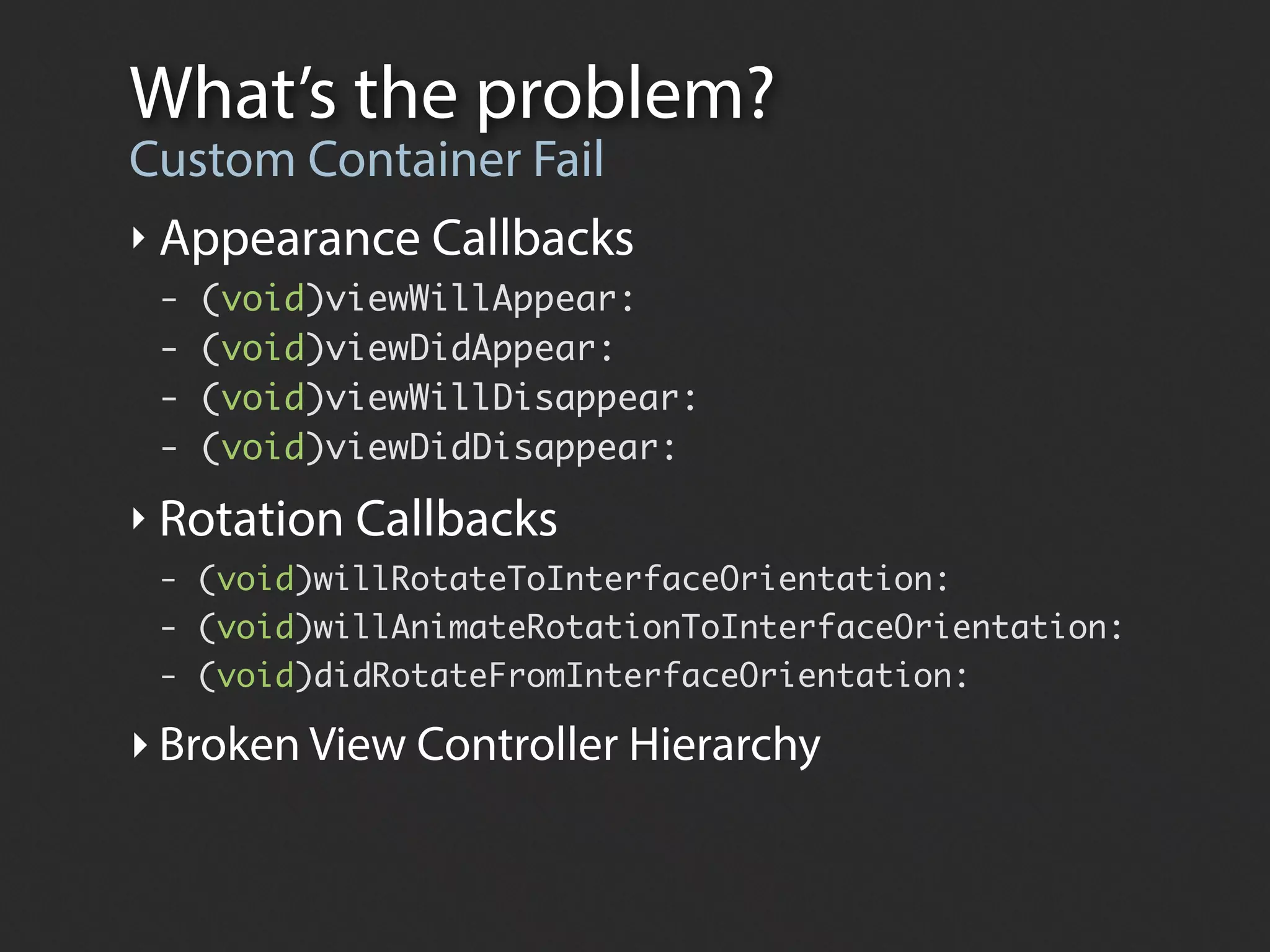

20. What’s the problem?
Custom Container Fail
‣ Appearance Callbacks
- (void)viewWillAppear:
- (void)viewDidAppear:
- (void)viewWillDisappear:
- (void)viewDidDisappear:
‣ Rotation Callbacks
- (void)willRotateToInterfaceOrientation:
- (void)willAnimateRotationToInterfaceOrientation:
- (void)didRotateFromInterfaceOrientation:
‣ Broken View Controller Hierarchy

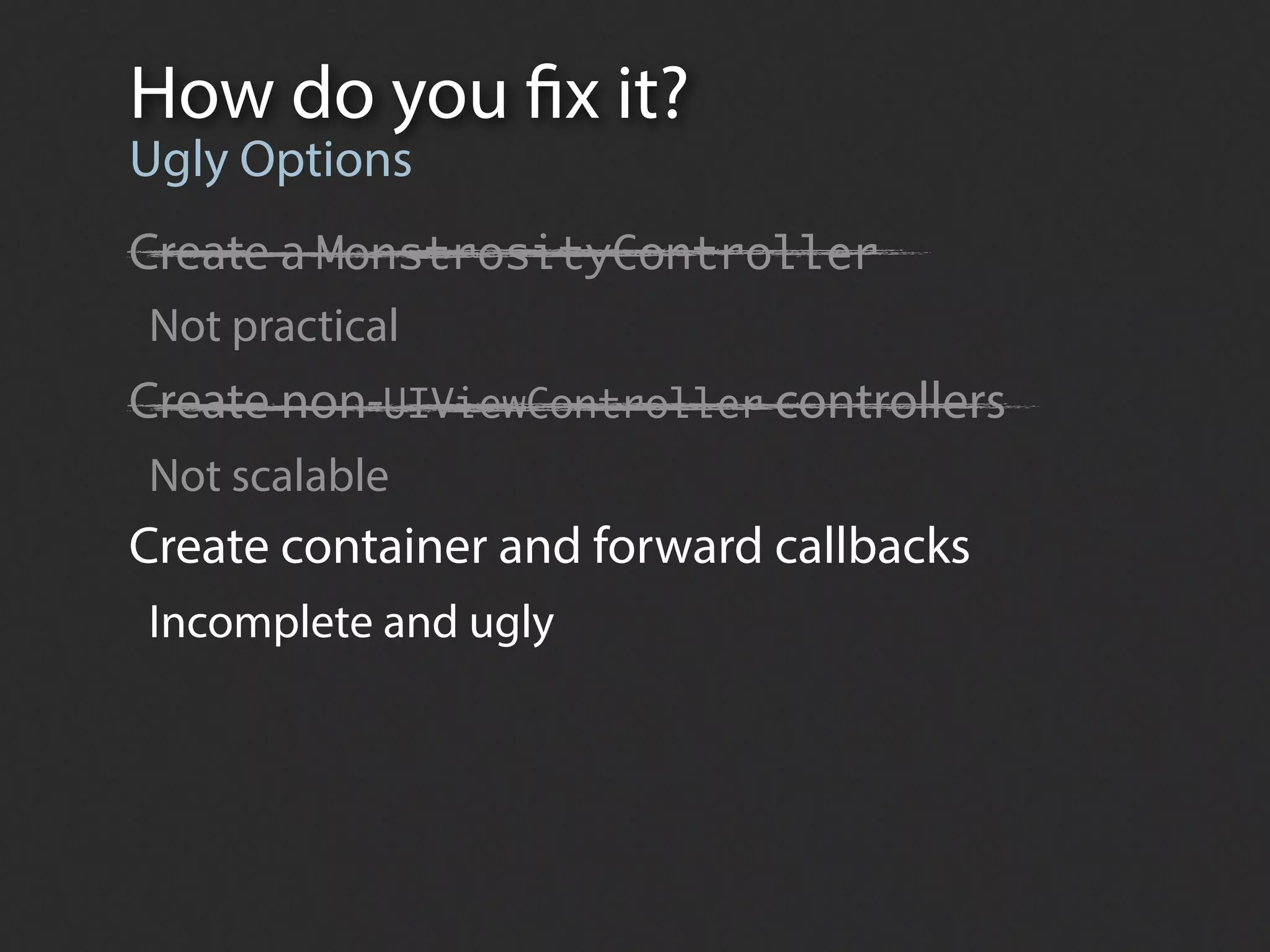

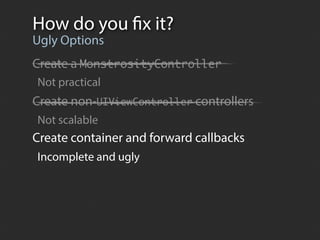

21. How do you fix it?
Ugly Options
Create a MonstrosityController
Not practical
Create non-UIViewController controllers
Not scalable
Create container and forward callbacks
Incomplete and ugly

22. View Controller Containment

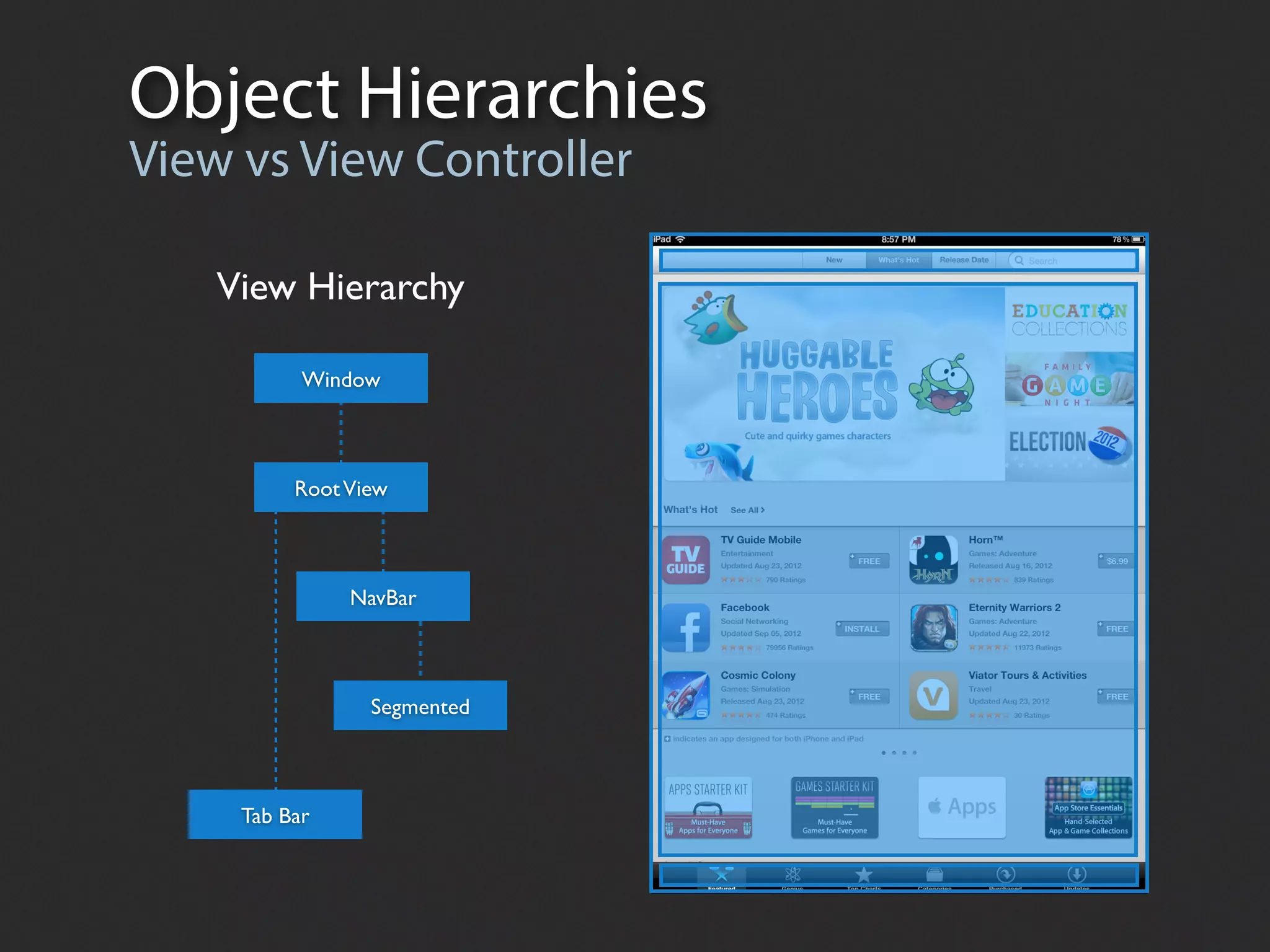

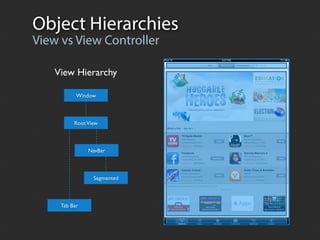

23. Object Hierarchies
View vs View Controller
View Hierarchy
Window
Root View
NavBar
Segmented
Tab Bar

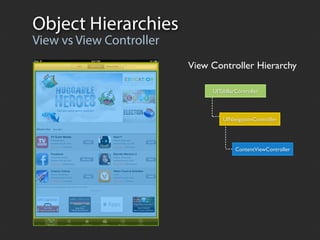

24. Object Hierarchies
View vs View Controller
View Controller Hierarchy
UITabBarController
UINavigationController
ContentViewController

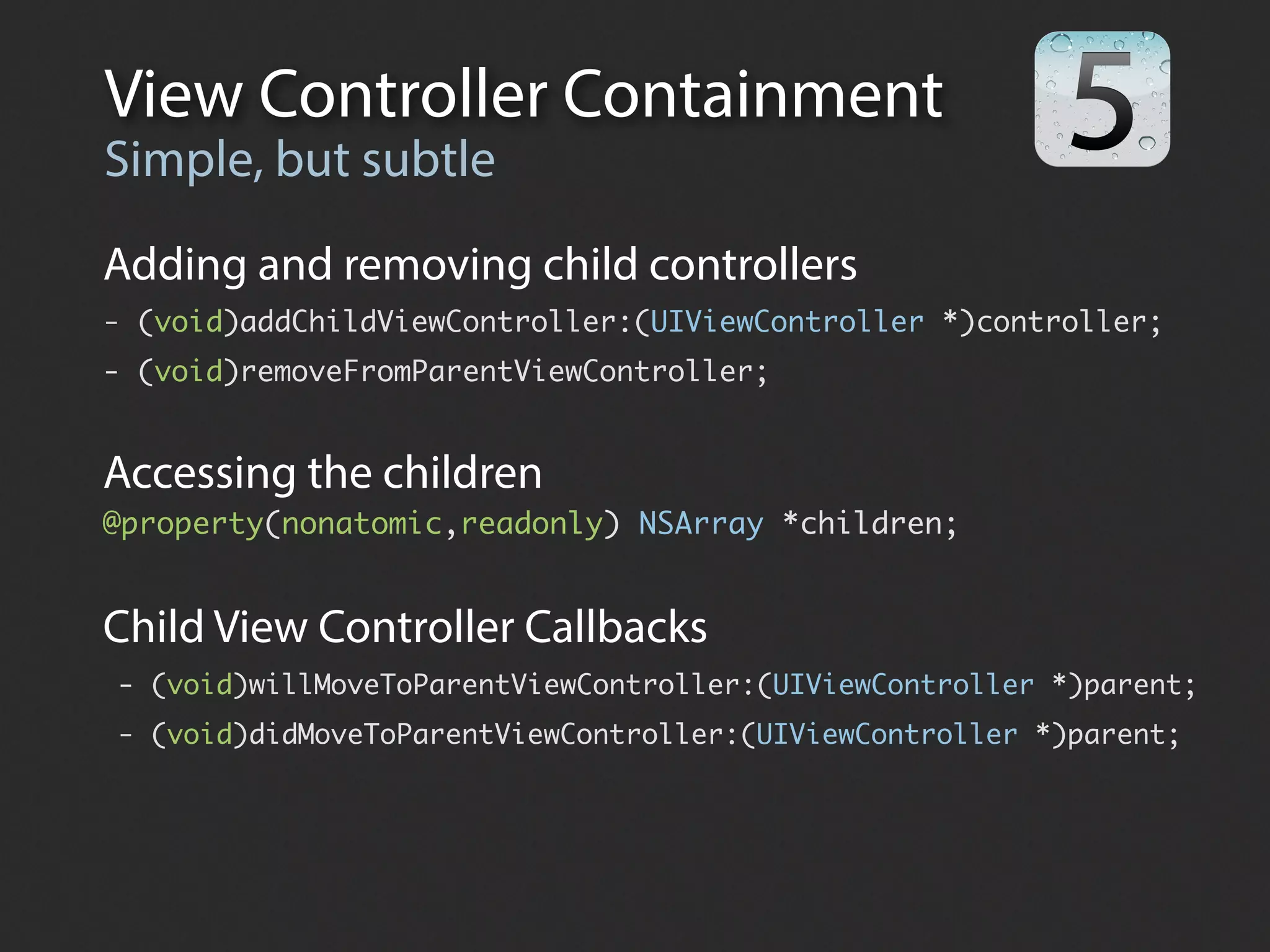

25. View Controller Containment
Simple, but subtle
Adding and removing child controllers
- (void)addChildViewController:(UIViewController *)controller;
- (void)removeFromParentViewController;
Accessing the children
@property(nonatomic,readonly) NSArray *children;
Child View Controller Callbacks
- (void)willMoveToParentViewController:(UIViewController *)parent;
- (void)didMoveToParentViewController:(UIViewController *)parent;

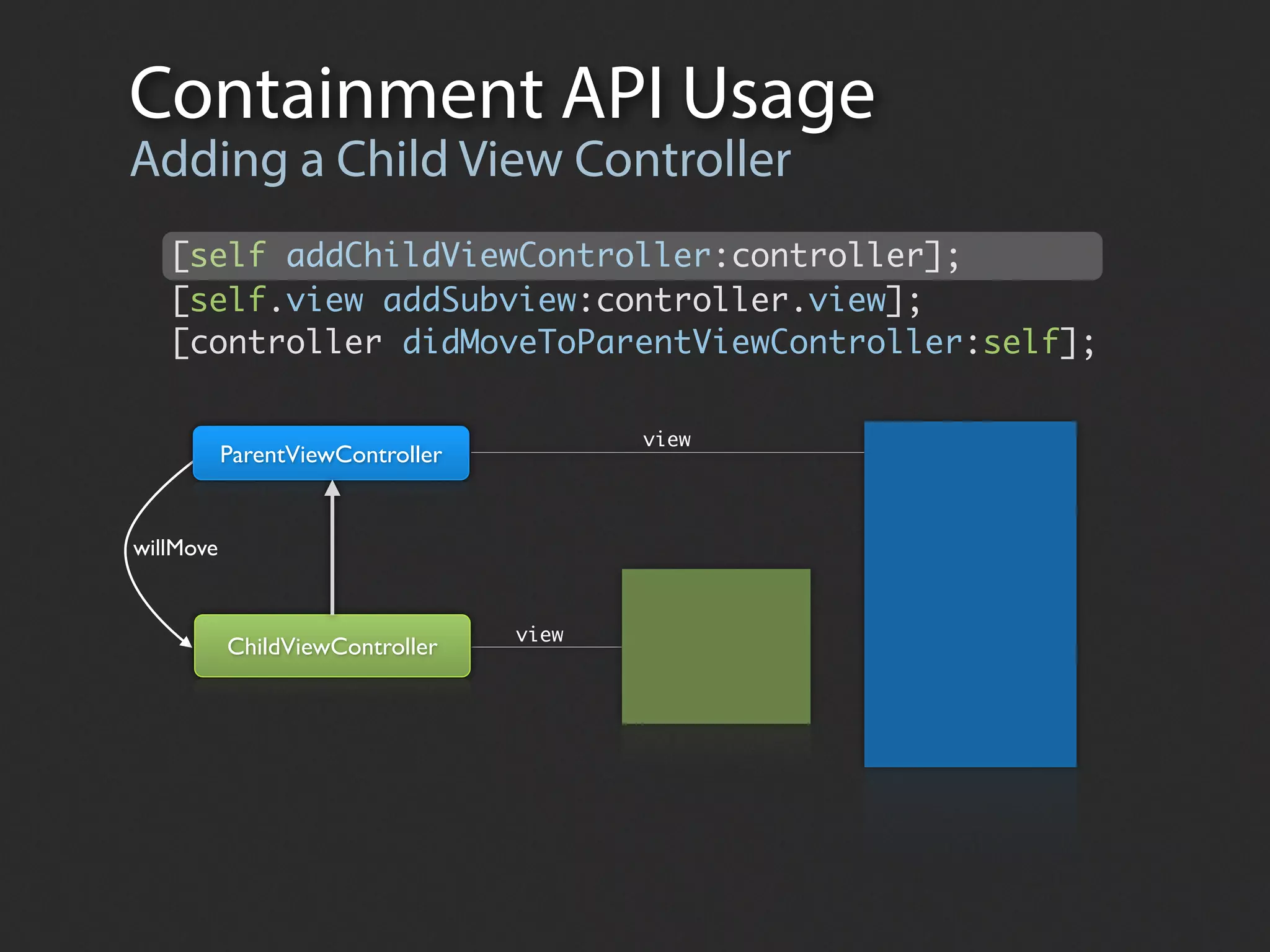

26. Containment API Usage
Adding a Child View Controller
[self addChildViewController:controller];
[self.view addSubview:controller.view];
[controller didMoveToParentViewController:self];
view
ParentViewController
willMove
view
ChildViewController

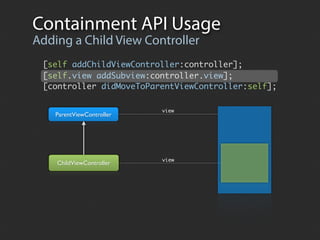

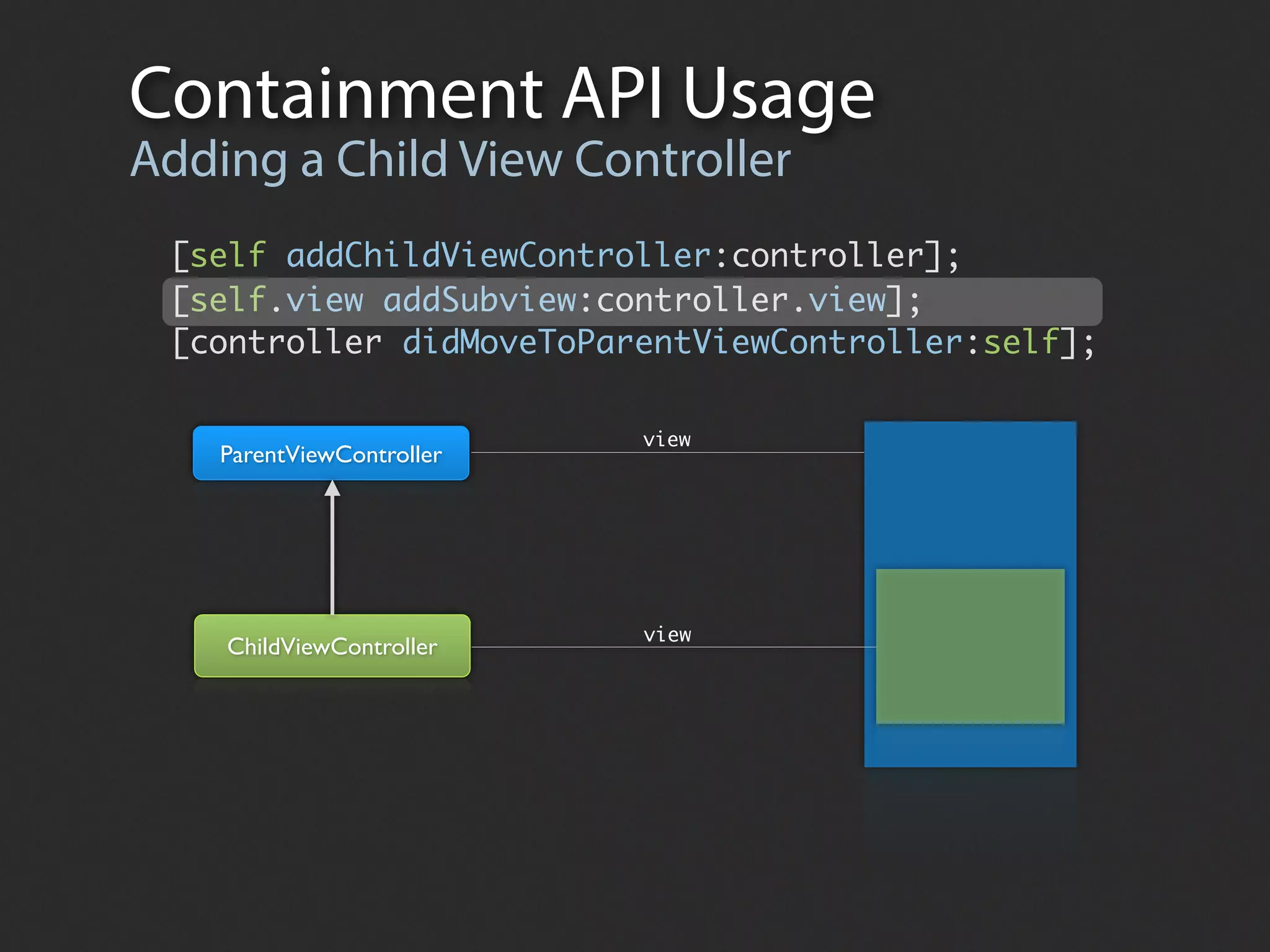

27. Containment API Usage
Adding a Child View Controller
[self addChildViewController:controller];
[self.view addSubview:controller.view];
[controller didMoveToParentViewController:self];
view
ParentViewController
view
ChildViewController

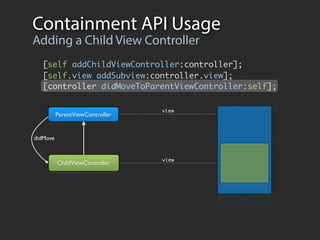

28. Containment API Usage
Adding a Child View Controller
[self addChildViewController:controller];
[self.view addSubview:controller.view];
[controller didMoveToParentViewController:self];
view
ParentViewController
didMove
view
ChildViewController

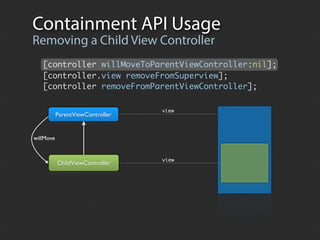

29. Containment API Usage
Removing a Child View Controller
[controller willMoveToParentViewController:nil];
[controller.view removeFromSuperview];
[controller removeFromParentViewController];
view
ParentViewController
willMove
view
ChildViewController

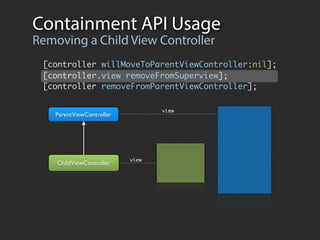

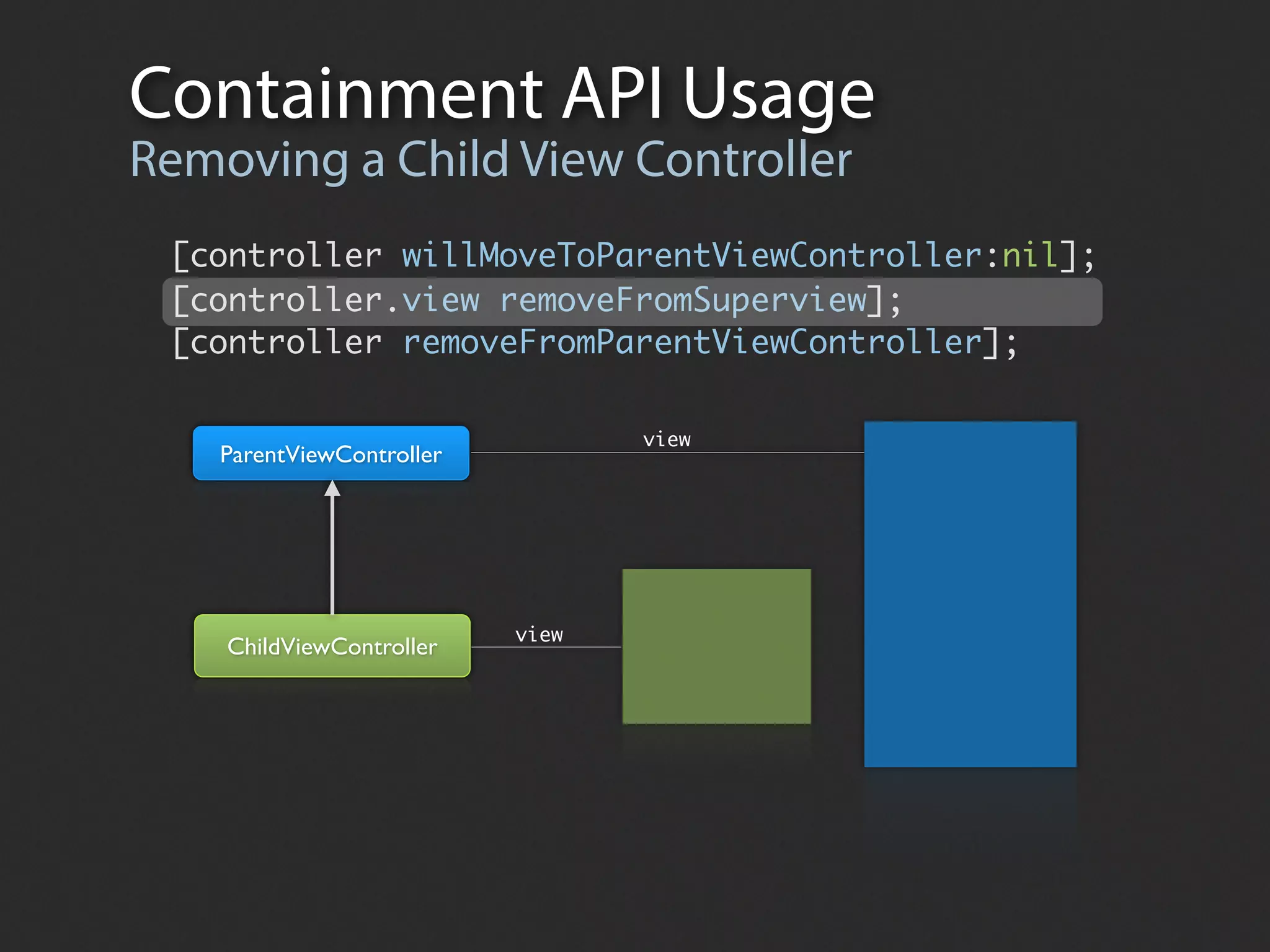

30. Containment API Usage
Removing a Child View Controller
[controller willMoveToParentViewController:nil];
[controller.view removeFromSuperview];
[controller removeFromParentViewController];
view
ParentViewController
view
ChildViewController

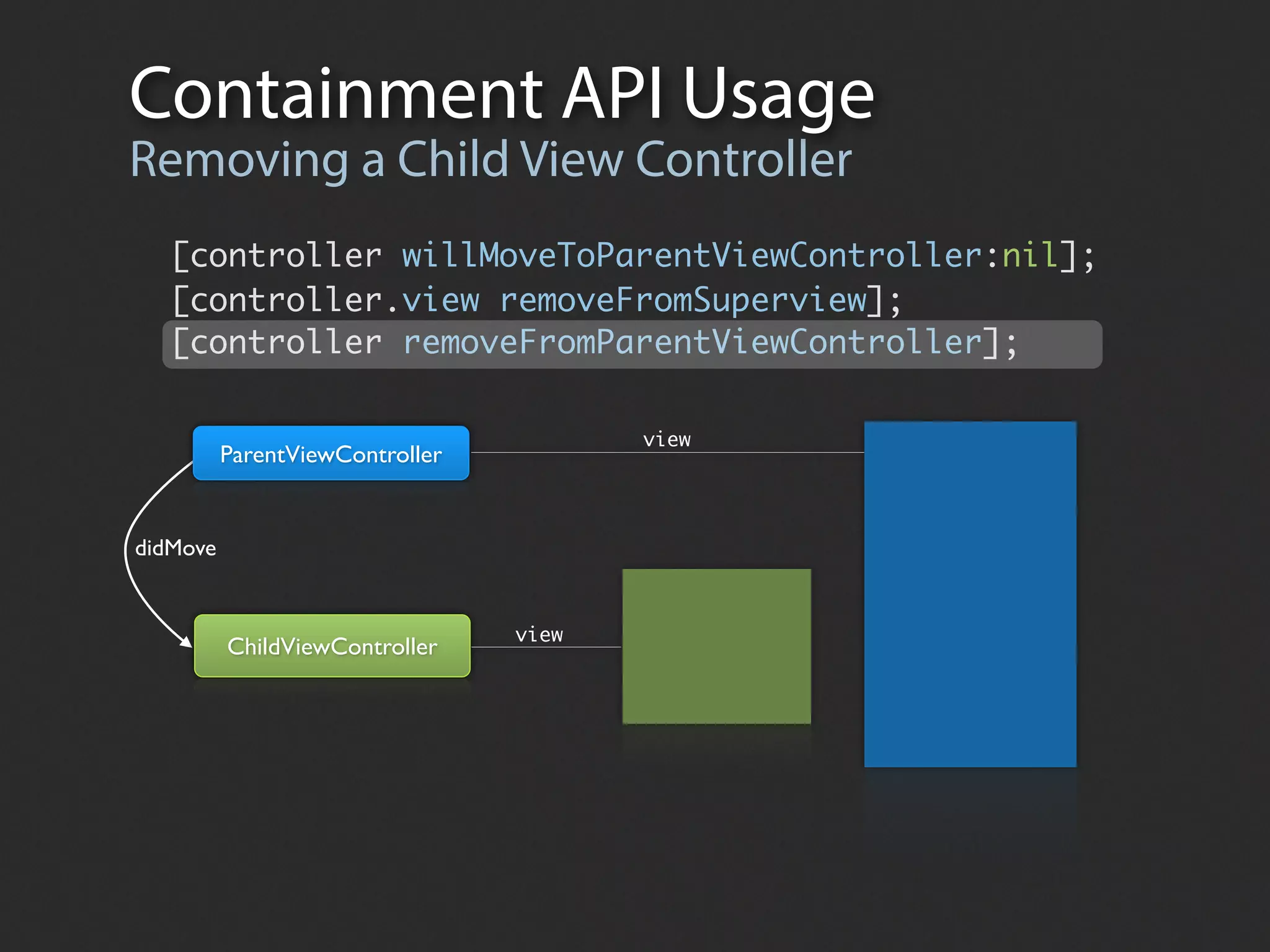

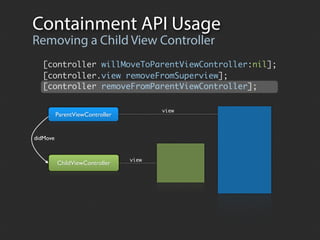

31. Containment API Usage
Removing a Child View Controller
[controller willMoveToParentViewController:nil];
[controller.view removeFromSuperview];
[controller removeFromParentViewController];
view
ParentViewController
didMove
view
ChildViewController

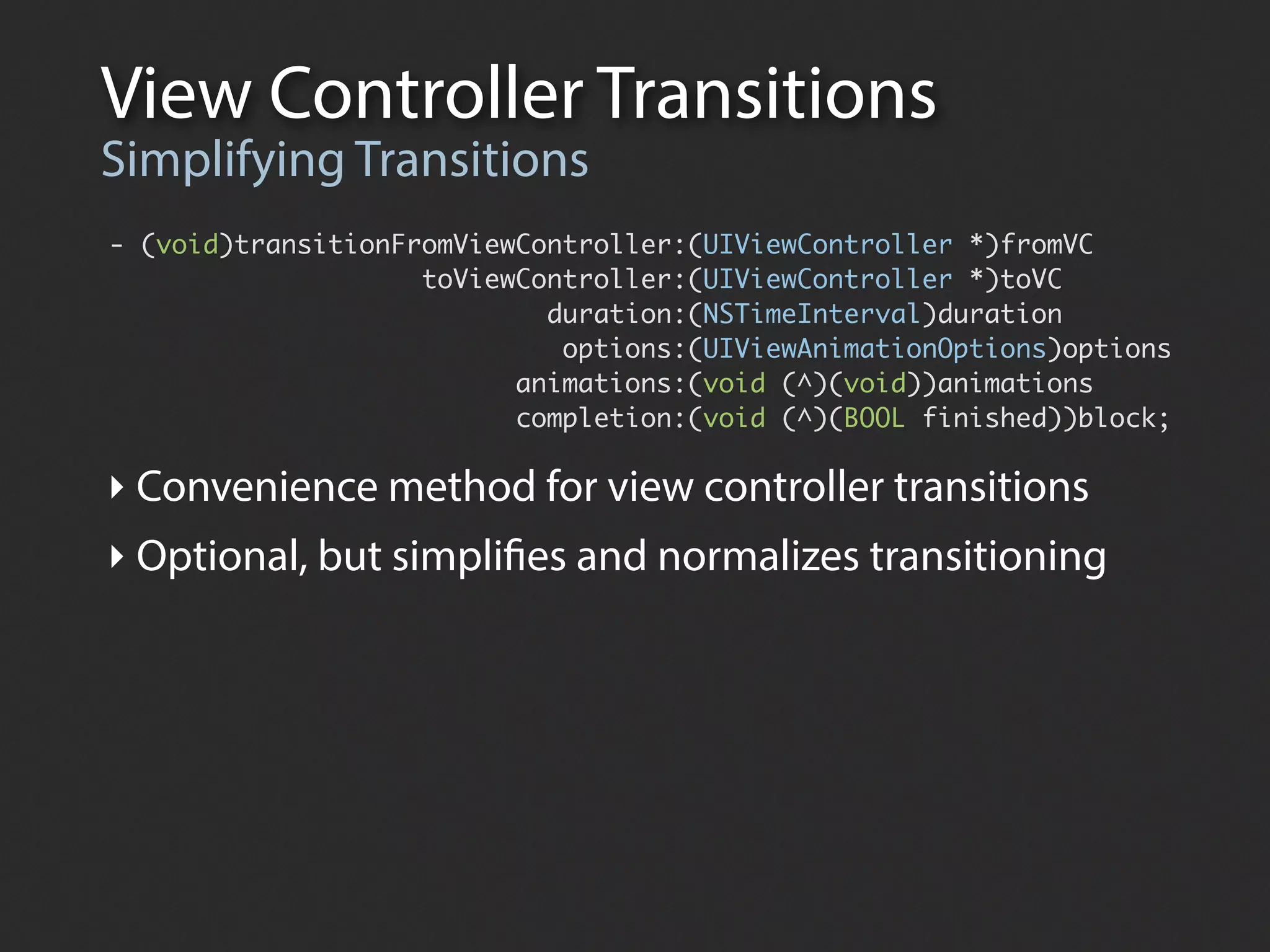

32. View Controller Transitions
Simplifying Transitions
- (void)transitionFromViewController:(UIViewController *)fromVC
toViewController:(UIViewController *)toVC
duration:(NSTimeInterval)duration
options:(UIViewAnimationOptions)options
animations:(void (^)(void))animations
completion:(void (^)(BOOL finished))block;
‣ Convenience method for view controller transitions
‣ Optional, but simplifies and normalizes transitioning

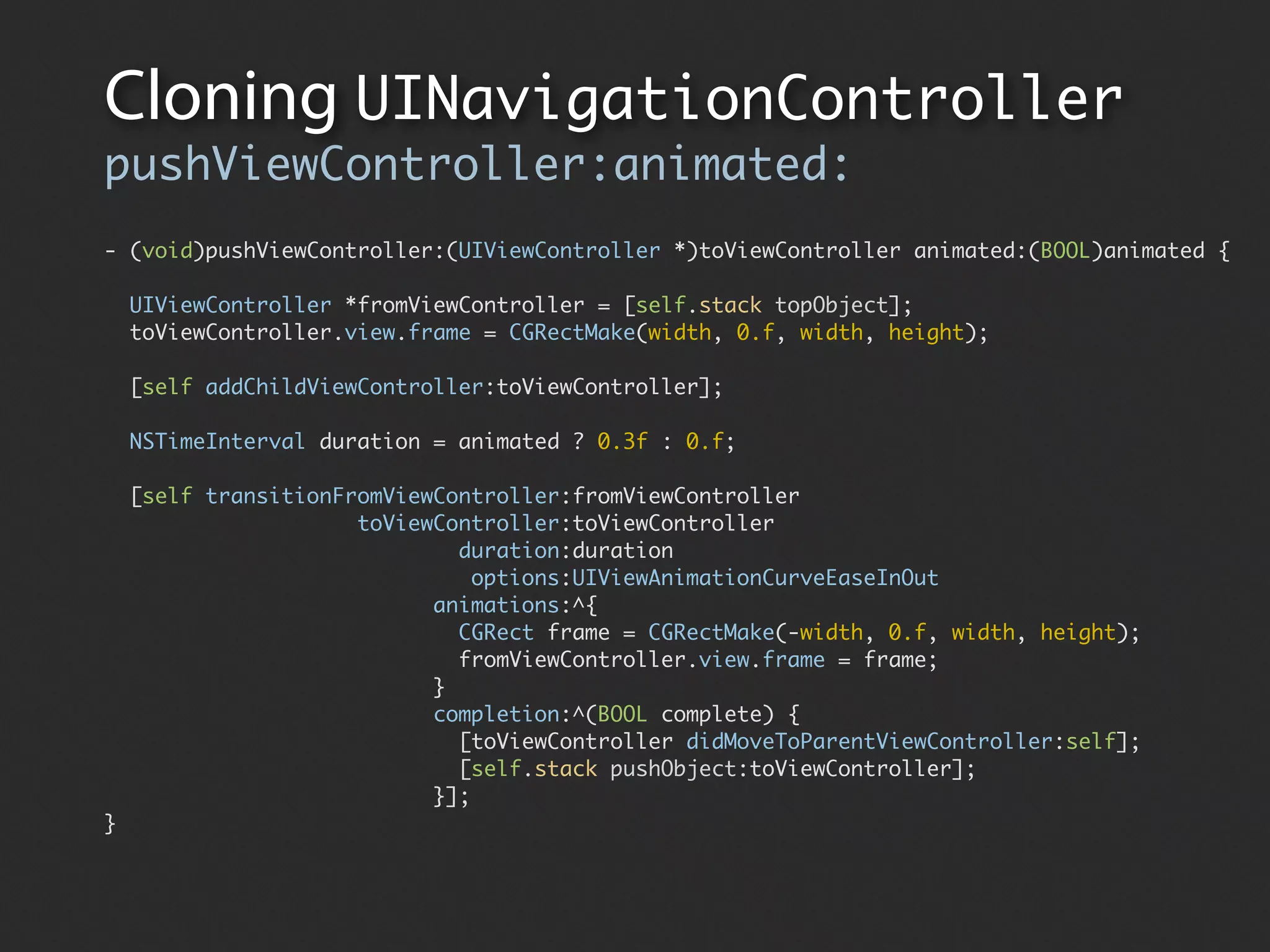

33. Cloning UINavigationController
pushViewController:animated:
- (void)pushViewController:(UIViewController *)toViewController animated:(BOOL)animated {
UIViewController *fromViewController = [self.stack topObject];
toViewController.view.frame = CGRectMake(width, 0.f, width, height);
[self addChildViewController:toViewController];
NSTimeInterval duration = animated ? 0.3f : 0.f;
[self transitionFromViewController:fromViewController
toViewController:toViewController
duration:duration
options:UIViewAnimationCurveEaseInOut
animations:^{
CGRect frame = CGRectMake(-width, 0.f, width, height);
fromViewController.view.frame = frame;
}
completion:^(BOOL complete) {
[toViewController didMoveToParentViewController:self];
[self.stack pushObject:toViewController];
}];
}

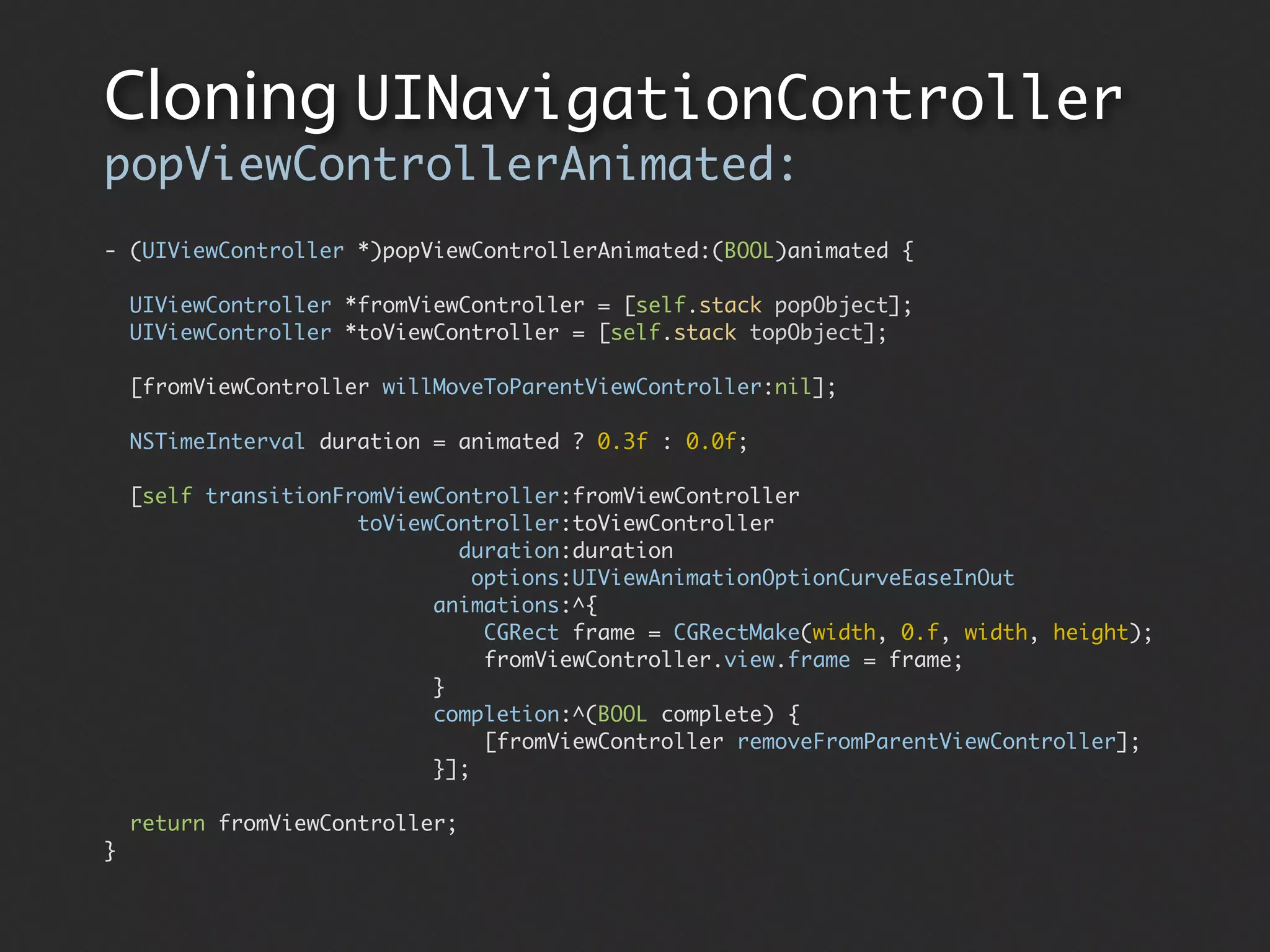

34. Cloning UINavigationController
popViewControllerAnimated:
- (UIViewController *)popViewControllerAnimated:(BOOL)animated {
UIViewController *fromViewController = [self.stack popObject];
UIViewController *toViewController = [self.stack topObject];
[fromViewController willMoveToParentViewController:nil];
NSTimeInterval duration = animated ? 0.3f : 0.0f;
[self transitionFromViewController:fromViewController
toViewController:toViewController
duration:duration
options:UIViewAnimationOptionCurveEaseInOut
animations:^{
CGRect frame = CGRectMake(width, 0.f, width, height);
fromViewController.view.frame = frame;
}
completion:^(BOOL complete) {
[fromViewController removeFromParentViewController];
}];
return fromViewController;
}

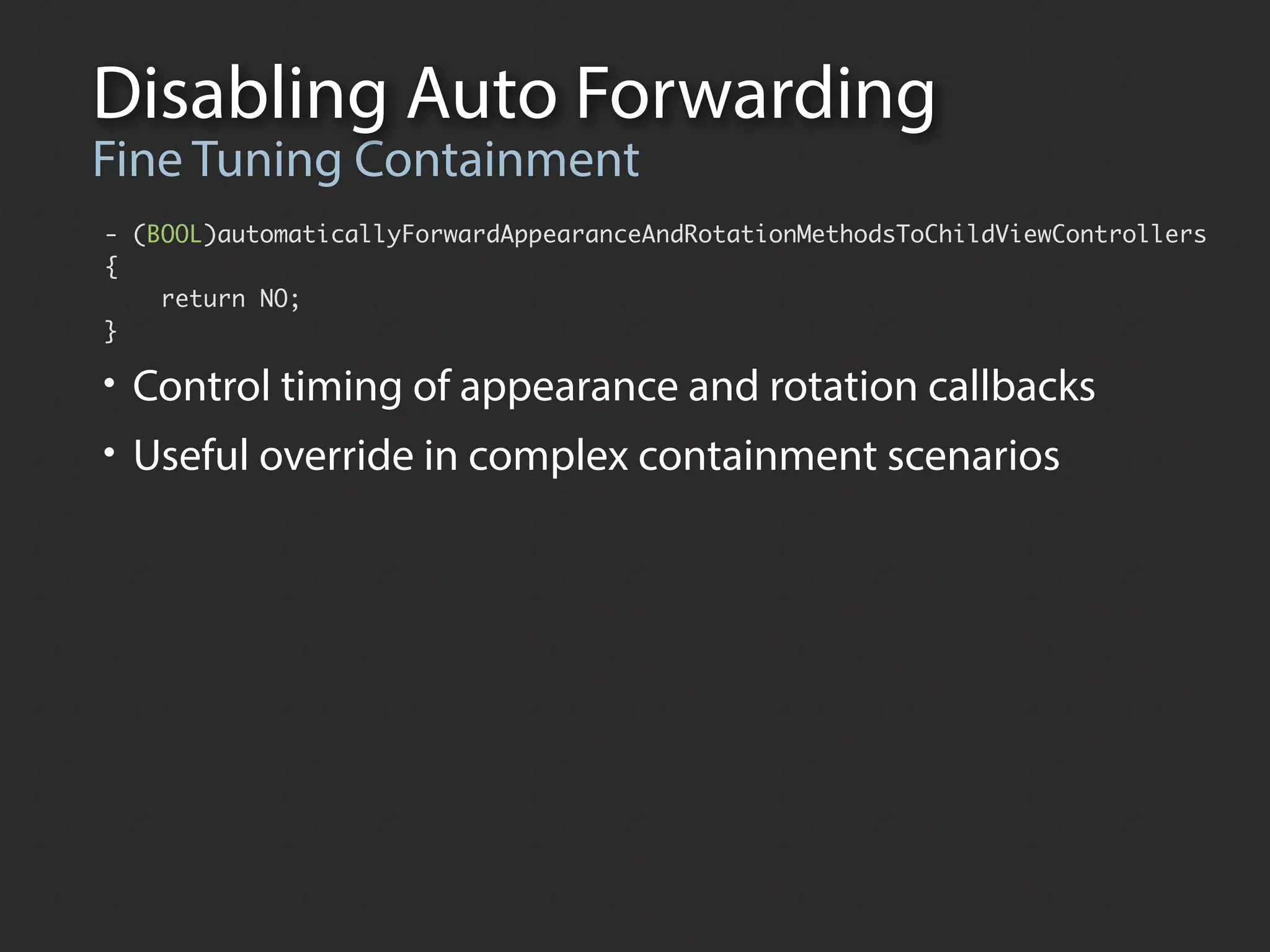

35. Disabling Auto Forwarding
Fine Tuning Containment
- (BOOL)automaticallyForwardAppearanceAndRotationMethodsToChildViewControllers
{
return NO;
}
• Control timing of appearance and rotation callbacks
• Useful override in complex containment scenarios

36. Avoiding
Common Mistakes

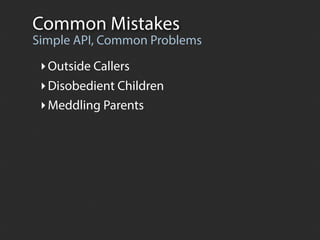

37. Common Mistakes
Simple API, Common Problems
‣ Outside Callers
‣ Disobedient Children
‣ Meddling Parents

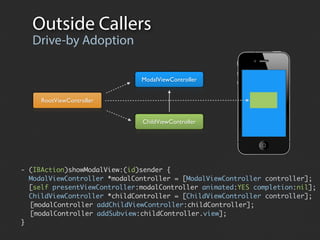

38. Outside Callers
Drive-by Adoption
ModalViewController
RootViewController
ChildViewController
- (IBAction)showModalView:(id)sender {
ModalViewController *modalController = [ModalViewController controller];
[self presentViewController:modalController animated:YES completion:nil];
ChildViewController *childController = [ChildViewController controller];
[modalController addChildViewController:childController];
[modalController addSubview:childController.view];
}

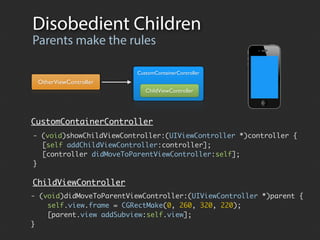

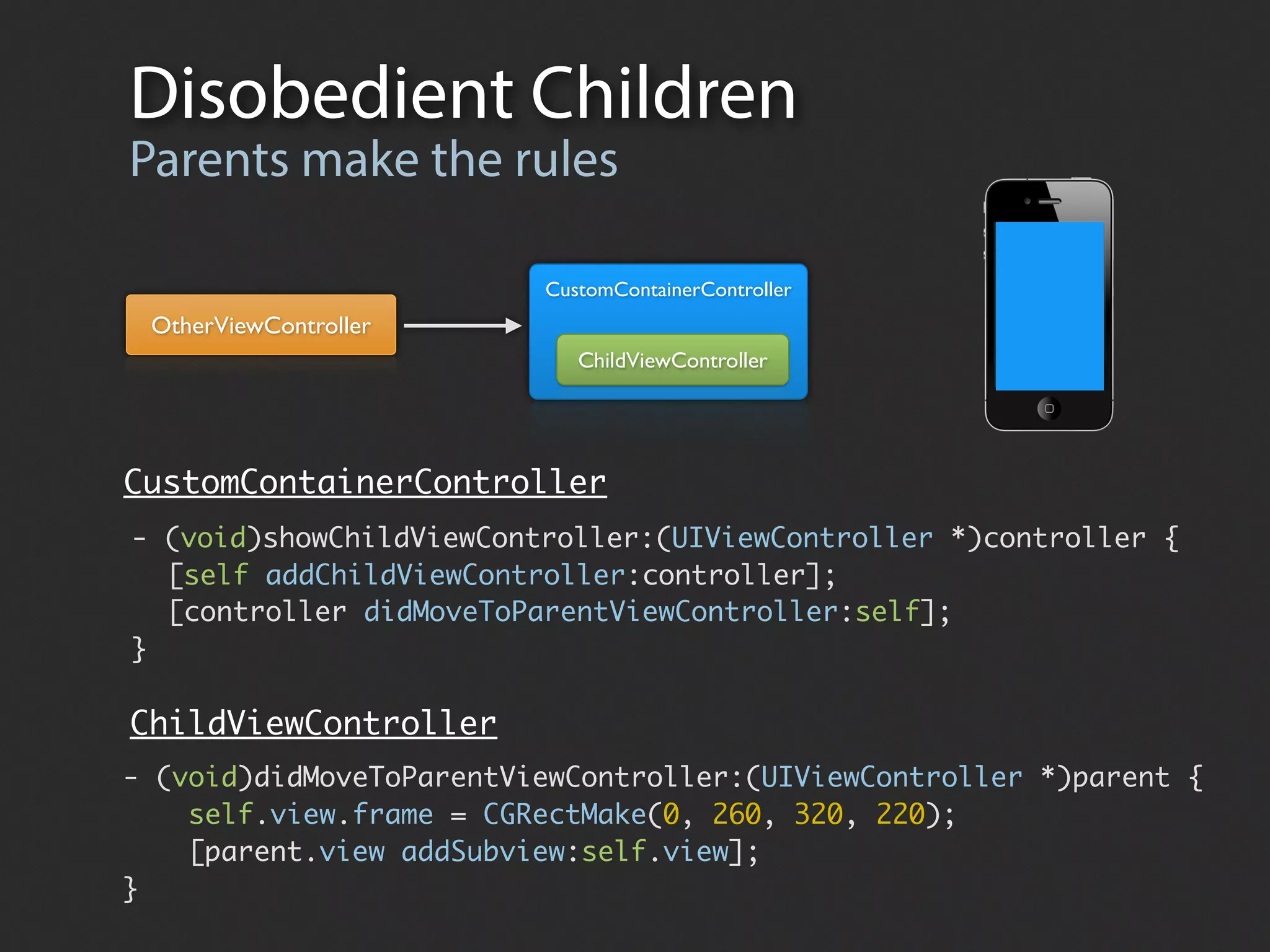

39. Disobedient Children
Parents make the rules
CustomContainerController
OtherViewController
ChildViewController
CustomContainerController
- (void)showChildViewController:(UIViewController *)controller {
[self addChildViewController:controller];
controller.view.frame = CGRectMake(0, 0, 320, 480);
[controller didMoveToParentViewController:self];
} [self.view addSubview:controller.view];
ChildViewController
- (void)didMoveToParentViewController:(UIViewController *)parent {
self.view.frame = CGRectMake(0, 260, 320, 220);
[parent.view addSubview:self.view];
}

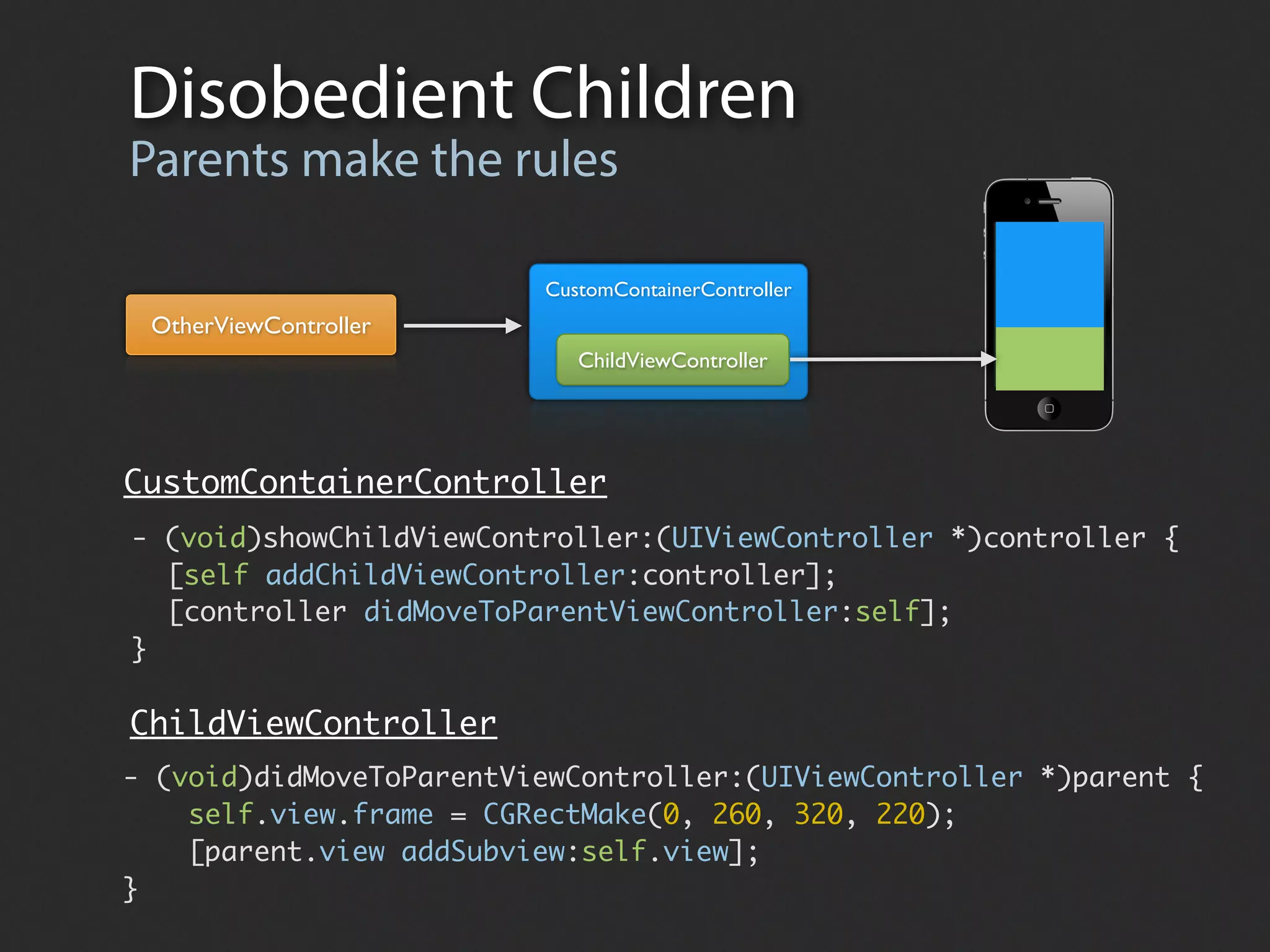

40. Disobedient Children
Parents make the rules
CustomContainerController
OtherViewController
ChildViewController
CustomContainerController
- (void)showChildViewController:(UIViewController *)controller {
[self addChildViewController:controller];
controller.view.frame = CGRectMake(0, 0, 320, 480);
[controller didMoveToParentViewController:self];
} [self.view addSubview:controller.view];
ChildViewController
- (void)didMoveToParentViewController:(UIViewController *)parent {
self.view.frame = CGRectMake(0, 260, 320, 220);
[parent.view addSubview:self.view];
}

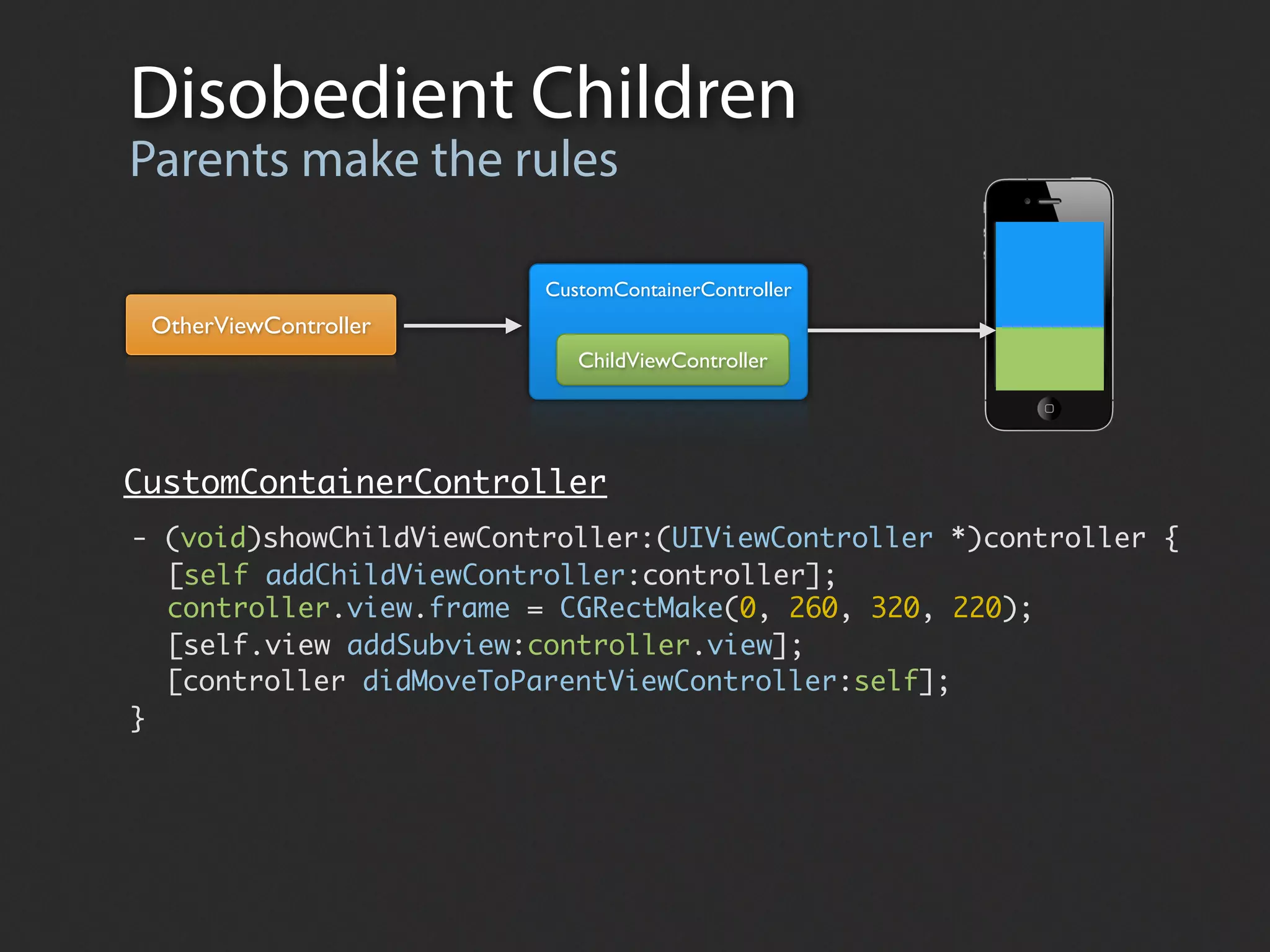

41. Disobedient Children
Parents make the rules
CustomContainerController
OtherViewController
ChildViewController
CustomContainerController
- (void)showChildViewController:(UIViewController *)controller {
[self addChildViewController:controller];
controller.view.frame = CGRectMake(0, 260, 320, 220);
[self.view addSubview:controller.view];
[controller didMoveToParentViewController:self];
}

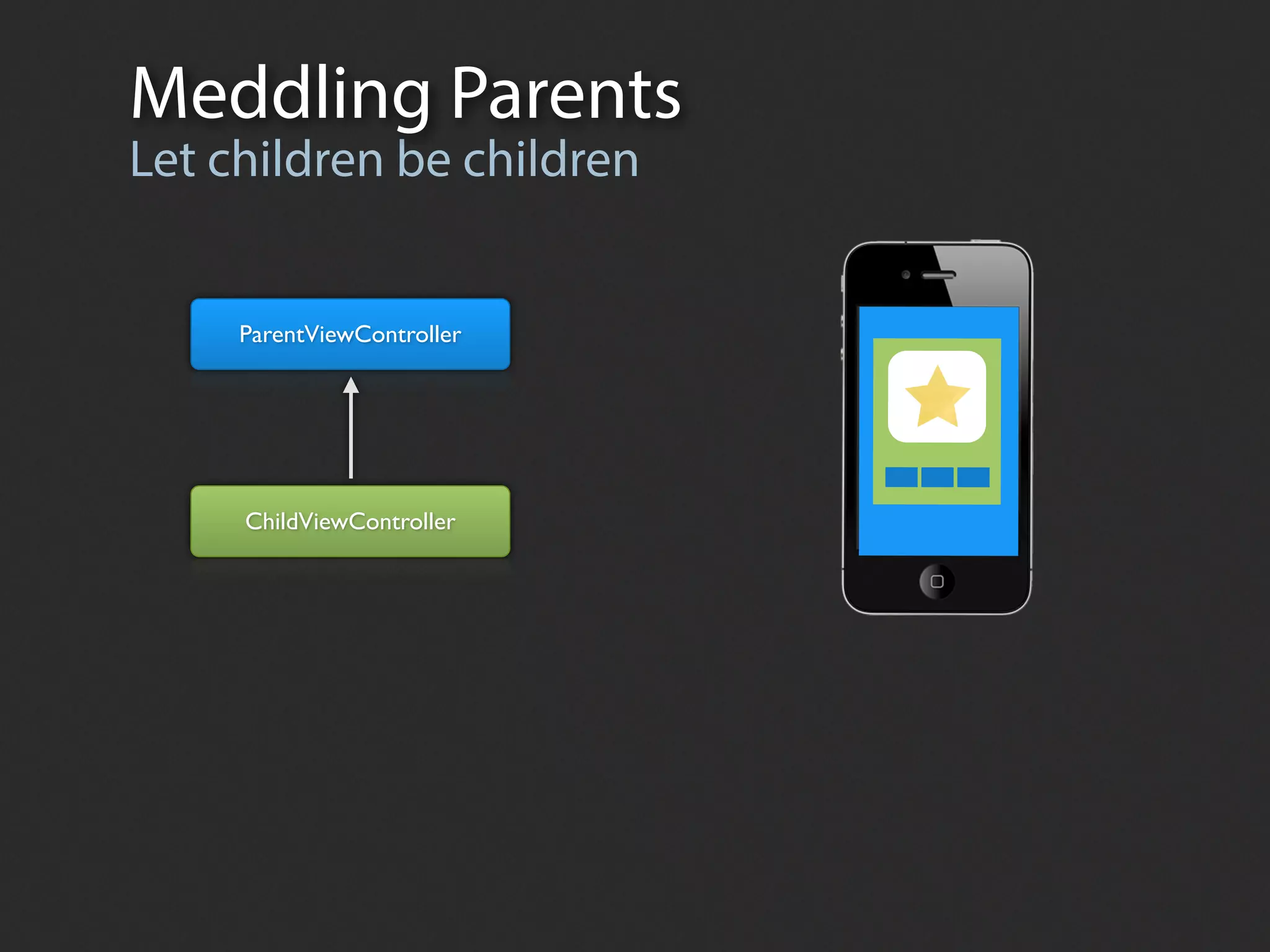

42. Meddling Parents
Let children be children
ParentViewController
ChildViewController

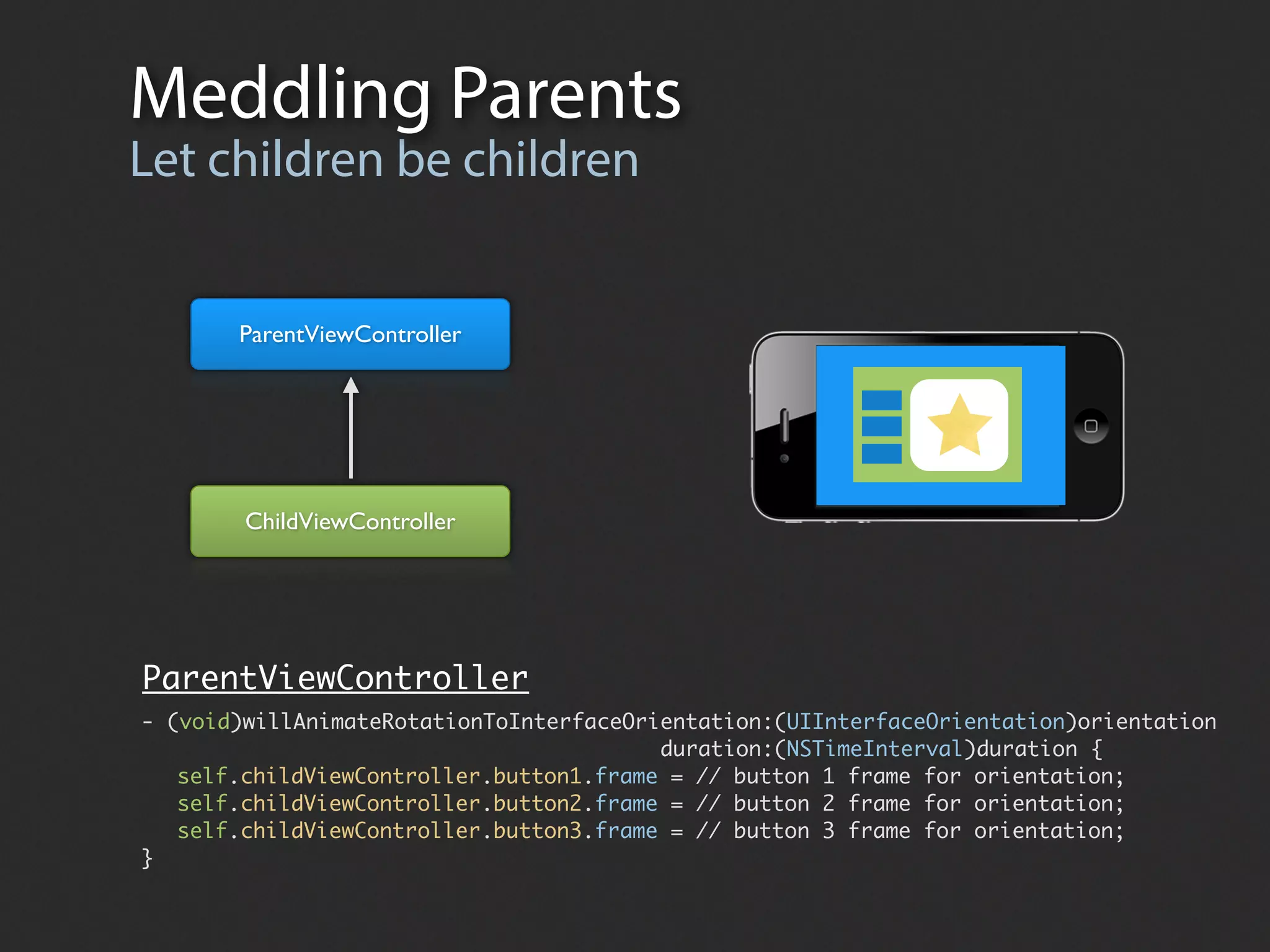

43. Meddling Parents
Let children be children
ParentViewController
ChildViewController
ParentViewController
- (void)willAnimateRotationToInterfaceOrientation:(UIInterfaceOrientation)orientation
duration:(NSTimeInterval)duration {
self.childViewController.button1.frame = // button 1 frame for orientation;
self.childViewController.button2.frame = // button 2 frame for orientation;
self.childViewController.button3.frame = // button 3 frame for orientation;
}

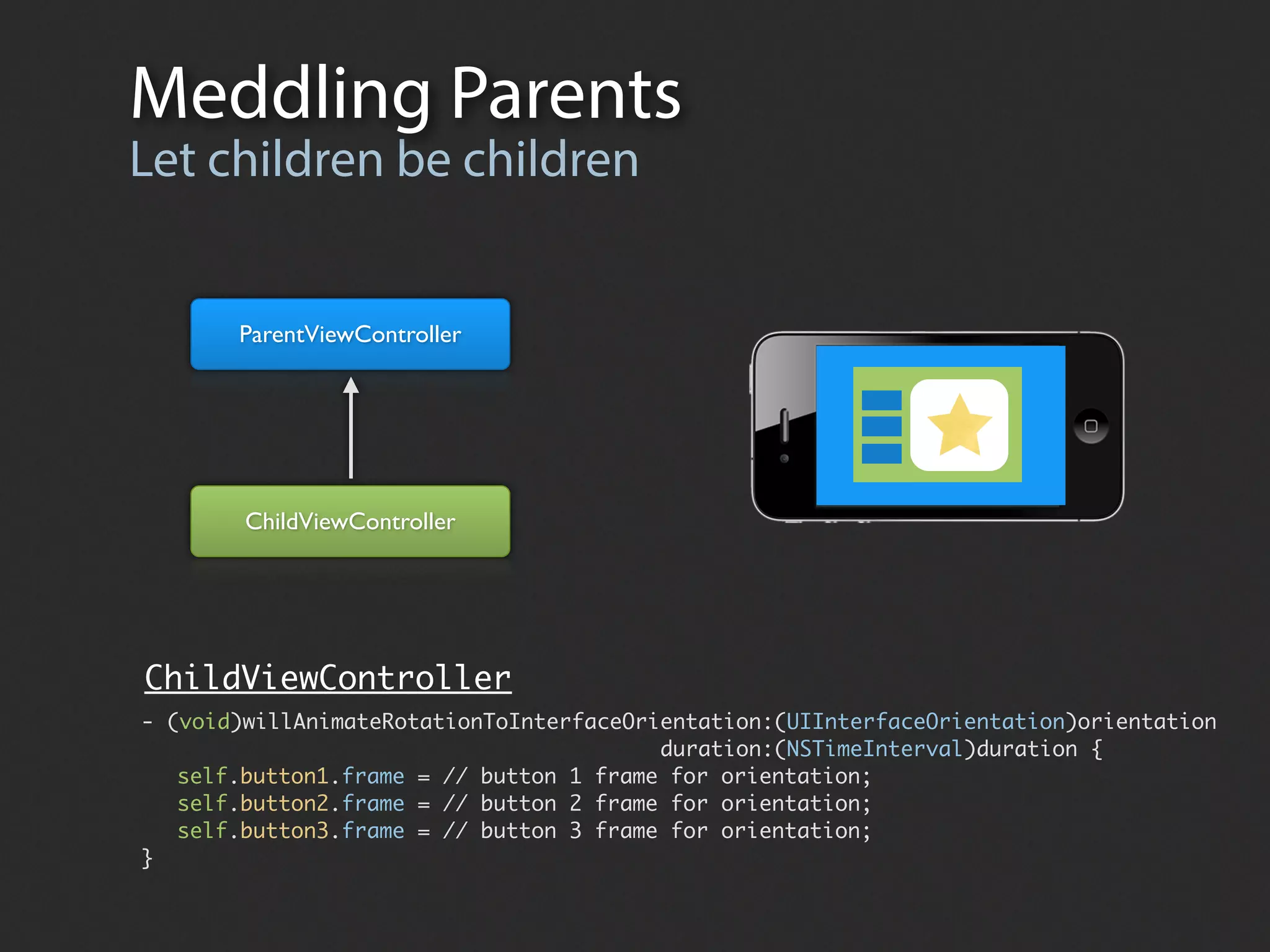

44. Meddling Parents
Let children be children
ParentViewController
ChildViewController
ChildViewController
- (void)willAnimateRotationToInterfaceOrientation:(UIInterfaceOrientation)orientation
duration:(NSTimeInterval)duration {
self.button1.frame = // button 1 frame for orientation;
self.button2.frame = // button 2 frame for orientation;
self.button3.frame = // button 3 frame for orientation;
}

45. Demo

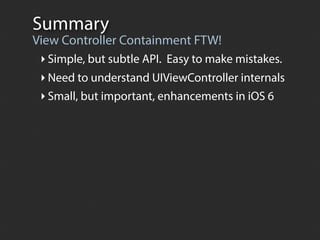

46. Summary
View Controller Containment FTW!
‣ Simple, but subtle API. Easy to make mistakes.
‣ Need to understand UIViewController internals
‣ Small, but important, enhancements in iOS 6

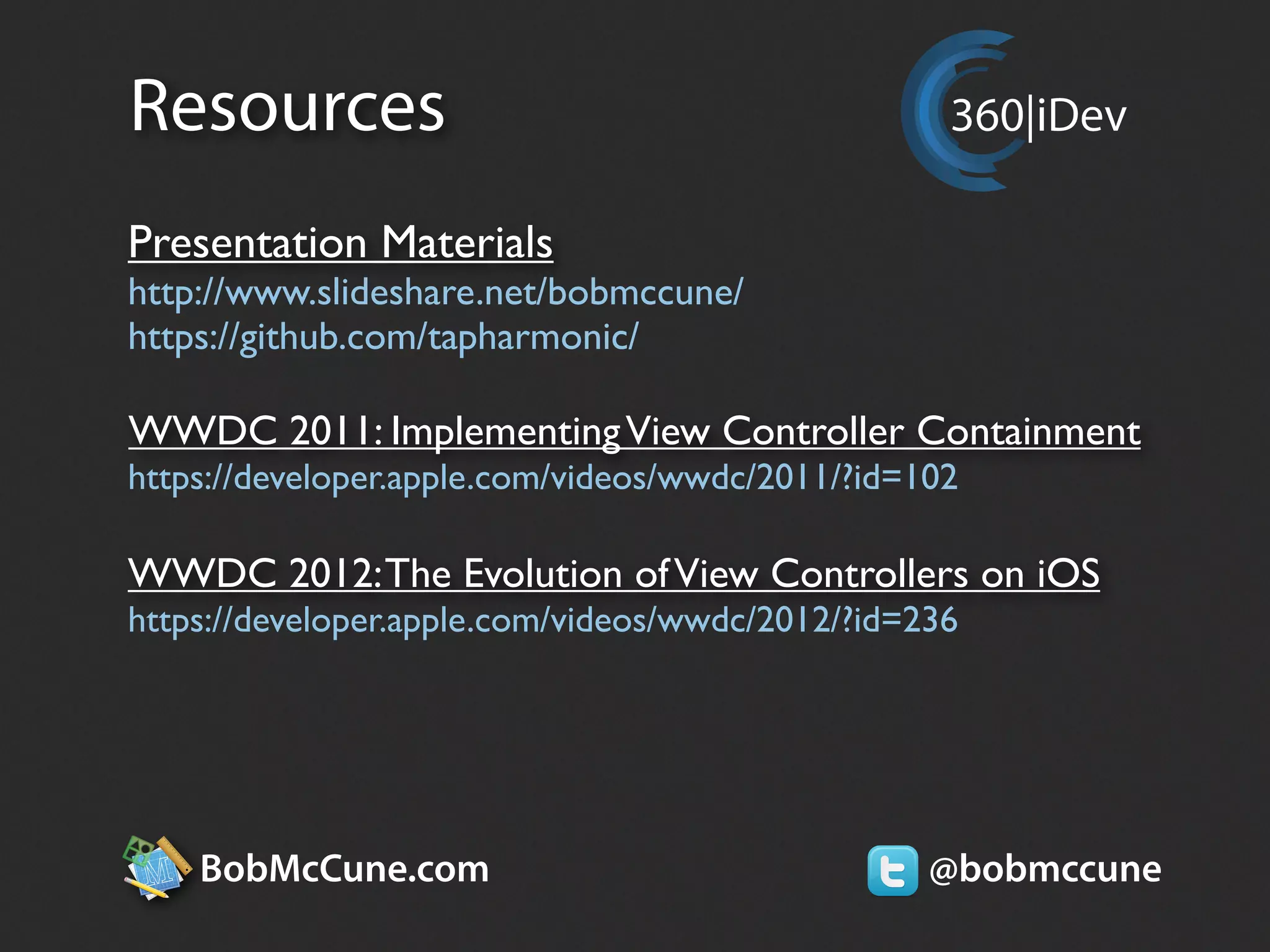

47. Resources
Presentation Materials
http://www.slideshare.net/bobmccune/
https://github.com/tapharmonic/
WWDC 2011: Implementing View Controller Containment
https://developer.apple.com/videos/wwdc/2011/?id=102
WWDC 2012: The Evolution of View Controllers on iOS
https://developer.apple.com/videos/wwdc/2012/?id=236
BobMcCune.com @bobmccune
