Abstract C++ programmers have developed a vast investment of existing code. Use of this code from other languages is normally impractical. Walter shows how this code can be accessible from the D programming language. C is the lingua franca of the programming language industry. By presenting a C interface, most languages can connect with one another, and connect to a vast treasure house of C code. But C++ code is very hard to provide an interface too, and almost no languages even attempt it. I'd long ago decided that in order to provide a direct interface from D to C++ would require essentially adding the full semantics of a C++ compiler to D, and that would be impractical. But the idea persistently recurs, as there is a lot of interest in interfacing D to legacy C++ code. It turns out that we actually can, with minor adjustments to D, directly interface to quite a bit of C++, especially if one is willing to be a bit flexible on both the C++ and D sides. This presentation goes through the principles on how this works, what works and what doesn't work, and how one can retain an investment in C++ code while migrating to D. Bio Walter Bright is the creator and first implementer of the D programming language and has implemented compilers for several other languages. He's an expert in all areas of compiler technology, including front ends, optimizers, code generation, interpreter engines and runtime libraries. Walter regularly writes articles about compilers and programming, is known for engaging and informative presentations, and provides training in compiler development techniques. Many are surprised to discover that Walter is also the creator of the wargame Empire, which is still popular today over 30 years after its debut.

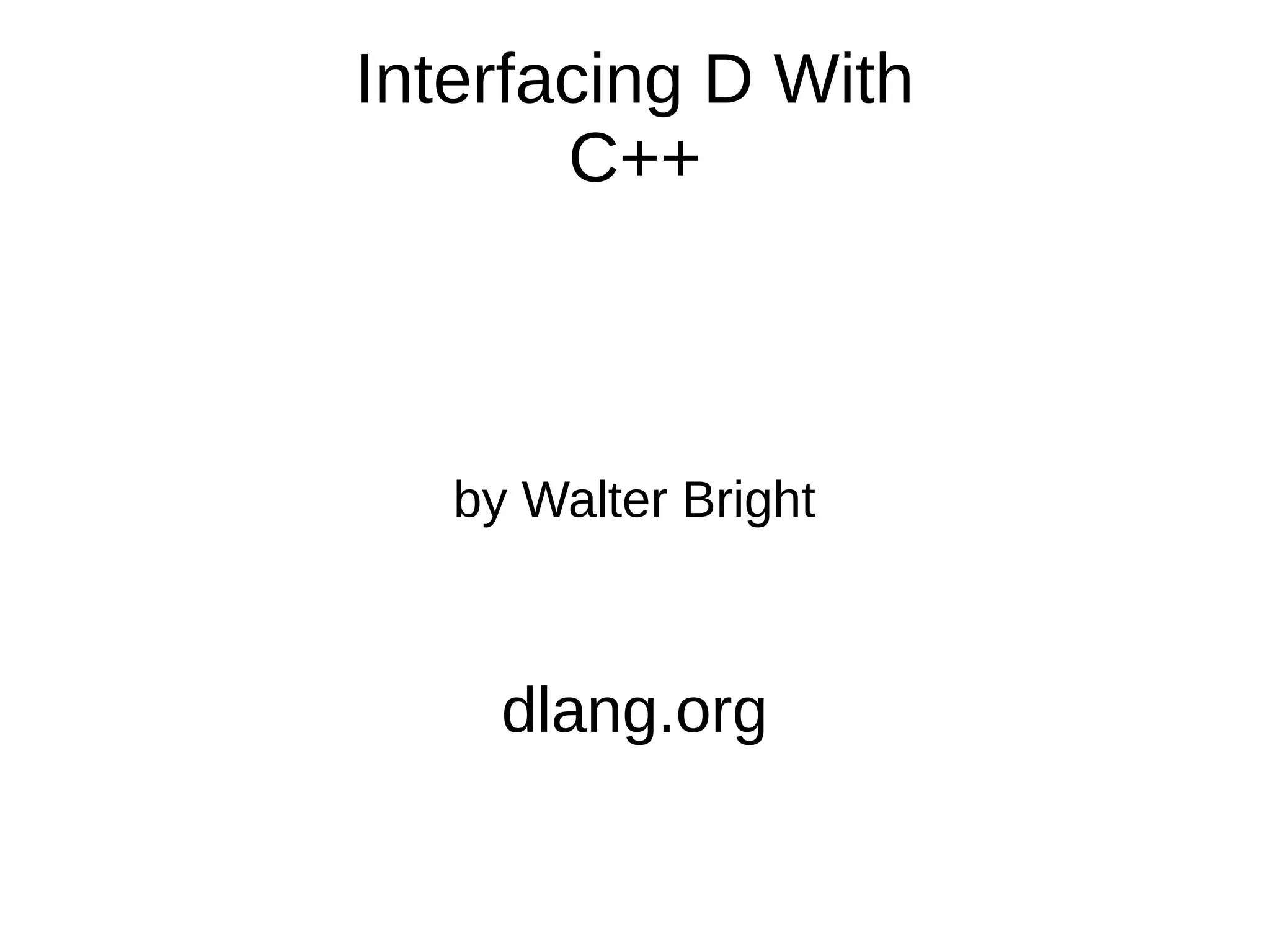

1. Interfacing D With
C++
by Walter Bright
dlang.org

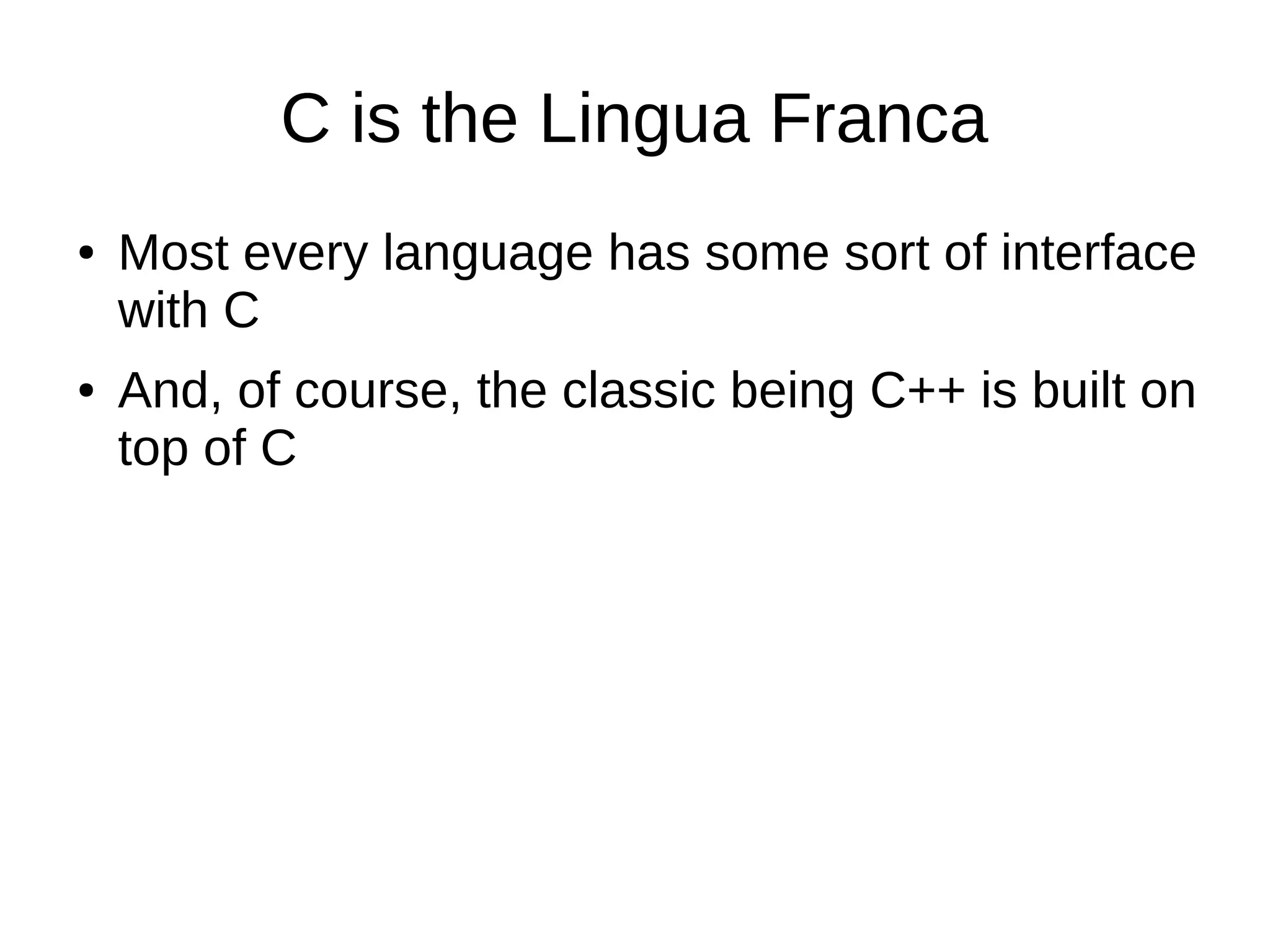

2. C is the Lingua Franca
● Most every language has some sort of interface
with C
● And, of course, the classic being C++ is built on
top of C

3. C Interop
extern ( C ) {
void* malloc(size_t);
void free(void*);
}

4. C++ Interop?

5. ● Name mangling
● Templates
● SFINAE
● Namespaces
● Overloading
● Argument Dependent Lookup

6. Inconceivable!
--The Princess Bride

7. ● RTTI
● Virtual functions
● Exceptions
● Special member functions
● Operator overloading
● Const
Oh My!

8. Imposserous!
– The Wizard of Oz

9. You'd have to build a whole C++
front end into the language!

10. Or Maybe Not...

11. Don't have to compile C++,
just have to link to it

12. D doesn't have an analog of everything
C++ has, so if we can be a bit plastic on
both sides...

13. extern (C++)
{
uint foo(ref char* p);
}
Should connect to:
extern “C++”
{
unsigned foo(char*& p);
}

14. D C++
char char
byte signed char
ubyte unsigned char
short short
ushort unsigned short
int int
uint unsigned
long long long
ulong unsigned long long

15. What About
extern “C++” void foo(long x);
(long doesn't seem to have a D analog)

16. struct __c_long {
this(int x) { lng = x; }
int lng;
alias lng this;
}

17. Unsolved Const Problem
int ****const*** func();
?func@@YAPAPAPBQAPAPAPAHXZ
const(int ****)*** func();
?func@@YAPAPAPBQBQBQBHXZ

18. Struct Layout Matches C++
C++:
struct s { unsigned a; char c; double d; };
D:
struct s { uint a; char c; double d; }
Static members too!

19. Struct Member Functions
The same

20. Polymorphism (virtual functions)
● D classes have virtual functions
– But object layout is different
– vtbl[] layout is different

21. D Supports COM Interfaces
import std.c.windows.com;
interface IHello : IUnknown {
extern (Windows) int Print();
}
class CHello : ComObject, IHello {
HRESULT Print() {
MessageBoxA(null, “hello”, null, MB_OK);
}
}

22. Or Simply
extern (C++) class C {
void func() { … }
}

23. Multiple Inheritance
Not even once!
Lord of the Rings

24. Floor Wax or Dessert Topping?
Value or reference type?

25. C++ Namespaces
namespace N {
namespace M {
void foo();
}
}
namespace N { // not closed
void bar();
}

26. D Name Spaces
● module
● struct
● class
● mixin template

27. Extend C++ Declaration
extern (C++, N.M) {
void foo();
}
extern (C++, N) {
void bar();
}

28. C++ Templates
● SFINAE
● Partial ordering
● Dependent lookup
● Point of instantiation
● Primary template
● Template templates

30. Ignore All That
It's just a name mangling problem.

31. C++:
template<class X, int C>
struct Boo {
X v[C];
};
D:
extern (C++)
struct Boo(X, int C) {
X[C] v;
}

32. Toto Too!
C++:
template<class T>
T func(T t) { return t; }
func(3);
??$func@H@@YAHH@Z
D:
extern(C++)
T func(T)(T t) { return t; }
func(3);
??$func@H@@YAHH@Z
Wizard of Oz

33. Now It's Time to Justify My
Existence

34. Interface to STL!
Let's try and hook up to
std::vector<T>

35. std.vector!int p;
func(p);
calls:
void func(std::vector<int, std::allocator<int> > *p);

36. extern (C++, std) {
class vector(T, A = allocator!T) {
final void push_back(ref const T);
}
}

37. extern (C++, std) {
struct allocator(T) {
alias size_type = size_t;
void deallocate(T* p, size_type sz) {
(cast(__gnu_cxx.new_allocator!T*)&this).deallocate(p, sz);
}
}
}
extern (C++, __gnu_cxx) {
struct new_allocator(T) {
alias size_type = size_t;
void deallocator(T*, size_type);
}
}

38. Biggest Remaining Problem
● Catching C++ exceptions
– which are by value
– D exceptions are by reference

39. Tl,Dr;
● Can get pretty far
● Need to be flexible on both ends
● Interfaces to STL are not portable
● and requires non-trivial expertise

40. ● It'll never be 100%
● But it's tractable
● And infinitely better than C wrappers
● No longer locked in to existing C++ code
