This document provides instructions for pairing a COOKOO smartwatch with an Android device using the Connected Watch App. It outlines downloading the app, enabling Bluetooth, placing the watch in pairing mode, registering an account, setting up notifications, and testing notifications using the app's demo features. Troubleshooting tips are also provided.

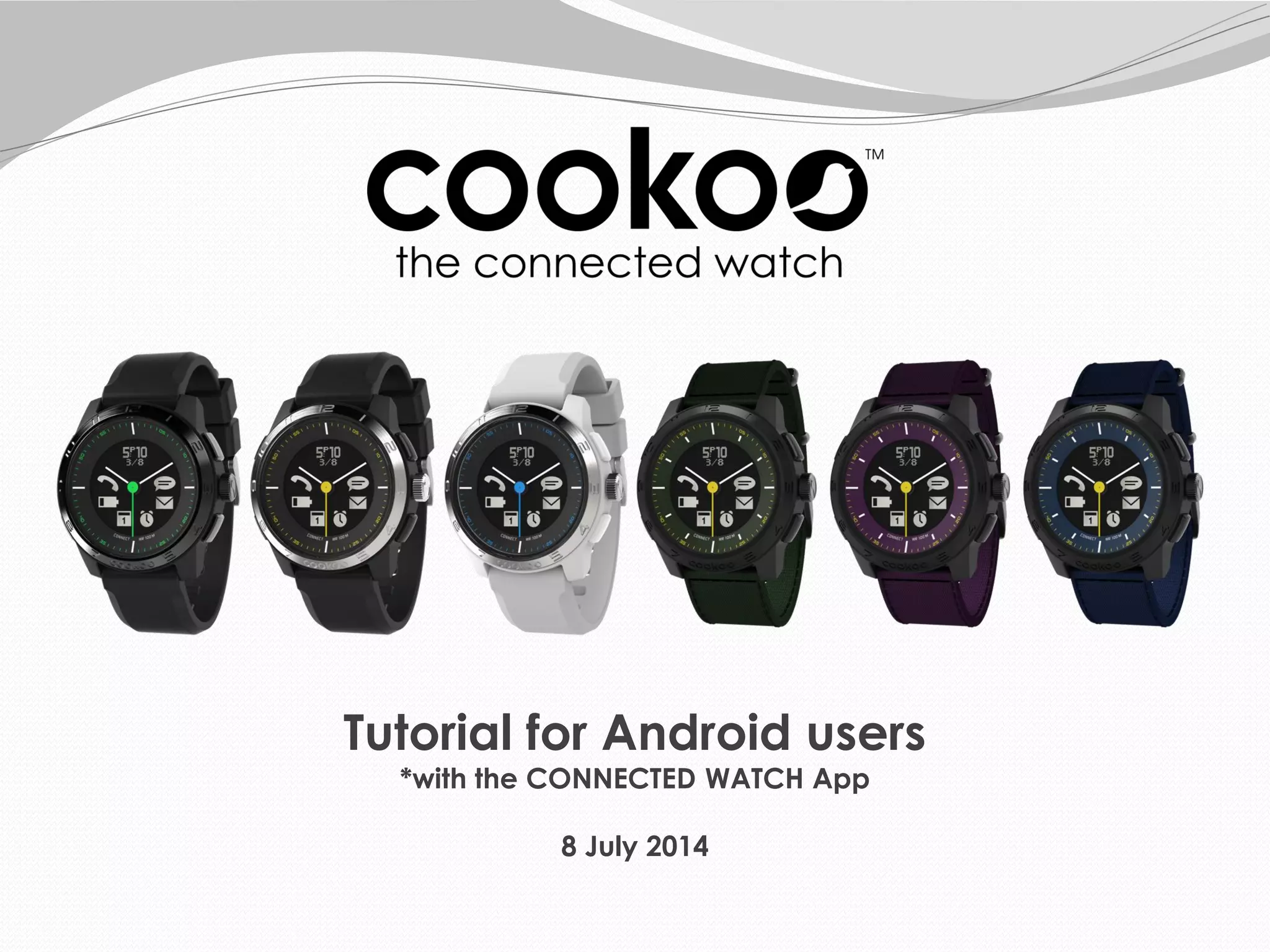

1. Tutorial for Android users
*with the CONNECTED WATCH App
8 July 2014

2. Table of Contents
1. How to use the watch
2. How to pair the watch to your device
1. Step 1: Prepare your watch for pairing
2. Step 2: Download the Connected App to your Android
device
3. Step 3: Prepare your device by enabling Bluetooth
4. Step 4: Pair your device under Android Bluetooth settings
3. Registration
4. Setup Notification
5. Watch Demo

3. Pairing
When the watch is OFF, press POWER & COMMAND buttons
until 1st beep (approx. 3sec) and all icons will blink every 2 sec.
Reset the watch
Press PAGE LEFT or PAGE RIGHT to view additional information or back to the time mode
Back Light
Tap once the POWER button
Digital Display
Digital display supports Latin characters only
COMMAND
PAGE RIGHTPAGE LEFT
SET TIME
pull 1/2 way and turn to
set the time
icon and vibrate with optional beeps
POWER
Power on/off
> 3 sec
NOTIFICATIONSDISPLAY
First turn off the watch by Pressing the POWER button for 3 sec.
Press and hold the 4 buttons together until you see the ALERT icon .
Then the watch will turn off.

4. NOTIFICATIONS
Incoming Call, Missed Call
notification:
Caller ID will be displayed during
incoming calls. Call numbers will be
Displayed if it has not been stored
as contact in your phone book.
*Caller ID supports Latin characters only.
Call notification
Caller ID

5. Text and Social Media alerts:
Support SMS, MMS and social
media posts on Facebook and
message notification from
Skype, Line, WhatsApp,
WeChat, Instagram and more..
NOTIFICATIONS
Message notification
Number of notification

6. Calendar &
Reminder alerts:
Alert you when there are
upcoming event reminders
Email alerts:
Inbound email alerts.
NOTIFICATIONS
number of
notification
event
notification
event
notification
subject of
event

7. Low and Critical battery alerts:
The CONNECTED display shows the battery percentage and the low and critical
battery icons blinks respectively.
NOTIFICATIONS
percentage of
phone battery
low battery alert

8. To find the COOKOO watch
The watch beeps and blinks when tapping
The “find my watch” icon in the
Connected Watch App.
After tapping the out of range icon , the watch
beeps and blinks when your phone and watch are
apart from each other.
To activate out of range notification
NOTIFICATIONS
beep &
vibration

9. To acknowledge the notification
Press the COMMAND button or check the notification on your mobile
phone or tablet.
To mute/unmute your watch
When there have no notification, press the COMMAND button for 5 sec
to mute the watch. Press another 5 sec to unmute the watch and
you will hear a beep sound.
NOTIFICATIONS
Vibration only
Beep and Vibration
COMMAND
press 5 sec
to change
notification
mode
Show status

10. Tap the Camera icon in the Connected Watch App, this will trigger
the camera interface of the app. Press the COMMAND button you can
take photos remotely.
Action : Remote take picture
COMMAND
press once to
trigger camera

11. COMMAND
Action : Remote control music
When using the music player on your phone, you can use the COMMAND button to control the
music playback.
Start the music player as you normally would on your Android Device. Once the music begins
playing, you can use the COMMAND button to control playback.
• Play/Pause--short press the COMMAND button(press and release)
Press once to
play
or pause
When the default music
player is active on your
phone, the COMMAND
button will assigned to
control the music playback

12. Pair the watch • Get started

13. Tap the Play Store icon on
your device to download the free
App.
Then, tap ‘Search’ and type
‘Connected Watch’.
Select and download the
Connected Watch App.
BEFORE PAIR : DOWNLOAD THE APP ONTO YOUR DEVICE

14. Set your watch into the pairing mode
When the watch is OFF, press COMMAND +
POWER buttons until 1st beep (3sec) and all
icons will blink.
PAIRING THE WATCH WITH YOUR DEVICE
COMMANDPOWER
When connected, the
connected icon will be
displayed on the watch
Press both
button for
3 sec

15. Sign up or Log into your
CONNECTEDEVICE Account
(! Note : New Users, please check your
email account for sign up confirmation.)
REGISTER WITH CONNECTEDEVICE ACCOUNT
Fill in all fields below and don’t
forget to tap the ‘I agree’ checkbox
below. Tap ‘Sign-up!”.

16. ENABLING BLUETOOTH ON YOUR DEVICE
Ensure that your Bluetooth is
switched ON.

17. After the registration process,
tap the
icon on the bottom left to
see your Device Radar
You should see your COOKOO
watch in your ‘Visible Devices’
List.
The text “Paired, Connected”
confirms successful pairing.
You can now use your watch
to receive notifications!
CONFIRM DEVICE
COOKOO
Not Paired, Not Connected
90:59:AF:09:3C:9D Device in range: Yes

18. PAIRING THE WATCH WITH YOUR DEVICE
Open the Connected App and then Search for COOKOO Watch.
If Bluetooth is disabled you will be asked to enable it.
COOKOO
Not Paired, Not Connected
90:59:AF:09:3C:9D Device in range: Yes

19. Launch your CONNECTED
Watch App and tap Alerts, in
the above right hand corner.
The color
GREEN within
the circular
knobs
indicates the
notifications
you will
receive onto
your watch.
If you wish to
turn off
certain
notifications,
swipe the
circular knob
to your left.
SET UP NOTIFICATION ITEMS

20. IF YOU WANT TO SEE THE ACTION OF THE WATCH
YOU CAN TRY THE DEMO
In your Connected Watch
App home screen, tap the
icon on the bottom left to
see your Device Radar
Tap COOKOO under
your Visible Devices.
Then, tap ‘Demo
Features’ in your
menu

21. Tap on the above icons to trigger
notifications to your watch.
An icon will then light up on your
watch face when you tap on each
demo function.
IF YOU WANT TO SEE THE ACTION OF THE WATCH
YOU CAN TRY THE DEMO

22. If you discovered a problem or that you are not
receiving notifications, please feel free to open a
support ticket at support@connectedevice.com
Please include your mobile phone model, OS
version, app version, and any other details to help
with the investigation.
PROBLEMS?
Thank you !
