The document provides an overview of control flow statements in C programming, highlighting decision control statements such as if, if-else, and switch, as well as looping structures like while, do-while, and for loops. It explains the syntax and use cases for each control structure, including examples of code implementing these constructs. Additionally, it discusses the use of break, continue, goto statements, and the exit() function for controlling program execution flow.

1. Objectives of these slides:
 to introduce the main kinds of C
control flow
Control
Statements
Programming In C

2. Control Structures
 There may be situations where the
programmer requires to alter normal flow of
execution of program or to perform the same
operation a no. of times.
 Various control statements supported by c
are-
 Decision control statements
 Loop control statements

3. Decision Control Statements
 Decision control statements alter the normal
sequential execution of the statements of the
program depending upon the test condition to be
carried out at a particular point in program.
 Decision control statements supported by c are:-
 if statement
 if-else statement
 Else if Ladder
 Nested If
 switch statement

4. Decision Control Statements
 if statement
 Most simple and powerful decision control statement.
 It executes a statement or block of statements only if the
condition is true.
 Syntax: if (condition) if (condition)
{ OR {
statement (s); statement 1;
} statement 2;
Next statement; }
statement 3;
 In above syntax : if condition is true only then the
statements within the block are executed otherwise next
statement in sequence is executed.

5.  Flowchart
Condition
STOP
False
True
Block of
if
Next statement
/* Program to check whether a no. is even */
# include<stdio.h>
# include<conio.h>
void main()
{
int num;
clrscr();
printf(“enter the number”);
scanf(“%d”,&num)
if(num%2==0)
{
printf(“n Number is even”);
}
printf(“ End of program”);
getch();
}

6. if – else statement
 In case of if statement, the block of statements is executed only when the
condition is true otherwise the control is transferred to the next statement
following if block.
 But if specific statements are to be executed in both cases (either
condition is true or false) then if – else statement is used.
 In if – else statement a block of statements are executed if the condition
is true but a different block of statements is executed when the condition
is false.
 Syntax: if (condition)
{
statement 1;
statement 2;
}
else
{
statement 3;
}
Test
Condition
Block of if Block of else
Next statement
STOP
False
True

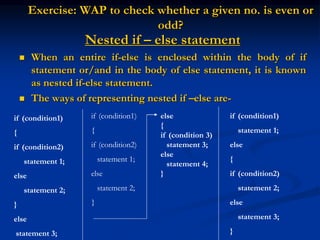

7. Exercise: WAP to check whether a given no. is even or
odd?
Nested if – else statement
 When an entire if-else is enclosed within the body of if
statement or/and in the body of else statement, it is known
as nested if-else statement.
 The ways of representing nested if –else are-
if (condition1)
{
if (condition2)
statement 1;
else
statement 2;
}
else
statement 3;
if (condition1)
{
if (condition2)
statement 1;
else
statement 2;
}
else
{
if (condition 3)
statement 3;
else
statement 4;
}
if (condition1)
statement 1;
else
{
if (condition2)
statement 2;
else
statement 3;
}

8. If- else- if ladder
 In a program involving multiple conditions, the nested if else
statements makes the program very difficult to write and
understand if nested more deeply.
 For this ,we use if-else-if ladder.
 Syntax: if (condition1)
statement1;
else if(condition2)
statement2;
else if(condition3)
statement 3;
else
default statement;
condition 1
condition 2
condition 3
Statement 1
Statement 2
Statement 3
Default statement
Next statement
false
true
false
true
false
true

9. Switch statement
 Switch is a multi-way decision making statement which selects
one of the several alternatives based on the value of single
variable or expression.
 It is mainly used to replace multiple if-else-if statement.
 The if-else-if statement causes performance degradation as
several conditions need to be evaluated before a particular
condition is satisfied.
 Syntax: switch (expression)
{
case constant1 : statement (s); [break;]
case constant2 : statement (s); [break;]
…………………………………….
default: statement (s)
}

10. Break statement
 Break statement terminates the execution of
the loop in which it is defined.
 The control is transferred immediately to the
next executable statement after the loop.
 It is mostly used to exit early from the loop
by skipping the remaining statements of
loop or switch control structures.
 Syntax: break;

11. Looping Structures
 When we want to repeat a group of statements a no.
of times, loops are used.
 These loops are executed until the condition is true.
 When condition becomes false, control terminates
the loop and moves on to next instruction
immediately after the loop.
 Various looping structures are-
 while
 do – while
 for

12. LOOPING STATEMENTS
 Loop is divided into two parts:
 Body of the loop
 Control of loop
 Mainly control of loop is divided into two
parts:
 Entry Control loop (while, for)
 Exit Control loop (do-while)

13. while statement
 While loop is used to execute set of statements as long as
condition evaluates to true.
 It is mostly used in those cases where the programmer
doesn’t know in advance how many times the loop will be
executed.
 Syntax: while (condition)
{
Statement 1 ;
Statement 2 ;
}
condition statement
Statement after while loop
true

14. do- while
 do-while is similar to while except that its test
condition is evaluated at the end of the loop instead at
the beginning as in case of while loop.
 So, in do-while the body of the loop always executes
at least once even if the test condition evaluates to
false during the first iteration.
 Syntax: do
{
statement 1;
statement 2;
}while (condition);
statement;
Body of loop
Test condition
Next statement
true
false

15. for loop
 Most versatile and popular of three loop structures.
 Is used in those situations when a programmer
knows in advance the number of times a statement
or block will be executed.
 It contains loop control elements all at one place
while in other loops they are scattered over the
program and are difficult to understand.
 Syntax:-
for (initialization; condition; increment/decrement)
{
Statement( s);
}

16. The for is a sort of while
for (expr1; expr2; expr3)
statement;
is equivalent to:
expr1;
while (expr2) {
statement;
expr3;
}

17. Various other ways of writing same for loops
i = 1
for (; i<=15;i ++)
{
……..
}
for (i=1; ;i++)
{
………
if (i>15)
break;
……
}
for (i=1;i<=15;)
{
………….
i++;
}

18. Some Examples
for(i = 7; i <=77; i += 7)
statement;
for(i = 20; i >= 2; i -= 2)
statement;
for(j = 10; j > 20; j++)
statement;
for(j = 10; j > 0; j--)
statement;

19. Incrementing
 Add 1 to c by writing:
c = c + 1;
Also: c += 1;
Also: c++;
Also: ++c;
Incrementing and Decrementing

20. /* Preincrementing and postincrementing */
#include <stdio.h>
int main()
{
int c;
c = 5;
printf("%dn", c);
printf("%dn",c++); /*post increment*/
printf("%dnn", c);
:
continued

21. c = 5;
printf("%dn", c);
printf("%dn",++c); /*pre-
increment*/
printf("%dn", c);
return 0;
}
Output:
5
5
6
5
6
6

22. Decrementing
 Take 1 from c by writing:
c = c - 1;
Also: c -= 1;
Also: c--;
Also: --c;

23. Continue statement
 Like break ,continue statement also skips the remaining
statements of the body of the loop where it is defined but
instead of terminating the loop, the control is transferred to the
beginning of the loop for next iteration.
 The loop continues until the test condition of the loop become
false.
 Syntax: continue;
 E.g. for (m=1;m<=3;m++)
{
for (n=1;n<=2;n++)
{
if (m==n)
continue;
printf(“ m=%d n=%d”);
}
}
Output:
1 2
2 1
3 1
3 2

24. goto Statement
 An unconditional control statement that causes the control to
jump to a different location in the program without checking
any condition.
 It is normally used to alter the normal sequence of program
execution by transferring control to some other part of the
program.
 So it is also called jump statement.
 Syntax: goto label;
 Label represents an identifier which is used to label the
destination statement to which the control should be
transferred.
label : statement;
 The goto statement causes the control to be shifted either in
forward direction or in a backward direction .

25. exit() function
 C provides a run time library function exit() which
when encountered in a program causes the program to
terminating without executing any statement
following it.
 Syntax: exit(status);
Status is an integer variable or constant.
 If the status is 0,then program normally terminates
without any errors.
 A non-zero status indicates abnormal termination of
the program.
 The exit() function is defined in the process.h header
file.

26. Difference b/w exit() & break
 Exit() is used to transfer the control
completely out of the program whereas
break is used to transfer the control out
of the loop or switch statement.
