This document discusses using session types to specify and check the behavior of stateful RESTful systems. It presents an example of modeling a parcel delivery workflow as a session type in Scala. Session types define the possible state transitions and messages that can be exchanged, enabling contract checking. The example shows how session types catch errors like invalid initial states, forbidden transitions, or messages being sent out of order. Session types provide a way to encode state machines and communication protocols to make them verifiable by programming tools.

1. Contract first,
session types later

2. Marco Borst
::
vlsi -> java -> scala

3. Slava Schmidt

4. Play-Swagger plugin
@

5. Play-Swagger plugin
API-First single source of truth
code generation framework

6. =>

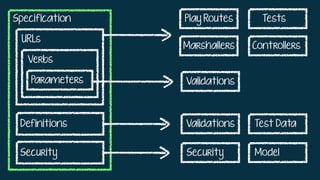

7. Specification
URLs
Verbs
Parameters
Security
Definitions Validations
Model
Test Data
Validations
Play Routes
Marshallers
Tests
Controllers
Security

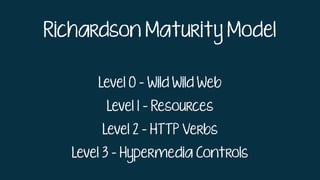

8. Richardson Maturity Model
Level 0 - Wild Wild Web
Level 1 - Resources
Level 2 - HTTP Verbs
Level 3 - Hypermedia Controls

9. Level 2
of Richardson Maturity Model

10. Level 3
HATEOAS (Hypertext As The Engine Of Application State)

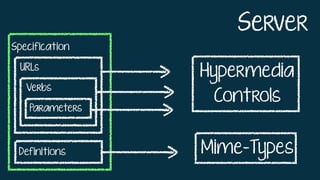

11. Specification
URLs
Verbs
Parameters
Definitions Mime-Types
Hypermedia
Controls
Server

12. Mime-Types
Hypermedia
Controls Client
Code
Client

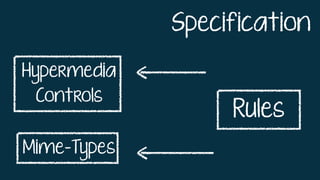

13. Mime-Types
Hypermedia
Controls
Rules
Specification

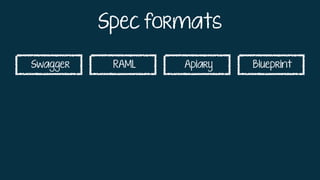

14. Swagger RAML Apiary Blueprint
Spec formats

15. Swagger RAML Apiary Blueprint
Spec formats
Level 2 capable

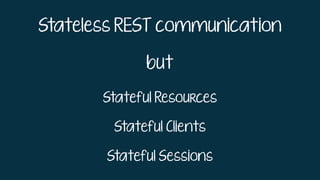

16. Stateless REST communication
but
Stateful Resources
Stateful Clients
Stateful Sessions

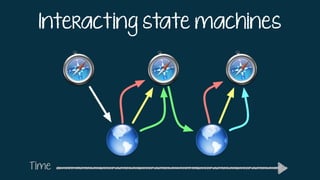

17. Interacting state machines
Time

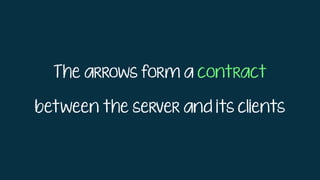

18. The arrows form a contract
between the server and its clients

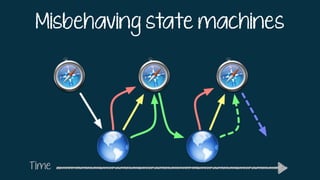

19. Misbehaving state machines
Time

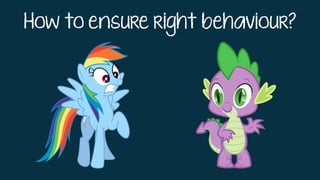

20. How to ensure right behaviour?

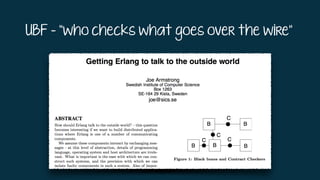

21. UBF - “who checks what goes over the wire”

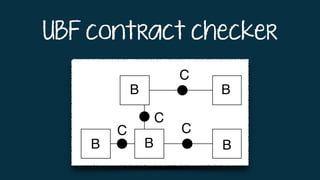

22. UBF contract checker

23. Contract checker
CC
RS
AS
RS’
AS
RS’
AS’
S{HC} HC

24. HATEOAS
only allows us to check the
client behaviour

25. For the server we need
additional information

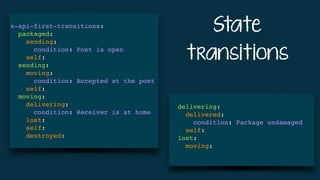

26. State
transitions
x-api-first-transitions:
packaged:
sending:
condition: Post is open
self:
sending:
moving:
condition: Accepted at the post
self:
moving:
delivering:
condition: Receiver is at home
lost:
self:
destroyed:
delivering:
delivered:
condition: Package undamaged
self:
lost:
moving:

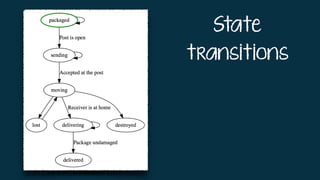

27. State
transitions

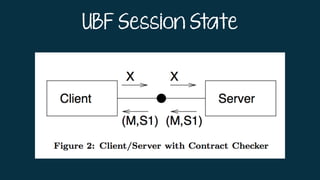

28. UBF Session State

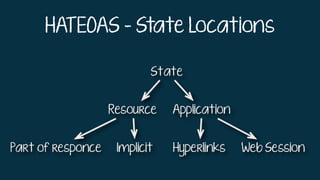

29. HATEOAS - State Locations

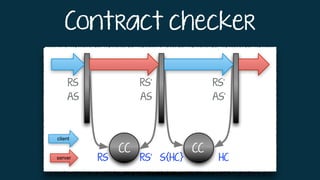

30. Contract checker
CC CC
RS
AS
RS’
AS
RS’
AS’
RS RS’ S{HC} HC

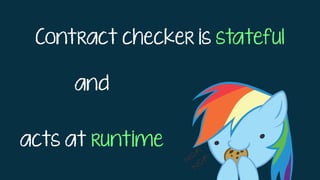

31. Contract checker is stateful
and
acts at runtime

32. Encode State => Type System
Runtime =>
Compile Time

33. Session types
session types do the same
for communication
as types do for data
http://groups.inf.ed.ac.uk/abcd/

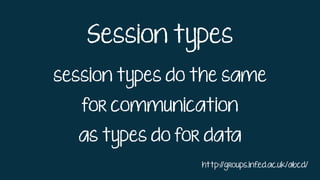

34. Session types
codify structure
(communication, data)
and make it available to
programming tools

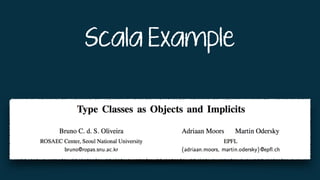

35. Scala Example

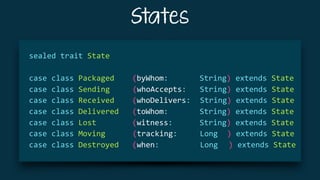

36. States
sealed trait State
case class Packaged (byWhom: String) extends State
case class Sending (whoAccepts: String) extends State
case class Received (whoDelivers: String) extends State
case class Delivered (toWhom: String) extends State
case class Lost (witness: String) extends State
case class Moving (tracking: Long ) extends State
case class Destroyed (when: Long ) extends State

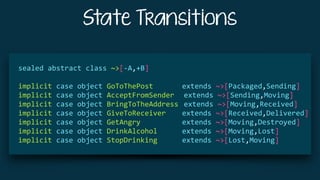

37. State Transitions
sealed abstract class ~>[-A,+B]
implicit case object GoToThePost extends ~>[Packaged,Sending]
implicit case object AcceptFromSender extends ~>[Sending,Moving]
implicit case object BringToTheAddress extends ~>[Moving,Received]
implicit case object GiveToReceiver extends ~>[Received,Delivered]
implicit case object GetAngry extends ~>[Moving,Destroyed]
implicit case object DrinkAlcohol extends ~>[Moving,Lost]
implicit case object StopDrinking extends ~>[Lost,Moving]

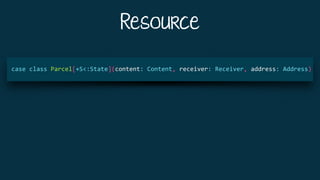

38. Resource
case class Parcel[+S<:State](content: Content, receiver: Receiver, address: Address)

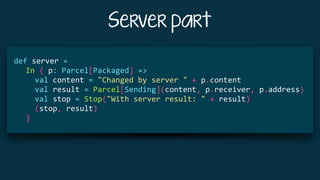

39. Server part
def server =
In { p: Parcel[Packaged] =>
val content = "Changed by server " + p.content
val result = Parcel[Sending](content, p.receiver, p.address)
val stop = Stop("With server result: " + result)
(stop, result)
}

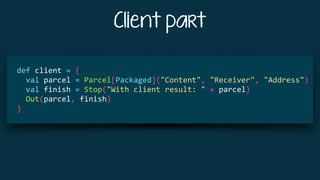

40. Client part
def client = {
val parcel = Parcel[Packaged]("Content", "Receiver", "Address")
val finish = Stop("With client result: " + parcel)
Out(parcel, finish)
}

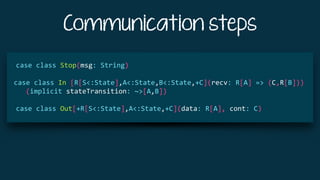

41. Communication steps
case class Stop(msg: String)
case class In [R[S<:State],A<:State,B<:State,+C](recv: R[A] => (C,R[B]))
(implicit stateTransition: ~>[A,B])
case class Out[+R[S<:State],A<:State,+C](data: R[A], cont: C)

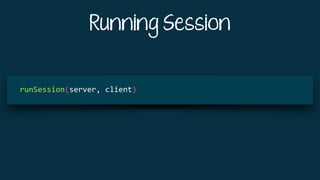

42. Running Session
runSession(server, client)

43. Session Runner
trait Session[S] {
type Self = S
type Dual
type DualOf[D] = Session[Self] { type Dual = D }
def run (self: Self, dual: Dual): Unit
}
def runSession[AS,D:Session[AS]#DualOf](session: AS, dual: D) =
implicitly[Session[AS]#DualOf[D]].run(session, dual)

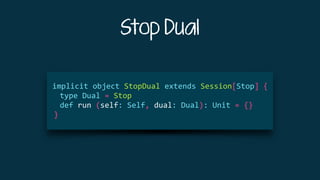

44. Stop Dual
implicit object StopDual extends Session[Stop] {
type Dual = Stop
def run (self: Self, dual: Dual): Unit = {}
}

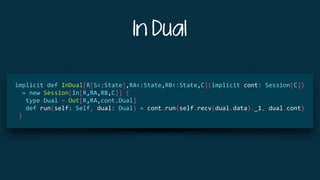

45. In Dual
implicit def InDual[R[S<:State],RA<:State,RB<:State,C](implicit cont: Session[C])
= new Session[In[R,RA,RB,C]] {
type Dual = Out[R,RA,cont.Dual]
def run(self: Self, dual: Dual) = cont.run(self.recv(dual.data)._1, dual.cont)
}

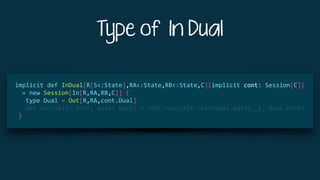

46. Type of In Dual
implicit def InDual[R[S<:State],RA<:State,RB<:State,C](implicit cont: Session[C])
= new Session[In[R,RA,RB,C]] {
type Dual = Out[R,RA,cont.Dual]
def run(self: Self, dual: Dual) = cont.run(self.recv(dual.data)._1, dual.cont)
}

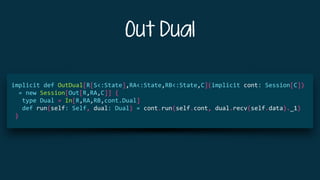

47. Out Dual
implicit def OutDual[R[S<:State],RA<:State,RB<:State,C](implicit cont: Session[C])
= new Session[Out[R,RA,C]] {
type Dual = In[R,RA,RB,cont.Dual]
def run(self: Self, dual: Dual) = cont.run(self.cont, dual.recv(self.data)._1)
}

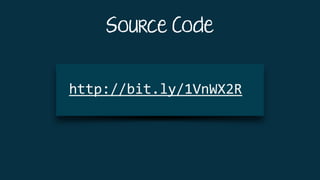

48. Source Code
http://bit.ly/1VnWX2R

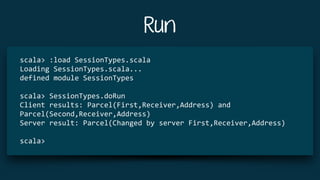

49. Run
scala> :load SessionTypes.scala
Loading SessionTypes.scala...
defined module SessionTypes
scala> SessionTypes.doRun
Client results: Parcel(First,Receiver,Address) and
Parcel(Second,Receiver,Address)
Server result: Parcel(Changed by server First,Receiver,Address)
scala>

50. Close the post
sealed abstract class ~>[-A,+B]
//implicit case object GoToThePost extends ~>[Packaged,Sending]
implicit case object AcceptFromSender extends ~>[Sending,Moving]
implicit case object BringToTheAddress extends ~>[Moving,Received]
implicit case object GiveToReceiver extends ~>[Received,Delivered]
implicit case object GetAngry extends ~>[Moving,Destroyed]
implicit case object DrinkAlcohol extends ~>[Moving,Lost]
implicit case object StopDrinking extends ~>[Lost,Moving]

51. Run
scala> :load SessionTypes.scala
Loading SessionTypes.scala...
<console>:75: error: state transition from SessionTypes.Packaged to
SessionTypes.Sending is not allowed
In { p: Parcel[Packaged] =>
^
scala>

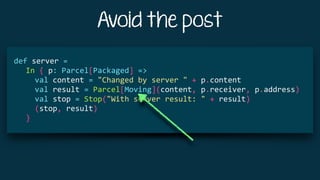

52. Avoid the post
def server =
In { p: Parcel[Packaged] =>
val content = "Changed by server " + p.content
val result = Parcel[Moving](content, p.receiver, p.address)
val stop = Stop("With server result: " + result)
(stop, result)
}

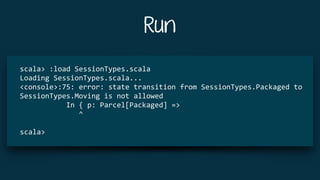

53. Run
scala> :load SessionTypes.scala
Loading SessionTypes.scala...
<console>:75: error: state transition from SessionTypes.Packaged to
SessionTypes.Moving is not allowed
In { p: Parcel[Packaged] =>
^
scala>

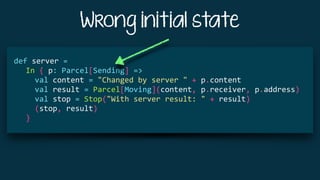

54. Wrong initial state
def server =
In { p: Parcel[Sending] =>
val content = "Changed by server " + p.content
val result = Parcel[Moving](content, p.receiver, p.address)
val stop = Stop("With server result: " + result)
(stop, result)
}

55. Run
scala> :load SessionTypes.scala
Loading SessionTypes.scala...
<console>:110: error: could not find implicit value for evidence
parameter of type
SessionTypes.Session[SessionTypes.In[SessionTypes.Parcel,SessionTypes
.Sended,SessionTypes.Moving,SessionTypes.Stop]]{type Dual =
SessionTypes.Out[SessionTypes.Parcel,SessionTypes.Packaged,SessionTyp
es.Stop]}
def run = runSession(server, client)
^
scala>

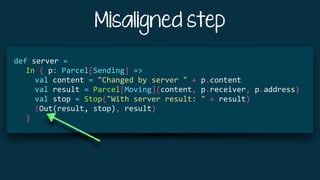

56. Misaligned step
def server =
In { p: Parcel[Sending] =>
val content = "Changed by server " + p.content
val result = Parcel[Moving](content, p.receiver, p.address)
val stop = Stop("With server result: " + result)
(Out(result, stop), result)
}

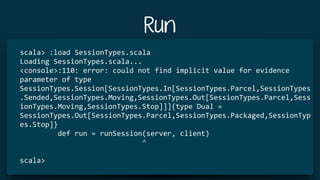

57. Run
scala> :load SessionTypes.scala
Loading SessionTypes.scala...
<console>:110: error: could not find implicit value for evidence
parameter of type
SessionTypes.Session[SessionTypes.In[SessionTypes.Parcel,SessionTypes
.Sended,SessionTypes.Moving,SessionTypes.Out[SessionTypes.Parcel,Sess
ionTypes.Moving,SessionTypes.Stop]]]{type Dual =
SessionTypes.Out[SessionTypes.Parcel,SessionTypes.Packaged,SessionTyp
es.Stop]}
def run = runSession(server, client)
^
scala>

59. ?

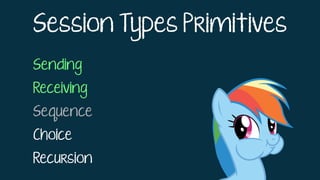

60. Session Types Primitives
Sending
Receiving
Sequence
Choice
Recursion

61. Oops….

62. Session Types Primitives
Sending
Receiving
Sequence
Choice
Recursion

63. Session
Types
REST

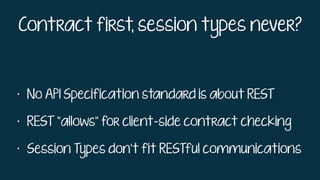

64. Contract first, session types never?
• No API Specification standard is about REST
• REST “allows” for client-side contract checking
• Session Types don’t fit RESTful communications

65. Questions ?

66. Thank you!
