This document provides details on the design and layout of the Continental Hospital building project in Bangalore, India. It was designed by RSP Architects and Ms. Lalitha beginning in 2010. The building covers 1 lakh square feet above ground and 98,000 square feet below ground. It is located in Gachibowli, Nanakramguda and consists of 4 basement floors, a ground floor, and 13 upper floors, as well as a helipad. The floors are designated for uses including parking, oncology, radiology, operating theaters, ICUs, and various room types. Concrete, bricks, glass and various flooring materials were used.

1. CONTINENTAL HOSPITAL
CASE STUDY

2.  RSP ARCHITECTS, BANGLORE
 Architect : Ms Lalitha
 Concept : international style
 The construction has been started in the
year 2010
 The working has been progressed by 2012
CONCEPT AND DESIGN

3. SITE
 It is covered around 1lakh sq.fts
 Which has 65000 sq.fts , above ground level
 98000 sq.fts below ground level i.e
basement.
 At the entrance there is a ramp
provided for the basement parking
 Hence the building is divided into 3
divisions.

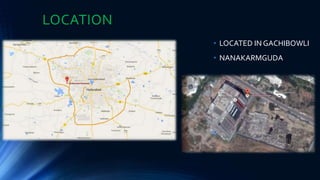

4. LOCATION
• LOCATED IN GACHIBOWLI
• NANAKARMGUDA

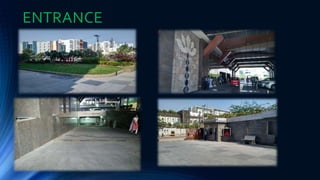

6. ENTRANCE

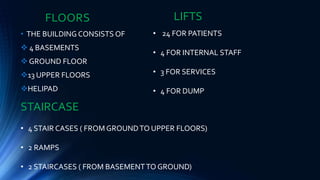

7. FLOORS
• THE BUILDING CONSISTS OF
 4 BASEMENTS
 GROUND FLOOR
13 UPPER FLOORS
HELIPAD
LIFTS
• 24 FOR PATIENTS
• 4 FOR INTERNAL STAFF
• 3 FOR SERVICES
• 4 FOR DUMP
STAIRCASE
• 4 STAIR CASES ( FROM GROUNDTO UPPER FLOORS)
• 2 RAMPS
• 2 STAIRCASES ( FROM BASEMENTTO GROUND)

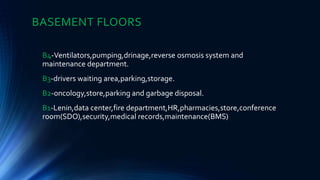

8. BASEMENT FLOORS
B4-Ventilators,pumping,drinage,reverse osmosis system and
maintenance department.
B3-drivers waiting area,parking,storage.
B2-oncology,store,parking and garbage disposal.
B1-Lenin,data center,fire department,HR,pharmacies,store,conference
room(SDO),security,medical records,maintenance(BMS)

9. BASEMENT

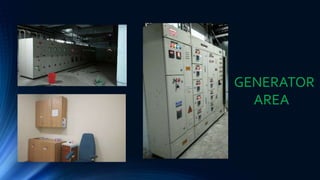

10. GENERATOR
AREA

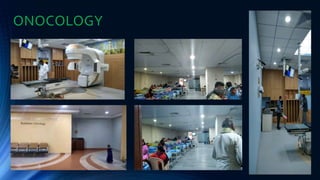

11. ONOCOLOGY

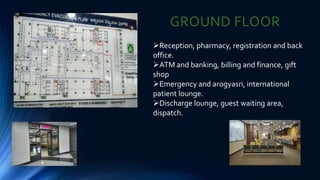

12. GROUND FLOOR
Reception, pharmacy, registration and back
office.
ATM and banking, billing and finance, gift
shop
Emergency and arogyasri, international
patient lounge.
Discharge lounge, guest waiting area,
dispatch.

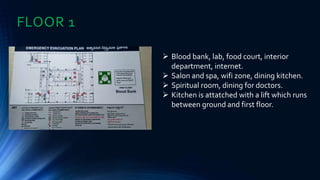

13. FLOOR 1
 Blood bank, lab, food court, interior
department, internet.
 Salon and spa, wifi zone, dining kitchen.
 Spiritual room, dining for doctors.
 Kitchen is attatched with a lift which runs
between ground and first floor.

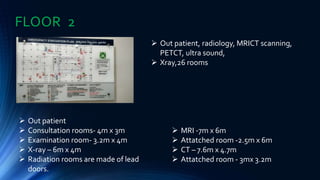

14. FLOOR 2
 Out patient, radiology, MRICT scanning,
PETCT, ultra sound,
 Xray,26 rooms
 Out patient
 Consultation rooms- 4m x 3m
 Examination room- 3.2m x 4m
 X-ray – 6m x 4m
 Radiation rooms are made of lead
doors.
 MRI -7m x 6m
 Attatched room -2.5m x 6m
 CT – 7.6m x 4.7m
 Attatched room - 3mx 3.2m

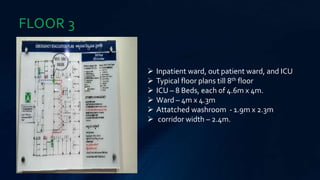

15. FLOOR 3
 Inpatient ward, out patient ward, and ICU
 Typical floor plans till 8th floor
 ICU – 8 Beds, each of 4.6m x 4m.
 Ward – 4m x 4.3m
 Attatched washroom - 1.9m x 2.3m
 corridor width – 2.4m.

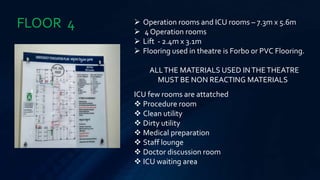

16. FLOOR 4  Operation rooms and ICU rooms – 7.3m x 5.6m
 4 Operation rooms
 Lift - 2.4m x 3.1m
 Flooring used in theatre is Forbo or PVC Flooring.
ALLTHE MATERIALS USED INTHETHEATRE
MUST BE NON REACTING MATERIALS
ICU few rooms are attatched
 Procedure room
 Clean utility
 Dirty utility
 Medical preparation
 Staff lounge
 Doctor discussion room
 ICU waiting area

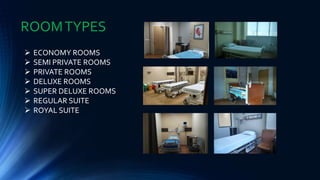

17.  ECONOMY ROOMS
 SEMI PRIVATE ROOMS
 PRIVATE ROOMS
 DELUXE ROOMS
 SUPER DELUXE ROOMS
 REGULAR SUITE
 ROYAL SUITE
ROOMTYPES

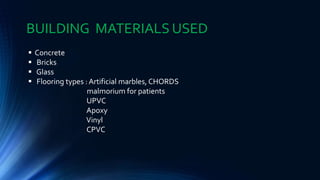

18.  Concrete
 Bricks
 Glass
 Flooring types : Artificial marbles, CHORDS
malmorium for patients
UPVC
Apoxy
Vinyl
CPVC
BUILDING MATERIALS USED
