The document discusses a proposed system to provide electronic program guides (EPGs) for analog cable TVs in India by detecting the channel logo of the currently viewed program. The system would localize and recognize the channel logo, download the corresponding EPG data from the internet, and render the EPG information blended with the TV video. A demo was presented capturing a TV screen during channel changes, showing the logo detection and EPG fetching and rendering. The solution could enrich the viewer experience for analog cable TV users and provide multiple levels of EPG data in a hierarchical manner by linking to additional online information.

1. May 17, 2015 TCS Public
Electronic Program Guide for Cable
Feed TVs by Detecting Channel Logo
Innovation Lab, Kolkata

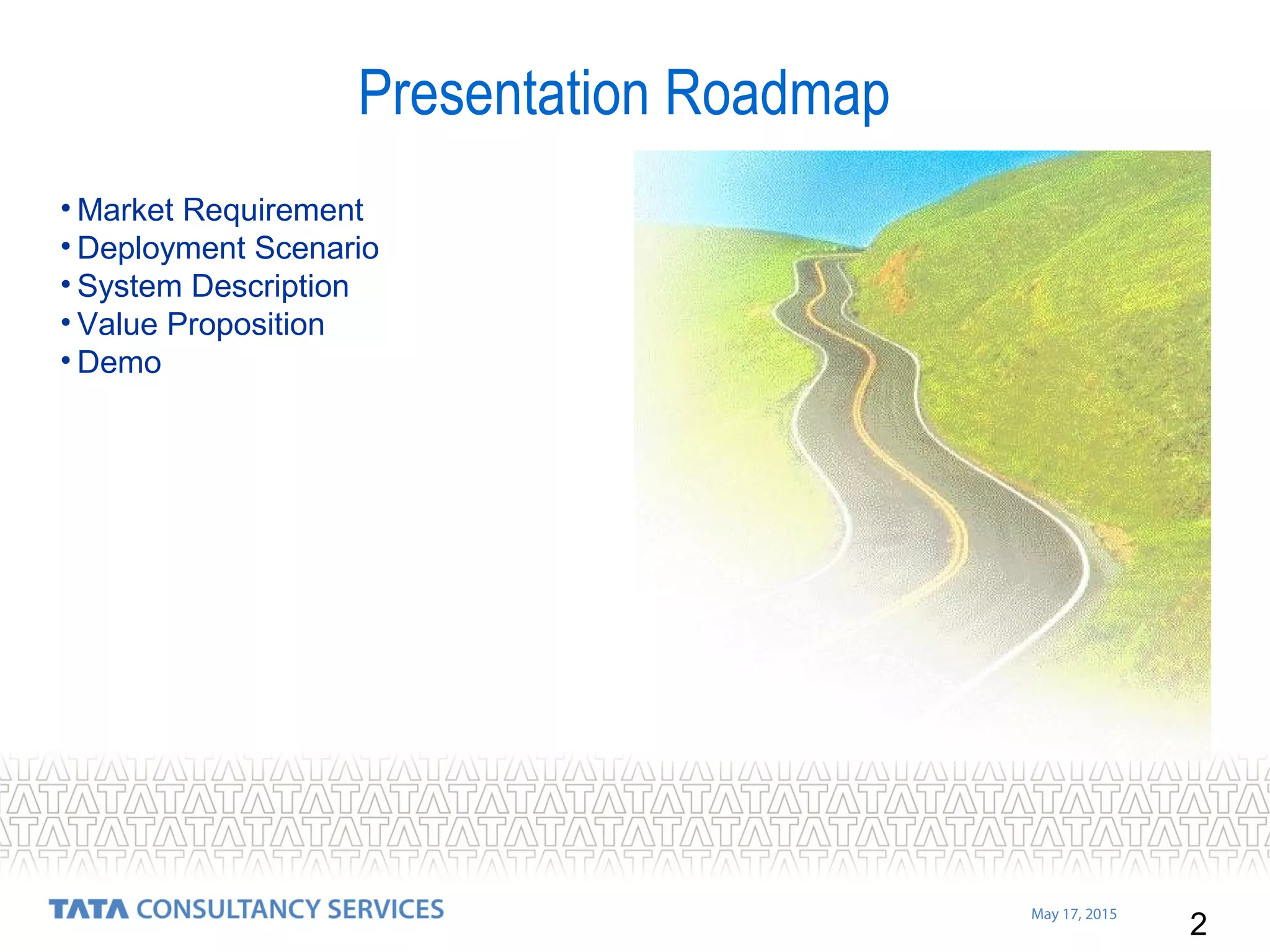

2. 2
May 17, 2015
• Market Requirement
• Deployment Scenario
• System Description
• Value Proposition
• Demo
Presentation Roadmap

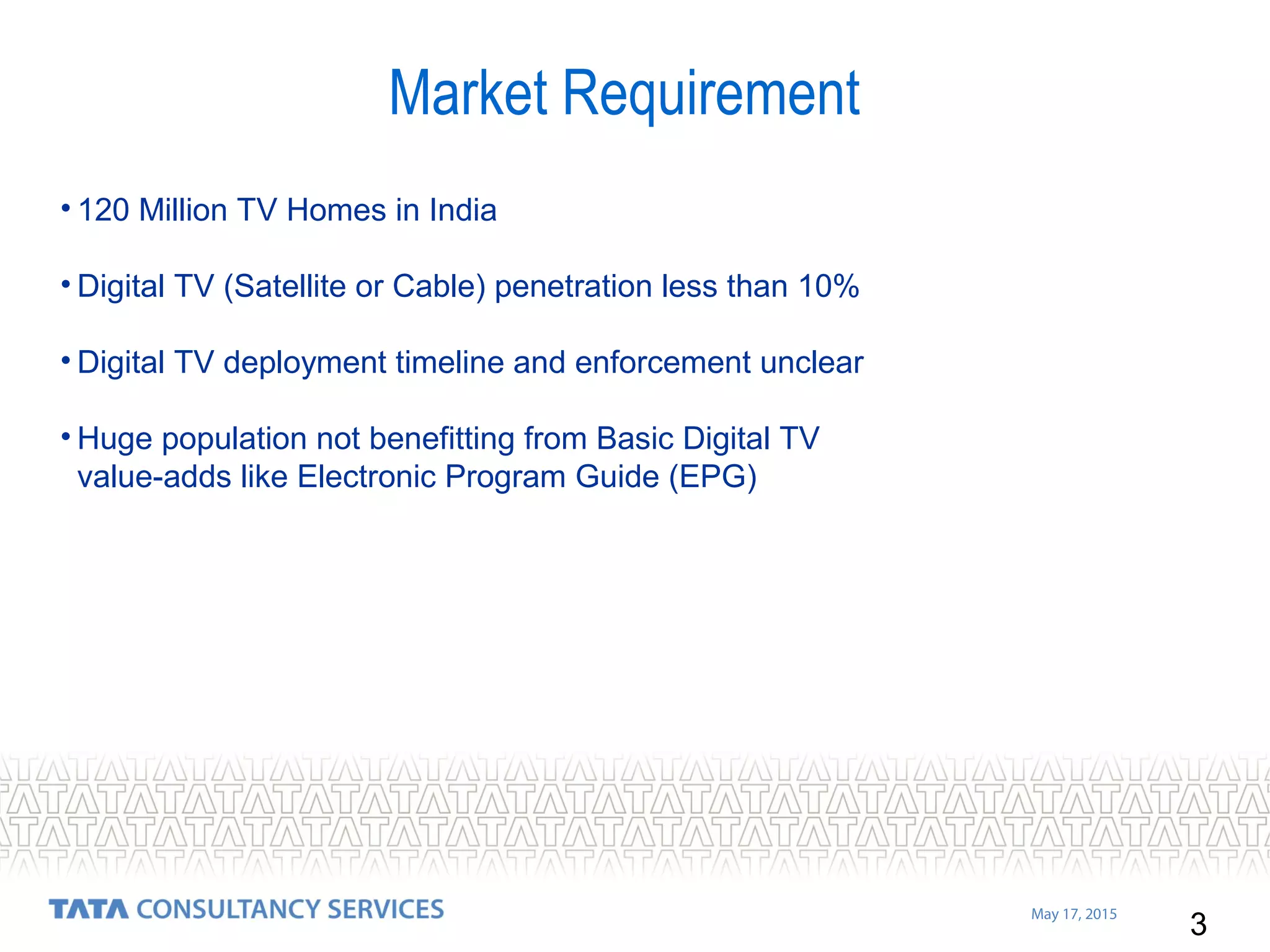

3. 3
May 17, 2015
• 120 Million TV Homes in India
• Digital TV (Satellite or Cable) penetration less than 10%
• Digital TV deployment timeline and enforcement unclear
• Huge population not benefitting from Basic Digital TV
value-adds like Electronic Program Guide (EPG)
Market Requirement

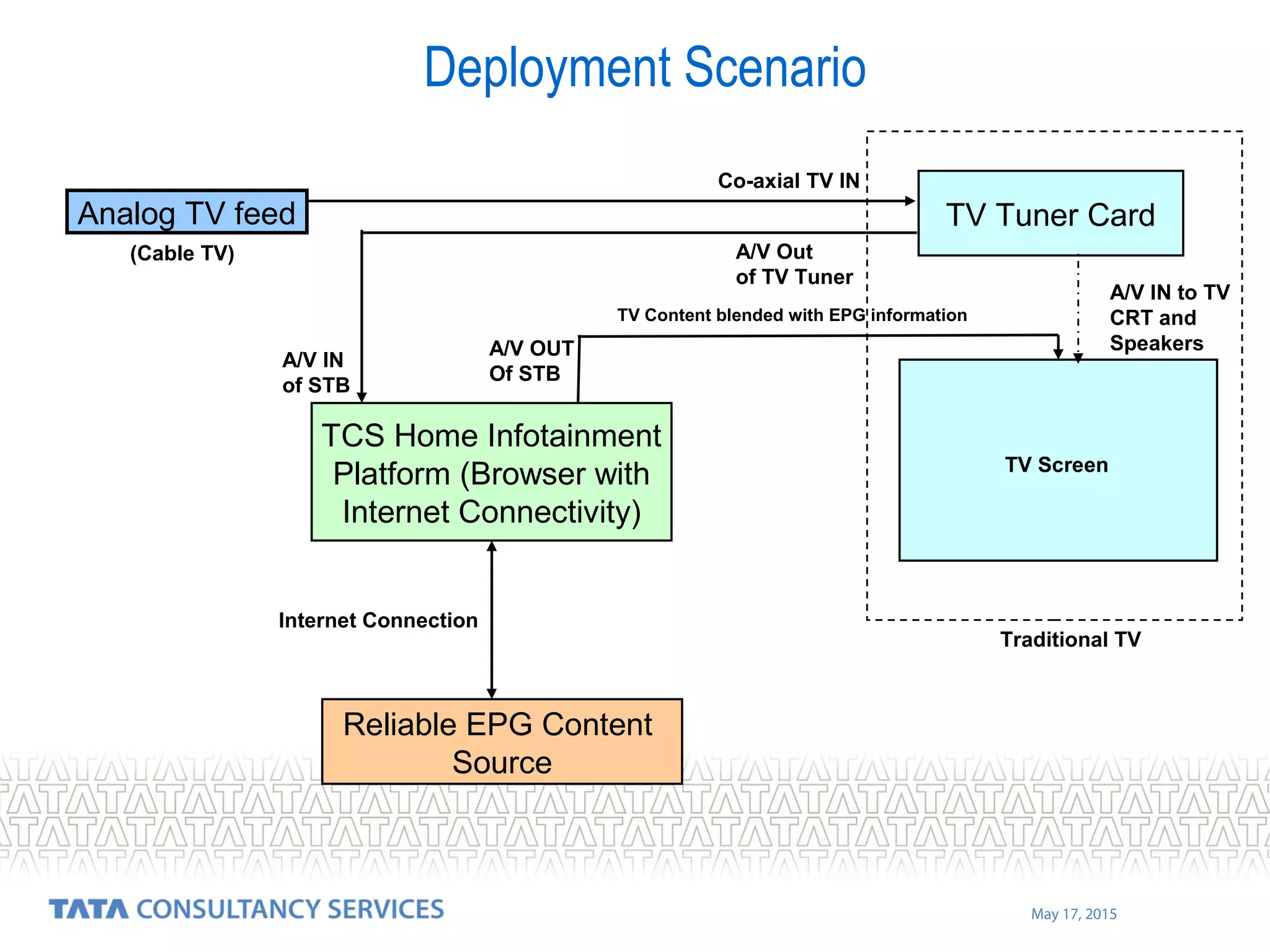

4. May 17, 2015
TV Tuner CardAnalog TV feed
(Cable TV)
TCS Home Infotainment
Platform (Browser with
Internet Connectivity)
A/V IN
of STB
A/V OUT
Of STB
TV Screen
Internet Connection
Reliable EPG Content
Source
Co-axial TV IN
A/V IN to TV
CRT and
Speakers
A/V Out
of TV Tuner
Deployment Scenario
Traditional TV
TV Content blended with EPG information

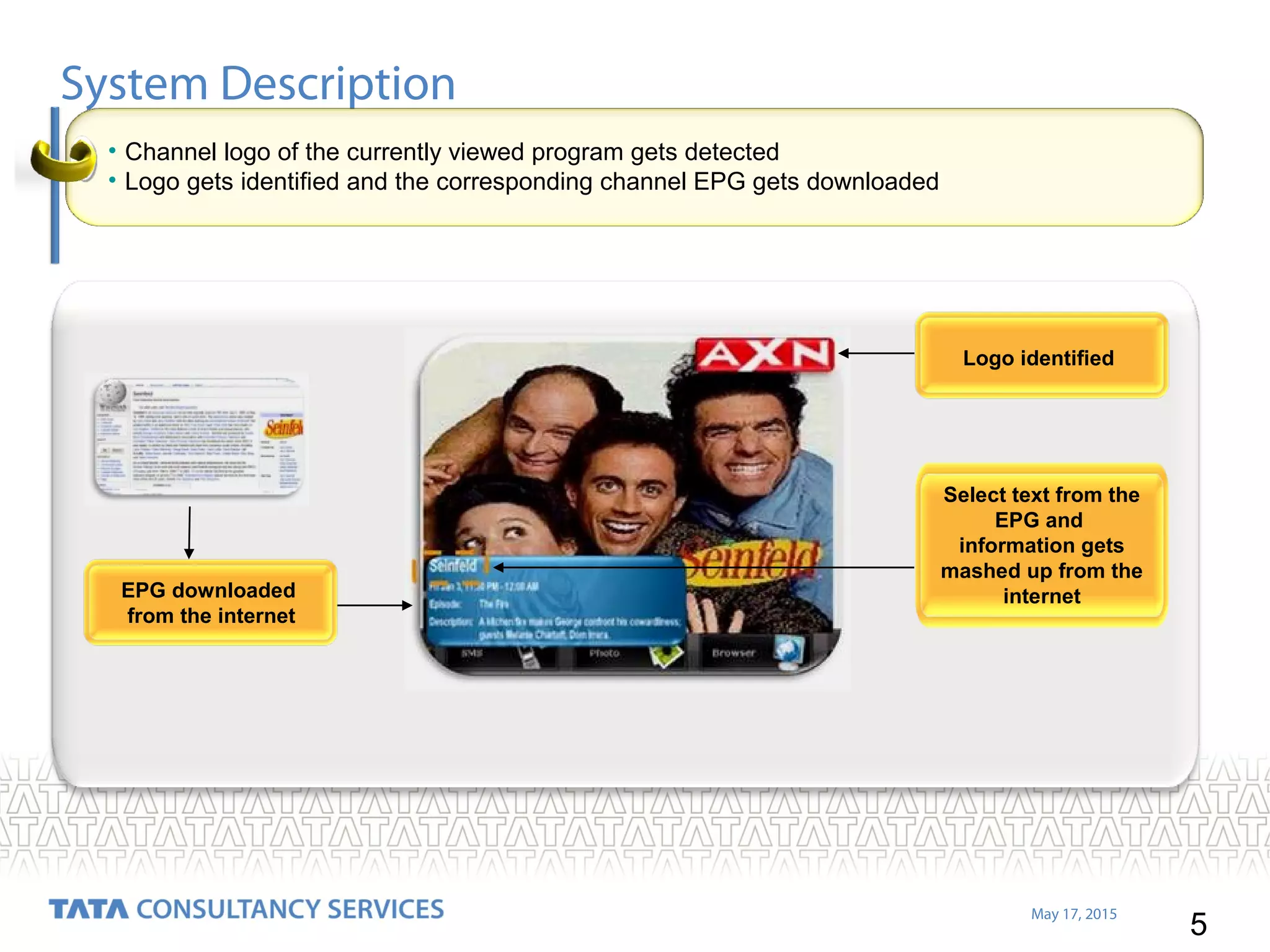

5. 5
May 17, 2015
System Description
• Channel logo of the currently viewed program gets detected
• Logo gets identified and the corresponding channel EPG gets downloaded
Logo identified
Select text from the
EPG and
information gets
mashed up from the
internetEPG downloaded
from the internet

6. 6
May 17, 2015
Flow Logic
Localization of channel logo region
Recognition of channel logo
Get EPG from web XML feed
Pick up EPG data and use API to bring relevant info from web
Render mashed up EPG blended with TV Video
• Logo Detection involves extensive Image Processing Techniques applied on live
TV Video
• Need to detect different kind of Logos
• Real-time detection Requirement

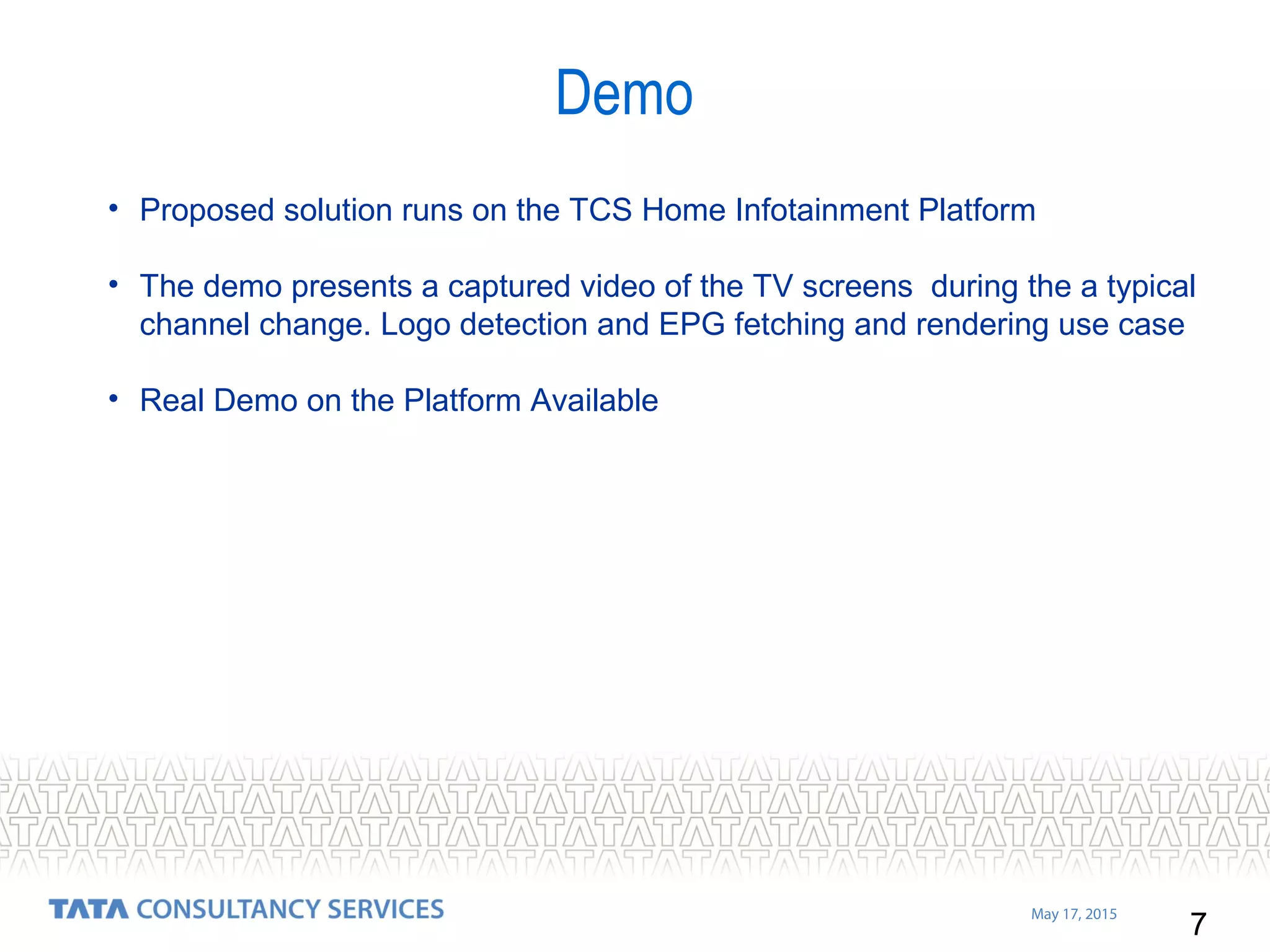

7. 7
May 17, 2015
• Proposed solution runs on the TCS Home Infotainment Platform
• The demo presents a captured video of the TV screens during the a typical
channel change. Logo detection and EPG fetching and rendering use case
• Real Demo on the Platform Available
Demo

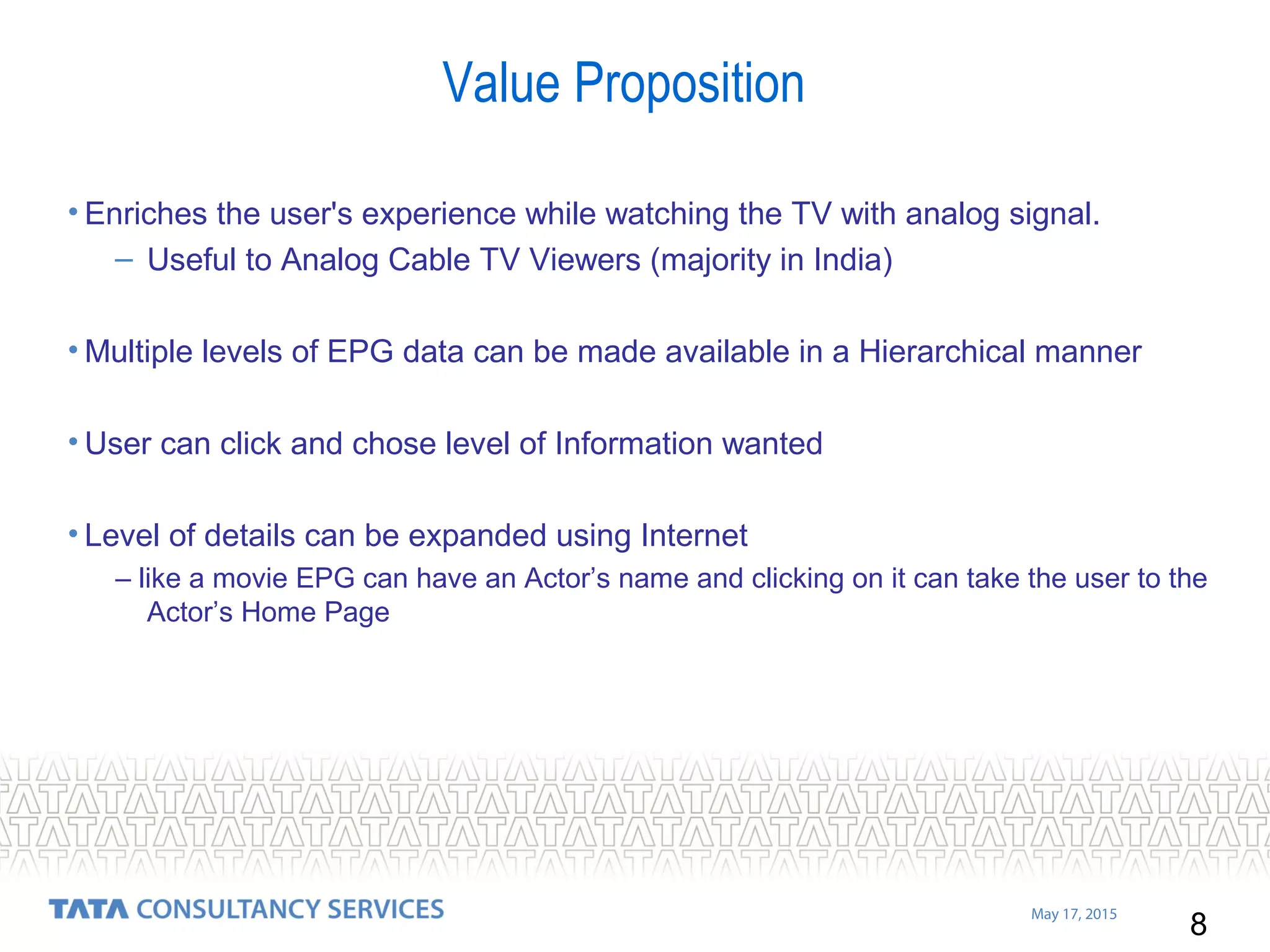

8. 8
May 17, 2015
Value Proposition
• Enriches the user's experience while watching the TV with analog signal.
– Useful to Analog Cable TV Viewers (majority in India)
• Multiple levels of EPG data can be made available in a Hierarchical manner
• User can click and chose level of Information wanted
• Level of details can be expanded using Internet
– like a movie EPG can have an Actor’s name and clicking on it can take the user to the
Actor’s Home Page

9. May 17, 2015 TCS Public
Any Question?

10. May 17, 2015 TCS Public
Thank You

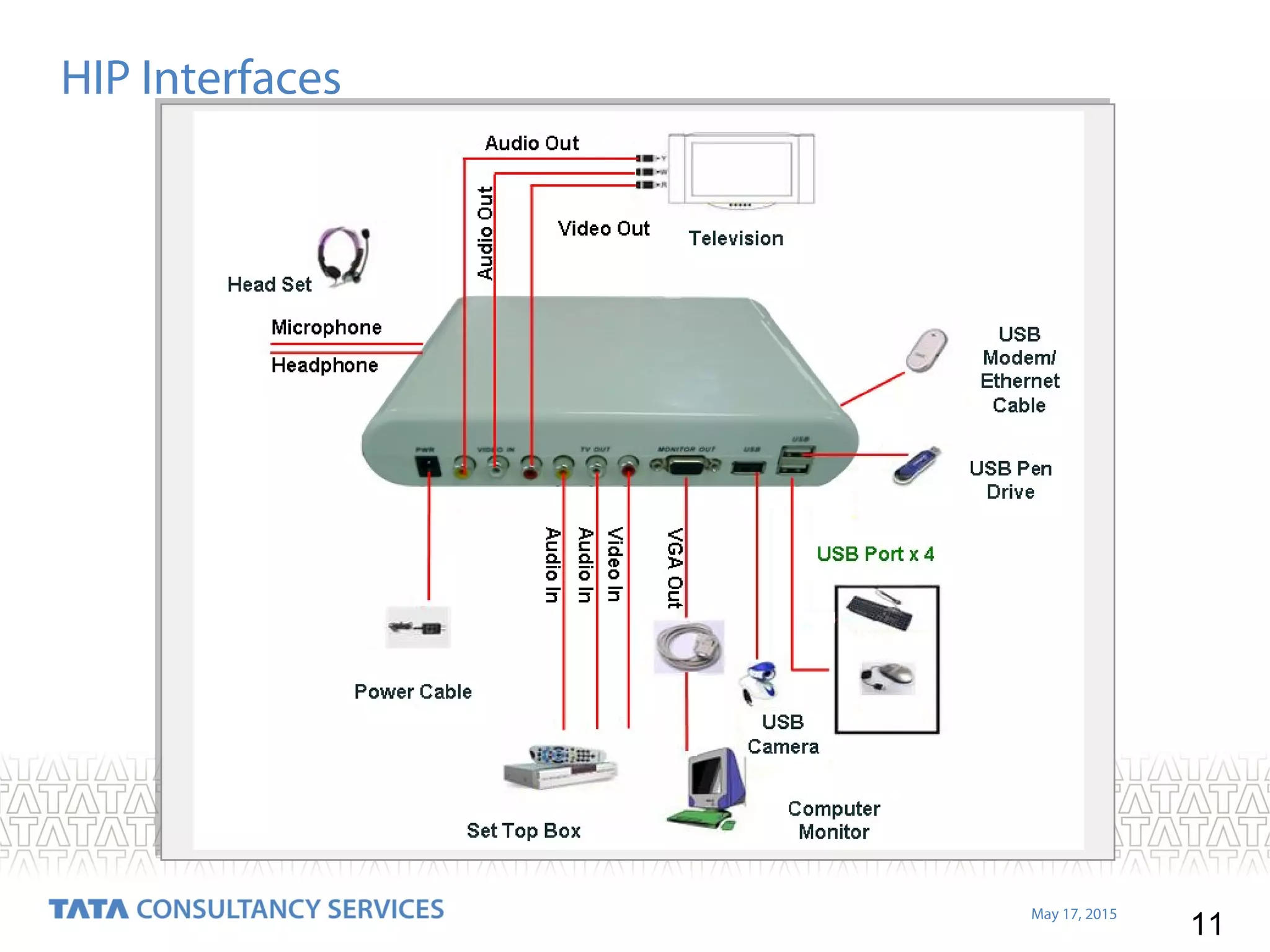

11. 11
May 17, 2015
HIP Interfaces

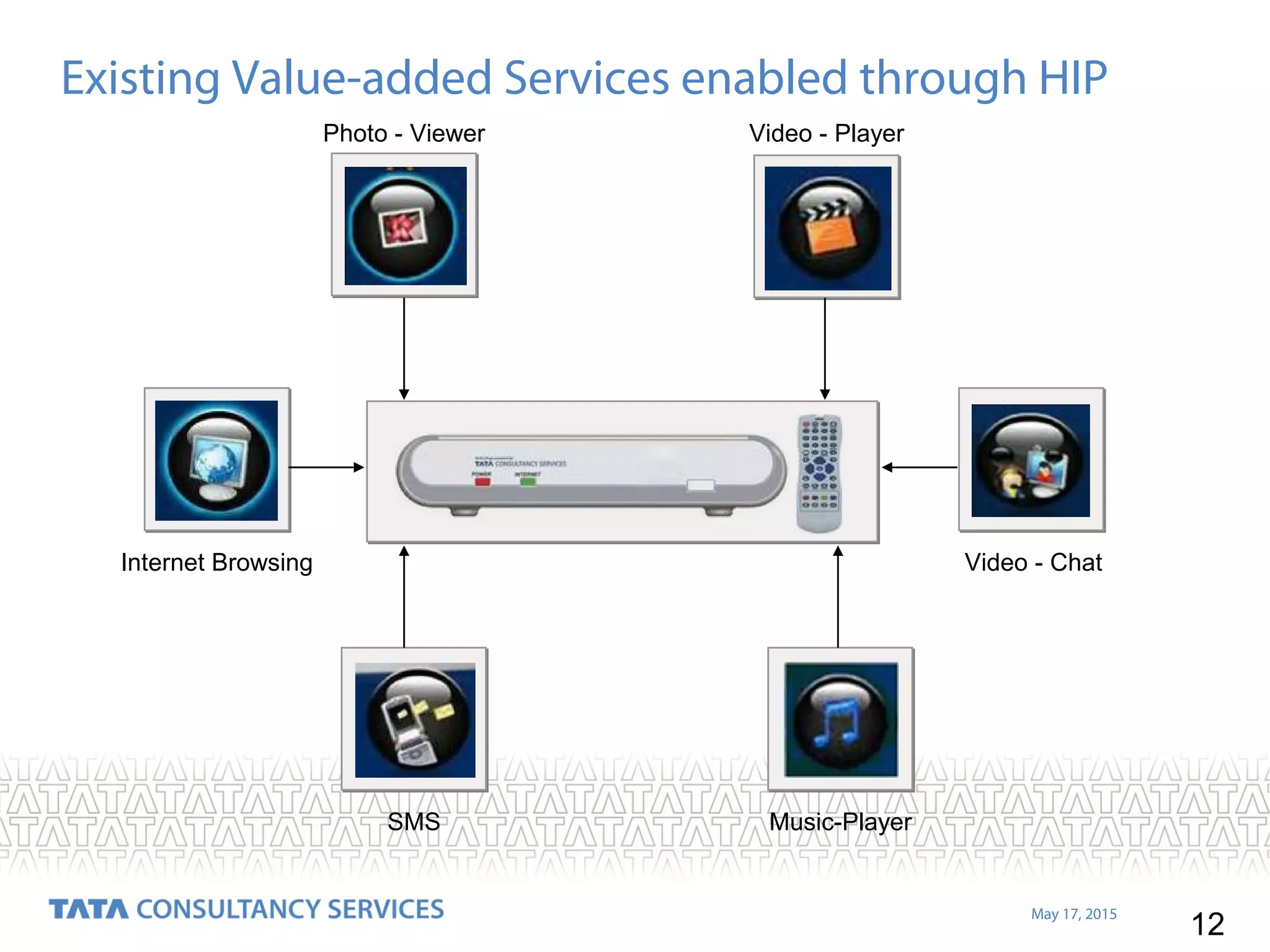

12. 12
May 17, 2015
Existing Value-added Services enabled through HIP
Photo - Viewer Video - Player
Internet Browsing Video - Chat
SMS Music-Player

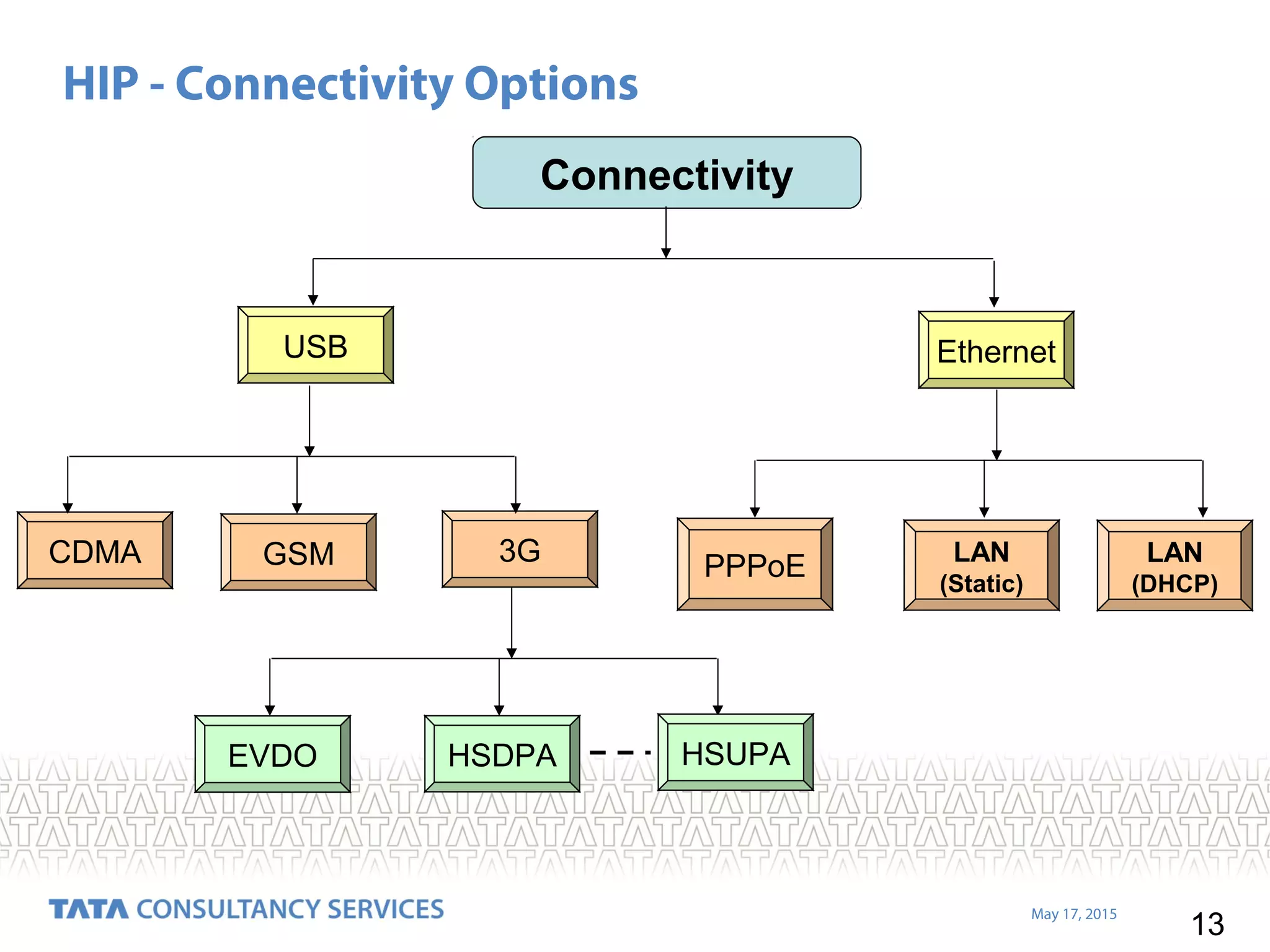

13. 13
May 17, 2015
USB Ethernet
CDMA GSM 3G
EVDO HSDPA HSUPA
Connectivity
PPPoE LAN
(Static)
LAN
(DHCP)
HIP - Connectivity Options

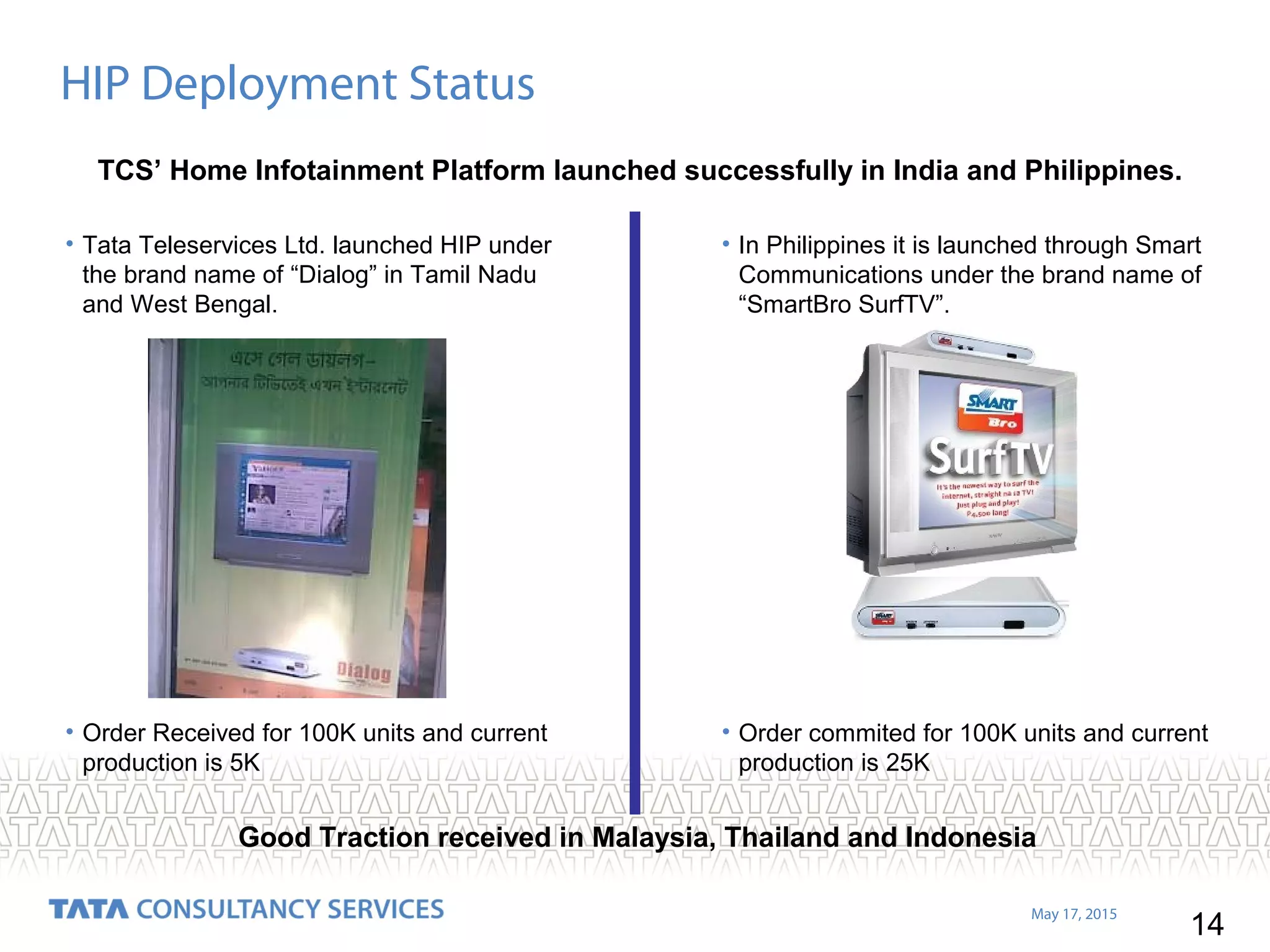

14. 14
May 17, 2015
• In Philippines it is launched through Smart
Communications under the brand name of
“SmartBro SurfTV”.
• Order commited for 100K units and current
production is 25K
HIP Deployment Status
• Tata Teleservices Ltd. launched HIP under
the brand name of “Dialog” in Tamil Nadu
and West Bengal.
• Order Received for 100K units and current
production is 5K
TCS’ Home Infotainment Platform launched successfully in India and Philippines.
Good Traction received in Malaysia, Thailand and Indonesia
