1. Energy Savers
To CARE about

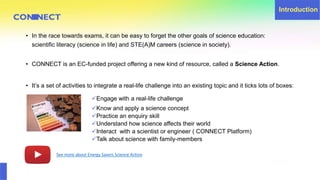

2. • In the race towards exams, it can be easy to forget the other goals of science education:
scientific literacy (science in life) and STE(A)M careers (science in society).
• CONNECT is an EC-funded project offering a new kind of resource, called a Science Action.
• It’s a set of activities to integrate a real-life challenge into an existing topic and it ticks lots of boxes:
Introduction
See more about Energy Savers Science Action
Engage with a real-life challenge
Know and apply a science concept
Practice an enquiry skill
Understand how science affects their world
Interact with a scientist or engineer ( CONNECT Platform)
Talk about science with family-members

3. Energy Savers in compliance with
Introduction

4. Imagine being able to travel from London to New York in an hour!
Wake in London
Go to work in New York

5. This is the my vision of an energy-saving train of
the future - the ‘Hyperloop’.
It will whizz through an almost airless tube.
Why will the Hyperloop use less energy than a normal train?
Elon Musk, entrepreneur

6. Energy Savers
To KNOW about

7. Friction with the air and track
means energy is wasted as heat.
Whereas the hyperloop will waste
very little energy.
With normal trains, lots of
energy is wasted.
Low friction because the tube is
almost airless and the train hovers
over the track.

8. I create energy saving
inventions.
Not massive ones like the
hyperloop but cheap
devices that will help
people save energy at
home.
Your friend is an inventor.

9. I have so many
ideas but I’m not
sure which is best.
Can you help me choose one and get
the funding to make it?
Turbine Headband
Charge your phone
while you run.
Washing pod
A potable washing
machine
SunCook
Use the Sun’s energy to
cook food

10. “I want to make a cheap device to
help people save energy at home.
I’ve come up with 10 inventions.
Look them and help me choose the
best one”.
Energy-saving inventions

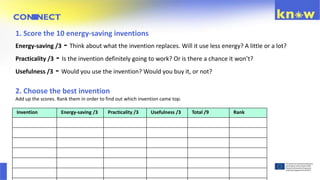

11. Invention Energy-saving /3 Practicality /3 Usefulness /3 Total /9 Rank
1. Score the 10 energy-saving inventions
Energy-saving /3 - Think about what the invention replaces. Will it use less energy? A little or a lot?
Practicality /3 - Is the invention definitely going to work? Or is there a chance it won’t?
Usefulness /3 - Would you use the invention? Would you buy it, or not?
2. Choose the best invention
Add up the scores. Rank them in order to find out which invention came top.

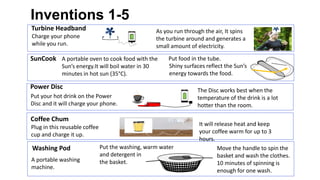

12. 12
Inventions 1-5
Turbine Headband
Charge your phone
while you run.
SunCook A portable oven to cook food with the
Sun’s energy.It will boil water in 30
minutes in hot sun (35°C).
Put food in the tube.
Shiny surfaces reflect the Sun’s
energy towards the food.
As you run through the air, It spins
the turbine around and generates a
small amount of electricity.
Coffee Chum
Plug in this reusable coffee
cup and charge it up.
It will release heat and keep
your coffee warm for up to 3
hours.
Washing Pod
A portable washing
machine.
Put the washing, warm water
and detergent in
the basket.
Move the handle to spin the
basket and wash the clothes.
10 minutes of spinning is
enough for one wash.
Power Disc
Put your hot drink on the Power
Disc and it will charge your phone.
The Disc works best when the
temperature of the drink is a lot
hotter than the room.

13. 13
Inventions 6-10
River Charger
A portable turbine. When a fast-
moving stream flows through it,
it generates electricity.
It can be used to charge
phones, laptops,
speakers etc.
SolarCap Solar panels on the hat turn
sunlight into electricity.
Speedy Peely
Pop in your spuds, plug in the
Speedy Peely and watch it peel.
Hot Hoodie
On a sunny day, solar panels warm the
heating pads to keep you feeling toasty.
Solar panels on
shoulders Heating pads
inside
Charge your phone while you
are out and about.
Tiny metal teeth scrape off
the skin of the potatoes as
they spin around.
Skip Light
Just skip and the rope
charges up.
Then flick a switch and the rope
will light up. 30 minutes of
skipping gives 2 hours of light.

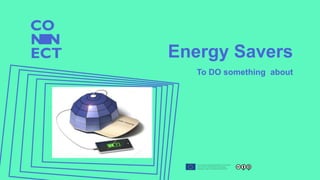

14. Energy Savers
To DO something about

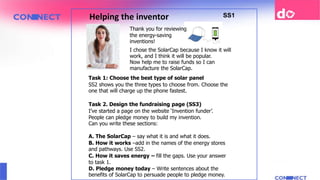

15. Helping the inventor SS1
Thank you for reviewing
the energy-saving
inventions!
Now help me to raise funds so I can
manufacture the SolarCap.
Task 2. Design the fundraising page (SS3)
I’ve started a page on the website ‘Invention funder’.
People can pledge money to build my invention.
Can you write these sections:
A. The SolarCap – say what it is and what it does.
B. How it works –add in the names of the energy stores
and pathways. Use SS2.
C. How it saves energy – fill the gaps. Use your answer
to task 1.
D. Pledge money today – Write sentences about the
benefits of SolarCap to persuade people to pledge money.
I chose the SolarCap because I know it will
work, and I think it will be popular.
Task 1: Choose the best type of solar panel
SS2 shows you the three types to choose from. Choose the
one that will charge up the phone fastest.

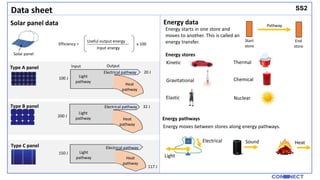

16. SS2
Solar panel
Data sheet
Type A panel
Electrical pathway
Heat
pathway
Light
pathway
Input Output
100 J
Electrical pathway
Heat
pathway
Light
pathway
200 J
32 J
Electrical pathway
Heat
pathway
Light
pathway
150 J
117 J
20 J
Efficiency = x 100
Useful output energy
Input energy
Solar panel data
Type B panel
Type C panel
Kinetic Thermal
Gravitational Chemical
Nuclear
Elastic
Energy data
Energy pathways
Energy starts in one store and
moves to another. This is called an
energy transfer.
Energy stores
Start
store
End
store
Pathway
Sound Heat
Electrical
Light
Energy moves between stores along energy pathways.

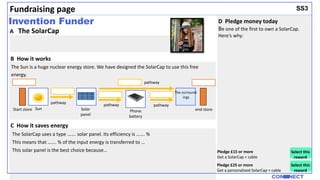

17. Student sheets
SS3
The SolarCap
Invention Funder D Pledge money today
Be one of the first to own a SolarCap.
Here’s why:
B How it works
The Sun is a huge nuclear energy store. We have designed the SolarCap to use this free
energy.
C How it saves energy
The SolarCap uses a type ……. solar panel. Its efficiency is ……. %
This means that ……. % of the input energy is transferred to …
This solar panel is the best choice because…
A
Fundraising page
Start store end store
pathway
pathway pathway
pathway
Sun Solar
panel
Phone
battery
The surround-
ings
Pledge £15 or more
Get a SolarCap + cable
Pledge £25 or more
Get a personalised SolarCap + cable
Select this
reward
Select this
reward

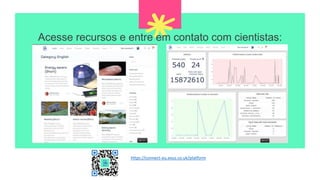

18. Acesse recursos e entre em contato com cientistas:
