This document summarizes a study on the conceptual design and numerical modeling of a Micro Pulse Jet valve to control flow separation. The valve is designed to generate streamline vortices that suppress flow separation by enhancing mixing between the free stream flow and separated boundary layer flow through a pitched jet orifice. The study presents the conceptual design of the Micro Pulse Jet valve and numerical analysis of steady and unsteady pulse jets. A 2D ramp model with a 20 degree divergence is used to simulate flow separation. The effect of steady and unsteady jets through the valve is analyzed by varying parameters like jet velocity ratio and pulse frequency. Results show that a pulse micro jet requires significantly less mass flow than a steady jet to control flow separation
International Journal of Engineering Research and Applications (IJERA) is a team of researchers not publication services or private publications running the journals for monetary benefits, we are association of scientists and academia who focus only on supporting authors who want to publish their work. The articles published in our journal can be accessed online, all the articles will be archived for real time access.
Our journal system primarily aims to bring out the research talent and the works done by sciaentists, academia, engineers, practitioners, scholars, post graduate students of engineering and science. This journal aims to cover the scientific research in a broader sense and not publishing a niche area of research facilitating researchers from various verticals to publish their papers. It is also aimed to provide a platform for the researchers to publish in a shorter of time, enabling them to continue further All articles published are freely available to scientific researchers in the Government agencies,educators and the general public. We are taking serious efforts to promote our journal across the globe in various ways, we are sure that our journal will act as a scientific platform for all researchers to publish their works online.
The need for high pump performance and efficiency continue to encourage the study of flow between two parallel co-rotating discs in multiple discs pump or turbine. Therefore, this study entails the design, construction and CFD simulation of a 3D Tesla pump model axisymmetric swirling flow in order to enhance the understanding of Tesla pump for future development.
Method of solution entails designing and construction of a small prototype tesla pump and then using the design geometry and parameters to design and perform numerical simulation. The results of the numerical simulation were then analyzed.
The result obtained indicates static pressure to have minimum value of -4.7791Pa at the outlet and 13.777Pa at the pump inlet and with velocity magnitude having minimum velocity of 0.00m/s and maximum velocity of 4.12m/s. The strength of the velocity was seen to be very high at the pump outlet. The analysis radial velocity showed minimum value of -0.508m/s and maximum value of 3.981m/s with the radial velocity vector being concentrated at the discs periphery and outlet.
Model simulation results exhibited smooth pressure and velocity profiles. With the 3D simulation all flow variables are able to be predicted.
IRJET- Minimisation of Maintenance Actions through Design Analysis of Hydraul...IRJET Journal
This document discusses the design analysis and optimization of a hydraulic cylinder for use in trailers. It aims to minimize maintenance needs through design improvements. The document presents a 3D model and finite element analysis of a two-stage hydraulic cylinder. The analysis examines stress distribution under working conditions. The design was optimized to improve reliability, functionality, safety, and reduce costs. Various failure modes of hydraulic cylinders are also briefly discussed, along with causes and troubleshooting methods. The goal is to design a hydraulic cylinder that requires fewer maintenance actions through an improved design informed by modeling and analysis.
This document summarizes research on improving the stability of hydraulic pipes in axial piston pump systems. It first provides background on previous studies modeling axial piston pumps and their control systems. It then discusses the objective of investigating a novel single PID controller for the pump and how it impacts overall pump performance, including hydraulic system smoothness and vibration reduction. The results of simulations and experiments show promising results for implementing the new control strategy to improve pipe stability in axial piston pumps.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
This document summarizes a computational fluid dynamics (CFD) analysis of flow separation control over an airfoil using a co-flow jet technique. The co-flow jet concept injects a high-velocity jet near the leading edge and sucks air near the trailing edge to enhance mixing and allow the flow to remain attached at high angles of attack. CFD simulations found that the co-flow jet airfoil significantly increased maximum lift, increased stall angle by 5 degrees, and expanded the operating range by 38%. While drag was higher for the co-flow jet airfoil, its lift-to-drag ratio was also much larger, indicating improved aerodynamic efficiency overall. The co-flow jet technique was found to effectively delay flow
Measurement of Flow Rate and Impact Force on Different Vanes through Impact o...Farzad Hossain
The objectives of the paper are to conduct an investigation into the reaction force generated by the impact of a jet of water onto various target vanes and to compare between experimental and theoretical forces which are exerted by the jet. The procedure for this experiment is to bring the weight cup in the initial position by applying weight when the flow rate is varied. It can be possible to repeat the same experiment by changing different target vanes. Moreover, the effect of different target vanes can be seen at a constant flow rate by changing the type of target vanes and applying different amounts of weights to bring the weight cup in the initial position. The vanes used in this experiment can be categorized into four geometries. Flat, inclined, spherical and conical vanes are used for this experiment. Experimental and theoretical forces and the percentage of error can be calculated in this experiment. Here, the theoretical forces are depended upon weights applied on the weight cup and the experimental forces are depended on flow rate, nozzle exit velocity, impact velocity and shape of the vanes.
IRJET- A Review on Design Analysis and Optimization of Centrifugal BlowerIRJET Journal
This document reviews the design, analysis, and optimization of centrifugal blowers. It discusses how computational fluid dynamics (CFD) can be used to optimize blower design parameters like impeller dimensions and blade angles. The document outlines a 4-phase design process: (1) selecting a blower type, (2) parametric studies to determine key design factors, (3) CFD analysis to improve pressure and efficiency, and (4) design of experiments to further optimize the housing design. CFD and experiments show designs with larger impellers increase flow rate and pressure but decrease efficiency. Blade and tip clearances also impact performance.
International Journal of Engineering Research and Applications (IJERA) is a team of researchers not publication services or private publications running the journals for monetary benefits, we are association of scientists and academia who focus only on supporting authors who want to publish their work. The articles published in our journal can be accessed online, all the articles will be archived for real time access.
Our journal system primarily aims to bring out the research talent and the works done by sciaentists, academia, engineers, practitioners, scholars, post graduate students of engineering and science. This journal aims to cover the scientific research in a broader sense and not publishing a niche area of research facilitating researchers from various verticals to publish their papers. It is also aimed to provide a platform for the researchers to publish in a shorter of time, enabling them to continue further All articles published are freely available to scientific researchers in the Government agencies,educators and the general public. We are taking serious efforts to promote our journal across the globe in various ways, we are sure that our journal will act as a scientific platform for all researchers to publish their works online.
The need for high pump performance and efficiency continue to encourage the study of flow between two parallel co-rotating discs in multiple discs pump or turbine. Therefore, this study entails the design, construction and CFD simulation of a 3D Tesla pump model axisymmetric swirling flow in order to enhance the understanding of Tesla pump for future development.
Method of solution entails designing and construction of a small prototype tesla pump and then using the design geometry and parameters to design and perform numerical simulation. The results of the numerical simulation were then analyzed.
The result obtained indicates static pressure to have minimum value of -4.7791Pa at the outlet and 13.777Pa at the pump inlet and with velocity magnitude having minimum velocity of 0.00m/s and maximum velocity of 4.12m/s. The strength of the velocity was seen to be very high at the pump outlet. The analysis radial velocity showed minimum value of -0.508m/s and maximum value of 3.981m/s with the radial velocity vector being concentrated at the discs periphery and outlet.
Model simulation results exhibited smooth pressure and velocity profiles. With the 3D simulation all flow variables are able to be predicted.
IRJET- Minimisation of Maintenance Actions through Design Analysis of Hydraul...IRJET Journal
This document discusses the design analysis and optimization of a hydraulic cylinder for use in trailers. It aims to minimize maintenance needs through design improvements. The document presents a 3D model and finite element analysis of a two-stage hydraulic cylinder. The analysis examines stress distribution under working conditions. The design was optimized to improve reliability, functionality, safety, and reduce costs. Various failure modes of hydraulic cylinders are also briefly discussed, along with causes and troubleshooting methods. The goal is to design a hydraulic cylinder that requires fewer maintenance actions through an improved design informed by modeling and analysis.
This document summarizes research on improving the stability of hydraulic pipes in axial piston pump systems. It first provides background on previous studies modeling axial piston pumps and their control systems. It then discusses the objective of investigating a novel single PID controller for the pump and how it impacts overall pump performance, including hydraulic system smoothness and vibration reduction. The results of simulations and experiments show promising results for implementing the new control strategy to improve pipe stability in axial piston pumps.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
This document summarizes a computational fluid dynamics (CFD) analysis of flow separation control over an airfoil using a co-flow jet technique. The co-flow jet concept injects a high-velocity jet near the leading edge and sucks air near the trailing edge to enhance mixing and allow the flow to remain attached at high angles of attack. CFD simulations found that the co-flow jet airfoil significantly increased maximum lift, increased stall angle by 5 degrees, and expanded the operating range by 38%. While drag was higher for the co-flow jet airfoil, its lift-to-drag ratio was also much larger, indicating improved aerodynamic efficiency overall. The co-flow jet technique was found to effectively delay flow
Measurement of Flow Rate and Impact Force on Different Vanes through Impact o...Farzad Hossain
The objectives of the paper are to conduct an investigation into the reaction force generated by the impact of a jet of water onto various target vanes and to compare between experimental and theoretical forces which are exerted by the jet. The procedure for this experiment is to bring the weight cup in the initial position by applying weight when the flow rate is varied. It can be possible to repeat the same experiment by changing different target vanes. Moreover, the effect of different target vanes can be seen at a constant flow rate by changing the type of target vanes and applying different amounts of weights to bring the weight cup in the initial position. The vanes used in this experiment can be categorized into four geometries. Flat, inclined, spherical and conical vanes are used for this experiment. Experimental and theoretical forces and the percentage of error can be calculated in this experiment. Here, the theoretical forces are depended upon weights applied on the weight cup and the experimental forces are depended on flow rate, nozzle exit velocity, impact velocity and shape of the vanes.
IRJET- A Review on Design Analysis and Optimization of Centrifugal BlowerIRJET Journal
This document reviews the design, analysis, and optimization of centrifugal blowers. It discusses how computational fluid dynamics (CFD) can be used to optimize blower design parameters like impeller dimensions and blade angles. The document outlines a 4-phase design process: (1) selecting a blower type, (2) parametric studies to determine key design factors, (3) CFD analysis to improve pressure and efficiency, and (4) design of experiments to further optimize the housing design. CFD and experiments show designs with larger impellers increase flow rate and pressure but decrease efficiency. Blade and tip clearances also impact performance.
2 Degrees of Separation - Digital Marketing Show 2013 - Roland Harwood, 100%Open100%Open
This document summarizes a presentation on open innovation and networking. It discusses the birthday paradox, how networks are becoming more important than companies, and proposes a 3-minute joint venture activity. Case studies on LEGO, P&G, and ARM Holdings are provided, showing how they benefit from open business models. The presentation emphasizes that generosity and peripheral connections are important for innovation, and concludes by providing contact information for the presenter.
A Survey on: Sound Source Separation MethodsIJCERT
now a day’s multimedia databases are growing rapidly on large scale. For the effective management and exploration of large amount of music data the technology of singer identification is developed. With the help of this technology songs performed by particular singer can be clustered automatically. To improve the Performance of singer identification the technologies are emerged that can separate the singing voice from music accompaniment. One of the methods used for separating the singing voice from music accompaniment is non-negative matrix partial co factorization. This paper studies the different techniques for separation of singing voice from music accompaniment.
This document discusses strategic HR practices that drive organization growth. It begins with an overview of the contents which include background, processes and tools, and critical success factors. It then discusses a sustainable growth model involving business profit, strategy, leadership development, productivity, execution, innovation, and people development. Key HR processes and tools are then outlined, including talent development, organization development, strategy management, corporate culture, effective organization structure, and more. Critical factors for strategy, execution, culture, structure, talent, leadership, innovation, and mergers and acquisitions are also summarized. The document concludes with developmental phases for implementing these practices over a 24 month period.
This document discusses change management and organizational change. It presents on change management processes like Lewin's three-step model of unfreezing, changing, and refreezing. It also discusses the continuous change process model. The document outlines components of organizational change like strategy, technology/structure, human resources, culture and performance metrics. It identifies sources of resistance to change and factors that can reduce resistance like education, participation, support and negotiation.
The document discusses boundary layer separation, which occurs when the boundary layer can no longer stick to the surface of a solid body as the fluid flows over it. This is called boundary layer separation and leads to disadvantages like additional resistance to flow and loss of energy. Methods to control separation include accelerating the fluid in the boundary layer, suctioning fluid from the boundary layer, and moving the solid boundary to match the fluid velocity. Boundary layer separation tends to occur at the inner radius of bends due to pressure gradients.
The document discusses how globalization has impacted organizational structures and brought about changes in both private and public sector organizations. It outlines Weber's traditional bureaucratic organization model and how it is too rigid for today's globalized world. Modern global organizations have adopted network, cellular, and virtual structures that are flatter, less hierarchical, and more flexible. Public administration is also facing challenges from globalization, as traditional bureaucratic models are inefficient. The document suggests elements of new public administration, like lean states, separation of decision-making levels, and focus on results and customer service. It questions whether public administration in the Philippines has embraced necessary reforms.
The need for high pump performance and efficiency continue to encourage the study of flow between two parallel co-rotating discs in multiple discs pump or turbine. Therefore, this study entails the design, construction and CFD simulation of a 3D Tesla pump model axisymmetric swirling flow in order to enhance the understanding of Tesla pump for future development.
Method of solution entails designing and construction of a small prototype tesla pump and then using the design geometry and parameters to design and perform numerical simulation. The results of the numerical simulation were then analyzed.
The result obtained indicates static pressure to have minimum value of -4.7791Pa at the outlet and 13.777Pa at the pump inlet and with velocity magnitude having minimum velocity of 0.00m/s and maximum velocity of 4.12m/s. The strength of the velocity was seen to be very high at the pump outlet. The analysis radial velocity showed minimum value of -0.508m/s and maximum value of 3.981m/s with the radial velocity vector being concentrated at the discs periphery and outlet.
Model simulation results exhibited smooth pressure and velocity profiles. With the 3D simulation all flow variables are able to be predicted.
The effect of rotational speed variation on the velocity vectors in the singl...IOSR Journals
This document summarizes a study that uses computational fluid dynamics (CFD) to simulate the internal flow in a centrifugal pump with varying rotational speeds. The study models a single blade passage of a five-bladed centrifugal pump impeller to accurately predict velocity vectors on the blade, hub, and shroud. Results show that at higher rotational speeds above the design point, velocity vectors increase more gradually until reaching a maximum value at the leading edge of the blade. The analysis concludes that velocity vectors in the suction side remain approximately constant, but increase to a higher maximum at the leading edge as rotational speed increases, especially above the design point.
The effect of rotational speed variation on the static pressure in the centri...IOSR Journals
1) A numerical simulation was conducted to examine the effect of rotational speed variation on static pressure in a centrifugal pump.
2) Contours of static pressure on the blade, hub, and shroud were generated at rotational speeds of 1800 rpm to 2400 rpm.
3) The results show that static pressure is lowest on the suction side and increases towards the leading edge of the blade. Negative static pressure occurs at high rotational speeds over design limits, risking cavitation.
Micro fluidic valve for satellite propulsion systemIAEME Publication
The document describes the design and testing of a micro fluidic valve for satellite propulsion systems. The valve uses an electromagnetic actuation mechanism to control propellant flow. It was designed to have a response time of less than 10 ms, operate between -15°C and 70°C, and have a mass of around 120g. Testing showed the valve met leakage rate requirements of less than 10-6 scc/sec and had a response time of 3-7 ms. The valve successfully controlled propellant flow rates up to 16 cc/sec with varying inlet pressures and voltages, demonstrating its suitability for use in small satellite propulsion systems.
This document describes the development of a physical model of an electromechanically actuated valve to simulate valve disease in vitro. A mono-leaflet swing valve design is presented that can control its opening profile to mimic healthy and stenotic valve states. Computational fluid dynamics analysis was used to model fluid flow through the valve design and calculate the torque on the actuator from fluid pressures. This data was then incorporated into a Simulink physical model of the electromechanical system to enable control system design and optimization. The ability of the physical model to simulate valve disease progression in a pulsatile flow test rig is discussed.
Analysis and compensation for the cascade dead-zones in the proportional cont...ISA Interchange
The four-way proportional directional control valve has been widely used as the main stage spring constant for the two-stage proportional control valve (PDV). Since a tradeoff should be made between manufacturing costs and static performance, two symmetry dead-zones are introduced in the main stage spring constant: the center dead-zone caused by the center floating position and the intermediate dead- zone caused by the intermediate position. Though the intermediate dead-zone is much smaller than the center dead-zone, it has significant effect on the dynamic position tracking performance. In this paper, the cascade dead-zones problem in a typical two-stage PDV is analyzed and a cascade dead-zones model is proposed for the main stage spring constant. Then, a cascade dead-zones inverse method is improved with gain estimation and dead-zone detection to compensate the dead-zone non-linearity. Finally, a digital controller is designed for verification. The comparative experimental results indicate that it is effective to reduce the large position tracking error when the proposed method is applied.
Control of Suddenly Expanded Flow at Low Supersonic Mach NumbersIJERA Editor
In the present study the experiments were conducted to control the base pressure from a convergent-divergent
nozzle at low supersonic Mach numbers to assess the effectiveness of active control mechanism in the form of
micro jets at different expansion level. The parameters considered in the present study are the diameter ratio,
length to diameter ratio (L/D), Nozzle Pressure Ratio (NPR), and the Mach number. The diameter ratio selected
for the present study are 1.6, 1.8, 2.2, and 2.5. Experiments were conducted for nozzle pressure ratio (NPR)
from 3 to 11. The L/D ratio of the enlarged duct was varied from 10 to 1, and results are presented for L/D 4, 3,
2, and 1. The Mach numbers of the present studies are 1.1, 1.2, 1.4, and 1.5. The results show that the Micro jets
are very effective and are able to raise the base pressure value to a considerable level under the influence of
favorable pressure gradient except at lower NPR 3. At NPRs 5 and 7 for some cases the trends differ due to the
level of expansion, nature of waves present in the base region, relief available to the flow, L/D ratio of the
enlarged duct and the Mach numbers. It is seen that most of the cases exhibit similar behavior for the L/Ds in
the range 4 and 3, which means; that the back pressure has not adversely influenced the flow field in the base
region as well as in the duct. The minimum duct length required for the flow to be attached is L/D = 2, even
though in some cases flow is attached with duct wall. With this it can be stated that the micro jets can be an
alternative for the for base pressure control.
ICMF2013-417 (Conference Paper DR) Investigating Dispersion and Emulsificatio...David Ryan
1) The document summarizes an investigation into the dispersion and emulsification processes using a Sonolator liquid whistle device. Particle Image Velocimetry (PIV) experiments were conducted to measure the single-phase flow fields within a model Sonolator, which validated subsequent Computational Fluid Dynamics (CFD) simulations.
2) The PIV experiments found that the jet emanating from the Sonolator's orifice had peak velocities of 17 m/s, reducing to 10 m/s at 8 mm and 5 m/s at 16 mm from the orifice. There was also a large region of recirculation caused by fluid entrainment in the jet.
3) The
Design of Industrial Electro-Hydraulic Valves, New ApproachIJERA Editor
A fully flexible valve actuation systems are being under consideration as an enabling technology for advanced internal combustion engine concepts. Electro-hydraulic valve actuator systems are being considered as a dominating variable valve technology. Compared to the servo control system, the system using a proportional valve has the advantages of low price, high anti-pollution ability and high reliability. Unlike existing electromechanical or servo actuated electro-hydraulic valve actuation systems, precise valve motion control is achieved with an internal feedback mechanism. This feedback mechanism can be turned on or off in real-time using simple two state valves which helps reduce the system cost and enables mass production.
This document summarizes a research paper that proposes a new control technique for a Doubly Fed Induction Generator (DFG) used in variable speed wind turbines. The technique uses a nonlinear sliding mode control approach with an exponential reaching law (ERL) to control the active and reactive powers generated by the wind turbine. Simulation results show that this sliding mode control with ERL is more robust and improves power quality and stability compared to traditional sliding mode control approaches. It reduces chattering phenomenon while also accelerating the system response for better tracking of the desired control objectives.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Flow analysis of centrifugal pump using CFX solver and remedies for cavitatio...IJERA Editor
This document discusses a study that uses computational fluid dynamics (CFD) software to analyze flow characteristics in a centrifugal pump. Specifically:
1. CFD software called CFX is used to simulate fluid flow through a 3D model of a centrifugal pump with defined boundary conditions.
2. The software helps optimize the pump design in an iterative manner based on results like pressure and velocity plots.
3. A key issue analyzed is cavitation, where vapor bubbles form and collapse in the pump due to low pressure. The document examines factors that cause cavitation and its negative effects.
Study on a linear relationship between limited pressure difference and coil c...ISA Interchange
On/off solenoid valves with PWM control are widely used in all types of vehicle electro-hydraulic control systems respecting to their desirable properties of reliable, low cost and fast acting. However, it can hardly achieve a linear hydraulic modulation by using on/off valves mainly due to the nonlinear behaviors of valve dynamics and fluid, which affects the control accuracy significantly. In this paper, a linear relationship between limited pressure difference and coil current of an on/off valve in its critical closed state is proposed and illustrated, which has a great potential to be applied to improve hydraulic control performance. The hydraulic braking system of case study is modeled. The linear correspondence between limited pressure difference and coil current of the inlet valve is simulated and further verified experimentally. Based on validated simulation models, the impacts of key parameters are researched. The limited pressure difference affected by environmental temperatures is experimentally studied, and the amended linear relation is given according to the test data.
AJK2011-03023 (Conference Paper DR) Modelling Multiphase Jet Flows for High V...David Ryan
This document summarizes CFD simulations of flow inside an industrial static mixer called a Sonolator. Single-phase steady-state simulations were performed for three mass flow rates through a fixed nozzle orifice. Streamline data was used to calculate residence times and turbulent energy dissipation rates, which can provide insight into droplet breakup for emulsification processes. Validation was done against experimental discharge coefficients and predicted droplet sizes may depend on inlet conditions for multiphase mixtures.
This document summarizes a study that used computational fluid dynamics (CFD) to simulate and predict the velocity and pressure distribution inside a hydrocyclone. The study used commercial CFD software (FLUENT) to model the turbulent swirling flow. The results showed contours and diagrams of pressure and velocity inside the hydrocyclone, with lower pressure observed at the center and an average velocity of 7.173 m/s that agreed with theoretical calculations. Prior studies that also used CFD to model hydrocyclone flow fields and particle trajectories were discussed. The objective of this study was to better understand hydrocyclone flow behavior and separation mechanisms to improve hydrocyclone design and performance.
2 Degrees of Separation - Digital Marketing Show 2013 - Roland Harwood, 100%Open100%Open
This document summarizes a presentation on open innovation and networking. It discusses the birthday paradox, how networks are becoming more important than companies, and proposes a 3-minute joint venture activity. Case studies on LEGO, P&G, and ARM Holdings are provided, showing how they benefit from open business models. The presentation emphasizes that generosity and peripheral connections are important for innovation, and concludes by providing contact information for the presenter.
A Survey on: Sound Source Separation MethodsIJCERT
now a day’s multimedia databases are growing rapidly on large scale. For the effective management and exploration of large amount of music data the technology of singer identification is developed. With the help of this technology songs performed by particular singer can be clustered automatically. To improve the Performance of singer identification the technologies are emerged that can separate the singing voice from music accompaniment. One of the methods used for separating the singing voice from music accompaniment is non-negative matrix partial co factorization. This paper studies the different techniques for separation of singing voice from music accompaniment.
This document discusses strategic HR practices that drive organization growth. It begins with an overview of the contents which include background, processes and tools, and critical success factors. It then discusses a sustainable growth model involving business profit, strategy, leadership development, productivity, execution, innovation, and people development. Key HR processes and tools are then outlined, including talent development, organization development, strategy management, corporate culture, effective organization structure, and more. Critical factors for strategy, execution, culture, structure, talent, leadership, innovation, and mergers and acquisitions are also summarized. The document concludes with developmental phases for implementing these practices over a 24 month period.
This document discusses change management and organizational change. It presents on change management processes like Lewin's three-step model of unfreezing, changing, and refreezing. It also discusses the continuous change process model. The document outlines components of organizational change like strategy, technology/structure, human resources, culture and performance metrics. It identifies sources of resistance to change and factors that can reduce resistance like education, participation, support and negotiation.
The document discusses boundary layer separation, which occurs when the boundary layer can no longer stick to the surface of a solid body as the fluid flows over it. This is called boundary layer separation and leads to disadvantages like additional resistance to flow and loss of energy. Methods to control separation include accelerating the fluid in the boundary layer, suctioning fluid from the boundary layer, and moving the solid boundary to match the fluid velocity. Boundary layer separation tends to occur at the inner radius of bends due to pressure gradients.
The document discusses how globalization has impacted organizational structures and brought about changes in both private and public sector organizations. It outlines Weber's traditional bureaucratic organization model and how it is too rigid for today's globalized world. Modern global organizations have adopted network, cellular, and virtual structures that are flatter, less hierarchical, and more flexible. Public administration is also facing challenges from globalization, as traditional bureaucratic models are inefficient. The document suggests elements of new public administration, like lean states, separation of decision-making levels, and focus on results and customer service. It questions whether public administration in the Philippines has embraced necessary reforms.
The need for high pump performance and efficiency continue to encourage the study of flow between two parallel co-rotating discs in multiple discs pump or turbine. Therefore, this study entails the design, construction and CFD simulation of a 3D Tesla pump model axisymmetric swirling flow in order to enhance the understanding of Tesla pump for future development.
Method of solution entails designing and construction of a small prototype tesla pump and then using the design geometry and parameters to design and perform numerical simulation. The results of the numerical simulation were then analyzed.
The result obtained indicates static pressure to have minimum value of -4.7791Pa at the outlet and 13.777Pa at the pump inlet and with velocity magnitude having minimum velocity of 0.00m/s and maximum velocity of 4.12m/s. The strength of the velocity was seen to be very high at the pump outlet. The analysis radial velocity showed minimum value of -0.508m/s and maximum value of 3.981m/s with the radial velocity vector being concentrated at the discs periphery and outlet.
Model simulation results exhibited smooth pressure and velocity profiles. With the 3D simulation all flow variables are able to be predicted.
The effect of rotational speed variation on the velocity vectors in the singl...IOSR Journals
This document summarizes a study that uses computational fluid dynamics (CFD) to simulate the internal flow in a centrifugal pump with varying rotational speeds. The study models a single blade passage of a five-bladed centrifugal pump impeller to accurately predict velocity vectors on the blade, hub, and shroud. Results show that at higher rotational speeds above the design point, velocity vectors increase more gradually until reaching a maximum value at the leading edge of the blade. The analysis concludes that velocity vectors in the suction side remain approximately constant, but increase to a higher maximum at the leading edge as rotational speed increases, especially above the design point.
The effect of rotational speed variation on the static pressure in the centri...IOSR Journals
1) A numerical simulation was conducted to examine the effect of rotational speed variation on static pressure in a centrifugal pump.
2) Contours of static pressure on the blade, hub, and shroud were generated at rotational speeds of 1800 rpm to 2400 rpm.
3) The results show that static pressure is lowest on the suction side and increases towards the leading edge of the blade. Negative static pressure occurs at high rotational speeds over design limits, risking cavitation.
Micro fluidic valve for satellite propulsion systemIAEME Publication
The document describes the design and testing of a micro fluidic valve for satellite propulsion systems. The valve uses an electromagnetic actuation mechanism to control propellant flow. It was designed to have a response time of less than 10 ms, operate between -15°C and 70°C, and have a mass of around 120g. Testing showed the valve met leakage rate requirements of less than 10-6 scc/sec and had a response time of 3-7 ms. The valve successfully controlled propellant flow rates up to 16 cc/sec with varying inlet pressures and voltages, demonstrating its suitability for use in small satellite propulsion systems.
This document describes the development of a physical model of an electromechanically actuated valve to simulate valve disease in vitro. A mono-leaflet swing valve design is presented that can control its opening profile to mimic healthy and stenotic valve states. Computational fluid dynamics analysis was used to model fluid flow through the valve design and calculate the torque on the actuator from fluid pressures. This data was then incorporated into a Simulink physical model of the electromechanical system to enable control system design and optimization. The ability of the physical model to simulate valve disease progression in a pulsatile flow test rig is discussed.
Analysis and compensation for the cascade dead-zones in the proportional cont...ISA Interchange
The four-way proportional directional control valve has been widely used as the main stage spring constant for the two-stage proportional control valve (PDV). Since a tradeoff should be made between manufacturing costs and static performance, two symmetry dead-zones are introduced in the main stage spring constant: the center dead-zone caused by the center floating position and the intermediate dead- zone caused by the intermediate position. Though the intermediate dead-zone is much smaller than the center dead-zone, it has significant effect on the dynamic position tracking performance. In this paper, the cascade dead-zones problem in a typical two-stage PDV is analyzed and a cascade dead-zones model is proposed for the main stage spring constant. Then, a cascade dead-zones inverse method is improved with gain estimation and dead-zone detection to compensate the dead-zone non-linearity. Finally, a digital controller is designed for verification. The comparative experimental results indicate that it is effective to reduce the large position tracking error when the proposed method is applied.
Control of Suddenly Expanded Flow at Low Supersonic Mach NumbersIJERA Editor
In the present study the experiments were conducted to control the base pressure from a convergent-divergent
nozzle at low supersonic Mach numbers to assess the effectiveness of active control mechanism in the form of
micro jets at different expansion level. The parameters considered in the present study are the diameter ratio,
length to diameter ratio (L/D), Nozzle Pressure Ratio (NPR), and the Mach number. The diameter ratio selected
for the present study are 1.6, 1.8, 2.2, and 2.5. Experiments were conducted for nozzle pressure ratio (NPR)
from 3 to 11. The L/D ratio of the enlarged duct was varied from 10 to 1, and results are presented for L/D 4, 3,
2, and 1. The Mach numbers of the present studies are 1.1, 1.2, 1.4, and 1.5. The results show that the Micro jets
are very effective and are able to raise the base pressure value to a considerable level under the influence of
favorable pressure gradient except at lower NPR 3. At NPRs 5 and 7 for some cases the trends differ due to the
level of expansion, nature of waves present in the base region, relief available to the flow, L/D ratio of the
enlarged duct and the Mach numbers. It is seen that most of the cases exhibit similar behavior for the L/Ds in
the range 4 and 3, which means; that the back pressure has not adversely influenced the flow field in the base
region as well as in the duct. The minimum duct length required for the flow to be attached is L/D = 2, even
though in some cases flow is attached with duct wall. With this it can be stated that the micro jets can be an
alternative for the for base pressure control.
ICMF2013-417 (Conference Paper DR) Investigating Dispersion and Emulsificatio...David Ryan
1) The document summarizes an investigation into the dispersion and emulsification processes using a Sonolator liquid whistle device. Particle Image Velocimetry (PIV) experiments were conducted to measure the single-phase flow fields within a model Sonolator, which validated subsequent Computational Fluid Dynamics (CFD) simulations.
2) The PIV experiments found that the jet emanating from the Sonolator's orifice had peak velocities of 17 m/s, reducing to 10 m/s at 8 mm and 5 m/s at 16 mm from the orifice. There was also a large region of recirculation caused by fluid entrainment in the jet.
3) The
Design of Industrial Electro-Hydraulic Valves, New ApproachIJERA Editor
A fully flexible valve actuation systems are being under consideration as an enabling technology for advanced internal combustion engine concepts. Electro-hydraulic valve actuator systems are being considered as a dominating variable valve technology. Compared to the servo control system, the system using a proportional valve has the advantages of low price, high anti-pollution ability and high reliability. Unlike existing electromechanical or servo actuated electro-hydraulic valve actuation systems, precise valve motion control is achieved with an internal feedback mechanism. This feedback mechanism can be turned on or off in real-time using simple two state valves which helps reduce the system cost and enables mass production.
This document summarizes a research paper that proposes a new control technique for a Doubly Fed Induction Generator (DFG) used in variable speed wind turbines. The technique uses a nonlinear sliding mode control approach with an exponential reaching law (ERL) to control the active and reactive powers generated by the wind turbine. Simulation results show that this sliding mode control with ERL is more robust and improves power quality and stability compared to traditional sliding mode control approaches. It reduces chattering phenomenon while also accelerating the system response for better tracking of the desired control objectives.
International Journal of Engineering Research and Applications (IJERA) is an open access online peer reviewed international journal that publishes research and review articles in the fields of Computer Science, Neural Networks, Electrical Engineering, Software Engineering, Information Technology, Mechanical Engineering, Chemical Engineering, Plastic Engineering, Food Technology, Textile Engineering, Nano Technology & science, Power Electronics, Electronics & Communication Engineering, Computational mathematics, Image processing, Civil Engineering, Structural Engineering, Environmental Engineering, VLSI Testing & Low Power VLSI Design etc.
Flow analysis of centrifugal pump using CFX solver and remedies for cavitatio...IJERA Editor
This document discusses a study that uses computational fluid dynamics (CFD) software to analyze flow characteristics in a centrifugal pump. Specifically:
1. CFD software called CFX is used to simulate fluid flow through a 3D model of a centrifugal pump with defined boundary conditions.
2. The software helps optimize the pump design in an iterative manner based on results like pressure and velocity plots.
3. A key issue analyzed is cavitation, where vapor bubbles form and collapse in the pump due to low pressure. The document examines factors that cause cavitation and its negative effects.
Study on a linear relationship between limited pressure difference and coil c...ISA Interchange
On/off solenoid valves with PWM control are widely used in all types of vehicle electro-hydraulic control systems respecting to their desirable properties of reliable, low cost and fast acting. However, it can hardly achieve a linear hydraulic modulation by using on/off valves mainly due to the nonlinear behaviors of valve dynamics and fluid, which affects the control accuracy significantly. In this paper, a linear relationship between limited pressure difference and coil current of an on/off valve in its critical closed state is proposed and illustrated, which has a great potential to be applied to improve hydraulic control performance. The hydraulic braking system of case study is modeled. The linear correspondence between limited pressure difference and coil current of the inlet valve is simulated and further verified experimentally. Based on validated simulation models, the impacts of key parameters are researched. The limited pressure difference affected by environmental temperatures is experimentally studied, and the amended linear relation is given according to the test data.
AJK2011-03023 (Conference Paper DR) Modelling Multiphase Jet Flows for High V...David Ryan
This document summarizes CFD simulations of flow inside an industrial static mixer called a Sonolator. Single-phase steady-state simulations were performed for three mass flow rates through a fixed nozzle orifice. Streamline data was used to calculate residence times and turbulent energy dissipation rates, which can provide insight into droplet breakup for emulsification processes. Validation was done against experimental discharge coefficients and predicted droplet sizes may depend on inlet conditions for multiphase mixtures.
This document summarizes a study that used computational fluid dynamics (CFD) to simulate and predict the velocity and pressure distribution inside a hydrocyclone. The study used commercial CFD software (FLUENT) to model the turbulent swirling flow. The results showed contours and diagrams of pressure and velocity inside the hydrocyclone, with lower pressure observed at the center and an average velocity of 7.173 m/s that agreed with theoretical calculations. Prior studies that also used CFD to model hydrocyclone flow fields and particle trajectories were discussed. The objective of this study was to better understand hydrocyclone flow behavior and separation mechanisms to improve hydrocyclone design and performance.
Optimization of Modified Sliding Mode Controller for an Electro-hydraulic Act...IJECEIAES
This paper presents the design of the modified sliding mode controller (MSMC) for the purpose of tracking the nonlinear system with mismatched disturbance. Provided that the performance of the designed controller depends on the value of control parameters, gravitational search algorithm (GSA), and particle swarm optimization (PSO) techniques are used to optimize these parameters in order to achieve a predefined system’s performance. In respect of system’s performance, it is evaluated based on the tracking error present between reference inputs transferred to the system and the system output. This is followed by verification of the efficiency of the designed controller in simulation environment under various values, with and without the inclusion of external disturbance. It can be seen from the simulation results that the MSMC with PSO exhibits a better performance in comparison to the performance of the similar controller with GSA in terms of output response and tracking error.
The document discusses thrust vector control systems which redirect engine thrust to control aircraft attitude. It focuses on the jet deflection method, where small airfoils located at the nozzle exit plane cause thrust to be vectored. The goals are to analyze this system using CFD. NACA 0012 airfoils are selected due to symmetrical shape and lift characteristics. CFD will be used to simulate fluid flow and predict system performance before manufacturing. Key benefits of CFD include insight into designs, ability to test variants efficiently, and compressing development cycles.
CONTROL OF HYDRAULIC FORCES ON A SQUARE AND CIRCULAR CYLINDER USING MULTI-ELE...IRJET Journal
The document discusses numerical analysis of vortex structures behind square and circular cylinders with and without splitter plates. It involves modeling different configurations with varying diameter-to-height ratios and employing multi-element splitter plates. Results show that splitter plates can significantly reduce lift coefficients and pressure variations on the cylinders by stabilizing the wake. Optimal splitter plate positioning depends on the cylinder geometry, with a ratio of 1.0 showing the most improvement for circular cylinders based on analyses of pressure distributions and transient lift forces.
REVIEW OF FLOW DISTRIBUTION NETWORK ANALYSIS FOR DISCHARGE SIDE OF CENTRIFUGA...ijiert bestjournal
A computational fluid dynamics (CFD) analysis has been conducted to find the pressure losses for dividing and combining fluid flow through a junction of discharge system. Simulations are performed for a range of flow ratios and equations are developed for pressure loss coefficients at junctions. A mathematical model based on s uccessive approximations then would be employed to estimate the pressure losses. The proposed CFD based strategy can be used for the analysis of all the three pipe branches of s ome diameter are selected along with equal length so that only the effect of bend angle can be st udied. The effect of bend angle,pipe diameter,pipe length,reynolds number on the resistan ce coefficient is studied. The software used is CATIA for modeling and ANSYS fluent for analysis purpose.
MODELLING, ANALYSIS AND SIMULATION OF THE PIEZOELECTRIC MICRO PUMPadeij1
The piezoelectricity is a reversible phenomenon, which corresponds to the direct piezoelectric effect. So that, the battery loads arrive at the pump, an electronic module must be established in the circuit. A flow pump must be used and its effectiveness must be evaluated according to the desired need. The system is conceived around 24 hour old clock which can be programmed to provide fluid in variable quantity on a regular basis. The piezo-hydraulic pump presented in this work is composed mainly of shareholder piezoelectric with two valves and a diaphragm of the room reinforced by a hard disk. This one is used to improve the performance of the micro-pump in forecast of pump realization. Modeling, analysis and simulation are carried out under SYMBOLS software.
Similar to Conceptual Designing and Numerical Modeling of Micro Pulse Jet for Controlling Flow Separation (20)
Chapter wise All Notes of First year Basic Civil Engineering.pptxDenish Jangid
Chapter wise All Notes of First year Basic Civil Engineering
Syllabus
Chapter-1
Introduction to objective, scope and outcome the subject
Chapter 2
Introduction: Scope and Specialization of Civil Engineering, Role of civil Engineer in Society, Impact of infrastructural development on economy of country.
Chapter 3
Surveying: Object Principles & Types of Surveying; Site Plans, Plans & Maps; Scales & Unit of different Measurements.
Linear Measurements: Instruments used. Linear Measurement by Tape, Ranging out Survey Lines and overcoming Obstructions; Measurements on sloping ground; Tape corrections, conventional symbols. Angular Measurements: Instruments used; Introduction to Compass Surveying, Bearings and Longitude & Latitude of a Line, Introduction to total station.
Levelling: Instrument used Object of levelling, Methods of levelling in brief, and Contour maps.
Chapter 4
Buildings: Selection of site for Buildings, Layout of Building Plan, Types of buildings, Plinth area, carpet area, floor space index, Introduction to building byelaws, concept of sun light & ventilation. Components of Buildings & their functions, Basic concept of R.C.C., Introduction to types of foundation
Chapter 5
Transportation: Introduction to Transportation Engineering; Traffic and Road Safety: Types and Characteristics of Various Modes of Transportation; Various Road Traffic Signs, Causes of Accidents and Road Safety Measures.
Chapter 6
Environmental Engineering: Environmental Pollution, Environmental Acts and Regulations, Functional Concepts of Ecology, Basics of Species, Biodiversity, Ecosystem, Hydrological Cycle; Chemical Cycles: Carbon, Nitrogen & Phosphorus; Energy Flow in Ecosystems.
Water Pollution: Water Quality standards, Introduction to Treatment & Disposal of Waste Water. Reuse and Saving of Water, Rain Water Harvesting. Solid Waste Management: Classification of Solid Waste, Collection, Transportation and Disposal of Solid. Recycling of Solid Waste: Energy Recovery, Sanitary Landfill, On-Site Sanitation. Air & Noise Pollution: Primary and Secondary air pollutants, Harmful effects of Air Pollution, Control of Air Pollution. . Noise Pollution Harmful Effects of noise pollution, control of noise pollution, Global warming & Climate Change, Ozone depletion, Greenhouse effect
Text Books:
1. Palancharmy, Basic Civil Engineering, McGraw Hill publishers.
2. Satheesh Gopi, Basic Civil Engineering, Pearson Publishers.
3. Ketki Rangwala Dalal, Essentials of Civil Engineering, Charotar Publishing House.
4. BCP, Surveying volume 1
Temple of Asclepius in Thrace. Excavation resultsKrassimira Luka
The temple and the sanctuary around were dedicated to Asklepios Zmidrenus. This name has been known since 1875 when an inscription dedicated to him was discovered in Rome. The inscription is dated in 227 AD and was left by soldiers originating from the city of Philippopolis (modern Plovdiv).
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumMJDuyan
(𝐓𝐋𝐄 𝟏𝟎𝟎) (𝐋𝐞𝐬𝐬𝐨𝐧 𝟏)-𝐏𝐫𝐞𝐥𝐢𝐦𝐬
𝐃𝐢𝐬𝐜𝐮𝐬𝐬 𝐭𝐡𝐞 𝐄𝐏𝐏 𝐂𝐮𝐫𝐫𝐢𝐜𝐮𝐥𝐮𝐦 𝐢𝐧 𝐭𝐡𝐞 𝐏𝐡𝐢𝐥𝐢𝐩𝐩𝐢𝐧𝐞𝐬:
- Understand the goals and objectives of the Edukasyong Pantahanan at Pangkabuhayan (EPP) curriculum, recognizing its importance in fostering practical life skills and values among students. Students will also be able to identify the key components and subjects covered, such as agriculture, home economics, industrial arts, and information and communication technology.
𝐄𝐱𝐩𝐥𝐚𝐢𝐧 𝐭𝐡𝐞 𝐍𝐚𝐭𝐮𝐫𝐞 𝐚𝐧𝐝 𝐒𝐜𝐨𝐩𝐞 𝐨𝐟 𝐚𝐧 𝐄𝐧𝐭𝐫𝐞𝐩𝐫𝐞𝐧𝐞𝐮𝐫:
-Define entrepreneurship, distinguishing it from general business activities by emphasizing its focus on innovation, risk-taking, and value creation. Students will describe the characteristics and traits of successful entrepreneurs, including their roles and responsibilities, and discuss the broader economic and social impacts of entrepreneurial activities on both local and global scales.
Walmart Business+ and Spark Good for Nonprofits.pdfTechSoup
"Learn about all the ways Walmart supports nonprofit organizations.
You will hear from Liz Willett, the Head of Nonprofits, and hear about what Walmart is doing to help nonprofits, including Walmart Business and Spark Good. Walmart Business+ is a new offer for nonprofits that offers discounts and also streamlines nonprofits order and expense tracking, saving time and money.
The webinar may also give some examples on how nonprofits can best leverage Walmart Business+.
The event will cover the following::
Walmart Business + (https://business.walmart.com/plus) is a new shopping experience for nonprofits, schools, and local business customers that connects an exclusive online shopping experience to stores. Benefits include free delivery and shipping, a 'Spend Analytics” feature, special discounts, deals and tax-exempt shopping.
Special TechSoup offer for a free 180 days membership, and up to $150 in discounts on eligible orders.
Spark Good (walmart.com/sparkgood) is a charitable platform that enables nonprofits to receive donations directly from customers and associates.
Answers about how you can do more with Walmart!"
Gender and Mental Health - Counselling and Family Therapy Applications and In...PsychoTech Services
A proprietary approach developed by bringing together the best of learning theories from Psychology, design principles from the world of visualization, and pedagogical methods from over a decade of training experience, that enables you to: Learn better, faster!
हिंदी वर्णमाला पीपीटी, hindi alphabet PPT presentation, hindi varnamala PPT, Hindi Varnamala pdf, हिंदी स्वर, हिंदी व्यंजन, sikhiye hindi varnmala, dr. mulla adam ali, hindi language and literature, hindi alphabet with drawing, hindi alphabet pdf, hindi varnamala for childrens, hindi language, hindi varnamala practice for kids, https://www.drmullaadamali.com
Beyond Degrees - Empowering the Workforce in the Context of Skills-First.pptxEduSkills OECD
Iván Bornacelly, Policy Analyst at the OECD Centre for Skills, OECD, presents at the webinar 'Tackling job market gaps with a skills-first approach' on 12 June 2024

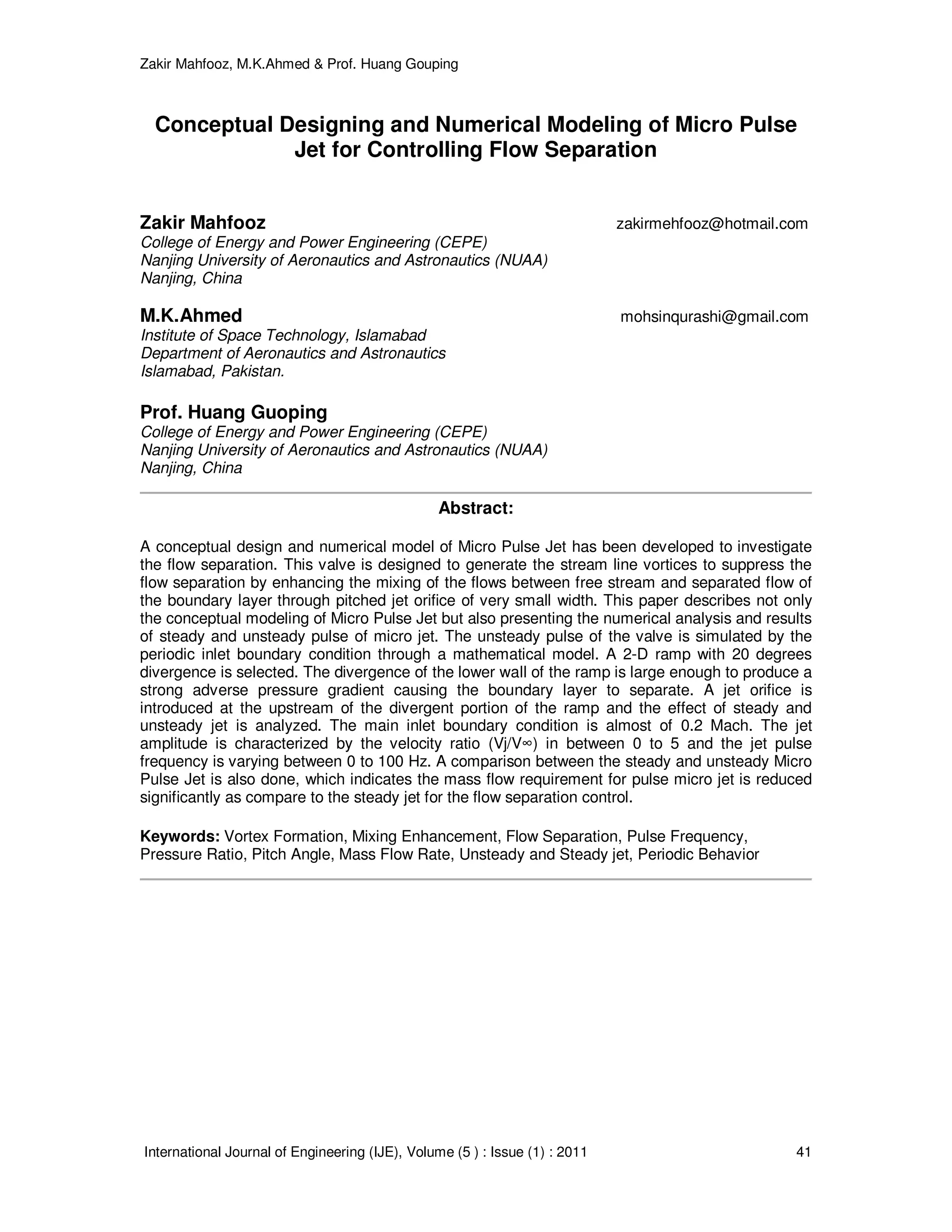

Conceptual Designing and Numerical Modeling of Micro Pulse Jet for Controlling Flow Separation
1. Zakir Mahfooz, M.K.Ahmed & Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 41
Conceptual Designing and Numerical Modeling of Micro Pulse
Jet for Controlling Flow Separation
Zakir Mahfooz zakirmehfooz@hotmail.com
College of Energy and Power Engineering (CEPE)
Nanjing University of Aeronautics and Astronautics (NUAA)
Nanjing, China
M.K.Ahmed mohsinqurashi@gmail.com
Institute of Space Technology, Islamabad
Department of Aeronautics and Astronautics
Islamabad, Pakistan.
Prof. Huang Guoping
College of Energy and Power Engineering (CEPE)
Nanjing University of Aeronautics and Astronautics (NUAA)
Nanjing, China
Abstract:
A conceptual design and numerical model of Micro Pulse Jet has been developed to investigate
the flow separation. This valve is designed to generate the stream line vortices to suppress the
flow separation by enhancing the mixing of the flows between free stream and separated flow of
the boundary layer through pitched jet orifice of very small width. This paper describes not only
the conceptual modeling of Micro Pulse Jet but also presenting the numerical analysis and results
of steady and unsteady pulse of micro jet. The unsteady pulse of the valve is simulated by the
periodic inlet boundary condition through a mathematical model. A 2-D ramp with 20 degrees
divergence is selected. The divergence of the lower wall of the ramp is large enough to produce a
strong adverse pressure gradient causing the boundary layer to separate. A jet orifice is
introduced at the upstream of the divergent portion of the ramp and the effect of steady and
unsteady jet is analyzed. The main inlet boundary condition is almost of 0.2 Mach. The jet
amplitude is characterized by the velocity ratio (Vj/V∞) in between 0 to 5 and the jet pulse
frequency is varying between 0 to 100 Hz. A comparison between the steady and unsteady Micro
Pulse Jet is also done, which indicates the mass flow requirement for pulse micro jet is reduced
significantly as compare to the steady jet for the flow separation control.
Keywords: Vortex Formation, Mixing Enhancement, Flow Separation, Pulse Frequency,
Pressure Ratio, Pitch Angle, Mass Flow Rate, Unsteady and Steady jet, Periodic Behavior
2. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 42

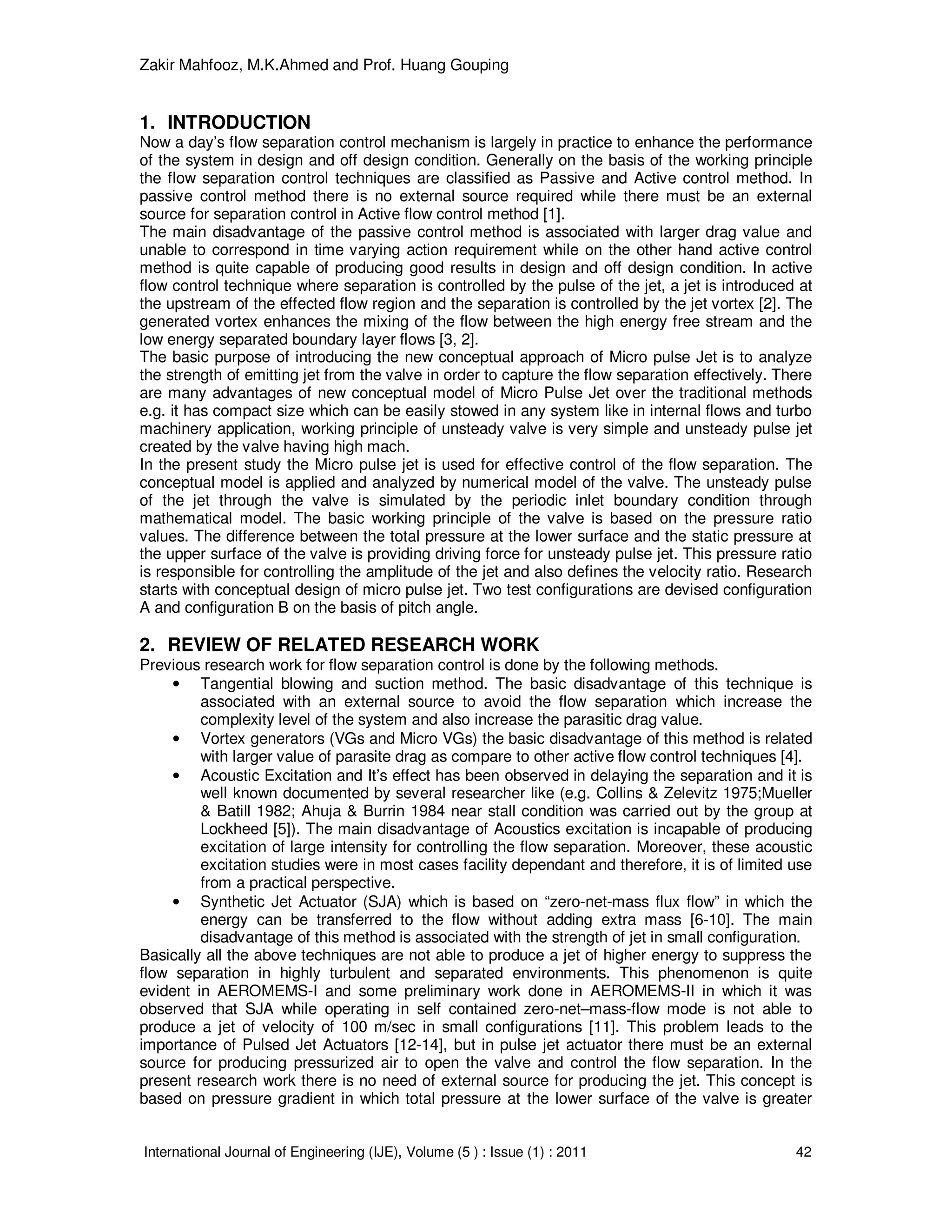

1. INTRODUCTION
Now a day’s flow separation control mechanism is largely in practice to enhance the performance
of the system in design and off design condition. Generally on the basis of the working principle
the flow separation control techniques are classified as Passive and Active control method. In
passive control method there is no external source required while there must be an external
source for separation control in Active flow control method [1].
The main disadvantage of the passive control method is associated with larger drag value and
unable to correspond in time varying action requirement while on the other hand active control
method is quite capable of producing good results in design and off design condition. In active
flow control technique where separation is controlled by the pulse of the jet, a jet is introduced at
the upstream of the effected flow region and the separation is controlled by the jet vortex [2]. The
generated vortex enhances the mixing of the flow between the high energy free stream and the
low energy separated boundary layer flows [3, 2].
The basic purpose of introducing the new conceptual approach of Micro pulse Jet is to analyze
the strength of emitting jet from the valve in order to capture the flow separation effectively. There
are many advantages of new conceptual model of Micro Pulse Jet over the traditional methods
e.g. it has compact size which can be easily stowed in any system like in internal flows and turbo
machinery application, working principle of unsteady valve is very simple and unsteady pulse jet
created by the valve having high mach.
In the present study the Micro pulse jet is used for effective control of the flow separation. The
conceptual model is applied and analyzed by numerical model of the valve. The unsteady pulse
of the jet through the valve is simulated by the periodic inlet boundary condition through
mathematical model. The basic working principle of the valve is based on the pressure ratio
values. The difference between the total pressure at the lower surface and the static pressure at
the upper surface of the valve is providing driving force for unsteady pulse jet. This pressure ratio
is responsible for controlling the amplitude of the jet and also defines the velocity ratio. Research
starts with conceptual design of micro pulse jet. Two test configurations are devised configuration
A and configuration B on the basis of pitch angle.
2. REVIEW OF RELATED RESEARCH WORK
Previous research work for flow separation control is done by the following methods.
• Tangential blowing and suction method. The basic disadvantage of this technique is
associated with an external source to avoid the flow separation which increase the
complexity level of the system and also increase the parasitic drag value.
• Vortex generators (VGs and Micro VGs) the basic disadvantage of this method is related
with larger value of parasite drag as compare to other active flow control techniques [4].
• Acoustic Excitation and It’s effect has been observed in delaying the separation and it is
well known documented by several researcher like (e.g. Collins & Zelevitz 1975;Mueller
& Batill 1982; Ahuja & Burrin 1984 near stall condition was carried out by the group at
Lockheed [5]). The main disadvantage of Acoustics excitation is incapable of producing
excitation of large intensity for controlling the flow separation. Moreover, these acoustic
excitation studies were in most cases facility dependant and therefore, it is of limited use
from a practical perspective.
• Synthetic Jet Actuator (SJA) which is based on “zero-net-mass flux flow” in which the
energy can be transferred to the flow without adding extra mass [6-10]. The main
disadvantage of this method is associated with the strength of jet in small configuration.
Basically all the above techniques are not able to produce a jet of higher energy to suppress the
flow separation in highly turbulent and separated environments. This phenomenon is quite
evident in AEROMEMS-I and some preliminary work done in AEROMEMS-II in which it was
observed that SJA while operating in self contained zero-net–mass-flow mode is not able to
produce a jet of velocity of 100 m/sec in small configurations [11]. This problem leads to the
importance of Pulsed Jet Actuators [12-14], but in pulse jet actuator there must be an external
source for producing pressurized air to open the valve and control the flow separation. In the
present research work there is no need of external source for producing the jet. This concept is
based on pressure gradient in which total pressure at the lower surface of the valve is greater
3. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 43
than the pressure at the upper surface and consequently separation is controlled through the
unsteady pulse of the jet.

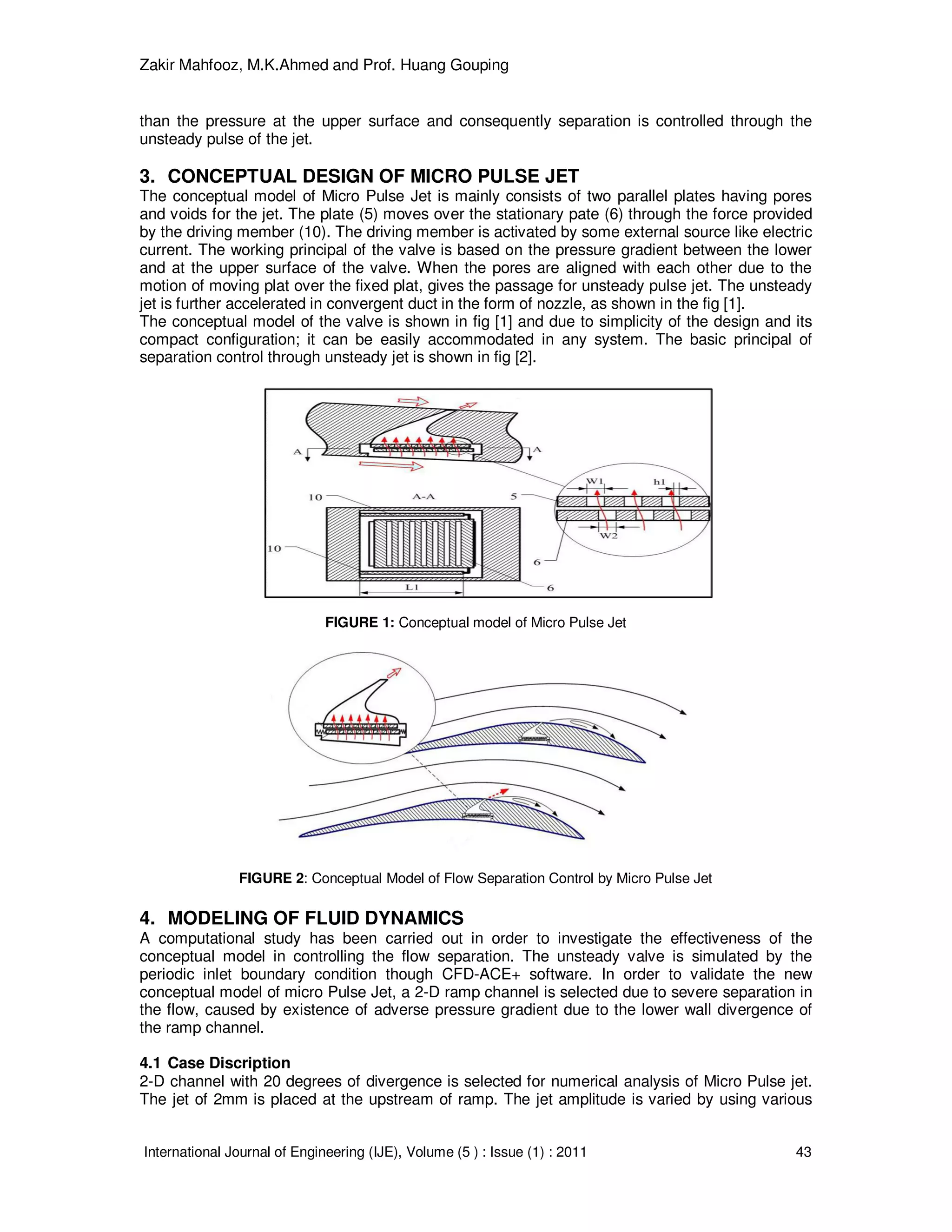

3. CONCEPTUAL DESIGN OF MICRO PULSE JET
The conceptual model of Micro Pulse Jet is mainly consists of two parallel plates having pores
and voids for the jet. The plate (5) moves over the stationary pate (6) through the force provided
by the driving member (10). The driving member is activated by some external source like electric
current. The working principal of the valve is based on the pressure gradient between the lower
and at the upper surface of the valve. When the pores are aligned with each other due to the
motion of moving plat over the fixed plat, gives the passage for unsteady pulse jet. The unsteady
jet is further accelerated in convergent duct in the form of nozzle, as shown in the fig [1].
The conceptual model of the valve is shown in fig [1] and due to simplicity of the design and its
compact configuration; it can be easily accommodated in any system. The basic principal of
separation control through unsteady jet is shown in fig [2].
FIGURE 1: Conceptual model of Micro Pulse Jet
FIGURE 2: Conceptual Model of Flow Separation Control by Micro Pulse Jet
4. MODELING OF FLUID DYNAMICS
A computational study has been carried out in order to investigate the effectiveness of the
conceptual model in controlling the flow separation. The unsteady valve is simulated by the
periodic inlet boundary condition though CFD-ACE+ software. In order to validate the new
conceptual model of micro Pulse Jet, a 2-D ramp channel is selected due to severe separation in
the flow, caused by existence of adverse pressure gradient due to the lower wall divergence of
the ramp channel.
4.1 Case Discription
2-D channel with 20 degrees of divergence is selected for numerical analysis of Micro Pulse jet.
The jet of 2mm is placed at the upstream of ramp. The jet amplitude is varied by using various

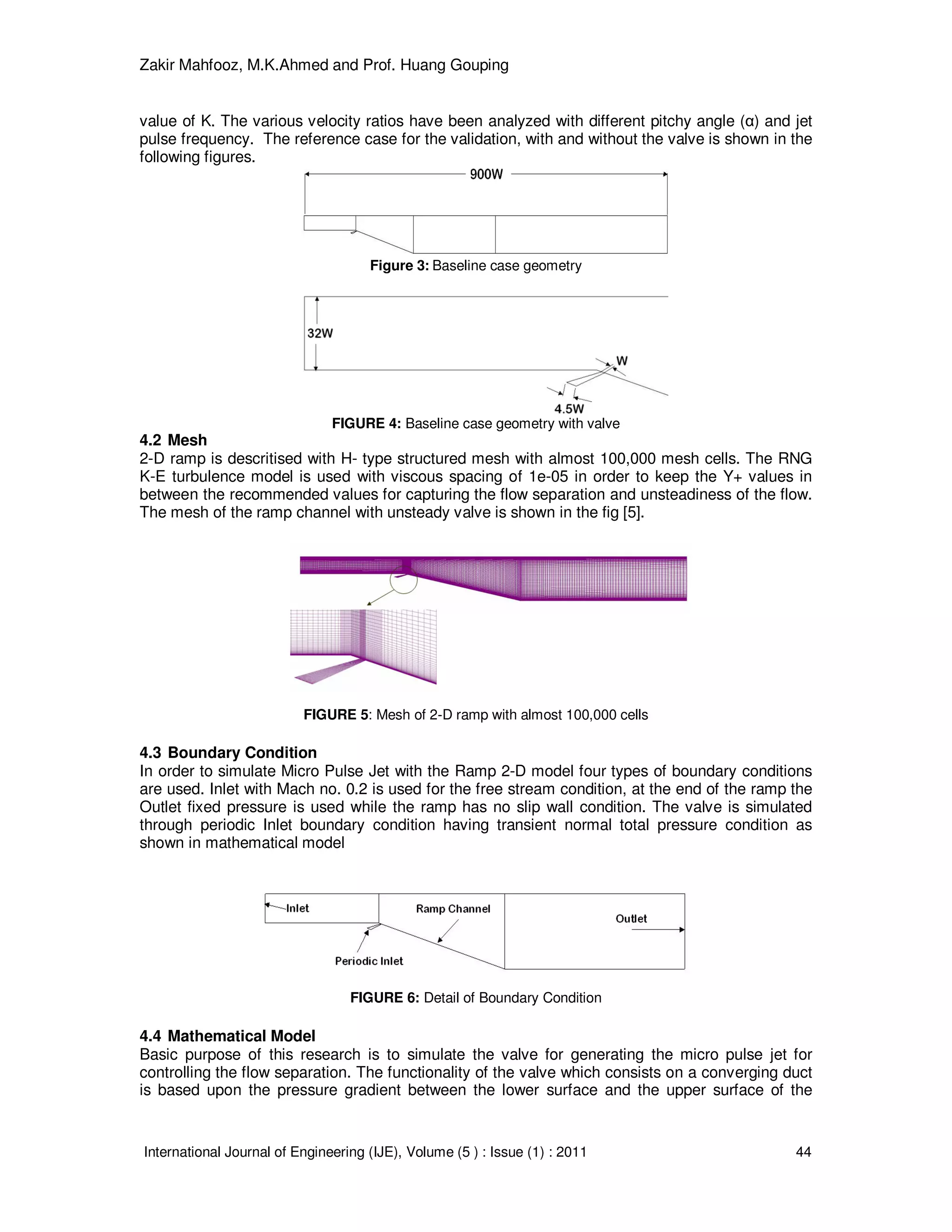

4. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 44
value of K. The various velocity ratios have been analyzed with different pitchy angle (α) and jet
pulse frequency. The reference case for the validation, with and without the valve is shown in the
following figures.
Figure 3: Baseline case geometry
FIGURE 4: Baseline case geometry with valve
4.2 Mesh
2-D ramp is descritised with H- type structured mesh with almost 100,000 mesh cells. The RNG
K-E turbulence model is used with viscous spacing of 1e-05 in order to keep the Y+ values in
between the recommended values for capturing the flow separation and unsteadiness of the flow.
The mesh of the ramp channel with unsteady valve is shown in the fig [5].
FIGURE 5: Mesh of 2-D ramp with almost 100,000 cells
4.3 Boundary Condition
In order to simulate Micro Pulse Jet with the Ramp 2-D model four types of boundary conditions
are used. Inlet with Mach no. 0.2 is used for the free stream condition, at the end of the ramp the
Outlet fixed pressure is used while the ramp has no slip wall condition. The valve is simulated
through periodic Inlet boundary condition having transient normal total pressure condition as
shown in mathematical model
FIGURE 6: Detail of Boundary Condition
4.4 Mathematical Model
Basic purpose of this research is to simulate the valve for generating the micro pulse jet for
controlling the flow separation. The functionality of the valve which consists on a converging duct
is based upon the pressure gradient between the lower surface and the upper surface of the
5. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 45
valve. The flow is accelerated due to the pressure gradient and the convergent duct of the valve.
The Mach of the jet and velocity ratio is controlled by the pressure ratio (K).
The transient behavior of the valve is modeled with the help of the mathematical model. The
following mathematical function is used to simulate the valve with periodic inlet boundary
condition for the unsteady micro pulse Jet.
cos 1
[( ) 1]
2
O st
wt
P P K
+
= ∗ +
[1]
Where K is the pressure ratio factor

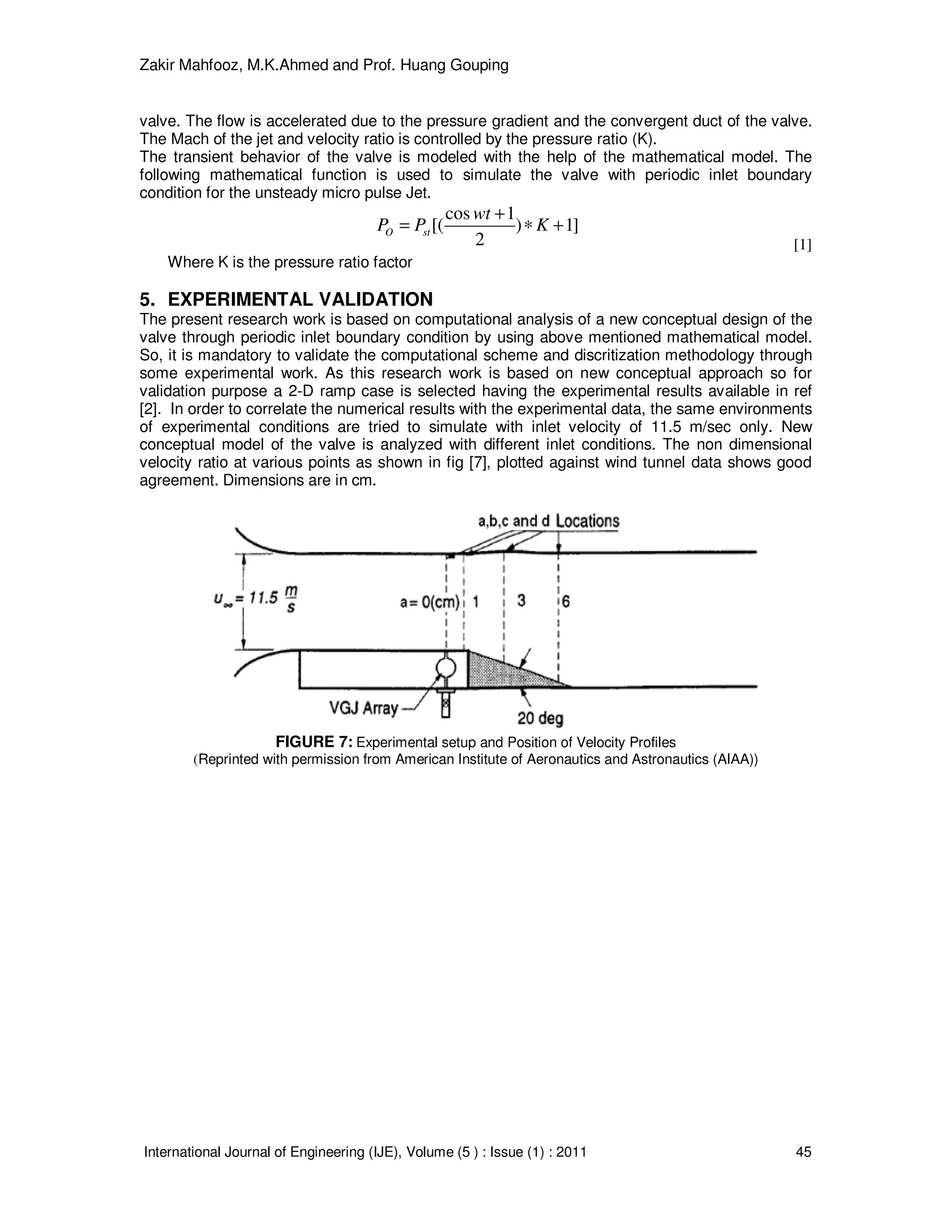

5. EXPERIMENTAL VALIDATION
The present research work is based on computational analysis of a new conceptual design of the
valve through periodic inlet boundary condition by using above mentioned mathematical model.
So, it is mandatory to validate the computational scheme and discritization methodology through
some experimental work. As this research work is based on new conceptual approach so for
validation purpose a 2-D ramp case is selected having the experimental results available in ref
[2]. In order to correlate the numerical results with the experimental data, the same environments
of experimental conditions are tried to simulate with inlet velocity of 11.5 m/sec only. New
conceptual model of the valve is analyzed with different inlet conditions. The non dimensional
velocity ratio at various points as shown in fig [7], plotted against wind tunnel data shows good
agreement. Dimensions are in cm.
FIGURE 7: Experimental setup and Position of Velocity Profiles
(Reprinted with permission from American Institute of Aeronautics and Astronautics (AIAA))
6. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 46

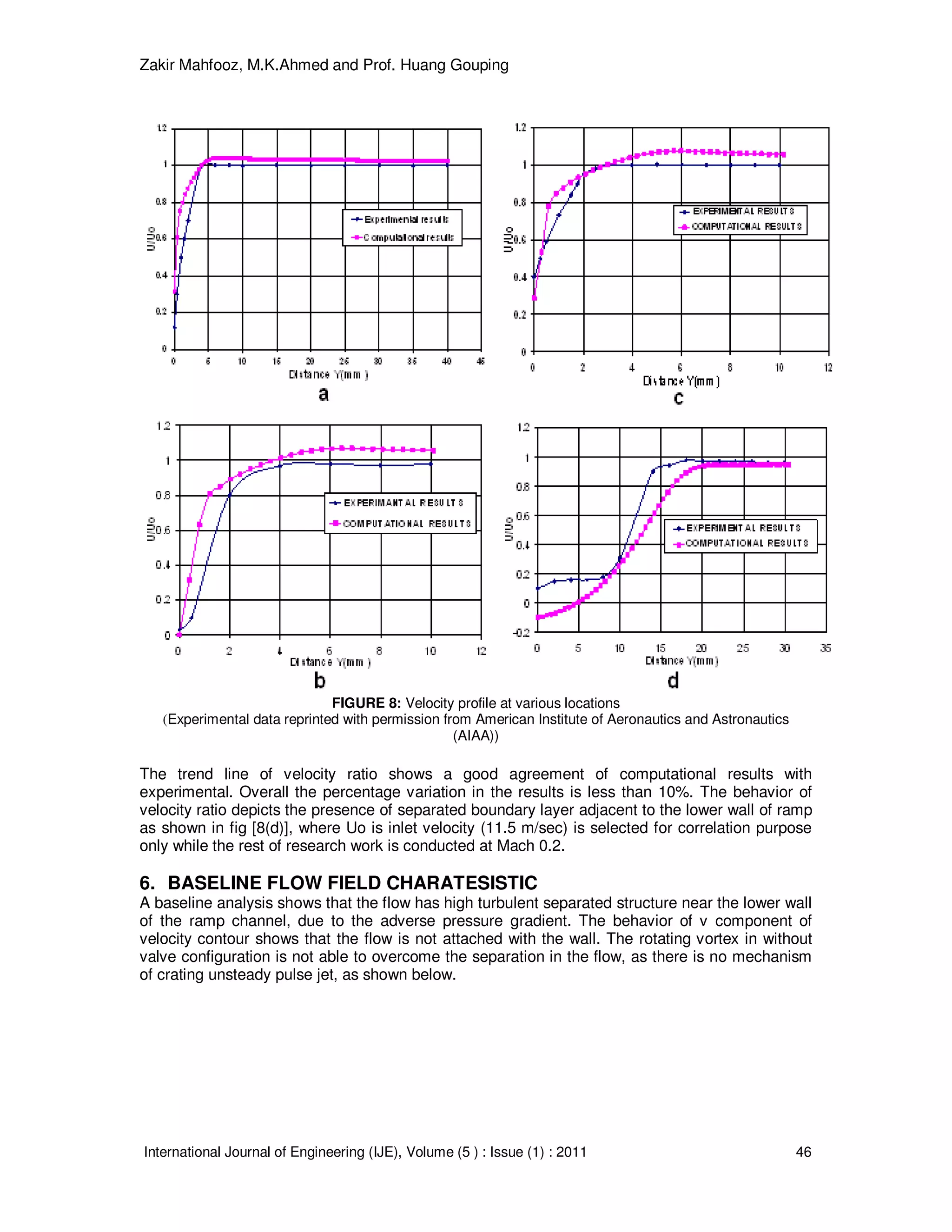

FIGURE 8: Velocity profile at various locations
(Experimental data reprinted with permission from American Institute of Aeronautics and Astronautics
(AIAA))
The trend line of velocity ratio shows a good agreement of computational results with
experimental. Overall the percentage variation in the results is less than 10%. The behavior of
velocity ratio depicts the presence of separated boundary layer adjacent to the lower wall of ramp
as shown in fig [8(d)], where Uo is inlet velocity (11.5 m/sec) is selected for correlation purpose
only while the rest of research work is conducted at Mach 0.2.
6. BASELINE FLOW FIELD CHARATESISTIC
A baseline analysis shows that the flow has high turbulent separated structure near the lower wall
of the ramp channel, due to the adverse pressure gradient. The behavior of v component of
velocity contour shows that the flow is not attached with the wall. The rotating vortex in without
valve configuration is not able to overcome the separation in the flow, as there is no mechanism
of crating unsteady pulse jet, as shown below.
7. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 47

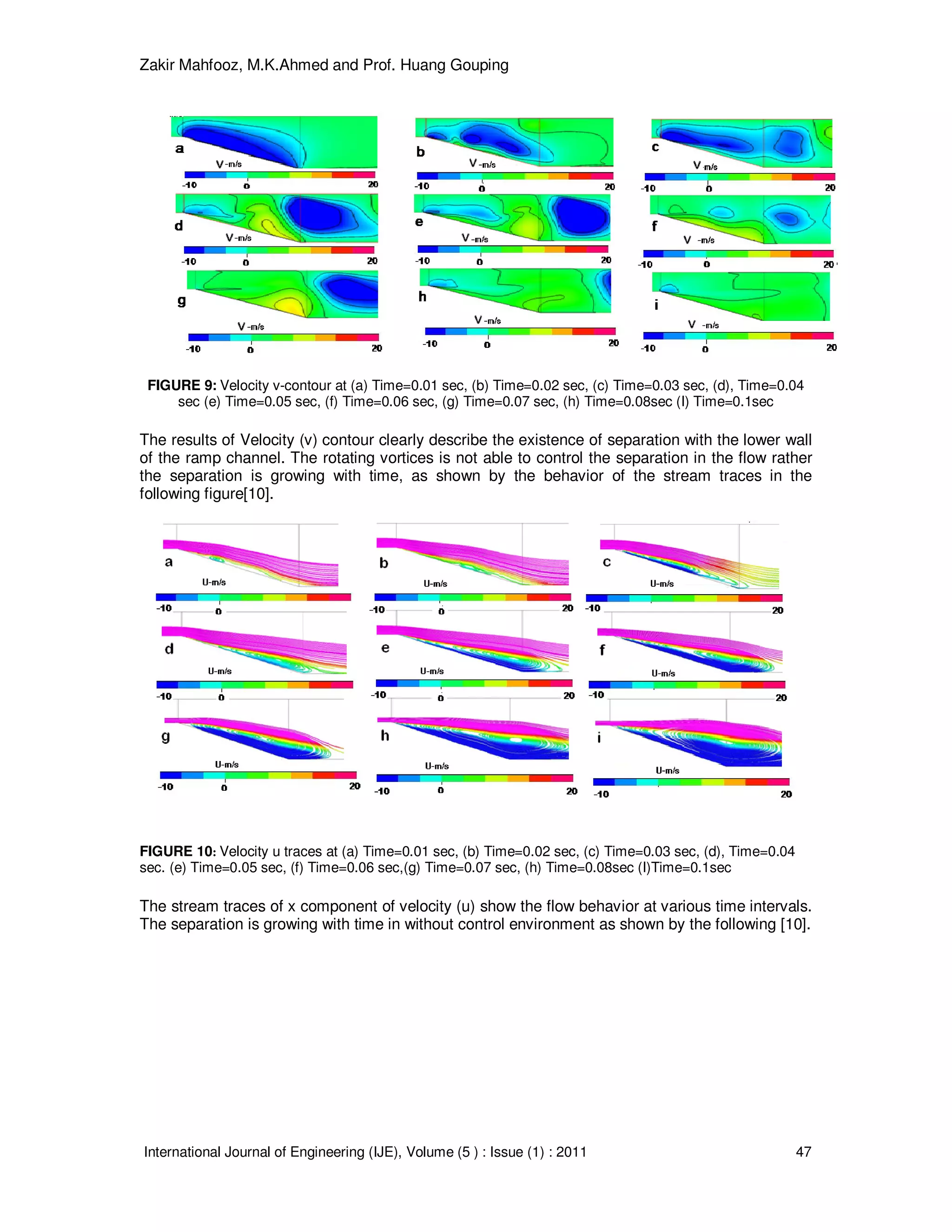

FIGURE 9: Velocity v-contour at (a) Time=0.01 sec, (b) Time=0.02 sec, (c) Time=0.03 sec, (d), Time=0.04
sec (e) Time=0.05 sec, (f) Time=0.06 sec, (g) Time=0.07 sec, (h) Time=0.08sec (I) Time=0.1sec
The results of Velocity (v) contour clearly describe the existence of separation with the lower wall
of the ramp channel. The rotating vortices is not able to control the separation in the flow rather
the separation is growing with time, as shown by the behavior of the stream traces in the
following figure[10].
FIGURE 10: Velocity u traces at (a) Time=0.01 sec, (b) Time=0.02 sec, (c) Time=0.03 sec, (d), Time=0.04
sec. (e) Time=0.05 sec, (f) Time=0.06 sec,(g) Time=0.07 sec, (h) Time=0.08sec (I)Time=0.1sec
The stream traces of x component of velocity (u) show the flow behavior at various time intervals.
The separation is growing with time in without control environment as shown by the following [10].
8. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 48
FIGURE 11: Velocity plot at various time intervals
The periodic behavior of the separation is observed at almost 72% ramp channel length, as
shown in the fig [11]. The magnitude of the velocity clearly indicates the existence of the
separation in the flow.
In order to estimate the frequency of separated flow, various points are introduced at different
location in the computational domain of the ramp channel and it was investigated that the
unsteady flow has the frequency of 40 HZ.
7. EFFECT OF MICRO PULSE JET ON FLOW SEPARATION
The effect of Micro pulse jet on flow separation is investigated with the various test parameters
including different velocity ratio (VR), pitch angle (α) and various set of unsteady pulse
frequencies. The flow characteristics under the control environment of Micro pulse Jet valve
operating at various combinations of test parameters are analyzed with the help of the following
table.
Test Configuration VR Pitch Angle (α) Unsteady Frequencies (HZ)
A
2.3 45 20,40,80,100 HZ
2.5 45 20,40,80,100 HZ
3 45 20,40,80,100 HZ
B
2.3 30 20,40,80,100 HZ
2.5 30 20,40,80,100 HZ
3 30 20,40,80,100 HZ
TABLE 1: Test parameters for Micro Pulse Jet
7.1 Flow Visualization and Results
The results from all above mentioned configuration will discuss in this section. The results are
described on the basis of velocity contour, flow quality which shows the separation existence,
mass flow requirement to control the flow separation at steady and unsteady jets and velocity
plots at various points in the flow field. For the flow visualization and qualitative results the best
combination of pitch angle with different velocity ratio and frequencies are selected. Overall four
9. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 49
test configuration are selected which include the worst and the best combination of pitch angle
and different frequencies at two different velocity ratios.
1. Test configuration (A)
The test configuration A has the combination of different velocity ratio, constant pitch angle and
various set of frequencies, from these test configurations on the bases of the quality of the results
the two cases are selected for the results discussion in the following manner.
a) Results (VR=2.3, α=45O
)
Micro Pulse Jet operating at above mentioned test parameters are analyzed in detail. This section
of paper restrain the flow characteristics results in the form of velocity contours and stream traces
through the pulse jet valve at unsteady frequency of 80 HZ. The unsteady pulse frequency of the
jet is selected on the basis of the quality of the results.
When the Micro Pulse valve is operating with the combination of pitching angle 45 degrees,
velocity ratio 2.3 and the pulse frequency 80 HZ, the results of velocity contour and the stream
traces show that the valve is not able to control the flow distortion effectively. The results of
stream traces are described below,
FIGURE 12: Velocity u traces at pitch angle=45, VR=2.3 and 80HZ (a) Time=0.01 sec, (b) Time=0.02 sec,
(c) Time=0.03 sec, (d), Time=0.04 sec (e) Time=0.05 sec, (f) Time=0.06 sec, (g) Time=0.07 sec, (h)
Time=0.08sec (I) Time=0.1sec
Initially it was investigated that due to the pulse of the jet, separation is removed by the rotating
vortex. There is a small portion of the separated flow just under the pulse of the jet, when the
valve is operating at 80 HZ, as shown in fig [12(b)]. The separation in the flow is growing with the
passage of time as shown in fig [12(c) and (d)]. Actually the valve is creating the rotating vortex
continuously and the separation is controlled to some extent at the initial level of time interval, as
shown by the fig [12(a) to (c)]. There is a severe separation observed at the time interval of 0.05
sec of the simulation as shown by the fig [12(e)], it may be due to the jet operating angle or the
velocity ratio which is not allowing the unsteady jet to control the separation in the flow in an
effective manner. This phenomenon of controlling the flow separation and internal flow behavior
is also visible in the velocity contour plot as shown in the following figures,
10. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 50
FIGURE 13: Velocity v-contour at pitch angle=45, VR=2.3 and 80HZ (a) Time=0.01 sec, (b) Time=0.02 sec,
(c) Time=0.03 sec, (d), Time=0.04 sec (e) Time=0.05 sec, (f) Time=0.06 sec, (g) Time=0.07 sec, (h)
Time=0.08sec (I) Time=0.1sec
The significance of created rotating vortex for controlling the flow separation is quite visible in
velocity contour plot. There is a visible separation in the flow at the time of 0.05 sec as shown in
the fig [13(e)]. The valve operating at 80 HZ is not capable of reducing and removing the
separation in the flow along the wall of the ramp rather the effected portion is growing and
separation becomes more and more severe with the time.
In order to investigate the effective control of the separation by the unsteady pulse jet operating at
test configuration (A), the data of velocity are obtained at a point almost 72 % downstream of the
ramp channel.
(a) (b)
FIGURE 14: Plots at (VR=2.3, α=45) (a) Velocity plots at 72 % ramp length, (b) Mass flow rate requirement
at various frequencies of 20,40,80,100 HZ.
The periodic behavior of velocity plot clearly indicate that in the beginning the separation is
controlled by the pulse of the jet while operating at velocity ratio of 2.3 and at a pitch angle of 45
degrees but with the passage of the time the magnitude of the velocity even at higher frequencies
becomes negative, indicates the existence of separation in the flow as shown in fig [14(a)].
Mass flow requirement for the valve to control the separation is also plotted in fig [14(b)] which
shows there is no significant difference between the mass flow requirements at various
11. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 51
frequencies. It was investigated that the mass flow requirement for the steady jet is significantly
larger as compare to the unsteady frequencies in order to capture the flow separation in the flow.
b) Results (VR=3, α=45 O
)
The results for the test configuration at Pitch angle 45 degrees with the velocity ratio 3, shows the
effective control of Micro Pulse Jet as compare to the unsteady pulse jet operating at velocity
ratio 2.3. The pulse jet of the valve is controlling the flow separation quite effectively while
operating at 80 HZ. The flow behavior under the control action of Micro pulse Jet is shown by the
following figure
FIGURE 15: Velocity u-contour at pitch angle=45, VR=3and 80HZ (a) Time=0.01 sec, (b) Time=0.02 sec, (c)
Time=0.03 sec, (d), Time=0.04 sec (e) Time=0.05 sec, (f) Time=0.06 sec, (g) Time=0.07 sec, (h)
Time=0.08sec (I) Time=0.1sec
The flow picture under the control environment of micro Pulse Jet operating at above mentioned
parameters show that the valve is quite capable of controlling the separation in the flow. The
pulse of the jet is not allowing the separation to grow with time as shown by the fig [15 (a) to (i)].
The same phenomenon is also quite evident from the velocity contour plot, as shown by the
following figure.
FIGURE 16: Velocity v traces at pitch angle=45, VR=3and 80HZ (a) Time=0.01 sec, (b) Time=0.02 sec, (c)
Time=0.03 sec, (d), Time=0.04 sec (e) Time=0.05 sec, (f) Time=0.06 sec, (g) Time=0.07 sec, (h)
Time=0.08sec (I) Time=0.1sec
12. Zakir Mahfooz, M.K.Ahmed and Prof. Huang Gouping
International Journal of Engineering (IJE), Volume (5 ) : Issue (1) : 2011 52

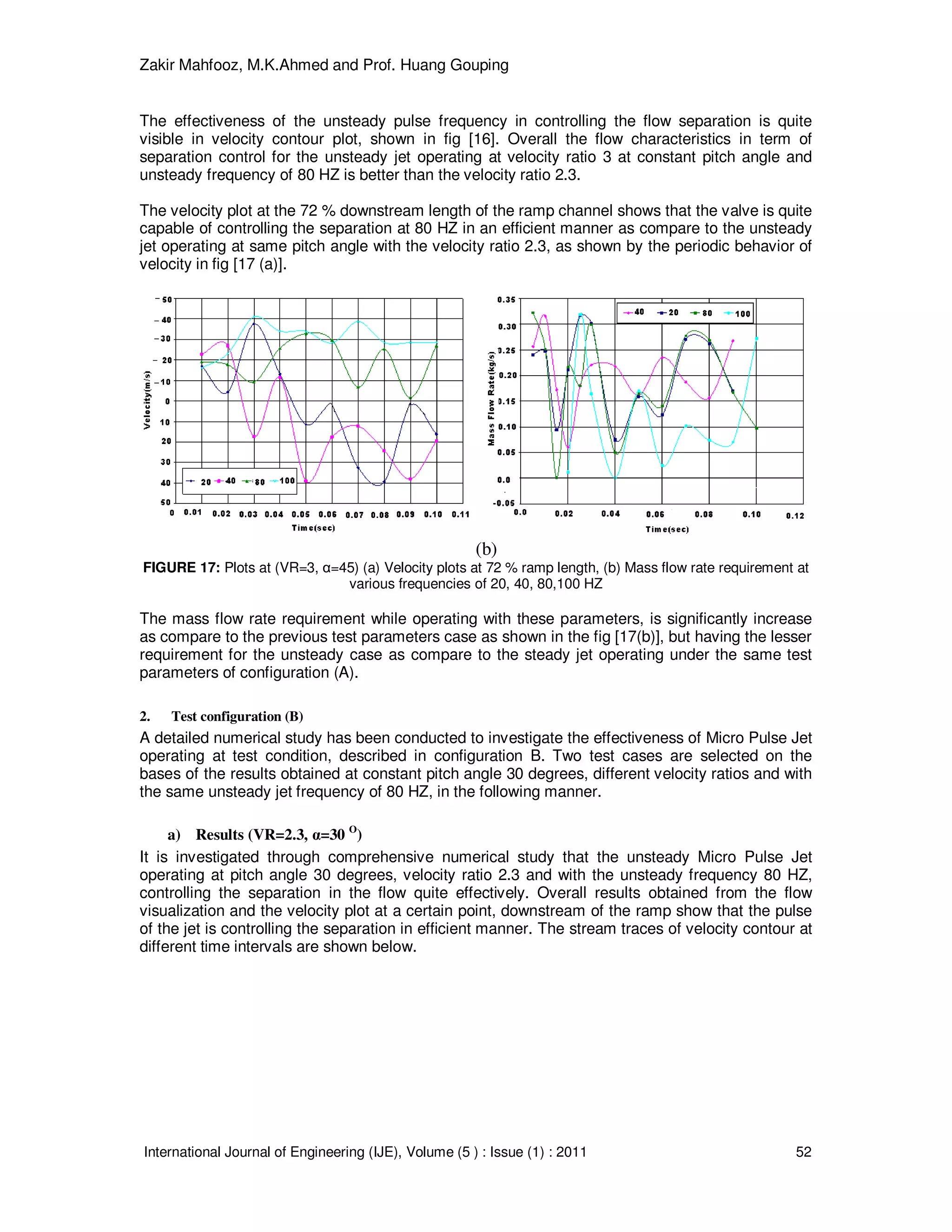

The effectiveness of the unsteady pulse frequency in controlling the flow separation is quite
visible in velocity contour plot, shown in fig [16]. Overall the flow characteristics in term of
separation control for the unsteady jet operating at velocity ratio 3 at constant pitch angle and
unsteady frequency of 80 HZ is better than the velocity ratio 2.3.
The velocity plot at the 72 % downstream length of the ramp channel shows that the valve is quite
capable of controlling the separation at 80 HZ in an efficient manner as compare to the unsteady
jet operating at same pitch angle with the velocity ratio 2.3, as shown by the periodic behavior of
velocity in fig [17 (a)].
(b)
FIGURE 17: Plots at (VR=3, α=45) (a) Velocity plots at 72 % ramp length, (b) Mass flow rate requirement at
various frequencies of 20, 40, 80,100 HZ
The mass flow rate requirement while operating with these parameters, is significantly increase
as compare to the previous test parameters case as shown in the fig [17(b)], but having the lesser
requirement for the unsteady case as compare to the steady jet operating under the same test
parameters of configuration (A).
