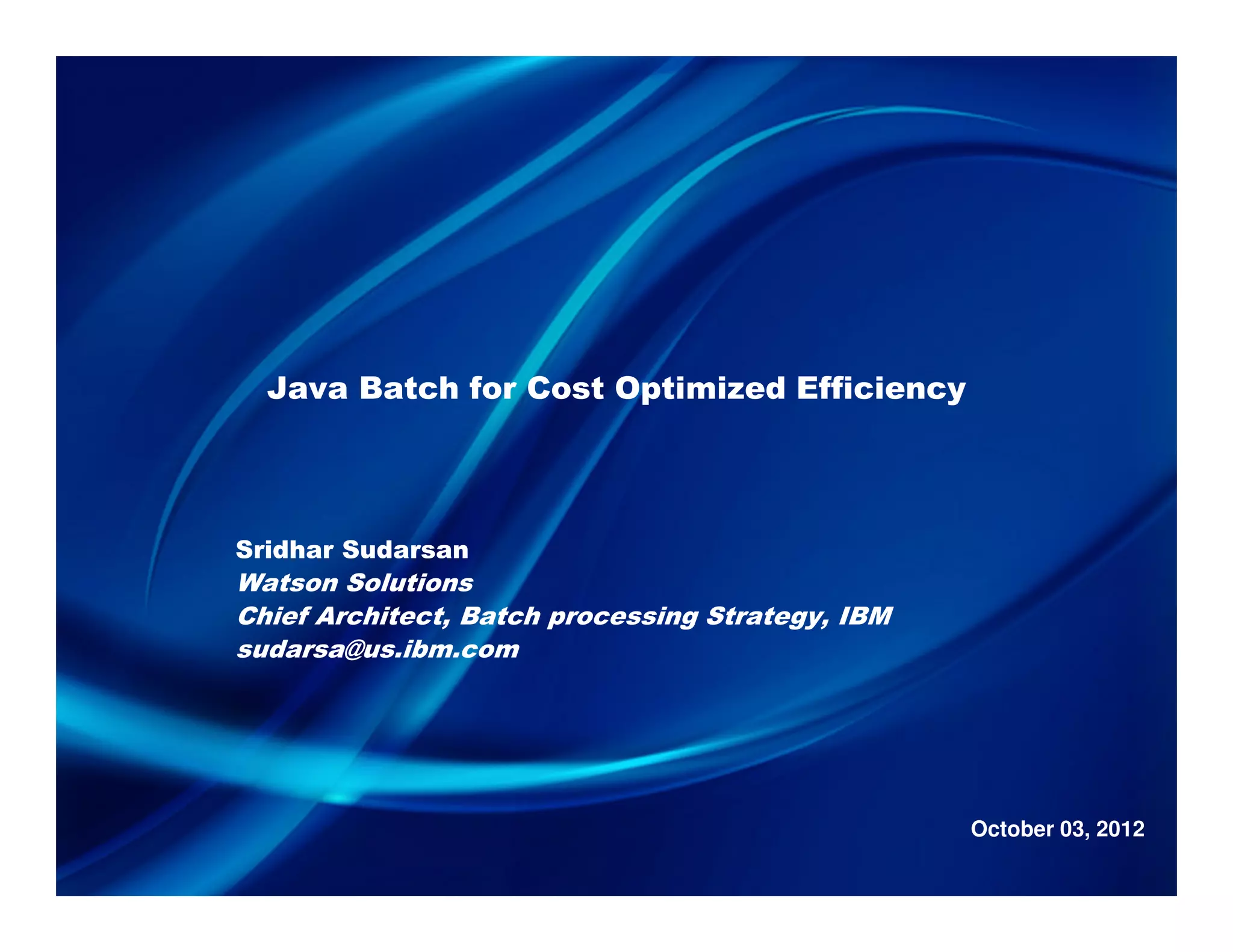

1. Java Batch for Cost Optimized Efficiency
Sridhar Sudarsan
Watson Solutions
Chief Architect, Batch processing Strategy, IBM
sudarsa@us.ibm.com
October 03, 2012

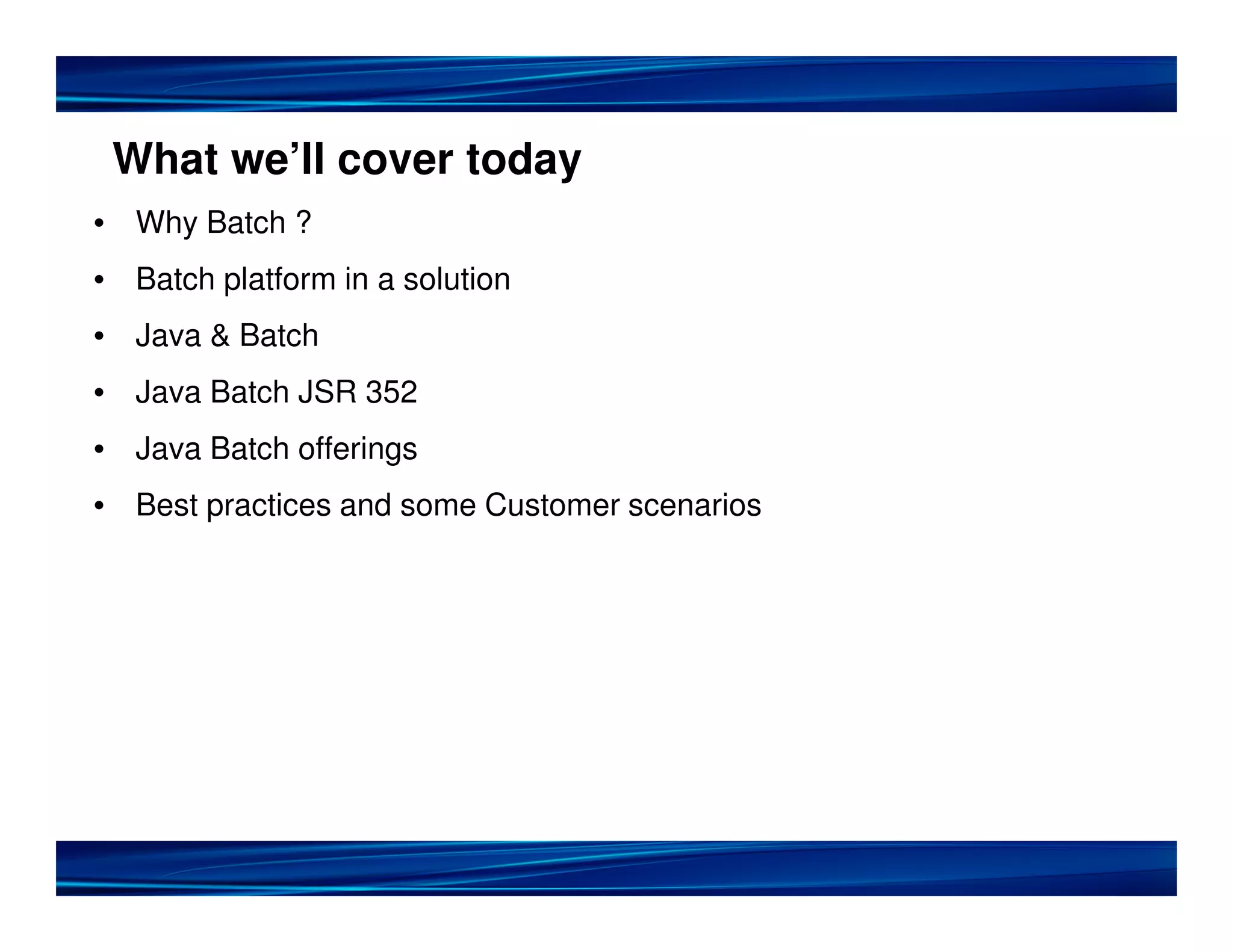

2. What we’ll cover today
• Why Batch ?
• Batch platform in a solution
• Java & Batch
• Java Batch JSR 352
• Java Batch offerings
• Best practices and some Customer scenarios

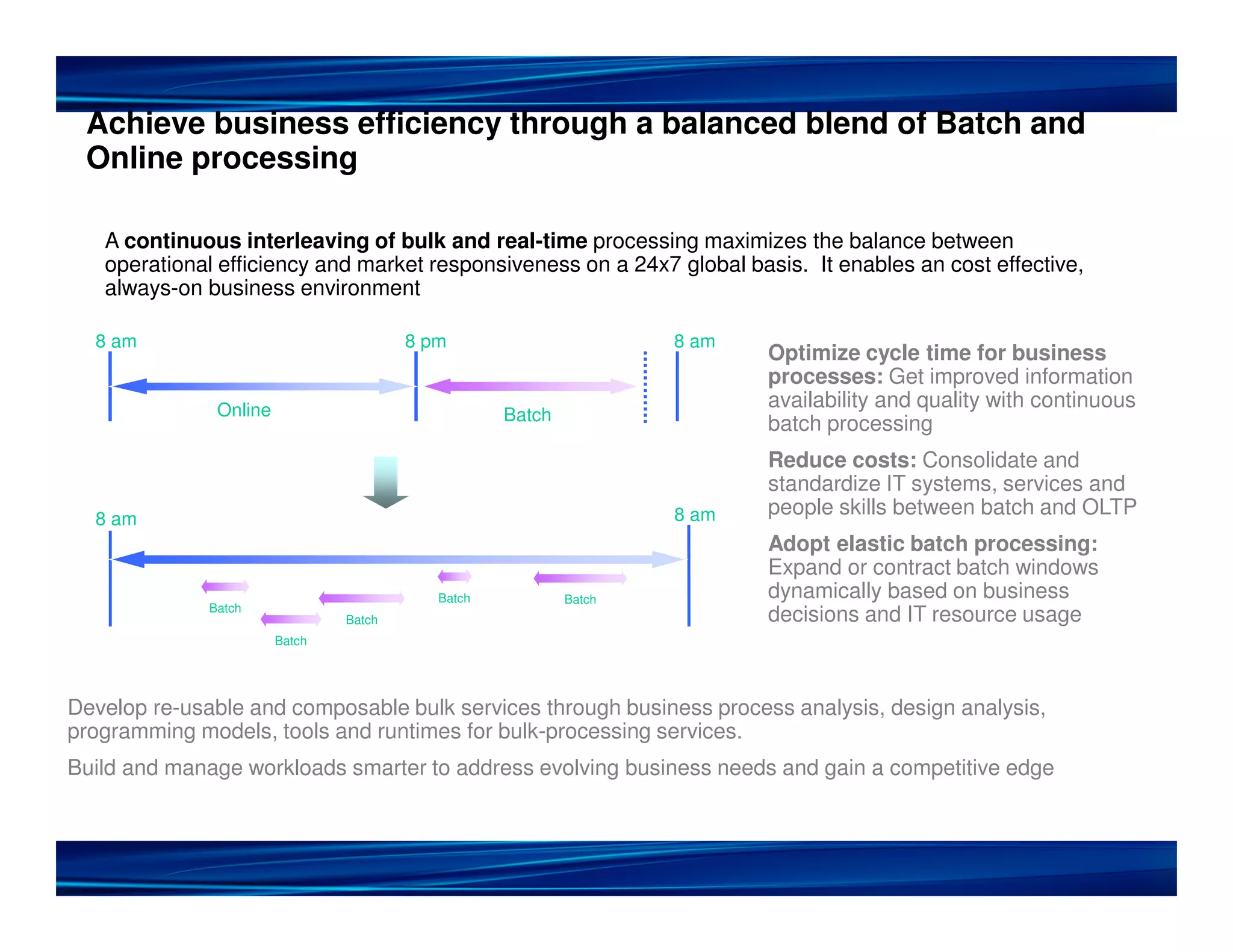

3. Achieve business efficiency through a balanced blend of Batch and
Online processing
A continuous interleaving of bulk and real-time processing maximizes the balance between
operational efficiency and market responsiveness on a 24x7 global basis. It enables an cost effective,
always-on business environment
8 am 8 pm 8 am
Optimize cycle time for business
processes: Get improved information
Online availability and quality with continuous
Batch
batch processing
Reduce costs: Consolidate and
standardize IT systems, services and
8 am 8 am people skills between batch and OLTP
Adopt elastic batch processing:
Expand or contract batch windows
Batch Batch dynamically based on business
Batch
Batch decisions and IT resource usage
Batch
Develop re-usable and composable bulk services through business process analysis, design analysis,
programming models, tools and runtimes for bulk-processing services.
Build and manage workloads smarter to address evolving business needs and gain a competitive edge

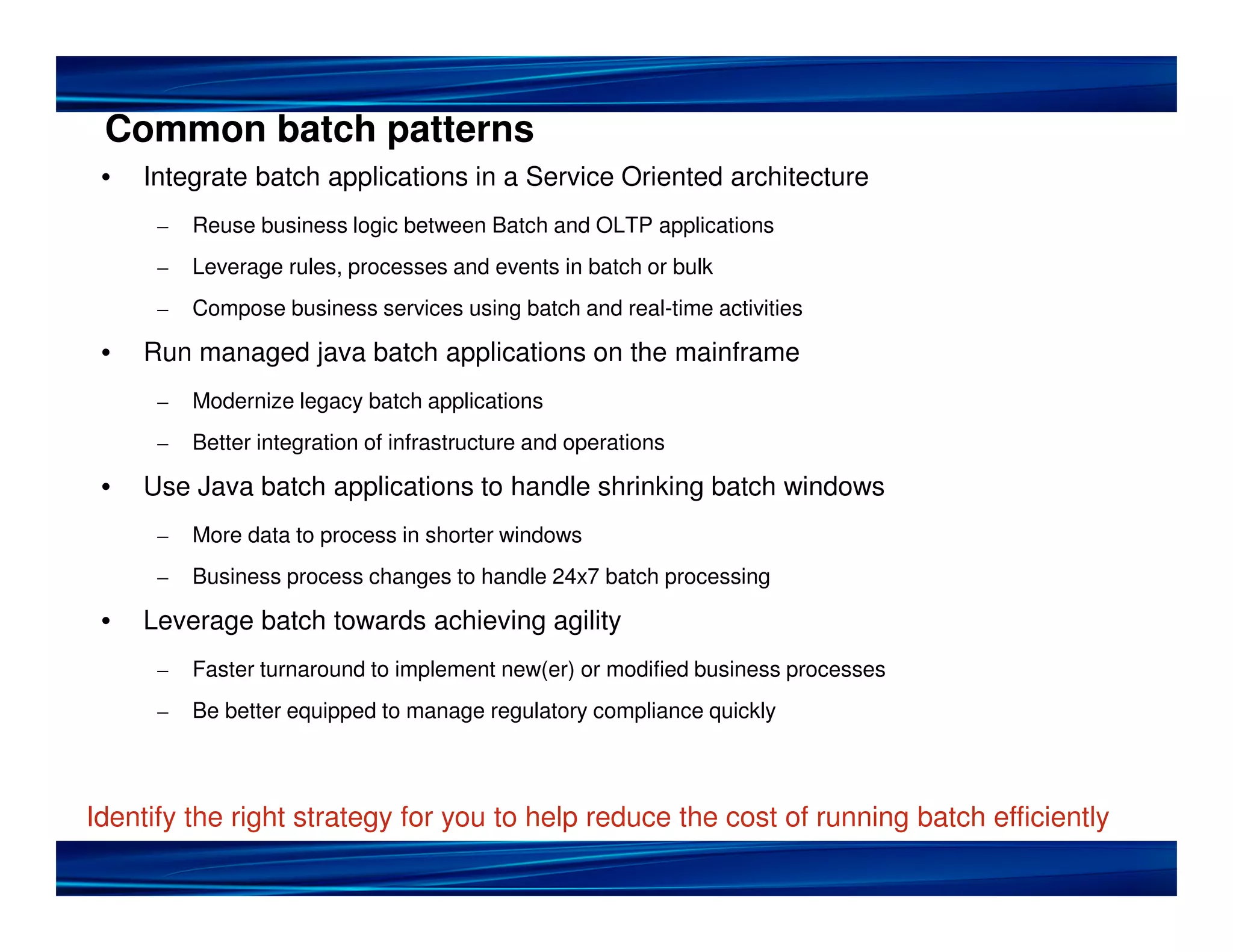

4. Common batch patterns
• Integrate batch applications in a Service Oriented architecture
– Reuse business logic between Batch and OLTP applications
– Leverage rules, processes and events in batch or bulk
– Compose business services using batch and real-time activities
• Run managed java batch applications on the mainframe
– Modernize legacy batch applications
– Better integration of infrastructure and operations
• Use Java batch applications to handle shrinking batch windows
– More data to process in shorter windows
– Business process changes to handle 24x7 batch processing
• Leverage batch towards achieving agility
– Faster turnaround to implement new(er) or modified business processes
– Be better equipped to manage regulatory compliance quickly
Identify the right strategy for you to help reduce the cost of running batch efficiently

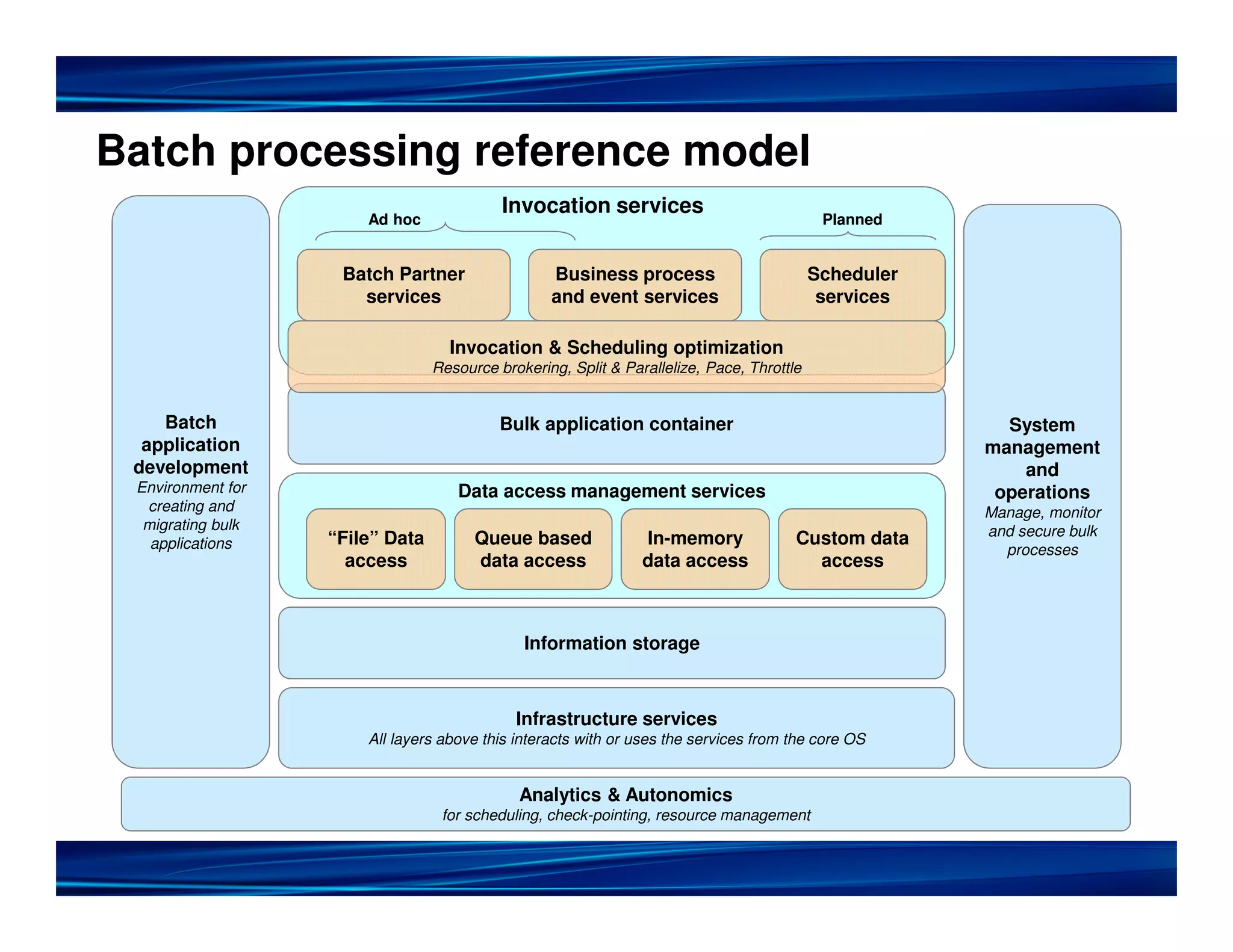

5. Batch processing reference model
Invocation services
Ad hoc Planned
Batch Partner Business process Scheduler
services and event services services
Invocation & Scheduling optimization
Resource brokering, Split & Parallelize, Pace, Throttle
Batch Bulk application container System
application management
development and
Environment for Data access management services operations
creating and Manage, monitor
migrating bulk and secure bulk
applications “File” Data Queue based In-memory Custom data
processes
access data access data access access
Information storage
Infrastructure services
All layers above this interacts with or uses the services from the core OS
Analytics & Autonomics
for scheduling, check-pointing, resource management

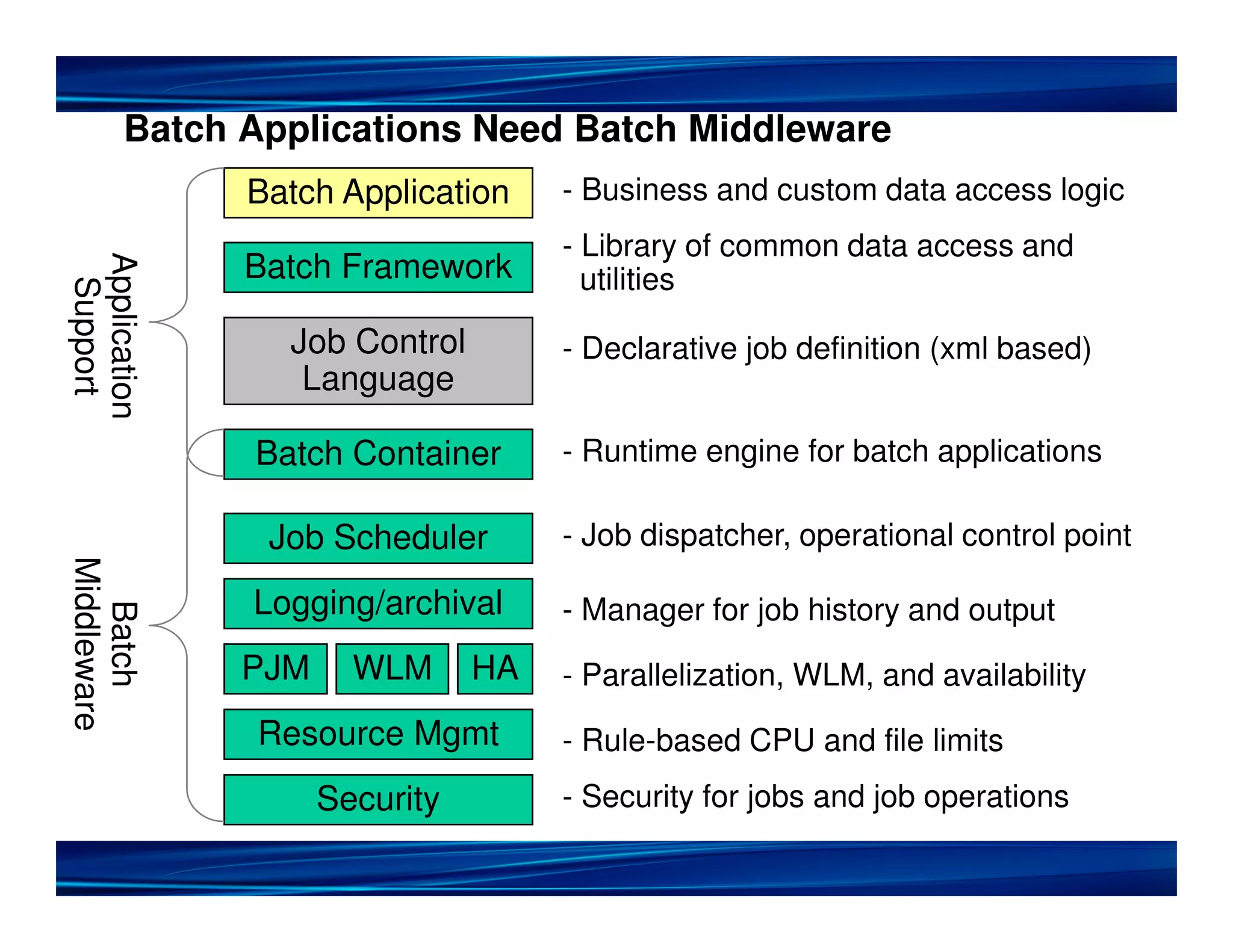

6. Batch Applications Need Batch Middleware
Batch Application - Business and custom data access logic
- Library of common data access and
Application
Batch Framework utilities
Support
Job Control - Declarative job definition (xml based)
Language
Batch Container - Runtime engine for batch applications
Job Scheduler - Job dispatcher, operational control point
Middleware
Logging/archival - Manager for job history and output
Batch
PJM WLM HA - Parallelization, WLM, and availability
Resource Mgmt - Rule-based CPU and file limits
Security - Security for jobs and job operations

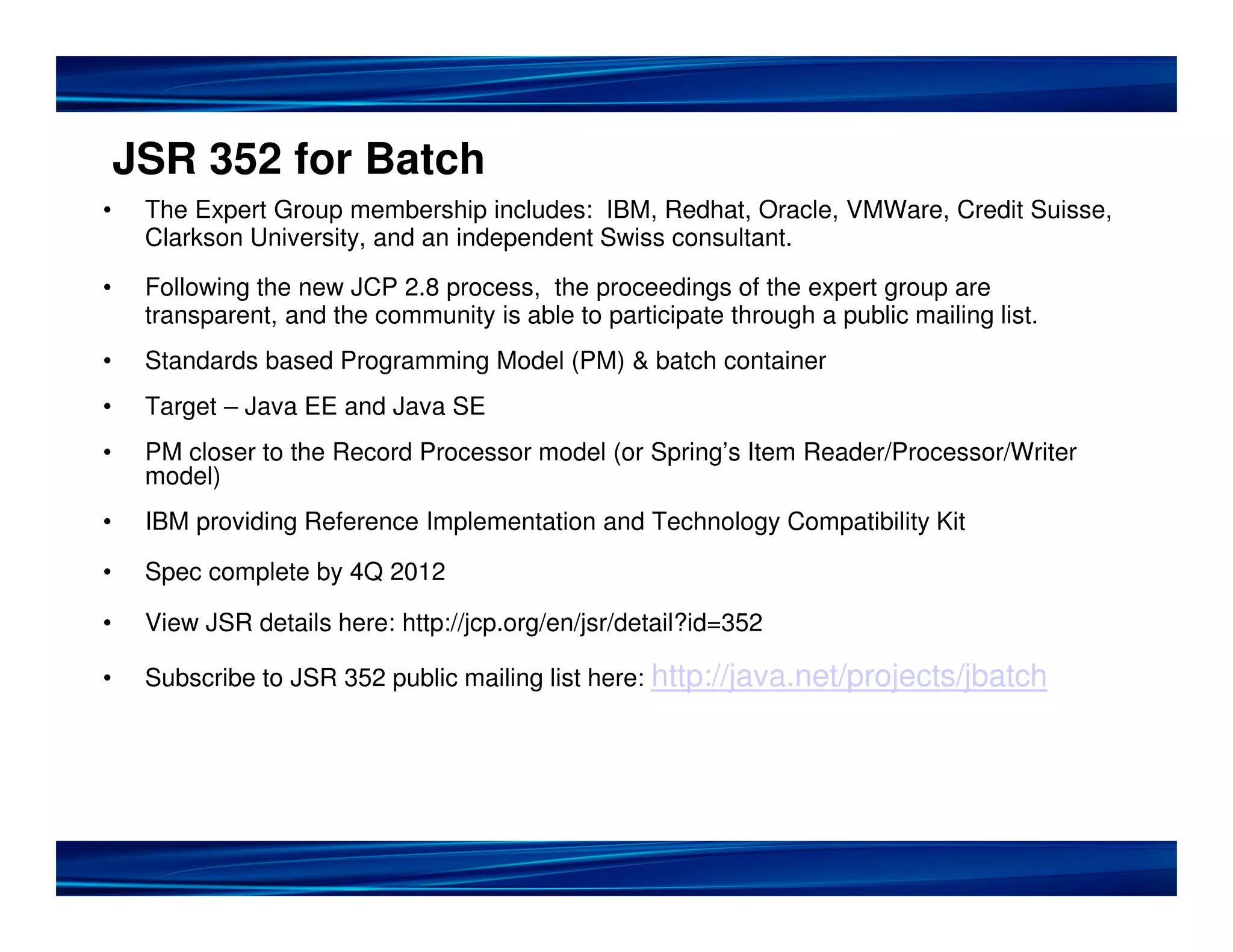

7. JSR 352 for Batch
• The Expert Group membership includes: IBM, Redhat, Oracle, VMWare, Credit Suisse,
Clarkson University, and an independent Swiss consultant.
• Following the new JCP 2.8 process, the proceedings of the expert group are
transparent, and the community is able to participate through a public mailing list.
• Standards based Programming Model (PM) & batch container
• Target – Java EE and Java SE
• PM closer to the Record Processor model (or Spring’s Item Reader/Processor/Writer
model)
• IBM providing Reference Implementation and Technology Compatibility Kit
• Spec complete by 4Q 2012
• View JSR details here: http://jcp.org/en/jsr/detail?id=352
• Subscribe to JSR 352 public mailing list here: http://java.net/projects/jbatch

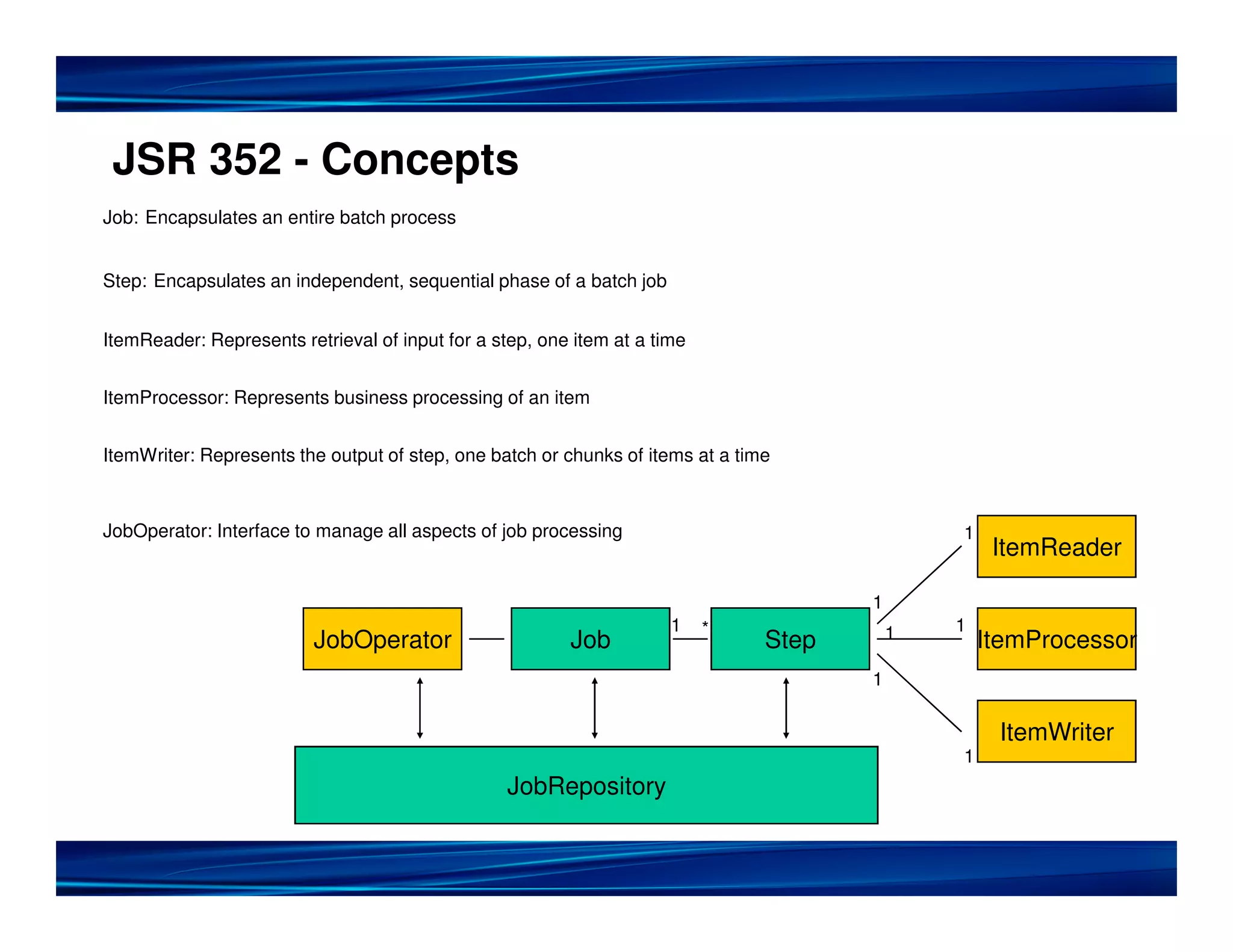

8. JSR 352 - Concepts
Job: Encapsulates an entire batch process
Step: Encapsulates an independent, sequential phase of a batch job
ItemReader: Represents retrieval of input for a step, one item at a time
ItemProcessor: Represents business processing of an item
ItemWriter: Represents the output of step, one batch or chunks of items at a time
JobOperator: Interface to manage all aspects of job processing 1
ItemReader
1
1 * 1 1
JobOperator Job Step ItemProcessor
1
ItemWriter
1
JobRepository

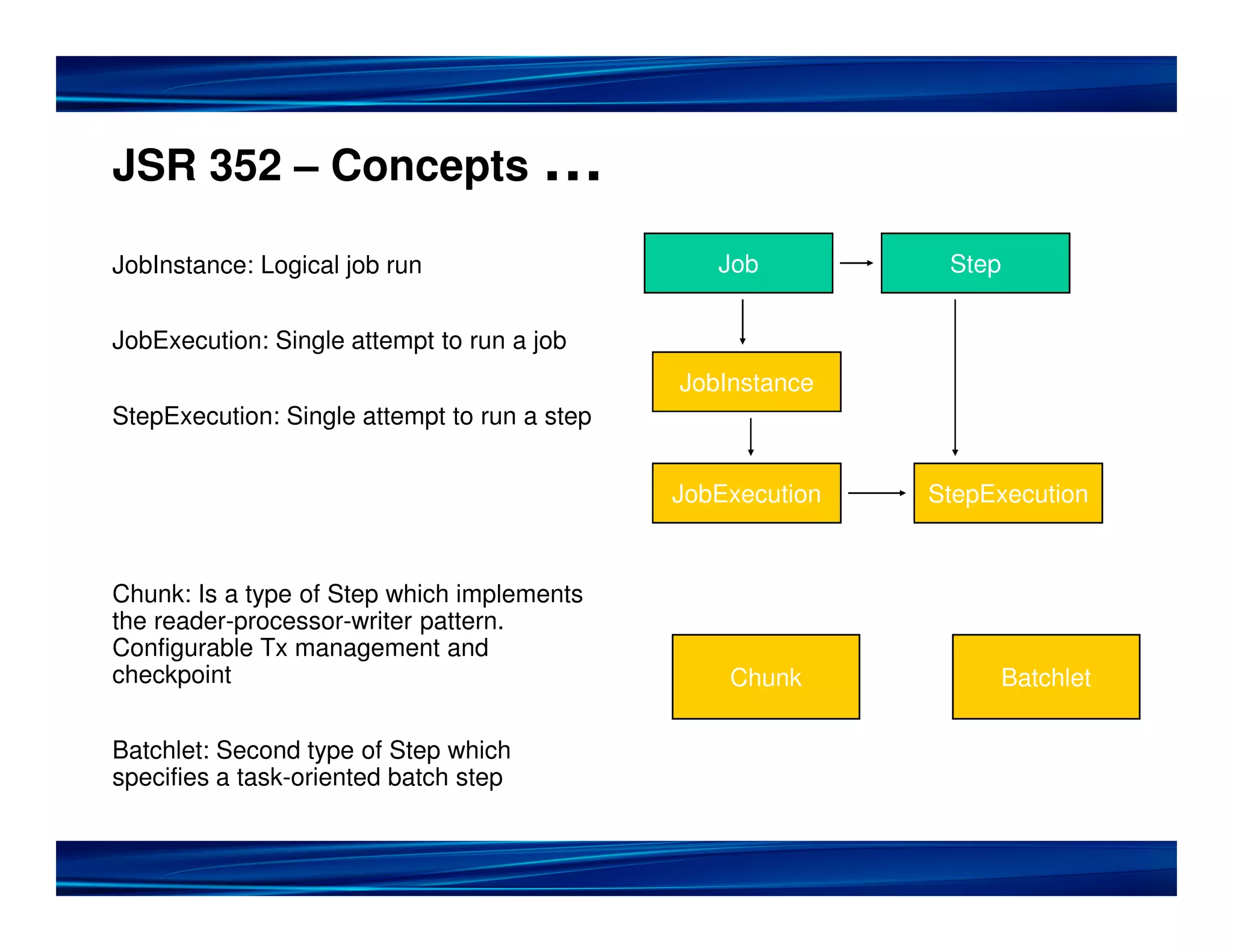

9. JSR 352 – Concepts …
JobInstance: Logical job run Job Step
JobExecution: Single attempt to run a job
JobInstance
StepExecution: Single attempt to run a step
JobExecution StepExecution
Chunk: Is a type of Step which implements
the reader-processor-writer pattern.
Configurable Tx management and
checkpoint Chunk or Batchlet
Batchlet: Second type of Step which
specifies a task-oriented batch step

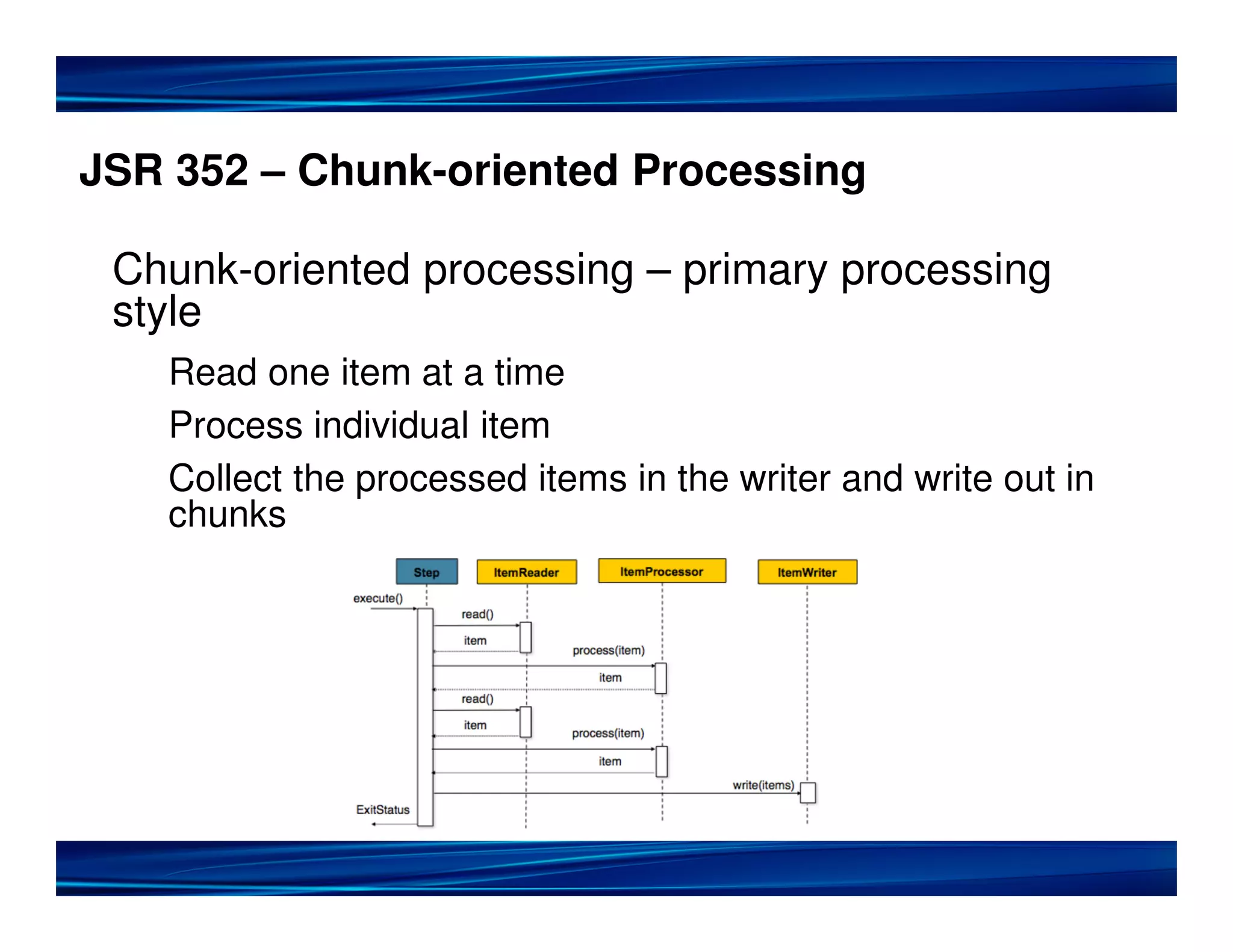

10. JSR 352 – Chunk-oriented Processing
Chunk-oriented processing – primary processing
style
Read one item at a time
Process individual item
Collect the processed items in the writer and write out in
chunks

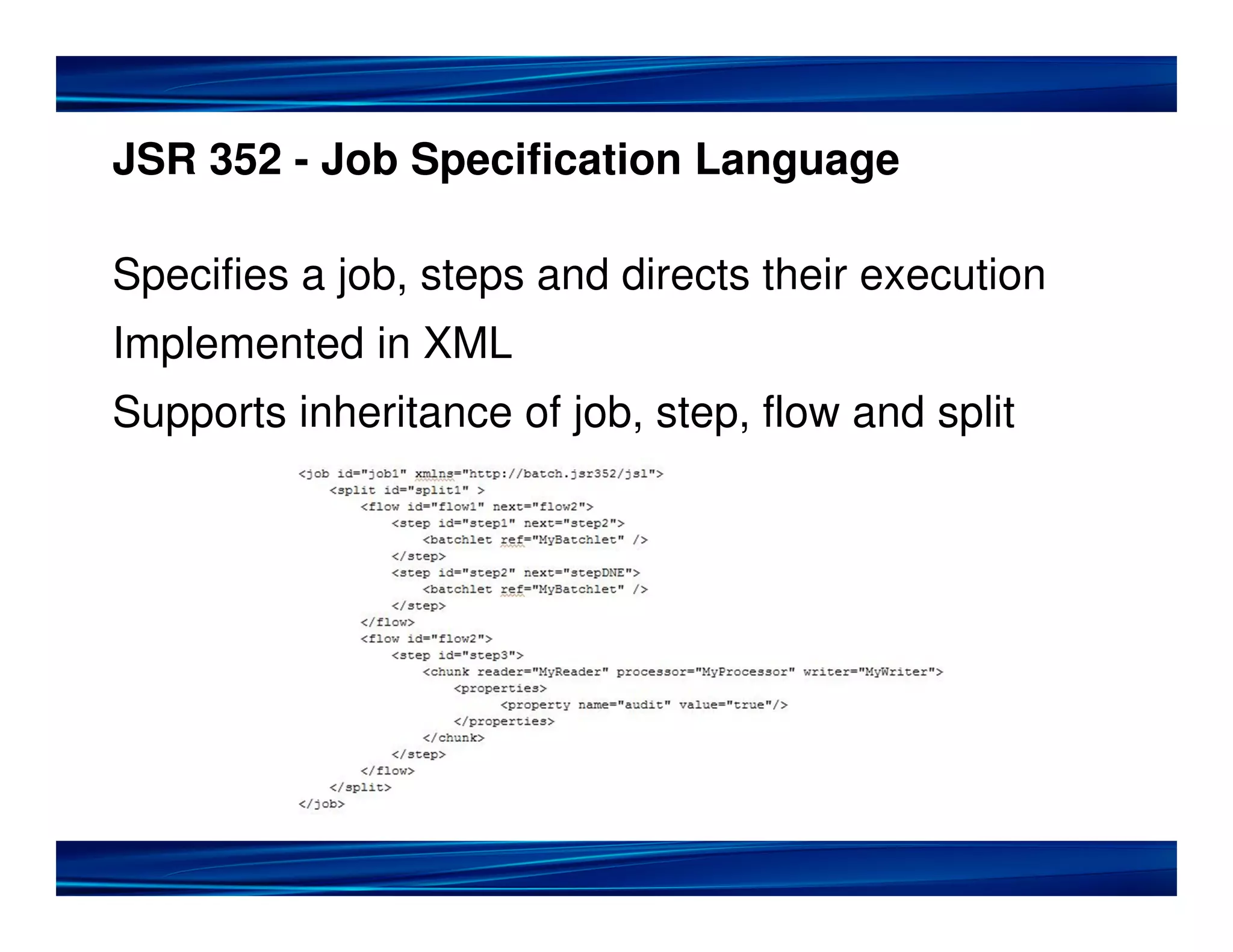

11. JSR 352 - Job Specification Language
Specifies a job, steps and directs their execution
Implemented in XML
Supports inheritance of job, step, flow and split

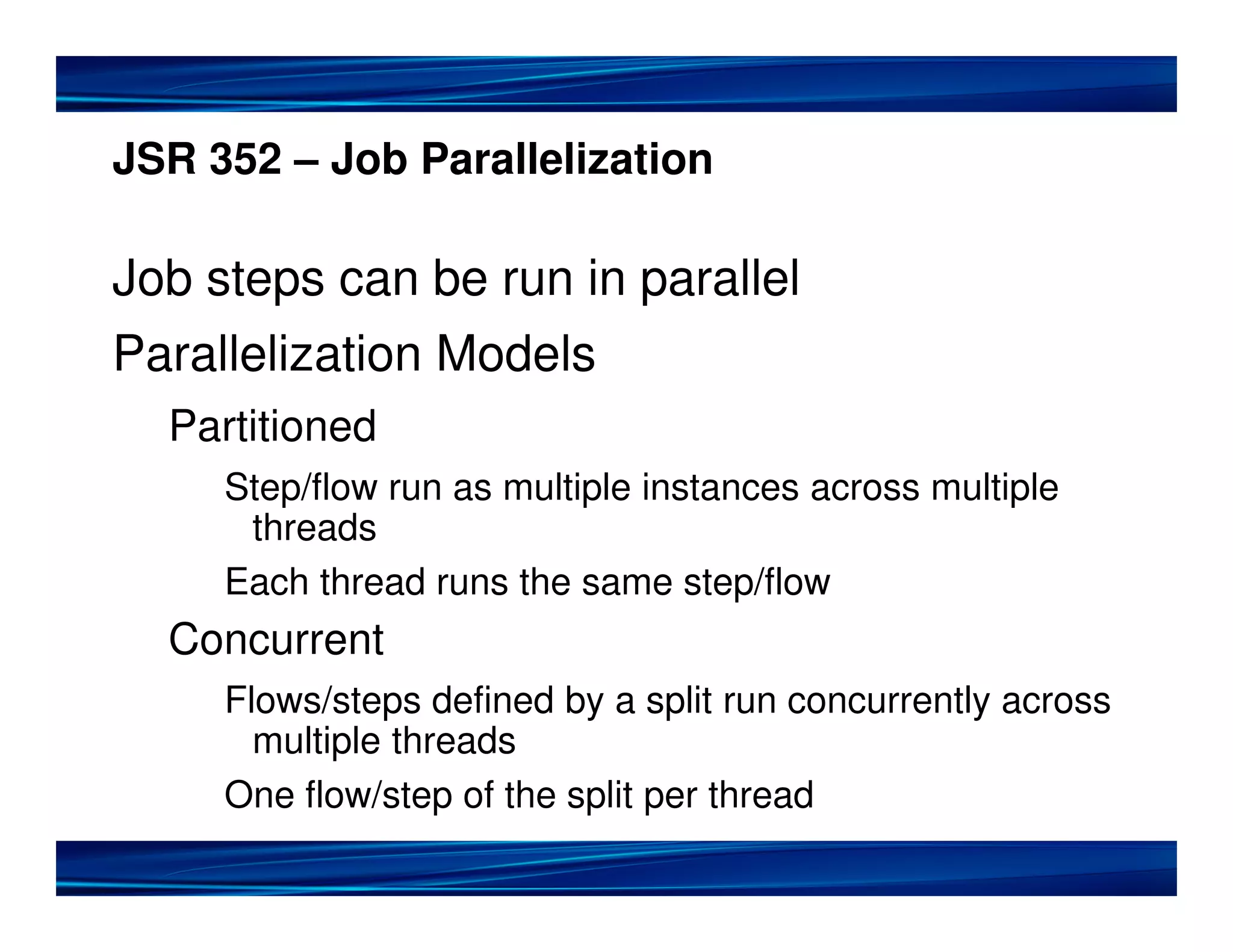

12. JSR 352 – Job Parallelization
Job steps can be run in parallel
Parallelization Models
Partitioned
Step/flow run as multiple instances across multiple
threads
Each thread runs the same step/flow
Concurrent
Flows/steps defined by a split run concurrently across
multiple threads
One flow/step of the split per thread

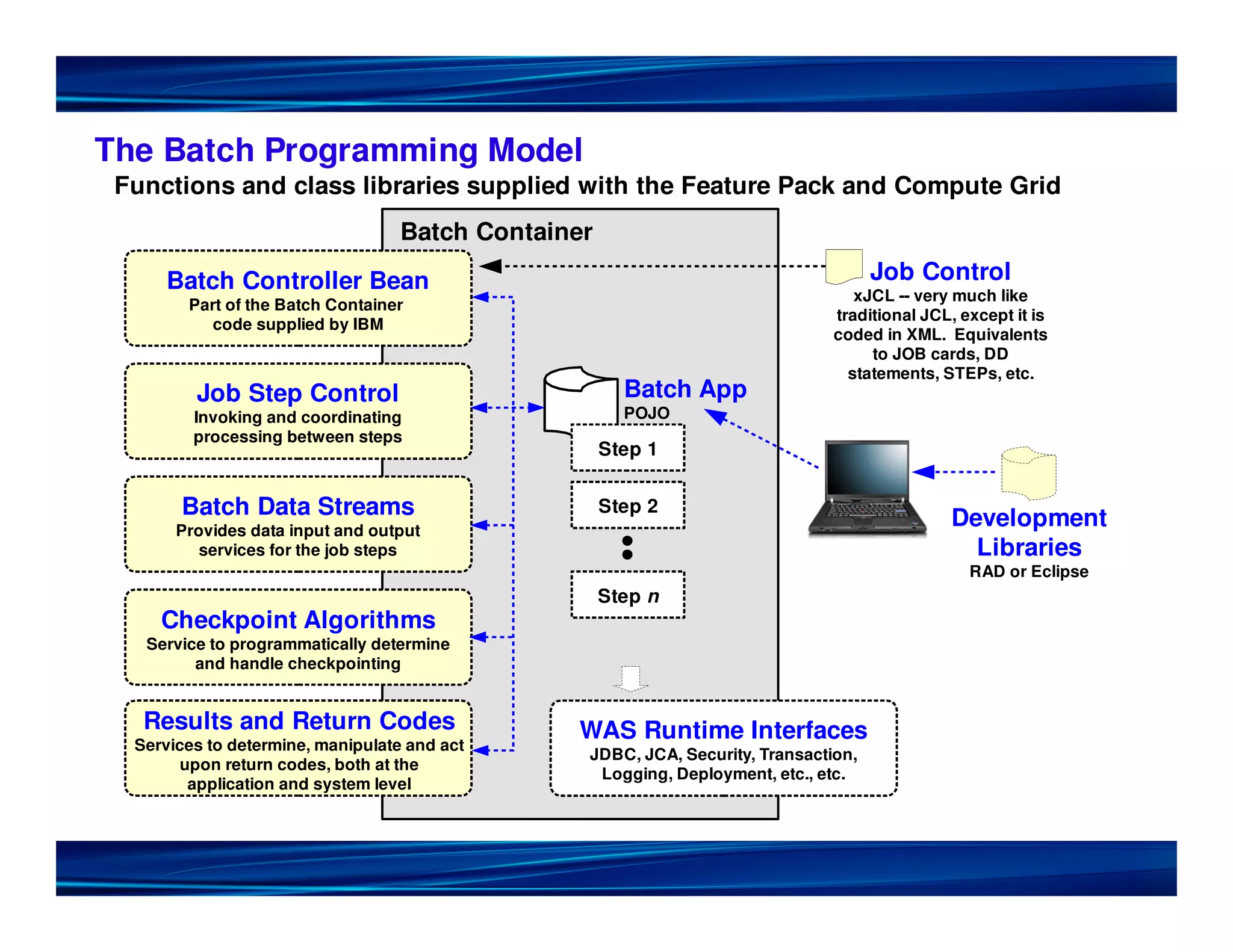

13. The Batch Programming Model
Functions and class libraries supplied with the Feature Pack and Compute Grid
Batch Container
Batch Controller Bean Job Control
xJCL -- very much like
Part of the Batch Container
traditional JCL, except it is
code supplied by IBM
coded in XML. Equivalents
to JOB cards, DD
statements, STEPs, etc.
Job Step Control Batch App
Invoking and coordinating POJO
processing between steps
Step 1
Batch Data Streams Step 2
Development
Provides data input and output
services for the job steps Libraries
RAD or Eclipse
Step n
Checkpoint Algorithms
Service to programmatically determine
and handle checkpointing
Results and Return Codes WAS Runtime Interfaces
Services to determine, manipulate and act
JDBC, JCA, Security, Transaction,
upon return codes, both at the
Logging, Deployment, etc., etc.
application and system level

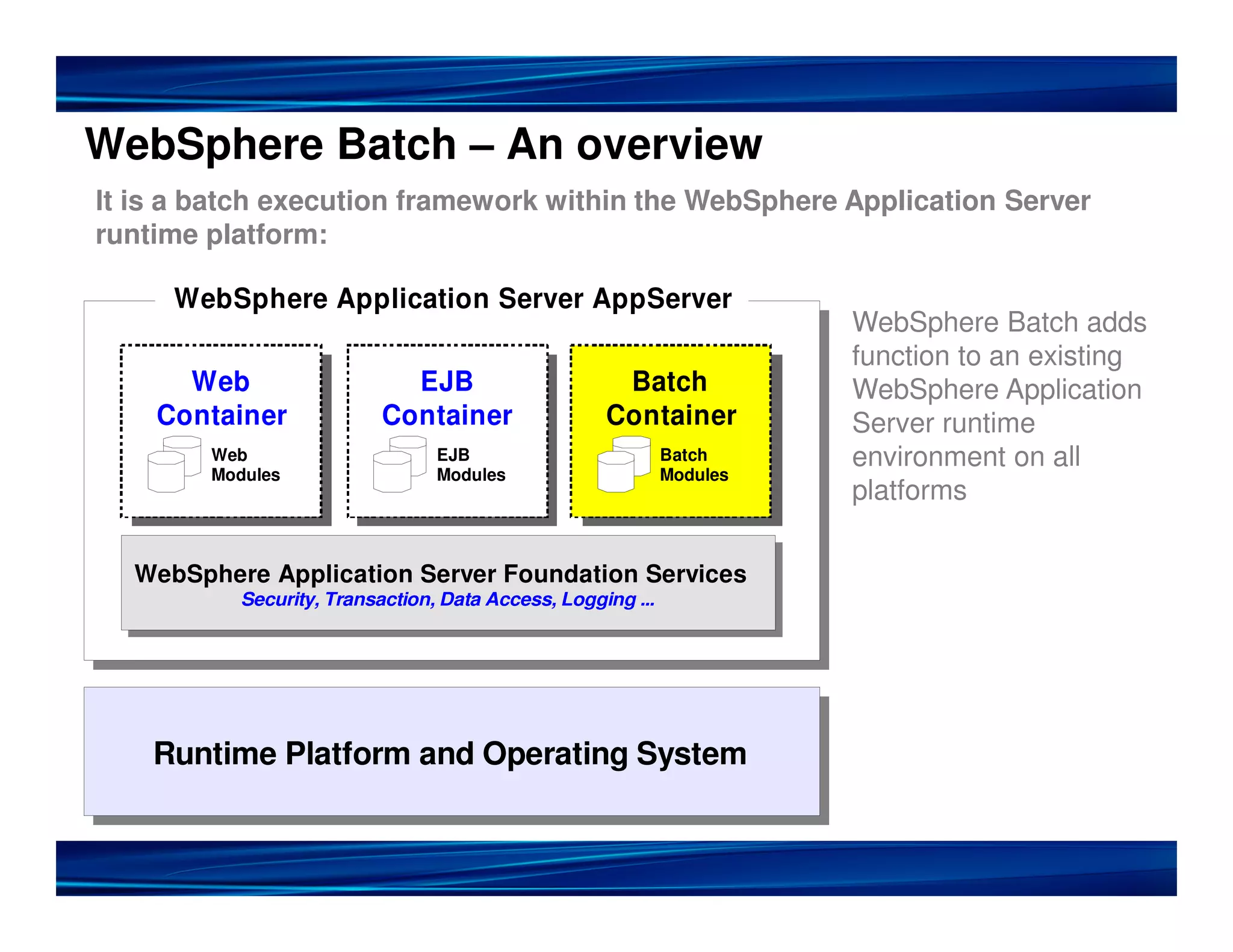

14. WebSphere Batch – An overview
It is a batch execution framework within the WebSphere Application Server
runtime platform:
WebSphere Application Server AppServer
WebSphere Batch adds
function to an existing
Web EJB Batch WebSphere Application
Container Container Container Server runtime
Web EJB Batch environment on all
Modules Modules Modules
platforms
WebSphere Application Server Foundation Services
Security, Transaction, Data Access, Logging ...
Runtime Platform and Operating System

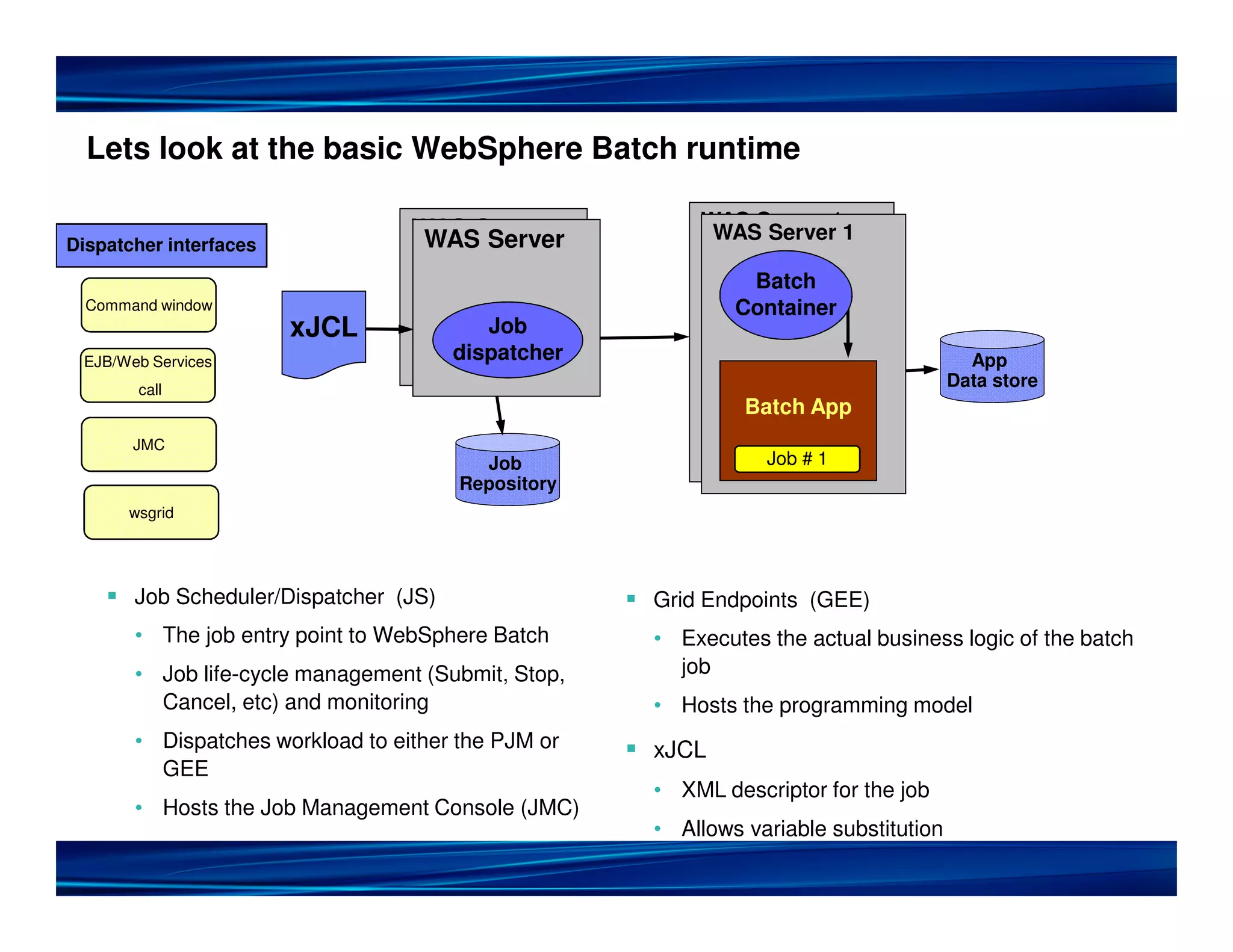

15. Lets look at the basic WebSphere Batch runtime
WAS Server WAS Server 1
WAS Server WAS Server 1
Dispatcher interfaces
Batch
Batch
Container
Command window
Job Container
xJCL Job
dispatcher
EJB/Web Services dispatcher App
call
Data store
Batch App
Batch App
JMC Job # 1
Job Job # 1
Repository
wsgrid
Job Scheduler/Dispatcher (JS) Grid Endpoints (GEE)
• The job entry point to WebSphere Batch • Executes the actual business logic of the batch
• Job life-cycle management (Submit, Stop, job
Cancel, etc) and monitoring • Hosts the programming model
• Dispatches workload to either the PJM or xJCL
GEE
• XML descriptor for the job
• Hosts the Job Management Console (JMC)
• Allows variable substitution

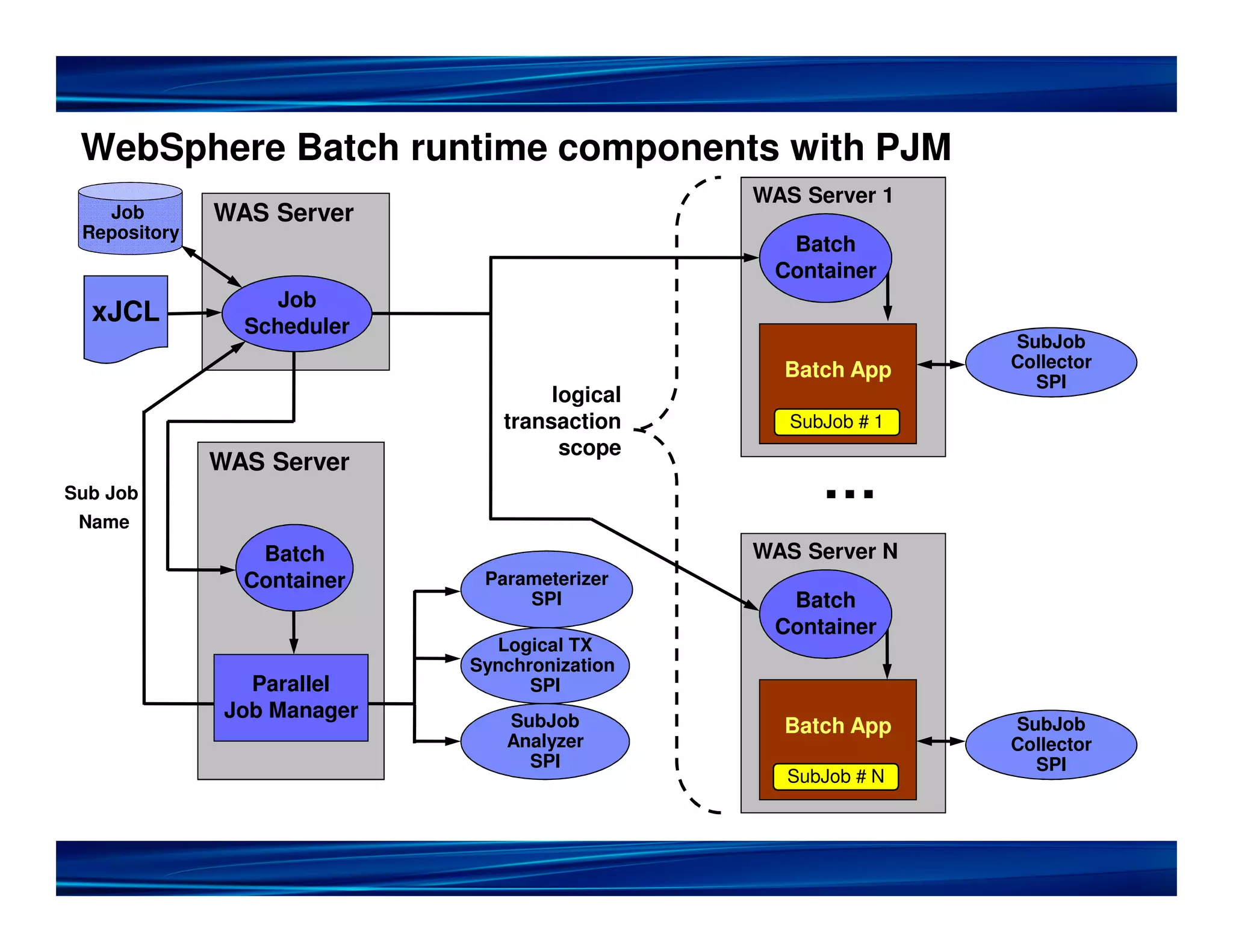

16. WebSphere Batch runtime components with PJM
WAS Server 1
Job WAS Server
Repository
Batch
Container
Job
xJCL Scheduler
SubJob
Batch App Collector
SPI
logical
transaction SubJob # 1
scope
WAS Server
Sub Job …
Name
Batch WAS Server N
Container Parameterizer
SPI Batch
Container
Logical TX
Synchronization
Parallel SPI
Job Manager SubJob Batch App SubJob
Analyzer Collector
SPI SPI
SubJob # N

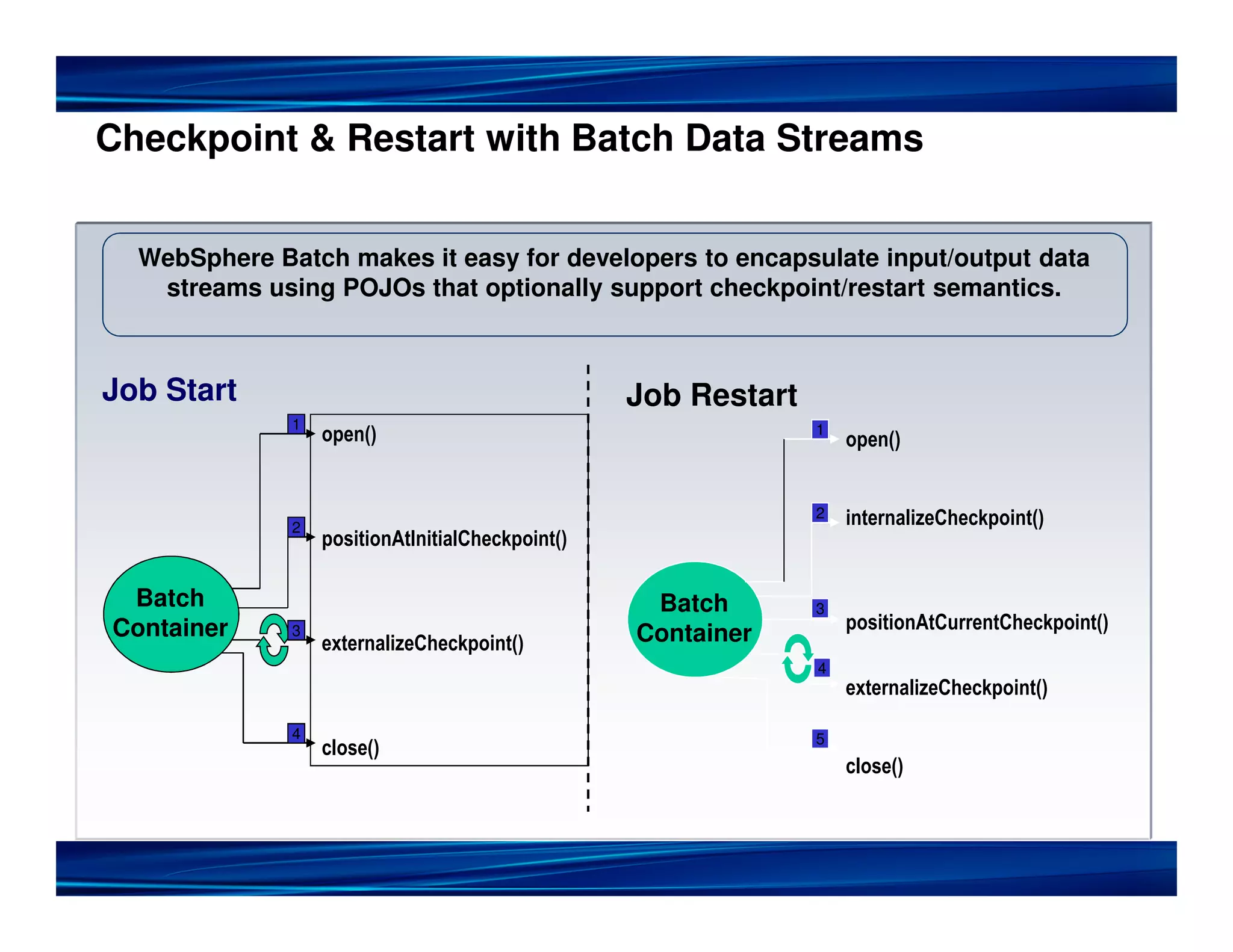

17. Checkpoint & Restart with Batch Data Streams
WebSphere Batch makes it easy for developers to encapsulate input/output data
streams using POJOs that optionally support checkpoint/restart semantics.
Job Start Job Restart
1 1
open() open()
2 internalizeCheckpoint()
2
positionAtInitialCheckpoint()
Batch Batch 3
Container positionAtCurrentCheckpoint()
3
externalizeCheckpoint() Container
4
externalizeCheckpoint()
4 5
close()
close()

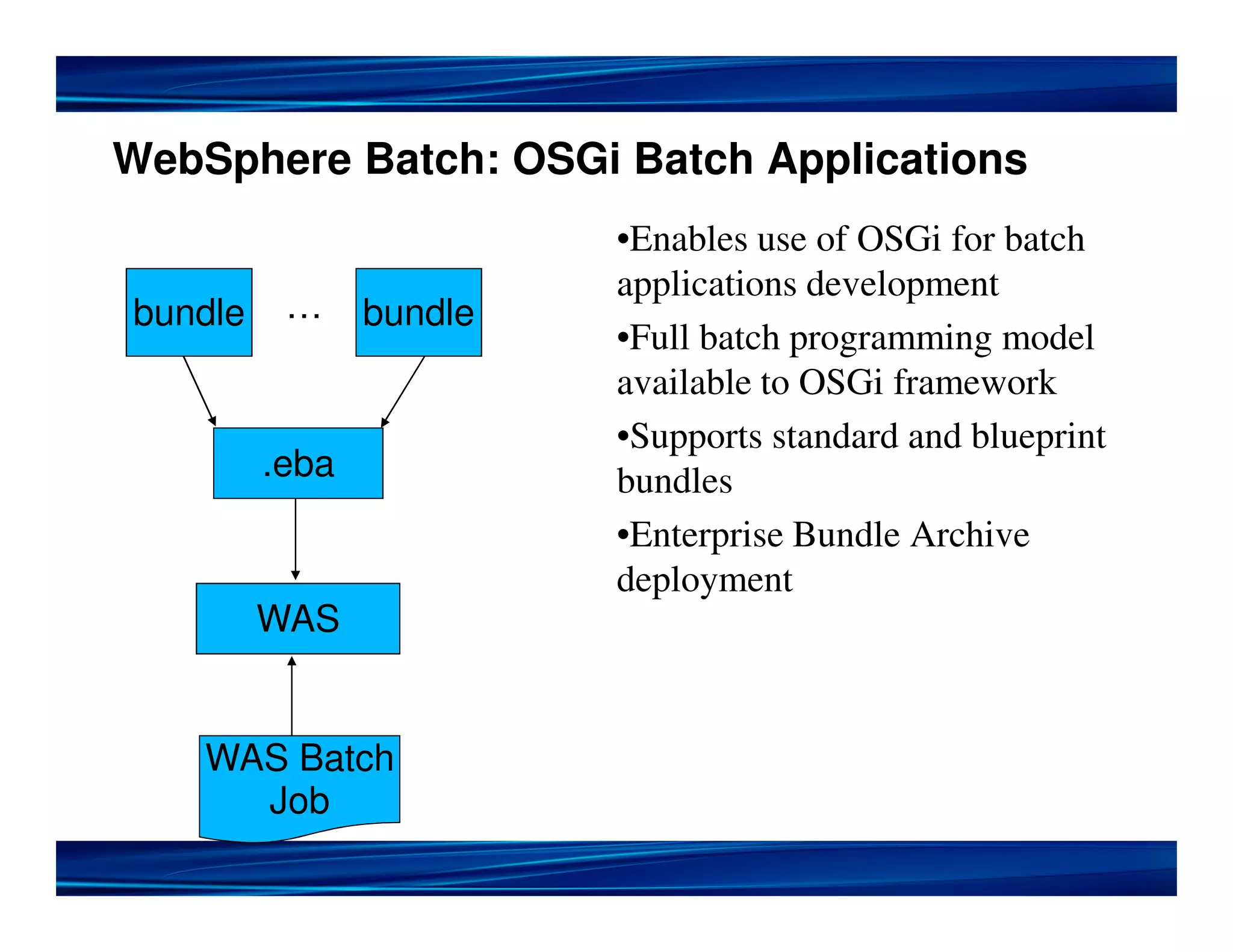

18. WebSphere Batch: OSGi Batch Applications
•Enables use of OSGi for batch
applications development
bundle … bundle
•Full batch programming model
available to OSGi framework
•Supports standard and blueprint
.eba bundles
•Enterprise Bundle Archive
deployment
WAS
WAS Batch
Job

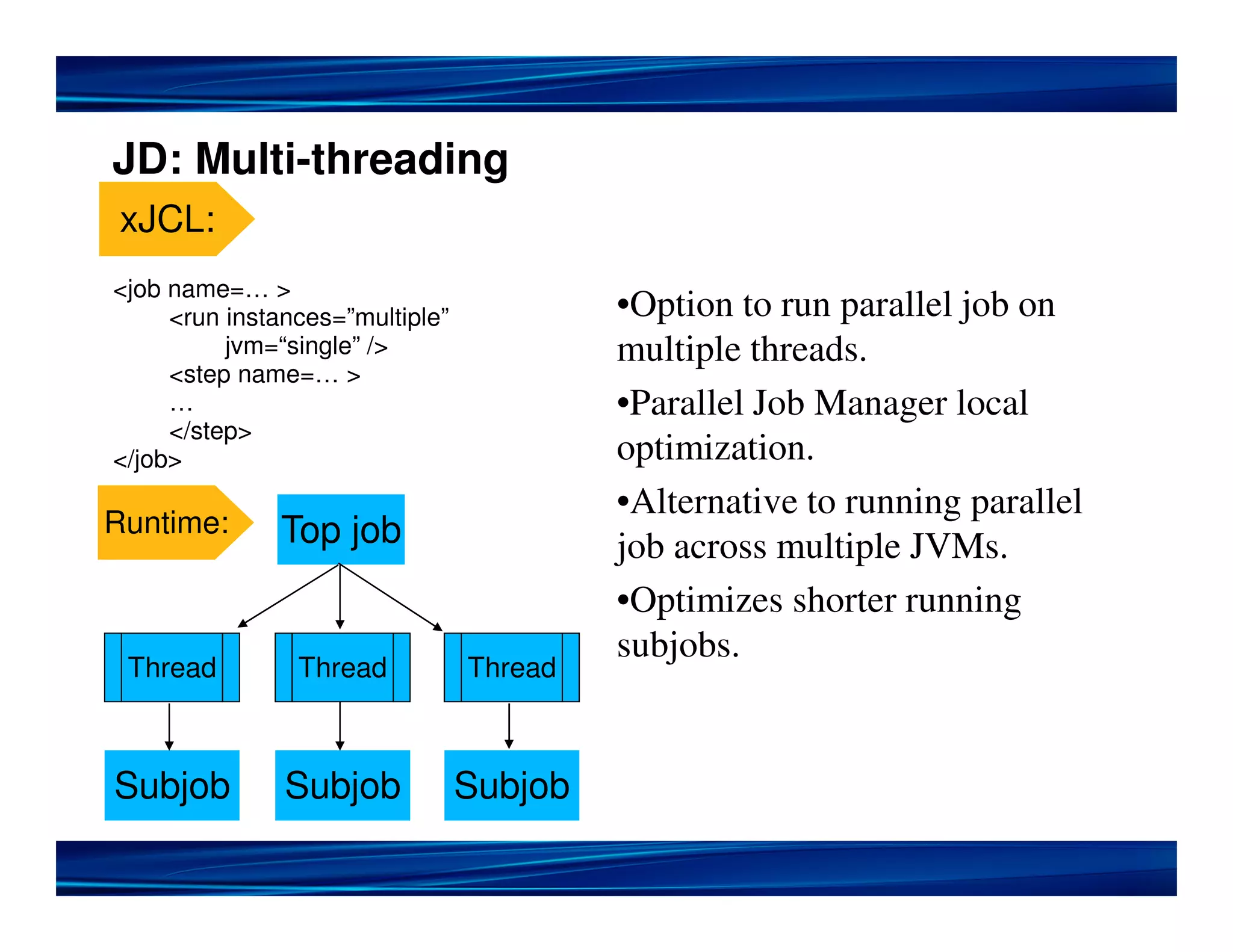

19. JD: Multi-threading
xJCL:
<job name=… >
<run instances=”multiple” •Option to run parallel job on
jvm=“single” /> multiple threads.
<step name=… >
… •Parallel Job Manager local
</step>
</job> optimization.
•Alternative to running parallel
Runtime: Top job job across multiple JVMs.
•Optimizes shorter running
subjobs.
Thread Thread Thread
Subjob Subjob Subjob

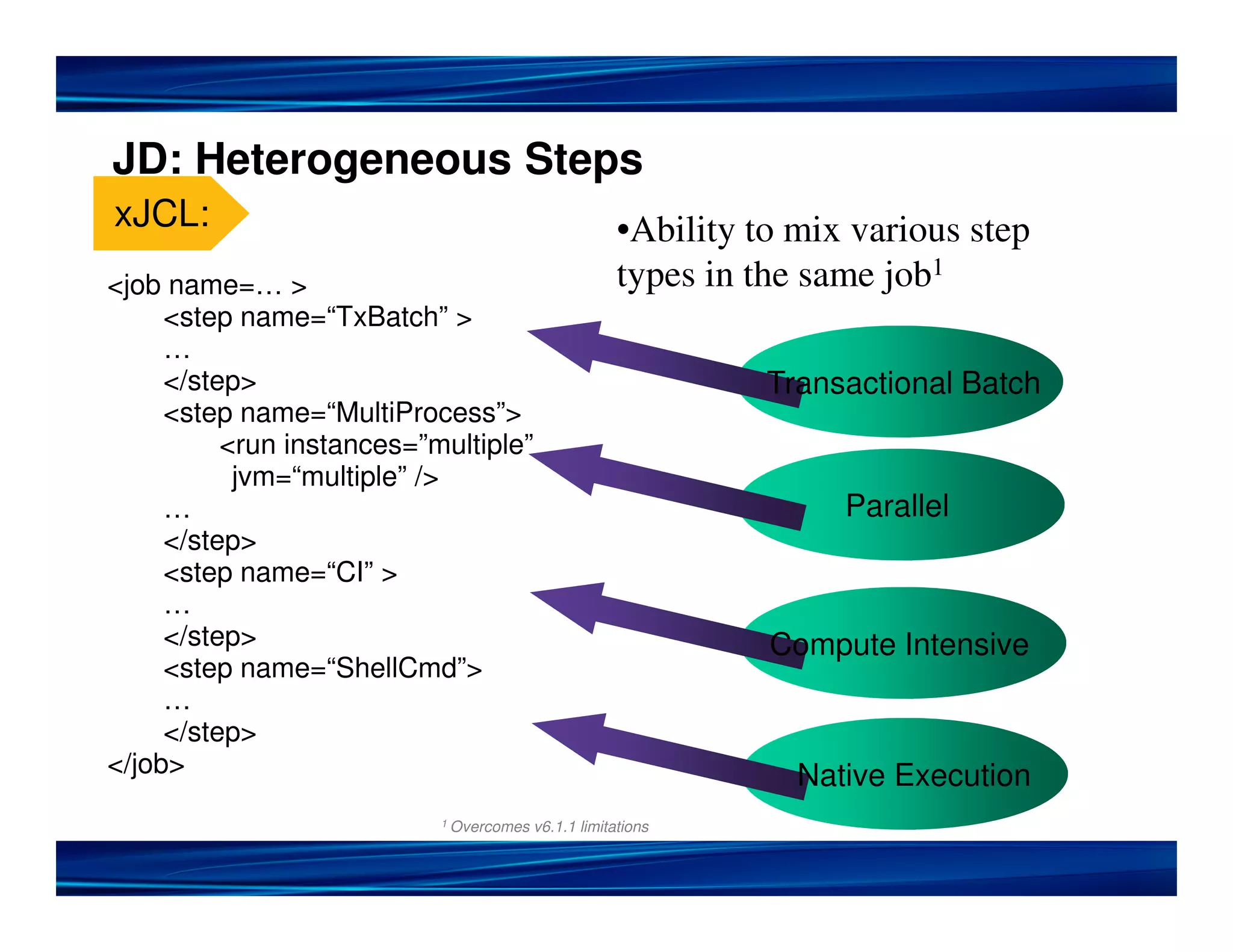

20. JD: Heterogeneous Steps
xJCL: •Ability to mix various step
<job name=… > types in the same job1
<step name=“TxBatch” >
…
</step> Transactional Batch
<step name=“MultiProcess”>
<run instances=”multiple”
jvm=“multiple” />
… Parallel
</step>
<step name=“CI” >
…
</step> Compute Intensive
<step name=“ShellCmd”>
…
</step>
</job> Native Execution
1 Overcomes v6.1.1 limitations

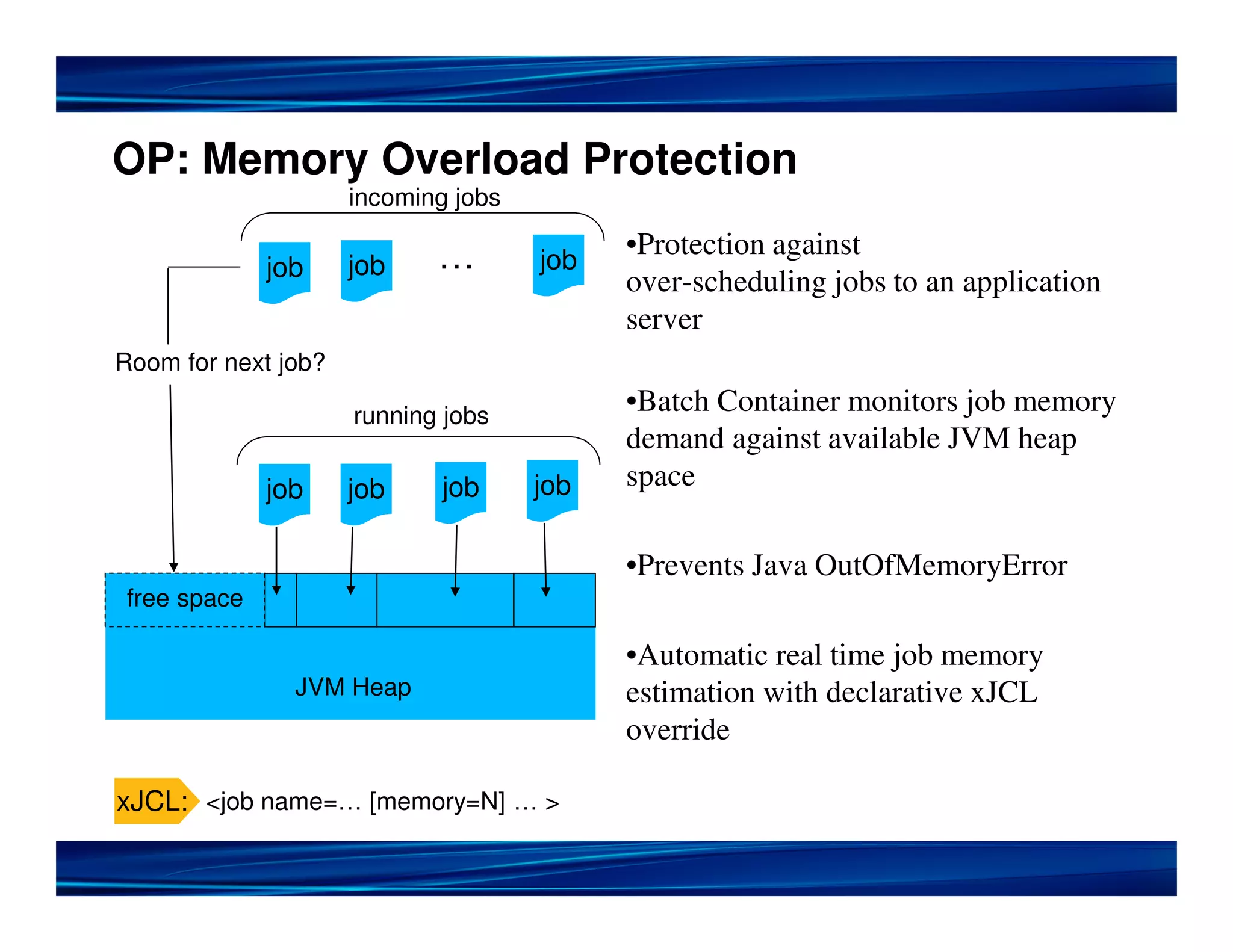

21. OP: Memory Overload Protection
incoming jobs
… job
•Protection against
job job
over-scheduling jobs to an application
server
Room for next job?
running jobs
•Batch Container monitors job memory
demand against available JVM heap
job job job job space
•Prevents Java OutOfMemoryError
free space
•Automatic real time job memory
JVM Heap estimation with declarative xJCL
override
xJCL: <job name=… [memory=N] … >

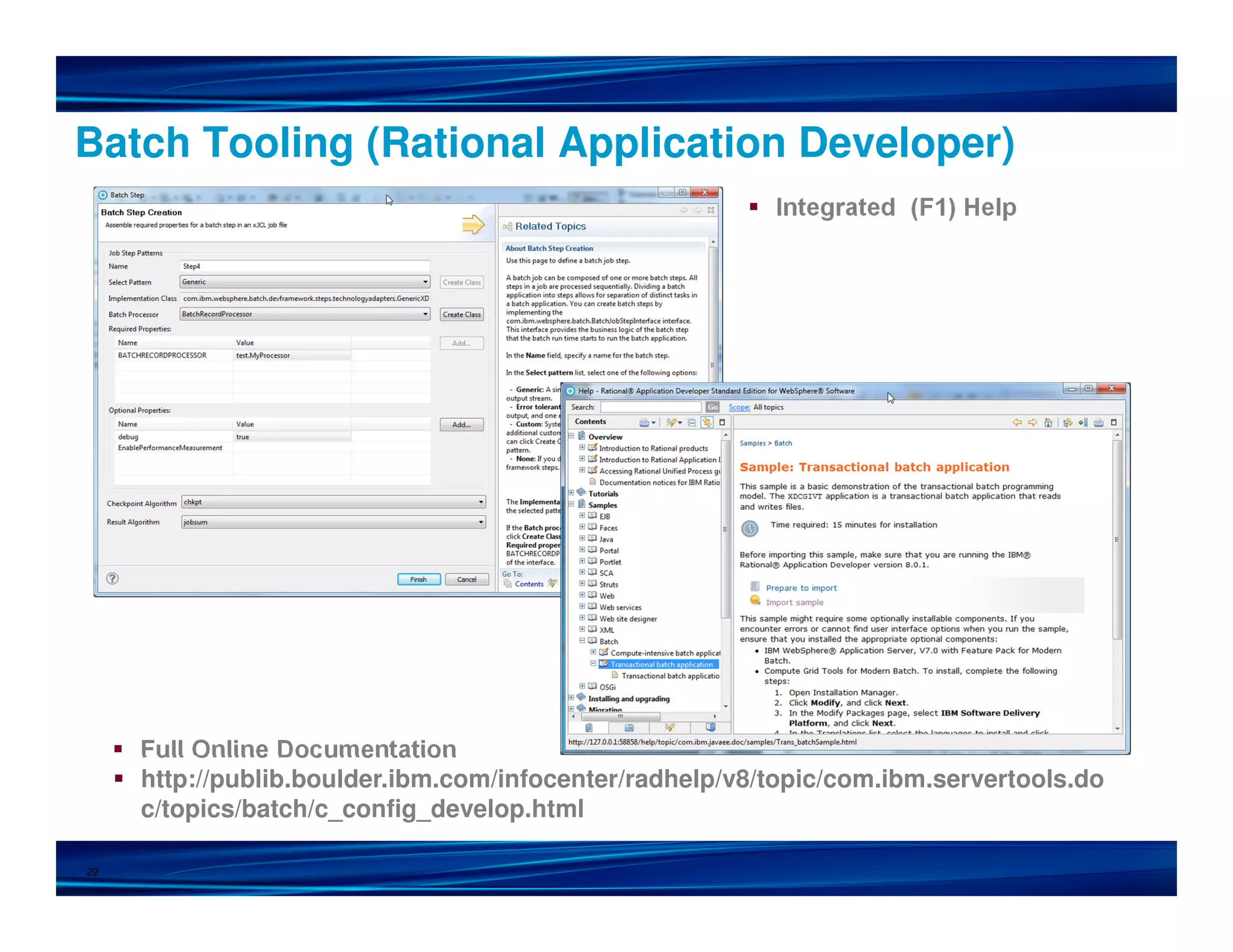

22. Batch Tooling (Rational Application Developer)
Integrated (F1) Help
Full Online Documentation
http://publib.boulder.ibm.com/infocenter/radhelp/v8/topic/com.ibm.servertools.do
c/topics/batch/c_config_develop.html
22

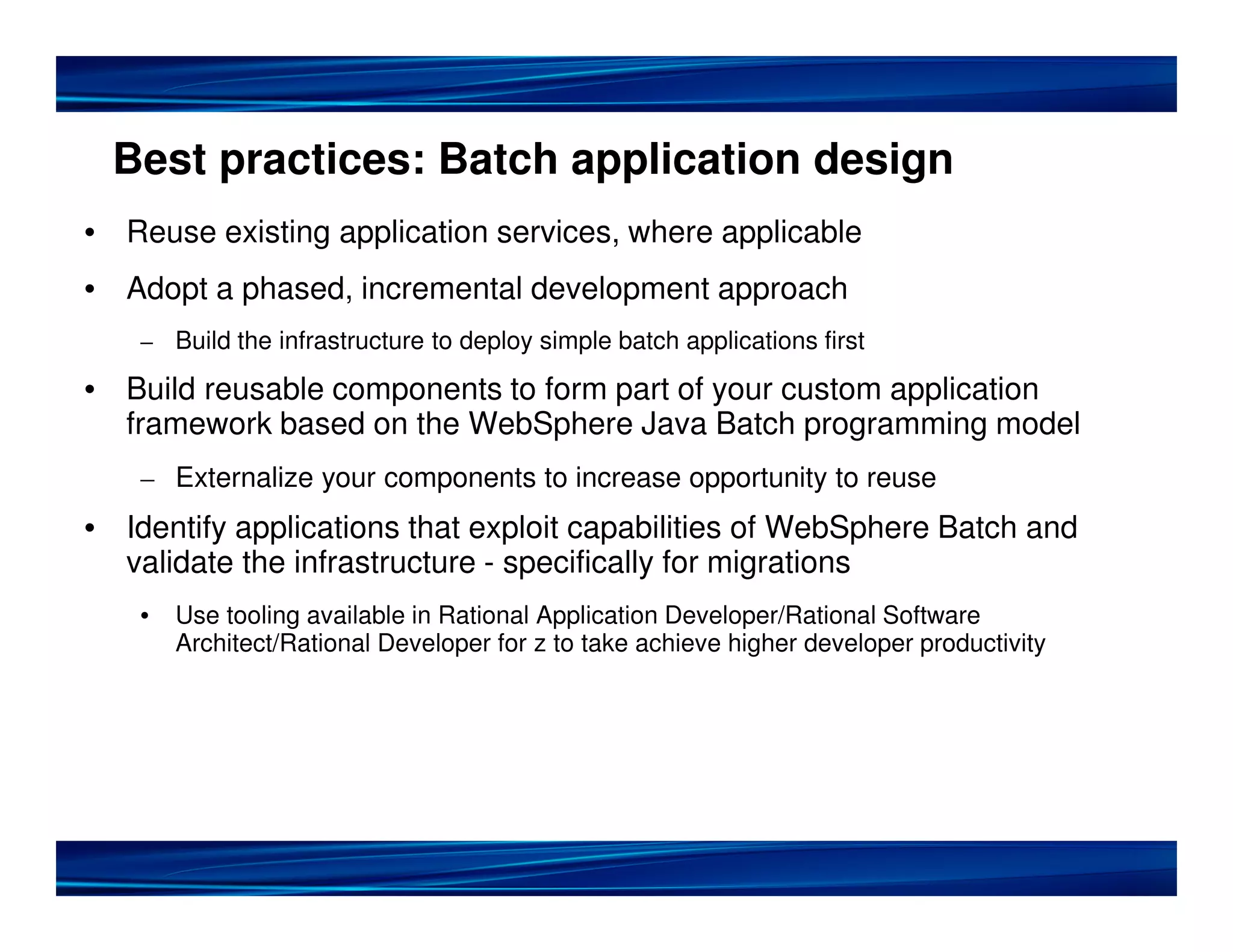

23. Best practices: Batch application design
• Reuse existing application services, where applicable
• Adopt a phased, incremental development approach
– Build the infrastructure to deploy simple batch applications first
• Build reusable components to form part of your custom application
framework based on the WebSphere Java Batch programming model
– Externalize your components to increase opportunity to reuse
• Identify applications that exploit capabilities of WebSphere Batch and
validate the infrastructure - specifically for migrations
• Use tooling available in Rational Application Developer/Rational Software
Architect/Rational Developer for z to take achieve higher developer productivity

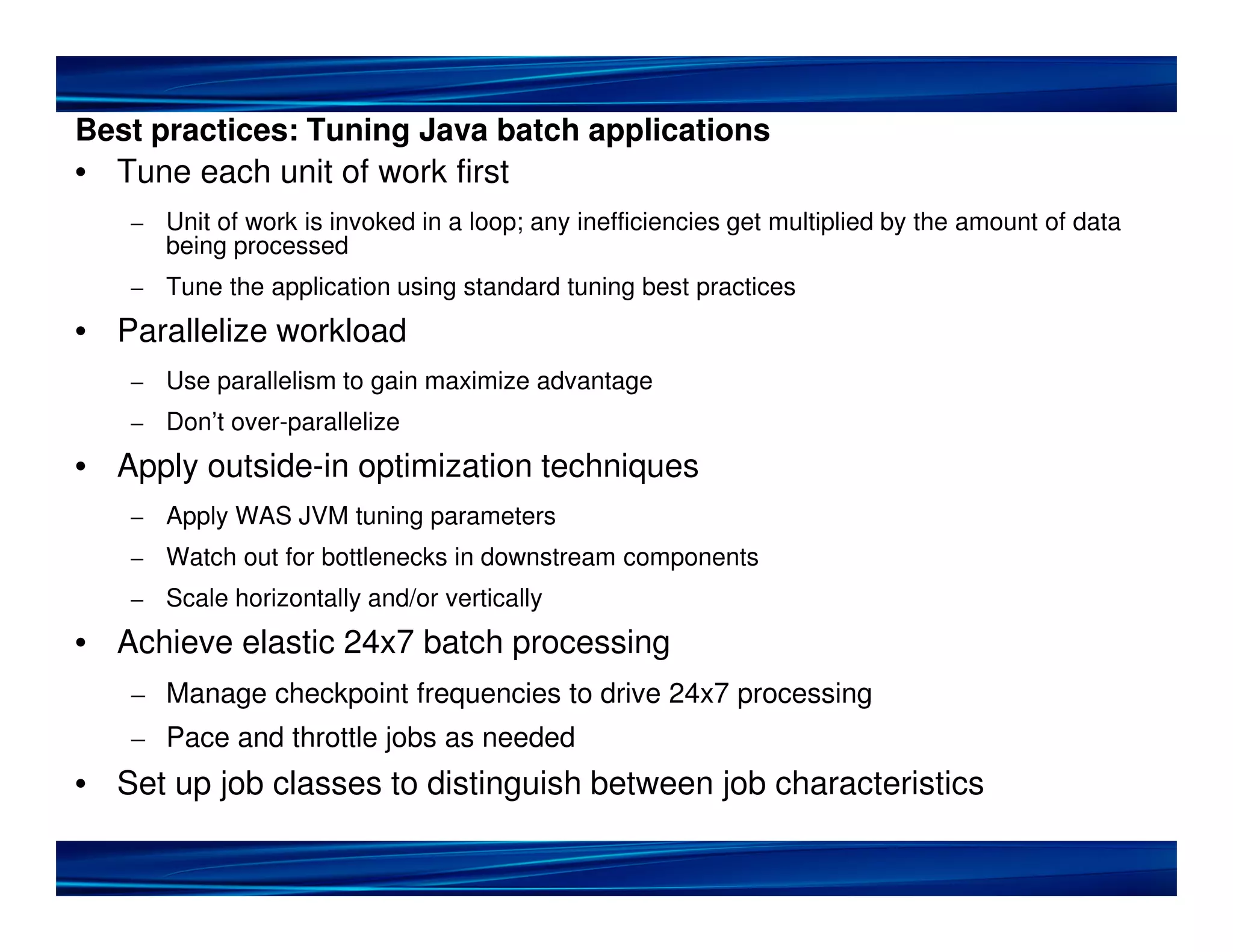

24. Best practices: Tuning Java batch applications
• Tune each unit of work first
– Unit of work is invoked in a loop; any inefficiencies get multiplied by the amount of data
being processed
– Tune the application using standard tuning best practices
• Parallelize workload
– Use parallelism to gain maximize advantage
– Don’t over-parallelize
• Apply outside-in optimization techniques
– Apply WAS JVM tuning parameters
– Watch out for bottlenecks in downstream components
– Scale horizontally and/or vertically
• Achieve elastic 24x7 batch processing
– Manage checkpoint frequencies to drive 24x7 processing
– Pace and throttle jobs as needed
• Set up job classes to distinguish between job characteristics

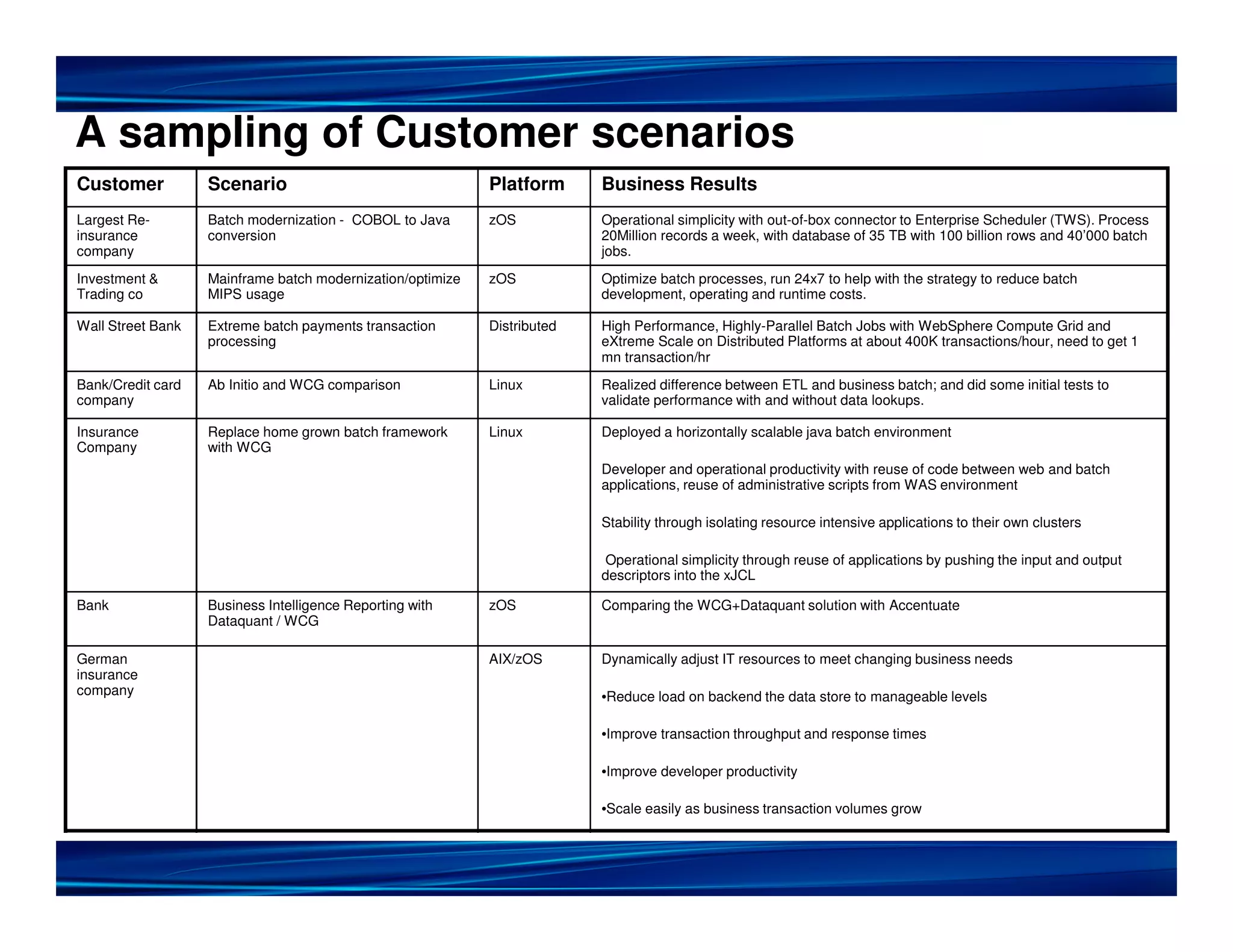

25. A sampling of Customer scenarios
Customer Scenario Platform Business Results
Largest Re- Batch modernization - COBOL to Java zOS Operational simplicity with out-of-box connector to Enterprise Scheduler (TWS). Process
insurance conversion 20Million records a week, with database of 35 TB with 100 billion rows and 40’000 batch
company jobs.
Investment & Mainframe batch modernization/optimize zOS Optimize batch processes, run 24x7 to help with the strategy to reduce batch
Trading co MIPS usage development, operating and runtime costs.
Wall Street Bank Extreme batch payments transaction Distributed High Performance, Highly-Parallel Batch Jobs with WebSphere Compute Grid and
processing eXtreme Scale on Distributed Platforms at about 400K transactions/hour, need to get 1
mn transaction/hr
Bank/Credit card Ab Initio and WCG comparison Linux Realized difference between ETL and business batch; and did some initial tests to
company validate performance with and without data lookups.
Insurance Replace home grown batch framework Linux Deployed a horizontally scalable java batch environment
Company with WCG
Developer and operational productivity with reuse of code between web and batch
applications, reuse of administrative scripts from WAS environment
Stability through isolating resource intensive applications to their own clusters
Operational simplicity through reuse of applications by pushing the input and output
descriptors into the xJCL
Bank Business Intelligence Reporting with zOS Comparing the WCG+Dataquant solution with Accentuate
Dataquant / WCG
German AIX/zOS Dynamically adjust IT resources to meet changing business needs
insurance
company •Reduce load on backend the data store to manageable levels
•Improve transaction throughput and response times
•Improve developer productivity
•Scale easily as business transaction volumes grow

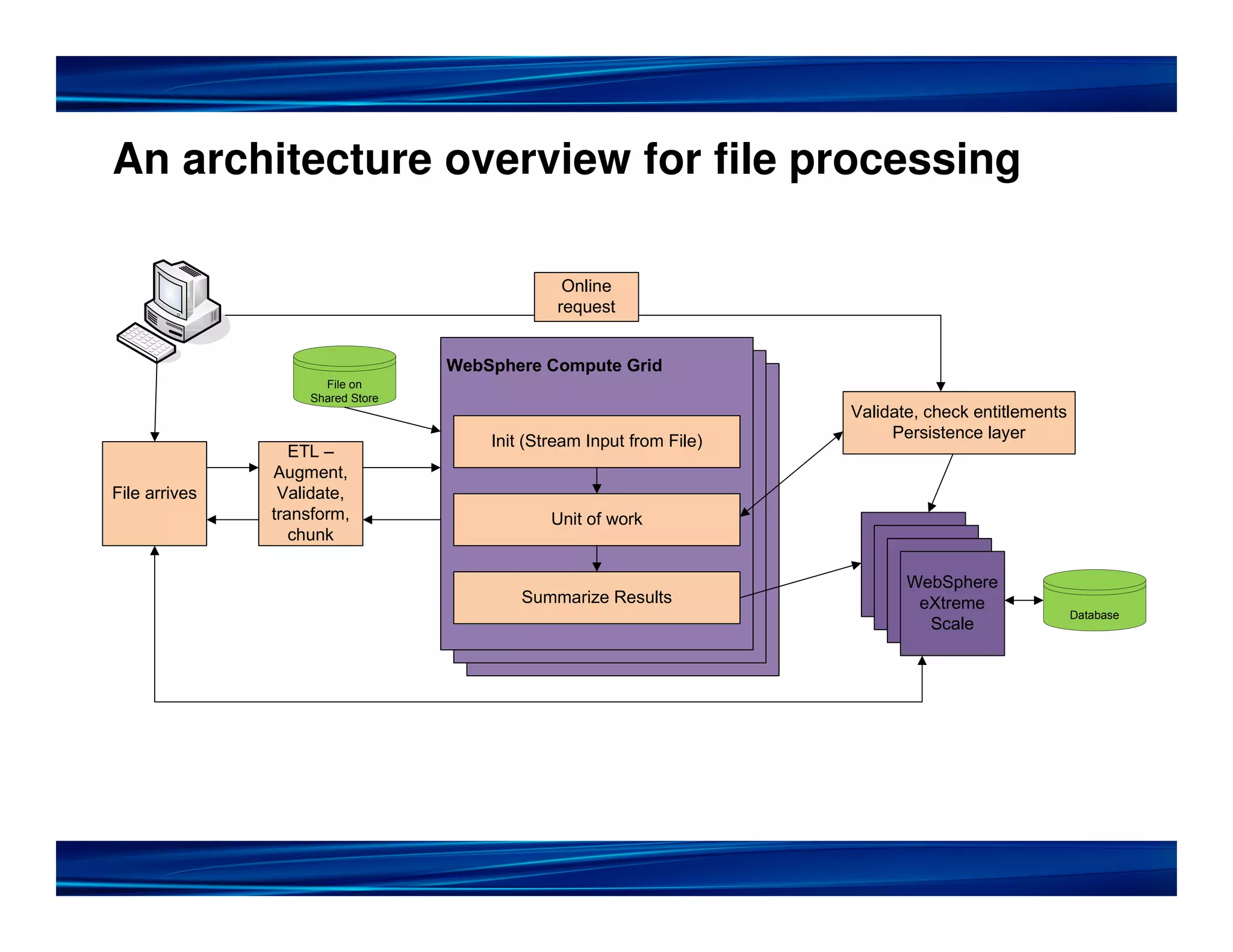

26. An architecture overview for file processing
Online
request
WebSphere Compute Grid
File on
Shared Store
Validate, check entitlements
Init (Stream Input from File) Persistence layer
ETL –
Augment,
File arrives Validate,
transform, Unit of work
chunk
WebSphere
Summarize Results eXtreme
Database
Scale

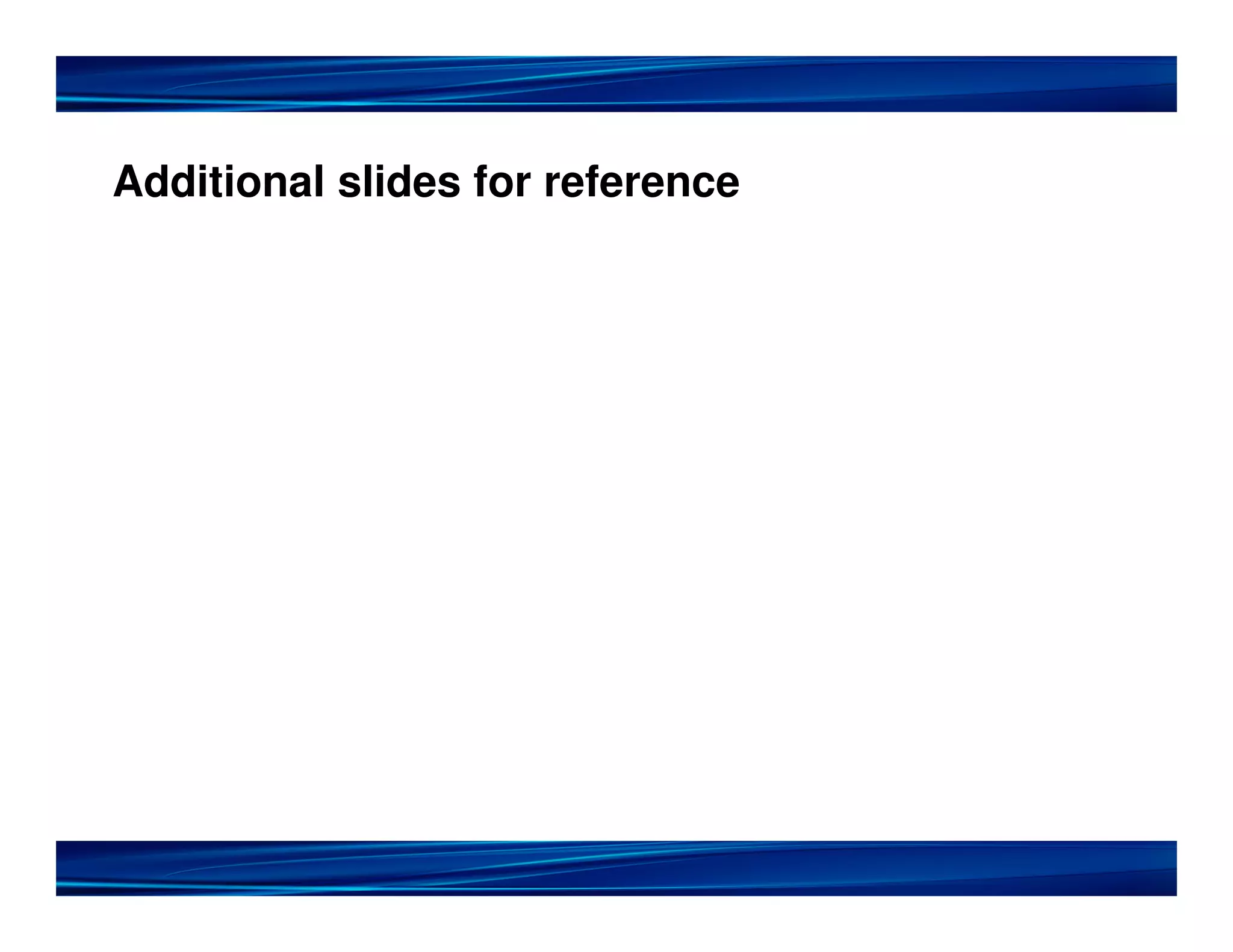

27. Additional slides for reference

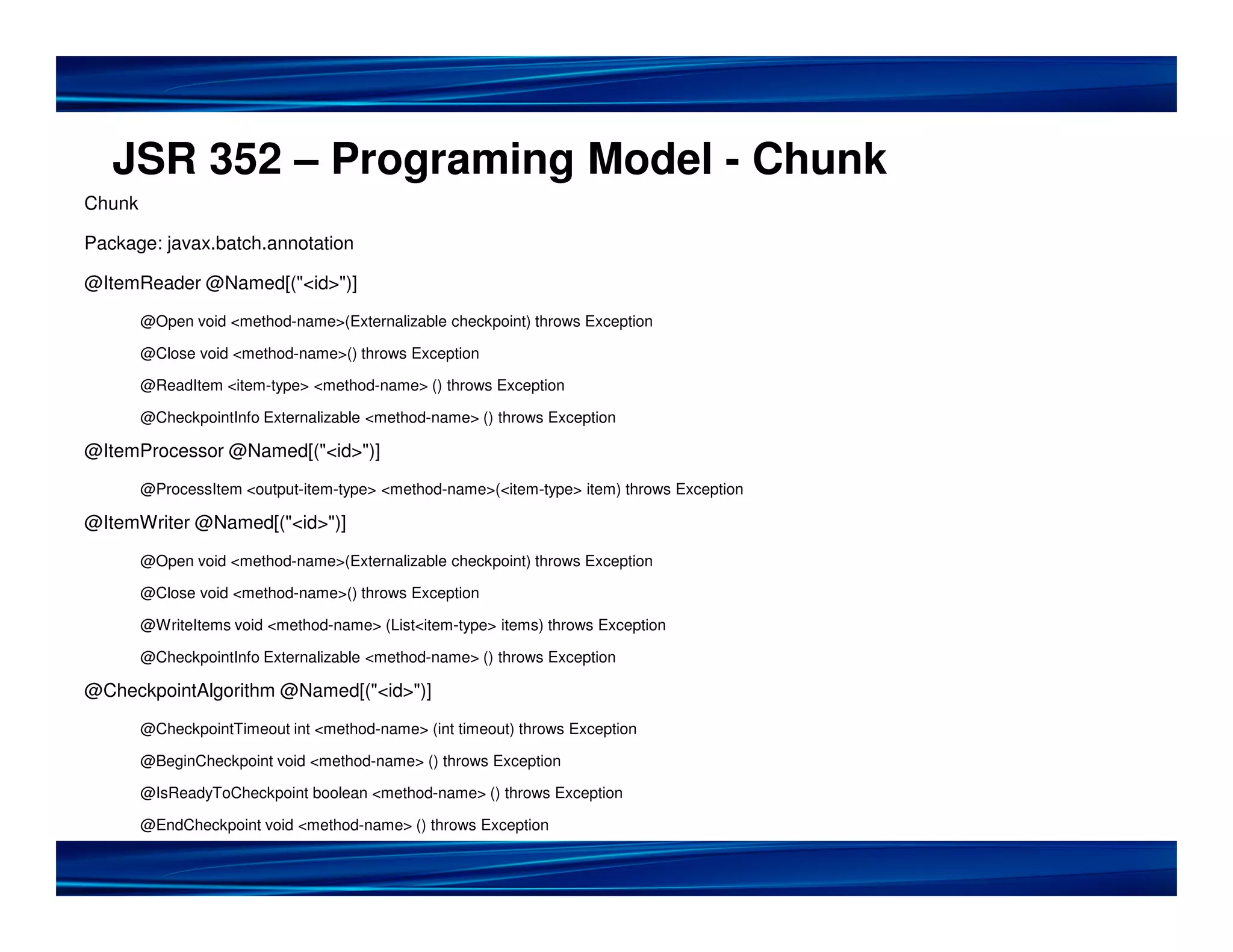

28. JSR 352 – Programing Model - Chunk
Chunk
Package: javax.batch.annotation
@ItemReader @Named[("<id>")]
@Open void <method-name>(Externalizable checkpoint) throws Exception
@Close void <method-name>() throws Exception
@ReadItem <item-type> <method-name> () throws Exception
@CheckpointInfo Externalizable <method-name> () throws Exception
@ItemProcessor @Named[("<id>")]
@ProcessItem <output-item-type> <method-name>(<item-type> item) throws Exception
@ItemWriter @Named[("<id>")]
@Open void <method-name>(Externalizable checkpoint) throws Exception
@Close void <method-name>() throws Exception
@WriteItems void <method-name> (List<item-type> items) throws Exception
@CheckpointInfo Externalizable <method-name> () throws Exception
@CheckpointAlgorithm @Named[("<id>")]
@CheckpointTimeout int <method-name> (int timeout) throws Exception
@BeginCheckpoint void <method-name> () throws Exception
@IsReadyToCheckpoint boolean <method-name> () throws Exception
@EndCheckpoint void <method-name> () throws Exception

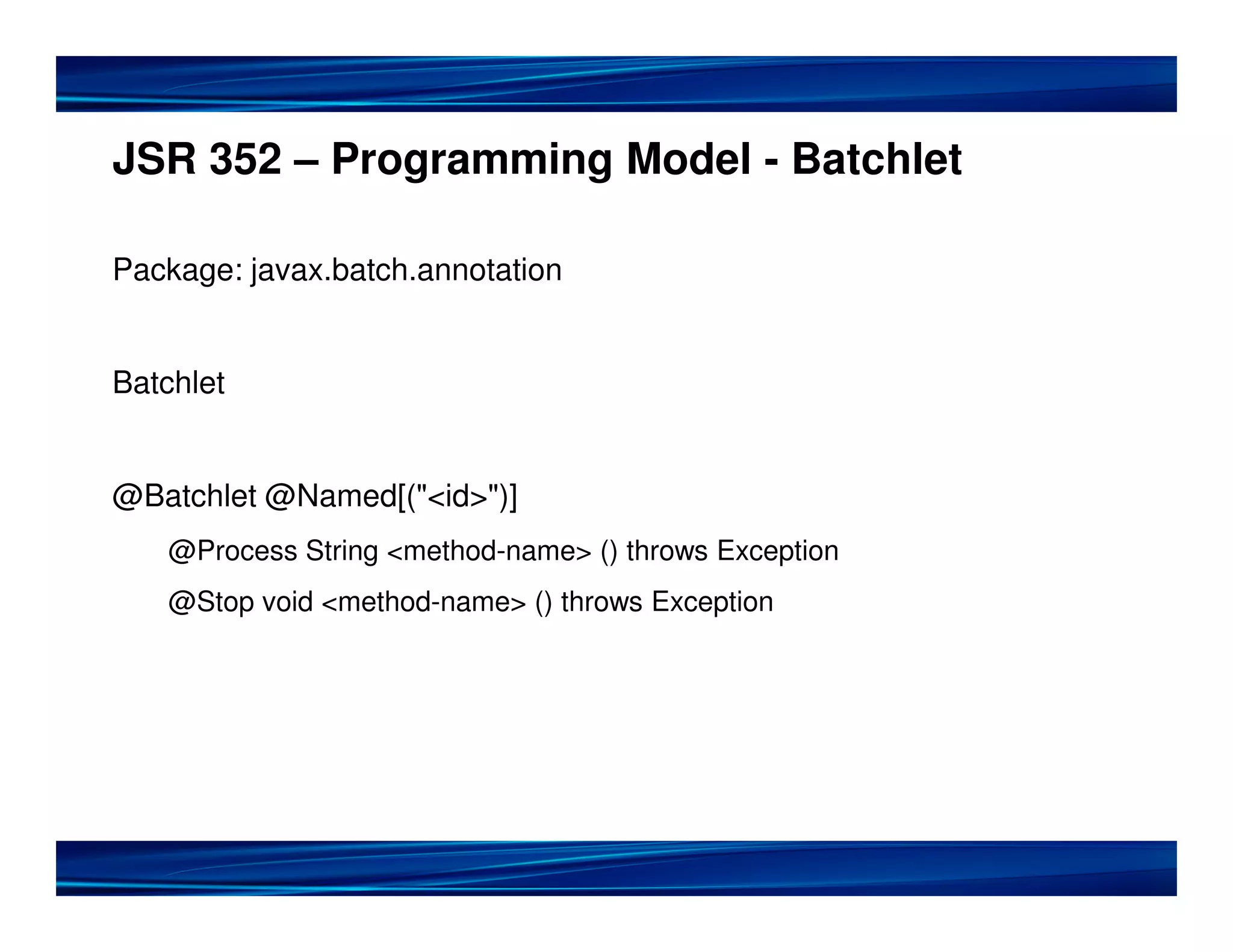

29. JSR 352 – Programming Model - Batchlet
Package: javax.batch.annotation
Batchlet
@Batchlet @Named[("<id>")]
@Process String <method-name> () throws Exception
@Stop void <method-name> () throws Exception

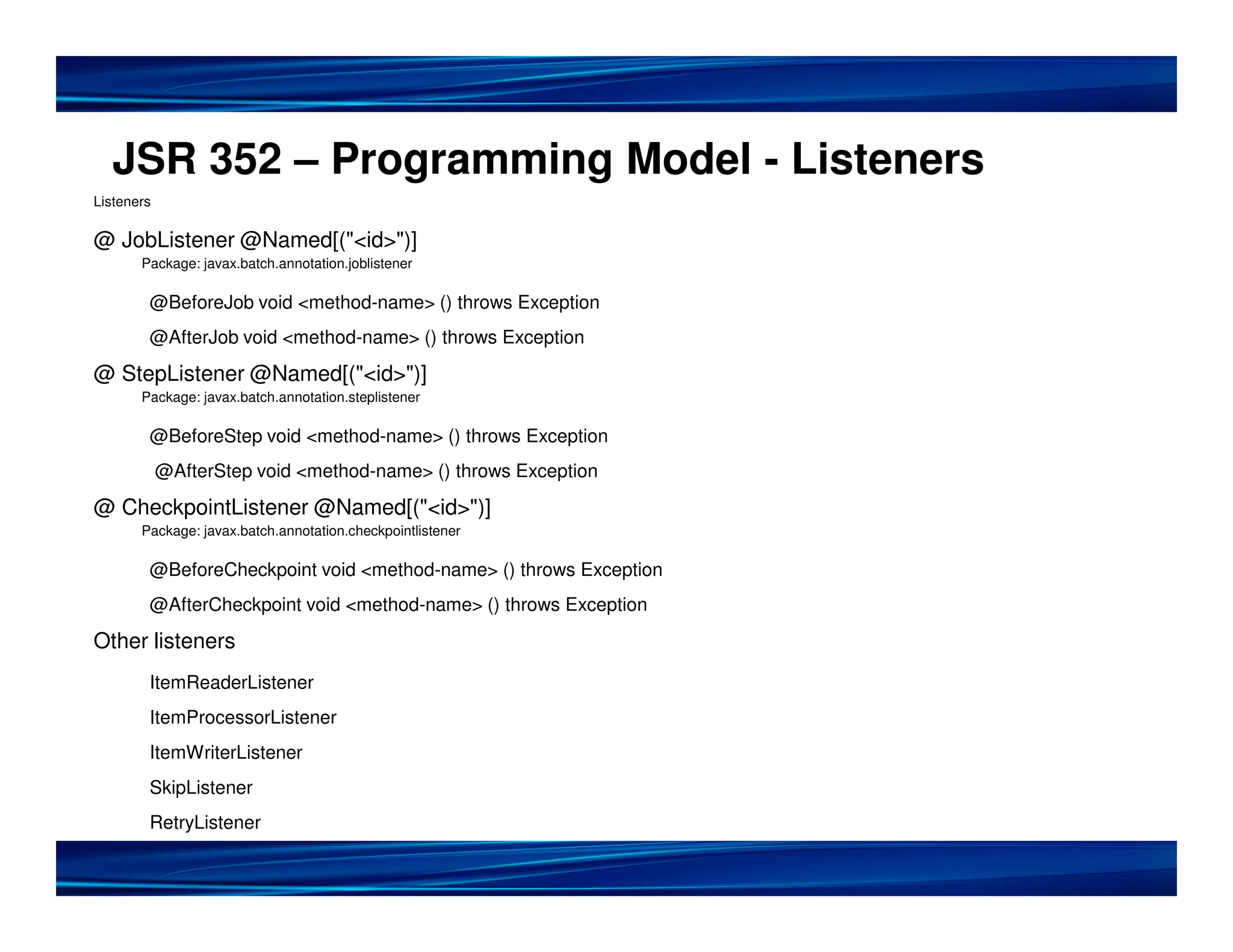

30. JSR 352 – Programming Model - Listeners
Listeners
@ JobListener @Named[("<id>")]
Package: javax.batch.annotation.joblistener
@BeforeJob void <method-name> () throws Exception
@AfterJob void <method-name> () throws Exception
@ StepListener @Named[("<id>")]
Package: javax.batch.annotation.steplistener
@BeforeStep void <method-name> () throws Exception
@AfterStep void <method-name> () throws Exception
@ CheckpointListener @Named[("<id>")]
Package: javax.batch.annotation.checkpointlistener
@BeforeCheckpoint void <method-name> () throws Exception
@AfterCheckpoint void <method-name> () throws Exception
Other listeners
ItemReaderListener
ItemProcessorListener
ItemWriterListener
SkipListener
RetryListener

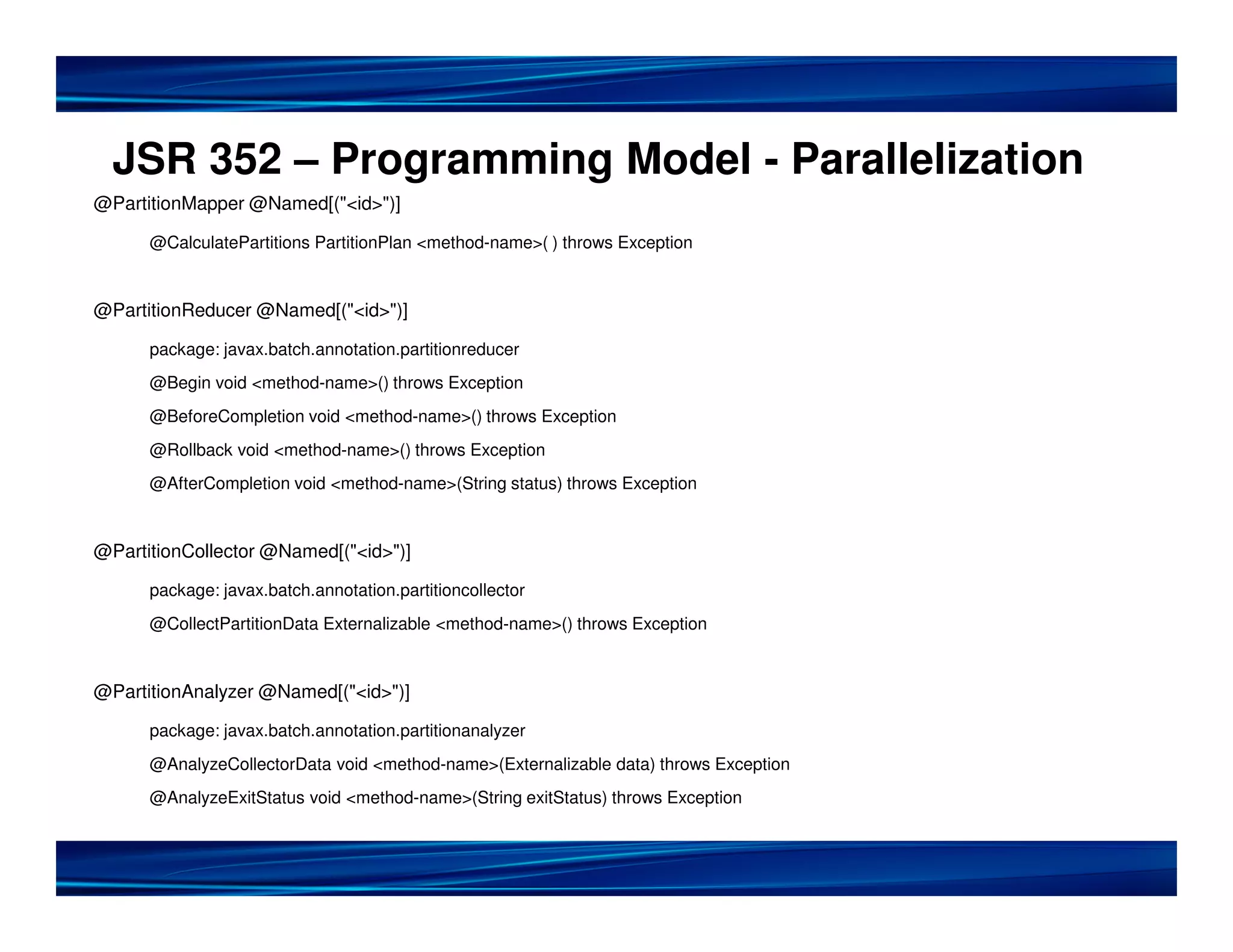

31. JSR 352 – Programming Model - Parallelization
@PartitionMapper @Named[("<id>")]
@CalculatePartitions PartitionPlan <method-name>( ) throws Exception
@PartitionReducer @Named[("<id>")]
package: javax.batch.annotation.partitionreducer
@Begin void <method-name>() throws Exception
@BeforeCompletion void <method-name>() throws Exception
@Rollback void <method-name>() throws Exception
@AfterCompletion void <method-name>(String status) throws Exception
@PartitionCollector @Named[("<id>")]
package: javax.batch.annotation.partitioncollector
@CollectPartitionData Externalizable <method-name>() throws Exception
@PartitionAnalyzer @Named[("<id>")]
package: javax.batch.annotation.partitionanalyzer
@AnalyzeCollectorData void <method-name>(Externalizable data) throws Exception
@AnalyzeExitStatus void <method-name>(String exitStatus) throws Exception

32. Hindi
Thai
Traditional Chinese
Russian
Gracias
Thank You
Spanish
Dziękuję
Polish
English
Obrigado
Brazilian Portuguese
Arabic
Danke
German
Grazie
Italian
Simplified Chinese Merci
French
Japanese
Tamil
Korean
