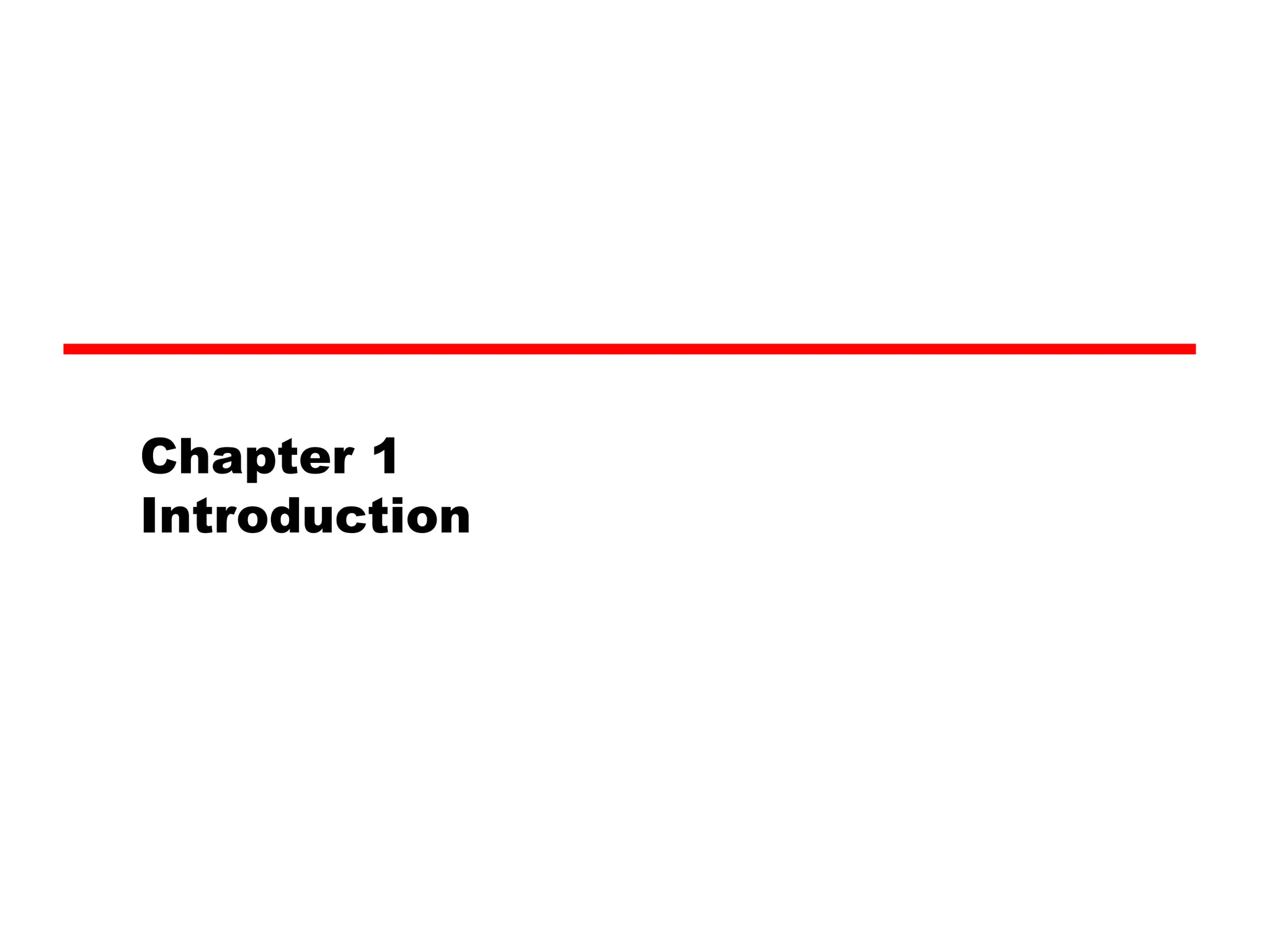

1. Chapter 1
Introduction

2. Architecture & Organization 1
• Architecture is those attributes visible to
the programmer
—Instruction set, number of bits used for data
representation, I/O mechanisms, addressing
techniques.
—e.g. Is there a multiply instruction?
• Organization is how features are
implemented
—Control signals, interfaces, memory
technology.
—e.g. Is there a hardware multiply unit or is it
done by repeated addition?

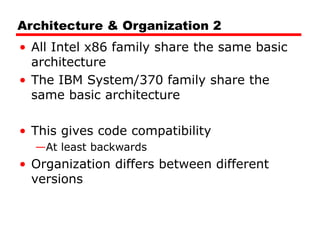

3. Architecture & Organization 2
• All Intel x86 family share the same basic
architecture
• The IBM System/370 family share the
same basic architecture
• This gives code compatibility
—At least backwards
• Organization differs between different
versions

4. Computer Architecture Computer Organization
Computer Architecture is the functional behavior of a
computer system.
Computer Organization is concerned with the structure
and behavior of a computer system.
It acts as the interface between hardware and software. It deals with the components of a connection in a
system.
Computer Architecture helps us to understand the
functionalities of a system.
Computer Organization tells us how exactly all the units
in the system are arranged and interconnected.
A programmer can view architecture in terms of
instructions, addressing modes and registers.
Whereas Organization expresses the realization of
architecture.
While designing a computer system architecture is
considered first.
An organization is done on the basis of architecture.
Computer Architecture deals with high-level design
issues.
Computer Organization deals with low-level design
issues.
Architecture involves Logic (Instruction sets, Addressing
modes, Data types, Cache optimization)
Organization involves Physical Components (Circuit
design, Adders, Signals, Peripherals)

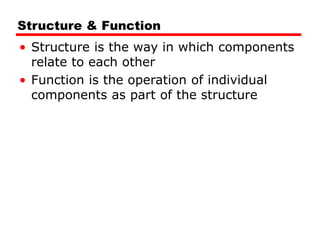

5. Structure & Function
• Structure is the way in which components
relate to each other
• Function is the operation of individual
components as part of the structure

6. Function
• All computer functions are:
—Data processing
—Data storage
—Data movement
—Control

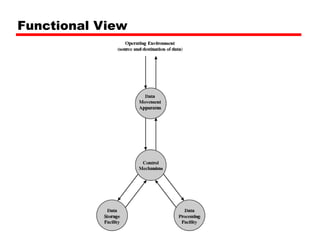

7. Functional View

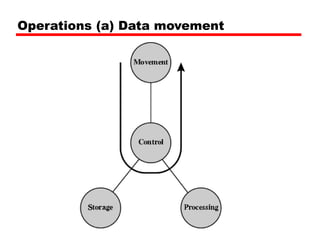

8. Operations (a) Data movement

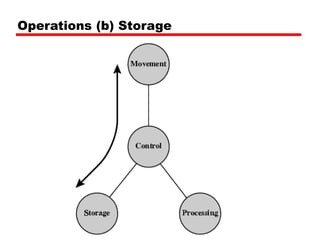

9. Operations (b) Storage

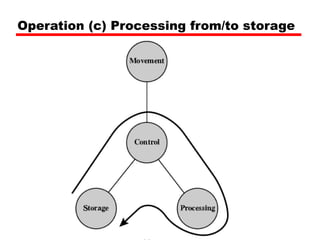

10. Operation (c) Processing from/to storage

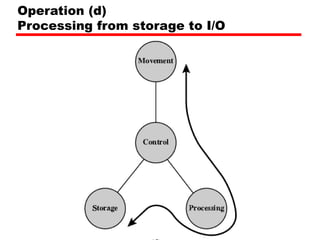

11. Operation (d)
Processing from storage to I/O

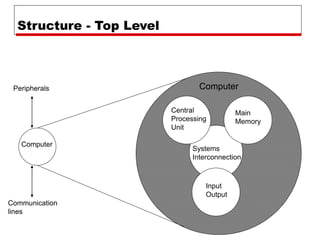

12. Structure - Top Level
Computer
Main
Memory
Input
Output
Systems
Interconnection
Peripherals
Communication
lines
Central
Processing
Unit
Computer

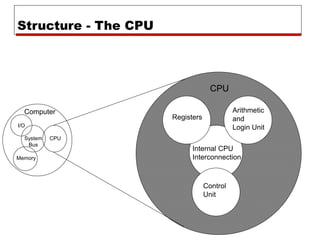

13. Structure - The CPU
Computer Arithmetic
and
Login Unit
Control
Unit
Internal CPU
Interconnection
Registers
CPU
I/O
Memory
System
Bus
CPU

14. Structure - The Control Unit
CPU
Control
Memory
Control Unit
Registers and
Decoders
Sequencing
Login
Control
Unit
ALU
Registers
Internal
Bus
Control Unit

15. Outline of the Book (1)
• Computer Evolution and Performance
• Computer Interconnection Structures
• Internal Memory
• External Memory
• Input/Output
• Operating Systems Support
• Computer Arithmetic
• Instruction Sets

16. Outline of the Book (2)
• CPU Structure and Function
• Reduced Instruction Set Computers
• Superscalar Processors
• Control Unit Operation
• Microprogrammed Control
• Multiprocessors and Vector Processing
• Digital Logic (Appendix)

17. Internet Resources
- Web site for book
• http://WilliamStallings.com/COA/COA7e.html
—links to sites of interest
—links to sites for courses that use the book
—errata list for book
—information on other books by W. Stallings
• http://WilliamStallings.com/StudentSupport.html
—Math
—How-to
—Research resources
—Misc

18. Internet Resources
- Web sites to look for
• WWW Computer Architecture Home Page
• CPU Info Center
• Processor Emporium
• ACM Special Interest Group on Computer
Architecture
• IEEE Technical Committee on Computer
Architecture
• Intel Technology Journal
• Manufacturer’s sites
—Intel, IBM, etc.

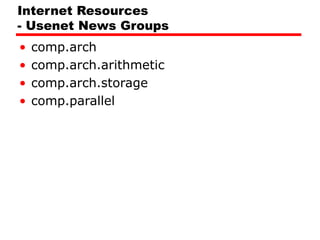

19. Internet Resources
- Usenet News Groups
• comp.arch
• comp.arch.arithmetic
• comp.arch.storage
• comp.parallel
