International Journal of Computer Networks & Communications (IJCNC) Vol.16, No.1, January 2024
DOI: 10.5121/ijcnc.2024.16106 87
COMPARATIVE STUDY OF ORCHESTRATION USING
GRPC API AND REST API IN SERVER CREATION
TIME: AN OPENSTACK CASE
Hari Krishna S M and Rinki Sharma
Department of Computer Science and Engineering, M. S. Ramaiah University of Applied
Sciences, Bengaluru, India
ABSTRACT
Cloud computing is the quick, simple, and economical distribution of computing services. To offer quality
services in cloud infrastructure, the NFV Management and Orchestration (MANO) function is a critical
task for managing both infrastructure resources and network functions. Since the demand for cloud
services is rapidly increasing, cloud service providers are constantly trying to reduce operational costs.
Hence the elements of MANO functions have gained critical importance in cloud infrastructure. To use
MANO efficiently, there are hypervisors (OpenStack) that act as a middle layer between hardware and
software that are used to provide Infrastructure-as-a-Service solutions through a set of interrelated
services. These services are managed by an application programming interface (API). The existing
orchestration method uses Representational state transfer (REST) API for communicating with core
components of a hypervisor. These API have been integral part of creating and deploying a server. To
improve the performance, this paper proposes a novel approach for orchestration based on the open-
source remote procedure call framework, known as gRPC. To analyse the proposed solution, both REST
and gRPC-based orchestration methods are implemented for creating and launching servers using
OpenStack cloud computing platform. The server creation time is obtained for different scenarios and SFC
use cases. The results show that by using gRPC, the performance in terms of server creation time of an
orchestration is improved by up to 27% compared to the traditional REST-based orchestration.
KEYWORDS
Architectural Styles, gRPC, MANO, Network Function Virtualization, Orchestration and REST
1. INTRODUCTION
Through network automation and virtualization, the advantages of Software-Defined Networks
(SDN) and Network Function Virtualization (NFV) technologies have significantly aided in the
development of open-source software and common network hardware. By offering automatic
chaining functions and supporting network connectivity settings, SDN has sped up the adoption
of NFV. NFV speeds up the development of new services for service providers while lowering
capital and operational costs. A new method for designing, deploying, and managing the network
and its services is provided by both SDN and NFV. To integrate the advantages of both
technologies, telecommunications providers must manage their network using the NFV
Management and Orchestration (MANO) function.
The components of MANO functions have become crucial components in cloud infrastructure
because they are a significant resource for controlling infrastructure resources and network
functions simultaneously for providing excellent services. Hypervisors serve as a transitional
layer between hardware and software in the cloud environment, allowing MANO functions to be

88
used. The most used hypervisor in telecommunications networks is OpenStack. With the help of
several connected services, OpenStack offers an Infrastructure-as-a-Service solution. An
Application Programming Interface (API) is provided by each service to make this connection
easier [1].
1.1. Orchestration Service in Openstack
The orchestration service in OpenStack provides a template to define the cloud application and
provides APIs to run and manage the application. Other key OpenStack components are
incorporated into a one-file template system. One may create most OpenStack resource types
using the templates, including instances, floating IPs, volumes, security groups, etc. The existing
orchestration service uses OpenStack-native REST API for communicating with core
components of OpenStack.
1.2. REST Based NFV Orchestrator: Characteristics and Challenges
Request-and-response interaction styles are frequently used to describe synchronous
communication. One microservice sends a request to another microservice, which must process
the response before returning it. It is typical for the re-quester to pause its activity in this style
while it waits for the remote server to respond. The most popular framework for synchronous
types of communication in microservices is REST API [2].
Each service in a system that uses REST APIs for IPC communication often has a web server
operating on a particular port, such 8080 or 443, and each service exposes a set of endpoints to
allow interactions with other micro-services and information sharing between them. Through its
interface, also referred to as a Web API, the server communicates with the client directly. In
orchestration mechanism, different components of a service communicate via REST APIs. Since
the demand for cloud services is rapidly increasing, the number of API requests over the network
has also increased. This will lead to an increase in server creation time, which indirectly increases
the operational cost of the organizations.
1.3. Problem Statements and Objective
Orchestration depends on several components interacting with each other. The existing
communication majorly depends on REST API. The REST API has its own limitations when it
comes to communication speed and security. Even though REST API runs on HTTP (1.1), and it
can be replaced with a better version, the transformation takes lot of time. These problems will
affect the performance of the organization with respect to operational costs. The gRPC at its core
offers a modern RPC (Remote Procedure Call) framework that simplifies and enhances
communication between distributed systems through efficient serialization, protocol
optimization, and language-agnostic service definitions. It is well-suited for building
microservices, APIs, and other networked applications that require reliable and performant
communication between components. To improve the performance by reducing the server
creation time, an alternate solution needs to be explored. Recent study shows that in energy cost
analysis, gRPC's efficiency and optimized communication patterns might make it a favourable
choice for computation offloading in mobile applications compared to protocols like REST [3].
The major objective of this paper to develop and analyse both gRPC API based orchestration and
REST API based orchestration methods for creating and launching servers for different scenarios
and key applications of SDN and NFV known as Service Function Chaining (SFC).

89

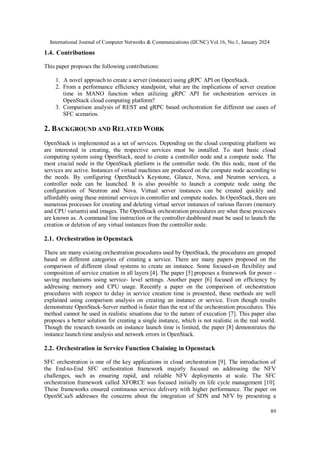

1.4. Contributions
This paper proposes the following contributions:
1. A novel approach to create a server (instance) using gRPC API on OpenStack.
2. From a performance efficiency standpoint, what are the implications of server creation
time in MANO function when utilizing gRPC API for orchestration services in
OpenStack cloud computing platform?
3. Comparison analysis of REST and gRPC based orchestration for different use cases of
SFC scenarios.
2. BACKGROUND AND RELATED WORK
OpenStack is implemented as a set of services. Depending on the cloud computing platform we
are interested in creating, the respective services must be installed. To start basic cloud
computing system using OpenStack, need to create a controller node and a compute node. The
most crucial node in the OpenStack platform is the controller node. On this node, most of the
services are active. Instances of virtual machines are produced on the compute node according to
the needs. By configuring OpenStack's Keystone, Glance, Nova, and Neutron services, a
controller node can be launched. It is also possible to launch a compute node using the
configuration of Neutron and Nova. Virtual server instances can be created quickly and
affordably using these minimal services in controller and compute nodes. In OpenStack, there are
numerous processes for creating and deleting virtual server instances of various flavors (memory
and CPU variants) and images. The OpenStack orchestration procedures are what these processes
are known as. A command line instruction or the controller dashboard must be used to launch the
creation or deletion of any virtual instances from the controller node.
2.1. Orchestration in Openstack
There are many existing orchestration procedures used by OpenStack, the procedures are grouped
based on different categories of creating a service. There are many papers proposed on the
comparison of different cloud systems to create an instance. Some focused-on flexibility and
composition of service creation in all layers [4]. The paper [5] proposes a framework for power -
saving mechanisms using service- level settings. Another paper [6] focused on efficiency by
addressing memory and CPU usage. Recently a paper on the comparison of orchestration
procedures with respect to delay in service creation time is presented, these methods are well
explained using comparison analysis on creating an instance or service. Even though results
demonstrate OpenStack-Server method is faster than the rest of the orchestration procedures. This
method cannot be used in realistic situations due to the nature of execution [7]. This paper also
proposes a better solution for creating a single instance, which is not realistic in the real world.
Though the research towards on instance launch time is limited, the paper [8] demonstrates the
instance launch time analysis and network errors in OpenStack.
2.2. Orchestration in Service Function Chaining in Openstack
SFC orchestration is one of the key applications in cloud orchestration [9]. The introduction of
the End-to-End SFC orchestration framework majorly focused on addressing the NFV
challenges, such as ensuring rapid, and reliable NFV deployments at scale. The SFC
orchestration framework called XFORCE was focused initially on life cycle management [10].
These frameworks ensured continuous service delivery with higher performance. The paper on
OpenSCaaS addresses the concerns about the integration of SDN and NFV by presenting a

90
platform for providing SFC as a service [11]. This led to service providers making use of SDN
and NFV functionalities. Another platform was introduced for SFC orchestration across data
centres, in which classification is performed at each hop of the SFC [12]. An IETF draft [13]
proposes a couple of methods for inter-data centre SFC deployments and another one with a
single SFC domain for providing control and visibility to the centralized coordinator for multi-
domain SFC. For better utilization of single-domain and multi-domain networks, the research
proposes a novel approach to address the joint issues of Virtual Network Function (VNF)
assignment and embedding path selection. Another research [14] proposes a heuristic algorithm
for redesigning the topology of multiple SFC requests. These strategies contributed to network
scalability and reliability.
The work carried out in [15] focuses on VNF orchestration and proposes a dynamic
programming-based heuristic algorithm for addressing larger instances of VNF. In [16]
orchestration mechanisms are proposed for mitigating congestion in the network. Another
approach was proposed to determine good sub -optimal solutions to the VNF’s chain placement
problem in [17]. Researchers have proposed several ideas to solve the virtual network embedding
problem across a multi-domain network [18] [19] [20] [21], however, these ideas cannot be
directly used to orchestrate SFC requests. For the efficiency of VNF placement order, the
research presented in [22] discusses the domains to share some key information with a third party
so that the SFC request to the substrate network can be made globally. Since it is a centralized
solution, the privacy of various domains in the network is violated. The concept of distribution
for orchestrating VNFs across multiple domains is proposed in [23] [24]. The architectural and
optimization models for the automation of SFC, especially in multi-cloud environments are
described in [25]. The research concentrates on SFC request topology redesigns in single-domain
or multi-domain networks for resource-efficient SFC orchestration.
One of the most recent papers presented systematic literature on SFC allocation of distributed
cloud services on an NFV and SDN integrated platform. The authors suggest that a better
approach is needed for an efficient solution so SFC management [26]. Another systematic review
[27] highlights the problems related to performance, cost, and management of the data centres.
Authors in [28] proposed a taxonomy of NFV resource allocation methods, authors also
identified problems with towards the efficiency of VNF life cycle management. In this context, a
more comprehensive survey on SFC placement and solutions that are focused on operational cost,
delay, and revenue generated in distributed scenarios is presented in [29]. The authors in [30]
emphasize that the operational cost is one of the most presented metrics along with the
acceptance rate, reliability, and execution time.
While the primary studies carried out focused on operational cost, other parameters such as
revenue, and its optimization in launching virtual machines to host applications in cloud
environments. The paper [31] explores the calculation of total revenue based on serving SFC
requests. According to the survey, more than fifty percent of papers focused on operational cost,
revenue, and execution time in algorithms. These recent research papers focus on frameworks,
topology, VNF placement, and algorithms to reduce operational and expenditure costs. From the
study, it is observed that not much research has focused on the APIs used for SFC orchestration.
2.3. Application Programming Interfaces
An API is essential for facilitating communication between various goods and services in NFV
environment [32][33]. Most of the research papers on NFV work toward architectural
approaches, technology adoptions, functional implementation, and deployment strategies [34]. As
the application of SDN and NFV increases, middleware along with the application layer has
triggered the interest of the researchers. A comprehensive survey of APIs in SDN and NFV,

91

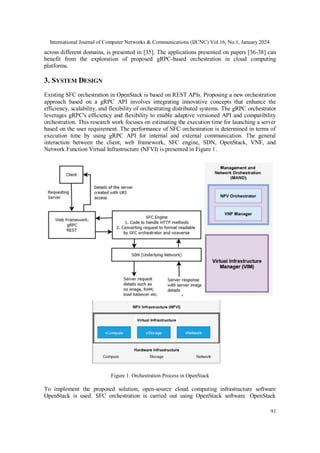

across different domains, is presented in [35]. The applications presented on papers [36-38] can
benefit from the exploration of proposed gRPC-based orchestration in cloud computing
platforms.
3. SYSTEM DESIGN
Existing SFC orchestration in OpenStack is based on REST APIs. Proposing a new orchestration
approach based on a gRPC API involves integrating innovative concepts that enhance the
efficiency, scalability, and flexibility of orchestrating distributed systems. The gRPC orchestrator
leverages gRPC's efficiency and flexibility to enable adaptive versioned API and compatibility
orchestration. This research work focuses on estimating the execution time for launching a server
based on the user requirement. The performance of SFC orchestration is determined in terms of
execution time by using gRPC API for internal and external communication. The general
interaction between the client, web framework, SFC engine, SDN, OpenStack, VNF, and
Network Function Virtual Infrastructure (NFVI) is presented in Figure 1.
Figure 1. Orchestration Process in OpenStack
To implement the proposed solution, open-source cloud computing infrastructure software
OpenStack is used. SFC orchestration is carried out using OpenStack software. OpenStack

92
contains components such as Glance, Neutron, and Nova that are used for SFC orchestration. The
users interact with APIs to interact with SFC components using the SFC orchestrator. The SFC
request is sent to the SFC engine (orchestrator) using APIs. The existing well-known frameworks
use REST-based APIs. The proposed gRPC-based approach can also be used to do the same
orchestration. The components of Nova architecture are described as follows:
 Keystone: This provides identity and authentication for all the OpenStack services.
 Glance: This provides the compute image repository for launching instances such as Ubuntu.
 Neutron: This provides virtual or physical networks. It is responsible for creating network
components and management of network topologies.
 Placement: This is used for tracking the inventory of the resources. This component provides
overall resource allocation details for a launched instance.
Figure 2. Nova Architecture
As shown in Figure 2, The SFC orchestrator communicates to the components such as Keystone,
Glance, and Neutron to get the details for launching an instance. The Nova component provides
‘compute’ services, which are used to launch instances with all other relevant details from other
components.
4. DESIGN AND IMPLEMENTATION
The SFC orchestration communication process is shown in Figure 3, it consists of a client
sending a request to the orchestrator.

93
Figure 3. SFC Orchestration Message Flow
The orchestrator communicates to the Keystone component for authentication service and
retrieves the token value. Further, the orchestrator sends an SFC request along with the token
value to the compute service (Nova component). The compute service fetches the information
from the image and network details from the Glance and Neutron components. Once the instance
is launched, a response is sent to the client after the status is “ACTIVE”.
Figure 4. OpenStack Services (REST APIs)
The system is developed on a cloud operating platform called OpenStack. The existing services
available in OpenStack are shown in Figure 4. Each service can be accessed by using its service
endpoint, known as APIs. These APIs follow traditional REST architectural styles.

94
4.1. gRPC-based SFC Orchestration
The gRPC and its tools are used to establish the client-server environment. The server and client
code are generated from a proto file called service definitions using the protocol buffer compiler
in gRPC tools.
Figure 5. Sample proto service definitions
The service definitions file contains the instance name, image id, flavor ID, and network id to
provide a structure. The information is defined in a proto file along with the request and response
format as shown in Figure 5.
In gRPC, the compiler “protoc” generates code from the proto file shown in Figure 5. It generates
the gRPC client and server code with protocol buffer code for populating, serializing, and
retrieving the message types. Since clients need to access the gRPC server, the main function
needs to be defined in the server file. The server details contain the classes required to be
accessed. The server also needs an IP address and port to access.
To access the gRPC server and establish the channel, the gRPC client is initialized with the server
address and port number. The request received (instance name, image ID, flavor ID, and network
id) for the create method is initialized with the necessary parameters. Once an authentication
session is established, requests from the client along with the required parameters are sent to
create a method of the server class. Create method creates an instance using the Nova component.
Once an instance is launched, the response is sent to the client after the status of the instance is
‘ACTIVE’. To enable SFC orchestration using gRPC API in the OpenStack cloud computing
platform, the following steps the necessary configuration steps and workarounds for successful
integration:
1. Import the necessary libraries for gRPC communication.
2. Define the Protobuf service and message definitions for the resources (networks, subnets,
router) as shown in Figure 5.
3. Create a client stub to connect to the gRPC server.
4. Define the authentication payload with the necessary credentials in the Protobuf format.
5. Authenticate and obtain the token by making a gRPC call to the authentication service.
6. Define a gRPC call to create a network:
a. Create a network request message with the network name and admin state.
b. Make a gRPC call to create the network using the obtained authentication token.
7. Define similar gRPC calls for creating subnets, a router, and other required resources.
8. Record the start time using the time module.
9. Call the gRPC function to create the network.
10. Retrieve the network IDs using gRPC calls to the network service with the network
names.

95
11. Launch instances using a gRPC call with a request message containing necessary details
like name, image reference, flavor reference, and network information.
12. Implement a gRPC call to check the status of launched instances:
a. Make a gRPC call to obtain server information.
b. Loop through the servers and check their status until they become active.
13. Call the gRPC function to launch the instances.
14. Call the gRPC function to check the status of the launched instances.
15. Calculate and print the total execution time by recording the end time using the time
module and subtracting the start time.
4.2. REST-Based SFC Orchestration
To launch an instance, identity and compute services are used. The identity service (Keystone
component) provides the API for client authentication and generates the token value which is
used for launching an instance as well as other operations such as getting the image ID (Glance)
and network ID (Neutron) from the OpenStack components. The image ID and network ID are
essential information needed to launch an instance.
To get the authentication token value, python request module is used to call a POST method via
service endpoints (Identity) as shown in Figure 4. The payload contains project details such as
project name, ID, and password among others. To launch an instance (server), a payload with the
instance name, image ID, flavor ID, and network ID is sent to the compute service endpoint using
the request POST method. Once the instance request is sent along with the payload, the server is
created, and the response is sent.
5. PERFORMANCE COMPARISON AND SIMULATION RESULTS
To develop and analyze the proposed orchestration model, the system is initially tested on
Ubuntu 18 as the platform, employing the Cirros Operating System as the server image with a
size of 15.55 MB, allocating 256 MB of Random Access Memory to each server image, ranging
from 1 to 4 Virtual CPUs (VCPU), and leveraging the OpenStack Cloud Operating Platform. The
performance is obtained on Ubuntu-18 with 8 gigabytes of random-access memory (RAM) and 4
core processors. The results are carried out for the ‘N’ number of clients and each client contains
the ‘M’ number of instances. Table I shows the simulation range for the ‘M’ number of instances
across the ‘N’ number of clients. For example: for three clients, the results are obtained for 1, 2,
and 3 instances per request each.
Table I. Simulation Range.
Number of Clients (N) Number of Instances (M)
1 1-5
2 1-4
3 1-3
4 1-2
5 1-2
7 1
10 1

96
5.1. Experimental Results
The service time to create servers (instances) is recorded for the existing and proposed
orchestration model. The results are obtained as per the simulation parameters presented in Table
I.
The start-time is recorded when the server receives the request, and the stop-time is recorded
when the instance is created, and the status of the instance becomes ‘ACTIVE’. The server
creation time is tabulated by calculating the difference between the stop time and start time.
Table II shows the server creation time for the existing (REST) solution along with the proposed
(gRPC) solution. The results show that initially for a single request REST-based SFC
orchestration has marginally better execution time than gRPC- based SFC orchestration. But as
the number of clients increased, the gRPC-based approach performed better than the REST-
based approach.
The results are carried out for the ‘N’ number of clients and each client contains the ‘M’ number
of instances. Table II shows the simulation range for the ‘M’ number of instances across the ‘N’
number of clients. For example: for three clients, the results are obtained for 1, 2, and 3 instances
per request each. The average time is calculated for ‘M’ instances, the results clearly show that
gRPC- based orchestration is faster than REST -based orchestration (Ref. Figure 6.)
Table II. Simulation Results.
Number of
Instance (M)
Number of
Clients (N)
REST-SFC
(Seconds)
gRPC-SFC
(Seconds)
1
1 6.4 7.6
3 14.46 15.1
5 20.5 22.04
7 34.25 28.23
10 42.97 38.35
2
1 12.25 10.67
2 15.9 17.5
3 21.03 21.56
4 29.13 28.24
5 39.66 36.31
3
1 15.91 14.86
2 27.01 24.16
3 40.86 33.53
4
1 22.24 18.72
2 34.8 31.4
5
1 21.96 18.96
2 39.12 29.1

97

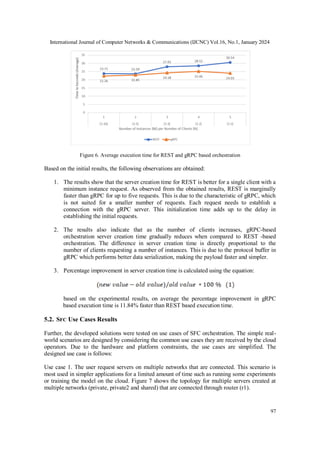

Figure 6. Average execution time for REST and gRPC based orchestration
Based on the initial results, the following observations are obtained:
1. The results show that the server creation time for REST is better for a single client with a
minimum instance request. As observed from the obtained results, REST is marginally
faster than gRPC for up to five requests. This is due to the characteristic of gRPC, which
is not suited for a smaller number of requests. Each request needs to establish a
connection with the gRPC server. This initialization time adds up to the delay in
establishing the initial requests.
2. The results also indicate that as the number of clients increases, gRPC-based
orchestration server creation time gradually reduces when compared to REST -based
orchestration. The difference in server creation time is directly proportional to the
number of clients requesting a number of instances. This is due to the protocol buffer in
gRPC which performs better data serialization, making the payload faster and simpler.
3. Percentage improvement in server creation time is calculated using the equation:
based on the experimental results, on average the percentage improvement in gRPC
based execution time is 11.84% faster than REST based execution time.
5.2. SFC Use Cases Results
Further, the developed solutions were tested on use cases of SFC orchestration. The simple real-
world scenarios are designed by considering the common use cases they are received by the cloud
operators. Due to the hardware and platform constraints, the use cases are simplified. The
designed use case is follows:
Use case 1. The user request servers on multiple networks that are connected. This scenario is
most used in simpler applications for a limited amount of time such as running some experiments
or training the model on the cloud. Figure 7 shows the topology for multiple servers created at
multiple networks (private, private2 and shared) that are connected through router (r1).

98

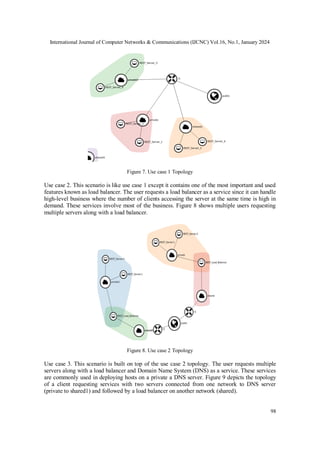

Figure 7. Use case 1 Topology
Use case 2. This scenario is like use case 1 except it contains one of the most important and used
features known as load balancer. The user requests a load balancer as a service since it can handle
high-level business where the number of clients accessing the server at the same time is high in
demand. These services involve most of the business. Figure 8 shows multiple users requesting
multiple servers along with a load balancer.
Use case 3. This scenario is built on top of the use case 2 topology. The user requests multiple
servers along with a load balancer and Domain Name System (DNS) as a service. These services
are commonly used in deploying hosts on a private a DNS server. Figure 9 depicts the topology
of a client requesting services with two servers connected from one network to DNS server
(private to shared1) and followed by a load balancer on another network (shared).

99
Use case 4. Similar to use case number 3, the user requests multiple servers with DNS, load
balancer, and along with firewall as a service. Most of the clients prefer their own firewall
service. Figure 10 shows the sample topology where users request such services.
The use cases shown in from Figure 7 to Figure 10 are designed and implemented in REST and
gRPC -based SFC orchestration cloud platforms using OpenStack. The service time for creating
and launching a service is calculated on both platforms. The results are tabulated in Table III.

100
Table III. Use Case Simulation Results.
Table III shows the results of each use case conserving server creation time. Initially, results are
obtained for a single request from a single client. Then the number of clients is increased from
one to two. Figure 11 and Figure 12 show the results of service execution time for developed use
cases. The results show that gRPC-based orchestration has better results than REST-based
orchestration.
Figure 11. gRPC vs REST-based service execution time for designed use cases (Single Request)
Use case No. Number of
Clients (N)
REST-SFC
(Seconds)
gRPC-SFC
(Seconds)
Difference
(Seconds)
1
1 8.56 6.63 1.93
2 13 9.83 3.17
2
1 10.74 8.84 1.9
2 18.72 13.79 4.93
3
1 13.1 9.44 3.66
2 22.44 14.6 7.84
4
1 17.51 13.69 3.82
2 25.59 17.32 8.27

101
Figure 12. gRPC vs REST-based service execution time for designed use cases (Two Request)
The gRPC performance is better as the number of clients increases. The results in Table III show
the difference in seconds for a single request and two requests. As the data shows the difference
is increasing for a higher number of clients (see Figure 13).
Figure 13. gRPC Performance
Figure 13 shows the gRPC performance over REST in terms of service execution time. The use
case results data shows that for two requests, the gRPC results in are improved (at least twice)
over a single request.
Based on the use case results analysis (ref. Table III), the following observations are obtained:
1. The execution time for based orchestration is better than REST -based orchestration.
2. The performance of gRPC is improved with use cases containing multiple parameters
(such as servers, load balancers, DNS, and firewall). The time differences are increasing as
the number of parameters in use cases increases.
3. The performance of gRPC is also improved when the same set of requirements are
requested by multiple clients. The time differences were significantly high when the
number of clients was increased.

102

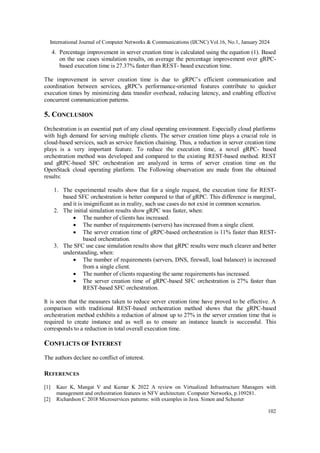

4. Percentage improvement in server creation time is calculated using the equation (1). Based
on the use cases simulation results, on average the percentage improvement over gRPC-
based execution time is 27.37% faster than REST- based execution time.
The improvement in server creation time is due to gRPC’s efficient communication and
coordination between services, gRPC's performance-oriented features contribute to quicker
execution times by minimizing data transfer overhead, reducing latency, and enabling effective
concurrent communication patterns.
5. CONCLUSION
Orchestration is an essential part of any cloud operating environment. Especially cloud platforms
with high demand for serving multiple clients. The server creation time plays a crucial role in
cloud-based services, such as service function chaining. Thus, a reduction in server creation time
plays is a very important feature. To reduce the execution time, a novel gRPC- based
orchestration method was developed and compared to the existing REST-based method. REST
and gRPC-based SFC orchestration are analyzed in terms of server creation time on the
OpenStack cloud operating platform. The Following observation are made from the obtained
results:
1. The experimental results show that for a single request, the execution time for REST-
based SFC orchestration is better compared to that of gRPC. This difference is marginal,
and it is insignificant as in reality, such use cases do not exist in common scenarios.
2. The initial simulation results show gRPC was faster, when:
 The number of clients has increased.
 The number of requirements (servers) has increased from a single client.
 The server creation time of gRPC-based orchestration is 11% faster than REST-
based orchestration.
3. The SFC use case simulation results show that gRPC results were much clearer and better
understanding, when:
 The number of requirements (servers, DNS, firewall, load balancer) is increased
from a single client.
 The number of clients requesting the same requirements has increased.
 The server creation time of gRPC-based SFC orchestration is 27% faster than
REST-based SFC orchestration.
It is seen that the measures taken to reduce server creation time have proved to be effective. A
comparison with traditional REST-based orchestration method shows that the gRPC-based
orchestration method exhibits a reduction of almost up to 27% in the server creation time that is
required to create instance and as well as to ensure an instance launch is successful. This
corresponds to a reduction in total overall execution time.
CONFLICTS OF INTEREST
The authors declare no conflict of interest.
REFERENCES
[1] Kaur K, Mangat V and Kumar K 2022 A review on Virtualized Infrastructure Managers with
management and orchestration features in NFV architecture. Computer Networks, p.109281.
[2] Richardson C 2018 Microservices patterns: with examples in Java. Simon and Schuster

103

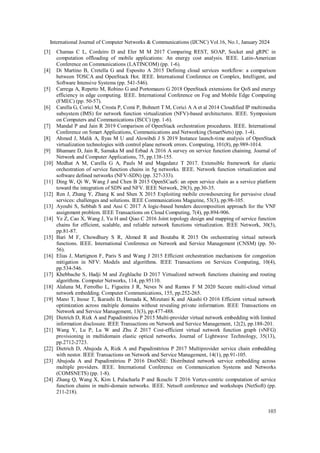

[3] Chamas C L, Cordeiro D and Eler M M 2017 Comparing REST, SOAP, Socket and gRPC in
computation offloading of mobile applications: An energy cost analysis. IEEE. Latin-American
Conference on Communications (LATINCOM) (pp. 1-6).
[4] Di Martino B, Cretella G and Esposito A 2015 Defining cloud services workflow: a comparison
between TOSCA and OpenStack Hot. IEEE. International Conference on Complex, Intelligent, and
Software Intensive Systems (pp. 541-546).
[5] Carrega A, Repetto M, Robino G and Portomauro G 2018 OpenStack extensions for QoS and energy
efficiency in edge computing. IEEE. International Conference on Fog and Mobile Edge Computing
(FMEC) (pp. 50-57).
[6] Carella G, Corici M, Crosta P, Comi P, Bohnert T M, Corici A A et al 2014 Cloudified IP multimedia
subsystem (IMS) for network function virtualization (NFV)-based architectures. IEEE. Symposium
on Computers and Communications (ISCC) (pp. 1-6).
[7] Mandal P and Jain R 2019 Comparison of OpenStack orchestration procedures. IEEE. International
Conference on Smart Applications, Communications and Networking (SmartNets) (pp. 1-4).
[8] Ahmed J, Malik A, Ilyas M U and Alowibdi J S 2019 Instance launch-time analysis of OpenStack
virtualization technologies with control plane network errors. Computing, 101(8), pp.989-1014.
[9] Bhamare D, Jain R, Samaka M and Erbad A 2016 A survey on service function chaining. Journal of
Network and Computer Applications, 75, pp.138-155.
[10] Medhat A M, Carella G A, Pauls M and Magedanz T 2017. Extensible framework for elastic
orchestration of service function chains in 5g networks. IEEE. Network function virtualization and
software defined networks (NFV-SDN) (pp. 327-333).
[11] Ding W, Qi W, Wang J and Chen B 2015 OpenSCaaS: an open service chain as a service platform
toward the integration of SDN and NFV. IEEE Network, 29(3), pp.30-35.
[12] Ren J, Zhang Y, Zhang K and Shen X 2015 Exploiting mobile crowdsourcing for pervasive cloud
services: challenges and solutions. IEEE Communications Magazine, 53(3), pp.98-105.
[13] Ayoubi S, Sebbah S and Assi C 2017 A logic-based benders decomposition approach for the VNF
assignment problem. IEEE Transactions on Cloud Computing, 7(4), pp.894-906.
[14] Ye Z, Cao X, Wang J, Yu H and Qiao C 2016 Joint topology design and mapping of service function
chains for efficient, scalable, and reliable network functions virtualization. IEEE Network, 30(3),
pp.81-87.
[15] Bari M F, Chowdhury S R, Ahmed R and Boutaba R 2015 On orchestrating virtual network
functions. IEEE. International Conference on Network and Service Management (CNSM) (pp. 50-
56).
[16] Elias J, Martignon F, Paris S and Wang J 2015 Efficient orchestration mechanisms for congestion
mitigation in NFV: Models and algorithms. IEEE Transactions on Services Computing, 10(4),
pp.534-546.
[17] Khebbache S, Hadji M and Zeghlache D 2017 Virtualized network functions chaining and routing
algorithms. Computer Networks, 114, pp.95110.
[18] Alaluna M, Ferrolho L, Figueira J R, Neves N and Ramos F M 2020 Secure multi-cloud virtual
network embedding. Computer Communications, 155, pp.252-265.
[19] Mano T, Inoue T, Ikarashi D, Hamada K, Mizutani K and Akashi O 2016 Efficient virtual network
optimization across multiple domains without revealing private information. IEEE Transactions on
Network and Service Management, 13(3), pp.477-488.
[20] Dietrich D, Rizk A and Papadimitriou P 2015 Multi-provider virtual network embedding with limited
information disclosure. IEEE Transactions on Network and Service Management, 12(2), pp.188-201.
[21] Wang Y, Lu P, Lu W and Zhu Z 2017 Cost-efficient virtual network function graph (vNFG)
provisioning in multidomain elastic optical networks. Journal of Lightwave Technology, 35(13),
pp.2712-2723.
[22] Dietrich D, Abujoda A, Rizk A and Papadimitriou P 2017 Multiprovider service chain embedding
with nestor. IEEE Transactions on Network and Service Management, 14(1), pp.91-105.
[23] Abujoda A and Papadimitriou P 2016 DistNSE: Distributed network service embedding across
multiple providers. IEEE. International Conference on Communication Systems and Networks
(COMSNETS) (pp. 1-8).
[24] Zhang Q, Wang X, Kim I, Palacharla P and Ikeuchi T 2016 Vertex-centric computation of service
function chains in multi-domain networks. IEEE. Netsoft conference and workshops (NetSoft) (pp.
211-218).

104
[25] Bhamare D, Jain R, Samaka M, Erbad A 2016 A survey on service function chaining. Journal of
Network and Computer Applications 75, 138–155
[26] Bonfim M S, Dias K L, Fernandes S F 2019 Integrated nfv/sdn architectures: A systematic literature
review. ACM Computing Surveys (CSUR) 51(6), 1–39
[27] Souza R, Dias K, Fernandes S 2020 Nfv data centers: A systematic review. IEEE Access, 51713–
51735
[28] Schardong F, Nunes I, Schaeffer-Filho A 2020 Nfv resource allocation: A systematic review and
taxonomy of vnf forwarding graph embedding. Computer Networks p. 107726
[29] Santos G L, Bezerra D D F, Rocha E D S, Ferreira L, Moreira A L C, Gon et al 2022 Service
Function Chain Placement in Distributed Scenarios: A Systematic Review. Journal of Network and
Systems Management, 30(1), pp.1-39.
[30] Badshah A, Ghani A, Shamshirband S, Chronopoulos A T 2019 Optimising infrastructure as a service
provider revenue through customer satisfaction and efficient resource provisioning in cloud
computing. IET Communications. 13(18), 2913–2922
[31] Xie Y, Wang S, Dai Y 2020 Revenue-maximizing virtualized network function chain placement in
dynamic environment. Future Generation Computer Systems
[32] What is an API? (Application Programming Interface) MuleSoft 2021
[33] Ananth M D and Sharma R 2017 Cost and performance analysis of network function virtualization-
based cloud systems. IEEE. International Advance Computing Conference (IACC) (pp. 7074).
[34] Nguyen V G, Brunstrom A, Grinnemo K J and Taheri J 2017 SDN NFV-based mobile packet core
network architectures: A survey. IEEE Communications Surveys Tutorials, 19(3), pp.1567-1602.
[35] Krishna S H and Sharma R 2021 Survey on application programming interfaces in software defined
networks and network function virtualization. Global Transitions Proceedings, 2(2), pp.199-204.
[36] Hernandez, J.F., Lorios, V.M., Avalos, M. and Silva-Lepe, I., 2016. Infrastructure of services for a
smart city using cloud environment. International Journal of Computer Networks & Communications
(IJCNC), 8(1), pp.105-119.
[37] Mulla, B.P., Krishna, C.R. and Tickoo, R.K., 2020. Load balancing algorithm for efficient VM
allocation in heterogeneous cloud. International Journal of Computer Networks & Communications
(IJCNC) Vol, 12.
[38] Le, H.N. and Tran, H.C., 2022. Ita: The Improved Throttled Algorithm of Load Balancing On Cloud
Computing. International Journal of Computer Networks & Communications (IJCNC) Vol, 14.
AUTHORS
Mr. Hari Krishna S M is presently working as Assistant Professor in the Department of
Computer Science and Engineering, M S Ramaiah University of Applied Sciences,
Bangalore. I am currently pursuing my Ph.D. from the same university. Currently my
area of research is Software Defined Networks, Network Function Virtualization,
Service Function Chaining and Architectural styles.
Dr. Rinki Sharma is presently working as Professor and Head of Computer Science
and Engineering department, Ramaiah University of Applied Sciences, Bangalore. She
obtained her Ph. D from Coventry University, United Kingdom in the year 2015. She
has over 16 years of work experience in industry, teaching, and research. Apart from
teaching and research she has held other vital positions at the Ramaiah University of
Applied Sciences, Bangalore. She has been granted 5 international patents, has
published 5 book chapters, and 15 papers in reputed conferences and journals.

Comparative Study of Orchestration using gRPC API and REST API in Server Creation Time: An Openstack Case

More Related Content

Similar to Comparative Study of Orchestration using gRPC API and REST API in Server Creation Time: An Openstack Case

More from IJCNCJournal

Recently uploaded

Comparative Study of Orchestration using gRPC API and REST API in Server Creation Time: An Openstack Case
