SPICE MODEL of CM200HA-24H (Professional+FWDP Model) in SPICE PARK
- 1. Device Modeling Report COMPONENTS: Insulated Gate Bipolar Transistor (IGBT) PART NUMBER: CM200HA-24H MANUFACTURER: MITSUBISHI *REMARK: Free-Wheeling Diode (Professional Model) Bee Technologies Inc. All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

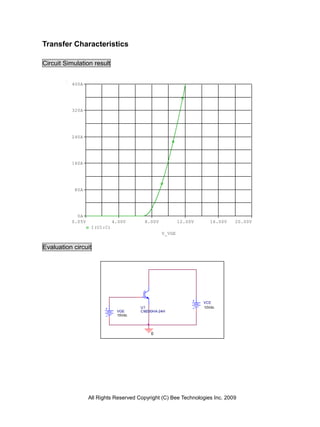

- 2. Transfer Characteristics Circuit Simulation result 400A 320A 240A 160A 80A 0A 0.05V 4.00V 8.00V 12.00V 16.00V 20.00V I(U1:C) V_VGE Evaluation circuit VCE U1 10Vdc VGE CM200HA-24H 15Vdc 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

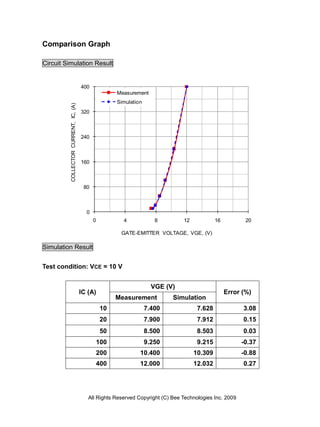

- 3. Comparison Graph Circuit Simulation Result 400 Measurement Simulation COLLECTOR CURRENT, IC, (A) 320 240 160 80 0 0 4 8 12 16 20 GATE-EMITTER VOLTAGE, VGE, (V) Simulation Result Test condition: VCE = 10 V VGE (V) IC (A) Error (%) Measurement Simulation 10 7.400 7.628 3.08 20 7.900 7.912 0.15 50 8.500 8.503 0.03 100 9.250 9.215 -0.37 200 10.400 10.309 -0.88 400 12.000 12.032 0.27 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009
- 4. Fall Time Characteristics Circuit Simulation result 200A 150A 100A 50A 0A 2us 3us 4us 5us 6us 7us 8us 9us 10us 11us I(RL) Time Evaluation circuit RL Rg U2 2.99 V1 = 0 DCM200HA-24H_P V2 = 15 1.6 U1 TD = 0 V1 CM200HA-24H TR = 10n VCE TF = 10n 600Vdc PW = 3u PER = 20u 0 Test condition IC=200 (A), VCC=600(V) Parameter Unit Measurement Simulation Error tf ns 350.000 351.600 0.457 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

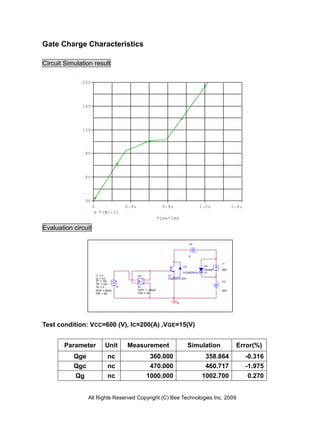

- 5. Gate Charge Characteristics Circuit Simulation result 20V 16V 12V 8V 4V 0V 0 0.4u 0.8u 1.2u 1.6u V(W1:1) Time*1mA Evaluation circuit V2 0 I1 U2 D2 Dbreak 200 DCM200HA-24H_P I1 = 0 W1 U1 I2 = 1m + CM200HA-24H TF = 10n V3 TR = 10n - TD = 0 I2 W PER = 500m IOFF = 100uA 600 PW = 5m ION = 0A 0 Test condition: VCC=600 (V), IC=200(A) ,VGE=15(V) Parameter Unit Measurement Simulation Error(%) Qge nc 360.000 358.864 -0.316 Qgc nc 470.000 460.717 -1.975 Qg nc 1000.000 1002.700 0.270 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

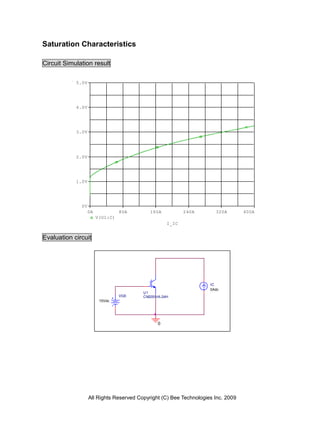

- 6. Saturation Characteristics Circuit Simulation result 5.0V 4.0V 3.0V 2.0V 1.0V 0V 0A 80A 160A 240A 320A 400A V(U1:C) I_IC Evaluation circuit IC 0Adc U1 VGE CM200HA-24H 15Vdc 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

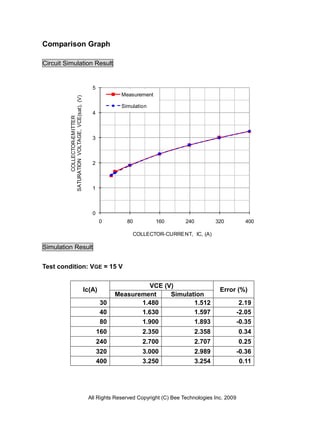

- 7. Comparison Graph Circuit Simulation Result 5 Measurement SATURATION VOLTAGE, VCE(sat), (V) Simulation 4 COLLECTOR-EMITTER 3 2 1 0 0 80 160 240 320 400 COLLECTOR-CURRE NT, IC, (A) Simulation Result Test condition: VGE = 15 V VCE (V) Ic(A) Error (%) Measurement Simulation 30 1.480 1.512 2.19 40 1.630 1.597 -2.05 80 1.900 1.893 -0.35 160 2.350 2.358 0.34 240 2.700 2.707 0.25 320 3.000 2.989 -0.36 400 3.250 3.254 0.11 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

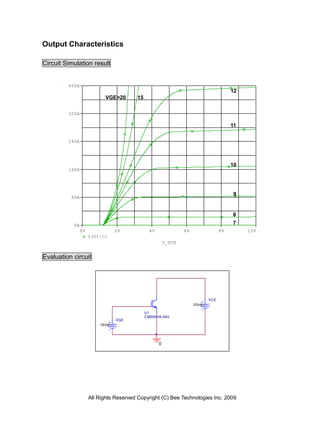

- 8. Output Characteristics Circuit Simulation result 400A 12 VGE=20 15 V 320A 11 240A 10 160A 9 80A 8 0A 7 0V 2V 4V 6V 8V 10V I(U1:C) V_VCE Evaluation circuit VCE 10Vdc U1 CM200HA-24H VGE 15Vdc 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

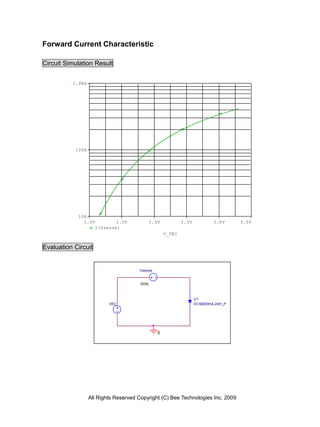

- 9. Forward Current Characteristic Circuit Simulation Result 1.0KA 100A 10A 1.0V 1.5V 2.0V 2.5V 3.0V 3.5V I(Vsense) V_VEC Evaluation Circuit Vsense 0Vdc U1 VEC DCM200HA-24H_P 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

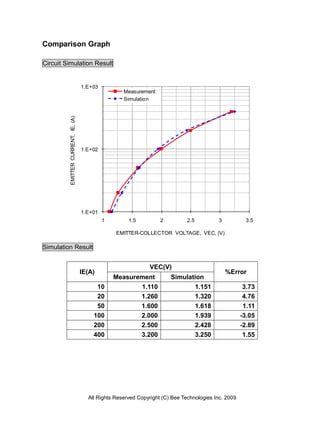

- 10. Comparison Graph Circuit Simulation Result 1.E+03 Measurement Simulation EMITTER CURRENT, IE, (A) 1.E+02 1.E+01 1 1.5 2 2.5 3 3.5 EMITTER-COLLECTOR VOLTAGE, VEC, (V) Simulation Result VEC(V) IE(A) %Error Measurement Simulation 10 1.110 1.151 3.73 20 1.260 1.320 4.76 50 1.600 1.618 1.11 100 2.000 1.939 -3.05 200 2.500 2.428 -2.89 400 3.200 3.250 1.55 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

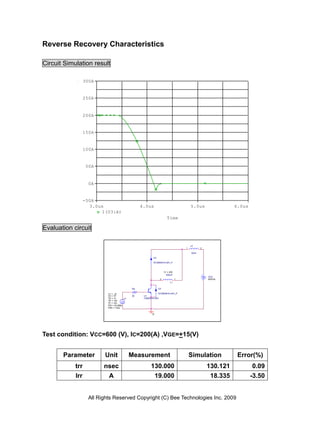

- 11. Reverse Recovery Characteristics Circuit Simulation result 300A 250A 200A 150A 100A 50A 0A -50A 3.0us 4.0us 5.0us 6.0us I(U3:A) Time Evaluation circuit L2 1 2 643n U3 DCM200HA-24H_P IC = 200 500uH VCE 2 1 600Vdc L1 Rg U2 V1 = -15 DCM200HA-24H_P V2 = 15 30 U1 TD = 1u V1 CM200HA-24H TR = 10n TF = 10n PW = 24.998u PER = 100u 0 Test condition: VCC=600 (V), IC=200(A) ,VGE=+15(V) Parameter Unit Measurement Simulation Error(%) trr nsec 130.000 130.121 0.09 Irr A 19.000 18.335 -3.50 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009
