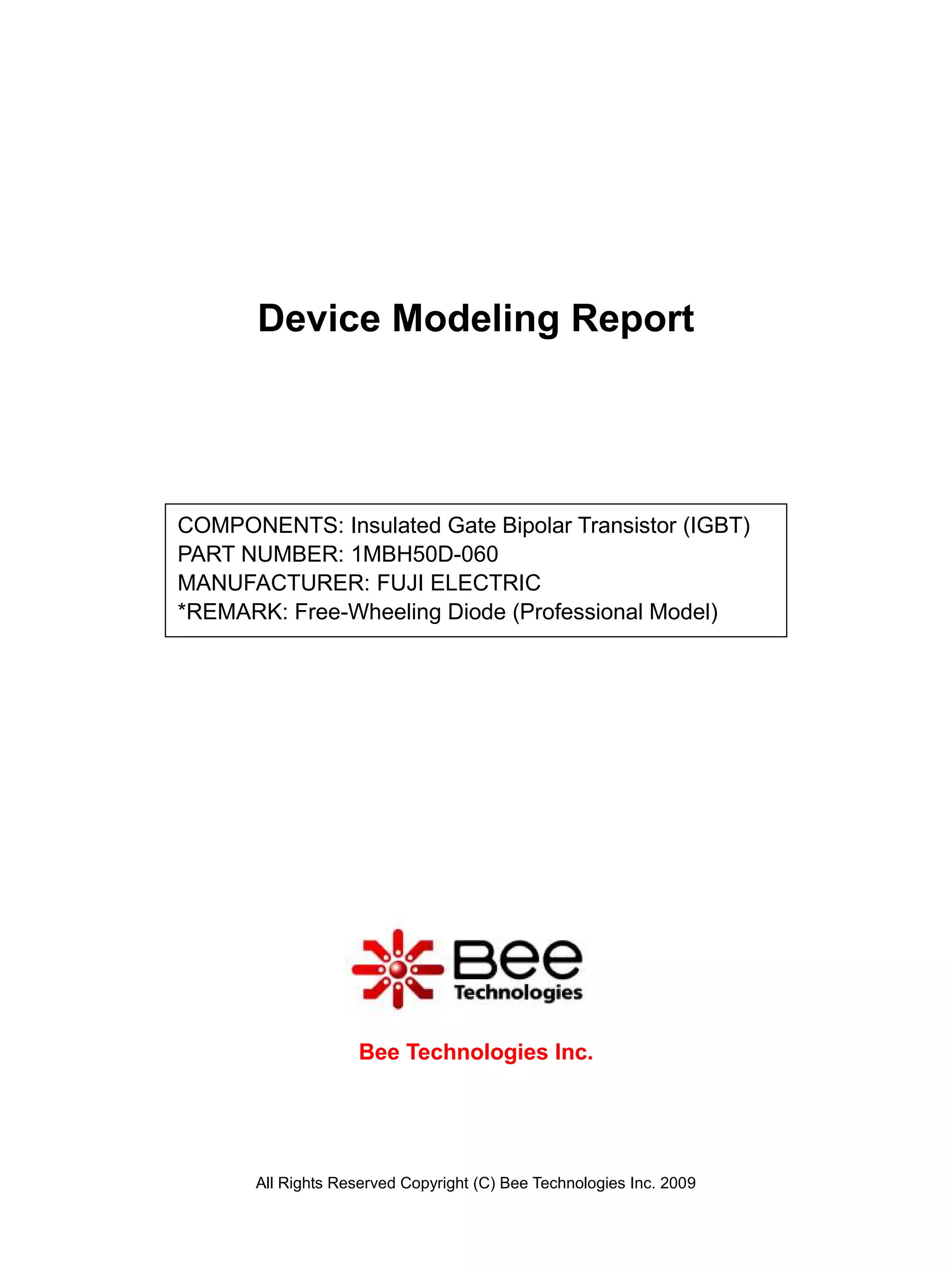

- 1. Device Modeling Report COMPONENTS:Insulated Gate Bipolar Transistor (IGBT) PART NUMBER: 1MBH50D-060 MANUFACTURER: FUJI ELECTRIC *REMARK: Free-Wheeling Diode (Professional Model) Bee Technologies Inc. All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

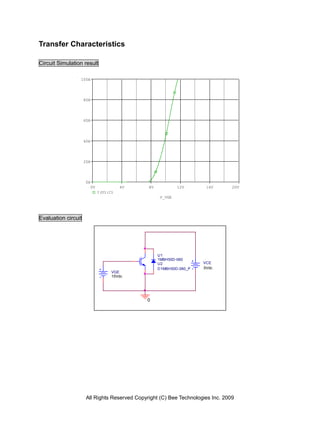

- 2. Transfer Characteristics Circuit Simulationresult 100A 80A 60A 40A 20A 0A 0V 4V 8V 12V 16V 20V I(U1:C) V_VGE Evaluation circuit U1 1MBH50D-060 U2 VCE D1MBH50D-060_P 5Vdc VGE 15Vdc 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

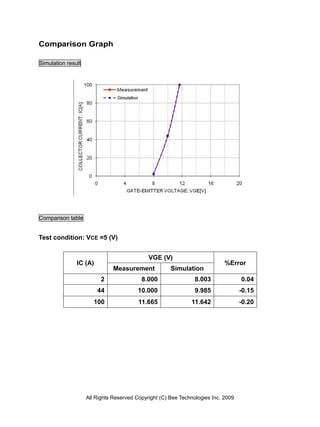

- 3. Comparison Graph Simulation result Comparisontable Test condition: VCE =5 (V) VGE (V) IC (A) %Error Measurement Simulation 2 8.000 8.003 0.04 44 10.000 9.985 -0.15 100 11.665 11.642 -0.20 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

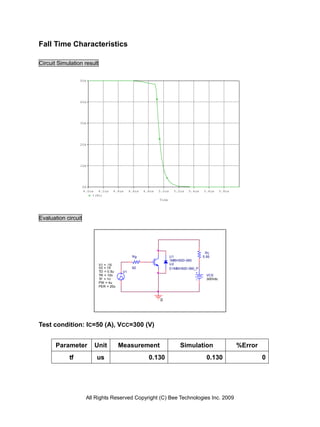

- 4. Fall Time Characteristics CircuitSimulation result 50A 40A 30A 20A 10A 0A 4.0us 4.2us 4.4us 4.6us 4.8us 5.0us 5.2us 5.4us 5.6us 5.8us I(RL) Time Evaluation circuit RL Rg U1 5.95 1MBH50D-060 V1 = -15 U2 V2 = 15 62 D1MBH50D-060_P TD = 0.5u V1 TR = 10n VCE TF = 1n 300Vdc PW = 4u PER = 20u 0 Test condition: IC=50 (A), VCC=300 (V) Parameter Unit Measurement Simulation %Error tf us 0.130 0.130 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

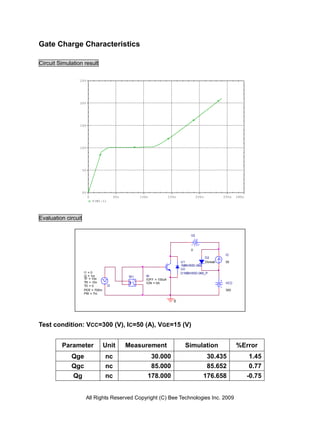

- 5. Gate Charge Characteristics CircuitSimulation result 25V 20V 15V 10V 5V 0V 0 50n 100n 150n 200n 250n 280n V(W1:1) Time*1mA Evaluation circuit V2 0 IC D2 U1 Dbreak 50 1MBH50D-060 U2 I1 = 0 D1MBH50D-060_P I2 = 1m W1 W TF = 10n + IOFF = 100uA TR = 10n ION = 0A VCC TD = 0 I2 - PER = 700m 300 PW = 7m 0 Test condition: VCC=300 (V), IC=50 (A), VGE=15 (V) Parameter Unit Measurement Simulation %Error Qge nc 30.000 30.435 1.45 Qgc nc 85.000 85.652 0.77 Qg nc 178.000 176.658 -0.75 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

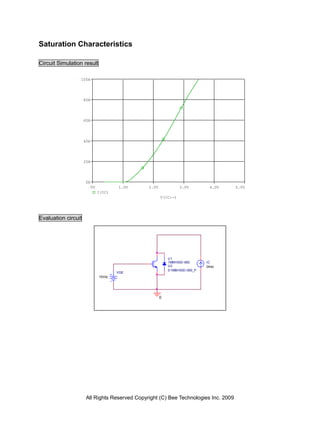

- 6. Saturation Characteristics Circuit Simulationresult 100A 80A 60A 40A 20A 0A 0V 1.0V 2.0V 3.0V 4.0V 5.0V I(IC) V(IC:-) Evaluation circuit U1 1MBH50D-060 IC U2 0Adc D1MBH50D-060_P VGE 15Vdc 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

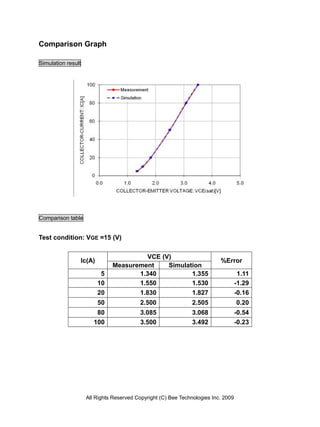

- 7. Comparison Graph Simulation result Comparisontable Test condition: VGE =15 (V) VCE (V) Ic(A) %Error Measurement Simulation 5 1.340 1.355 1.11 10 1.550 1.530 -1.29 20 1.830 1.827 -0.16 50 2.500 2.505 0.20 80 3.085 3.068 -0.54 100 3.500 3.492 -0.23 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009
- 8. Output Characteristics Circuit Simulationresult 100A 20 15 12 80A V V V 60A 10 40A V 20A VGE=8 0A 0V 1.0V 2.0V 3.0V 4.0V V 5.0V I(R1) V_VCE Evaluation circuit R1 0.001m U1 1MBH50D-060 VCE U2 5Vdc D1MBH50D-060_P VGE 0 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009
- 9. FWD Forward CurrentCharacteristics Circuit Simulation result 100A 80A 60A 40A 20A 0A 0V 1.0V 2.0V 3.0V 4.0V 4.5V I(Vsense) V(EC) Evaluation circuit Vsense EC V1 0Vdc 0Vdc V2 U1 1MBH50D-060 U2 D1MBH50D-060_P 0 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

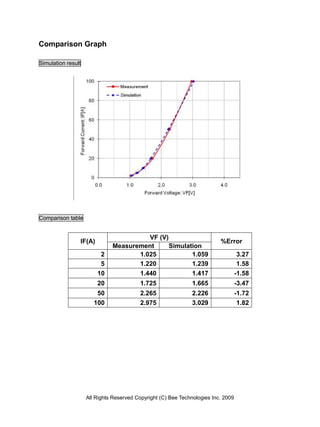

- 10. Comparison Graph Simulation result Comparisontable VF (V) IF(A) %Error Measurement Simulation 2 1.025 1.059 3.27 5 1.220 1.239 1.58 10 1.440 1.417 -1.58 20 1.725 1.665 -3.47 50 2.265 2.226 -1.72 100 2.975 3.029 1.82 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009

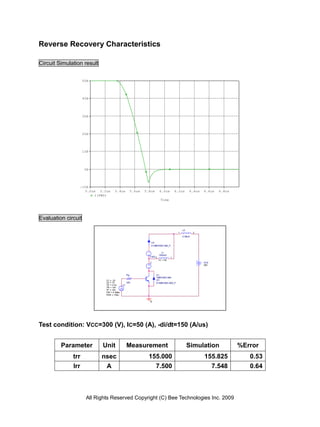

- 11. Reverse Recovery Characteristics CircuitSimulation result 50A 40A 30A 20A 10A 0A -10A 5.0us 5.2us 5.4us 5.6us 5.8us 6.0us 6.2us 6.4us 6.6us 6.8us I(FWD) Time Evaluation circuit L2 1 2 0.98uH U4 D1MBH50D-060_P L1 1500uH FWD 2 1 IC = 50 C VCE 300 Rg U1 1MBH50D-060 V1 = -15 U3 V2 = 15 220 D1MBH50D-060_P TD = 4.5u V1 TR = 10n TF = 10n PW = 4.998u PER = 100u 0 Test condition: VCC=300 (V), IC=50 (A), -di/dt=150 (A/us) Parameter Unit Measurement Simulation %Error trr nsec 155.000 155.825 0.53 Irr A 7.500 7.548 0.64 All Rights Reserved Copyright (C) Bee Technologies Inc. 2009
