Cloud Native Middleware Microservices - 10 Lessons Learned

Kai Wähner
Technology Evangelist
kontakt@kai-waehner.de
LinkedIn
@KaiWaehner
www.kai-waehner.de
April 2017 (O’Reilly Software Architecture Conference, New York, USA)
10 Lessons Learned from Building
Cloud Native Middleware Microservices

© Copyright 2000-2017 TIBCO Software Inc.
Evolving Demands from the Business
AGILITY &
SPEED
REDUCED
CYCLE
TIMES
WEB
SCALE
LOWER
COST
FAIL FAST

• A cloud-native architecture enables flexible and agile development
• Only vendor- and platform-agnostic architectures are future-safe
• Various technologies, open source frameworks and middleware complement each other
Key Takeaways

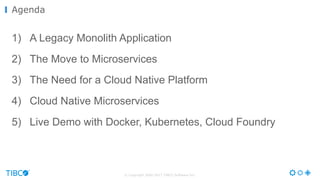

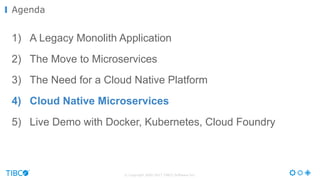

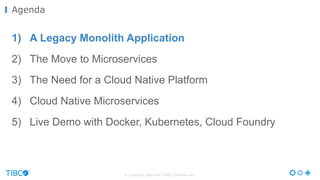

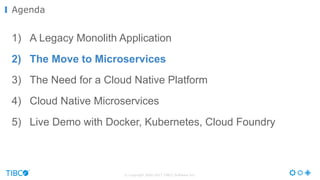

1) A Legacy Monolith Application
2) The Move to Microservices
3) The Need for a Cloud Native Platform
4) Cloud Native Microservices
5) Live Demo with Docker, Kubernetes, Cloud Foundry
Agenda

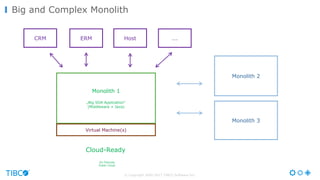

Big and Complex Monolith
Monolith 1
„Big SOA Application“
(Middleware + Java)
Monolith 2
Monolith 3
CRM ERM Host ...
Virtual Machine(s)
Cloud-Ready
On Premise
Public Cloud

#1
Monoliths and on premise will not die.
Not everything will or should go
to cloud services!

Various Technologies Glued Together
Middleware

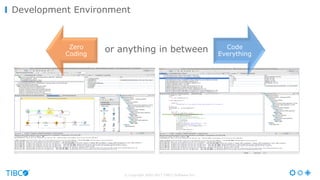

Development Environment
Zero
Coding
Code
Everything
or anything in between

© Copyright 2000-2017 TIBCO Software Inc. 11

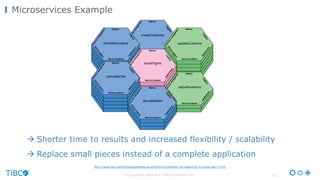

Microservices Example
http://www.ibm.com/developerworks/cloud/library/cl-bluemix-microservices-in-action-part-1-trs/
à Shorter time to results and increased flexibility / scalability
à Replace small pieces instead of a complete application

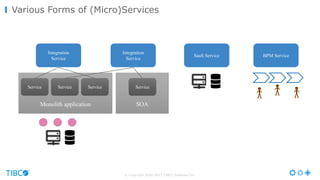

Various Forms of (Micro)Services
Integration
Service
Monolith application SOA
Integration
Service
Service ServiceService Service
SaaS Service BPM Service

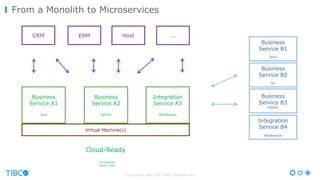

From a Monolith to Microservices
Business
Service A1
Java
Cloud-Ready
On Premise
Public Cloud
CRM ERM Host ...
Business
Service A2
Python
Integration
Service A3
Middleware
Business
Service B1
Java
Business
Service B3
Python
Business
Service B2
Go
Integration
Service B4
Middleware
Virtual Machine(s)

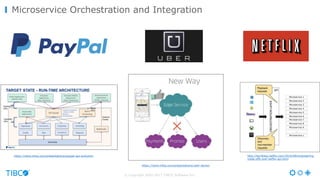

Microservice Orchestration and Integration
https://www.infoq.com/presentations/paypal-api-evolution http://techblog.netflix.com/2016/08/engineering-
trade-offs-and-netflix-api.html
https://www.infoq.com/presentations/uber-darwin

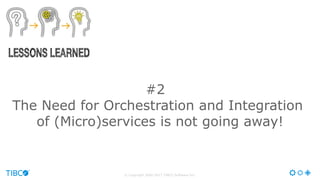

#2
The Need for Orchestration and Integration
of (Micro)services is not going away!

Distributed Microservice Architecture
http://blogs.gartner.com/gary-olliffe/2015/01/30/microservices-guts-on-the-outside/
”That complexity
has moved and
[…] increased [to]
the outer
architecture.”

New Challenges Emerging…
http://highscalability.com/blog/2014/4/8/microservices-not-a-free-lunch.html
”[…] when considering Microservice like architectures, it's really important to not be attracted
to the hype on this one as the challenges and costs are as real as the benefits."
• Different Languages / Technologies
• DevOps Skills Required
• Distributed System Complexity
• Distributed Configuration
• Service Discovery
• Resiliency
• Client Side Load Balancing
• Testability Challenges
• Orchestration / Integration
• Spaghetti Communication (again ?!)
• Re-Delivery
• Re-Route
• Cache
• ...

New Design Patterns Emerging…
Resilience
Design Patterns
• Circuit Breaker
• Tolerant Reader
• Intelligent Agent
• …
http://martinfowler.com/bliki/CircuitBreaker.html
https://github.com/Netflix/Hystrix/wiki
maxFailures = 5
resetTimeout = 1min
callTimeout = 10s
à maxFailures++

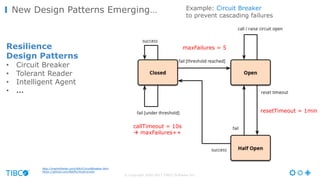

Example: Circuit Breaker
to prevent cascading failures

#3
Microservices are not free lunch.
They do not fit into every scenario!

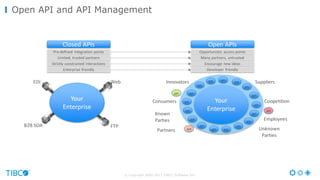

Open API and API Management

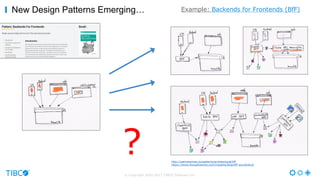

New Design Patterns Emerging…
http://samnewman.io/patterns/architectural/bff
https://www.thoughtworks.com/insights/blog/bff-soundcloud
Example: Backends for Frontends (BfF)
?

A
P
I
M
A
N
A
G
E
M
E
N
T

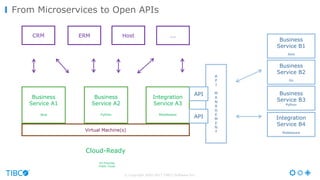

From Microservices to Open APIs
Business
Service A1
Java
Cloud-Ready
On Premise
Public Cloud
CRM ERM Host ...
Business
Service A2
Python
Integration
Service A3
Middleware
Business
Service B1
Java
Business
Service B3
Python
Business
Service B2
Go
Integration
Service B4
Middleware
API
API
Virtual Machine(s)

#4
Design Microservices
with open APIs in mind!

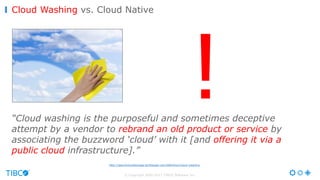

“Cloud washing is the purposeful and sometimes deceptive
attempt by a vendor to rebrand an old product or service by
associating the buzzword ‘cloud’ with it [and offering it via a
public cloud infrastructure].”
Cloud Washing vs. Cloud Native
http://searchcloudstorage.techtarget.com/definition/cloud-washing
!

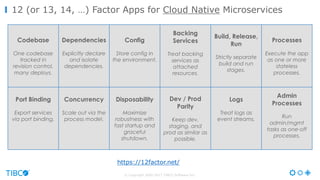

12 (or 13, 14, …) Factor Apps for Cloud Native Microservices
Codebase
One codebase
tracked in
revision control,
many deploys.
Dependencies
Explicitly declare
and isolate
dependencies.
Config
Store config in
the environment.
Backing
Services
Treat backing
services as
attached
resources.
Build, Release,
Run
Strictly separate
build and run
stages.
Processes
Execute the app
as one or more
stateless
processes.
Port Binding
Export services
via port binding.
Concurrency
Scale out via the
process model.
Disposability
Maximize
robustness with
fast startup and
graceful
shutdown.
Dev / Prod
Parity
Keep dev,
staging, and
prod as similar as
possible.
Logs
Treat logs as
event streams.
Admin
Processes
Run
admin/mgmt
tasks as one-off
processes.
https://12factor.net/

• Scalable services
• Service Discovery
• Load balancing and failover
• Resiliency
• DevOps and automation
• Usage of public cloud platforms, but also private or hybrid
• Self-service, pay-as-you-use, multi-tenancy
• Vendor-agnostic deployment
Cloud Native (à not just Microservices)
à Focus on business problems

#5
Cloud-Native means much more
than a “cloud-washed” application
deployed to a cloud provider!

== The Momentum of Containers
How to deploy independent Applications or (Micro)Services?
Garden

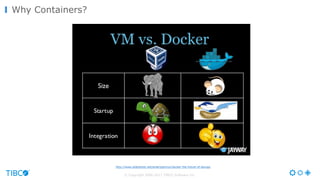

Why Containers?
http://www.slideshare.net/andersjanmyr/docker-the-future-of-devops

A
P
I
M
A
N
A
G
E
M
E
N
T
From Microservices and Open APIs to Containers
Business
Service A1
Java
CRM ERM Host ...
Business
Service A2
Python
Integration
Service A3
Middleware
Business
Service B1
Java
Business
Service B3
Python
Business
Service B2
Go
Integration
Service B4
Middleware
API
API
Cloud-Ready
On Premise
Public Cloud
Container(s) Container(s) Container(s)
Virtual Machine(s)

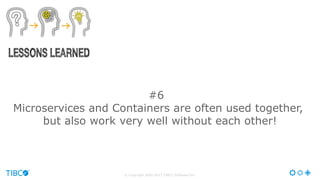

#6
Microservices and Containers are often used together,
but also work very well without each other!

Cloud-Native Architecture
Containers are just the Foundation
for a Cloud Native Architecture!

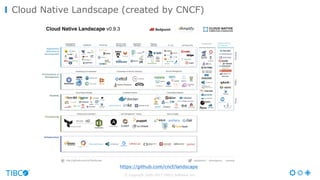

Cloud Native Landscape (created by CNCF)
https://github.com/cncf/landscape

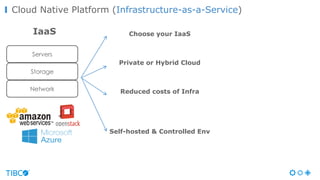

Cloud Native Platform (Infrastructure-as-a-Service)
Choose your IaaS
Private or Hybrid Cloud
Reduced costs of Infra
Self-hosted & Controlled Env
Servers
Storage
Network
IaaS

Cloud Native Platform (Platform-as-a-Service)
Choose your PaaS / Container
Cloud-Native App Dev
Self-service agile
infrastructure
Elasticity & Scalability
OS & Containers
Scalability
Routing
Logging / Monitoring
PaaS

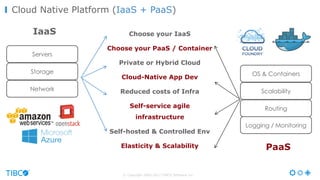

Cloud Native Platform (IaaS + PaaS)
Choose your IaaS
Choose your PaaS / Container
Private or Hybrid Cloud
Cloud-Native App Dev
Reduced costs of Infra
Self-service agile
infrastructure
Self-hosted & Controlled Env
Elasticity & Scalability
Servers
Storage
Network
OS & Containers
Scalability
Routing
Logging / Monitoring
PaaS
IaaS

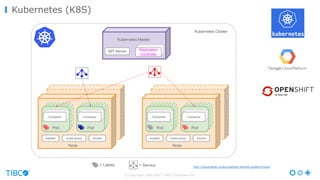

Kubernetes (K8S)
http://kubernetes.io/docs/getting-started-guides/#cloud

Cloud Foundry
http://www.slideshare.net/cdavisafc/cloud-foundry-technical-overview

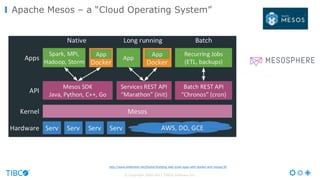

Apache Mesos – a “Cloud Operating System”
http://www.slideshare.net/Docker/building-web-scale-apps-with-docker-and-mesos/30

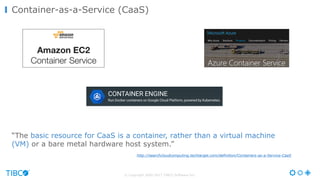

“The basic resource for CaaS is a container, rather than a virtual machine
(VM) or a bare metal hardware host system.”
Container-as-a-Service (CaaS)
http://searchcloudcomputing.techtarget.com/definition/Containers-as-a-Service-CaaS

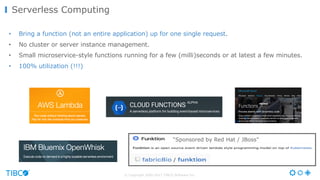

Serverless Computing
• Bring a function (not an entire application) up for one single request.
• No cluster or server instance management.
• Small microservice-style functions running for a few (milli)seconds or at latest a few minutes.
• 100% utilization (!!!)
“Sponsored by Red Hat / JBoss"

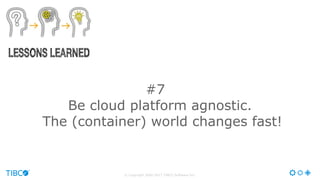

#7
Be cloud platform agnostic.
The (container) world changes fast!

A
P
I
M
A
N
A
G
E
M
E
N
T

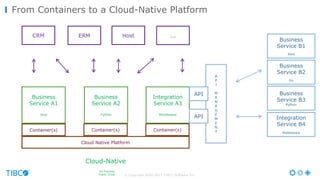

From Containers to a Cloud-Native Platform
Business
Service A1
Java
CRM ERM Host ...
Business
Service A2
Python
Integration
Service A3
Middleware
Business
Service B1
Java
Business
Service B3
Python
Business
Service B2
Go
Integration
Service B4
Middleware
API
API
Cloud-Native
On Premise
Public Cloud
Container(s) Container(s) Container(s)
Cloud Native Platform

#8
Containers are a lower level technology.
Only the infrastructure provider should care,
but not the application developer!

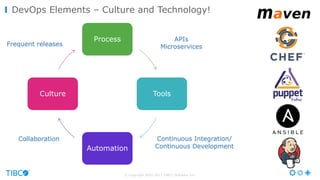

DevOps Elements – Culture and Technology!
Process
Tools
Automation
Culture
Continuous Integration/
Continuous Development
APIs
MicroservicesFrequent releases
Collaboration

#9
Automation (CI / CD / DevOps) and the related
cultural change are key for success.
Especially for Cloud-Native Microservices!

Microservices,
Cloud, Container,
PaaS, APIs,
Coding, Visual Dev, …
Show me some
cloud native examples!

• Open Source
• Runs on OpenShift PaaS (which is based on Kubernetes)
• Also available as iPaaS
• JBoss Fuse (based on Apache Camel and JBoss A-MQ)
• For Integration Specialists
• Focus on writing source code

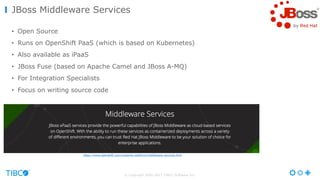

JBoss Middleware Services
https://www.openshift.com/container-platform/middleware-services.html

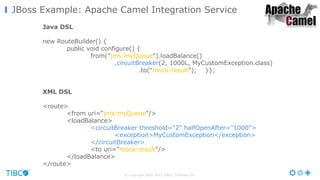

JBoss Example: Apache Camel Integration Service
Java DSL
new RouteBuilder() {
public void configure() {
from(”jms:myQueue").loadBalance()
.circuitBreaker(2, 1000L, MyCustomException.class)
.to("mock:result"); }};
XML DSL
<route>
<from uri=“jms:myQueue"/>
<loadBalance>
<circuitBreaker threshold="2" halfOpenAfter="1000">
<exception>MyCustomException</exception>
</circuitBreaker>
<to uri="mock:result"/>
</loadBalance>
</route>

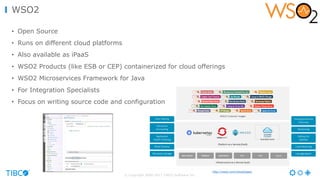

WSO2
http://wso2.com/cloud/paas/
• Open Source
• Runs on different cloud platforms
• Also available as iPaaS
• WSO2 Products (like ESB or CEP) containerized for cloud offerings
• WSO2 Microservices Framework for Java
• For Integration Specialists
• Focus on writing source code and configuration

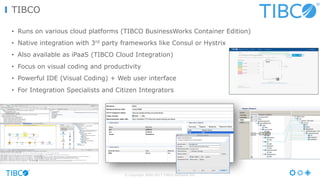

TIBCO
• Runs on various cloud platforms (TIBCO BusinessWorks Container Edition)
• Native integration with 3rd party frameworks like Consul or Hystrix
• Also available as iPaaS (TIBCO Cloud Integration)
• Focus on visual coding and productivity
• Powerful IDE (Visual Coding) + Web user interface
• For Integration Specialists and Citizen Integrators

#10
Cloud native middleware microservices
leverage various technologies,
open source frameworks and infrastructure
components like containers or messaging!

Develop Deploy
Commit
Build
Config
Demo Setup

Live Demo
Video Recordings
TIBCO BusinessWorks Container Edition (BWCE) and
Mashery with Docker, Kubernetes, CloudFoundry,
Consul, Spring Cloud Config:
https://www.youtube.com/watch?v=VISNxgB74Bg
TIBCO BWCE and Netflix' Hystrix Circuit Breaker:
https://www.youtube.com/watch?v=VL7-T6IIuZk
(also on www.kai-waehner.de)

Questions? Please contact me!
Kai Wähner
Technology Evangelist
kontakt@kai-waehner.de
@KaiWaehner
www.kai-waehner.de
LinkedIn

Cloud Native Middleware Microservices - 10 Lessons Learned

More Related Content

What's hot

Similar to Cloud Native Middleware Microservices - 10 Lessons Learned

More from Kai Wähner

Recently uploaded

Cloud Native Middleware Microservices - 10 Lessons Learned
