The Cloud Foundry Story
On Openstack
Stuart Charlton
Field Engineering, Western Canada

2. 2© Copyright 2015 Pivotal. All rights reserved. Confidential.
Why?
Where?
What Is It?
Who Makes It?
How does it work?

3. 3© Copyright 2015 Pivotal. All rights reserved. Confidential.
“Cloud is about how computing
is done, not where”
Paul Maritz
CEO, Pivotal

4. 4© Copyright 2015 Pivotal. All rights reserved. Confidential.
Members of the Cloud Foundry Foundation
PLATINUM
GOLD
SILVER

5. 5© Copyright 2015 Pivotal. All rights reserved. Confidential.

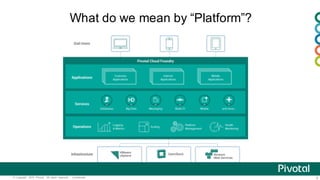

What do we mean by “Platform”?

6. 6© Copyright 2015 Pivotal. All rights reserved. Confidential. 6© Copyright 2015 Pivotal. All rights reserved. Confidential.
Pivotal Cloud Platform Demonstration
The Developer Experience

7. © Copyright 2015 Pivotal. All rights reserved. Confidential.
The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

8. © Copyright 2015 Pivotal. All rights reserved. Confidential.

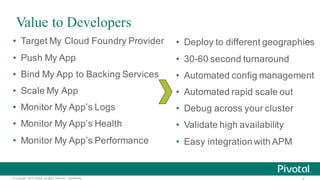

Value to Developers
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance
• Deploy to different geographies
• 30-­60 second turnaround
• Automated config management
• Automated rapid scale out
• Debug across your cluster
• Validate high availability
• Easy integration with APM

9. © Copyright 2015 Pivotal. All rights reserved. Confidential.

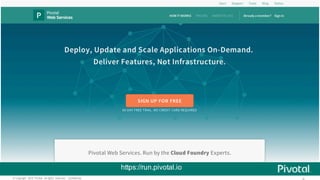

https://run.pivotal.io

10. © Copyright 2015 Pivotal. All rights reserved. Confidential.

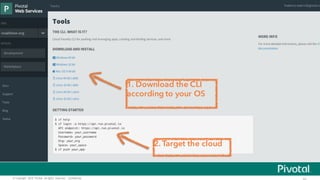

1. Download the CLI
according to your OS
2. Target the cloud

11. © Copyright 2015 Pivotal. All rights reserved. Confidential.

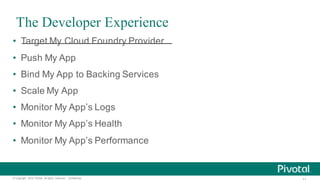

The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

12. © Copyright 2015 Pivotal. All rights reserved. Confidential.
https://github.com/Pivotal-­Field-­Engineering/PCF-­demo
Login to the CLI
Clone the app
Push the app
Verify app is running

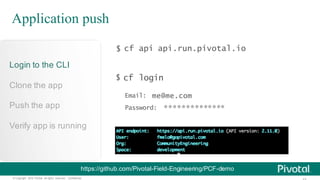

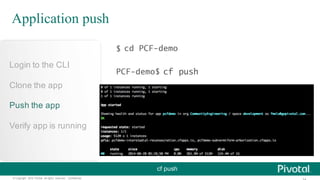

Application push
cf api api.run.pivotal.io
cf login
$
$
Email:
Password:
me@me.com
**************

13. © Copyright 2015 Pivotal. All rights reserved. Confidential.

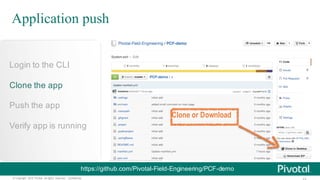

https://github.com/Pivotal-­Field-­Engineering/PCF-­demo
Clone or Download
Login to the CLI
Clone the app
Push the app
Verify app is running
Application push

14. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf push
Login to the CLI
Clone the app
Push the app
Verify app is running
Application push
cd PCF-demo
cf push
$
PCF-demo$

15. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Login to the CLI
Clone the app
Push the app
Verify app is running
Application push

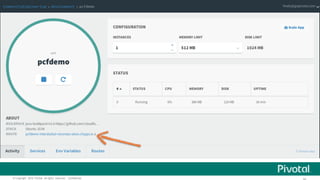

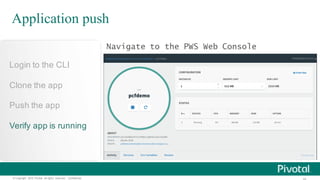

Navigate to the PWS Web Console

16. © Copyright 2015 Pivotal. All rights reserved. Confidential.

17. © Copyright 2015 Pivotal. All rights reserved. Confidential.

18. © Copyright 2015 Pivotal. All rights reserved. Confidential.

19. © Copyright 2015 Pivotal. All rights reserved. Confidential.
The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

20. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

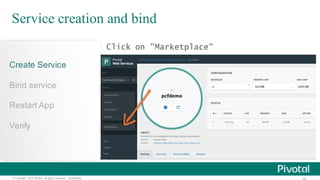

Click on "Marketplace"

21. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify
Choose “Cloud AMQP” (RabbitMQ)

22. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

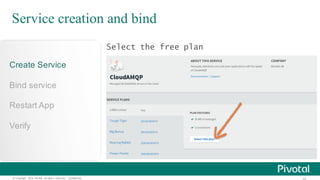

Select the free plan

23. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

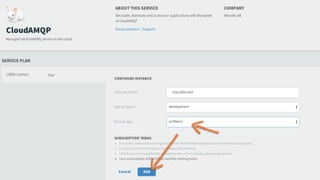

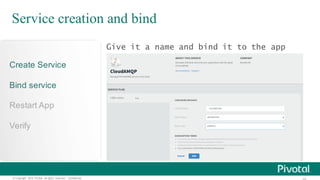

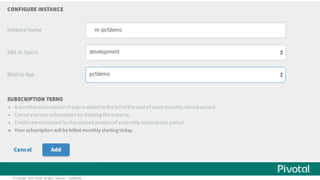

Give it a name and bind it to the app

24. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create Service
Bind service
Restart App
Verify
Give it a name and bind it to the app
Service creation and bind

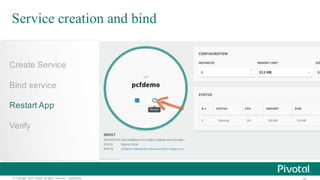

25. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

26. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

27. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify
Click here

28. © Copyright 2015 Pivotal. All rights reserved. Confidential.

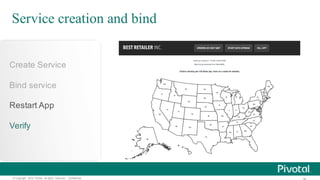

Service creation and bind
Create Service
Bind service
Restart App
Verify

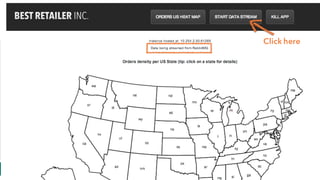

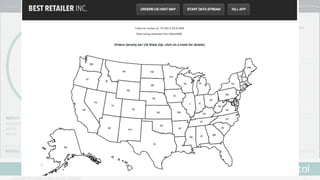

Heat Map gets
activated as
orders come

29. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Service creation and bind
Create Service
Bind service
Restart App
Verify

30. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create Service
Bind service
Restart App
Verify

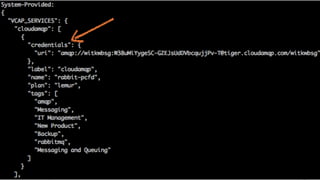

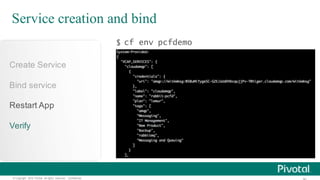

cf env pcfdemo$
Service creation and bind

31. © Copyright 2015 Pivotal. All rights reserved. Confidential.
$
Service creation and bind
Create Service
Bind service
Restart App
Verify

32. © Copyright 2015 Pivotal. All rights reserved. Confidential.

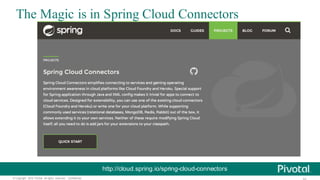

The Magic is in Spring Cloud Connectors
http://cloud.spring.io/spring-­cloud-­connectors

33. © Copyright 2015 Pivotal. All rights reserved. Confidential.

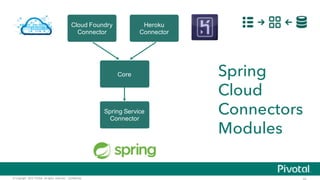

Cloud Foundry
Connector
Heroku
Connector
Core
Spring Service
Connector
Spring
Cloud
Connectors
Modules

34. © Copyright 2015 Pivotal. All rights reserved. Confidential.
From VCAP_SERVICES to Connection Bean

35. © Copyright 2015 Pivotal. All rights reserved. Confidential.

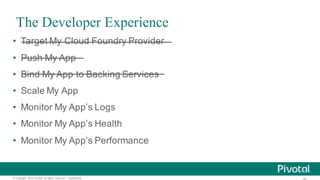

The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

36. © Copyright 2015 Pivotal. All rights reserved. Confidential.

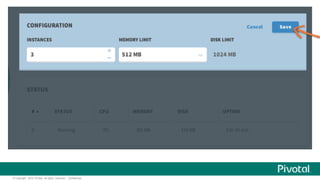

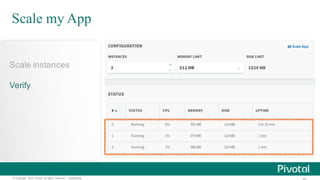

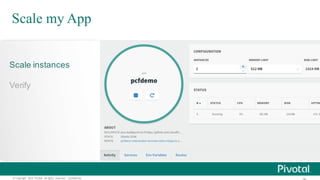

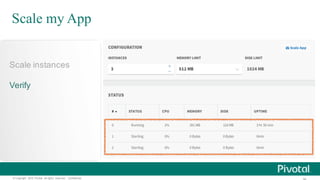

Scale instances
Verify
Scale my App

37. © Copyright 2015 Pivotal. All rights reserved. Confidential.

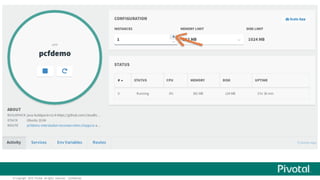

Scale my App

38. © Copyright 2015 Pivotal. All rights reserved. Confidential.

39. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Scale instances
Verify
Scale my App

40. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Scale instances
Verify
Scale my App

41. © Copyright 2015 Pivotal. All rights reserved. Confidential.

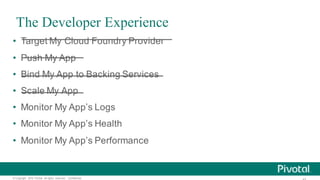

The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

42. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance

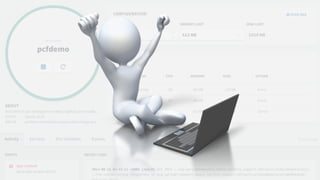

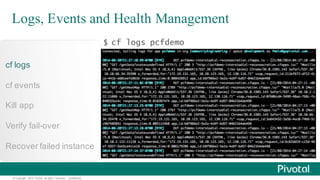

cf logs pcfdemo$

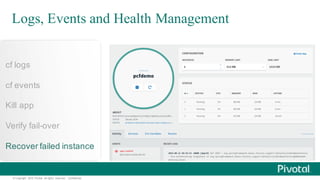

Logs, Events and Health Management

43. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance

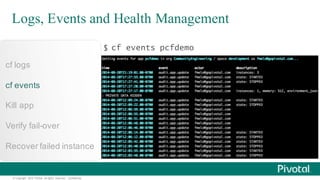

cf events pcfdemo$
Logs, Events and Health Management

44. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Logs, Events and Health Management
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance

45. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Logs and Health Management
cf logs
Kill app
Verify fail-­over
Recover failed instance

46. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Logs and Health Management
cf logs
Kill app
Verify fail-­over
Recover failed instance

47. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

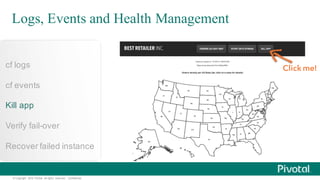

Click me!

48. © Copyright 2015 Pivotal. All rights reserved. Confidential.

49. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

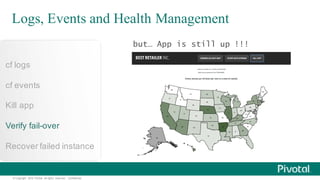

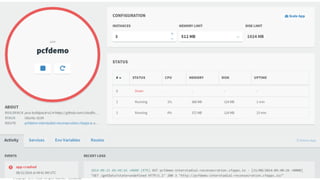

but… App is still up !!!

50. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

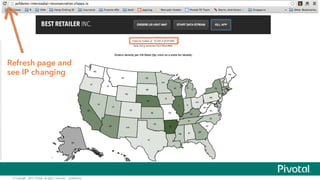

Refresh page and
see IP changing

51. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

52. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

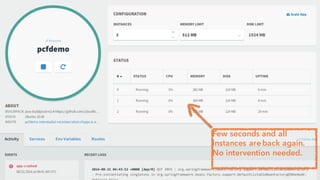

Few seconds and all
instances areback again.
No intervention needed.

53. © Copyright 2015 Pivotal. All rights reserved. Confidential.
cf logs
cf events
Kill app
Verify fail-­over
Recover failed instance
Logs, Events and Health Management

54. © Copyright 2015 Pivotal. All rights reserved. Confidential.

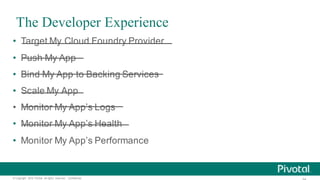

The Developer Experience
• Target My Cloud Foundry Provider
• Push My App
• Bind My App to Backing Services
• Scale My App
• Monitor My App’s Logs
• Monitor My App’s Health
• Monitor My App’s Performance

55. © Copyright 2015 Pivotal. All rights reserved. Confidential.

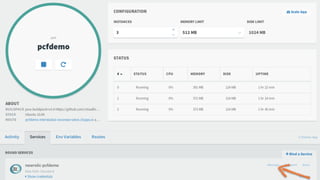

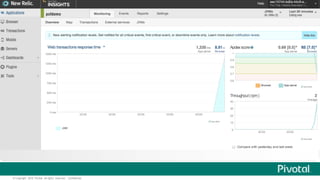

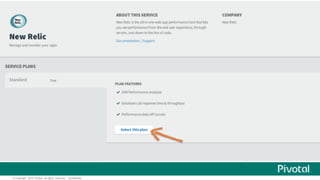

Create/Bind New Relic
Re-­push app

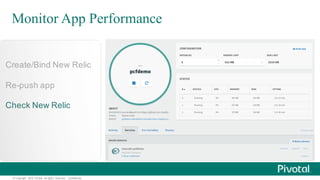

Check New Relic

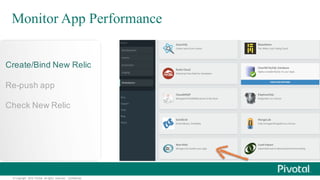

Monitor App Performance

56. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

57. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

58. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

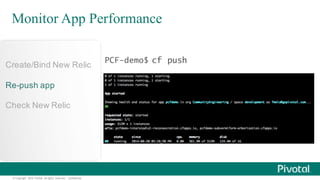

cf pushPCF-demo$

59. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

60. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

61. © Copyright 2015 Pivotal. All rights reserved. Confidential.
Create/Bind New Relic
Re-­push app
Check New Relic
Monitor App Performance

62. 62© Copyright 2015 Pivotal. All rights reserved. Confidential. 62© Copyright 2015 Pivotal. All rights reserved. Confidential.
Cloud Foundry
Architecture
in Five Steps

63. 63Pivotal Confidential

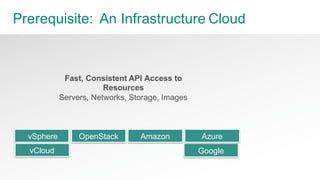

Prerequisite: An Infrastructure Cloud
Google
vSphere AmazonOpenStack
Fast, Consistent API Access to
Resources
Servers, Networks, Storage, Images
vCloud
Azure

64. 64Pivotal Confidential

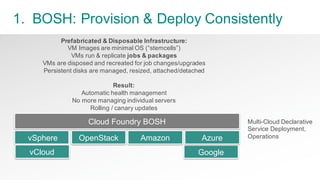

1. BOSH: Provision & Deploy Consistently
Google
Cloud Foundry BOSH
vSphere AmazonOpenStack
Multi-­Cloud Declarative
Service Deployment,
Operations
Prefabricated & Disposable Infrastructure:
VM Images are minimal OS (“stemcells”)
VMs run & replicate jobs & packages
VMs are disposed and recreated for job changes/upgrades
Persistent disks are managed, resized, attached/detached
Result:
Automatic health management
No more managing individual servers
Rolling / canary updates
vCloud
Azure

65. 65Pivotal Confidential

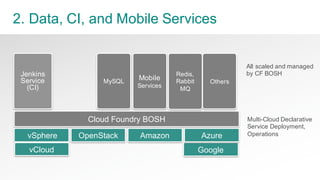

2. Data, CI, and Mobile Services
Others
Jenkins
Service
(CI)
Google
Mobile
Services
Cloud Foundry BOSH
MySQL
vSphere AmazonOpenStack
Multi-­Cloud Declarative
Service Deployment,
Operations
All scaled and managed
by CF BOSH Redis,
Rabbit
MQ
vCloud
Azure

66. 66Pivotal Confidential

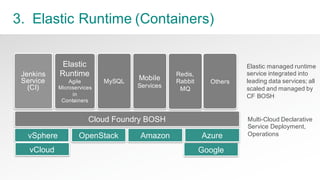

3. Elastic Runtime (Containers)
Elastic
Runtime
Agile
Microservices
in
Containers
Others
Jenkins
Service
(CI)
Google
Cloud Foundry BOSH
MySQL
vSphere AmazonOpenStack
Multi-­Cloud Declarative
Service Deployment,
Operations
Elastic managed runtime
service integrated into
leading data services;; all
scaled and managed by
CF BOSH
vCloud
Azure
Mobile
Services
Redis,
Rabbit
MQ

67. 67Pivotal Confidential
4. Service Marketplace
Elastic
Runtime
Agile
Microservices
In
Containers
Others
Jenkins
Service
(CI)
Google
Cloud Foundry BOSH
MySQL
vSphere AmazonOpenStack
Multi-­Cloud Declarative
Service Deployment,
Operations
Elastic managed runtime
service integrated into
leading data services;; all
scaled and managed by
CF BOSH
vCloud
Azure
Service Broker Marketplace
Mobile
Services
Redis,
Rabbit
MQ
Expose services in
platform marketplace for
sharing

68. 68Pivotal Confidential

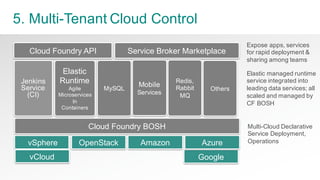

5. Multi-­Tenant Cloud Control
Elastic
Runtime
Agile
Microservices
In
Containers
Others
Jenkins
Service
(CI)
Google
Cloud Foundry BOSH
MySQL
vSphere AmazonOpenStack
Multi-­Cloud Declarative
Service Deployment,
Operations
Elastic managed runtime
service integrated into
leading data services;; all
scaled and managed by
CF BOSH
vCloud
Azure
Service Broker Marketplace
Mobile
Services
Redis,
Rabbit
MQ
Expose apps, services
for rapid deployment &
sharing among teams
Cloud Foundry API

69. 69Pivotal Confidential

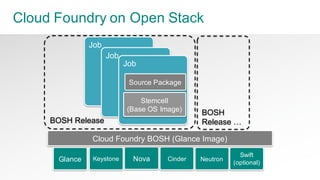

Cloud Foundry on Open Stack
Neutron
BOSH Release
Keystone Nova CinderGlance
Swift
(optional)
Job
Job
Job
Source Package
Stemcell
(Base OS Image)
Cloud Foundry BOSH (Glance Image)
BOSH
Release …

70. 70Pivotal Confidential

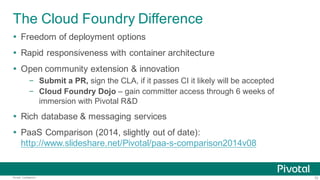

The Cloud Foundry Difference
Ÿ Freedom of deployment options
Ÿ Rapid responsiveness with container architecture
Ÿ Open community extension & innovation
– Submit a PR, sign the CLA, if it passes CI it likely will be accepted
– Cloud Foundry Dojo – gain committer access through 6 weeks of
immersion with Pivotal R&D
Ÿ Rich database & messaging services
Ÿ PaaS Comparison (2014, slightly out of date):
http://www.slideshare.net/Pivotal/paa-­s-­comparison2014v08

71. A NEW PLATFORM FOR A NEW ERA
