1. CloudApplication
Architecture styles
Presented by
Nilay Shrivastava

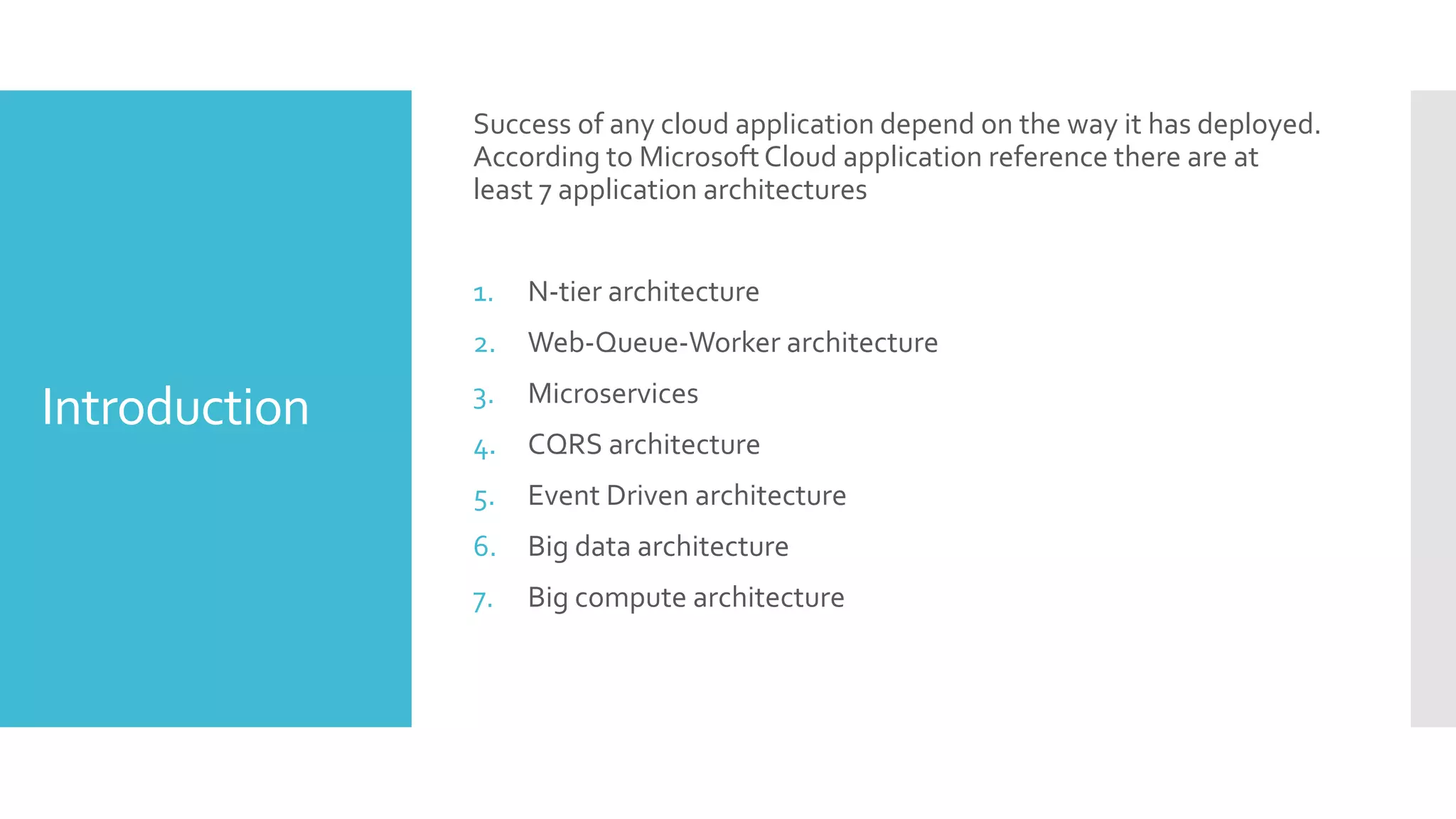

2. Introduction
Success of any cloud application depend on the way it has deployed.
According to MicrosoftCloud application reference there are at
least 7 application architectures
1. N-tier architecture
2. Web-Queue-Worker architecture
3. Microservices
4. CQRS architecture
5. Event Driven architecture
6. Big data architecture
7. Big compute architecture

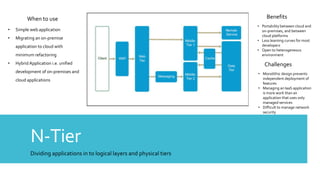

3. N-Tier
When to use
• Simple web application
• Migrating an on-premise
application to cloud with
minimum refactoring
• Hybrid Application i.e. unified
development of on-premises and
cloud applications
Benefits
Challenges
• Portability between cloud and
on-premises, and between
cloud platforms
• Less learning curves for most
developers
• Open to heterogeneous
environment
• Monolithic design prevents
independent deployment of
features
• Managing an IaaS application
is more work than an
application that uses only
managed services
• Difficult to manage network
security
Dividing applications in to logical layers and physical tiers

4. WebQueueWorkerArchitecture
When to use
Benefits
Challenges
• Applications with relatively
simple domain
• Applications with long running
workflows or batch applications
• When you want to use managed
services, rather than IaaS
• Relatively simple architecture
that is easy to understand
• Easy to deploy and manage
• The front end is decoupled from
the worker using asynchronous
messaging
• The front end and the worker
can be scaled independently
• Without careful design, the
front end and the worker can
become large, monolithic
components that are difficult to
maintain
• Hidden dependencies between
front end and the worker
Consists of a web front end that serves clients requests and a worker that performs resource intensive tasks

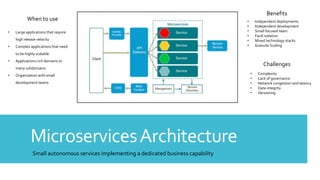

5. MicroservicesArchitecture
When to use
Benefits
Challenges
• Large applications that require
high release velocity
• Complex applications that need
to be highly scalable
• Applications rich domains or
many subdomains
• Organization with small
development teams
• Independent deployments
• Independent development
• Small focused team
• Fault isolation
• Mixed technology stacks
• Granular Scaling
• Complexity
• Lack of governance
• Network congestion and latency
• Data integrity
• Versioning
Small autonomous services implementing a dedicated business capability

6. CQRS architecture style
When to use Benefits
Challenges
• Use CQRS for collaborative
domains where many users access
the same data, especially when the
read and write workload are
asymmetrical
• CQRS is not a top level architecture
that applies to an entire system.
Apply CQRS only to those
subsystems where there is a clear
value in separating reads and writes
• Independent scaling
• Optimized data schemas
• Security
• Separations of concerns
• Simple Queries
• Complexity
• Messaging
• EventualConsistency
Separates read and write operations

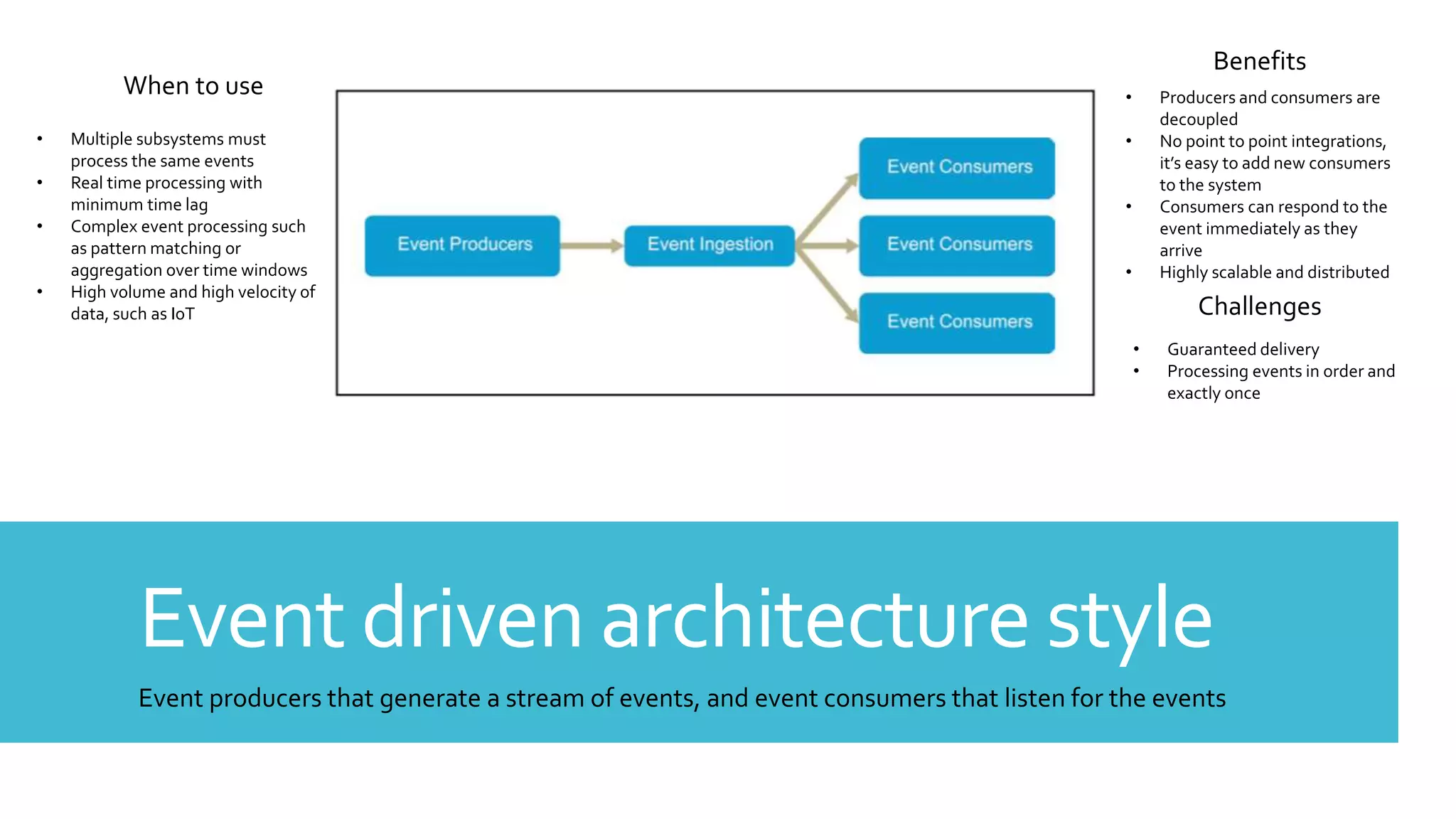

7. Event driven architecture style
When to use
Benefits
Challenges
• Multiple subsystems must
process the same events
• Real time processing with
minimum time lag
• Complex event processing such
as pattern matching or
aggregation over time windows
• High volume and high velocity of
data, such as IoT
• Producers and consumers are
decoupled
• No point to point integrations,
it’s easy to add new consumers
to the system
• Consumers can respond to the
event immediately as they
arrive
• Highly scalable and distributed
• Guaranteed delivery
• Processing events in order and
exactly once
Event producers that generate a stream of events, and event consumers that listen for the events

8. Big data architecture style
When to use
Benefits
Challenges
• Batch processing of big data
sources at rest
• Real time processing of big
data in motion
• Interactive exploration of big
data
• Predictive analytics and
machine learning
• Performance through
parallelism
• Elastic Scale
• Interoperability with existing
solutions
• Technology choices
• Complexity
• Security
• Technology maturity
• Skillset
Ingestion processing and analysis of data that is too large or complex for traditional database

9. Big compute architecture style
When to use
Benefits
Challenges
• Simulation and number
crunching
• Long running computations
• Smaller computations that
must be run 100s or 1000s of
times
• High performance
• Solve large problems faster
• On-demand computing
• Managing theVM
infrastructure
• Managing volume of number
crunching
• Provisioning thousands of
cores in a timely manner
Large-scale workloads that require a large number of cores, often numbering in hundreds or thousands
