1. Kit's College of Engineering, Kolhapur
Department of
Basic Sciences And Humanities
A Project On
CLAP SWITCH DEVICE
Submitted by:
PRATHAMESH PATIL. (E48)
ATHARVA PATAKAR . (E52)
PRATHAMESH MALI. (E56)
OM WAKADE. (E68)

2. Special Regards
Sayaji Patil
Assistant Professor,
Department of Mechanical Engineering,
Kolhapur Institute of Technology,
College of Engineering,
(An Autonomous Institute)
Kolhapur
Mob No - 08956561013

3. PROJECT OBJECTIVE
• To design a clap activated switch device
that will serve well in different phono-
controlled applications, providing
inexpensive key.

4. COMPONENTS
REQUIRED
&
THERE
PURPOSE

5. Prototyping board

6. IC 4017

7. Mic

9. 10k resistor

10. 1k resistor

11. 9v relay

12. LED

13. COMPONENTS & THERE COST
 NAME OF COMPONENT  COST OF COMPONENT (RS)
 Prototyping board  50
 IC 4017  40
 Mic  10
 BC 547 transistor (npn)  02
 10k resistor  02
 1k resistor  01
 9v relay  30
 LED  10
 TOTAL COST  140-150

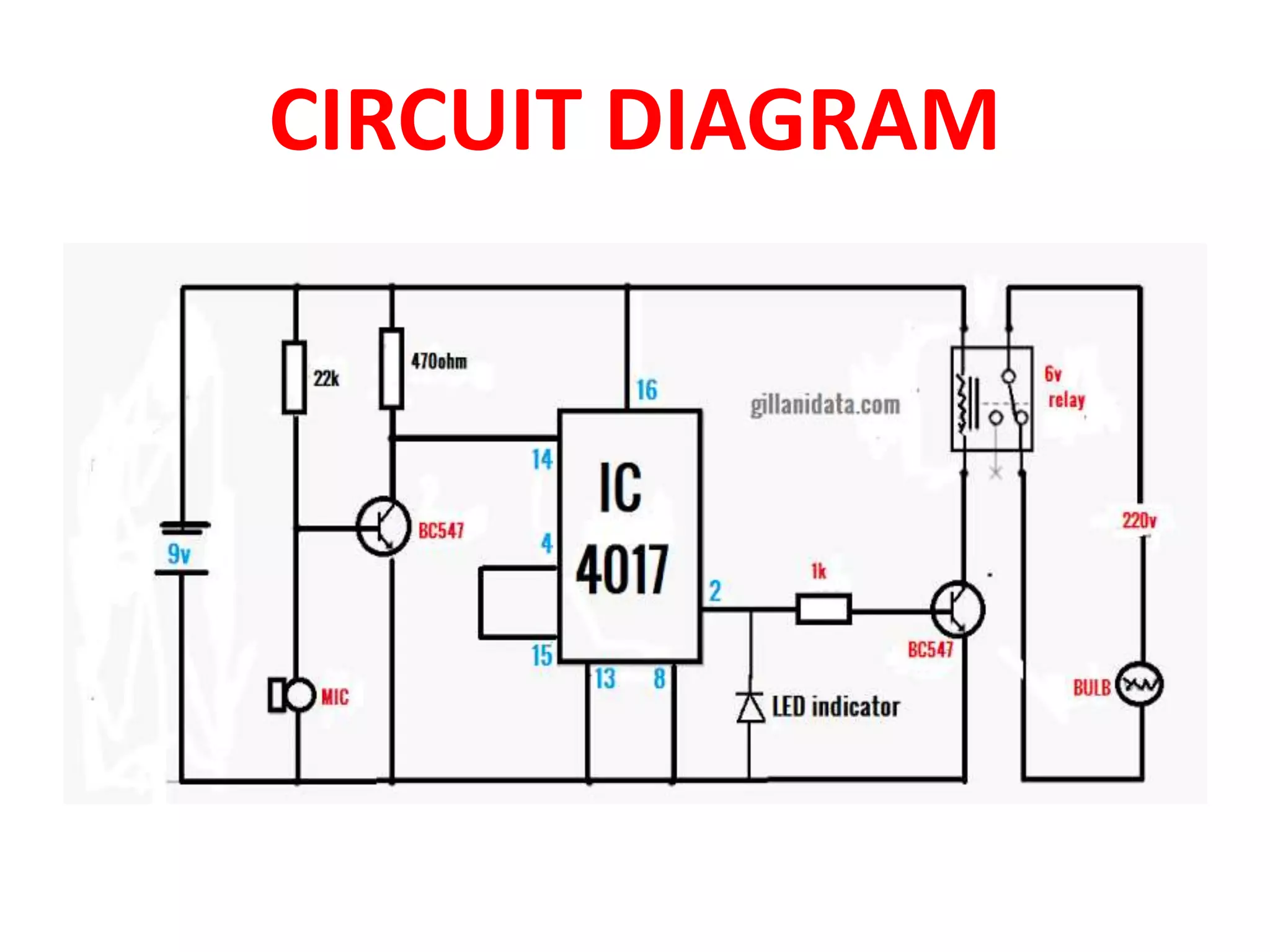

14. CIRCUIT DIAGRAM

15. PROJECT DESIGN

16. MARKET
DEVICE

17. ADVANTAGES
• 1. Energy efficient
• 2. Low cost and reliable circuit
• 3. Complete elimination of manpower
• 4. High Accuracy

18. APPLICATIONS
• Can turn something (e.g a lamp) on and off
from any location in the room simply by
clapping your hands.
• The primary application involves an elderly or
mobility- impaired person.
• It is generally used for a light, television, radio
or similar electronic device.

19. FUTURE SCOPE
• No filter has been used here so the switch will
respond to two sounds similar to clapping .
But if a simple bandpass filter is used then this
problem could be avoided.
• To add more sensitivity to the switch, the
amplification factor may be increased.

20. MARKET SURVEY

21. Summary
This device is helpful for:-
• If you wish to “ON” and “OFF” the device without
moving from your place.
• There is no fear of the electrical shocks as you are
not required to touch any of the mechanical
switches physically.
• Visual indication of the devices is also provided to
you.
• Speed of the fan can also be controlled by
connecting regulator with individual outputs.

22. REFERENCES
WebHelp:
• www.efy.com www.electronics.com www.eew
eb.com
• Http://www.electronicschematics.in/
• https://www.circuiteasy.com/
