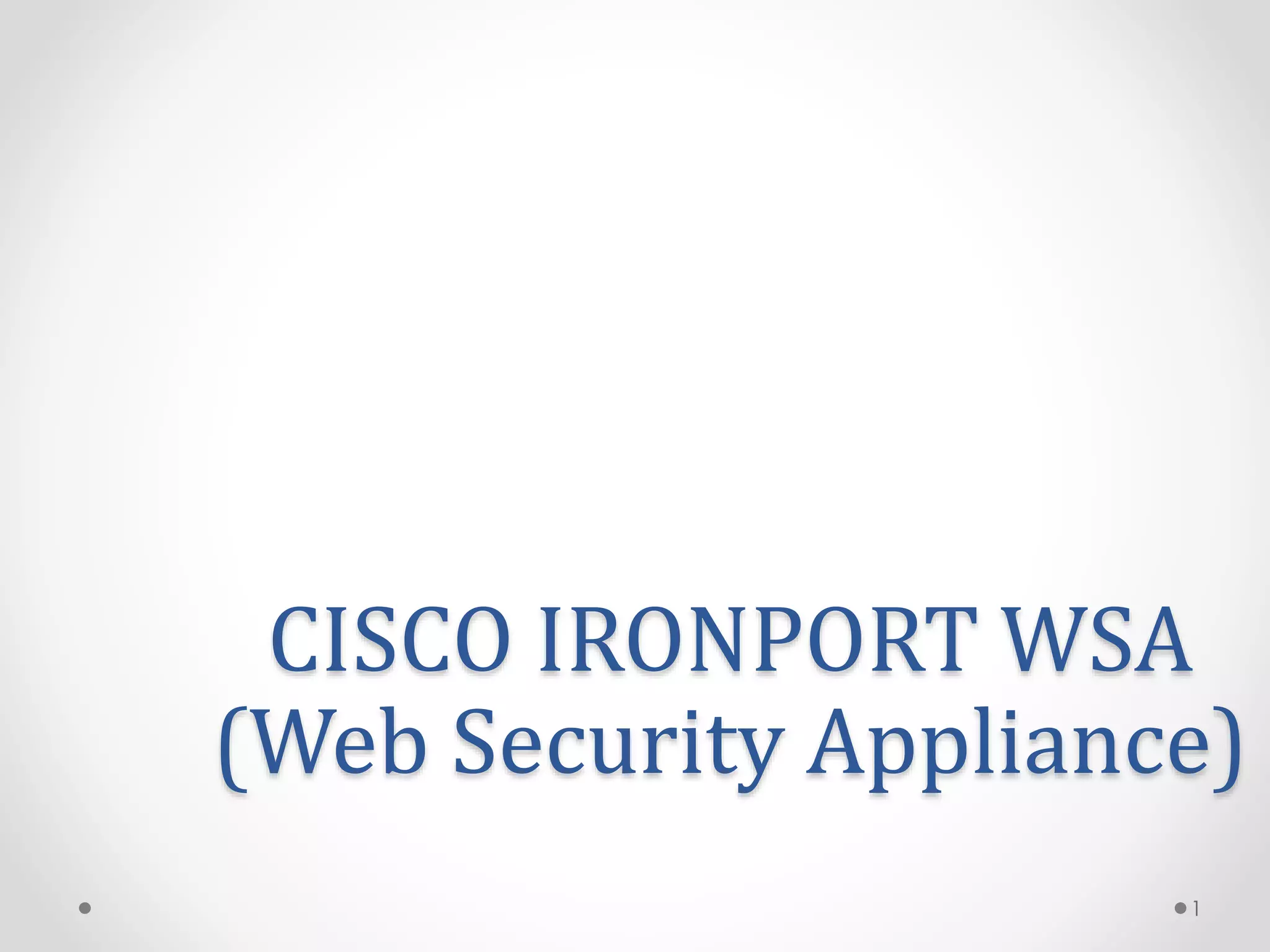

CISCO IRONPORT WSA
(Web Security Appliance)

2. Device Series
• S 170 (Upto 1,500 users)
• S 370 (1,500 – 6,000)
• S 670 (6,000 – 12,000)
• IRONPORT use AsyncOS (FreeBSD Kernel).

3. Architecture
Terms Modes
• Identity
• Policy
• Policy Action
• URL Filtering
• AVS
• Explicit Mode
• Transparent Mode

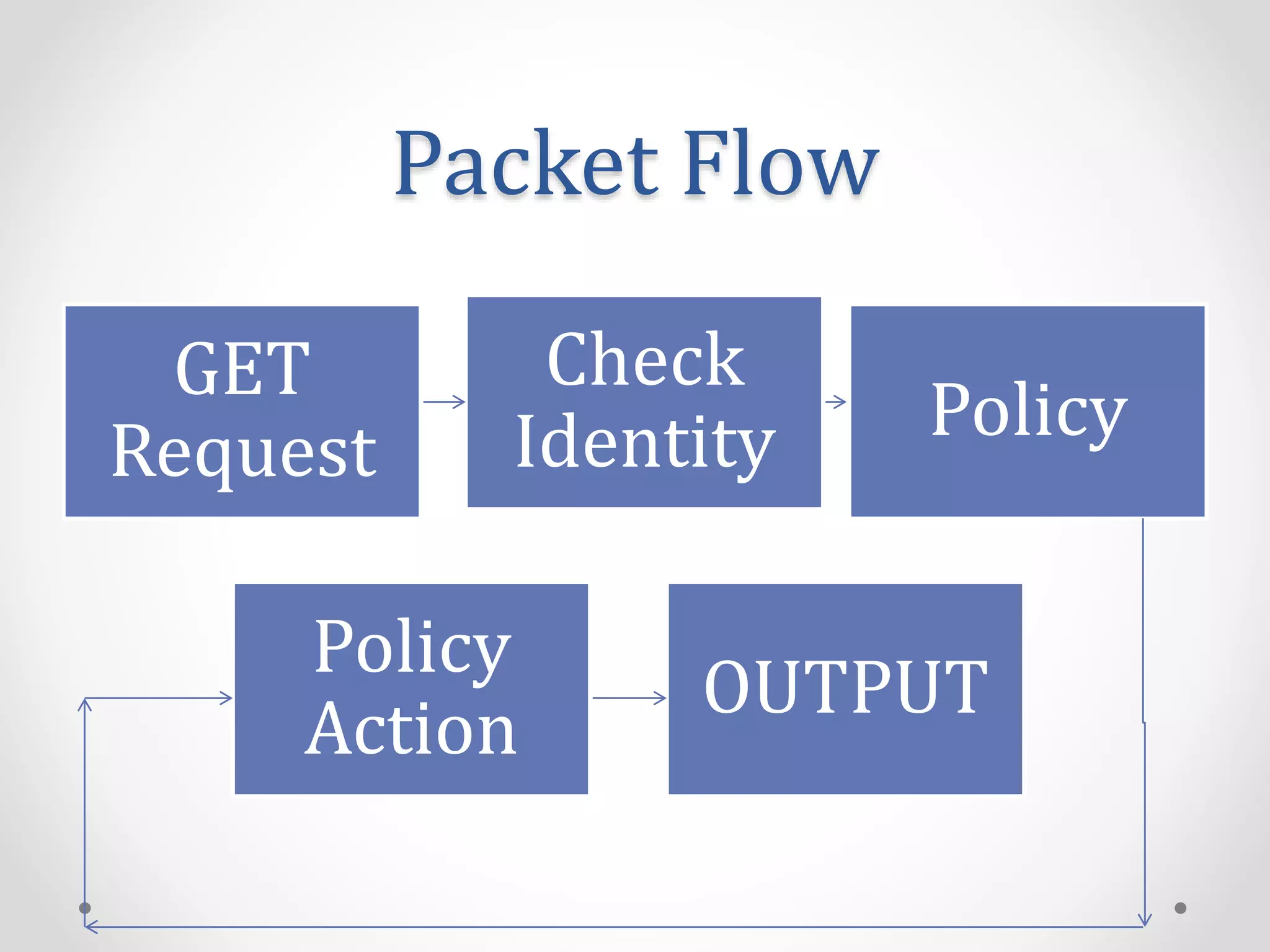

4. Packet Flow
GET
Request
Check
Identity Policy
Policy
Action
OUTPUT

5. Policy Action
• User Global Setting : Uses the action for this category in the global Decryption
policy group.
• Pass Through: Passes through the connection between the client and the server
without inspecting the traffic content.
• Monitor : The Web Proxy neither allows nor blocks the request. Instead, it
continues to evaluate the client request against other policy group control settings,
such as web reputation filtering.
• Decrypt: Allows the connection, but inspects the traffic content. The appliance
decrypts the traffic and applies Access Policies to the decrypted traffic as if it were
a plaintext HTTP connection.
• Drop: Drop the connection does not pass the connection request to the server.

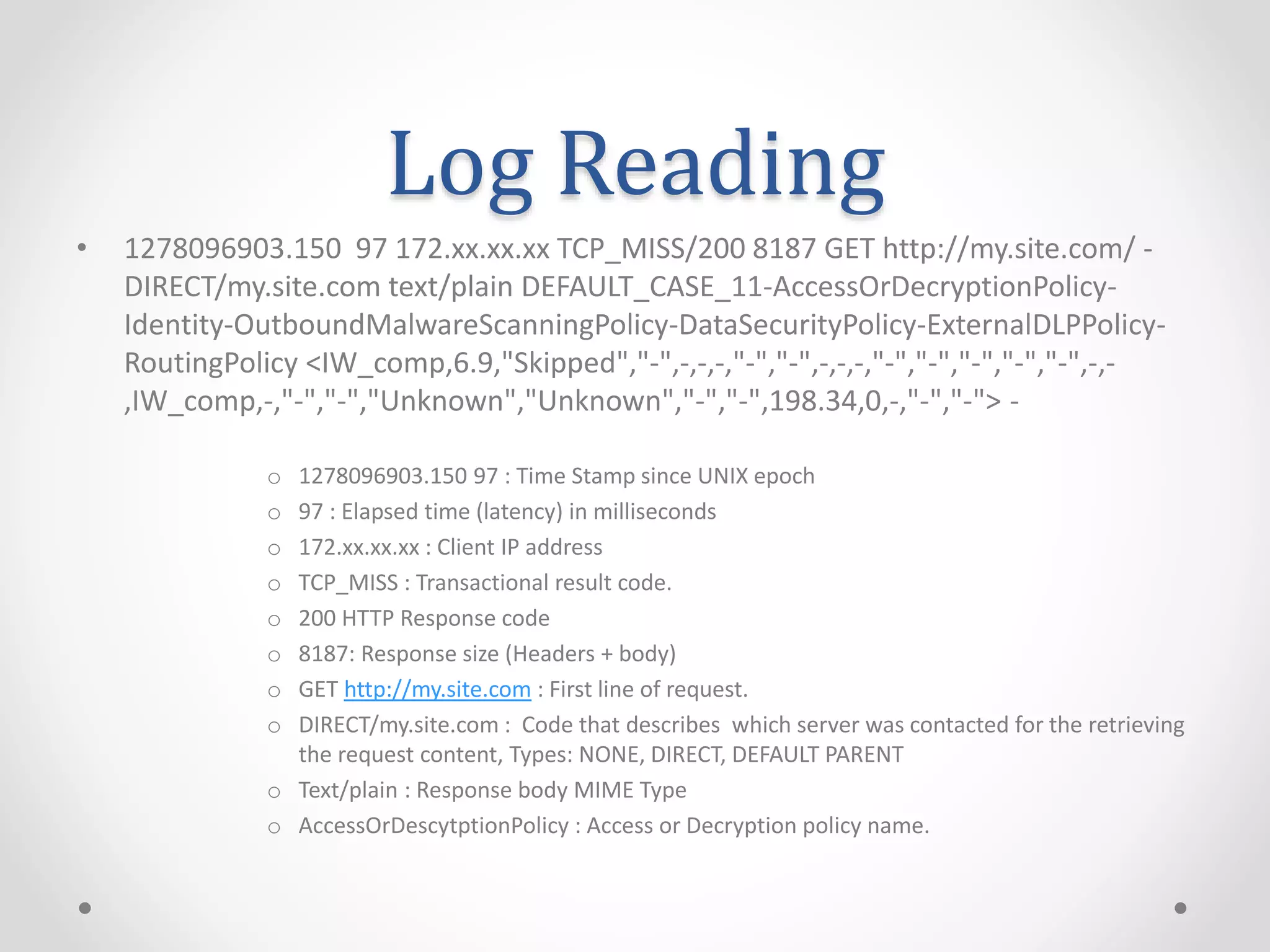

6. Log Reading
• 1278096903.150 97 172.xx.xx.xx TCP_MISS/200 8187 GET http://my.site.com/ -
DIRECT/my.site.com text/plain DEFAULT_CASE_11-AccessOrDecryptionPolicy-
Identity-OutboundMalwareScanningPolicy-DataSecurityPolicy-ExternalDLPPolicy-
RoutingPolicy <IW_comp,6.9,"Skipped","-",-,-,-,"-","-",-,-,-,"-","-","-","-","-",-,-
,IW_comp,-,"-","-","Unknown","Unknown","-","-",198.34,0,-,"-","-"> -
o 1278096903.150 97 : Time Stamp since UNIX epoch
o 97 : Elapsed time (latency) in milliseconds
o 172.xx.xx.xx : Client IP address
o TCP_MISS : Transactional result code.
o 200 HTTP Response code
o 8187: Response size (Headers + body)
o GET http://my.site.com : First line of request.
o DIRECT/my.site.com : Code that describes which server was contacted for the retrieving
the request content, Types: NONE, DIRECT, DEFAULT PARENT
o Text/plain : Response body MIME Type
o AccessOrDescytptionPolicy : Access or Decryption policy name.

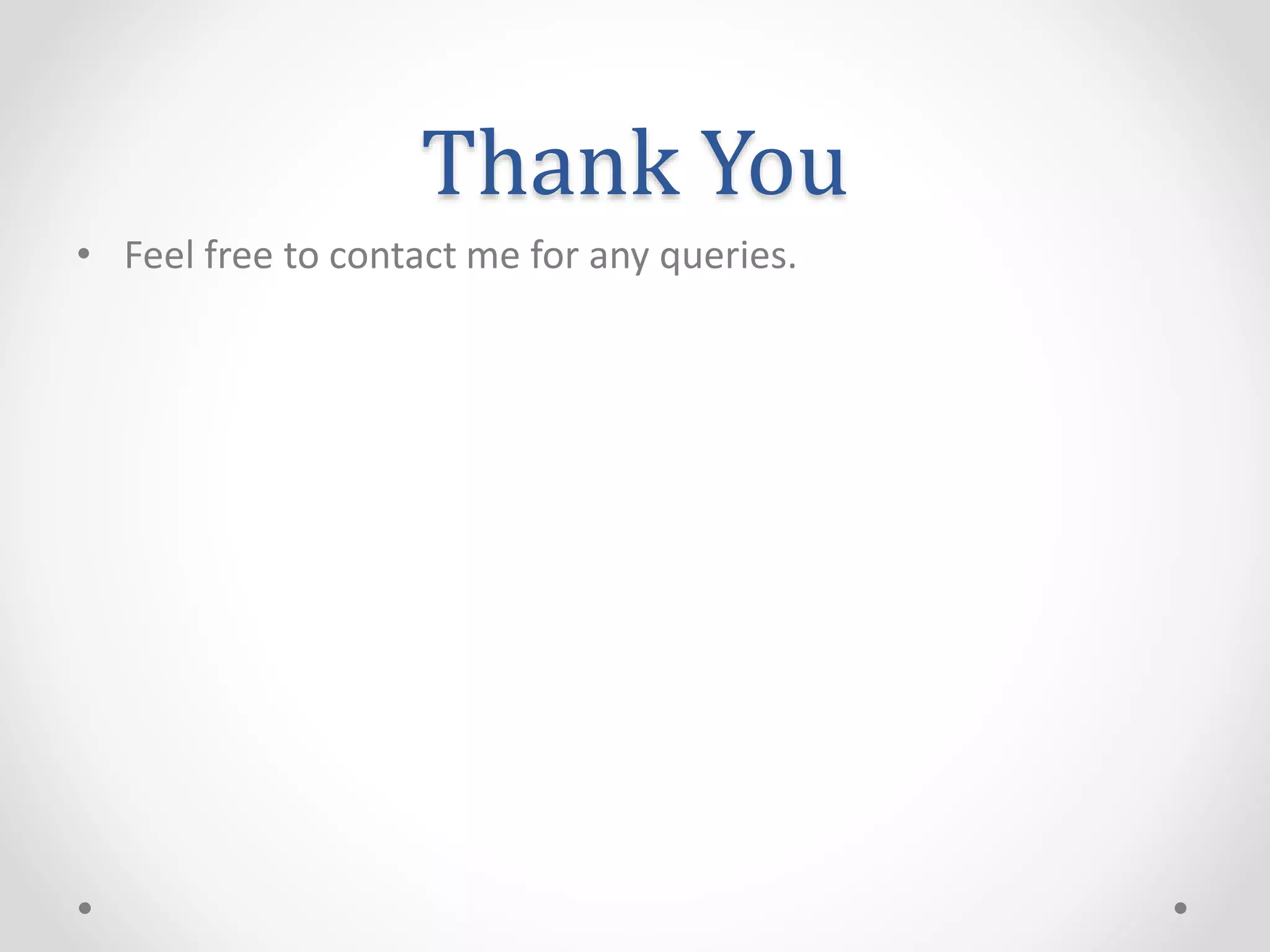

7. Thank You
