1. CIRCUIT – An Adobe Developer Event
Presented by ICF Interactive
Content API’s
for AEM
Bryan Williams
ICF Interactive

2. Bryan.Williams@icfi.com
@brywilliams
Bryan Williams
ICF Interactive (10+ years)
Working with CQ/AEM over 6 years
AEM Developer Certified (Beta)

3. Prize Question #1
?

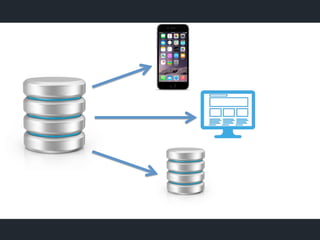

5. What do I mean by Content API?
• Read only
• Controlled
• Possibly public but not necessarily
• Usually an afterthought
• Disclaimer: Not production code

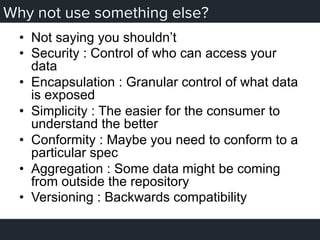

7. Why not use something else?
• Not saying you shouldn’t
• Security : Control of who can access your
data
• Encapsulation : Granular control of what data
is exposed
• Simplicity : The easier for the consumer to
understand the better
• Conformity : Maybe you need to conform to a
particular spec
• Aggregation : Some data might be coming
from outside the repository
• Versioning : Backwards compatibility

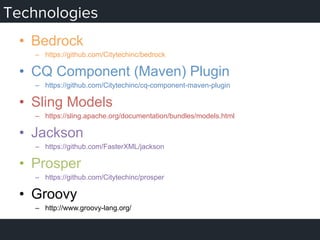

8. Technologies
• Bedrock
– https://github.com/Citytechinc/bedrock
• CQ Component (Maven) Plugin
– https://github.com/Citytechinc/cq-component-maven-plugin
• Sling Models
– https://sling.apache.org/documentation/bundles/models.html
• Jackson
– https://github.com/FasterXML/jackson
• Prosper
– https://github.com/Citytechinc/prosper
• Groovy
– http://www.groovy-lang.org/

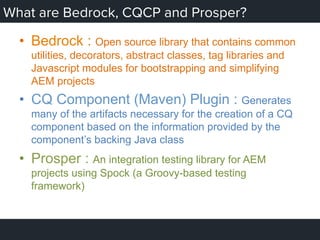

9. What are Bedrock, CQCP and Prosper?
• Bedrock : Open source library that contains common
utilities, decorators, abstract classes, tag libraries and
Javascript modules for bootstrapping and simplifying
AEM projects
• CQ Component (Maven) Plugin : Generates
many of the artifacts necessary for the creation of a CQ
component based on the information provided by the
component’s backing Java class
• Prosper : An integration testing library for AEM
projects using Spock (a Groovy-based testing
framework)

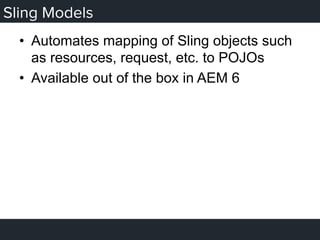

10. Sling Models
• Automates mapping of Sling objects such
as resources, request, etc. to POJOs
• Available out of the box in AEM 6

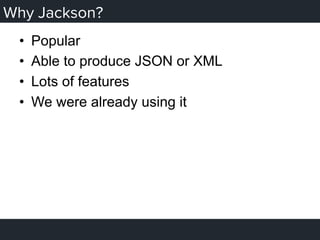

11. Why Jackson?
• Popular
• Able to produce JSON or XML
• Lots of features
• We were already using it

12. Groovy
• An object-oriented programming language
for the Java platform
• Dynamic in nature
• Reduced syntax
• Traits

13. Prize Question #2
?:

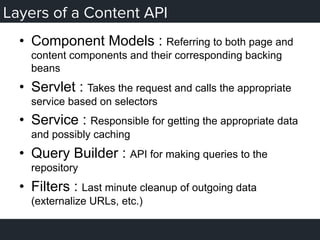

14. Layers of a Content API
• Component Models : Referring to both page and
content components and their corresponding backing
beans
• Servlet : Takes the request and calls the appropriate
service based on selectors
• Service : Responsible for getting the appropriate data
and possibly caching
• Query Builder : API for making queries to the
repository
• Filters : Last minute cleanup of outgoing data
(externalize URLs, etc.)

15. Non-Page Components
• Children of stories
• Returned in getBody() of Story model
• Custom and OOTB components must
have backing bean
• Models identified by path convention
circuit2015/groovy/components/page/stories/article
=
com.bryanw.conferences.circuit2015.groovy.components.page.stories.article.Article

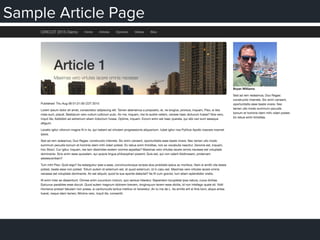

16. Sample Article Page

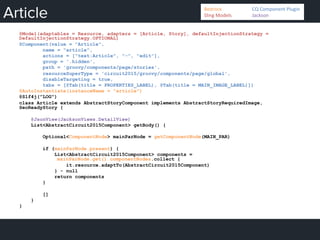

17. Article
@Model(adaptables = Resource, adapters = [Article, Story], defaultInjectionStrategy =
DefaultInjectionStrategy.OPTIONAL)
@Component(value = "Article",
name = "article",
actions = ["text:Article", "-", "edit"],
group = '.hidden',
path = 'groovy/components/page/stories',
resourceSuperType = 'circuit2015/groovy/components/page/global',
disableTargeting = true,
tabs = [@Tab(title = PROPERTIES_LABEL), @Tab(title = MAIN_IMAGE_LABEL)])
@AutoInstantiate(instanceName = "article")
@Slf4j("LOG")
class Article extends AbstractStoryComponent implements AbstractStoryRequiredImage,
SeoReadyStory {
@JsonView(JacksonViews.DetailView)
List<AbstractCircuit2015Component> getBody() {
Optional<ComponentNode> mainParNode = getComponentNode(MAIN_PAR)
if (mainParNode.present) {
List<AbstractCircuit2015Component> components =
mainParNode.get().componentNodes.collect {
it.resource.adaptTo(AbstractCircuit2015Component)
} - null
return components
}
[]
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

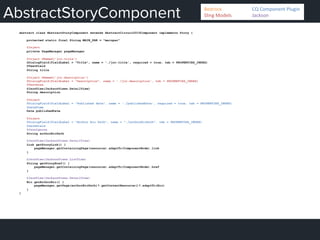

18. AbstractStoryComponent
abstract class AbstractStoryComponent extends AbstractCircuit2015Component implements Story {
protected static final String MAIN_PAR = "mainpar"
@Inject
private PageManager pageManager
@Inject @Named('jcr:title')
@DialogField(fieldLabel = "Title", name = './jcr:title', required = true, tab = PROPERTIES_INDEX)
@TextField
String title
@Inject @Named('jcr:description')
@DialogField(fieldLabel = "Description", name = './jcr:description', tab = PROPERTIES_INDEX)
@TextArea
@JsonView(JacksonViews.DetailView)
String description
@Inject
@DialogField(fieldLabel = "Published date", name = './publishedDate', required = true, tab = PROPERTIES_INDEX)
@DateTime
Date publishedDate
@Inject
@DialogField(fieldLabel = "Author Bio Path", name = "./authorBioPath", tab = PROPERTIES_INDEX)
@PathField
@JsonIgnore
String authorBioPath
@JsonView(JacksonViews.DetailView)
Link getStoryLink() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).link
}
@JsonView(JacksonViews.ListView)
String getStoryHref() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).href
}
@JsonView(JacksonViews.DetailView)
Bio getAuthorBio() {
pageManager.getPage(authorBioPath)?.getContentResource()?.adaptTo(Bio)
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

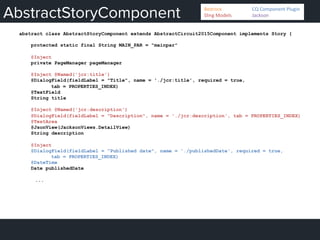

19. AbstractStoryComponent
abstract class AbstractStoryComponent extends AbstractCircuit2015Component implements Story {
protected static final String MAIN_PAR = "mainpar"
@Inject
private PageManager pageManager
@Inject @Named('jcr:title')
@DialogField(fieldLabel = "Title", name = './jcr:title', required = true,
tab = PROPERTIES_INDEX)
@TextField
String title
@Inject @Named('jcr:description')
@DialogField(fieldLabel = "Description", name = './jcr:description', tab = PROPERTIES_INDEX)
@TextArea
@JsonView(JacksonViews.DetailView)
String description
@Inject
@DialogField(fieldLabel = "Published date", name = './publishedDate', required = true,
tab = PROPERTIES_INDEX)
@DateTime
Date publishedDate
...
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

20. AbstractStoryComponent
…
@Inject
@DialogField(fieldLabel = "Author Bio Path", name = "./authorBioPath",
tab = PROPERTIES_INDEX)
@PathField
@JsonIgnore
String authorBioPath
@JsonView(JacksonViews.DetailView)
Link getStoryLink() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).link
}
@JsonView(JacksonViews.ListView)
String getStoryHref() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).href
}
@JsonView(JacksonViews.DetailView)
Bio getAuthorBio() {
pageManager.getPage(authorBioPath)?.getContentResource()?.adaptTo(Bio)
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

21. AbstractStoryComponent
abstract class AbstractStoryComponent extends AbstractCircuit2015Component implements Story {
protected static final String MAIN_PAR = "mainpar"
@Inject
private PageManager pageManager
@Inject @Named('jcr:title')
@DialogField(fieldLabel = "Title", name = './jcr:title', required = true, tab = PROPERTIES_INDEX)
@TextField
String title
@Inject @Named('jcr:description')
@DialogField(fieldLabel = "Description", name = './jcr:description', tab = PROPERTIES_INDEX)
@TextArea
@JsonView(JacksonViews.DetailView)
String description
@Inject
@DialogField(fieldLabel = "Published date", name = './publishedDate', required = true, tab = PROPERTIES_INDEX)
@DateTime
Date publishedDate
@Inject
@DialogField(fieldLabel = "Author Bio Path", name = "./authorBioPath", tab = PROPERTIES_INDEX)
@PathField
@JsonIgnore
String authorBioPath
@JsonView(JacksonViews.DetailView)
Link getStoryLink() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).link
}
@JsonView(JacksonViews.ListView)
String getStoryHref() {
pageManager.getContainingPage(resource).adaptTo(ComponentNode).href
}
@JsonView(JacksonViews.DetailView)
Bio getAuthorBio() {
pageManager.getPage(authorBioPath)?.getContentResource()?.adaptTo(Bio)
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

22. Paul Michelotti Blog
h;p://citytechinc.com/us/en/blog/2015/03/groovy-­‐component-­‐composiHon-­‐with-­‐traits.html
Groovy
Component
ComposiHon
With
Traits

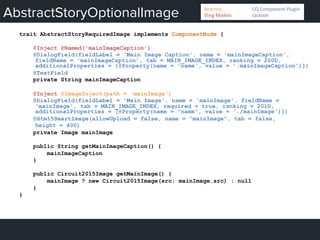

23. AbstractStoryOptionalImage
trait AbstractStoryRequiredImage implements ComponentNode {
@Inject @Named('mainImageCaption')
@DialogField(fieldLabel = 'Main Image Caption', name = 'mainImageCaption',
fieldName = 'mainImageCaption', tab = MAIN_IMAGE_INDEX, ranking = 200D,
additionalProperties = [@Property(name = 'name', value = ’.mainImageCaption')])
@TextField
private String mainImageCaption
@Inject @ImageInject(path = 'mainImage')
@DialogField(fieldLabel = 'Main Image', name = 'mainImage', fieldName =
'mainImage', tab = MAIN_IMAGE_INDEX, required = true, ranking = 201D,
additionalProperties = [@Property(name = "name", value = './mainImage')])
@Html5SmartImage(allowUpload = false, name = "mainImage", tab = false,
height = 400)
private Image mainImage
public String getMainImageCaption() {
mainImageCaption
}
public Circuit2015Image getMainImage() {
mainImage ? new Circuit2015Image(src: mainImage.src) : null
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

24. AbstractStoryRequiredImage
trait AbstractStoryRequiredImage implements ComponentNode {
@Inject @Named('mainImageCaption')
@DialogField(fieldLabel = 'Main Image Caption', name = 'mainImageCaption',
fieldName = 'mainImageCaption', tab = MAIN_IMAGE_INDEX, ranking = 200D,
required = true, additionalProperties = [@Property(name = 'name', value =
'./mainImageCaption')])
@TextField
private String mainImageCaption
@Inject @ImageInject(path = 'mainImage')
@DialogField(fieldLabel = 'Main Image', name = 'mainImage', fieldName =
'mainImage', tab = MAIN_IMAGE_INDEX, required = true, ranking = 201D,
additionalProperties = [@Property(name = "name", value = './mainImage')])
@Html5SmartImage(allowUpload = false, name = "mainImage", tab = false,
height = 400)
private Image mainImage
public String getMainImageCaption() {
mainImageCaption
}
public Circuit2015Image getMainImage() {
mainImage ? new Circuit2015Image(src: mainImage.src) : null
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

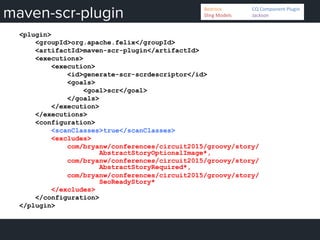

25. maven-scr-plugin
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-scr-plugin</artifactId>
<executions>
<execution>
<id>generate-scr-scrdescriptor</id>
<goals>
<goal>scr</goal>
</goals>
</execution>
</executions>
<configuration>
<scanClasses>true</scanClasses>
<excludes>
com/bryanw/conferences/circuit2015/groovy/story/
AbstractStoryOptionalImage*,
com/bryanw/conferences/circuit2015/groovy/story/
AbstractStoryRequired*,
com/bryanw/conferences/circuit2015/groovy/story/
SeoReadyStory*
</excludes>
</configuration>
</plugin>
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

26. Content API Servlet
• Accepts page paths only
• Accepts XML/JSON extension
• Accepts “story” and “stories” selector
• Constructs search parameters
• Passes current path and search
parameters on to service

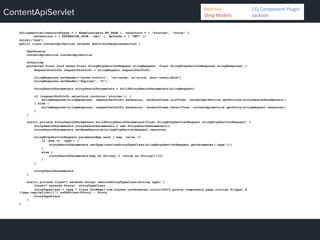

27. ContentApiServlet
@SlingServlet(resourceTypes = [ NameConstants.NT_PAGE ], selectors = [ "stories", "story" ],
extensions = [ EXTENSION_JSON, "xml" ], methods = [ "GET" ])
@Slf4j("LOG")
public class ContentApiServlet extends XmlOrJsonResponseServlet {
@Reference
ContentApiService contentApiService
@Override
protected final void doGet(final SlingHttpServletRequest slingRequest, final SlingHttpServletResponse slingResponse) {
RequestPathInfo requestPathInfo = slingRequest.requestPathInfo
slingResponse.setHeader("Cache-Control", "no-cache, no-store, must-revalidate")
slingResponse.setHeader("Expires", "0");
StorySearchParameters storySearchParameters = buildStorySearchParameters(slingRequest)
if (requestPathInfo.selectors.contains('stories')) {
writeResponse(slingResponse, requestPathInfo.extension, JacksonViews.ListView, contentApiService.getStories(storySearchParameters))
} else {
writeResponse(slingResponse, requestPathInfo.extension, JacksonViews.DetailView, contentApiService.getStory(slingRequest.resource))
}
}
static private StorySearchParameters buildStorySearchParameters(final SlingHttpServletRequest slingHttpServletRequest) {
StorySearchParameters storySearchParameters = new StorySearchParameters()
storySearchParameters.setBaseResource(slingHttpServletRequest.resource)
slingHttpServletRequest.parameterMap.each { key, value ->
if (key == 'type') {
storySearchParameters.setType(resolveStoryTypeClass(slingHttpServletRequest.getParameter('type')))
}
else {
storySearchParameters[key as String] = (value as String[])[0]
}
}
storySearchParameters
}
static private Class<? extends Story> resolveStoryTypeClass(String type) {
Class<? extends Story> storyTypeClass
storyTypeClass = type ? Class.forName("com.bryanw.conferences.circuit2015.groovy.components.page.stories.${type}.$
{type.capitalize()}").asSubclass(Story) : Story
storyTypeClass
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

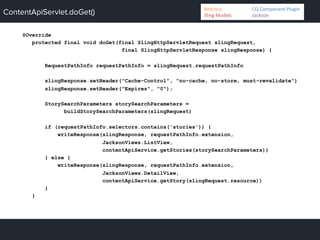

28. ContentApiServlet.doGet()
@Override
protected final void doGet(final SlingHttpServletRequest slingRequest,
final SlingHttpServletResponse slingResponse) {
RequestPathInfo requestPathInfo = slingRequest.requestPathInfo
slingResponse.setHeader("Cache-Control", "no-cache, no-store, must-revalidate")
slingResponse.setHeader("Expires", "0");
StorySearchParameters storySearchParameters =
buildStorySearchParameters(slingRequest)
if (requestPathInfo.selectors.contains('stories')) {
writeResponse(slingResponse, requestPathInfo.extension,
JacksonViews.ListView,
contentApiService.getStories(storySearchParameters))
} else {
writeResponse(slingResponse, requestPathInfo.extension,
JacksonViews.DetailView,
contentApiService.getStory(slingRequest.resource))
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

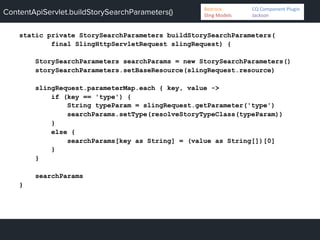

29. ContentApiServlet.buildStorySearchParameters()
static private StorySearchParameters buildStorySearchParameters(
final SlingHttpServletRequest slingRequest) {
StorySearchParameters searchParams = new StorySearchParameters()
storySearchParameters.setBaseResource(slingRequest.resource)
slingRequest.parameterMap.each { key, value ->
if (key == 'type') {
String typeParam = slingRequest.getParameter('type')
searchParams.setType(resolveStoryTypeClass(typeParam))
}
else {
searchParams[key as String] = (value as String[])[0]
}
}
searchParams
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

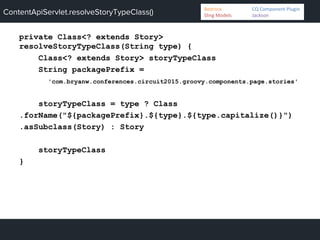

30. ContentApiServlet.resolveStoryTypeClass()
private Class<? extends Story>
resolveStoryTypeClass(String type) {
Class<? extends Story> storyTypeClass
String packagePrefix =
'com.bryanw.conferences.circuit2015.groovy.components.page.stories'
storyTypeClass = type ? Class
.forName("${packagePrefix}.${type}.${type.capitalize()}")
.asSubclass(Story) : Story
storyTypeClass
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

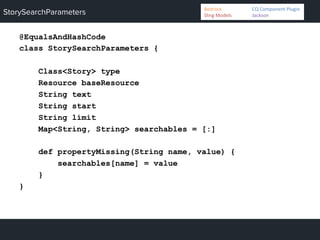

31. StorySearchParameters
@EqualsAndHashCode
class StorySearchParameters {
Class<Story> type
Resource baseResource
String text
String start
String limit
Map<String, String> searchables = [:]
def propertyMissing(String name, value) {
searchables[name] = value
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

32. XmlOrJsonResponseServlet
@Slf4j("LOG")
class XmlOrJsonResponseServlet extends SlingAllMethodsServlet {
public static final String DEFAULT_DATE_FORMAT = "MM/dd/yyyy hh:mm aaa z";
private static final DateFormat MAPPER_DATE_FORMAT = new SimpleDateFormat(DEFAULT_DATE_FORMAT, Locale.US)
private static final XmlFactory XML_FACTORY = new XmlFactory()
public void writeResponse(final SlingHttpServletResponse response, final String extension,
final Class<JacksonViews.View> view, final Object object) {
if ("xml" == extension) {
XmlMapper xmlMapper = new XmlMapper().setDateFormat(MAPPER_DATE_FORMAT) as XmlMapper
writeXmlResponse(response, xmlMapper, view, object)
} else {
ObjectMapper jsonMapper = new ObjectMapper().setDateFormat(MAPPER_DATE_FORMAT)
writeJsonResponse(response, jsonMapper, view, object)
}
}
protected static void writeXmlResponse(final SlingHttpServletResponse response, final XmlMapper xmlMapper,
final Class<JacksonViews.View> view, final Object object) {
MediaType mediaType = MediaType.XML_UTF_8
response.setContentType(mediaType.withoutParameters().toString())
response.setCharacterEncoding(mediaType.charset().get().name())
final ToXmlGenerator generator = XML_FACTORY.createGenerator(response.getWriter())
xmlMapper.writerWithView(view).writeValue(generator, object)
}
protected void writeJsonResponse(final SlingHttpServletResponse response, final ObjectMapper mapper,
final Class<JacksonViews.View> view, final Object object) throws IOException {
response.setContentType(MediaType.JSON_UTF_8.withoutParameters().toString());
response.setCharacterEncoding(MediaType.JSON_UTF_8.charset().get().name());
final JsonGenerator generator = new JsonFactory().disable(JsonGenerator.Feature.AUTO_CLOSE_TARGET)
.createGenerator(response.getWriter());
mapper.writerWithView(view).writeValue(generator, object);
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

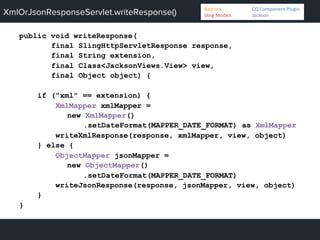

33. XmlOrJsonResponseServlet.writeResponse()
public void writeResponse(
final SlingHttpServletResponse response,
final String extension,
final Class<JacksonViews.View> view,
final Object object) {
if ("xml" == extension) {
XmlMapper xmlMapper =
new XmlMapper()
.setDateFormat(MAPPER_DATE_FORMAT) as XmlMapper
writeXmlResponse(response, xmlMapper, view, object)
} else {
ObjectMapper jsonMapper =
new ObjectMapper()
.setDateFormat(MAPPER_DATE_FORMAT)
writeJsonResponse(response, jsonMapper, view, object)
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

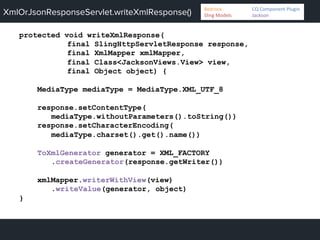

34. XmlOrJsonResponseServlet.writeXmlResponse()
protected void writeXmlResponse(
final SlingHttpServletResponse response,
final XmlMapper xmlMapper,
final Class<JacksonViews.View> view,
final Object object) {
MediaType mediaType = MediaType.XML_UTF_8
response.setContentType(
mediaType.withoutParameters().toString())
response.setCharacterEncoding(
mediaType.charset().get().name())
ToXmlGenerator generator = XML_FACTORY
.createGenerator(response.getWriter())
xmlMapper.writerWithView(view)
.writeValue(generator, object)
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

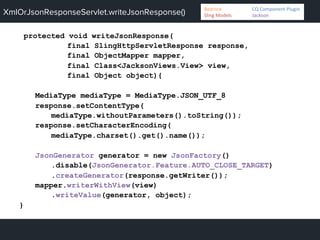

35. XmlOrJsonResponseServlet.writeJsonResponse()
protected void writeJsonResponse(
final SlingHttpServletResponse response,
final ObjectMapper mapper,
final Class<JacksonViews.View> view,
final Object object){
MediaType mediaType = MediaType.JSON_UTF_8
response.setContentType(
mediaType.withoutParameters().toString());
response.setCharacterEncoding(
mediaType.charset().get().name());
JsonGenerator generator = new JsonFactory()
.disable(JsonGenerator.Feature.AUTO_CLOSE_TARGET)
.createGenerator(response.getWriter());
mapper.writerWithView(view)
.writeValue(generator, object);
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

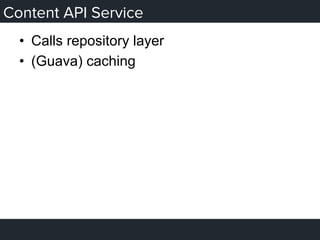

36. Content API Service
• Calls repository layer
• (Guava) caching

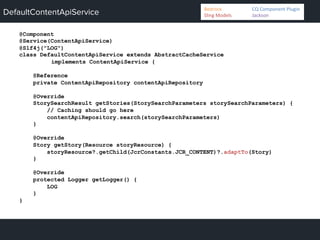

37. DefaultContentApiService
@Component
@Service(ContentApiService)
@Slf4j("LOG")
class DefaultContentApiService extends AbstractCacheService
implements ContentApiService {
@Reference
private ContentApiRepository contentApiRepository
@Override
StorySearchResult getStories(StorySearchParameters storySearchParameters) {
// Caching should go here
contentApiRepository.search(storySearchParameters)
}
@Override
Story getStory(Resource storyResource) {
storyResource?.getChild(JcrConstants.JCR_CONTENT)?.adaptTo(Story)
}
@Override
protected Logger getLogger() {
LOG
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

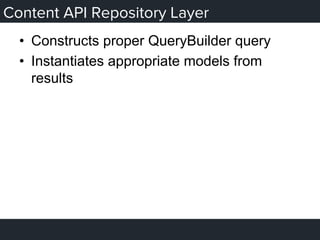

38. Content API Repository Layer
• Constructs proper QueryBuilder query
• Instantiates appropriate models from
results

39. DefaultContentApiRepository
@Component
@Service(ContentApiRepository)
@Slf4j("LOG")
class DefaultContentApiRepository implements ContentApiRepository {
@Reference
private QueryBuilder queryBuilder
@Override
public StorySearchResult search(StorySearchParameters storySearchParameters) {
Session session = storySearchParameters.baseResource.resourceResolver.adaptTo(Session)
String start = storySearchParameters.start ? storySearchParameters.start : '0'
String limit = storySearchParameters.limit ? storySearchParameters.limit : '100'
PredicateGroup mainGroup = new PredicateGroup();
mainGroup.add(new Predicate("path").set("path", storySearchParameters.baseResource.path))
mainGroup.add(new Predicate("type").set("type", "cq:PageContent"))
mainGroup.add(new Predicate("property").set(Predicate.ORDER_BY, "publishedDate"))
mainGroup.add(new Predicate("property").set("${Predicate.PARAM_SORT}.${Predicate.PARAM_SORT}", Predicate.SORT_DESCENDING))
mainGroup.add(new Predicate("property").set(Predicate.PARAM_OFFSET, start))
mainGroup.add(new Predicate("property").set(Predicate.PARAM_LIMIT, limit))
if (storySearchParameters.text) {
mainGroup.add(new Predicate("fulltext").set("fulltext", storySearchParameters.text))
}
mainGroup.add(createResourceTypePredicate(storySearchParameters))
storySearchParameters.searchables.each { key, value ->
// Add whatever other search predicates you want to allow here
}
Query query = queryBuilder.createQuery(mainGroup, session);
SearchResult searchResult = query.getResult();
StorySearchResult storyResult = new StorySearchResult();
storyResult.stories = searchResult.hits.collect {
it.resource.adaptTo(Story)
} - null
storyResult.setTotalResults(searchResult.totalMatches);
storyResult.setStart(start as Long);
storyResult
}

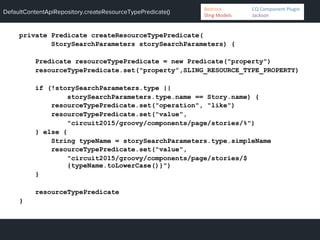

private Predicate createResourceTypePredicate(StorySearchParameters storySearchParameters) {
Predicate resourceTypePredicate = new Predicate("property")
resourceTypePredicate.set("property", SLING_RESOURCE_TYPE_PROPERTY)
if (!storySearchParameters.type || storySearchParameters.type.name == Story.name) {
resourceTypePredicate.set("operation", "like")
resourceTypePredicate.set("value", "circuit2015/groovy/components/page/stories/%")
} else {
//String typeName = storySearchParameters.baseResource.class.simpleName.toLowerCase()
String typeName = storySearchParameters.type.simpleName
resourceTypePredicate.set("value", "circuit2015/groovy/components/page/stories/${typeName.toLowerCase()}")
}
resourceTypePredicate
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

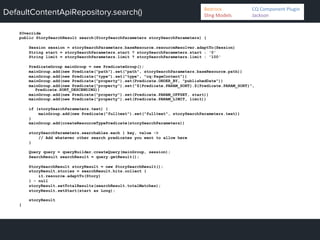

40. DefaultContentApiRepository.search()
@Override
public StorySearchResult search(StorySearchParameters storySearchParameters) {
Session session = storySearchParameters.baseResource.resourceResolver.adaptTo(Session)
String start = storySearchParameters.start ? storySearchParameters.start : '0'
String limit = storySearchParameters.limit ? storySearchParameters.limit : '100'
PredicateGroup mainGroup = new PredicateGroup();
mainGroup.add(new Predicate("path").set("path", storySearchParameters.baseResource.path))
mainGroup.add(new Predicate("type").set("type", "cq:PageContent"))
mainGroup.add(new Predicate("property").set(Predicate.ORDER_BY, "publishedDate"))
mainGroup.add(new Predicate("property").set("${Predicate.PARAM_SORT}.${Predicate.PARAM_SORT}",
Predicate.SORT_DESCENDING))
mainGroup.add(new Predicate("property").set(Predicate.PARAM_OFFSET, start))
mainGroup.add(new Predicate("property").set(Predicate.PARAM_LIMIT, limit))
if (storySearchParameters.text) {
mainGroup.add(new Predicate("fulltext").set("fulltext", storySearchParameters.text))
}
mainGroup.add(createResourceTypePredicate(storySearchParameters))
storySearchParameters.searchables.each { key, value ->
// Add whatever other search predicates you want to allow here
}
Query query = queryBuilder.createQuery(mainGroup, session);
SearchResult searchResult = query.getResult();
StorySearchResult storyResult = new StorySearchResult();
storyResult.stories = searchResult.hits.collect {
it.resource.adaptTo(Story)
} - null
storyResult.setTotalResults(searchResult.totalMatches);
storyResult.setStart(start as Long);
storyResult
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

41. DefaultContentApiRepository.createResourceTypePredicate()
private Predicate createResourceTypePredicate(
StorySearchParameters storySearchParameters) {
Predicate resourceTypePredicate = new Predicate("property")
resourceTypePredicate.set("property”,SLING_RESOURCE_TYPE_PROPERTY)
if (!storySearchParameters.type ||
storySearchParameters.type.name == Story.name) {
resourceTypePredicate.set("operation", "like")
resourceTypePredicate.set("value",
"circuit2015/groovy/components/page/stories/%")
} else {
String typeName = storySearchParameters.type.simpleName
resourceTypePredicate.set("value",
"circuit2015/groovy/components/page/stories/$
{typeName.toLowerCase()}")
}
resourceTypePredicate
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

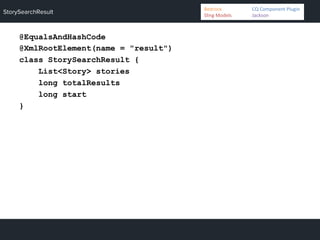

42. StorySearchResult
@EqualsAndHashCode
@XmlRootElement(name = "result")
class StorySearchResult {
List<Story> stories
long totalResults
long start
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

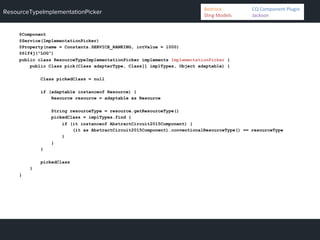

43. ResourceTypeImplementationPicker
@Component
@Service(ImplementationPicker)
@Property(name = Constants.SERVICE_RANKING, intValue = 1000)
@Slf4j("LOG")
public class ResourceTypeImplementationPicker implements ImplementationPicker {
public Class pick(Class adapterType, Class[] implTypes, Object adaptable) {
Class pickedClass = null
if (adaptable instanceof Resource) {
Resource resource = adaptable as Resource
String resourceType = resource.getResourceType()
pickedClass = implTypes.find {
if (it instanceof AbstractCircuit2015Component) {
(it as AbstractCircuit2015Component).conventionalResourceType() == resourceType
}
}
}
pickedClass
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

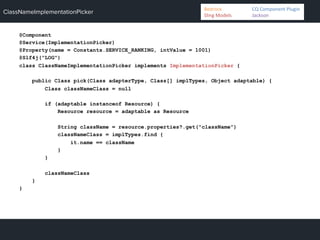

44. ClassNameImplementationPicker
@Component
@Service(ImplementationPicker)
@Property(name = Constants.SERVICE_RANKING, intValue = 1001)
@Slf4j("LOG")
class ClassNameImplementationPicker implements ImplementationPicker {
public Class pick(Class adapterType, Class[] implTypes, Object adaptable) {
Class classNameClass = null
if (adaptable instanceof Resource) {
Resource resource = adaptable as Resource
String className = resource.properties?.get("className")
classNameClass = implTypes.find {
it.name == className
}
}
classNameClass
}
}
Bedrock
CQ
Component
Plugin
Sling
Models
Jackson

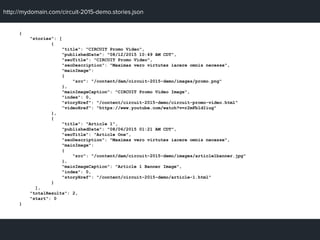

45. http://mydomain.com/circuit-2015-demo.stories.json
{
"stories": [
{
"title": "CIRCUIT Promo Video",
"publishedDate": "08/12/2015 10:49 AM CDT",
"seoTitle": "CIRCUIT Promo Video",
"seoDescription": "Maximas vero virtutes iacere omnis necesse",
"mainImage":
{
"src": "/content/dam/circuit-2015-demo/images/promo.png"
},
"mainImageCaption": "CIRCUIT Promo Video Image",
"index": 0,
"storyHref": "/content/circuit-2015-demo/circuit-promo-video.html"
”videoHref": "https://www.youtube.com/watch?v=r2mFb1dIiug"
},
{
"title": "Article 1",
"publishedDate": "08/06/2015 01:21 AM CDT",
"seoTitle": "Article One",
"seoDescription": "Maximas vero virtutes iacere omnis necesse",
"mainImage":
{
"src": "/content/dam/circuit-2015-demo/images/article1banner.jpg"
},
"mainImageCaption": "Article 1 Banner Image",
"index": 0,
"storyHref": "/content/circuit-2015-demo/article-1.html"
}
],
"totalResults": 2,
"start": 0
}

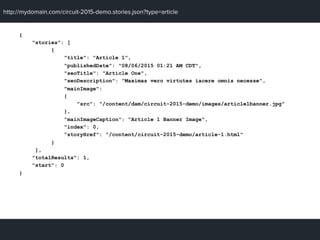

46. http://mydomain.com/circuit-2015-demo.stories.json?type=article
{
"stories": [
{
"title": "Article 1",
"publishedDate": "08/06/2015 01:21 AM CDT",
"seoTitle": "Article One",
"seoDescription": "Maximas vero virtutes iacere omnis necesse",
"mainImage":
{
"src": "/content/dam/circuit-2015-demo/images/article1banner.jpg"
},
"mainImageCaption": "Article 1 Banner Image",
"index": 0,
"storyHref": "/content/circuit-2015-demo/article-1.html"
}
],
"totalResults": 1,
"start": 0
}

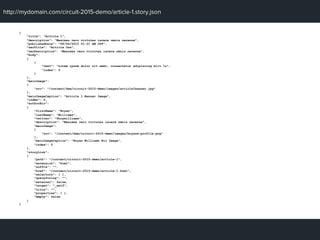

47. http://mydomain.com/circuit-2015-demo/article-1.story.json
{
"title": "Article 1",
"description": "Maximas vero virtutes iacere omnis necesse",
"publishedDate": "08/06/2015 01:21 AM CDT",
"seoTitle": "Article One",
"seoDescription": "Maximas vero virtutes iacere omnis necesse",
"body":
[
{
"text": "Lorem ipsum dolor sit amet, consectetur adipiscing elit.n",
"index": 0
}
],
"mainImage":
{
"src": "/content/dam/circuit-2015-demo/images/article1banner.jpg"
},
"mainImageCaption": "Article 1 Banner Image",
"index": 0,
"authorBio":
{
"firstName": "Bryan",
"lastName": "Williams",
"twitter": "@brywilliams",
"description": "Maximas vero virtutes iacere omnis necesse",
"mainImage":
{
"src": "/content/dam/circuit-2015-demo/images/bryanw-profile.png"
},
"mainImageCaption": "Bryan Williams Bio Image",
"index": 0
},
"storyLink":
{
"path": "/content/circuit-2015-demo/article-1",
"extension": "html",
"suffix": "",
"href": "/content/circuit-2015-demo/article-1.html",
"selectors": [ ],
"queryString": "",
"external": false,
"target": "_self",
"title": "",
"properties": { },
"empty": false
}
}

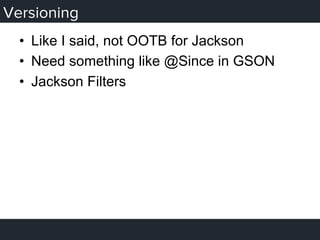

48. Versioning
• Like I said, not OOTB for Jackson
• Need something like @Since in GSON
• Jackson Filters

49. Filters
• Encoding
• Externalizing URLs

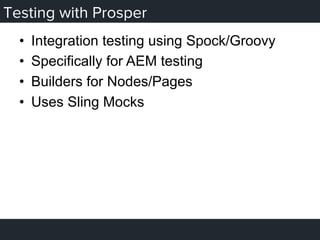

50. Testing with Prosper
• Integration testing using Spock/Groovy
• Specifically for AEM testing
• Builders for Nodes/Pages
• Uses Sling Mocks

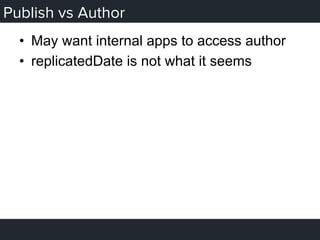

51. Publish vs Author
• May want internal apps to access author
• replicatedDate is not what it seems

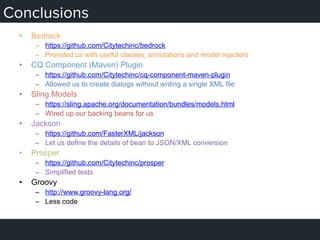

52. Conclusions
• Bedrock
– https://github.com/Citytechinc/bedrock
– Provided us with useful classes, annotations and model injectors
• CQ Component (Maven) Plugin
– https://github.com/Citytechinc/cq-component-maven-plugin
– Allowed us to create dialogs without writing a single XML file
• Sling Models
– https://sling.apache.org/documentation/bundles/models.html
– Wired up our backing beans for us
• Jackson
– https://github.com/FasterXML/jackson
– Let us define the details of bean to JSON/XML conversion
• Prosper
– https://github.com/Citytechinc/prosper
– Simplified tests
• Groovy
– http://www.groovy-lang.org/
– Less code

53. Bryan Williams
ICF Interactive
Bryan.Williams@icfi.com
@brywilliams
