The document discusses an introduction to Terraform best practices. It covers using modules to organize infrastructure code, setting infrastructure variables, formatting code, and improving outputs. The document also discusses Terraform's extensible provider model and public module registry. Examples are provided on deploying infrastructure on AWS and Azure using Terraform.

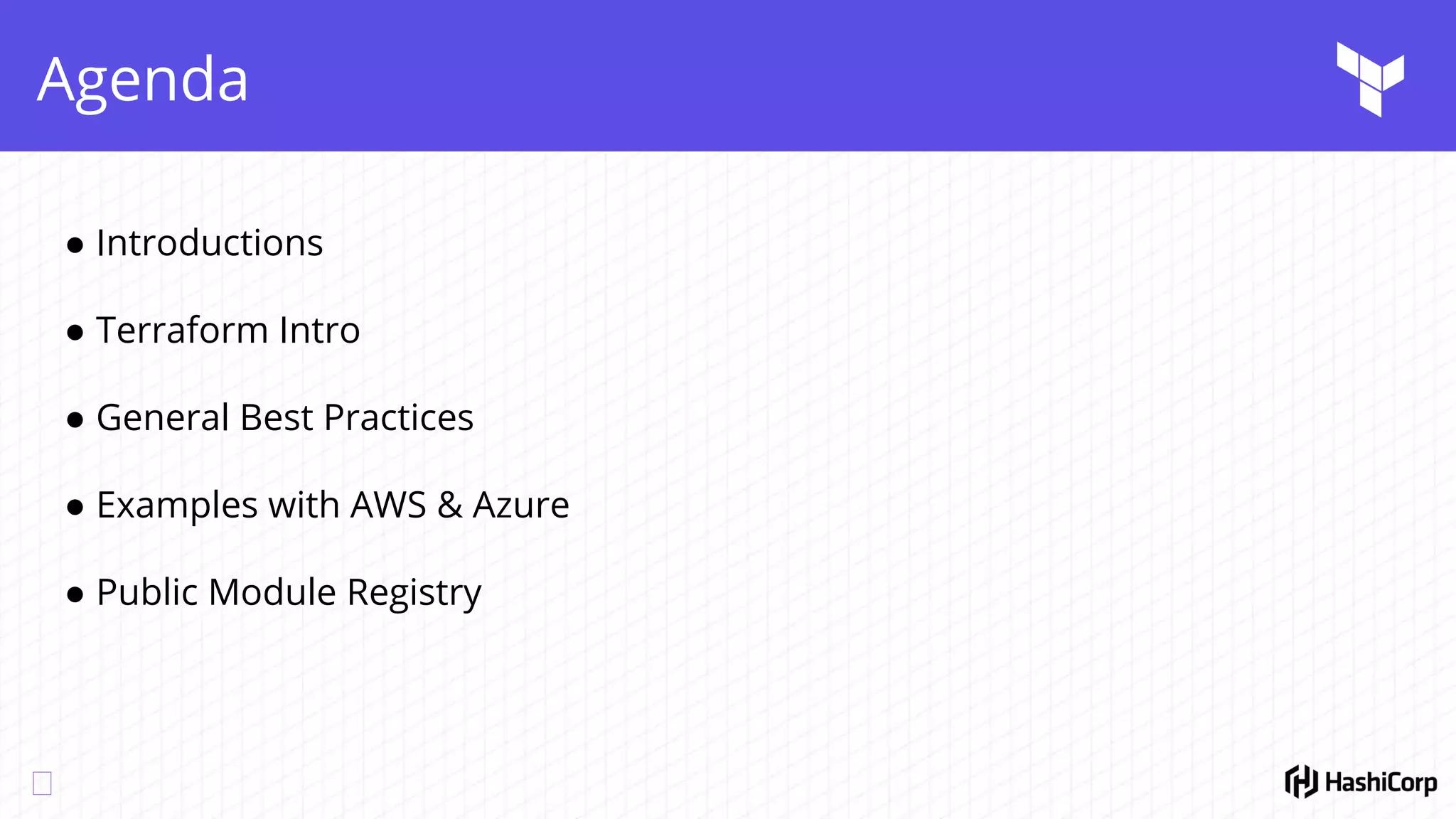

3. Agenda
● Introductions
● Terraform Intro
● General Best Practices
● Examples with AWS & Azure
● Public Module Registry

4. Who we are
Stenio Ferreira
Sr. Solutions Engineer
@stenio123
stenio@hashicorp.com
Adam Cavaliere
Sr. Solutions Engineer
@AdamCavaliere
adam@hashicorp.com

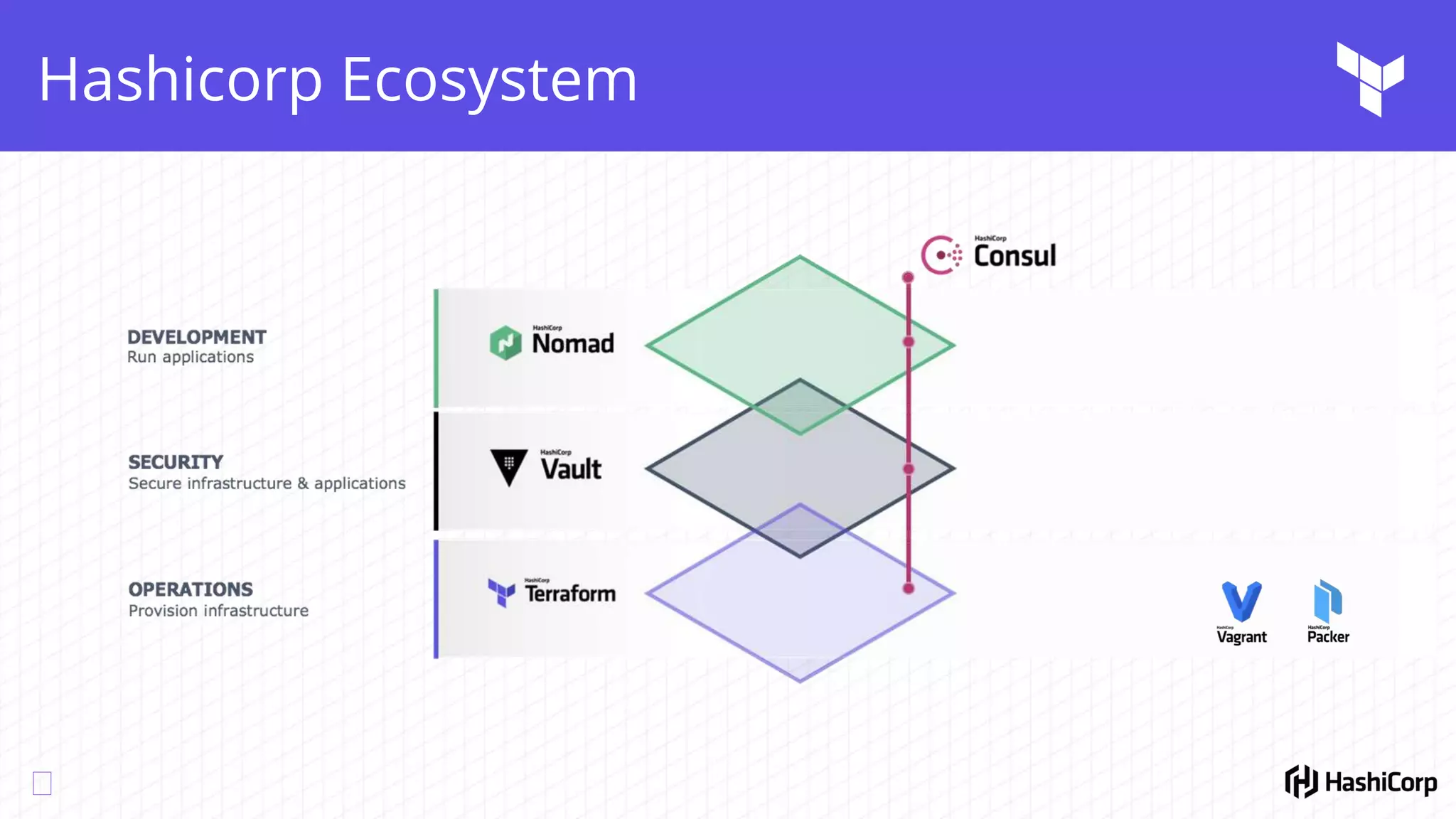

5. Hashicorp Ecosystem

6. Copyright © 2018 HashiCorp 6
Core
TERRAFORM CONFIGURATION
OPERATOR
Infrastructure as code
Provider
file.tf
resource "google_compute_instance" "server" {
name = "server"
machine_type = "g1-small"
zone = "us-central1-a"
disk {
image = "ubuntu-1404-trusty-v20160114e"
}
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "server"
}
INFRASTRUCTURE AS CODE

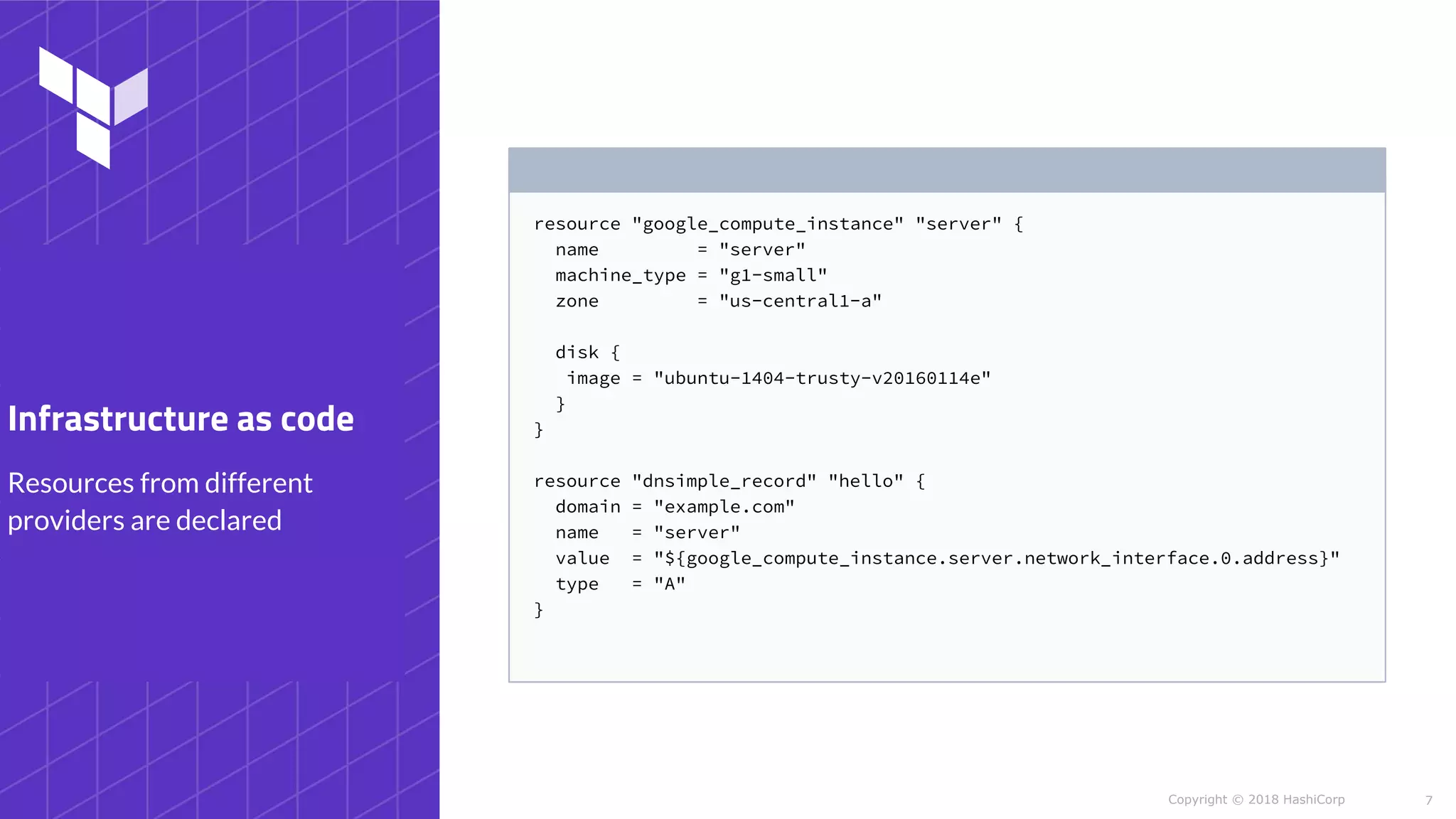

7. Copyright © 2018 HashiCorp
resource "google_compute_instance" "server" {
name = "server"
machine_type = "g1-small"
zone = "us-central1-a"
disk {
image = "ubuntu-1404-trusty-v20160114e"
}
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "server"
value = "${google_compute_instance.server.network_interface.0.address}"
type = "A"
}
7
Resources from different
providers are declared
Infrastructure as code

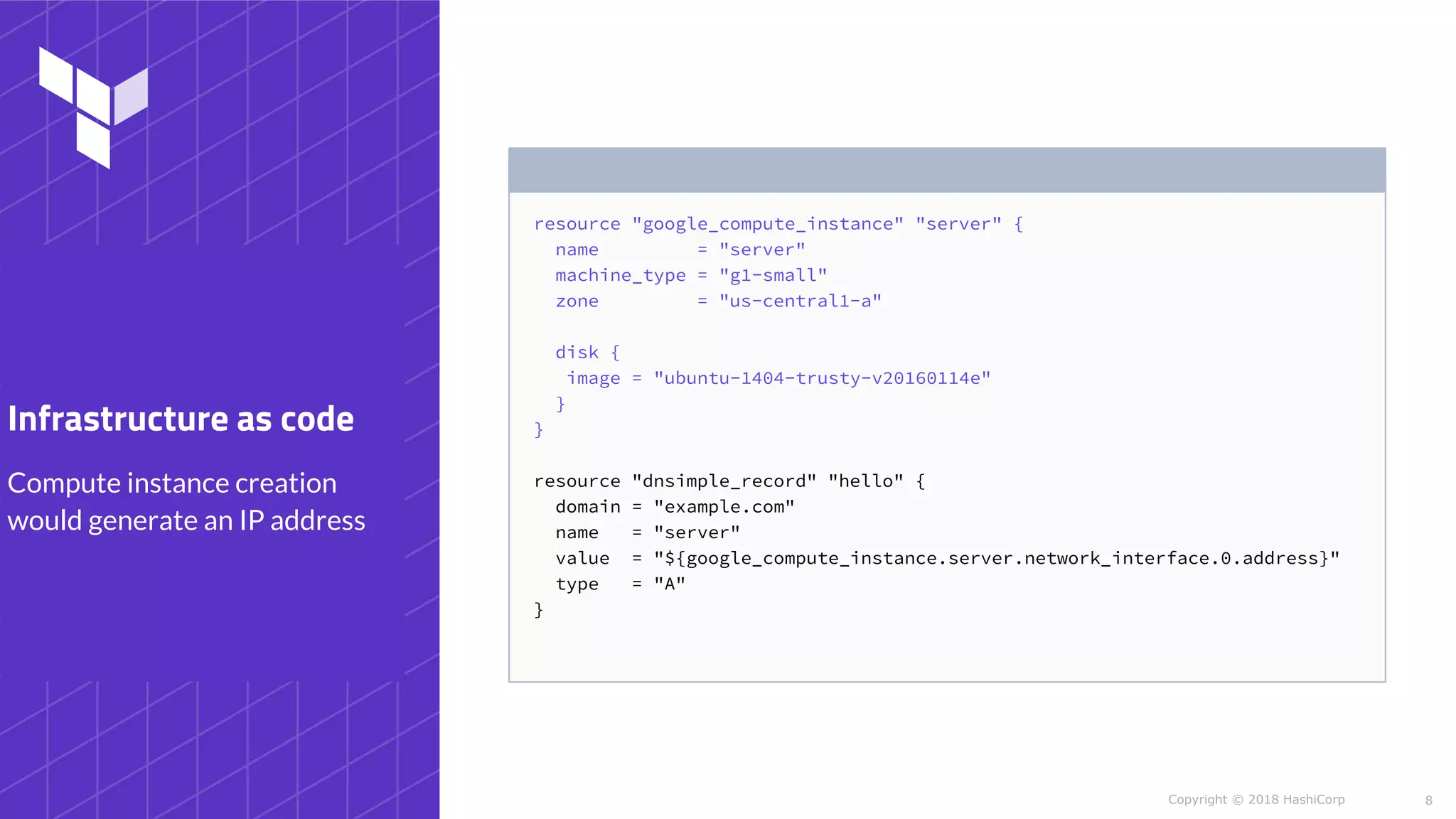

8. Copyright © 2018 HashiCorp
resource "google_compute_instance" "server" {
name = "server"
machine_type = "g1-small"
zone = "us-central1-a"
disk {
image = "ubuntu-1404-trusty-v20160114e"
}
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "server"
value = "${google_compute_instance.server.network_interface.0.address}"
type = "A"
}
8
Compute instance creation
would generate an IP address
Infrastructure as code

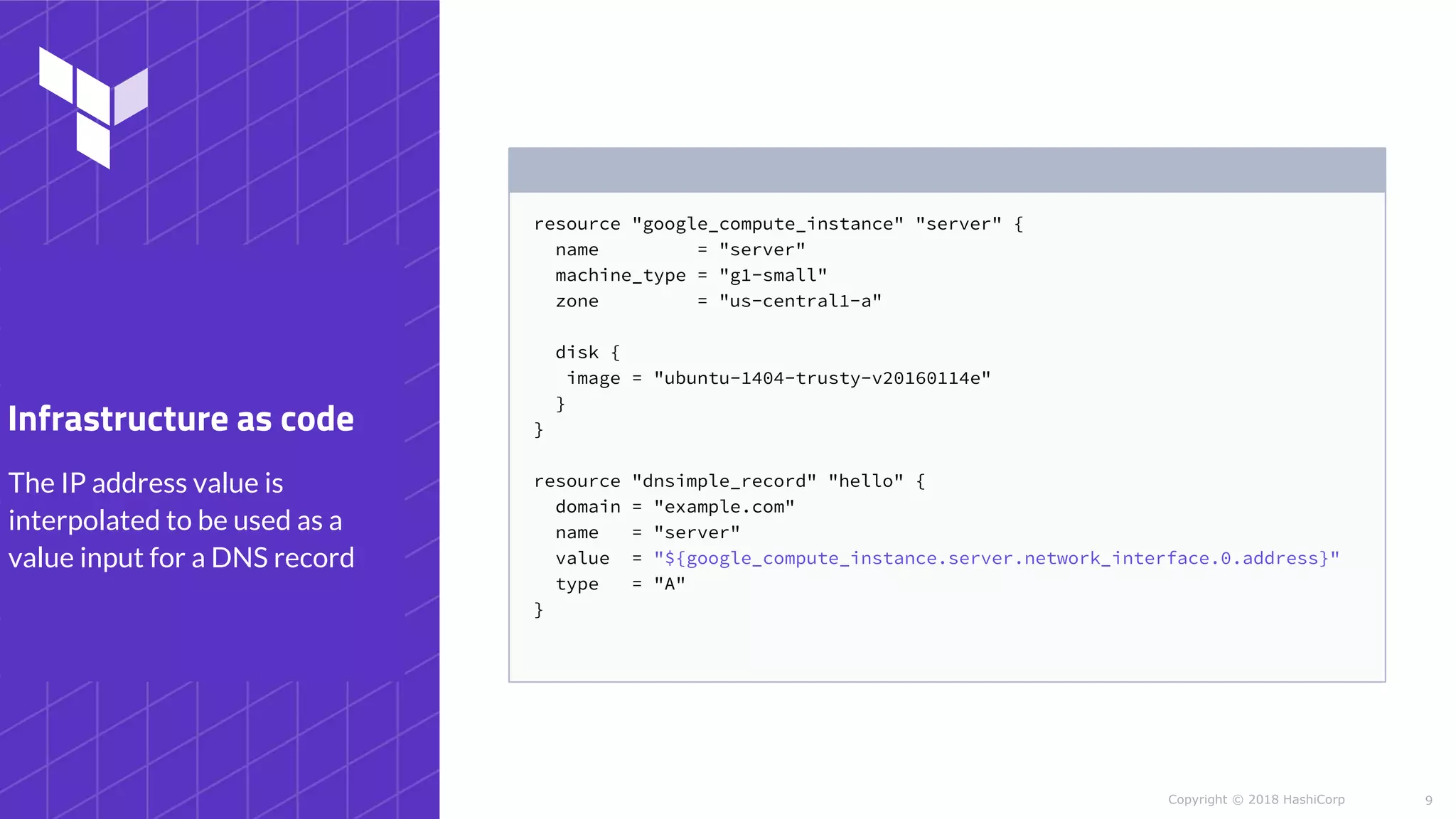

9. Copyright © 2018 HashiCorp
resource "google_compute_instance" "server" {
name = "server"
machine_type = "g1-small"
zone = "us-central1-a"
disk {
image = "ubuntu-1404-trusty-v20160114e"
}
}
resource "dnsimple_record" "hello" {
domain = "example.com"
name = "server"
value = "${google_compute_instance.server.network_interface.0.address}"
type = "A"
}
9
The IP address value is
interpolated to be used as a
value input for a DNS record
Infrastructure as code

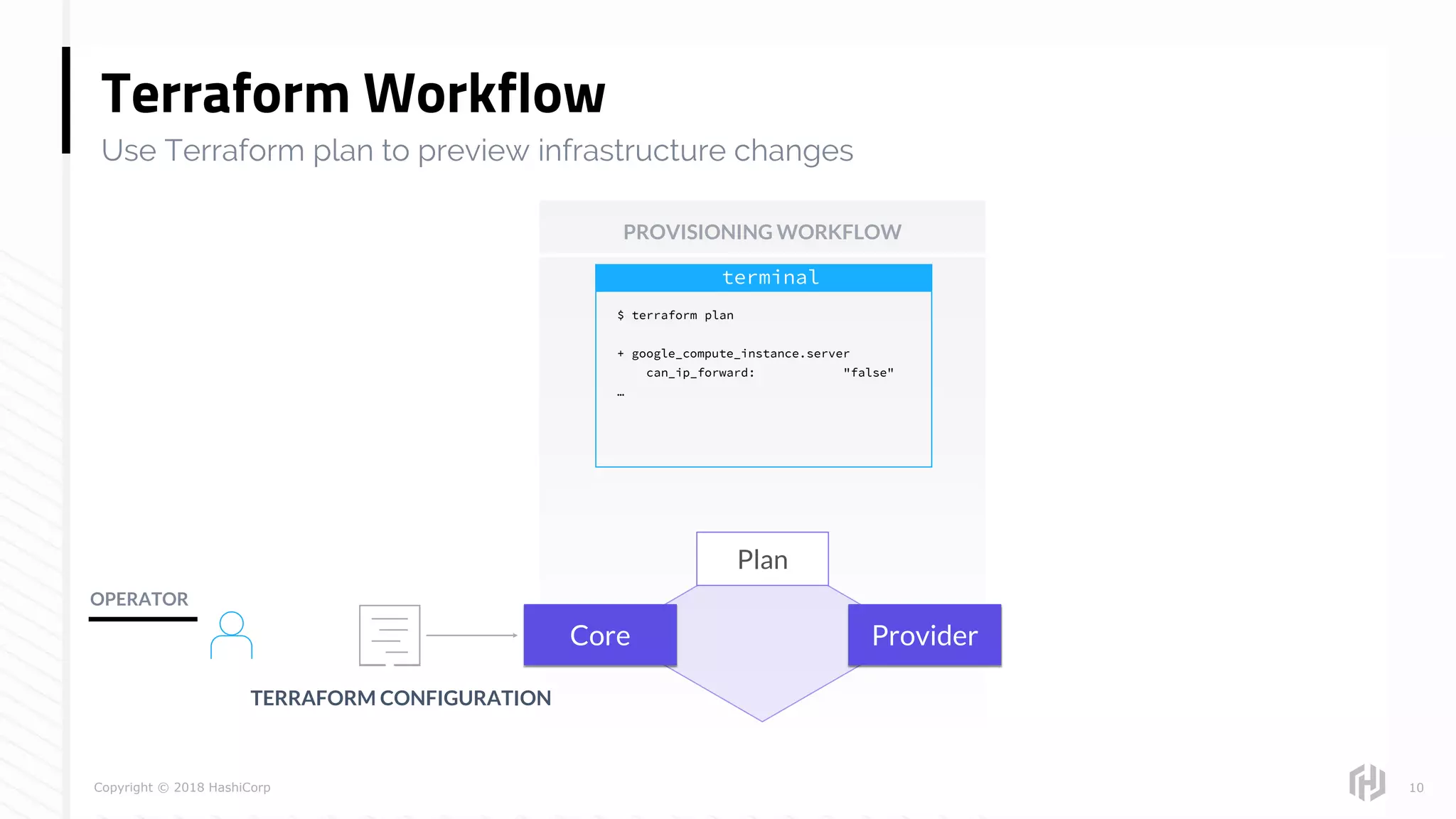

10. Copyright © 2018 HashiCorp 10
Core
Terraform Workflow
Provider
Plan
$ terraform plan
+ google_compute_instance.server
can_ip_forward: "false"
…
Use Terraform plan to preview infrastructure changes
PROVISIONING WORKFLOW
terminal
OPERATOR
TERRAFORM CONFIGURATION

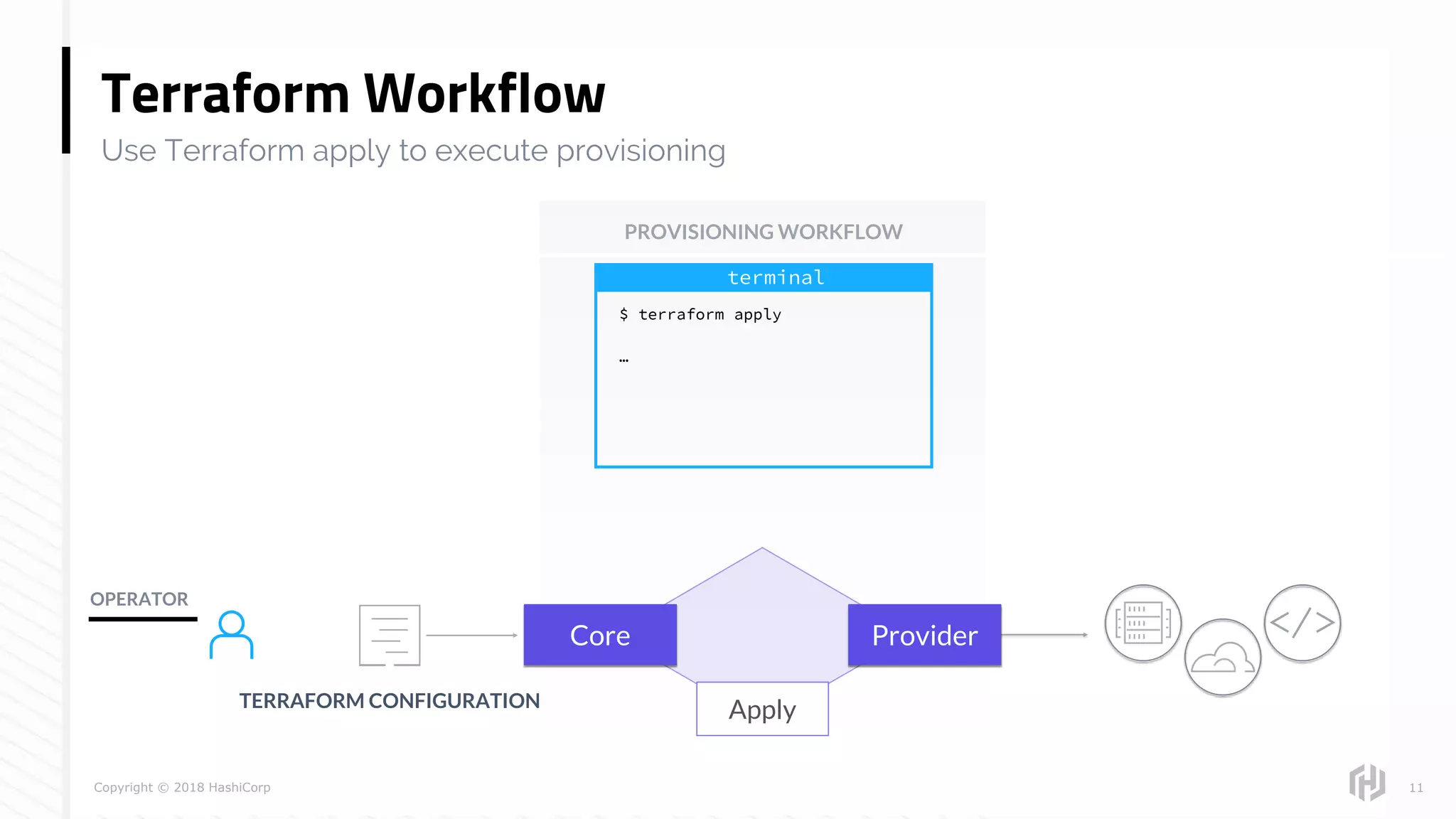

11. Copyright © 2018 HashiCorp 11
Core
Terraform Workflow
Provider
PROVISIONING WORKFLOW
Apply
$ terraform apply
…
terminal
OPERATOR
TERRAFORM CONFIGURATION
Use Terraform apply to execute provisioning

12. Copyright © 2018 HashiCorp 12
Core
OPERATOR
Extensible Provider Model
EXTENSIBLE PROVIDER MODEL
Alibaba
AWS
Azure
…
…
…
…
F5
Akamai
Heroku
GitHub
Kubernetes
Fastly
Datadog
GCP
DNSimple
Terraform includes over 100+ providers, 1000+ resources, always more

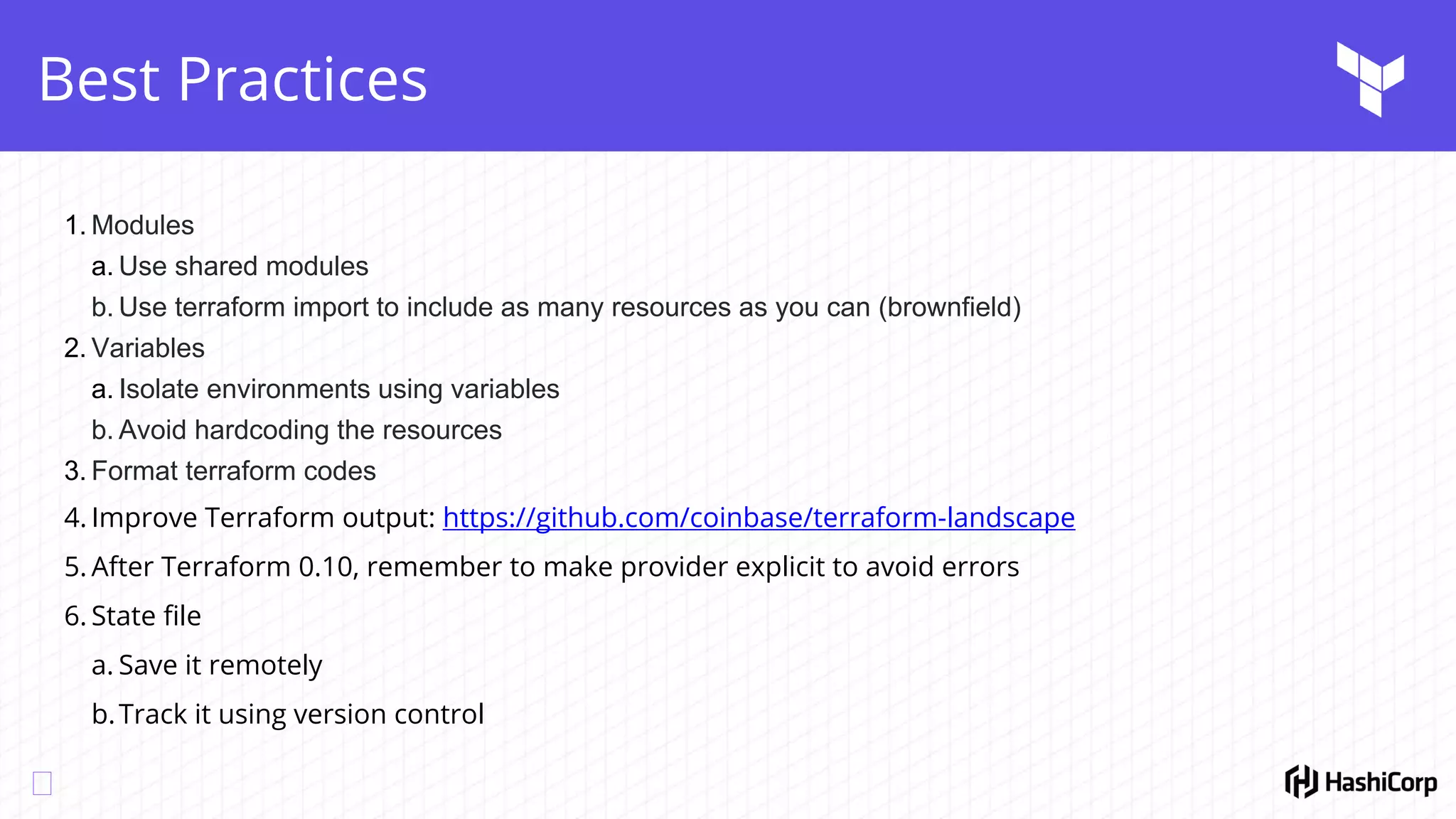

13. Best Practices
1. Modules
a. Use shared modules
b. Use terraform import to include as many resources as you can (brownfield)
2. Variables
a. Isolate environments using variables
b. Avoid hardcoding the resources
3. Format terraform codes
4. Improve Terraform output: https://github.com/coinbase/terraform-landscape
5. After Terraform 0.10, remember to make provider explicit to avoid errors
6. State file
a. Save it remotely
b.Track it using version control

14. Modules
Publishing module to public registry:
https://www.terraform.io/docs/registry/modules/publish.html
Networking
Outputs:
● VPC ID
● Subnet ID
Resources:
● VPC
● Subnet
● Route Tables
Vars:
● CIDR prefix
● Region
Data
Outputs:
● VPC ID
● Subnet ID
Resources:
● RDS
● Security Group
Vars:
● DB size
● Root password
● Subnet ID
● IP Whitelist
● Reusable blocks of code
● Customized using variables
● Exports outputs

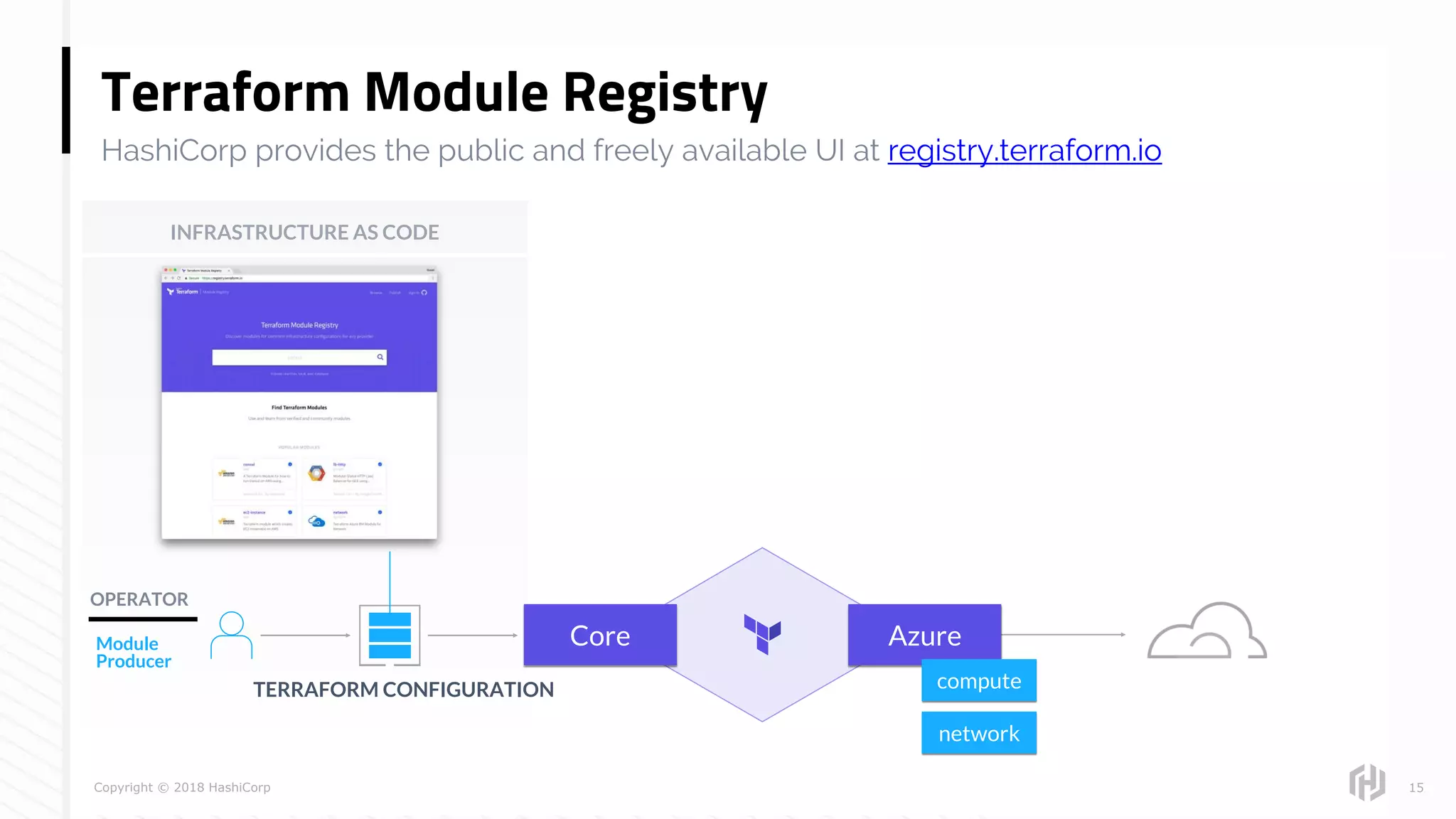

15. Copyright © 2018 HashiCorp 15
Core Azure
TERRAFORM CONFIGURATION
network
compute
Terraform Module Registry
HashiCorp provides the public and freely available UI at registry.terraform.io
Module
Producer
OPERATOR
INFRASTRUCTURE AS CODE

16. Copyright © 2018 HashiCorp 16
Core Azure
TERRAFORM CONFIGURATION
network
compute
Module
Producer
Terraform Module Registry
HashiCorp provides the public and freely available UI at registry.terraform.io
Module
Consumer
OPERATOR
INFRASTRUCTURE AS CODE

17. Terraform Public Registry
Verified vs unverified modules
Module verification is currently a manual process restricted to a small
group of trusted HashiCorp partners. In the coming months, we'll be
expanding verification to enable the broader community to verify their
modules.
Source

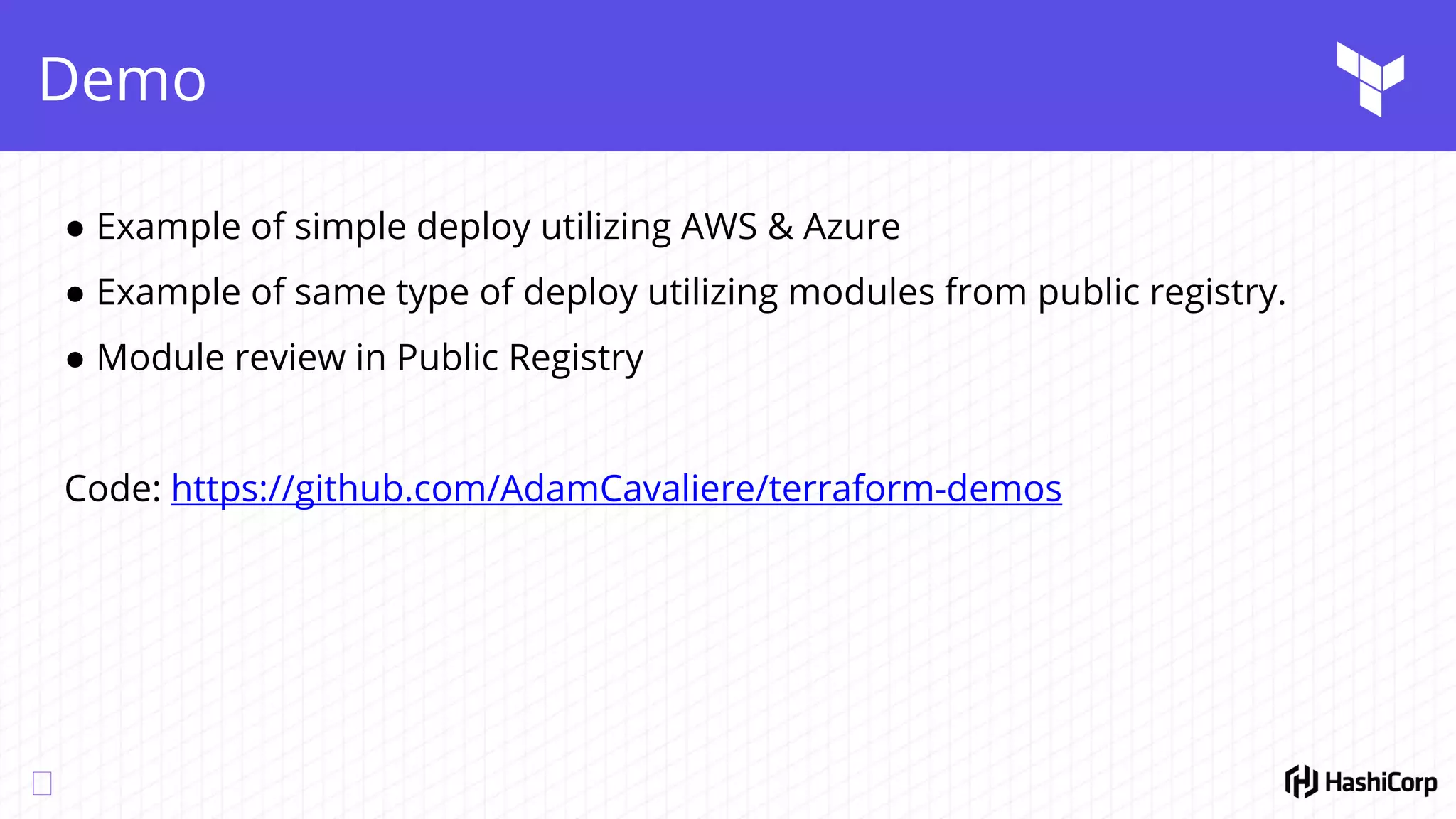

18. Demo
● Example of simple deploy utilizing AWS & Azure
● Example of same type of deploy utilizing modules from public registry.
● Module review in Public Registry
Code: https://github.com/AdamCavaliere/terraform-demos

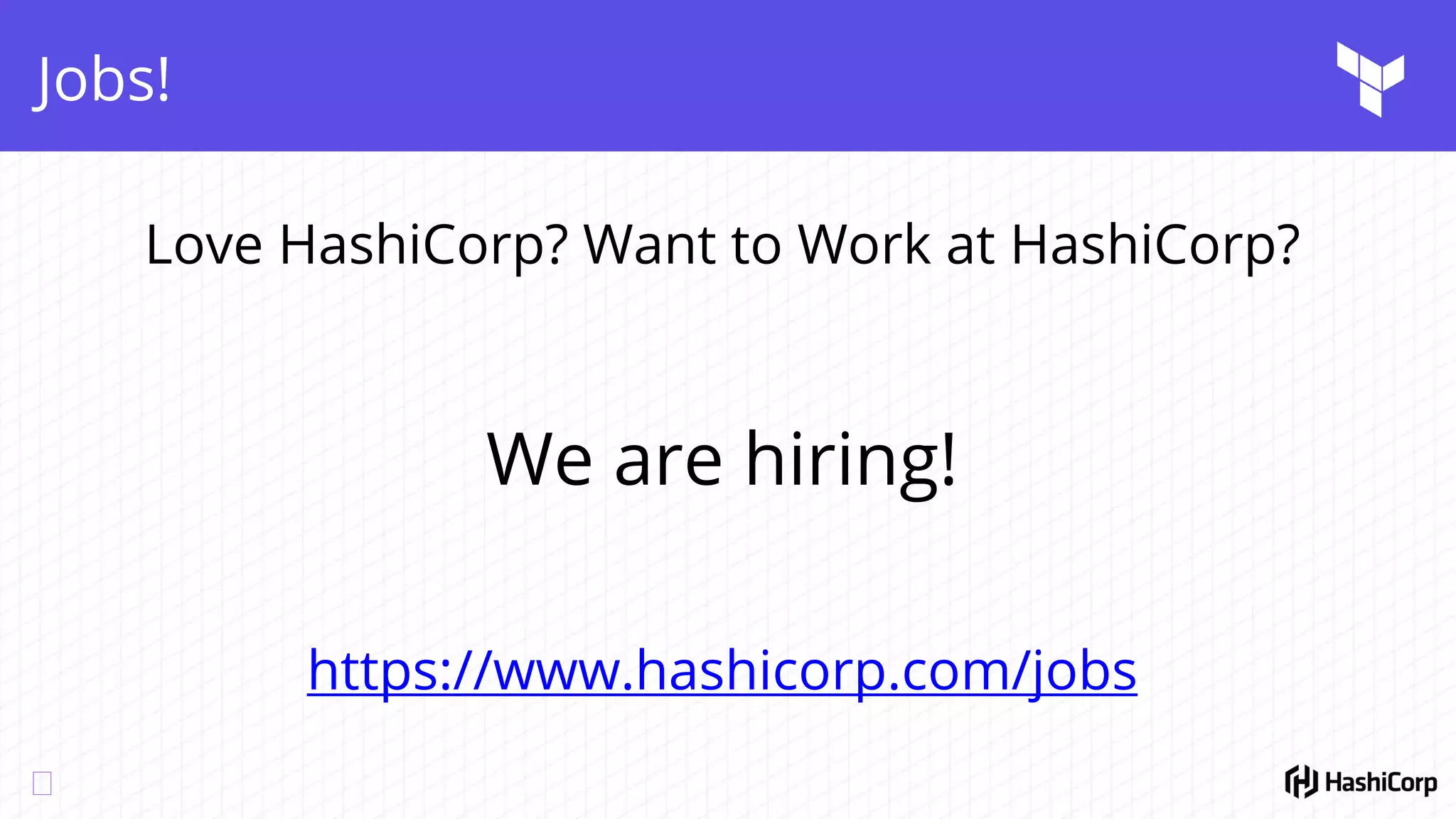

19. Jobs!
Love HashiCorp? Want to Work at HashiCorp?
We are hiring!
https://www.hashicorp.com/jobs

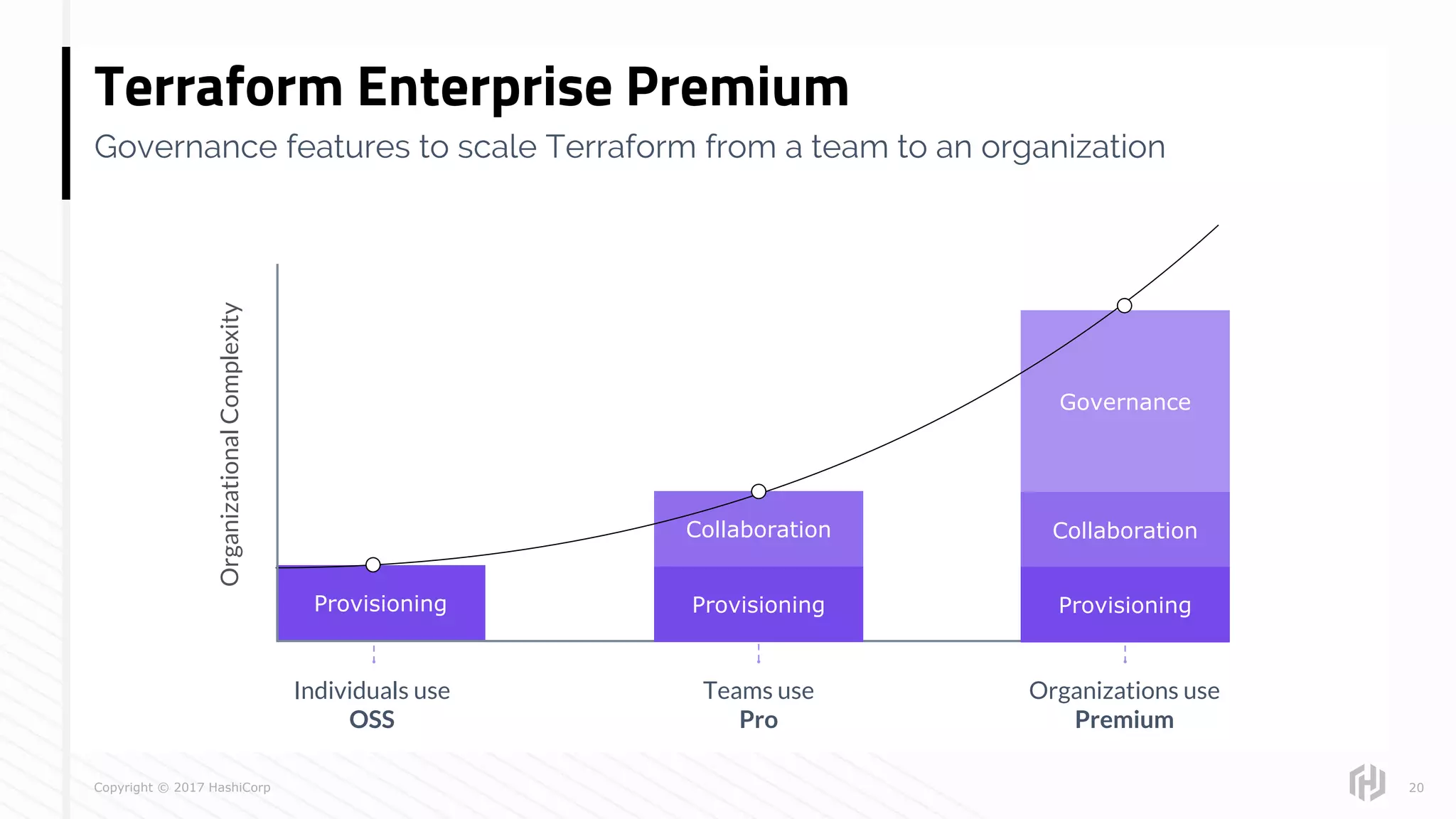

20. Copyright © 2017 HashiCorp
Collaboration
Governance
Provisioning
Terraform Enterprise Premium
20
Governance features to scale Terraform from a team to an organization
Individuals use
OSS
Teams use
Pro
Organizations use
Premium
Provisioning Provisioning
Collaboration
OrganizationalComplexity

21. Copyright © 2018 HashiCorp 21
Terraform Enterprise
