This document discusses key concepts and steps for project scheduling including: 1. Developing a list of project activities and sequencing them based on logical relationships and dependencies. 2. Determining activity durations using estimating techniques and developing a schedule that accounts for activity sequences, resource needs, and duration estimates. 3. Constructing a network diagram to illustrate activity relationships and performing critical path analysis to determine the minimum project duration. 4. Controlling and updating the project schedule as the project progresses by managing changes.

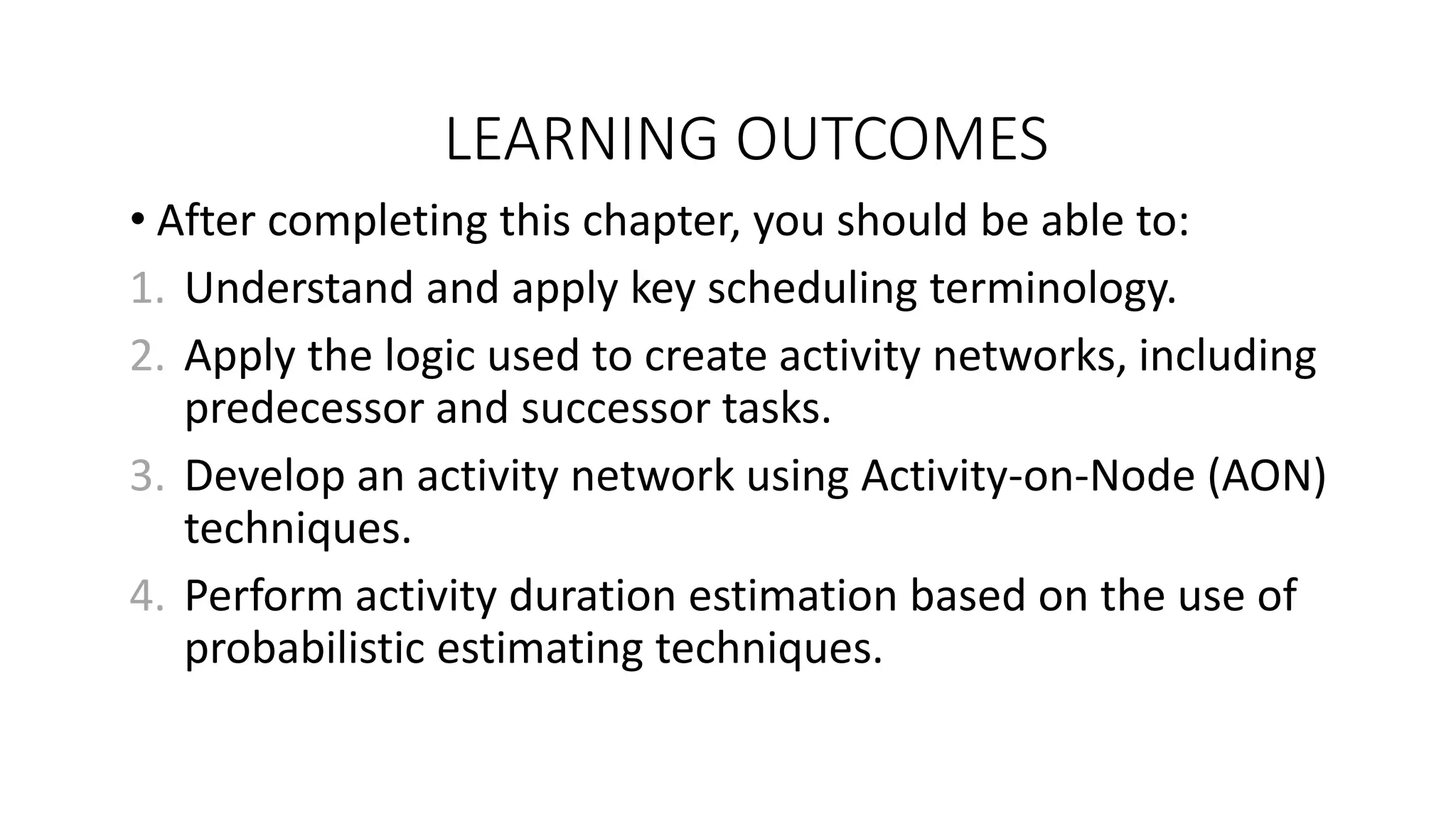

1. LEARNING OUTCOMES
• After completing this chapter, you should be able to:
1. Understand and apply key scheduling terminology.
2. Apply the logic used to create activity networks, including
predecessor and successor tasks.
3. Develop an activity network using Activity-on-Node (AON)
techniques.
4. Perform activity duration estimation based on the use of
probabilistic estimating techniques.

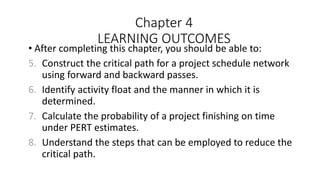

2. Chapter 4
LEARNING OUTCOMES
• After completing this chapter, you should be able to:
5. Construct the critical path for a project schedule network
using forward and backward passes.
6. Identify activity float and the manner in which it is
determined.
7. Calculate the probability of a project finishing on time
under PERT estimates.
8. Understand the steps that can be employed to reduce the
critical path.

3. PMBOK Core Concepts
Project Management Body of Knowledge (PMB0K) covered in this chapter includes:
1. Plan Schedule Management.
2. Define Activities .
3. Sequence Activities .
4. Estimate Activity Resources.
5. Estimate Activity Durations.
6. Develop Schedule.
7. Control Schedule.
3
Copyright ©2016 Pearson Education, Ltd.

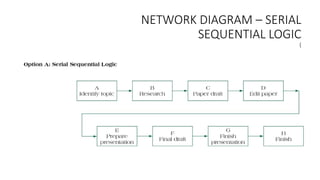

4. NETWORK DIAGRAM – SERIAL
SEQUENTIAL LOGIC
(

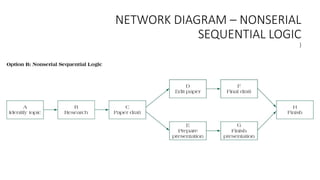

5. NETWORK DIAGRAM – NONSERIAL
SEQUENTIAL LOGIC
)

6. Project Scheduling Terms
• Project Network Diagram: Any schematic display of the logical
relationships of project activities.
• Path: A sequence of activities defined by the project network logic.
• Event: A point when an activity is either started or completed.
• Node: One of the defining points of a network; a junction point joined
to some or all of the other dependency lines (paths).

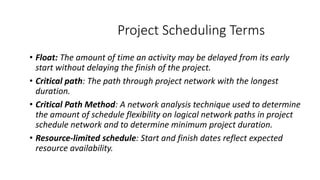

7. Project Scheduling Terms
• Float: The amount of time an activity may be delayed from its early
start without delaying the finish of the project.
• Critical path: The path through project network with the longest
duration.
• Critical Path Method: A network analysis technique used to determine
the amount of schedule flexibility on logical network paths in project
schedule network and to determine minimum project duration.
• Resource-limited schedule: Start and finish dates reflect expected
resource availability.

8. AOA Versus AON
The same mini-project is shown with activities on arc…
C
E
D
B F
E
C
D
B F
…and activities on node.

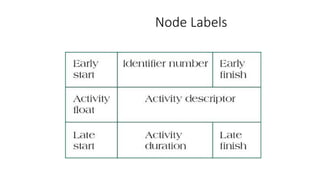

9. Node Labels

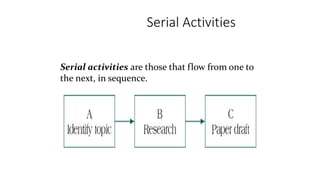

10. Serial Activities
Serial activities are those that flow from one to
the next, in sequence.

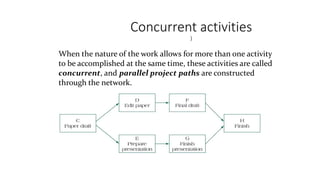

11. Concurrent activities
)
When the nature of the work allows for more than one activity
to be accomplished at the same time, these activities are called
concurrent, and parallel project paths are constructed
through the network.

12. Merge Activity

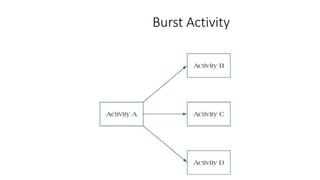

13. Burst Activity

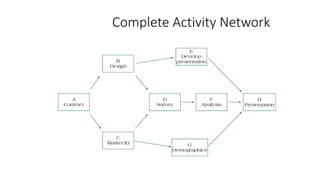

14. Complete Activity Network

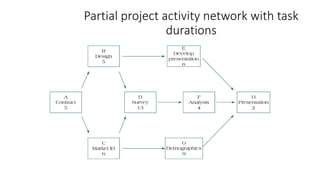

15. Partial project activity network with task
durations

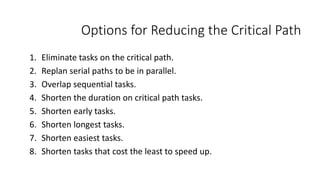

16. Options for Reducing the Critical Path
1. Eliminate tasks on the critical path.
2. Replan serial paths to be in parallel.
3. Overlap sequential tasks.
4. Shorten the duration on critical path tasks.
5. Shorten early tasks.
6. Shorten longest tasks.
7. Shorten easiest tasks.
8. Shorten tasks that cost the least to speed up.

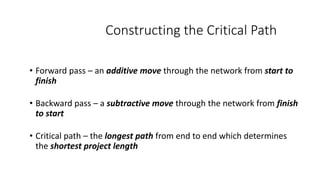

17. Constructing the Critical Path
• Forward pass – an additive move through the network from start to
finish
• Backward pass – a subtractive move through the network from finish
to start
• Critical path – the longest path from end to end which determines
the shortest project length

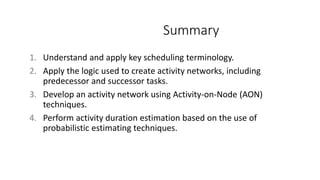

18. Summary
1. Understand and apply key scheduling terminology.
2. Apply the logic used to create activity networks, including
predecessor and successor tasks.
3. Develop an activity network using Activity-on-Node (AON)
techniques.
4. Perform activity duration estimation based on the use of
probabilistic estimating techniques.

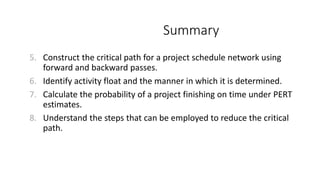

19. Summary
5. Construct the critical path for a project schedule network using
forward and backward passes.
6. Identify activity float and the manner in which it is determined.
7. Calculate the probability of a project finishing on time under PERT
estimates.
8. Understand the steps that can be employed to reduce the critical
path.

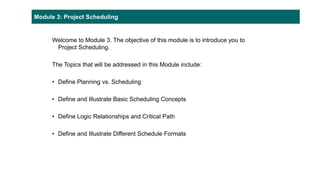

20. Module 3: Project Scheduling
Welcome to Module 3. The objective of this module is to introduce you to
Project Scheduling.
The Topics that will be addressed in this Module include:
• Define Planning vs. Scheduling
• Define and Illustrate Basic Scheduling Concepts
• Define Logic Relationships and Critical Path
• Define and Illustrate Different Schedule Formats

21. Module 3 – Project Scheduling
Project Scheduling
Project scheduling in the earned value management system involves a clear,
five step process. This process aids managers in determining the project
schedule and, eventually, the project schedule baseline. The process steps
are:
1. Develop the list of project activities
2. Sequence the list of project activities
3. Determine the relationships between activities
4. Establish the duration for each activities
5. Determine the project duration (start and completion dates)
For the purpose of explaining the process in detail, we will use the smaller
BEST Management Books project from Module 2 instead of the ACME
House Building project. At the end of the process will will look at the
outcome of using this process on the ACME House Building project.

22. Project Scheduling

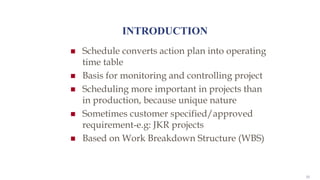

23. 23
INTRODUCTION
 Schedule converts action plan into operating
time table
 Basis for monitoring and controlling project
 Scheduling more important in projects than
in production, because unique nature
 Sometimes customer specified/approved
requirement-e.g: JKR projects
 Based on Work Breakdown Structure (WBS)

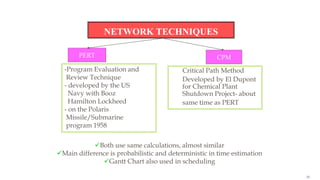

24. 24
NETWORK TECHNIQUES
PERT CPM
-Program Evaluation and
Review Technique
- developed by the US
Navy with Booz
Hamilton Lockheed
- on the Polaris
Missile/Submarine
program 1958
Critical Path Method
Developed by El Dupont
for Chemical Plant
Shutdown Project- about
same time as PERT
Both use same calculations, almost similar
Main difference is probabilistic and deterministic in time estimation
Gantt Chart also used in scheduling

25. 25
DEFINITION OF TERMS IN A NETWORK
 Activity : any portions of project (tasks) which required
by project, uses up resource and consumes
time – may involve labor, paper work,
contractual negotiations, machinery operations
Activity on Arrow (AOA) showed as arrow, AON
– Activity on Node
 Event : beginning or ending points of one or more
activities, instantaneous point in time, also
called ‘nodes’
 Network : Combination of all project activities and the events
ACTIVITY
PRECEEDING SUCCESSOR
EVENT

26. 26
Sequence of activities
 Can start work on activities A and B anytime, since
neither of these activities depends upon the
completion of prior activities.
 Activity C cannot be started until activity B has been
completed
 Activity D cannot be started until both activities A
and C have been completed.
 The graphical representation (next slide) is referred to
as the PERT/CPM network

27. 27
Network of Four Activities
1 3 4
2
A
B C
D
Arcs indicate project activities
Nodes correspond to the beginning
and ending of activities

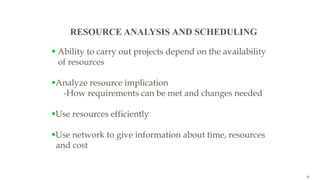

28. 28
RESOURCE ANALYSIS AND SCHEDULING
 Ability to carry out projects depend on the availability
of resources
Analyze resource implication
-How requirements can be met and changes needed
Use resources efficiently
Use network to give information about time, resources
and cost

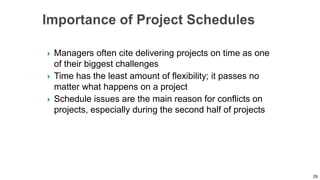

29.  Managers often cite delivering projects on time as one
of their biggest challenges
 Time has the least amount of flexibility; it passes no
matter what happens on a project
 Schedule issues are the main reason for conflicts on
projects, especially during the second half of projects
29

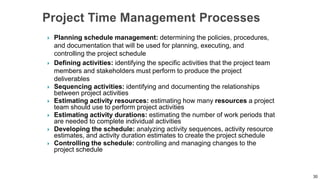

30.  Planning schedule management: determining the policies, procedures,
and documentation that will be used for planning, executing, and
controlling the project schedule
 Defining activities: identifying the specific activities that the project team
members and stakeholders must perform to produce the project
deliverables
 Sequencing activities: identifying and documenting the relationships
between project activities
 Estimating activity resources: estimating how many resources a project
team should use to perform project activities
 Estimating activity durations: estimating the number of work periods that
are needed to complete individual activities
 Developing the schedule: analyzing activity sequences, activity resource
estimates, and activity duration estimates to create the project schedule
 Controlling the schedule: controlling and managing changes to the
project schedule
30

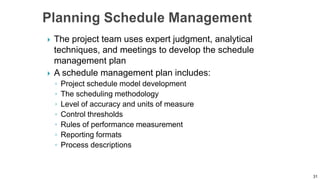

31.  The project team uses expert judgment, analytical
techniques, and meetings to develop the schedule
management plan
 A schedule management plan includes:
◦ Project schedule model development
◦ The scheduling methodology
◦ Level of accuracy and units of measure
◦ Control thresholds
◦ Rules of performance measurement
◦ Reporting formats
◦ Process descriptions
31

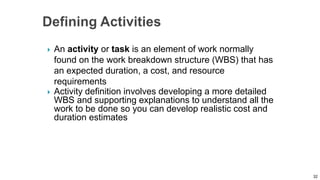

32.  An activity or task is an element of work normally
found on the work breakdown structure (WBS) that has
an expected duration, a cost, and resource
requirements
 Activity definition involves developing a more detailed
WBS and supporting explanations to understand all the
work to be done so you can develop realistic cost and
duration estimates
32

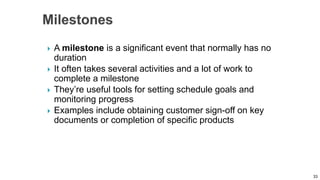

33.  A milestone is a significant event that normally has no
duration
 It often takes several activities and a lot of work to
complete a milestone
 They’re useful tools for setting schedule goals and
monitoring progress
 Examples include obtaining customer sign-off on key
documents or completion of specific products
33

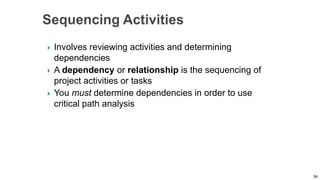

34.  Involves reviewing activities and determining
dependencies
 A dependency or relationship is the sequencing of
project activities or tasks
 You must determine dependencies in order to use
critical path analysis
34

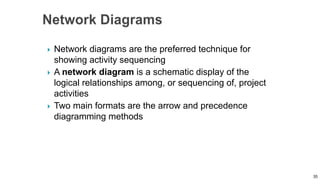

35.  Network diagrams are the preferred technique for
showing activity sequencing
 A network diagram is a schematic display of the
logical relationships among, or sequencing of, project
activities
 Two main formats are the arrow and precedence
diagramming methods
35

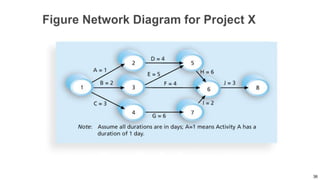

36. 36

37.  Also called activity-on-arrow (AOA) network diagrams
 Activities are represented by arrows
 Nodes or circles are the starting and ending points of
activities
 Can only show finish-to-start dependencies
37

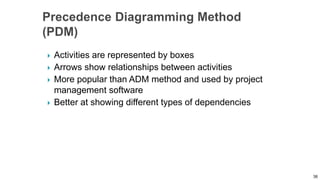

38.  Activities are represented by boxes
 Arrows show relationships between activities
 More popular than ADM method and used by project
management software
 Better at showing different types of dependencies
38

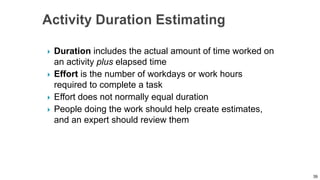

39.  Duration includes the actual amount of time worked on
an activity plus elapsed time
 Effort is the number of workdays or work hours
required to complete a task
 Effort does not normally equal duration
 People doing the work should help create estimates,
and an expert should review them
39

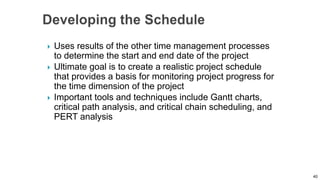

40.  Uses results of the other time management processes
to determine the start and end date of the project
 Ultimate goal is to create a realistic project schedule
that provides a basis for monitoring project progress for
the time dimension of the project
 Important tools and techniques include Gantt charts,
critical path analysis, and critical chain scheduling, and
PERT analysis
40

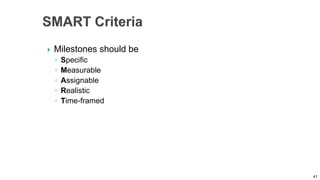

41.  Milestones should be
◦ Specific
◦ Measurable
◦ Assignable
◦ Realistic
◦ Time-framed
41

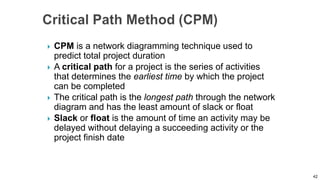

42.  CPM is a network diagramming technique used to
predict total project duration
 A critical path for a project is the series of activities
that determines the earliest time by which the project
can be completed
 The critical path is the longest path through the network
diagram and has the least amount of slack or float
 Slack or float is the amount of time an activity may be
delayed without delaying a succeeding activity or the
project finish date
42

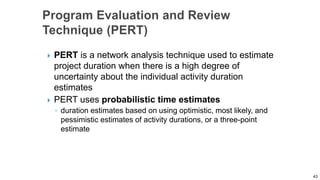

43.  PERT is a network analysis technique used to estimate
project duration when there is a high degree of
uncertainty about the individual activity duration
estimates
 PERT uses probabilistic time estimates
◦ duration estimates based on using optimistic, most likely, and
pessimistic estimates of activity durations, or a three-point
estimate
43

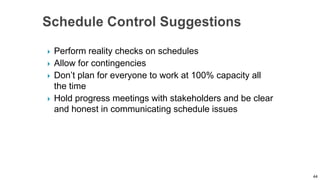

44.  Perform reality checks on schedules
 Allow for contingencies
 Don’t plan for everyone to work at 100% capacity all
the time
 Hold progress meetings with stakeholders and be clear
and honest in communicating schedule issues
44

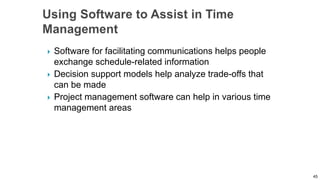

45.  Software for facilitating communications helps people
exchange schedule-related information
 Decision support models help analyze trade-offs that
can be made
 Project management software can help in various time
management areas
45

46.  Many people misuse project management software
because they don’t understand important concepts and
have not had training
 You must enter dependencies to have dates adjust
automatically and to determine the critical path
 You must enter actual schedule information to compare
planned and actual progress
46

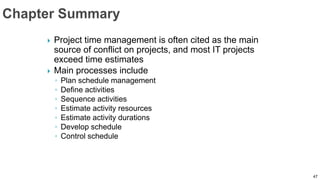

47.  Project time management is often cited as the main
source of conflict on projects, and most IT projects
exceed time estimates
 Main processes include
◦ Plan schedule management
◦ Define activities
◦ Sequence activities
◦ Estimate activity resources
◦ Estimate activity durations
◦ Develop schedule
◦ Control schedule
47
