Chapter 1
INTRODUCTION AND BASIC
CONCEPTS
Heat and Mass Transfer: Fundamentals & Applications
Fourth Edition
Yunus A. Cengel, Afshin J. Ghajar
McGraw-Hill, 2011
Abdul moiz Dota
Dept.Food Engineering
University of Agriculture Faisalabad
2

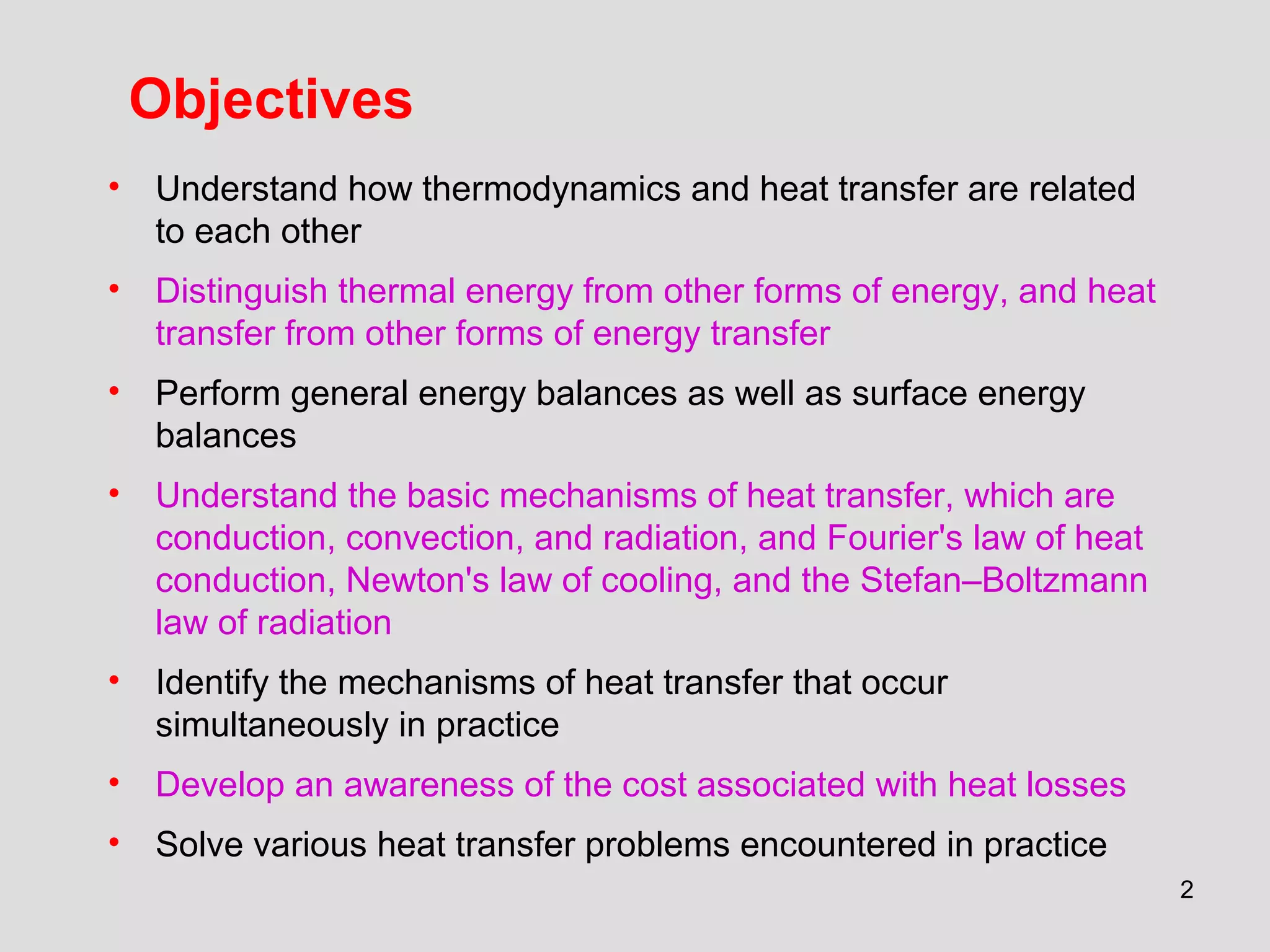

Objectives
• Understand how thermodynamics and heat transfer are related
to each other
• Distinguish thermal energy from other forms of energy, and heat
transfer from other forms of energy transfer
• Perform general energy balances as well as surface energy
balances
• Understand the basic mechanisms of heat transfer, which are
conduction, convection, and radiation, and Fourier's law of heat
conduction, Newton's law of cooling, and the Stefan–Boltzmann
law of radiation
• Identify the mechanisms of heat transfer that occur
simultaneously in practice
• Develop an awareness of the cost associated with heat losses
• Solve various heat transfer problems encountered in practice
3
THERMODYNAMICS AND HEAT TRANSFER
• Heat: The form of energy that can be transferred from one
system to another as a result of temperature difference.
• Thermodynamics is concerned with the amount of heat
transfer as a system undergoes a process from one
equilibrium state to another.
• Heat Transfer deals with the determination of the rates of
such energy transfers as well as variation of temperature.
• The transfer of energy as heat is always from the higher-
temperature medium to the lower-temperature one.
• Heat transfer stops when the two mediums reach the same
temperature.
• Heat can be transferred in three different modes:
conduction, convection, radiation
4
5
Application Areas of Heat Transfer
5
6
Historical Background Kinetic theory: Treats molecules as
tiny balls that are in motion and thus
possess kinetic energy.
Heat: The energy associated with the
random motion of atoms and
molecules.
Caloric theory: Heat is a fluidlike
substance called the caloric that is a
massless, colorless, odorless, and
tasteless substance that can be
poured from one body into another
It was only in the middle of the
nineteenth century that we had a true
physical understanding of the nature of
heat.
Careful experiments of the Englishman
James P. Joule published in 1843
convinced the skeptics that heat was
not a substance after all, and thus put
the caloric theory to rest.
7
8
ENGINEERING HEAT TRANSFER
Heat transfer equipment such as heat exchangers, boilers, condensers, radiators,
heaters, furnaces, refrigerators, and solar collectors are designed primarily on the
basis of heat transfer analysis.
The heat transfer problems encountered in practice can be considered in two groups:
(1) rating and (2) sizing problems.
The rating problems deal with the determination of the heat transfer rate for an
existing system at a specified temperature difference.
The sizing problems deal with the determination of the size of a system in order to
transfer heat at a specified rate for a specified temperature difference.
An engineering device or process can be studied either experimentally (testing and
taking measurements) or analytically (by analysis or calculations).
The experimental approach has the advantage that we deal with the actual physical
system, and the desired quantity is determined by measurement, within the limits of
experimental error. However, this approach is expensive, timeconsuming, and often
impractical.
The analytical approach (including the numerical approach) has the advantage that it
is fast and inexpensive, but the results obtained are subject to the accuracy of the
assumptions, approximations, and idealizations made in the analysis.
9
Modeling in Engineering
10
• Energy can exist in numerous forms such as:
 thermal,
 mechanical,
 kinetic,
 potential,
 electrical,
 magnetic,
 chemical,
 nuclear.
• Their sum constitutes the total energy E (or e on a unit
mass basis) of a system.
• The sum of all microscopic forms of energy is called the
internal energy of a system.
HEAT AND OTHER FORMS OF ENERGY
11
• Internal energy: May be viewed as the sum of the kinetic and
potential energies of the molecules.
• Sensible heat: The kinetic energy of the molecules.
• Latent heat: The internal energy associated with the phase of a
system.
• Chemical (bond) energy: The internal energy associated with
the atomic bonds in a molecule.
• Nuclear energy: The internal energy associated with the bonds
within the nucleus of the atom itself.
What is thermal energy?
What is the difference between thermal
energy and heat?
12
Internal Energy and Enthalpy
• In the analysis of systems
that involve fluid flow, we
frequently encounter the
combination of properties u
and Pv.
• The combination is defined
as enthalpy (h = u + Pv).
• The term Pv represents the
flow energy of the fluid (also
called the flow work).
13
Specific Heats of Gases, Liquids, and Solids
• Specific heat: The energy required to
raise the temperature of a unit mass of a
substance by one degree.
• Two kinds of specific heats:
 specific heat at constant volume cv
 specific heat at constant pressure cp
• The specific heats of a substance, in
general, depend on two independent
properties such as temperature and
pressure.
• At low pressures all real gases approach
ideal gas behavior, and therefore their
specific heats depend on temperature
only.
14
• Incompressible substance: A
substance whose specific volume (or
density) does not change with
temperature or pressure.
• The constant-volume and constant-
pressure specific heats are identical
for incompressible substances.
• The specific heats of incompressible
substances depend on temperature
only.
15
Energy Transfer
Energy can be transferred to or from a given
mass by two mechanisms:
heat transfer and work.
Heat transfer rate: The amount of heat
transferred per unit time.
Heat flux: The rate of heat transfer per unit
area normal to the direction of heat transfer.
when is constant:
Power: The work
done per unit time.
16
THE FIRST LAW OF THERMODYNAMICS
The energy balance for any
system undergoing any process
in the rate form
The first law of thermodynamics (conservation of energy
principle) states that energy can neither be created nor destroyed
during a process; it can only change forms.
The net change (increase or
decrease) in the total energy of
the system during a process is
equal to the difference between
the total energy entering and the
total energy leaving the system
during that process.
17
In heat transfer problems it is convenient to
write a heat balance and to treat the
conversion of nuclear, chemical,
mechanical, and electrical energies into
thermal energy as heat generation.
18
Energy Balance for Closed Systems (Fixed Mass)
A closed system consists of a fixed mass.
The total energy E for most systems
encountered in practice consists of the
internal energy U.
This is especially the case for stationary
systems since they don’t involve any
changes in their velocity or elevation during
a process.
19
Energy Balance for
Steady-Flow Systems
A large number of engineering devices such as
water heaters and car radiators involve mass flow
in and out of a system, and are modeled as
control volumes.
Most control volumes are analyzed under steady
operating conditions.
The term steady means no change with time at a
specified location.
Mass flow rate: The amount of mass flowing
through a cross section of a flow device per unit
time.
Volume flow rate: The volume of a fluid flowing
through a pipe or duct per unit time.
20
Surface Energy Balance
This relation is valid for both steady and
transient conditions, and the surface
energy balance does not involve heat
generation since a surface does not
have a volume.
A surface contains no volume or mass,
and thus no energy. Thereore, a surface
can be viewed as a fictitious system
whose energy content remains constant
during a process.
21
HEAT TRANSFER MECHANISMS
• Heat as the form of energy that can be transferred from one
system to another as a result of temperature difference.
• A thermodynamic analysis is concerned with the amount of heat
transfer as a system undergoes a process from one equilibrium
state to another.
• The science that deals with the determination of the rates of such
energy transfers is the heat transfer.
• The transfer of energy as heat is always from the higher-
temperature medium to the lower-temperature one, and heat
transfer stops when the two mediums reach the same temperature.
• Heat can be transferred in three basic modes:
 conduction
 convection
 radiation
• All modes of heat transfer require the existence of a temperature
difference.
22
Heat conduction
through a large plane
wall of thickness ∆x
and area A.
CONDUCTION
Conduction: The transfer of energy from the more
energetic particles of a substance to the adjacent less
energetic ones as a result of interactions between the
particles.
In gases and liquids, conduction is due to the
collisions and diffusion of the molecules during their
random motion.
In solids, it is due to the combination of vibrations of
the molecules in a lattice and the energy transport by
free electrons.
The rate of heat conduction through a plane layer is
proportional to the temperature difference across the
layer and the heat transfer area, but is inversely
proportional to the thickness of the layer.
23
When x → 0 Fourier’s law of
heat conduction
Thermal conductivity, k: A measure of the ability
of a material to conduct heat.
Temperature gradient dT/dx: The slope of the
temperature curve on a T-x diagram.
Heat is conducted in the direction of decreasing
temperature, and the temperature gradient becomes
negative when temperature decreases with
increasing x. The negative sign in the equation
ensures that heat transfer in the positive x direction
is a positive quantity.
The rate of heat conduction
through a solid is directly
proportional to its thermal
conductivity.
In heat conduction
analysis, A represents
the area normal to the
direction of heat
transfer.
24
25
Thermal
Conductivity
Thermal conductivity:
The rate of heat transfer
through a unit thickness
of the material per unit
area per unit
temperature difference.
The thermal conductivity
of a material is a
measure of the ability of
the material to conduct
heat.
A high value for thermal
conductivity indicates
that the material is a
good heat conductor,
and a low value indicates
that the material is a
poor heat conductor or
insulator.
A simple experimental setup
to determine the thermal
conductivity of a material.
26
The range of
thermal
conductivity of
various
materials at
room
temperature.
27
The mechanisms of heat
conduction in different
phases of a substance.
The thermal conductivities of gases such
as air vary by a factor of 104
from those of
pure metals such as copper.
Pure crystals and metals have the highest
thermal conductivities, and gases and
insulating materials the lowest.
28
The variation of
the thermal
conductivity of
various solids,
liquids, and gases
with temperature.
29
Thermal Diffusivity
cp Specific heat, J/kg · °C: Heat capacity
per unit mass
ρcp Heat capacity, J/m3
·°C: Heat capacity
per unit volume
α Thermal diffusivity, m2
/s: Represents
how fast heat diffuses through a material
A material that has a high thermal
conductivity or a low heat capacity will
obviously have a large thermal diffusivity.
The larger the thermal diffusivity, the faster
the propagation of heat into the medium.
A small value of thermal diffusivity means
that heat is mostly absorbed by the
material and a small amount of heat is
conducted further.
30
CONVECTION
Convection: The mode of
energy transfer between a
solid surface and the
adjacent liquid or gas that is
in motion, and it involves
the combined effects of
conduction and fluid motion.
The faster the fluid motion,
the greater the convection
heat transfer.
In the absence of any bulk
fluid motion, heat transfer
between a solid surface and
the adjacent fluid is by pure
conduction.
Heat transfer from a hot surface to air
by convection.
31
Forced convection: If
the fluid is forced to flow
over the surface by
external means such as
a fan, pump, or the wind.
Natural (or free)
convection: If the fluid
motion is caused by
buoyancy forces that are
induced by density
differences due to the
variation of temperature
in the fluid.
The cooling of a boiled egg by
forced and natural convection.
Heat transfer processes that involve change of phase of a fluid are also
considered to be convection because of the fluid motion induced during
the process, such as the rise of the vapor bubbles during boiling or the
fall of the liquid droplets during condensation.
32
Newton’s law of cooling
h convection heat transfer coefficient, W/m2
· °C
As the surface area through which convection heat transfer takes place
Ts the surface temperature
T∞ the temperature of the fluid sufficiently far from the surface.
The convection heat transfer
coefficient h is not a
property of the fluid.
It is an experimentally
determined parameter
whose value depends on all
the variables influencing
convection such as
- the surface geometry
- the nature of fluid motion
- the properties of the fluid
- the bulk fluid velocity
33
34
RADIATION
• Radiation: The energy emitted by matter in the form of electromagnetic
waves (or photons) as a result of the changes in the electronic
configurations of the atoms or molecules.
• Unlike conduction and convection, the transfer of heat by radiation does
not require the presence of an intervening medium.
• In fact, heat transfer by radiation is fastest (at the speed of light) and it
suffers no attenuation in a vacuum. This is how the energy of the sun
reaches the earth.
• In heat transfer studies we are interested in thermal radiation, which is
the form of radiation emitted by bodies because of their temperature.
• All bodies at a temperature above absolute zero emit thermal radiation.
• Radiation is a volumetric phenomenon, and all solids, liquids, and
gases emit, absorb, or transmit radiation to varying degrees.
• However, radiation is usually considered to be a surface phenomenon
for solids.
35
Stefan–Boltzmann law
σ = 5.670 × 10−8
W/m2
· K4
Stefan–Boltzmann constant
Blackbody: The idealized surface that emits radiation at the maximum rate.
Blackbody radiation represents the maximum
amount of radiation that can be emitted from
a surface at a specified temperature.
Emissivity ε : A measure of how closely
a surface approximates a blackbody for
which ε = 1 of the surface. 0≤ ε ≤ 1.
Radiation emitted
by real surfaces
36
Absorptivity α: The fraction of the radiation energy incident on a
surface that is absorbed by the surface. 0≤ α ≤ 1
A blackbody absorbs the entire radiation incident on it (α = 1).
Kirchhoff’s law: The emissivity and the absorptivity of a surface at
a given temperature and wavelength are equal.
The absorption of radiation incident on
an opaque surface of absorptivity .
37
Radiation heat transfer between a surface
and the surfaces surrounding it.
Net radiation heat transfer:
The difference between the
rates of radiation emitted by the
surface and the radiation
absorbed.
The determination of the net
rate of heat transfer by radiation
between two surfaces is a
complicated matter since it
depends on
• the properties of the surfaces
• their orientation relative to
each other
• the interaction of the medium
between the surfaces with
radiation
Radiation is usually
significant relative to
conduction or natural
convection, but
negligible relative to
forced convection.
When a surface is completely enclosed by a
much larger (or black) surface at temperature
Tsurr separated by a gas (such as air) that
does not intervene with radiation, the net rate
of radiation heat transfer between these
two surfaces is given by
38
Combined heat transfer coefficient hcombined
Includes the effects of both convection and radiation
When radiation and convection occur
simultaneously between a surface and a gas:
39
SIMULTANEOUS HEAT
TRANSFER MECHANISMS
Although there are three mechanisms
of heat transfer, a medium may involve
only two of them simultaneously.
Heat transfer is only by conduction in opaque solids,
but by conduction and radiation in semitransparent
solids.
A solid may involve conduction and radiation but not
convection. A solid may involve convection and/or
radiation on its surfaces exposed to a fluid or other
surfaces.
Heat transfer is by conduction and possibly by
radiation in a still fluid (no bulk fluid motion) and by
convection and radiation in a flowing fluid.
In the absence of radiation, heat transfer through a
fluid is either by conduction or convection, depending
on the presence of any bulk fluid motion.
Convection = Conduction + Fluid motion
Heat transfer through a vacuum is by radiation.
Most gases between two solid surfaces
do not interfere with radiation.
Liquids are usually strong absorbers of
radiation.
40
PROBLEM-SOLVING TECHNIQUE
• Step 1: Problem Statement
• Step 2: Schematic
• Step 3: Assumptions and Approximations
• Step 4: Physical Laws
• Step 5: Properties
• Step 6: Calculations
• Step 7: Reasoning, Verification, and Discussion
41
42
43
EES (Engineering Equation Solver)
(Pronounced as ease): EES is a program that
solves systems of linear or nonlinear
algebraic or differential equations
numerically. It has a large library of built-in
thermodynamic property functions as well as
mathematical functions. Unlike some
software packages, EES does not solve
engineering problems; it only solves the
equations supplied by the user.
Engineering Software Packages
Thinking that a person who can use the
engineering software packages without
proper training on fundamentals can
practice engineering is like thinking that a
person who can use a wrench can work as
a car mechanic.
44
A Remark on Significant Digits
In engineering calculations, the
information given is not known to
more than a certain number of
significant digits, usually three
digits.
Consequently, the results
obtained cannot possibly be
accurate to more significant
digits.
Reporting results in more
significant digits implies greater
accuracy than exists, and it
should be avoided.
A result with more significant
digits than that of given data
falsely implies more accuracy.
45
Summary
• Thermodynamics and Heat Transfer
 Application areas of heat transfer
 Historical background
• Engineering Heat Transfer
 Modeling in engineering
• Heat and Other Forms of Energy
 Specific heats of gases, liquids, and solids
 Energy transfer
• The First Law of Thermodynamics
 Energy balance for closed systems (Fixed Mass)
 Energy balance for steady-flow systems
 Surface energy balance
46
• Heat Transfer Mechanisms
• Conduction
 Fourier’s law of heat conduction
 Thermal Conductivity
 Thermal Diffusivity
• Convection
 Newton’s law of cooling
• Radiation
 Stefan–Boltzmann law
• Simultaneous Heat Transfer Mechanisms
• Problem Solving Technique
 Engineering software packages
 Engineering Equation Solver (EES)
 A remark on significant digits

More Related Content

What's hot

Heat 4e chap11_lecture
Heat 4e chap11_lectureHeat 4e chap11_lecture
Heat 4e chap11_lecture
Abdul Moiz Dota

Chapter 7 EXTERNAL FORCED CONVECTION
Chapter 7EXTERNAL FORCED CONVECTIONChapter 7EXTERNAL FORCED CONVECTION
Chapter 7 EXTERNAL FORCED CONVECTION
Abdul Moiz Dota

Chapter 7: Heat Exchanger
Chapter 7: Heat ExchangerChapter 7: Heat Exchanger
Chapter 7: Heat Exchanger
Debre Markos University

267258402 heat-4e-chap03-lecture
267258402 heat-4e-chap03-lecture267258402 heat-4e-chap03-lecture
267258402 heat-4e-chap03-lecture
Fahad Gmail Gmail

One-dimensional conduction-with_no_heat_generation
One-dimensional conduction-with_no_heat_generationOne-dimensional conduction-with_no_heat_generation
One-dimensional conduction-with_no_heat_generation
tmuliya

Chap09 ht 3e natural convection
Chap09 ht 3e natural convectionChap09 ht 3e natural convection
Chap09 ht 3e natural convection
Bening Kambuna

Heat 4e chap09_lecture
Heat 4e chap09_lectureHeat 4e chap09_lecture
Heat 4e chap09_lecture
Abdul Moiz Dota

Boiling and condensation
Boiling and condensationBoiling and condensation
Boiling and condensation
Vijay G

Transient heat-conduction-Part-I
Transient heat-conduction-Part-ITransient heat-conduction-Part-I
Transient heat-conduction-Part-I
tmuliya

Ch2 Heat transfer - conduction
Ch2 Heat transfer - conductionCh2 Heat transfer - conduction
Ch2 Heat transfer - conduction
eky047

Overal Heat Transfer Coefficient
Overal Heat Transfer CoefficientOveral Heat Transfer Coefficient
Overal Heat Transfer Coefficient
Dheirya Joshi

Heat 4e chap11_lecture
Heat 4e chap11_lectureHeat 4e chap11_lecture
Heat 4e chap11_lecture
Abdul Moiz Dota

Chapter 1 introduction of heat transfer
Chapter 1 introduction of heat transferChapter 1 introduction of heat transfer
Chapter 1 introduction of heat transfer
Ph Yiu

Heat transfer chapter one and two
Heat transfer chapter one and twoHeat transfer chapter one and two
Heat transfer chapter one and two
Debre Markos University

Lecture 12 heat transfer.
Lecture 12   heat transfer.Lecture 12   heat transfer.
Lecture 12 heat transfer.
Albania Energy Association

Heat exchanger and its type,ntu method
Heat exchanger and its type,ntu methodHeat exchanger and its type,ntu method
Heat exchanger and its type,ntu method
TensaeAdisu

2. Conduction Equations
2. Conduction Equations2. Conduction Equations
Heat 4e chap12_lecture
Heat 4e chap12_lectureHeat 4e chap12_lecture
Heat 4e chap12_lecture
Abdul Moiz Dota

Heat conduction through a plane wall
Heat conduction through a plane wallHeat conduction through a plane wall
Heat conduction through a plane wall
Manipal Academy of Higher Education (MAHE)

Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...
Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...
Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...
tmuliya


What's hot (20)

Heat 4e chap11_lecture
Heat 4e chap11_lectureHeat 4e chap11_lecture
Heat 4e chap11_lecture

Chapter 7 EXTERNAL FORCED CONVECTION
Chapter 7EXTERNAL FORCED CONVECTIONChapter 7EXTERNAL FORCED CONVECTION
Chapter 7 EXTERNAL FORCED CONVECTION

Chapter 7: Heat Exchanger
Chapter 7: Heat ExchangerChapter 7: Heat Exchanger
Chapter 7: Heat Exchanger

267258402 heat-4e-chap03-lecture
267258402 heat-4e-chap03-lecture267258402 heat-4e-chap03-lecture
267258402 heat-4e-chap03-lecture

One-dimensional conduction-with_no_heat_generation
One-dimensional conduction-with_no_heat_generationOne-dimensional conduction-with_no_heat_generation
One-dimensional conduction-with_no_heat_generation

Chap09 ht 3e natural convection
Chap09 ht 3e natural convectionChap09 ht 3e natural convection
Chap09 ht 3e natural convection

Heat 4e chap09_lecture
Heat 4e chap09_lectureHeat 4e chap09_lecture
Heat 4e chap09_lecture

Boiling and condensation
Boiling and condensationBoiling and condensation
Boiling and condensation

Transient heat-conduction-Part-I
Transient heat-conduction-Part-ITransient heat-conduction-Part-I
Transient heat-conduction-Part-I

Ch2 Heat transfer - conduction
Ch2 Heat transfer - conductionCh2 Heat transfer - conduction
Ch2 Heat transfer - conduction

Overal Heat Transfer Coefficient
Overal Heat Transfer CoefficientOveral Heat Transfer Coefficient
Overal Heat Transfer Coefficient

Heat 4e chap11_lecture
Heat 4e chap11_lectureHeat 4e chap11_lecture
Heat 4e chap11_lecture

Chapter 1 introduction of heat transfer
Chapter 1 introduction of heat transferChapter 1 introduction of heat transfer
Chapter 1 introduction of heat transfer

Heat transfer chapter one and two
Heat transfer chapter one and twoHeat transfer chapter one and two
Heat transfer chapter one and two

Lecture 12 heat transfer.
Lecture 12   heat transfer.Lecture 12   heat transfer.
Lecture 12 heat transfer.

Heat exchanger and its type,ntu method
Heat exchanger and its type,ntu methodHeat exchanger and its type,ntu method
Heat exchanger and its type,ntu method

2. Conduction Equations
2. Conduction Equations2. Conduction Equations
2. Conduction Equations

Heat 4e chap12_lecture
Heat 4e chap12_lectureHeat 4e chap12_lecture
Heat 4e chap12_lecture

Heat conduction through a plane wall
Heat conduction through a plane wallHeat conduction through a plane wall
Heat conduction through a plane wall

Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...
Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...
Lectures on Heat Transfer - Introduction - Applications - Fundamentals - Gove...


Viewers also liked

Processing of fruits & vegetables in pakistan
Processing of fruits & vegetables in pakistanProcessing of fruits & vegetables in pakistan
Processing of fruits & vegetables in pakistan
Abdul Moiz Dota

Build Features, Not Apps
Build Features, Not AppsBuild Features, Not Apps
Build Features, Not Apps
Natasha Murashev

Heat 4e chap10_lecture
Heat 4e chap10_lectureHeat 4e chap10_lecture
Heat 4e chap10_lecture
Abdul Moiz Dota

Fe 509 heat and mass transfer Lecture no 3
Fe 509 heat and mass transfer Lecture no 3Fe 509 heat and mass transfer Lecture no 3
Fe 509 heat and mass transfer Lecture no 3
Abdul Moiz Dota

Chapter 5 NUMERICAL METHODS IN HEAT CONDUCTION
Chapter 5NUMERICAL METHODS IN HEAT CONDUCTIONChapter 5NUMERICAL METHODS IN HEAT CONDUCTION
Chapter 5 NUMERICAL METHODS IN HEAT CONDUCTION
Abdul Moiz Dota

Heat 4e chap14_lecture
Heat 4e chap14_lectureHeat 4e chap14_lecture
Heat 4e chap14_lecture
Abdul Moiz Dota

Heat Transfer
Heat TransferHeat Transfer
Heat Transfer
guest451a35


Viewers also liked (7)

Processing of fruits & vegetables in pakistan
Processing of fruits & vegetables in pakistanProcessing of fruits & vegetables in pakistan
Processing of fruits & vegetables in pakistan

Build Features, Not Apps
Build Features, Not AppsBuild Features, Not Apps
Build Features, Not Apps

Heat 4e chap10_lecture
Heat 4e chap10_lectureHeat 4e chap10_lecture
Heat 4e chap10_lecture

Fe 509 heat and mass transfer Lecture no 3
Fe 509 heat and mass transfer Lecture no 3Fe 509 heat and mass transfer Lecture no 3
Fe 509 heat and mass transfer Lecture no 3

Chapter 5 NUMERICAL METHODS IN HEAT CONDUCTION
Chapter 5NUMERICAL METHODS IN HEAT CONDUCTIONChapter 5NUMERICAL METHODS IN HEAT CONDUCTION
Chapter 5 NUMERICAL METHODS IN HEAT CONDUCTION

Heat 4e chap14_lecture
Heat 4e chap14_lectureHeat 4e chap14_lecture
Heat 4e chap14_lecture

Heat Transfer
Heat TransferHeat Transfer
Heat Transfer


Similar to Chapter 1 INTRODUCTION AND BASIC CONCEPTS

Heat_4e_Chap01_lectureddjkdsjkjskjsd.ppt
Heat_4e_Chap01_lectureddjkdsjkjskjsd.pptHeat_4e_Chap01_lectureddjkdsjkjskjsd.ppt
Heat_4e_Chap01_lectureddjkdsjkjskjsd.ppt
furqonalfahmi3

1 Heat_4e_Chap01_lecture.ppt
1 Heat_4e_Chap01_lecture.ppt1 Heat_4e_Chap01_lecture.ppt
1 Heat_4e_Chap01_lecture.ppt
MarfelAditiaManurung

Si heat 4e_chap01_lecture
Si heat 4e_chap01_lectureSi heat 4e_chap01_lecture
Si heat 4e_chap01_lecture
Syarul Ammar

Heat transfer
Heat transferHeat transfer
Heat transfer
ALOKANSU

Heat and mass transfer
Heat and mass transferHeat and mass transfer
Heat and mass transfer
ALOKANSU

BASIC OF HEAT TRANSFER
BASIC OF HEAT TRANSFERBASIC OF HEAT TRANSFER
BASIC OF HEAT TRANSFER
Ramesh Thiagarajan

HMT.pdf
HMT.pdfHMT.pdf
Chapter_1._Basics_of_Heat_Transfer.pdf
Chapter_1._Basics_of_Heat_Transfer.pdfChapter_1._Basics_of_Heat_Transfer.pdf
Chapter_1._Basics_of_Heat_Transfer.pdf
yubarajneeAryal

Heat transfer Chapter 1.pptx
Heat transfer Chapter 1.pptxHeat transfer Chapter 1.pptx
Heat transfer Chapter 1.pptx
QUEENEFAYETHTAGANAS1

Heat Transfer_Week_01.pdf
Heat Transfer_Week_01.pdfHeat Transfer_Week_01.pdf
Heat Transfer_Week_01.pdf
TalhaShabbir21

Modes Rate equations Section of Heat.pdf
Modes Rate equations Section of Heat.pdfModes Rate equations Section of Heat.pdf
Modes Rate equations Section of Heat.pdf
serbioibrimobalois

1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf
1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf
1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf
AbdlaDoski

Perpindahan panas
Perpindahan panasPerpindahan panas
Perpindahan panas
alfarisidaniel

Bab 2 Thermodynamic of Engineering Approach
Bab 2 Thermodynamic of Engineering ApproachBab 2 Thermodynamic of Engineering Approach
Bab 2 Thermodynamic of Engineering Approach
Ibnu Hasan

Heat_All.pdf
Heat_All.pdfHeat_All.pdf
Heat_All.pdf
Hossam Abdelmeguid

Chap01_lecture_notes.ppt
Chap01_lecture_notes.pptChap01_lecture_notes.ppt
Chap01_lecture_notes.ppt
ShoebAhmedSyed2

DOC-20230804-WA0015..pdf
DOC-20230804-WA0015..pdfDOC-20230804-WA0015..pdf
DOC-20230804-WA0015..pdf
Kunal219998

Thermo chapter 2-p1
Thermo chapter 2-p1Thermo chapter 2-p1
Thermo chapter 2-p1
Larry Howard

FOTS Lecture 1.pptx
FOTS Lecture 1.pptxFOTS Lecture 1.pptx
FOTS Lecture 1.pptx
AishaShoaib4

mass&heat transfer.ppt
mass&heat transfer.pptmass&heat transfer.ppt
mass&heat transfer.ppt
dejene1234567


Similar to Chapter 1 INTRODUCTION AND BASIC CONCEPTS (20)

Heat_4e_Chap01_lectureddjkdsjkjskjsd.ppt
Heat_4e_Chap01_lectureddjkdsjkjskjsd.pptHeat_4e_Chap01_lectureddjkdsjkjskjsd.ppt
Heat_4e_Chap01_lectureddjkdsjkjskjsd.ppt

1 Heat_4e_Chap01_lecture.ppt
1 Heat_4e_Chap01_lecture.ppt1 Heat_4e_Chap01_lecture.ppt
1 Heat_4e_Chap01_lecture.ppt

Si heat 4e_chap01_lecture
Si heat 4e_chap01_lectureSi heat 4e_chap01_lecture
Si heat 4e_chap01_lecture

Heat transfer
Heat transferHeat transfer
Heat transfer

Heat and mass transfer
Heat and mass transferHeat and mass transfer
Heat and mass transfer

BASIC OF HEAT TRANSFER
BASIC OF HEAT TRANSFERBASIC OF HEAT TRANSFER
BASIC OF HEAT TRANSFER

HMT.pdf
HMT.pdfHMT.pdf
HMT.pdf

Chapter_1._Basics_of_Heat_Transfer.pdf
Chapter_1._Basics_of_Heat_Transfer.pdfChapter_1._Basics_of_Heat_Transfer.pdf
Chapter_1._Basics_of_Heat_Transfer.pdf

Heat transfer Chapter 1.pptx
Heat transfer Chapter 1.pptxHeat transfer Chapter 1.pptx
Heat transfer Chapter 1.pptx

Heat Transfer_Week_01.pdf
Heat Transfer_Week_01.pdfHeat Transfer_Week_01.pdf
Heat Transfer_Week_01.pdf

Modes Rate equations Section of Heat.pdf
Modes Rate equations Section of Heat.pdfModes Rate equations Section of Heat.pdf
Modes Rate equations Section of Heat.pdf

1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf
1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf
1646936922457555bdhdhdhdhdhdhdsjhhhj.pdf

Perpindahan panas
Perpindahan panasPerpindahan panas
Perpindahan panas

Bab 2 Thermodynamic of Engineering Approach
Bab 2 Thermodynamic of Engineering ApproachBab 2 Thermodynamic of Engineering Approach
Bab 2 Thermodynamic of Engineering Approach

Heat_All.pdf
Heat_All.pdfHeat_All.pdf
Heat_All.pdf

Chap01_lecture_notes.ppt
Chap01_lecture_notes.pptChap01_lecture_notes.ppt
Chap01_lecture_notes.ppt

DOC-20230804-WA0015..pdf
DOC-20230804-WA0015..pdfDOC-20230804-WA0015..pdf
DOC-20230804-WA0015..pdf

Thermo chapter 2-p1
Thermo chapter 2-p1Thermo chapter 2-p1
Thermo chapter 2-p1

FOTS Lecture 1.pptx
FOTS Lecture 1.pptxFOTS Lecture 1.pptx
FOTS Lecture 1.pptx

mass&heat transfer.ppt
mass&heat transfer.pptmass&heat transfer.ppt
mass&heat transfer.ppt


Recently uploaded

Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Zilliz

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf
KIRAN KV

Camunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptxCamunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptx
ZachWylie3

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities
Priyanka Aash

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview
Steven Carlson

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
FIDO Alliance

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf
AmandaCheung15

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries
Brian Pichman

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10
ankush9927

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities
Arpan Buwa

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio
Ivanti

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides
Google Developer Group - Harare

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17
Bhajan Mehta

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
janagijoythi

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx
BrainSell Technologies

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content
Enterprise Knowledge

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
SelfMade bd

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024
Nicolás Lopéz

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
bellared2


Recently uploaded (20)

Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...
Garbage In, Garbage Out: Why poor data curation is killing your AI models (an...

kk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdfkk vathada _digital transformation frameworks_2024.pdf
kk vathada _digital transformation frameworks_2024.pdf

Camunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptxCamunda Chapter NY Meetup July 2024.pptx
Camunda Chapter NY Meetup July 2024.pptx

Redefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI CapabilitiesRedefining Cybersecurity with AI Capabilities
Redefining Cybersecurity with AI Capabilities

Vulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive OverviewVulnerability Management: A Comprehensive Overview
Vulnerability Management: A Comprehensive Overview

UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...
UX Webinar Series: Essentials for Adopting Passkeys as the Foundation of your...

Zaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdfZaitechno Handheld Raman Spectrometer.pdf
Zaitechno Handheld Raman Spectrometer.pdf

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries

Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10Computer HARDWARE presenattion by CWD students class 10
Computer HARDWARE presenattion by CWD students class 10

The Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and CitiesThe Impact of the Internet of Things (IoT) on Smart Homes and Cities
The Impact of the Internet of Things (IoT) on Smart Homes and Cities

Patch Tuesday de julio
Patch Tuesday de julioPatch Tuesday de julio
Patch Tuesday de julio

Google I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged SlidesGoogle I/O Extended Harare Merged Slides
Google I/O Extended Harare Merged Slides

Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17Mule Experience Hub and Release Channel with Java 17
Mule Experience Hub and Release Channel with Java 17

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx

Improving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning ContentImproving Learning Content Efficiency with Reusable Learning Content
Improving Learning Content Efficiency with Reusable Learning Content

LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdfLeadMagnet IQ Review:  Unlock the Secret to Effortless Traffic and Leads.pdf
LeadMagnet IQ Review: Unlock the Secret to Effortless Traffic and Leads.pdf

Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024Vertex AI Agent Builder - GDG Alicante - Julio 2024
Vertex AI Agent Builder - GDG Alicante - Julio 2024

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...
Russian Girls Call Navi Mumbai 🎈🔥9920725232 🔥💋🎈 Provide Best And Top Girl Ser...


Chapter 1 INTRODUCTION AND BASIC CONCEPTS

  • 1. Chapter 1 INTRODUCTION AND BASIC CONCEPTS Heat and Mass Transfer: Fundamentals & Applications Fourth Edition Yunus A. Cengel, Afshin J. Ghajar McGraw-Hill, 2011 Abdul moiz Dota Dept.Food Engineering University of Agriculture Faisalabad
  • 2. 2 Objectives • Understand how thermodynamics and heat transfer are related to each other • Distinguish thermal energy from other forms of energy, and heat transfer from other forms of energy transfer • Perform general energy balances as well as surface energy balances • Understand the basic mechanisms of heat transfer, which are conduction, convection, and radiation, and Fourier's law of heat conduction, Newton's law of cooling, and the Stefan–Boltzmann law of radiation • Identify the mechanisms of heat transfer that occur simultaneously in practice • Develop an awareness of the cost associated with heat losses • Solve various heat transfer problems encountered in practice
  • 3. 3 THERMODYNAMICS AND HEAT TRANSFER • Heat: The form of energy that can be transferred from one system to another as a result of temperature difference. • Thermodynamics is concerned with the amount of heat transfer as a system undergoes a process from one equilibrium state to another. • Heat Transfer deals with the determination of the rates of such energy transfers as well as variation of temperature. • The transfer of energy as heat is always from the higher- temperature medium to the lower-temperature one. • Heat transfer stops when the two mediums reach the same temperature. • Heat can be transferred in three different modes: conduction, convection, radiation
  • 4. 4
  • 5. 5 Application Areas of Heat Transfer 5
  • 6. 6 Historical Background Kinetic theory: Treats molecules as tiny balls that are in motion and thus possess kinetic energy. Heat: The energy associated with the random motion of atoms and molecules. Caloric theory: Heat is a fluidlike substance called the caloric that is a massless, colorless, odorless, and tasteless substance that can be poured from one body into another It was only in the middle of the nineteenth century that we had a true physical understanding of the nature of heat. Careful experiments of the Englishman James P. Joule published in 1843 convinced the skeptics that heat was not a substance after all, and thus put the caloric theory to rest.
  • 7. 7
  • 8. 8 ENGINEERING HEAT TRANSFER Heat transfer equipment such as heat exchangers, boilers, condensers, radiators, heaters, furnaces, refrigerators, and solar collectors are designed primarily on the basis of heat transfer analysis. The heat transfer problems encountered in practice can be considered in two groups: (1) rating and (2) sizing problems. The rating problems deal with the determination of the heat transfer rate for an existing system at a specified temperature difference. The sizing problems deal with the determination of the size of a system in order to transfer heat at a specified rate for a specified temperature difference. An engineering device or process can be studied either experimentally (testing and taking measurements) or analytically (by analysis or calculations). The experimental approach has the advantage that we deal with the actual physical system, and the desired quantity is determined by measurement, within the limits of experimental error. However, this approach is expensive, timeconsuming, and often impractical. The analytical approach (including the numerical approach) has the advantage that it is fast and inexpensive, but the results obtained are subject to the accuracy of the assumptions, approximations, and idealizations made in the analysis.
  • 10. 10 • Energy can exist in numerous forms such as:  thermal,  mechanical,  kinetic,  potential,  electrical,  magnetic,  chemical,  nuclear. • Their sum constitutes the total energy E (or e on a unit mass basis) of a system. • The sum of all microscopic forms of energy is called the internal energy of a system. HEAT AND OTHER FORMS OF ENERGY
  • 11. 11 • Internal energy: May be viewed as the sum of the kinetic and potential energies of the molecules. • Sensible heat: The kinetic energy of the molecules. • Latent heat: The internal energy associated with the phase of a system. • Chemical (bond) energy: The internal energy associated with the atomic bonds in a molecule. • Nuclear energy: The internal energy associated with the bonds within the nucleus of the atom itself. What is thermal energy? What is the difference between thermal energy and heat?
  • 12. 12 Internal Energy and Enthalpy • In the analysis of systems that involve fluid flow, we frequently encounter the combination of properties u and Pv. • The combination is defined as enthalpy (h = u + Pv). • The term Pv represents the flow energy of the fluid (also called the flow work).
  • 13. 13 Specific Heats of Gases, Liquids, and Solids • Specific heat: The energy required to raise the temperature of a unit mass of a substance by one degree. • Two kinds of specific heats:  specific heat at constant volume cv  specific heat at constant pressure cp • The specific heats of a substance, in general, depend on two independent properties such as temperature and pressure. • At low pressures all real gases approach ideal gas behavior, and therefore their specific heats depend on temperature only.
  • 14. 14 • Incompressible substance: A substance whose specific volume (or density) does not change with temperature or pressure. • The constant-volume and constant- pressure specific heats are identical for incompressible substances. • The specific heats of incompressible substances depend on temperature only.
  • 15. 15 Energy Transfer Energy can be transferred to or from a given mass by two mechanisms: heat transfer and work. Heat transfer rate: The amount of heat transferred per unit time. Heat flux: The rate of heat transfer per unit area normal to the direction of heat transfer. when is constant: Power: The work done per unit time.
  • 16. 16 THE FIRST LAW OF THERMODYNAMICS The energy balance for any system undergoing any process in the rate form The first law of thermodynamics (conservation of energy principle) states that energy can neither be created nor destroyed during a process; it can only change forms. The net change (increase or decrease) in the total energy of the system during a process is equal to the difference between the total energy entering and the total energy leaving the system during that process.
  • 17. 17 In heat transfer problems it is convenient to write a heat balance and to treat the conversion of nuclear, chemical, mechanical, and electrical energies into thermal energy as heat generation.
  • 18. 18 Energy Balance for Closed Systems (Fixed Mass) A closed system consists of a fixed mass. The total energy E for most systems encountered in practice consists of the internal energy U. This is especially the case for stationary systems since they don’t involve any changes in their velocity or elevation during a process.
  • 19. 19 Energy Balance for Steady-Flow Systems A large number of engineering devices such as water heaters and car radiators involve mass flow in and out of a system, and are modeled as control volumes. Most control volumes are analyzed under steady operating conditions. The term steady means no change with time at a specified location. Mass flow rate: The amount of mass flowing through a cross section of a flow device per unit time. Volume flow rate: The volume of a fluid flowing through a pipe or duct per unit time.
  • 20. 20 Surface Energy Balance This relation is valid for both steady and transient conditions, and the surface energy balance does not involve heat generation since a surface does not have a volume. A surface contains no volume or mass, and thus no energy. Thereore, a surface can be viewed as a fictitious system whose energy content remains constant during a process.
  • 21. 21 HEAT TRANSFER MECHANISMS • Heat as the form of energy that can be transferred from one system to another as a result of temperature difference. • A thermodynamic analysis is concerned with the amount of heat transfer as a system undergoes a process from one equilibrium state to another. • The science that deals with the determination of the rates of such energy transfers is the heat transfer. • The transfer of energy as heat is always from the higher- temperature medium to the lower-temperature one, and heat transfer stops when the two mediums reach the same temperature. • Heat can be transferred in three basic modes:  conduction  convection  radiation • All modes of heat transfer require the existence of a temperature difference.
  • 22. 22 Heat conduction through a large plane wall of thickness ∆x and area A. CONDUCTION Conduction: The transfer of energy from the more energetic particles of a substance to the adjacent less energetic ones as a result of interactions between the particles. In gases and liquids, conduction is due to the collisions and diffusion of the molecules during their random motion. In solids, it is due to the combination of vibrations of the molecules in a lattice and the energy transport by free electrons. The rate of heat conduction through a plane layer is proportional to the temperature difference across the layer and the heat transfer area, but is inversely proportional to the thickness of the layer.
  • 23. 23 When x → 0 Fourier’s law of heat conduction Thermal conductivity, k: A measure of the ability of a material to conduct heat. Temperature gradient dT/dx: The slope of the temperature curve on a T-x diagram. Heat is conducted in the direction of decreasing temperature, and the temperature gradient becomes negative when temperature decreases with increasing x. The negative sign in the equation ensures that heat transfer in the positive x direction is a positive quantity. The rate of heat conduction through a solid is directly proportional to its thermal conductivity. In heat conduction analysis, A represents the area normal to the direction of heat transfer.
  • 24. 24
  • 25. 25 Thermal Conductivity Thermal conductivity: The rate of heat transfer through a unit thickness of the material per unit area per unit temperature difference. The thermal conductivity of a material is a measure of the ability of the material to conduct heat. A high value for thermal conductivity indicates that the material is a good heat conductor, and a low value indicates that the material is a poor heat conductor or insulator. A simple experimental setup to determine the thermal conductivity of a material.
  • 26. 26 The range of thermal conductivity of various materials at room temperature.
  • 27. 27 The mechanisms of heat conduction in different phases of a substance. The thermal conductivities of gases such as air vary by a factor of 104 from those of pure metals such as copper. Pure crystals and metals have the highest thermal conductivities, and gases and insulating materials the lowest.
  • 28. 28 The variation of the thermal conductivity of various solids, liquids, and gases with temperature.
  • 29. 29 Thermal Diffusivity cp Specific heat, J/kg · °C: Heat capacity per unit mass ρcp Heat capacity, J/m3 ·°C: Heat capacity per unit volume α Thermal diffusivity, m2 /s: Represents how fast heat diffuses through a material A material that has a high thermal conductivity or a low heat capacity will obviously have a large thermal diffusivity. The larger the thermal diffusivity, the faster the propagation of heat into the medium. A small value of thermal diffusivity means that heat is mostly absorbed by the material and a small amount of heat is conducted further.
  • 30. 30 CONVECTION Convection: The mode of energy transfer between a solid surface and the adjacent liquid or gas that is in motion, and it involves the combined effects of conduction and fluid motion. The faster the fluid motion, the greater the convection heat transfer. In the absence of any bulk fluid motion, heat transfer between a solid surface and the adjacent fluid is by pure conduction. Heat transfer from a hot surface to air by convection.
  • 31. 31 Forced convection: If the fluid is forced to flow over the surface by external means such as a fan, pump, or the wind. Natural (or free) convection: If the fluid motion is caused by buoyancy forces that are induced by density differences due to the variation of temperature in the fluid. The cooling of a boiled egg by forced and natural convection. Heat transfer processes that involve change of phase of a fluid are also considered to be convection because of the fluid motion induced during the process, such as the rise of the vapor bubbles during boiling or the fall of the liquid droplets during condensation.
  • 32. 32 Newton’s law of cooling h convection heat transfer coefficient, W/m2 · °C As the surface area through which convection heat transfer takes place Ts the surface temperature T∞ the temperature of the fluid sufficiently far from the surface. The convection heat transfer coefficient h is not a property of the fluid. It is an experimentally determined parameter whose value depends on all the variables influencing convection such as - the surface geometry - the nature of fluid motion - the properties of the fluid - the bulk fluid velocity
  • 33. 33
  • 34. 34 RADIATION • Radiation: The energy emitted by matter in the form of electromagnetic waves (or photons) as a result of the changes in the electronic configurations of the atoms or molecules. • Unlike conduction and convection, the transfer of heat by radiation does not require the presence of an intervening medium. • In fact, heat transfer by radiation is fastest (at the speed of light) and it suffers no attenuation in a vacuum. This is how the energy of the sun reaches the earth. • In heat transfer studies we are interested in thermal radiation, which is the form of radiation emitted by bodies because of their temperature. • All bodies at a temperature above absolute zero emit thermal radiation. • Radiation is a volumetric phenomenon, and all solids, liquids, and gases emit, absorb, or transmit radiation to varying degrees. • However, radiation is usually considered to be a surface phenomenon for solids.
  • 35. 35 Stefan–Boltzmann law σ = 5.670 × 10−8 W/m2 · K4 Stefan–Boltzmann constant Blackbody: The idealized surface that emits radiation at the maximum rate. Blackbody radiation represents the maximum amount of radiation that can be emitted from a surface at a specified temperature. Emissivity ε : A measure of how closely a surface approximates a blackbody for which ε = 1 of the surface. 0≤ ε ≤ 1. Radiation emitted by real surfaces
  • 36. 36 Absorptivity α: The fraction of the radiation energy incident on a surface that is absorbed by the surface. 0≤ α ≤ 1 A blackbody absorbs the entire radiation incident on it (α = 1). Kirchhoff’s law: The emissivity and the absorptivity of a surface at a given temperature and wavelength are equal. The absorption of radiation incident on an opaque surface of absorptivity .
  • 37. 37 Radiation heat transfer between a surface and the surfaces surrounding it. Net radiation heat transfer: The difference between the rates of radiation emitted by the surface and the radiation absorbed. The determination of the net rate of heat transfer by radiation between two surfaces is a complicated matter since it depends on • the properties of the surfaces • their orientation relative to each other • the interaction of the medium between the surfaces with radiation Radiation is usually significant relative to conduction or natural convection, but negligible relative to forced convection. When a surface is completely enclosed by a much larger (or black) surface at temperature Tsurr separated by a gas (such as air) that does not intervene with radiation, the net rate of radiation heat transfer between these two surfaces is given by
  • 38. 38 Combined heat transfer coefficient hcombined Includes the effects of both convection and radiation When radiation and convection occur simultaneously between a surface and a gas:
  • 39. 39 SIMULTANEOUS HEAT TRANSFER MECHANISMS Although there are three mechanisms of heat transfer, a medium may involve only two of them simultaneously. Heat transfer is only by conduction in opaque solids, but by conduction and radiation in semitransparent solids. A solid may involve conduction and radiation but not convection. A solid may involve convection and/or radiation on its surfaces exposed to a fluid or other surfaces. Heat transfer is by conduction and possibly by radiation in a still fluid (no bulk fluid motion) and by convection and radiation in a flowing fluid. In the absence of radiation, heat transfer through a fluid is either by conduction or convection, depending on the presence of any bulk fluid motion. Convection = Conduction + Fluid motion Heat transfer through a vacuum is by radiation. Most gases between two solid surfaces do not interfere with radiation. Liquids are usually strong absorbers of radiation.
  • 40. 40 PROBLEM-SOLVING TECHNIQUE • Step 1: Problem Statement • Step 2: Schematic • Step 3: Assumptions and Approximations • Step 4: Physical Laws • Step 5: Properties • Step 6: Calculations • Step 7: Reasoning, Verification, and Discussion
  • 41. 41
  • 42. 42
  • 43. 43 EES (Engineering Equation Solver) (Pronounced as ease): EES is a program that solves systems of linear or nonlinear algebraic or differential equations numerically. It has a large library of built-in thermodynamic property functions as well as mathematical functions. Unlike some software packages, EES does not solve engineering problems; it only solves the equations supplied by the user. Engineering Software Packages Thinking that a person who can use the engineering software packages without proper training on fundamentals can practice engineering is like thinking that a person who can use a wrench can work as a car mechanic.
  • 44. 44 A Remark on Significant Digits In engineering calculations, the information given is not known to more than a certain number of significant digits, usually three digits. Consequently, the results obtained cannot possibly be accurate to more significant digits. Reporting results in more significant digits implies greater accuracy than exists, and it should be avoided. A result with more significant digits than that of given data falsely implies more accuracy.
  • 45. 45 Summary • Thermodynamics and Heat Transfer  Application areas of heat transfer  Historical background • Engineering Heat Transfer  Modeling in engineering • Heat and Other Forms of Energy  Specific heats of gases, liquids, and solids  Energy transfer • The First Law of Thermodynamics  Energy balance for closed systems (Fixed Mass)  Energy balance for steady-flow systems  Surface energy balance
  • 46. 46 • Heat Transfer Mechanisms • Conduction  Fourier’s law of heat conduction  Thermal Conductivity  Thermal Diffusivity • Convection  Newton’s law of cooling • Radiation  Stefan–Boltzmann law • Simultaneous Heat Transfer Mechanisms • Problem Solving Technique  Engineering software packages  Engineering Equation Solver (EES)  A remark on significant digits
