1. Centralized Test Automation
using Hybrid Model
Bharathi Easw aran
IBM Confidential
1

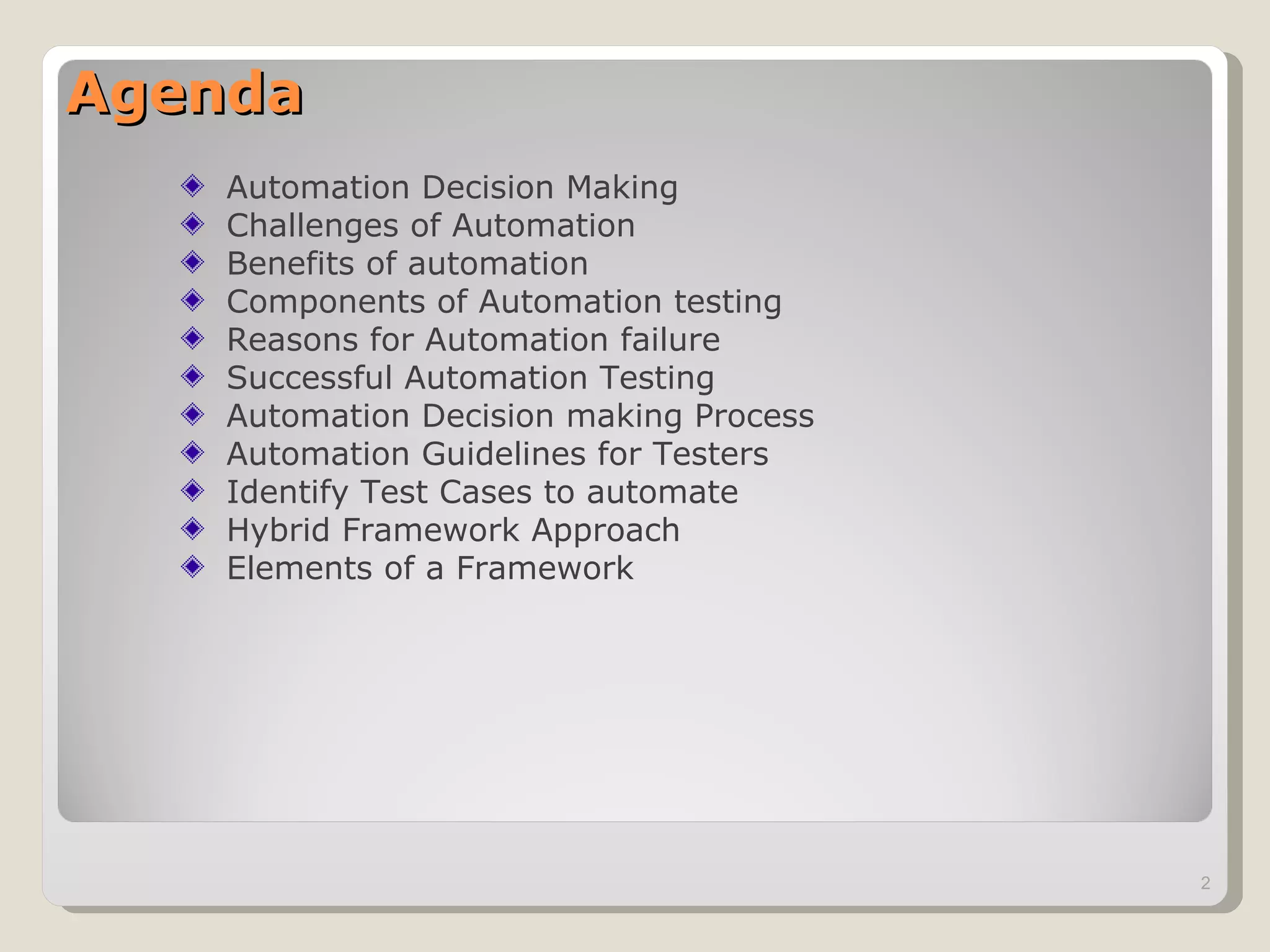

2. Agenda
Automation Decision Making
Challenges of Automation
Benefits of automation
Components of Automation testing
Reasons for Automation failure
Successful Automation Testing
Automation Decision making Process
Automation Guidelines for Testers
Identify Test Cases to automate
Hybrid Framework Approach
Elements of a Framework
2

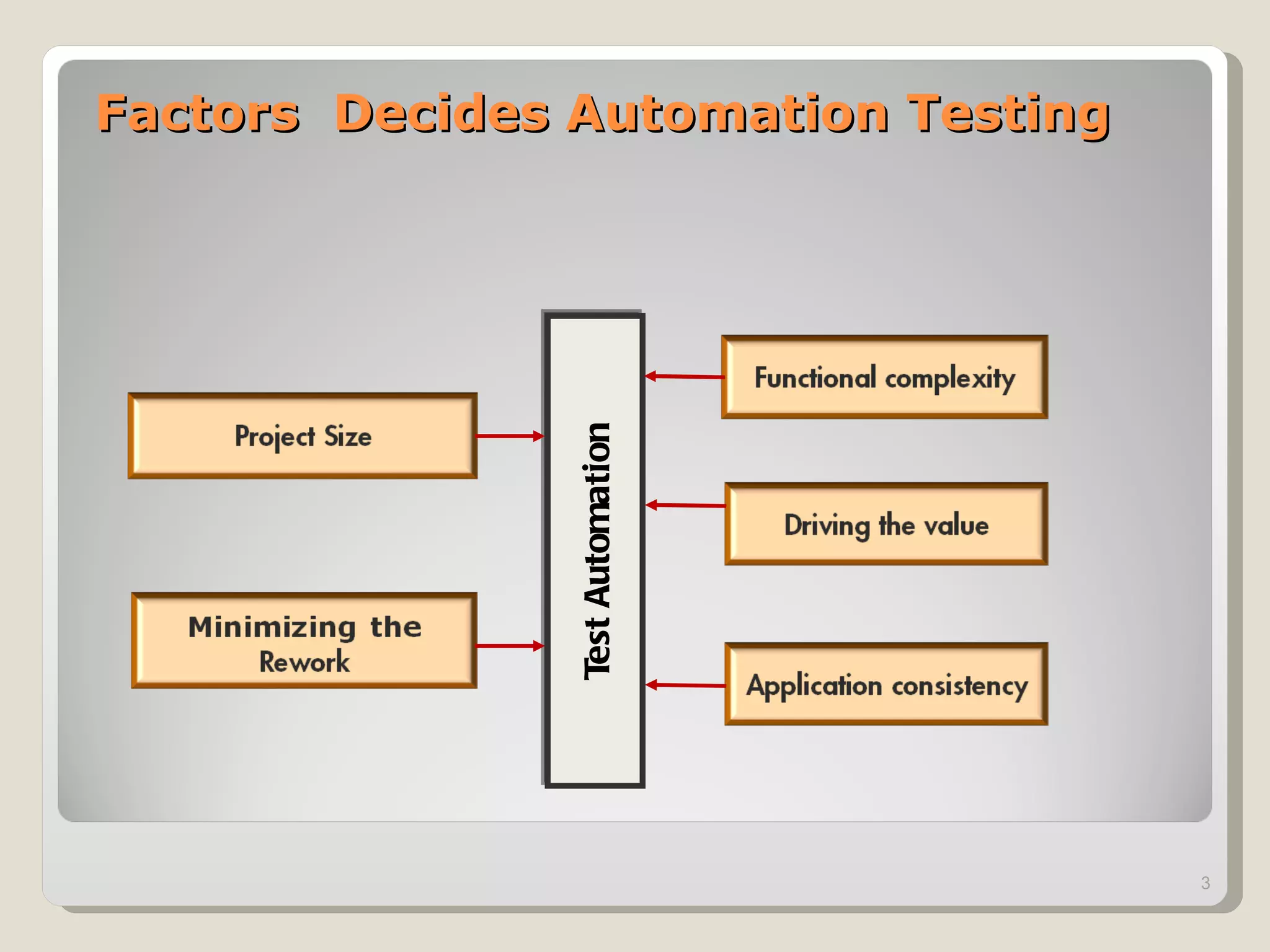

3. Factors Decides Automation Testing
Test Automation
3

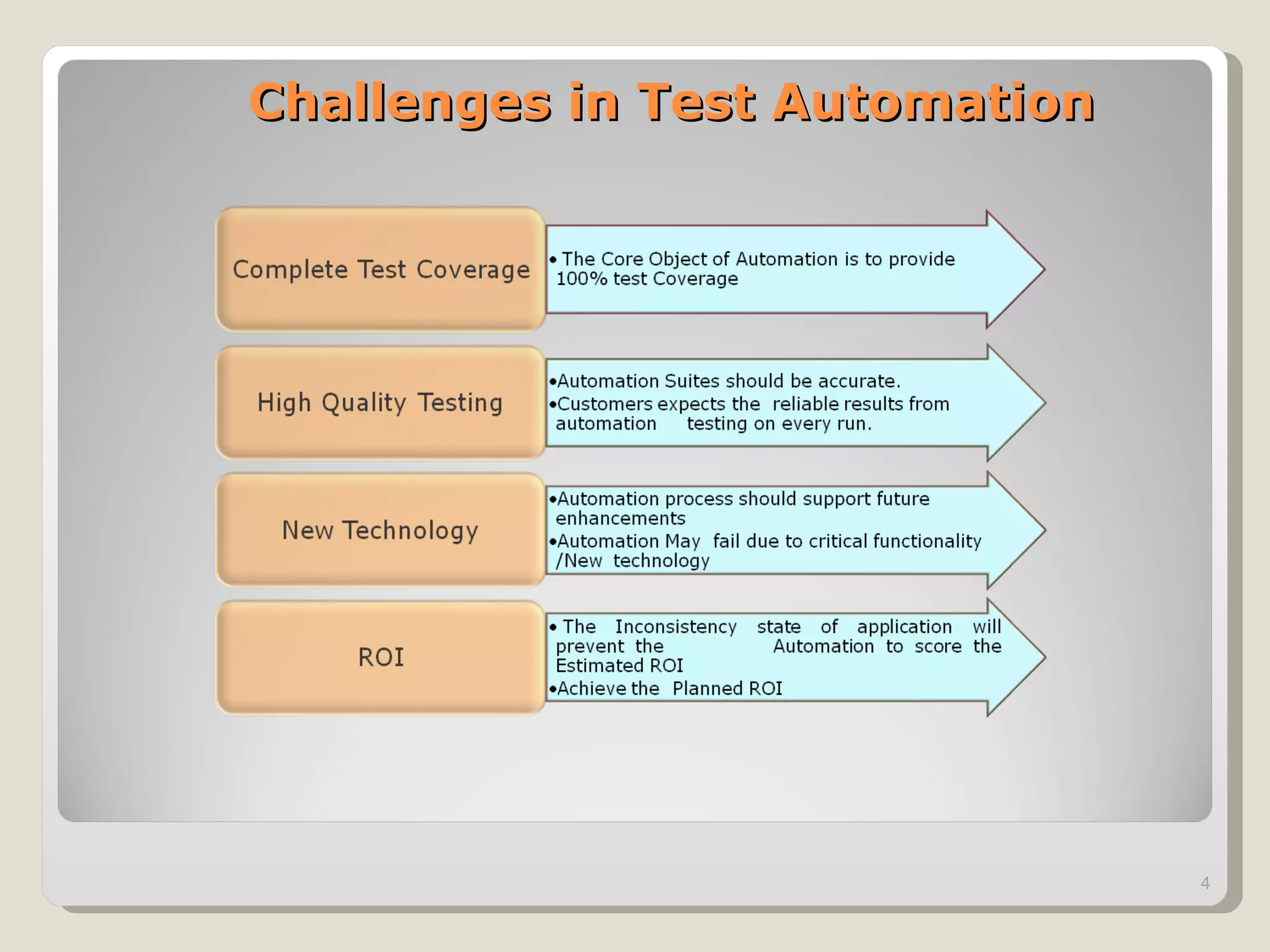

4. Challenges in Test Automation
4

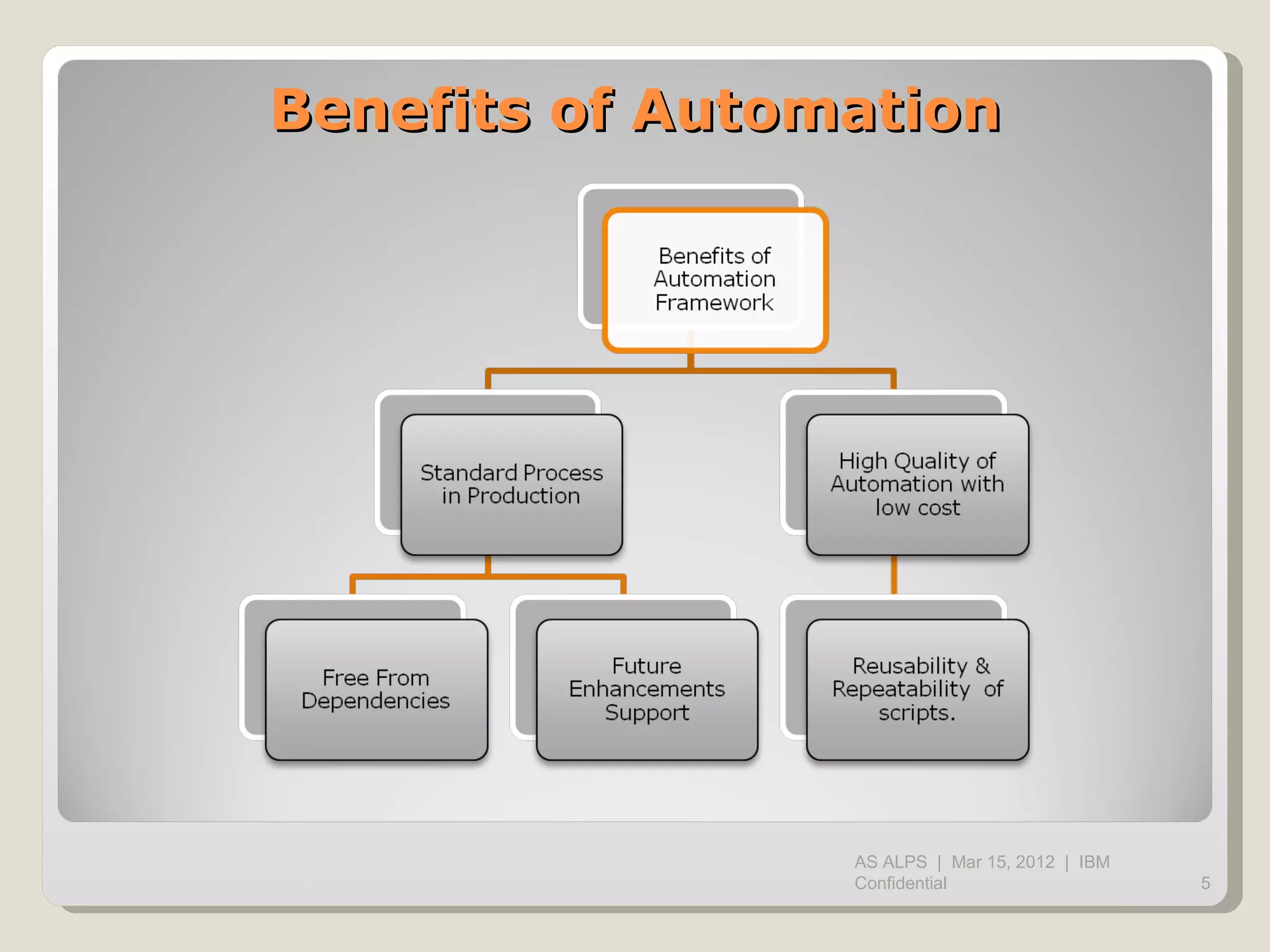

5. Benefits of Automation
AS ALPS | Mar 15, 2012 | IBM
Confidential 5

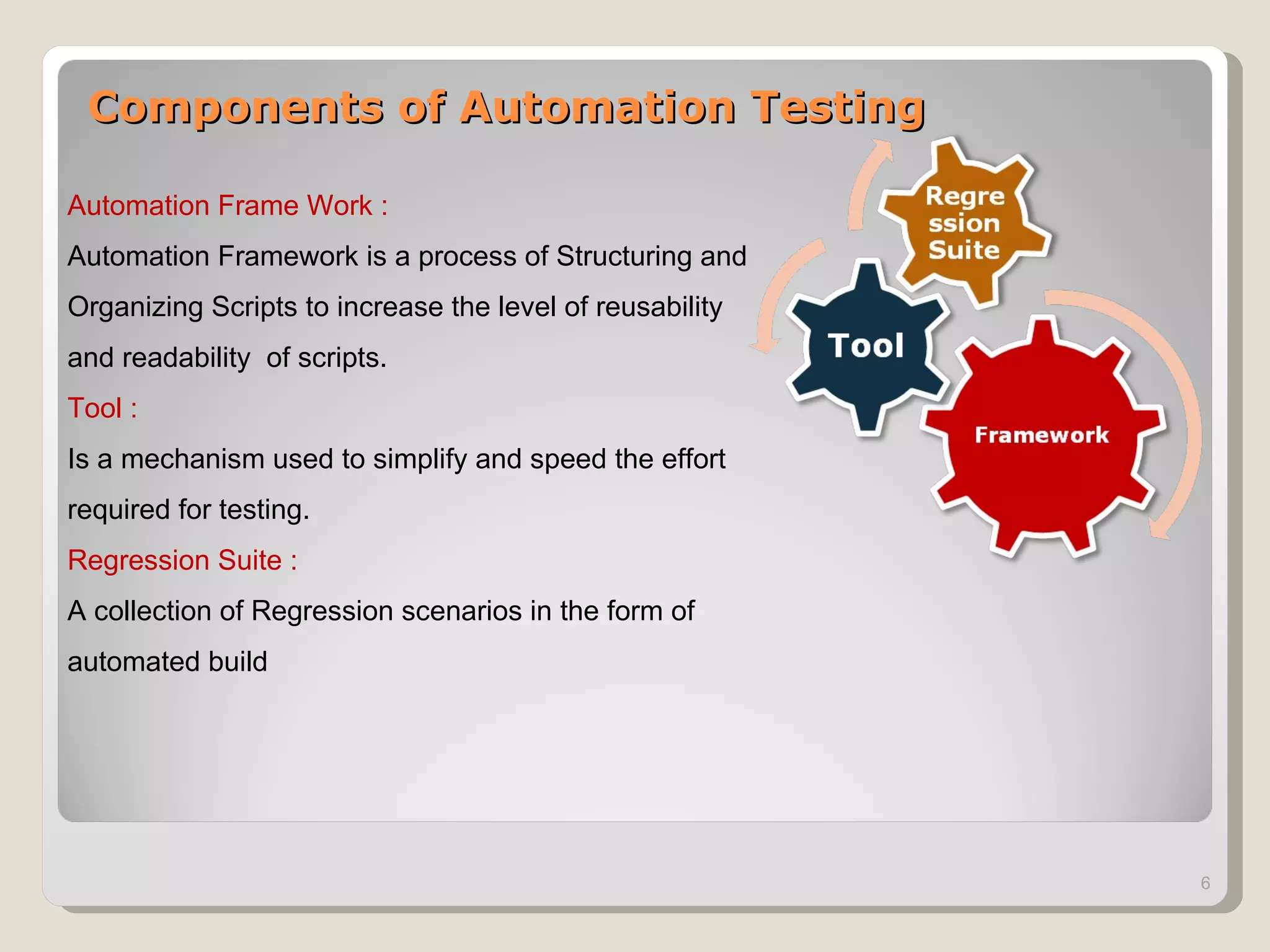

6. Components of Automation Testing
Automation Frame Work :
Automation Framework is a process of Structuring and
Organizing Scripts to increase the level of reusability
and readability of scripts.
Tool :
Is a mechanism used to simplify and speed the effort
required for testing.
Regression Suite :
A collection of Regression scenarios in the form of
automated build
6

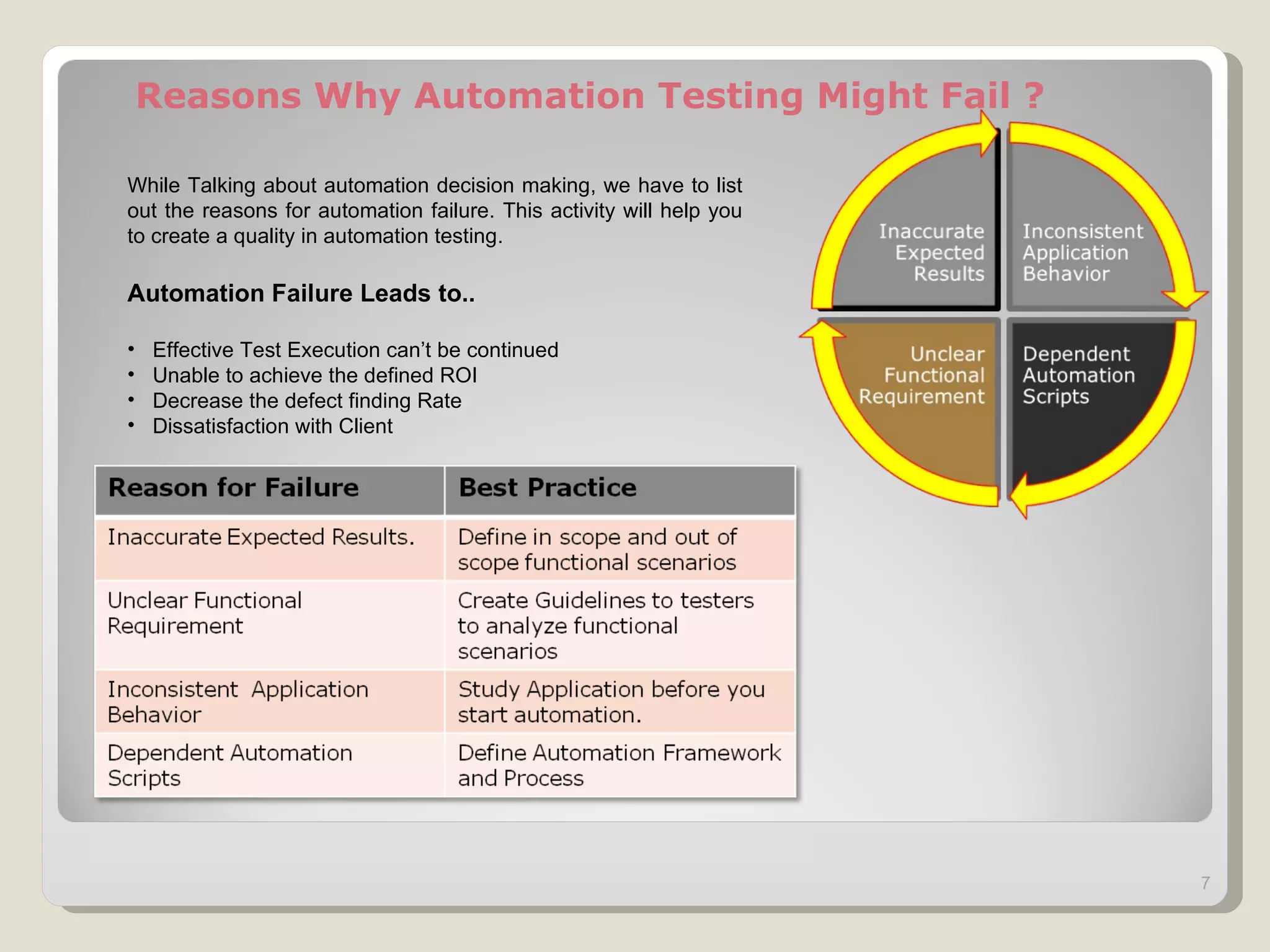

7. Reasons Why Automation Testing Might Fail ?
While Talking about automation decision making, we have to list
out the reasons for automation failure. This activity will help you
to create a quality in automation testing.
Automation Failure Leads to..
• Effective Test Execution can’t be continued
• Unable to achieve the defined ROI
• Decrease the defect finding Rate
• Dissatisfaction with Client
7

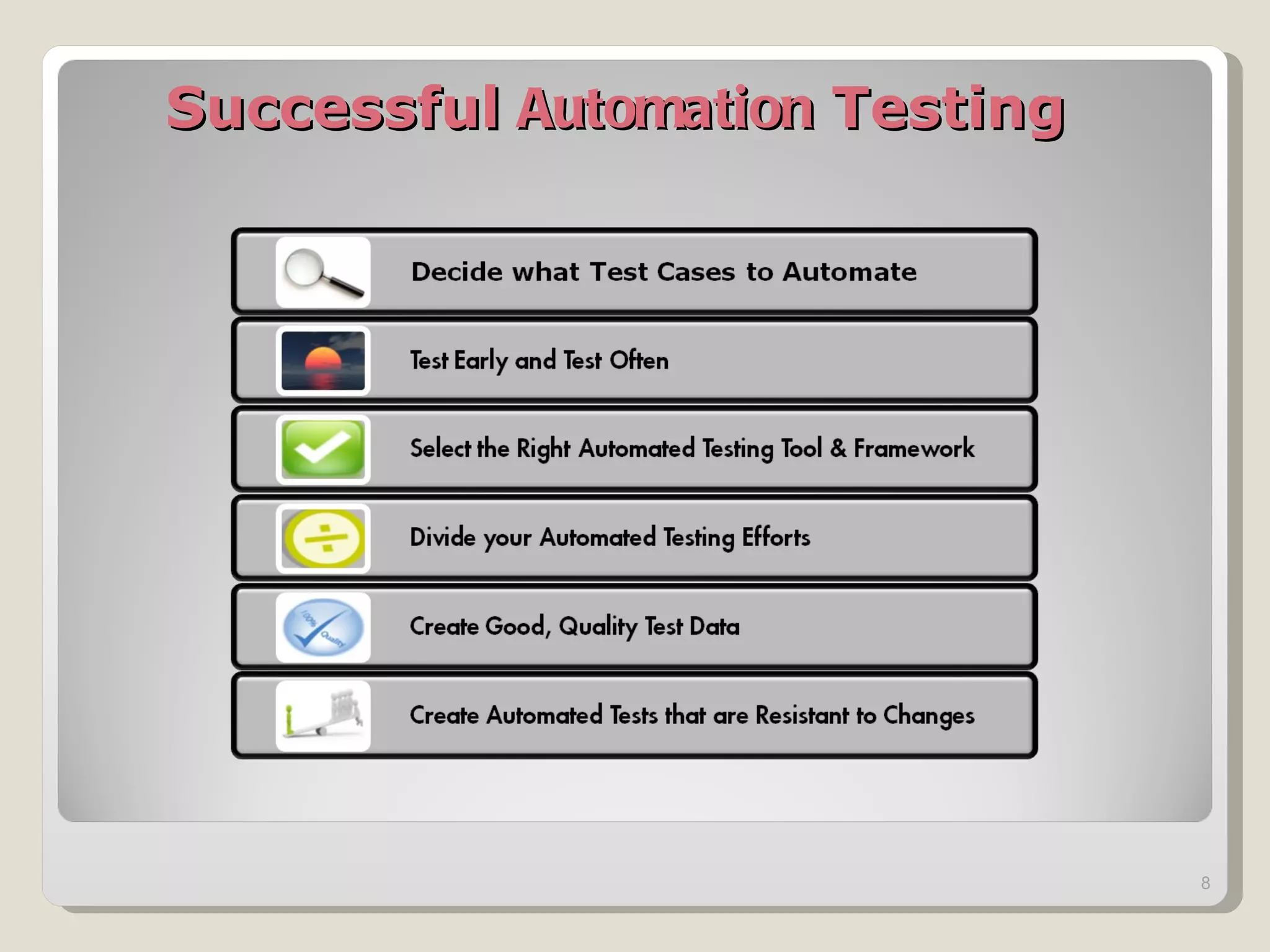

8. Successful Automation Testing
8

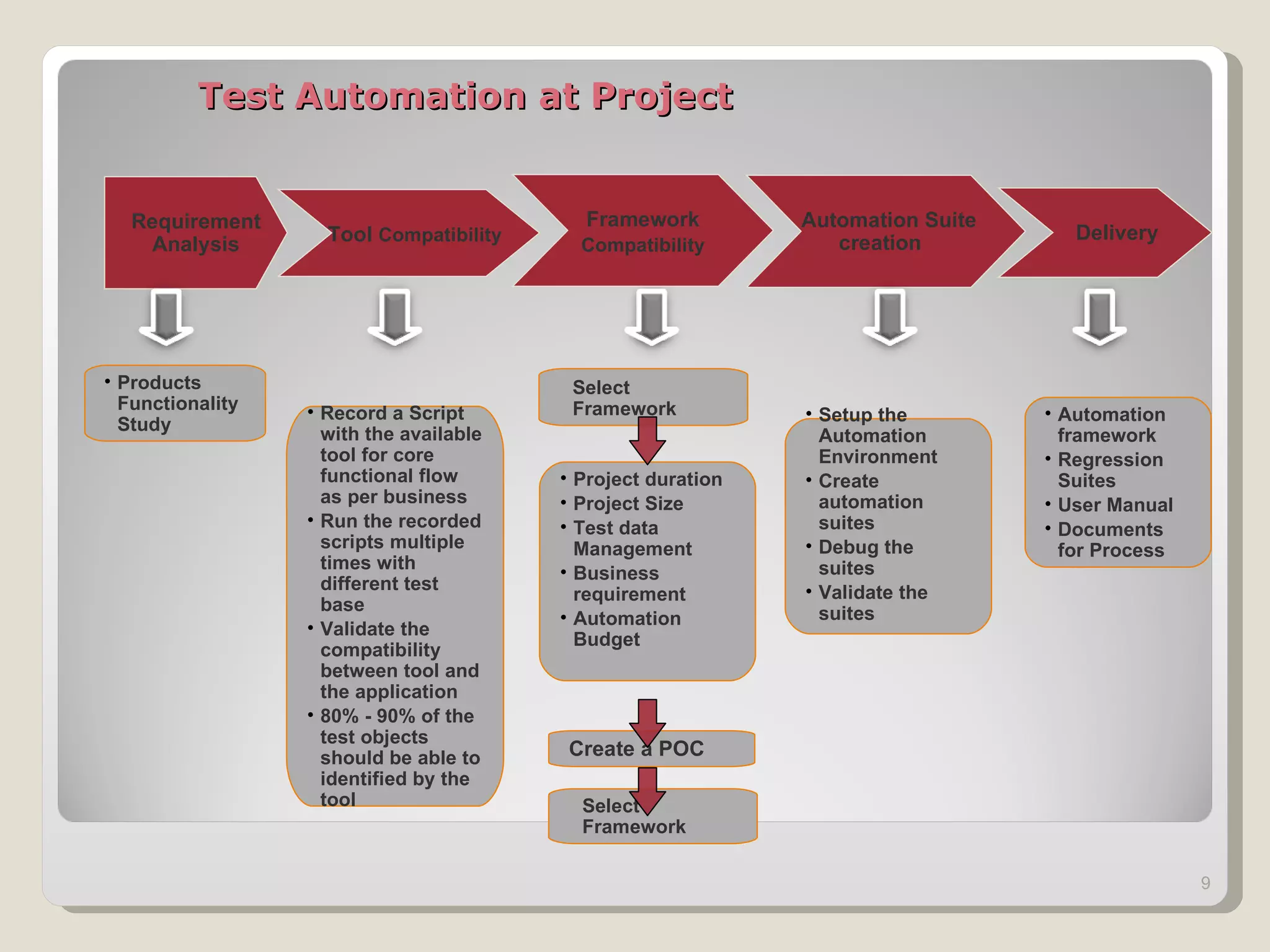

9. Test Automation at Project
Requirement Framework Automation Suite
Tool Compatibility creation Delivery
Analysis Compatibility
• Products Select
Functionality • Record a Script Framework • Setup the • Automation
Study with the available Automation framework
tool for core Environment • Regression
functional flow • Project duration • Create Suites
as per business • Project Size automation • User Manual
• Run the recorded • Test data suites • Documents
scripts multiple Management • Debug the for Process
times with • Business suites
different test • Validate the
requirement
base suites
• Automation
• Validate the
Budget
compatibility
between tool and
the application
• 80% - 90% of the
test objects
should be able to Create a POC
identified by the
tool Select
Framework
9

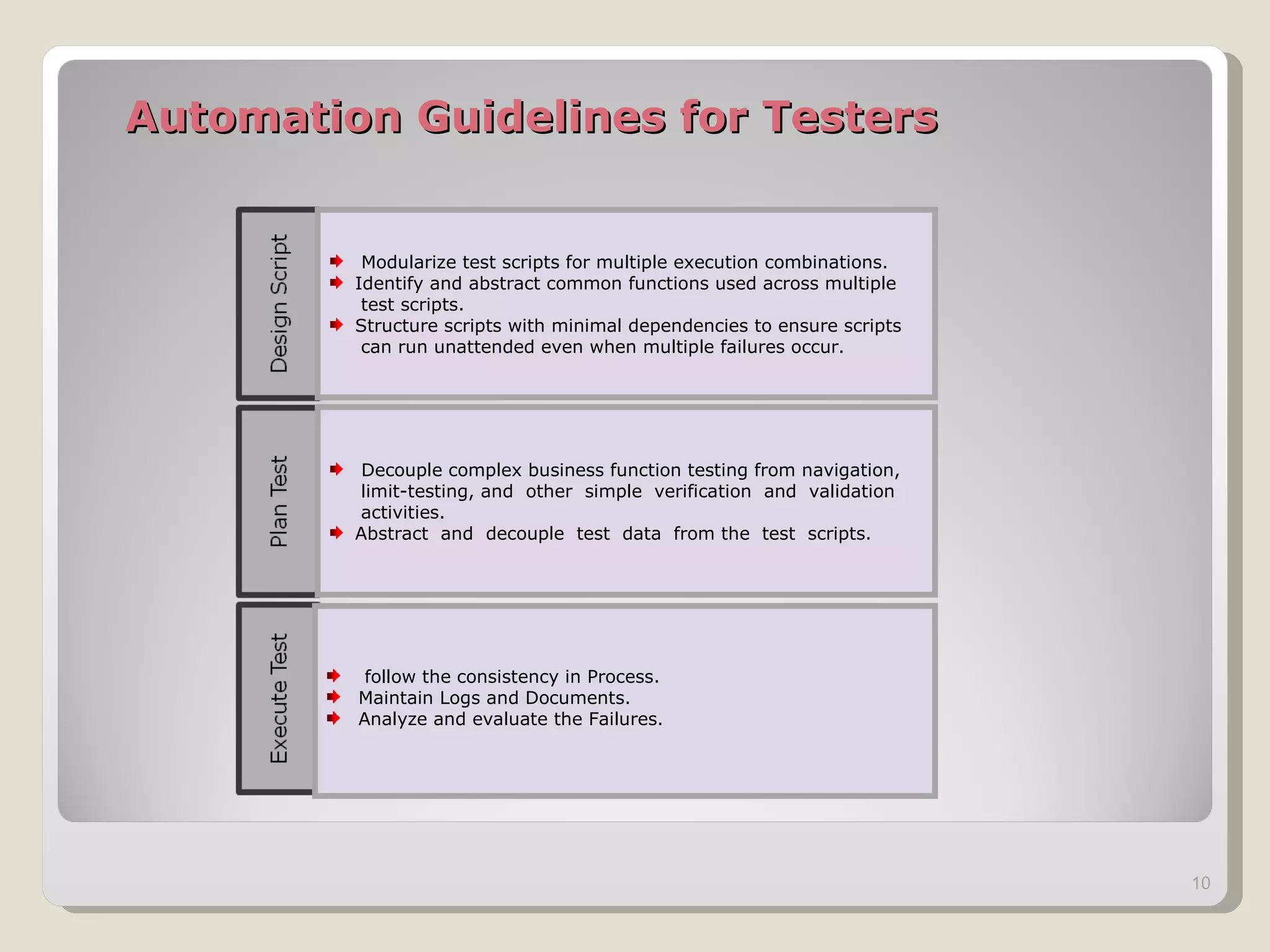

10. Automation Guidelines for Testers
Modularize test scripts for multiple execution combinations.
Identify and abstract common functions used across multiple
test scripts.
Structure scripts with minimal dependencies to ensure scripts
can run unattended even when multiple failures occur.
Decouple complex business function testing from navigation,
limit-testing, and other simple verification and validation
activities.
Abstract and decouple test data from the test scripts.
follow the consistency in Process.
Maintain Logs and Documents.
Analyze and evaluate the Failures.
10

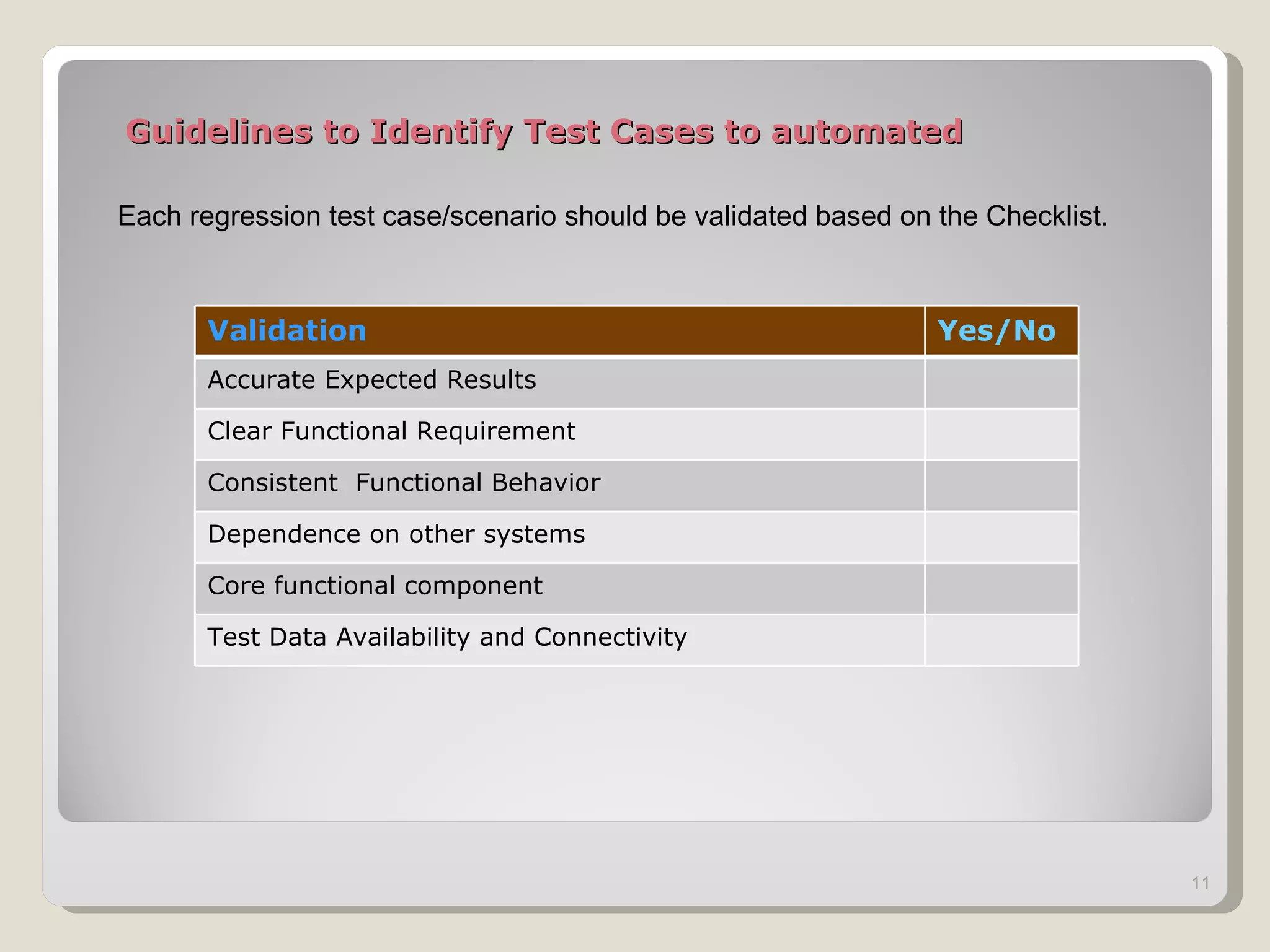

11. Guidelines to Identify Test Cases to automated
Each regression test case/scenario should be validated based on the Checklist.
Validation Yes/No
Accurate Expected Results
Clear Functional Requirement
Consistent Functional Behavior
Dependence on other systems
Core functional component
Test Data Availability and Connectivity
11

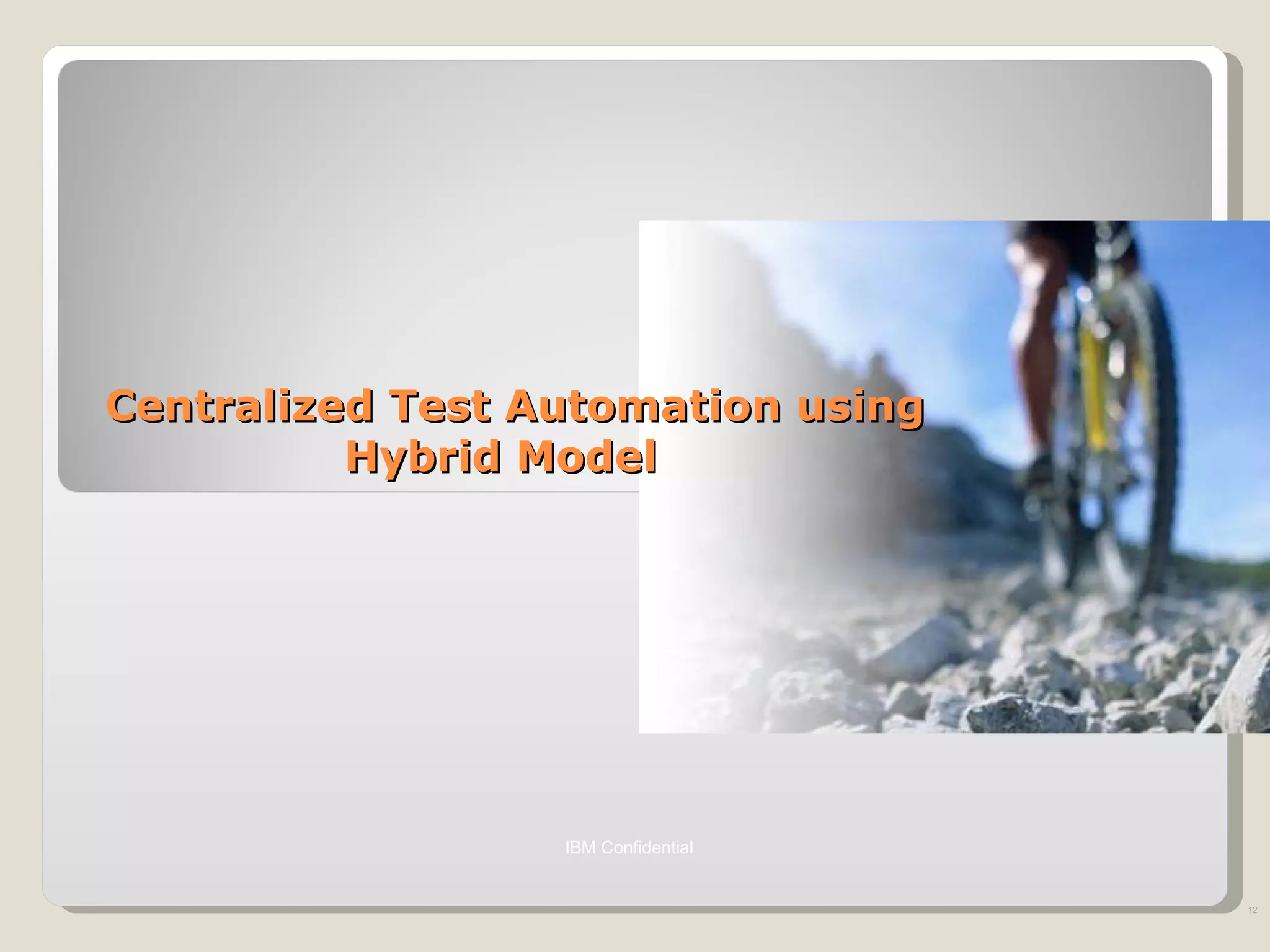

12. Centralized Test Automation using
Hybrid Model
IBM Confidential
12

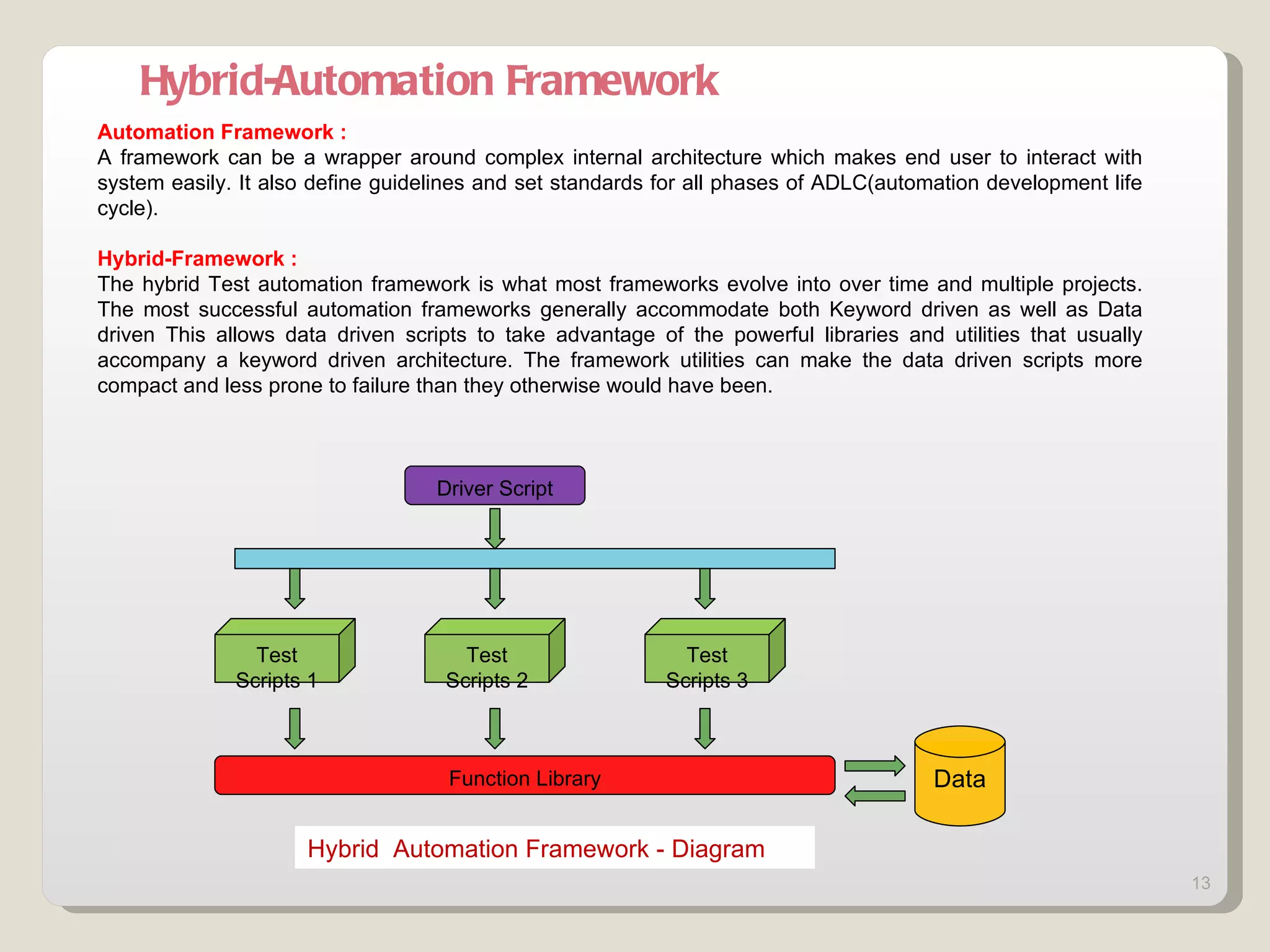

13. Hybrid-Automation Framework
Automation Framework :
A framework can be a wrapper around complex internal architecture which makes end user to interact with
system easily. It also define guidelines and set standards for all phases of ADLC(automation development life
cycle).
Hybrid-Framework :
The hybrid Test automation framework is what most frameworks evolve into over time and multiple projects.
The most successful automation frameworks generally accommodate both Keyword driven as well as Data
driven This allows data driven scripts to take advantage of the powerful libraries and utilities that usually
accompany a keyword driven architecture. The framework utilities can make the data driven scripts more
compact and less prone to failure than they otherwise would have been.
Driver Script
Test Test Test
Scripts 1 Scripts 2 Scripts 3
Function Library Data
Hybrid Automation Framework - Diagram
13

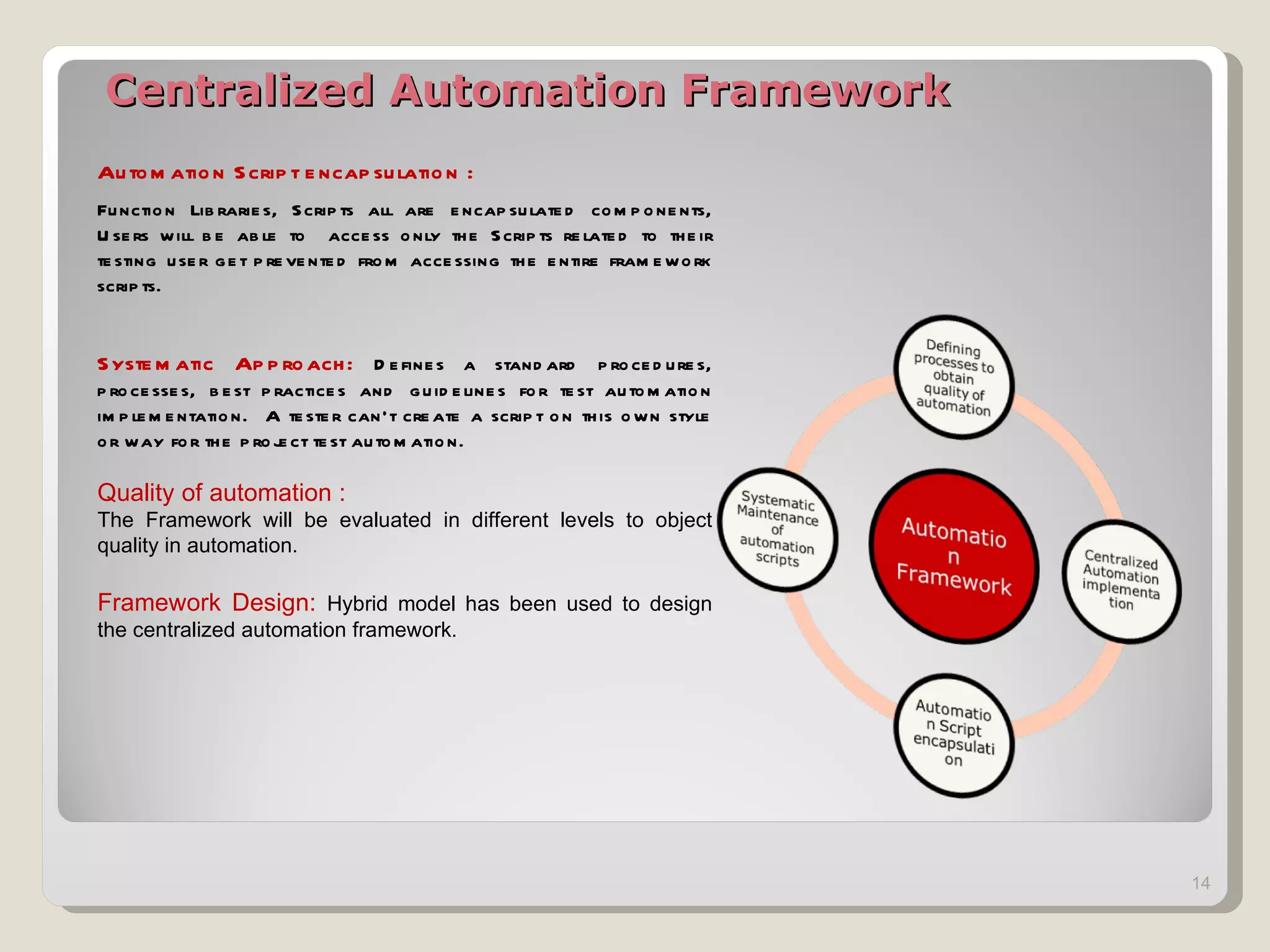

14. Centralized Automation Framework
Au to m atio n S crip t e ncap su latio n :
Fu nctio n Lib rarie s, S crip ts all are e ncap su late d co m p o ne nts,
U se rs w ill b e ab le to acce ss o nly th e S crip ts re late d to the ir
te sting u se r g e t p re ve nte d fro m acce ssing th e e ntire fram e w o rk
scrip ts.
S yste m atic Ap p ro ach : D e fine s a stand ard p ro ce d u re s,
p ro ce sse s, b e st p ractice s and g u id e line s fo r te st au to m atio n
im p le m e ntatio n. A te ste r can’t cre ate a scrip t o n th is o w n style
o r way fo r th e p ro je ct te st au to m atio n.
Quality of automation :
The Framework will be evaluated in different levels to object
quality in automation.
Framework Design: Hybrid model has been used to design
the centralized automation framework.
14

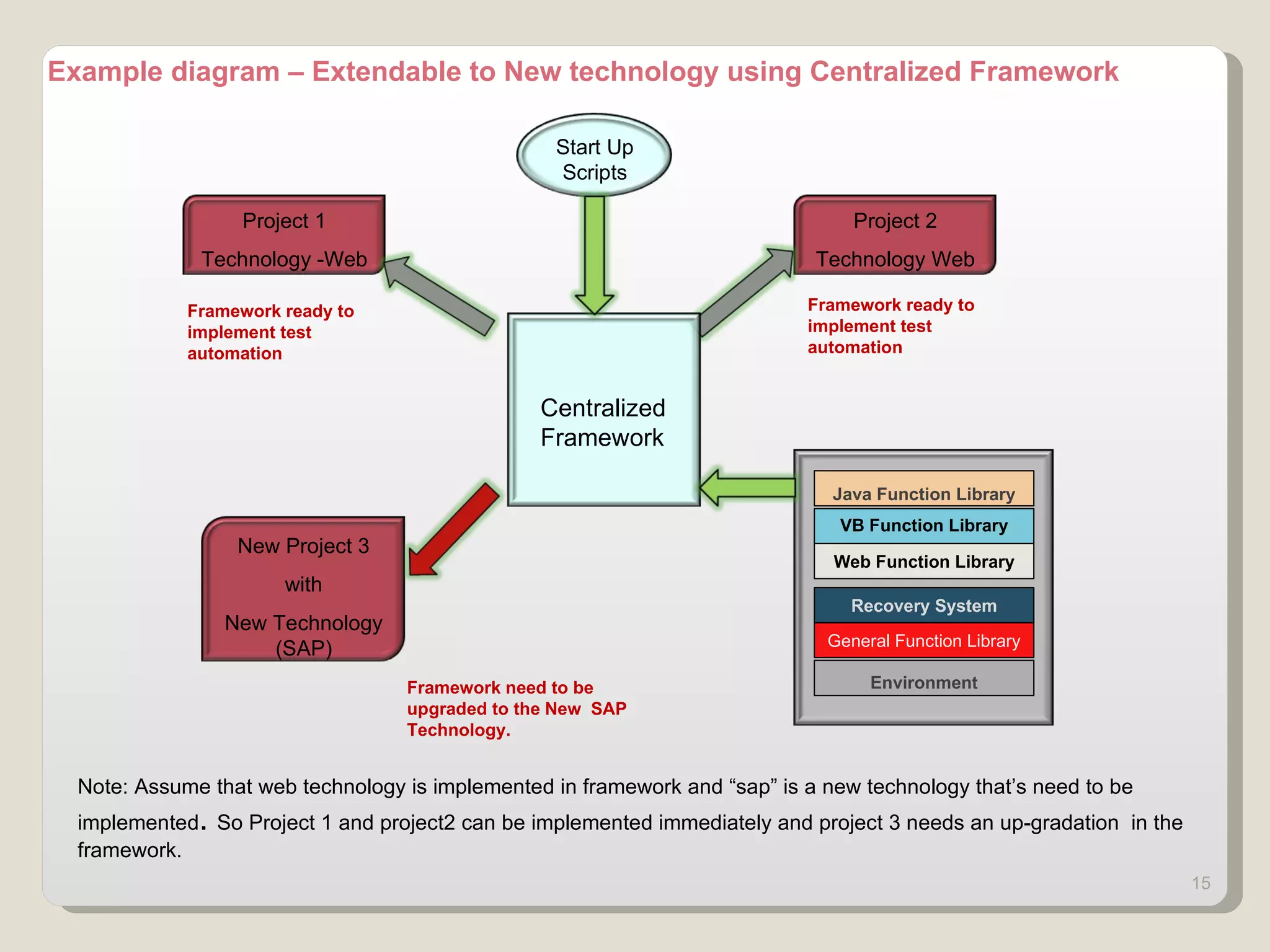

15. Example diagram – Extendable to New technology using Centralized Framework
Start Up
Scripts
Project 1 Project 2
Technology -Web Technology Web
Framework ready to Framework ready to
implement test implement test
automation automation
Centralized
Framework
Java Function Library
VB Function Library
New Project 3
Web Function Library
with
Recovery System
New Technology
(SAP) General Function Library
Framework need to be Environment
upgraded to the New SAP
Technology.
Note: Assume that web technology is implemented in framework and “sap” is a new technology that’s need to be
implemented. So Project 1 and project2 can be implemented immediately and project 3 needs an up-gradation in the
framework.
15

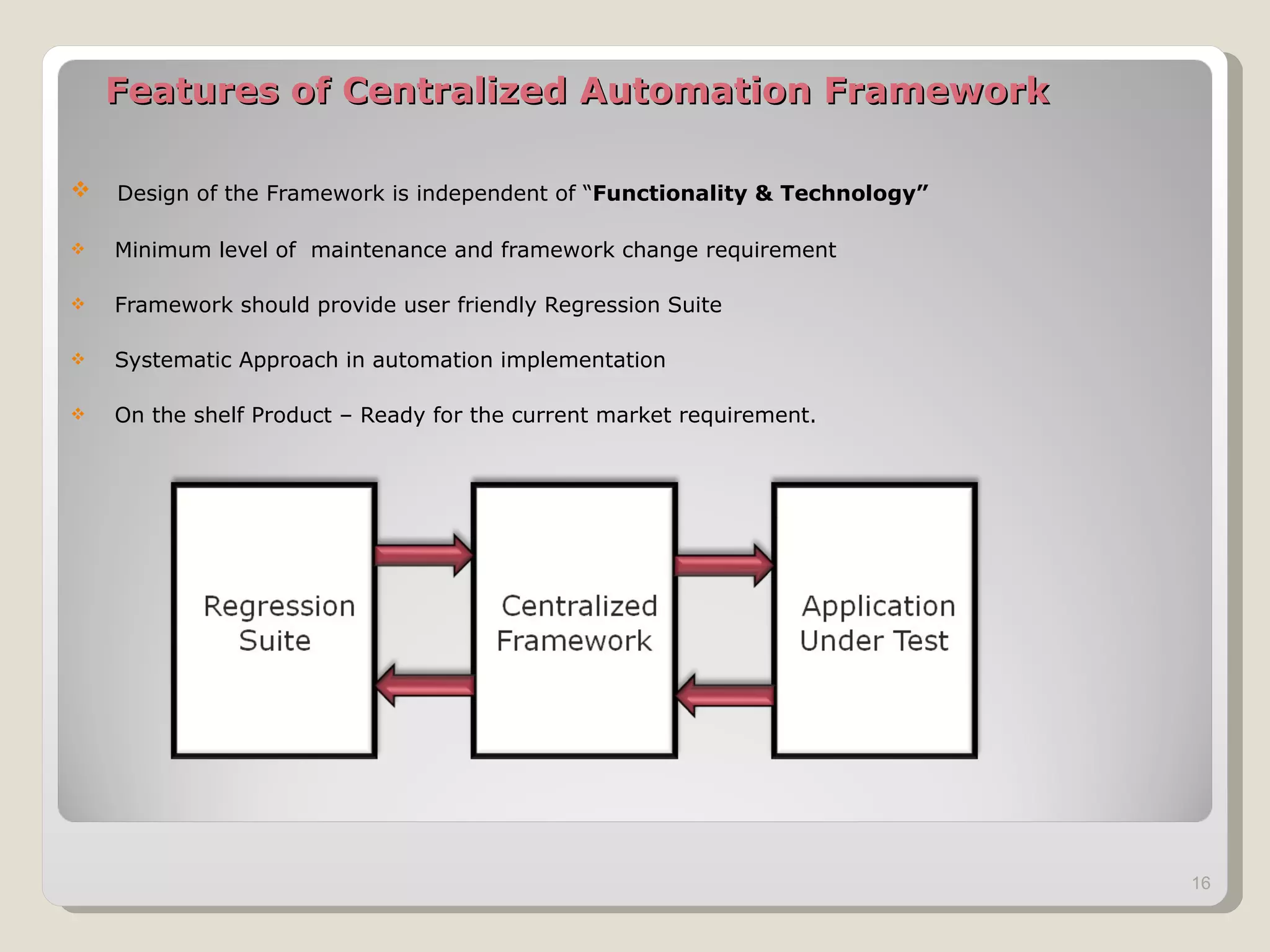

16. Features of Centralized Automation Framework
 Design of the Framework is independent of “Functionality & Technology”
 Minimum level of maintenance and framework change requirement
 Framework should provide user friendly Regression Suite
 Systematic Approach in automation implementation
 On the shelf Product – Ready for the current market requirement.
16

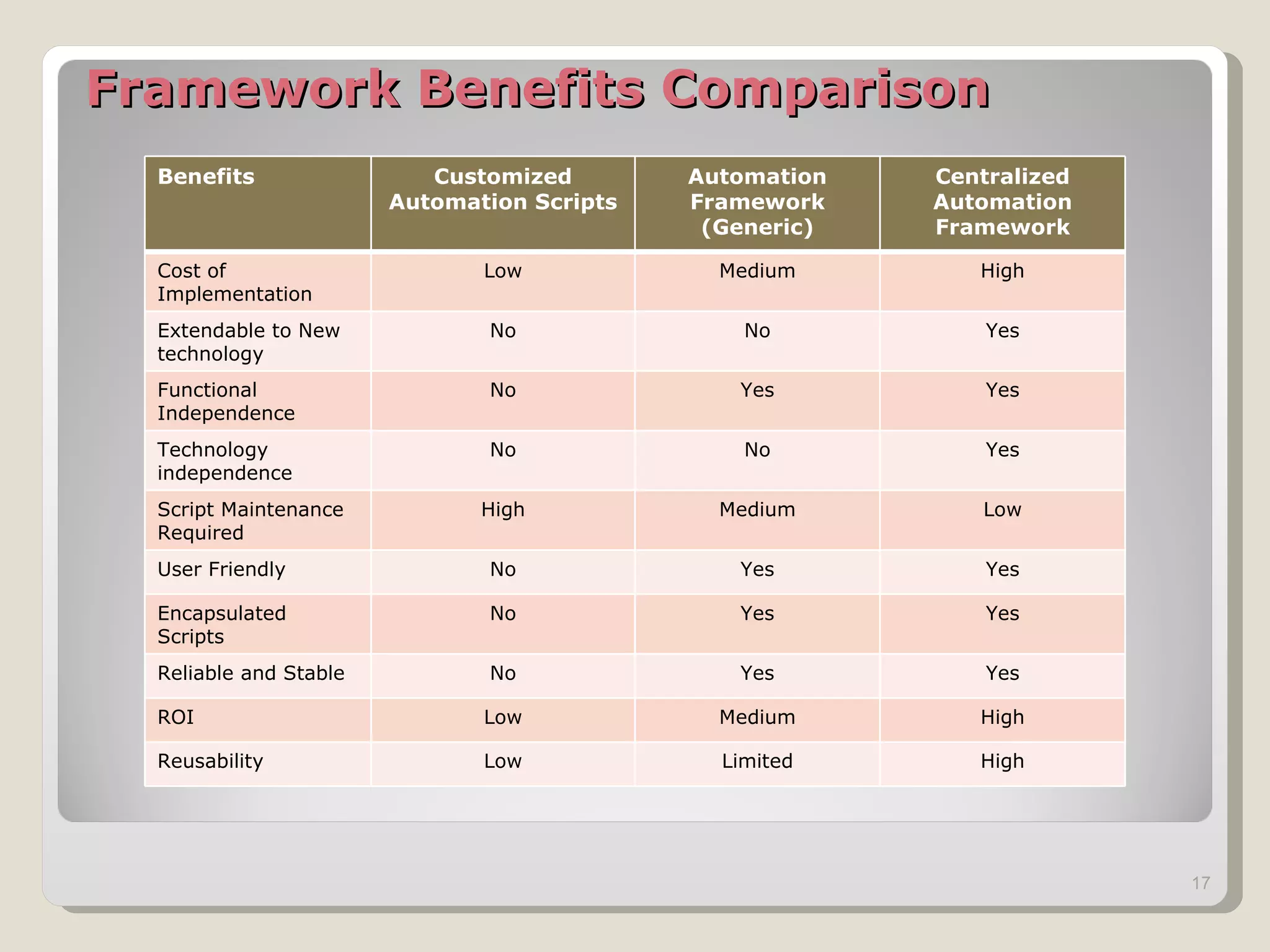

17. Framework Benefits Comparison
Benefits Customized Automation Centralized
Automation Scripts Framework Automation
(Generic) Framework
Cost of Low Medium High
Implementation
Extendable to New No No Yes
technology
Functional No Yes Yes
Independence
Technology No No Yes
independence
Script Maintenance High Medium Low
Required
User Friendly No Yes Yes
Encapsulated No Yes Yes
Scripts
Reliable and Stable No Yes Yes
ROI Low Medium High
Reusability Low Limited High
17

18. Architecture of Centralized Automation Framework
Automation Framework Start
Driver Script Driver Sheet
No
IF
Flag
Y/N
Regression Suite
Yes
Main Script Main DataSheet
Main DataSheet
Sub Script
Sub Script
No
IF
Flag
Y/N No
IF Sub Suite Folder
Yes Flag
Y/N
Sub Yes
Suite
Suite
Yes
Perform Validation
Perform Validation
No
Perform Validation ResultSheet
Application
Application
18

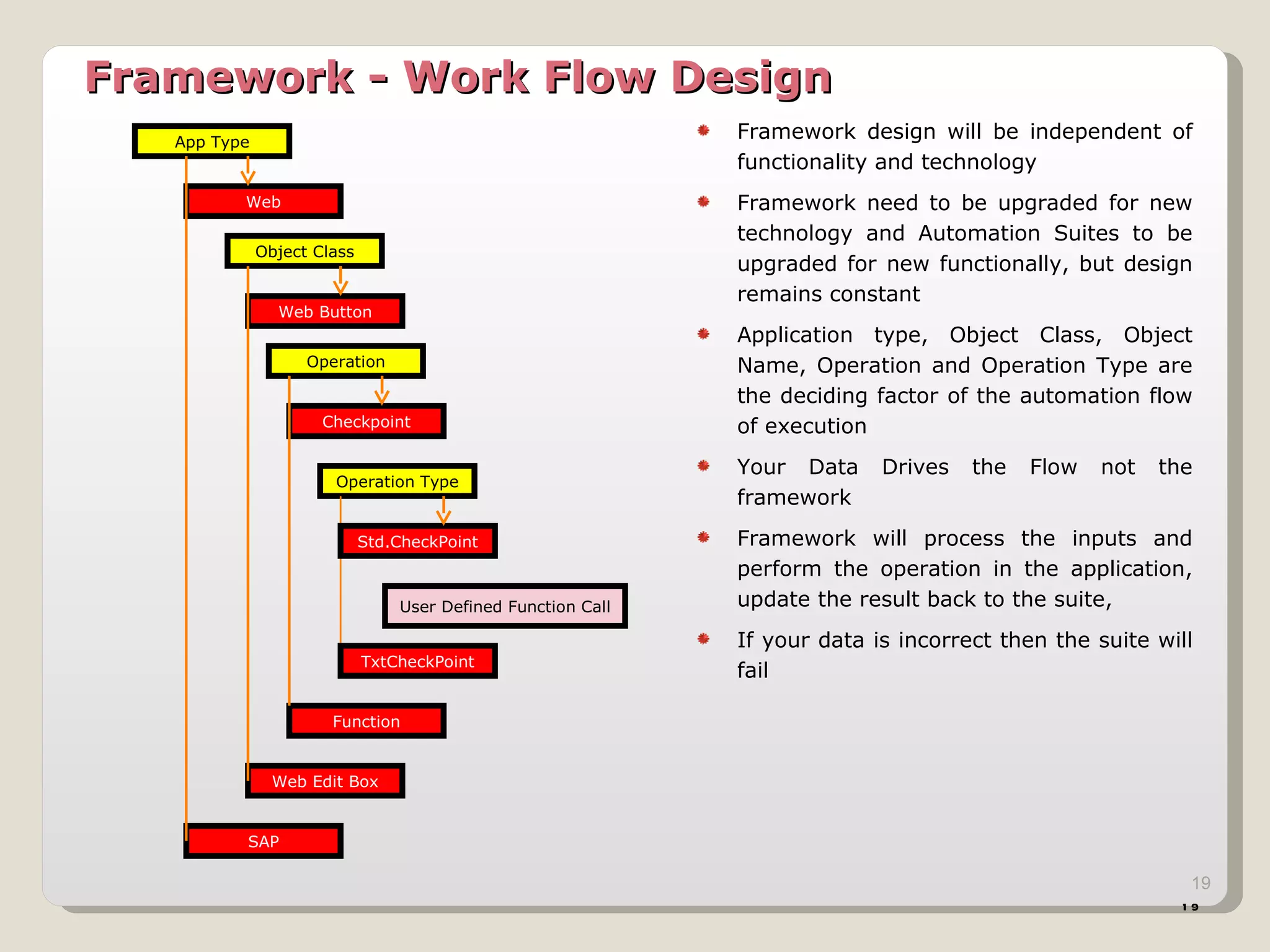

19. Framework - Work Flow Design
App Type
Framework design will be independent of
functionality and technology
Web Framework need to be upgraded for new
technology and Automation Suites to be
Object Class
upgraded for new functionally, but design
remains constant
Web Button
Application type, Object Class, Object
Operation Name, Operation and Operation Type are
the deciding factor of the automation flow
Checkpoint of execution
Your Data Drives the Flow not the
Operation Type
framework
Std.CheckPoint Framework will process the inputs and
perform the operation in the application,
User Defined Function Call update the result back to the suite,
If your data is incorrect then the suite will
TxtCheckPoint
fail
Function
Web Edit Box
SAP
19
19

20. High Level Framework Design
 Driver Sheet :
Driver Script Driver Sheet Th e Starting Po int o f Fram e wo rk and will co ntain all th e
info rm atio n ab o ut Re g re ssio n Suite ( like (Path , Suite N am e ,
n M o d ule N am e and Flag , e tc )
 Driver Script :
Main Script Main Data Sheet W ill ch e ck th e Flag status o f All th e Re g re ssio n Suite in th e
D rive r sh e e t
n Flag = Ye s ( Suite ne e d to b e e x e cute d )
Flag = N o ( Suite ne e d no t to e x e cute )
Sub Script Sub Data Sheet  Main Script :
It will lo cate th e re g re ssio n suite and g e t d ata fro m th e M ain
d atash e e t
It will re ad all th e ro ws in th e d atash e e t, 1 to n ro ws,
b e fo re p ro ce ss a ro w, it will ch e ck th e Flag Status( Ye s/N o )
Frame work Automation Suite  Main Datasheet :
1. Driver Sheet • Main Data Sheet Each Ro w will co ntain te ch nical d ata, te st d ata and a flag
2. Driver Script O ne line o f Scrip t will b e co nve rte d into o ne ro w in
3. Main Script • Object Repository
D atash e e t
4. Sub Script
5. Function Library • Reusable Suite  Sub Script and Sub Data Sheet :
6. Recovery
scenarios • Result Sheet W e can call Re usab le Suite s insid e yo ur Re g . Suite s
 Function Library : Se t o f Re u sab le Functio ns
 ResultSheet : C usto m iz e d re sults fo r use r s b e tte r
und e rstand ing 20

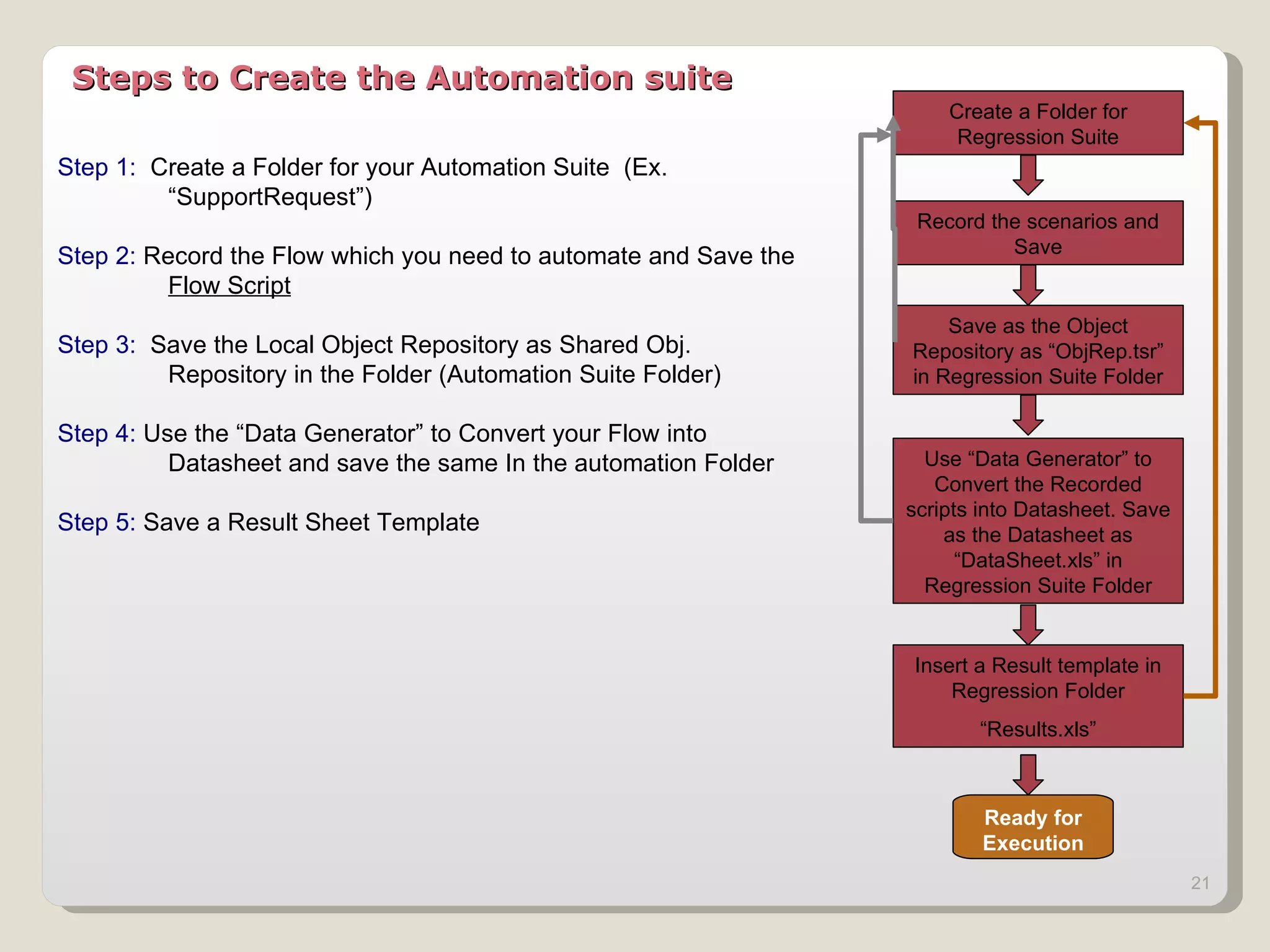

21. Steps to Create the Automation suite
Create a Folder for
Regression Suite
Step 1: Create a Folder for your Automation Suite (Ex.
“SupportRequest”)
Record the scenarios and
Step 2: Record the Flow which you need to automate and Save the Save
Flow Script
Save as the Object
Step 3: Save the Local Object Repository as Shared Obj. Repository as “ObjRep.tsr”
Repository in the Folder (Automation Suite Folder) in Regression Suite Folder
Step 4: Use the “Data Generator” to Convert your Flow into
Datasheet and save the same In the automation Folder Use “Data Generator” to
Convert the Recorded
scripts into Datasheet. Save
Step 5: Save a Result Sheet Template as the Datasheet as
“DataSheet.xls” in
Regression Suite Folder
Insert a Result template in
Regression Folder
“Results.xls”
Ready for
Execution
21

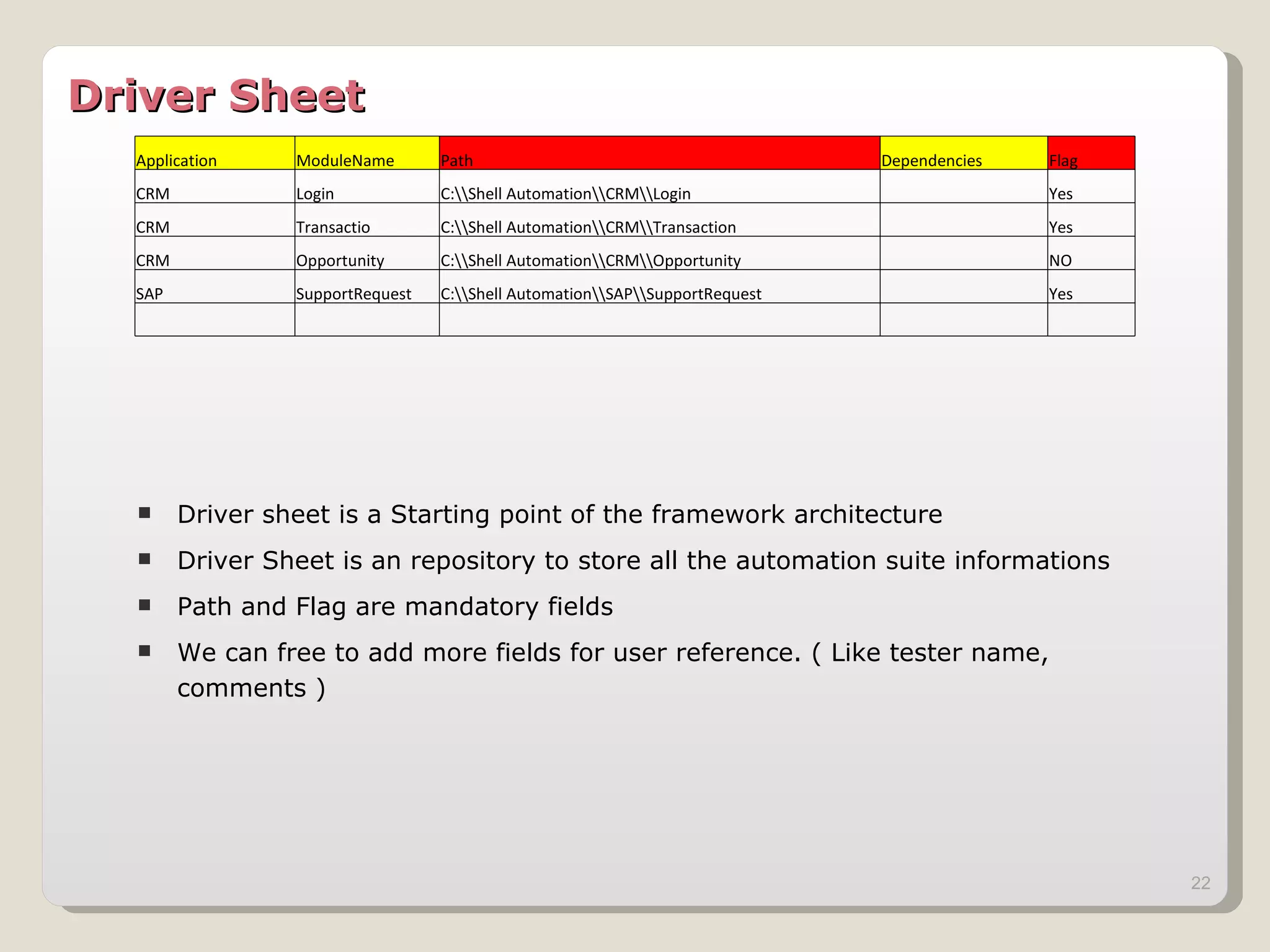

22. Driver Sheet
Application ModuleName Path Dependencies Flag
CRM Login C:Shell AutomationCRMLogin Yes
CRM Transactio C:Shell AutomationCRMTransaction Yes
CRM Opportunity C:Shell AutomationCRMOpportunity NO
SAP SupportRequest C:Shell AutomationSAPSupportRequest Yes
 Driver sheet is a Starting point of the framework architecture
 Driver Sheet is an repository to store all the automation suite informations
 Path and Flag are mandatory fields
 We can free to add more fields for user reference. ( Like tester name,
comments )
22

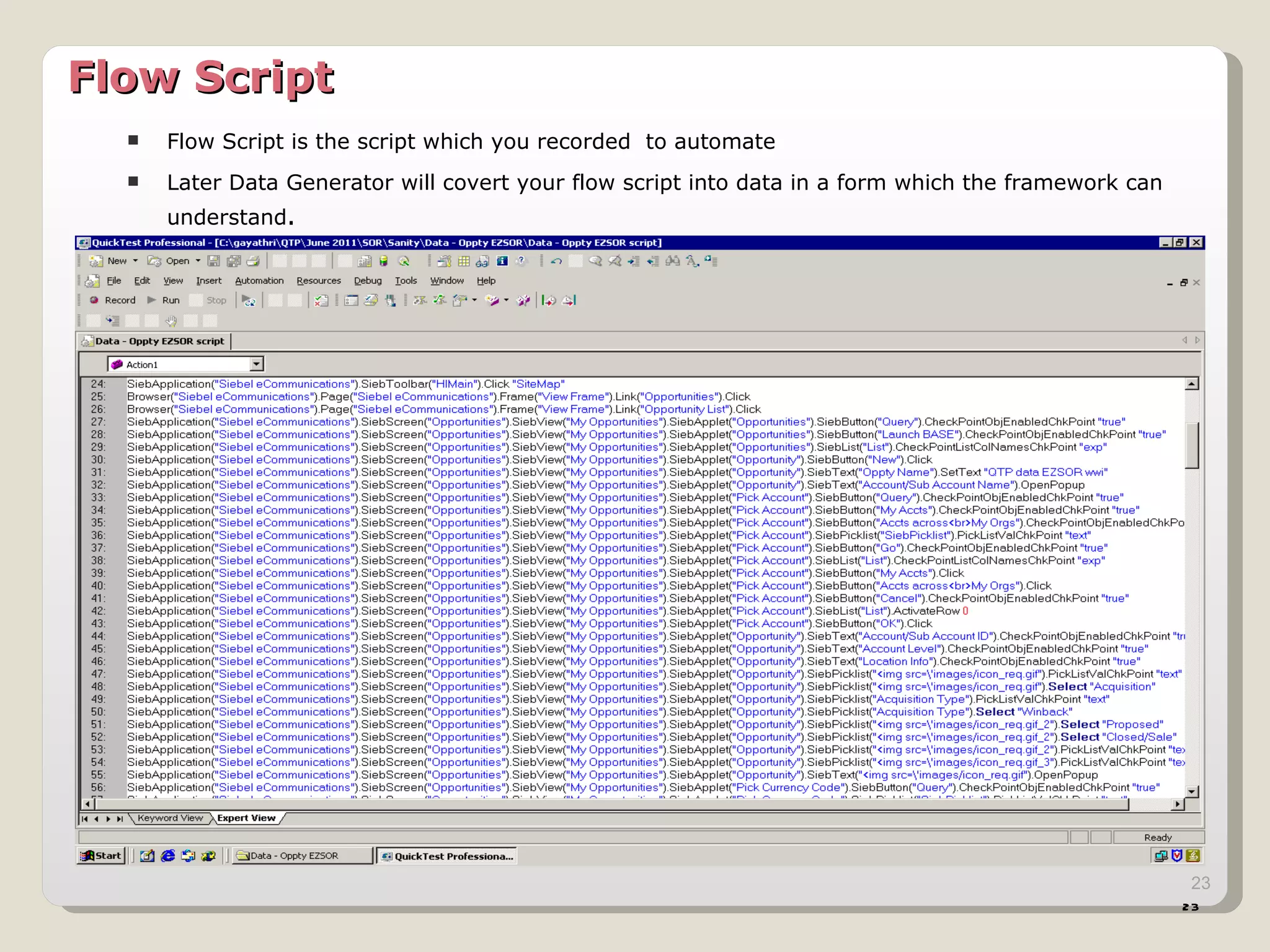

23. Flow Script
 Flow Script is the script which you recorded to automate
 Later Data Generator will covert your flow script into data in a form which the framework can
understand.
23
23

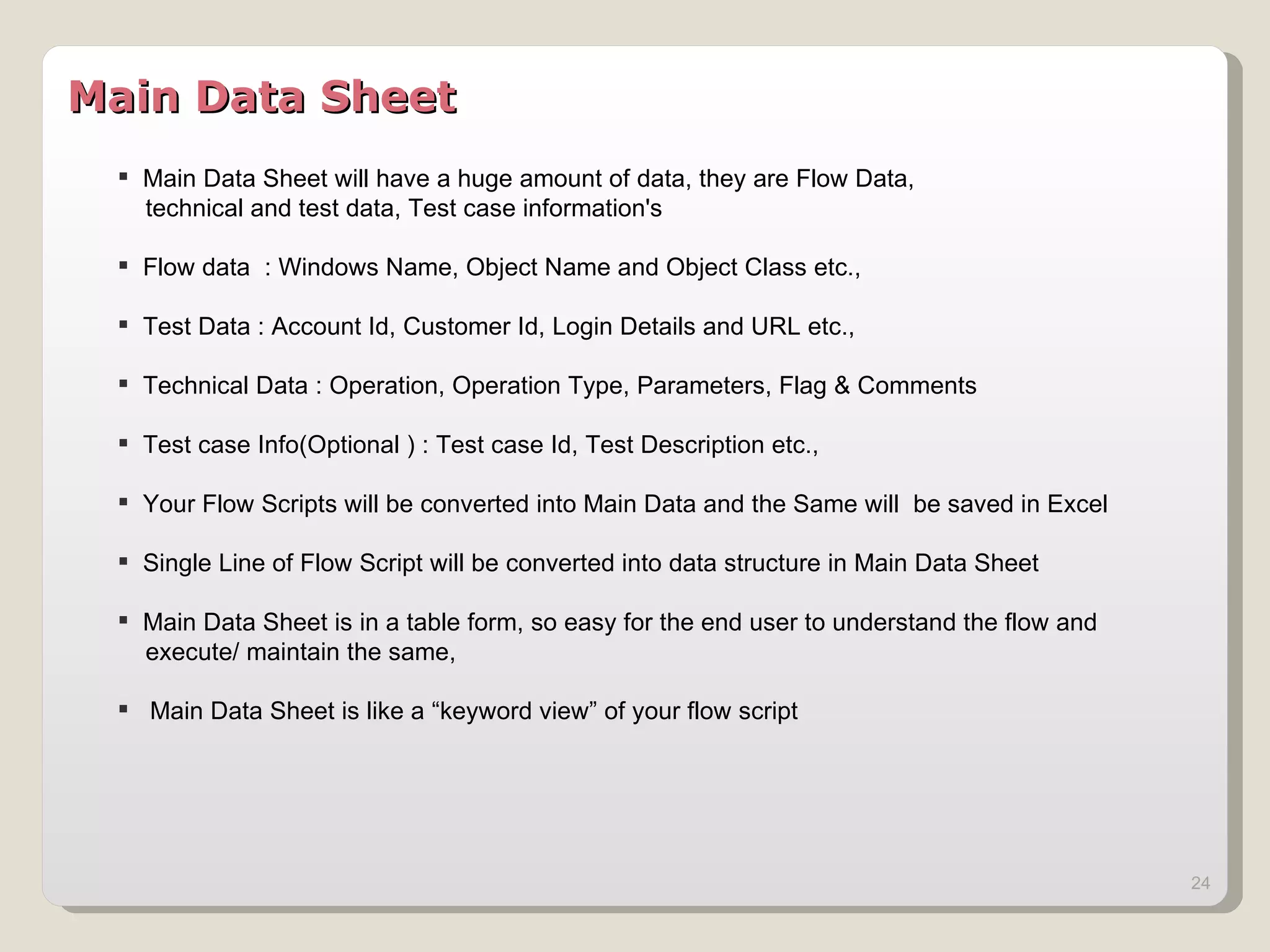

24. Main Data Sheet
 Main Data Sheet will have a huge amount of data, they are Flow Data,
technical and test data, Test case information's
 Flow data : Windows Name, Object Name and Object Class etc.,
 Test Data : Account Id, Customer Id, Login Details and URL etc.,
 Technical Data : Operation, Operation Type, Parameters, Flag & Comments
 Test case Info(Optional ) : Test case Id, Test Description etc.,
 Your Flow Scripts will be converted into Main Data and the Same will be saved in Excel
 Single Line of Flow Script will be converted into data structure in Main Data Sheet
 Main Data Sheet is in a table form, so easy for the end user to understand the flow and
execute/ maintain the same,
 Main Data Sheet is like a “keyword view” of your flow script
24

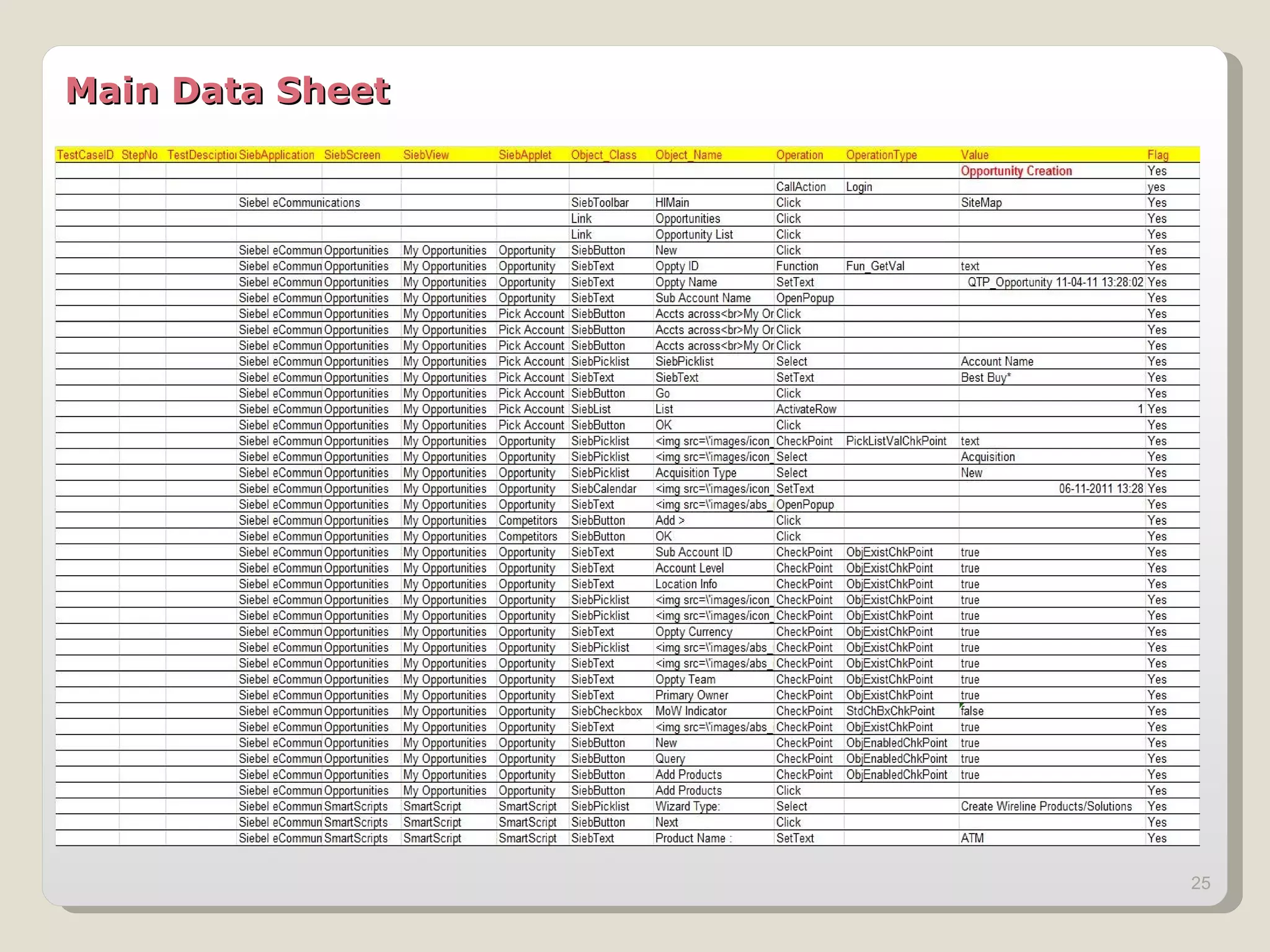

25. Main Data Sheet
25

26. Elements of a Framework
IBM Confidential
26

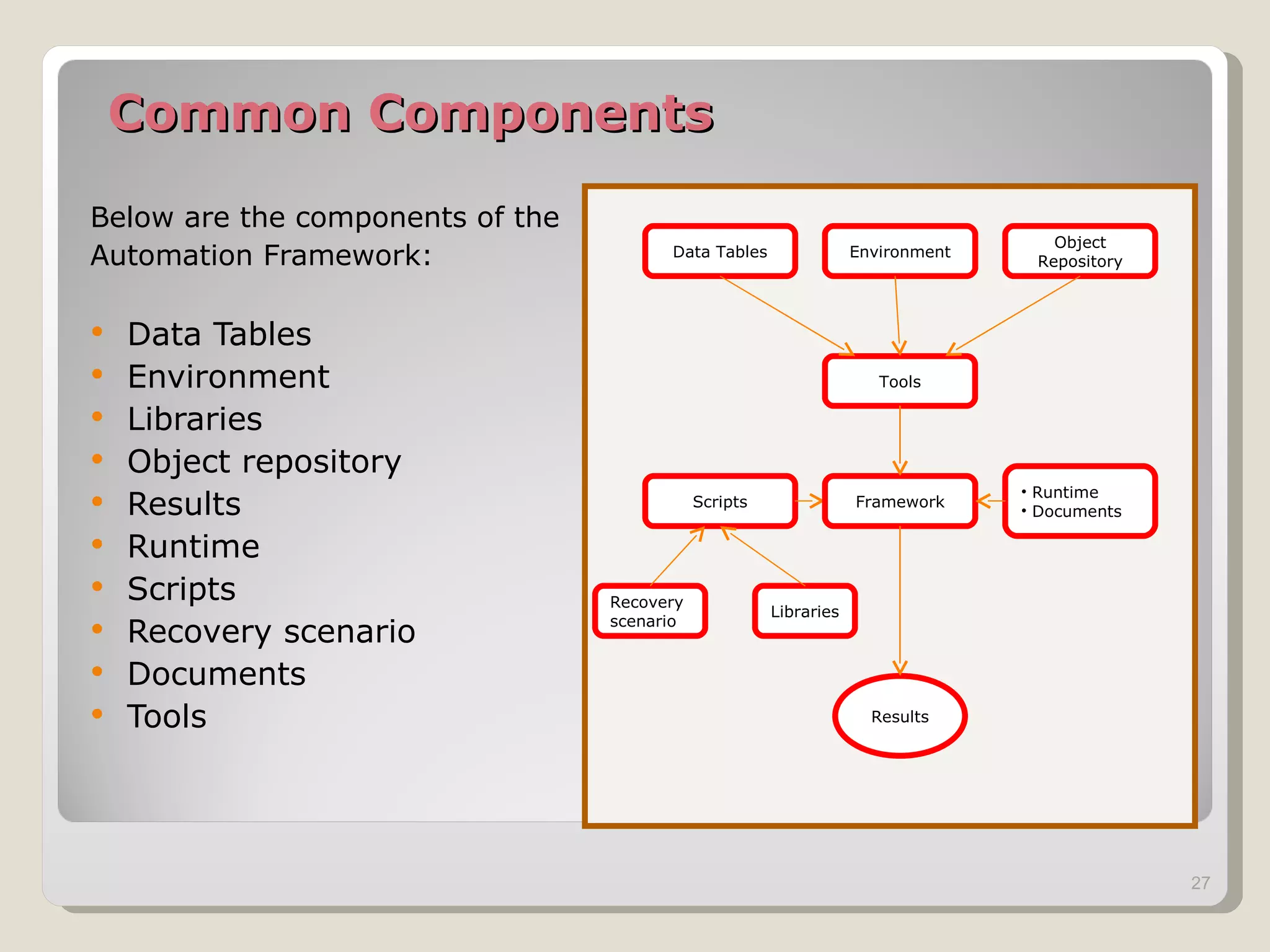

27. Common Components
Below are the components of the
Object
Automation Framework: Data Tables Environment
Repository
 Data Tables
 Environment Tools
 Libraries
 Object repository
• Runtime
 Results Scripts Framework
• Documents
 Runtime
 Scripts Recovery
Libraries
 Recovery scenario scenario
 Documents
 Tools Results
27

28. Data Tables
 Data table leads to Parameterization
Username Password
 Repository for Test Data
 Designed for User Interaction User1 pwd1
 Data table can be an Excel Document, Ms-Access, User2 pwd2
Database User3 pwd3
 Framework will Design the Data table Structure
and mapping
28

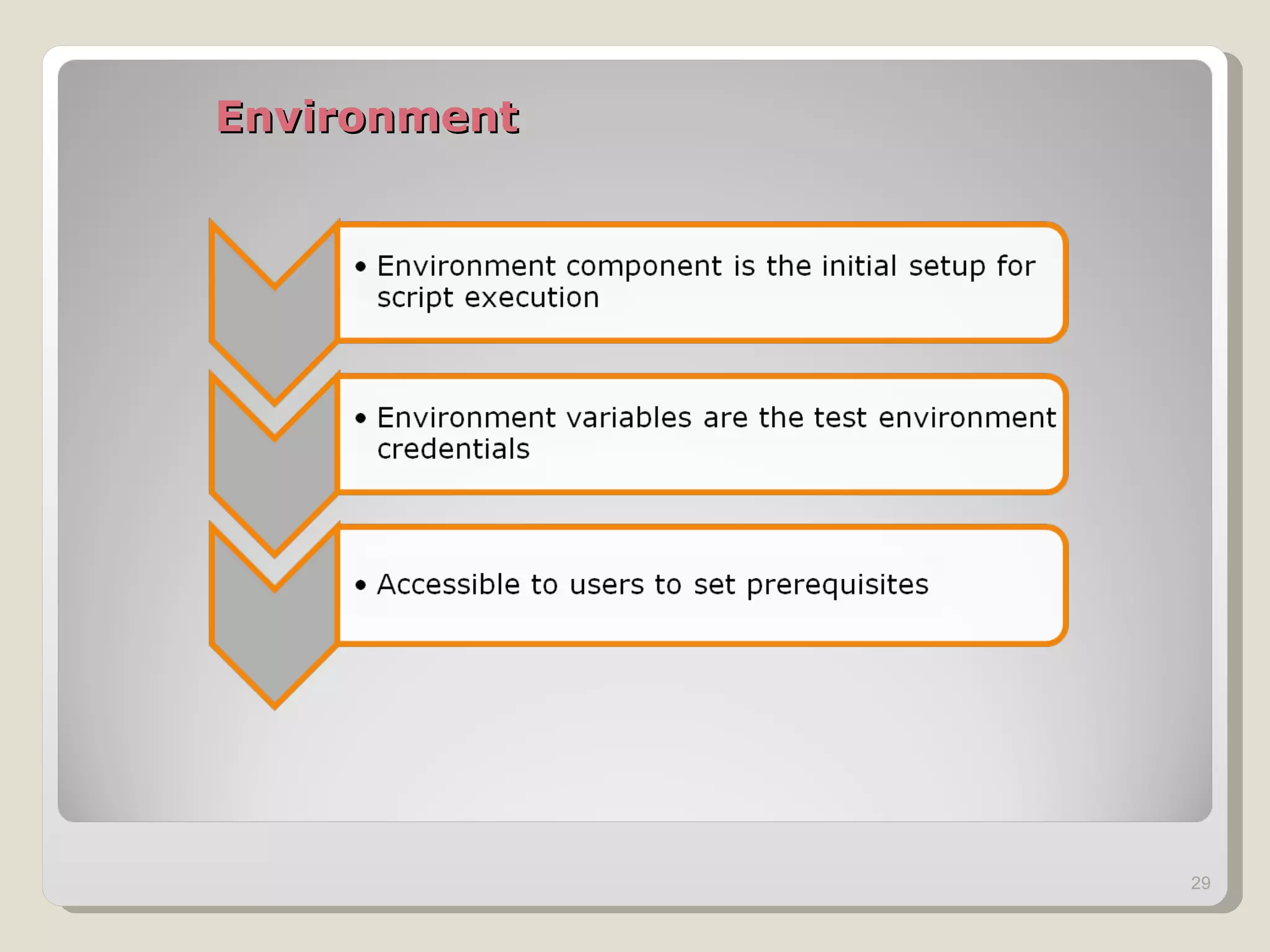

29. Environment
29

30. Libraries
Function library
Collection of Reusable operations in the form of Predefined Structure
Application
Function Driver
Library Scripts
 Time and resource can be saved using reusable functions.
 Decomposing the scripts into functions, will increate the level of script Understandably.
 Creating functions will reduce the dependencies within the scripts.
 Scripts maintenance cost will considerably will come down.
 Support Future requirements.
.
30

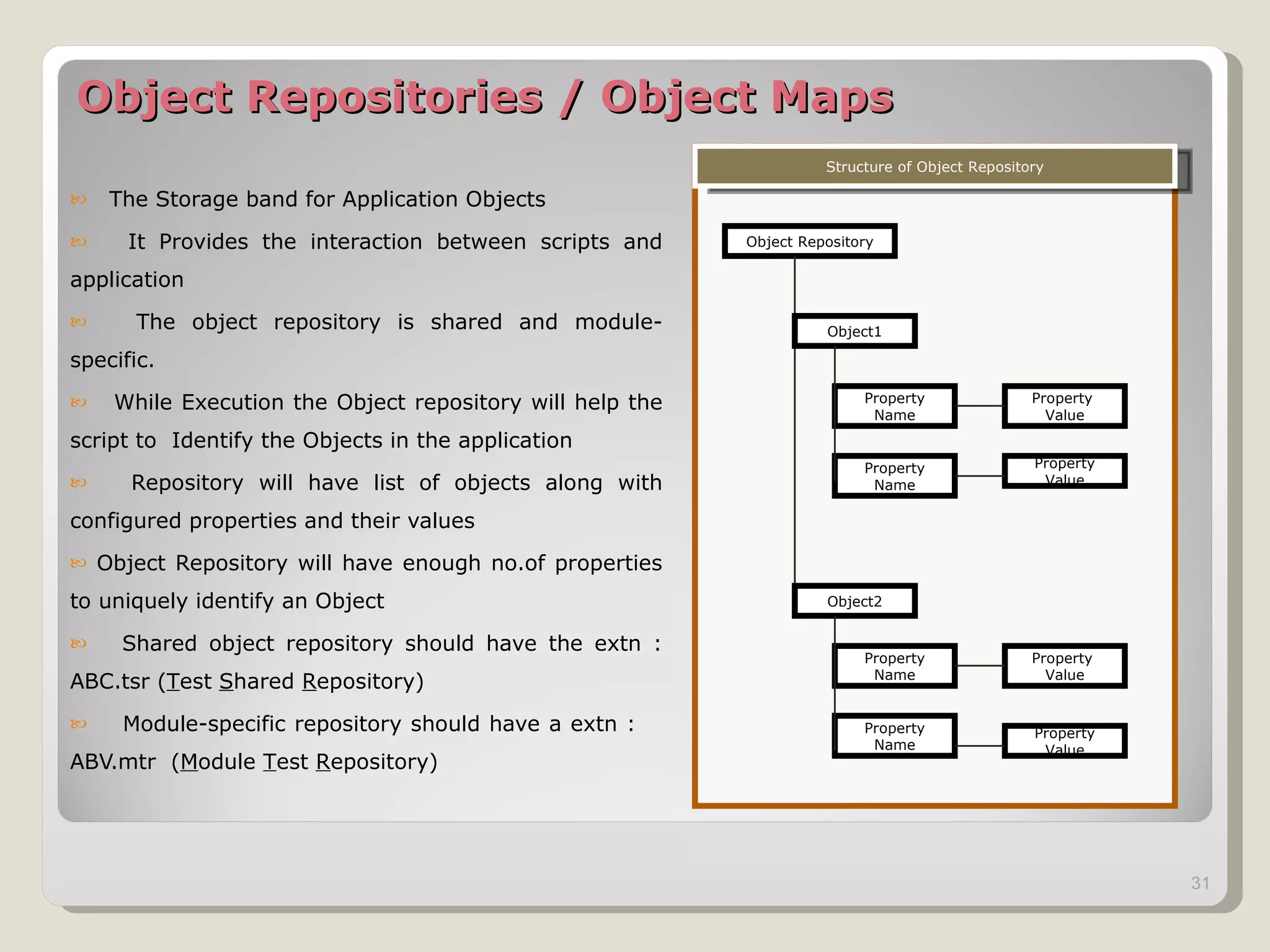

31. Object Repositories / Object Maps
Structure of Object Repository
 The Storage band for Application Objects
 It Provides the interaction between scripts and Object Repository
application
 The object repository is shared and module- Object1
specific.
 While Execution the Object repository will help the Property Property
Name Value
script to Identify the Objects in the application
Property Property
 Repository will have list of objects along with Name Value
configured properties and their values
 Object Repository will have enough no.of properties
to uniquely identify an Object Object2
 Shared object repository should have the extn :
Property Property
Name Value
ABC.tsr (Test Shared Repository)
 Module-specific repository should have a extn : Property Property
Name Value
ABV.mtr (Module Test Repository)
31

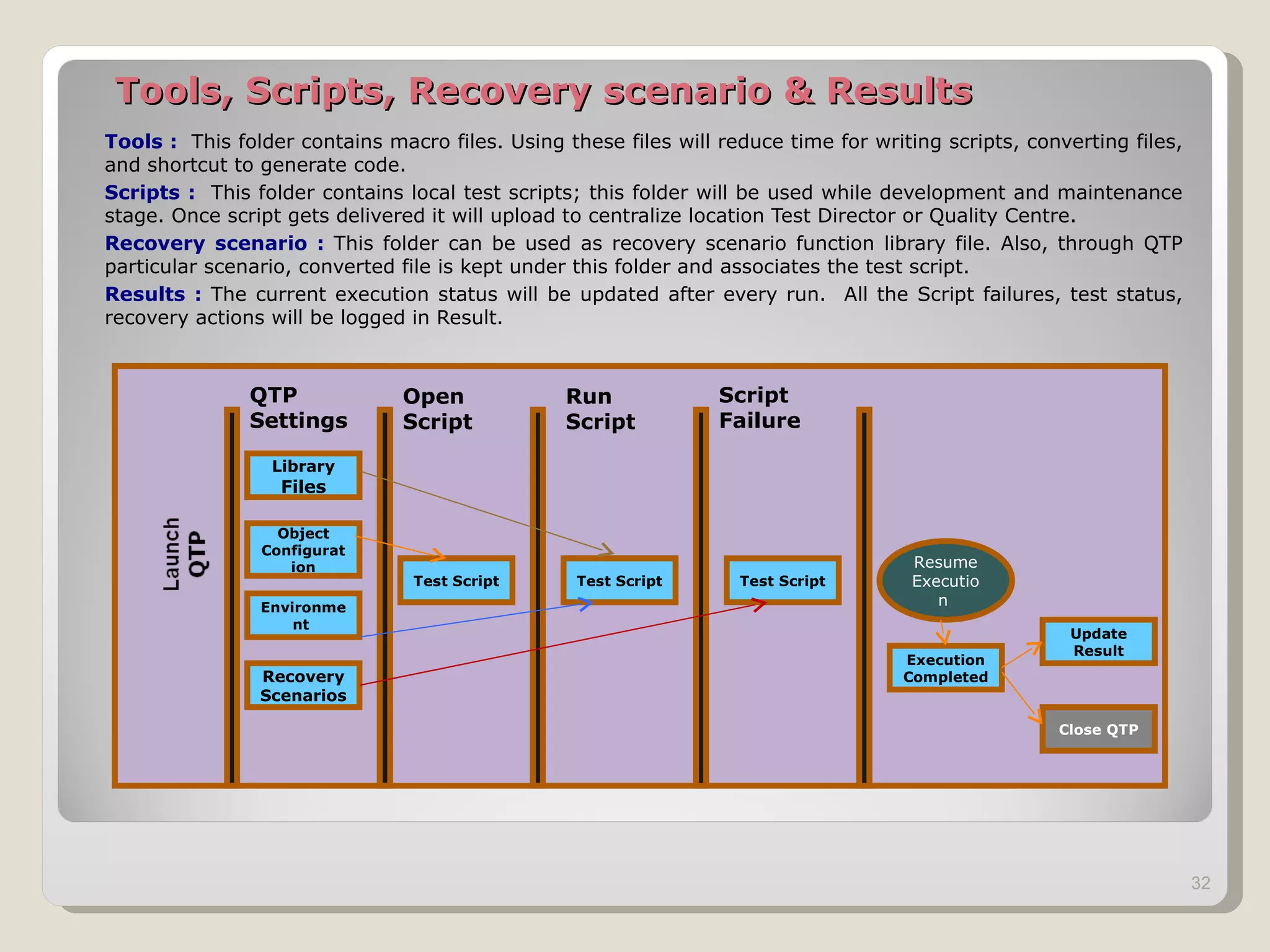

32. Tools, Scripts, Recovery scenario & Results
Tools : This folder contains macro files. Using these files will reduce time for writing scripts, converting files,
and shortcut to generate code.
Scripts : This folder contains local test scripts; this folder will be used while development and maintenance
stage. Once script gets delivered it will upload to centralize location Test Director or Quality Centre.
Recovery scenario : This folder can be used as recovery scenario function library file. Also, through QTP
particular scenario, converted file is kept under this folder and associates the test script.
Results : The current execution status will be updated after every run. All the Script failures, test status,
recovery actions will be logged in Result.
QTP Open Run Script
Settings Script Script Failure
Library
Files
Object
Configurat
ion Resume
Test Script Test Script Test Script Executio
Environme n
nt
Update
Result
Execution
Recovery Completed
Scenarios
Close QTP
32

33. Thank You
AS ALPS | Mar 15, 2012 | IBM
Confidential 33
