1. Video Door Phone Kit
For SMALL APARTMENT & HOUSES

2. Door Stations Stabila DESIGN
Type Name Max. Users DS + BBX Dimensions
(WX H X D) in mm
Art. No. F eatures : Multi-apartment VDP Door Station (Outdoor Unit / Lobby Station)
DS-4 4 140 x 375 x 44 101.208.000 Anti-Vandal, Flush Mount – Metal Body, Classic DS
Front plate with Brush finish – 3 mm Anodized aluminum with Frame.
Built-in CCD 1/3” High Resolution Camera – 480 TVL with IR for vision in low light
Camera can be adjusted +/- 10° (up down, left right)
Hands free Communication – weather proof electronics
Door bell push button with name plate backlight with SOS indication
Runs with a single power supply “PSU-620”
Door lock can be attached without extra power supply
DS-16 16 236 x 375 x 65 101.216.000
DS-28 28 326 x 375 x 65 101.228.000
DS-12-COD 12 236 x 375 x 65 101.212.000
DS-24-COD 24 326 x 375 x 65 101.224.000
DS-4DS-4 DS-16DS-16 DS-28DS-28 DS-12-DS-12-CODCOD DS-24-DS-24-CODCOD
DOOR STATIONS : For Multi-apartment

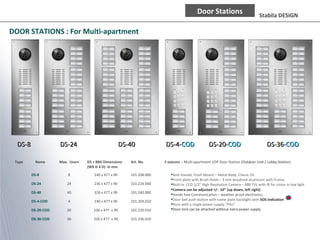

3. Door Stations Stabila DESIGN
Type Name Max. Users DS + BBX Dimensions
(WX H X D) in mm
Art. No. F eatures : Multi-apartment VDP Door Station (Outdoor Unit / Lobby Station)
DS-8 8 140 x 477 x 90 101.208.000 Anti-Vandal, Flush Mount – Metal Body, Classic DS
Front plate with Brush finish – 3 mm Anodized aluminum with Frame.
Built-in CCD 1/3” High Resolution Camera – 480 TVL with IR for vision in low light
Camera can be adjusted +/- 10° (up down, left right)
Hands free Communication – weather proof electronics
Door bell push button with name plate backlight with SOS indication
Runs with a single power supply “PSU”
Door lock can be attached without extra power supply
DS-24 24 236 x 477 x 90 101.224.000
DS-40 40 326 x 477 x 90 101.240.000
DS-4-COD 4 140 x 477 x 90 101.204.010
DS-20-COD 20 236 x 477 x 90 101.220.010
DS-36-COD 36 326 x 477 x 90 101.236.010
DS-8DS-8 DS-24DS-24 DS-40DS-40
DOOR STATIONS : For Multi-apartment
DS-4-DS-4-CODCOD DS-20-DS-20-CODCOD DS-36-DS-36-CODCOD

4. Door Stations Stabila DESIGN
VDP System : BOM & Typical Installation
Sr. Item Qty. Item Description Remarks
1 Door Station 1 VDP Lobby Station for 4 users
2 Indoor Station 4 Video Door Phone – model VMO400
3 PSU 1 Power Supply Unit 1 Nos. for every 20 flats
4 DL-17e 1 Door lock releaser (optional)
5 CBL-4C 20 Cable – 4 Core (4x0.6mm) OK - if CAT6 / CBL-6C is used
6 CBL-6C 16 Cable – 6 Core + Coax. From each flat phone to Lobby station
