1. © CCPS PERD 2018

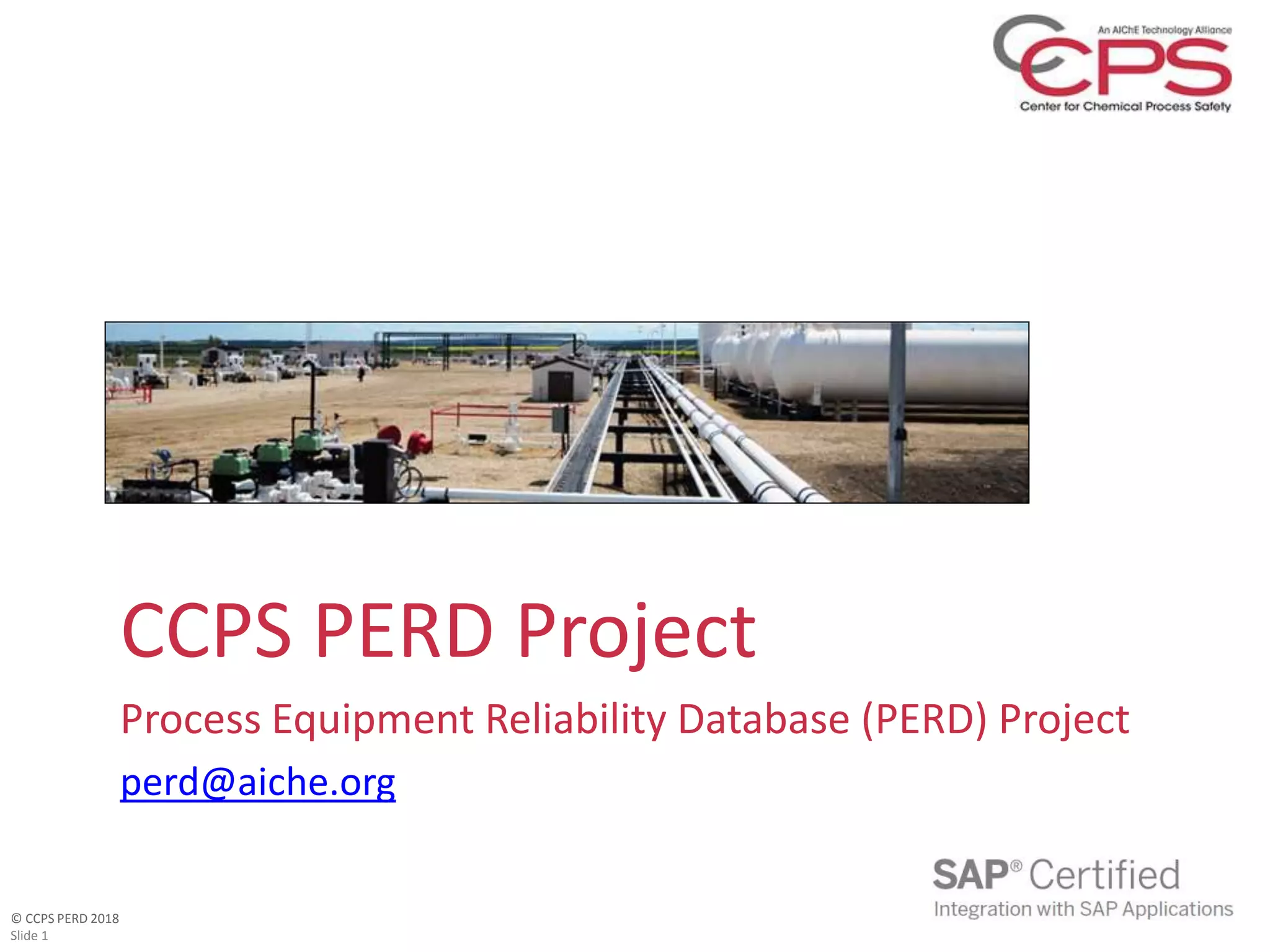

Slide 1
CCPS PERD Project
Process Equipment Reliability Database (PERD) Project
perd@aiche.org

2. © CCPS PERD 2018
Slide 2
Tony Ciliberti PE
PERD ERP Subcommittee Chair
• Thirty years experience as a reliability engineer in
petrochemical, oil and gas, and utilities
– Bachelor of Science, Chemical Engineering, Texas A&M
University, 1987
• Four years with SAP Americas’ National Practice
as a Principal Consultant and Solution Architect
• Industry standards involvement
– Center for Chemical Process Safety (CCPS) Process
Equipment Reliability Database (PERD) Project, PERD
ERP Subcommittee Chair
– ISO TC 67/WG4 PG1 (US expert): ISO 14224 -
Collection and exchange of reliability and
maintenance data for equipment
– ISO TC 67/WG4 PG2 (US expert): ISO 20815 –
Production assurance and reliability management
Principal Engineer
Reliability Dynamics LLC

3. © CCPS PERD 2018
Slide 3
CCPS PERD
• Organization
– Project of the Center for Chemical Process Safety (CCPS)
– Directorate of the American Institute of Chemical Engineers (AIChE)
• Mission
– Operation of an equipment reliability database, making available high
quality, valid, and useful data to the HPI and CPI enabling analyses to
support availability, reliability, and equipment design improvements,
maintenance strategies, and life cycle cost determination
– Help companies improve their internal reliability and maintenance
data collection processes

4. © CCPS PERD 2018
Slide 4
PERD ERP Subcommittee
1. Alignment with international standard ISO 14224
– PERD promulgates standard methods for application of ISO 14224
methods in enterprise software
– PERD actively participates in ISO 14224 development with an ANSI-
appointed US Expert Member in ISO TC67/WG4/PG1
2. Help companies with new tools and standard methods to improve
their equipment reliability data processes
– Guidance for how to collect high-quality failure data with corporate
software
– Standard content and methods, e.g. taxonomy definitions
– Failure data quality management
3. Improving data quality in the PERD central repository
– New repository (commercial ERP software)
– Minimum requirements for high-quality trusted data

5. © CCPS PERD 2018
Slide 5
How PERD Participants Benefit
• PERD methods address prevalent ERP/CMMS deficiencies
– Technical hierarchy construction
– Standard processes for reliability and maintenance data
– Equipment reliability data quality
– Ability to manage assets against the bottom line
• PERD methods give improved efficiency
– Collect the right data
– Analyze data en masse
– Eliminate data mining
– Use data-driven decision-making
– Focus on true priorities

6. © CCPS PERD 2018
Slide 6
PERD Overview
• Bottom-line driven approach for optimizing equipment
reliability
– Maximize production throughput
– Minimize health, safety, and environmental hazards
• Enables corporate line-of-sight between equipment failure
events and the bottom line
• Enables data-driven decision-making with high-quality
equipment reliability data
• Helps companies identify where to focus equipment reliability
efforts

7. © CCPS PERD 2018
Slide 7
PERD Methods by Reliability Dynamics
The Industry Standard Solution for Plant Maintenance (ISPM®)
• Standard application of ISO 14224
methods
– Software vendor certified
– Built-in solution
• Proven methodology
– 30 years – OREDA/ISO 14224
– 13 years – ISPM
• Evolutionary product
– Refined through application in
industry
(13 years)
– Solicit and incorporate customer
feedback

8. © CCPS PERD 2018
Slide 8
Involvement in ISO TC 67/WG 4
May 2018

9. © CCPS PERD 2018
Slide 9
PERD (ISPM) Bottom-Line Approach
• IDENTIFY
– Equipment failure events with the greatest consequences
– Equipment causing those events (bad-actor equipment)
• ANALYZE
– High-consequence failure events
– Failure patterns of bad-actor equipment causing them
– Obtain details necessary to take corrective action
• RESOLVE
– Bad actor equipment reliability issues
– Implement and prioritize corrective measures

10. © CCPS PERD 2018
Slide 10
IDENTIFY High-Consequence Failure Events
The Bottom Line

11. © CCPS PERD 2018
Slide 11
ANALYZE Failure details:
Equipment-Level Analysis

12. © CCPS PERD 2018
Slide 12
ANALYZE Failure details:
Component-Level Analysis

13. © CCPS PERD 2018
Slide 13
ANALYZE Failure details:
Component-Level Analysis

14. © CCPS PERD 2018
Slide 14
RESOLVE Bad-Actor Equipment Issues
• Implement corrective measures for bad actor equipment, e.g.:
– Preventive maintenance
– Inspections
– Procedures
– Facilities changes
• Prioritize corrective measures based on:
– Actual consequences
– Future consequence potential

15. © CCPS PERD 2018
Slide 15
PERD (ISPM) Application in Enterprise
Software

16. © CCPS PERD 2018
Slide 16
Design Principals
• SIMPLIFY
– Integrate equipment reliability and work execution processes
– Instill data quality at inception
– Structure data for optimal accessibility
• STANDARDIZE
– Use methods consistent with industry and international standard
processes
– Represent facilities in a logical and standard manner
• One system of record for all technical tags
• One unique ID for each equipment object throughout all systems and records
and in the field
– Use standard failure data collection, merging, and assessment processes
• Same look and feel for all malfunction reporting
• AUTOMATE
– Use system-driven data quality-assurance processes

17. © CCPS PERD 2018
Slide 17
Equipment Reliability Data Quality
Management
• Quality assurance
– Technical hierarchy
• Structure defines equipment
boundaries and
interrelationships
• Programmatic consistency
checks
– Malfunction reporting
• Minimum dataset for each
event
• Failure data validations
• Quality control
– Event record reviews
– Feedback to field

18. © CCPS PERD 2018
Slide 18
PERD Details

19. © CCPS PERD 2018
Slide 19
Technical Hierarchy Main Elements
Asset register
Equipment boundary
envelope

20. © CCPS PERD 2018
Slide 20
Technical Hierarchy Construction
Compressor Technical Drawings

21. © CCPS PERD 2018
Slide 21
Technical Hierarchy Construction
Compressor Taxonomy Definition

22. © CCPS PERD 2018
Slide 22
Functional Location / Equipment
Relationship
• Functional equipment location Tag P101 is an intangible object that defines process requirements for a
particular pumping service, e.g. pressure, temperature, flow, fluid type (Tag P101 in the example below)
• Equipment items (serial numbers 1234 and 2345) define specific materialized objects that execute process
requirements
• Field equipment change-outs are captured in SAP via corresponding equipment dismantle/installation
transactions (on 5/8/2001 S/N 1234 was dismantled and S/N 2345 installed)
ISO 15926-2 (Data Model) Industrial automation systems and integration—Integration of life-cycle data for process plants including oil and gas
production facilities, Figures E.9 and E.10.
The duty represented by TAG P101, and Pump 1234 are coincident for the period of the installation, i.e. the state S1 of
Pump 1234 that is installed as TAG P101 is in fact also a state of TAG P101. TAG P101 consists of those states of the pumps
that are installed in this location.
FEL/FCL Equipment

23. © CCPS PERD 2018
Slide 23
Technical Structure
• ERP is system of record for all
technical tags
• One unique ID for each tag
throughout all systems, records,
and in the field
• Equipment interrelationships
defined in system

24. © CCPS PERD 2018
Slide 24
Construction of Technical Hierarchy
K-102 Equipment Boundary Envelope

25. © CCPS PERD 2018
Slide 25
Construction of Technical Hierarchy
K-102 Specifications and Properties

26. © CCPS PERD 2018
Slide 26
Malfunction Reporting
Impart Data Quality on Inception
Step Details Responsibility
Work Initiation Problem Report (equipment-level
failure notations)
Facility personnel
Approvals and
processing
Work approval, planning and
scheduling, create statistical records
Operations
Superintendent
Execution, repair
notes, and close-out
Repair Report (item-level failure
notations)
Maintenance Lead
Technician
Failure data quality
control
QA/QC, consequence assessment , and
methods feedback
Reliability Engineer

27. © CCPS PERD 2018
Slide 27
Malfunction Problem Report (Work Initiation)
Equipment-Level Failure Notations

28. © CCPS PERD 2018
Slide 28
Approvals and Processing
Data Aggregation

29. © CCPS PERD 2018
Slide 29
Malfunction Repair Report (Work Close-out)
Component-Level Failure Notations

30. © CCPS PERD 2018
Slide 30
Malfunction Repair Report (Work Close-out)
Event Consequence Assessment

31. © CCPS PERD 2018
Slide 31
Preventive Maintenance and
Inspections
• Program
– Administered at grouping/admin
or technical tag level
– Results reported at technical tag
level
• PM Condition Report
– One condition report per
technical tag inspected
– Inspection verdict and condition
details
– Generated from object list of PM
inspection order
• Follow-on malfunction report
– Generated for any equipment
malfunction verdict
– Linked to PM Condition Report as
subordinate object

32. © CCPS PERD 2018
Slide 32
RM Data Quality Control Processes
• Review malfunction and condition reports to ensure completeness
and a clear and concise description of what happened
• Identify “non-malfunction” malfunction reports and set user status
to exclude them from the failure data dataset
• Review other ERP data to identify missing failure events, e.g. review
materials booked against blanket orders of cost centers, review
preventive maintenance and inspection results to ensure follow-on
malfunction reporting was done, etc.
• Identify and document follow-on requirements, e.g. preventive
maintenance additions, facilities change requirements, SJP
requirements
• Circle-back with personnel when issues are found with completion
of malfunction reports

33. © CCPS PERD 2018
Slide 33
Getting started with PERD
1. RM data quality check-up (complementary)1
Submit an initial dataset using the PERD Data Extract Procedure. PERD will:
– Provide feedback on the data quality of your initial submittal and your failure reporting
practices
– Recommend steps to bring your data into compliance with PERD minimum data standards
2. Evaluate PERD for your company2
– Onsite workshop covering PERD methods
– PERD prototype
• Provide P&ID and tag list for one of your equipment installations
• PERD will create a fully-functional prototype in our demo system and give
you access to that system
3. Implement PERD recommendations2
– PERD experts can assist you with implementation of our recommendations
Notes
1 Complementary, if submitted using our data extract procedure.
2 Consulting rates apply.

34. © CCPS PERD 2018
Slide 34
Full PERD Participation
1. Join PERD
2. Contribute data to the PERD central repository (optional)
3. Notes
– The degree of data that can be accessed is defined in the participation
class table attached to the bylaws
– Access to PERD data and technical content requires payment of annual
dues of $5,000

35. © CCPS PERD 2018
Slide 35
Thank you
Please contact Dave Belonger for further questions on this
presentation or for additional PERD Project information
perd@aiche.org
PERD Contacts
Name Position Contact
David Belonger,
DJB Associates, LLC
CCPS Staff Consultant dbelonger@verizon.net
Hal Thomas,
exida
PERD Technical Consultant
(founding member)
thomashw@exida.com
Tony Ciliberti,
Reliability Dynamics
PERD ERP Subcommittee
Chair
tony.ciliberti@rd-eam.com
