CBOR - The Better JSON
The document discusses CBOR (Concise Binary Object Representation) as an alternative to JSON, highlighting its features such as being extremely concise, binary, streamable, and type-safe. It compares CBOR with various data formats like JSON, BSON, XML, and MessagePack, emphasizing the advantages and drawbacks of each. The document also provides insights into real-world applications, implementations across multiple programming languages, and links to additional resources.
More Related Content
![[오픈소스컨설팅]Java Performance Tuning](https://cdn.slidesharecdn.com/ss_thumbnails/javaperformanetuning-150408192031-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
CBOR - The Better JSON
- 1.
- 2. www.hazelcast.com@noctarius2k Who’s that dude? •Chris Engelbert • Manager of Developer Relations @Hazelcast • Java-Passionate (10+ years) • Performance • Garbage Collection • JVM / Benchmark Fairytales
- 3. www.hazelcast.com@noctarius2k Brief look atthe history
- 4. www.hazelcast.com@noctarius2k In the beginningthere was darkness…
- 5.
- 6.
- 7.
- 8. www.hazelcast.com@noctarius2k Binary data isjust a big blob
- 9.
- 10. www.hazelcast.com@noctarius2k Possible with customtooling • unique to this specific use case • involves model classes to be known • utilizes workarounds • generally feels weird :-) Often:
- 11. www.hazelcast.com@noctarius2k “I need tounderstand it!”
- 12.
- 13. www.hazelcast.com@noctarius2k Human Readability, Expressiveness <fun> <with> <xmldont:you="think" /> </with> </fun>

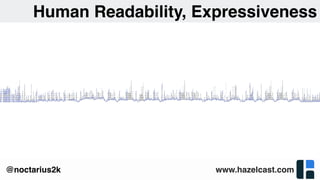

- 14.
- 15. www.hazelcast.com@noctarius2k Human Readability, Expressiveness Thisis not a flame graph!

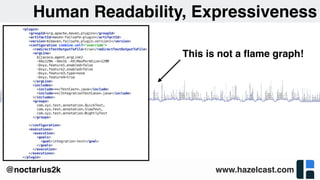

- 16. www.hazelcast.com@noctarius2k Human Readability, Expressiveness Thisis not a flame graph! <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-failsafe-plugin</artifactId> <version>${maven.failsafe.plugin.version}</version> <configuration combine.self="override"> <redirectTestOutputToFile>true</redirectTestOutputToFile> <argLine> ${jacoco.agent.argLine} -Xms129m -Xmx1G -XX:MaxPermSize=129M -Dxyz.feature1.enabled=false -Dxyz.feature2.enabled=false -Dxyz.feature3.type=none -Dxyz.feature4=true </argLine> <includes> <include>**/TestCast*.java</include> <include>**/IntegrationTestCase*.java</include> </includes> <groups> com.xyz.test.annotation.QuickTest, com.xyz.test.annotation.SlowTest, com.xyz.test.annotation.NightlyTest </groups> </configuration> <executions> <execution> <goals> <goal>integration-test</goal> </goals> </execution> </executions> </plugin>
- 17.
- 18.
- 19.
- 20.
- 21. www.hazelcast.com@noctarius2k There is noDana, only Zuul!JSON

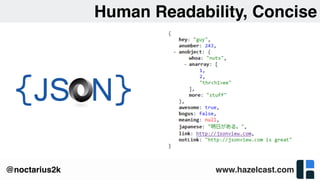

- 22.
- 23.
- 24.

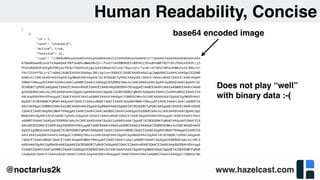

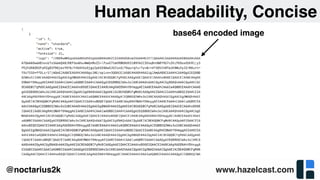

- 25. www.hazelcast.com@noctarius2k Human Readability, Concise Doesnot play “well” with binary data :-( base64 encoded image
- 26.
- 27. www.hazelcast.com@noctarius2k …do we needto store human readable?
- 28.
- 29. www.hazelcast.com@noctarius2k So what’s thenext evolution step?
- 30. www.hazelcast.com@noctarius2k C(oncise) B(inary) O(bject)R(epresentation)

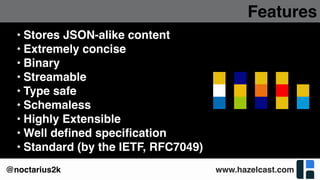

- 31. www.hazelcast.com@noctarius2k Features • Stores JSON-alikecontent • Extremely concise • Binary • Streamable • Type safe • Schemaless • Highly Extensible • Well defined specification • Standard (by the IETF, RFC7049)
- 32. www.hazelcast.com@noctarius2k Real World (Size)Example www.pathway-game.com • Stores Geometry Information • Mainly Float Data • Often floatToIntBits for Speed • Lots of Sequences • Only a few Dictionaries Really simple data structure

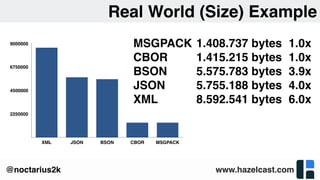

- 33. www.hazelcast.com@noctarius2k Real World (Size)Example 2250000 4500000 6750000 9000000 XML JSON BSON CBOR MSGPACK MSGPACK CBOR BSON JSON XML 1.408.737 bytes 1.415.215 bytes 5.575.783 bytes 5.755.188 bytes 8.592.541 bytes 1.0x 1.0x 3.9x 4.0x 6.0x

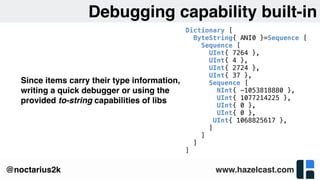

- 34. www.hazelcast.com@noctarius2k Debugging capability built-in Dictionary[ ByteString{ ANI0 }=Sequence [ Sequence [ UInt{ 7264 }, UInt{ 4 }, UInt{ 2724 }, UInt{ 37 }, Sequence [ NInt{ -1053818880 }, UInt{ 1077214225 }, UInt{ 0 }, UInt{ 0 }, UInt{ 1068825617 }, ] ] ] ] Since items carry their type information, writing a quick debugger or using the provided to-string capabilities of libs

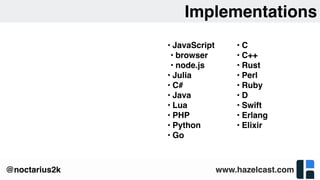

- 35. www.hazelcast.com@noctarius2k Implementations • JavaScript • browser •node.js • Julia • C# • Java • Lua • PHP • Python • Go • C • C++ • Rust • Perl • Ruby • D • Swift • Erlang • Elixir

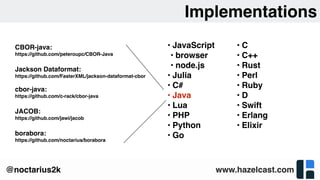

- 36. www.hazelcast.com@noctarius2k Implementations • JavaScript • browser •node.js • Julia • C# • Java • Lua • PHP • Python • Go • C • C++ • Rust • Perl • Ruby • D • Swift • Erlang • Elixir CBOR-java: https://github.com/peteroupc/CBOR-Java Jackson Dataformat: https://github.com/FasterXML/jackson-dataformat-cbor cbor-java: https://github.com/c-rack/cbor-java JACOB: https://github.com/jawi/jacob borabora: https://github.com/noctarius/borabora
- 37. www.hazelcast.com@noctarius2k Implementations • JavaScript • browser •node.js • Julia • C# • Java • Lua • PHP • Python • Go • C • C++ • Rust • Perl • Ruby • D • Swift • Erlang • Elixir CBOR-java: https://github.com/peteroupc/CBOR-Java Jackson Dataformat: https://github.com/FasterXML/jackson-dataformat-cbor cbor-java: https://github.com/c-rack/cbor-java JACOB: https://github.com/jawi/jacob borabora: https://github.com/noctarius/borabora

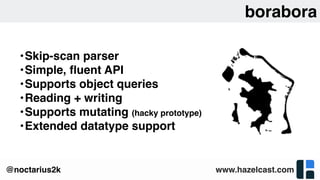

- 38. www.hazelcast.com@noctarius2k borabora •Skip-scan parser •Simple, fluentAPI •Supports object queries •Reading + writing •Supports mutating (hacky prototype) •Extended datatype support
- 39. www.hazelcast.com@noctarius2k borabora •Skip-scan parser •Simple, fluentAPI •Supports object queries •Reading + writing •Supports mutating (hacky prototype) •Extended datatype support Not just a blur of color
- 40. www.hazelcast.com@noctarius2k borabora •Skip-scan parser •Simple, fluentAPI •Supports object queries •Reading + writing •Supports mutating (hacky prototype) •Extended datatype support but the island ;-)
- 41. www.hazelcast.com@noctarius2k Time for somedemos, isn’t it?
- 42.
- 43. www.hazelcast.com@noctarius2k Comparisons “Alternative Facts” in thecomparisons, are all fake news!

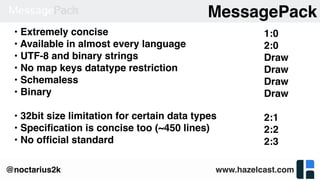

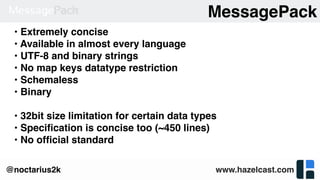

- 44. www.hazelcast.com@noctarius2k MessagePack • Extremely concise •Available in almost every language • UTF-8 and binary strings • No map keys datatype restriction • Schemaless • Binary • 32bit size limitation for certain data types • Specification is concise too (~450 lines) • No official standard
- 45. www.hazelcast.com@noctarius2k MessagePack • Extremely concise •Available in almost every language • UTF-8 and binary strings • No map keys datatype restriction • Schemaless • Binary • 32bit size limitation for certain data types • Specification is concise too (~450 lines) • No official standard 1:0 2:0 Draw Draw Draw Draw 2:1 2:2 2:3

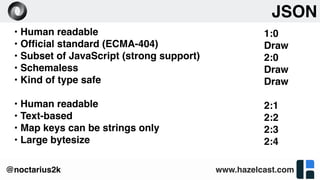

- 46. www.hazelcast.com@noctarius2k JSON • Human readable •Official standard (ECMA-404) • Subset of JavaScript (strong support) • Schemaless • Kind of type safe • Human readable • Text-based • Map keys can be strings only • Large bytesize
- 47. www.hazelcast.com@noctarius2k • Human readable •Official standard (ECMA-404) • Subset of JavaScript (strong support) • Schemaless • Kind of type safe • Human readable • Text-based • Map keys can be strings only • Large bytesize 1:0 Draw 2:0 Draw Draw 2:1 2:2 2:3 2:4 JSON

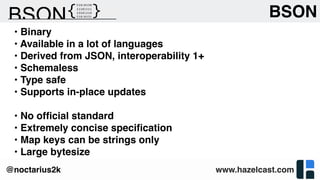

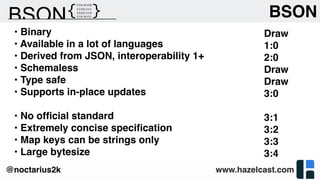

- 48. www.hazelcast.com@noctarius2k • Binary • Availablein a lot of languages • Derived from JSON, interoperability 1+ • Schemaless • Type safe • Supports in-place updates • No official standard • Extremely concise specification • Map keys can be strings only • Large bytesize BSON
- 49. www.hazelcast.com@noctarius2k • Binary • Availablein a lot of languages • Derived from JSON, interoperability 1+ • Schemaless • Type safe • Supports in-place updates • No official standard • Extremely concise specification • Map keys can be strings only • Large bytesize Draw 1:0 2:0 Draw Draw 3:0 3:1 3:2 3:3 3:4 BSON

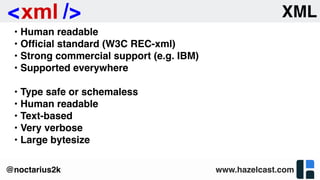

- 50. www.hazelcast.com@noctarius2k • Human readable •Official standard (W3C REC-xml) • Strong commercial support (e.g. IBM) • Supported everywhere • Type safe or schemaless • Human readable • Text-based • Very verbose • Large bytesize XML

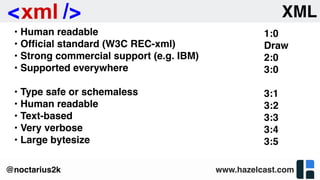

- 51. www.hazelcast.com@noctarius2k • Human readable •Official standard (W3C REC-xml) • Strong commercial support (e.g. IBM) • Supported everywhere • Type safe or schemaless • Human readable • Text-based • Very verbose • Large bytesize 1:0 Draw 2:0 3:0 3:1 3:2 3:3 3:4 3:5 XML

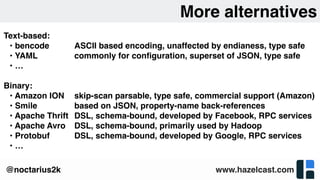

- 52. www.hazelcast.com@noctarius2k More alternatives Text-based: • bencode •YAML • … Binary: • Amazon ION • Smile • Apache Thrift • Apache Avro • Protobuf • … ASCII based encoding, unaffected by endianess, type safe commonly for configuration, superset of JSON, type safe skip-scan parsable, type safe, commercial support (Amazon) based on JSON, property-name back-references DSL, schema-bound, developed by Facebook, RPC services DSL, schema-bound, primarily used by Hadoop DSL, schema-bound, developed by Google, RPC services

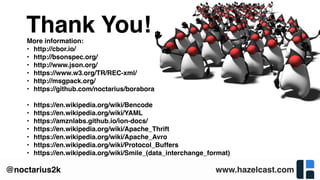

- 53. www.hazelcast.com@noctarius2k More information: • http://cbor.io/ •http://bsonspec.org/ • http://www.json.org/ • https://www.w3.org/TR/REC-xml/ • http://msgpack.org/ • https://github.com/noctarius/borabora • https://en.wikipedia.org/wiki/Bencode • https://en.wikipedia.org/wiki/YAML • https://amznlabs.github.io/ion-docs/ • https://en.wikipedia.org/wiki/Apache_Thrift • https://en.wikipedia.org/wiki/Apache_Avro • https://en.wikipedia.org/wiki/Protocol_Buffers • https://en.wikipedia.org/wiki/Smile_(data_interchange_format) Thank You!
