Cassandra At Wize Commerce

CASSANDRA AT WIZE COMMERCE

Eran Chinthaka Withana
Eran.Withana@wizecommerce.com

CASSANDRA AT Wize Commerce – Eran Chinthaka Withana. Cassandra Meetup (07/25/2012)

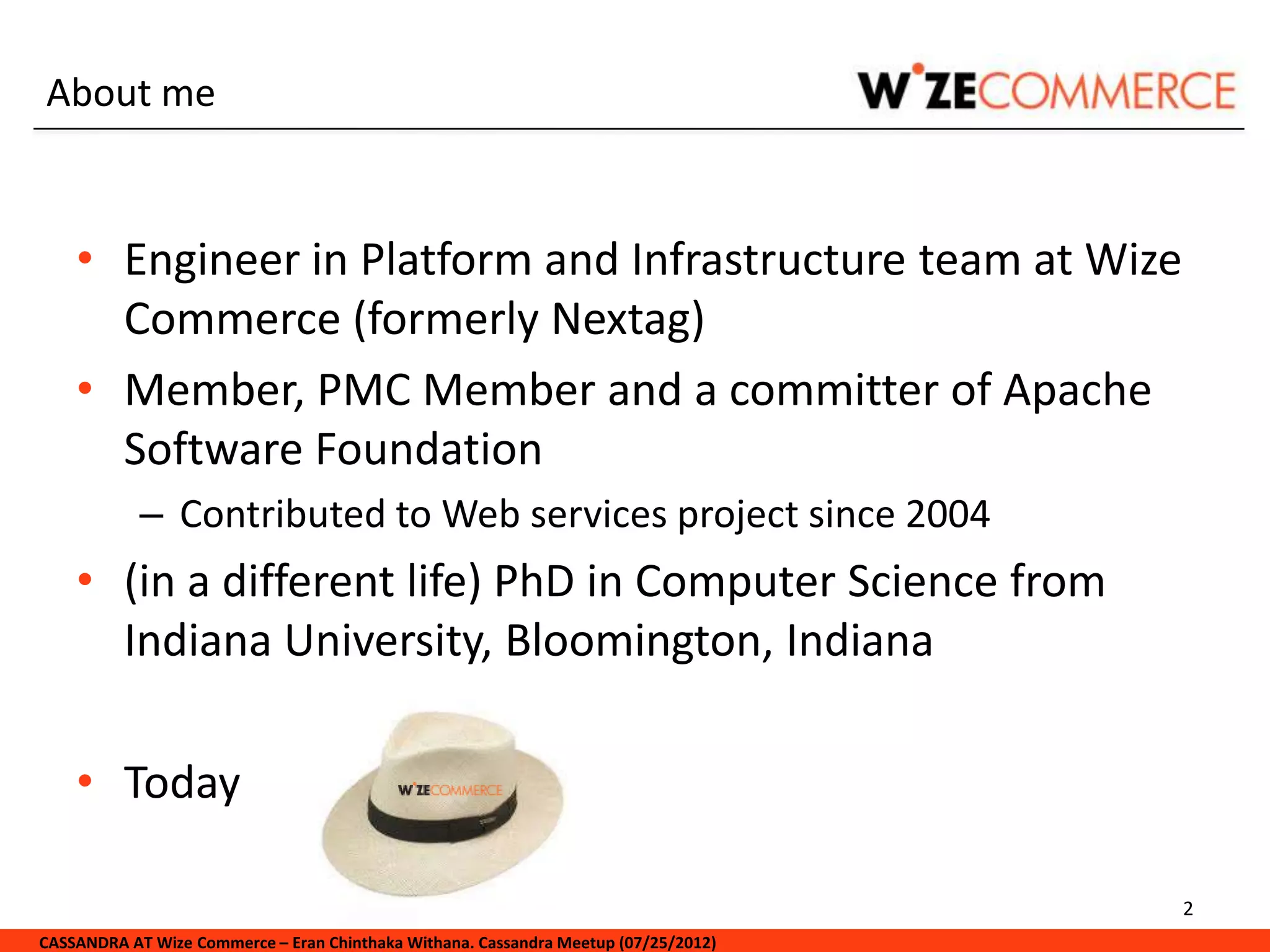

About me

• Engineer in Platform and Infrastructure team at Wize
Commerce (formerly Nextag)
• Member, PMC Member and a committer of Apache
Software Foundation
– Contributed to Web services project since 2004
• (in a different life) PhD in Computer Science from
Indiana University, Bloomington, Indiana

• Today

2

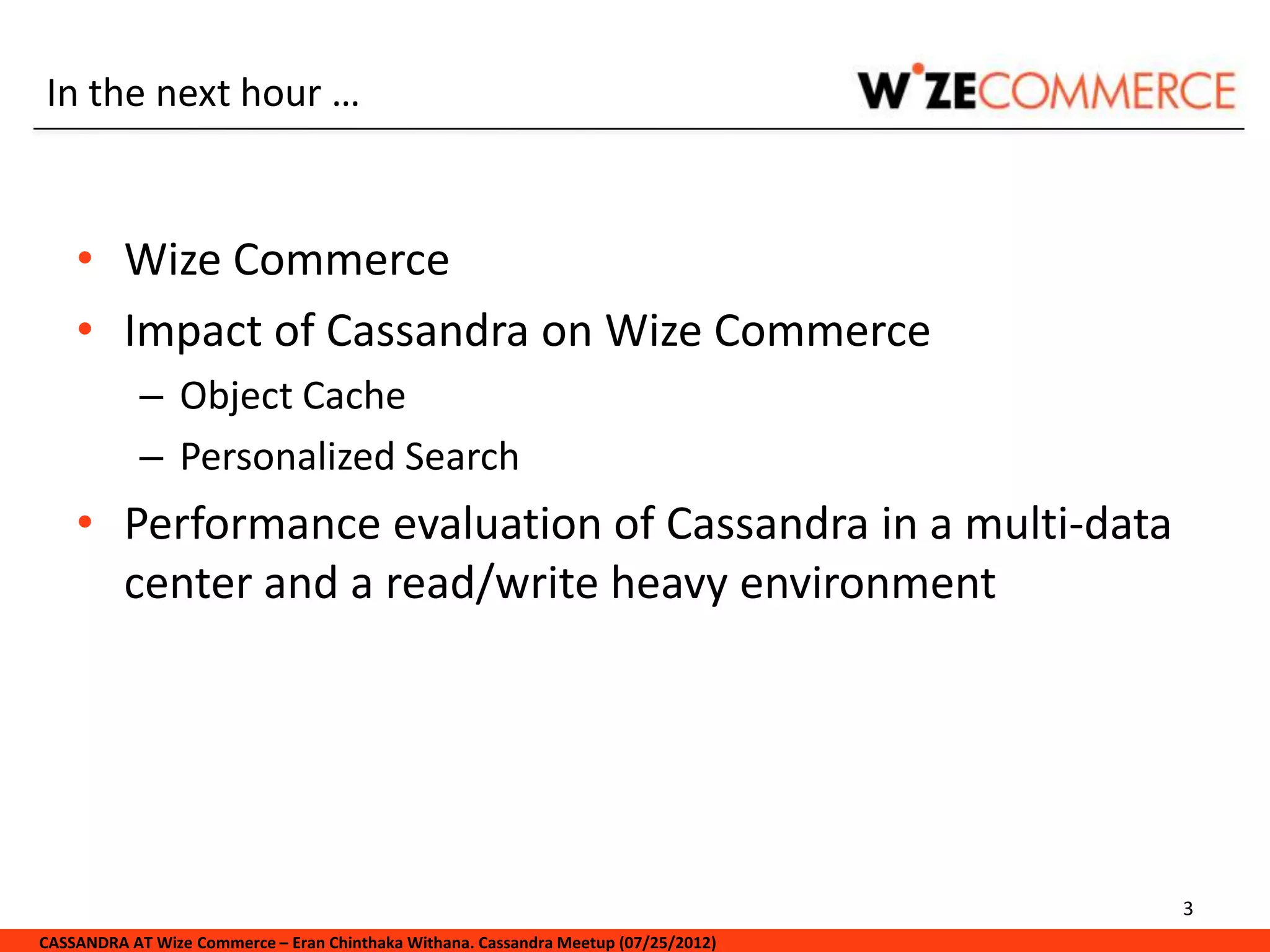

In the next hour …

• Wize Commerce
• Impact of Cassandra on Wize Commerce
– Object Cache
– Personalized Search
• Performance evaluation of Cassandra in a multi-data
center and a read/write heavy environment

3

WIZE COMMERCE


About Wize Commerce

• Helping companies maximize their eCommerce
investments
– across every channel, device and digital ecosystem
– an expertise we’ve honed for years with our eCommerce
customers
– providing them with unmatched traffic and monetization
services at incredible scale

5

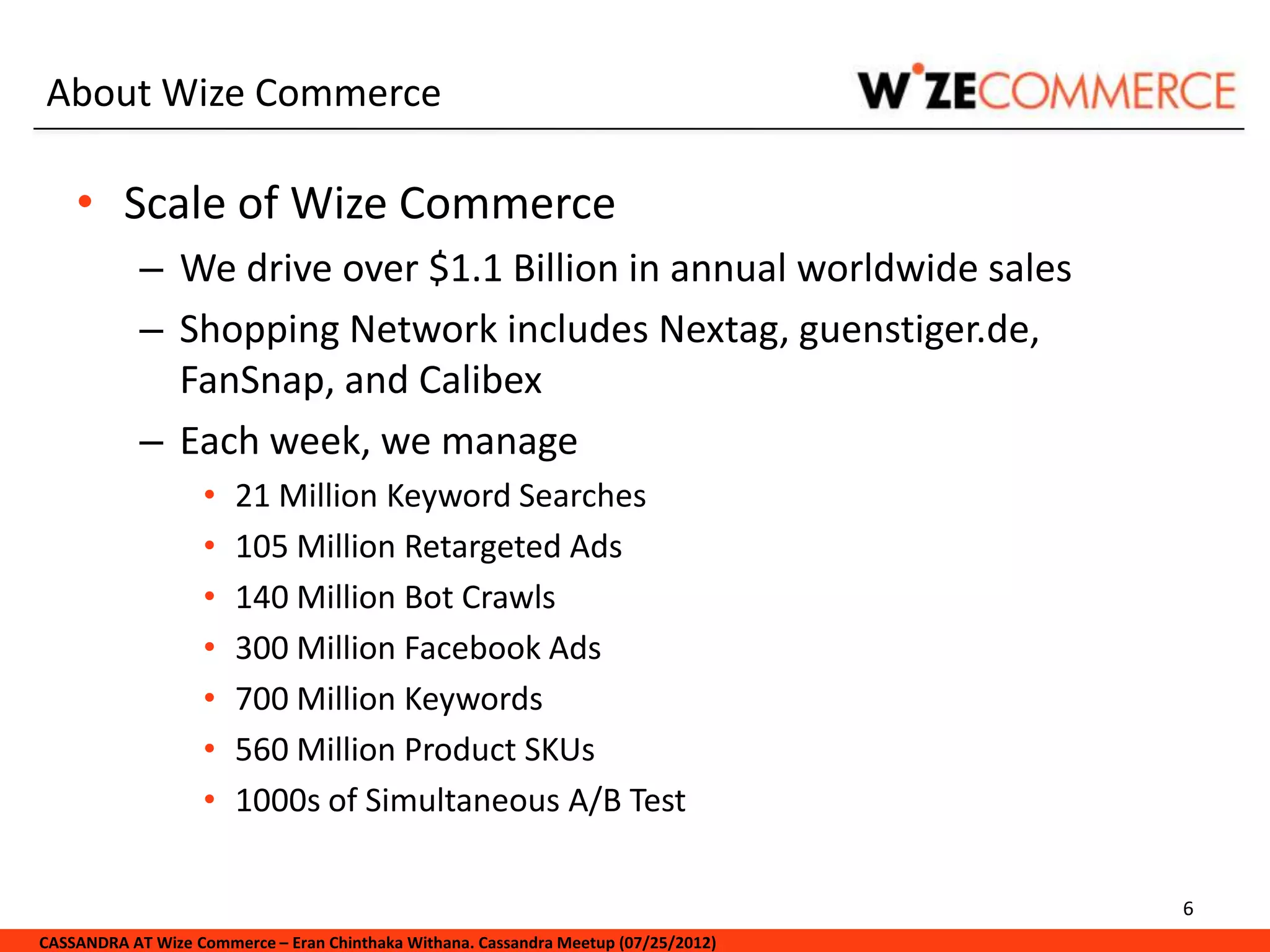

About Wize Commerce

• Scale of Wize Commerce
– We drive over $1.1 Billion in annual worldwide sales
– Shopping Network includes Nextag, guenstiger.de,
FanSnap, and Calibex
– Each week, we manage
• 21 Million Keyword Searches
• 105 Million Retargeted Ads
• 140 Million Bot Crawls
• 300 Million Facebook Ads
• 700 Million Keywords
• 560 Million Product SKUs
• 1000s of Simultaneous A/B Test

6

CASSANDRA AT WIZE COMMERCE - CACHE

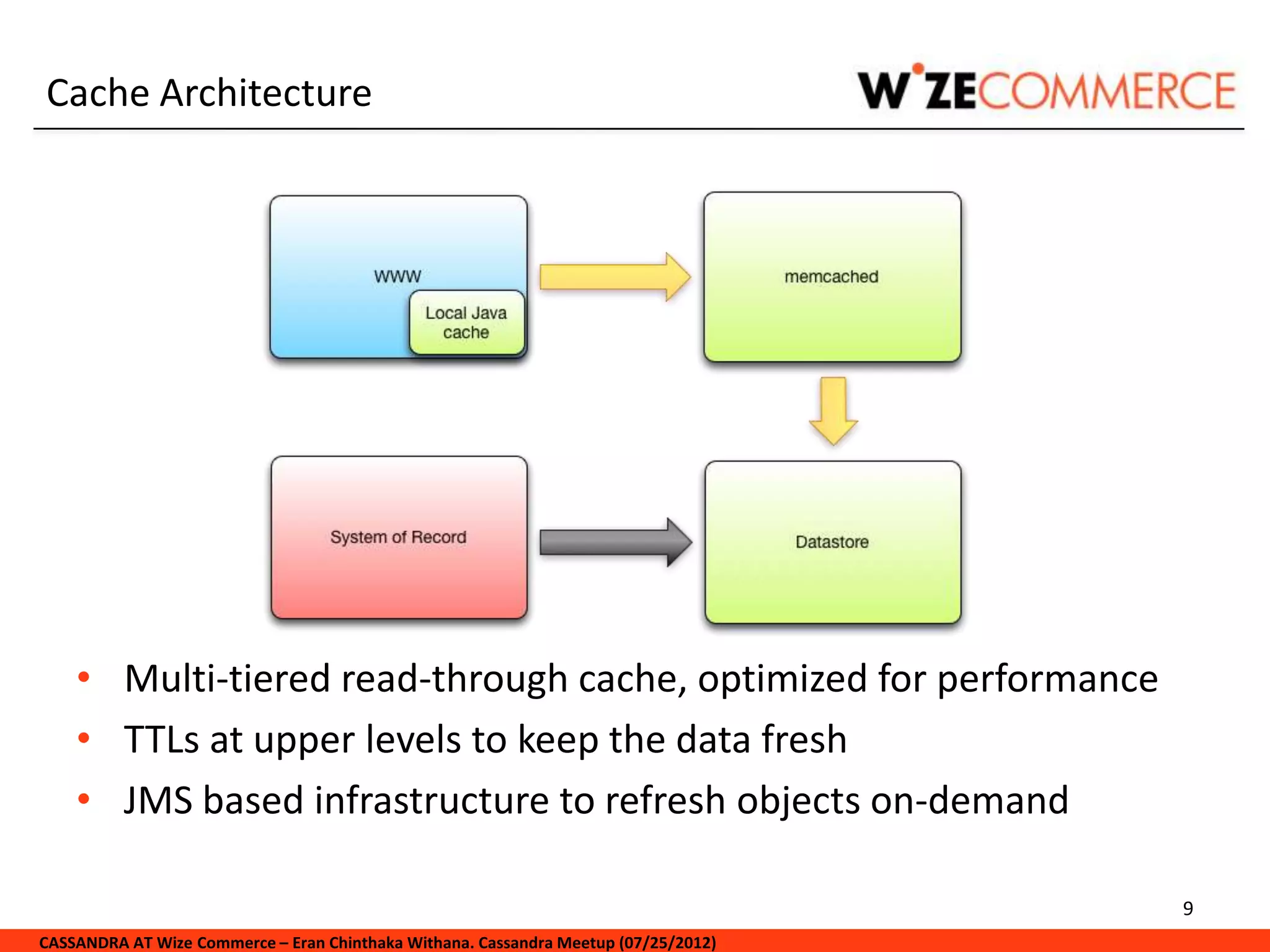

Cache Architecture


Cache Architecture

• Multi-tiered read-through cache, optimized for performance
• TTLs at upper levels to keep the data fresh
• JMS based infrastructure to refresh objects on-demand

9

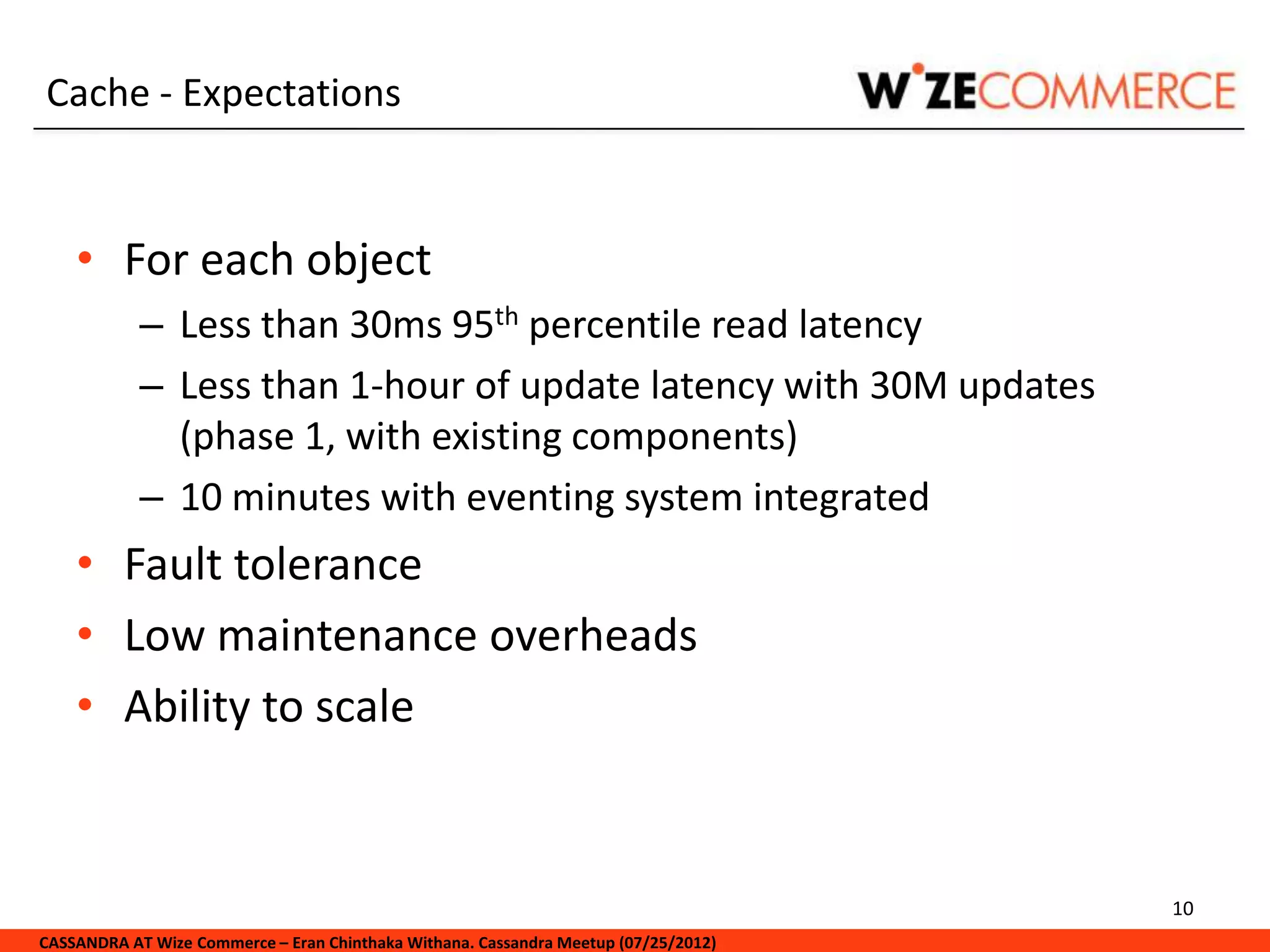

Cache - Expectations

• For each object
– Less than 30ms 95th percentile read latency
– Less than 1-hour of update latency with 30M updates
(phase 1, with existing components)
– 10 minutes with eventing system integrated
• Fault tolerance
• Low maintenance overheads
• Ability to scale

10

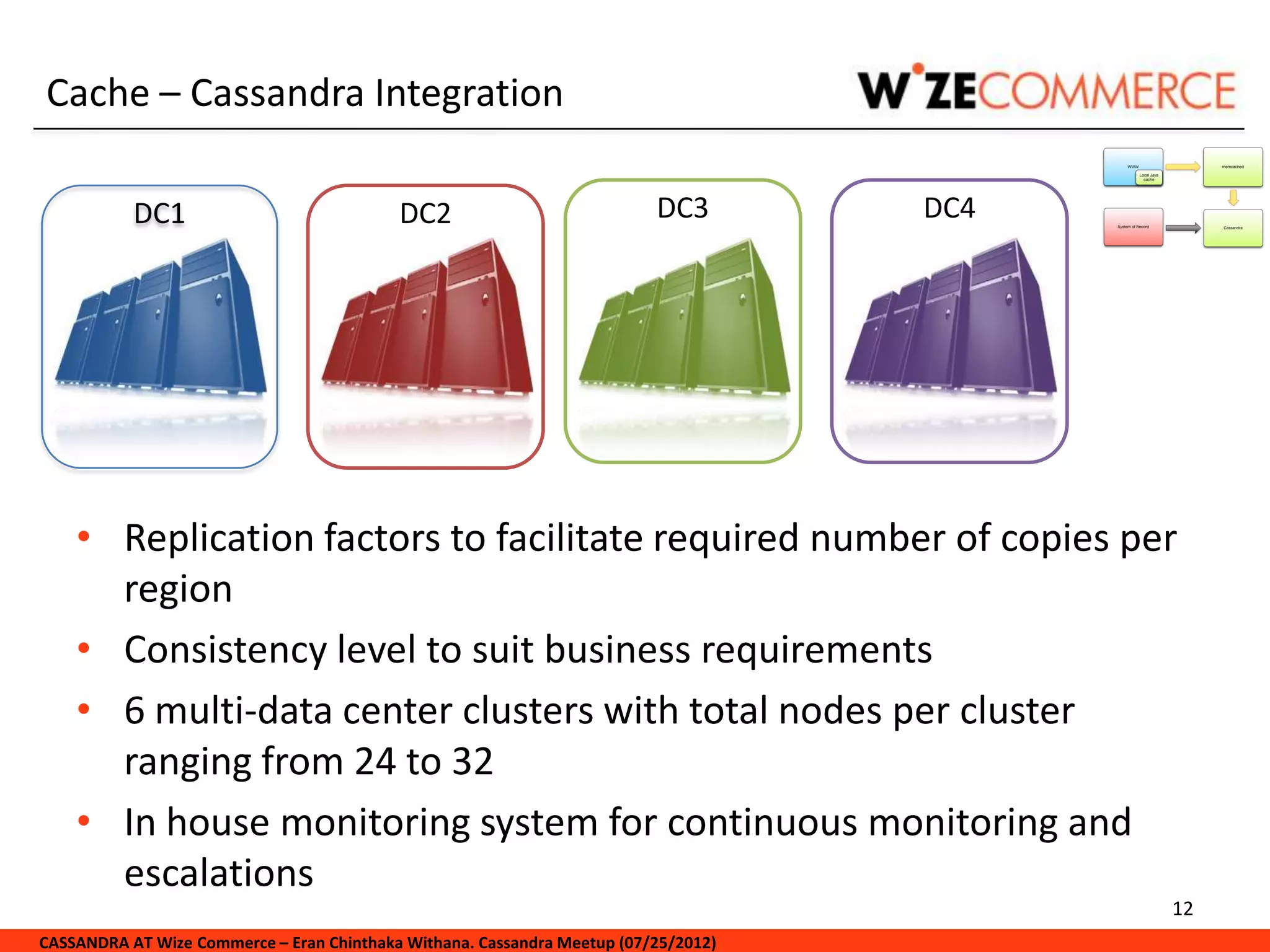

Cache – Cassandra Integration

11


DC1 DC2 DC3 DC4

• Replication factors to facilitate required number of copies per
region
• Consistency level to suit business requirements
• 6 multi-data center clusters with total nodes per cluster
ranging from 24 to 32
• In house monitoring system for continuous monitoring and
escalations
12

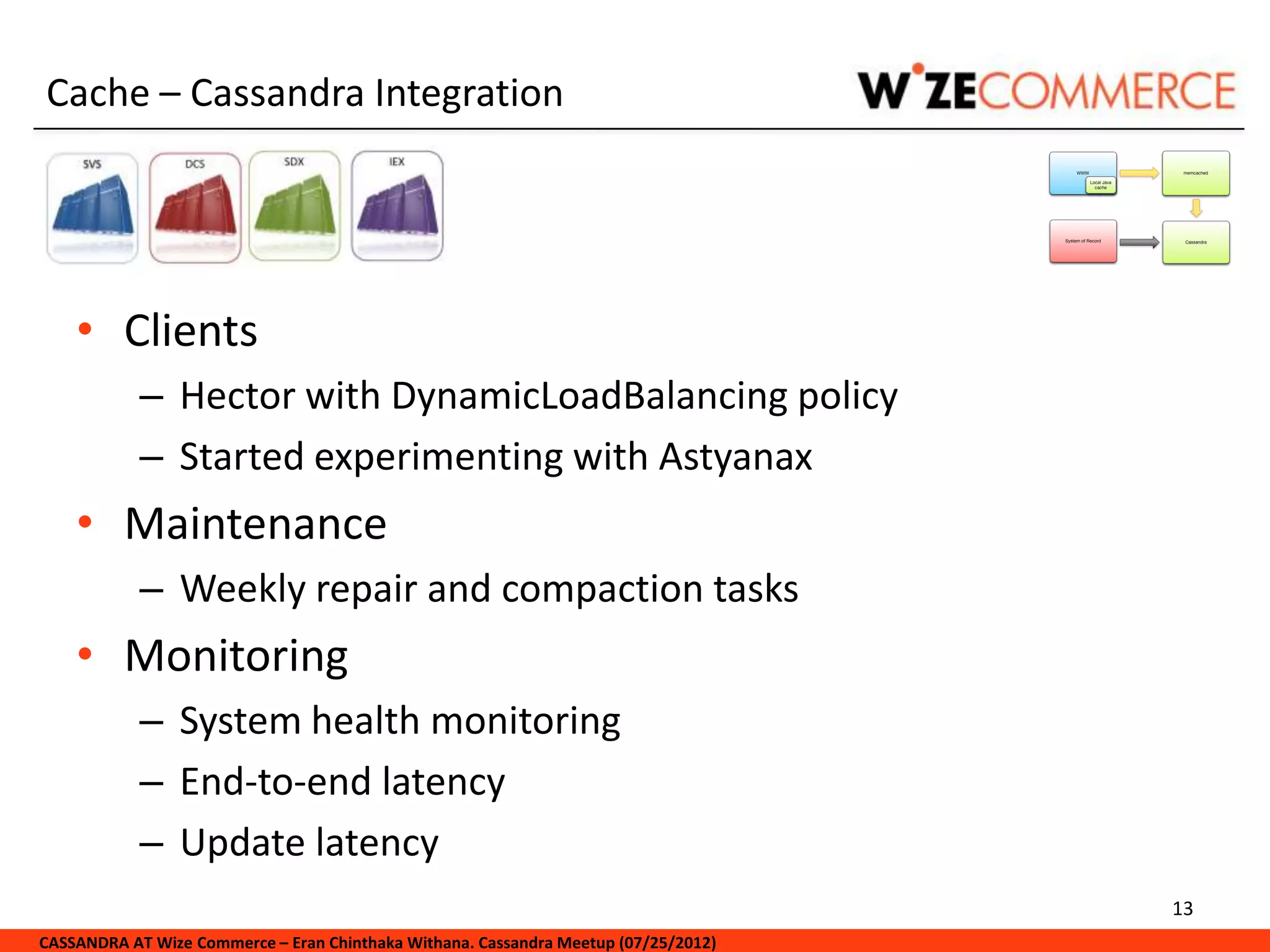

• Clients
– Hector with DynamicLoadBalancing policy
– Started experimenting with Astyanax
• Maintenance
– Weekly repair and compaction tasks
• Monitoring
– System health monitoring
– End-to-end latency
– Update latency
13

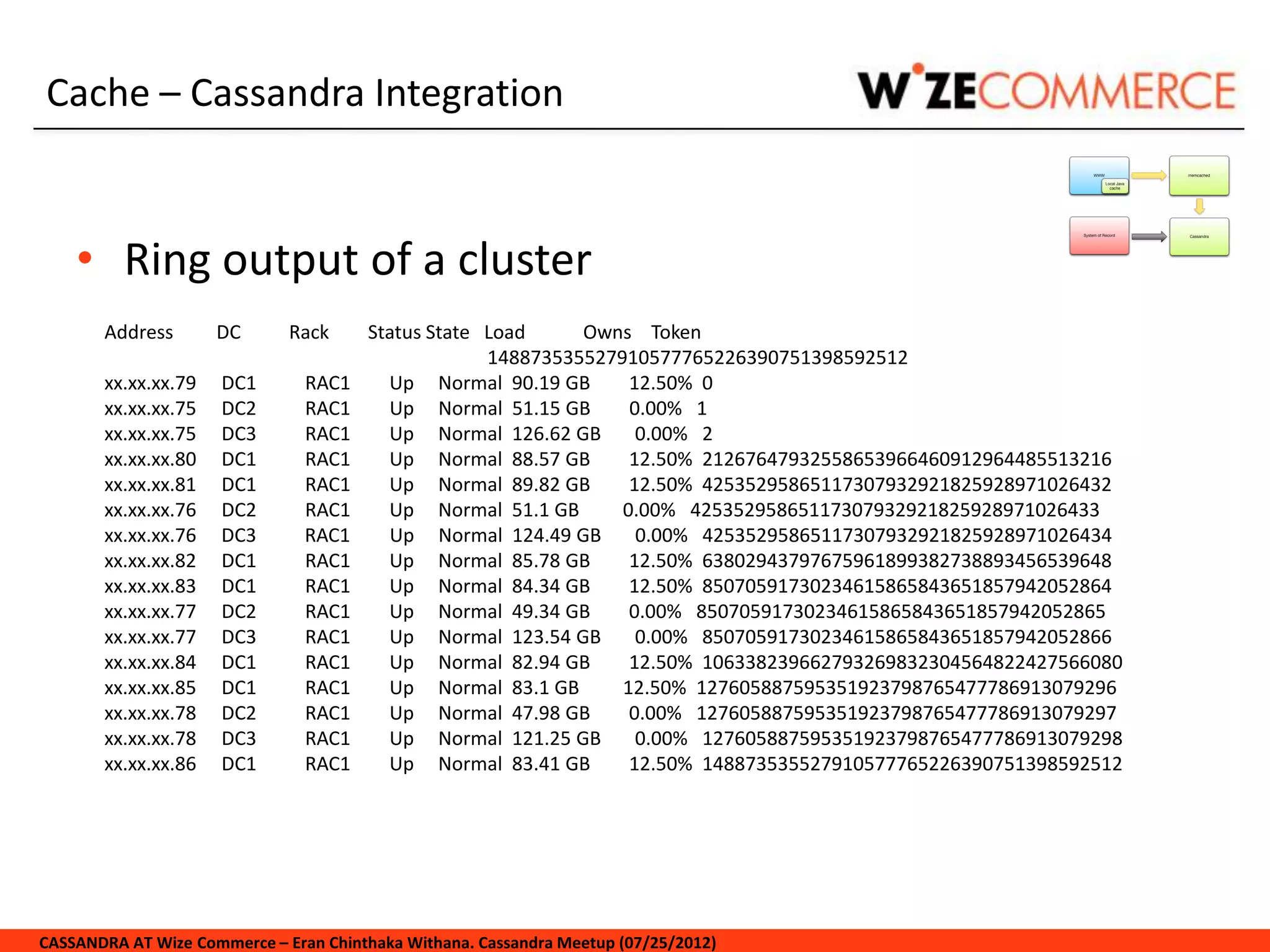

• Ring output of a cluster
Address DC Rack Status State Load Owns Token
148873535527910577765226390751398592512
xx.xx.xx.79 DC1 RAC1 Up Normal 90.19 GB 12.50% 0

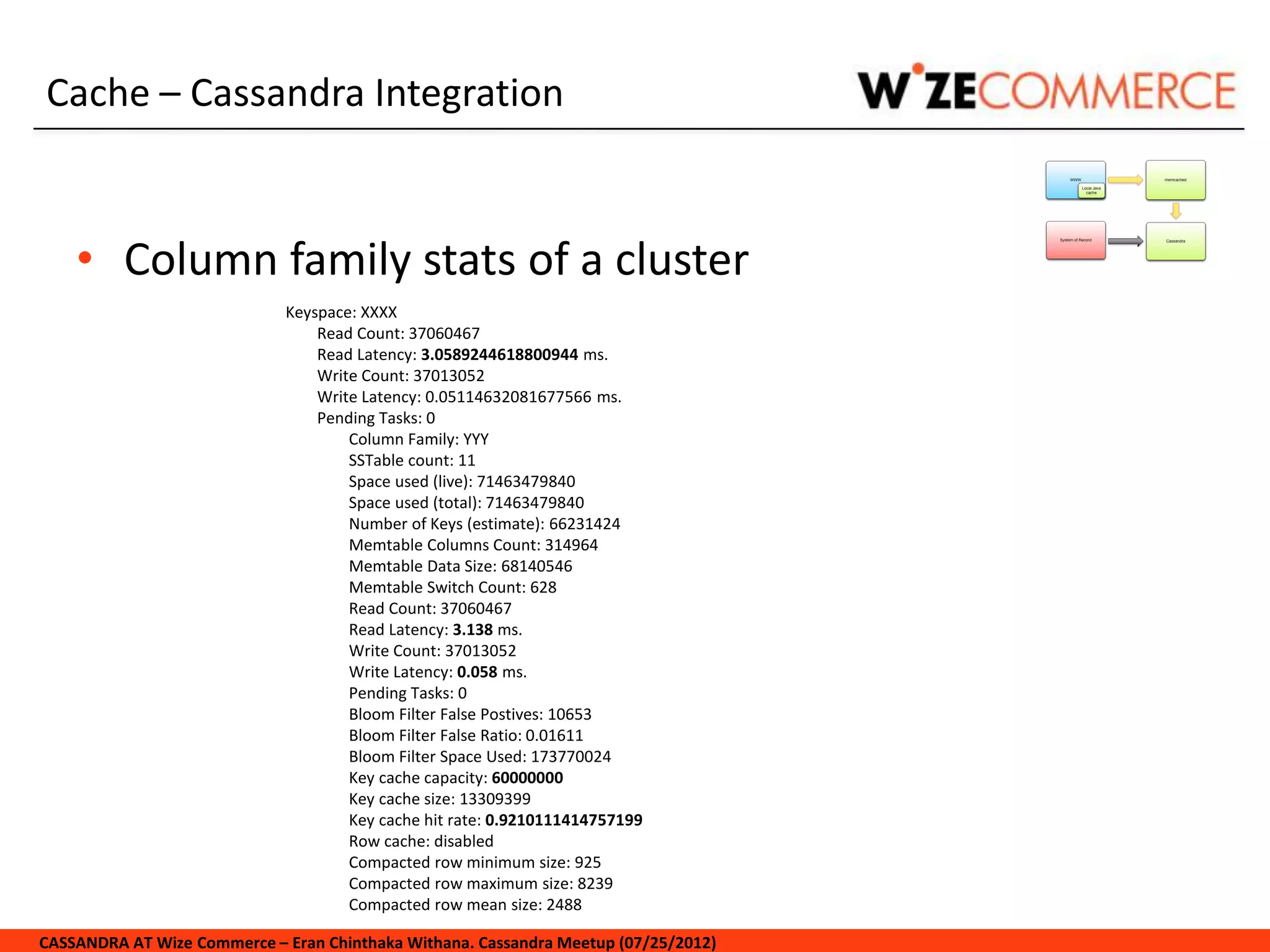

• Column family stats of a cluster
Keyspace: XXXX
Read Count: 37060467
Read Latency: 3.0589244618800944 ms.
Write Count: 37013052
Write Latency: 0.05114632081677566 ms.
Pending Tasks: 0
Column Family: YYY
SSTable count: 11
Space used (live): 71463479840
Space used (total): 71463479840
Number of Keys (estimate): 66231424
Memtable Columns Count: 314964
Memtable Data Size: 68140546
Memtable Switch Count: 628
Read Count: 37060467
Read Latency: 3.138 ms.
Write Count: 37013052
Write Latency: 0.058 ms.
Pending Tasks: 0
Bloom Filter False Postives: 10653
Bloom Filter False Ratio: 0.01611
Bloom Filter Space Used: 173770024
Key cache capacity: 60000000
Key cache size: 13309399
Key cache hit rate: 0.9210111414757199
Row cache: disabled
Compacted row minimum size: 925
Compacted row maximum size: 8239
Compacted row mean size: 2488

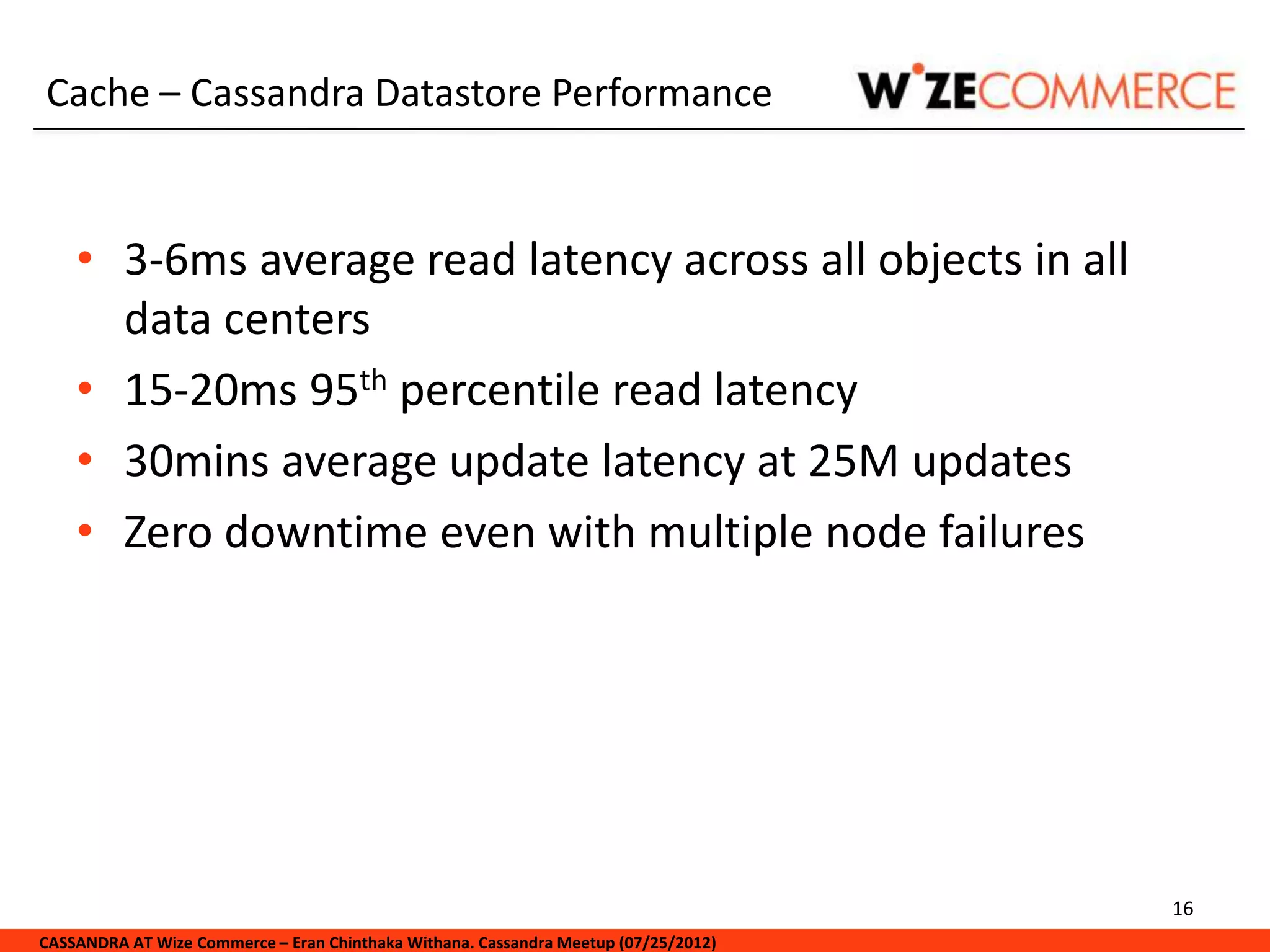

Cache – Cassandra Datastore Performance

• 3-6ms average read latency across all objects in all
data centers
• 15-20ms 95th percentile read latency
• 30mins average update latency at 25M updates
• Zero downtime even with multiple node failures

16

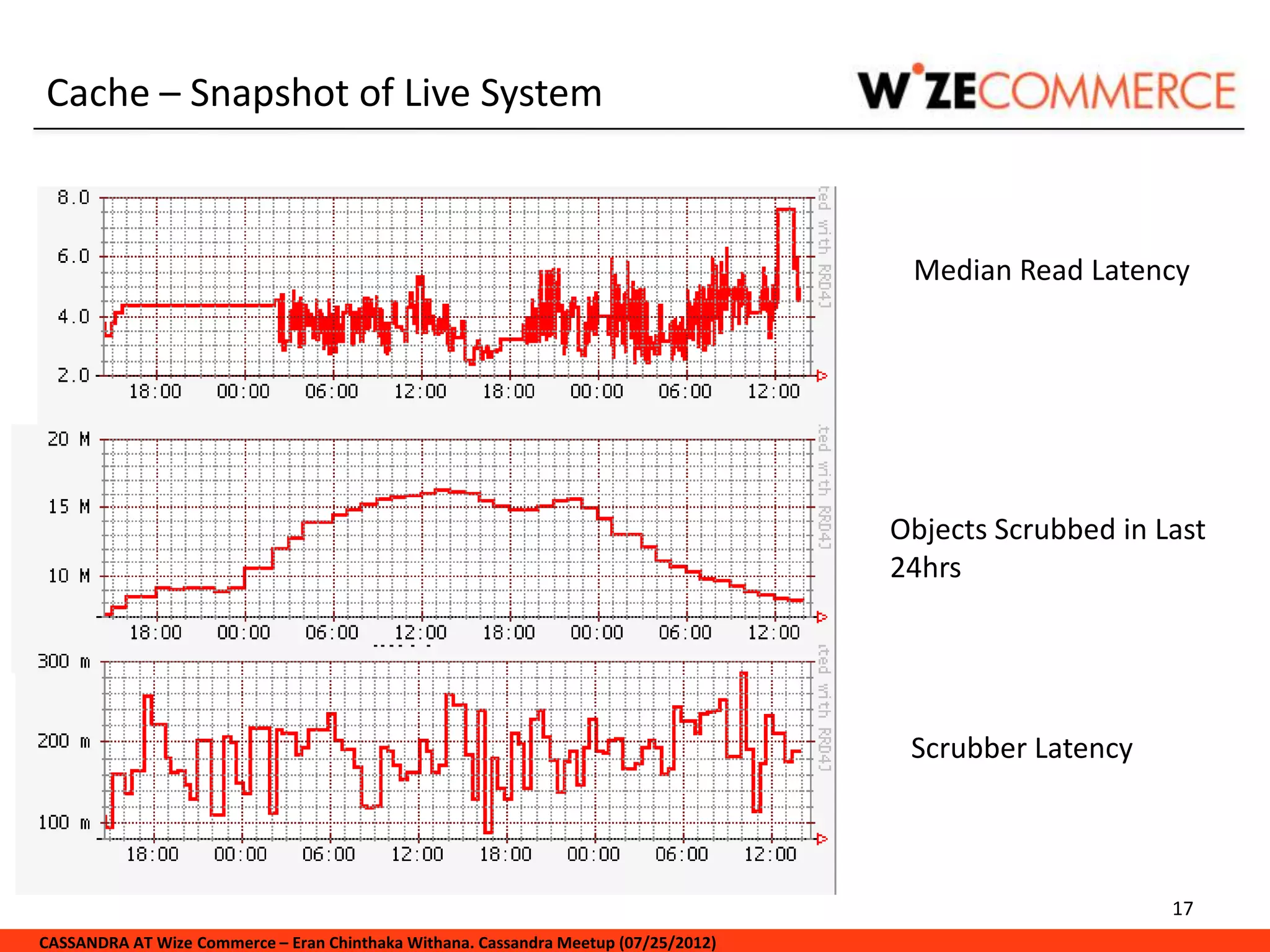

Cache – Snapshot of Live System

Median Read Latency

Objects Scrubbed in Last
24hrs

Scrubber Latency

17

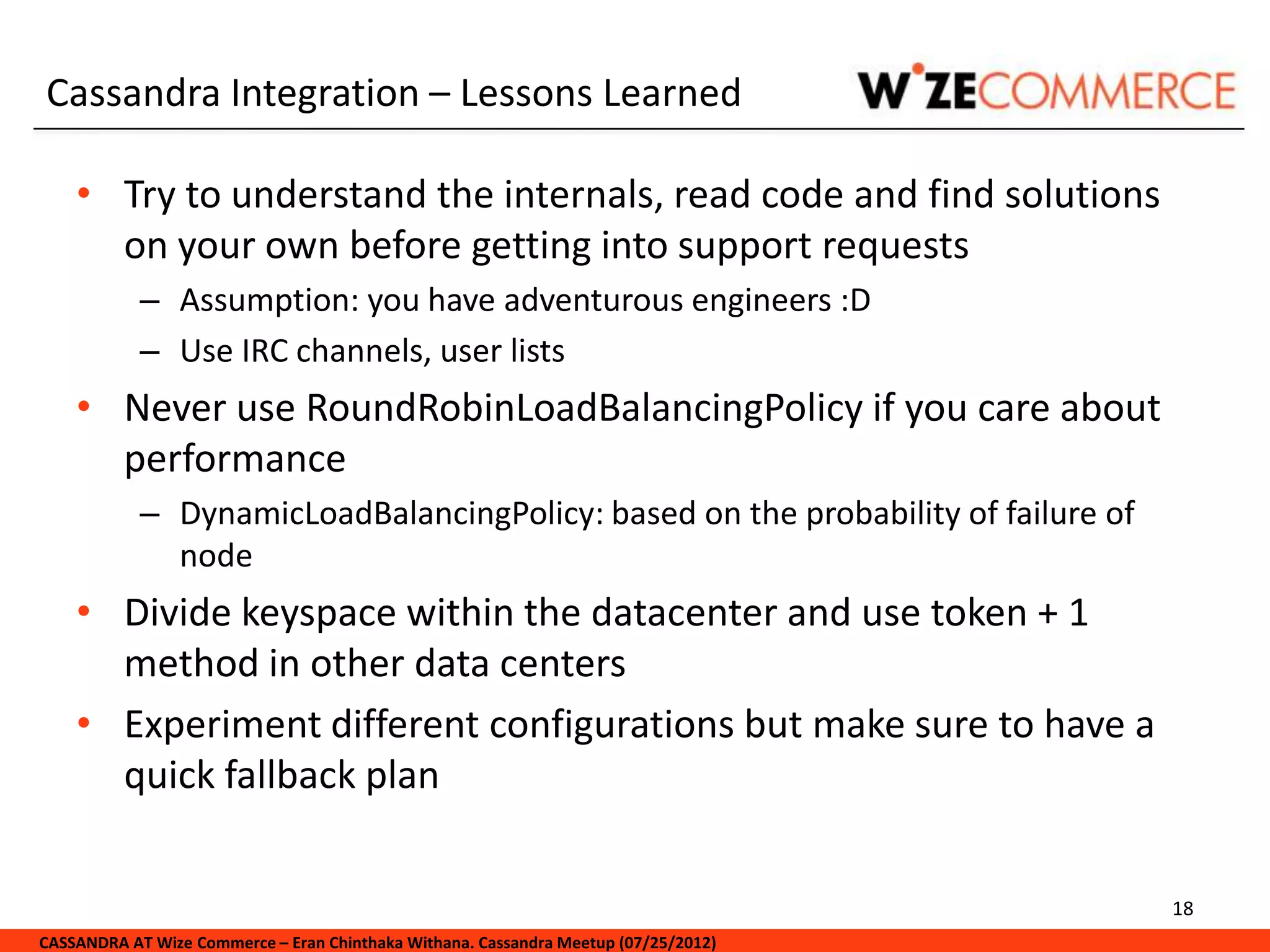

Cassandra Integration – Lessons Learned

• Try to understand the internals, read code and find solutions
on your own before getting into support requests
– Assumption: you have adventurous engineers :D
– Use IRC channels, user lists
• Never use RoundRobinLoadBalancingPolicy if you care about
performance
– DynamicLoadBalancingPolicy: based on the probability of failure of
node
• Divide keyspace within the datacenter and use token + 1
method in other data centers
• Experiment different configurations but make sure to have a
quick fallback plan

18

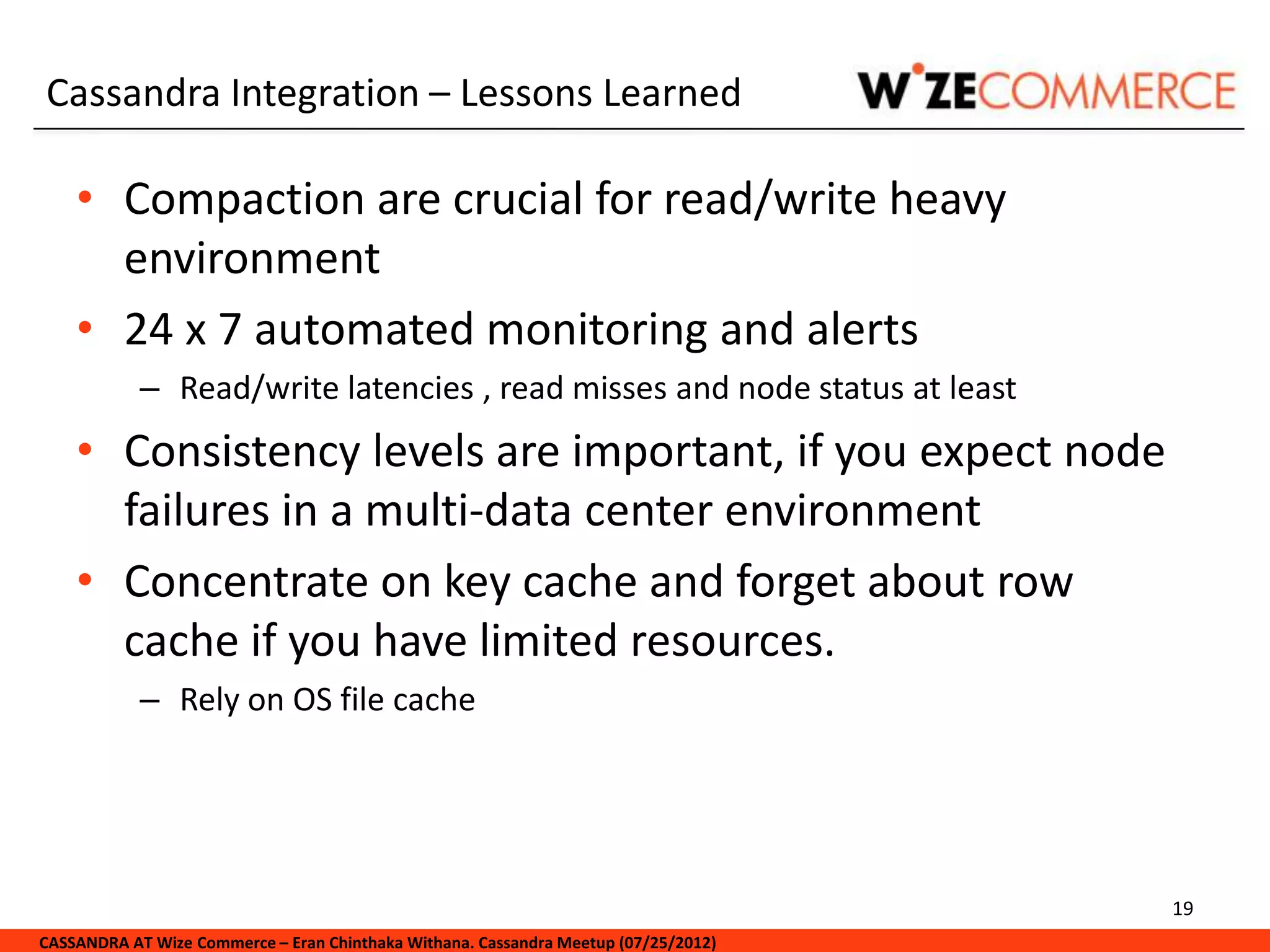

Cassandra Integration – Lessons Learned

• Compaction are crucial for read/write heavy
environment
• 24 x 7 automated monitoring and alerts
– Read/write latencies , read misses and node status at least
• Consistency levels are important, if you expect node
failures in a multi-data center environment
• Concentrate on key cache and forget about row
cache if you have limited resources.
– Rely on OS file cache

19

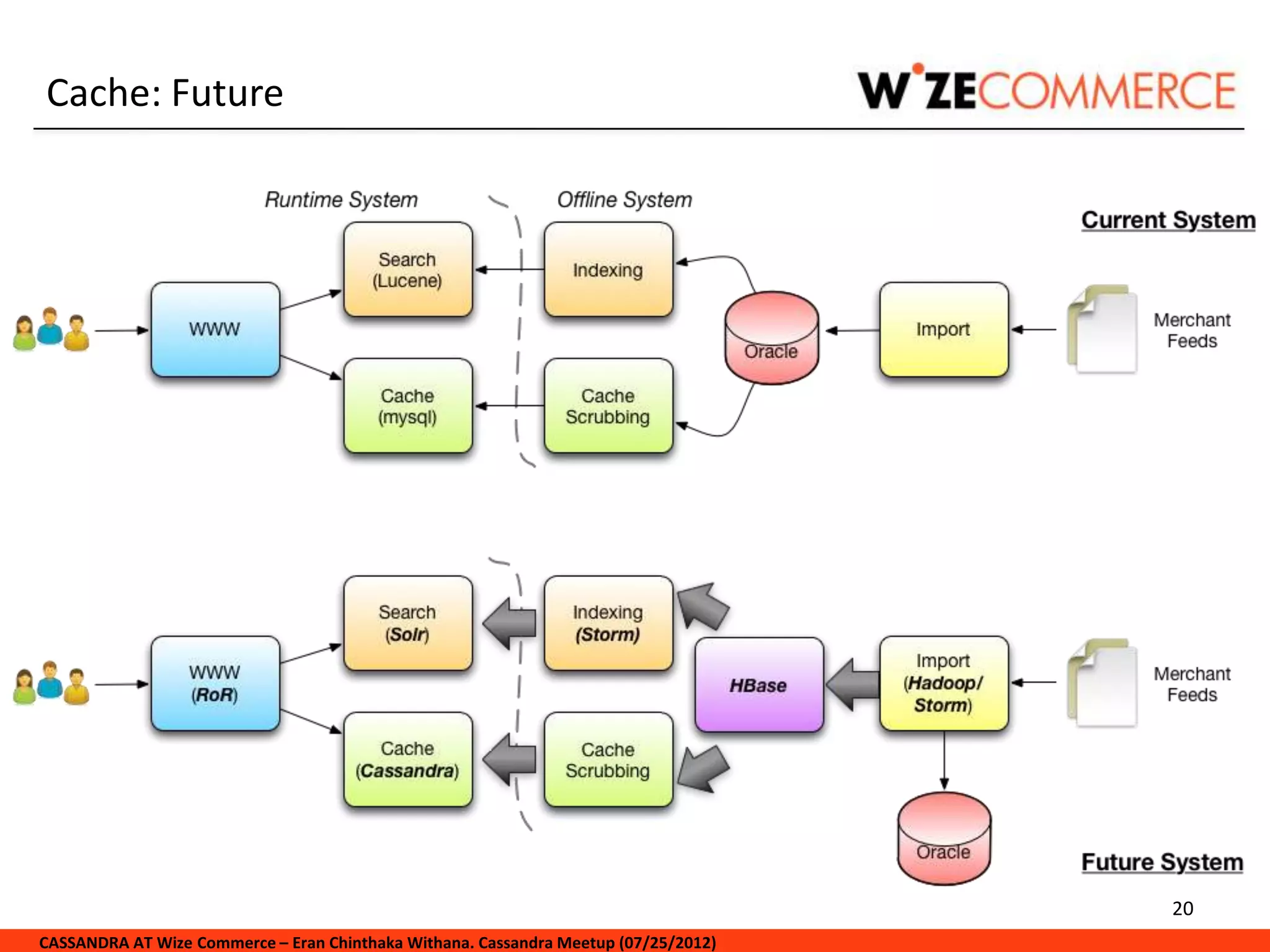

Cache: Future

20

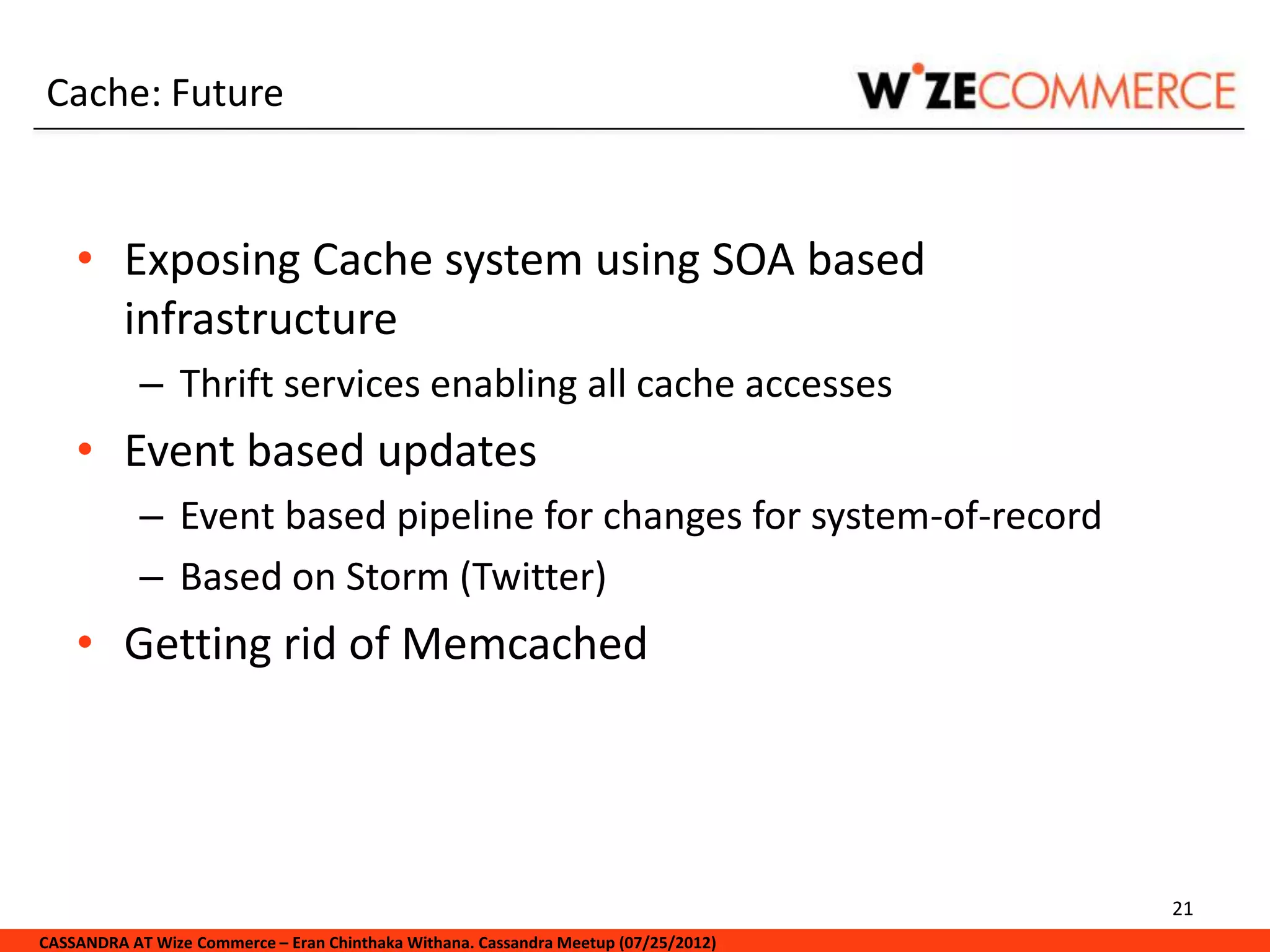

Cache: Future

• Exposing Cache system using SOA based
infrastructure
– Thrift services enabling all cache accesses
• Event based updates
– Event based pipeline for changes for system-of-record
– Based on Storm (Twitter)
• Getting rid of Memcached

21

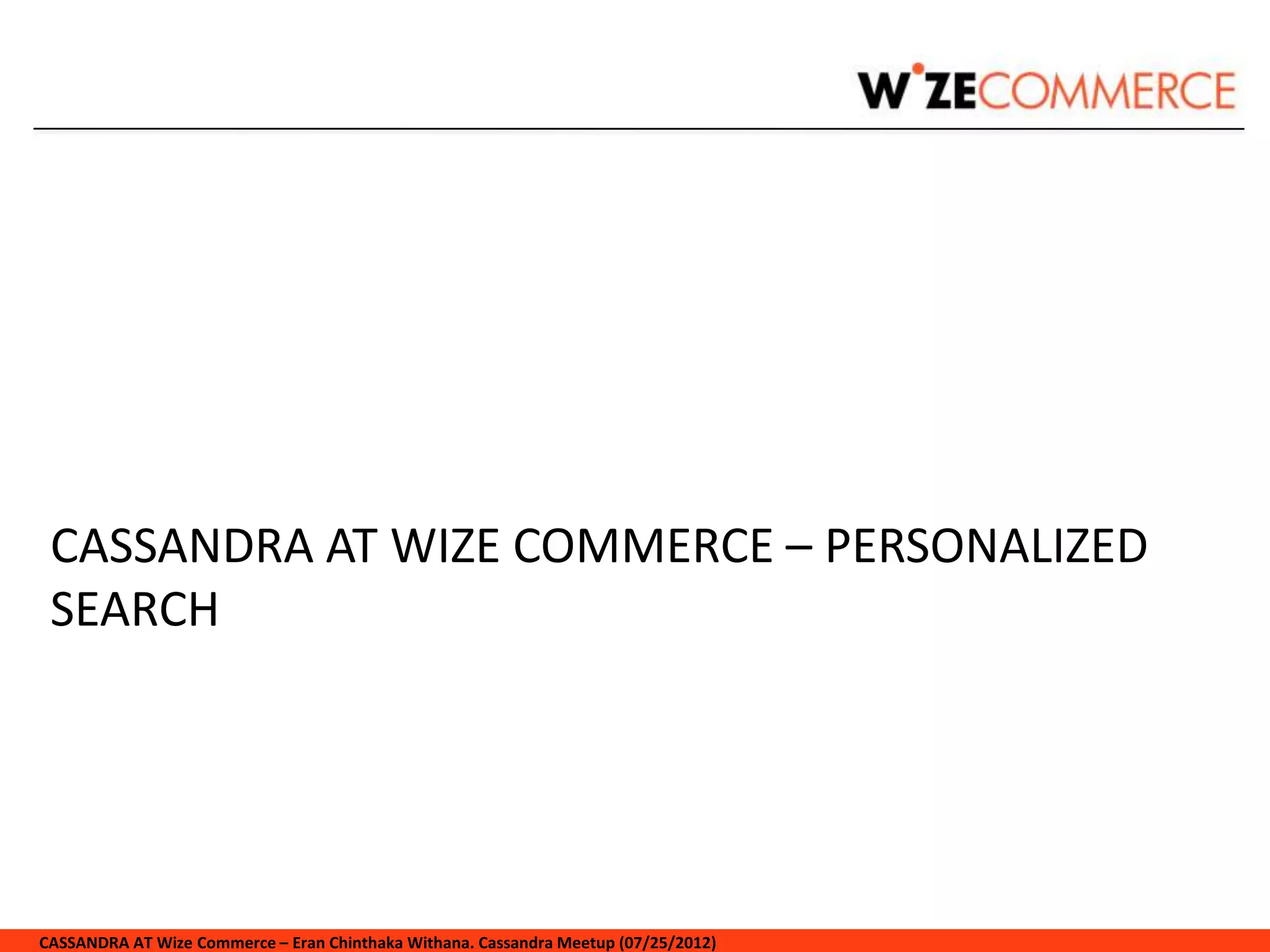

CASSANDRA AT WIZE COMMERCE – PERSONALIZED
SEARCH

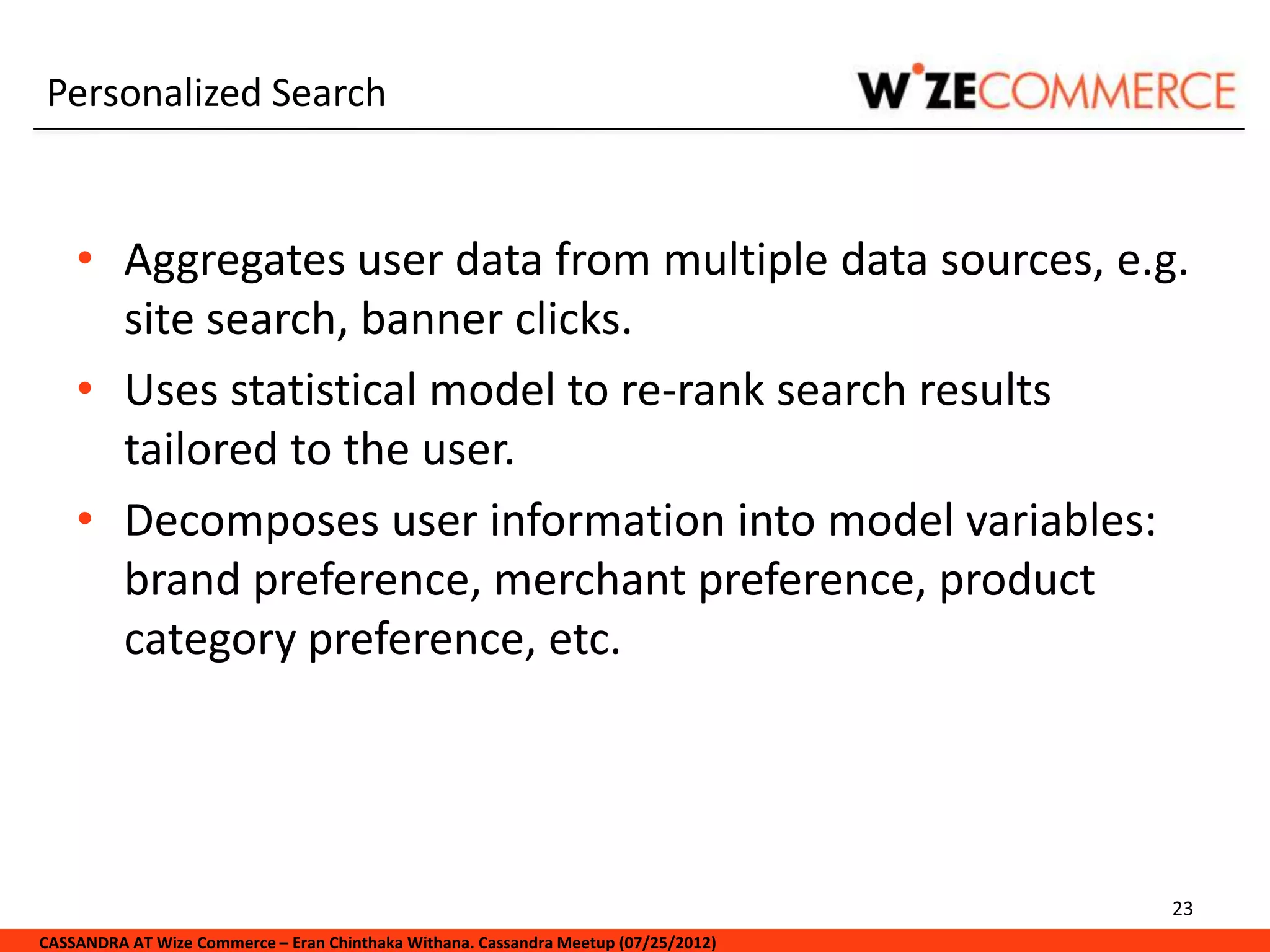

Personalized Search

• Aggregates user data from multiple data sources, e.g.
site search, banner clicks.
• Uses statistical model to re-rank search results
tailored to the user.
• Decomposes user information into model variables:
brand preference, merchant preference, product
category preference, etc.

23

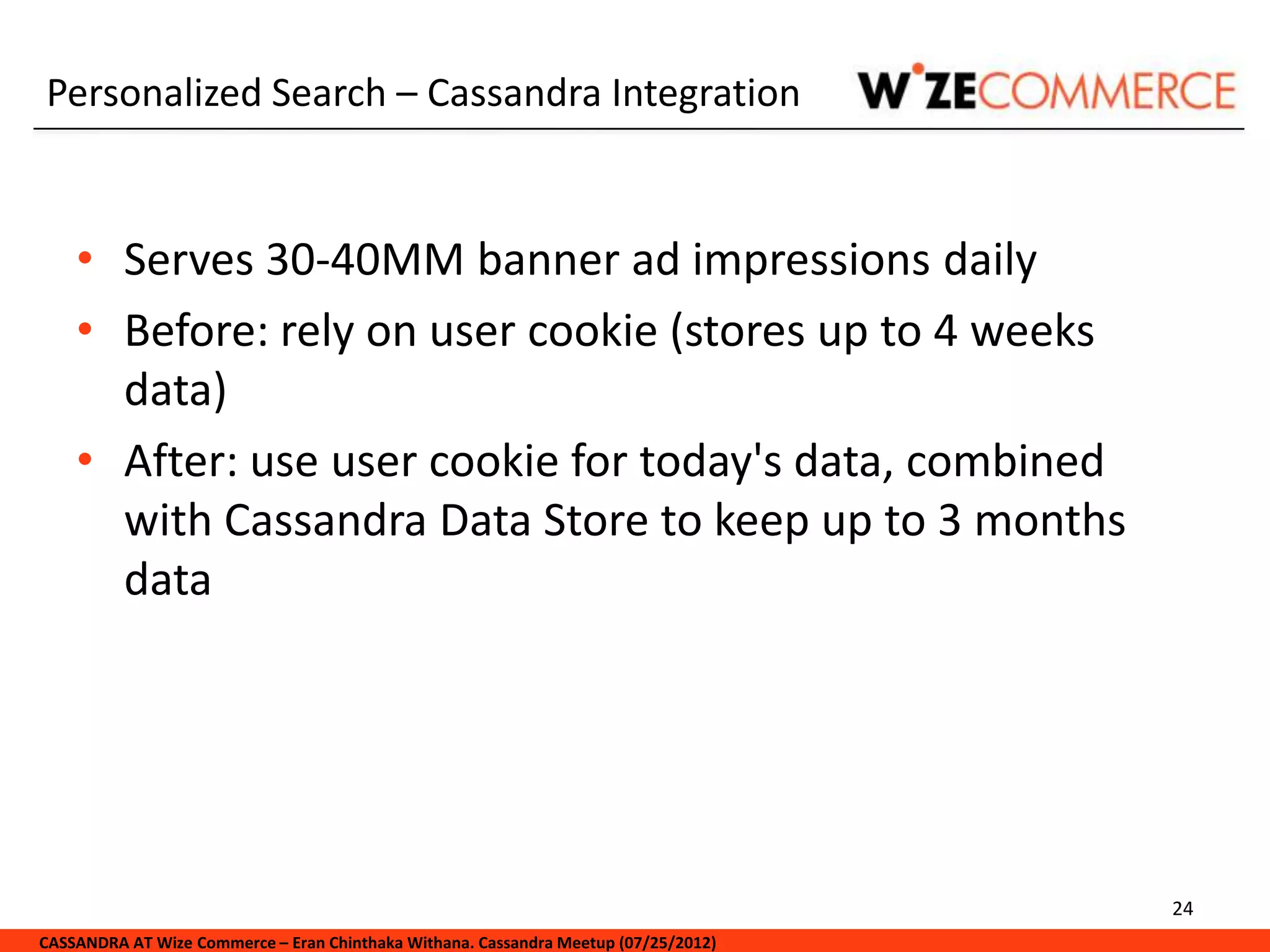

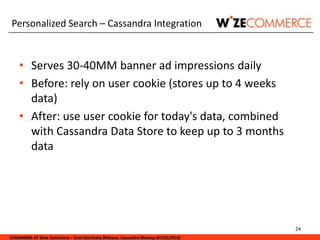

Personalized Search – Cassandra Integration

• Serves 30-40MM banner ad impressions daily
• Before: rely on user cookie (stores up to 4 weeks
data)
• After: use user cookie for today's data, combined
with Cassandra Data Store to keep up to 3 months
data

24

PERFORMANCE EVALUATION OF APACHE
CASSANDRA IN A MULTI-DATA CENTER, READ/WRITE
HEAVY ENVIRONMENT

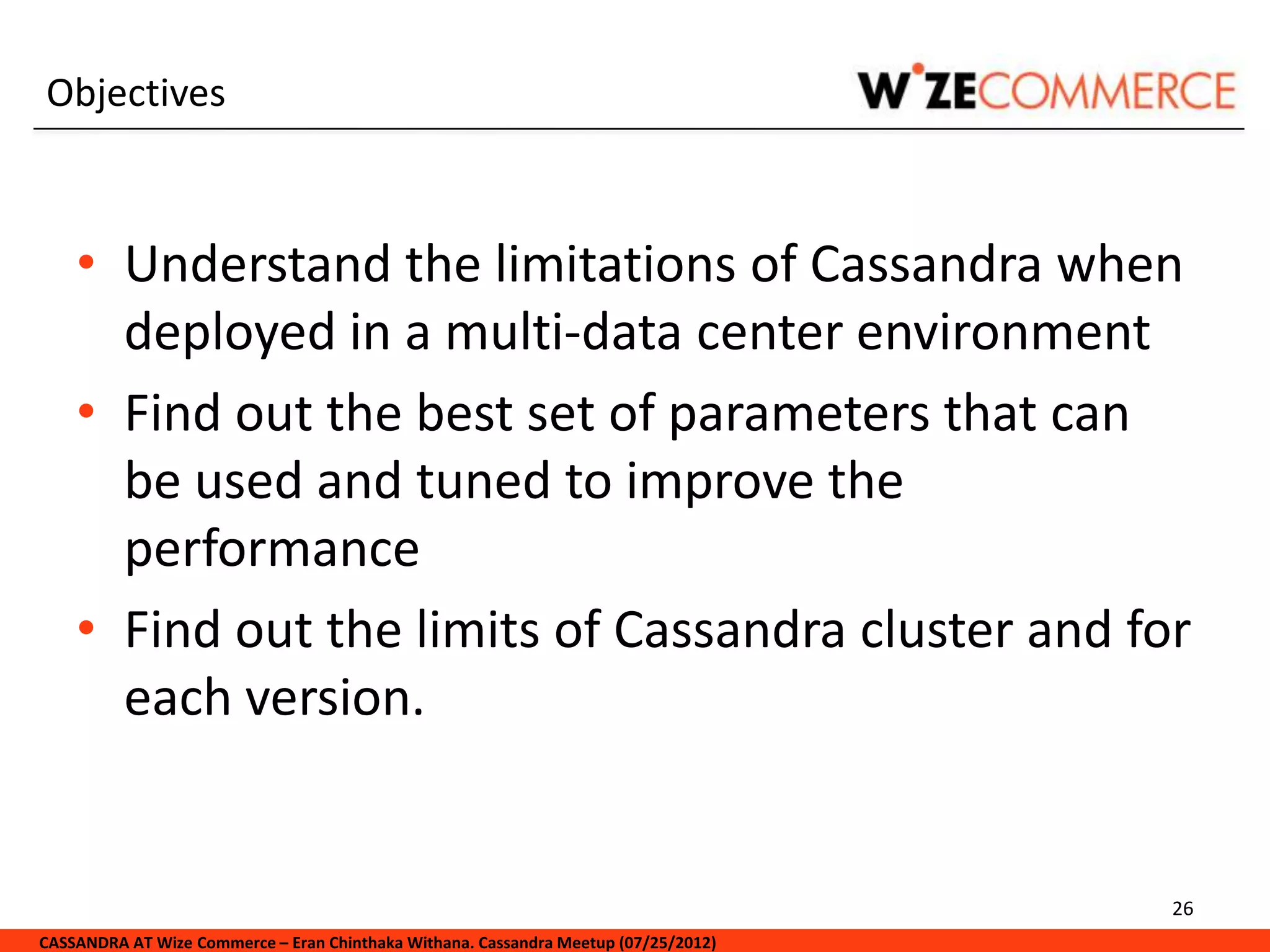

Objectives

• Understand the limitations of Cassandra when
deployed in a multi-data center environment
• Find out the best set of parameters that can
be used and tuned to improve the
performance
• Find out the limits of Cassandra cluster and for
each version.

26

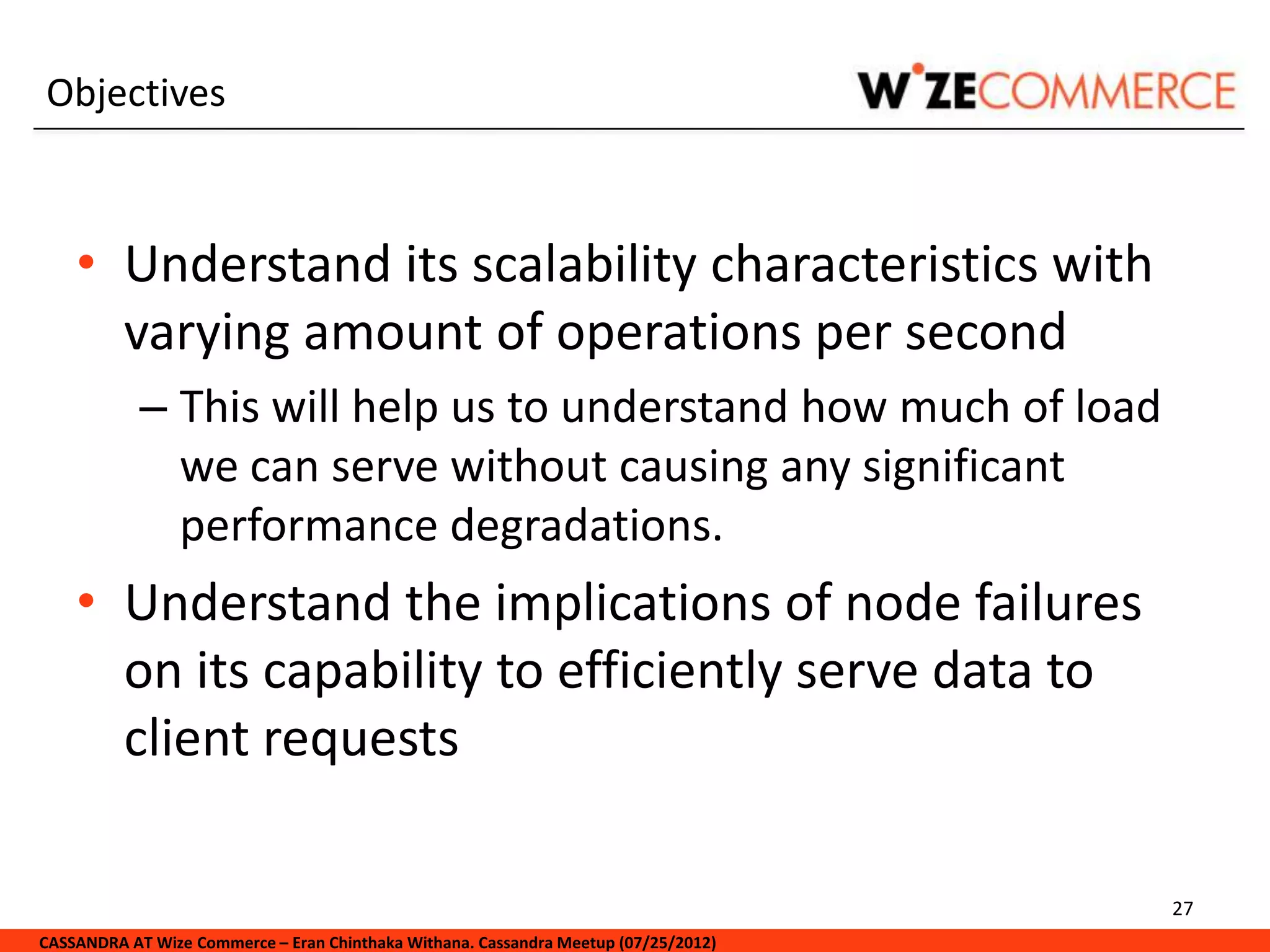

Objectives

• Understand its scalability characteristics with
varying amount of operations per second
– This will help us to understand how much of load
we can serve without causing any significant
performance degradations.
• Understand the implications of node failures
on its capability to efficiently serve data to
client requests

27

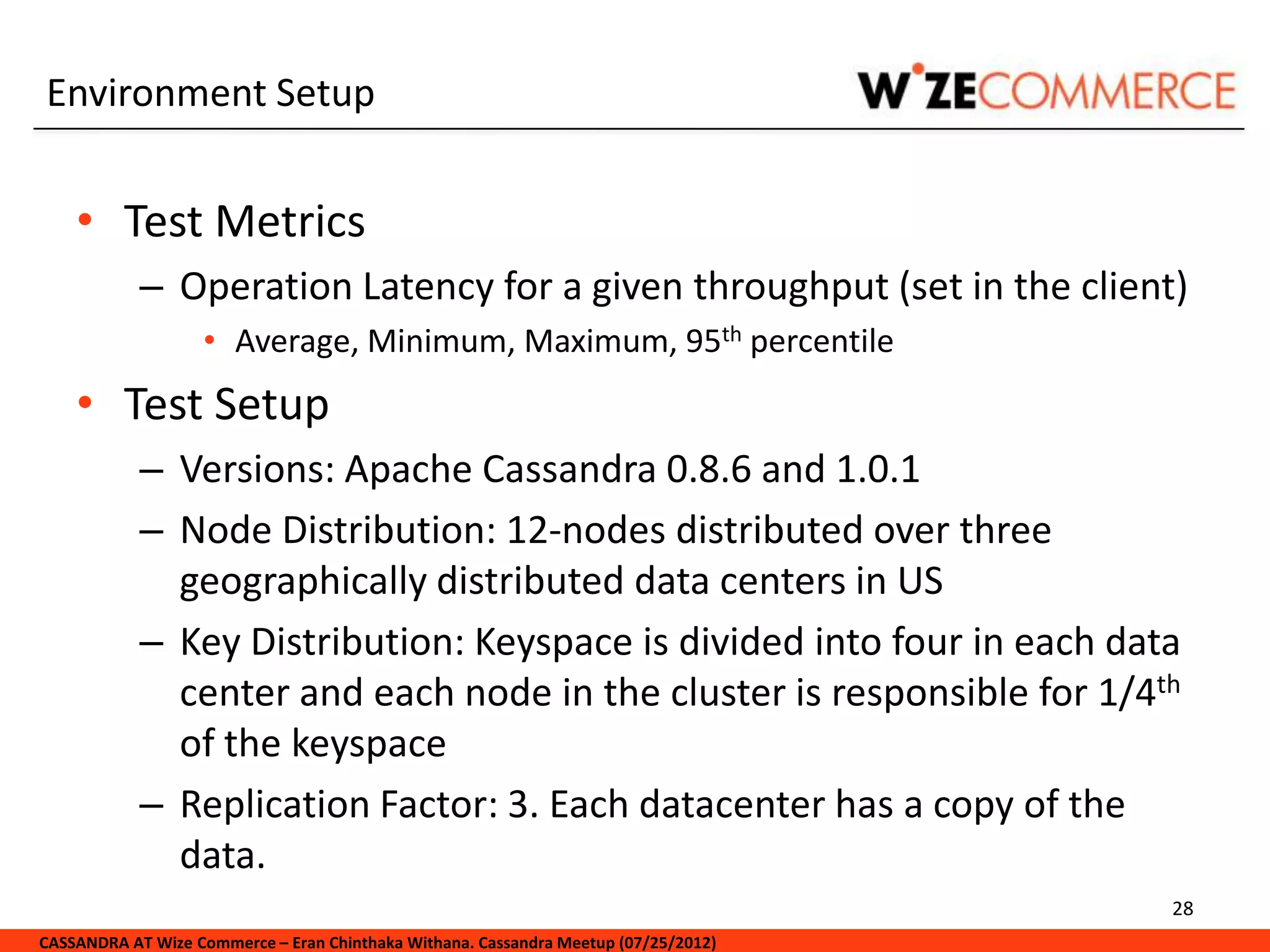

Environment Setup

• Test Metrics
– Operation Latency for a given throughput (set in the client)
• Average, Minimum, Maximum, 95th percentile
• Test Setup
– Versions: Apache Cassandra 0.8.6 and 1.0.1
– Node Distribution: 12-nodes distributed over three
geographically distributed data centers in US
– Key Distribution: Keyspace is divided into four in each data
center and each node in the cluster is responsible for 1/4th
of the keyspace
– Replication Factor: 3. Each datacenter has a copy of the
data.
28

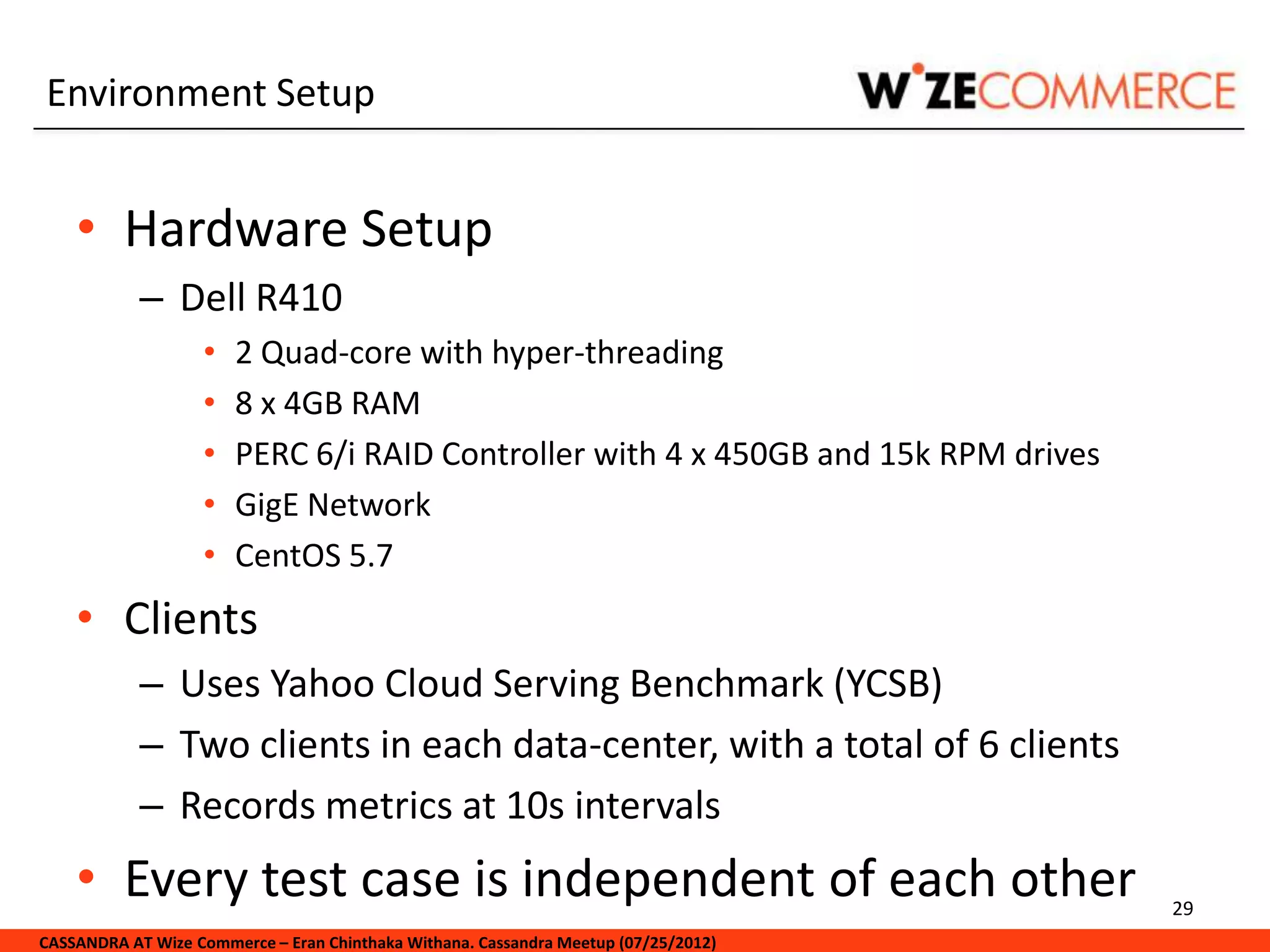

Environment Setup

• Hardware Setup
– Dell R410
• 2 Quad-core with hyper-threading
• 8 x 4GB RAM
• PERC 6/i RAID Controller with 4 x 450GB and 15k RPM drives
• GigE Network
• CentOS 5.7
• Clients
– Uses Yahoo Cloud Serving Benchmark (YCSB)
– Two clients in each data-center, with a total of 6 clients
– Records metrics at 10s intervals
• Every test case is independent of each other 29

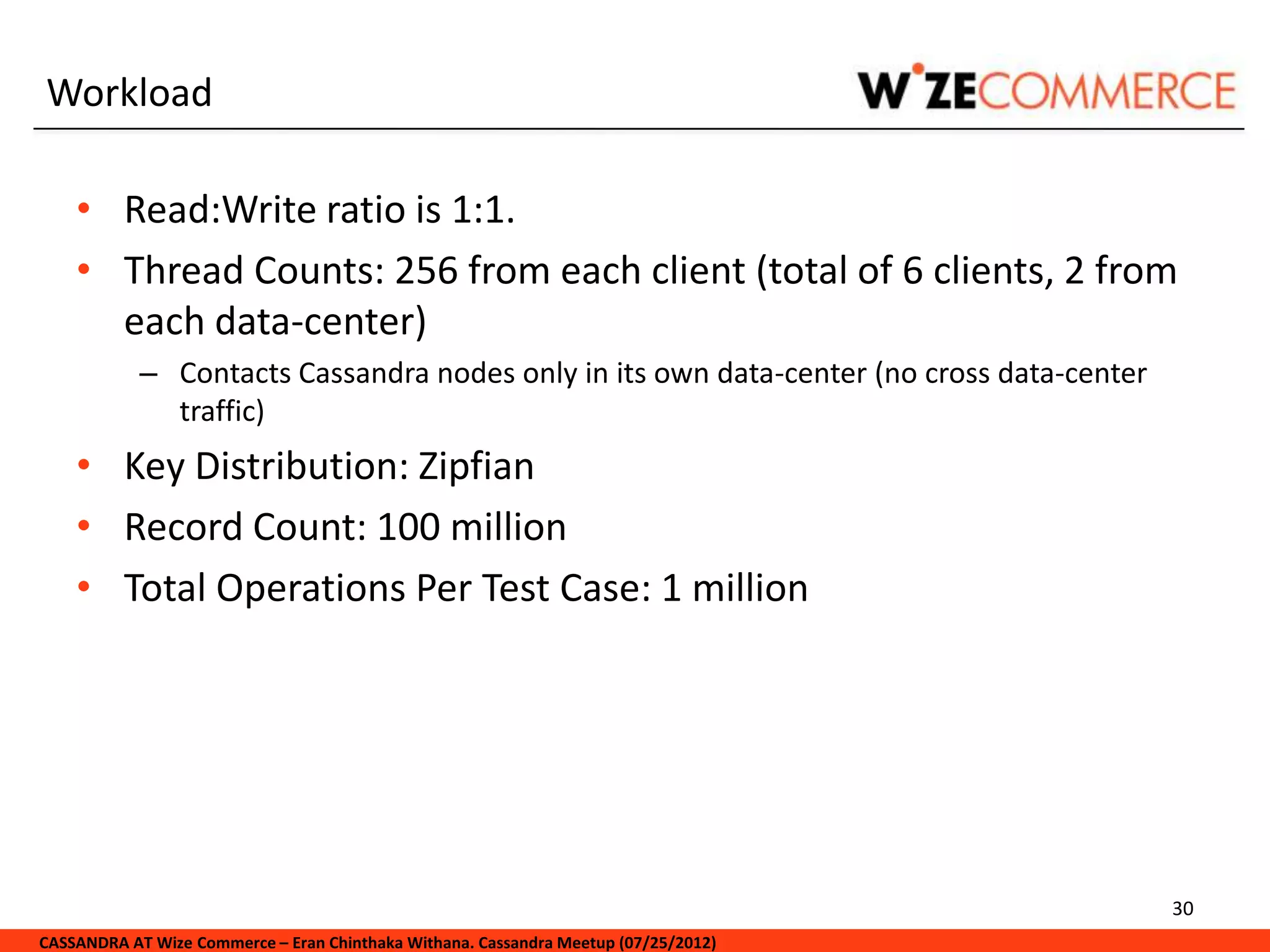

Workload

• Read:Write ratio is 1:1.
• Thread Counts: 256 from each client (total of 6 clients, 2 from
each data-center)
– Contacts Cassandra nodes only in its own data-center (no cross data-center
traffic)
• Key Distribution: Zipfian
• Record Count: 100 million
• Total Operations Per Test Case: 1 million

30

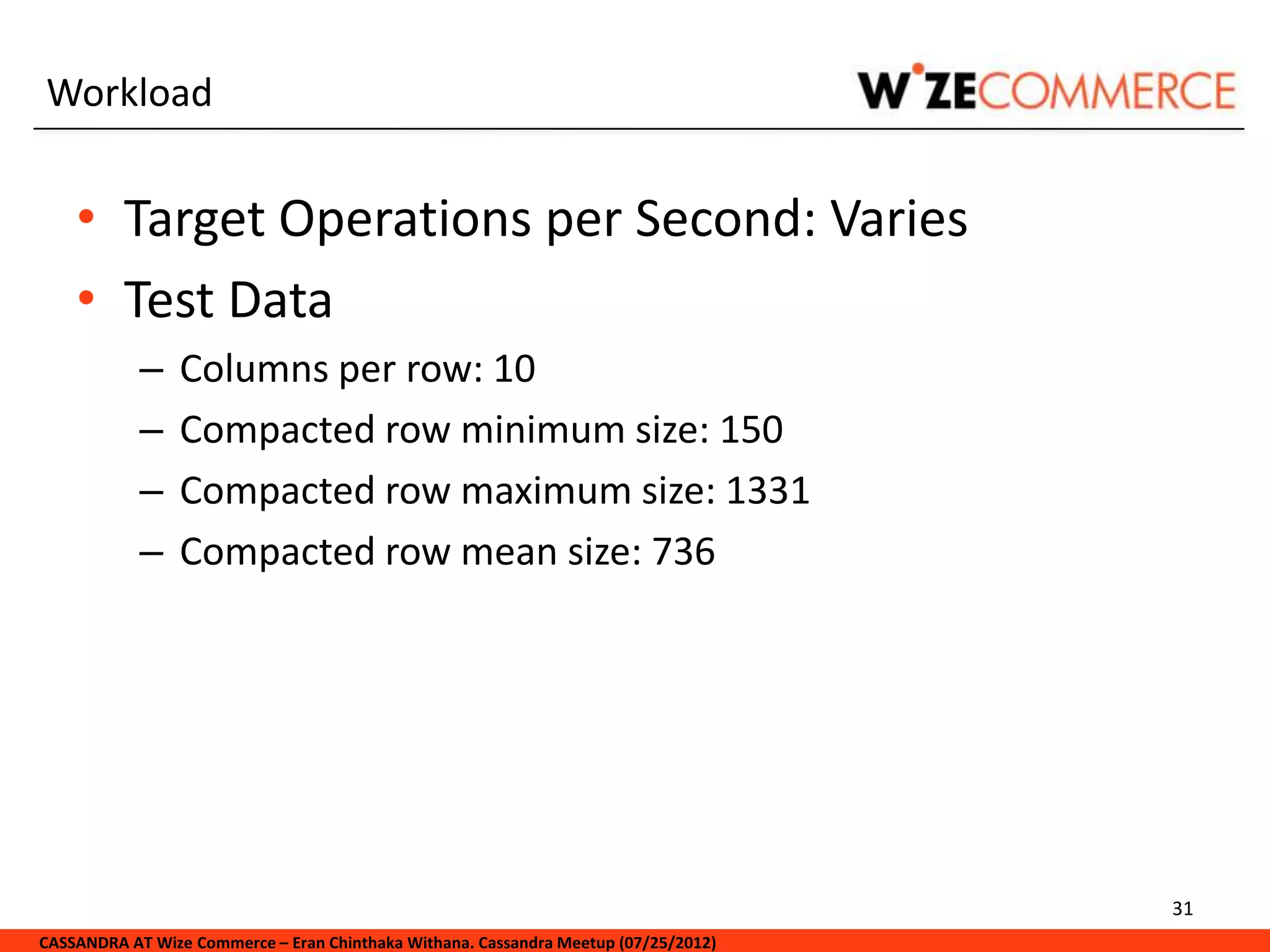

Workload

• Target Operations per Second: Varies
• Test Data
– Columns per row: 10
– Compacted row minimum size: 150
– Compacted row maximum size: 1331
– Compacted row mean size: 736

31

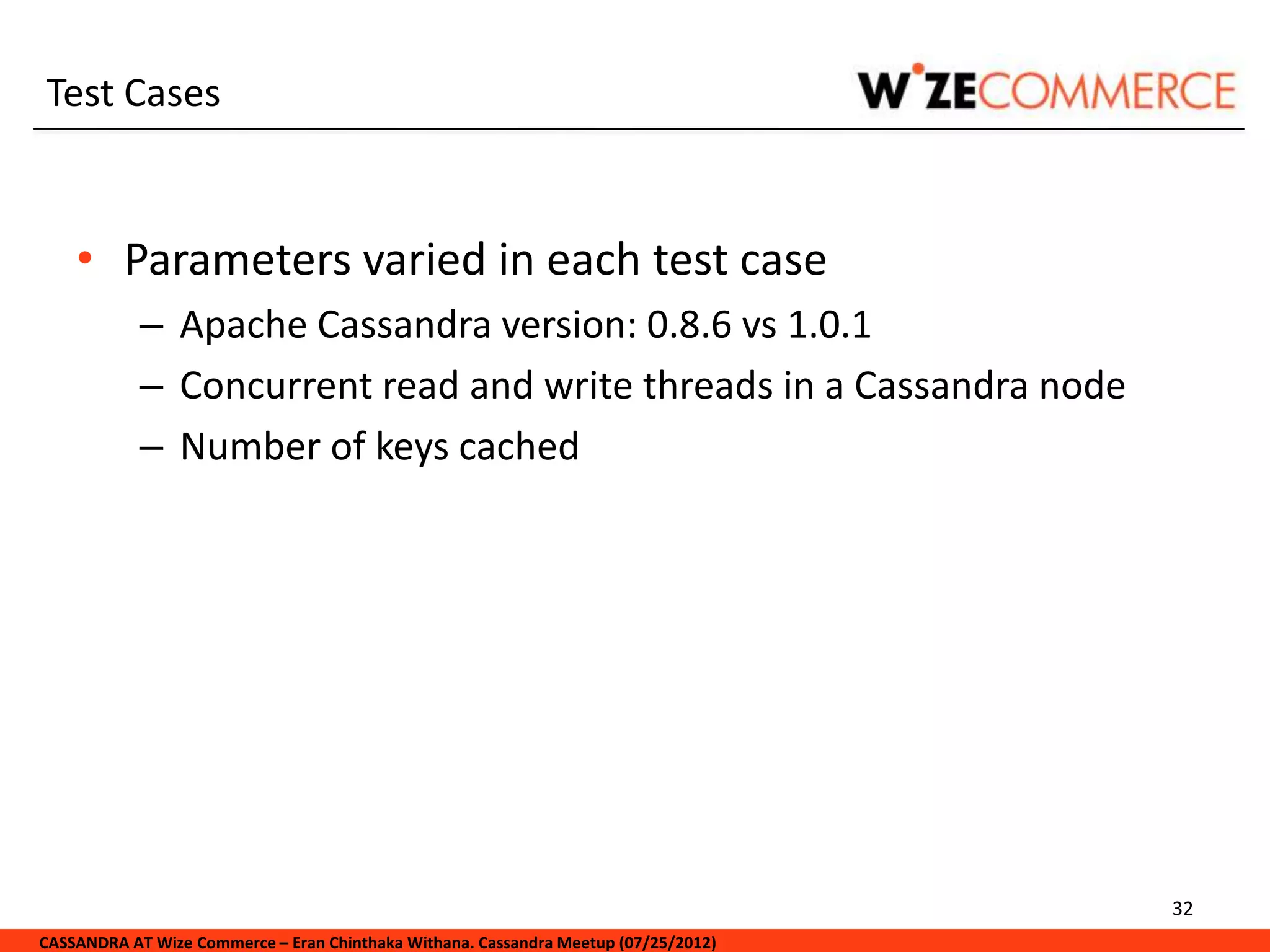

Test Cases

• Parameters varied in each test case
– Apache Cassandra version: 0.8.6 vs 1.0.1
– Concurrent read and write threads in a Cassandra node
– Number of keys cached

32

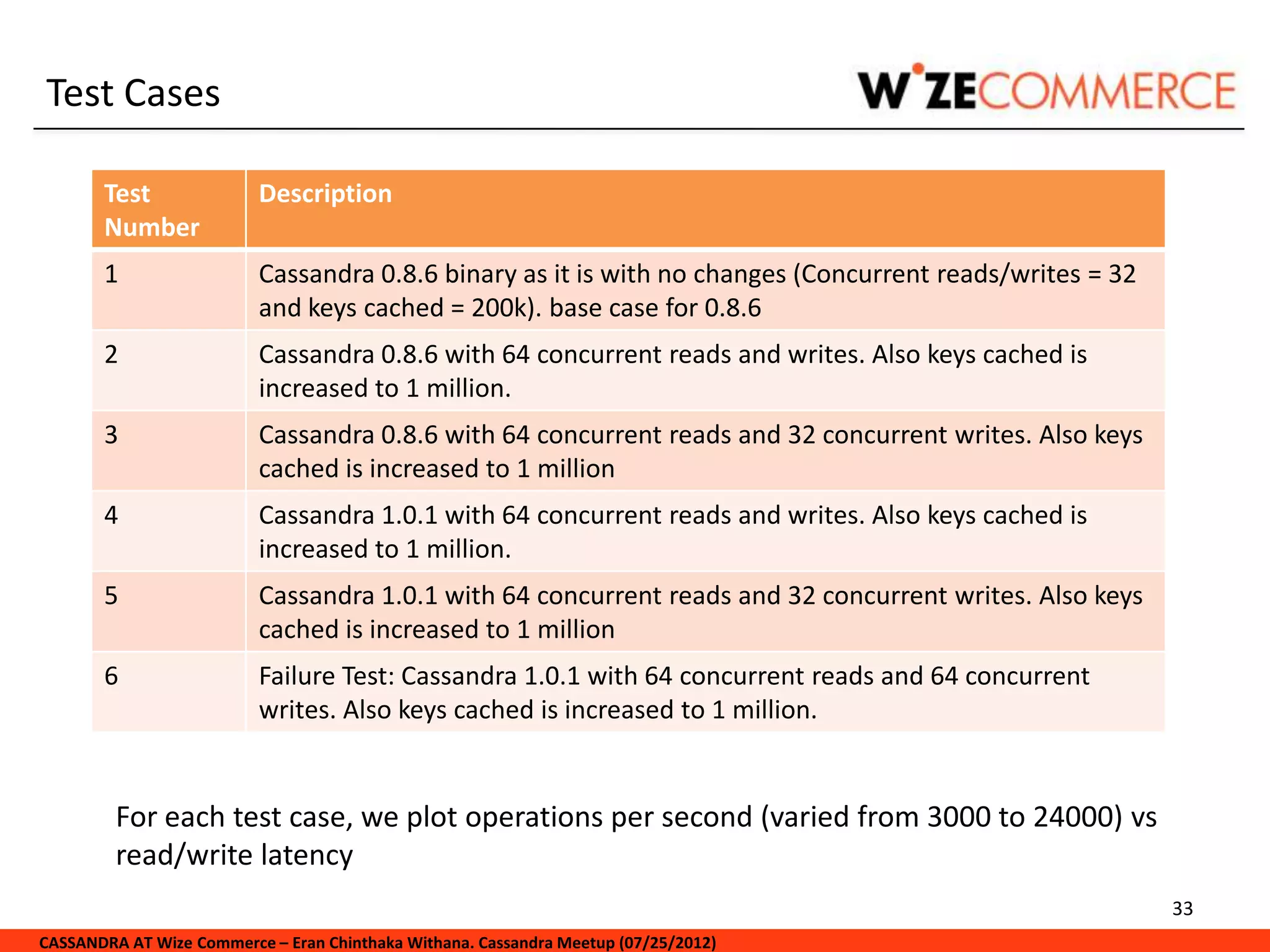

Test Cases

Test Description
Number
1 Cassandra 0.8.6 binary as it is with no changes (Concurrent reads/writes = 32
and keys cached = 200k). base case for 0.8.6
2 Cassandra 0.8.6 with 64 concurrent reads and writes. Also keys cached is
increased to 1 million.
3 Cassandra 0.8.6 with 64 concurrent reads and 32 concurrent writes. Also keys
cached is increased to 1 million
4 Cassandra 1.0.1 with 64 concurrent reads and writes. Also keys cached is
increased to 1 million.
5 Cassandra 1.0.1 with 64 concurrent reads and 32 concurrent writes. Also keys
cached is increased to 1 million
6 Failure Test: Cassandra 1.0.1 with 64 concurrent reads and 64 concurrent
writes. Also keys cached is increased to 1 million.

For each test case, we plot operations per second (varied from 3000 to 24000) vs
read/write latency
33

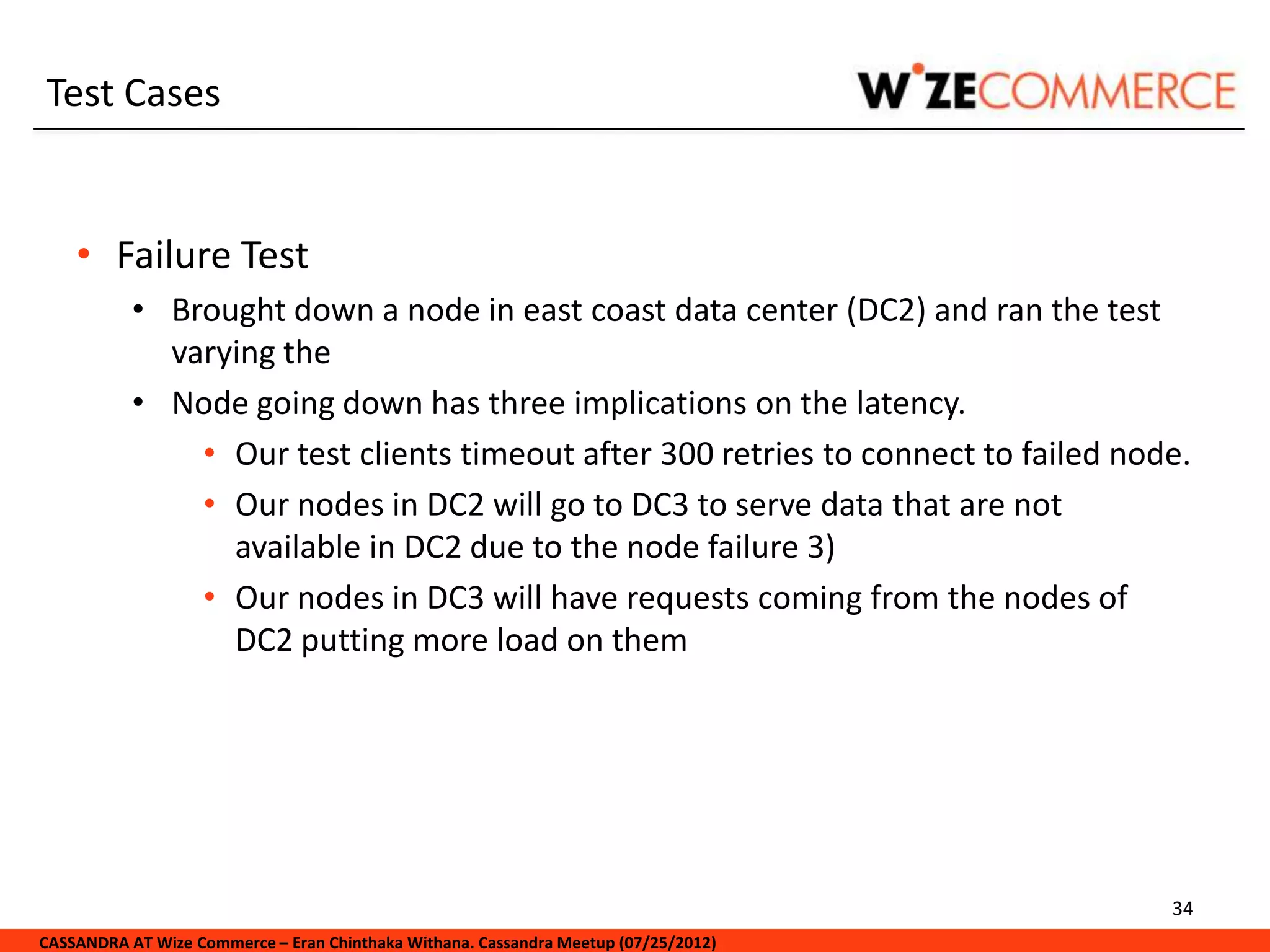

Test Cases

• Failure Test
• Brought down a node in east coast data center (DC2) and ran the test
varying the
• Node going down has three implications on the latency.
• Our test clients timeout after 300 retries to connect to failed node.
• Our nodes in DC2 will go to DC3 to serve data that are not
available in DC2 due to the node failure 3)
• Our nodes in DC3 will have requests coming from the nodes of
DC2 putting more load on them

34

Results

Test Case 1: Varying OPS with Cassandra 0.8.6 Default
Configuration

• read performance of default configuration is increasing beyond 25ms after 3000 OPS.
35

Results

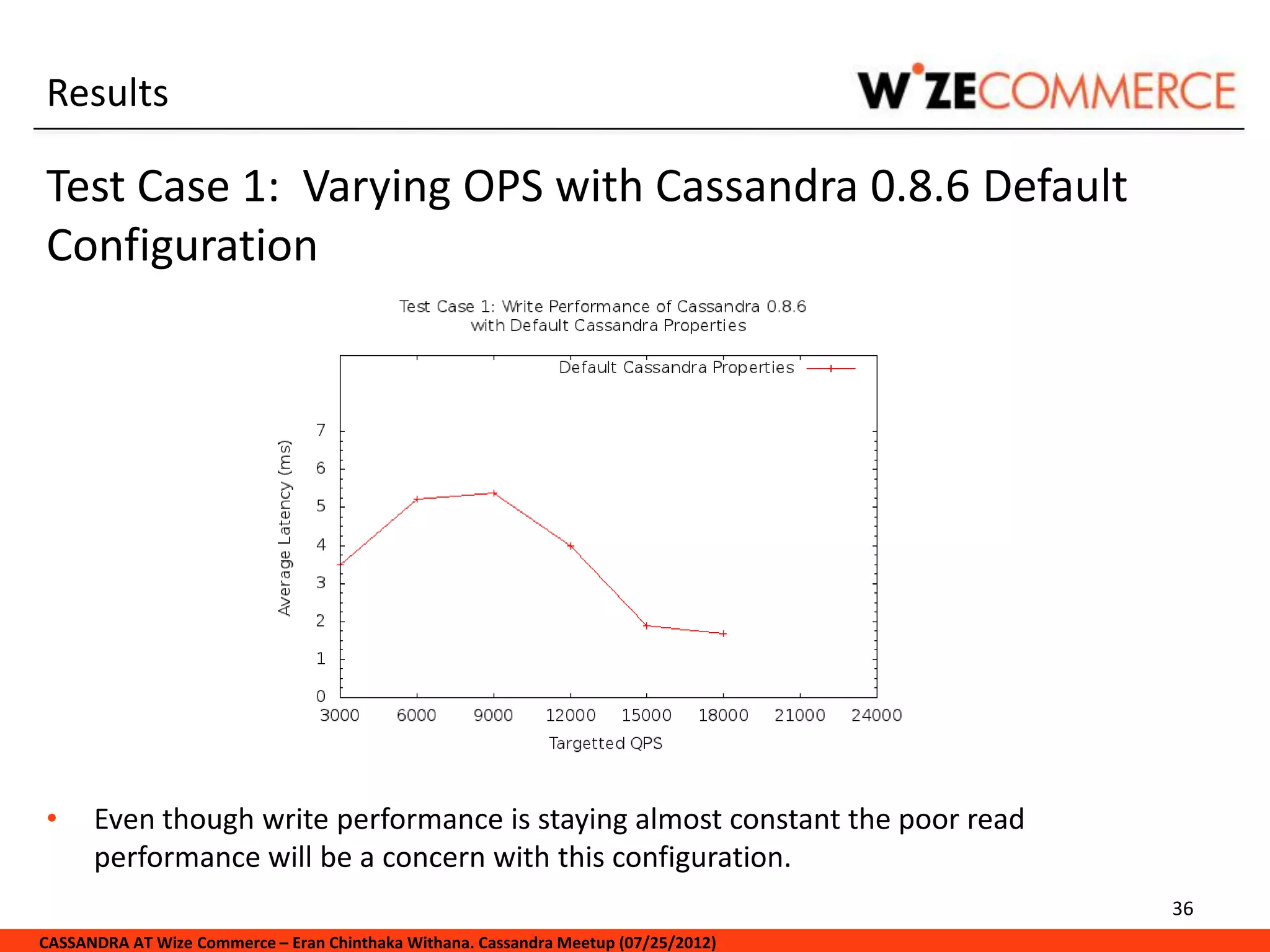

Test Case 1: Varying OPS with Cassandra 0.8.6 Default
Configuration

• Even though write performance is staying almost constant the poor read
performance will be a concern with this configuration.
36

Results

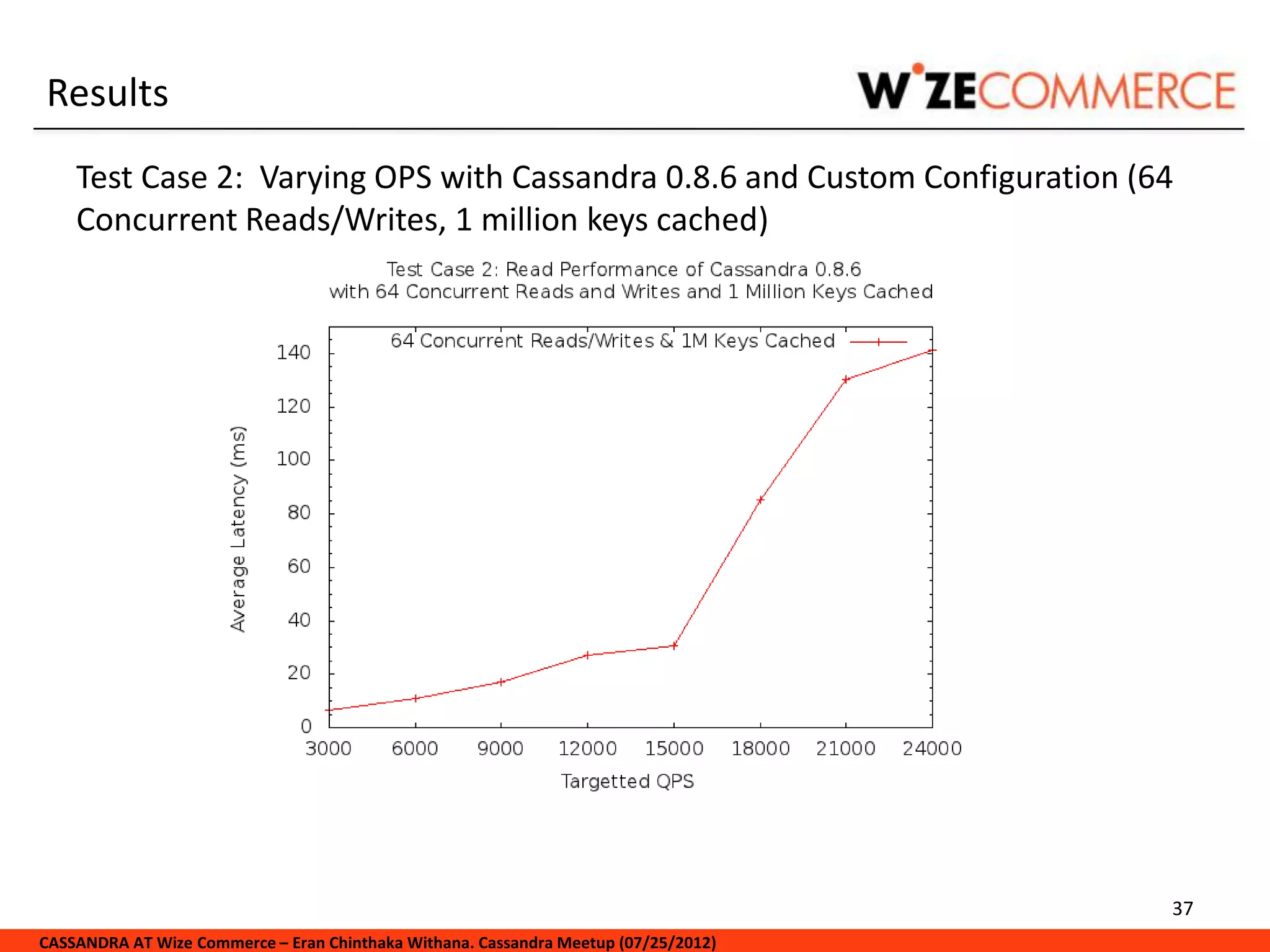

Test Case 2: Varying OPS with Cassandra 0.8.6 and Custom Configuration (64
Concurrent Reads/Writes, 1 million keys cached)

37

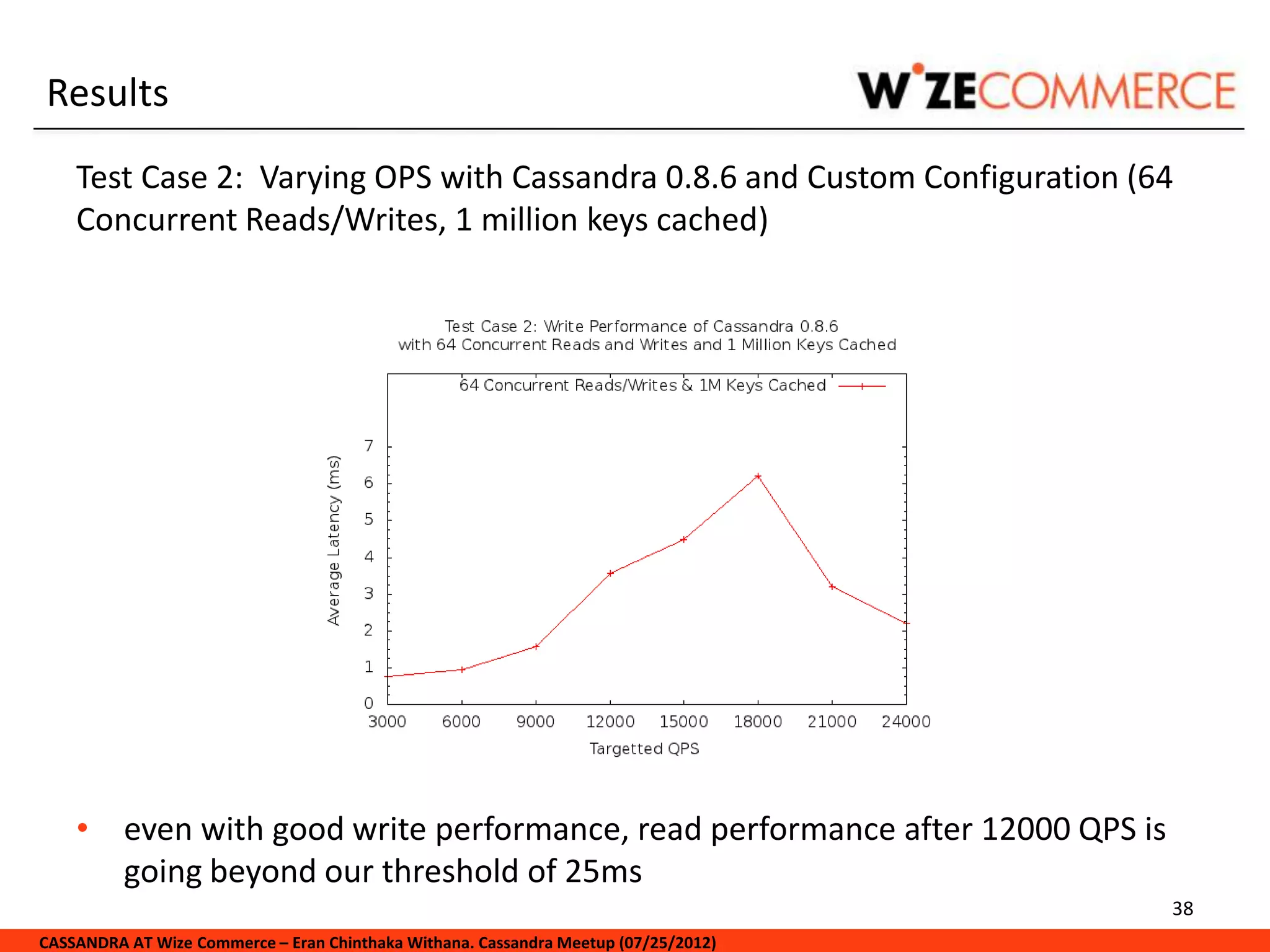

Results

• even with good write performance, read performance after 12000 QPS is
going beyond our threshold of 25ms
38

Results
Concurrent Writes, 32 Concurrent Reads and 1 million keys cached)

• latency goes beyond 25ms after reaching 18000 OPS
39

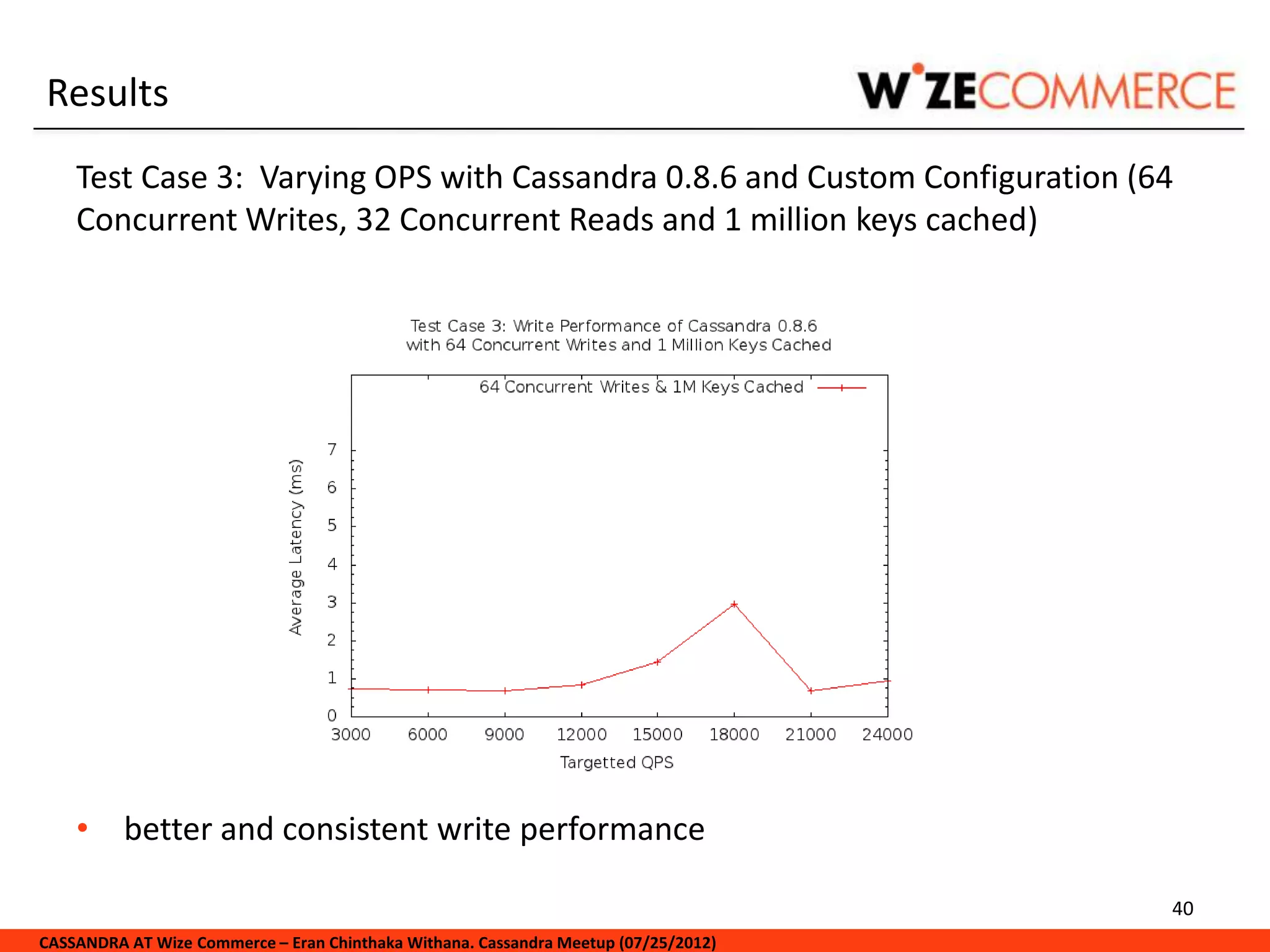

Results
Concurrent Writes, 32 Concurrent Reads and 1 million keys cached)

• better and consistent write performance

40

Results

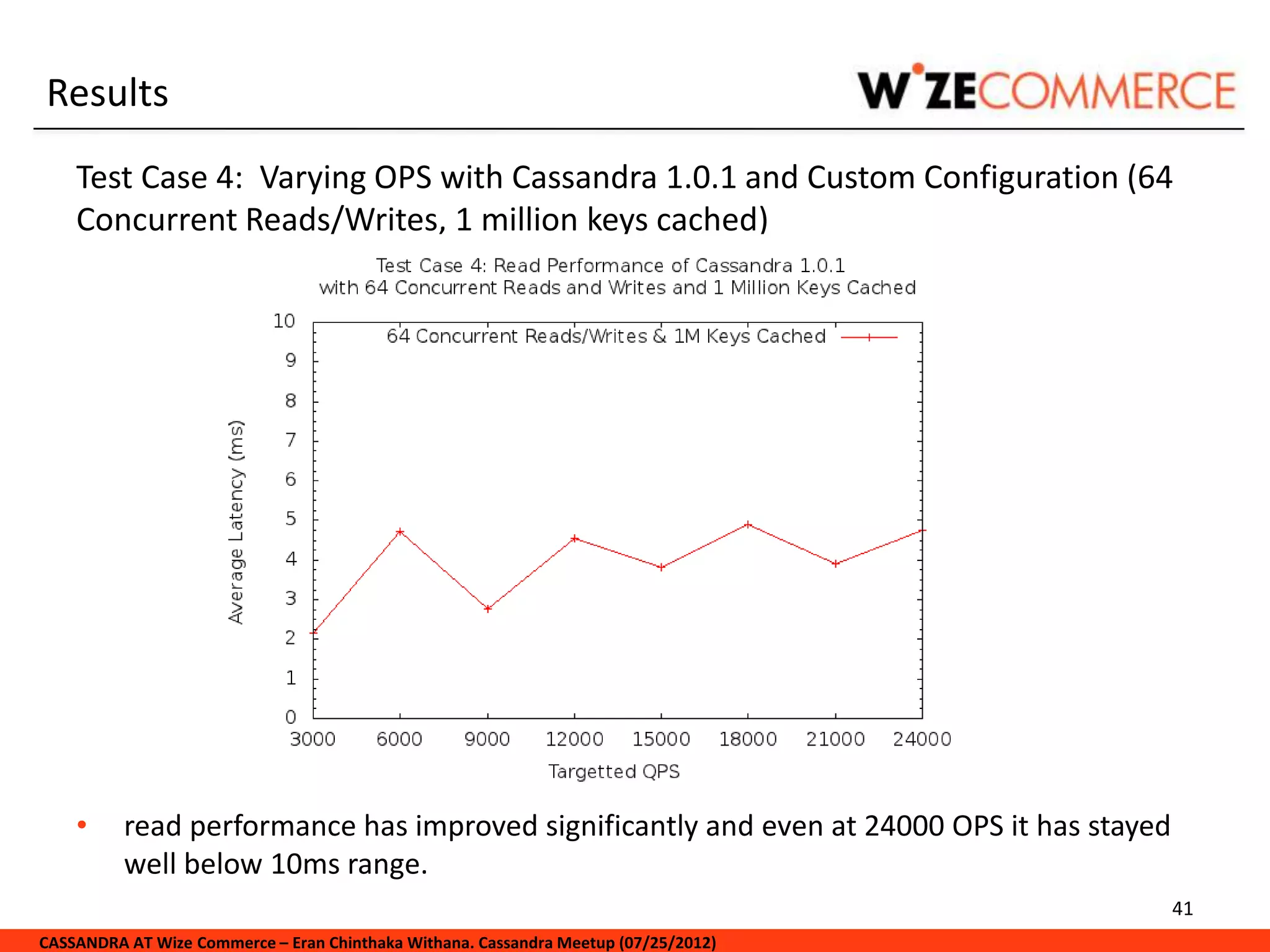

• read performance has improved significantly and even at 24000 OPS it has stayed
well below 10ms range.
41

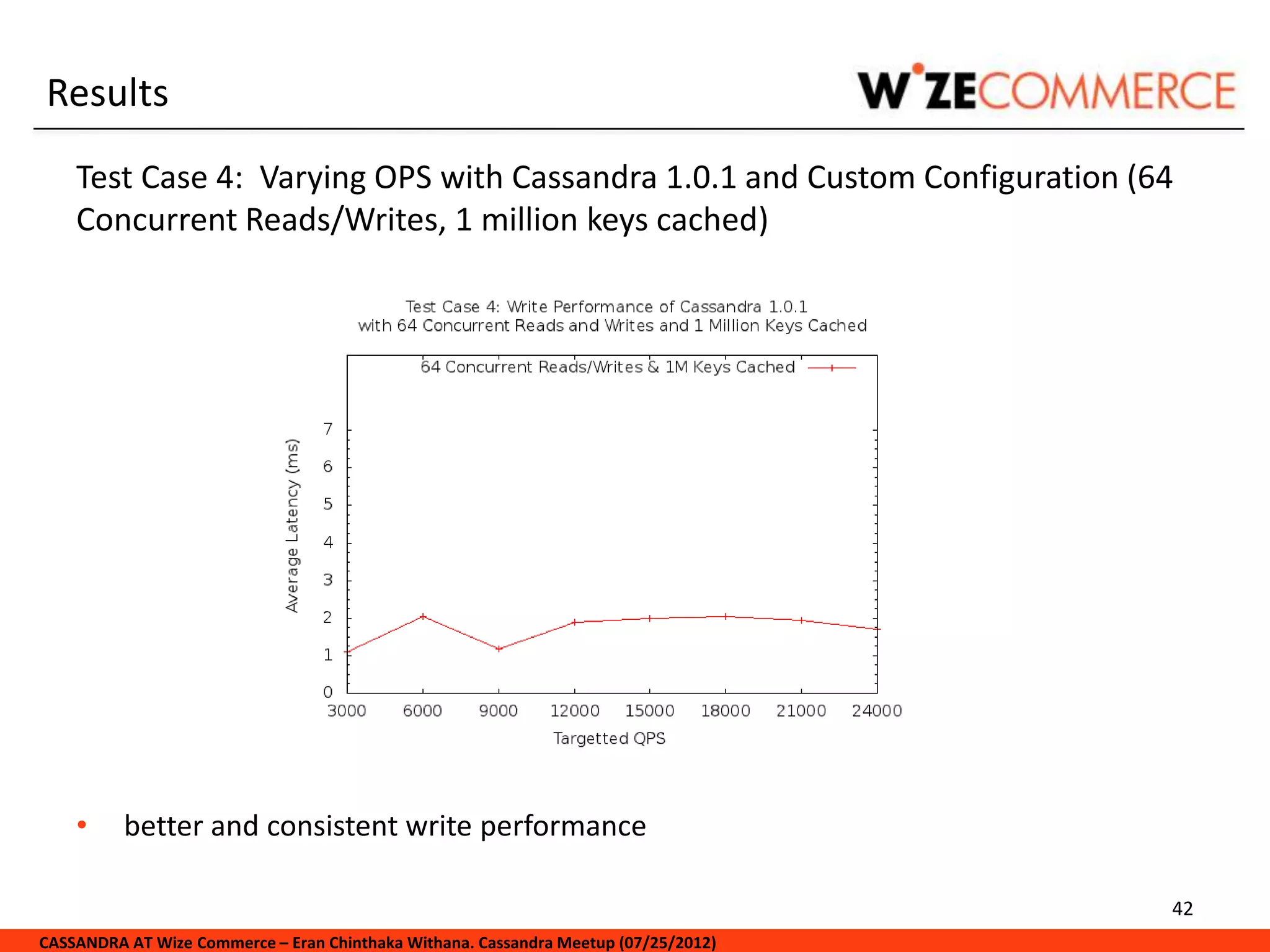

Results

• better and consistent write performance

42

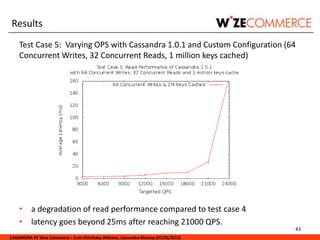

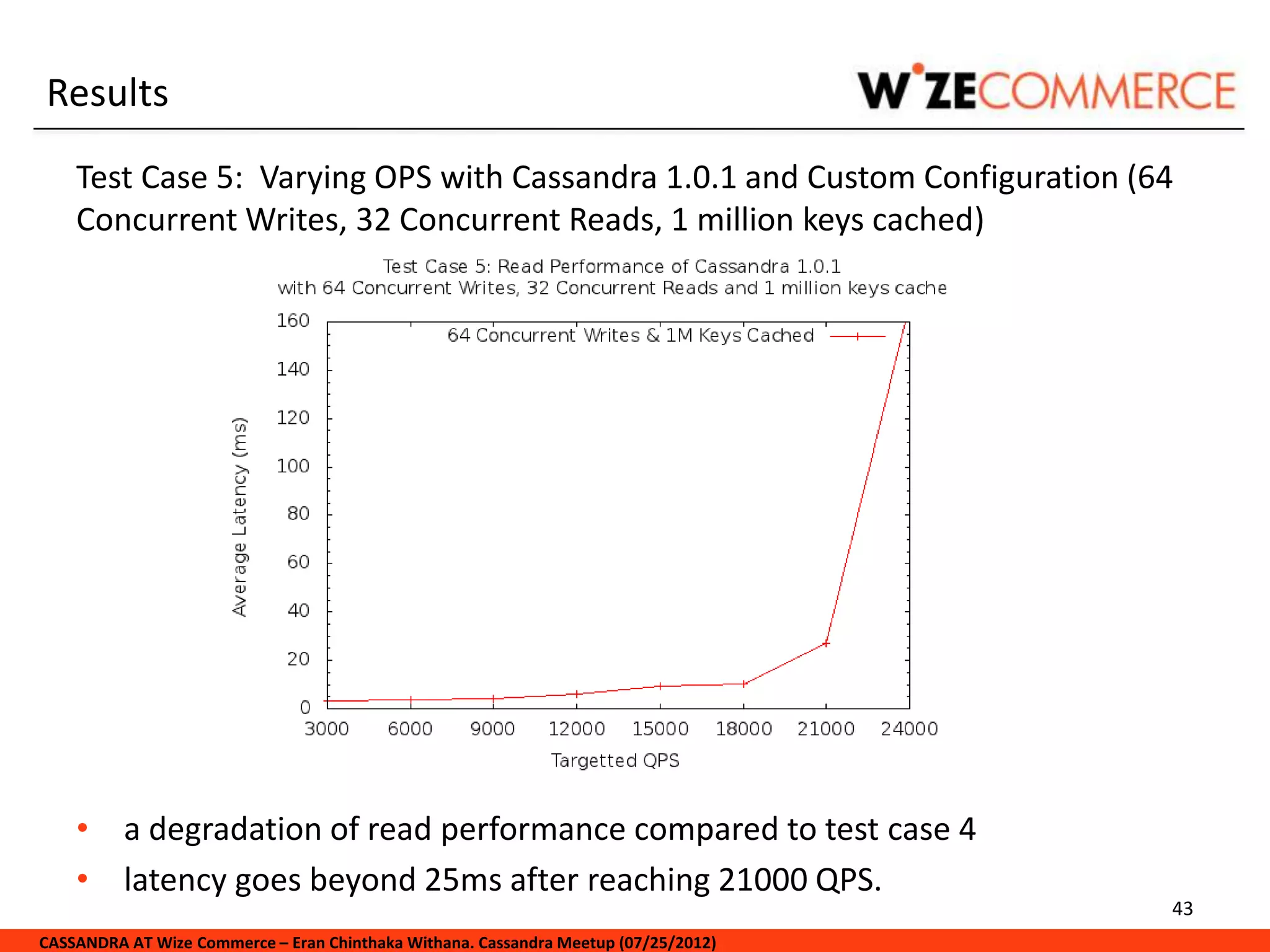

Results
Concurrent Writes, 32 Concurrent Reads, 1 million keys cached)

• a degradation of read performance compared to test case 4
• latency goes beyond 25ms after reaching 21000 QPS.
43

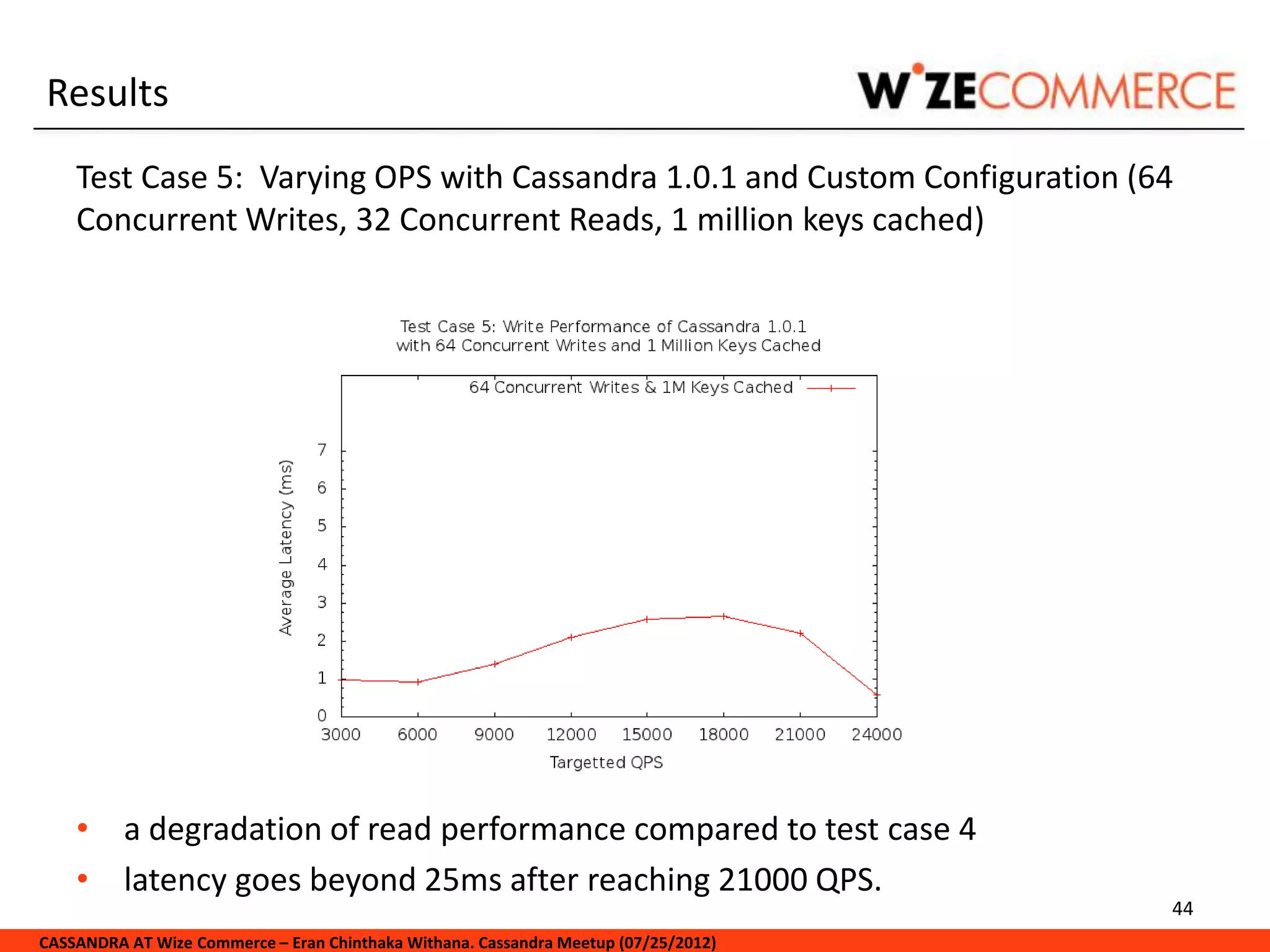

Results
Concurrent Writes, 32 Concurrent Reads, 1 million keys cached)

• a degradation of read performance compared to test case 4
• latency goes beyond 25ms after reaching 21000 QPS.
44

Results

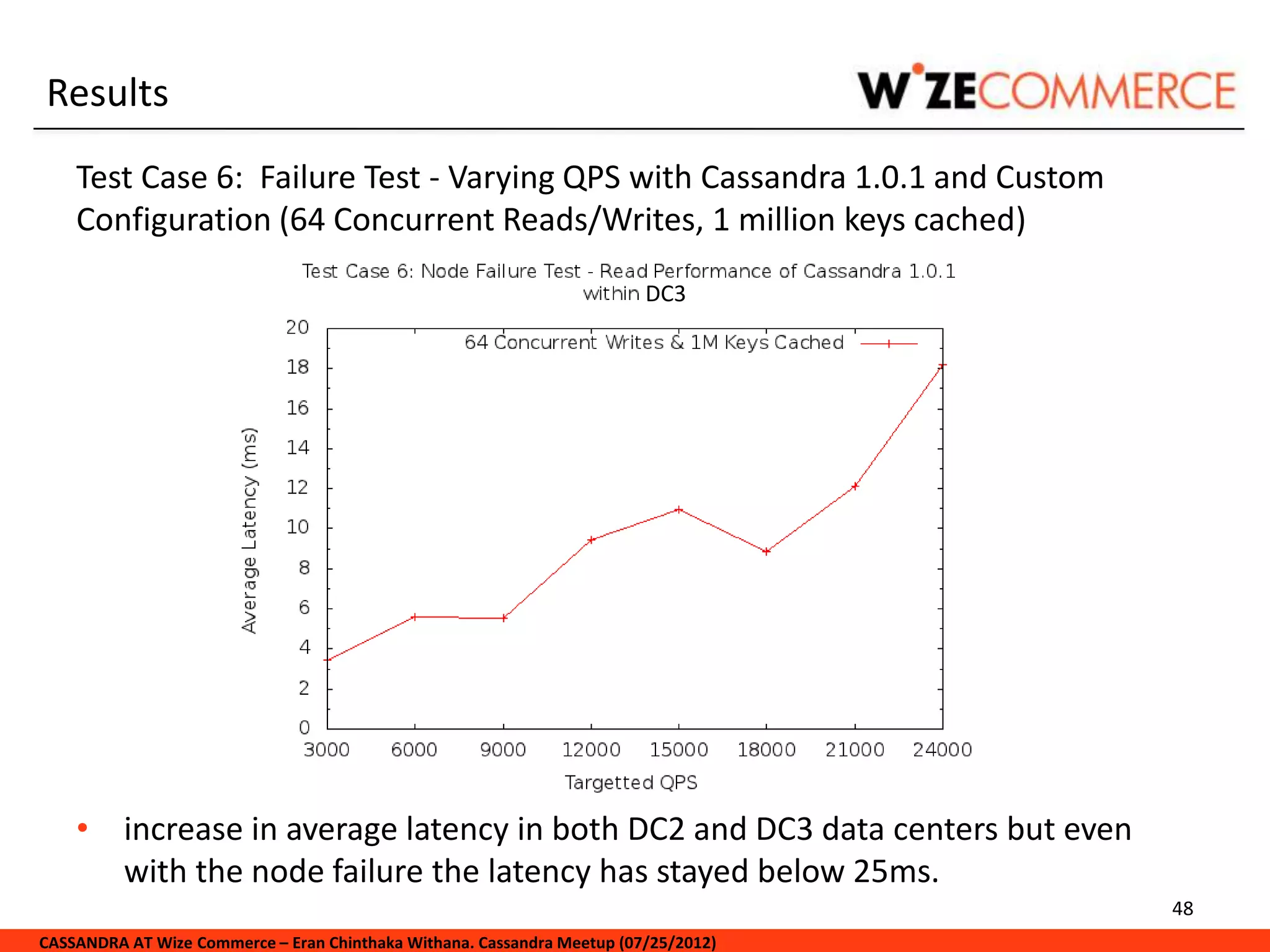

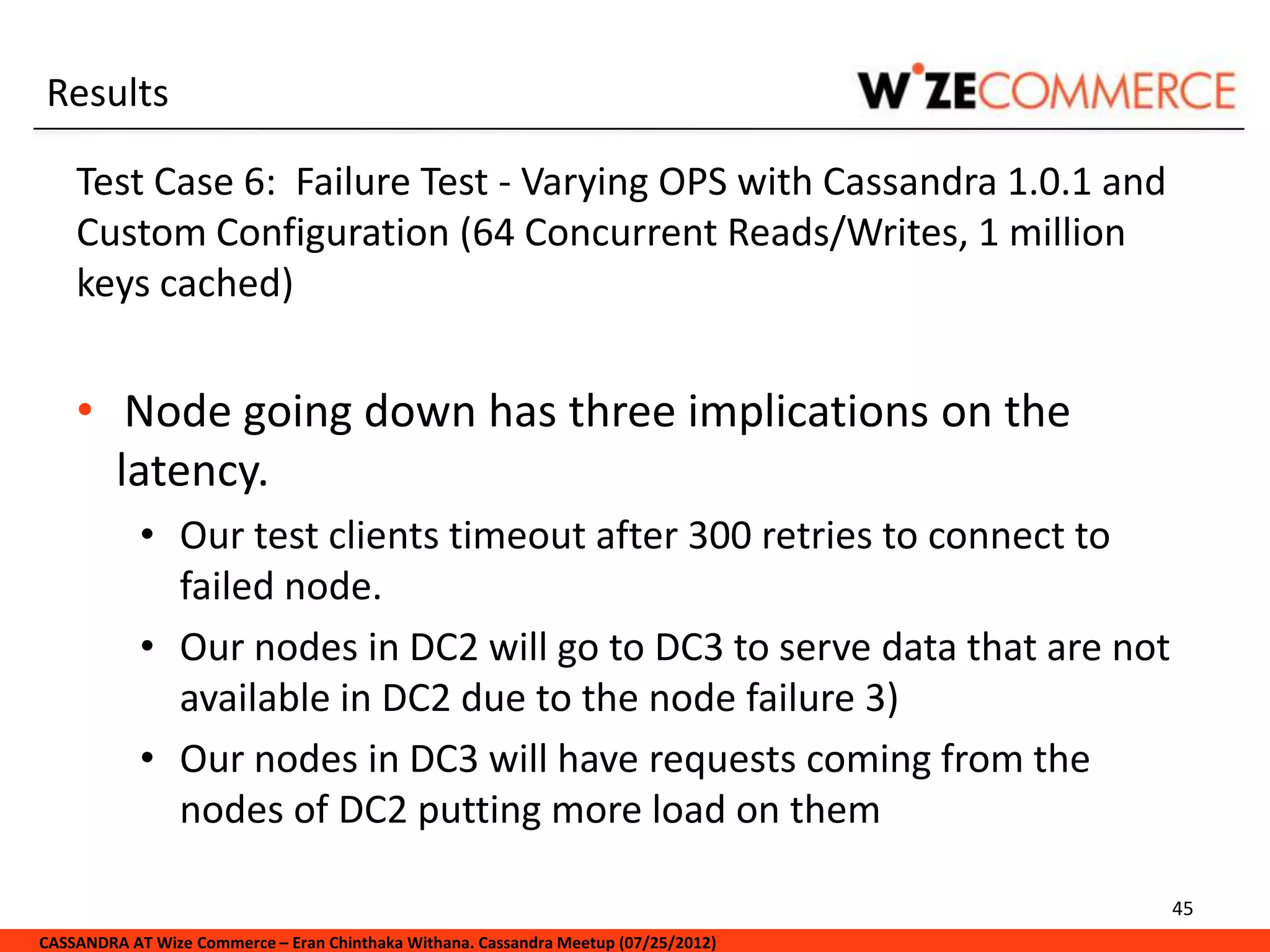

Test Case 6: Failure Test - Varying OPS with Cassandra 1.0.1 and
Custom Configuration (64 Concurrent Reads/Writes, 1 million
keys cached)

• Node going down has three implications on the
latency.
• Our test clients timeout after 300 retries to connect to
failed node.
• Our nodes in DC2 will go to DC3 to serve data that are not
available in DC2 due to the node failure 3)
• Our nodes in DC3 will have requests coming from the
nodes of DC2 putting more load on them

45

Results

Test Case 6: Failure Test - Varying OPS with Cassandra 1.0.1 and
keys cached)

DC2

46

Results

Test Case 6: Failure Test - Varying QPS with Cassandra 1.0.1 and
keys cached)

DC2

47

Results
Test Case 6: Failure Test - Varying QPS with Cassandra 1.0.1 and Custom
Configuration (64 Concurrent Reads/Writes, 1 million keys cached)

DC3

• increase in average latency in both DC2 and DC3 data centers but even
with the node failure the latency has stayed below 25ms.
48

Results
Test Case 6: Failure Test - Varying QPS with Cassandra 1.0.1 and Custom
Configuration (64 Concurrent Reads/Writes, 1 million keys cached)

DC3

• increase in average latency in both DC2 and DC3 data centers but even
with the node failure the latency has stayed below 25ms.
49

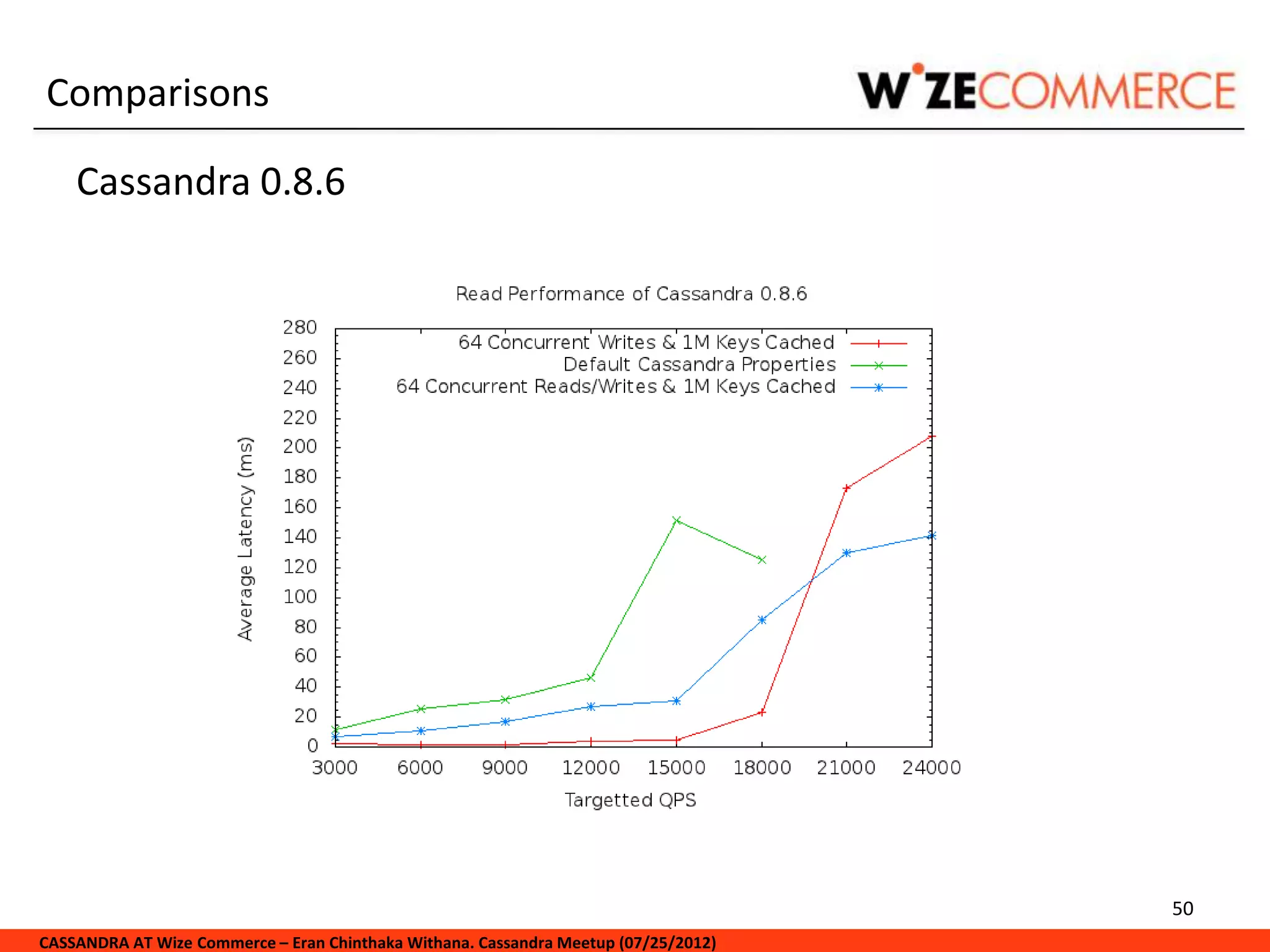

Comparisons

Cassandra 0.8.6

50

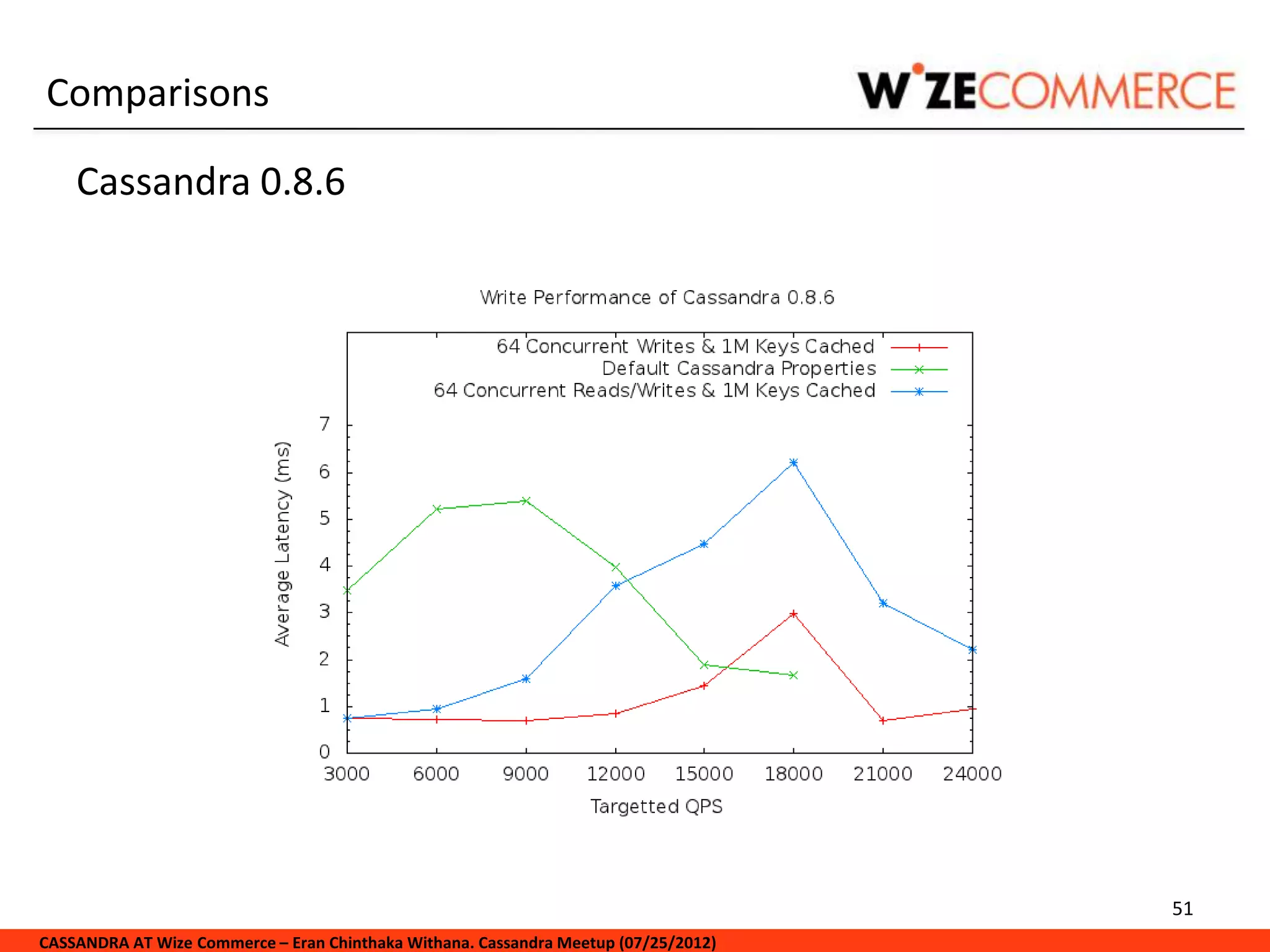

Comparisons

Cassandra 0.8.6

51

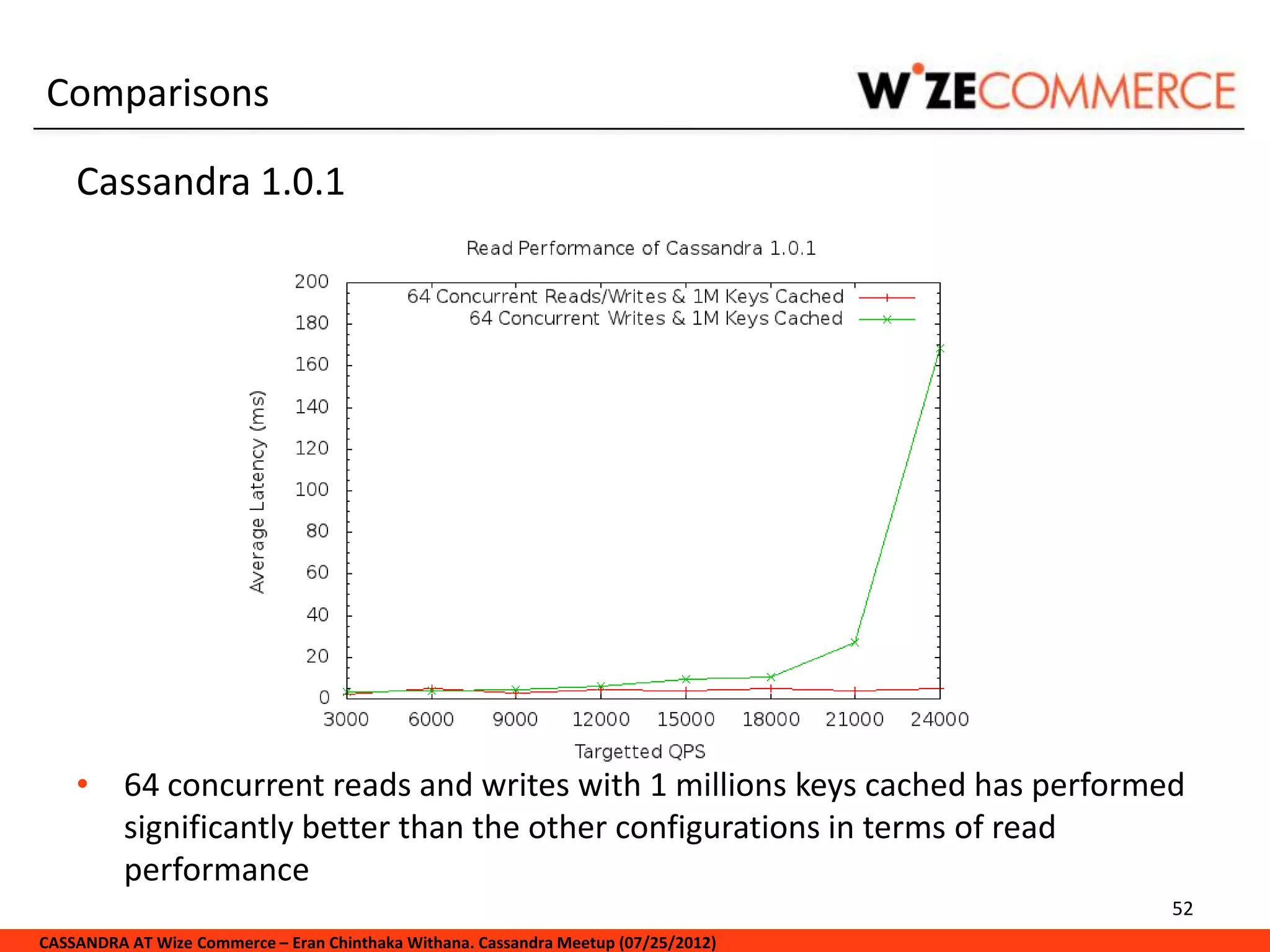

Comparisons

Cassandra 1.0.1

• 64 concurrent reads and writes with 1 millions keys cached has performed
significantly better than the other configurations in terms of read
performance
52

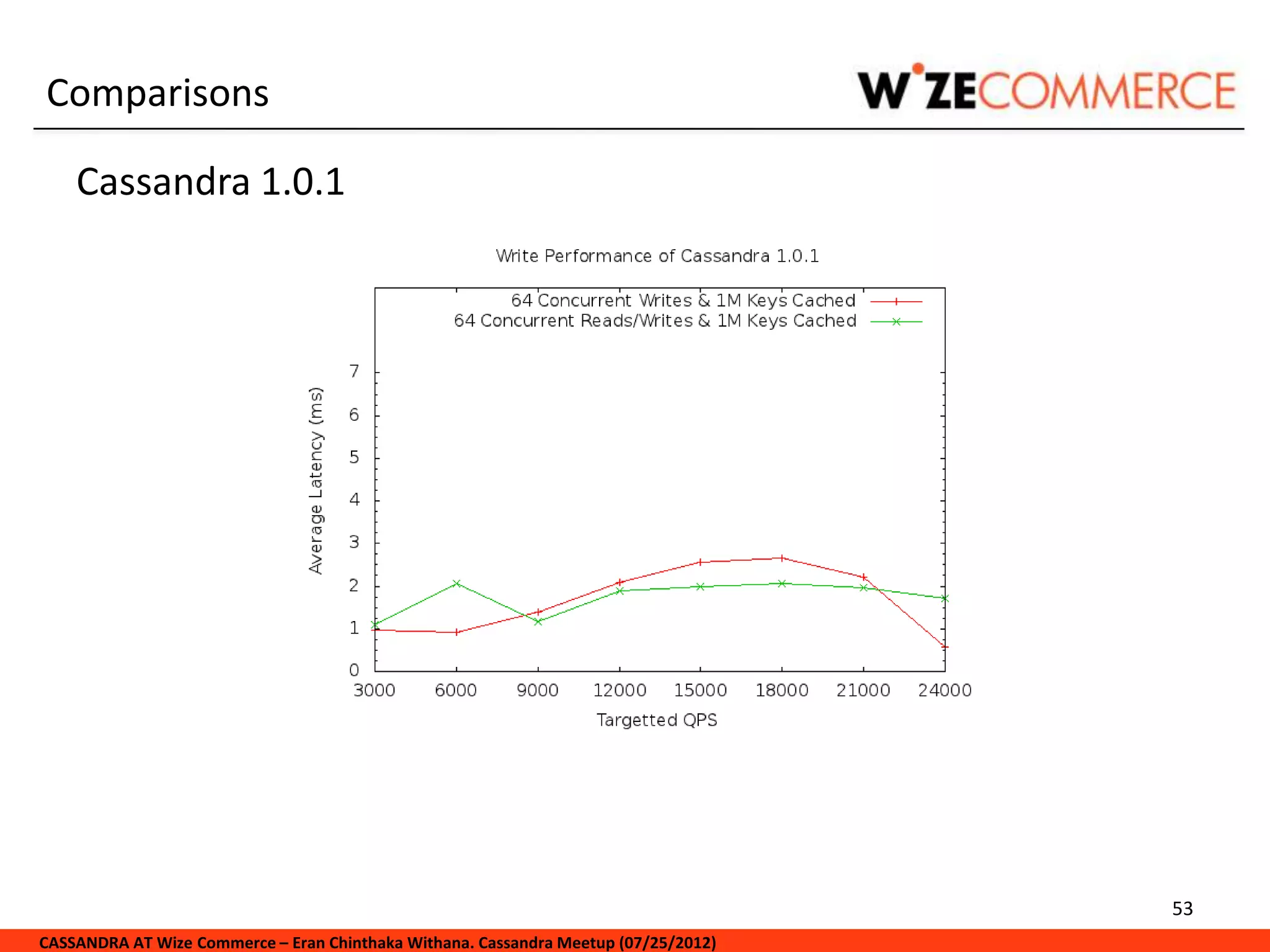

Comparisons

Cassandra 1.0.1

53

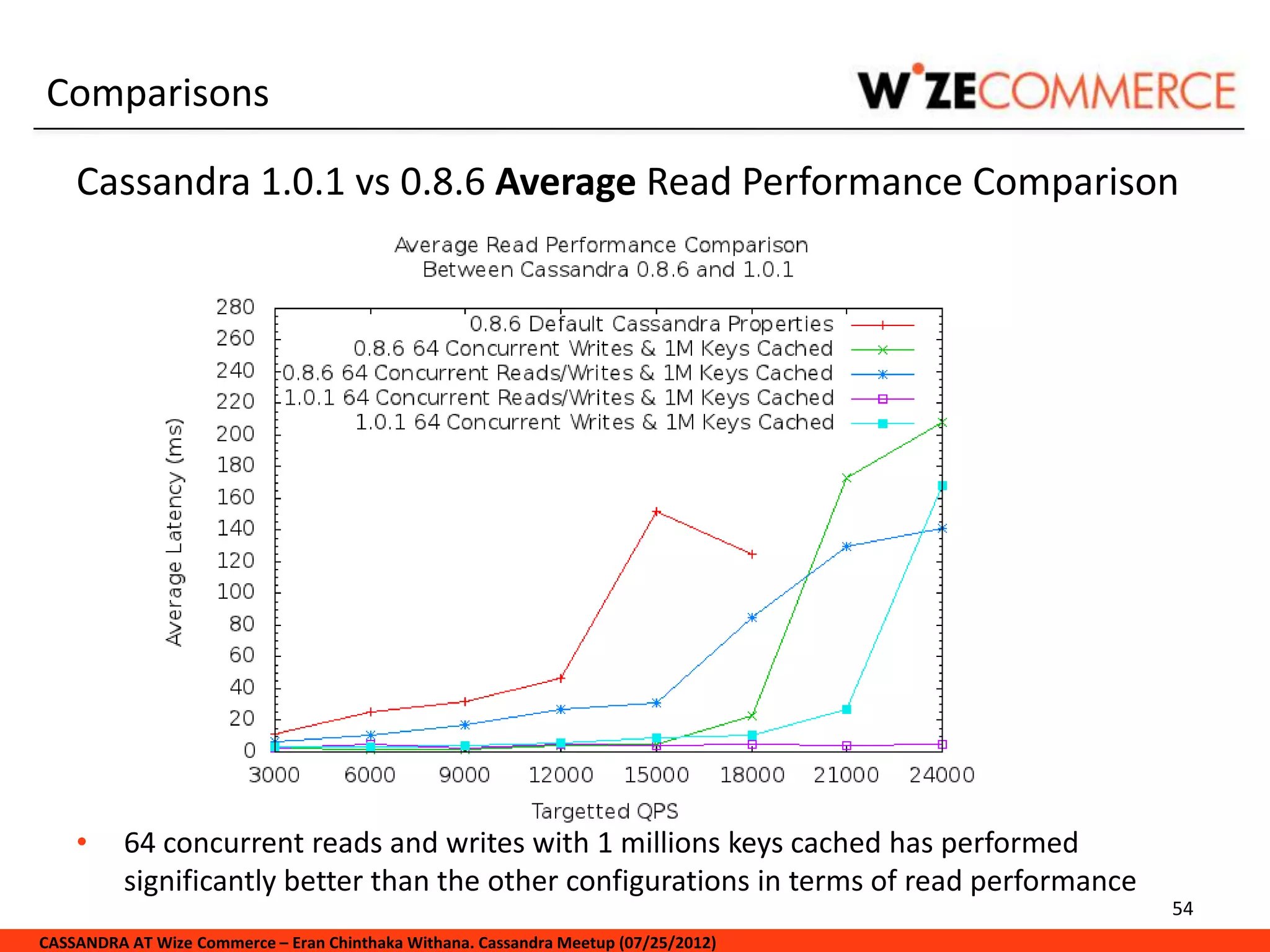

Comparisons

Cassandra 1.0.1 vs 0.8.6 Average Read Performance Comparison

significantly better than the other configurations in terms of read performance
54

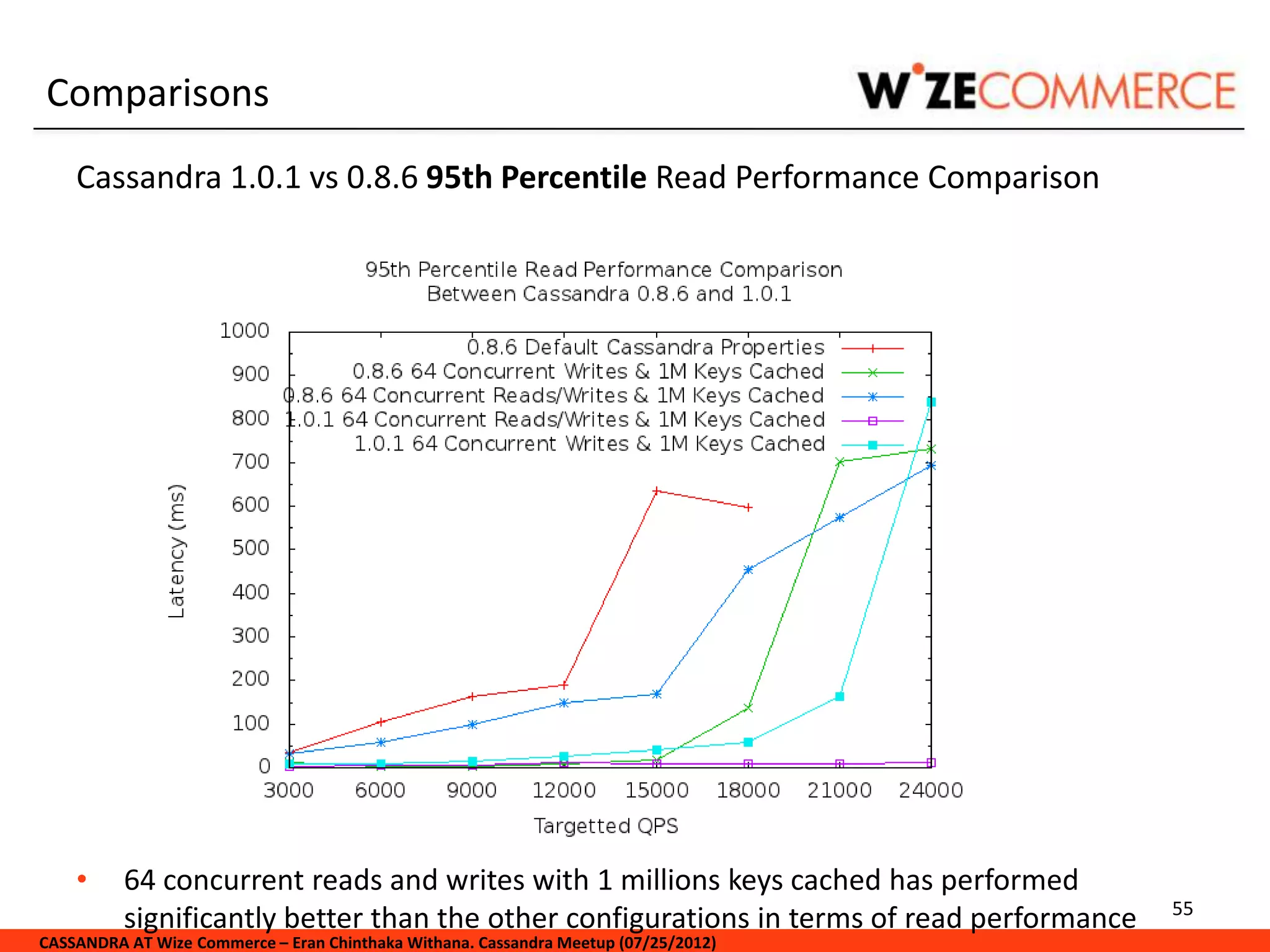

Comparisons
Cassandra 1.0.1 vs 0.8.6 95th Percentile Read Performance Comparison

55
significantly better than the other configurations in terms of read performance

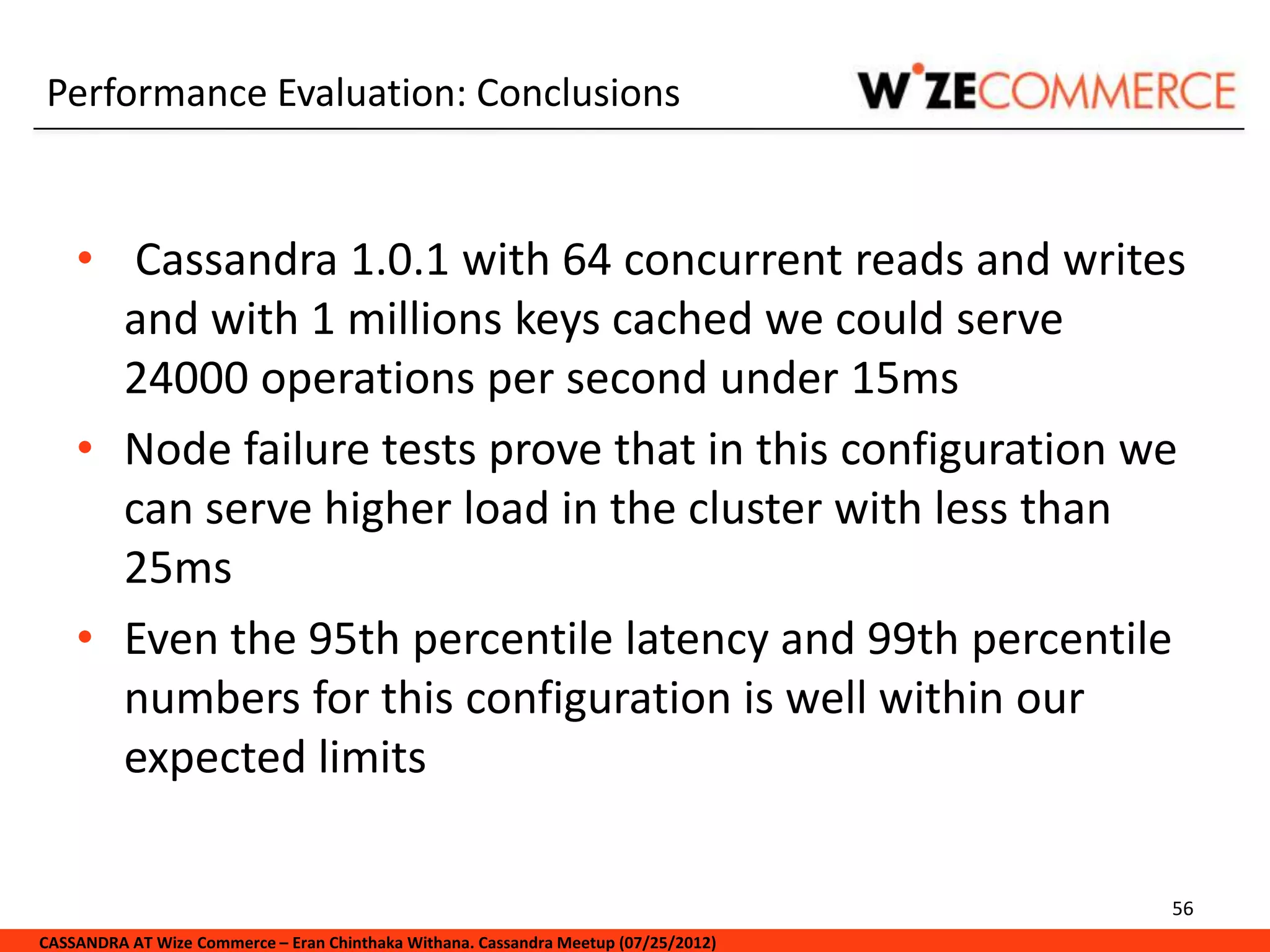

Performance Evaluation: Conclusions

• Cassandra 1.0.1 with 64 concurrent reads and writes
and with 1 millions keys cached we could serve
24000 operations per second under 15ms
• Node failure tests prove that in this configuration we
can serve higher load in the cluster with less than
25ms
• Even the 95th percentile latency and 99th percentile
numbers for this configuration is well within our
expected limits

56

Excited about the work?

We’re hiring !!

57

Thank you !!

58

Questions !!
(Presentation is available at http://goo.gl/Ba9o4)

59

Cassandra At Wize Commerce

More Related Content

Viewers also liked

Similar to Cassandra At Wize Commerce

More from Eran Chinthaka Withana

Recently uploaded

Cassandra At Wize Commerce

Editor's Notes
