Mastering the Hard Way
Safe custom ABAP code
Implementing Virtual Forge CodeProfiler for ABAP security and
quality in a grown application landscape
Markus Theilen, EWE AG

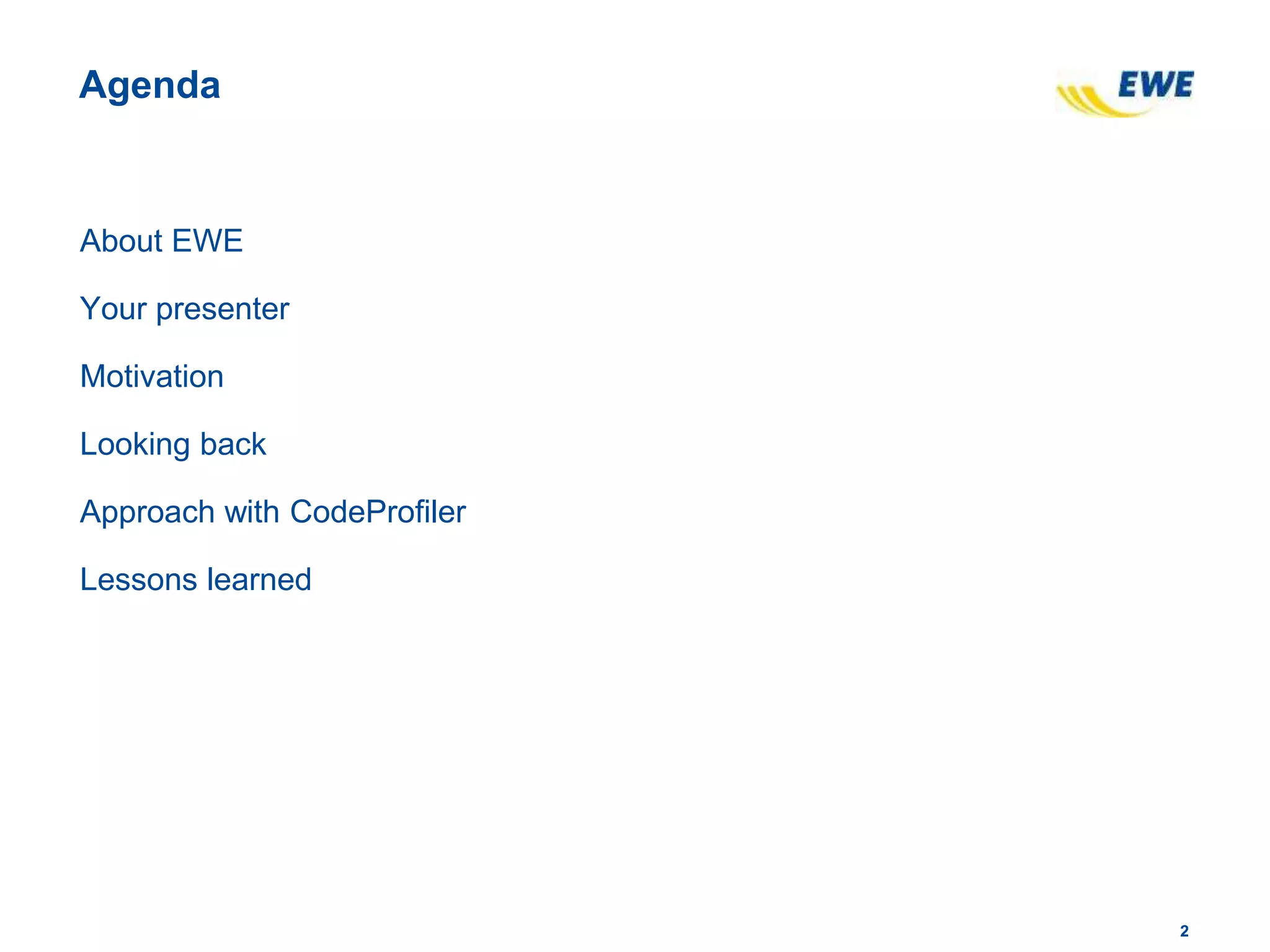

2. 22
Agenda
About EWE
Your presenter
Motivation
Looking back
Approach with CodeProfiler
Lessons learned

3. Comprehensive solutions in three key sectors
3
EWE brings together energy, telecommunications
and information technology, and
thereby possesses all the key expertise
for sustainable, intelligent energy supply systems

4. EWE – one of the largest companies in northwest
Germany
4
Sales of €8.9 billion
Net profit of €57.2 million
Average number of employees 9,162

5. Our strengths are our excellent service and advice
as well as the proximity to our customers
5
2013
1.4 million electricity customers
1.6 million gas customers
680,000 telecommunications customers

6. EWE’s regions in Germany, Poland and Turkey
6

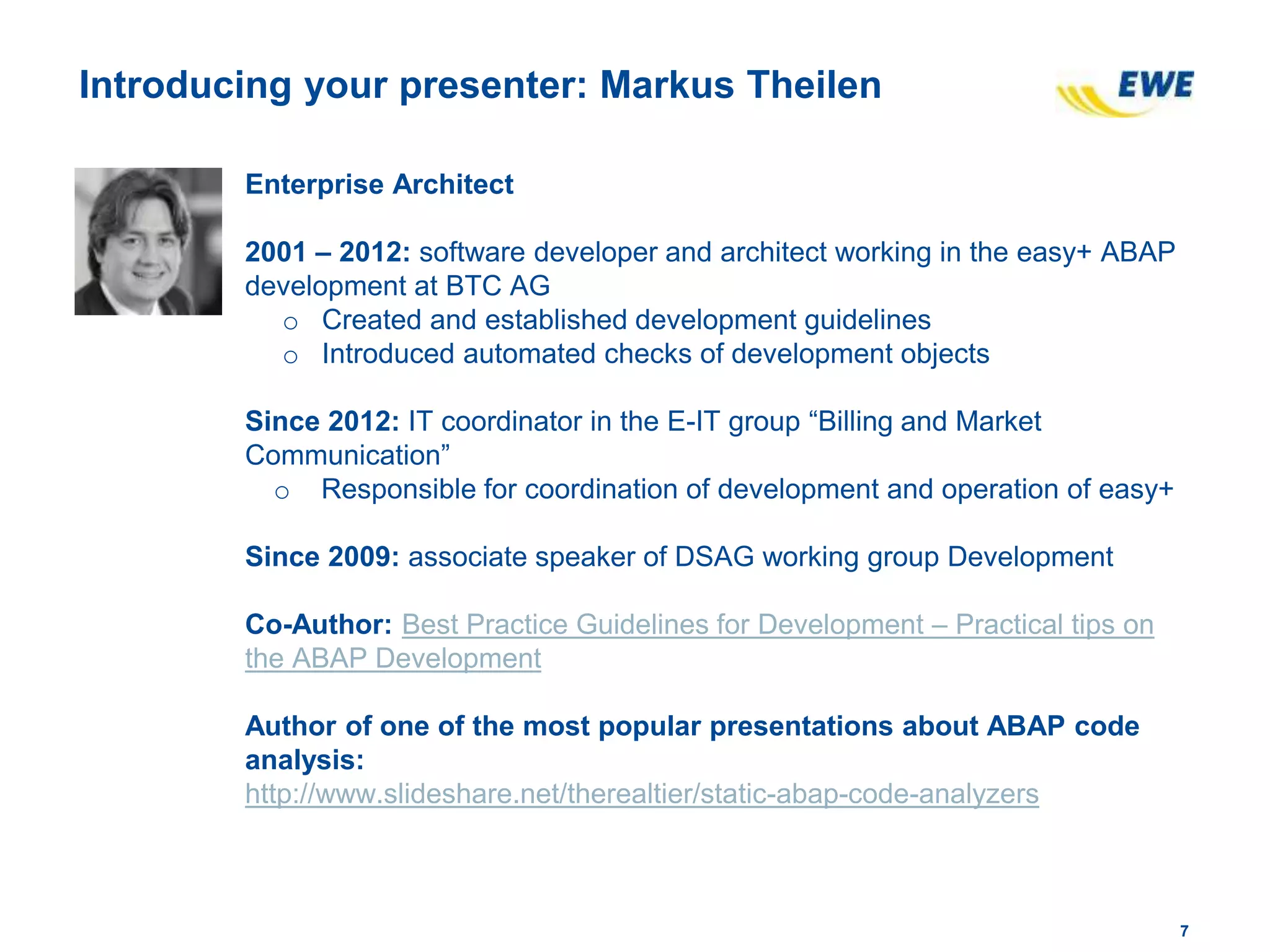

7. 77
Introducing your presenter: Markus Theilen
Enterprise Architect
2001 – 2012: software developer and architect working in the easy+ ABAP
development at BTC AG
o Created and established development guidelines
o Introduced automated checks of development objects
Since 2012: IT coordinator in the E-IT group “Billing and Market
Communication”
o Responsible for coordination of development and operation of easy+
Since 2009: associate speaker of DSAG working group Development
Co-Author: Best Practice Guidelines for Development – Practical tips on
the ABAP Development
Author of one of the most popular presentations about ABAP code
analysis:
http://www.slideshare.net/therealtier/static-abap-code-analyzers

8. 88

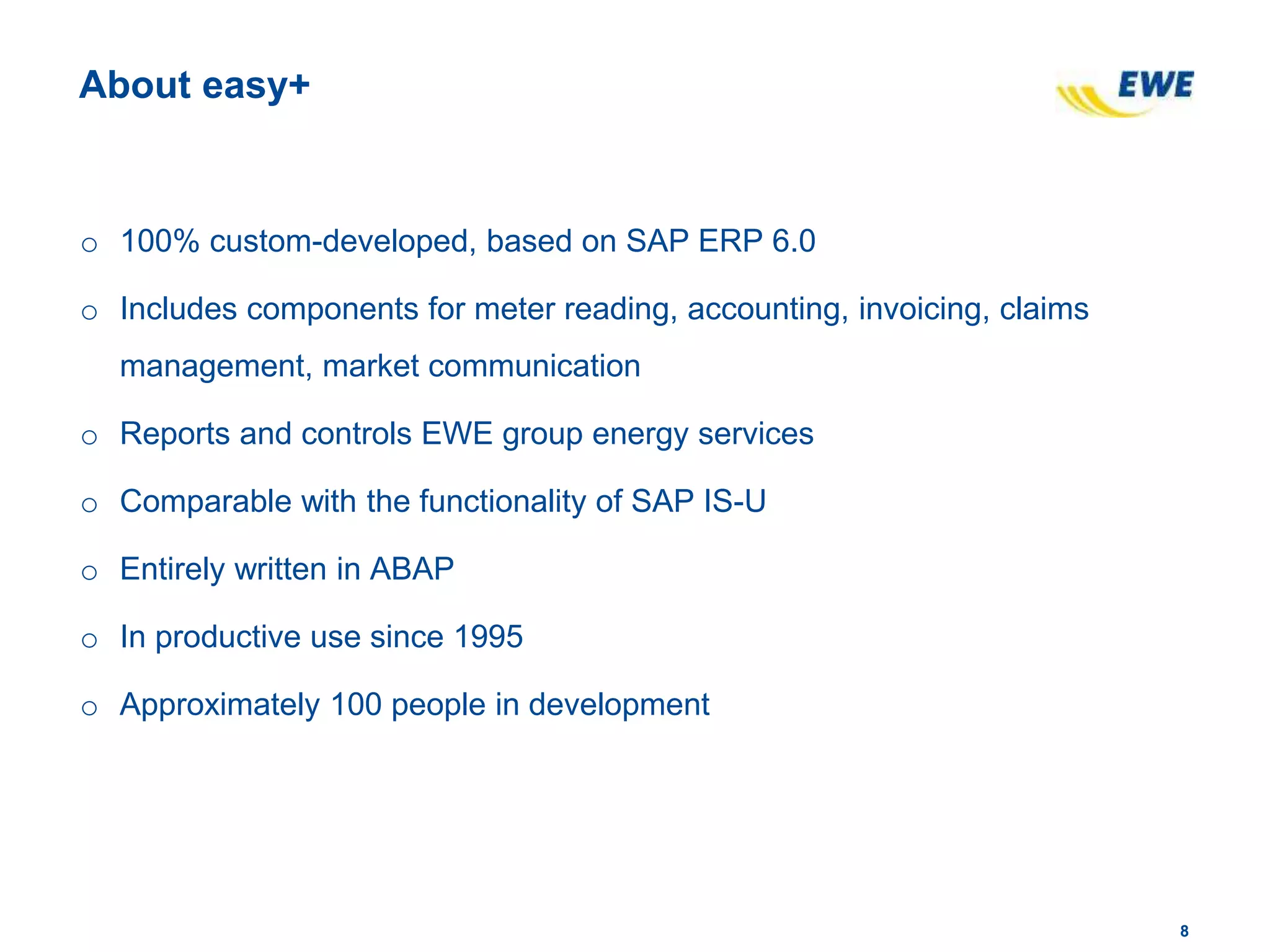

About easy+
o 100% custom-developed, based on SAP ERP 6.0
o Includes components for meter reading, accounting, invoicing, claims
management, market communication
o Reports and controls EWE group energy services
o Comparable with the functionality of SAP IS-U
o Entirely written in ABAP
o In productive use since 1995
o Approximately 100 people in development

9. 99

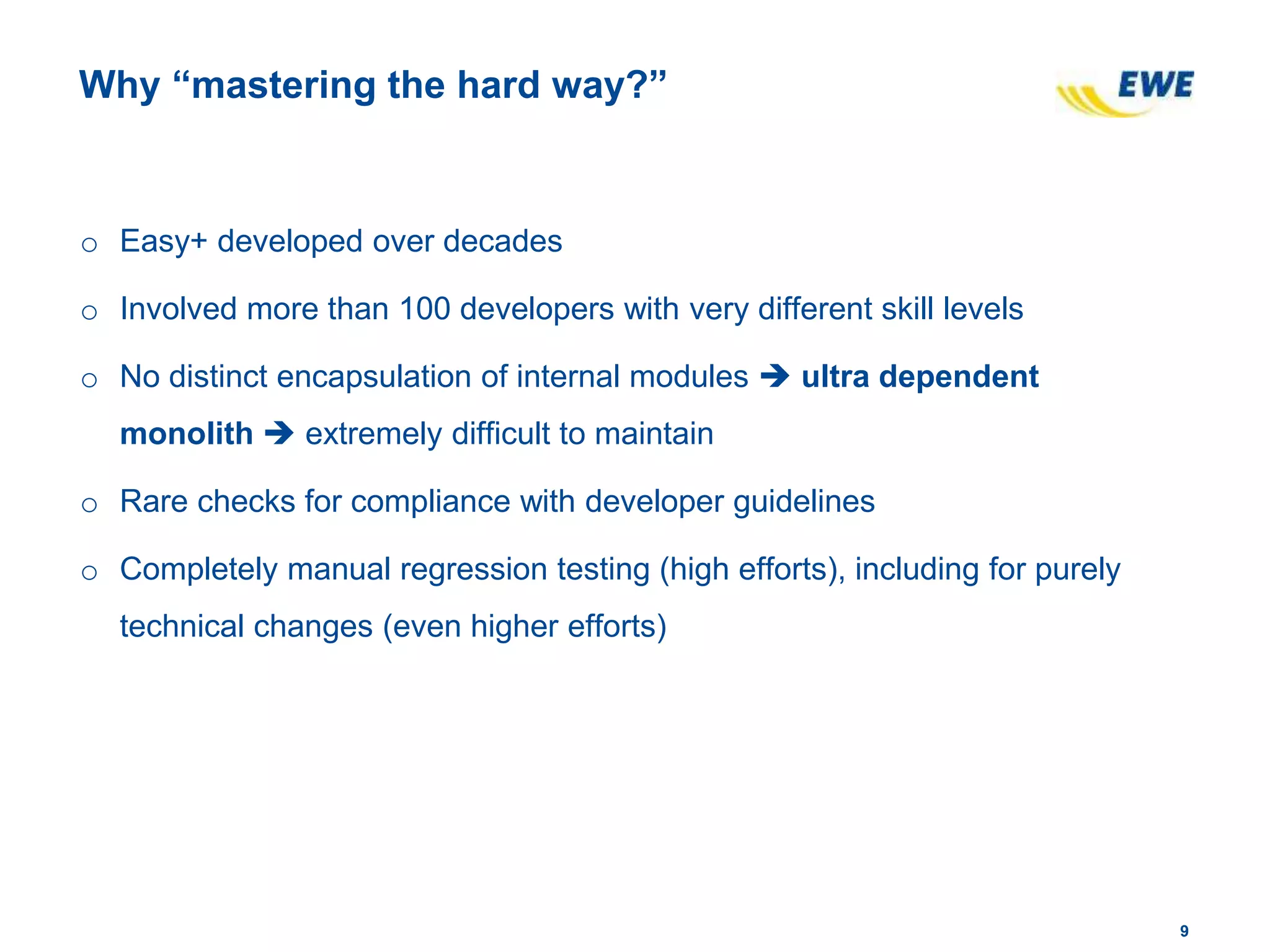

Why “mastering the hard way?”
o Easy+ developed over decades
o Involved more than 100 developers with very different skill levels
o No distinct encapsulation of internal modules  ultra dependent
monolith  extremely difficult to maintain
o Rare checks for compliance with developer guidelines
o Completely manual regression testing (high efforts), including for purely
technical changes (even higher efforts)

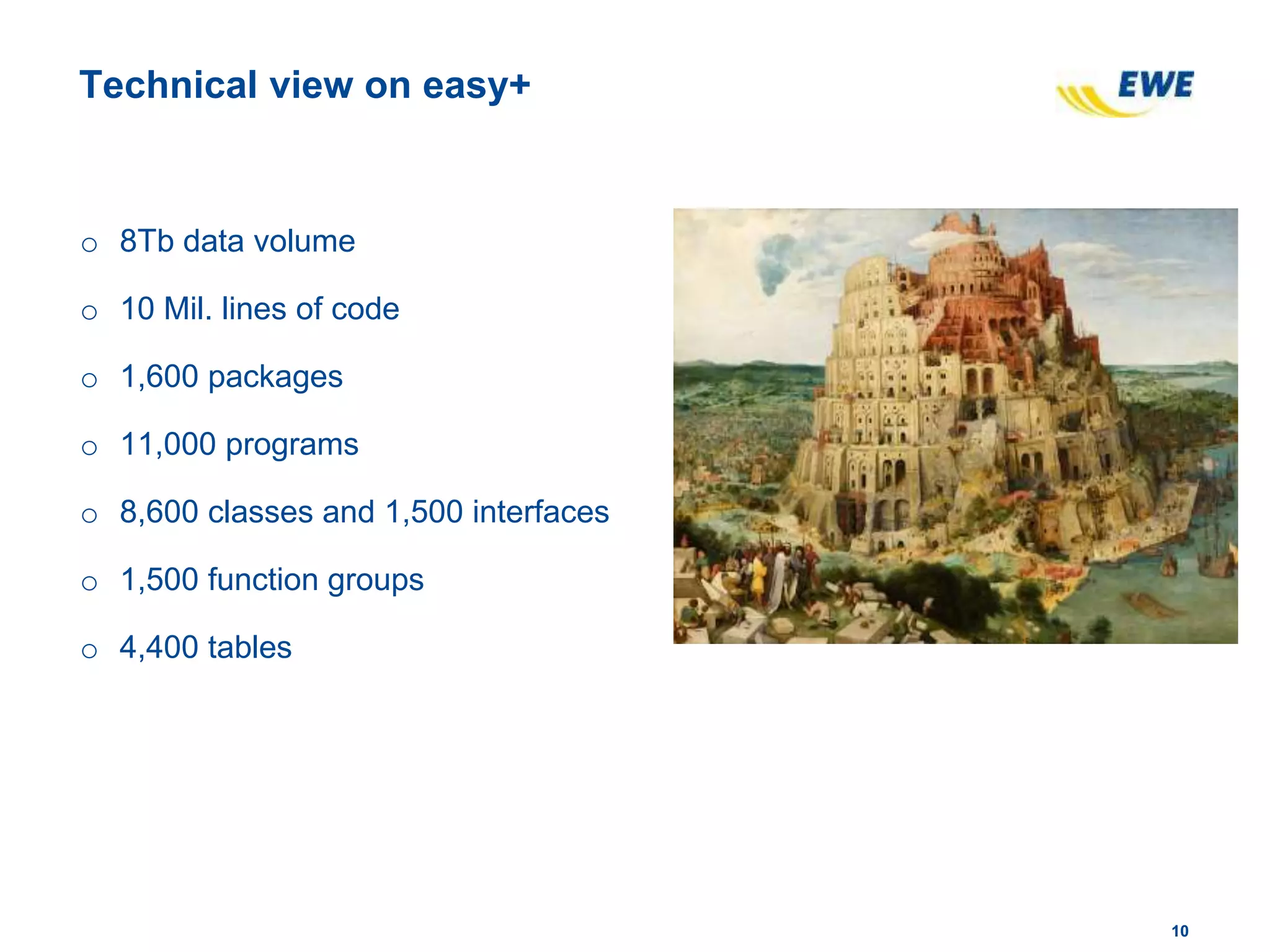

10. 1010
Technical view on easy+
o 8Tb data volume
o 10 Mil. lines of code
o 1,600 packages
o 11,000 programs
o 8,600 classes and 1,500 interfaces
o 1,500 function groups
o 4,400 tables

11. 1111

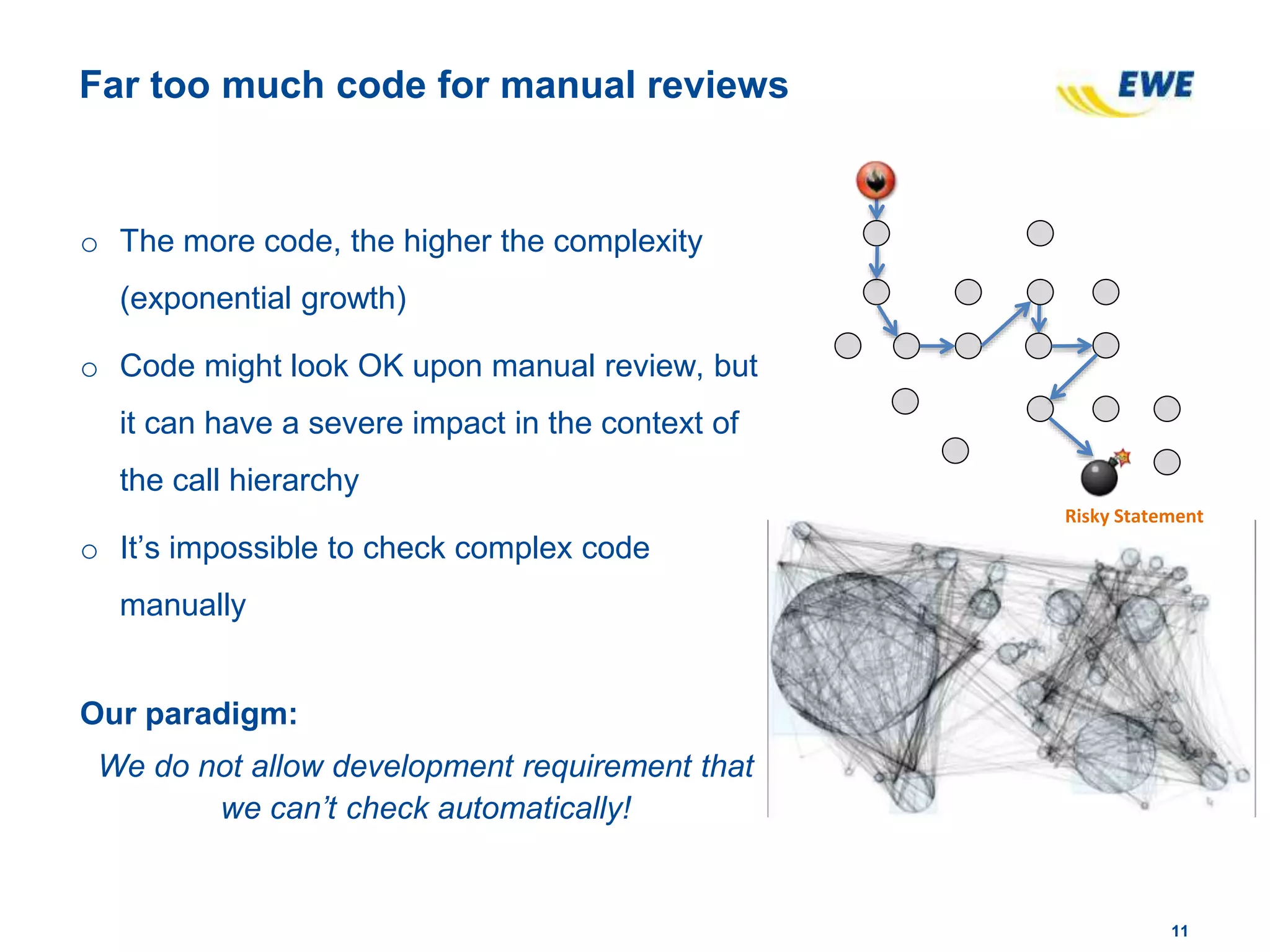

Far too much code for manual reviews
o The more code, the higher the complexity
(exponential growth)
o Code might look OK upon manual review, but
it can have a severe impact in the context of
the call hierarchy
o It’s impossible to check complex code
manually
Our paradigm:
We do not allow development requirement that
we can’t check automatically!
Risky Statement

12. 1212

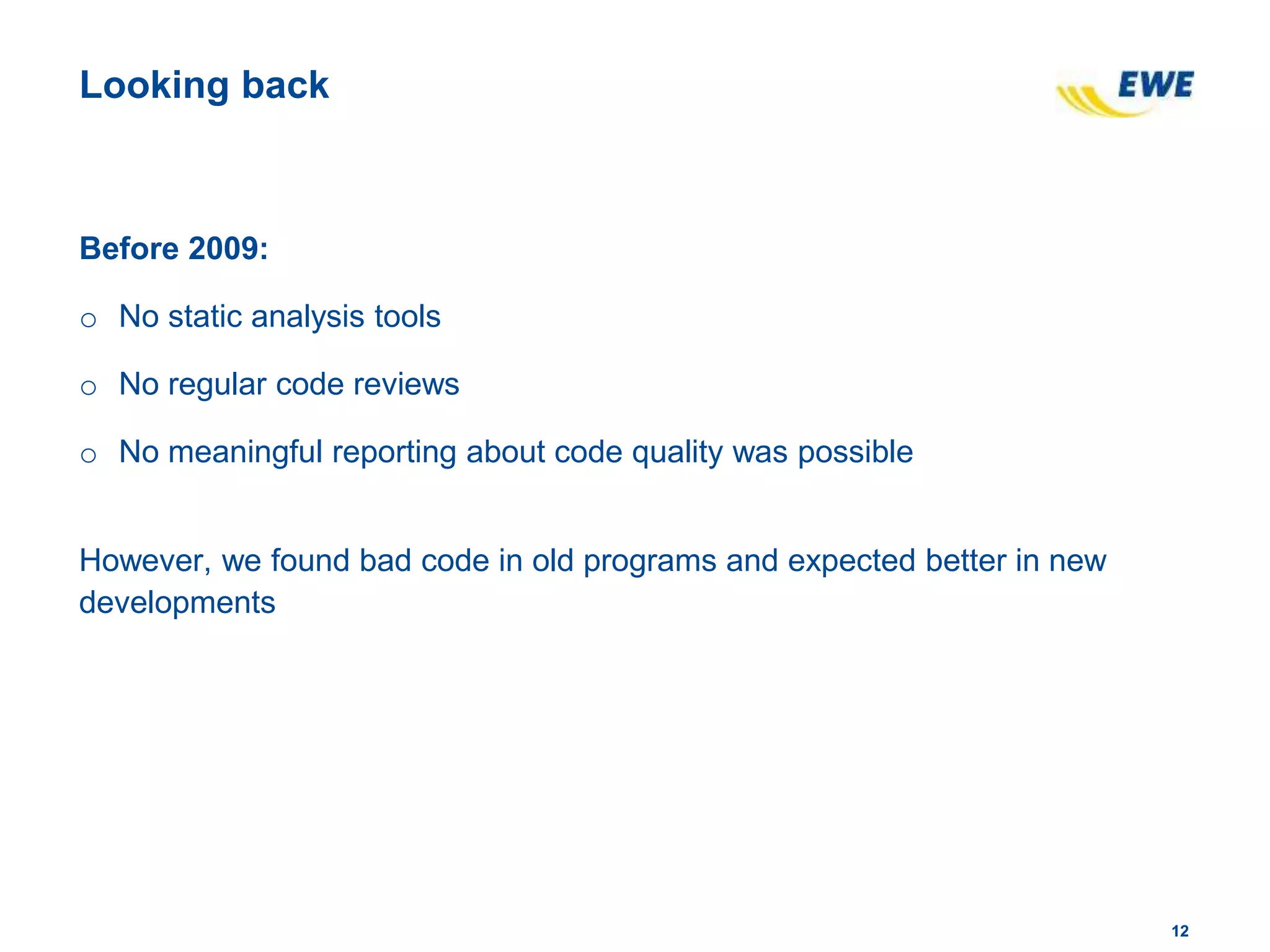

Looking back
Before 2009:
o No static analysis tools
o No regular code reviews
o No meaningful reporting about code quality was possible
However, we found bad code in old programs and expected better in new
developments

13. 1313

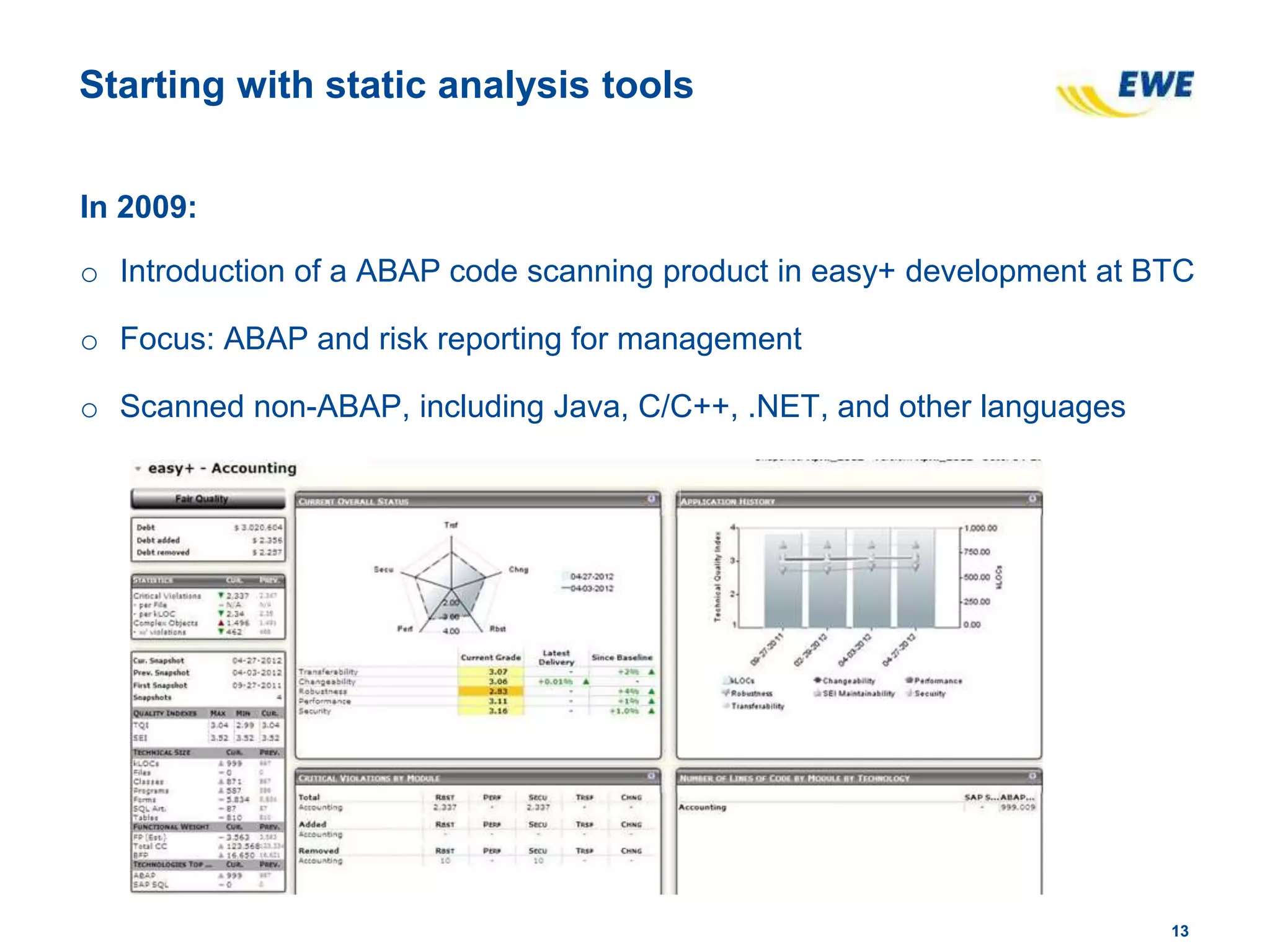

Starting with static analysis tools
In 2009:
o Introduction of a ABAP code scanning product in easy+ development at BTC
o Focus: ABAP and risk reporting for management
o Scanned non-ABAP, including Java, C/C++, .NET, and other languages

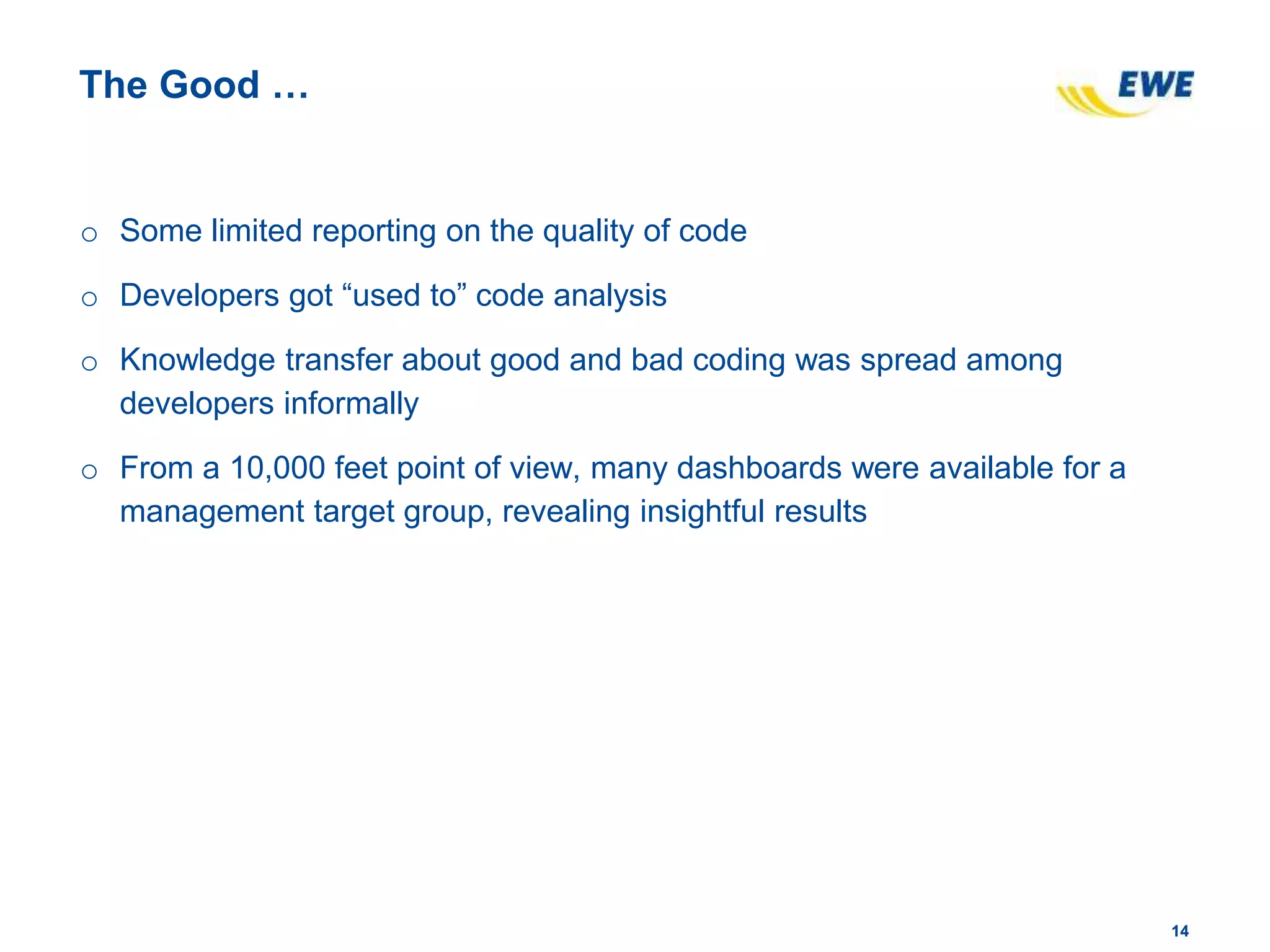

14. 1414
The Good …
o Some limited reporting on the quality of code
o Developers got “used to” code analysis
o Knowledge transfer about good and bad coding was spread among
developers informally
o From a 10,000 feet point of view, many dashboards were available for a
management target group, revealing insightful results

15. 1515

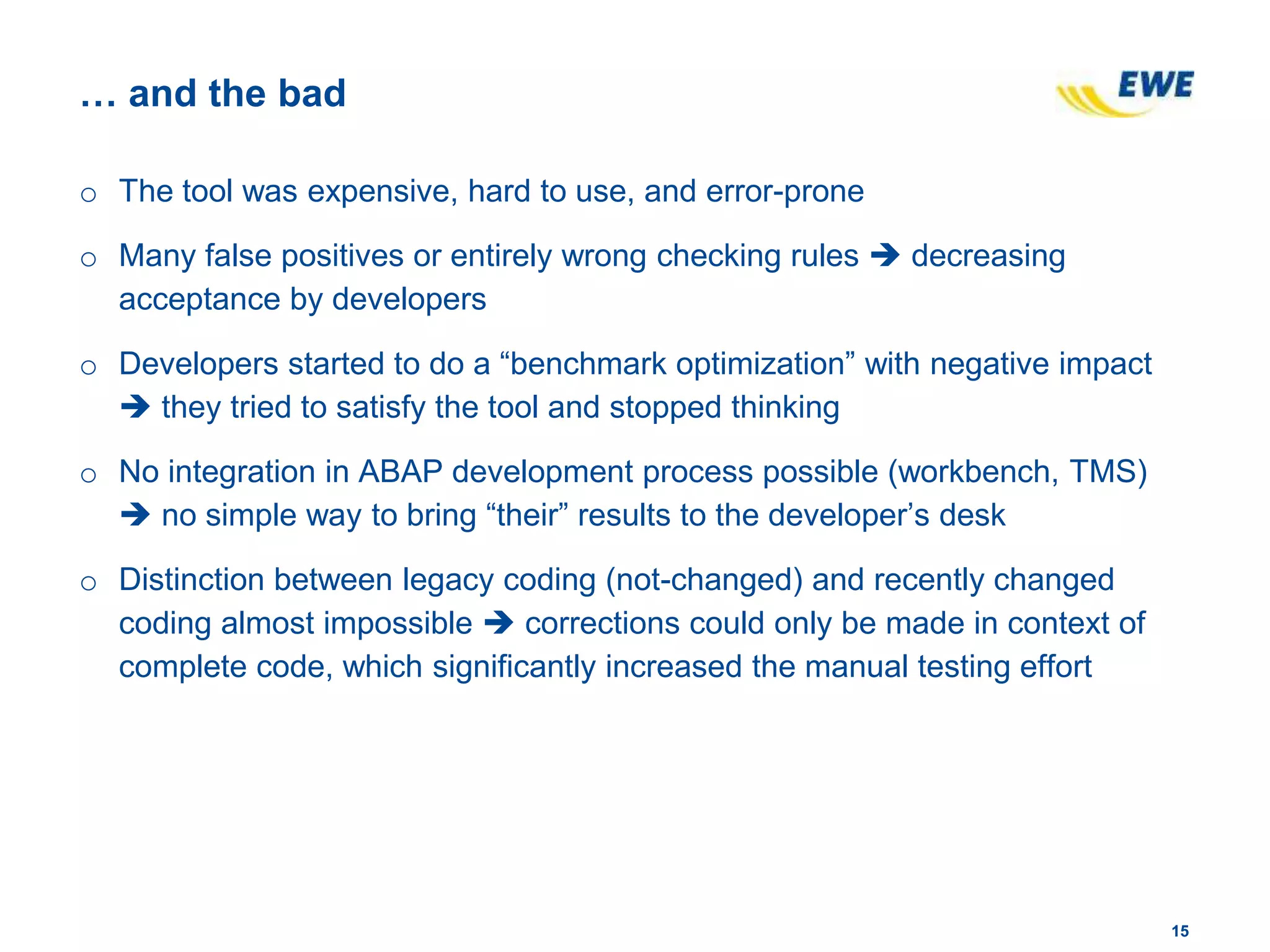

… and the bad
o The tool was expensive, hard to use, and error-prone
o Many false positives or entirely wrong checking rules  decreasing
acceptance by developers
o Developers started to do a “benchmark optimization” with negative impact
 they tried to satisfy the tool and stopped thinking
o No integration in ABAP development process possible (workbench, TMS)
 no simple way to bring “their” results to the developer’s desk
o Distinction between legacy coding (not-changed) and recently changed
coding almost impossible  corrections could only be made in context of
complete code, which significantly increased the manual testing effort

16. 1616

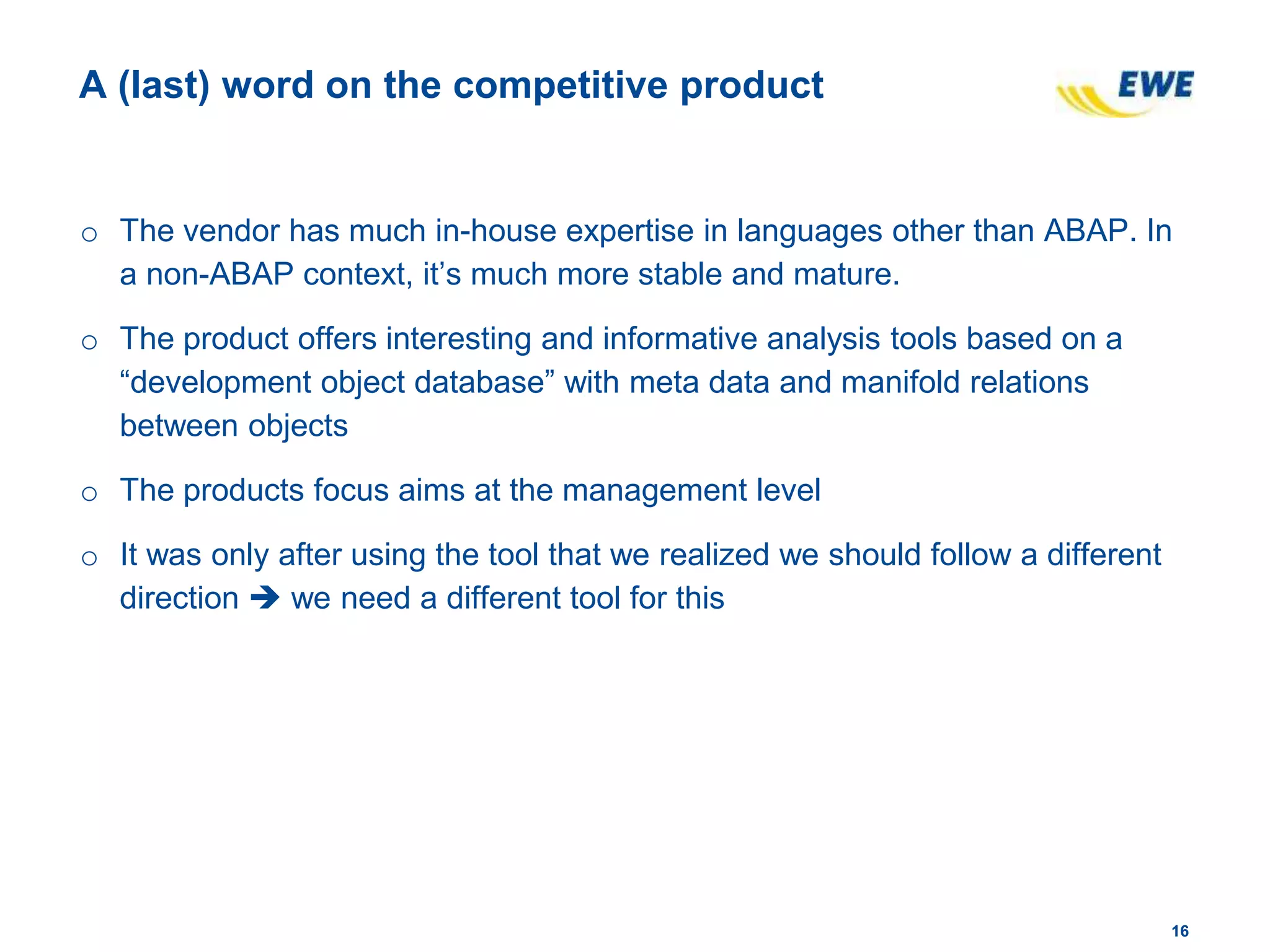

A (last) word on the competitive product
o The vendor has much in-house expertise in languages other than ABAP. In
a non-ABAP context, it’s much more stable and mature.
o The product offers interesting and informative analysis tools based on a
“development object database” with meta data and manifold relations
between objects
o The products focus aims at the management level
o It was only after using the tool that we realized we should follow a different
direction  we need a different tool for this

17. 1717

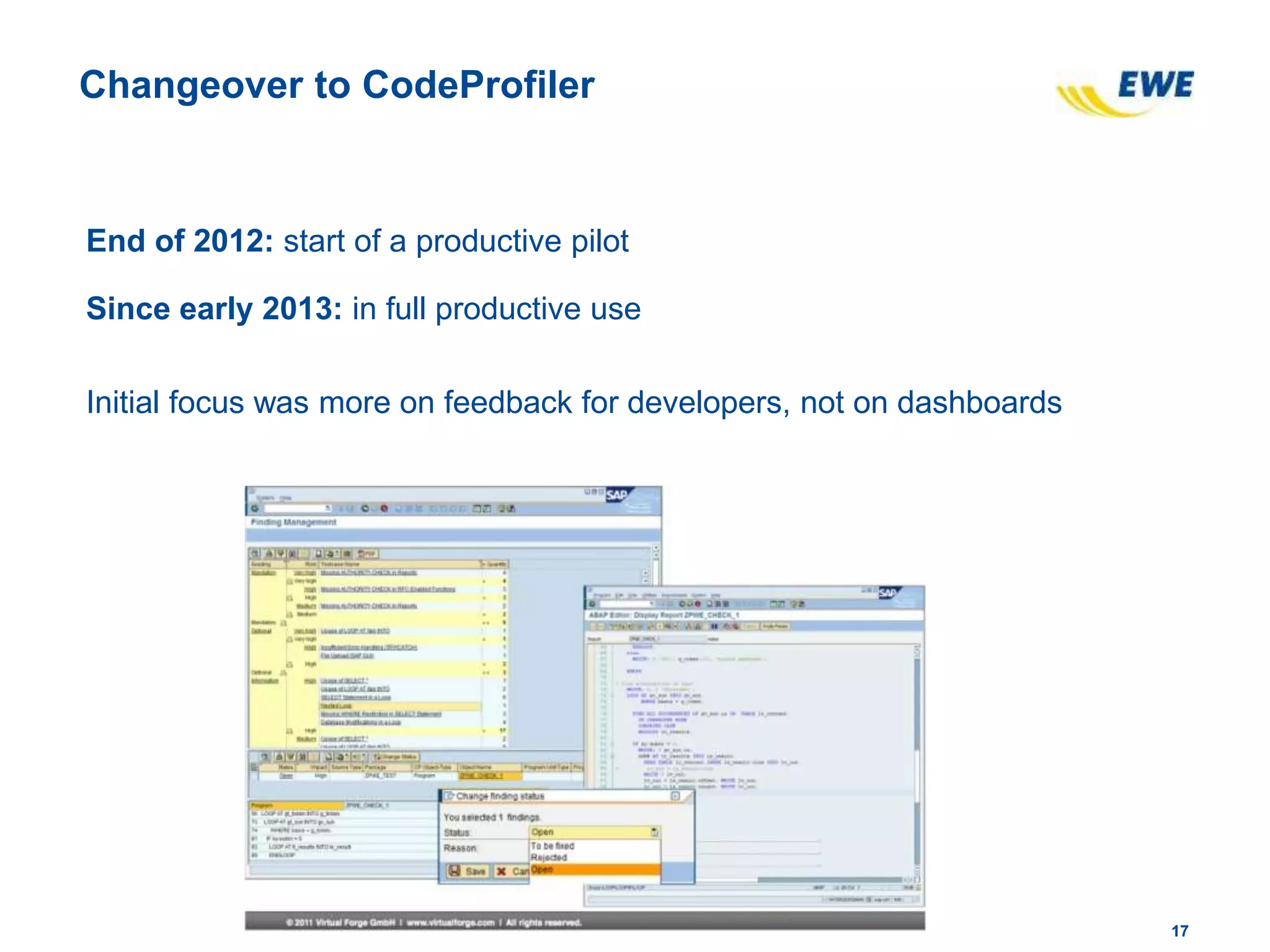

Changeover to CodeProfiler
End of 2012: start of a productive pilot
Since early 2013: in full productive use
Initial focus was more on feedback for developers, not on dashboards

18. 1818

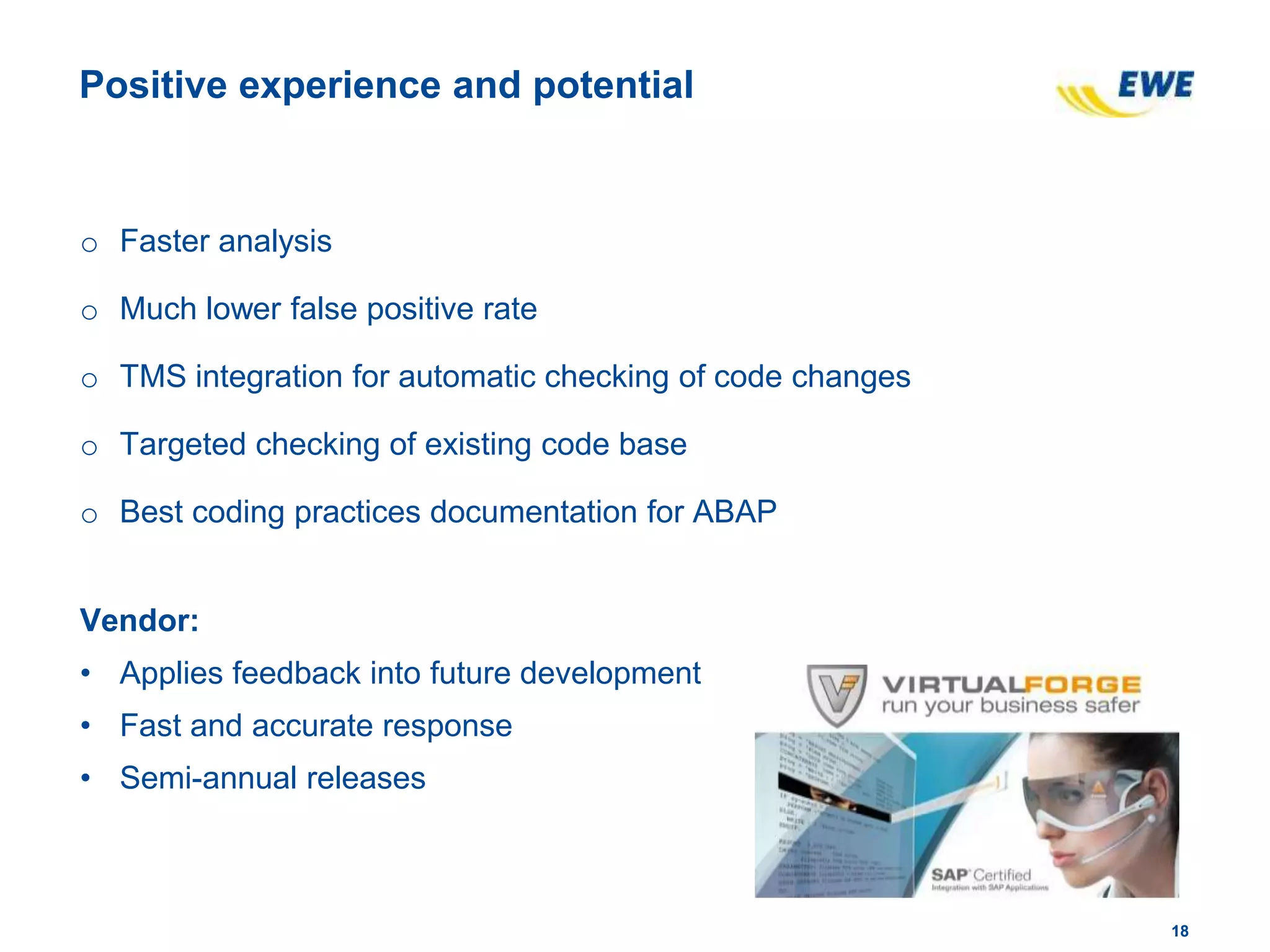

Positive experience and potential
o Faster analysis
o Much lower false positive rate
o TMS integration for automatic checking of code changes
o Targeted checking of existing code base
o Best coding practices documentation for ABAP
Vendor:
• Applies feedback into future development
• Fast and accurate response
• Semi-annual releases

19. 1919

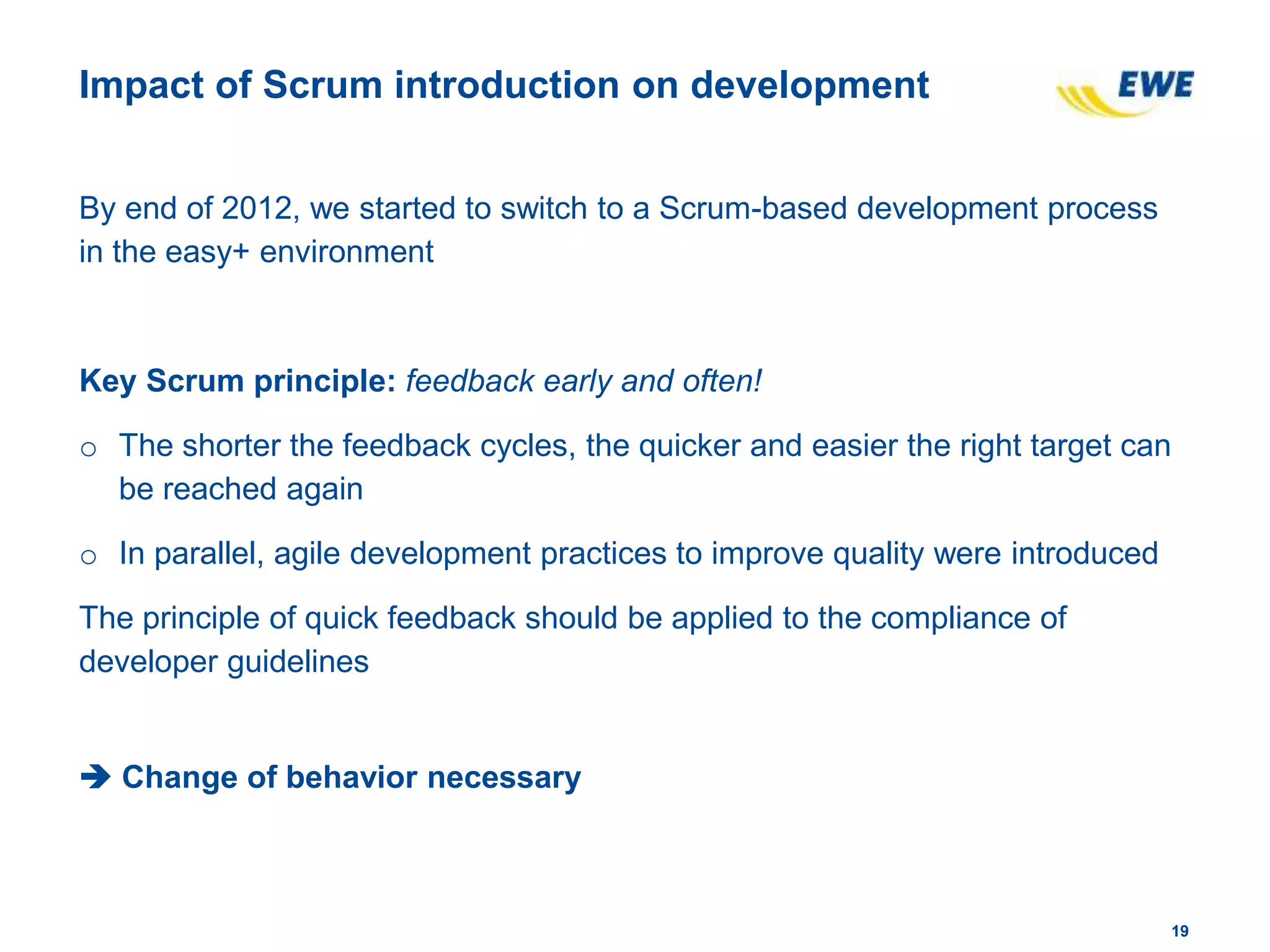

Impact of Scrum introduction on development
By end of 2012, we started to switch to a Scrum-based development process
in the easy+ environment
Key Scrum principle: feedback early and often!
o The shorter the feedback cycles, the quicker and easier the right target can
be reached again
o In parallel, agile development practices to improve quality were introduced
The principle of quick feedback should be applied to the compliance of
developer guidelines
 Change of behavior necessary

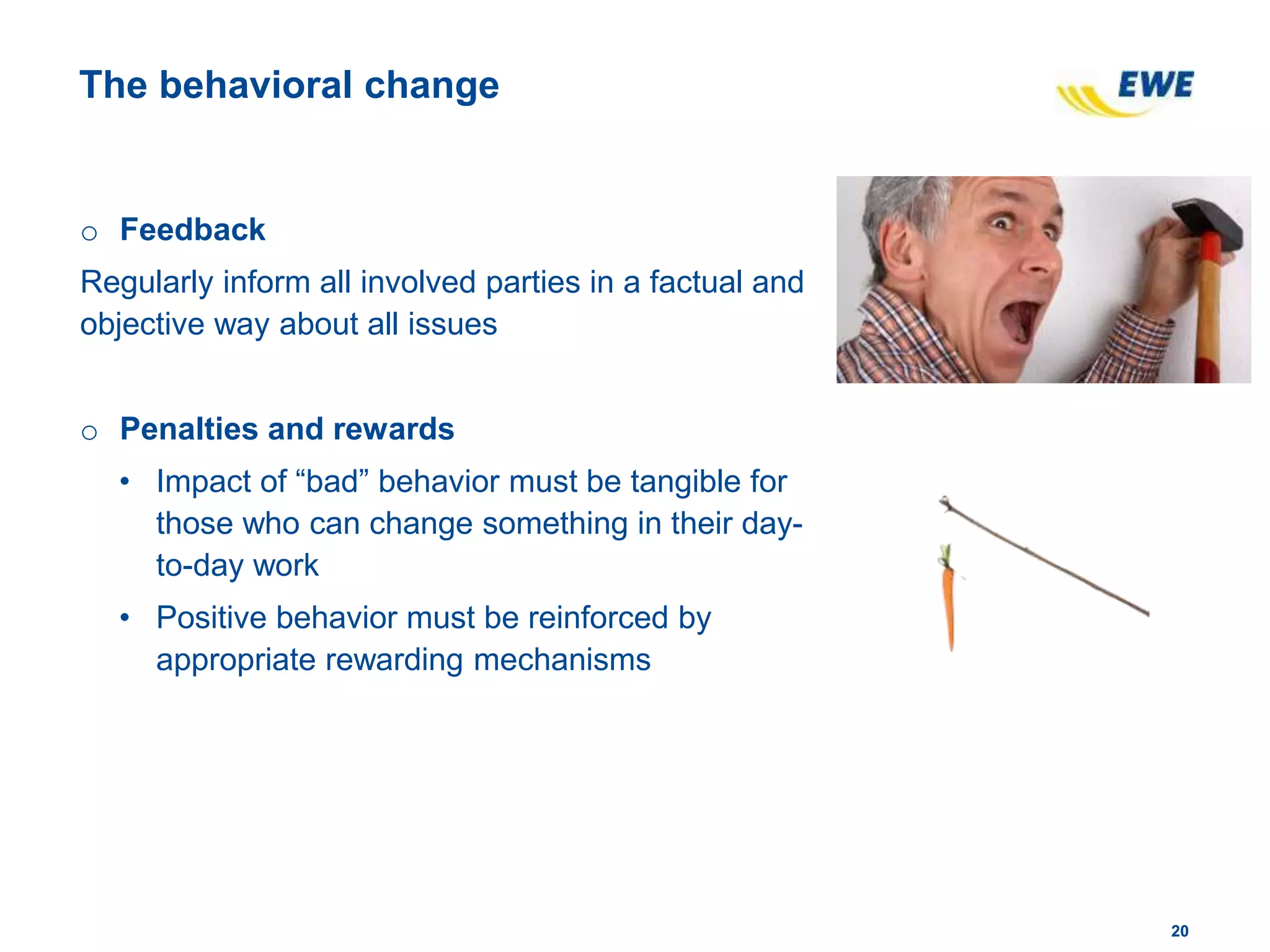

20. 2020
The behavioral change
o Feedback
Regularly inform all involved parties in a factual and
objective way about all issues
o Penalties and rewards
• Impact of “bad” behavior must be tangible for
those who can change something in their day-
to-day work
• Positive behavior must be reinforced by
appropriate rewarding mechanisms

21. 2121

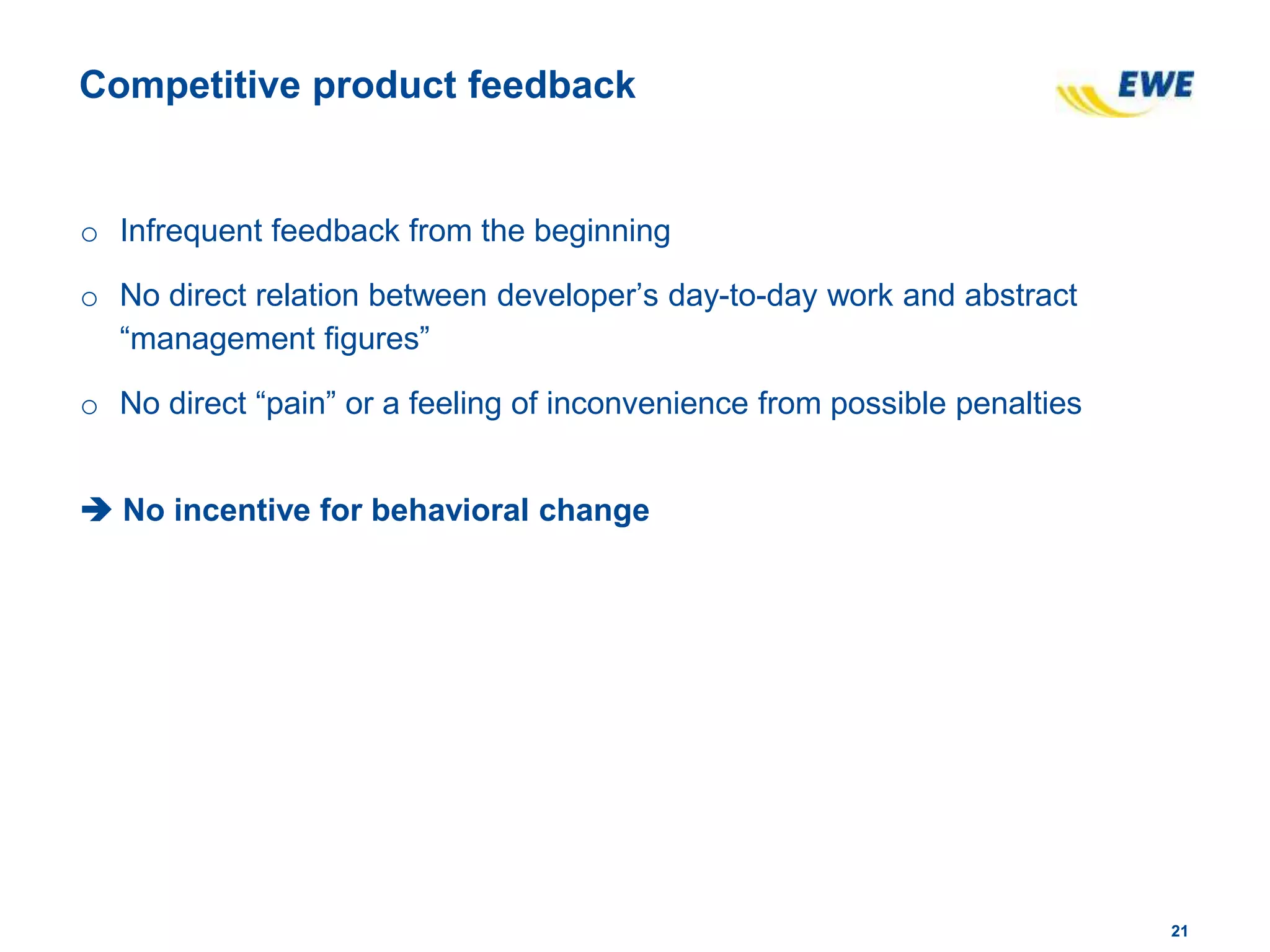

Competitive product feedback
o Infrequent feedback from the beginning
o No direct relation between developer’s day-to-day work and abstract
“management figures”
o No direct “pain” or a feeling of inconvenience from possible penalties
 No incentive for behavioral change

22. 2222

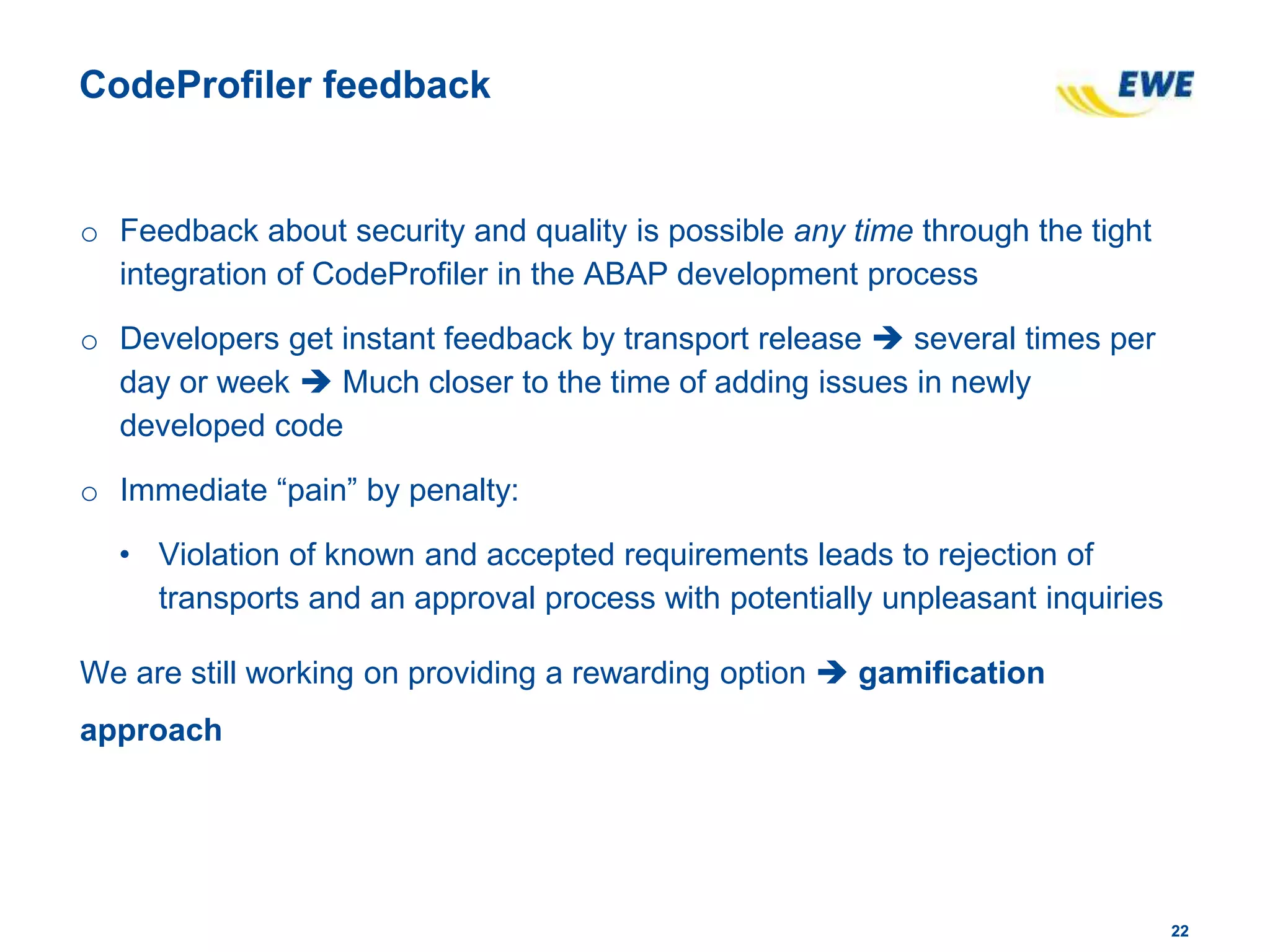

CodeProfiler feedback
o Feedback about security and quality is possible any time through the tight
integration of CodeProfiler in the ABAP development process
o Developers get instant feedback by transport release  several times per
day or week  Much closer to the time of adding issues in newly
developed code
o Immediate “pain” by penalty:
• Violation of known and accepted requirements leads to rejection of
transports and an approval process with potentially unpleasant inquiries
We are still working on providing a rewarding option  gamification
approach

23. 2323

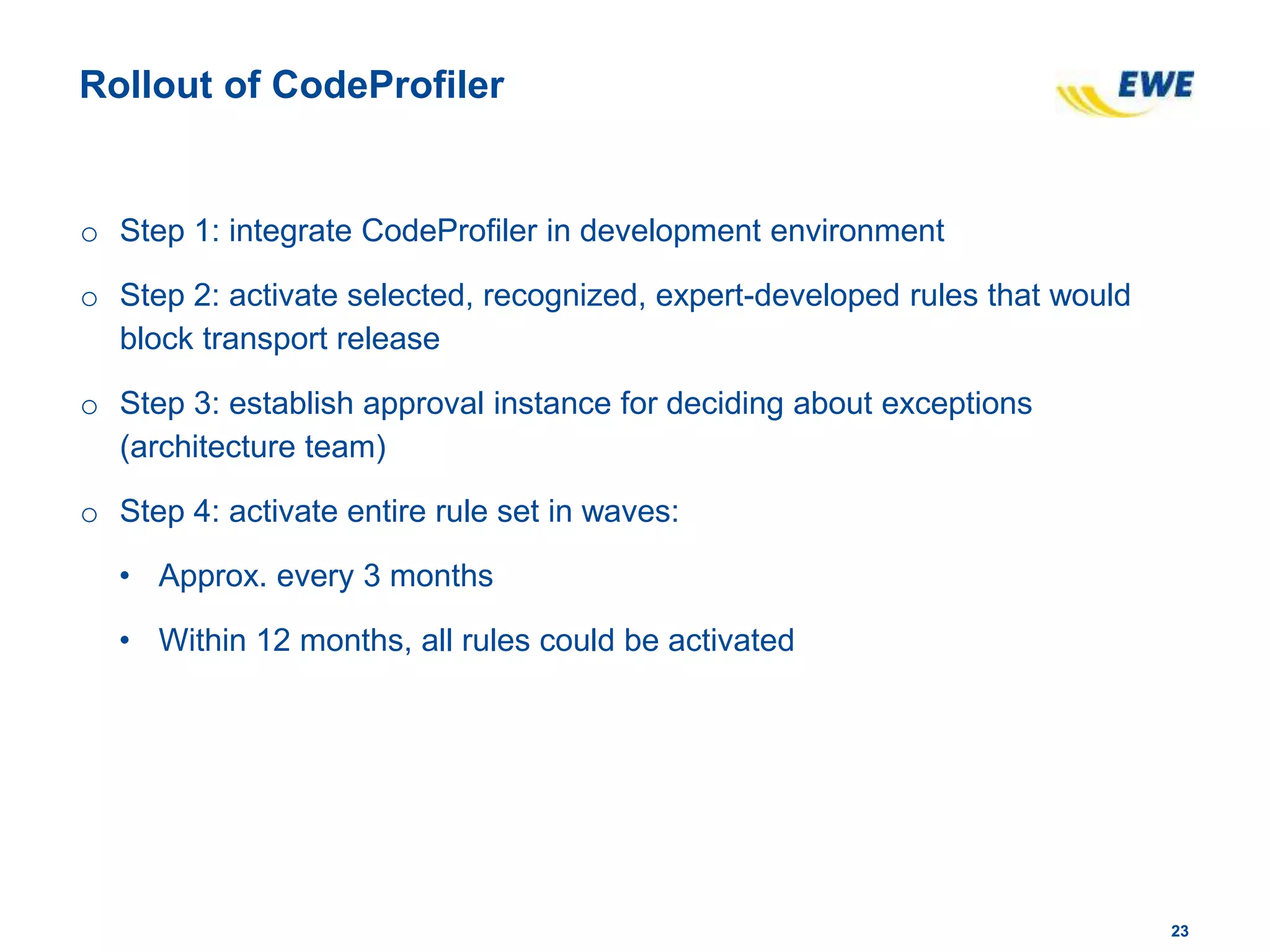

Rollout of CodeProfiler
o Step 1: integrate CodeProfiler in development environment
o Step 2: activate selected, recognized, expert-developed rules that would
block transport release
o Step 3: establish approval instance for deciding about exceptions
(architecture team)
o Step 4: activate entire rule set in waves:
• Approx. every 3 months
• Within 12 months, all rules could be activated

24. 2424

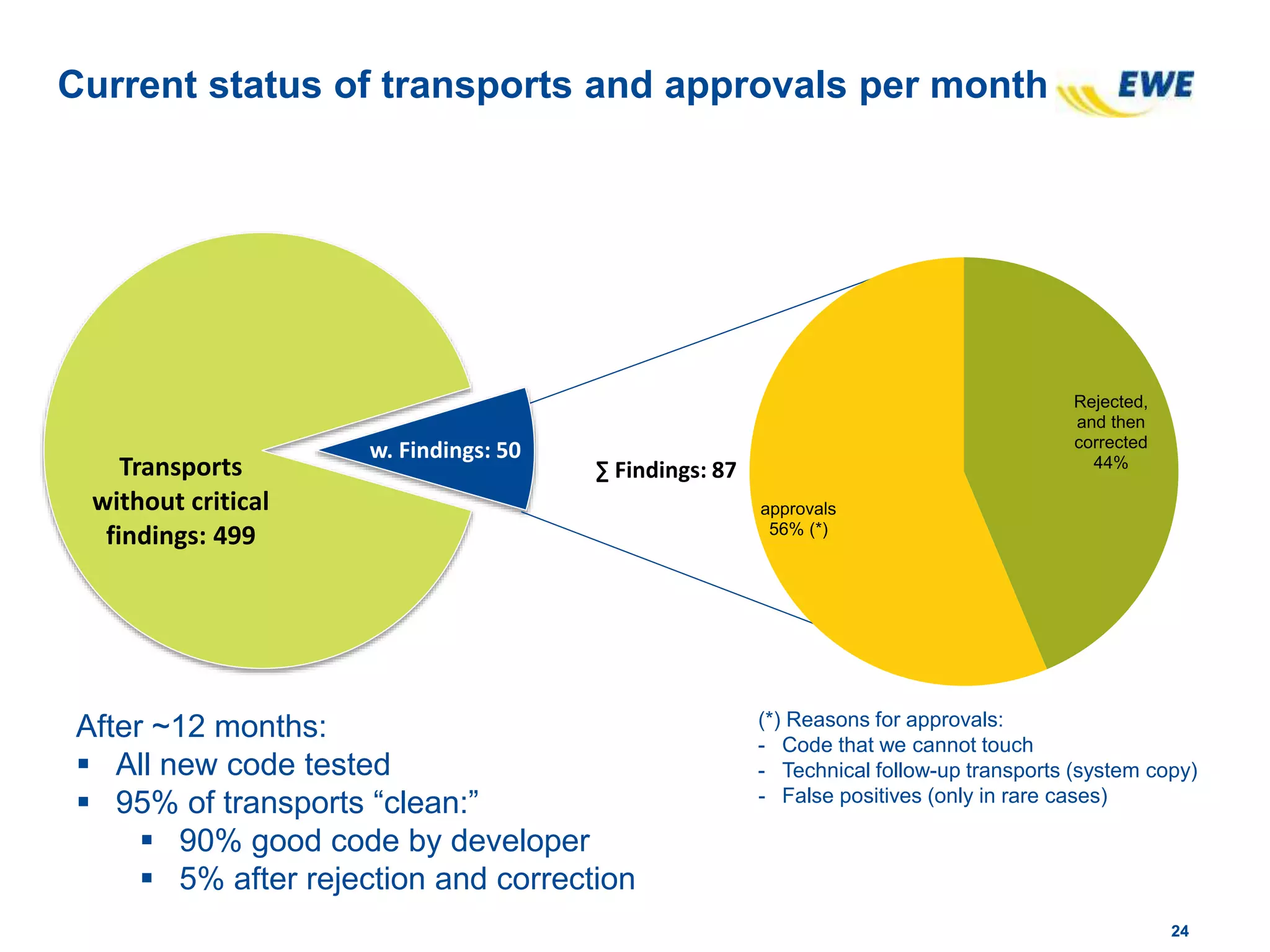

Current status of transports and approvals per month
Transports
without critical
findings: 499
w. Findings: 50
Rejected,
and then
corrected
44%
approvals
56% (*)
∑ Findings: 87
(*) Reasons for approvals:
- Code that we cannot touch
- Technical follow-up transports (system copy)
- False positives (only in rare cases)
After ~12 months:
 All new code tested
 95% of transports “clean:”
 90% good code by developer
 5% after rejection and correction

25. 2525

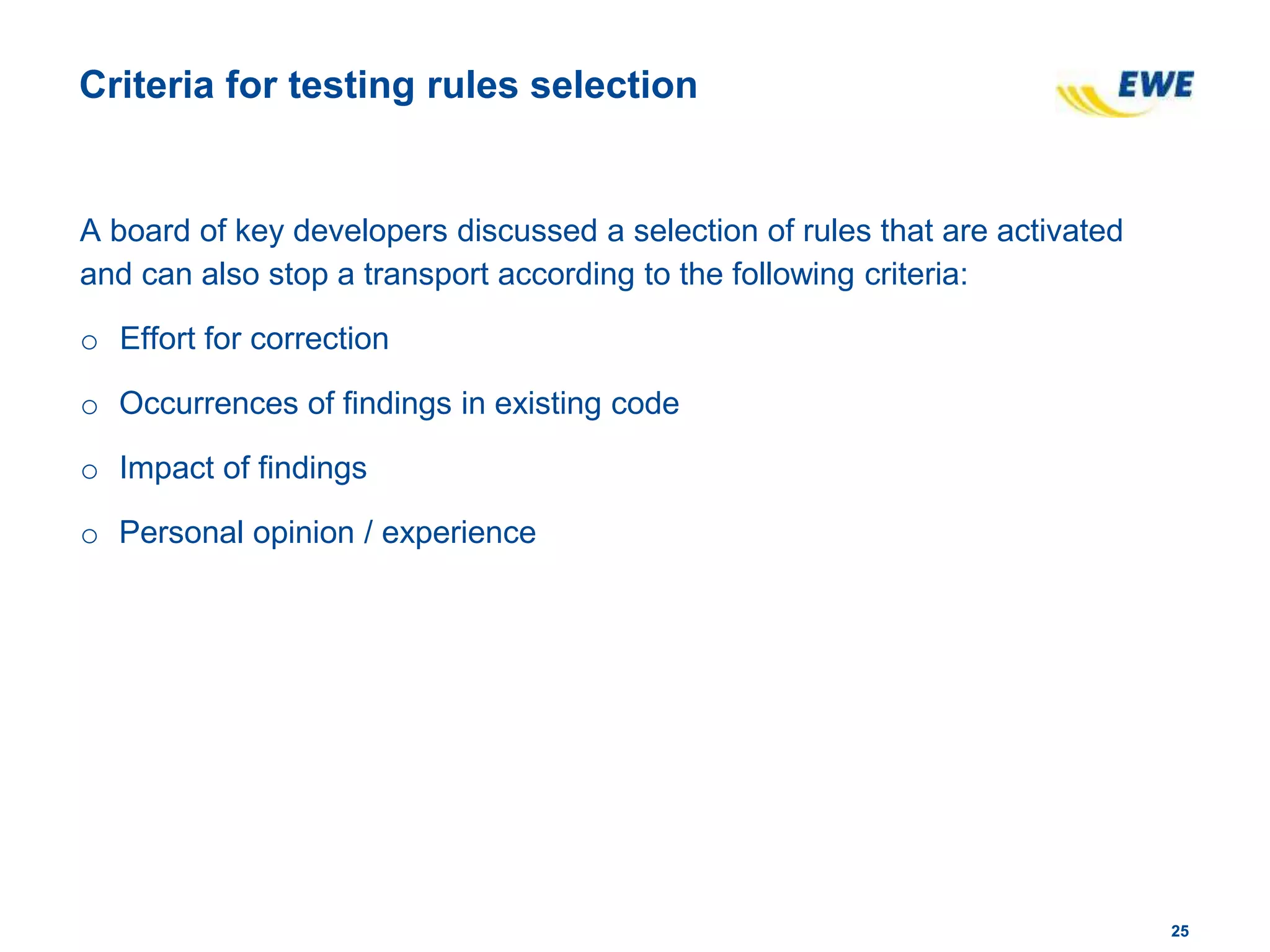

Criteria for testing rules selection
A board of key developers discussed a selection of rules that are activated
and can also stop a transport according to the following criteria:
o Effort for correction
o Occurrences of findings in existing code
o Impact of findings
o Personal opinion / experience

26. 2626

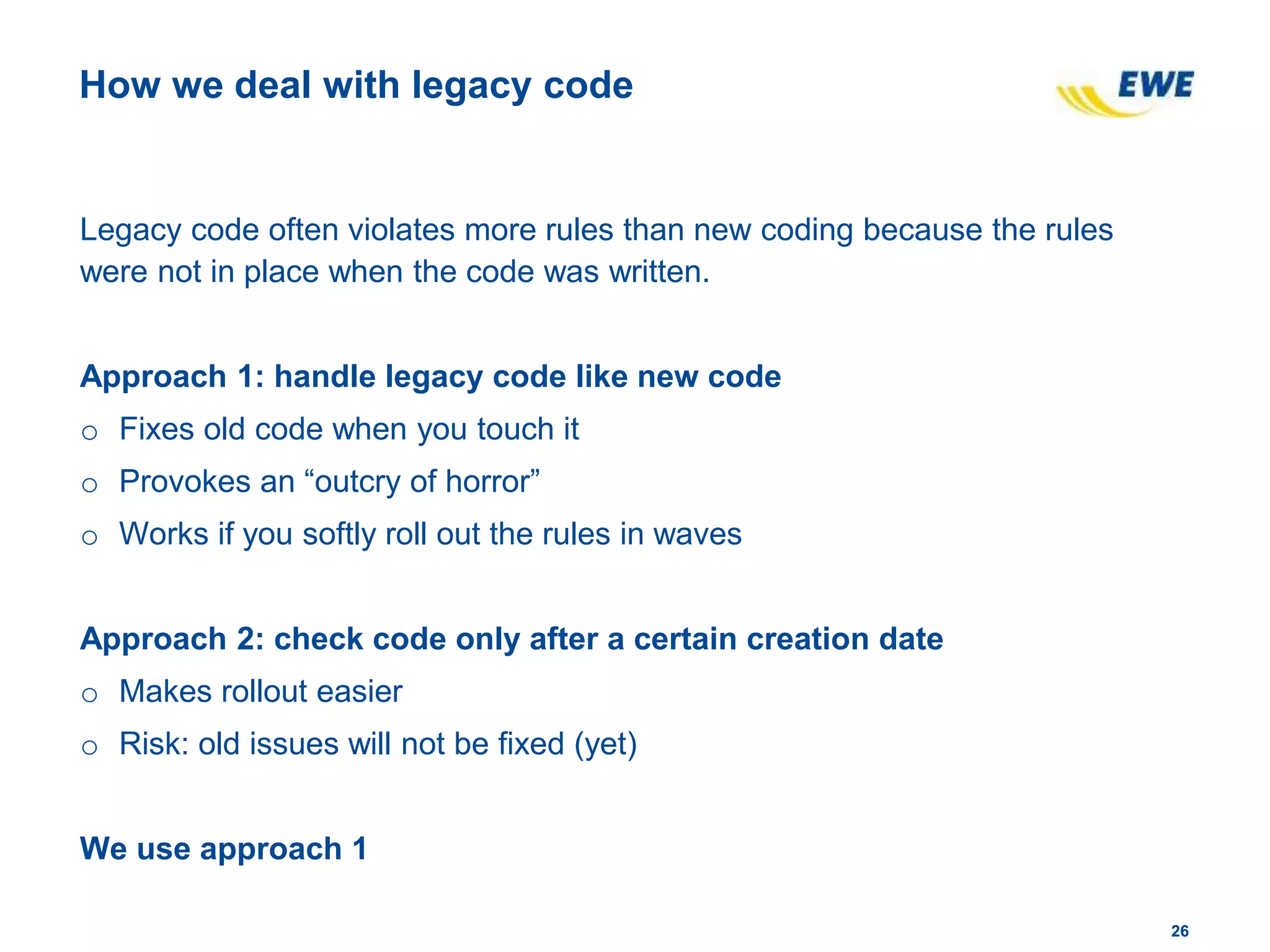

How we deal with legacy code
Legacy code often violates more rules than new coding because the rules
were not in place when the code was written.
Approach 1: handle legacy code like new code
o Fixes old code when you touch it
o Provokes an “outcry of horror”
o Works if you softly roll out the rules in waves
Approach 2: check code only after a certain creation date
o Makes rollout easier
o Risk: old issues will not be fixed (yet)
We use approach 1

27. 2727

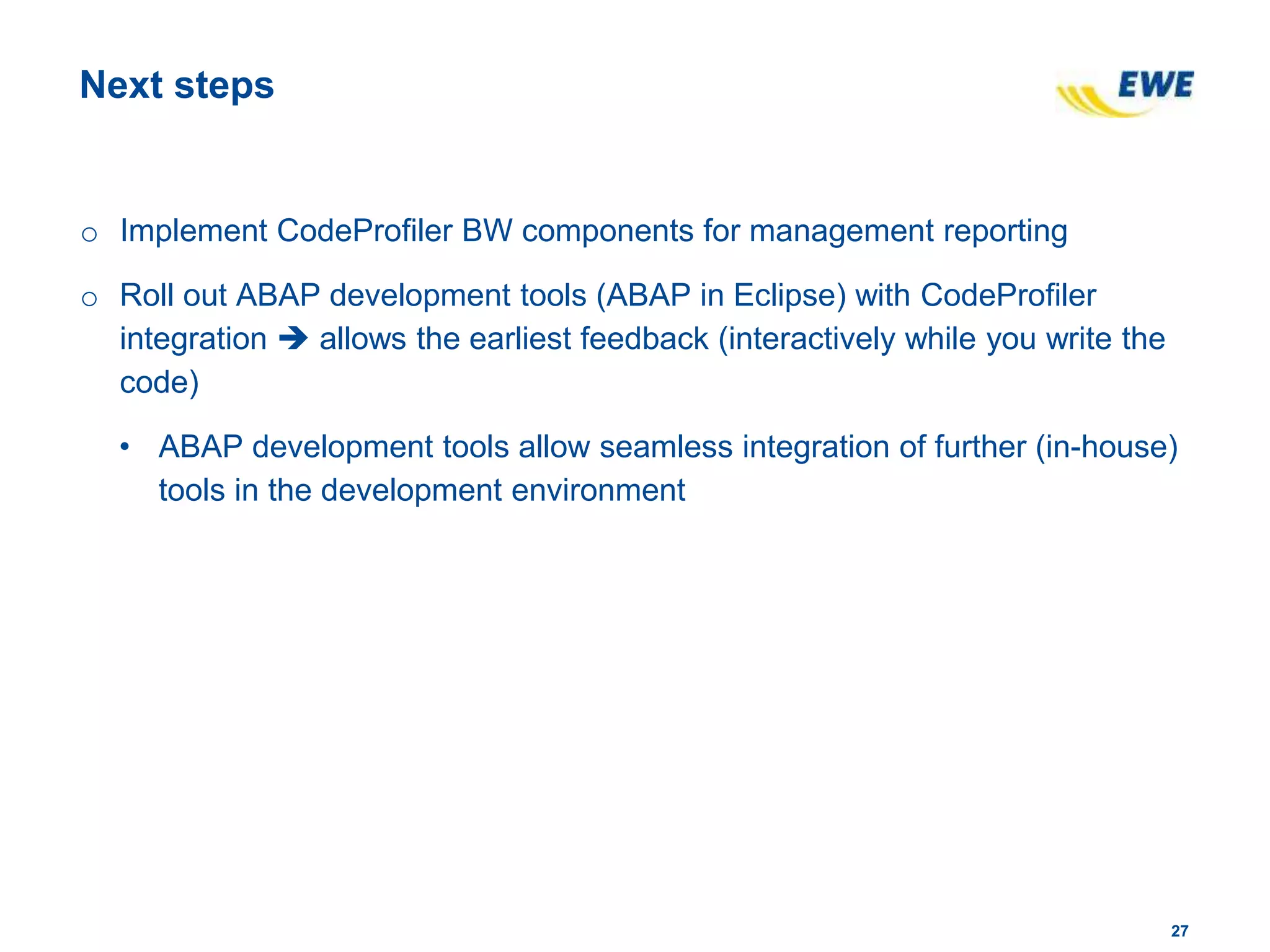

Next steps
o Implement CodeProfiler BW components for management reporting
o Roll out ABAP development tools (ABAP in Eclipse) with CodeProfiler
integration  allows the earliest feedback (interactively while you write the
code)
• ABAP development tools allow seamless integration of further (in-house)
tools in the development environment

28. 2828

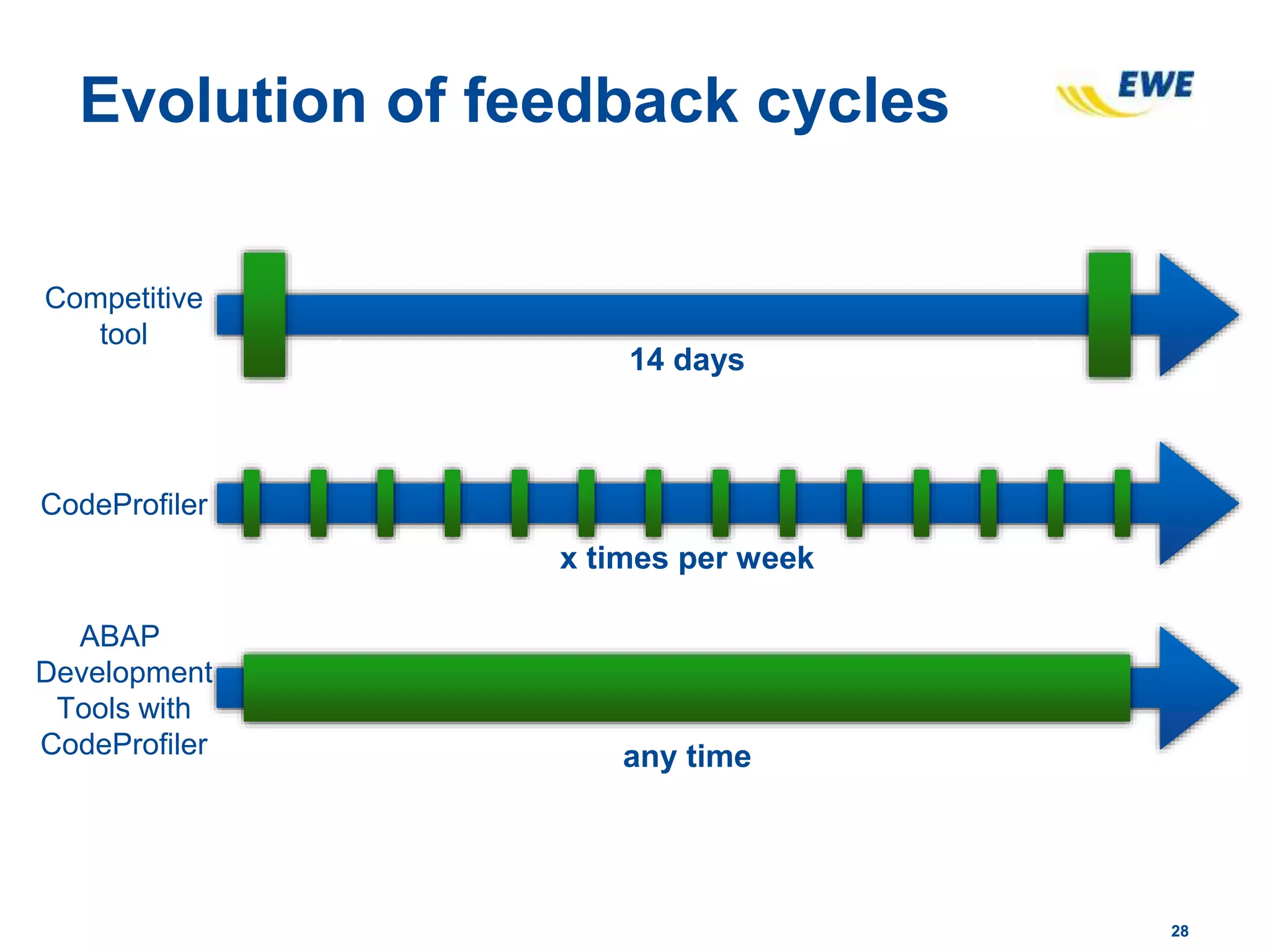

Evolution of feedback cycles
14 days
x times per week
any time
Competitive
tool
CodeProfiler
ABAP
Development
Tools with
CodeProfiler

29. 2929

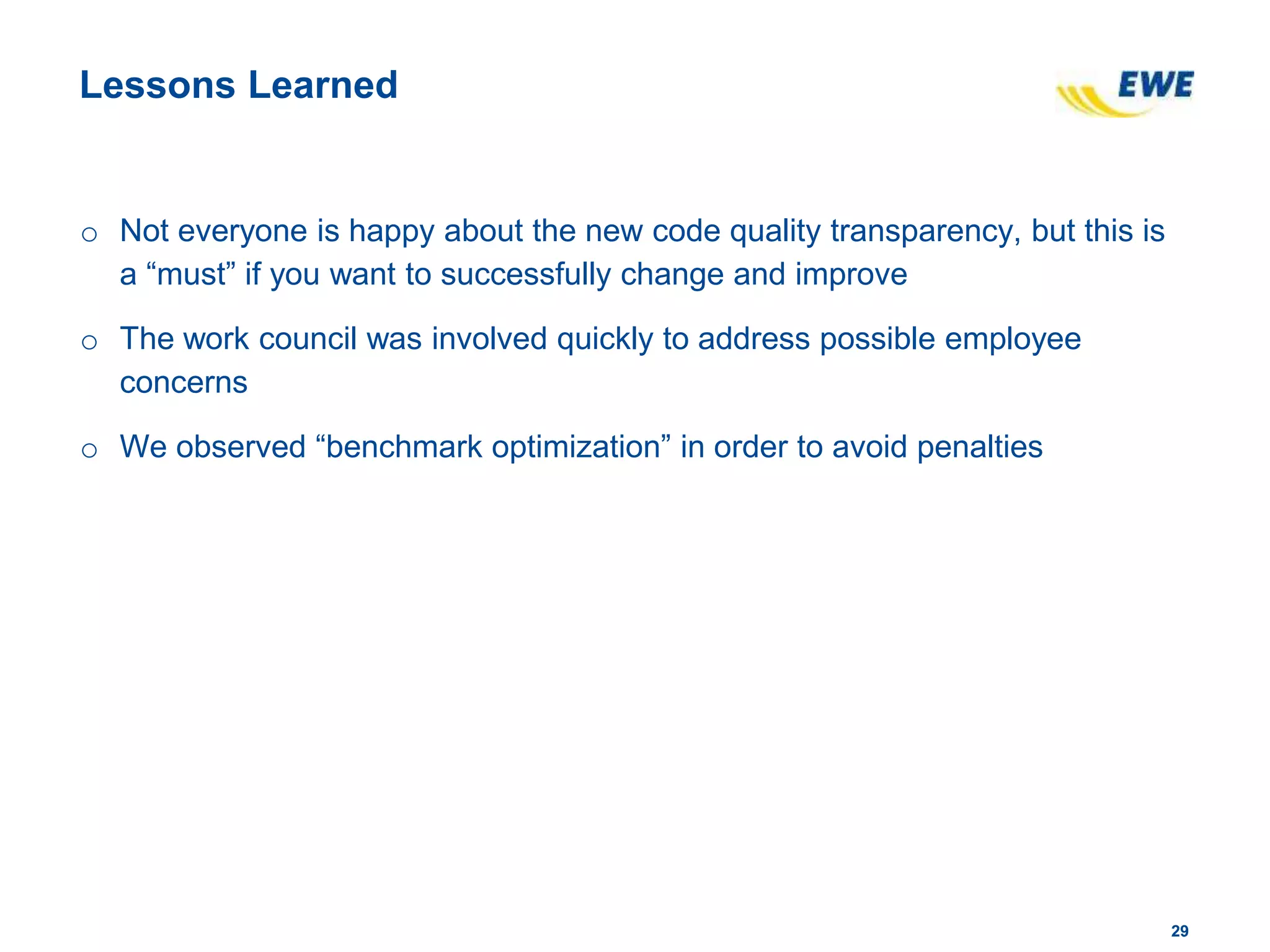

Lessons Learned
o Not everyone is happy about the new code quality transparency, but this is
a “must” if you want to successfully change and improve
o The work council was involved quickly to address possible employee
concerns
o We observed “benchmark optimization” in order to avoid penalties

30. 3030

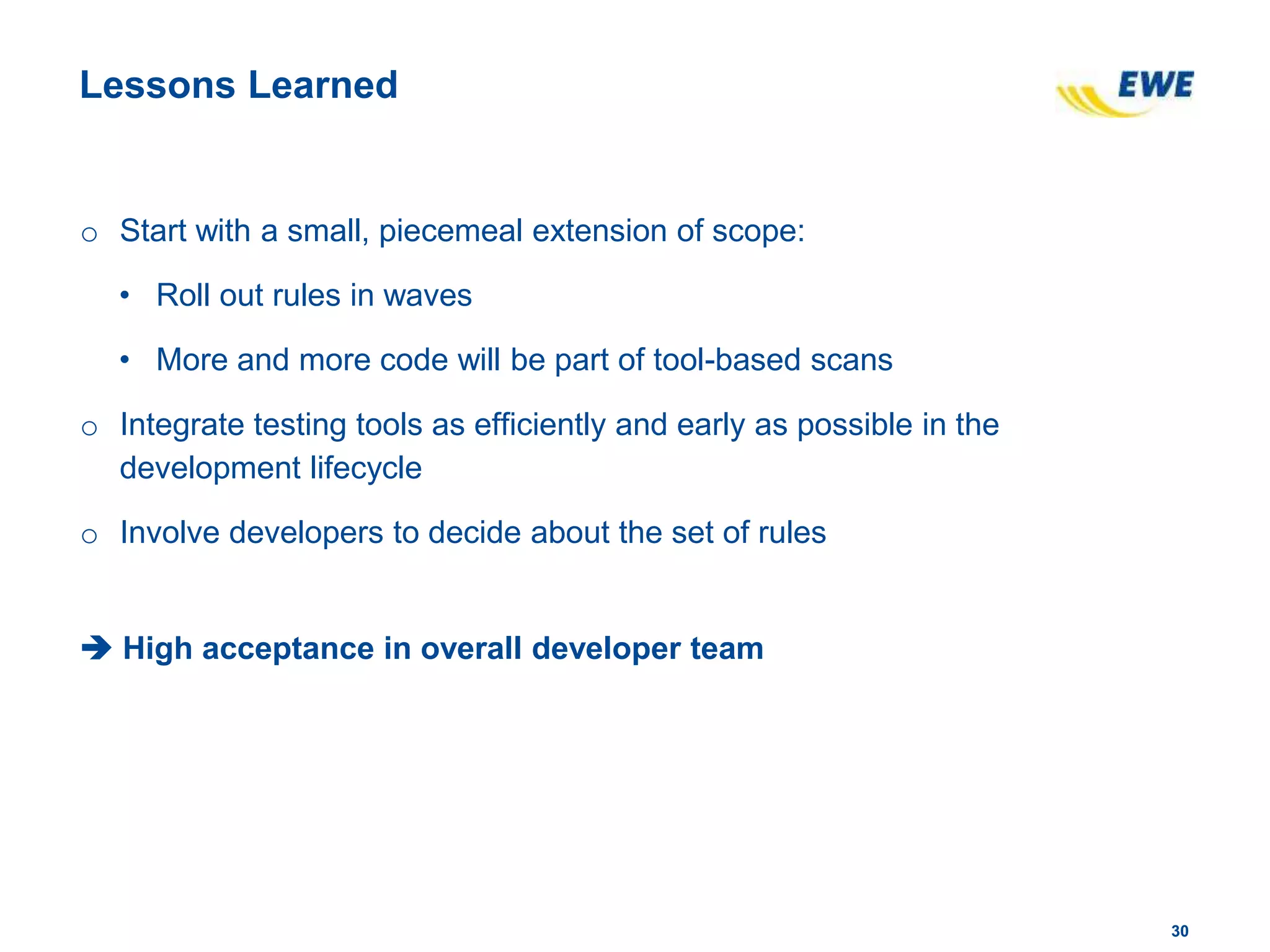

Lessons Learned
o Start with a small, piecemeal extension of scope:
• Roll out rules in waves
• More and more code will be part of tool-based scans
o Integrate testing tools as efficiently and early as possible in the
development lifecycle
o Involve developers to decide about the set of rules
 High acceptance in overall developer team

31. 32
