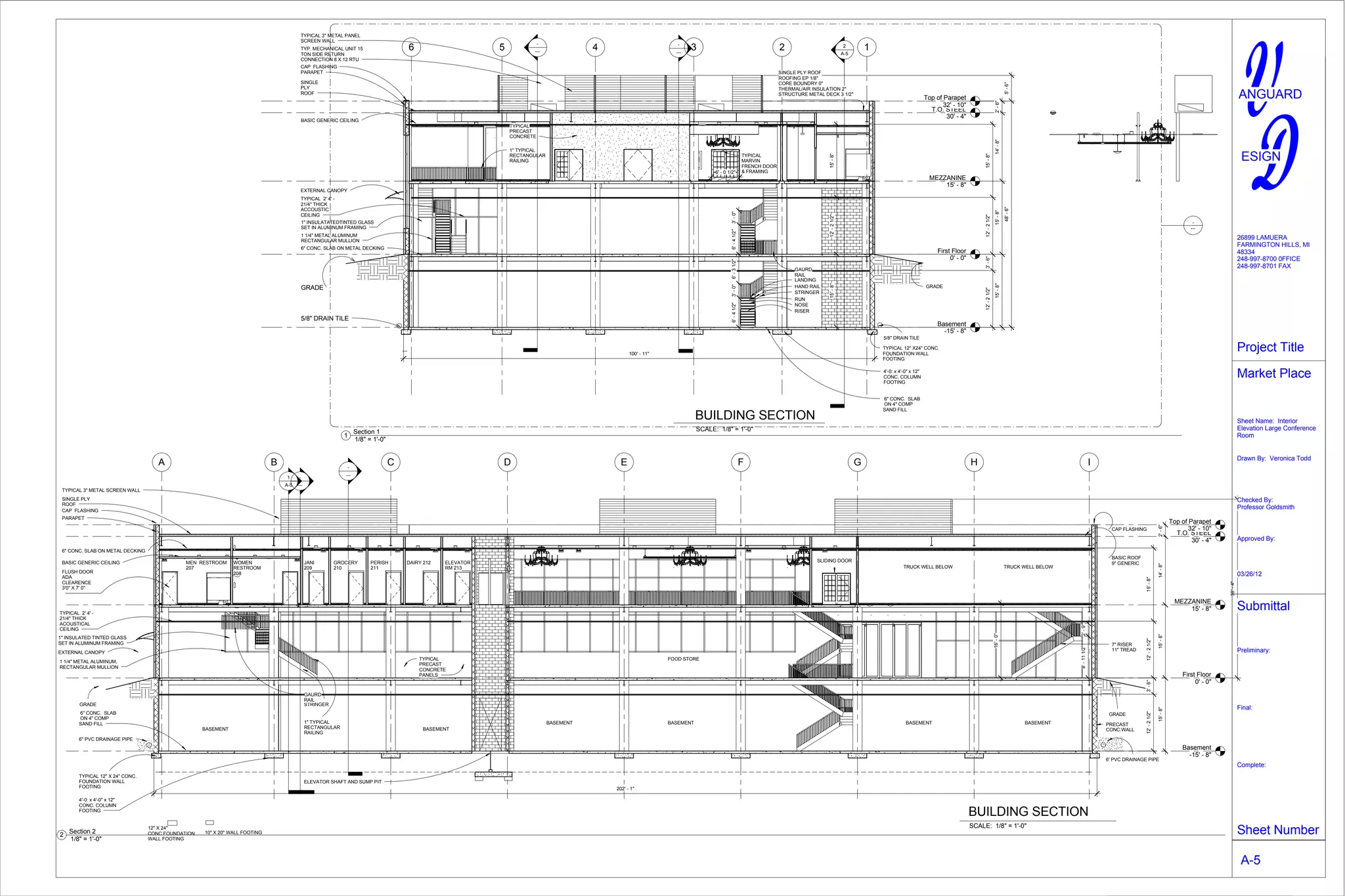

This document contains building section drawings showing floor heights, structural elements, and architectural details. The first floor is at 0' - 0" with a mezzanine at 15' - 8" and basement at -15' - 8". Structural steel is at 30' - 4" and the parapet is at 32' - 10". It depicts typical column footings, foundation walls, concrete slabs, insulation, metal decking, roofing, doors, windows and other building components. Dimensions and materials are provided for walls, floors, structure, and other building elements.

1. First Floor
0' - 0"
MEZZANINE
15' - 8"
Basement
-15' - 8"
T.O. STEEL
30' - 4"
123456
Top of Parapet
32' - 10"
2
A-5
4'-0: x 4'-0" x 12"
CONC. COLUMN
FOOTING
TYPICAL 12" X24" CONC.
FOUNDATION WALL
FOOTING
6" CONC. SLAB
ON 4" COMP
SAND FILL
LANDING
NOSE
STRINGER
GAURD
RAIL
HAND RAIL
RISER
RUN
15'-8"12'-21/2"15'-8"
1" INSULATATEDTINTED GLASS
SET IN ALUMINUM FRAMING
1 1/4" METAL ALUMINUM
RECTANGULAR MULLION
EXTERNAL CANOPY
6" CONC. SLAB ON METAL DECKING
TYPICAL 2' 4' -
21/4" THICK
ACCOUSTIC
CEILING
SINGLE
PLY
ROOF
CAP FLASHING
TYP. MECHANICAL UNIT 15
TON SIDE RETURN
CONNECTION 8 X 12 RTU
PARAPET
TYPICAL
MARVIN
FRENCH DOOR
& FRAMING
1" TYPICAL
RECTANGULAR
RAILING
TYPICAL
PRECAST
CONCRETE
6' - 0 1/2"
TYPICAL 3" METAL PANEL
SCREEN WALL
GRADE
5'-6"48'-6"
2'-6"14'-8"15'-8"15'-8"
100' - 11"
BUILDING SECTION
SCALE: 1/8" = 1'-0"
15'-8"12'-21/2"3'-6"12'-21/2"
---
-
-
---
-
---
3'-0"6'-41/2"6'-31/2"3'-0"6'-41/2"
GRADE
5/8" DRAIN TILE
5/8" DRAIN TILE
SINGLE PLY ROOF
ROOFING EP 1/8"
CORE BOUNDRY 0"
THERMAL/AIR INSULATION 2"
STRUCTURE METAL DECK 3 1/2"
BASIC GENERIC CEILING
First Floor
0' - 0"
MEZZANINE
15' - 8"
Basement
-15' - 8"
T.O. STEEL
30' - 4"
A B C D F G H IE
Top of Parapet
32' - 10"
1
A-5
ELEVATOR SHAFT AND SUMP PIT
4'-0: x 4'-0" x 12"
CONC. COLUMN
FOOTING
TYPICAL 12" X 24" CONC.
FOUNDATION WALL
FOOTING
6" CONC. SLAB
ON 4" COMP
SAND FILL
STRINGER
GAURD
RAIL
1" INSULATED TINTED GLASS
SET IN ALUMINUM FRAMING
1 1/4" METAL ALUMINUM,
RECTANGULAR MULLION
EXTERNAL CANOPY
6" CONC. SLAB ON METAL DECKING
TYPICAL 2' 4' -
21/4" THICK
ACOUSTICAL
CEILING
FLUSH DOOR
ADA
CLEARENCE
3'0" X 7' 0"
1" TYPICAL
RECTANGULAR
RAILING
TYPICAL
PRECAST
CONCRETE
PANELS
SINGLE PLY
ROOF
CAP FLASHING
PARAPET
TYPICAL 3" METAL SCREEN WALL
PRECAST
CONC.WALL
GRADE
GRADE
BUILDING SECTION
SCALE: 1/8" = 1'-0"
2'-6"14'-8"15'-8"15'-8"
202' - 1"
15'-8"12'-21/2"3'-6"12'-21/2"
-
---
-
---
BASIC GENERIC CEILING MEN RESTROOM
207
WOMEN
RESTROOM
208
JANI
209
GROCERY
210
PERISH
211
DAIRY 212 ELEVATOR
RM 213
SLIDING DOOR
BASEMENT
FOOD STORE
12" X 24"
CONC FOUNDATION
WALL FOOTING
10" X 20" WALL FOOTING
38'-4"
6" PVC DRAINAGE PIPE
6' PVC DRAINAGE PIPE
TRUCK WELL BELOW TRUCK WELL BELOW
BASEMENT BASEMENTBASEMENT
BASEMENTBASEMENT
2'-9"8'-111/2"
16'-0"
7" RISER
11" TREAD
BASIC ROOF
9" GENERIC
CAP FLASHING
Drawn By: Veronica Todd
Checked By:
Professor Goldsmith
ANGUARD
ESIGN
26899 LAMUERA
FARMINGTON HILLS, MI
48334
248-997-8700 0FFICE
248-997-8701 FAX
Approved By:
Project Title
Sheet Name: Interior
Elevation Large Conference
Room
Preliminary:
Final:
Complete:
Sheet Number
Submittal
Market Place
A-5
03/26/12
1/8" = 1'-0"
1
Section 1
1/8" = 1'-0"
2
Section 2
