This document discusses grouping controls in LiveCode and applying that concept to build a calculator app. It explains how to: 1) Group the operator buttons to apply a single mouseUp event handler to all buttons. 2) Create commands like operatorPressed and numberPressed to handle button presses, passing the target button's label. 3) Add variables to store the current operation, value, and total, and update the display field and button labels in response to user input. 4) Implement basic math operations like addition and percentage calculation with just a few lines of code each. 5) Clear the display and reset values using clearPressed, distinguishing between clearing the current value or all values.

1. Calculator
Day 2 :
Groups
Create It With
in cooperation with

2. Groups
Just like many design applications such as
Adobe Illustrator, LiveCode can select
multiple controls and “group” them.
I recommend you read and experiment a bit
before we get started so you have a basic
understanding of the different concepts.
One of our goals with Create it with LiveCode
is to encourage you to search and find other
resources on the internet. They will enhance
both the class and your skills.
So take 15-20 minutes and experiment.
Groups in LiveCode
Calculator App

3. on mouseUp
--Set the border color to Black
operatorPressed the short name of me
end mouseUp
Calculator App
Yesterday we had “grouped” our code
together into ONE command to keep the
code simple and more stable.
Today we are going to expand the idea to
include the UI controls of LiveCode. To
show you how to benefit from LiveCode’s
ability to group controls.
To get started, first please delete ALL of
the “on mouseUp” code we added
yesterday in each of the operator buttons.
including the “mouseUp” code. Hit Apply.
Groups
Delete

4. Calculator App
Grouping the Operator
Buttons
Today we are going to introduce the
concept of control Groups. As you can see
on the right, we will group these 4
buttons because they have similar
functionality.
1. So let’s start by pressing the Shift key
and clicking the 4 buttons.
2. To group the buttons together, just
click the group button in the toolbar.
1
2

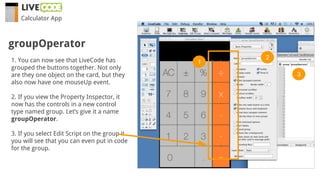

5. Calculator App
1. You can now see that LiveCode has
grouped the buttons together. Not only
are they one object on the card, but they
also now have one mouseUp event.
2. If you view the Property Inspector, it
now has the controls in a new control
type named group. Let’s give it a name
groupOperator.
3. If you select Edit Script on the group it
you will see that you can even put in code
for the group.
groupOperator
1
2
3

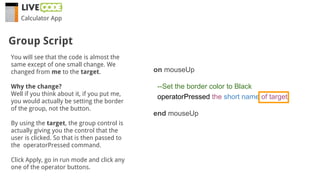

6. Calculator App
You will see that the code is almost the
same except of one small change. We
changed from me to the target.
Why the change?
Well if you think about it, if you put me,
you would actually be setting the border
of the group, not the button.
By using the target, the group control is
actually giving you the control that the
user is clicked. So that is then passed to
the operatorPressed command.
Click Apply, go in run mode and click any
one of the operator buttons.
Group Script
on mouseUp
--Set the border color to Black
operatorPressed the short name of target
end mouseUp

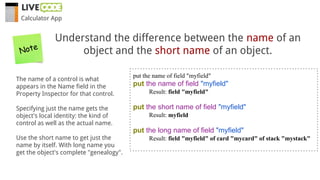

7. Understand the difference between the name of an
object and the short name of an object.
The name of a control is what
appears in the Name field in the
Property Inspector for that control.
Specifying just the name gets the
object's local identity: the kind of
control as well as the actual name.
Use the short name to get just the
name by itself. With long name you
get the object's complete "genealogy".
put the name of field "myfield"
put the name of field "myfield"
Result: field "myfield"
put the short name of field "myfield"
Result: myfield
put the long name of field "myfield"
Result: field "myfield" of card "mycard" of stack "mystack"
Note
Calculator App

8. Calculator App
As we begin to build our App, we are
going to need to remember what is the
current operator. To do this we need at
add a variable - lCurrentOperator.
This also allows us to replace the 4 lines
of code where we hide the border and
replace it with just one line.
We need to just save the operator passed
to the variable.
Start building the logic
of the calculator
local lCurrentOperator
on operatorPressed pOperator
--Check if we have an operator selected
if lCurrentOperator is not empty then
--Hide operator border
set the showBorder of button lCurrentOperator to false
End if
--Set the border color to Black
set the borderColor of button pOperator to black
set the showBorder of button pOperator to true
--put the operator into currentOperator variable to remember it
put pOperator into lCurrentOperator
end mouseUp

9. Calculator App
Since the Numbers can also be
considered to have similar UI and code
functionality, let’s group them together
and create a new command.
This time our command will be called
numberPressed, but we are not going to
pass the name of the control, but the
label - which holds the number.
Do the same for the
Number buttons
on mouseUp
numberPressed the label of target
end mouseUp

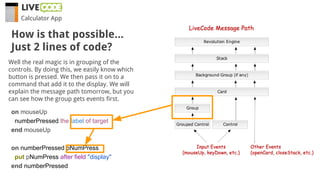

10. Calculator App
Well the real magic is in grouping of the
controls. By doing this, we easily know which
button is pressed. We then pass it on to a
command that add it to the display. We will
explain the message path tomorrow, but you
can see how the group gets events first.
on mouseUp
numberPressed the label of target
end mouseUp
on numberPressed pNumPress
put pNumPress after field "display"
end numberPressed
How is that possible...
Just 2 lines of code?

11. Calculator App
How about we do some simple math for
fun? If you look at the percentPressed
command, you will see that LiveCode
make is quite simple.
It reads the amount in the field display,
puts into a variable and then divides by
100 - which set the percentage of the
displayed value. Cool - only two lines of
code. Now that was FUN!!
Well now we have a problem that seems
to need a fix...
Let’s have some fun!!
on precentPressed
--Just get a percentage of the current value
put field “display” into tCurrentValue
put tCurrentValue / 100 into field "display"
end precentPressed

12. Calculator App
If you clicked the number button several
times like I did, then your display is filled
with numbers.
The next button we need code is clear.
Remember the calculator has two clear
operations. One clears just the display [C],
the other clears all calculations and sets
the calculator back to 0 [AC].
We need to create a command
clearPressed.
Clear the Display
on mouseUp
ClearPressed
end mouseUp

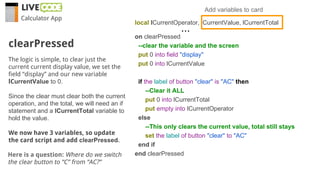

13. Calculator App
The logic is simple, to clear just the
current current display value, we set the
field “display” and our new variable
lCurrentValue to 0.
Since the clear must clear both the current
operation, and the total, we will need an if
statement and a lCurrentTotal variable to
hold the value.
We now have 3 variables, so update
the card script and add clearPressed.
clearPressed
local lCurrentOperator, lCurrentValue, lCurrentTotal
on clearPressed
--clear the variable and the screen
put 0 into field "display"
put 0 into lCurrentValue
if the label of button "clear" is "AC" then
--Clear it ALL
put 0 into lCurrentTotal
put empty into lCurrentOperator
else
--This only clears the current value, total still stays
set the label of button "clear" to "AC"
end if
end clearPressed
Add variables to card
...
Here is a question: Where do we switch
the clear button to “C” from “AC?”

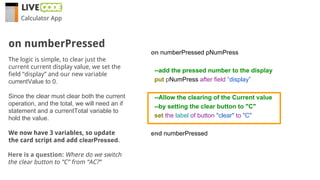

14. Calculator App
The logic is simple, to clear just the
current current display value, we set the
field “display” and our new variable
currentValue to 0.
Since the clear must clear both the current
operation, and the total, we will need an if
statement and a currentTotal variable to
hold the value.
We now have 3 variables, so update
the card script and add clearPressed.
on numberPressed
Here is a question: Where do we switch
the clear button to “C” from “AC?”
on numberPressed pNumPress
--add the pressed number to the display
put pNumPress after field “display”
--Allow the clearing of the Current value
--by setting the clear button to "C"
set the label of button "clear" to "C"
end numberPressed

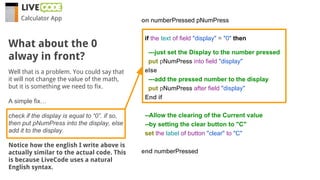

15. Calculator App
Well that is a problem. You could say that
it will not change the value of the math,
but it is something we need to fix.
A simple fix…
check if the display is equal to “0”. if so,
then put pNumPress into the display, else
add it to the display.
Notice how the english I write above is
actually similar to the actual code. This
is because LiveCode uses a natural
English syntax.
What about the 0
alway in front?
on numberPressed pNumPress
if the text of field "display" = "0" then
---just set the Display to the number pressed
put pNumPress into field "display"
else
---add the pressed number to the display
put pNumPress after field "display"
End if
--Allow the clearing of the Current value
--by setting the clear button to "C"
set the label of button "clear" to "C"
end numberPressed

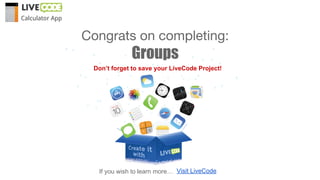

16. If you wish to learn more… Visit LiveCode
Congrats on completing:
Groups
Don’t forget to save your LiveCode Project!
