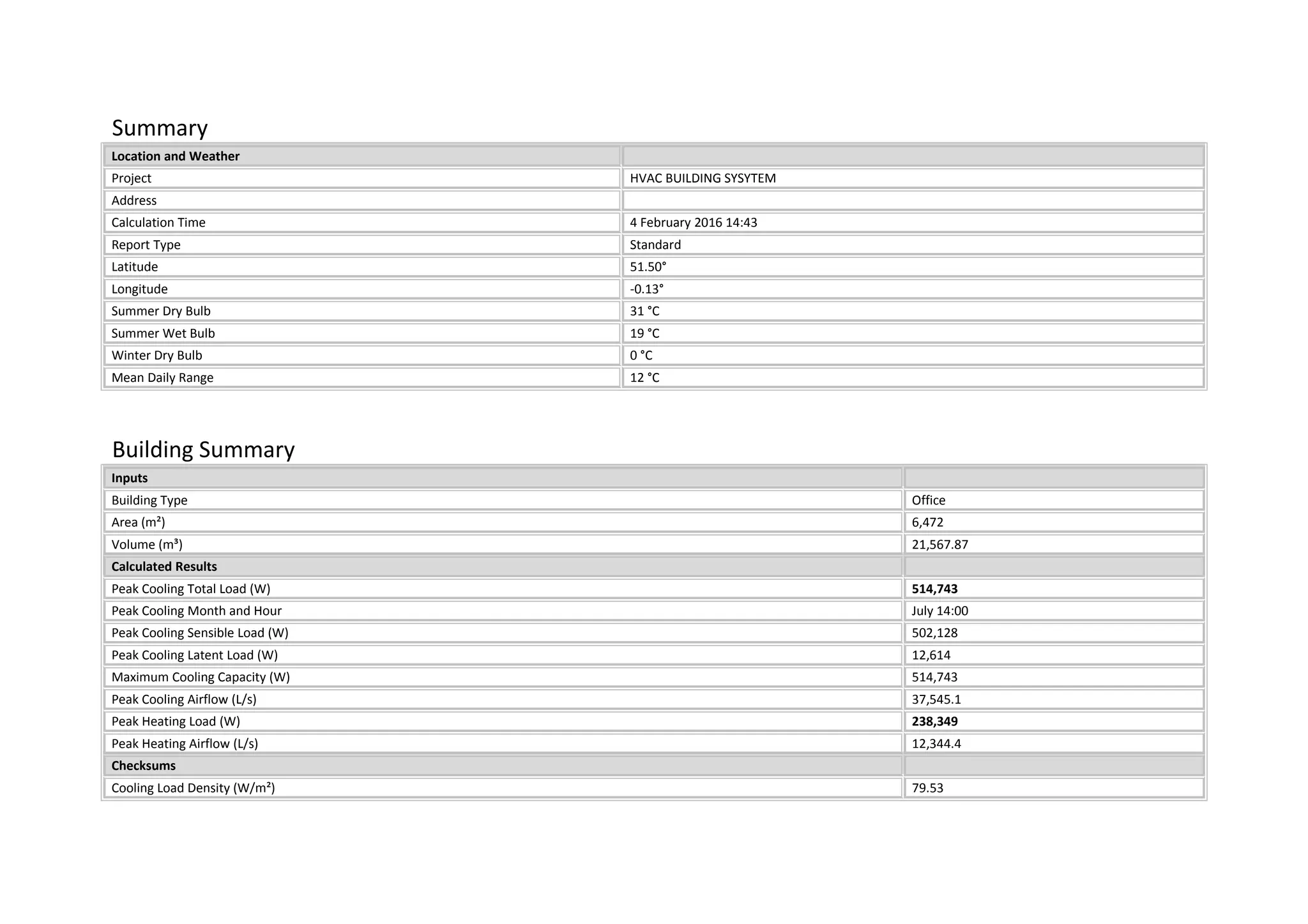

1. Summary
Location and Weather
Project HVAC BUILDING SYSYTEM
Address
Calculation Time 4 February 2016 14:43
Report Type Standard
Latitude 51.50°
Longitude -0.13°
Summer Dry Bulb 31 °C
Summer Wet Bulb 19 °C
Winter Dry Bulb 0 °C
Mean Daily Range 12 °C
Building Summary
Inputs
Building Type Office
Area (m²) 6,472
Volume (m³) 21,567.87
Calculated Results
Peak Cooling Total Load (W) 514,743
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 502,128
Peak Cooling Latent Load (W) 12,614
Maximum Cooling Capacity (W) 514,743
Peak Cooling Airflow (L/s) 37,545.1
Peak Heating Load (W) 238,349
Peak Heating Airflow (L/s) 12,344.4
Checksums
Cooling Load Density (W/m²) 79.53
2. Cooling Flow Density (L/(s·m²)) 5.80
Cooling Flow / Load (L/(s·kW)) 72.94
Cooling Area / Load (m²/kW) 12.57
Heating Load Density (W/m²) 36.83
Heating Flow Density (L/(s·m²)) 1.91
Zone Summary - Default
Inputs
Area (m²) 6,472
Volume (m³) 21,567.87
Cooling Setpoint 23 °C
Heating Setpoint 21 °C
Supply Air Temperature 12 °C
Number of People 227
Infiltration (L/s) 0.0
Air Volume Calculation Type VAV - Single Duct
Relative Humidity 46.00% (Calculated)
Psychrometrics
Psychrometric Message None
Cooling Coil Entering Dry-Bulb Temperature 23 °C
Cooling Coil Entering Wet-Bulb Temperature 16 °C
Cooling Coil Leaving Dry-Bulb Temperature 11 °C
Cooling Coil Leaving Wet-Bulb Temperature 11 °C
Mixed Air Dry-Bulb Temperature 23 °C
Calculated Results
Peak Cooling Load (W) 514,743
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 502,128
Peak Cooling Latent Load (W) 12,614
Peak Cooling Airflow (L/s) 37,545.1
3. Peak Heating Load (W) 238,349
Peak Heating Airflow (L/s) 12,344.4
Peak Ventilation Airflow (L/s) 0.0
Checksums
Cooling Load Density (W/m²) 79.53
Cooling Flow Density (L/(s·m²)) 5.80
Cooling Flow / Load (L/(s·kW)) 72.94
Cooling Area / Load (m²/kW) 12.57
Heating Load Density (W/m²) 36.83
Heating Flow Density (L/(s·m²)) 1.91
Ventilation Density (L/(s·m²)) 0.00
Ventilation / Person (L/s) 0.0
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 110 0.02% 363 0.15%
Window 66,229 12.87% 89,137 37.40%
Door 0 0.00% 0 0.00%
Roof 268,627 52.19% 148,848 62.45%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Ventilation 0 0.00% 0 0.00%
Lighting 60,053 11.67%
Power 78,069 15.17%
People 26,912 5.23%
Plenum 0 0.00%
Fan Heat 14,743 2.86%
Reheat 0 0.00%
Total 514,743 100% 238,349 100%
4. Default Spaces
Space Name Area (m²) Volume (m³) Peak Cooling Load (W) Cooling Airflow (L/s) Peak Heating Load (W) Heating Airflow (L/s)
1 Space 1,050 4,200.00 38,933 2,910.7 16,162 837.0
2 Space 358 1,147.74 36,838 2,730.2 19,268 997.9
3 Space 397 1,272.00 38,314 2,770.0 20,814 1,078.0
4 Space 497 1,591.81 40,223 3,020.4 19,886 1,029.9
5 Space 497 1,592.06 40,226 3,020.6 19,888 1,030.0
6 Space 765 2,450.31 65,581 4,924.5 38,584 1,998.3
7 Space 450 1,443.35 40,182 3,017.3 18,552 960.8
8 Space 449 1,436.51 40,143 3,014.3 18,550 960.7
9 Space 449 1,436.51 40,146 3,014.6 18,552 960.8
10 Space 1,560 4,997.59 121,792 9,122.5 48,093 2,490.8
Space Summary - 1 Space
Inputs
Area (m²) 1,050
Volume (m³) 4,200.00
Wall Area (m²) 260
Roof Area (m²) 0
Door Area (m²) 0
Partition Area (m²) 0
Window Area (m²) 513
Skylight Area (m²) 0
5. Lighting Load (W) 11,302
Power Load (W) 14,693
Number of People 37
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 38,933
Peak Cooling Month and Hour July 13:00
Peak Cooling Sensible Load (W) 36,887
Peak Cooling Latent Load (W) 2,046
Peak Cooling Airflow (L/s) 2,910.7
Peak Heating Load (W) 16,162
Peak Heating Airflow (L/s) 837.0
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 25 0.06% 65 0.40%
Window 13,241 34.01% 16,097 99.60%
Door 0 0.00% 0 0.00%
Roof 0 0.00% 0 0.00%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 9,333 23.97%
Power 12,133 31.16%
People 4,201 10.79%
Plenum 0 0.00%
Total 38,933 100% 16,162 100%
6. Space Summary - 2 Space
Inputs
Area (m²) 358
Volume (m³) 1,147.74
Wall Area (m²) 152
Roof Area (m²) 358
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 150
Skylight Area (m²) 0
Lighting Load (W) 3,856
Power Load (W) 5,012
Number of People 13
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 36,838
Peak Cooling Month and Hour July 15:00
Peak Cooling Sensible Load (W) 36,139
Peak Cooling Latent Load (W) 698
Peak Cooling Airflow (L/s) 2,730.2
Peak Heating Load (W) 19,268
Peak Heating Airflow (L/s) 997.9
7. Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 14 0.04% 38 0.20%
Window 10,052 27.29% 9,410 48.84%
Door 0 0.00% 0 0.00%
Roof 17,536 47.60% 9,820 50.96%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 3,358 9.11%
Power 4,365 11.85%
People 1,513 4.11%
Plenum 0 0.00%
Total 36,838 100% 19,268 100%
Space Summary - 3 Space
Inputs
Area (m²) 397
Volume (m³) 1,272.00
Wall Area (m²) 160
Roof Area (m²) 397
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 157
Skylight Area (m²) 0
Lighting Load (W) 4,273
Power Load (W) 5,555
8. Number of People 14
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 38,314
Peak Cooling Month and Hour July 15:00
Peak Cooling Sensible Load (W) 37,541
Peak Cooling Latent Load (W) 774
Peak Cooling Airflow (L/s) 2,770.0
Peak Heating Load (W) 20,814
Peak Heating Airflow (L/s) 1,078.0
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 11 0.03% 41 0.20%
Window 8,632 22.53% 9,891 47.52%
Door 0 0.00% 0 0.00%
Roof 19,436 50.73% 10,883 52.29%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 3,721 9.71%
Power 4,838 12.63%
People 1,677 4.38%
Plenum 0 0.00%
Total 38,314 100% 20,814 100%
9. Space Summary - 4 Space
Inputs
Area (m²) 497
Volume (m³) 1,591.81
Wall Area (m²) 100
Roof Area (m²) 499
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 115
Skylight Area (m²) 0
Lighting Load (W) 5,351
Power Load (W) 6,956
Number of People 18
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 40,223
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 39,254
Peak Cooling Latent Load (W) 969
Peak Cooling Airflow (L/s) 3,020.4
Peak Heating Load (W) 19,886
Peak Heating Airflow (L/s) 1,029.9
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
10. Wall 5 0.01% 26 0.13%
Window 2,786 6.93% 6,188 31.12%
Door 0 0.00% 0 0.00%
Roof 24,674 61.34% 13,672 68.75%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 4,644 11.54%
Power 6,037 15.01%
People 2,078 5.17%
Plenum 0 0.00%
Total 40,223 100% 19,886 100%
Space Summary - 5 Space
Inputs
Area (m²) 497
Volume (m³) 1,592.06
Wall Area (m²) 100
Roof Area (m²) 499
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 117
Skylight Area (m²) 0
Lighting Load (W) 5,352
Power Load (W) 6,957
Number of People 18
Sensible Heat Gain / Person (W) 73
11. Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 40,226
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 39,257
Peak Cooling Latent Load (W) 969
Peak Cooling Airflow (L/s) 3,020.6
Peak Heating Load (W) 19,888
Peak Heating Airflow (L/s) 1,030.0
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 4 0.01% 25 0.13%
Window 2,788 6.93% 6,191 31.13%
Door 0 0.00% 0 0.00%
Roof 24,674 61.34% 13,672 68.75%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 4,644 11.55%
Power 6,038 15.01%
People 2,078 5.17%
Plenum 0 0.00%
Total 40,226 100% 19,888 100%
Space Summary - 6 Space
12. Inputs
Area (m²) 765
Volume (m³) 2,450.31
Wall Area (m²) 284
Roof Area (m²) 764
Door Area (m²) 11
Partition Area (m²) 0
Window Area (m²) 328
Skylight Area (m²) 0
Lighting Load (W) 8,233
Power Load (W) 10,702
Number of People 27
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 65,581
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 64,090
Peak Cooling Latent Load (W) 1,491
Peak Cooling Airflow (L/s) 4,924.5
Peak Heating Load (W) 38,584
Peak Heating Airflow (L/s) 1,998.3
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 16 0.02% 71 0.18%
Window 8,132 12.40% 17,566 45.53%
13. Door 0 0.00% 0 0.00%
Roof 37,803 57.64% 20,947 54.29%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 7,144 10.89%
Power 9,288 14.16%
People 3,197 4.87%
Plenum 0 0.00%
Total 65,581 100% 38,584 100%
Space Summary - 7 Space
Inputs
Area (m²) 450
Volume (m³) 1,443.35
Wall Area (m²) 100
Roof Area (m²) 450
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 186
Skylight Area (m²) 0
Lighting Load (W) 4,848
Power Load (W) 6,302
Number of People 16
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
14. Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 40,182
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 39,305
Peak Cooling Latent Load (W) 878
Peak Cooling Airflow (L/s) 3,017.3
Peak Heating Load (W) 18,552
Peak Heating Airflow (L/s) 960.8
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 8 0.02% 25 0.13%
Window 6,375 15.86% 6,203 33.44%
Door 0 0.00% 0 0.00%
Roof 22,240 55.35% 12,324 66.43%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 4,207 10.47%
Power 5,469 13.61%
People 1,882 4.68%
Plenum 0 0.00%
Total 40,182 100% 18,552 100%
Space Summary - 8 Space
Inputs
15. Area (m²) 449
Volume (m³) 1,436.51
Wall Area (m²) 100
Roof Area (m²) 450
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 115
Skylight Area (m²) 0
Lighting Load (W) 4,829
Power Load (W) 6,277
Number of People 16
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 40,143
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 39,269
Peak Cooling Latent Load (W) 874
Peak Cooling Airflow (L/s) 3,014.3
Peak Heating Load (W) 18,550
Peak Heating Airflow (L/s) 960.7
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 9 0.02% 26 0.14%
Window 6,359 15.84% 6,188 33.36%
Door 0 0.00% 0 0.00%
Roof 22,263 55.46% 12,336 66.50%
16. Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 4,190 10.44%
Power 5,448 13.57%
People 1,875 4.67%
Plenum 0 0.00%
Total 40,143 100% 18,550 100%
Space Summary - 9 Space
Inputs
Area (m²) 449
Volume (m³) 1,436.51
Wall Area (m²) 100
Roof Area (m²) 450
Door Area (m²) 8
Partition Area (m²) 0
Window Area (m²) 115
Skylight Area (m²) 0
Lighting Load (W) 4,829
Power Load (W) 6,277
Number of People 16
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
17. Peak Cooling Load (W) 40,146
Peak Cooling Month and Hour July 14:00
Peak Cooling Sensible Load (W) 39,271
Peak Cooling Latent Load (W) 874
Peak Cooling Airflow (L/s) 3,014.6
Peak Heating Load (W) 18,552
Peak Heating Airflow (L/s) 960.8
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 8 0.02% 25 0.13%
Window 6,362 15.85% 6,191 33.37%
Door 0 0.00% 0 0.00%
Roof 22,263 55.45% 12,336 66.49%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
Infiltration 0 0.00% 0 0.00%
Lighting 4,190 10.44%
Power 5,448 13.57%
People 1,875 4.67%
Plenum 0 0.00%
Total 40,146 100% 18,552 100%
Space Summary - 10 Space
Inputs
Area (m²) 1,560
Volume (m³) 4,997.59
18. Wall Area (m²) 84
Roof Area (m²) 1,563
Door Area (m²) 65
Partition Area (m²) 0
Window Area (m²) 401
Skylight Area (m²) 0
Lighting Load (W) 16,797
Power Load (W) 21,836
Number of People 55
Sensible Heat Gain / Person (W) 73
Latent Heat Gain / Person (W) 59
Infiltration Airflow (L/s) 0.0
Space Type Office (inherited from building type)
Calculated Results
Peak Cooling Load (W) 121,792
Peak Cooling Month and Hour July 15:00
Peak Cooling Sensible Load (W) 118,751
Peak Cooling Latent Load (W) 3,041
Peak Cooling Airflow (L/s) 9,122.5
Peak Heating Load (W) 48,093
Peak Heating Airflow (L/s) 2,490.8
Components
Cooling Heating
Loads (W) Percentage of Total Loads (W) Percentage of Total
Wall 10 0.01% 22 0.05%
Window 5,010 4.11% 5,212 10.84%
Door 0 0.00% 0 0.00%
Roof 76,539 62.84% 42,859 89.12%
Skylight 0 0.00% 0 0.00%
Partition 0 0.00% 0 0.00%
19. Infiltration 0 0.00% 0 0.00%
Lighting 14,627 12.01%
Power 19,015 15.61%
People 6,591 5.41%
Plenum 0 0.00%
Total 121,792 100% 48,093 100%
