1. Functional Microscope:
Lenses in С++
Alexander Granin
graninas@gmail.com
C++ Siberia, Novosibirsk

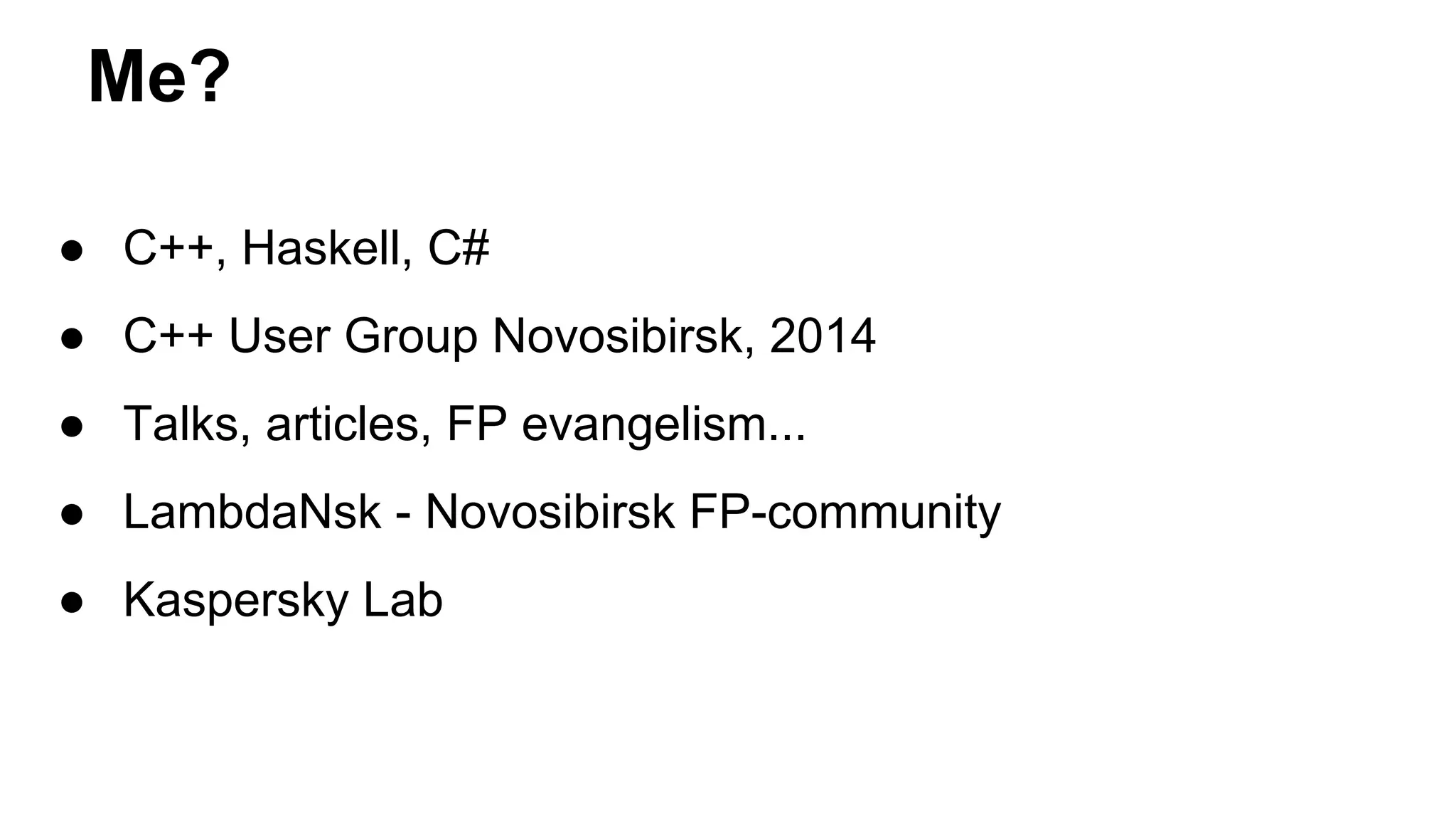

2. Me?
● C++, Haskell, C#
● C++ User Group Novosibirsk, 2014
● Talks, articles, FP evangelism...
● LambdaNsk - Novosibirsk FP-community
● Kaspersky Lab

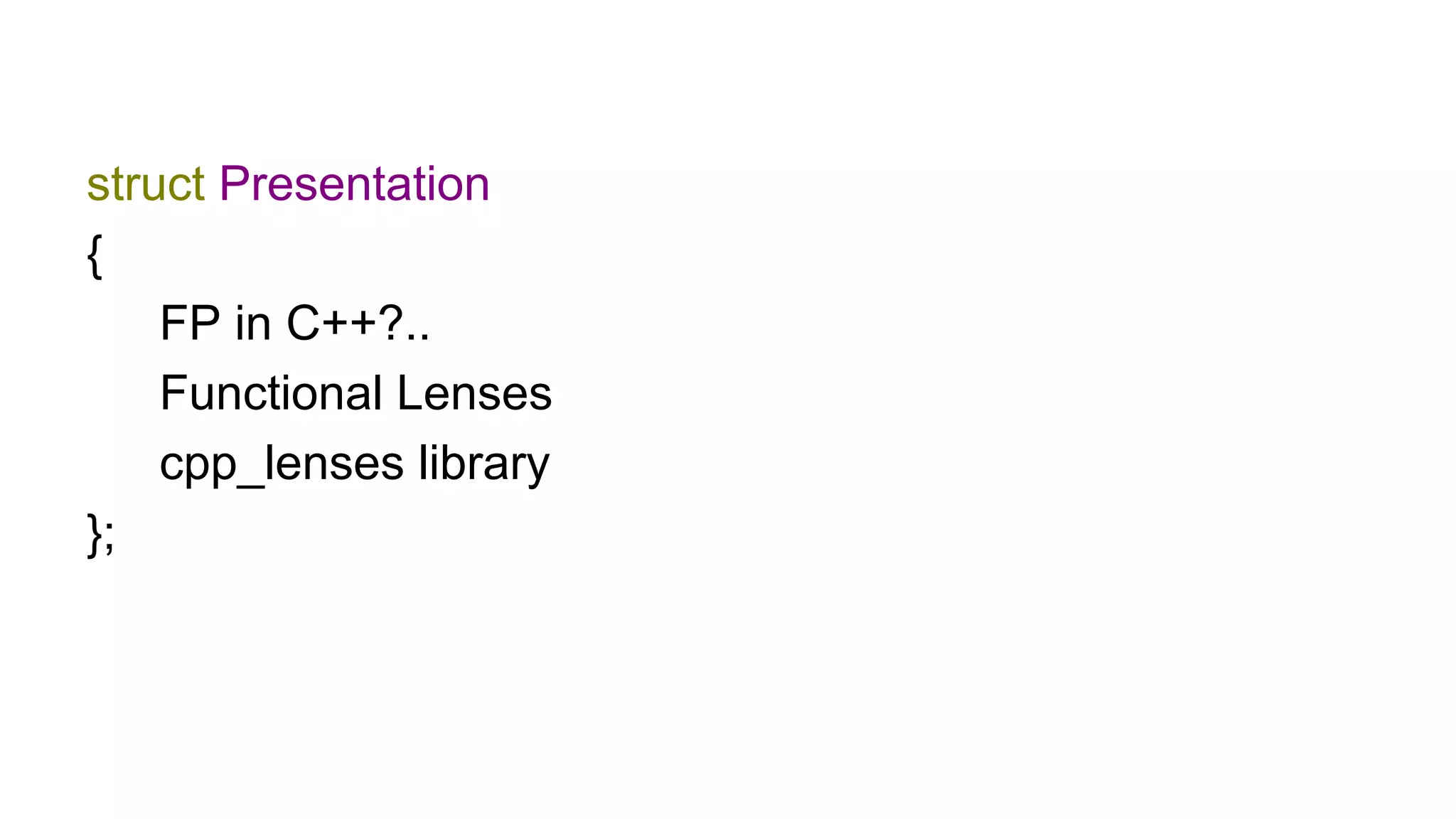

3. struct Presentation
{
FP in C++?..
Functional Lenses
cpp_lenses library
};

4. 4
FP in C++?..

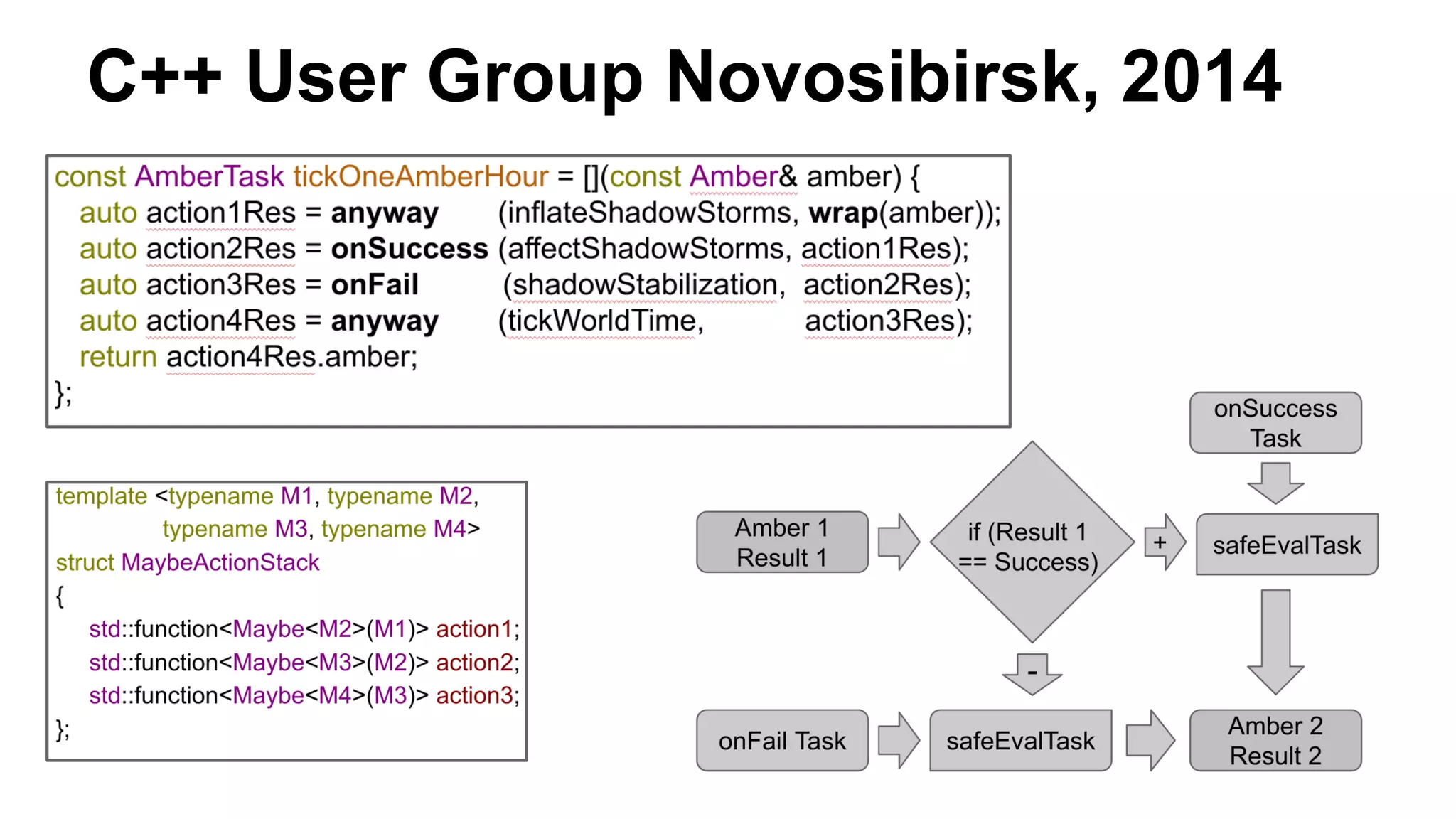

5. С++ User Group Novosibirsk, 2014

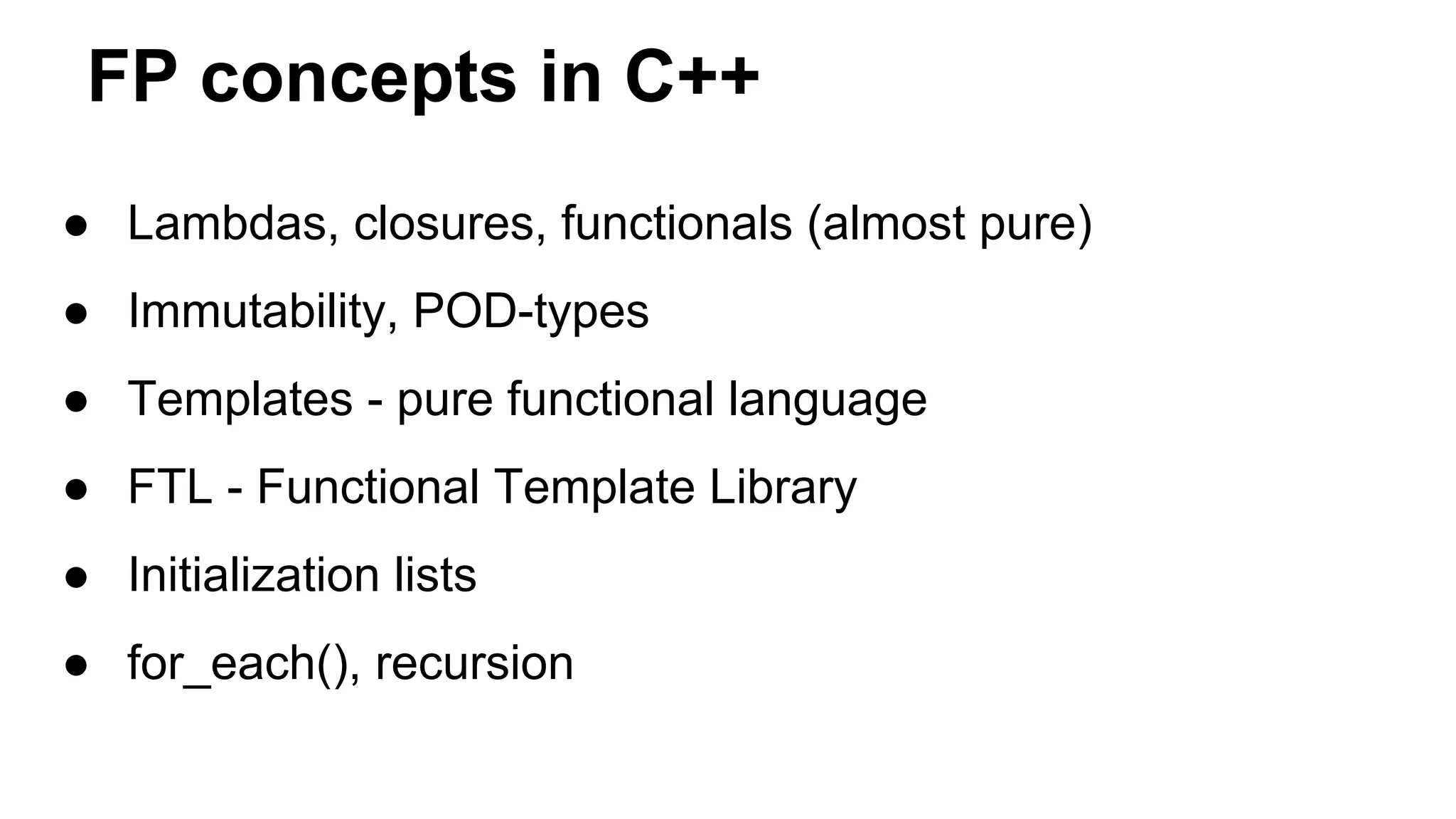

6. FP concepts in C++
● Lambdas, closures, functionals (almost pure)
● Immutability, POD-types
● Templates - pure functional language
● FTL - Functional Template Library
● Initialization lists
● for_each(), recursion

7. 7

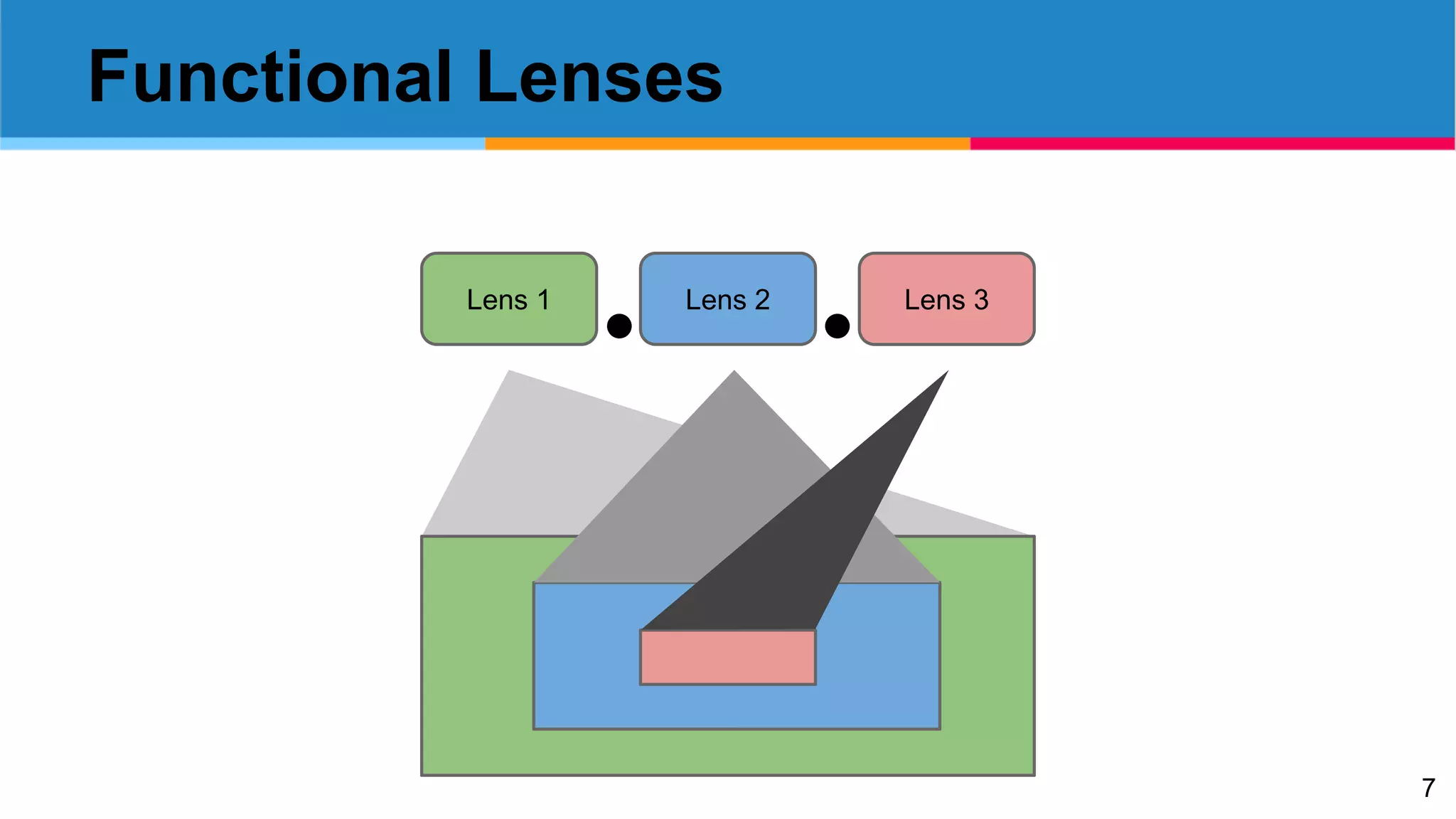

Functional Lenses
Lens 2 Lens 3Lens 1

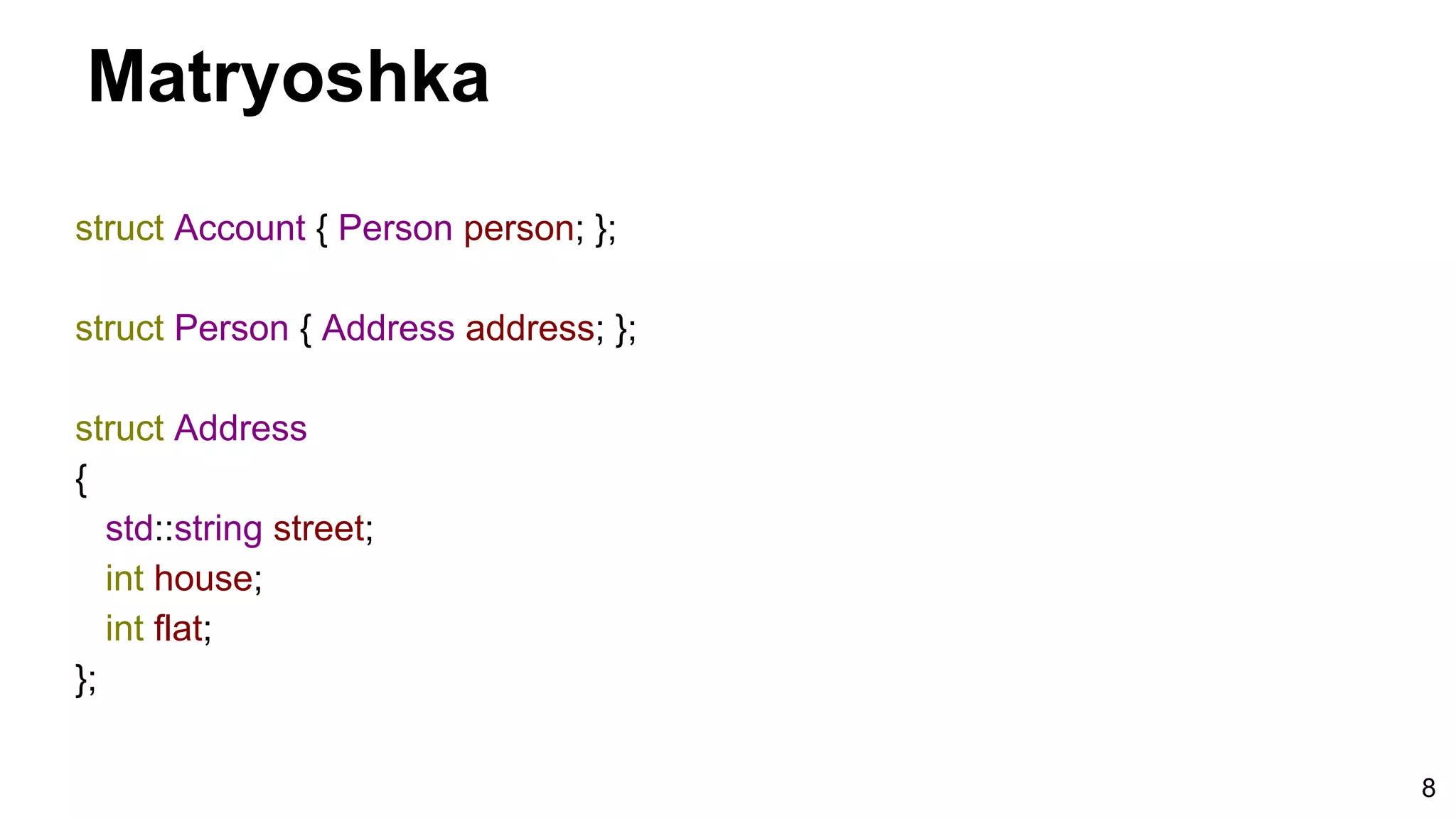

8. 8
Matryoshka
struct Account { Person person; };
struct Person { Address address; };
struct Address
{
std::string street;
int house;
int flat;
};

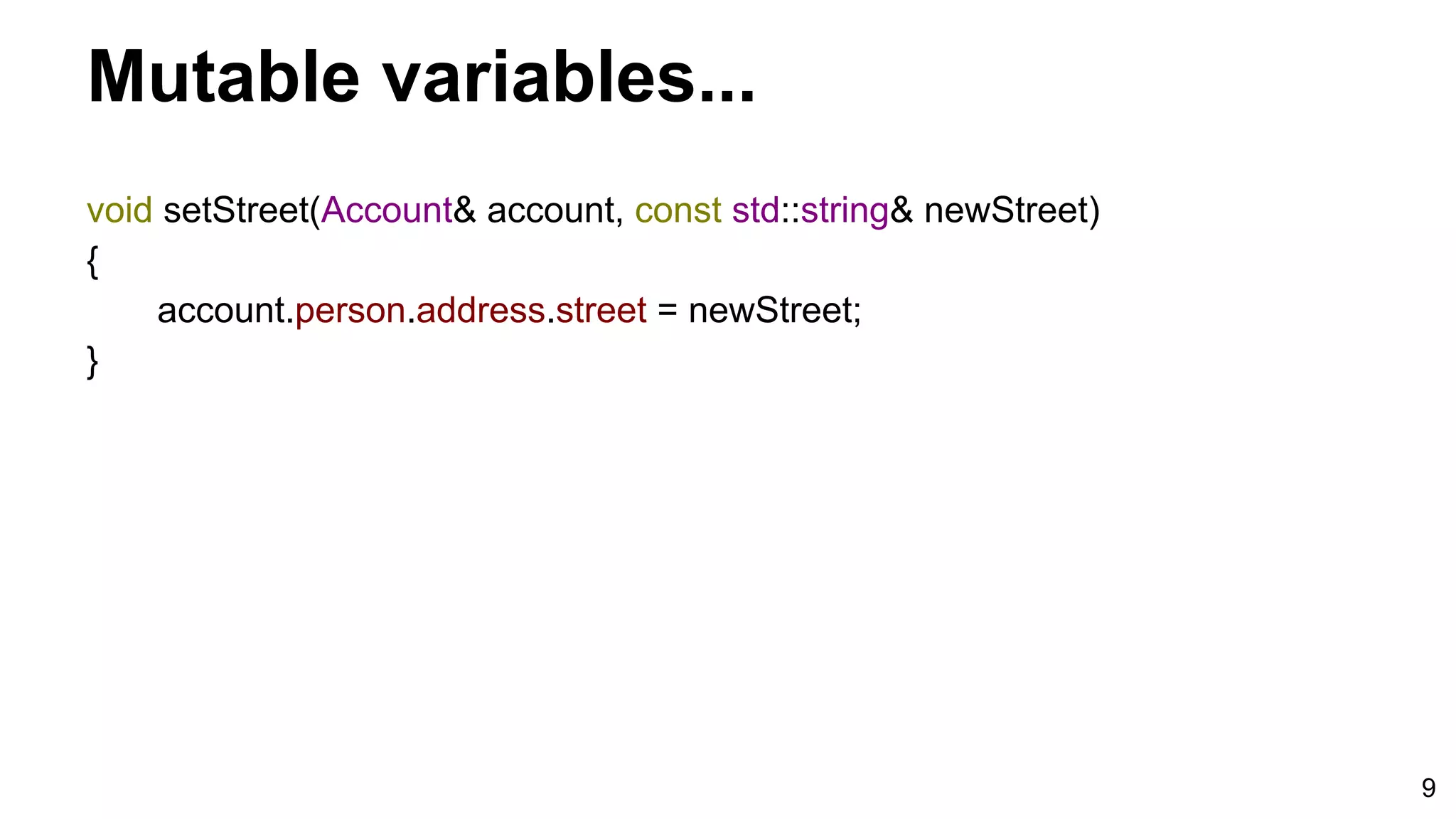

9. 9
Mutable variables...
void setStreet(Account& account, const std::string& newStreet)
{
account.person.address.street = newStreet;
}

10. 10

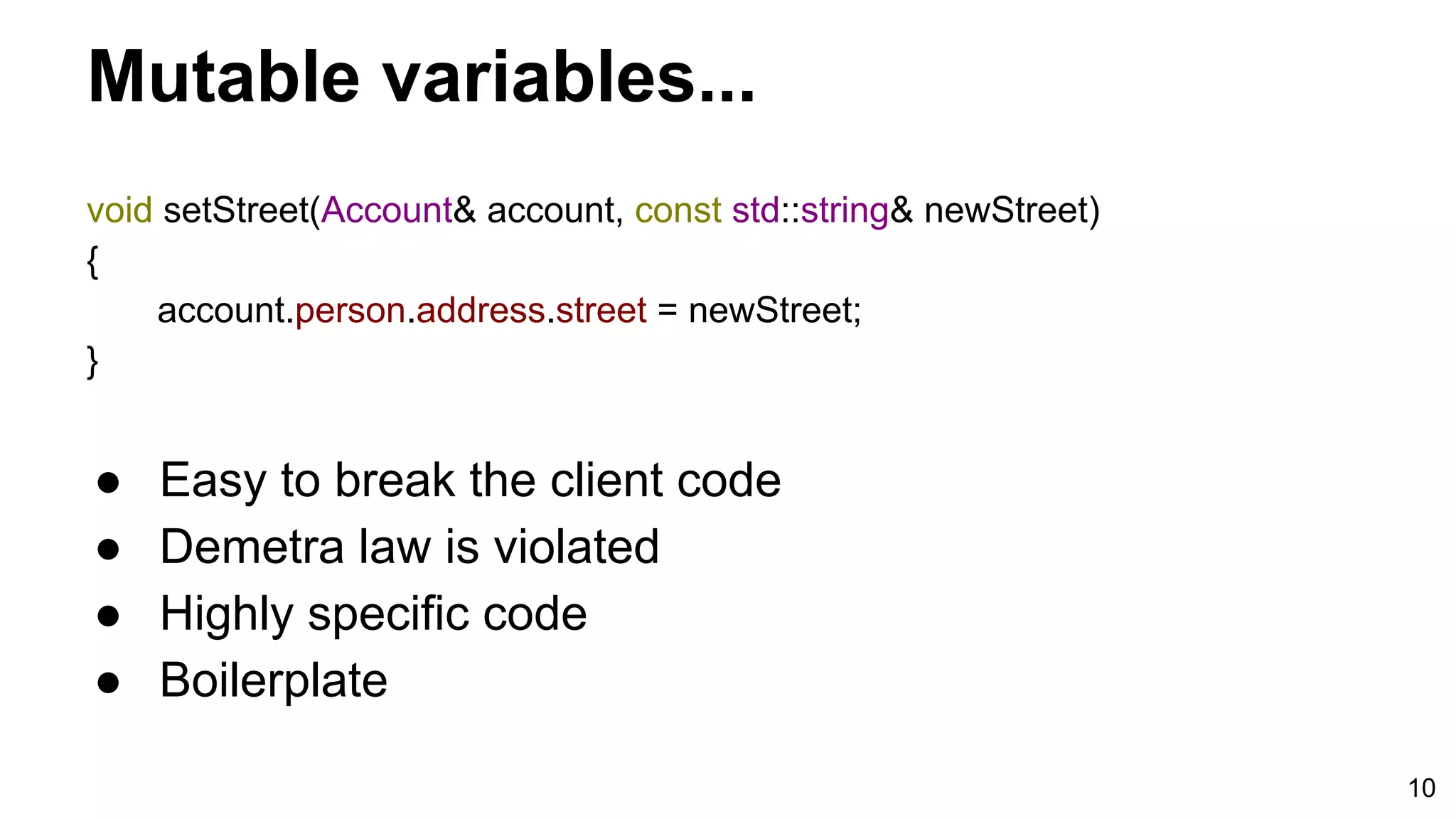

void setStreet(Account& account, const std::string& newStreet)
{
account.person.address.street = newStreet;
}
Mutable variables...
● Easy to break the client code
● Demetra law is violated
● Highly specific code
● Boilerplate

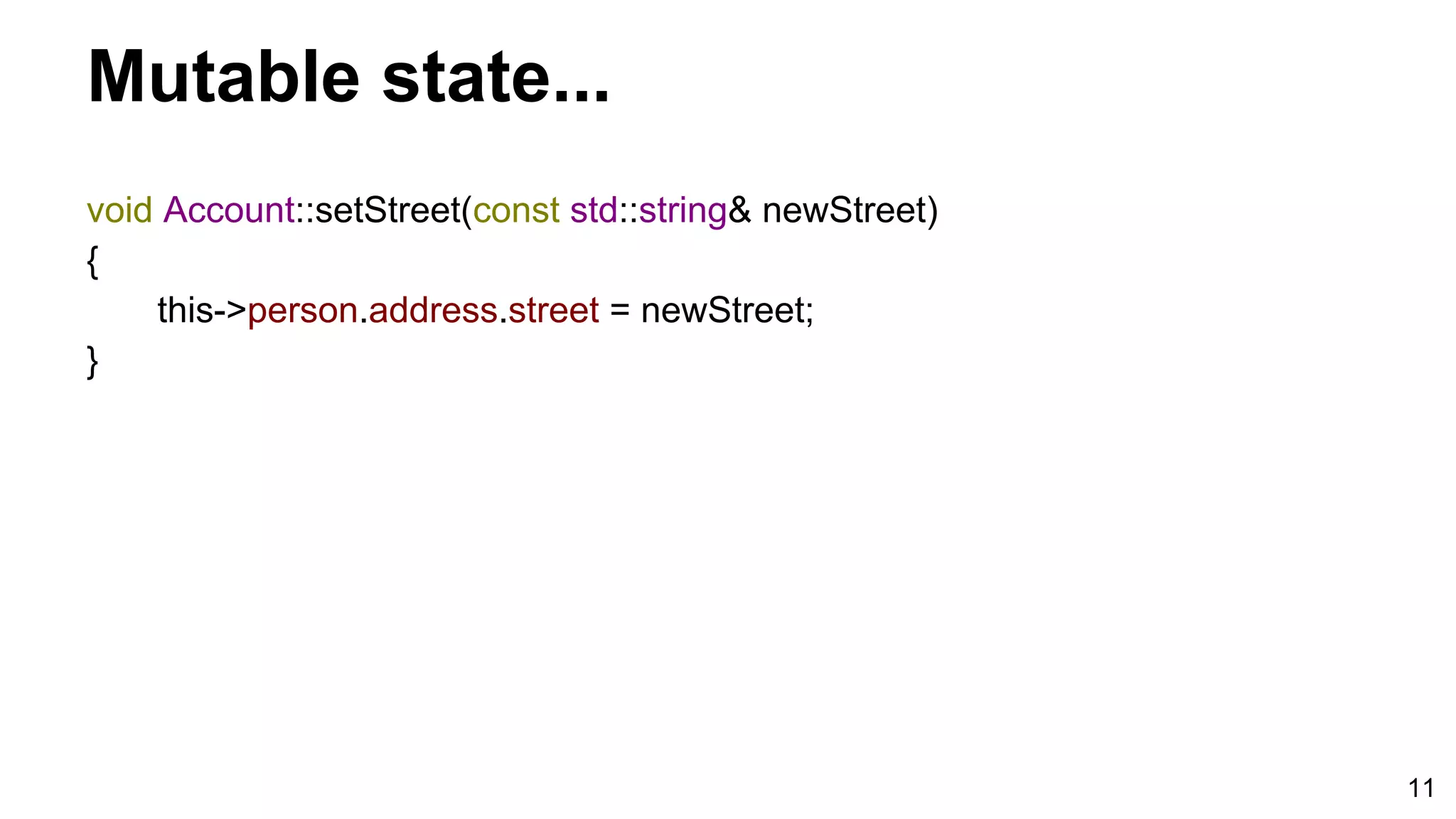

11. 11
Mutable state...
void Account::setStreet(const std::string& newStreet)
{
this->person.address.street = newStreet;
}

12. 12

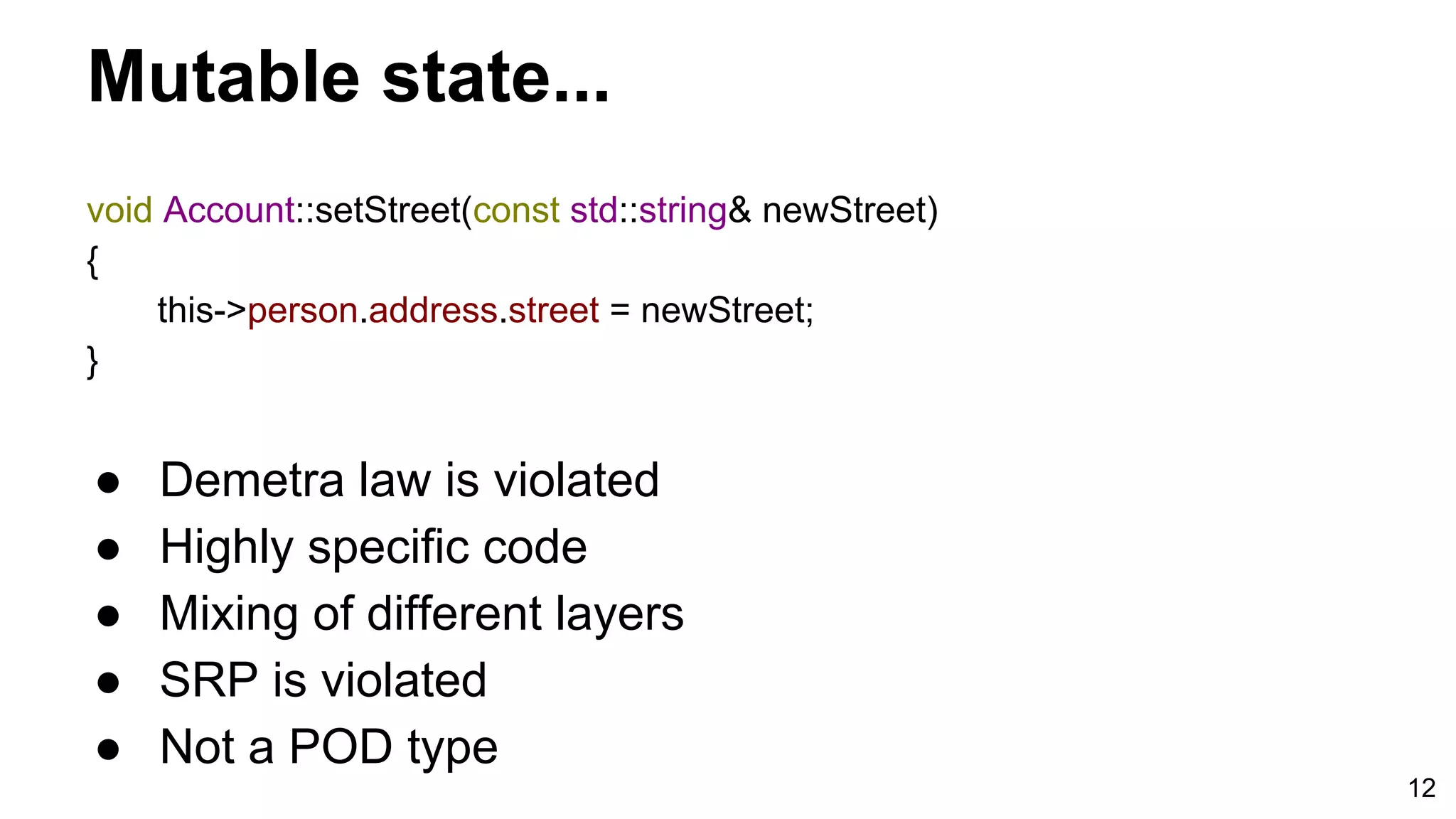

Mutable state...
void Account::setStreet(const std::string& newStreet)
{
this->person.address.street = newStreet;
}
● Demetra law is violated
● Highly specific code
● Mixing of different layers
● SRP is violated
● Not a POD type

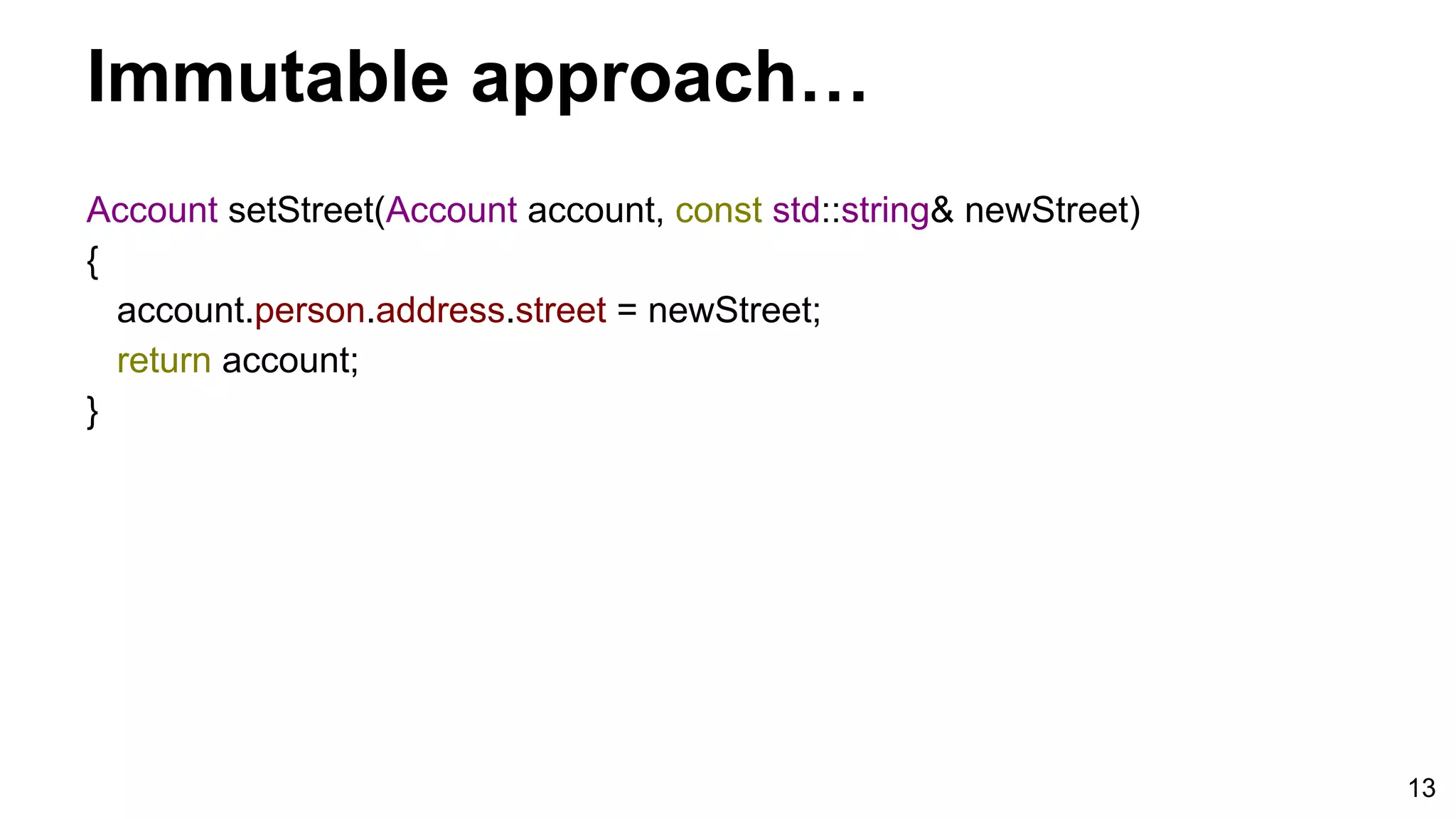

13. 13
Account setStreet(Account account, const std::string& newStreet)
{
account.person.address.street = newStreet;
return account;
}
Immutable approach…

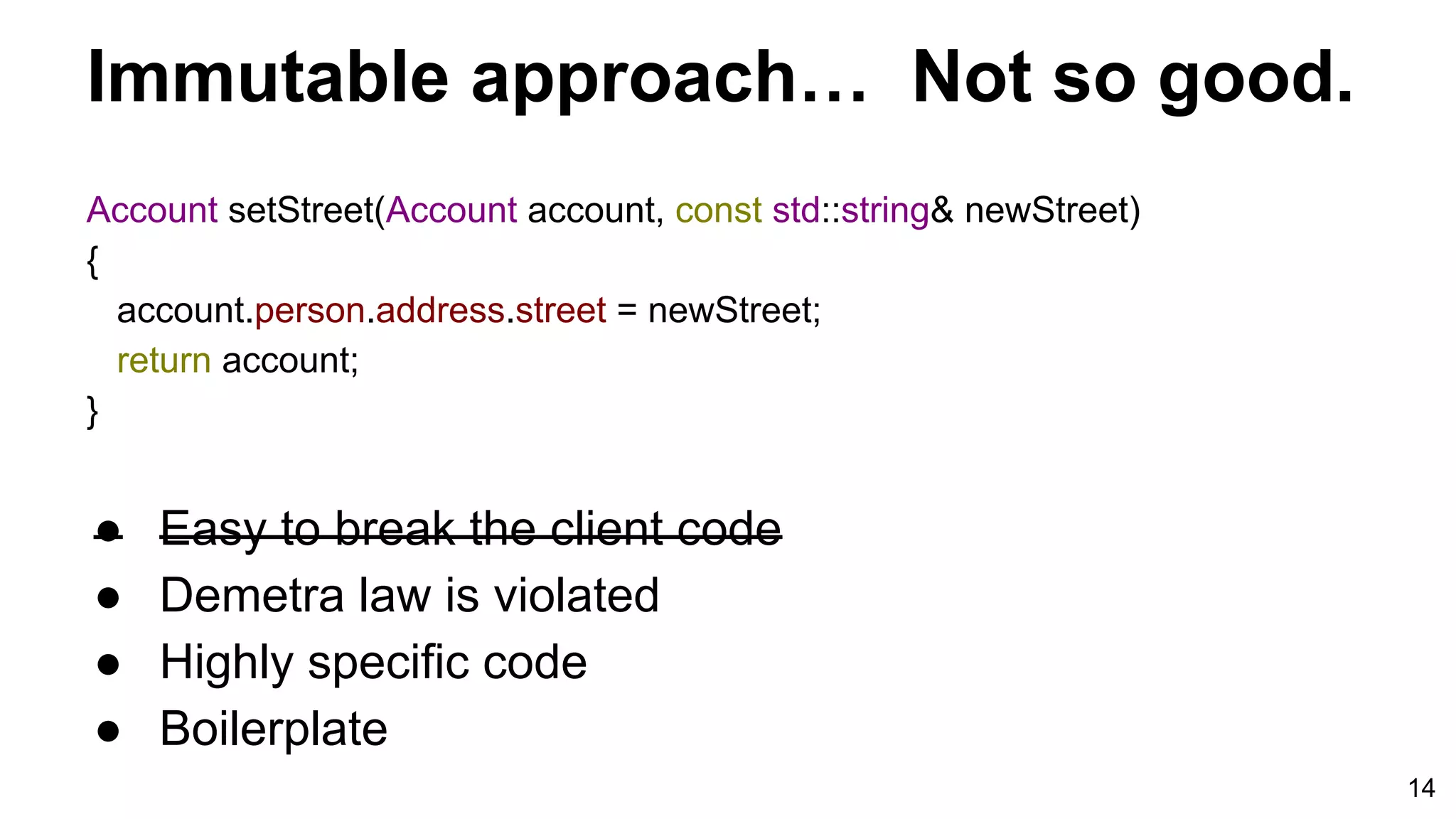

14. 14
Account setStreet(Account account, const std::string& newStreet)
{
account.person.address.street = newStreet;
return account;
}
Immutable approach… Not so good.
● Easy to break the client code
● Demetra law is violated
● Highly specific code
● Boilerplate

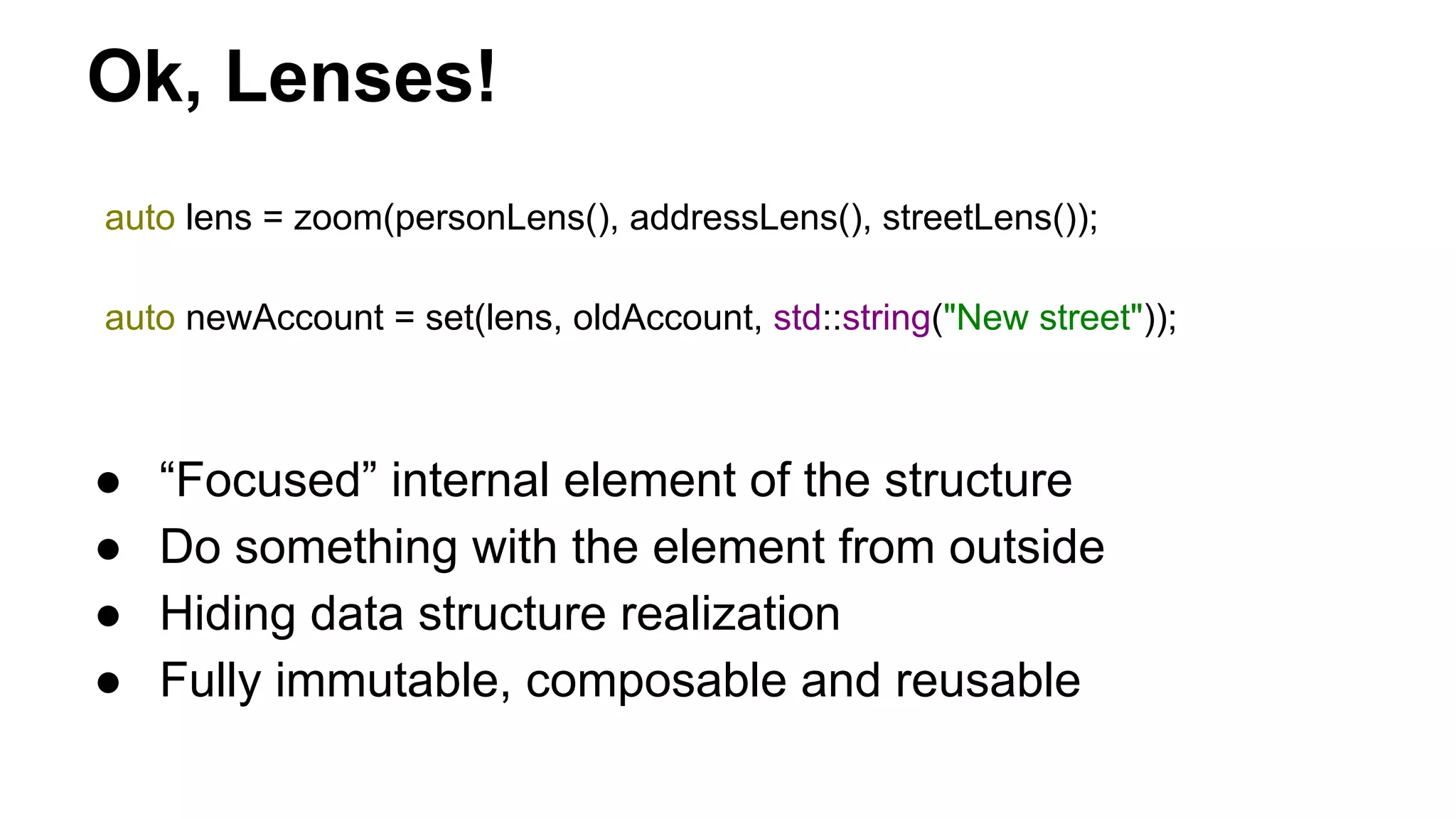

15. Ok, Lenses!
auto lens = zoom(personLens(), addressLens(), streetLens());
auto newAccount = set(lens, oldAccount, std::string("New street"));
● “Focused” internal element of the structure
● Do something with the element from outside
● Hiding data structure realization
● Fully immutable, composable and reusable

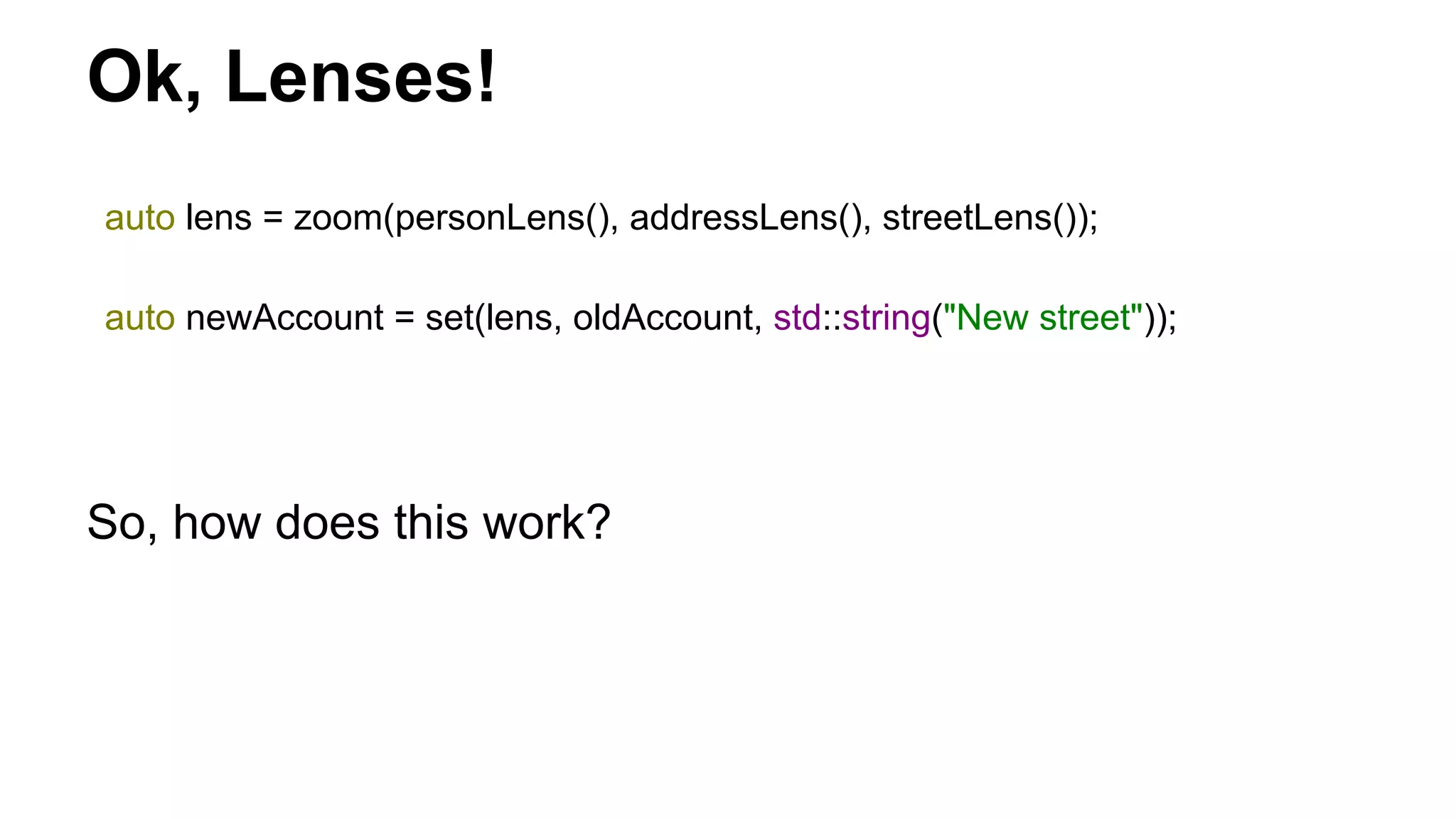

16. Ok, Lenses!
auto lens = zoom(personLens(), addressLens(), streetLens());
auto newAccount = set(lens, oldAccount, std::string("New street"));
So, how does this work?

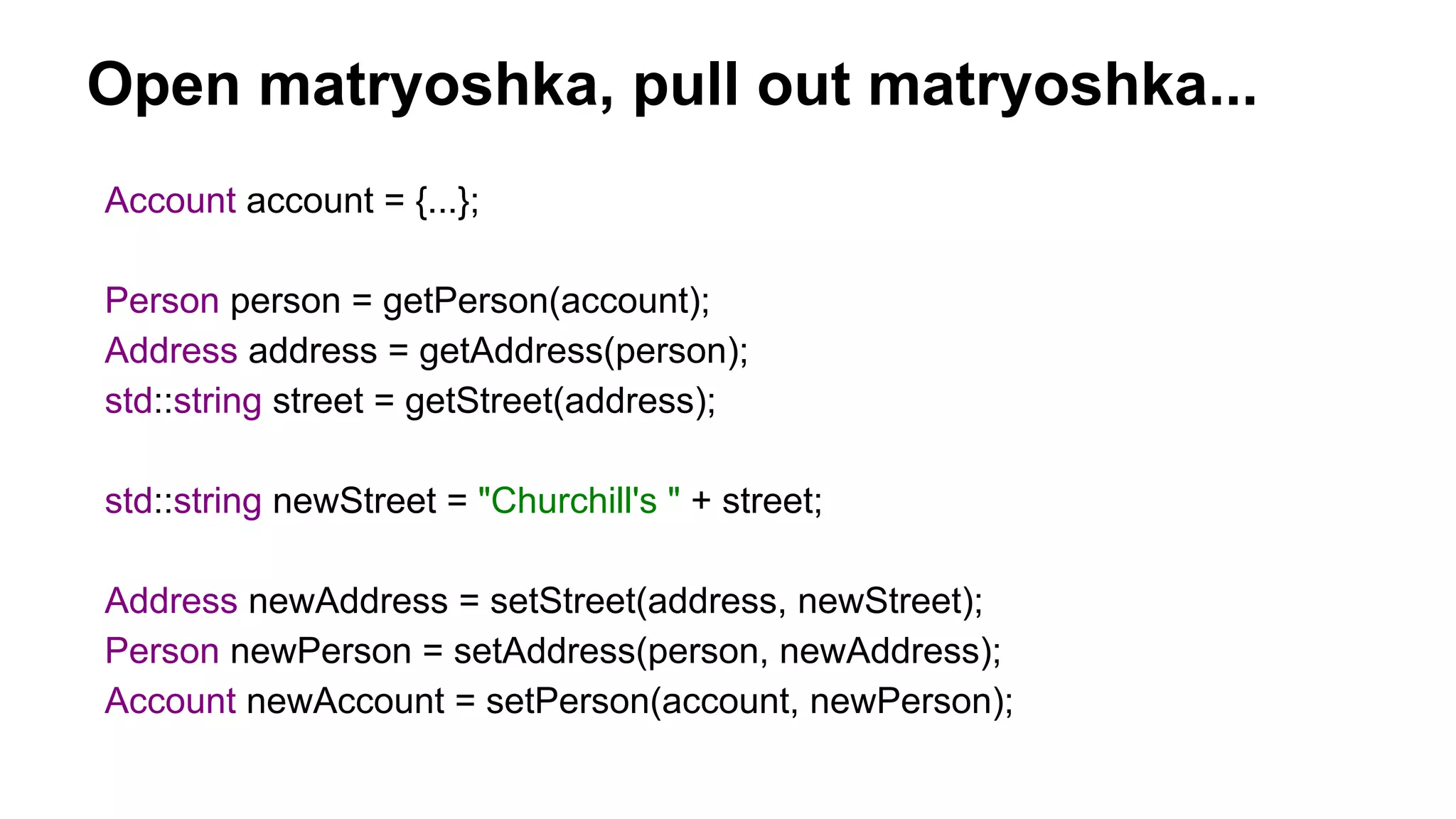

17. Open matryoshka, pull out matryoshka...
Account account = {...};
Person person = getPerson(account);
Address address = getAddress(person);
std::string street = getStreet(address);
std::string newStreet = "Churchill's " + street;
Address newAddress = setStreet(address, newStreet);
Person newPerson = setAddress(person, newAddress);
Account newAccount = setPerson(account, newPerson);

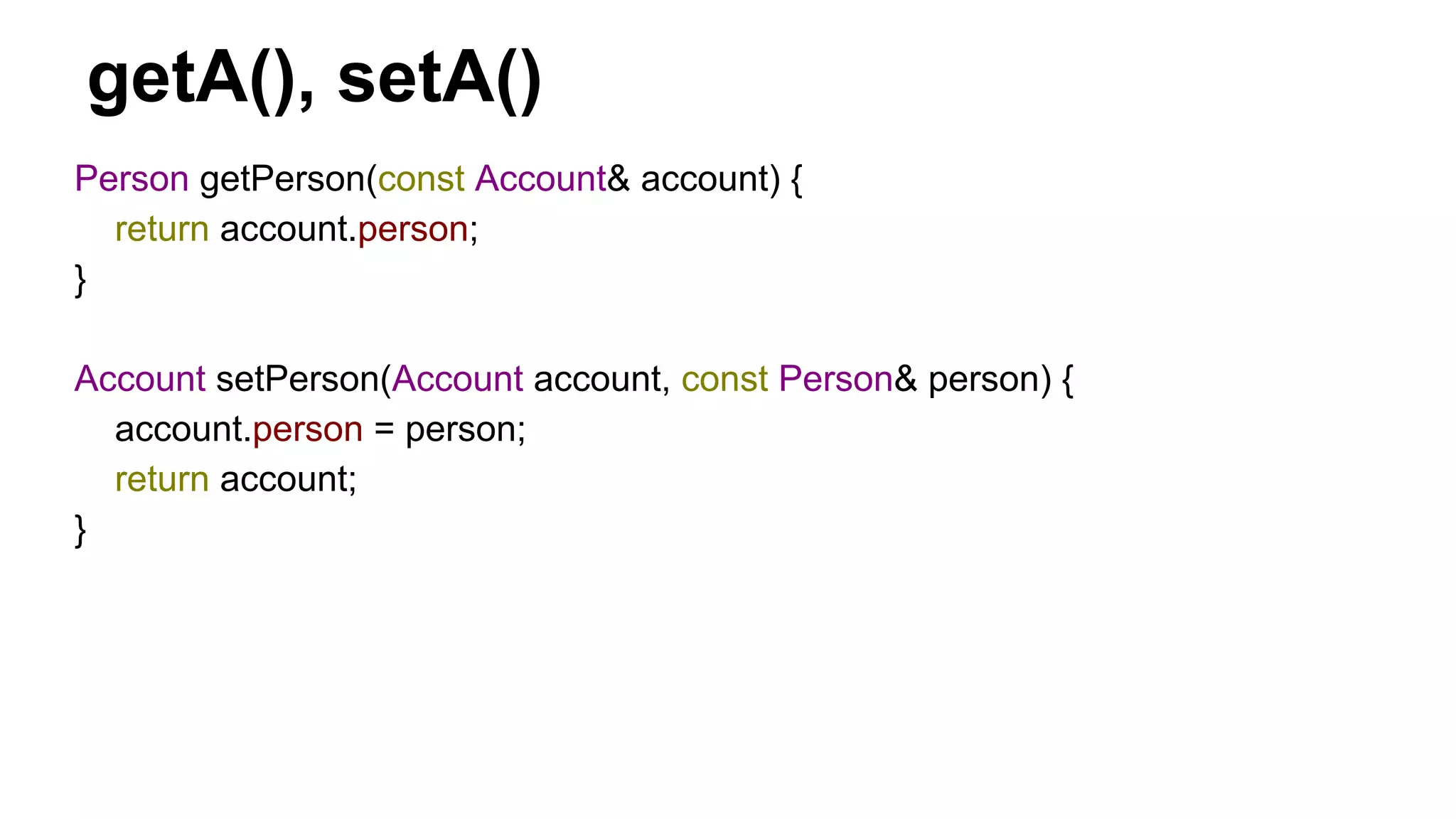

18. Person getPerson(const Account& account) {
return account.person;
}
Account setPerson(Account account, const Person& person) {
account.person = person;
return account;
}
getA(), setA()

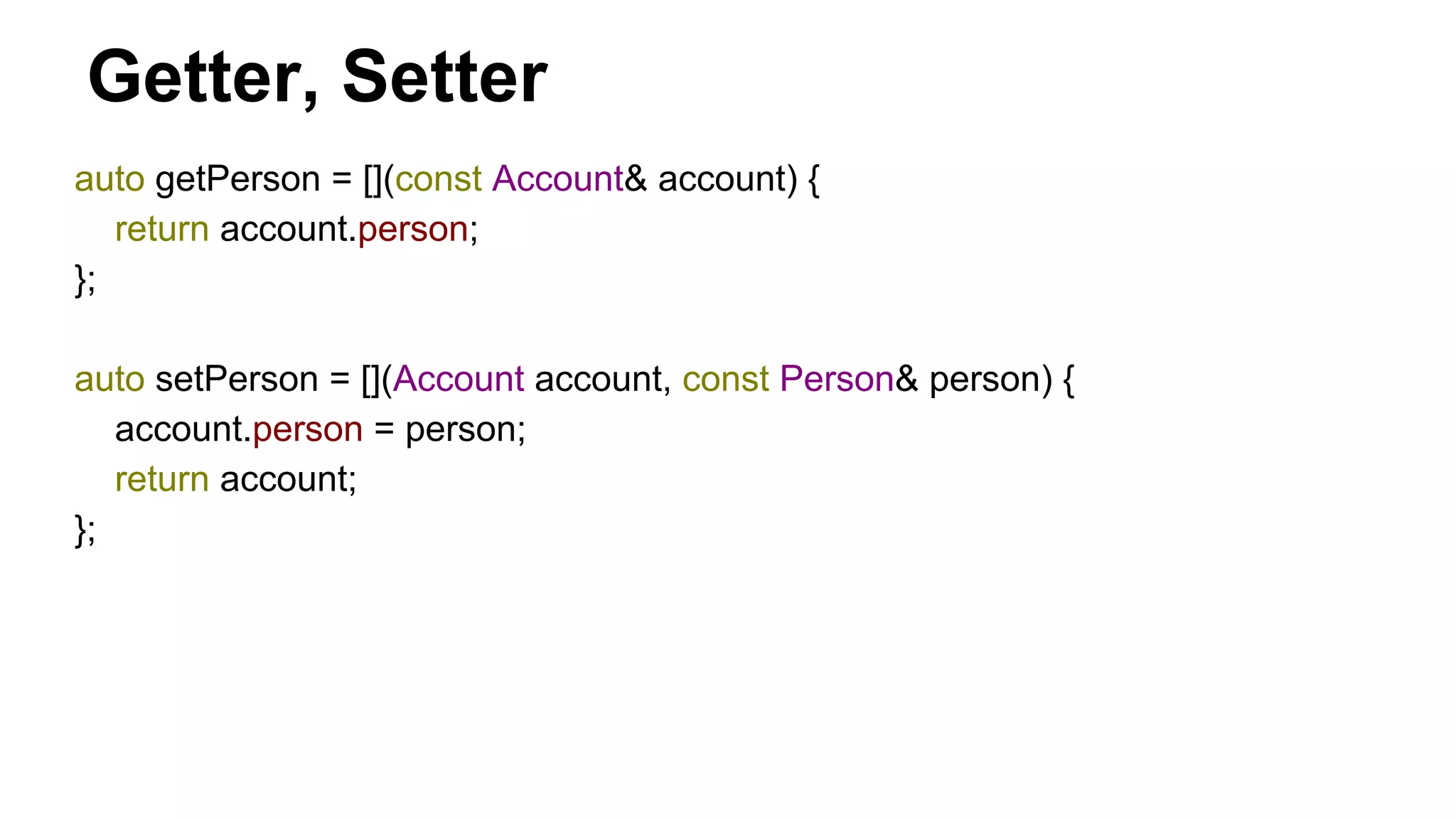

19. auto getPerson = [](const Account& account) {
return account.person;
};
auto setPerson = [](Account account, const Person& person) {
account.person = person;
return account;
};
Getter, Setter

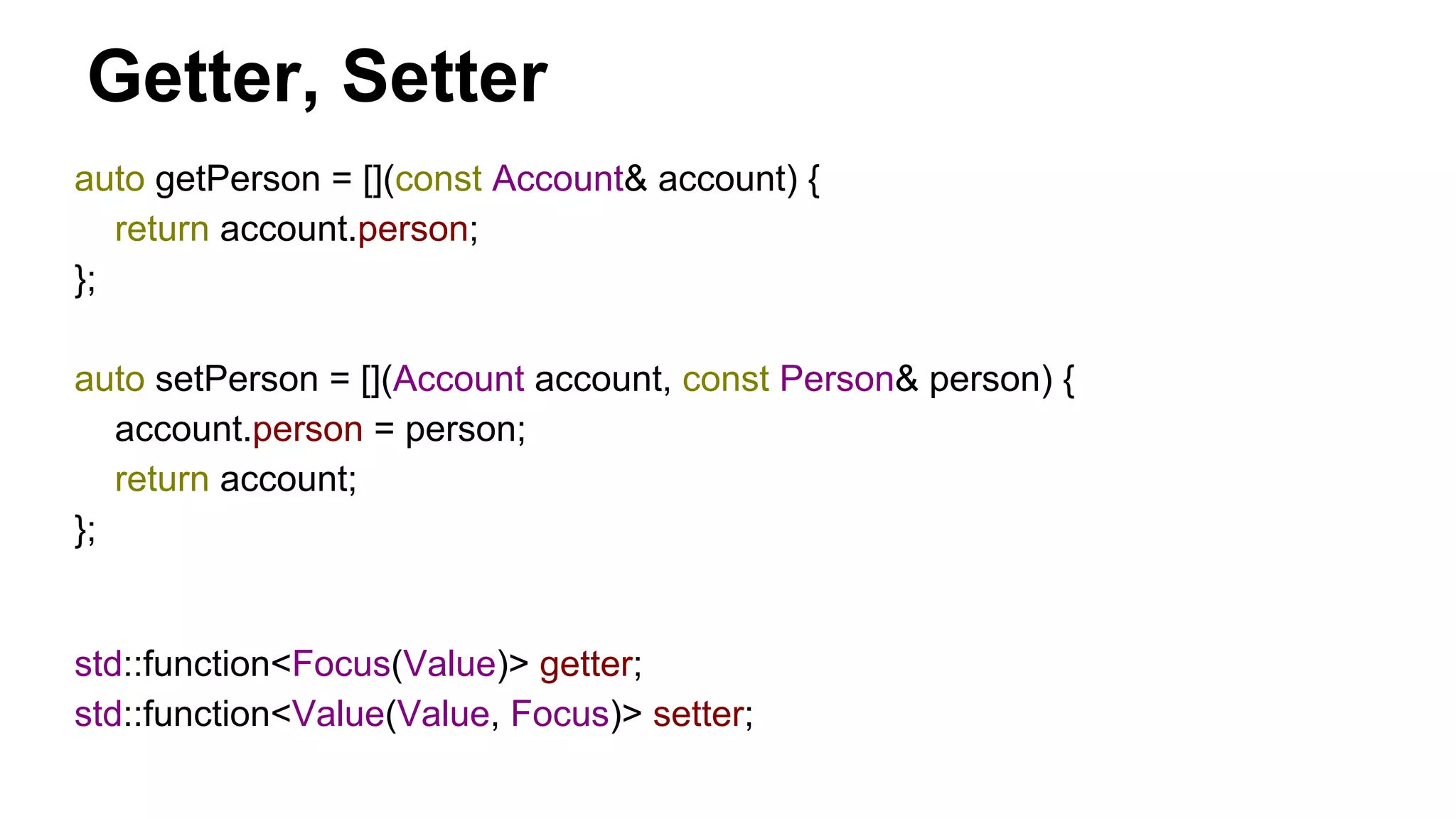

20. auto getPerson = [](const Account& account) {
return account.person;
};
auto setPerson = [](Account account, const Person& person) {
account.person = person;
return account;
};
Getter, Setter
std::function<Focus(Value)> getter;
std::function<Value(Value, Focus)> setter;

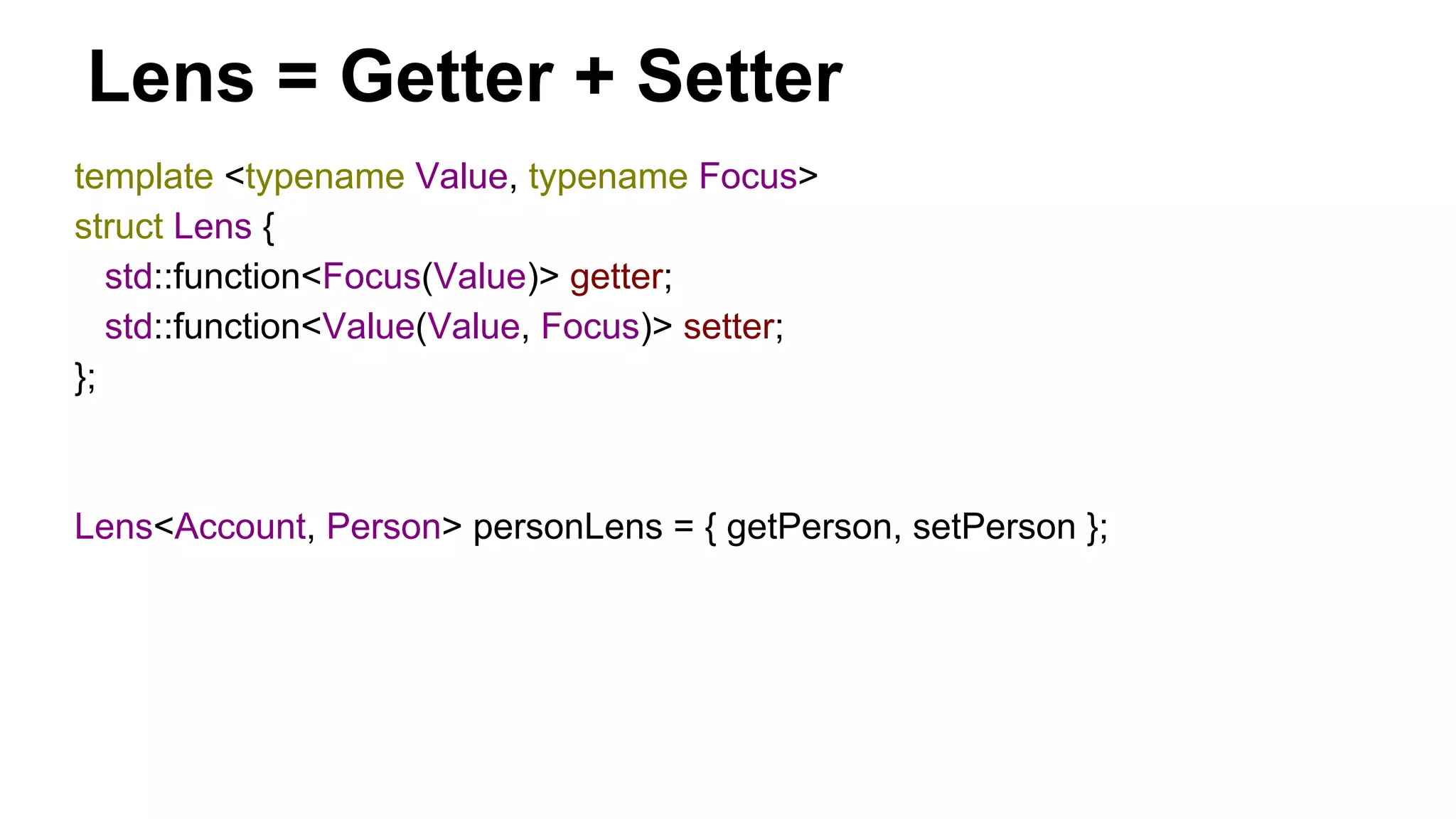

21. template <typename Value, typename Focus>
struct Lens {
std::function<Focus(Value)> getter;
std::function<Value(Value, Focus)> setter;
};
Lens<Account, Person> personLens = { getPerson, setPerson };
Lens = Getter + Setter

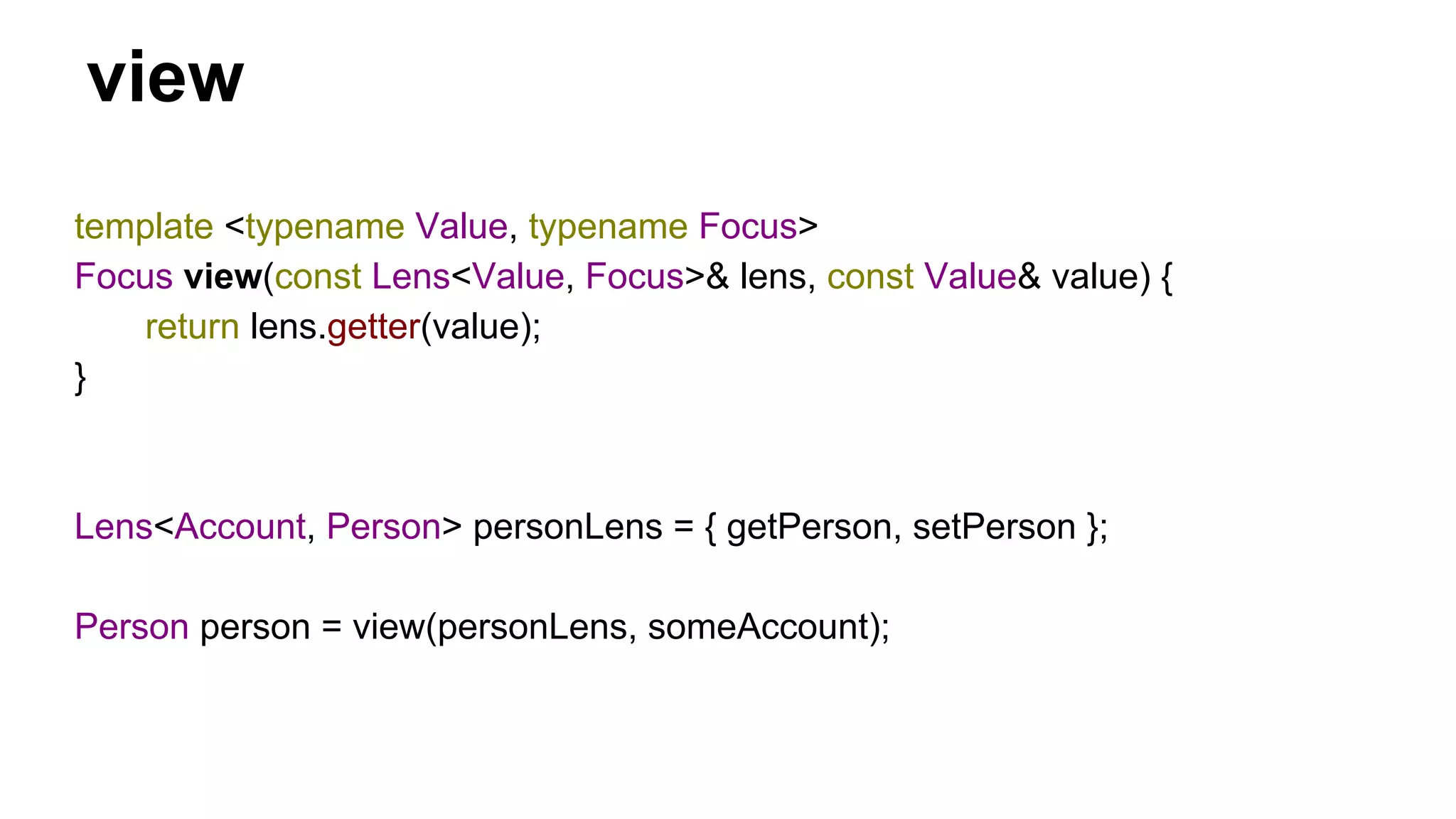

22. view
template <typename Value, typename Focus>
Focus view(const Lens<Value, Focus>& lens, const Value& value) {
return lens.getter(value);
}
Lens<Account, Person> personLens = { getPerson, setPerson };
Person person = view(personLens, someAccount);

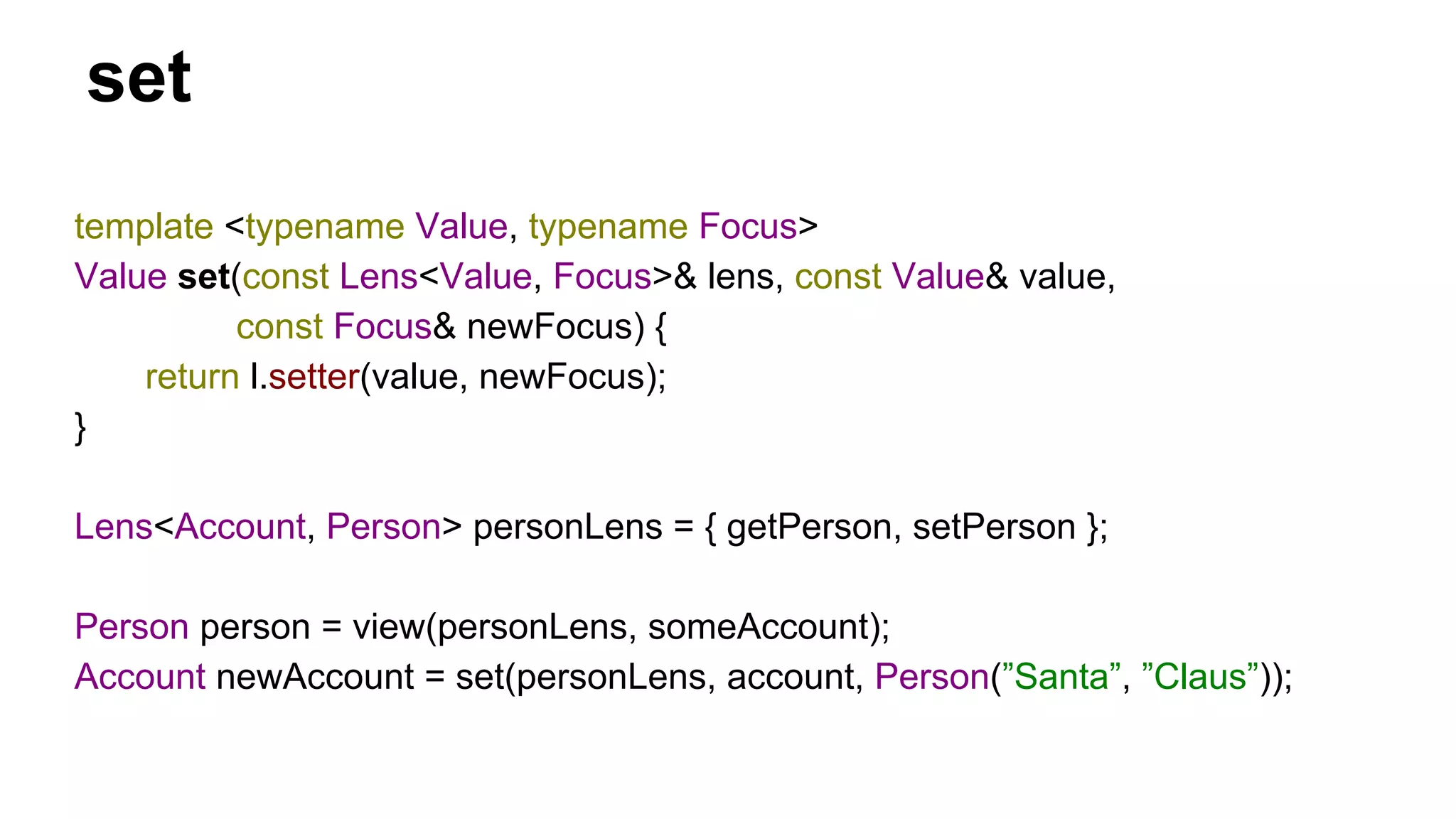

23. set
template <typename Value, typename Focus>
Value set(const Lens<Value, Focus>& lens, const Value& value,
const Focus& newFocus) {
return l.setter(value, newFocus);
}
Lens<Account, Person> personLens = { getPerson, setPerson };
Person person = view(personLens, someAccount);
Account newAccount = set(personLens, account, Person(”Santa”, ”Claus”));

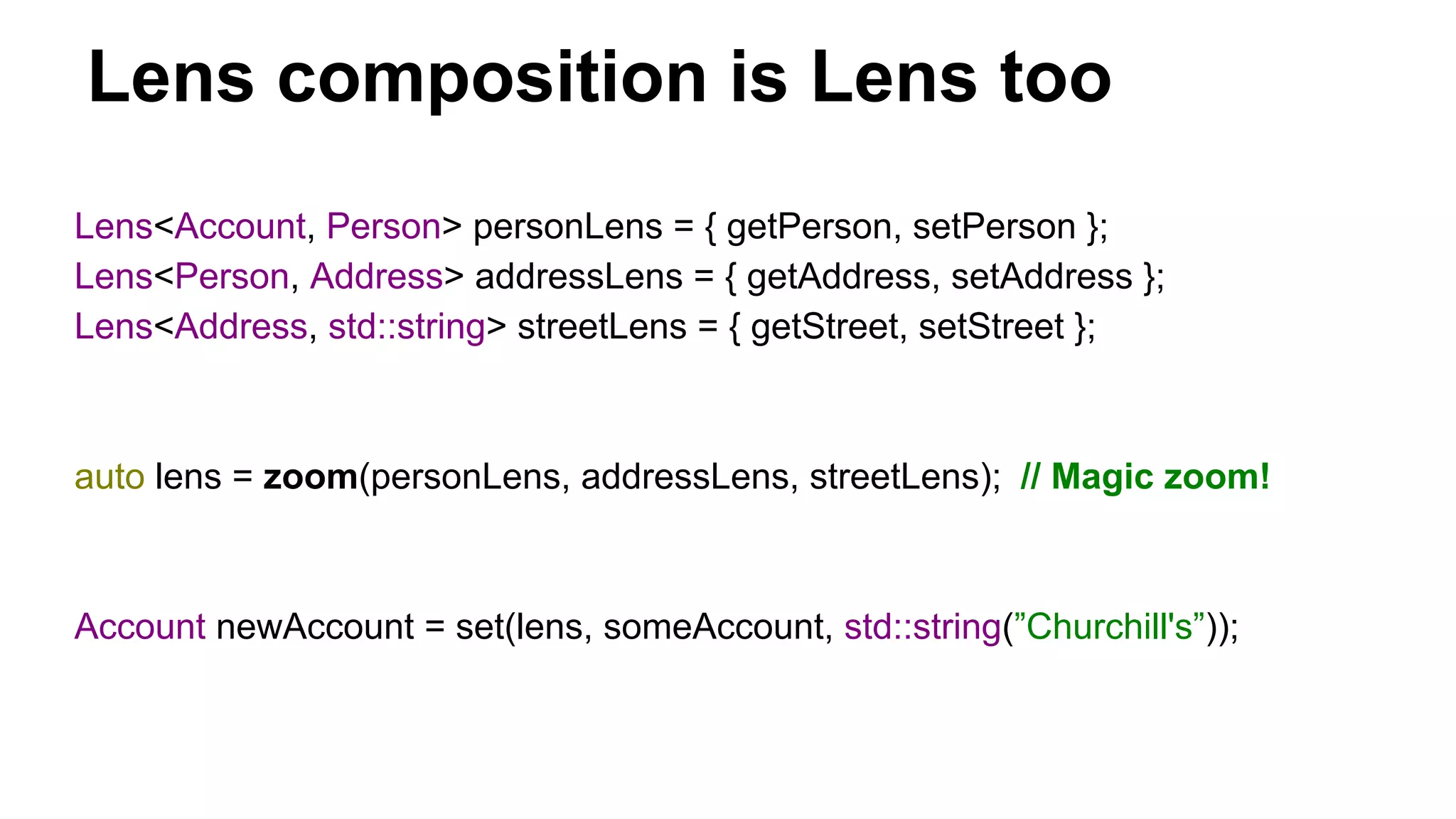

24. Lens composition is Lens too
Lens<Account, Person> personLens = { getPerson, setPerson };
Lens<Person, Address> addressLens = { getAddress, setAddress };
Lens<Address, std::string> streetLens = { getStreet, setStreet };
auto lens = zoom(personLens, addressLens, streetLens); // Magic zoom!
Account newAccount = set(lens, someAccount, std::string(”Churchill's”));

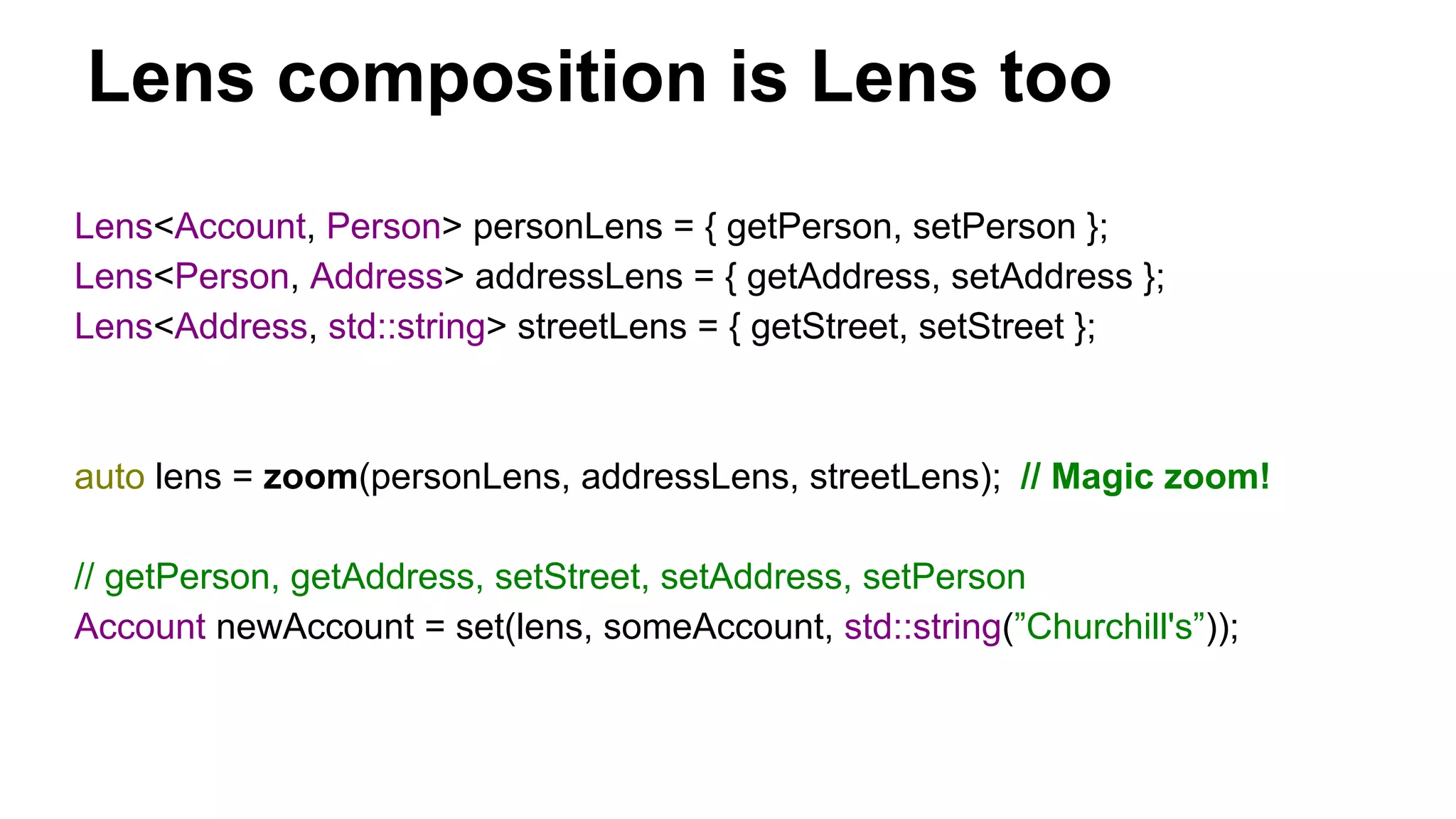

25. Lens composition is Lens too
Lens<Account, Person> personLens = { getPerson, setPerson };
Lens<Person, Address> addressLens = { getAddress, setAddress };
Lens<Address, std::string> streetLens = { getStreet, setStreet };
auto lens = zoom(personLens, addressLens, streetLens); // Magic zoom!
// getPerson, getAddress, setStreet, setAddress, setPerson
Account newAccount = set(lens, someAccount, std::string(”Churchill's”));

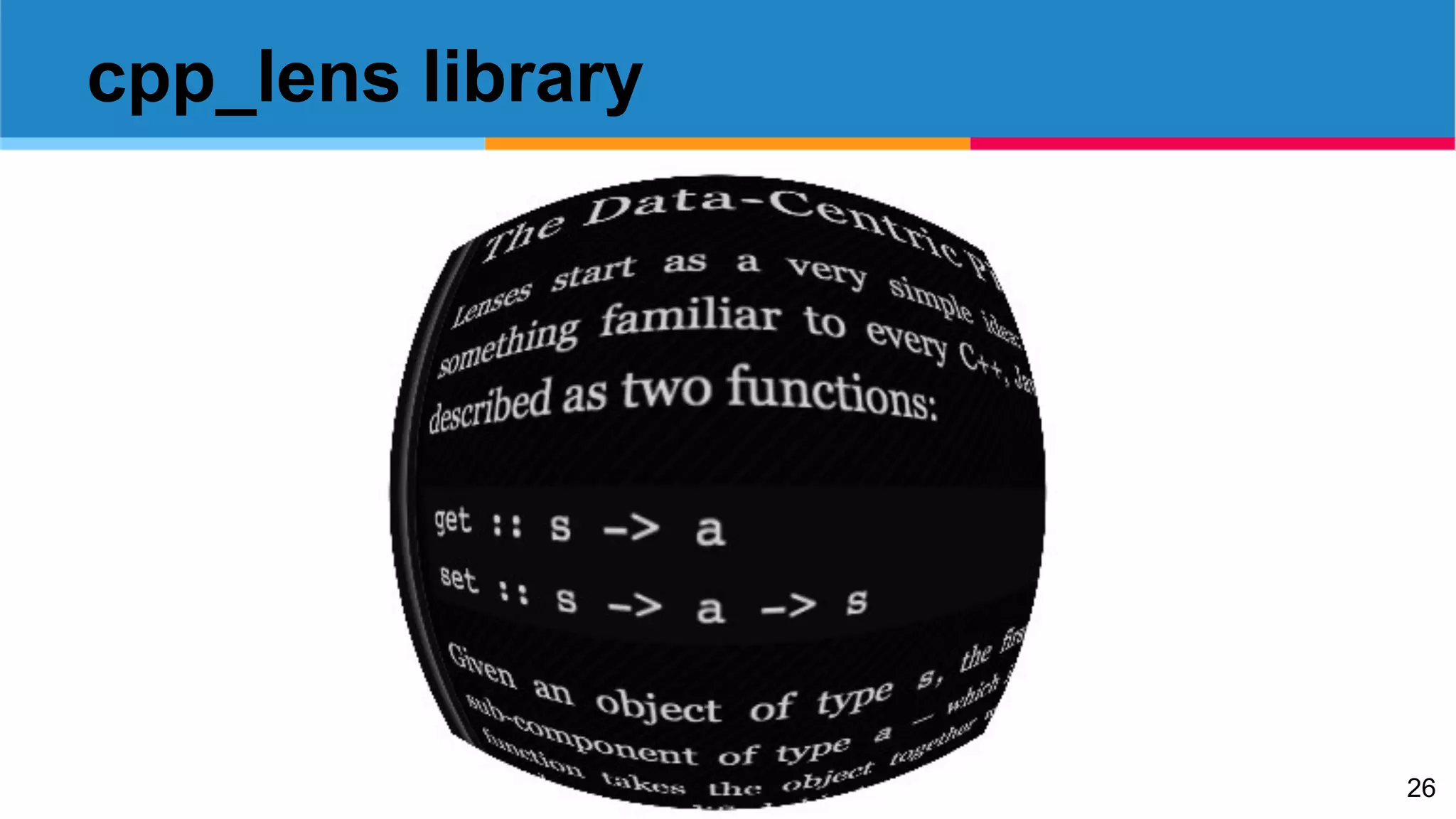

26. 26
cpp_lens library

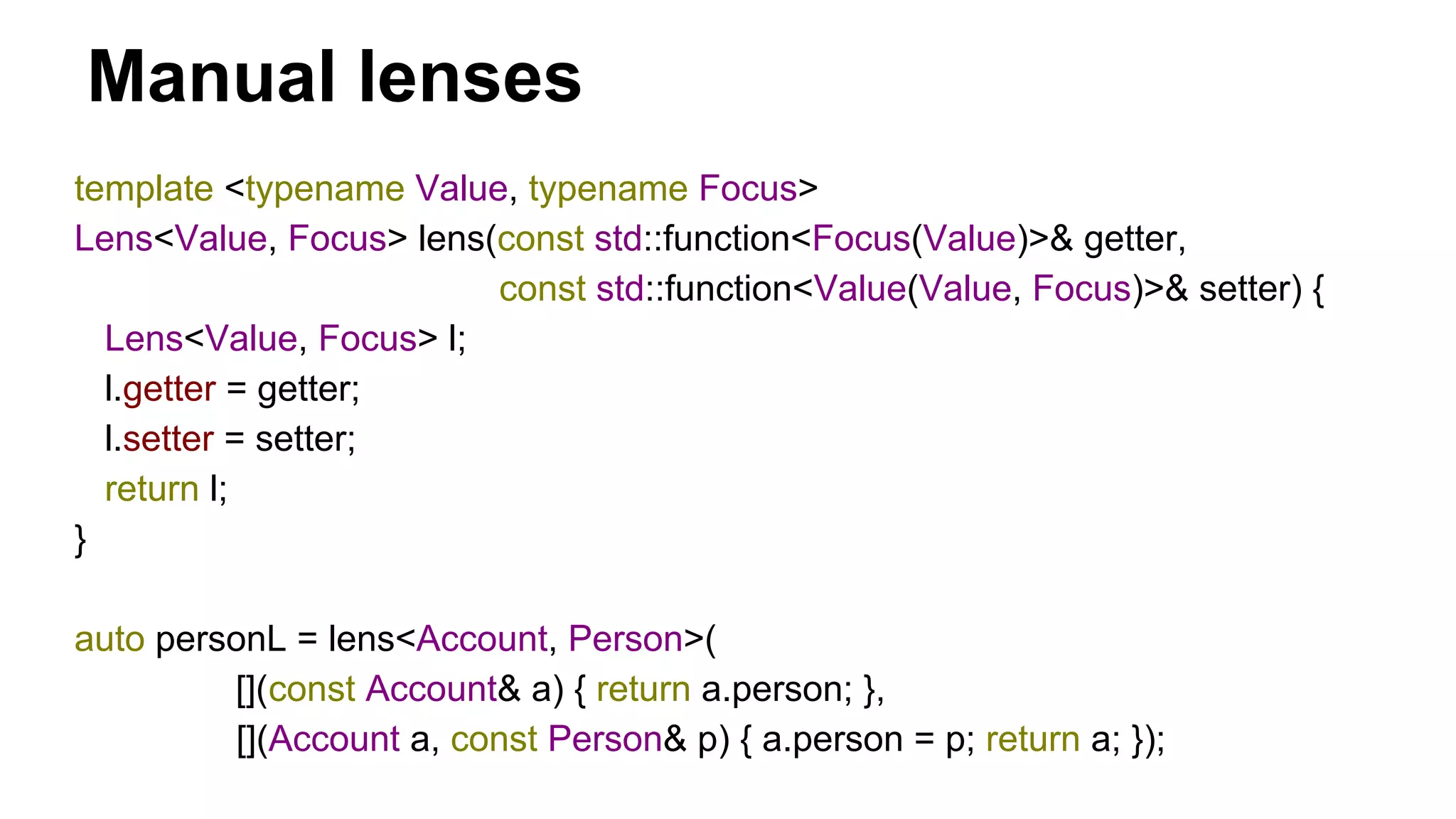

27. Manual lenses
template <typename Value, typename Focus>
Lens<Value, Focus> lens(const std::function<Focus(Value)>& getter,
const std::function<Value(Value, Focus)>& setter) {
Lens<Value, Focus> l;
l.getter = getter;
l.setter = setter;
return l;
}
auto personL = lens<Account, Person>(
[](const Account& a) { return a.person; },
[](Account a, const Person& p) { a.person = p; return a; });

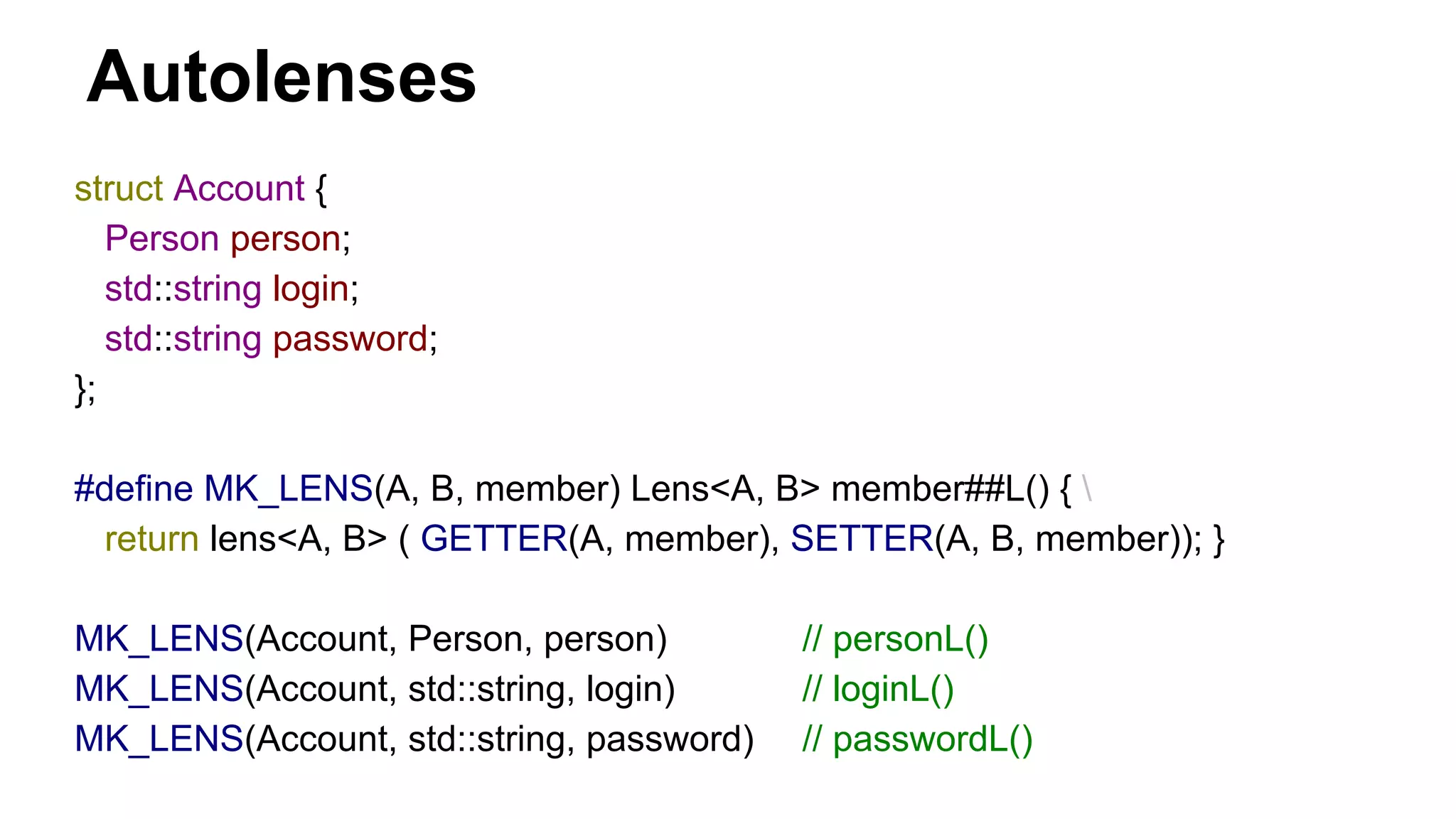

28. Autolenses
struct Account {
Person person;
std::string login;
std::string password;
};
#define MK_LENS(A, B, member) Lens<A, B> member##L() {
return lens<A, B> ( GETTER(A, member), SETTER(A, B, member)); }
MK_LENS(Account, Person, person) // personL()
MK_LENS(Account, std::string, login) // loginL()
MK_LENS(Account, std::string, password) // passwordL()

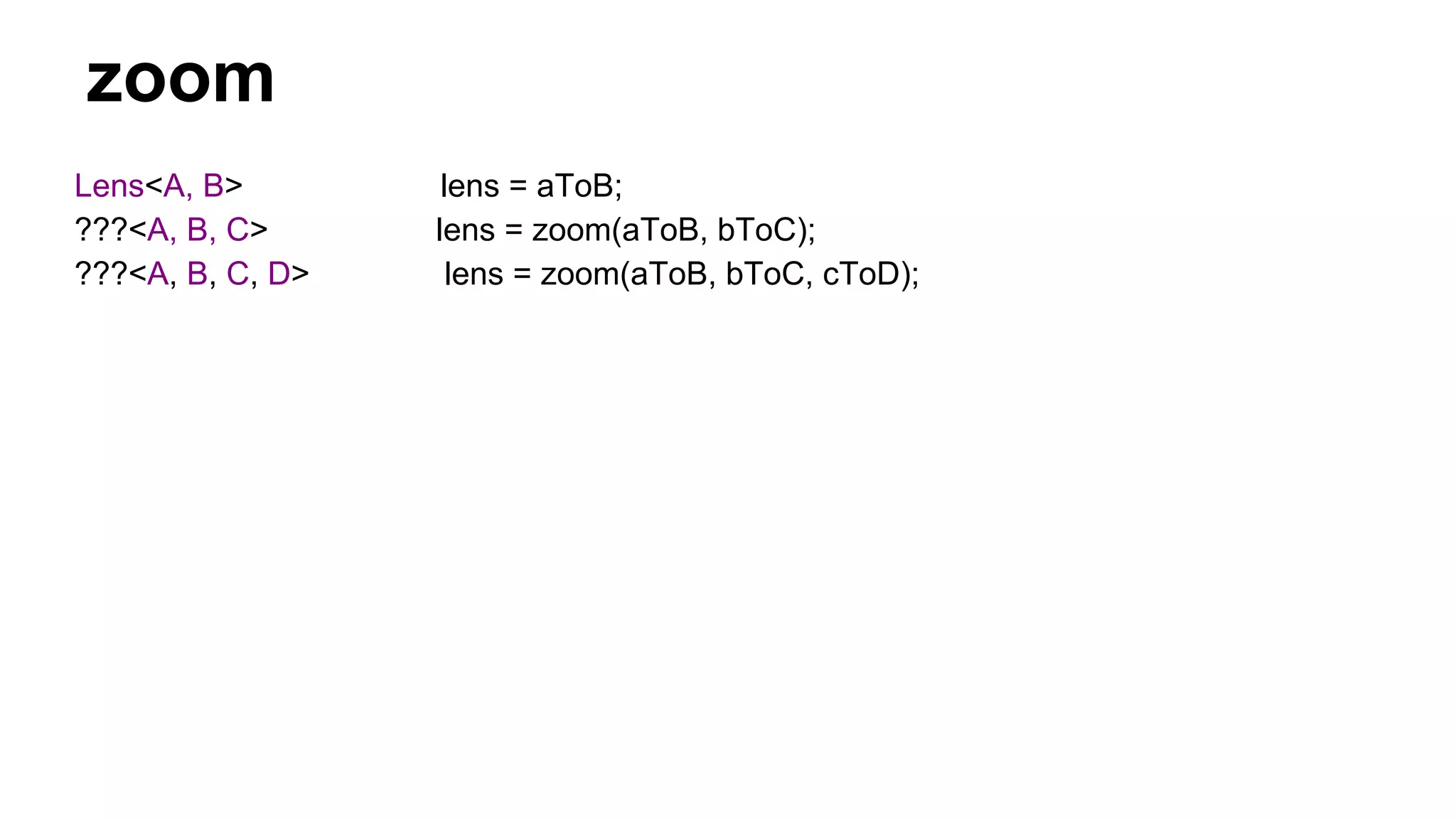

29. zoom
Lens<A, B> lens = aToB;
???<A, B, C> lens = zoom(aToB, bToC);
???<A, B, C, D> lens = zoom(aToB, bToC, cToD);

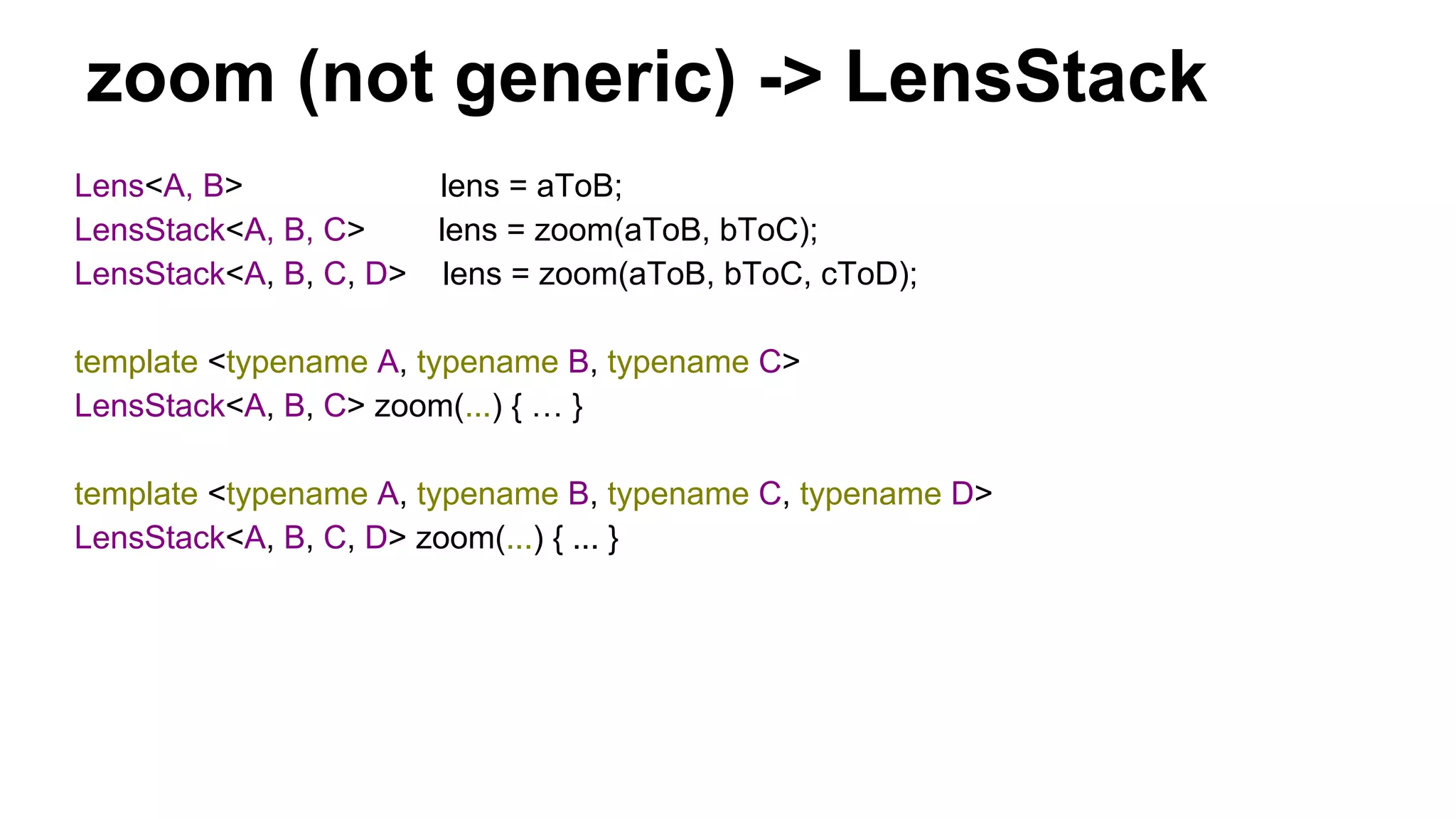

30. zoom (not generic) -> LensStack
Lens<A, B> lens = aToB;
LensStack<A, B, C> lens = zoom(aToB, bToC);
LensStack<A, B, C, D> lens = zoom(aToB, bToC, cToD);
template <typename A, typename B, typename C>
LensStack<A, B, C> zoom(...) { … }
template <typename A, typename B, typename C, typename D>
LensStack<A, B, C, D> zoom(...) { ... }

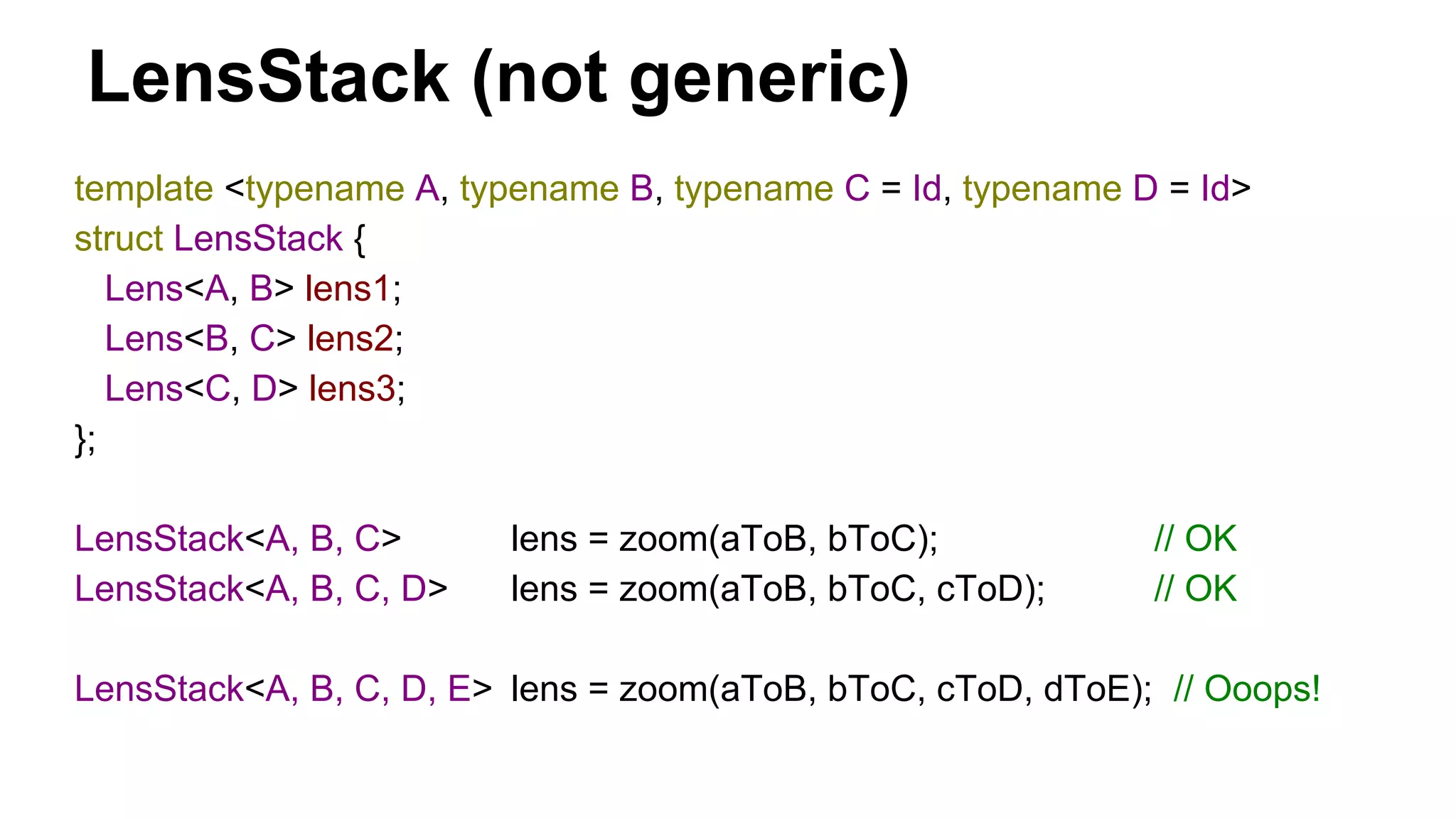

31. LensStack (not generic)
template <typename A, typename B, typename C = Id, typename D = Id>
struct LensStack {
Lens<A, B> lens1;
Lens<B, C> lens2;
Lens<C, D> lens3;
};
LensStack<A, B, C> lens = zoom(aToB, bToC); // OK
LensStack<A, B, C, D> lens = zoom(aToB, bToC, cToD); // OK
LensStack<A, B, C, D, E> lens = zoom(aToB, bToC, cToD, dToE); // Ooops!

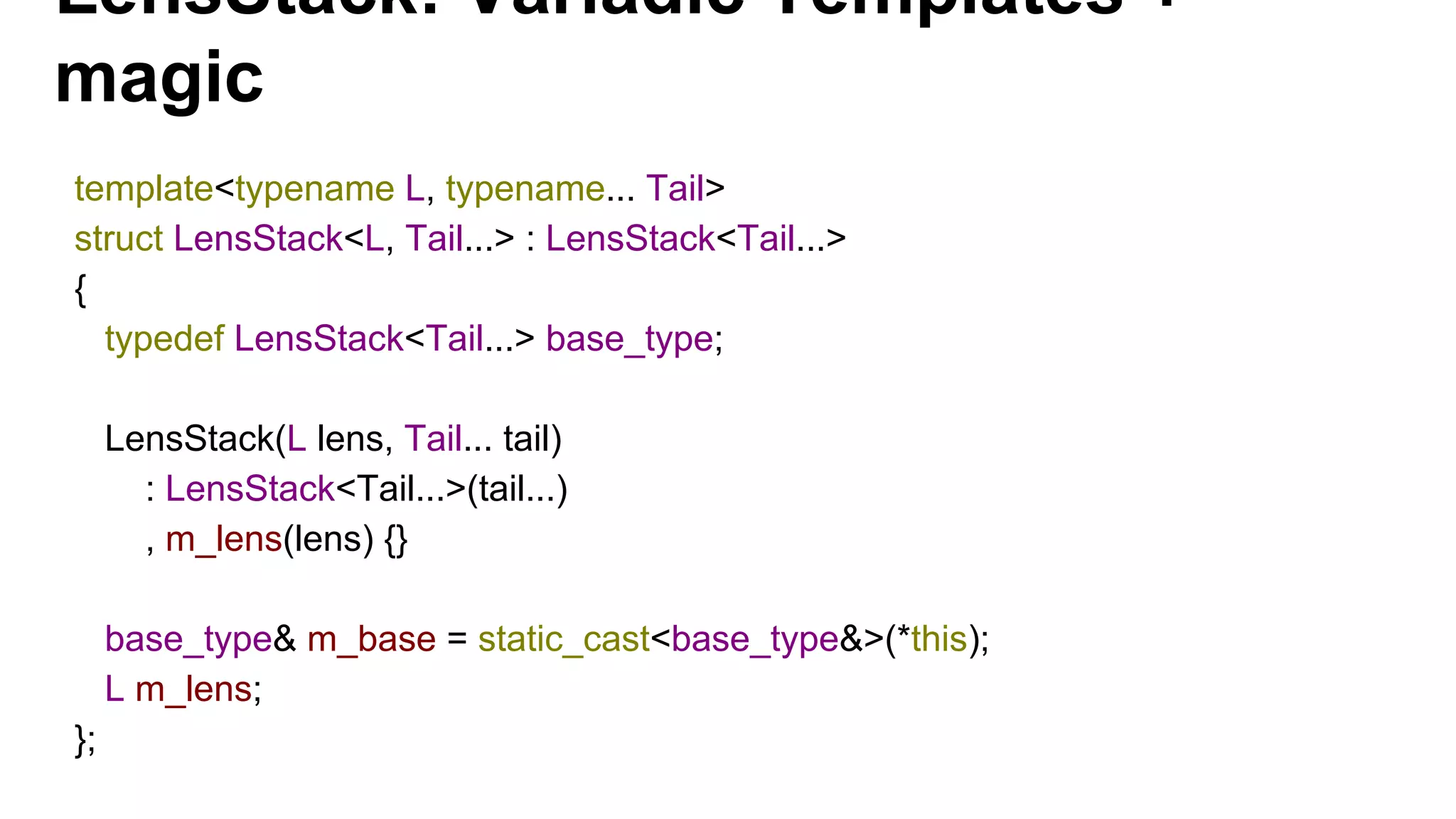

32. LensStack: Variadic Templates +
magic
template<typename L, typename... Tail>
struct LensStack<L, Tail...> : LensStack<Tail...>
{
typedef LensStack<Tail...> base_type;
LensStack(L lens, Tail... tail)
: LensStack<Tail...>(tail...)
, m_lens(lens) {}
base_type& m_base = static_cast<base_type&>(*this);
L m_lens;
};

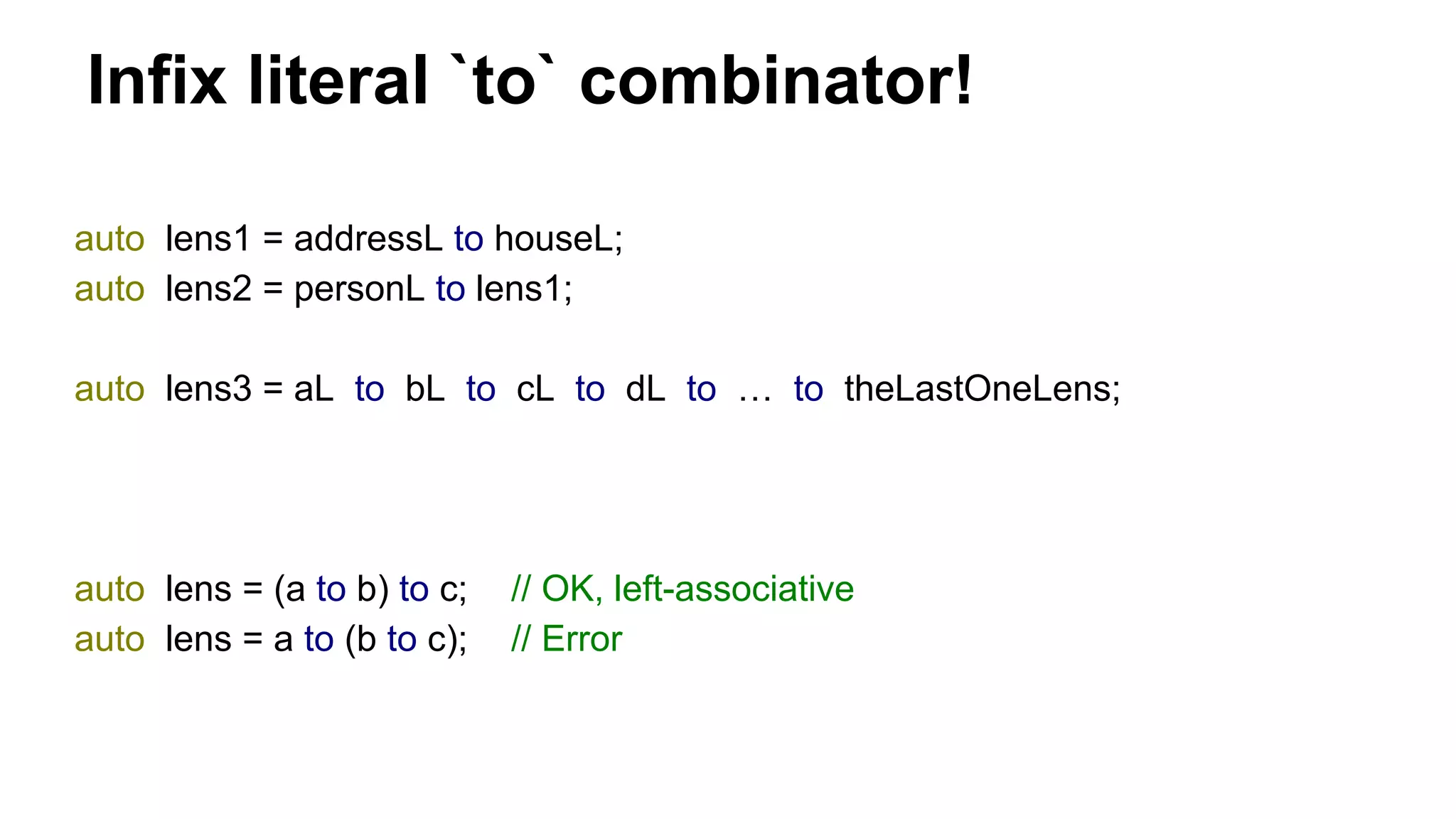

33. Infix literal `to` combinator!
auto lens1 = addressL to houseL;
auto lens2 = personL to lens1;
auto lens3 = aL to bL to cL to dL to … to theLastOneLens;
auto lens = (a to b) to c; // OK, left-associative
auto lens = a to (b to c); // Error

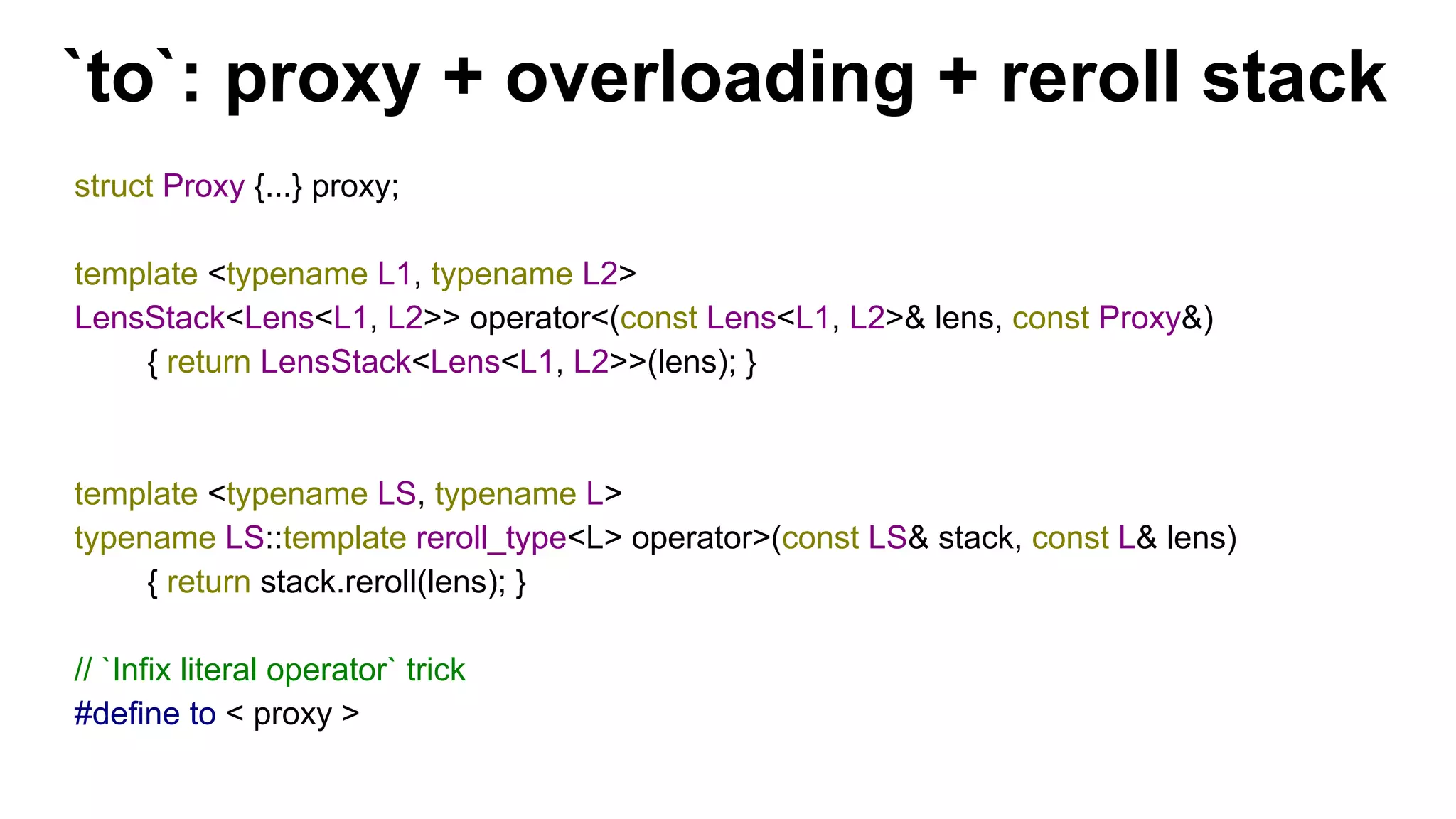

34. `to`: proxy + overloading + reroll stack
struct Proxy {...} proxy;
template <typename L1, typename L2>
LensStack<Lens<L1, L2>> operator<(const Lens<L1, L2>& lens, const Proxy&)
{ return LensStack<Lens<L1, L2>>(lens); }
template <typename LS, typename L>
typename LS::template reroll_type<L> operator>(const LS& stack, const L& lens)
{ return stack.reroll(lens); }
// `Infix literal operator` trick
#define to < proxy >

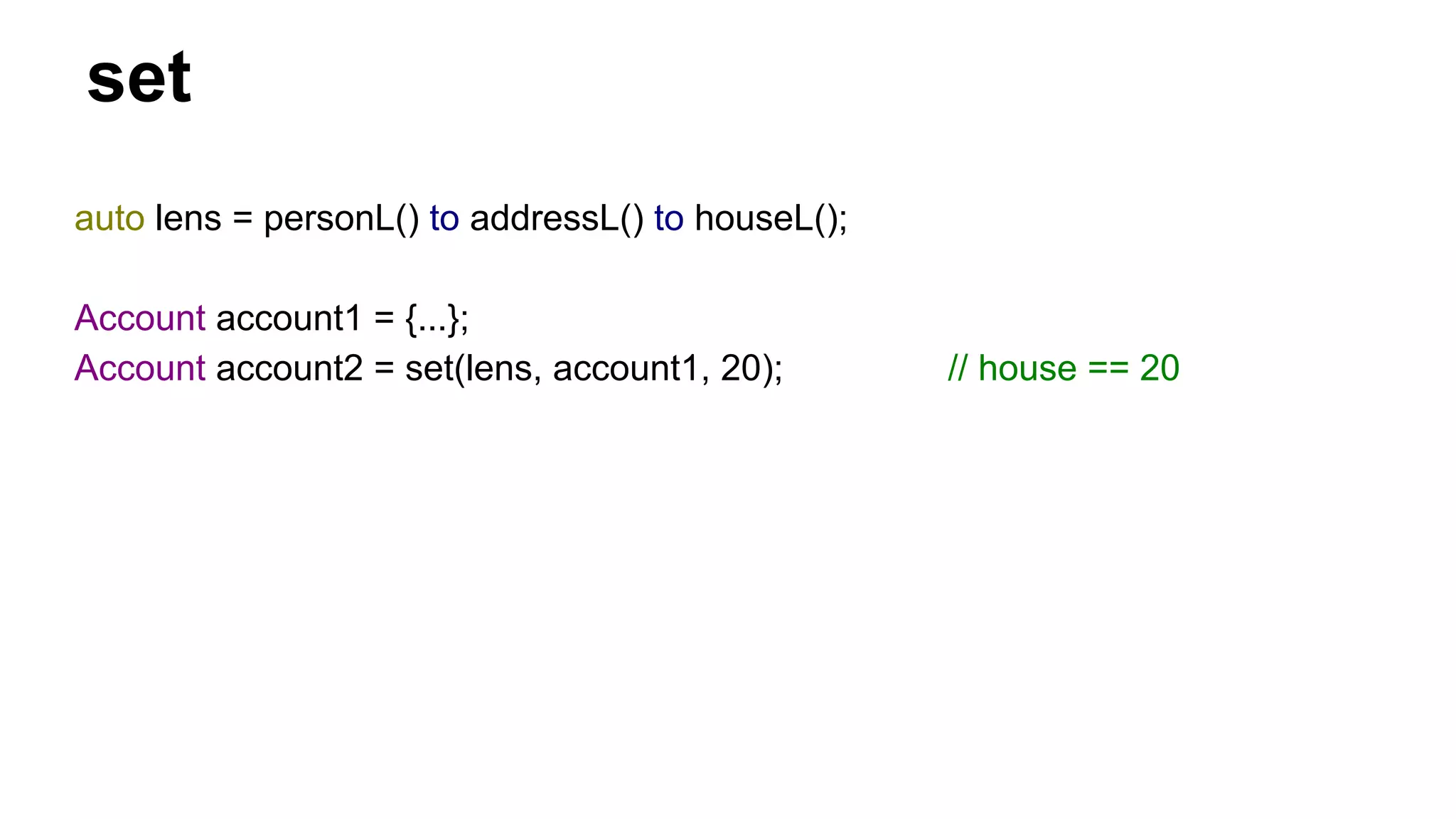

35. set
auto lens = personL() to addressL() to houseL();
Account account1 = {...};
Account account2 = set(lens, account1, 20); // house == 20

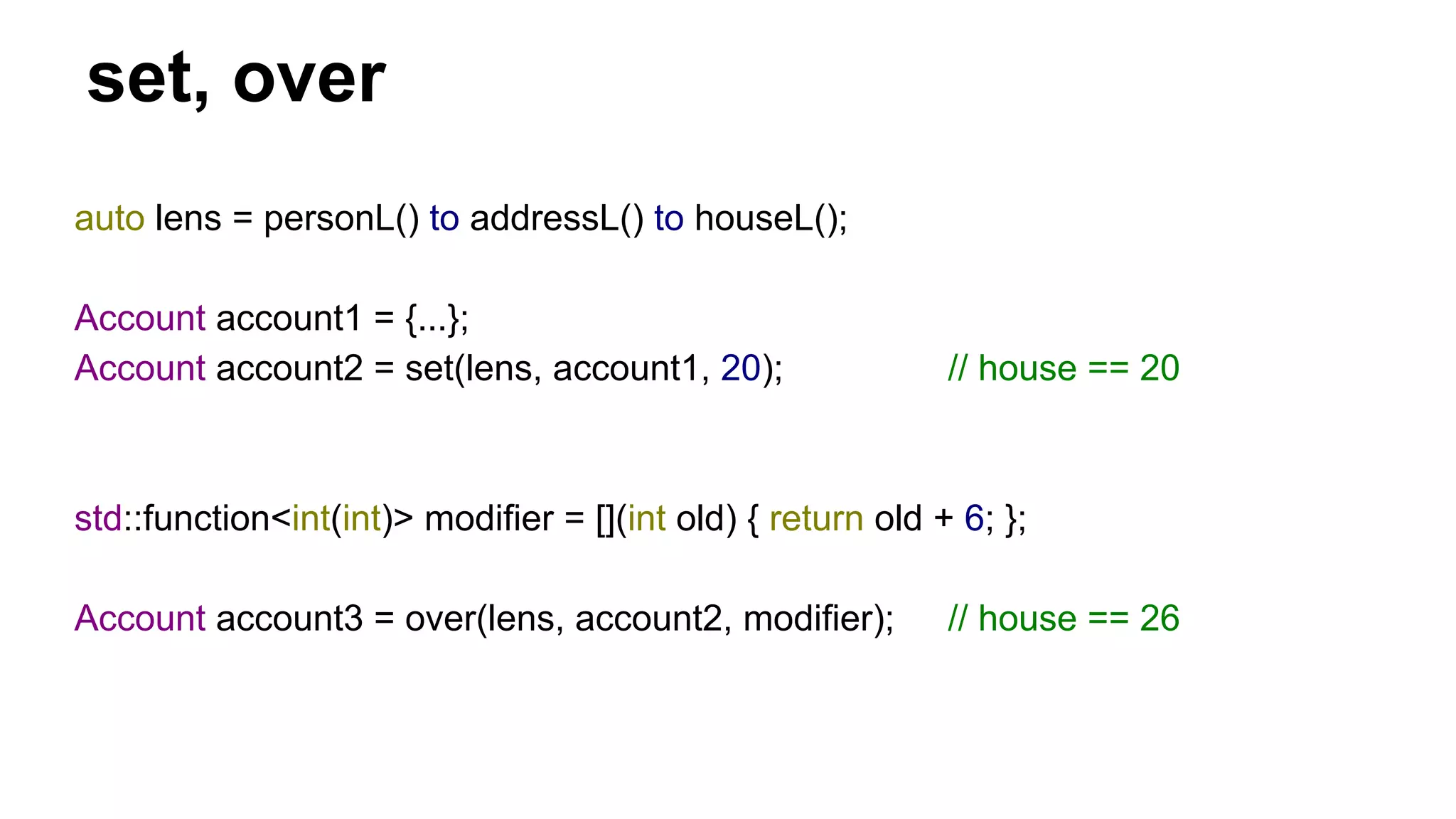

36. set, over
auto lens = personL() to addressL() to houseL();
Account account1 = {...};
Account account2 = set(lens, account1, 20); // house == 20
std::function<int(int)> modifier = [](int old) { return old + 6; };
Account account3 = over(lens, account2, modifier); // house == 26

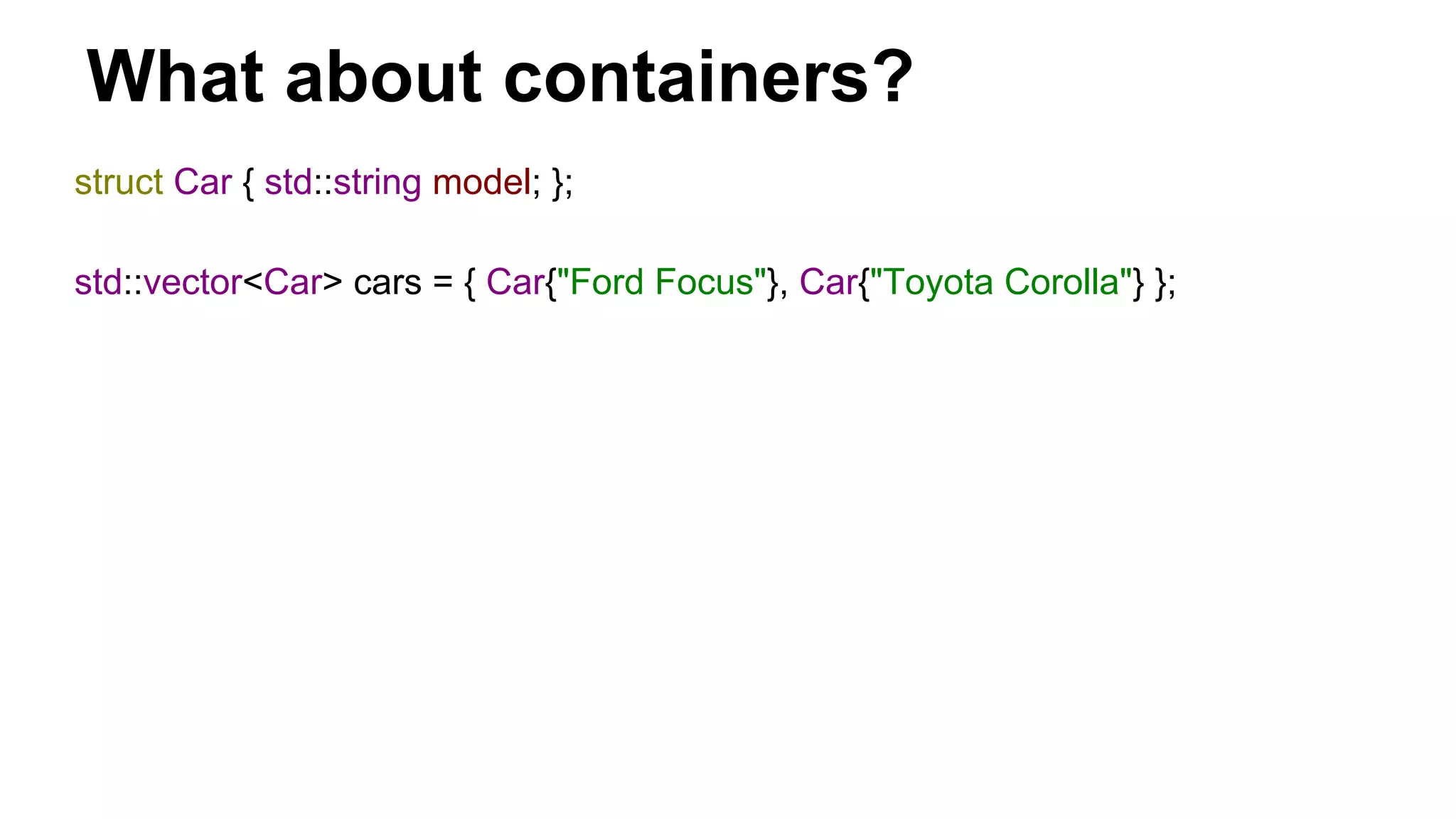

37. What about containers?
struct Car { std::string model; };
std::vector<Car> cars = { Car{"Ford Focus"}, Car{"Toyota Corolla"} };

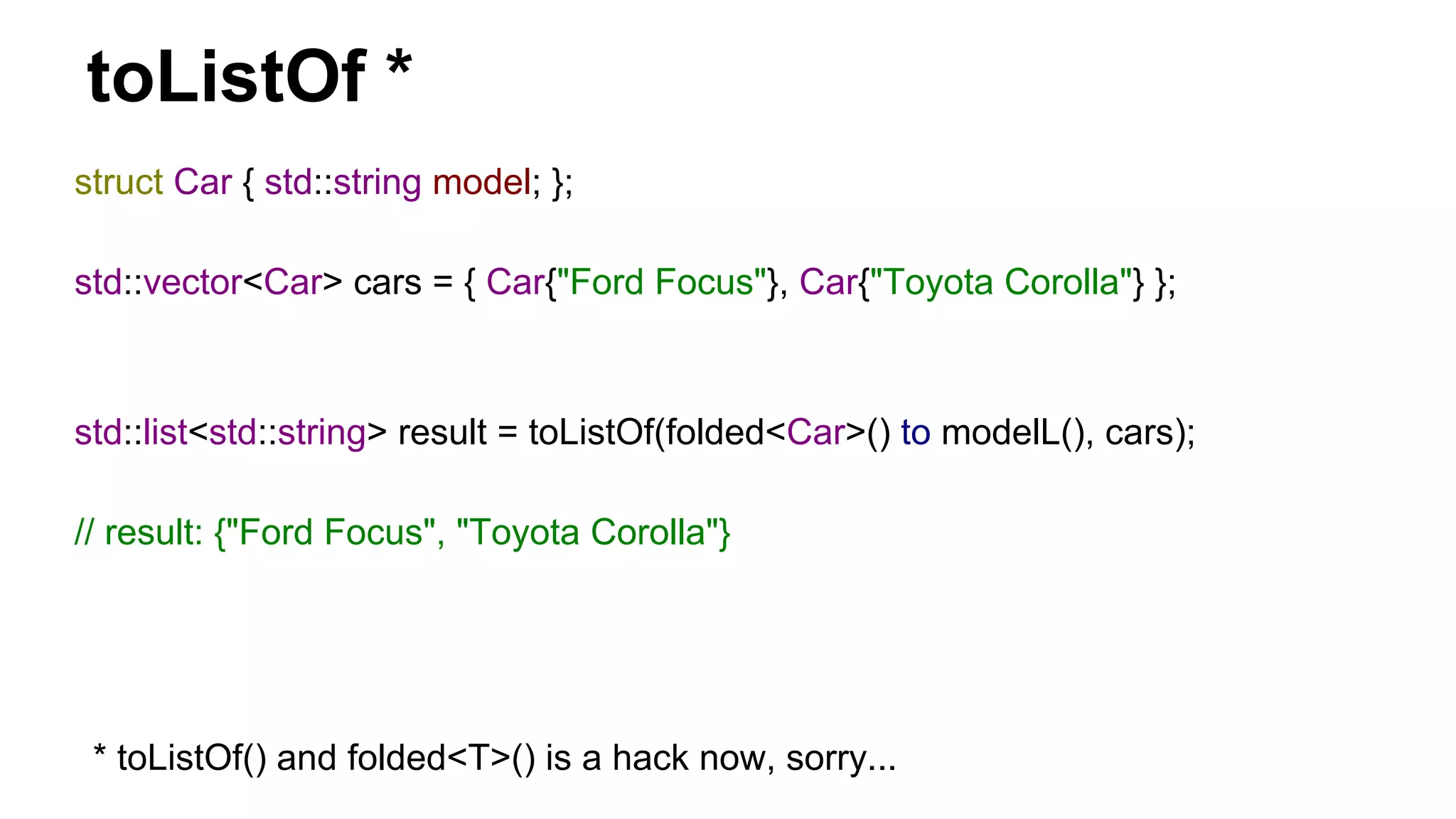

38. toListOf *
struct Car { std::string model; };
std::vector<Car> cars = { Car{"Ford Focus"}, Car{"Toyota Corolla"} };
std::list<std::string> result = toListOf(folded<Car>() to modelL(), cars);
// result: {"Ford Focus", "Toyota Corolla"}
* toListOf() and folded<T>() is a hack now, sorry...

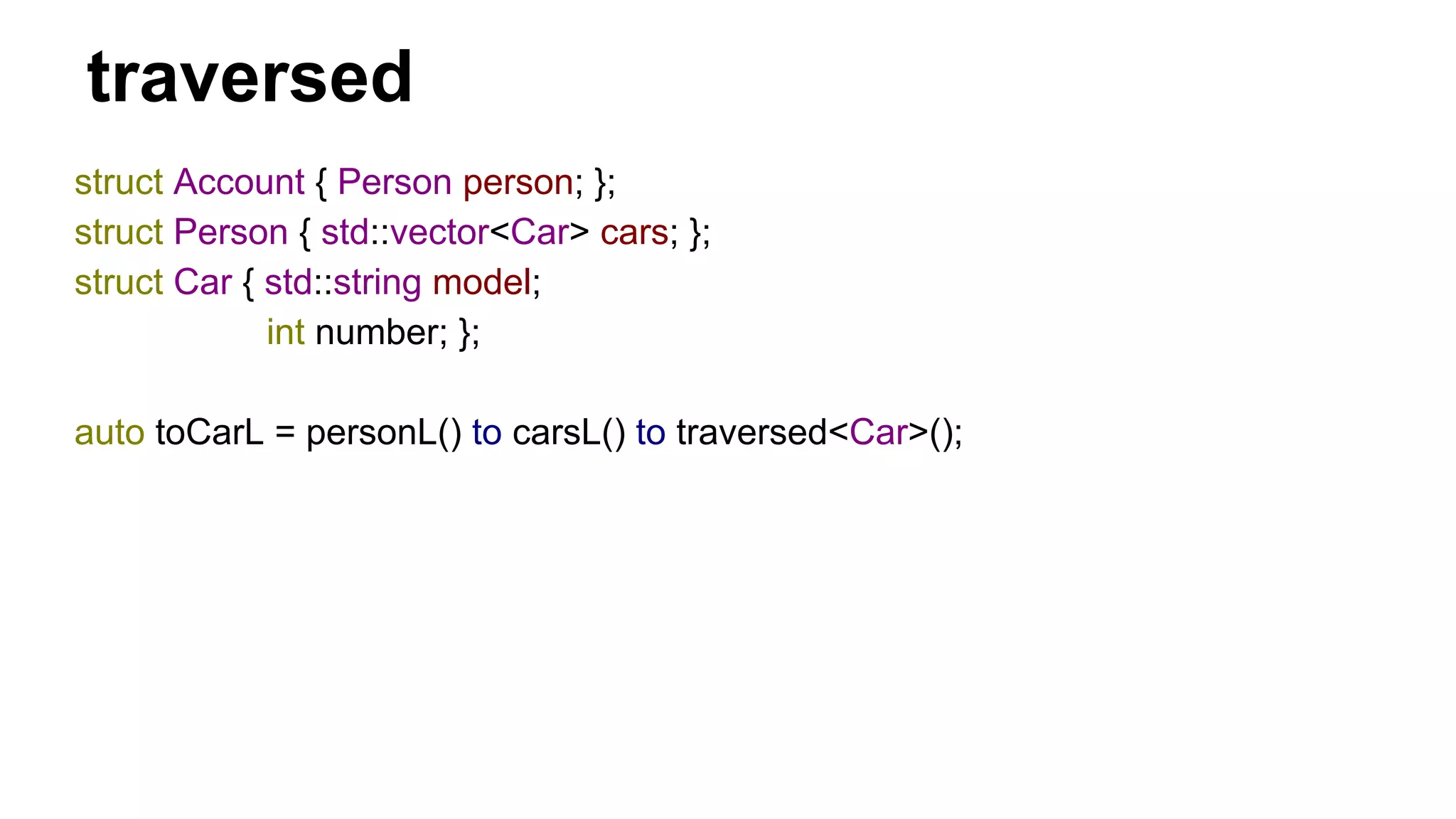

39. traversed
struct Account { Person person; };
struct Person { std::vector<Car> cars; };
struct Car { std::string model;
int number; };
auto toCarL = personL() to carsL() to traversed<Car>();

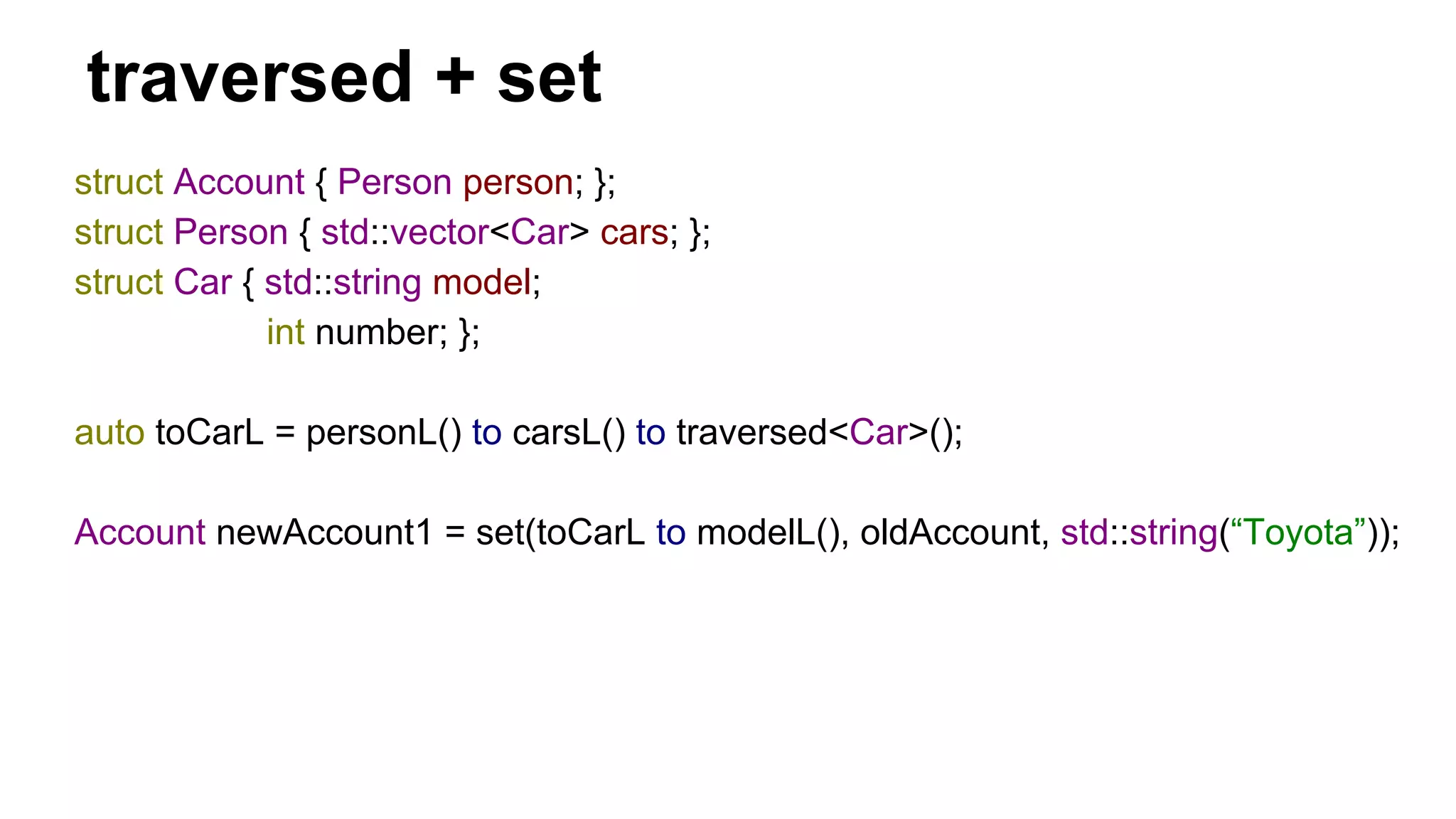

40. traversed + set
struct Account { Person person; };
struct Person { std::vector<Car> cars; };
struct Car { std::string model;
int number; };
auto toCarL = personL() to carsL() to traversed<Car>();
Account newAccount1 = set(toCarL to modelL(), oldAccount, std::string(“Toyota”));

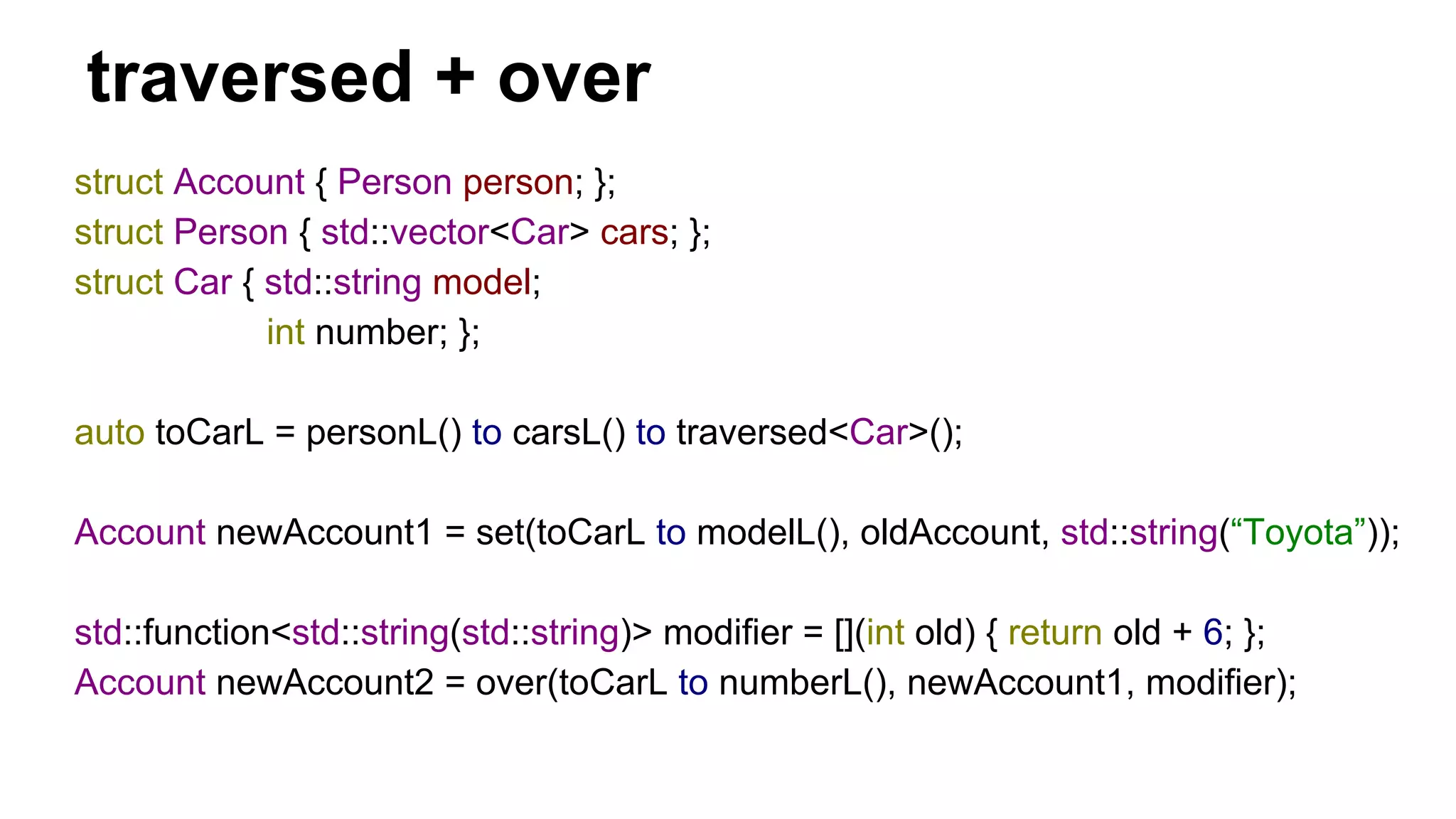

41. traversed + over
struct Account { Person person; };
struct Person { std::vector<Car> cars; };
struct Car { std::string model;
int number; };
auto toCarL = personL() to carsL() to traversed<Car>();
Account newAccount1 = set(toCarL to modelL(), oldAccount, std::string(“Toyota”));
std::function<std::string(std::string)> modifier = [](int old) { return old + 6; };
Account newAccount2 = over(toCarL to numberL(), newAccount1, modifier);

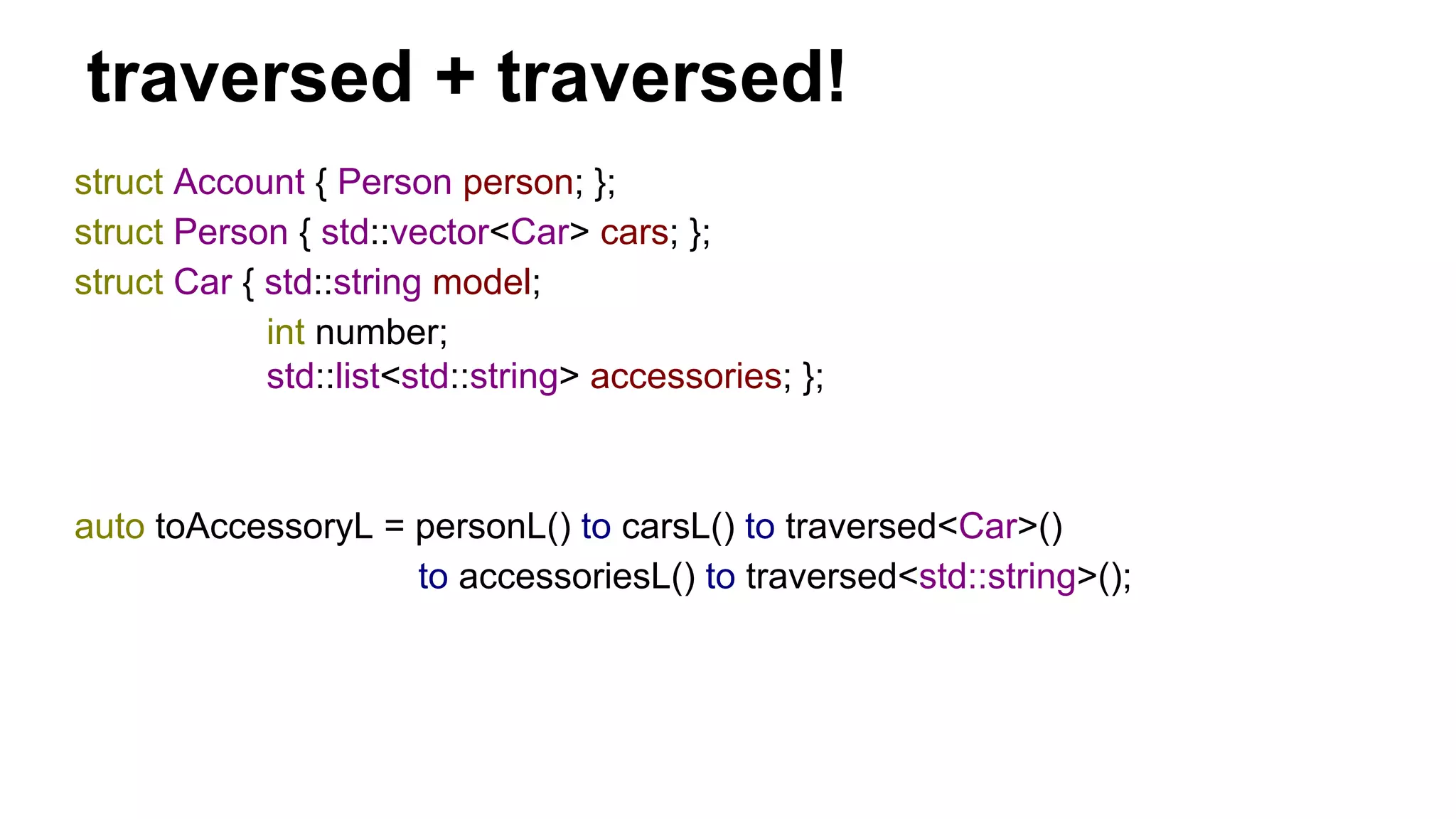

42. traversed + traversed!
struct Account { Person person; };
struct Person { std::vector<Car> cars; };
struct Car { std::string model;
int number;
std::list<std::string> accessories; };
auto toAccessoryL = personL() to carsL() to traversed<Car>()
to accessoriesL() to traversed<std::string>();

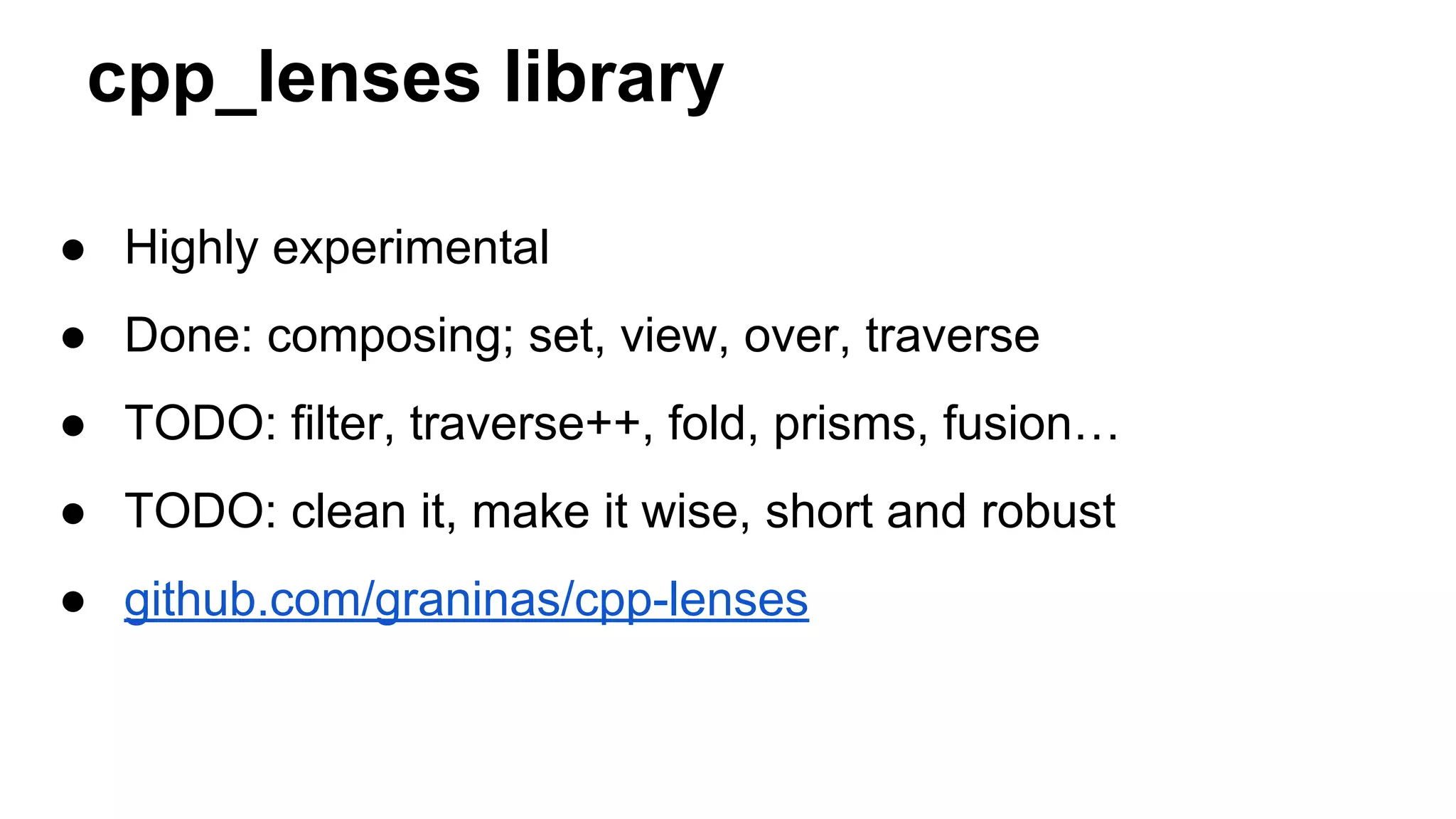

43. cpp_lenses library
● Highly experimental
● Done: composing; set, view, over, traverse
● TODO: filter, traverse++, fold, prisms, fusion…
● TODO: clean it, make it wise, short and robust
● github.com/graninas/cpp-lenses

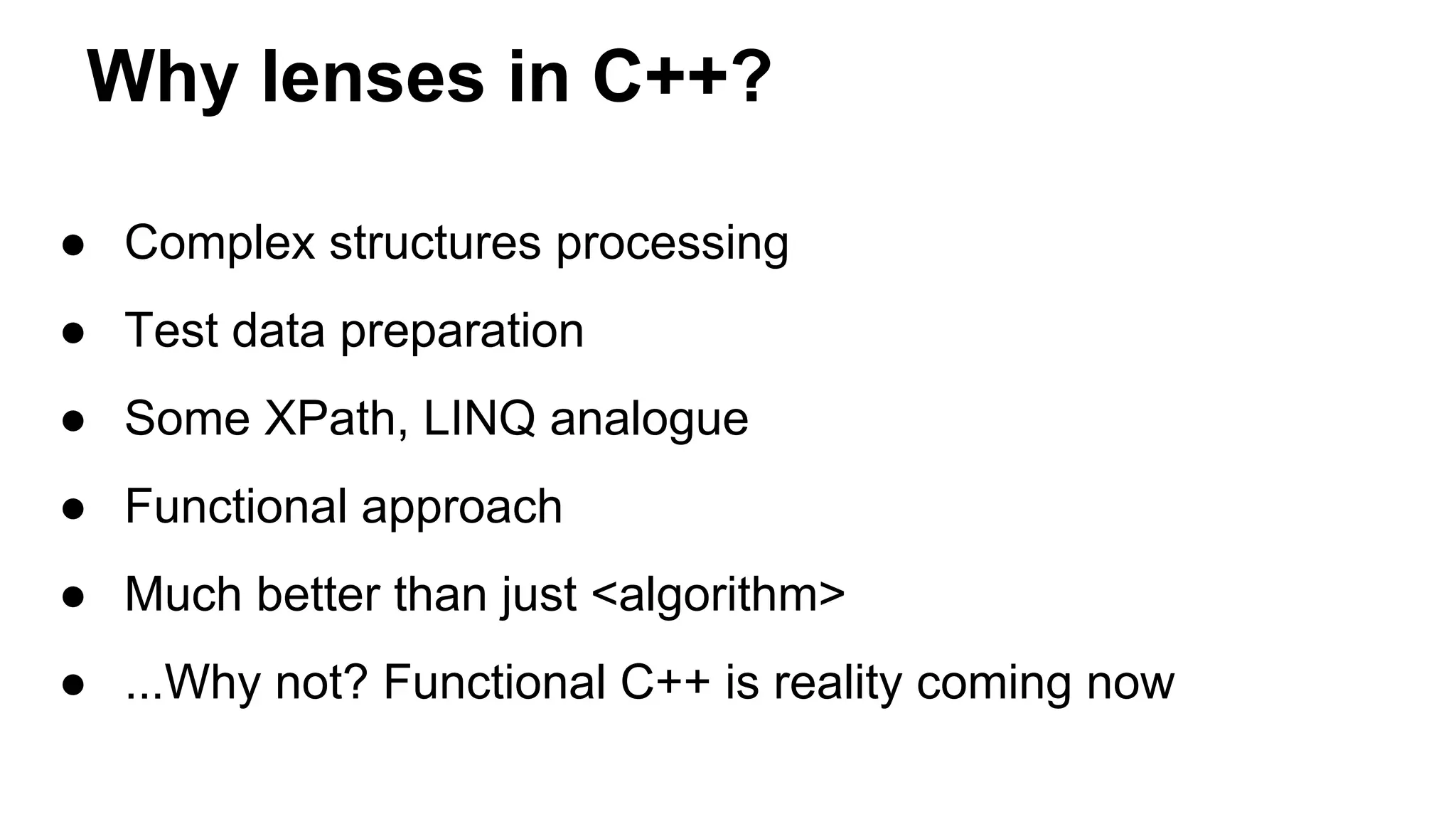

44. ● Complex structures processing
● Test data preparation
● Some XPath, LINQ analogue
● Functional approach
● Much better than just <algorithm>
● ...Why not? Functional C++ is reality coming now
Why lenses in C++?

45. Thank you!
Alexander Granin
graninas@gmail.com
Any questions?
C++ Siberia, Novosibirsk

46. Rerolling LensStack
template<typename L1, typename... Tail>
struct LS<L1, Tail...> : LS<Tail...>
{
template <typename Reroll, typename Lx>
void reroll_(Reroll& rerolled, const Lx& lx) const
{
rerolled.m_lens = m_lens;
base.reroll_(rerolled.base, lx);
}
template <typename Lx>
LensStack<L1, Tail..., Lx> reroll(const Lx& lx) const
{
LensStack<L1, Tail..., Lx> rerolled;
rerolled.m_lens = m_lens;
base.reroll_(rerolled.base, lx);
return rerolled;
}
}
// Recursion base
template <typename... Tail>
struct LensStack
{
template <typename Reroll, typename Lx>
void reroll_(Reroll& rerolled, const Lx& lx)
{
rerolled.m_lens = lx;
}
};
