Burner Controllers
LS Linear Systems, founded in 1986 and based in Mumbai, is a manufacturer of advanced burner controllers for boilers and furnaces, emphasizing innovation in flame monitoring technology. The company offers a wide range of products including gas and oil-fired burner controllers, flame sensors, and amplifiers, all designed for efficiency and reliability. They pride themselves on customer satisfaction, quality, and timely delivery while maintaining a commitment to a healthy working environment.
Burner Controllers
- 1. LS LINEAR SYSTEMS Founded in1986 To View Website Please Scan QR Code ý www.linearsystemsindia.com
- 2. ý www.linearsystemsindia.com LINEAR SYSTEMS,a technocrat rm based in Mumbai (India) is a well established and reputed manufacturer of Burner Controllers for Boilers and Furnaces. Controllers are manufactured deploying state-of-the-art technology. Founded in 1986, the rm has relentlessly worked for innovation for the Flame Monitoring in the process industry. At Linear Systems, we believe in LED Indication of Sequence Progress Attractive and Compact Enclosures Local and Remote Reset Facility Two Years of Warranty Work as a team with customers and suppliers Demonstrate our respect, integrity and honesty in what we do Maintain a clean and healthy working environment Growth coupled with customer’s satisfaction Quality Products Timely Delivery Cutomer SatisfactionAfter Sales Service Features of Our Products Our Vision LS LINEAR SYSTEMS Founded in 1986
- 3. BURNER / SEQUENCECONTROLLERS ( For Big Size Burners ) Gas Fired Burners / Furnaces with UV Flame Sensing 307-GL-S Gas Controller, with Inbuilt UV Amplifer. 307-GID-P (inbuilt Amplier) & 307-GE-P (with External Amplier) 307-GE-S Gas Controller, with External UV Amplier with Piolet Flame, Damper, Blower and Ignition Terminals. Without Piolet Flame Proving : Oil Fired Burners/ Boilers: 107-S-60, 107-S-30 (Standard models with pre purge time of 60 seconds and 30 seconds) 107-S-FO (Controller for Furnace Oil) 107-M ( Suitable for Nestler Boilers) 107-TU LS-107 (Suitable for IAEC Make Boilers) 150-P-6 (Equivalent to MA-150 Controller) 100 / 200 / 300 Series Controllers LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 4. UV SENSOR ANDAMPLIFIERS UV Sensor 1 UV Sensor for Oil/Gas Flames UV Sensor 2 UV Amplier LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 5. LINEAR SYSTEM's Flamerod sensor senses the ame using ame detection rectication technique. The Amplier provides a voltage for the Flame Electrode. The ame electrode is immersed in ame to sensed. The current thus generated by the ow of electrons through the ame to the ground is detected by the controller for presence of ame. The sensor senses only the burning ame and completely insensitive to visible light and refractory glows. It is best suited for sensing ame in Gas red burners. UV / FR / PR (Flame Amplier) FLAME ROD AMPLIFIERS LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 6. BURNER CONTROLLERS (For smalland medium sized industries) Models for Oil Fired Burners Controllers: For Gas Fired Burners Controllers: 710 - PR - MA (equivalent to MA-81O Controllers) sensing by LDR. 712 - PR - 24 - PI4 (equivalent to LOA - 21 & LOA - 24 Controllers) 722 - FR - P5, where the ame sensing is done by using Flame Rod. 732 - UV - P5, where ame sensing is by UV Sensor. The controllers are housed in an ABS plastic enclosure with overall size of 70mm(L)x110mm (B)x105mm(H). The enclosure consists of a base and Plug in Controller module, which facilitates easy replacement at sites. 700 Series Controllers LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 7. FLAME SENSORS FLAMESENSORS FLAME SENSOR FLAME SENSORS: Flame Sensor uses a Light Dependent Resistor (LDR) for sensing ame. The ame sensor essentially senses the "Light" emitted by lame. It is usually suited only for oil burners in Boilers. It is not suitable for Furnaces, where background fefractory brich glows. These sensor senses all types of light, including Sun light and rays emitted by electric bulb ltube light. Models :- Flame Sensor (FS - 1) with Front Viewing Flame Sensor (FS - 2) with Side Viewing Flame Sensor (FS - 3) Equivalent to Satronic Sensors LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com

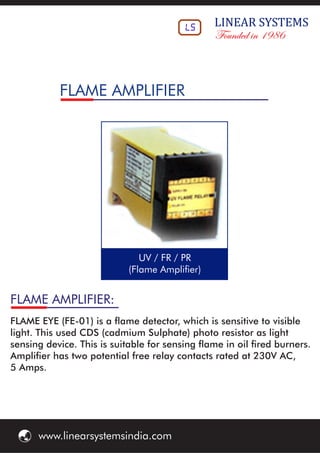

- 8. FLAME AMPLIFIER: FLAME EYE(FE-01) is a ame detector, which is sensitive to visible light. This used CDS (cadmium Sulphate) photo resistor as light sensing device. This is suitable for sensing ame in oil red burners. Amplier has two potential free relay contacts rated at 230V AC, 5 Amps. UV / FR / PR (Flame Amplier) FLAME AMPLIFIER LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 9. LS LINEAR SYSTEMS Founded in1986 Technical Data-Ignition System MKZ 100-(Part No. 0 096 600 017) Operating Voltage : 230V (-15 %+10%) 50/60 Hz Primary Current : 0.22 A Output : 50 VA IGNITION TRANSFORMER IGNITION TRANSFORMER Connections Primary Secondary Ignition voltage Ignition Frequency Ignition Spark Energy Duty Cycle Sparking distance Fitting Position Weight Operating Temprature 2x at plug 2.8mm 2x4mm drops-in pins 2x7.5kV 25/30hz approx. 500mJ 100% 1.5-3mm 0-60C as required 300g : : : : : : : : : : ý www.linearsystemsindia.com
- 10. LS LINEAR SYSTEMS Founded in1986 Detect small Ionisation current. Economical Flame Sensor for small Gas Burners. Available in 6.25mm Diameter and 3mm Diameter. FLAME ROD FOR GAS FLAMES Flame Rod 3 mm Dia Flame Rod 6.25 mm Dia ý www.linearsystemsindia.com
- 11. SOME OF OURCLIENTS LS LINEAR SYSTEMS Founded in 1986 ý www.linearsystemsindia.com
- 12. Ofce Address LS LINEAR SYSTEMS Foundedin 1986 To View E-Catalogue Please Scan QR Code 307, Vikrant Industrial Estate, Govandi Post Ofce Road, Deonar, Mumbai - 400 088, Maharashtra, India. 9820707710 (022) 2551 2534 (022) 2557 6002 info@linearsystemsindia.com info@linearsystems.in ý www.linearsystemsindia.com
