Building your own embedded system with Yocto

Building your own embedded
system with Yocto

13.03.2020Building your own embedded system with Yocto • Marius Meisenzahl

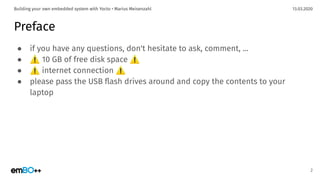

Preface
● if you have any questions, don't hesitate to ask, comment, ...
● ⚠ 10 GB of free disk space ⚠
● ⚠ internet connection ⚠
● please pass the USB ﬂash drives around and copy the contents to your
laptop
2

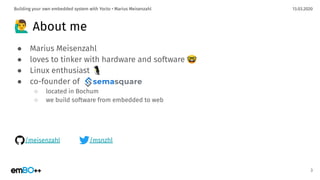

🙋‍♂ About me
● Marius Meisenzahl
● loves to tinker with hardware and software 🤓
● Linux enthusiast 🐧
● co-founder of
○ located in Bochum
○ we build software from embedded to web
3
/meisenzahl /msnzhl

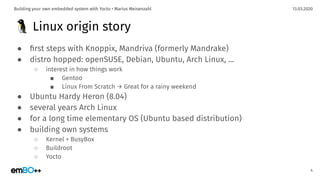

🐧 Linux origin story
● ﬁrst steps with Knoppix, Mandriva (formerly Mandrake)
● distro hopped: openSUSE, Debian, Ubuntu, Arch Linux, ...
○ interest in how things work
■ Gentoo
■ Linux From Scratch → Great for a rainy weekend
● Ubuntu Hardy Heron (8.04)
● several years Arch Linux
● for a long time elementary OS (Ubuntu based distribution)
● building own systems
○ Kernel + BusyBox
○ Buildroot
○ Yocto
4

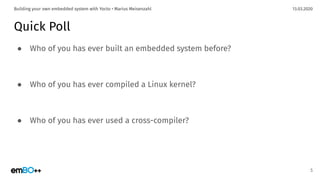

Quick Poll
● Who of you has ever built an embedded system before?
● Who of you has ever compiled a Linux kernel?
● Who of you has ever used a cross-compiler?
5

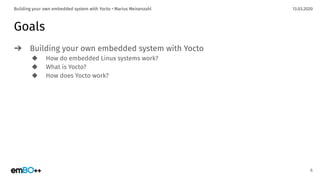

Goals
➔ Building your own embedded system with Yocto
◆ How do embedded Linux systems work?
◆ What is Yocto?
◆ How does Yocto work?
6

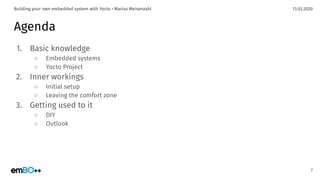

Agenda
1. Basic knowledge
○ Embedded systems
○ Yocto Project
2. Inner workings
○ Initial setup
○ Leaving the comfort zone
3. Getting used to it
○ DIY
○ Outlook
7

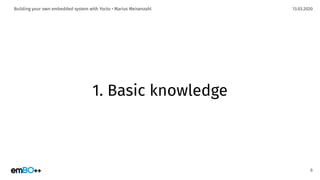

1. Basic knowledge
8

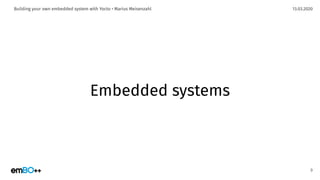

Embedded systems
9

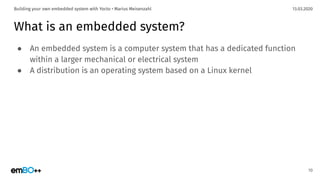

What is an embedded system?
● An embedded system is a computer system that has a dedicated function
within a larger mechanical or electrical system
● A distribution is an operating system based on a Linux kernel
10

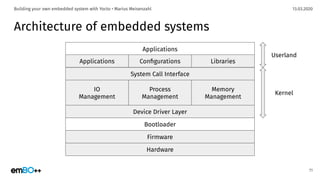

Architecture of embedded systems
11
Applications
Libraries
System Call Interface
IO
Management
Process
Management
Memory
Management
Device Driver Layer
Bootloader
Firmware
Userland
Kernel
Hardware
ConﬁgurationsApplications

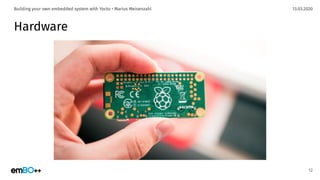

Hardware
12

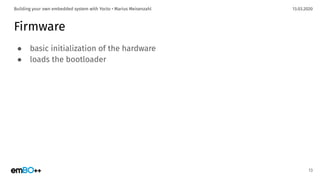

Firmware
● basic initialization of the hardware
● loads the bootloader
13

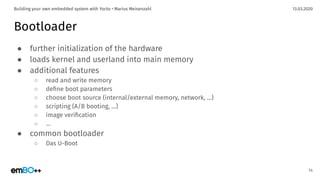

Bootloader
● further initialization of the hardware
● loads kernel and userland into main memory
● additional features
○ read and write memory
○ deﬁne boot parameters
○ choose boot source (internal/external memory, network, …)
○ scripting (A/B booting, …)
○ image veriﬁcation
○ ...
● common bootloader
○ Das U-Boot
14

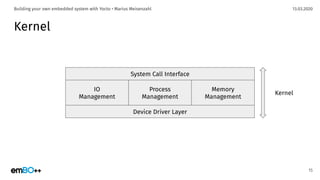

Kernel
15
System Call Interface
IO
Management
Process
Management
Memory
Management
Device Driver Layer
Kernel

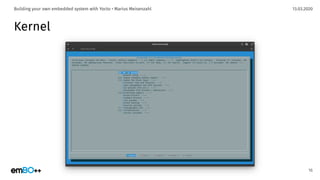

Kernel
16

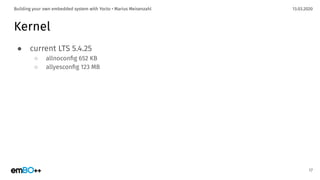

Kernel
● current LTS 5.4.25
○ allnoconﬁg 652 KB
○ allyesconﬁg 123 MB
17

Kernel
18

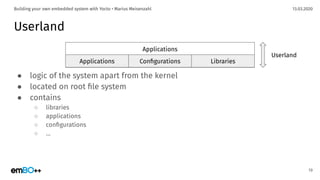

Userland
19
Applications
LibrariesConfigurations
Userland
● logic of the system apart from the kernel
● located on root file system
● contains
○ libraries
○ applications
○ configurations
○ …
Applications

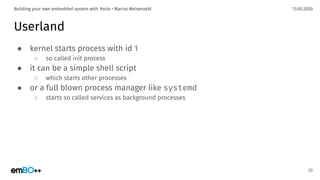

Userland
● kernel starts process with id 1
○ so called init process
● it can be a simple shell script
○ which starts other processes
● or a full blown process manager like systemd
○ starts so called services as background processes
20

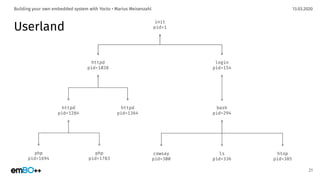

Userland
21
init
pid=1
httpd
pid=1038
login
pid=154
bash
pid=294
httpd
pid=1364
httpd
pid=1284
ls
pid=336
cowsay
pid=300
php
pid=1783
php
pid=1694
htop
pid=385

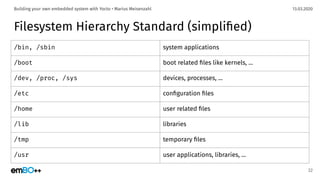

Filesystem Hierarchy Standard (simplified)
22
/bin, /sbin system applications
/boot boot related files like kernels, ...
/dev, /proc, /sys devices, processes, ...
/etc configuration files
/home user related files
/lib libraries
/tmp temporary files
/usr user applications, libraries, ...

Yocto Project
23

24

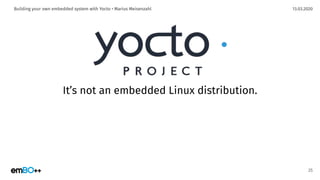

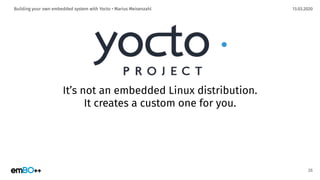

It’s not an embedded Linux distribution.
25

It’s not an embedded Linux distribution.
It creates a custom one for you.
26

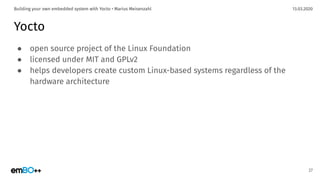

Yocto
● open source project of the Linux Foundation
● licensed under MIT and GPLv2
● helps developers create custom Linux-based systems regardless of the
hardware architecture
27

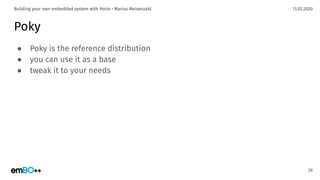

Poky
● Poky is the reference distribution
● you can use it as a base
● tweak it to your needs
28

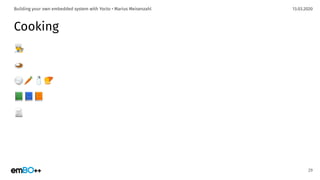

Cooking
29
👨‍🍳
🍛
🍚🥕🧂🍠
📗📘📙
📄

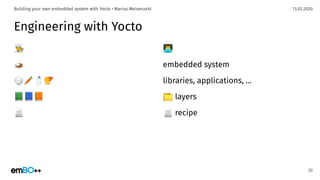

Engineering with Yocto
30
👨‍🍳 👨‍💻
🍛 embedded system
🍚🥕🧂🍠 libraries, applications, ...
📗📘📙 📁 layers
📄 📄 recipe

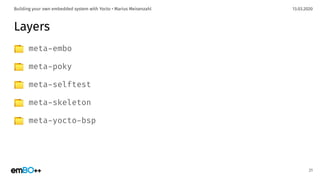

Layers
📁 meta-embo
📁 meta-poky
📁 meta-selftest
📁 meta-skeleton
📁 meta-yocto-bsp
31

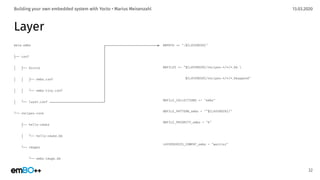

Layer
meta-embo
├── conf
│ ├── distro
│ │ ├── embo.conf
│ │ └── embo-tiny.conf
│ └── layer.conf
└── recipes-core
├── hello-cmake
│ └── hello-cmake.bb
└── images
└── embo-image.bb
32
BBPATH .= ":${LAYERDIR}"
BBFILES += "${LAYERDIR}/recipes-*/*/*.bb
${LAYERDIR}/recipes-*/*/*.bbappend"
BBFILE_COLLECTIONS += "embo"
BBFILE_PATTERN_embo = "^${LAYERDIR}/"
BBFILE_PRIORITY_embo = "6"
LAYERSERIES_COMPAT_embo = "warrior"

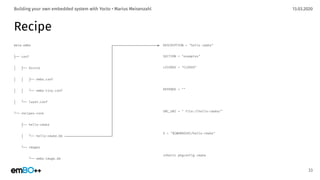

Recipe
meta-embo
├── conf
└── images
33
DESCRIPTION = "hello cmake"
SECTION = "examples"
LICENSE = "CLOSED"
DEPENDS = ""
SRC_URI = " file:./hello-cmake/"
S = "${WORKDIR}/hello-cmake"
inherit pkgconfig cmake

meta-embo
├── conf
└── images
34

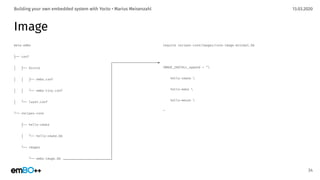

require recipes-core/images/core-image-minimal.bb
IMAGE_INSTALL_append = "
hello-cmake
hello-make
hello-meson
"

BitBake
● build tool
● reads .bb and .bbappend ﬁles
● resolves dependencies between recipes
● creates build order
● generates Python code to build packages
35

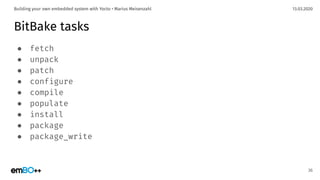

BitBake tasks
● fetch
● unpack
● patch
● configure
● compile
● populate
● install
● package
● package_write
36

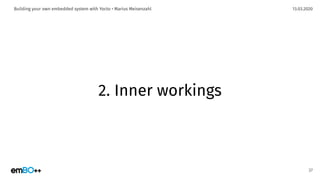

2. Inner workings
37

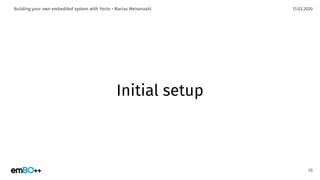

Initial setup
38

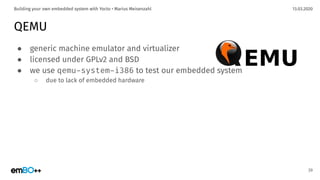

QEMU
● generic machine emulator and virtualizer
● licensed under GPLv2 and BSD
● we use qemu-system-i386 to test our embedded system
○ due to lack of embedded hardware
39

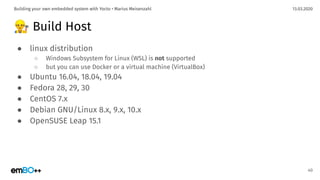

👷 Build Host
● linux distribution
○ Windows Subsystem for Linux (WSL) is not supported
○ but you can use Docker or a virtual machine (VirtualBox)
● Ubuntu 16.04, 18.04, 19.04
● Fedora 28, 29, 30
● CentOS 7.x
● Debian GNU/Linux 8.x, 9.x, 10.x
● OpenSUSE Leap 15.1
40

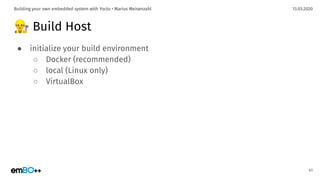

👷 Build Host
● initialize your build environment
○ Docker (recommended)
○ local (Linux only)
○ VirtualBox
41

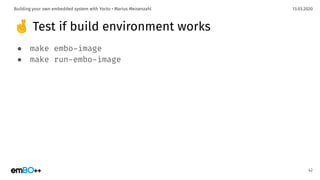

🤞 Test if build environment works
● make embo-image
● make run-embo-image
42

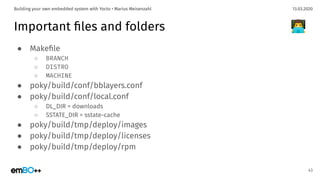

Important ﬁles and folders
● Makeﬁle
○ BRANCH
○ DISTRO
○ MACHINE
● poky/build/conf/bblayers.conf
● poky/build/conf/local.conf
○ DL_DIR = downloads
○ SSTATE_DIR = sstate-cache
● poky/build/tmp/deploy/images
● poky/build/tmp/deploy/licenses
● poky/build/tmp/deploy/rpm
43
👨‍💻

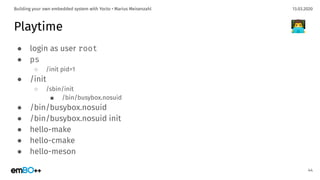

Playtime
● login as user root
● ps
○ /init pid=1
● /init
○ /sbin/init
■ /bin/busybox.nosuid
● /bin/busybox.nosuid
● /bin/busybox.nosuid init
● hello-make
● hello-cmake
● hello-meson
44
👨‍💻

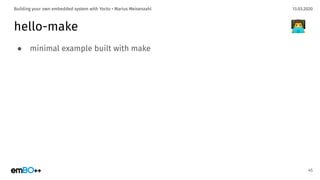

hello-make
● minimal example built with make
45
👨‍💻

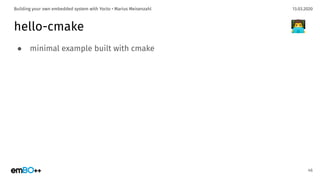

hello-cmake
● minimal example built with cmake
46
👨‍💻

hello-meson
● minimal example built with meson
47
👨‍💻

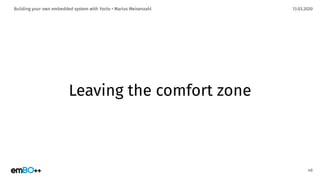

Leaving the comfort zone
48

bitbake
● cd poky
● source oe-init-build-env
● export DISTRO=embo-tiny
● export MACHINE=qemux86
● bitbake embo-image
● bitbake hello-make -c build
● bitbake hello-make -c cleanall
● bitbake hello-make -c build
● bitbake -s
49
👨‍💻

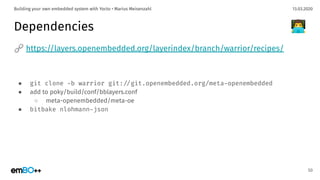

Dependencies
🔗 https://layers.openembedded.org/layerindex/branch/warrior/recipes/
● git clone -b warrior git:./git.openembedded.org/meta-openembedded
● add to poky/build/conf/bblayers.conf
○ meta-openembedded/meta-oe
● bitbake nlohmann-json
50
👨‍💻

hello-json
● create a new example recipe which uses nlohmann-json
DESCRIPTION = "hello json"
LICENSE = "CLOSED"
DEPENDS = "nlohmann-json"
SRC_URI = " file:./hello-json/"
S = "${WORKDIR}/hello-json"
51
👨‍💻

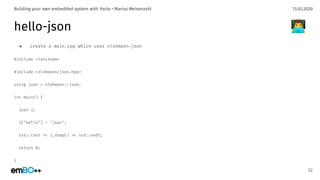

hello-json
● create a main.cpp which uses nlohmann-json
#include <iostream>
#include <nlohmann/json.hpp>
using json = nlohmann.:json;
int main() {
json j;
j["hello"] = "json";
std.:cout .< j.dump() .< std.:endl;
return 0;
}
52
👨‍💻

hello-json
● create a CMakeLists.txt to build example
cmake_minimum_required(VERSION 3.10)
project(hello-json)
find_package(nlohmann_json REQUIRED)
add_executable(hello-json main.cpp)
target_link_libraries(hello-json nlohmann_json.:nlohmann_json)
install(TARGETS hello-json DESTINATION bin)
53
👨‍💻

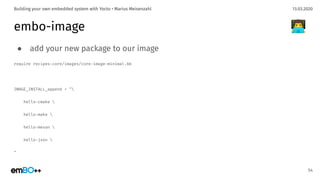

embo-image
● add your new package to our image
require recipes-core/images/core-image-minimal.bb
IMAGE_INSTALL_append = "
hello-cmake
hello-make
hello-meson
hello-json
"
54
👨‍💻

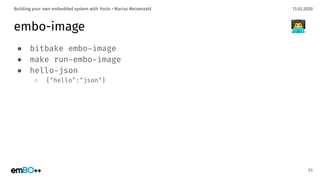

embo-image
● bitbake embo-image
● make run-embo-image
● hello-json
○ {"hello":"json"}
55
👨‍💻

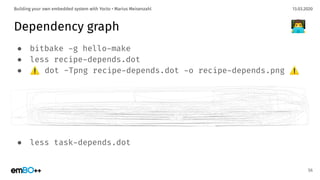

Dependency graph
● bitbake -g hello-make
● less recipe-depends.dot
● ⚠ dot -Tpng recipe-depends.dot -o recipe-depends.png ⚠
● less task-depends.dot
56
👨‍💻

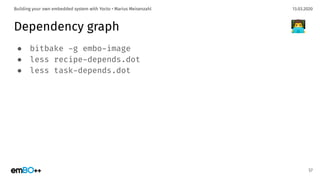

Dependency graph
● bitbake -g embo-image
● less recipe-depends.dot
● less task-depends.dot
57
👨‍💻

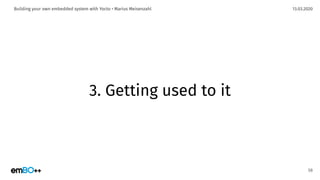

3. Getting used to it
58

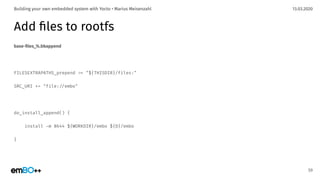

Add ﬁles to rootfs
base-ﬁles_%.bbappend
FILESEXTRAPATHS_prepend .= "${THISDIR}/files:"
SRC_URI += "file:./embo"
do_install_append() {
install -m 0644 ${WORKDIR}/embo ${D}/embo
}
59

Add users
recipe
inherit useradd
USER .= "user"
PASSWORD .= "9PfNy0O1z0O5g"
USERADD_PACKAGES = "${PN}"
USERADD_PARAM_${PN} = ".-system .-create-home
.-groups tty
.-password ${PASSWORD}
.-user-group ${USER}"
60
⚠ DISTRO = embo ⚠

hello-boost
DESCRIPTION = "hello boost"
LICENSE = "CLOSED"
DEPENDS = "boost"
RDEPENDS_${PN} = "boost-thread"
SRC_URI = " file:./hello-boost/"
S = "${WORKDIR}/hello-boost"
61

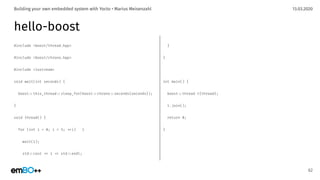

hello-boost
#include <boost/thread.hpp>
#include <boost/chrono.hpp>
#include <iostream>
void wait(int seconds) {
boost.:this_thread.:sleep_for(boost.:chrono.:seconds{seconds});
}
void thread() {
for (int i = 0; i < 5; .+i) {
wait(1);
std.:cout .< i .< std.:endl;
62
}
}
int main() {
boost.:thread t{thread};
t.join();
return 0;
}

hello-boost
cmake_minimum_required(VERSION 3.10)
project(hello-boost)
find_package(Boost COMPONENTS thread REQUIRED)
add_executable(hello-boost main.cpp)
include_directories(${Boost_INCLUDE_DIRS})
target_link_libraries(hello-cmake ${Boost_LIBRARIES})
install(TARGETS hello-boost DESTINATION bin)
63

DIY
● try to build something yourself
● ask for help
64

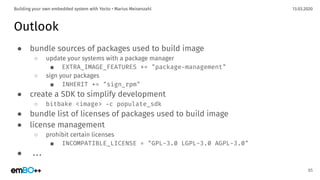

Outlook
● bundle sources of packages used to build image
○ update your systems with a package manager
■ EXTRA_IMAGE_FEATURES += "package-management"
○ sign your packages
■ INHERIT += "sign_rpm"
● create a SDK to simplify development
○ bitbake <image> -c populate_sdk
● bundle list of licenses of packages used to build image
● license management
○ prohibit certain licenses
■ INCOMPATIBLE_LICENSE = "GPL-3.0 LGPL-3.0 AGPL-3.0"
● ...
65

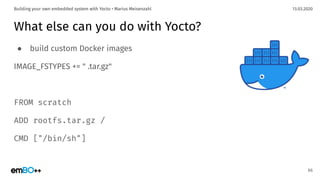

What else can you do with Yocto?
● build custom Docker images
IMAGE_FSTYPES += " .tar.gz"
FROM scratch
ADD rootfs.tar.gz /
CMD ["/bin/sh"]
66

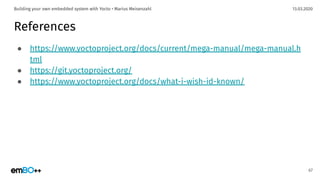

References
● https://www.yoctoproject.org/docs/current/mega-manual/mega-manual.h
tml
● https://git.yoctoproject.org/
● https://www.yoctoproject.org/docs/what-i-wish-id-known/
67

Building your own embedded system with Yocto

More Related Content

What's hot

Similar to Building your own embedded system with Yocto

Recently uploaded

Building your own embedded system with Yocto
