Vas Vasiliadis
vas@uchicago.edu
February 28, 2024
Building Research Applications with Globus PaaS

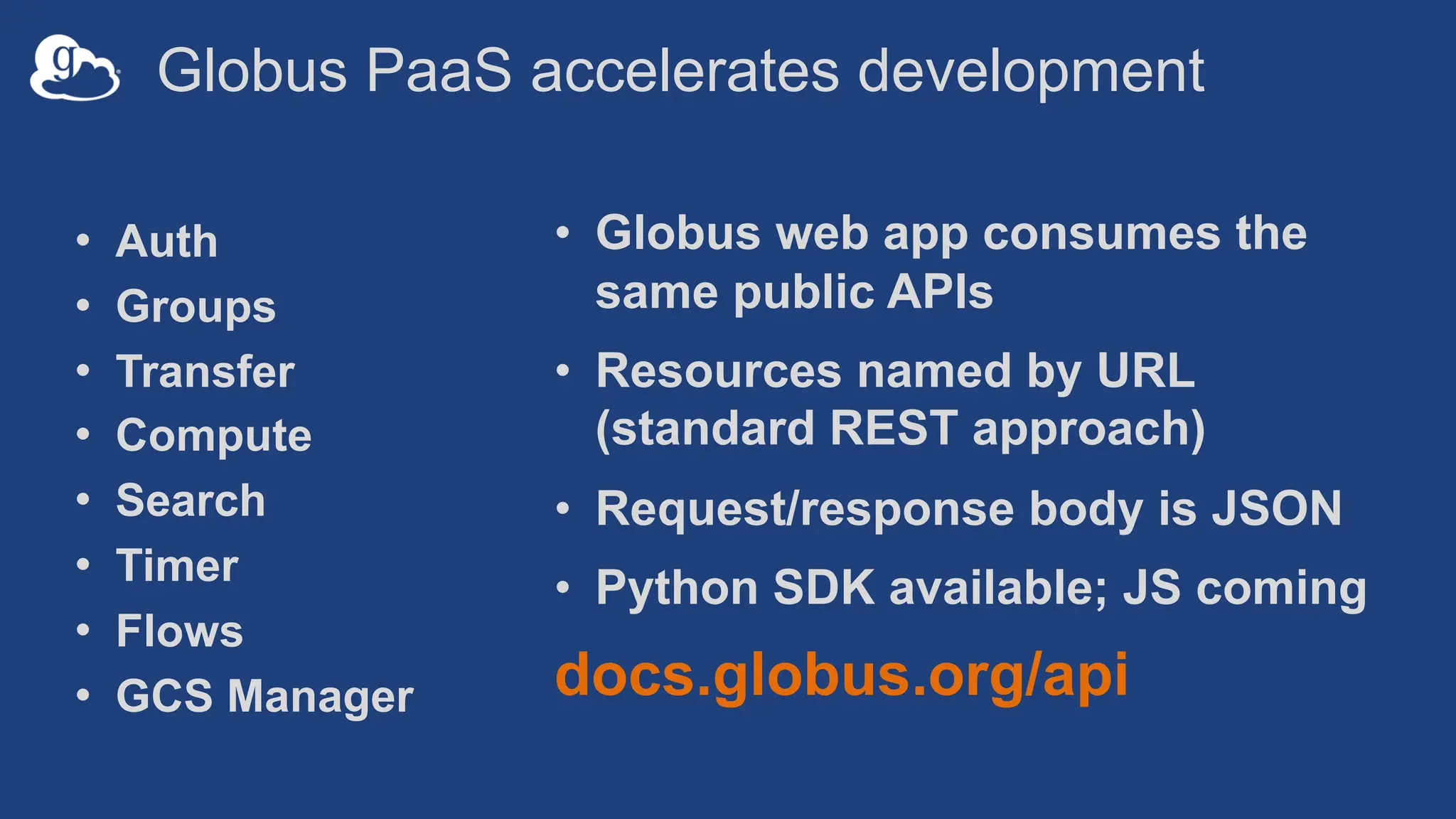

Globus PaaS accelerates development
• Auth
• Groups
• Transfer
• Compute
• Search
• Timer
• Flows
• GCS Manager
• Globus web app consumes the
same public APIs
• Resources named by URL
(standard REST approach)
• Request/response body is JSON
• Python SDK available; JS coming
docs.globus.org/api
Globus Auth: Foundational IAM service
• Makes app/portal widely and easily accessible
• Brokers authentication and authorization among…
– End-users
– Identity providers: enterprise, external (federated identities)
– Services: resource servers with REST APIs
– Apps: web, mobile, desktop, command line clients
– Services acting as clients to other services
• OAuth 2.0 Authorization Framework (a.k.a. OAuth2)
• OpenID Connect Core 1.0 (a.k.a. OIDC)
5

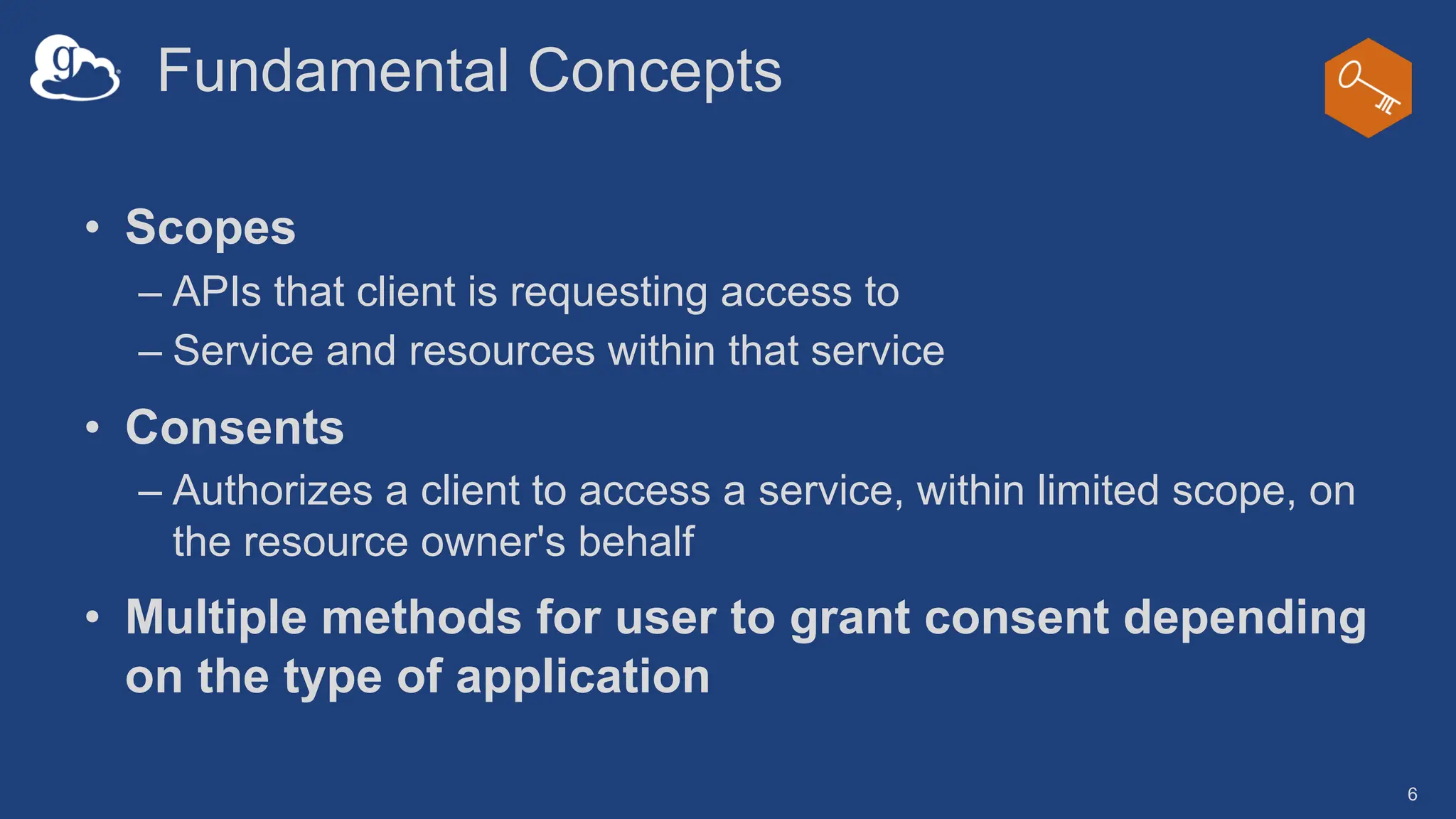

Fundamental Concepts
• Scopes
– APIs that client is requesting access to
– Service and resources within that service
• Consents
– Authorizes a client to access a service, within limited scope, on
the resource owner's behalf
• Multiple methods for user to grant consent depending
on the type of application
6

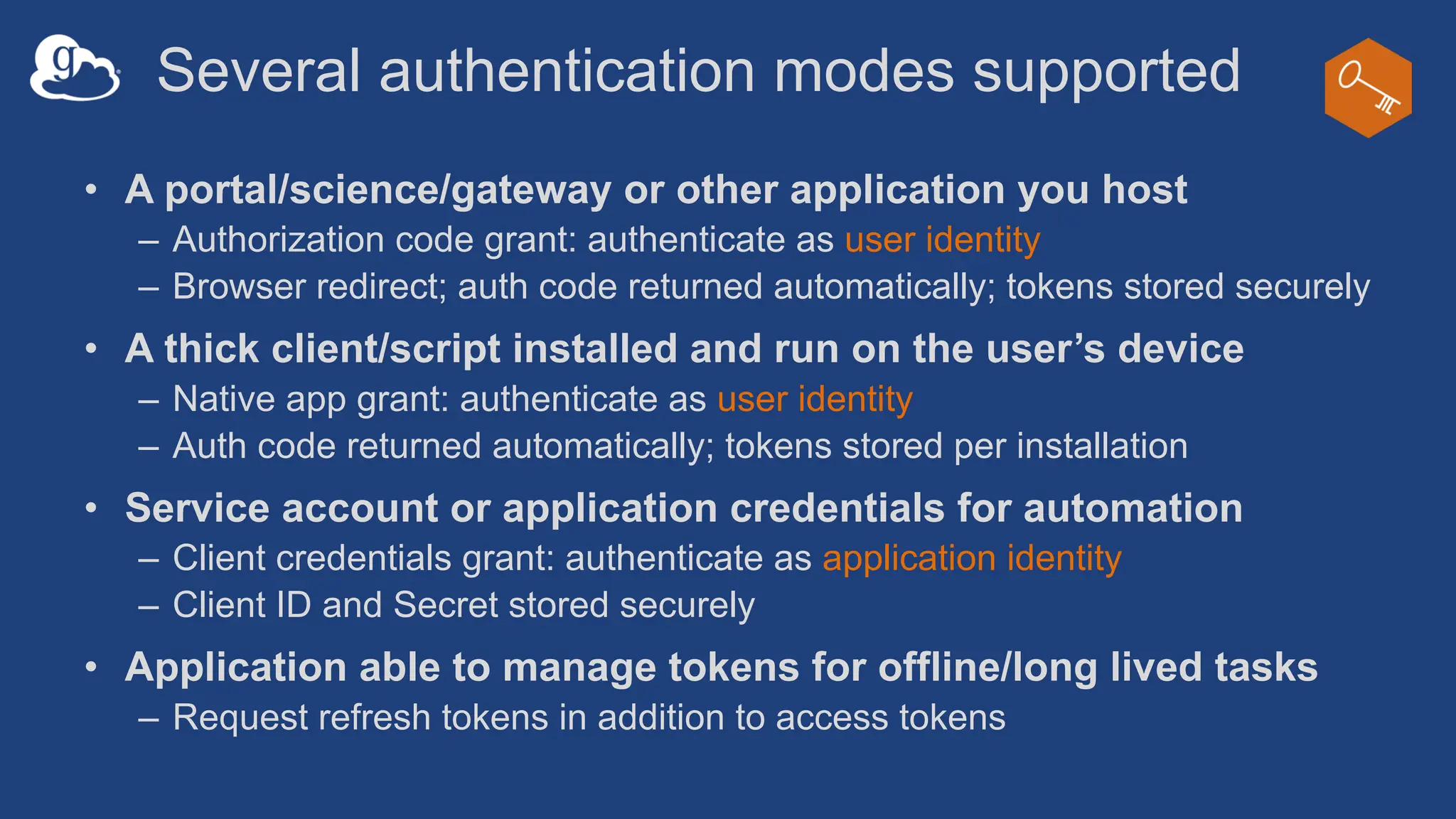

Several authentication modes supported
• A portal/science/gateway or other application you host
– Authorization code grant: authenticate as user identity
– Browser redirect; auth code returned automatically; tokens stored securely
• A thick client/script installed and run on the user’s device
– Native app grant: authenticate as user identity
– Auth code returned automatically; tokens stored per installation
• Service account or application credentials for automation
– Client credentials grant: authenticate as application identity
– Client ID and Secret stored securely
• Application able to manage tokens for offline/long lived tasks
– Request refresh tokens in addition to access tokens
Job #1:
App registration
8

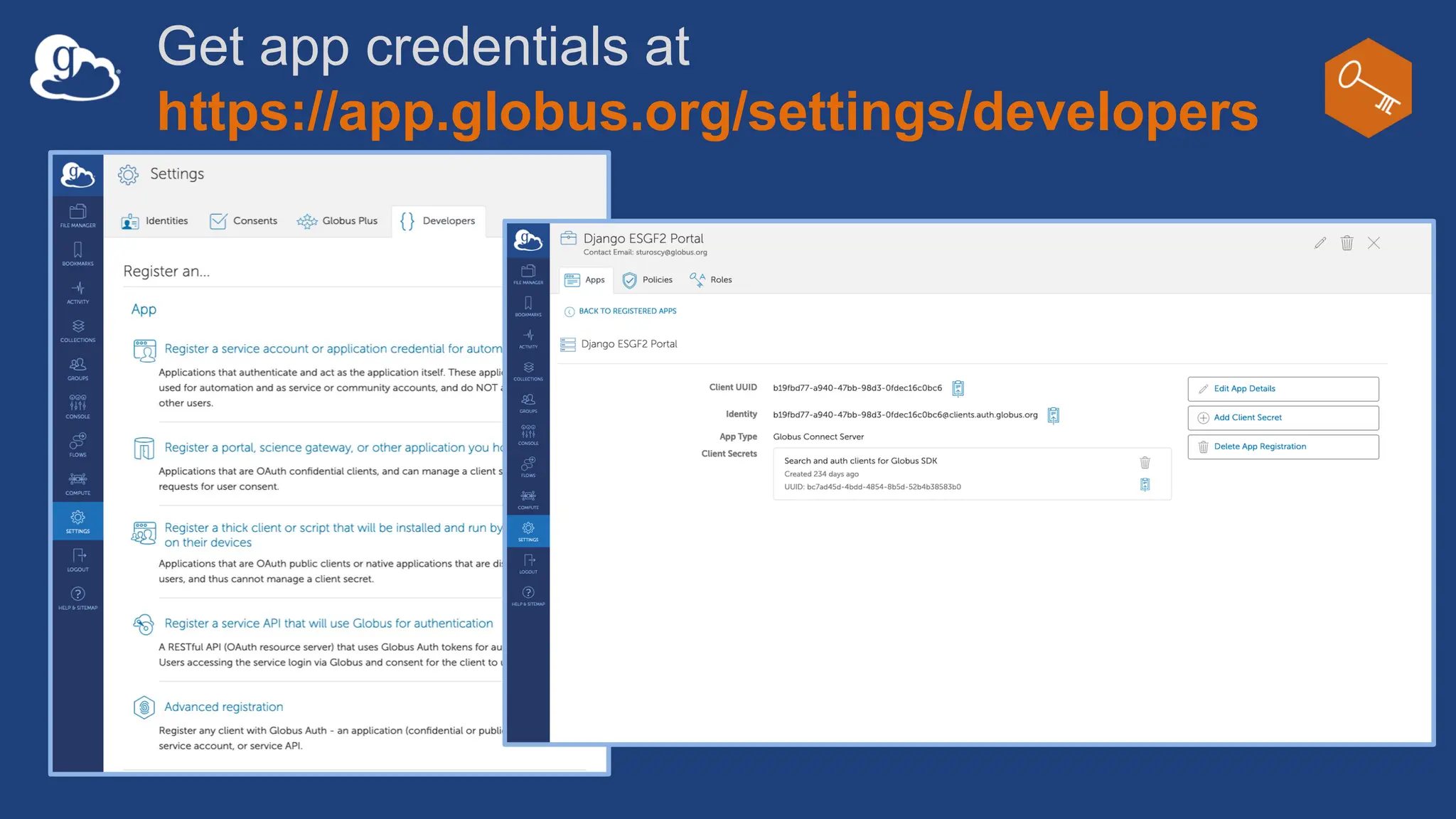

Get app credentials at
https://app.globus.org/settings/developers
Managing service accounts/app credentials
• Application Identity:
appclientid@clients.auth.globus.org
• These are confidential apps with client id and secret
• Ensure application is on a secure device
• Set up policy for rotation of secret
• Assign project admins to manage the registration

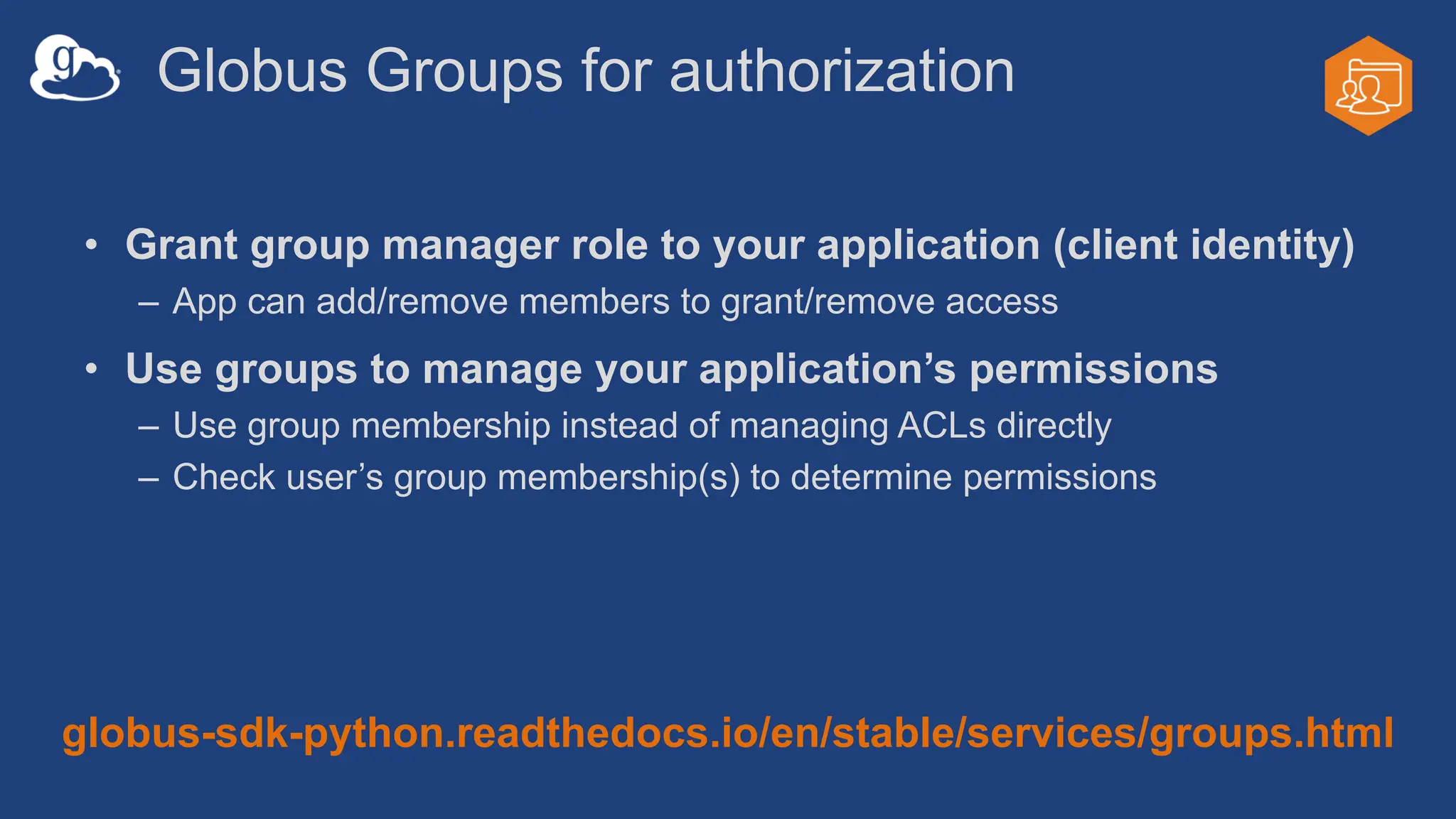

Globus Groups for authorization
• Grant group manager role to your application (client identity)
– App can add/remove members to grant/remove access
• Use groups to manage your application’s permissions
– Use group membership instead of managing ACLs directly
– Check user’s group membership(s) to determine permissions
globus-sdk-python.readthedocs.io/en/stable/services/groups.html

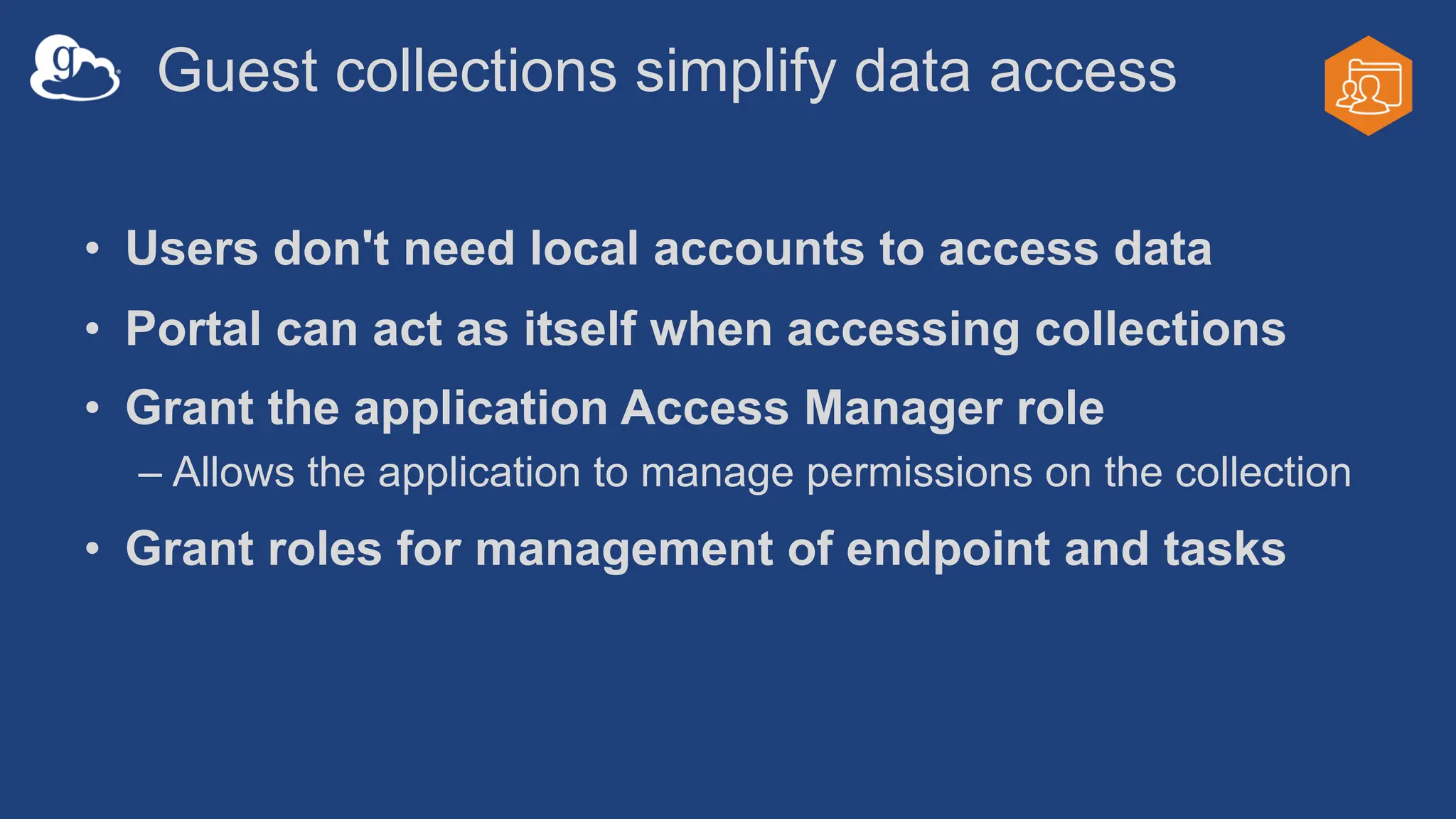

Guest collections simplify data access
• Users don't need local accounts to access data
• Portal can act as itself when accessing collections
• Grant the application Access Manager role
– Allows the application to manage permissions on the collection
• Grant roles for management of endpoint and tasks

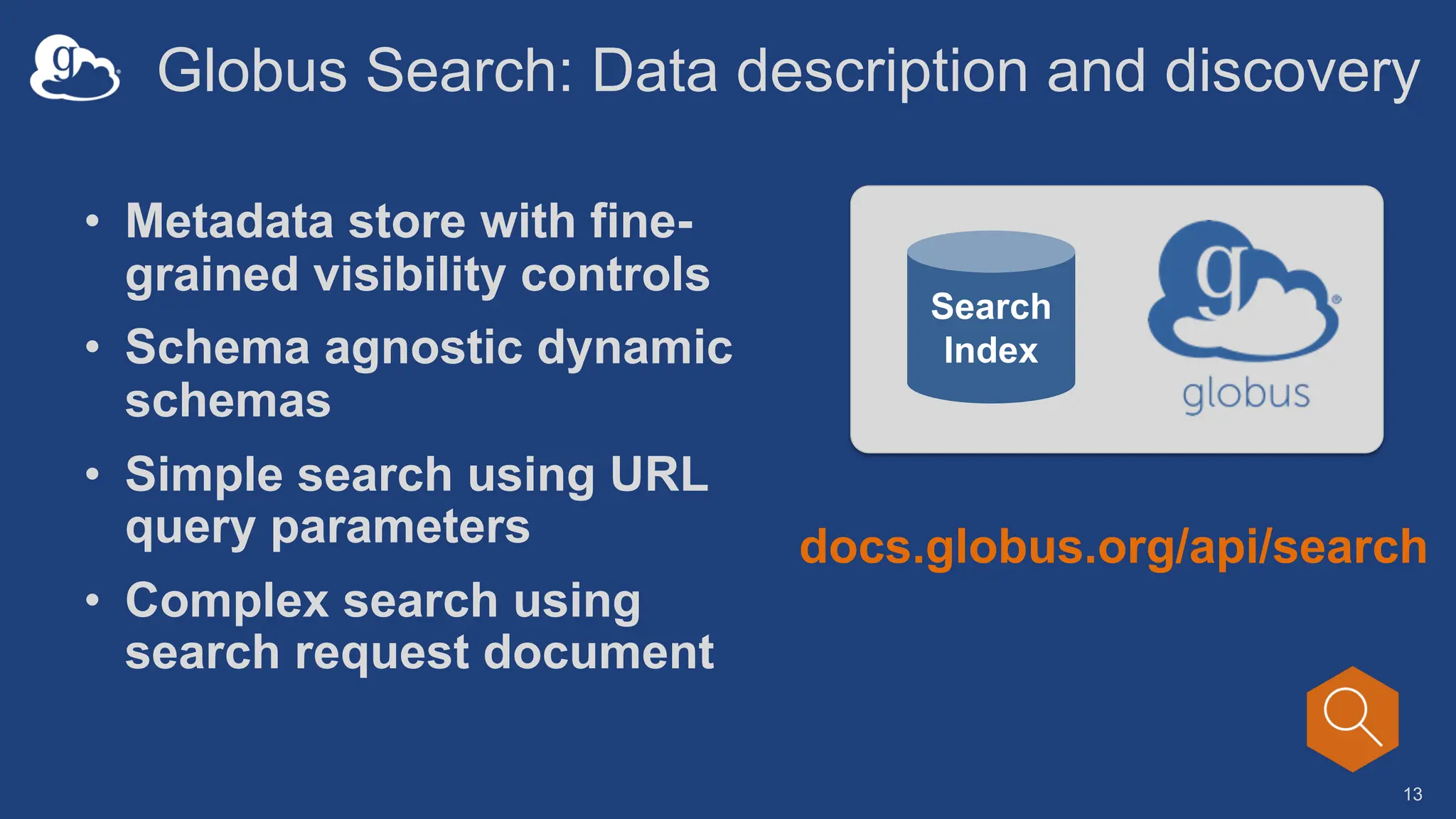

Globus Search: Data description and discovery
• Metadata store with fine-
grained visibility controls
• Schema agnostic dynamic
schemas
• Simple search using URL
query parameters
• Complex search using
search request document
13
docs.globus.org/api/search
Search
Index

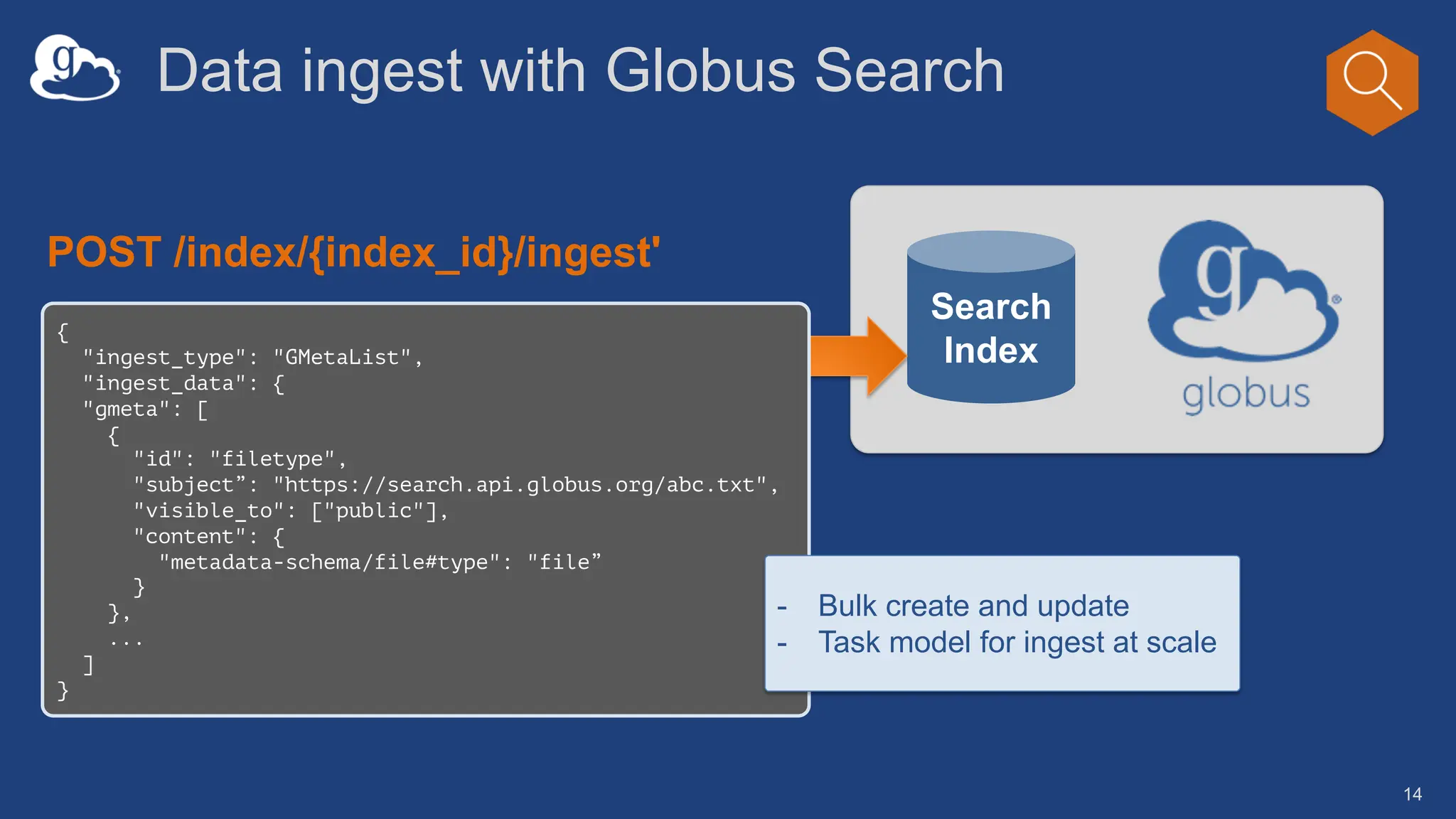

Data ingest with Globus Search
14
Search
Index
POST /index/{index_id}/ingest'
{
"ingest_type": "GMetaList",
"ingest_data": {
"gmeta": [
{
"id": "filetype",
"subject”: "https://search.api.globus.org/abc.txt",
"visible_to": ["public"],
"content": {
"metadata-schema/file#type": "file”
}
},
...
]
}
- Bulk create and update
- Task model for ingest at scale

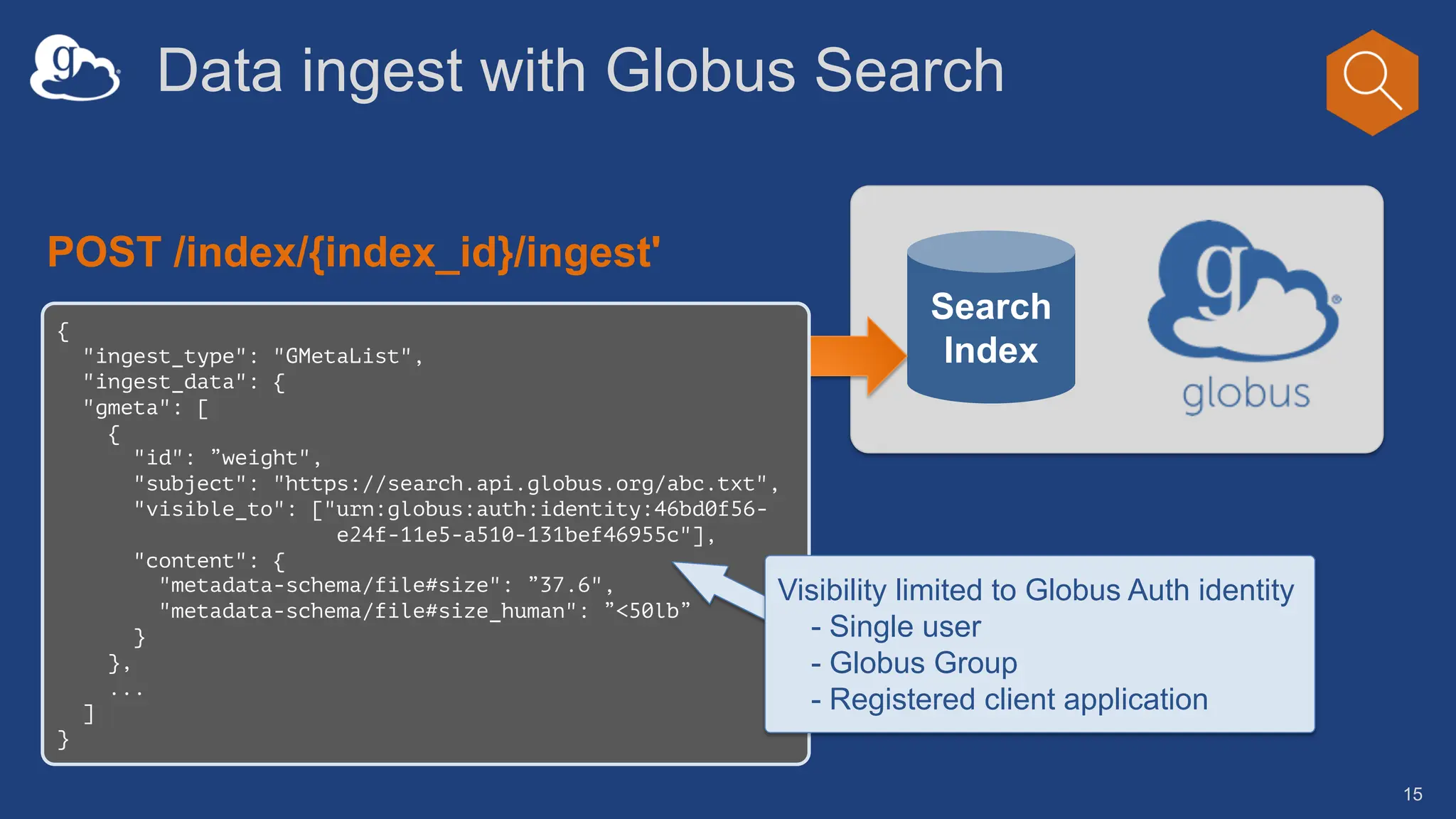

Data ingest with Globus Search
15
Search
Index
POST /index/{index_id}/ingest'
{
"ingest_type": "GMetaList",
"ingest_data": {
"gmeta": [
{
"id": ”weight",
"subject": "https://search.api.globus.org/abc.txt",
"visible_to": ["urn:globus:auth:identity:46bd0f56-
e24f-11e5-a510-131bef46955c"],
"content": {
"metadata-schema/file#size": ”37.6",
"metadata-schema/file#size_human": ”<50lb”
}
},
...
]
}
Visibility limited to Globus Auth identity
- Single user
- Globus Group
- Registered client application

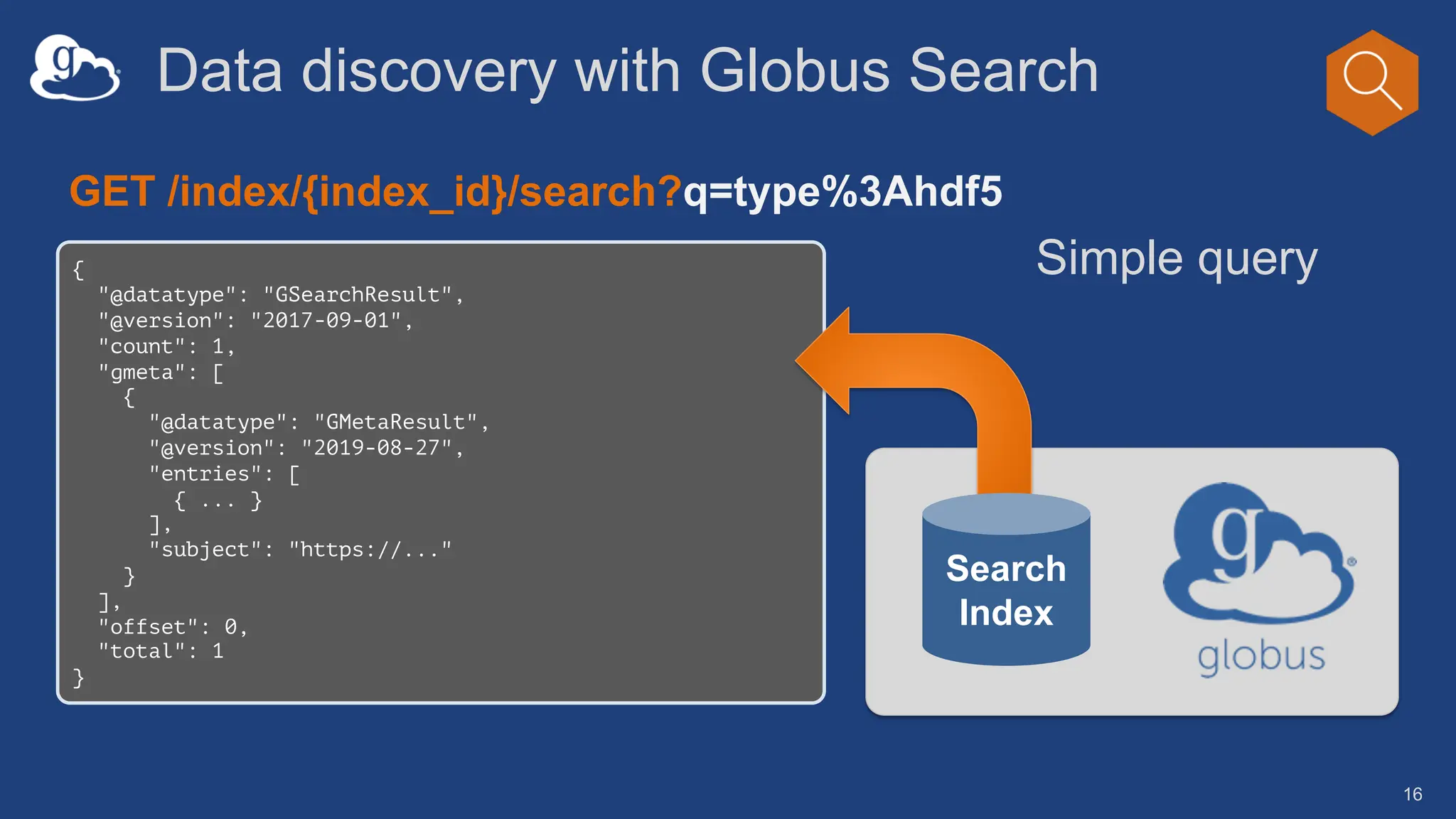

Data discovery with Globus Search
16
{
"@datatype": "GSearchResult",
"@version": "2017-09-01",
"count": 1,
"gmeta": [
{
"@datatype": "GMetaResult",
"@version": "2019-08-27",
"entries": [
{ ... }
],
"subject": "https://..."
}
],
"offset": 0,
"total": 1
}
GET /index/{index_id}/search?q=type%3Ahdf5
Search
Index
Simple query

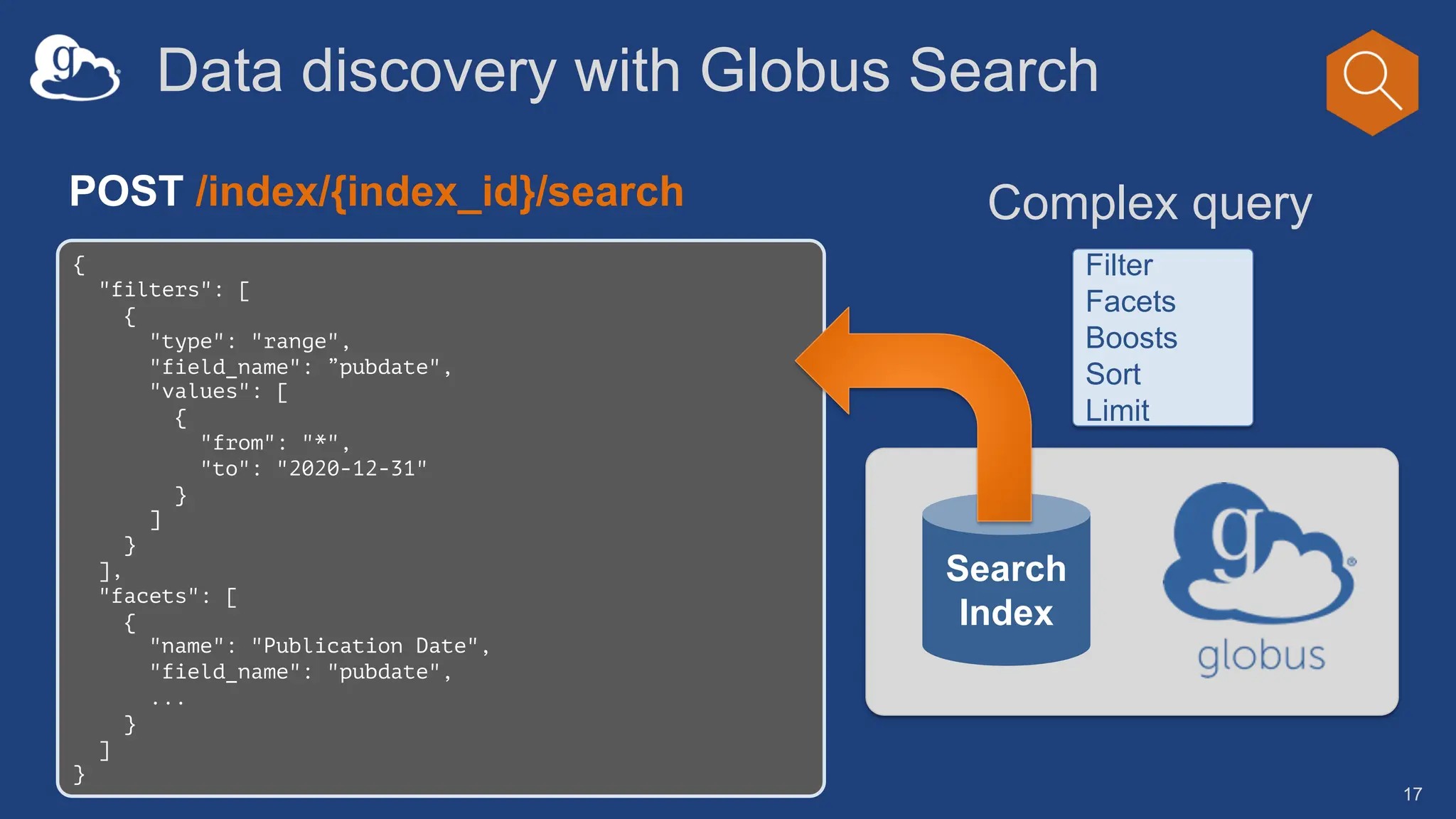

Data discovery with Globus Search
17
POST /index/{index_id}/search
Search
Index
Complex query
{
"filters": [
{
"type": "range",
"field_name": ”pubdate",
"values": [
{
"from": "*",
"to": "2020-12-31"
}
]
}
],
"facets": [
{
"name": "Publication Date",
"field_name": "pubdate",
...
}
]
}
Filter
Facets
Boosts
Sort
Limit
Experimenting with
Globus services
using notebooks
jupyter.demo.globus.org

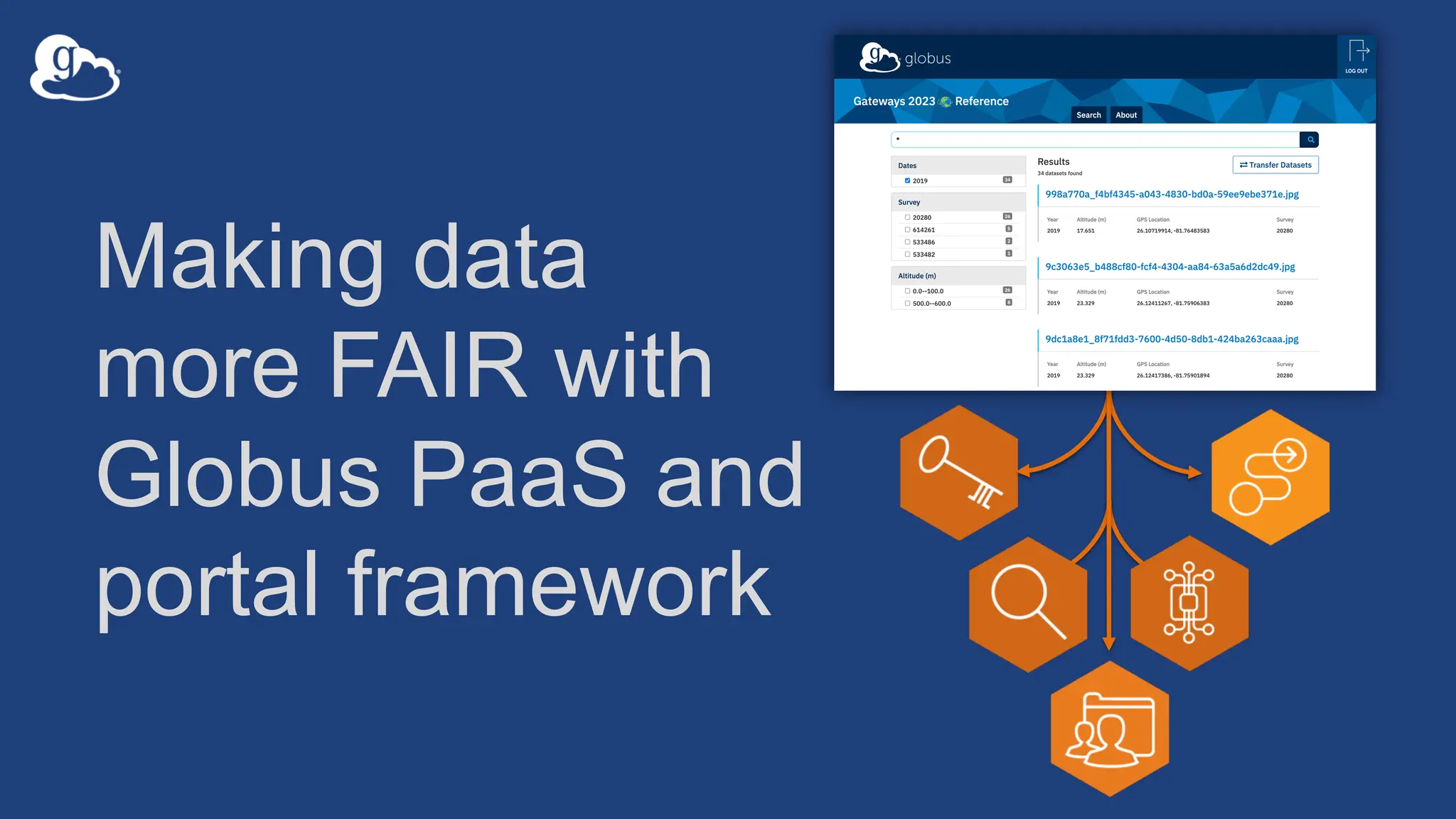

Making data
more FAIR with
Globus PaaS and
portal framework
The Modern Research Data
Portal Design Pattern
docs.globus.org/mrdp

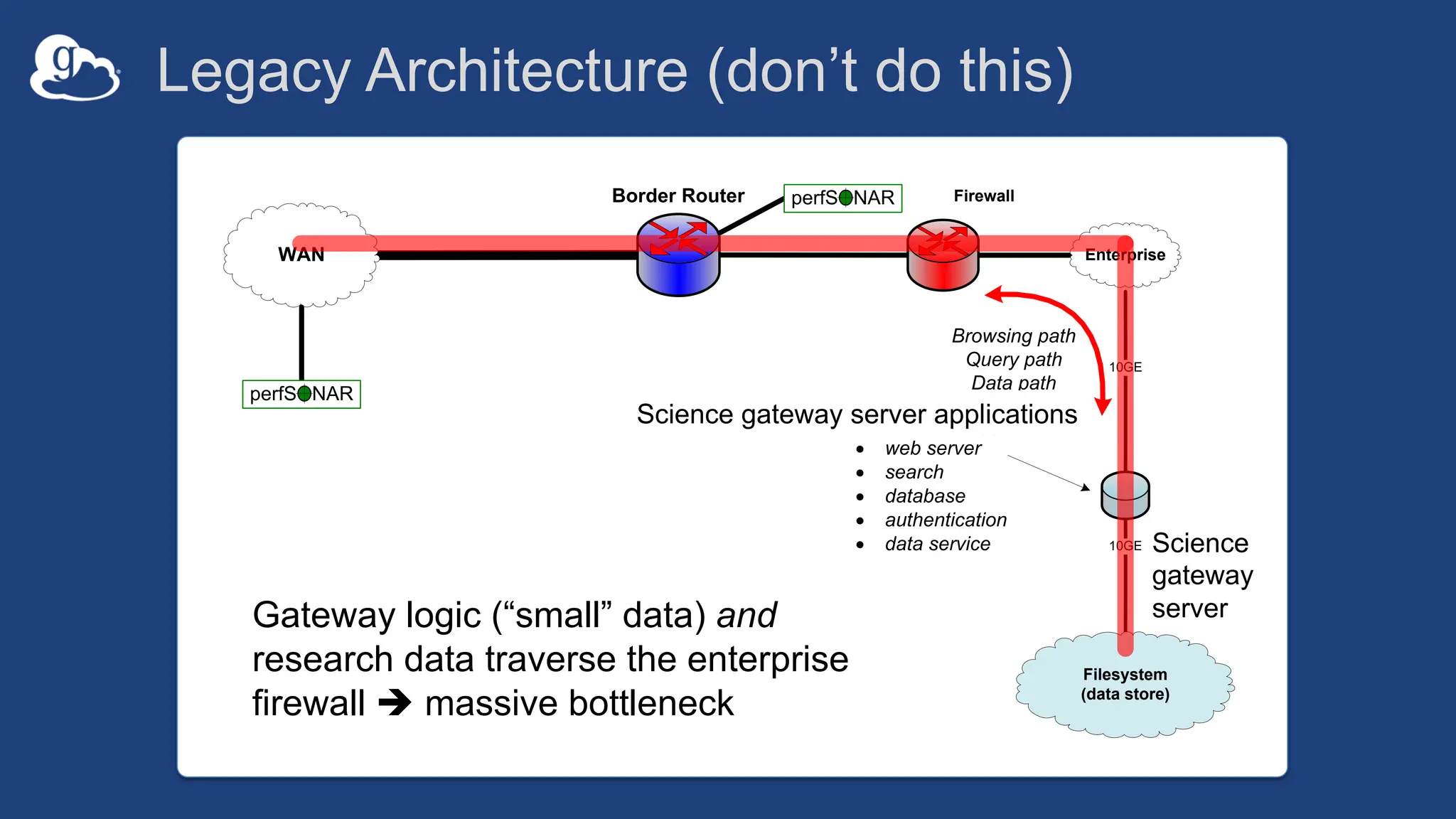

Legacy Architecture (don’t do this)
10GE
Border Router
WAN
Firewall
Enterprise
perfSONAR
perfSONAR
Filesystem
(data store)
10GE
Portal
Server
Browsing path
Query path
Data path
Portal server applications:
· web server
· search
· database
· authentication
· data service
Science gateway server applications
Science
gateway
server
Gateway logic (“small” data) and
research data traverse the enterprise
firewall è massive bottleneck

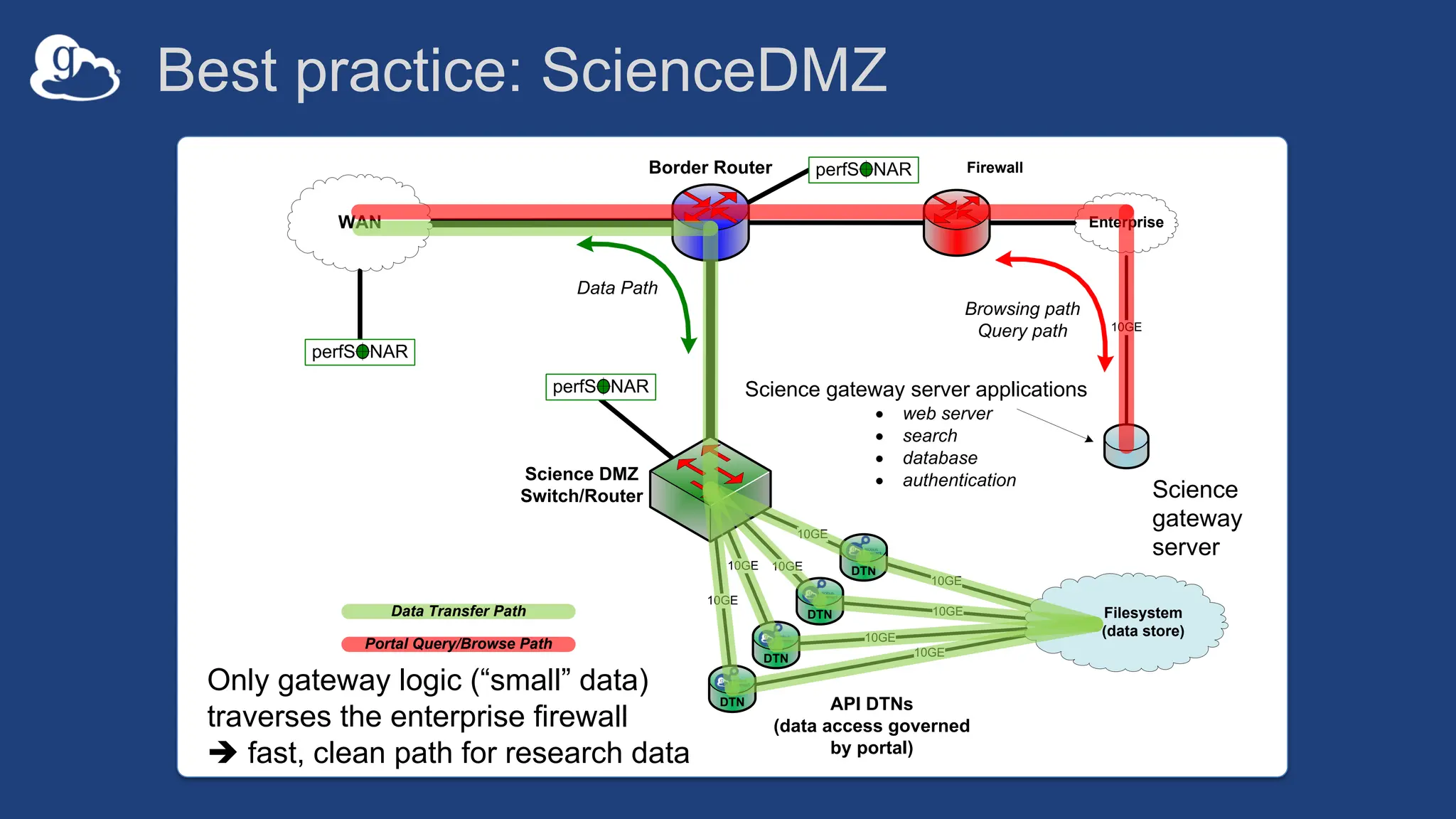

Best practice: ScienceDMZ
10GE
10GE
10GE
10GE
Border Router
WAN
Science DMZ
Switch/Router
Firewall
Enterprise
perfSONAR
perfSONAR
10GE
10GE
10GE
10GE
DTN
DTN
API DTNs
(data access governed
by portal)
DTN
DTN
perfSONAR
Filesystem
(data store)
10GE
Portal
Server
Browsing path
Query path
Portal server applications:
· web server
· search
· database
· authentication
Data Path
Data Transfer Path
Portal Query/Browse Path
Science
gateway
server
Science gateway server applications
Only gateway logic (“small” data)
traverses the enterprise firewall
è fast, clean path for research data

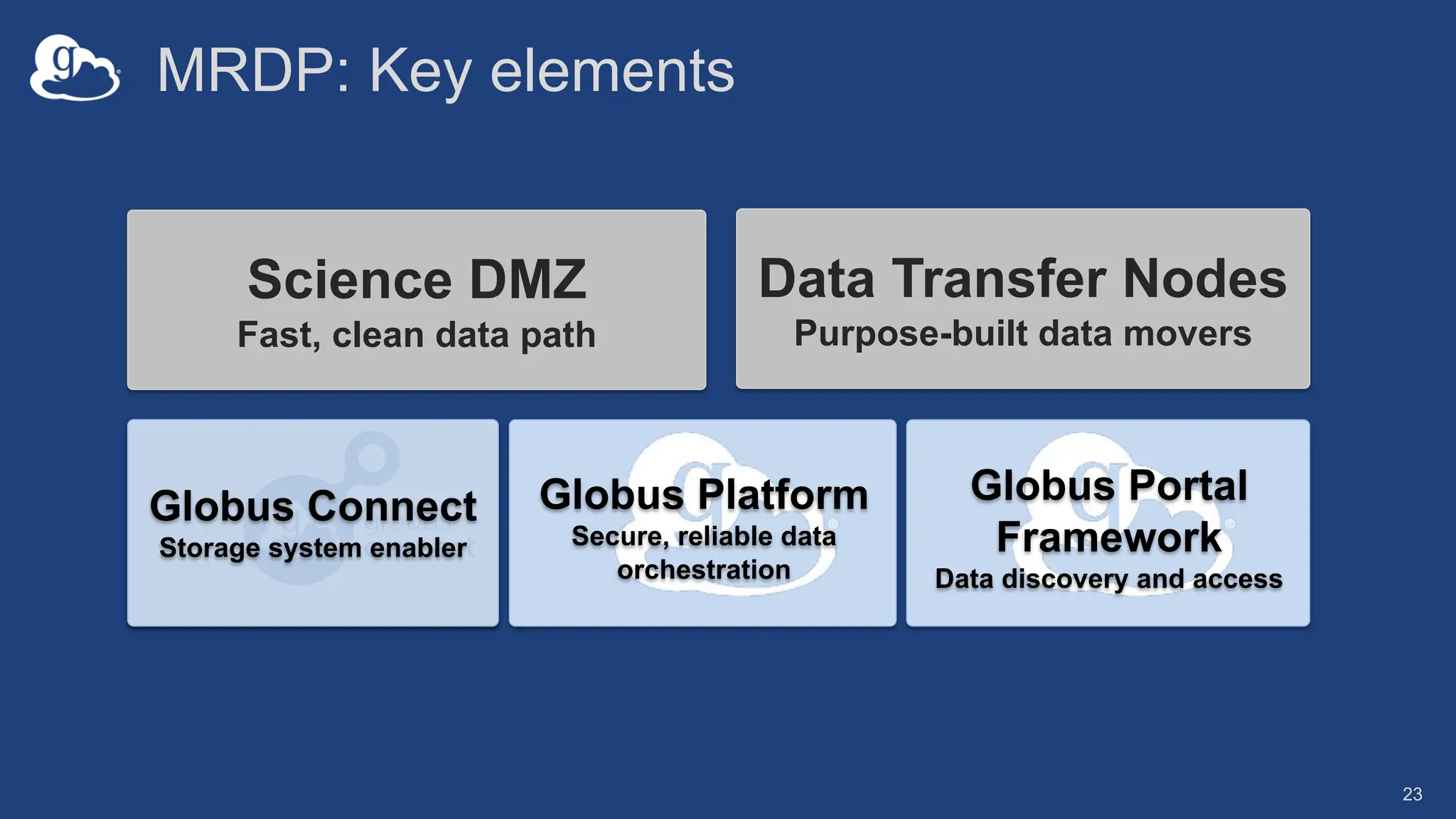

MRDP: Key elements
Science DMZ
Fast, clean data path
Data Transfer Nodes
Purpose-built data movers
Globus Platform
Secure, reliable data
orchestration
Globus Connect
Storage system enabler
23
Globus Portal
Framework
Data discovery and access

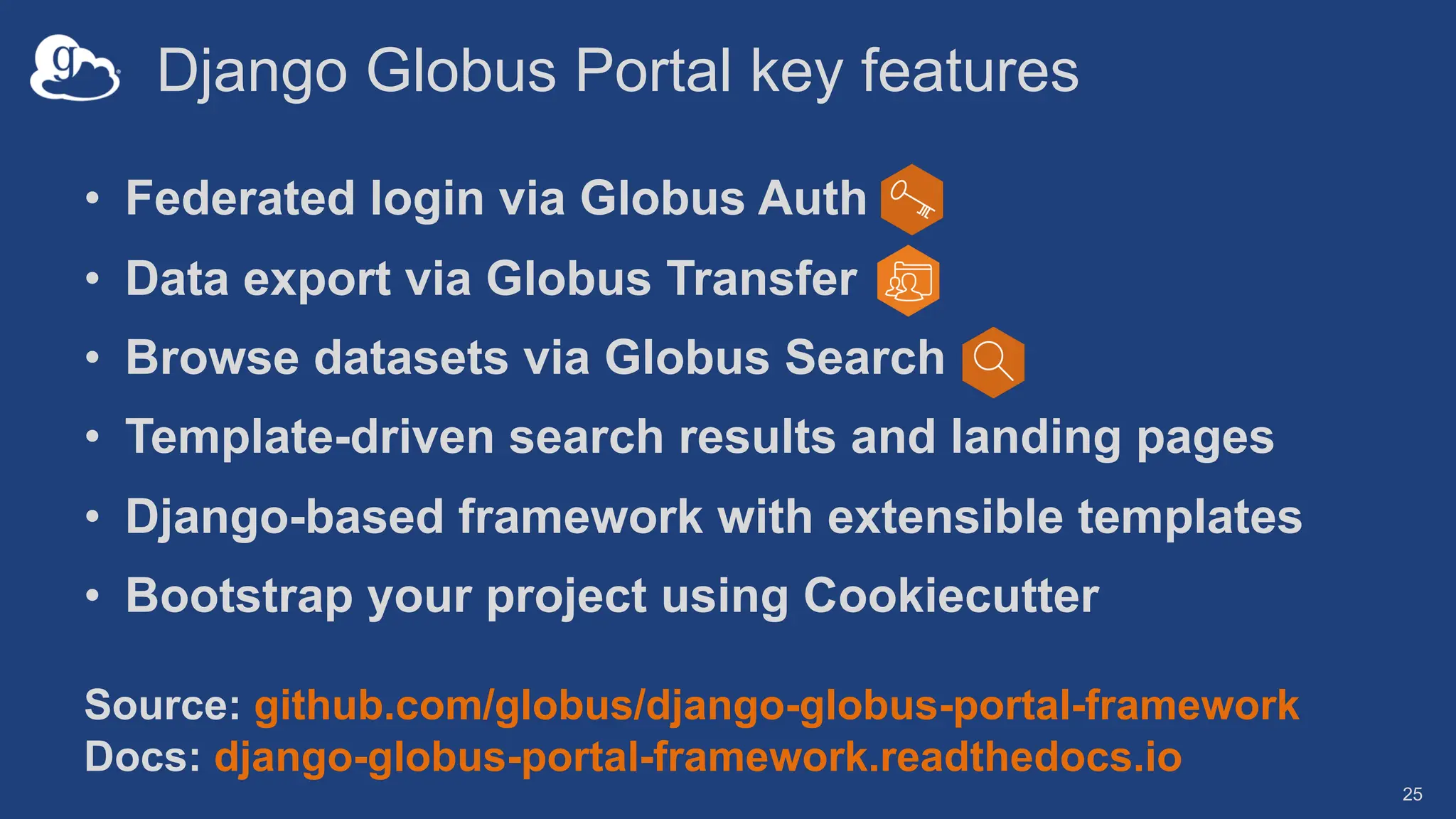

Django Globus Portal key features
• Federated login via Globus Auth
• Data export via Globus Transfer
• Browse datasets via Globus Search
• Template-driven search results and landing pages
• Django-based framework with extensible templates
• Bootstrap your project using Cookiecutter
25
Source: github.com/globus/django-globus-portal-framework
Docs: django-globus-portal-framework.readthedocs.io
Portal framework + Compute = Science Gateway
• Discover and select data of interest
• Run analyses on selected data via Globus Compute
– Run on any resource: laptop à supercomputer
• Move (and, optionally, share) analysis results
• Do all this reliably, at scale with Globus Flows
26

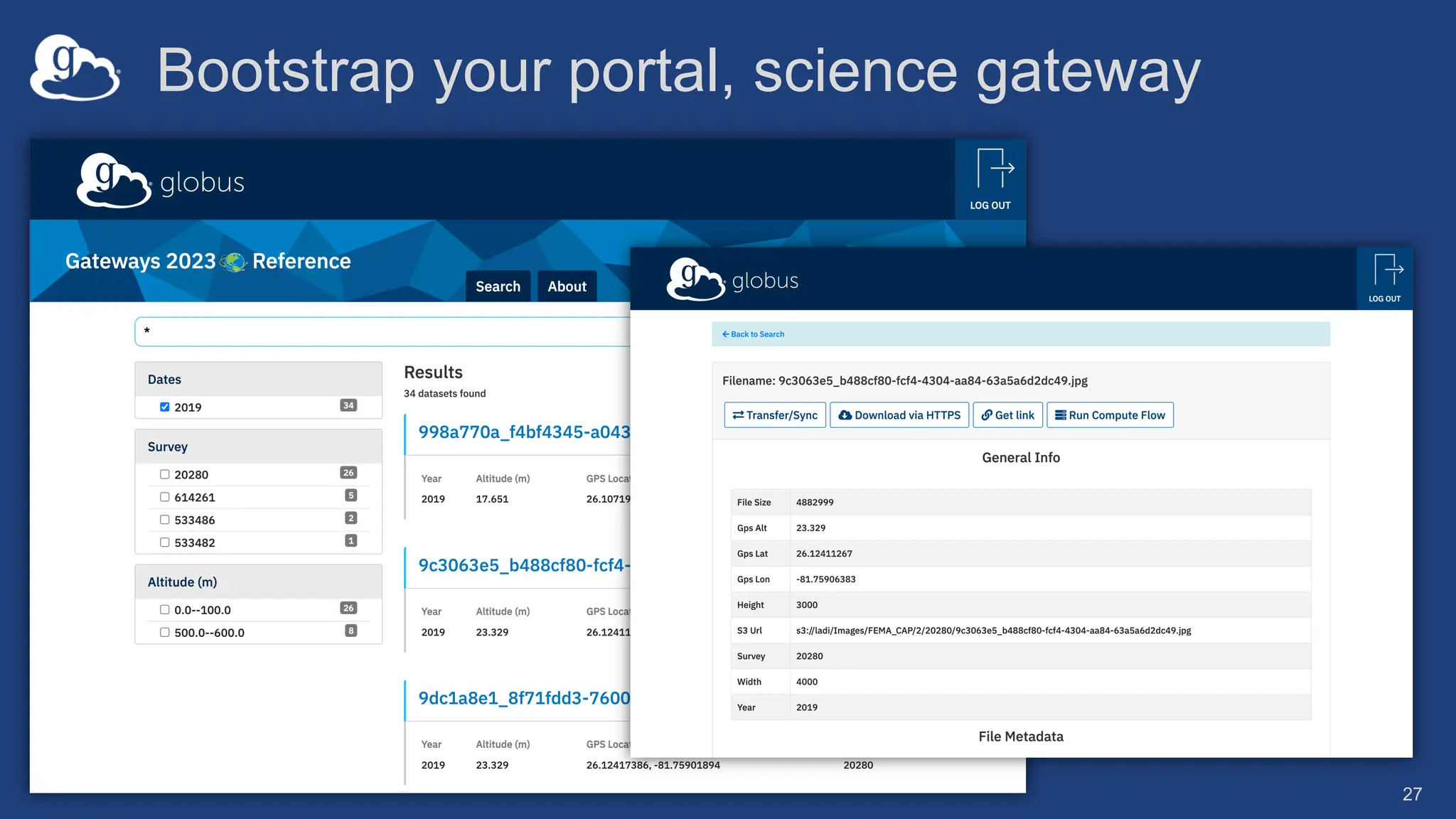

Bootstrap your portal, science gateway
27
Resources
• Experiment with APIs: jupyter.demo.globus.org
• Access code samples: github.com/globus
• Leverage Globus professional services team
• Support: support@globus.org
28

More Related Content

Similar to Building Research Applications with Globus PaaS

Enabling Secure Data Discoverability (SC21 Tutorial)
Enabling Secure Data Discoverability (SC21 Tutorial)Enabling Secure Data Discoverability (SC21 Tutorial)
Enabling Secure Data Discoverability (SC21 Tutorial)Globus

GlobusWorld 2021 Tutorial: Building with the Globus Platform
GlobusWorld 2021 Tutorial: Building with the Globus PlatformGlobusWorld 2021 Tutorial: Building with the Globus Platform
GlobusWorld 2021 Tutorial: Building with the Globus PlatformGlobus

Introduction to Globus for New Users
Introduction to Globus for New UsersIntroduction to Globus for New Users
Introduction to Globus for New UsersGlobus

Jupyter + Globus: The Foundation for Interactive Data Science
Jupyter + Globus: The Foundation for Interactive Data ScienceJupyter + Globus: The Foundation for Interactive Data Science
Jupyter + Globus: The Foundation for Interactive Data ScienceGlobus

Introduction to the Globus Platform (GlobusWorld Tour - UMich)
Introduction to the Globus Platform (GlobusWorld Tour - UMich)Introduction to the Globus Platform (GlobusWorld Tour - UMich)
Introduction to the Globus Platform (GlobusWorld Tour - UMich)Globus

Managing Protected and Controlled Data with Globus
Managing Protected and Controlled Data with Globus Managing Protected and Controlled Data with Globus
Managing Protected and Controlled Data with Globus Globus

Tutorial: Leveraging Globus in your Research Applications
Tutorial: Leveraging Globus in your Research ApplicationsTutorial: Leveraging Globus in your Research Applications
Tutorial: Leveraging Globus in your Research ApplicationsGlobus

Foundational Identity Management Services for Research Computing - ARCC Works...
Foundational Identity Management Services for Research Computing - ARCC Works...Foundational Identity Management Services for Research Computing - ARCC Works...
Foundational Identity Management Services for Research Computing - ARCC Works...Mary Bass

Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)
Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)
Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)Globus

Introduction to the Globus Platform (APS Workshop)
Introduction to the Globus Platform (APS Workshop)Introduction to the Globus Platform (APS Workshop)
Introduction to the Globus Platform (APS Workshop)Globus

Automating Research Data Flows and Introduction to the Globus Platform
Automating Research Data Flows and Introduction to the Globus PlatformAutomating Research Data Flows and Introduction to the Globus Platform
Automating Research Data Flows and Introduction to the Globus PlatformGlobus

Automating Research Data Flows and an Introduction to the Globus Platform
Automating Research Data Flows and an Introduction to the Globus PlatformAutomating Research Data Flows and an Introduction to the Globus Platform
Automating Research Data Flows and an Introduction to the Globus PlatformGlobus

Globus: Research Data Management as Service and Platform - pearc17
Globus: Research Data Management as Service and Platform - pearc17Globus: Research Data Management as Service and Platform - pearc17
Globus: Research Data Management as Service and Platform - pearc17Mary Bass

Globus Auth: A Research Identity and Access Management Platform
Globus Auth: A Research Identity and Access Management PlatformGlobus Auth: A Research Identity and Access Management Platform
Globus Auth: A Research Identity and Access Management PlatformIan Foster

Tutorial: Managing Protected Data with Globus Connect Server v5
Tutorial: Managing Protected Data with Globus Connect Server v5Tutorial: Managing Protected Data with Globus Connect Server v5
Tutorial: Managing Protected Data with Globus Connect Server v5Globus

Best Practices for Data Sharing (GlobusWorld Tour - UCSD)
Best Practices for Data Sharing (GlobusWorld Tour - UCSD)Best Practices for Data Sharing (GlobusWorld Tour - UCSD)
Best Practices for Data Sharing (GlobusWorld Tour - UCSD)Globus

Tutorial: Best Practices for Data Sharing
Tutorial: Best Practices for Data SharingTutorial: Best Practices for Data Sharing
Tutorial: Best Practices for Data SharingGlobus

Introduction to Globus for New Users
Introduction to Globus for New UsersIntroduction to Globus for New Users
Introduction to Globus for New UsersGlobus

Globus Portal Framework (APS Workshop)
Globus Portal Framework (APS Workshop)Globus Portal Framework (APS Workshop)
Globus Portal Framework (APS Workshop)Globus

Enterprise guide to building a Data Mesh
Enterprise guide to building a Data MeshEnterprise guide to building a Data Mesh
Enterprise guide to building a Data MeshSion Smith


Similar to Building Research Applications with Globus PaaS (20)

Enabling Secure Data Discoverability (SC21 Tutorial)
Enabling Secure Data Discoverability (SC21 Tutorial)Enabling Secure Data Discoverability (SC21 Tutorial)
Enabling Secure Data Discoverability (SC21 Tutorial)

GlobusWorld 2021 Tutorial: Building with the Globus Platform
GlobusWorld 2021 Tutorial: Building with the Globus PlatformGlobusWorld 2021 Tutorial: Building with the Globus Platform
GlobusWorld 2021 Tutorial: Building with the Globus Platform

Introduction to Globus for New Users
Introduction to Globus for New UsersIntroduction to Globus for New Users
Introduction to Globus for New Users

Jupyter + Globus: The Foundation for Interactive Data Science
Jupyter + Globus: The Foundation for Interactive Data ScienceJupyter + Globus: The Foundation for Interactive Data Science
Jupyter + Globus: The Foundation for Interactive Data Science

Introduction to the Globus Platform (GlobusWorld Tour - UMich)
Introduction to the Globus Platform (GlobusWorld Tour - UMich)Introduction to the Globus Platform (GlobusWorld Tour - UMich)
Introduction to the Globus Platform (GlobusWorld Tour - UMich)

Managing Protected and Controlled Data with Globus
Managing Protected and Controlled Data with Globus Managing Protected and Controlled Data with Globus
Managing Protected and Controlled Data with Globus

Tutorial: Leveraging Globus in your Research Applications
Tutorial: Leveraging Globus in your Research ApplicationsTutorial: Leveraging Globus in your Research Applications
Tutorial: Leveraging Globus in your Research Applications

Foundational Identity Management Services for Research Computing - ARCC Works...
Foundational Identity Management Services for Research Computing - ARCC Works...Foundational Identity Management Services for Research Computing - ARCC Works...
Foundational Identity Management Services for Research Computing - ARCC Works...

Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)
Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)
Best Practices for Data Sharing (GlobusWorld Tour - Columbia University)

Introduction to the Globus Platform (APS Workshop)
Introduction to the Globus Platform (APS Workshop)Introduction to the Globus Platform (APS Workshop)
Introduction to the Globus Platform (APS Workshop)

Automating Research Data Flows and Introduction to the Globus Platform
Automating Research Data Flows and Introduction to the Globus PlatformAutomating Research Data Flows and Introduction to the Globus Platform
Automating Research Data Flows and Introduction to the Globus Platform

Automating Research Data Flows and an Introduction to the Globus Platform
Automating Research Data Flows and an Introduction to the Globus PlatformAutomating Research Data Flows and an Introduction to the Globus Platform
Automating Research Data Flows and an Introduction to the Globus Platform

Globus: Research Data Management as Service and Platform - pearc17
Globus: Research Data Management as Service and Platform - pearc17Globus: Research Data Management as Service and Platform - pearc17
Globus: Research Data Management as Service and Platform - pearc17

Globus Auth: A Research Identity and Access Management Platform
Globus Auth: A Research Identity and Access Management PlatformGlobus Auth: A Research Identity and Access Management Platform
Globus Auth: A Research Identity and Access Management Platform

Tutorial: Managing Protected Data with Globus Connect Server v5
Tutorial: Managing Protected Data with Globus Connect Server v5Tutorial: Managing Protected Data with Globus Connect Server v5
Tutorial: Managing Protected Data with Globus Connect Server v5

Best Practices for Data Sharing (GlobusWorld Tour - UCSD)
Best Practices for Data Sharing (GlobusWorld Tour - UCSD)Best Practices for Data Sharing (GlobusWorld Tour - UCSD)
Best Practices for Data Sharing (GlobusWorld Tour - UCSD)

Tutorial: Best Practices for Data Sharing
Tutorial: Best Practices for Data SharingTutorial: Best Practices for Data Sharing
Tutorial: Best Practices for Data Sharing

Introduction to Globus for New Users
Introduction to Globus for New UsersIntroduction to Globus for New Users
Introduction to Globus for New Users

Globus Portal Framework (APS Workshop)
Globus Portal Framework (APS Workshop)Globus Portal Framework (APS Workshop)
Globus Portal Framework (APS Workshop)

Enterprise guide to building a Data Mesh
Enterprise guide to building a Data MeshEnterprise guide to building a Data Mesh
Enterprise guide to building a Data Mesh


More from Globus

Reactive Documents and Computational Pipelines
Reactive Documents and Computational PipelinesReactive Documents and Computational Pipelines
Reactive Documents and Computational PipelinesGlobus

Providing Globus Services to Users Of JASMIN for Environmental Data Analysis
Providing Globus Services to Users Of JASMIN for Environmental Data AnalysisProviding Globus Services to Users Of JASMIN for Environmental Data Analysis
Providing Globus Services to Users Of JASMIN for Environmental Data AnalysisGlobus

Understanding Globus Data Transfers with NetSage
Understanding Globus Data Transfers with NetSageUnderstanding Globus Data Transfers with NetSage
Understanding Globus Data Transfers with NetSageGlobus

Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...
Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...
Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...Globus

How to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good PracticesHow to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good PracticesGlobus

GlobusWorld 2024: Opening Keynote Address
GlobusWorld 2024: Opening Keynote AddressGlobusWorld 2024: Opening Keynote Address
GlobusWorld 2024: Opening Keynote AddressGlobus

Globus Connect Server Deep Dive - Advanced Configuration Options and Use Cases
Globus Connect Server Deep Dive - Advanced Configuration Options and Use CasesGlobus Connect Server Deep Dive - Advanced Configuration Options and Use Cases
Globus Connect Server Deep Dive - Advanced Configuration Options and Use CasesGlobus

Globus Compute with Integrated Research Infrastructure (IRI) Workflows
Globus Compute with Integrated Research Infrastructure (IRI) WorkflowsGlobus Compute with Integrated Research Infrastructure (IRI) Workflows
Globus Compute with Integrated Research Infrastructure (IRI) WorkflowsGlobus

Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...
Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...
Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...Globus

Globus at the U.S. Geological Survey (USGS)
Globus at the U.S. Geological Survey (USGS)Globus at the U.S. Geological Survey (USGS)
Globus at the U.S. Geological Survey (USGS)Globus

Globus and the Integrated Research Infrastructure (IRI)
Globus and the Integrated Research Infrastructure (IRI)Globus and the Integrated Research Infrastructure (IRI)
Globus and the Integrated Research Infrastructure (IRI)Globus

First Steps with Globus Compute Multi-User Endpoints
First Steps with Globus Compute Multi-User EndpointsFirst Steps with Globus Compute Multi-User Endpoints
First Steps with Globus Compute Multi-User EndpointsGlobus

Extending Globus into a Site-wide Automated Data Infrastructure
Extending Globus into a Site-wide Automated Data InfrastructureExtending Globus into a Site-wide Automated Data Infrastructure
Extending Globus into a Site-wide Automated Data InfrastructureGlobus

Enhancing Research Orchestration Capabilities at ORNL.pptx
Enhancing Research Orchestration Capabilities at ORNL.pptxEnhancing Research Orchestration Capabilities at ORNL.pptx
Enhancing Research Orchestration Capabilities at ORNL.pptxGlobus

Enhancing Performance with Globus and the Science DMZ.pdf
Enhancing Performance with Globus and the Science DMZ.pdfEnhancing Performance with Globus and the Science DMZ.pdf
Enhancing Performance with Globus and the Science DMZ.pdfGlobus

Developing Distributed High-performance Computing Capabilities of an Open Sci...
Developing Distributed High-performance Computing Capabilities of an Open Sci...Developing Distributed High-performance Computing Capabilities of an Open Sci...
Developing Distributed High-performance Computing Capabilities of an Open Sci...Globus

Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...
Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...
Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...Globus

Introduction to Globus Compute - GlobusWorld 2024
Introduction to Globus Compute - GlobusWorld 2024Introduction to Globus Compute - GlobusWorld 2024
Introduction to Globus Compute - GlobusWorld 2024Globus

Advanced Globus System Administration Topics
Advanced Globus System Administration TopicsAdvanced Globus System Administration Topics
Advanced Globus System Administration TopicsGlobus

Instrument Data Automation: The Life of a Flow
Instrument Data Automation: The Life of a FlowInstrument Data Automation: The Life of a Flow
Instrument Data Automation: The Life of a FlowGlobus


More from Globus (20)

Reactive Documents and Computational Pipelines
Reactive Documents and Computational PipelinesReactive Documents and Computational Pipelines
Reactive Documents and Computational Pipelines

Providing Globus Services to Users Of JASMIN for Environmental Data Analysis
Providing Globus Services to Users Of JASMIN for Environmental Data AnalysisProviding Globus Services to Users Of JASMIN for Environmental Data Analysis
Providing Globus Services to Users Of JASMIN for Environmental Data Analysis

Understanding Globus Data Transfers with NetSage
Understanding Globus Data Transfers with NetSageUnderstanding Globus Data Transfers with NetSage
Understanding Globus Data Transfers with NetSage

Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...
Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...
Innovating Inference: Remote Triggering of Large Language Models on HPC Clust...

How to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good PracticesHow to Position Your Globus Data Portal for Success Ten Good Practices
How to Position Your Globus Data Portal for Success Ten Good Practices

GlobusWorld 2024: Opening Keynote Address
GlobusWorld 2024: Opening Keynote AddressGlobusWorld 2024: Opening Keynote Address
GlobusWorld 2024: Opening Keynote Address

Globus Connect Server Deep Dive - Advanced Configuration Options and Use Cases
Globus Connect Server Deep Dive - Advanced Configuration Options and Use CasesGlobus Connect Server Deep Dive - Advanced Configuration Options and Use Cases
Globus Connect Server Deep Dive - Advanced Configuration Options and Use Cases

Globus Compute with Integrated Research Infrastructure (IRI) Workflows
Globus Compute with Integrated Research Infrastructure (IRI) WorkflowsGlobus Compute with Integrated Research Infrastructure (IRI) Workflows
Globus Compute with Integrated Research Infrastructure (IRI) Workflows

Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...
Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...
Exploring Innovations in Data Repository Solutions Insights from the U.S. Geo...

Globus at the U.S. Geological Survey (USGS)
Globus at the U.S. Geological Survey (USGS)Globus at the U.S. Geological Survey (USGS)
Globus at the U.S. Geological Survey (USGS)

Globus and the Integrated Research Infrastructure (IRI)
Globus and the Integrated Research Infrastructure (IRI)Globus and the Integrated Research Infrastructure (IRI)
Globus and the Integrated Research Infrastructure (IRI)

First Steps with Globus Compute Multi-User Endpoints
First Steps with Globus Compute Multi-User EndpointsFirst Steps with Globus Compute Multi-User Endpoints
First Steps with Globus Compute Multi-User Endpoints

Extending Globus into a Site-wide Automated Data Infrastructure
Extending Globus into a Site-wide Automated Data InfrastructureExtending Globus into a Site-wide Automated Data Infrastructure
Extending Globus into a Site-wide Automated Data Infrastructure

Enhancing Research Orchestration Capabilities at ORNL.pptx
Enhancing Research Orchestration Capabilities at ORNL.pptxEnhancing Research Orchestration Capabilities at ORNL.pptx
Enhancing Research Orchestration Capabilities at ORNL.pptx

Enhancing Performance with Globus and the Science DMZ.pdf
Enhancing Performance with Globus and the Science DMZ.pdfEnhancing Performance with Globus and the Science DMZ.pdf
Enhancing Performance with Globus and the Science DMZ.pdf

Developing Distributed High-performance Computing Capabilities of an Open Sci...
Developing Distributed High-performance Computing Capabilities of an Open Sci...Developing Distributed High-performance Computing Capabilities of an Open Sci...
Developing Distributed High-performance Computing Capabilities of an Open Sci...

Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...
Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...
Climate Science Flows Enabling Petabyte-Scale Climate Analysis with the Earth...

Introduction to Globus Compute - GlobusWorld 2024
Introduction to Globus Compute - GlobusWorld 2024Introduction to Globus Compute - GlobusWorld 2024
Introduction to Globus Compute - GlobusWorld 2024

Advanced Globus System Administration Topics
Advanced Globus System Administration TopicsAdvanced Globus System Administration Topics
Advanced Globus System Administration Topics

Instrument Data Automation: The Life of a Flow
Instrument Data Automation: The Life of a FlowInstrument Data Automation: The Life of a Flow
Instrument Data Automation: The Life of a Flow


Recently uploaded

AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfAzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfryanfarris8

WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2

WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2

WSO2Con204 - Hard Rock Presentation - Keynote
WSO2Con204 - Hard Rock Presentation - KeynoteWSO2Con204 - Hard Rock Presentation - Keynote
WSO2Con204 - Hard Rock Presentation - KeynoteWSO2

WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...
WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...
WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...WSO2

WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & Innovation
WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & InnovationWSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & Innovation
WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & InnovationWSO2

WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...
WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...
WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...WSO2

WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...
WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...
WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...WSO2

WSO2CON 2024 Slides - Unlocking Value with AI
WSO2CON 2024 Slides - Unlocking Value with AIWSO2CON 2024 Slides - Unlocking Value with AI
WSO2CON 2024 Slides - Unlocking Value with AIWSO2

WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital TransformationWSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital TransformationWSO2

Evolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI EraEvolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI Eraconfluent

WSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in UgandaWSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in UgandaWSO2

Announcing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK SoftwareAnnouncing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK SoftwareJim McKeeth

Novo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNovo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNeo4j

WSO2CON 2024 - Does Open Source Still Matter?
WSO2CON 2024 - Does Open Source Still Matter?WSO2CON 2024 - Does Open Source Still Matter?
WSO2CON 2024 - Does Open Source Still Matter?WSO2

WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...
WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...
WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...WSO2

WSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next IntegrationWSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next IntegrationWSO2

WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2


Recently uploaded (20)

AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdfAzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf
AzureNativeQumulo_HPC_Cloud_Native_Benchmarks.pdf

WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...
WSO2CON 2024 - API Management Usage at La Poste and Its Impact on Business an...

WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...
WSO2Con2024 - Navigating the Digital Landscape: Transforming Healthcare with ...

WSO2Con204 - Hard Rock Presentation - Keynote
WSO2Con204 - Hard Rock Presentation - KeynoteWSO2Con204 - Hard Rock Presentation - Keynote
WSO2Con204 - Hard Rock Presentation - Keynote

WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...
WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...
WSO2CON 2024 - WSO2's Digital Transformation Journey with Choreo: A Platforml...

WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & Innovation
WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & InnovationWSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & Innovation
WSO2CON 2024 - OSU & WSO2: A Decade Journey in Integration & Innovation

WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...
WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...
WSO2CON 2024 - Navigating API Complexity: REST, GraphQL, gRPC, Websocket, Web...

WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...
WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...
WSO2CON 2024 - Unlocking the Identity: Embracing CIAM 2.0 for a Competitive A...

WSO2CON 2024 Slides - Unlocking Value with AI
WSO2CON 2024 Slides - Unlocking Value with AIWSO2CON 2024 Slides - Unlocking Value with AI
WSO2CON 2024 Slides - Unlocking Value with AI

WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital TransformationWSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation
WSO2Con2024 - WSO2's IAM Vision: Identity-Led Digital Transformation

Abortion Pill Prices Tembisa [(+27832195400*)] 🏥 Women's Abortion Clinic in T...
Abortion Pill Prices Tembisa [(+27832195400*)] 🏥 Women's Abortion Clinic in T...Abortion Pill Prices Tembisa [(+27832195400*)] 🏥 Women's Abortion Clinic in T...
Abortion Pill Prices Tembisa [(+27832195400*)] 🏥 Women's Abortion Clinic in T...

Evolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI EraEvolving Data Governance for the Real-time Streaming and AI Era
Evolving Data Governance for the Real-time Streaming and AI Era

WSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in UgandaWSO2CON 2024 - Building a Digital Government in Uganda
WSO2CON 2024 - Building a Digital Government in Uganda

Announcing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK SoftwareAnnouncing Codolex 2.0 from GDK Software
Announcing Codolex 2.0 from GDK Software

Abortion Pill Prices Boksburg [(+27832195400*)] 🏥 Women's Abortion Clinic in ...
Abortion Pill Prices Boksburg [(+27832195400*)] 🏥 Women's Abortion Clinic in ...Abortion Pill Prices Boksburg [(+27832195400*)] 🏥 Women's Abortion Clinic in ...
Abortion Pill Prices Boksburg [(+27832195400*)] 🏥 Women's Abortion Clinic in ...

Novo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMsNovo Nordisk: When Knowledge Graphs meet LLMs
Novo Nordisk: When Knowledge Graphs meet LLMs

WSO2CON 2024 - Does Open Source Still Matter?
WSO2CON 2024 - Does Open Source Still Matter?WSO2CON 2024 - Does Open Source Still Matter?
WSO2CON 2024 - Does Open Source Still Matter?

WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...
WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...
WSO2CON 2024 - Lessons from the Field: Legacy Platforms – It's Time to Let Go...

WSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next IntegrationWSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration
WSO2CON2024 - Why Should You Consider Ballerina for Your Next Integration

WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!
WSO2CON 2024 - Not Just Microservices: Rightsize Your Services!


Building Research Applications with Globus PaaS

  • 1. Vas Vasiliadis vas@uchicago.edu February 28, 2024 Building Research Applications with Globus PaaS
  • 2. Globus PaaS accelerates development • Auth • Groups • Transfer • Compute • Search • Timer • Flows • GCS Manager • Globus web app consumes the same public APIs • Resources named by URL (standard REST approach) • Request/response body is JSON • Python SDK available; JS coming docs.globus.org/api
  • 3.
  • 4. Globus Auth: Foundational IAM service • Makes app/portal widely and easily accessible • Brokers authentication and authorization among… – End-users – Identity providers: enterprise, external (federated identities) – Services: resource servers with REST APIs – Apps: web, mobile, desktop, command line clients – Services acting as clients to other services • OAuth 2.0 Authorization Framework (a.k.a. OAuth2) • OpenID Connect Core 1.0 (a.k.a. OIDC) 5
  • 5. Fundamental Concepts • Scopes – APIs that client is requesting access to – Service and resources within that service • Consents – Authorizes a client to access a service, within limited scope, on the resource owner's behalf • Multiple methods for user to grant consent depending on the type of application 6
  • 6. Several authentication modes supported • A portal/science/gateway or other application you host – Authorization code grant: authenticate as user identity – Browser redirect; auth code returned automatically; tokens stored securely • A thick client/script installed and run on the user’s device – Native app grant: authenticate as user identity – Auth code returned automatically; tokens stored per installation • Service account or application credentials for automation – Client credentials grant: authenticate as application identity – Client ID and Secret stored securely • Application able to manage tokens for offline/long lived tasks – Request refresh tokens in addition to access tokens
  • 8. Get app credentials at https://app.globus.org/settings/developers
  • 9. Managing service accounts/app credentials • Application Identity: appclientid@clients.auth.globus.org • These are confidential apps with client id and secret • Ensure application is on a secure device • Set up policy for rotation of secret • Assign project admins to manage the registration
  • 10. Globus Groups for authorization • Grant group manager role to your application (client identity) – App can add/remove members to grant/remove access • Use groups to manage your application’s permissions – Use group membership instead of managing ACLs directly – Check user’s group membership(s) to determine permissions globus-sdk-python.readthedocs.io/en/stable/services/groups.html
  • 11. Guest collections simplify data access • Users don't need local accounts to access data • Portal can act as itself when accessing collections • Grant the application Access Manager role – Allows the application to manage permissions on the collection • Grant roles for management of endpoint and tasks
  • 12. Globus Search: Data description and discovery • Metadata store with fine- grained visibility controls • Schema agnostic dynamic schemas • Simple search using URL query parameters • Complex search using search request document 13 docs.globus.org/api/search Search Index
  • 13. Data ingest with Globus Search 14 Search Index POST /index/{index_id}/ingest' { "ingest_type": "GMetaList", "ingest_data": { "gmeta": [ { "id": "filetype", "subject”: "https://search.api.globus.org/abc.txt", "visible_to": ["public"], "content": { "metadata-schema/file#type": "file” } }, ... ] } - Bulk create and update - Task model for ingest at scale
  • 14. Data ingest with Globus Search 15 Search Index POST /index/{index_id}/ingest' { "ingest_type": "GMetaList", "ingest_data": { "gmeta": [ { "id": ”weight", "subject": "https://search.api.globus.org/abc.txt", "visible_to": ["urn:globus:auth:identity:46bd0f56- e24f-11e5-a510-131bef46955c"], "content": { "metadata-schema/file#size": ”37.6", "metadata-schema/file#size_human": ”<50lb” } }, ... ] } Visibility limited to Globus Auth identity - Single user - Globus Group - Registered client application
  • 15. Data discovery with Globus Search 16 { "@datatype": "GSearchResult", "@version": "2017-09-01", "count": 1, "gmeta": [ { "@datatype": "GMetaResult", "@version": "2019-08-27", "entries": [ { ... } ], "subject": "https://..." } ], "offset": 0, "total": 1 } GET /index/{index_id}/search?q=type%3Ahdf5 Search Index Simple query
  • 16. Data discovery with Globus Search 17 POST /index/{index_id}/search Search Index Complex query { "filters": [ { "type": "range", "field_name": ”pubdate", "values": [ { "from": "*", "to": "2020-12-31" } ] } ], "facets": [ { "name": "Publication Date", "field_name": "pubdate", ... } ] } Filter Facets Boosts Sort Limit
  • 17. Experimenting with Globus services using notebooks jupyter.demo.globus.org
  • 18. Making data more FAIR with Globus PaaS and portal framework
  • 19. The Modern Research Data Portal Design Pattern docs.globus.org/mrdp
  • 20. Legacy Architecture (don’t do this) 10GE Border Router WAN Firewall Enterprise perfSONAR perfSONAR Filesystem (data store) 10GE Portal Server Browsing path Query path Data path Portal server applications: · web server · search · database · authentication · data service Science gateway server applications Science gateway server Gateway logic (“small” data) and research data traverse the enterprise firewall è massive bottleneck
  • 21. Best practice: ScienceDMZ 10GE 10GE 10GE 10GE Border Router WAN Science DMZ Switch/Router Firewall Enterprise perfSONAR perfSONAR 10GE 10GE 10GE 10GE DTN DTN API DTNs (data access governed by portal) DTN DTN perfSONAR Filesystem (data store) 10GE Portal Server Browsing path Query path Portal server applications: · web server · search · database · authentication Data Path Data Transfer Path Portal Query/Browse Path Science gateway server Science gateway server applications Only gateway logic (“small” data) traverses the enterprise firewall è fast, clean path for research data
  • 22. MRDP: Key elements Science DMZ Fast, clean data path Data Transfer Nodes Purpose-built data movers Globus Platform Secure, reliable data orchestration Globus Connect Storage system enabler 23 Globus Portal Framework Data discovery and access
  • 23. Django Globus Portal key features • Federated login via Globus Auth • Data export via Globus Transfer • Browse datasets via Globus Search • Template-driven search results and landing pages • Django-based framework with extensible templates • Bootstrap your project using Cookiecutter 25 Source: github.com/globus/django-globus-portal-framework Docs: django-globus-portal-framework.readthedocs.io
  • 24. Portal framework + Compute = Science Gateway • Discover and select data of interest • Run analyses on selected data via Globus Compute – Run on any resource: laptop à supercomputer • Move (and, optionally, share) analysis results • Do all this reliably, at scale with Globus Flows 26
  • 25. Bootstrap your portal, science gateway 27
  • 26. Resources • Experiment with APIs: jupyter.demo.globus.org • Access code samples: github.com/globus • Leverage Globus professional services team • Support: support@globus.org 28
