Rachana Ananthakrishnan
ranantha@uchicago.edu
February 28, 2024
Best Practices for Data Sharing

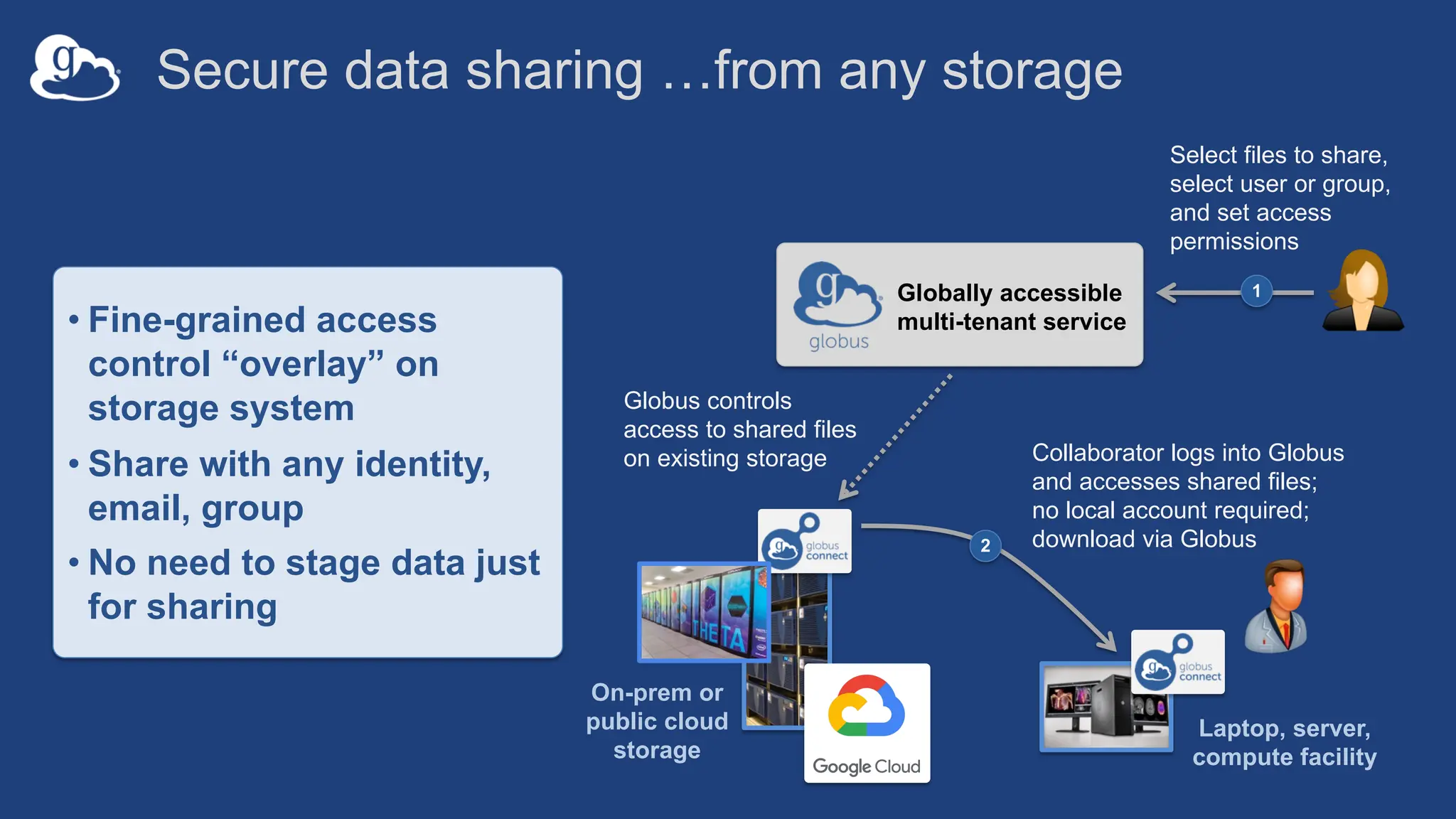

Secure data sharing …from any storage
Collaborator logs into Globus
and accesses shared files;
no local account required;
download via Globus
2
On-prem or
public cloud
storage
Select files to share,
select user or group,
and set access
permissions
1
Globally accessible
multi-tenant service
Globus controls
access to shared files
on existing storage
Laptop, server,
compute facility
• Fine-grained access
control “overlay” on
storage system
• Share with any identity,
email, group
• No need to stage data just
for sharing
v
Guest collections
• Directly addressable entities
• Bulk data access (via Globus transfer service)
• HTTP/S access directly from collection
• Created by authorized users to share data they
have access to
• Permissions at folder level, for user/group/service
credential to access data
• Roles for granting management rights
Let’s try it…
• Create guest collection
• Set permissions
• Set Roles
Tutorial cheatsheet: bit.ly/gw-tut-rpi
Considerations for using data sharing
• Guest collection creation cannot be automated
• Permission management can be fully automated
• Typical pattern:
– One guest collection
– Many permissions per folder
• Clean up permissions and guest collections when not
in use
Administrator controls
• Enable use of sharing
• What parts of the file system
• Which users
• What level of sharing (read-only)
• Share with users in specific domains
• Monitor and manage permissions on guest
collection
Guest collections can be applied in
variety of scenarios
Data from instruments
• Provide near-real time
access to data
• Automated permissions
based on site policy
• Self managed by the PI
• Federated login to
access data
Raw data store
Personal Computer
Remote
visualization/analysis
Local
policy
store
--/cohort045
--/cohort096
--/cohort127
Distribution from data archive/repository
• Portal/science gateway
to distribute data
• Interface to search and
gather data of interest
• Asynchronous transfer
to user’s system or via
HTTPS to “staged” data
• Fine-grained
authorization enforced
Search and request
data of interest
Transfer
data to
destination
Example: Instrument data delivery at scale
Use Globus to deliver
100s of TB of genomic
data to researchers
Credits: Joe George, University of Michigan
Core center data processing
• Allow user to securely
upload data for analysis
• Make analysis results
available to user
• Automate setup and
tear down of folders
and permissions
--/123/input rw
Analysis System
--/123/output r
Automate guest collection
management
What do you need to automate?
• Service accounts or application credentials
– Client id and Secret
– Identity of the application: client_id@clients.auth.globus.org
• Guest collection
• Permission for service account to manage the guest
collection
Using service
accounts
14
Registering a service account
• Webapp - Settings
– app.globus.org/settings/developers
Accessing data using service accounts
• Service accounts have a client id and secret
• There is no user involved, so there is no consent
• Transfer service sees the request identity as
client_id@clients.auth.globus.org
• The identity must have permissions for operations
– E.g. For transfer: read at source, and write at destination
– E.g. For permission management: must have access manager
role
Let’s try allowing an app manage permission
• Create guest collection or use one you
already created
• Set permission for service account via
webapp
• Try accessing data as guest collection
Tutorial cheatsheet: bit.ly/gw-tut-rpi
Grant a role for the service account
• Set access
manager for
service account
to manage
permissions
Let’s try allowing an app manage permission
• Set Access Manager role for the service
account
• Try listing/setting permissions on the
guest collection
Tutorial cheatsheet: bit.ly/gw-tut-rpi
