BROCHURE 2014-2015N
- 1. NATURALROOFINGSLATESUPPLIER Superior Chinese RoofingSlatewww.yigroupslate.com brochure2014~2015 Roong slate
- 2. 50YEAR WARRANTY CONTENT ABOUT YIGROUP SLATE YIGROUP SLATE experiences its high speed development over years and strives to provide high quality Chinese roofing slates for overseas markets. When the time goes, we are desperately to define ourselves and our cause we are working for, that is, work for more people to benefit from our natural roofing shield. And we come to new era! HOW TO EXTRACT DURO ROOFING SLATES DURO NATURAL ROOFING SLATES RANGE QUALITY & STANDARDS COMPLIANCE YI GROUP SLATE ROOFING GALLERY SLATE ROOFING TYPES DEVELOPMENT OF YIGROUP SLATE 3 4 5-8 9 10 11 SLATE ROOFING TERMINOLOGIES 12-13 2
- 3. ABOUT US WHO WEARE? YIGROUP SLATE is dedicated to provide high quality Chinese slating for more people to benefit from the natural roofing shield. IGROUP SLATE COMPANY is dedicated to provide high quality YChinese roofing slate at its foundation since 2009 and partnered with quarry owner Mr. Xiong Yin in Jiujiang to ship best slates direct to overseas clients’ hands. YIGROUP SLATE only provide high quality Chinese slate and we will be the first to focus mainly on roofing slates and always exceed clients’ expectations. YIGROUP SLATE is founded and growing rapidly under the support of our valuable clients and friends in the past 6 years. All staffs of YIGROUP SLATE have served almost 10 years in natural roofing slate industry and have comprehensive knowledge of natural slating industry and clients’ expectations. We are happy to see thousands of families have been shielded with our natural slates and benefited from the natural roofing shield. YIGROUP SLATE will value all chance to provide best service for you and sincerely hope your special needs can be met here, please feel free to contact us for your natural roof slating demands. © Unique appearance © Most versatile roofing material © Longevity & Low maintenance © Value added for house © Water & Fire proof © Insect proof © Eco friendly roofing material © Stability and Little fluctuations in temperature QUARRY & FACILITIES WHAT IS NATURAL SLATES? Slate is a fine-grained, foliated, homogeneous metamorphic rock derived from an original shale-type sedimentary rock composed of clay or volcanic ash through low-grade regional metamorphism. It is the finest grained foliated metamorphic rock. Foliation may not correspond to the original sedimentary layering, but instead is in planes perpendicular to the direction of metamorphic compression. A very strong foliation is called "slaty cleavage". It is caused by strong compression causing fine grained clay flakes to regrow in planes perpendicular to the compression. When expertly "cut" by striking parallel to the foliation, with a specialized tool in the quarry, many slates will form smooth flat sheets of stone which have long been used WHAT ARE THE ADVANTAGES ? ROOFING SLATE 3
- 4. HOW TO HOW TO EXTRACTDURO ROOFING SLATES Our slates are originally extracted from deposit at foot of Lushan Mountain. Unique geographical location and pressure make the slates finely grained. Modern facilities applied and hand splitting into required roof slates. 1. Quarry where raw stones come from YIGROUP Slate's quarry is located at Jiujiang Jiangxi where is one of highest quality slate deposits and beds in China. Our quarry is an open quarry and the slate is extracted in large blocks cut with a diamond blade and jackhammers. The blocks are then transported by trucks to the quarry fabrication plant. 2. Slate fabrication processes © : The large slate blocks extracted from the quarry are cut into thick blocksCutting to blocks with same length and width of the final slates be produced. © : Experienced workers split each block into pieces with thickness twice ofSplitting to pieces the final slates, then these pieces are then split in half to required thickness. © : The cut edges of each slate are trimmed or beveled in orderTrimming or beveling the edges to facilitate the passage of water over the slate once in place on the roof. © : The methods of slate roof installation are developed, suchDrilling and further fabricating as nail fixing, hook and aluminum profile, drilling and further fabrication on slates can be optionally done. 3. Packing and shipping The selected slate tiles will be packed with fumigated crates and stored before shipping. Professional couriers and logistic staffs will handle all shipping affairs to your local seaport. ROOFING SLATE4
- 5. DURO NATURAL ROOFINGSLATES RANGE DURO slates stand for durable slates which are extracted from fine texture slate deposit and color ranged as blue black, dark grey, grey and green, different sizes, shapes and thickness available as required. Applications: Natural versatile roofing material for residential, commercial and heritage roofs where a natural appearance is required. ROOFING SLATE DURO I - BLUE/BLACK SLATES SLATE IMAGES SHAPE OPTION APPLICATIONS DURO blue/black roofing slates are fine-grained with a good surface texture and excellent edge detail and are 100% handcrafted following strict quality standards. Features -Slate color: Versatile blue/black for different facades -High quality: BS EN 12326 and ASTM C406 compliance -A1-S1-T1 rated for 75-100 years' lifespan expected -Durability and less water absorption -No metal and non-fading -Standard size (mm) 300x150, 400x300, 400x400, 500x250, 600x300 -Thickness: 5-7mm, 6-8mm, 7-9mm -Customized dimensions can be produced as required -Un-holed and pre-holed finish available Applications Versatile natural roofing material for residential, commercial and heritage roofs where a natural appearance is required. SLATES flickr More applications here: flickr.com/photos/yigroupslate 5
- 6. DURO NATURAL ROOFINGSLATES RANGE DURO slates stand for durable slates which are extracted from fine texture slate deposit and color ranged as blue black, dark grey, grey and green, different sizes, shapes and thickness available as required. Applications: Natural versatile roofing material for residential, commercial and heritage roofs where a natural appearance is required. ROOFING SLATE DURO II - DARK GREY SLATES SLATE IMAGES SHAPE OPTION APPLICATIONS DURO dark grey roofing slates are fine-grained with a good surface texture and excellent edge detail and are 100% handcrafted following strict quality standards. Features -Slate color: Versatile dark grey for different facades -High quality: BS EN 12326 and ASTM C406 compliance -A1-S1-T1 rated for 75-100 years' lifespan expected -Durability and less water absorption -No metal and non-fading -Standard size (mm) 300x150, 400x300, 400x400, 500x250, 600x300 -Thickness: 5-7mm, 6-8mm, 7-9mm -Customized dimensions can be produced as required -Un-holed and pre-holed finish available Applications Versatile natural roofing material for residential, commercial and heritage roofs where a natural appearance is required. flickr More applications here: flickr.com/photos/yigroupslate SLATES6

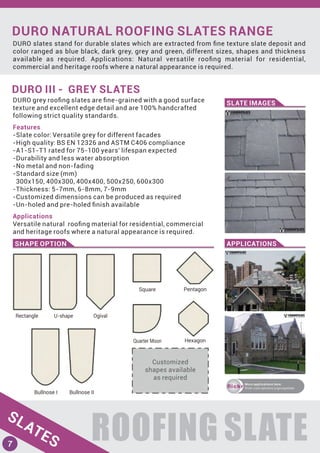

- 7. DURO NATURAL ROOFINGSLATES RANGE DURO slates stand for durable slates which are extracted from fine texture slate deposit and color ranged as blue black, dark grey, grey and green, different sizes, shapes and thickness available as required. Applications: Natural versatile roofing material for residential, commercial and heritage roofs where a natural appearance is required. ROOFING SLATE DURO III - GREY SLATES SLATE IMAGES SHAPE OPTION APPLICATIONS DURO grey roofing slates are fine-grained with a good surface texture and excellent edge detail and are 100% handcrafted following strict quality standards. Features -Slate color: Versatile grey for different facades -High quality: BS EN 12326 and ASTM C406 compliance -A1-S1-T1 rated for 75-100 years' lifespan expected -Durability and less water absorption -No metal and non-fading -Standard size (mm) 300x150, 400x300, 400x400, 500x250, 600x300 -Thickness: 5-7mm, 6-8mm, 7-9mm -Customized dimensions can be produced as required -Un-holed and pre-holed finish available Applications Versatile natural roofing material for residential, commercial and heritage roofs where a natural appearance is required. flickr More applications here: flickr.com/photos/yigroupslate SLATES7

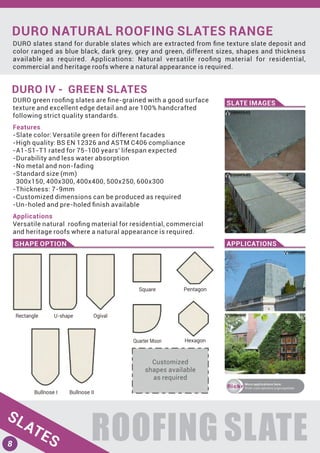

- 8. DURO NATURAL ROOFINGSLATES RANGE DURO slates stand for durable slates which are extracted from fine texture slate deposit and color ranged as blue black, dark grey, grey and green, different sizes, shapes and thickness available as required. Applications: Natural versatile roofing material for residential, commercial and heritage roofs where a natural appearance is required. ROOFING SLATE DURO IV - GREEN SLATES SLATE IMAGES SHAPE OPTION APPLICATIONS DURO green roofing slates are fine-grained with a good surface texture and excellent edge detail and are 100% handcrafted following strict quality standards. Features -Slate color: Versatile green for different facades -High quality: BS EN 12326 and ASTM C406 compliance -A1-S1-T1 rated for 75-100 years' lifespan expected -Durability and less water absorption -No metal and non-fading -Standard size (mm) 300x150, 400x300, 400x400, 500x250, 600x300 -Thickness: 7-9mm -Customized dimensions can be produced as required -Un-holed and pre-holed finish available Applications Versatile natural roofing material for residential, commercial and heritage roofs where a natural appearance is required. flickr More applications here: flickr.com/photos/yigroupslate SLATES8

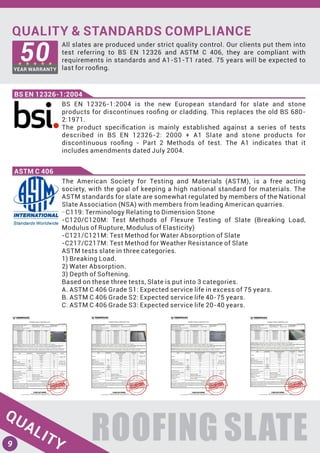

- 9. QUALITY & STANDARDSCOMPLIANCE All slates are produced under strict quality control. Our clients put them into test referring to BS EN 12326 and ASTM C 406, they are compliant with requirements in standards and A1-S1-T1 rated. 75 years will be expected to last for roofing. ROOFING SLATE BS EN 12326-1:2004 QUALITY 50YEAR WARRANTY BS EN 12326-1:2004 is the new European standard for slate and stone products for discontinues roofing or cladding. This replaces the old BS 680- 2:1971. The product specification is mainly established against a series of tests described in BS EN 12326-2: 2000 + A1 Slate and stone products for discontinuous roofing - Part 2 Methods of test. The A1 indicates that it includes amendments dated July 2004. The American Society for Testing and Materials (ASTM), is a free acting society, with the goal of keeping a high national standard for materials. The ASTM standards for slate are somewhat regulated by members of the National Slate Association (NSA) with members from leading American quarries. -C119: Terminology Relating to Dimension Stone -C120/C120M: Test Methods of Flexure Testing of Slate (Breaking Load, Modulus of Rupture, Modulus of Elasticity) -C121/C121M: Test Method for Water Absorption of Slate -C217/C217M: Test Method for Weather Resistance of Slate ASTM tests slate in three categories. 1) Breaking Load. 2) Water Absorption. 3) Depth of Softening. Based on these three tests, Slate is put into 3 categories. A. ASTM C 406 Grade S1: Expected service life in excess of 75 years. B. ASTM C 406 Grade S2: Expected service life 40-75 years. C. ASTM C 406 Grade S3: Expected service life 20-40 years. ASTM C 406 9
- 10. YI GROUP SLATEROOFING GALLERY YI GROUP SLATE values all chance to serve for your special roof slating requirements and thanks for our clients' generosity to share us their projects with our roofing slates. We are happy to see thousands of families have been shielded with our natural slates and benefitted from the natural roofing shield. SLATE ROOFING flickr More applications here: flickr.com/photos/yigroupslate “The slates are arrived with good condition and the quality is excellent as always. They have been installed and satisfy our client very much. More business will come soon. ---George Senior roofer “I went to see the roof we are doing with the 400 x 400 Grey slates last week and it looks really well and the client is very happy. It gives a very rough looking finish which this client likes. I will send you some photos so you can see for yourself. We are very happy and look forward to ordering more soon. --- Randal “I must say your slates are superior than ones we currently buy from Shaanxi and we are willing to list you as our future roofing slate supplier and recommend you to house owners, trust me our first trial order will be placed very soon. --- Simon Hardy, Roof maintenance and contractor GALLERY TESTIMONIALS 10

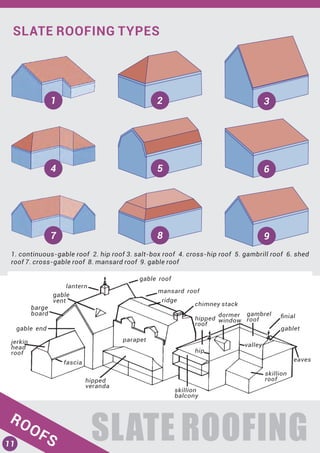

- 11. SLATE ROOFING QUALITY &STANDARDS COMPLIANCE gable roof mansard roof ridge chimney stack hipped roof dormer window gambrel roof finial gablet eaves skillion roof valley hip skillion balcony hipped veranda fascia jerkin head roof gable end gable vent barge board lantern parapet SLATE ROOFING TYPES 1 4 7 2 3 5 6 98 1. continuous-gable roof 2. hip roof 3. salt-box roof 4. cross-hip roof 5. gambrill roof 6. shed roof 7. cross-gable roof 8. mansard roof 9. gable roof ROOFS11

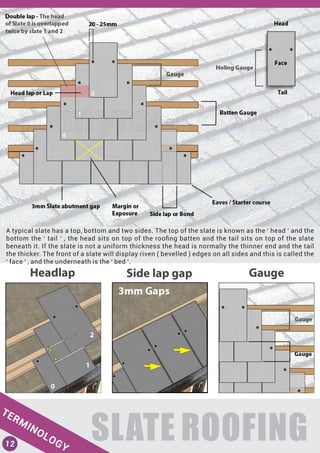

- 12. SLATE ROOFING A typicalslate has a top, bottom and two sides. The top of the slate is known as the ‘ head ‘ and the bottom the ‘ tail ‘ , the head sits on top of the roofing batten and the tail sits on top of the slate beneath it. If the slate is not a uniform thickness the head is normally the thinner end and the tail the thicker. The front of a slate will display riven ( bevelled ) edges on all sides and this is called the ‘ face ‘ , and the underneath is the ‘ bed ‘. TERMINOLOGY12
- 13. 8 9 10 11 12 1 2 3 4 5 6 7 1 Full Slate 2Starter Slate 3 Tilter Batten 4 Metal Flashing 5 Gutter 7 Fascia Board 8 Rafter 9 Boarding or Chicken Wire 10 Counter Batten 11 Waterproofing 1 Starter slate cut to suit 2 Full slate 3 Timber rafter 4 Batten 5 Under-ridge slate 6 Ridge slate 7 Ridge beam 8 Ridge soaker (Malthoid and Sisalation) 9 Under-ridge soaker (Malthoid) 10 Tiler batten 11 Fascia board SLATE ROOFING TERMINOLOGY 6 7 8 9 5 2 4 3 2 1 10 11 Overhang into gutter SLATE ROOFING TERMINOLOGIES 13
- 14. NATURAL ROOFING SLATESUPPLIER YI GROUP SLATE COMPANY Export Contact Point 605-20 Yinhe Rd. Zhangpu Kunshan JS 215300 China T: +86 (0) 189 1325 1062 W: www.yigroupslate.com E: info@yigroupslate.com Quarry & Factory Location Xiong village Hengtang Town Xingzi County Jiujiang JX China E: quarry@yigroupslate.com All rights reserved by YI GROUP SLATE. Reproduction on whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent or other industrial or intellectual property rights. 50YEAR WARRANTY YOUR RELIABLE
