The RTK Bridge-X device receives real-time kinematic (RTK) corrections via cellular network and rebroadcasts them using an internal radio, allowing the corrections to be accurate and repeatable for multiple machines. It delivers RTK corrections to areas with no cellular coverage by hosting corrections from connected base stations on the internet. The device has various communication capabilities including radio, cellular, WiFi and Bluetooth to ensure access to corrections.

1. www.intuicom.com
CONSTRUCTIONAPPLICATIONS
Data that is Accurate and Repeatable
As the RTK Bridge-X receives RTK corrections,those corrections can then be rebroadcasted
via the internal radio found in the RTK Bridge-X to any number of machines making your
RTK corrections not only accurate, but repeatable.
RTK Bridge-X
RTK network or base station
corrections are rebroadcast even
beyond effective cellular coverage
using the RTK Bridge-X’s internal
UHF or 900MHz radios
UHF or 900MHz
Cellular Connection Internet Connection
RTK Corrections
EFFECTIVE RANGE
OF CELLULAR COVERAGE
N E T W O R K R T K S O L U T I O N S

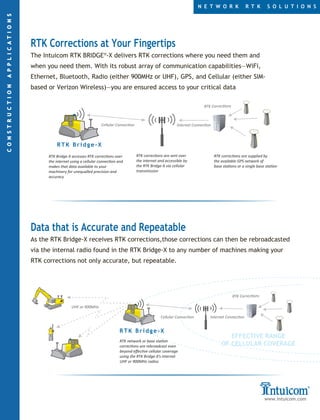

RTK Corrections at Your Fingertips
The Intuicom RTK BRIDGE®
-X delivers RTK corrections where you need them and
when you need them. With its robust array of communication capabilities—WiFi,
Ethernet, Bluetooth, Radio (either 900MHz or UHF), GPS, and Cellular (either SIM-
based or Verizon Wireless)—you are ensured access to your critical data
RTK corrections are supplied by
the available GPS network of
base stations or a single base station
RTK corrections are sent over
the internet and accessible by
the RTK Bridge-X via cellular
transmission
RTK Bridge-X accesses RTK corrections over
the internet using a cellular connection and
makes that data available to your
machinery for unequalled precision and
accuracy
RTK Corrections
RTK Bridge-X
Internet ConnectionCellular Connection

2. CONSTRUCTIONAPPLICATIONS

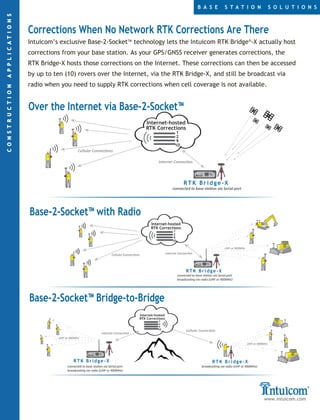

Corrections When No Network RTK Corrections Are There
Intuicom’s exclusive Base-2-SocketTM
technology lets the Intuicom RTK Bridge®
-X actually host
corrections from your base station. As your GPS/GNSS receiver generates corrections, the
RTK Bridge-X hosts those corrections on the Internet. These corrections can then be accessed
by up to ten (10) rovers over the Internet, via the RTK Bridge-X, and still be broadcast via
radio when you need to supply RTK corrections when cell coverage is not available.
Over the Internet via Base-2-Socket™
Base-2-Socket™ with Radio
Base-2-Socket™ Bridge-to-Bridge
www.intuicom.com
Internet-hosted
RTK Corrections
1
2
9
10
B A S E S T A T I O N S O L U T I O N S
Internet-hosted
RTK Corrections
connected to base station via Serial port
Internet Connection
RTK Bridge-X
Cellular Connections
connected to base station via Serial port
broadcasting via radio (UHF or 900MHz)
RTK Bridge-X
Internet Connection
Cellular Connection
1
2
9
10
Internet-hosted
RTK Corrections
1
2
9
10
Cellular Connections Internet Connection
UHF or 900MHz
UHF or 900MHz
connected to base station via Serial port
broadcasting via radio (UHF or 900MHz)
RTK Bridge-X
UHF or 900MHz
RTK Bridge-X
broadcasting via radio (UHF or 900MHz)
