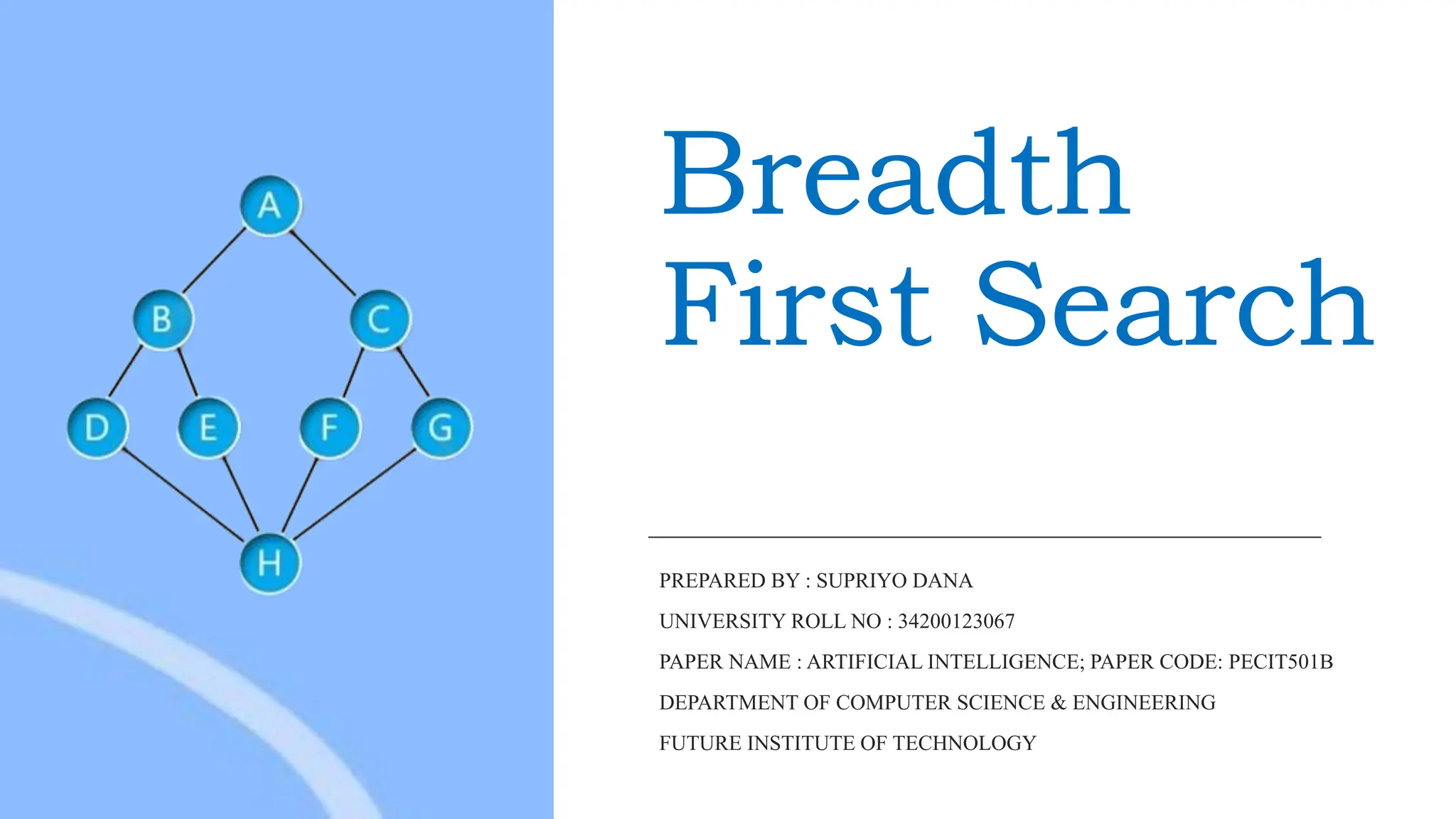

Breadth First Search

1. Breadth
First Search
PREPARED BY : SUPRIYO DANA
UNIVERSITY ROLL NO : 34200123067
PAPER NAME : ARTIFICIAL INTELLIGENCE; PAPER CODE: PECIT501B
DEPARTMENT OF COMPUTER SCIENCE & ENGINEERING
FUTURE INSTITUTE OF TECHNOLOGY

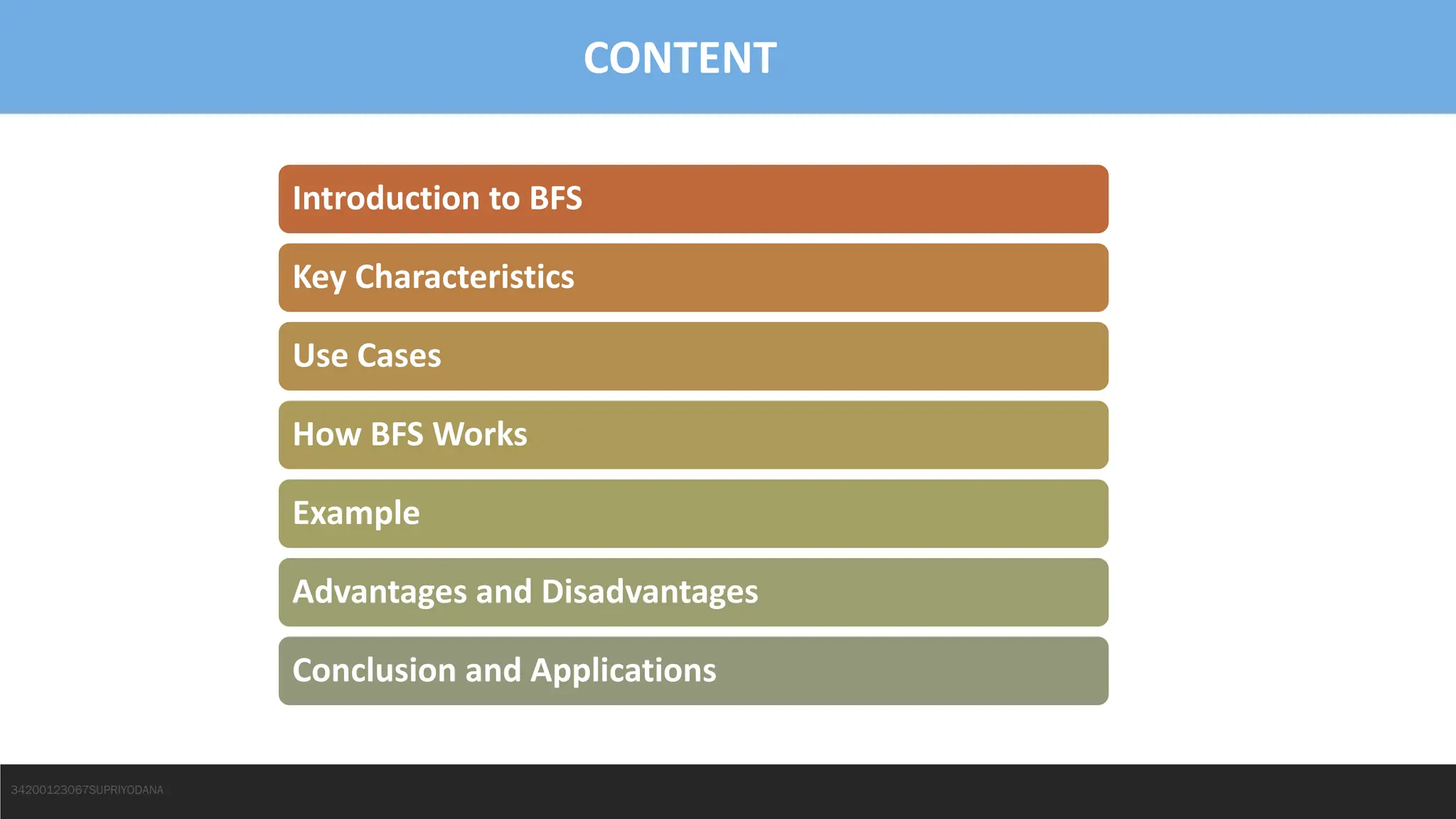

2. CONTENT
Introduction to BFS
Key Characteristics
Use Cases
How BFS Works
Example
Advantages and Disadvantages
Conclusion and Applications
34200123067SUPRIYODANA

3. o Breadth-First Search (BFS) is a graph
traversal algorithm that explores vertices
level by level. It begins at a starting node
and explores all its neighboring nodes at
the present depth prior to moving on to
nodes at the next depth level.
Introduction to BFS
34200123067SUPRIYODANA

4. Key Characteristics & Use Cases
Key Characteristics:
• BFS uses a queue data structure.
• It explores nodes in layers, i.e., all nodes at the present depth are visited
before any nodes at the next depth level.
Use Cases :
• Finding the shortest path in unweighted graphs.
• Crawling the web.
• Peer-to-peer networks.
• Network broadcast.
34200123067SUPRIYODANA

5. How BFS Works
34200123067SUPRIYODANA
Step-by-Step Process:
• Initialization: Start from the root node, mark it as visited, and enqueue it.
• Dequeue & Explore: Dequeue a node from the front of the queue, and explore
its unvisited neighbors.
• Enqueue Neighbors: Mark each unvisited neighbor as visited and enqueue
them.
• Repeat: Repeat the process until the queue is empty.
Queue Data Structure:
• A queue is essential to manage the nodes to be explored, following the First-In-
First-Out (FIFO) principle.
Level-wise Exploration:
• BFS ensures that nodes are explored in the order of their distance from the
root, level by level.

6. Example
34200123067SUPRIYODANA

7. Example
34200123067SUPRIYODANA

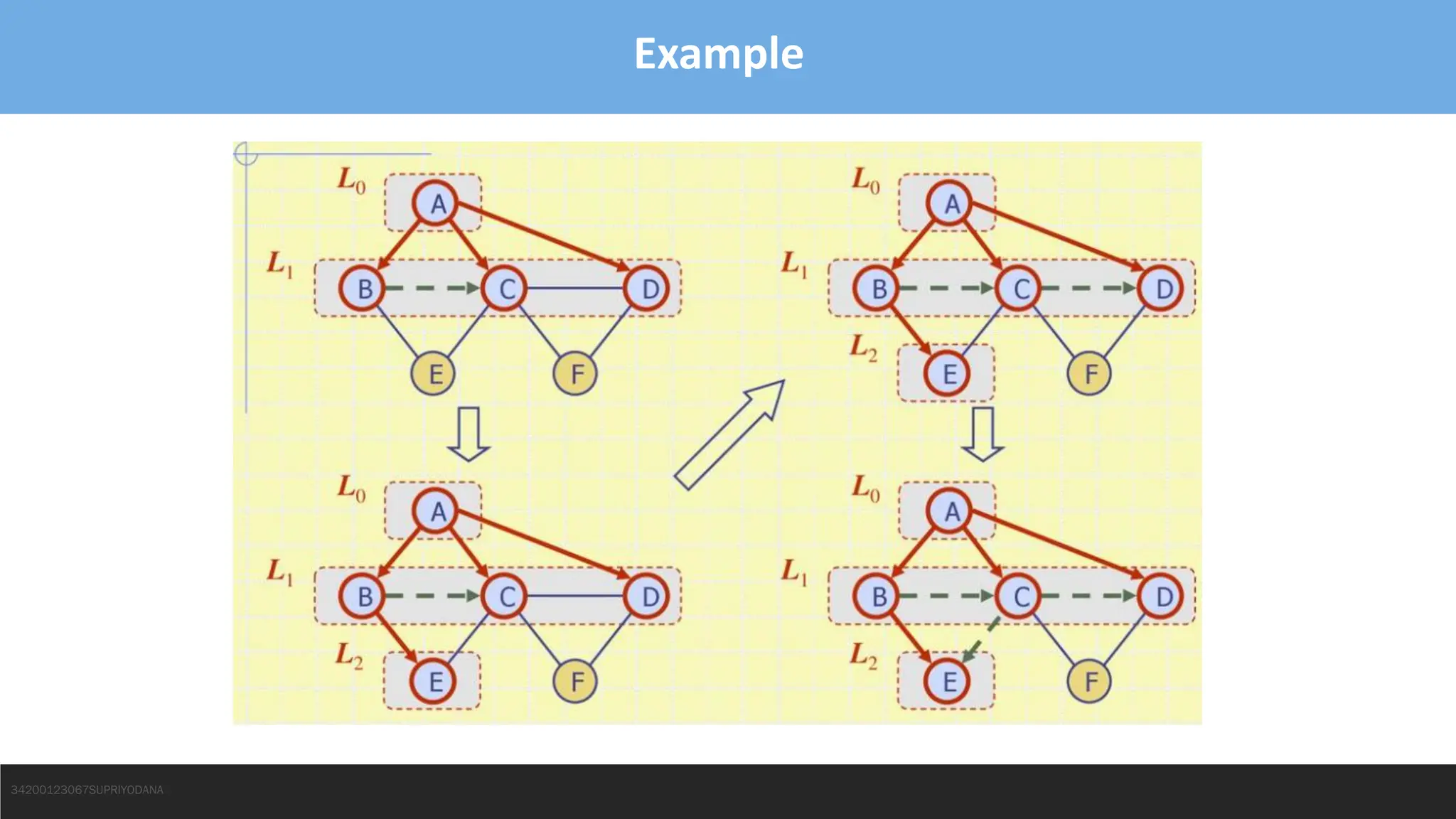

8. Example
34200123067SUPRIYODANA

9. Advantages and Disadvantages
oShortest Path: Guarantees finding the shortest
path in unweighted graphs.
oSimple: Easy to implement and understand.
Advantages
oMemory-Intensive: Can be memory-intensive for
large graphs or wide trees.
oNot Suitable for Weighted Graphs: BFS does not
handle weighted edges well; Dijkstra's algorithm or
A* is preferred in those cases.
Disadvantages
34200123067SUPRIYODANA

10. Conclusion and Applications
BFS is a foundational graph traversal technique that explores nodes level by level. It is
effective for unweighted graphs and certain tree-based problems.
BFS is widely used in AI, networking, and other fields where graph-based problem-
solving is required. Examples include finding shortest paths, solving puzzles, and
searching in peer-to-peer networks.
BFS is a versatile algorithm that, despite its simplicity, has profound applications
across many domains.
34200123067SUPRIYODANA

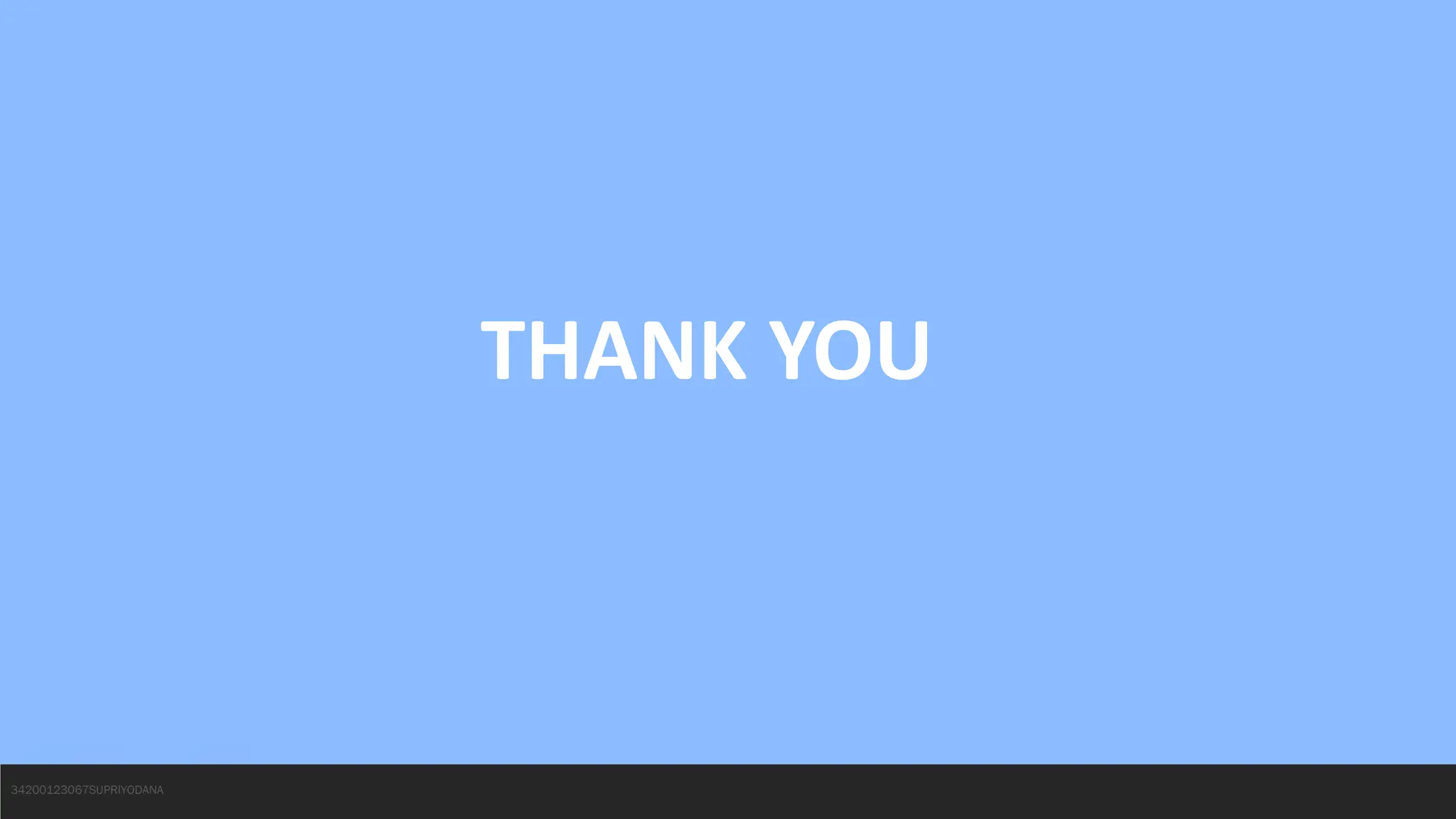

11. THANK YOU
