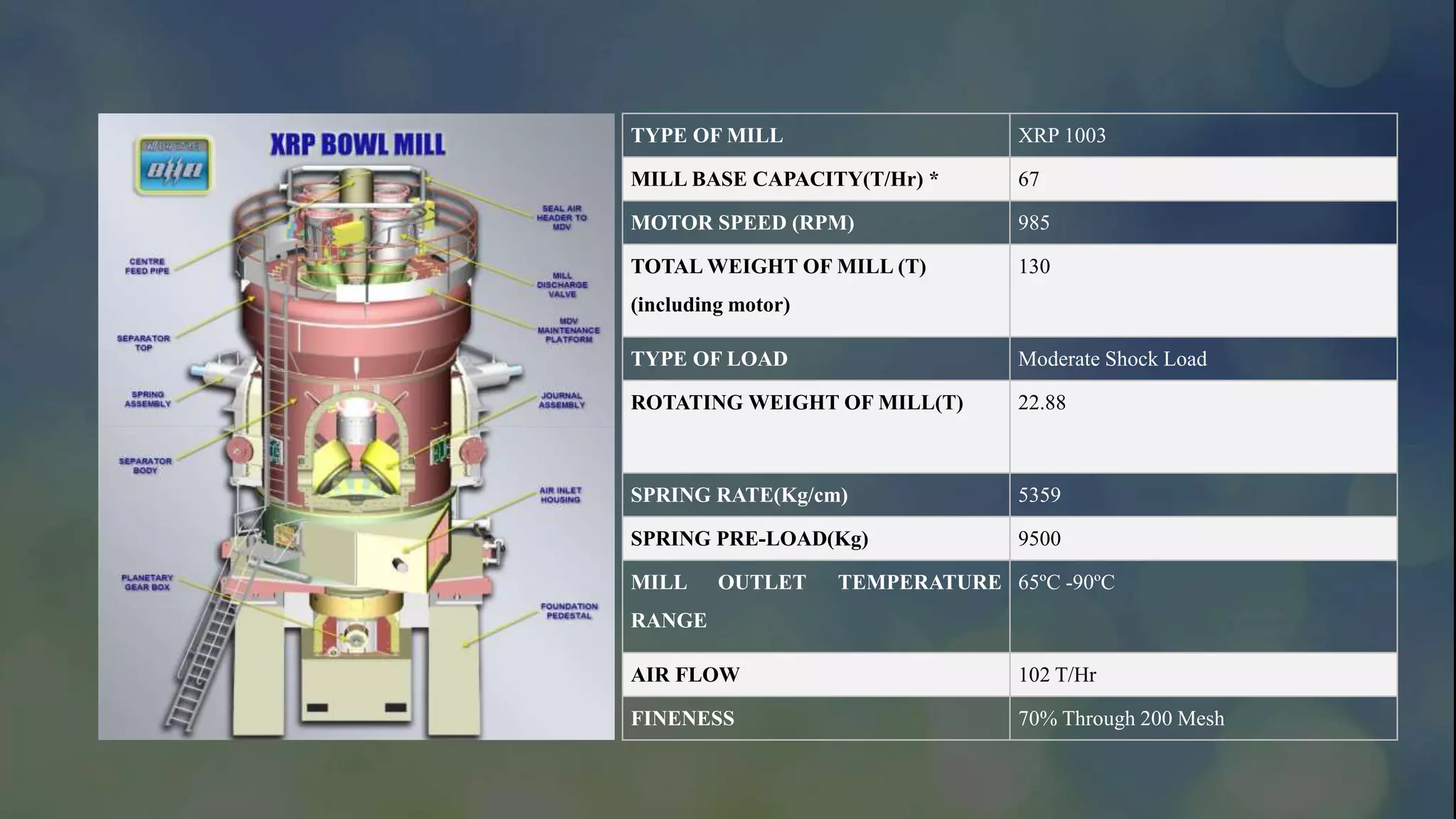

5. TYPE OF MILL XRP 1003
MILL BASE CAPACITY(T/Hr) * 67
MOTOR SPEED (RPM) 985
TOTAL WEIGHT OF MILL (T)
(including motor)
130
TYPE OF LOAD Moderate Shock Load
ROTATING WEIGHT OF MILL(T) 22.88
SPRING RATE(Kg/cm) 5359
SPRING PRE-LOAD(Kg) 9500
MILL OUTLET TEMPERATURE
RANGE
65ºC -90ºC
AIR FLOW 102 T/Hr
FINENESS 70% Through 200 Mesh

11. Sample Calculation Example
% on 50 mesh
(2 x Wt. on Sieve)
2 x 0.5 = 1.0%
% through 100 mesh
100 - 2 (Wt. on 50 + on 100)
100 - 2 (0.5 + 4.4) = 90.2%
% though 200 mesh
100 - 2 (Wt. on 50+on
100+on 200)
100 - 2 (0.5 + 4.4 + 9.9) =
70.4%

13. Maintanance
General
Maintanance
Preventive
Maintenance
