1. Blink: voice is not enough
Saúl Ibarra Corretgé | AG Projects

2. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts

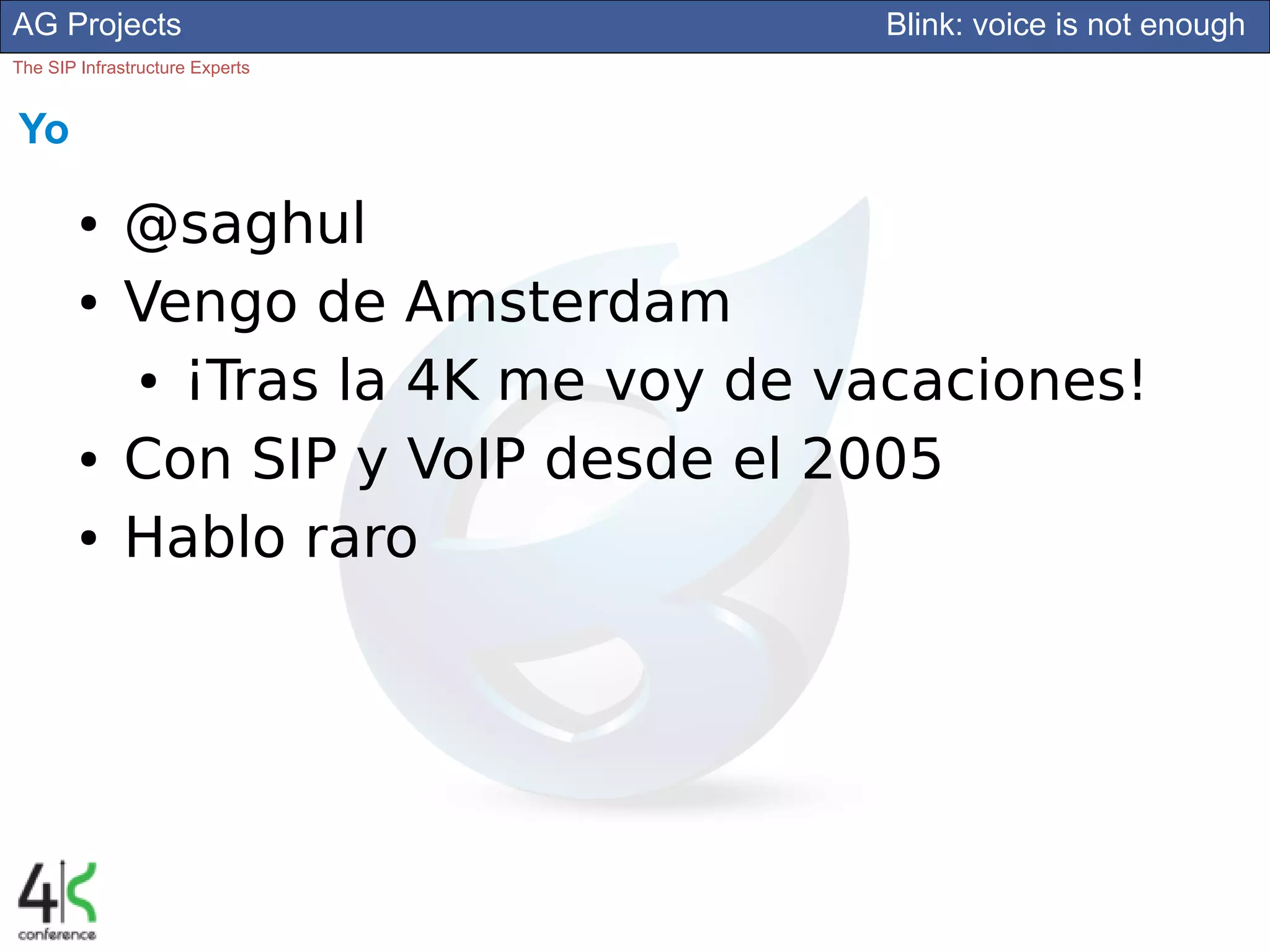

Yo
● @saghul
● Vengo de Amsterdam
● ¡Tras la 4K me voy de vacaciones!
● Con SIP y VoIP desde el 2005
● Hablo raro

3. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
AG Projects
● Infraestructuras SIP para proveedores
● SIPThor: escalabilidad horizontal sin límite de
usuarios
● Proyectos de software:
● Blink
● SIP SIMPLE SDK
● SylkServer
● MediaProxy
● OpenXCAP
● MSRPRelay

6. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Estado del arte

7. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Ayer / Hoy?
● Clientes SIP softphones con un dialpad gigante
● Llamadas de voz (algunos video)
● Extensiones numéricas
1234
Call / Hangup

8. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Ayer / Hoy?
+ = VoIP
● Ey, pero tenemos soporte de FAX!
● Realidad: VoIP ~= llamadas de audio con SIP

9. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Ayer / Hoy?
¿Es esto lo que queremos construir?

10. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Hoy? / Mañana
● Softphones clientes SIP centrados en contactos
● Hay hardphones sin dialpad!
● Nuevos tipos de media para comunicarnos en
tiempo real
● Mensajería instantánea
● Transferencia de ficheros
● Pizarra virtual
● Presencia

11. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Hoy? / Mañana
Interfaz orientada a contactos

12. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Hoy? / Mañana
Hardphones sin dialpad

13. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Hoy? / Mañana
Me pueden llamar a mi email!

14. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Hoy? / Mañana?
Publicado en Julio de 2005

15. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
VoIP no es
suficiente

16. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
VoIP no es suficiente
● Nuestras comunicaciones incluyen aspectos no
representables sólo con voz
● Intercambio de información en tiempo real en el
contexto de la comunicación
● Deslocalización: necesidad de utilizar
herramientas para colaborar
● Necesitamos:
● Presencia
● Nuevos tipos de media
● Herramientas de colaboración

17. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia
SIMPLE

18. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE
● SIP for Instant Messaging and Presence Leveraging
Extensions
● Grupo de trabajo de la IETF encargado de estandarizar
mensajería y presencia con SIP
● SIMPLE define un framework extensible basado en el modelo
Pub-Sub con notificaciones
● SUBSCRIBE
● PUBLISH
● NOTIFY
● Definido y extendido en multitud de RFCs

19. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE

20. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE
● Presencia: ¿el ringtone del siglo XXI?
● Comunicaciones en tiempo real con diversos
tipos de media
● Necesidad de sincronizar el momento para la
comunicación

21. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE

22. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE
SUBSCRIBE sip:31208005163@ag-projects.com SIP/2.0
Via: SIP/2.0/UDP 192.168.1.43:59875;rport;branch=z9hG4bKPjJkRRaqQXQSkajg5SDfR3oDrY9ouLnxwU
Max-Forwards: 70
From: "saul" <sip:31208005163@ag-projects.com>;tag=z6MzeeZrhNV2v6QSq0iwoPQ-RUP2Snwu
To: <sip:31208005163@ag-projects.com>
Contact: <sip:rqdszjti@192.168.1.43:59875>
Call-ID: IVQgz8VQBNYSh2a49p37EaanqLKFa5xl
CSeq: 6874 SUBSCRIBE
Event: presence
Expires: 3600
Accept: application/pidf+xml
Allow-Events: presence
User-Agent: sipsimple 0.18.0
Content-Length: 0

23. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE
PUBLISH sip:31208005163@ag-projects.com SIP/2.0
Via: SIP/2.0/UDP 192.168.1.43:52087;rport;branch=z9hG4bKPjcyFcHH7H9KCF0lR8ZClXWJu6frJ3whAq
Max-Forwards: 70
From: "saul" <sip:31208005163@ag-projects.com>;tag=OYfIDIXTZvqvisAGESB6diIlGHp3sbUK
To: "saul" <sip:31208005163@ag-projects.com>
Call-ID: 6JXg8S4CHOoeoQ6F-39-x53omkLjC1Q9
CSeq: 2 PUBLISH
Event: presence
Expires: 3600
User-Agent: sipsimple 0.18.0
Content-Type: application/pidf+xml
Content-Length: 740

24. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Presencia SIMPLE
...
<tuple id="hstnhkmu">
<status>
<basic>open</basic>
</status>
<rpid:relationship>
<rpid:self/>
</rpid:relationship>
<contact priority="0.0">sip:31208005163@ag-projects.com</contact>
<timestamp>2011-07-13T00:34:10+02:00</timestamp>
</tuple>
...

25. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP

26. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP
● SIP SIMPLE necesita políticas de autorización
● No quiero que veas mi presencia
● Las políticas de autorización se almacenarán
en documentos XML
● Un servidor almacenará los documentos XML y
los servirá por HTTP

27. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP
● Nace XCAP: XML Configuration Access
Protocol
● También será utilizado para guardar listas de
contactos
● Definido y extendido en multitud de RFCs
● Adoptado por la Open Mobile Alliance (OMA)

28. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP

29. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP

30. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
XCAP
...
<cp:rule id="pres_whitelist">
<cp:conditions>
<cp:identity>
<cp:one id="sip:31208005163@ag-projects.com"/>
<cp:one id="sip:saghul@sip2sip.info"/>
</cp:identity>
</cp:conditions>
<cp:actions>
<pr:sub-handling>allow</pr:sub-handling>
</cp:actions>
</cp:rule>
...

31. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Nuevos tipos
de media

32. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
MSRP
● Message Session Relay Protocol
● Verdadera mensajería (sesiones) para SIP
● El RFC 3428 (SIP MESSAGE) no cuenta como
mensajería
● Funcionamiento muy simple, un par de RFCs
(4975 y 4976)
● TLS obligatorio

33. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
MSRP
● MSRP nos permite negociar una conexión TCP
entre 2 dispositivos SIP
● Sesiones de chat
● Transferencia de ficheros (RFC 5547)
● Compartir escritorio (VNC sobre MSRP, draft
expirado)

34. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
MSRP
v=0
o=- 3519532764 3519532764 IN IP4 192.168.1.43
s=Blink Pro 1.1.2 (MacOSX)
c=IN IP4 192.168.1.43
t=0 0
m=message 2855 TCP/TLS/MSRP *
a=path:msrps://192.168.1.43:2855/fd5a5fbfe517e6c2ed76;tcp
a=accept-types:message/cpim text/* application/im-iscomposing+xml
a=accept-wrapped-types:*
a=setup:active

35. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
MSRP
v=0
o=- 3519533090 3519533090 IN IP4 192.168.1.43
s=Blink Pro 1.1.2 (MacOSX)
c=IN IP4 192.168.1.43
t=0 0
m=message 2855 TCP/TLS/MSRP *
a=path:msrps://192.168.1.43:2855/15be969db481aaa26f35;tcp
a=sendonly
a=accept-types:*
a=accept-wrapped-types:*
a=setup:active
a=file-selector:name:"clever_algorithms.pdf" type:application/pdf size:3133774
hash:sha1:87:F7:A7:5A:F5:48:0F:8A:DD:3F:D8:49:F0:86:51:93:A2:9B:89:19

36. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias

37. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
● Los sistemas de multi-conferencia actuales
son meros mezcladores de RTP
● Necesidad de disponer de contexto adicional
sobre la sesión
● Con SIP es posible extender la experiencia de
usuario
● Distintos tipos de media
● Información sobre la sesión
● Información sobre los participantes

38. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
● Framework extensible definido en unos pocos
RFCs: 4575, 4353, 4579, draft-ietf-simple-chat
● Uso del framework de presencia: PUBLISH,
SUBSCRIBE y NOTIFY
● Operaciones: añadir y expulsar
participantes, ...

39. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias

40. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
Contact: <sip:test@81.23.228.139:5060>;isfocus

41. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
SUBSCRIBE sip:test@conference.sip2sip.info SIP/2.0
Via: SIP/2.0/UDP 192.168.1.43:60530;rport;branch=z9hG4bKPjEgakb9siJnY0E74wFfk.0B36zz2c4lsI
Max-Forwards: 70
From: "Saúl" <sip:31208005163@ag-projects.com>;tag=I3OcER0qmkv-JFS5A5LTwAgwzxKyzpCT
To: <sip:test@conference.sip2sip.info>
Contact: <sip:cmugnheo@192.168.1.43:60530>
Call-ID: cv8.LQxG4qjcDZSxOZKoOhQr0OF7lz-Z
CSeq: 26852 SUBSCRIBE
Event: conference
Expires: 3600
Accept: application/conference-info+xml
Allow-Events: conference, message-summary, presence, presence.winfo, xcap-diff, refer
User-Agent: Blink Pro 1.1.2 (MacOSX)
Content-Length: 0

42. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
<conference-description>
<display-text>Ad-hoc conference</display-text>
<free-text>Hosted by SylkServer-1.2.1</free-text>
</conference-description>
<host-info>
<web-page>http://sylkserver.com</web-page>
</host-info>
<conference-state>
<user-count>1</user-count>
<active>true</active>
</conference-state>

43. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
<users state="full">
<user entity="sip:31208005163@ag-projects.com" state="full">
<display-text>Saúl</display-text>
<endpoint entity="sip:cmugnheo@83.43.224.233:60530" state="full">
<display-text>Saúl</display-text>
<status>connected</status>
<joining-info><when>2011-07-13T23:39:07+02:00</when></joining-info>
<media id="152141036"><type>message</type></media>
</endpoint>
</user>
</users>

44. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Conferencias
REFER sip:agp@conference.sip2sip.info SIP/2.0
Via: SIP/2.0/UDP 192.168.99.36:65017;rport;branch=z9hG4bKPjjao...
Max-Forwards: 70
From: "Saúl" <sip:31208005163@ag-projects.com>;tag=7HXkWbL...
To: <sip:agp@conference.sip2sip.info>
Contact: <sip:yoreqcfd@192.168.99.36:65017>
Call-ID: oiXv9JpNLp9f8GbRLDYw6dVrEnhU7On0
CSeq: 15438 REFER
Event: refer
Accept: message/sipfrag;version=2.0
Allow-Events: conference, message-summary, presence, presence.winfo, xcap-diff, refer
Refer-To: <saghul@sip2sip.info>;method=INVITE
Referred-By: sip:31208005163@ag-projects.com
User-Agent: Blink Pro 1.3.0 (MacOSX)
Content-Length: 0

45. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts

46. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Blink
● Implementación de todo lo anterior del lado
cliente
● Algunas cosas están in progress ;-)
● Siempre siguiendo los estándares de la IETF
● Cuando no lo hay lo inventamos :-)
● Siempre sobre SIP
● Software Libre
http://icanblink.com

47. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Blink Cocoa
● Audio HD
● Chat
● Transferencia de
ficheros
● Compartir escritorio
● Conferencias
● Sincronización de
Contactos (XCAP)
● Cancelación de Eco
Acústico (AEC)

48. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Blink: Conferencias

49. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Blink Qt

50. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
Demo

51. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
BYE

52. 1. ¡No a las extensiones
numéricas!

53. 2. Nuestros clientes dudan,
¡hay que ayudarles!

54. 3. Usa estándares abiertos
y Software Libre

55. 4. “Let's build it before
we're too old to enjoy it”

56. 5. “Call Different”

57. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
¿Preguntas?

58. AG Projects Blink: voice is not enough
The SIP Infrastructure Experts
BYE sip:audiencia@4KConference2011 SIP/2.0
Via: SIP/2.0/UDP 192.168.99.23:49919;rport;branch=z9hG4bKPjDb30Dx0sH-ozn9QB.cCCboyU.atR97aM
Max-Forwards: 70
From: "saghul" <sip:saul@ag-projects.com>;tag=UCpGKVZbQQx7BUKYtiuPEX668oa9jaU7
To: <sip:audiencia@4KConference2011>;tag=as59aef35c
Call-ID: DEWDfu63OACwYeQk7MrhmRhRq.1cqqis
CSeq: 10633 BYE
Route: <sip:81.23.228.129;lr;ftag=UCpGKVZbQQx7BUKYtiuPEX668oa9jaU7;did=641.a8a9c553>
User-Agent: blink-0.20.2
Content-Length: 0
@saghul
saul@ag-projects.com
sip:saul@ag-projects.com
