As the size and complexity of data increases, the proportion of unstructured data types also increase. An example of a traditional tool for structured data storage and querying is RDBMS. Volume, velocity and variety (3Vs) of data need the usage of number of programs and tools for analyzing and processing at a very high speed. When integrated with the Internet of Things, sensors and machines data, the veracity of data is an additional IV. Big Data requires new tools for processing and analysis of a large volume of data. For example, unstructured, NoSQL (not only SQL) data or Hadoop compatible system data Application: A collection of software components. For example, software for acquiring, storing, visualizing and analyzing data. An application performs a group of coordinated activities, functions and tasks. 2. Application Programming Interface (API): A software component which enables a user to access an application, service or software that runs on a local or remote computing platform. An API initiates running of the application on receiving the message(s) from the user-end. An API sends the user-end messages to the other-end software. The other-end software sends responses or messages to the API and the user.Data Model: Map or schema Represents the inherent properties of the data. Shows groupings of the data elements, such as records or tables, and their associations. A model does not depend on software using that data. 4. Data Repository: Collection of data. A data-seeking (retrieval) program depends upon the data repository for reporting. The examples of repositories are database, flat file and spreadsheet. Data Store: Data repository of a set of objects. A general term used for data repositories, such as database, relational database, flat file, spreadsheet, mail serve and web server. 6. Distributed Data Store: A data store distributed over multiple nodes. Example: Apache Cassandra is one of the distributed data store. 7. Database (DB) A group of tables for the collection of data. A table ensures a systematic way for accessing, updating and managing data. A database is a repository for querying the required information for analytics, processes, intelligence and knowledge discovery. The databases can be distributed across a network consisting of servers and data warehouses. Hash Key-Value Pair: A construct in which a hash function computes a key for indexing and search, and distributing the entries (key/value pairs) across an array of slots (also called buckets). 12. Spreadsheet: Records data in fields within rows and columns. A field means a specific column of a row used for recording information. Example: Microsoft Excel, Google Spread Sheet. 13. Database Maintenance (DBM): A set of tasks which improves a database. DBM uses functions for improving performance (such as by query planning and optimization), freeing-up storage space, checking data errors and hardware faults and

1. Introduction to Hadoop

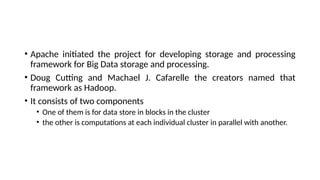

2. • Apache initiated the project for developing storage and processing
framework for Big Data storage and processing.
• Doug Cutting and Machael J. Cafarelle the creators named that
framework as Hadoop.
• It consists of two components
• One of them is for data store in blocks in the cluster
• the other is computations at each individual cluster in parallel with another.

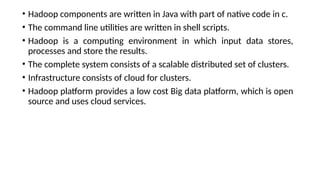

3. • Hadoop components are written in Java with part of native code in c.
• The command line utilities are written in shell scripts.
• Hadoop is a computing environment in which input data stores,
processes and store the results.
• The complete system consists of a scalable distributed set of clusters.
• Infrastructure consists of cloud for clusters.
• Hadoop platform provides a low cost Big data platform, which is open
source and uses cloud services.

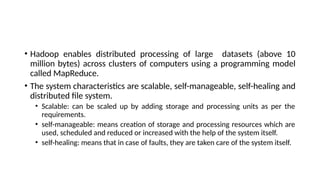

4. • Hadoop enables distributed processing of large datasets (above 10
million bytes) across clusters of computers using a programming model
called MapReduce.
• The system characteristics are scalable, self-manageable, self-healing and
distributed file system.
• Scalable: can be scaled up by adding storage and processing units as per the
requirements.
• self-manageable: means creation of storage and processing resources which are
used, scheduled and reduced or increased with the help of the system itself.
• self-healing: means that in case of faults, they are taken care of the system itself.

5. Hadoop core components

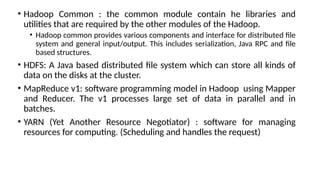

6. • Hadoop Common : the common module contain he libraries and
utilities that are required by the other modules of the Hadoop.
• Hadoop common provides various components and interface for distributed file
system and general input/output. This includes serialization, Java RPC and file
based structures.
• HDFS: A Java based distributed file system which can store all kinds of
data on the disks at the cluster.
• MapReduce v1: software programming model in Hadoop using Mapper
and Reducer. The v1 processes large set of data in parallel and in
batches.

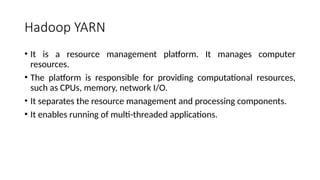

• YARN (Yet Another Resource Negotiator) : software for managing
resources for computing. (Scheduling and handles the request)

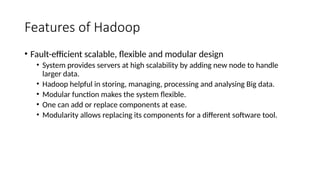

7. Features of Hadoop
• Fault-efficient scalable, flexible and modular design
• System provides servers at high scalability by adding new node to handle
larger data.
• Hadoop helpful in storing, managing, processing and analysing Big data.
• Modular function makes the system flexible.
• One can add or replace components at ease.
• Modularity allows replacing its components for a different software tool.

8. • Robust design of HDFS
• Execution of Big data applications continue even when an individual server or
cluster fails.
• This is because of Hadoop provisions for backup (replication at least at 3
times for each block)

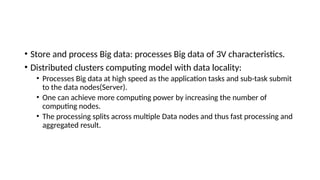

9. • Store and process Big data: processes Big data of 3V characteristics.
• Distributed clusters computing model with data locality:
• Processes Big data at high speed as the application tasks and sub-task submit
to the data nodes(Server).
• One can achieve more computing power by increasing the number of
computing nodes.
• The processing splits across multiple Data nodes and thus fast processing and
aggregated result.

10. • Hardware fault-tolerant:
• A fault does not affect data and application processing.
• If a node goes down, another node take care of the residue.
• This is because multiple copies of all data blocks which replicate
automatically.

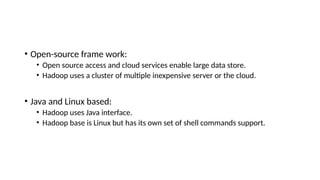

11. • Open-source frame work:
• Open source access and cloud services enable large data store.
• Hadoop uses a cluster of multiple inexpensive server or the cloud.
• Java and Linux based:
• Hadoop uses Java interface.
• Hadoop base is Linux but has its own set of shell commands support.

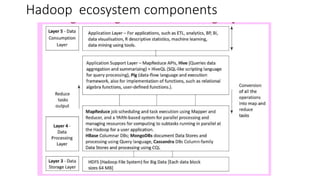

12. Hadoop ecosystem components

13. • The four layers are as follows:
• Distributed storage layer
• Resource-manager layer for job or application sub-tasks scheduling and
execution.
• Processing framework layer consisting of Mapper and reducer for the
MapReduce process flow.
• API’s at application support layer.

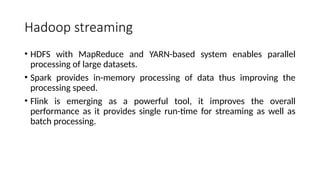

14. Hadoop streaming
• HDFS with MapReduce and YARN-based system enables parallel
processing of large datasets.
• Spark provides in-memory processing of data thus improving the
processing speed.
• Flink is emerging as a powerful tool, it improves the overall
performance as it provides single run-time for streaming as well as
batch processing.

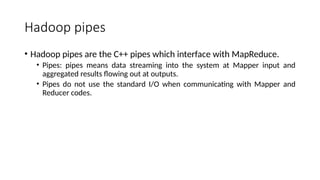

15. Hadoop pipes
• Hadoop pipes are the C++ pipes which interface with MapReduce.
• Pipes: pipes means data streaming into the system at Mapper input and
aggregated results flowing out at outputs.
• Pipes do not use the standard I/O when communicating with Mapper and
Reducer codes.

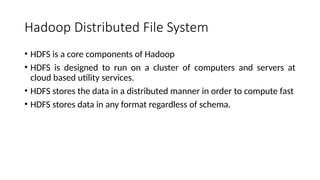

16. Hadoop Distributed File System
• HDFS is a core components of Hadoop
• HDFS is designed to run on a cluster of computers and servers at
cloud based utility services.
• HDFS stores the data in a distributed manner in order to compute fast
• HDFS stores data in any format regardless of schema.

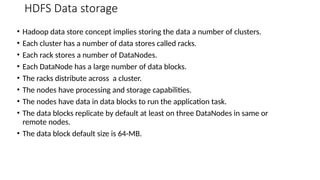

17. HDFS Data storage
• Hadoop data store concept implies storing the data a number of clusters.
• Each cluster has a number of data stores called racks.
• Each rack stores a number of DataNodes.
• Each DataNode has a large number of data blocks.
• The racks distribute across a cluster.
• The nodes have processing and storage capabilities.
• The nodes have data in data blocks to run the application task.
• The data blocks replicate by default at least on three DataNodes in same or
remote nodes.
• The data block default size is 64-MB.

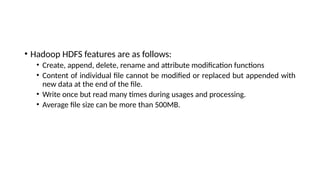

18. • Hadoop HDFS features are as follows:
• Create, append, delete, rename and attribute modification functions
• Content of individual file cannot be modified or replaced but appended with
new data at the end of the file.
• Write once but read many times during usages and processing.
• Average file size can be more than 500MB.

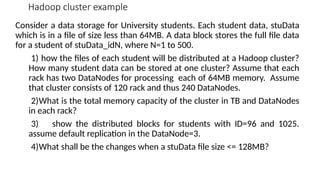

19. Hadoop cluster example
Consider a data storage for University students. Each student data, stuData
which is in a file of size less than 64MB. A data block stores the full file data
for a student of stuData_idN, where N=1 to 500.
1) how the files of each student will be distributed at a Hadoop cluster?
How many student data can be stored at one cluster? Assume that each
rack has two DataNodes for processing each of 64MB memory. Assume
that cluster consists of 120 rack and thus 240 DataNodes.
2)What is the total memory capacity of the cluster in TB and DataNodes
in each rack?
3) show the distributed blocks for students with ID=96 and 1025.
assume default replication in the DataNode=3.
4)What shall be the changes when a stuData file size <= 128MB?

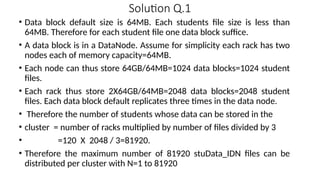

20. Solution Q.1
• Data block default size is 64MB. Each students file size is less than
64MB. Therefore for each student file one data block suffice.
• A data block is in a DataNode. Assume for simplicity each rack has two
nodes each of memory capacity=64MB.
• Each node can thus store 64GB/64MB=1024 data blocks=1024 student
files.
• Each rack thus store 2X64GB/64MB=2048 data blocks=2048 student
files. Each data block default replicates three times in the data node.
• Therefore the number of students whose data can be stored in the
• cluster = number of racks multiplied by number of files divided by 3
• =120 X 2048 / 3=81920.
• Therefore the maximum number of 81920 stuData_IDN files can be
distributed per cluster with N=1 to 81920

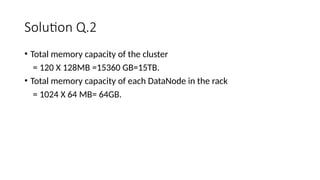

21. Solution Q.2
• Total memory capacity of the cluster
= 120 X 128MB =15360 GB=15TB.
• Total memory capacity of each DataNode in the rack
= 1024 X 64 MB= 64GB.

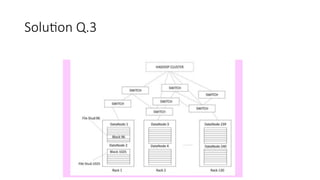

22. Solution Q.3

23. Solution Q.4
• Changes will be that each node will have half the number of data
blocks.

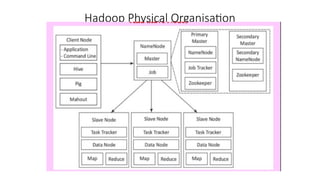

24. Hadoop Physical Organisation

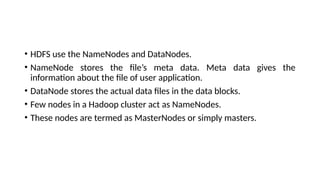

25. • HDFS use the NameNodes and DataNodes.
• NameNode stores the file’s meta data. Meta data gives the
information about the file of user application.
• DataNode stores the actual data files in the data blocks.
• Few nodes in a Hadoop cluster act as NameNodes.
• These nodes are termed as MasterNodes or simply masters.

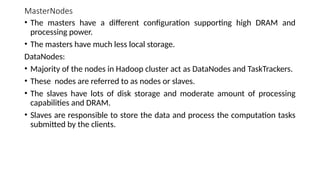

26. MasterNodes
• The masters have a different configuration supporting high DRAM and
processing power.
• The masters have much less local storage.
DataNodes:
• Majority of the nodes in Hadoop cluster act as DataNodes and TaskTrackers.
• These nodes are referred to as nodes or slaves.
• The slaves have lots of disk storage and moderate amount of processing
capabilities and DRAM.
• Slaves are responsible to store the data and process the computation tasks
submitted by the clients.

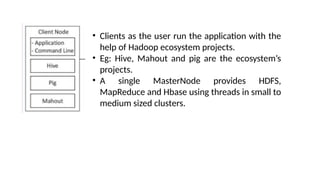

27. • Clients as the user run the application with the
help of Hadoop ecosystem projects.
• Eg: Hive, Mahout and pig are the ecosystem’s
projects.
• A single MasterNode provides HDFS,
MapReduce and Hbase using threads in small to
medium sized clusters.

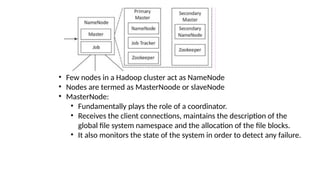

28. • Few nodes in a Hadoop cluster act as NameNode
• Nodes are termed as MasterNoode or slaveNode
• MasterNode:
• Fundamentally plays the role of a coordinator.
• Receives the client connections, maintains the description of the
global file system namespace and the allocation of the file blocks.
• It also monitors the state of the system in order to detect any failure.

29. • The Masters consists of three components NameNode,
SecondaryNode and JobTracker.
• NameNode stores All the file system related information such as
• The file section is stored in which part of the cluster
• Last access time for the files
• User permission like which user has access to the file.
• SecondaryNode: is an alternate for NameNode
• Secondary node keeps a copy of NameNode meta data.
• Thus stored meta data can be rebuilt easily in case of NameNode failure.
• JobTracker :
• Coordinates the parallel processing of data.
• Zookeeper: functions as a centralized repository for distributed applications.
• Zookeeper uses synchronization, serialization and coordination activities
• It enables functioning of a distributed system as a single function

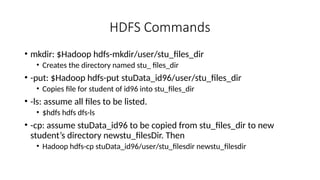

30. HDFS Commands
• mkdir: $Hadoop hdfs-mkdir/user/stu_files_dir
• Creates the directory named stu_ files_dir
• -put: $Hadoop hdfs-put stuData_id96/user/stu_files_dir
• Copies file for student of id96 into stu_files_dir
• -ls: assume all files to be listed.
• $hdfs hdfs dfs-ls
• -cp: assume stuData_id96 to be copied from stu_files_dir to new
student’s directory newstu_filesDir. Then
• Hadoop hdfs-cp stuData_id96/user/stu_filesdir newstu_filesdir

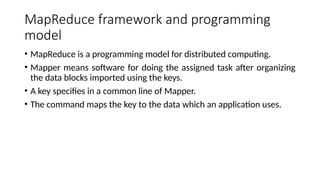

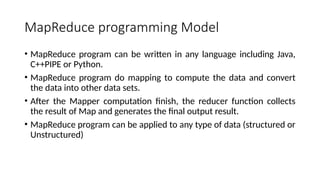

31. MapReduce framework and programming
model
• MapReduce is a programming model for distributed computing.
• Mapper means software for doing the assigned task after organizing
the data blocks imported using the keys.
• A key specifies in a common line of Mapper.
• The command maps the key to the data which an application uses.

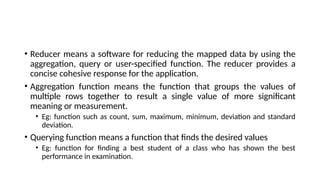

32. • Reducer means a software for reducing the mapped data by using the
aggregation, query or user-specified function. The reducer provides a
concise cohesive response for the application.
• Aggregation function means the function that groups the values of
multiple rows together to result a single value of more significant
meaning or measurement.
• Eg: function such as count, sum, maximum, minimum, deviation and standard
deviation.
• Querying function means a function that finds the desired values
• Eg: function for finding a best student of a class who has shown the best
performance in examination.

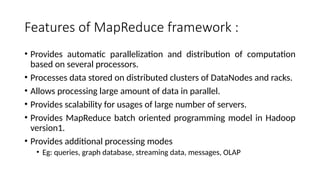

33. Features of MapReduce framework :
• Provides automatic parallelization and distribution of computation
based on several processors.
• Processes data stored on distributed clusters of DataNodes and racks.
• Allows processing large amount of data in parallel.
• Provides scalability for usages of large number of servers.
• Provides MapReduce batch oriented programming model in Hadoop
version1.
• Provides additional processing modes
• Eg: queries, graph database, streaming data, messages, OLAP

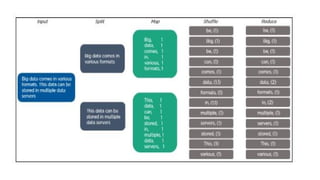

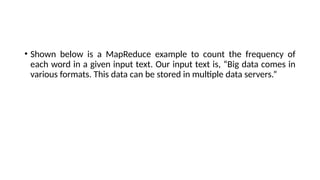

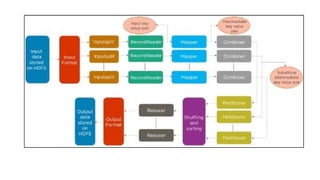

36. • Shown below is a MapReduce example to count the frequency of
each word in a given input text. Our input text is, “Big data comes in
various formats. This data can be stored in multiple data servers.”

38. MapReduce programming Model
• MapReduce program can be written in any language including Java,
C++PIPE or Python.
• MapReduce program do mapping to compute the data and convert
the data into other data sets.
• After the Mapper computation finish, the reducer function collects
the result of Map and generates the final output result.
• MapReduce program can be applied to any type of data (structured or
Unstructured)

39. Hadoop YARN
• It is a resource management platform. It manages computer
resources.
• The platform is responsible for providing computational resources,
such as CPUs, memory, network I/O.
• It separates the resource management and processing components.
• It enables running of multi-threaded applications.

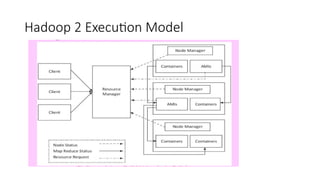

40. Hadoop 2 Execution Model

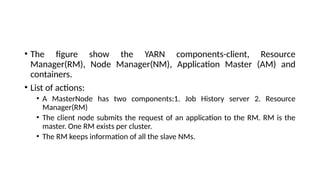

41. • The figure show the YARN components-client, Resource
Manager(RM), Node Manager(NM), Application Master (AM) and
containers.
• List of actions:
• A MasterNode has two components:1. Job History server 2. Resource
Manager(RM)
• The client node submits the request of an application to the RM. RM is the
master. One RM exists per cluster.
• The RM keeps information of all the slave NMs.

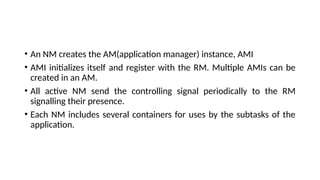

42. • An NM creates the AM(application manager) instance, AMI
• AMI initializes itself and register with the RM. Multiple AMIs can be
created in an AM.
• All active NM send the controlling signal periodically to the RM
signalling their presence.
• Each NM includes several containers for uses by the subtasks of the
application.

43. Hadoop Ecosystem Tools
• Apache ZooKeeper is a service used by a cluster (group of nodes) to coordinate between themselves and
maintain shared data with robust synchronization techniques.
• The common services provided by ZooKeeper are as follows −
• Naming service − Identifying the nodes in a cluster by name. It is similar to DNS, but for nodes.
• Configuration management − Latest and up-to-date configuration information of the system
for a joining node.
• Cluster management − Joining / leaving of a node in a cluster and node status at real time.
• Leader election − Electing a node as leader for coordination purpose.
• Locking and synchronization service − Locking the data while modifying it. This mechanism
helps you in automatic fail recovery while connecting other distributed applications like
Apache HBase.
• Highly reliable data registry − Availability of data even when one or a few nodes are down.

44. oozie

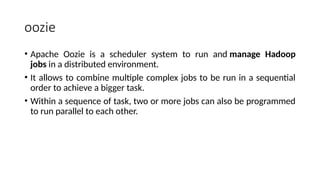

• Apache Oozie is a scheduler system to run and manage Hadoop
jobs in a distributed environment.
• It allows to combine multiple complex jobs to be run in a sequential
order to achieve a bigger task.
• Within a sequence of task, two or more jobs can also be programmed
to run parallel to each other.

45. • Following three types of jobs are common in Oozie −
• Oozie Workflow Jobs − These are represented as Directed Acyclic Graphs
(DAGs) to specify a sequence of actions to be executed.
• Oozie Coordinator Jobs − These consist of workflow jobs triggered by time
and data availability.
• Oozie Bundle − These can be referred to as a package of multiple coordinator
and workflow jobs.

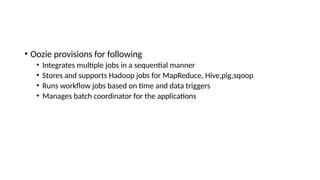

46. • Oozie provisions for following
• Integrates multiple jobs in a sequential manner
• Stores and supports Hadoop jobs for MapReduce, Hive,pig,sqoop
• Runs workflow jobs based on time and data triggers
• Manages batch coordinator for the applications

47. sqoop
• Sqoop is a tool used to transfer bulk data between Hadoop and
external datastores, such as relational databases (MS SQL Server,
MySQL).

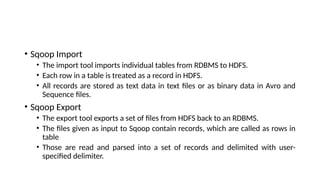

48. • Sqoop Import
• The import tool imports individual tables from RDBMS to HDFS.
• Each row in a table is treated as a record in HDFS.
• All records are stored as text data in text files or as binary data in Avro and
Sequence files.
• Sqoop Export
• The export tool exports a set of files from HDFS back to an RDBMS.
• The files given as input to Sqoop contain records, which are called as rows in
table
• Those are read and parsed into a set of records and delimited with user-
specified delimiter.

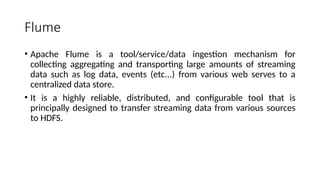

49. Flume
• Apache Flume is a tool/service/data ingestion mechanism for
collecting aggregating and transporting large amounts of streaming
data such as log data, events (etc...) from various web serves to a
centralized data store.
• It is a highly reliable, distributed, and configurable tool that is
principally designed to transfer streaming data from various sources
to HDFS.

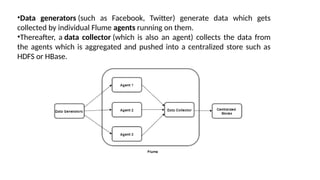

50. •Data generators (such as Facebook, Twitter) generate data which gets
collected by individual Flume agents running on them.
•Thereafter, a data collector (which is also an agent) collects the data from
the agents which is aggregated and pushed into a centralized store such as
HDFS or HBase.

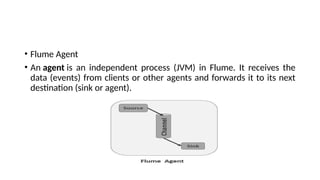

51. • Flume Agent
• An agent is an independent process (JVM) in Flume. It receives the
data (events) from clients or other agents and forwards it to its next
destination (sink or agent).

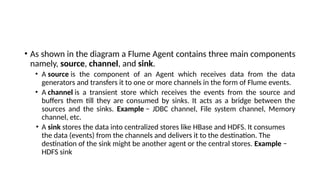

52. • As shown in the diagram a Flume Agent contains three main components
namely, source, channel, and sink.
• A source is the component of an Agent which receives data from the data
generators and transfers it to one or more channels in the form of Flume events.
• A channel is a transient store which receives the events from the source and
buffers them till they are consumed by sinks. It acts as a bridge between the
sources and the sinks. Example − JDBC channel, File system channel, Memory
channel, etc.
• A sink stores the data into centralized stores like HBase and HDFS. It consumes
the data (events) from the channels and delivers it to the destination. The
destination of the sink might be another agent or the central stores. Example −
HDFS sink

53. Ambari
• Apache Ambari is an open-source administration tool deployed on top
of Hadoop clusters,
• It is responsible for keeping track of the running applications and their
status
• Apache Ambari can be referred to as a web-based management tool
that manages, monitors, and provisions the health of Hadoop
clusters.

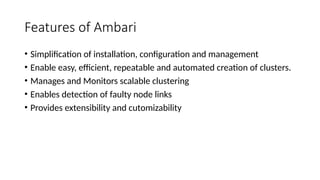

54. Features of Ambari
• Simplification of installation, configuration and management
• Enable easy, efficient, repeatable and automated creation of clusters.
• Manages and Monitors scalable clustering
• Enables detection of faulty node links
• Provides extensibility and cutomizability

55. Hbase
• HBase is a column-oriented non-relational database management
system that runs on top of Hadoop Distributed File System (HDFS).
• HBase provides a fault-tolerant way of storing sparse data sets, which
are common in many big data use cases.
• HBase is scalable, distributed, and NoSQL database
• HBase, provide real-time access to read or write data in HDFS

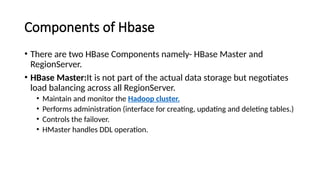

57. Components of Hbase
• There are two HBase Components namely- HBase Master and
RegionServer.
• HBase Master:It is not part of the actual data storage but negotiates
load balancing across all RegionServer.
• Maintain and monitor the Hadoop cluster.
• Performs administration (interface for creating, updating and deleting tables.)
• Controls the failover.
• HMaster handles DDL operation.

58. • RegionServer:It is the worker node which handles read, writes,
updates and delete requests from clients.
• Region server process runs on every node in Hadoop cluster.
• Region server runs on HDFS DateNode.

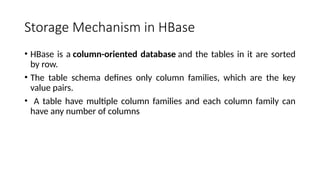

59. Storage Mechanism in HBase
• HBase is a column-oriented database and the tables in it are sorted
by row.
• The table schema defines only column families, which are the key
value pairs.
• A table have multiple column families and each column family can
have any number of columns

60. • In short, in an HBase:
• Table is a collection of rows.
• Row is a collection of column families.
• Column family is a collection of columns.
• Column is a collection of key value pairs.

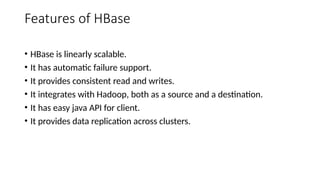

61. Features of HBase
• HBase is linearly scalable.
• It has automatic failure support.
• It provides consistent read and writes.
• It integrates with Hadoop, both as a source and a destination.
• It has easy java API for client.
• It provides data replication across clusters.

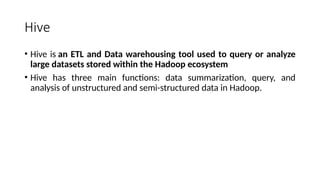

62. Hive
• Hive is an ETL and Data warehousing tool used to query or analyze
large datasets stored within the Hadoop ecosystem
• Hive has three main functions: data summarization, query, and
analysis of unstructured and semi-structured data in Hadoop.

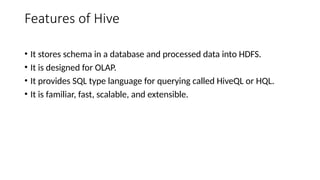

63. Features of Hive
• It stores schema in a database and processed data into HDFS.
• It is designed for OLAP.
• It provides SQL type language for querying called HiveQL or HQL.
• It is familiar, fast, scalable, and extensible.

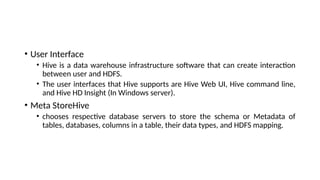

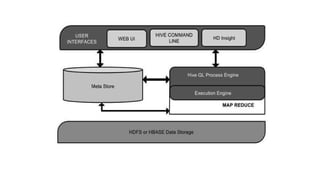

65. • User Interface
• Hive is a data warehouse infrastructure software that can create interaction
between user and HDFS.
• The user interfaces that Hive supports are Hive Web UI, Hive command line,
and Hive HD Insight (In Windows server).
• Meta StoreHive
• chooses respective database servers to store the schema or Metadata of
tables, databases, columns in a table, their data types, and HDFS mapping.

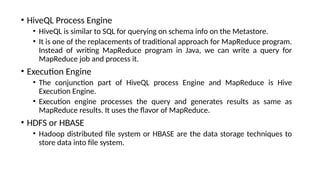

66. • HiveQL Process Engine
• HiveQL is similar to SQL for querying on schema info on the Metastore.
• It is one of the replacements of traditional approach for MapReduce program.
Instead of writing MapReduce program in Java, we can write a query for
MapReduce job and process it.
• Execution Engine
• The conjunction part of HiveQL process Engine and MapReduce is Hive
Execution Engine.
• Execution engine processes the query and generates results as same as
MapReduce results. It uses the flavor of MapReduce.
• HDFS or HBASE
• Hadoop distributed file system or HBASE are the data storage techniques to
store data into file system.

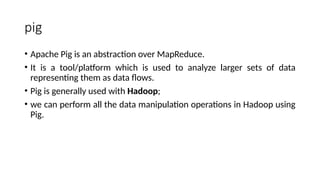

67. pig
• Apache Pig is an abstraction over MapReduce.
• It is a tool/platform which is used to analyze larger sets of data
representing them as data flows.
• Pig is generally used with Hadoop;
• we can perform all the data manipulation operations in Hadoop using
Pig.

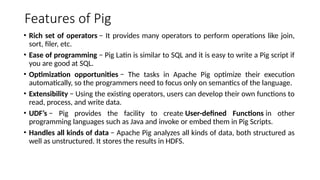

68. Features of Pig
• Rich set of operators − It provides many operators to perform operations like join,
sort, filer, etc.
• Ease of programming − Pig Latin is similar to SQL and it is easy to write a Pig script if
you are good at SQL.
• Optimization opportunities − The tasks in Apache Pig optimize their execution
automatically, so the programmers need to focus only on semantics of the language.
• Extensibility − Using the existing operators, users can develop their own functions to
read, process, and write data.
• UDF’s − Pig provides the facility to create User-defined Functions in other
programming languages such as Java and invoke or embed them in Pig Scripts.
• Handles all kinds of data − Apache Pig analyzes all kinds of data, both structured as
well as unstructured. It stores the results in HDFS.

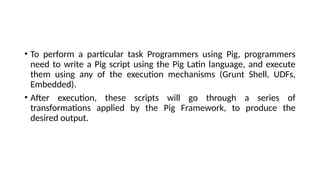

70. • To perform a particular task Programmers using Pig, programmers
need to write a Pig script using the Pig Latin language, and execute
them using any of the execution mechanisms (Grunt Shell, UDFs,
Embedded).
• After execution, these scripts will go through a series of
transformations applied by the Pig Framework, to produce the
desired output.

71. • Parser
• Initially the Pig Scripts are handled by the Parser.
• It checks the syntax of the script, does type checking, and other
miscellaneous checks.
• The output of the parser will be a DAG (directed acyclic graph), which
represents the Pig Latin statements and logical operators.
• In the DAG, the logical operators of the script are represented as the nodes
and the data flows are represented as edges.

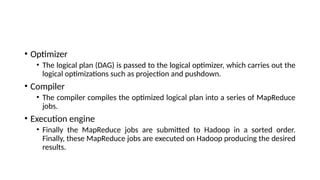

72. • Optimizer
• The logical plan (DAG) is passed to the logical optimizer, which carries out the
logical optimizations such as projection and pushdown.
• Compiler
• The compiler compiles the optimized logical plan into a series of MapReduce
jobs.
• Execution engine
• Finally the MapReduce jobs are submitted to Hadoop in a sorted order.
Finally, these MapReduce jobs are executed on Hadoop producing the desired
results.

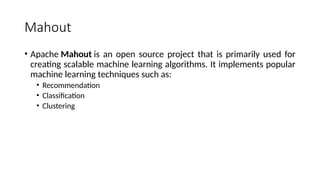

73. Mahout
• Apache Mahout is an open source project that is primarily used for
creating scalable machine learning algorithms. It implements popular
machine learning techniques such as:
• Recommendation
• Classification
• Clustering

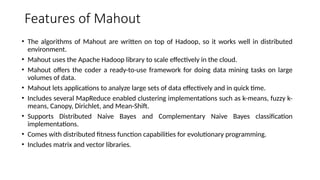

74. Features of Mahout
• The algorithms of Mahout are written on top of Hadoop, so it works well in distributed
environment.
• Mahout uses the Apache Hadoop library to scale effectively in the cloud.
• Mahout offers the coder a ready-to-use framework for doing data mining tasks on large
volumes of data.
• Mahout lets applications to analyze large sets of data effectively and in quick time.
• Includes several MapReduce enabled clustering implementations such as k-means, fuzzy k-
means, Canopy, Dirichlet, and Mean-Shift.
• Supports Distributed Naive Bayes and Complementary Naive Bayes classification
implementations.
• Comes with distributed fitness function capabilities for evolutionary programming.
• Includes matrix and vector libraries.
