The document discusses the components of a BI architecture, including models, processes, scheduling, and monitoring. It describes different types of models used in BI solutions, such as OLTP models, ERD models, dimensional models, and presentation models. It also discusses different layers in a BI architecture, including the extract area, conceptualization area, data warehouse, and datamarts. Choosing the right model for each layer and implementing the correct BI landscape from the beginning is important for an effective architecture.

1. BI ARCHITECTURE
What is asserted without proof can be denied without proof.
(Euclide)
BI Architecture – March 2013 - Author: Thierry de Spirlet
1

2.  Why Architecture
 Architecture will permit to organize systems and information
 Incorporate Best Practices
 Defines Hardware, Software and Environmental components that are
needed to build end-to-end solutions to help meet specific business
needs
 Identify Building blocks
 Spans all industries and all solution Areas
 Provides a common language and facilitates collaboration
 BI Reference Architecture is a framework for developing BI solutions.
 BI solutions will not exist if there are no business interrogations.
BI Architecture – March 2013 - Author: Thierry de Spirlet
2

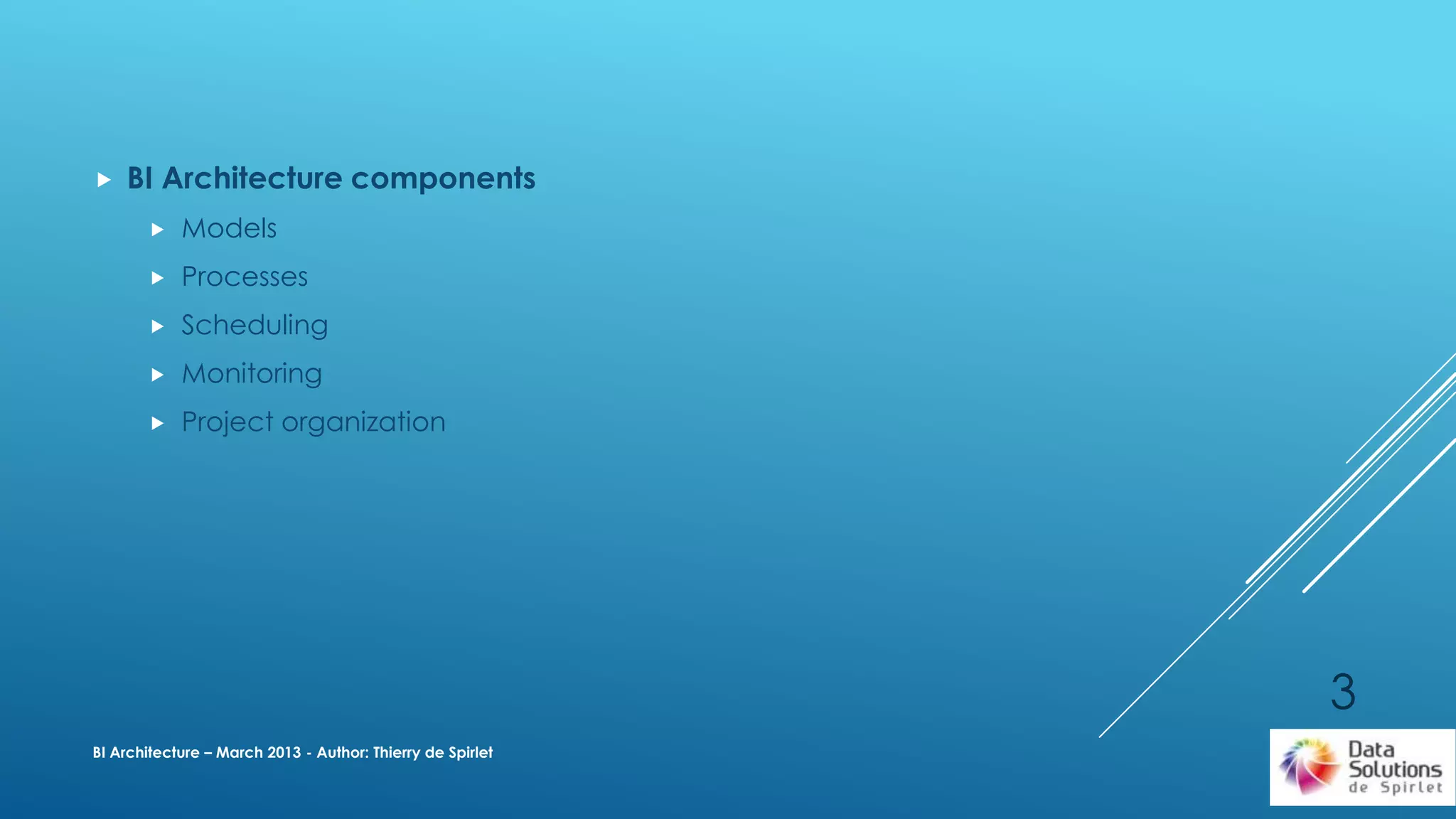

3.  BI Architecture components
 Models
 Processes
 Scheduling
 Monitoring
 Project organization
BI Architecture – March 2013 - Author: Thierry de Spirlet
3

4.  Models
 A model is an abstraction and reflection of the real world.
 Modeling gives us the ability to visualize what we cannot yet realize.
 Several forms of models exist:
 Data Model to organize data
 Business models to organize business activities
 Process models to organize interactions
 The primary aim of a data model is to make sure that all data
objects required by the business are accurately and fully
represented.
BI Architecture – March 2013 - Author: Thierry de Spirlet
4

5.  Models used in BI solutions
 OLTP Models:
 Model optimized to support OLTP Application using in production area; these models must
support operations and describes the tables, columns, and keys of a database that stores
operational data.
 E/R model:
 this is an Entity - Relation diagram; this diagram will represent real entities with all of their relations;
this diagram should be 3NF
 Dimensional Diagram:
 this model will represent information by using facts and dimensions with the lowest level of
granularity
 Datamart modeling:
 this model is a model permitting data access optimization and presentation from dimensional
models
 Data Vault model: Data Vault model is a particular approach to structure an EDW
BI Architecture – March 2013 - Author: Thierry de Spirlet
5

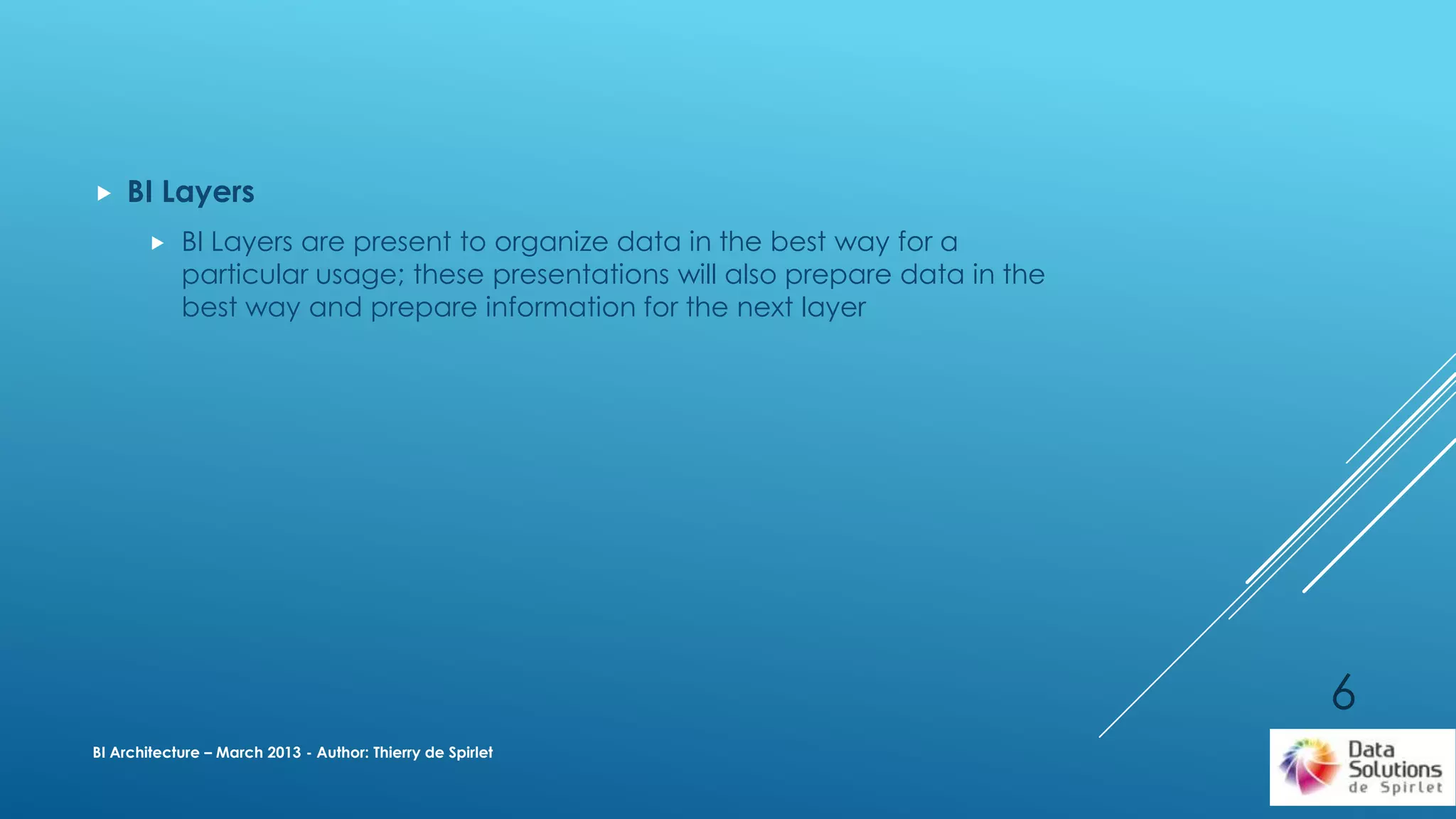

6.  BI Layers
 BI Layers are present to organize data in the best way for a
particular usage; these presentations will also prepare data in the
best way and prepare information for the next layer
BI Architecture – March 2013 - Author: Thierry de Spirlet
6

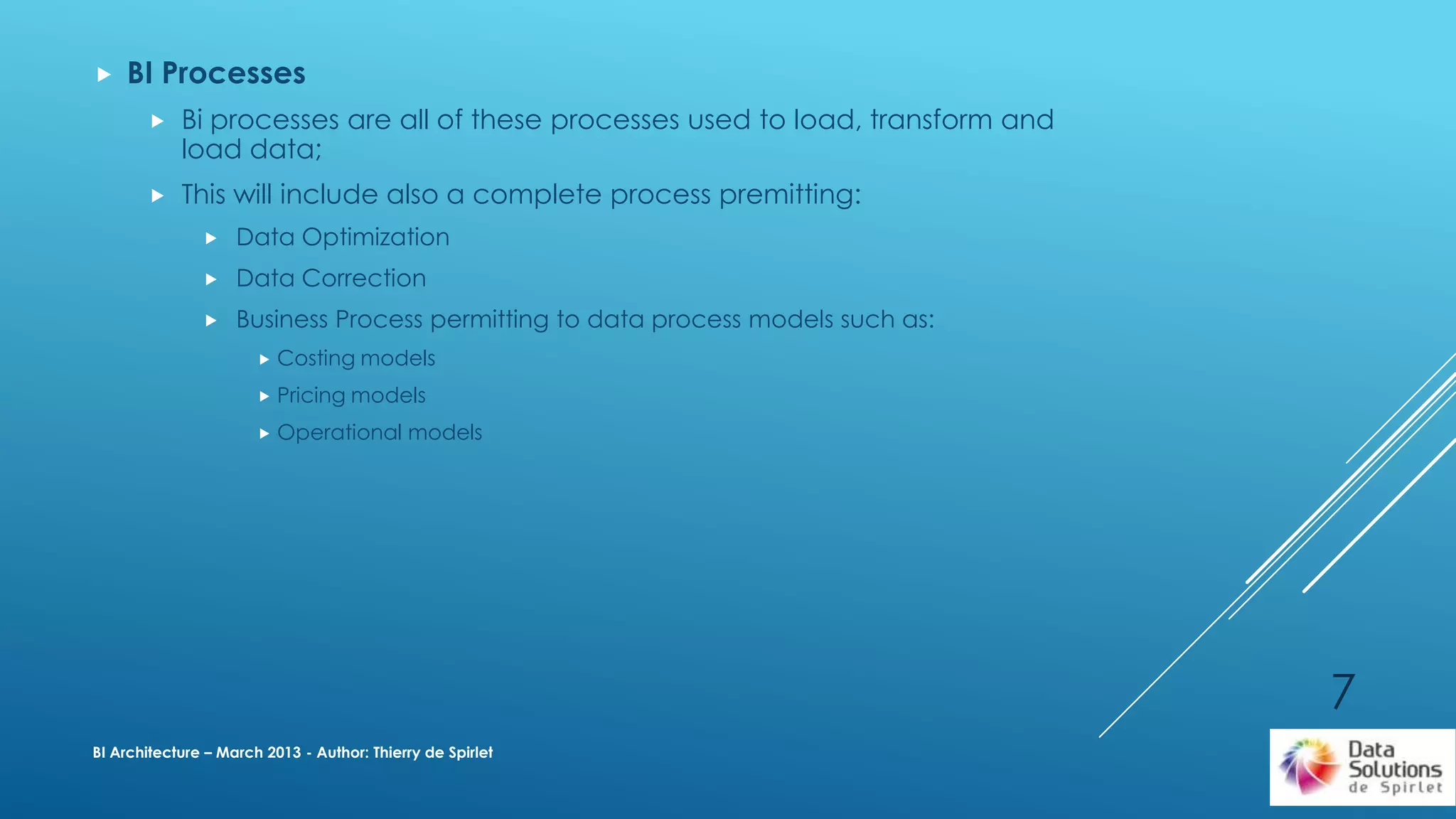

7.  BI Processes
 Bi processes are all of these processes used to load, transform and
load data;
 This will include also a complete process premitting:
 Data Optimization
 Data Correction
 Business Process permitting to data process models such as:
 Costing models
 Pricing models
 Operational models
BI Architecture – March 2013 - Author: Thierry de Spirlet
7

8. Source
Systems
•Databases
•Flat Files
•Web Services
•…
 Various
models
Extract Area
Conceptualisation
Area
•Integrate concepts
• ERD Model
Data
Warehouse
•Organize facts &
dimensions
• Dimensional
Model or DV
Model
Datamarts
•Optimize data
Accesses
• Dimensional
model with
Aggregation
Abstraction
Layer
•presentation
model
Exploitation
area
Cleasing area
LT Corporate
Storage Area
Business Business
Business Enrichment Processes
Layer:
•Large Enterprises
•Medium Enterprises
•Small Enterprises
Layer:
•Large Enterprises
•Medium Enterprises
•Small Enterprises
Layer:
•Large Enterprise
•Medium Enterprises
•Small Enterprisesa
Layer:
•Large Enterprises
•Medium Enterprises
•Small Enterpries
Layer:
•Large Enterprise
•Medium Enterpries
•Small Enterpries
Layer:
•Large Enterprise
•Medium Enterprises
•Small Enterprises
BI Architecture – March 2013 - Author: Thierry de Spirlet
Layer:
•Large Enterprises
•Medium Enterprises
•Small Enterprises
= Optional
BI Processes
8

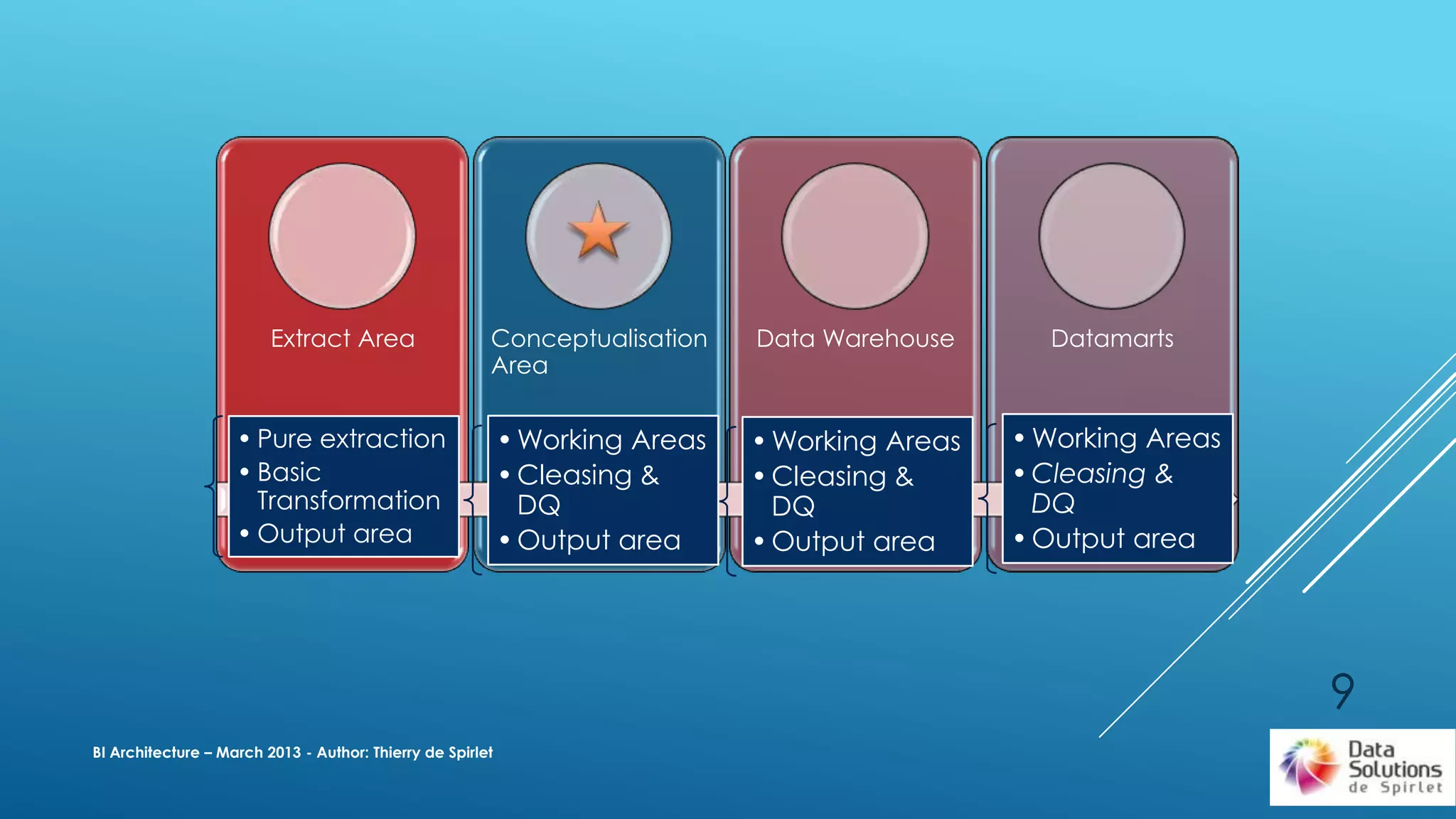

9. Extract Area Conceptualisation
Area
Data Warehouse Datamarts
BI Architecture – March 2013 - Author: Thierry de Spirlet
• Pure extraction
• Basic
Transformation
• Output area
•Working Areas
•Cleasing &
DQ
•Output area
•Working Areas
•Cleasing &
DQ
•Output area
•Working Areas
•Cleasing &
DQ
•Output area
9

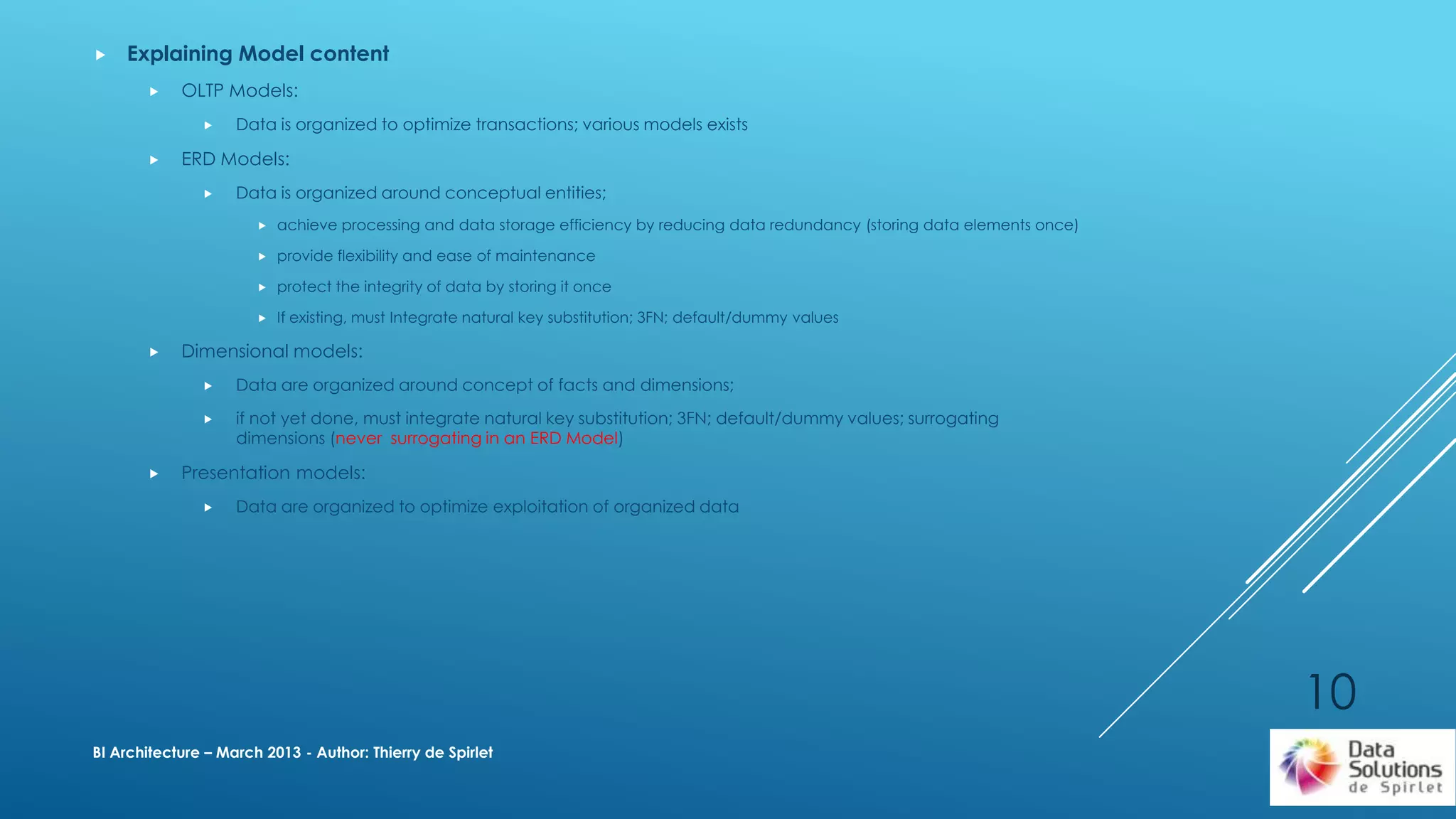

10.  Explaining Model content
 OLTP Models:
 Data is organized to optimize transactions; various models exists
 ERD Models:
 Data is organized around conceptual entities;
 achieve processing and data storage efficiency by reducing data redundancy (storing data elements once)
 provide flexibility and ease of maintenance
 protect the integrity of data by storing it once
 If existing, must Integrate natural key substitution; 3FN; default/dummy values
 Dimensional models:
 Data are organized around concept of facts and dimensions;
 if not yet done, must integrate natural key substitution; 3FN; default/dummy values; surrogating
dimensions (never surrogating in an ERD Model)
 Presentation models:
 Data are organized to optimize exploitation of organized data
BI Architecture – March 2013 - Author: Thierry de Spirlet
10

11.  Explaining Layers
 Extract area: place where all data will be initially loaded; permit to reduce stress on source systems
 Conceptualisation Area: Place where data is organized around conceptual entities and their relations;
 achieve processing and data storage efficiency by reducing data redundancy (storing data elements
once)
 provide flexibility and ease of maintenance
 protect the integrity of data by storing it once
 Implement basic data rules on data (Caps, Trim, …)
 Implement business rules rules on data
 Datawarehouse: Place where data are organized around concept of facts and dimensions for the
enterprise, calculations and transformations are done at the lowest granularity level (if multi-dimension
model)
 Implement basic data rules on data (Caps, Trim, …) if no conceptual level
 Implement business rules rules on data if no conceptual level
 Implement classical datawarehouse concepts: facts & dimensions
 Datamarts: Place where data are stored to optimize their final processing; can limit set of data used
BI Architecture – March 2013 - Author: Thierry de Spirlet
11

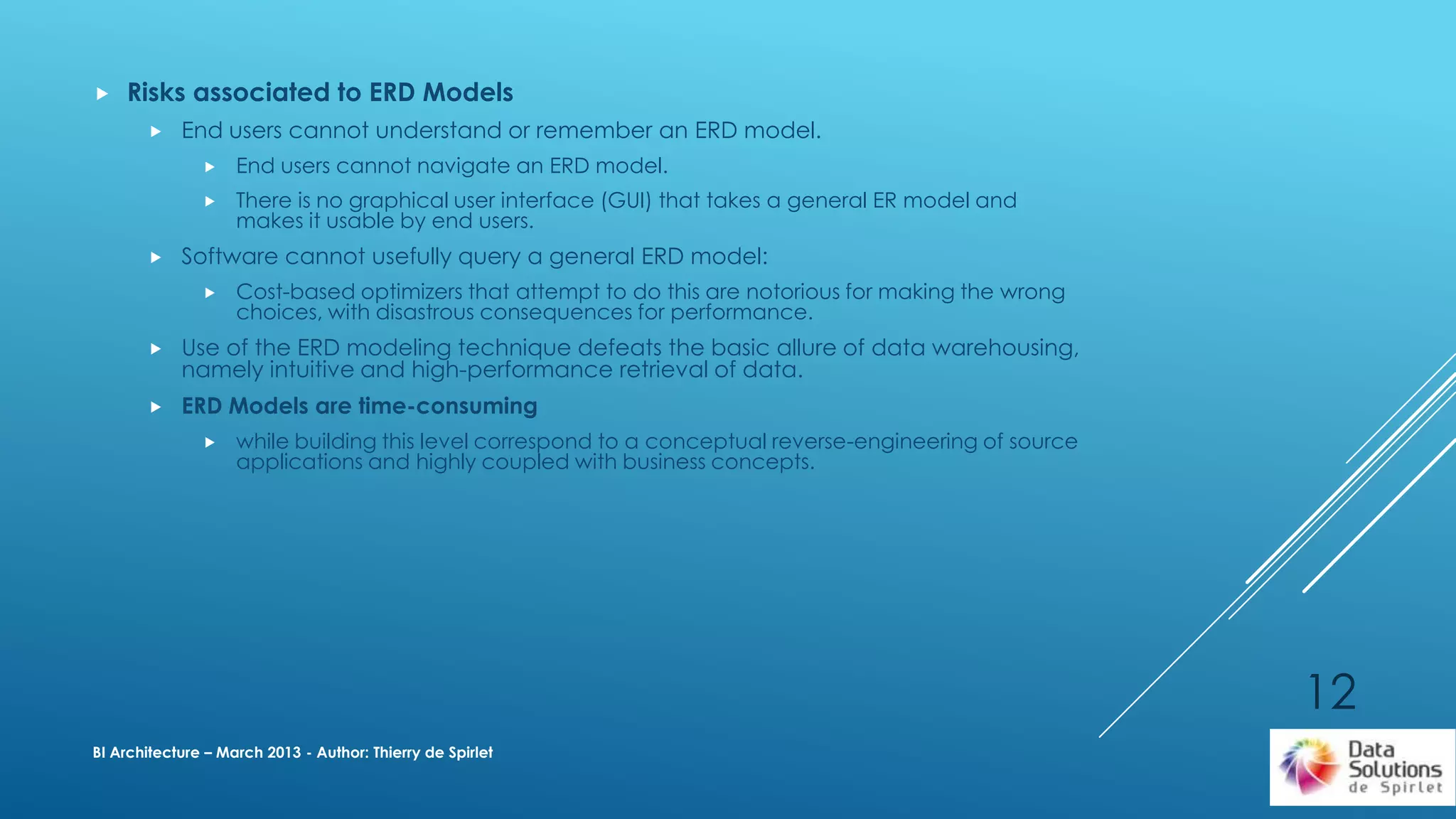

12.  Risks associated to ERD Models
 End users cannot understand or remember an ERD model.
 End users cannot navigate an ERD model.
 There is no graphical user interface (GUI) that takes a general ER model and
makes it usable by end users.
 Software cannot usefully query a general ERD model:
 Cost-based optimizers that attempt to do this are notorious for making the wrong
choices, with disastrous consequences for performance.
 Use of the ERD modeling technique defeats the basic allure of data warehousing,
namely intuitive and high-performance retrieval of data.
 ERD Models are time-consuming
 while building this level correspond to a conceptual reverse-engineering of source
applications and highly coupled with business concepts.
BI Architecture – March 2013 - Author: Thierry de Spirlet
12

13.  Risks associated to Data Vault Models
 Not appropriate to End users
 End users cannot navigate a Data Vault model.
 Software cannot usefully query a general Data Vault model due to
the numerous present tables
 Data Vault Models may be time-consuming
BI Architecture – March 2013 - Author: Thierry de Spirlet
13

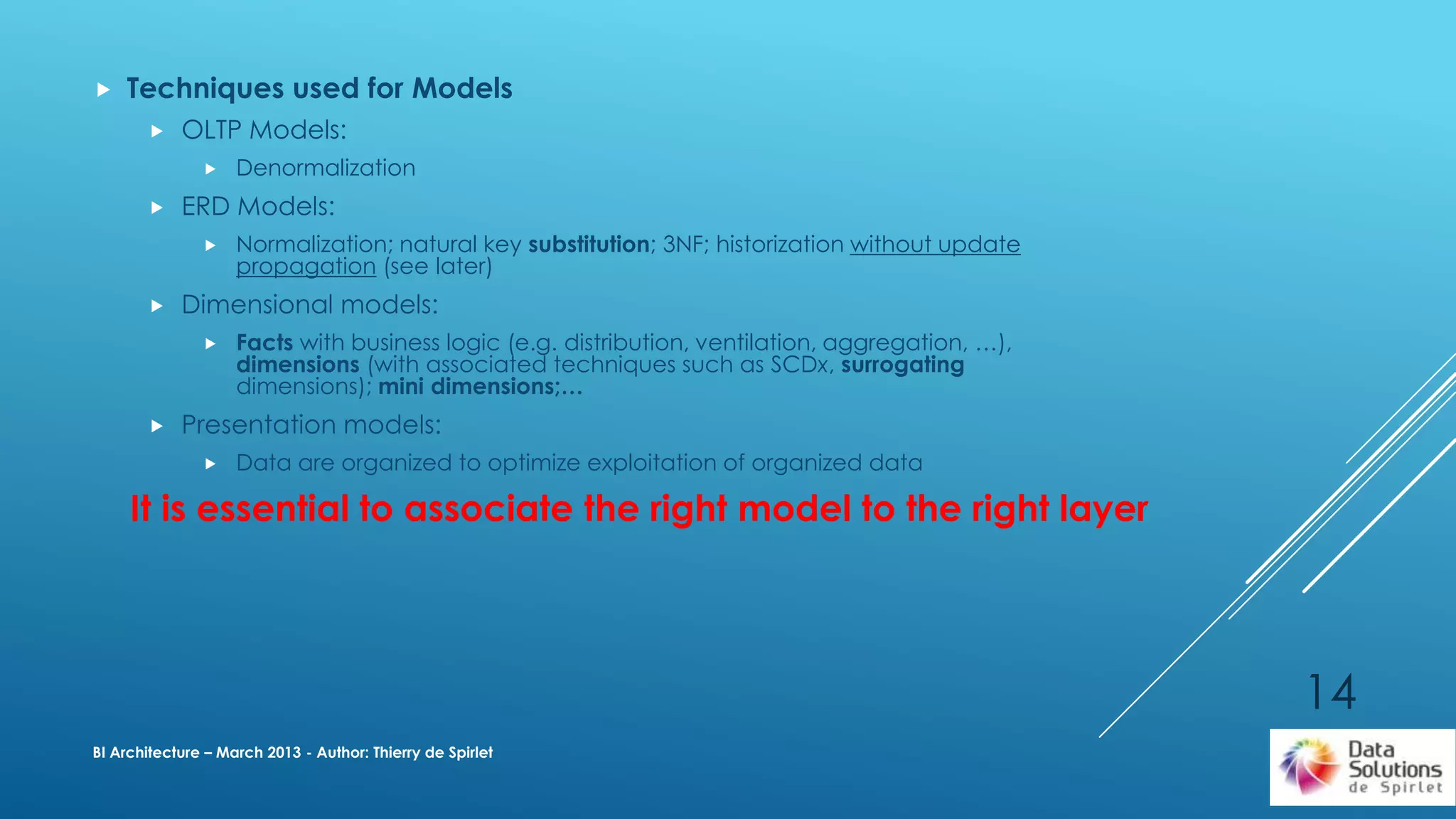

14.  Techniques used for Models
 OLTP Models:
 Denormalization
 ERD Models:
 Normalization; natural key substitution; 3NF; historization without update
propagation (see later)
 Dimensional models:
 Facts with business logic (e.g. distribution, ventilation, aggregation, …),
dimensions (with associated techniques such as SCDx, surrogating
dimensions); mini dimensions;…
 Presentation models:
 Data are organized to optimize exploitation of organized data
BI Architecture – March 2013 - Author: Thierry de Spirlet
It is essential to associate the right model to the right layer
14

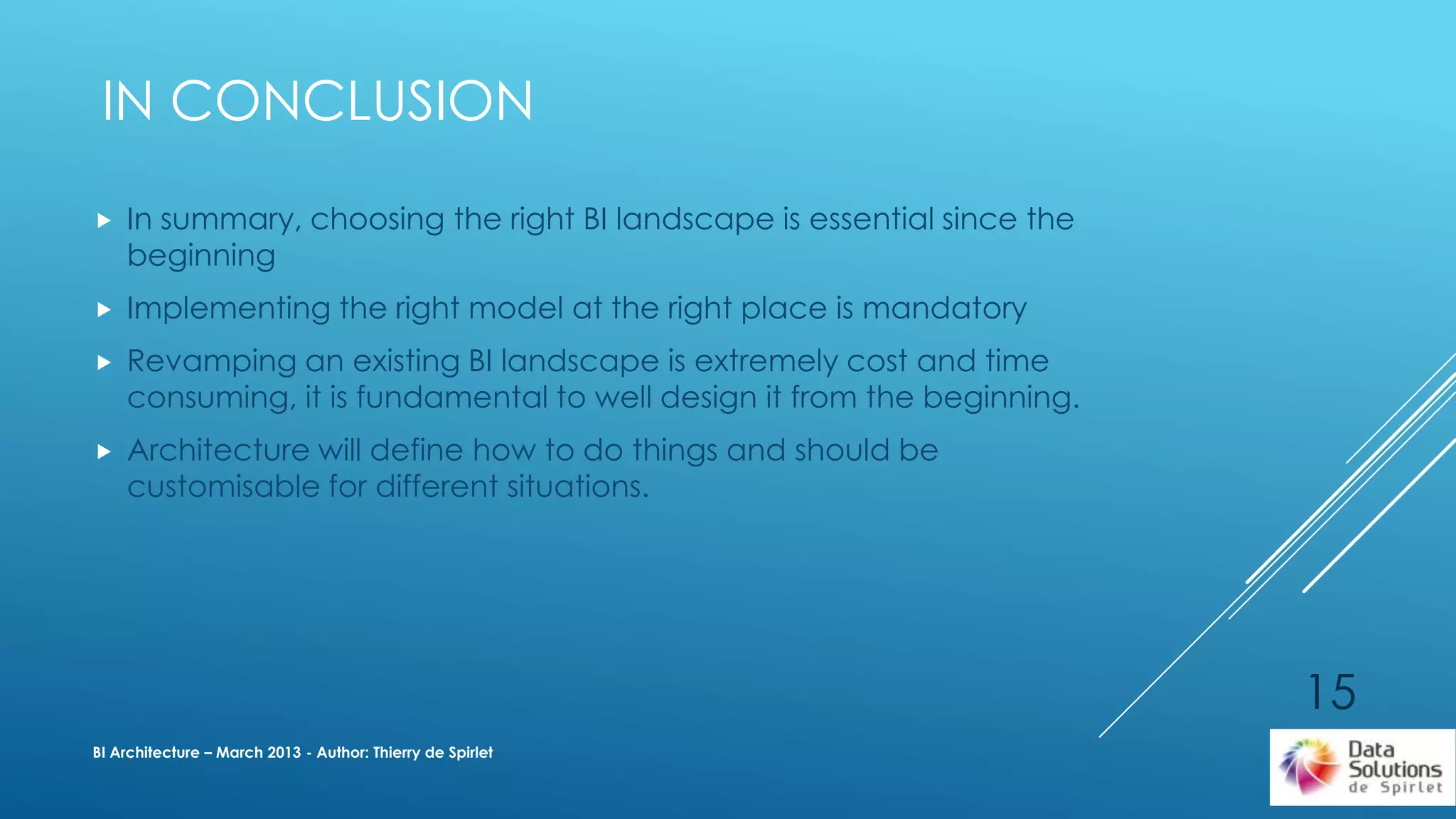

15.  In summary, choosing the right BI landscape is essential since the
beginning
 Implementing the right model at the right place is mandatory
 Revamping an existing BI landscape is extremely cost and time
consuming, it is fundamental to well design it from the beginning.
 Architecture will define how to do things and should be
customisable for different situations.
BI Architecture – March 2013 - Author: Thierry de Spirlet
IN CONCLUSION
15
