1. Robert Lemke_
The Real World
Beyond the Blog Example

2. project founder of TYPO3 Flow and TYPO3 Neos
co-founder of the TYPO3 Association
coach, coder, consultant
36 years old
TEXT HERE
lives in Lübeck, Germany
1 wife, 2 daughters, 1 espresso machine
likes drumming

3. "the leftovers talks"

4. TEXT HERE

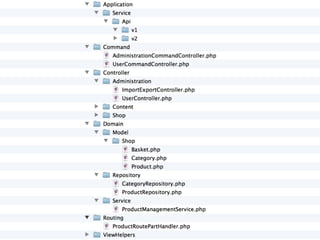

5. Application Structure

7. Request / Response
and MVC

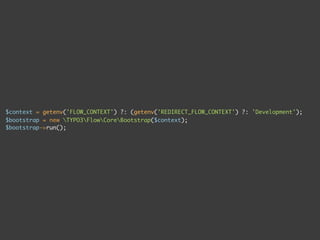

8. $context = getenv('FLOW_CONTEXT') ?: (getenv('REDIRECT_FLOW_CONTEXT') ?: 'Development');
$bootstrap = new TYPO3FlowCoreBootstrap($context);
$bootstrap->run();

9. /**
* Bootstraps the minimal infrastructure, resolves a fitting request handler and
* then passes control over to that request handler.
*
* @return void
* @api
*/
public function run() {
Scripts::initializeClassLoader($this);
Scripts::initializeSignalSlot($this);
Scripts::initializePackageManagement($this);
$this->activeRequestHandler = $this->resolveRequestHandler();
$this->activeRequestHandler->handleRequest();
}

10. /**
* Handles a HTTP request
*
* @return void
*/
public function handleRequest() {
$this->request = Request::createFromEnvironment();
$this->response = new Response();
$this->boot();
$this->resolveDependencies();
$this->request->injectSettings($this->settings);
$this->router->setRoutesConfiguration($this->routesConfiguration);
$actionRequest = $this->router->route($this->request);
$this->securityContext->setRequest($actionRequest);
$this->dispatcher->dispatch($actionRequest, $this->response);
$this->response->makeStandardsCompliant($this->request);
$this->response->send();
$this->bootstrap->shutdown('Runtime');
$this->exit->__invoke();
}

11. /**
* Dispatches a request to a controller
*
* @param TYPO3FlowMvcRequestInterface $request The request to dispatch
* @param TYPO3FlowMvcResponseInterface $response The response, to be modified by the cont
* @return void
* @throws TYPO3FlowMvcExceptionInfiniteLoopException
* @api
*/
public function dispatch(RequestInterface $request, ResponseInterface $response) {
$dispatchLoopCount = 0;
while (!$request->isDispatched()) {
$controller = $this->resolveController($request);
try {
$this->emitBeforeControllerInvocation($request, $response, $controller);
$controller->processRequest($request, $response);
$this->emitAfterControllerInvocation($request, $response, $controller);
} catch (StopActionException $exception) {
$this->emitAfterControllerInvocation($request, $response, $controller);
if ($exception instanceof ForwardException) {
$request = $exception->getNextRequest();
} elseif ($request->isMainRequest() === FALSE) {
$request = $request->getParentRequest();
}
}
}
}

12. /**
* Book controller for the RobertLemke.Example.Bookshop package
*/
class BookController extends ActionController {
/**
* @FlowInject
* @var RobertLemkeExampleBookshopDomainRepositoryBookRepository
*/
protected $bookRepository;
/**
* Shows a single book object
*
* @param RobertLemkeExampleBookshopDomainModelBook $book The book to show
* @return void
*/
public function showAction(Book $book) {
$this->view->assign('book', $book);
}
}

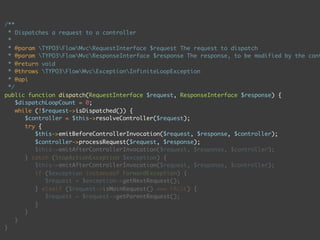

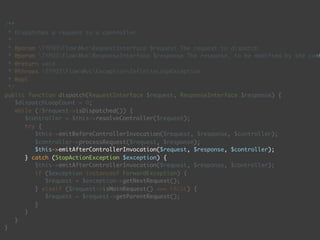

13. /**
* Dispatches a request to a controller
*
* @param TYPO3FlowMvcRequestInterface $request The request to dispatch
* @param TYPO3FlowMvcResponseInterface $response The response, to be modified by the cont
* @return void
* @throws TYPO3FlowMvcExceptionInfiniteLoopException
* @api
*/
public function dispatch(RequestInterface $request, ResponseInterface $response) {
$dispatchLoopCount = 0;
while (!$request->isDispatched()) {
$controller = $this->resolveController($request);
try {
$this->emitBeforeControllerInvocation($request, $response, $controller);
$controller->processRequest($request, $response);
$this->emitAfterControllerInvocation($request, $response, $controller);
} catch (StopActionException $exception) {
$this->emitAfterControllerInvocation($request, $response, $controller);
if ($exception instanceof ForwardException) {
$request = $exception->getNextRequest();
} elseif ($request->isMainRequest() === FALSE) {
$request = $request->getParentRequest();
}
}
}
}

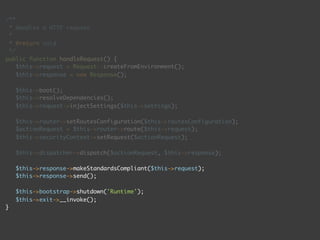

14. /**
* Handles a HTTP request
*
* @return void
*/
public function handleRequest() {
$this->request = Request::createFromEnvironment();
$this->response = new Response();
$this->boot();
$this->resolveDependencies();
$this->request->injectSettings($this->settings);
$this->router->setRoutesConfiguration($this->routesConfiguration);
$actionRequest = $this->router->route($this->request);
$this->securityContext->setRequest($actionRequest);
$this->dispatcher->dispatch($actionRequest, $this->response);
$this->response->makeStandardsCompliant($this->request);
$this->response->send();
$this->bootstrap->shutdown('Runtime');
$this->exit->__invoke();
}

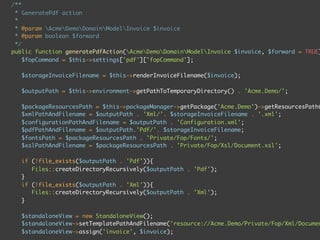

15. /**
* GeneratePdf action
*
* @param AcmeDemoDomainModelInvoice $invoice
* @param boolean $forward
*/
public function generatePdfAction(AcmeDemoDomainModelInvoice $invoice, $forward = TRUE)
$fopCommand = $this->settings['pdf']['fopCommand'];
$storageInvoiceFilename = $this->renderInvoiceFilename($invoice);
$outputPath = $this->environment->getPathToTemporaryDirectory() . 'Acme.Demo/';
$packageResourcesPath = $this->packageManager->getPackage('Acme.Demo')->getResourcesPath(
$xmlPathAndFilename = $outputPath . 'Xml/'. $storageInvoiceFilename . '.xml';
$configurationPathAndFilename = $outputPath . 'Configuration.xml';
$pdfPathAndFilename = $outputPath.'Pdf/'. $storageInvoiceFilename;
$fontsPath = $packageResourcesPath . 'Private/Fop/Fonts/';
$xslPathAndFilename = $packageResourcesPath . 'Private/Fop/Xsl/Document.xsl';
if (!file_exists($outputPath . 'Pdf')){
Files::createDirectoryRecursively($outputPath . 'Pdf');
}
if (!file_exists($outputPath . 'Xml')){
Files::createDirectoryRecursively($outputPath . 'Xml');
}
$standaloneView = new StandaloneView();
$standaloneView->setTemplatePathAndFilename('resource://Acme.Demo/Private/Fop/Xml/Documen
$standaloneView->assign('invoice', $invoice);

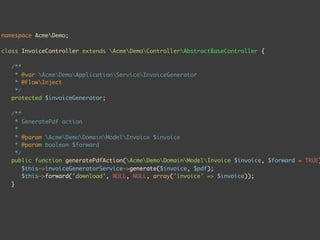

16. namespace AcmeDemo;
class InvoiceController extends AcmeDemoControllerAbstractBaseController {
/**
* @var AcmeDemoApplicationServiceInvoiceGenerator
* @FlowInject
*/
protected $invoiceGenerator;
/**
* GeneratePdf action
*
* @param AcmeDemoDomainModelInvoice $invoice
* @param boolean $forward
*/
public function generatePdfAction(AcmeDemoDomainModelInvoice $invoice, $forward = TRUE)
$this->invoiceGeneratorService->generate($invoice, $pdf);
$this->forward('download', NULL, NULL, array('invoice' => $invoice));
}

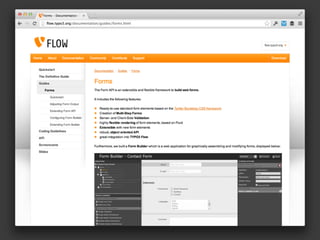

17. Forms

18. TEXT HERE

19. HTTP Caches

20. $this->response->getHeaders()
->setCacheControlDirective('s-max-age', 100);

21. Safe Request / method tunneling

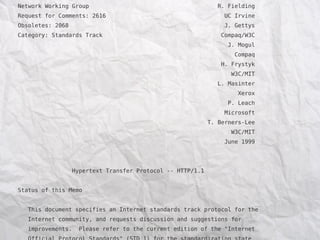

22. Network Working Group R. Fielding
Request for Comments: 2616 UC Irvine
Obsoletes: 2068 J. Gettys
Category: Standards Track Compaq/W3C
J. Mogul
Compaq
H. Frystyk
W3C/MIT
L. Masinter
Xerox
P. Leach
Microsoft
T. Berners-Lee
W3C/MIT
June 1999
Hypertext Transfer Protocol -- HTTP/1.1
Status of this Memo
This document specifies an Internet standards track protocol for the
Internet community, and requests discussion and suggestions for
improvements. Please refer to the current edition of the "Internet

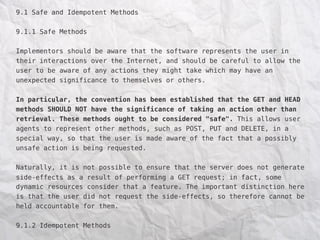

23. 9.1 Safe and Idempotent Methods
9.1.1 Safe Methods
Implementors should be aware that the software represents the user in
their interactions over the Internet, and should be careful to allow the
user to be aware of any actions they might take which may have an
unexpected significance to themselves or others.
In particular, the convention has been established that the GET and HEAD
methods SHOULD NOT have the significance of taking an action other than
retrieval. These methods ought to be considered "safe". This allows user
agents to represent other methods, such as POST, PUT and DELETE, in a
special way, so that the user is made aware of the fact that a possibly
unsafe action is being requested.
Naturally, it is not possible to ensure that the server does not generate
side-effects as a result of performing a GET request; in fact, some
dynamic resources consider that a feature. The important distinction here
is that the user did not request the side-effects, so therefore cannot be
held accountable for them.
9.1.2 Idempotent Methods

24. no automatic persistence

25. CSRF

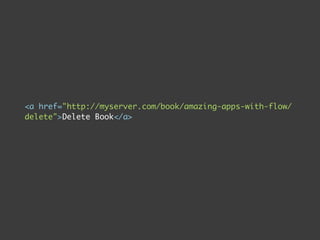

26. <a href="http://myserver.com/book/amazing-apps-with-flow/
delete">Delete Book</a>

27. <a href="http://myserver.com/book/amazing-apps-with-flow/delete?
__csrfToken=abcdef1234567890">Delete Book</a>

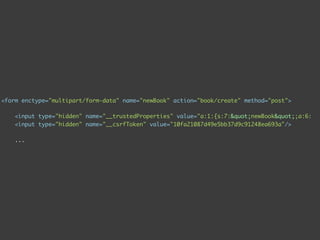

28. <form enctype="multipart/form-data" name="newBook" action="book/create" method="post">
<input type="hidden" name="__trustedProperties" value="a:1:{s:7:&quot;newBook&quot;;a:6:
<input type="hidden" name="__csrfToken" value="10fa21087d49e5bb37d9c91248ea693a"/>
...

29. speed!

30. Lazy Dependency Injection

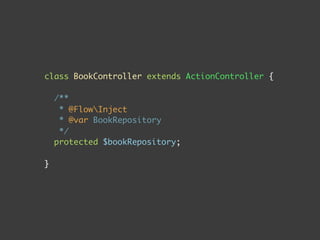

31. class BookController extends ActionController {
/**
* @FlowInject
* @var BookRepository
*/
protected $bookRepository;
}

32. class BookController extends ActionController {
…
public function myAction() {
// $this->bookRepository is instance of Dependency Proxy
$this->bookRepository->findAll();
// $this->bookRepository is the real BookRepository
}
}

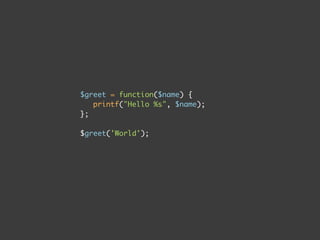

33. $greet = function($name) {
printf("Hello %s", $name);
};
$greet('World');

34. class BookController extends BookController_Original implements ProxyInterface {
/**
* Autogenerated Proxy Method
*/
public function __construct() {
$this->Flow_Proxy_injectProperties();
}

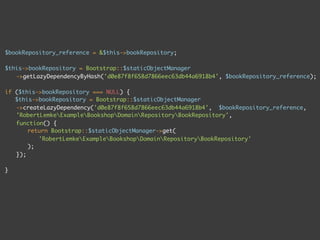

35. $bookRepository_reference = &$this->bookRepository;
$this->bookRepository = Bootstrap::$staticObjectManager
->getLazyDependencyByHash('d0e87f8f658d7866eec63db44a6918b4', $bookRepository_reference);
if ($this->bookRepository === NULL) {
$this->bookRepository = Bootstrap::$staticObjectManager
->createLazyDependency('d0e87f8f658d7866eec63db44a6918b4', $bookRepository_reference,
'RobertLemkeExampleBookshopDomainRepositoryBookRepository',
function() {
return Bootstrap::$staticObjectManager->get(
'RobertLemkeExampleBookshopDomainRepositoryBookRepository'
);
});
}

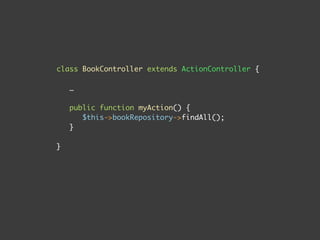

36. class BookController extends ActionController {
…
public function myAction() {
$this->bookRepository->findAll();
}
}

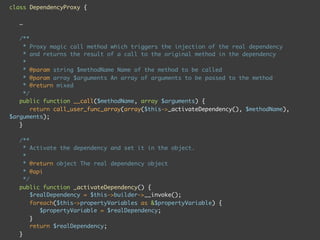

37. class DependencyProxy {
…
/**
* Proxy magic call method which triggers the injection of the real dependency
* and returns the result of a call to the original method in the dependency
*
* @param string $methodName Name of the method to be called
* @param array $arguments An array of arguments to be passed to the method
* @return mixed
*/
public function __call($methodName, array $arguments) {
return call_user_func_array(array($this->_activateDependency(), $methodName),
$arguments);
}
/**
* Activate the dependency and set it in the object.
*
* @return object The real dependency object
* @api
*/
public function _activateDependency() {
$realDependency = $this->builder->__invoke();
foreach($this->propertyVariables as &$propertyVariable) {
$propertyVariable = $realDependency;
}
return $realDependency;
}

38. Accounts, Users, Authentication
Flow distinguishes between accounts and persons:
_ account: TYPO3FlowSecurityAccount
_ person: TYPO3PartyDomainModelPerson
A person (or machine) can have any number of accounts.

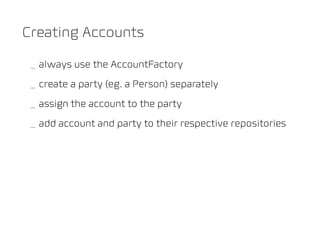

39. Creating Accounts
_ always use the AccountFactory
_ create a party (eg. a Person) separately
_ assign the account to the party
_ add account and party to their respective repositories

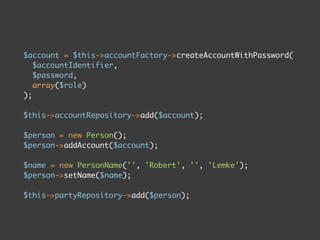

40. $account = $this->accountFactory->createAccountWithPassword(
$accountIdentifier,
$password,
array($role)
);
$this->accountRepository->add($account);
$person = new Person();
$person->addAccount($account);
$name = new PersonName('', 'Robert', '', 'Lemke');
$person->setName($name);
$this->partyRepository->add($person);

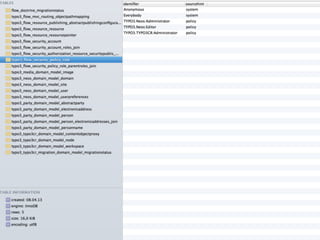

41. Roles

42. roles:
User: []
Manager: ['User']
Editor: ['User', 'TYPO3.Neos:Editor']

45. /**
* Create a role and return a role instance for it.
*
* @param string $roleIdentifier
* @return TYPO3FlowSecurityPolicyRole
* @throws TYPO3FlowSecurityExceptionRoleExistsException
*/
public function createRole($roleIdentifier) {
$this->initializeRolesFromPolicy();
if (isset($this->systemRoles[$roleIdentifier])) {
throw new RoleExistsException(sprintf('Could not create role %s because a system role wi
}
if (preg_match('/^[w]+((.[w]+)*:[w]+)+$/', $roleIdentifier) !== 1) {
throw new InvalidArgumentException(sprintf('Could not create role %s because it does no
}
if ($this->roleRepository->findByIdentifier($roleIdentifier) !== NULL) {
throw new RoleExistsException(sprintf('Could not create role %s because a role with that
}
$role = new Role($roleIdentifier);
$this->roleRepository->add($roleIdentifier);
return $role;
}

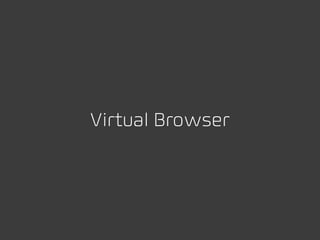

46. Virtual Browser

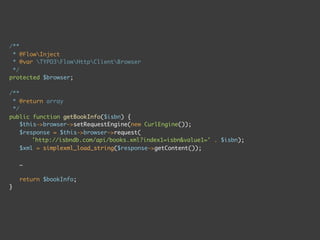

47. /**
* @FlowInject
* @var TYPO3FlowHttpClientBrowser
*/
protected $browser;
/**
* @return array
*/
public function getBookInfo($isbn) {
$this->browser->setRequestEngine(new CurlEngine());
$response = $this->browser->request(
'http://isbndb.com/api/books.xml?index1=isbn&value1=' . $isbn);
$xml = simplexml_load_string($response->getContent());
…
return $bookInfo;
}

48. Page Cache

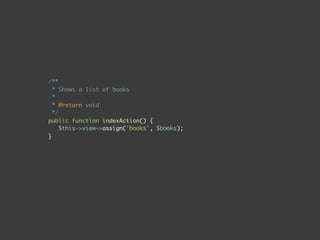

49. /**
* Shows a list of books
*
* @return void
*/
public function indexAction() {
$this->view->assign('books', $books);
}

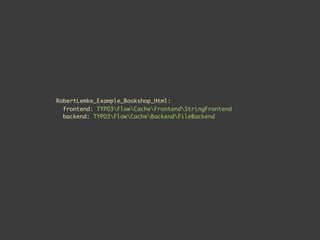

50. RobertLemke_Example_Bookshop_Html:
frontend: TYPO3FlowCacheFrontendStringFrontend
backend: TYPO3FlowCacheBackendFileBackend

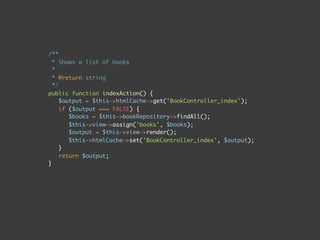

51. /**
* Shows a list of books
*
* @return string
*/
public function indexAction() {
$output = $this->htmlCache->get('BookController_index');
if ($output === FALSE) {
$books = $this->bookRepository->findAll();
$this->view->assign('books', $books);
$output = $this->view->render();
$this->htmlCache->set('BookController_index', $output);
}
return $output;
}

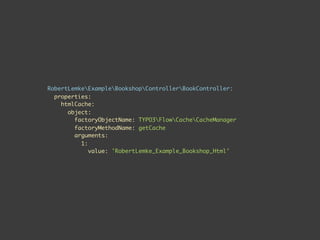

52. RobertLemkeExampleBookshopControllerBookController:
properties:
htmlCache:
object:
factoryObjectName: TYPO3FlowCacheCacheManager
factoryMethodName: getCache
arguments:
1:
value: 'RobertLemke_Example_Bookshop_Html'

53. Ask me anything *
* technical

54. https://github.com/robertlemke

55. TYPO3 Flow Trainings and
Inhouse Workshops

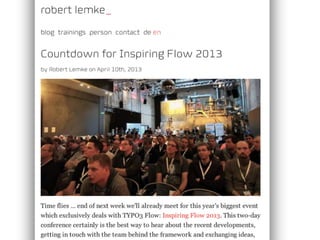

56. Robert Lemke Blog

57. Robert Lemke_
robertlemke.com
@robertlemke
