Benchmarking is a process of evaluating performance by comparing metrics over time or between configurations. The document discusses benchmarking software performance, focusing on speed as an important and easy-to-measure metric. It introduces Benchmarker.py, a tool for Python code benchmarking that collects execution time data and integrates with CodeSpeed for visualization. Key aspects of effective benchmarking discussed include choosing representative tests, controlling the test environment, and maintaining a historical performance archive.

1. Benchmarking your applications With lots of shiny pictures Tennessee Leeuwenburg 20 August 2011 www.cawcr.gov.au

2. What is Benchmarking? Originally (circa 1842) a mark cut into a stone by land surveyors to secure a "bench" (from 19th century land surveying jargon, meaning a type of bracket ), to mount measuring equipment Another claim is that the term benchmarking originated with cobblers measuring people’s feet Benchmarking is important to anyone who wishes to ensure a process is consistent and repeatable. Images are attributed in the PPT notes

3. What is Benchmarking? Evaluate or check (something) by comparison with a standard: "we are benchmarking our performance against external criteria". Fundamentally, it’s evaluating performance through measurement Image by the author, fictional data

4. PyPy: A Concrete Software Example PyPy doesn’t use benchmarker.py, they have a custom benchmark execution rig They have concentrated on building a system for visualising performance, called “CodeSpeed”. They have chosen to measure speed . They could have focused on memory, or network performance, or anything else that makes sense for their “business”. However, speed is one of the most important aspects of a language, and one of the biggest reasons for someone not to choose PyPy instead of standard CPython

5. PyPy Benchmark against CPython Image source: speed.pypy.org

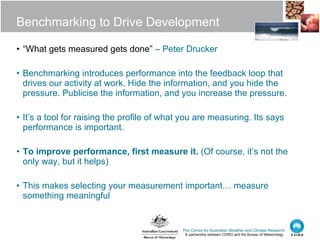

6. Benchmarking to Drive Development “ What gets measured gets done” – Peter Drucker Benchmarking introduces performance into the feedback loop that drives our activity at work. Hide the information, and you hide the pressure. Publicise the information, and you increase the pressure. It’s a tool for raising the profile of what you are measuring. Its says performance is important. To improve performance, first measure it. (Of course, it’s not the only way, but it helps) This makes selecting your measurement important… measure something meaningful

7. Performance over Time Image source: speed.pypy.org

8. A word of warning… http://xkcd.com/605/

9. What to compare against? Benchmarking over time (by revision or date). The most normal kind of benchmarking is a historical comparison of past performance. This lets you understand what, if any, progress is being made in the application Benchmarking by configuration If an application has multiple configurations, especially if it has to run over a larger data set in production than in test, benchmarking those differences can be important Benchmarking by hardware Benchmarking by hardware has the obvious advantage that you can evaluate the impact of purchasing a hardware upgrade If there is a direct competitor, and you have their code, you can benchmark your procedures against theirs. But this is unlikely. Some applications may have standard trials and tests

10. Benchmarking to Notice Problems Benchmarking can also solve specific problems by bringing them to your attention Most usefully, it can highlight when something bad goes in with a commit This graph shows a timeline of commits No need to worry about performance ahead of time Something slow went in with revision 10 So go fix it! Best of all, bounce the commit! Image by the author, fictional data

11. What is benchmarking of software? This question has a few parts, being: What is measurable about software? What should be the basis for comparison? What standards for comparison exist? Most software benchmarking is about speed. Why? It’s easiest to measure It’s important Most people understand speed of execution and what it it’s like for an application to be unresponsive for the user It’s often easy to fix But… Memory, disk and networking? User acceptance and use?

12. You too can benchmark your Python code! Benchmarker.py … this thing I wrote and would like to share  Benchmarker.py will collect all this data for you. It Just Works (YMMV). Benchmarker.py is a tool which measures and reports on execution speed . It utilises the cProfile Python module to record statistics in a historical archive Benchmarker.py has an integration module for CodeSpeed , a website for visualising performance. Your manager will love it! (YMMV)

13. Introducing Benchmarker.py Easily available! Easy_install decorator.py  Easy to install! https:// bitbucket.org/tleeuwenburg/benchmarker.py /  Grab the source! Easy to follow tutorials! https://bitbucket.org/tleeuwenburg/benchmarker.py/wiki/FirstTutorial Easy to use! Simple syntax: simply decorate the function you would like profiled – no complex function execution required. Or, integrate directly with py.test to use without any code modification at all Test-driven benchmarking Because benchmarking in operations will slow the app down

14. I’m trying to avoid this… Image source: icanhascheezburger.com

15. How to Use Benchmarker.py ln [2]: import bench In [3]: import bench.benchmarker In [4]: from bench.benchmarker import benchmark In [5]: @benchmark() ...: def foo(): ...: for i in range(100): ...: pass ...: In [6]: foo() In [7]: bench.benchmarker.print_stats() 100 function calls in 0.005 CPU seconds Random listing order was used ncalls tottime percall cumtime percall filename:lineno(function) 0 0.000 0.000 profile:0(profiler) 100 0.005 0.000 0.005 0.000 <ipython console>:1(foo)

16. Creating a good historical archive The key to this is really to maintain a good historical archive. This means a certain amount of integration with your tool chain, but if you are using py.test it’s easy. demo_project]$ find /tmp/bench_history /tmp/bench_history /tmp/bench_history/demonstration /tmp/bench_history/demonstration/Z400 /tmp/bench_history/demonstration/Z400/full_tests /tmp/bench_history/demonstration/Z400/full_tests/2011 /tmp/bench_history/demonstration/Z400/full_tests/2011/07 /tmp/bench_history/demonstration/Z400/full_tests/2011/07/25 /tmp/bench_history/demonstration/Z400/full_tests/2011/07/25/2011_07_25_06_19.pstats

17. Choosing what to pay attention to One of the fundamental choices when benchmarking is what to watch. Nothing can automate this, although choosing the ten most expensive functions is probably not a bad first try. Options include: Watching the most expensive functions Watching the most common user operations Hand-selecting a mix of “inner loop” type functions and “outer loop” type functions “Critical path” functions that can’t execute in the background or be avoided Crafting a watch list based on a specific objective or system component

18. Figuring it out the first time Before setting up the list of watched functions for the graph server, try open the file in a spreadsheet. Benchmarker comes with a csv export mode. Data taken from BoM application tests 90 1 60 1173 <_AFPSSup.IFPClient_getTopoData> 89 1 79 1345 <_AFPSSup.IFPClient_getReferenceInventory> 87 2 90 2299 <_AFPSSup.IFPClient_getParmList> 86 2 112 9864 <_AFPSSup.IFPClient_getTextData> 84 4 224 4746 shuffle 80 5 289 2356 <_AFPSSup.new_HistoSampler> 75 5 313 25257 <_AFPSSup.ReferenceData_pyGrid> 69 7 386 34386 <_AFPSSup.IFPClient_getReferenceData> 63 12 662 11476 <_AFPSDB.Parm_saveParameter> 51 14 839 10584 <compile> 36 15 860 544 _getLandOrWaterRefData 21 21 1217 33929 <_AFPSSup.ReferenceData_grid> Cumulative % Total % Total Total time # of calls Function name

19. Almost all the time is in one place In the previous slide, based off our actual application at work, 90% of the time spent in the automated test was concentrated in just 12 functions. The total number of functions measured was 6, 763 . 90% of the time is spent in around about 0.2% (2 hundredths) of the functions. Looking for where to improve speed is no mystery here! The codebase is mostly Python… but the expensive operations are mostly in C. I guess this is a good thing!

20. Version Control Integration Version control integration is primitive, but available py.test --bench_history –override-decorator –version_tag=0.4 Goals are to: Clean up the syntax for this Set up auto-sniffing of version tags

21. Visualisation and Key Metrics Integration with codespeed is in a decoupled module which only relies on the filesystem structure created by benchmarker.py Which means you can make use of benchmarker.py on-the-desk to produce reports without the web interface Or it means you can adjust your own benchmarking rig to produce compatible file output and easily integrate with codespeed

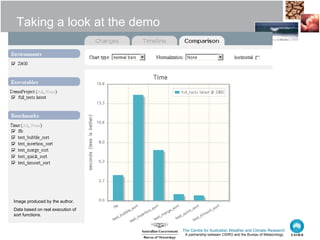

22. Taking a look at the demo Image produced by the author. Data based on real execution of sort functions.

23. Benchmarking 102 Controlling the environment Run it on a box that isn’t doing anything else! Distributed is solvable, but not done yet Writing specific tests Your tests may not be representative of program user experience, so you might want to write specific tests for benchmarking against Execution time is data-dependent (e.g. large arrays). Make sure you have a consistent standard, and make sure you have a realistic standard Measure the test, not the function The function may get called by other top-level functions, so you need to pull that apart to understand the relationships

24. Benchmarking 102 Total Time vs Cumulative Time Total time is where a three-deep loop iterates on a large array Cumulative time is where you call that function with a large array… and wait Total time is the CPU time in-function Cumulative time accumulates the cost of called functions Large per-call total time is bad. It means a large operation. Either increase its efficiency, or reduce the number of times it is called Small per-call total time can be okay. It means a small operation. Efficiency is only important if it is called many times But can you unroll the function to reduce call overhead?

25. Future Directions (Bugs n Stuff) (1) Needs a userbase larger than one (1) Improved version control information (version sniffing) (2) Needs to properly namespace functions (2) The codespeed timeline is a bit broken (uses submission time, not data validity time – looks like a bug in codespeed) (3) Expansion into memory, disk and network profiling (3) Expansion into interactive benchmarking through usage analysis and dialog-based user queries (3) Maybe create a benchmarker class to allow multiple instances? (I believe this is actually not as necessary as feedback would suggest)

26. Acknowledgements Thanks to Ed Schofield, who got the Codespeed integration over the line Miquel Torres, developer of Codespeed Bureau of Meteorology, for allowing this work to progress as open source

27. The Centre for Australian Weather and Climate Research A partnership between CSIRO and the Bureau of Meteorology Tennessee Leeuwenburg Phone: 03 9669 4310 Work Email: t.leeuwenburg@bom.gov.au Email: tleeuwenburg@gmail.com Web: www.cawcr.gov.au Thank you www.cawcr.gov.au
