1. Technical Presentation on
BH150E
150 US short ton
Electric Rear Dump Truck
BEML’s New Dump Truck Product

3. About BEML New Dump Trucks Product- 150 US short ton
• In continuation of the tradition for indigenous design and development of products
BEML has taken up design and development of high end electrical dump truck
150 US short ton.
• Earlier the truck product range
was from 35 to 100 US ton with Mechanical drive &
120 US ton with electric drive.
• BH150E - Specification And Features in brief
on par with the International models and having the latest technical, safety and
comfort features
•BH150E – comparison with competitor models

4. About BEML New Dump Trucks Product- 150 US short ton
• The
Dumper is powered by Cummins QSK50C Engines
• The
performance, productivity and reliability of the electric drive is ensured by
sourcing the electric drive from GE.
• The most sophisticated design and analysis tools are deployed in the design of
the equipment to ensure performance, productivity and reliability of the
equipment during the design stage itself.
• Maximum care has been taken in
manufacturing and assembly to translate the
design into a working product and also meet ISO Standards
• All the safety features in line with
global models are provided in the new dump truck
Operator comfort has got maximum emphasis in the new truck design

5. CONCLUSION
BEML’s New BH150E AC Drive Dump truck has
resulted in launching of New Generation Haul
trucks in Indian Mining industry.

6. Thank You

7. BH150E Rear Dump Truck
Technical Specification

8. BH150E with AC Drive Electric Rear Dump Truck
Power Performance: High power Electronically controlled, Fuel efficient,
CUMMINS Diesel engine with AC Drive system from GE ensures smooth ride,
with continuously variable torque-speed curve delivering maximum power over
the operating speed range and also caters to consistent performance on
steep gradients.
High Productivity: High power to weight ratio ensures excellent productivity
and also ensures increased engine life. Wide body design,, higher volumetric
capacity and a low loading height ensures high productivity.
Reliability: Diesel-electric power module (AC drive system) with few wearing
parts guarantees highly reliable performance, more durability and high
availability.
Serviceability: Ease of maintenance and repair ensured for excellent
serviceability.

9. BH150E with AC Drive Electric Rear Dump Truck
Maneuverability: Power steering, Optimum turning circle radius , provides
for high degree of maneuverability.
Comfort: Ideally located spacious deluxe cabin with ergonomically designed
Operator & co-operator seat with tiltable telescopic steering column and control
panels along with dashboard mounted Air conditioning system provide
Operator with maximum comfort and operating ease
Safety: Truck has built-in safety features like ROPS Cabin, Emergency power
steering, Electrical dynamic retarding and all hydraulic brake system meeting
the relevant safety standards. Fire retardant hydraulic hoses meeting MSHAS
standard are used to ensure high degree of safety. Rear view camera & Blind
spot mirrors are provided to ensure excellent all round visibility.

10. BH150E SPECIFICATION
Right view
Left view

11. BH150E SPECIFICATION

12. BH150E SPECIFICATION

13. BH150E SPECIFICATION

14. BH150E SPECIFICATION

15. BH150E SPECIFICATION

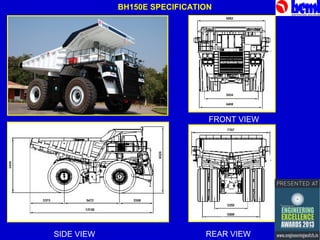

17. BH150E SPECIFICATION
FRONT VIEW
SIDE VIEW
REAR VIEW

18. BH150E - Comparison with Global Models

19. BH150E - COMPARISON with COMPETITOR models – 150 ton class
Sl.
no.
MAKE & MODEL
CAT (BUCYRUS – earlier
TEREX ) MT3300AC
Parameter
BELAZ
75137 AC
AC Drive
HD1500-7
CAT 785D
BEML BH150E
Mechanical Drive
AC Drive
Payload -MT
136
136
144
136
136
Payload -US ST
150
150
159
150
150
2
Tyre size
33.00R51
36.00R51
33.00R51
33.00R51
33.00R51
33.00R51
36.00R51
3
Wheel Base
5.3 meter
5.3 meter
5.3 meter
5.4 meter
5.18 meter
5.47 meter
5.47 meter
4
Front TRACK
5.2 meter
5.2 meter
5.01 meter
4.85 meter
5.4 meter
GVW ( Metric ton)
248.9
251.7
244.1
250.0
248.5
240
243
FRONT AXLE
82.1
83.1
80.6
82.0
111.8
80
81
REAR AXLE
166.8
168.6
163.5
168.0
136.7
160
162
NVW ( Metric ton)
112.9
114.7
108.1
105.3
112.5
104
107
FRONT AXLE
59.4
59.9
55.0
51.2
52.8
49.5
50.3
REAR AXLE
53.5
54.8
53.1
54.1
59.7
54.5
56.7
7
Maximum Speed
64kmph
64kmph
50kmph
58kmph
55kmph
60kmph
8
Power,Kw(hp)
1398
(1875)
1398
(1875)
1193
(1623)
1109
(1509)
1082
(1450)
1398 (1875)
1398
(1875)
9
Payload /GVW
0.55
0.54
0.56
0.58
0.55
0.57
0.56
Struck(cum)
59
59
60
54
56
56
Heaped 2:1(cum)
90
90
84
78
82
82
1
5
6
BODY Volume
10
78-85

20. BH150E Rear Dump Truck Features Detail

21. SOFTWARES TOOL USED FOR DESIGN
Our Technology Division and R& D has all the best design and analysis
tools necessary to deign new products ensuring performance,
productivity and reliability
DESIGN TOOLS
ANALYSIS TOOLS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Pro/E Wildfire 5
CATIA V5
AUTODESK Inventor
SOLID WORKS
UG
Hyperworks
Ansys- Multiphysis & Workbench
MSC Nastran
Adams
Star CD
Ls Dyna
LMS Virtual Lab
Abaqus
CFD

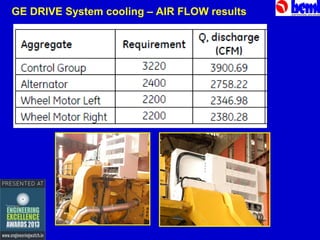

22. GE DRIVE System cooling – AIR FLOW results

23. SAFTEY FEATURES
Anti Collision System
Emergency Steering
Blind spot mirror
Audio & Visual Alarm (with flasher) during reverse gear
3 Point Operator seat belt
Fire resistant hoses at hot zone
Fire resistant quality electric wires & sleeves
Exhaust tube coated with heat resistant paint
Battery cut-off switch
Retro Reflective reflectors on all sides
Auto Fire suppression system

24. CABIN DESIGN TO ENSURE FOR OPERATOR COMFORT
• AC cabin
• Electrically operated Pneumatic Suspension Seat for Driver with Height
Adjuster , Weight Adjustment, Reclining Back, Adjustable Headrest.
• Mechanical Suspension Seat provided for Co-Driver with Height
Adjuster, Weight Adjustment, Reclining Back, Adjustable Headrest
• 3- Point seat belt
• Tilt-able, telescopic steering column assembly
•Power Window.

25. Design ISO Standards
