1. Hongkong Xinyun Industrial Felting Co.,Limited
Address:No 80 east xincheng RD.Conghua Guangzhou China 510900
E-mail: felt_belts@hkxinyun.com Website:http://www.feltbelt.com
Tel: +86-20-87932699 Fax: +86-20-87932639
HK-C-G Industrial Belts Wire Hooks
Materials:316 stainless steel
Packing :300mm width standard & 12PCS
Model interchange Pitch Belt Thickness Wire Diameter Number/Box Packing, weight
C-G1#/UX1 96pcs
1.5mm-3.0mm 1.0mm
300W*12PC 33cm*6cm*5cm 0.4kg
1/16“-1/8” 0.040”
C-G1# 600W 194pcs
1.5mm-3.0mm 1.0mm
300W*12PC 66cm*6cm*5cm 0.9kg
1/16“-1/8” 0.040”
C-G2# /2SP 84pcs
3mm-4mm 1.4mm
300W*12PC 33cm*7cm*6cm 0.7kg
1/8“-5/32” 0.054”
C-G3# /U3 84pcs
4.0mm-5.5mm 1.4mm
300W*12PC 33cm*7cm*6cm 0.75kg
3/16“-7/32” 0.054”
C-G4# /U4 84pcs
5.0mm-6.5mm 1.4mm
300W*12PC 33cm*12cm*6cm 0.8kg
7/32“-1 / 4” 0.054”
C-G5# /U5 84pcs
6.0mm-8.0mm 1.4mm
300W*12PC 33cm*12cm*6cm 0.9kg
9/32“-5/16” 0.054”
C-G6#/U6U7 84pcs
8.0mm-10.0mm 1.4mm
300W*12PC 33cm*14cm*7cm 1kg
5/16”-25/64” 0.054”
HK-C-L Filter belt Wire Hooks
Materials:316 / 316LL stainless steel
Packing:300mm widths standard & 12PCS
Model interchange Pitch Belt Thickness Wire Diameter Number/Box Packing, weight Remark
C-LB-FLAT HOOKS
C-LB#040 120pcs 1.0mm-3.0mm
0.9mmx0.7mm
0.036"x0.027"
300W*12PC
33cm*7cm*6cm
0.7kg/box
A36SP
C-LB#041 120pcs 1.0mm-3.0mm 300W*12PC
33cm*7cm*6cm
0.7kg/box
UCM36
C-LB#042 96pcs 2.0mm-5.0mm 300W*12PC
33cm*7cm*6cm
0.7kg/box
C-LB#043 96pcs 2.0mm-5.0mm 300W*12PC
33cm*7cm*6cm
0.7kg/box
big hooks
C-LY-ROUND HOOKS
C-LY#030 96pcs 3.0mm-5.0mm 1.0mm 0.040" 300W*12PC
33cm*7cm*6cm
0.7kg/box
big hooks
C-LY#031 96pcs 1.0mm-3.0mm 1.0mm 0.040" 300W*12PC
33cm*7cm*6cm
0.6kg/box
C-LY#032 120pcs 1.0mm-3.0mm 1.0mm 0.040" 300W*12PC
33cm*7cm*6cm
0.6kg/box
UX-1LL
C-LY#033 120pcs 1.0mm-3.0mm 0.8mm 0.032" 300W*12PC
33cm*7cm*6cm
0.6kg/box
C-LY#034 120pcs 1.0mm-3.0mm 0.8mm 0.032" 300W*12PC
33cm*7cm*6cm
0.6kg/box
carded hook,no
welded connect
bar
C-LN Polyester spiral joint
Item Picture Material Size/Pair Usage
C-LN Polyester 1.7m-2m L Use for filter belt

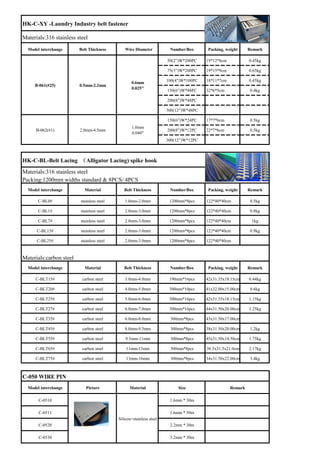

2. HK-C-XY -Laundry Industry belt fastener
Materials:316 stainless steel
Model interchange Belt Thickness Wire Diameter Number/Box Packing, weight Remark
B-061(#25) 0.5mm-2.2mm
0.6mm
0.025"
50(2”)W*200PC 19*12*8cm 0.45kg
75(3”)W*200PC 19*15*9cm 0.65kg
100(4")W*100PC 18*11*7cm 0.45kg
150(6”)W*48PC 32*6*5cm 0.4kg
200(8”)W*48PC
300(12”)W*48PC
B-062(#1) 2.0mm-4.5mm
1.0mm
0.040"
150(6”)W*24PC 17*7*6cm 0.5kg
200(8”)W*12PC 22*7*6cm 0.5kg
300(12”)W*12PC
HK-C-BL-Belt Lacing （Alligator Lacing) spike hook
Materials:316 stainless steel
Packing:1200mm widths standard & 8PCS/ 4PCS
Model interchange Material Belt Thickness Number/Box Packing, weight Remark
C-BL0# stainless steel 1.0mm-2.0mm 1200mm*8pcs 122*40*40cm 0.5kg
C-BL1# stainless steel 2.0mm-3.0mm 1200mm*8pcs 122*40*40cm 0.8kg
C-BL7# stainless steel 2.0mm-3.0mm 1200mm*8pcs 122*40*40cm 1kg
C-BL15# stainless steel 2.0mm-3.0mm 1200mm*8pcs 122*40*40cm 0.9kg
C-BL25# stainless steel 2.0mm-3.0mm 1200mm*8pcs 122*40*40cm
Materials:carbon steel
Model interchange Material Belt Thickness Number/Box Packing, weight Remark
C-BLT15# carbon steel 3.0mm-4.0mm 190mm*16pcs 42x31.35x18.15cm 0.44kg
C-BLT20# carbon steel 4.0mm-5.0mm 300mm*10pcs 41x32.00x15.00cm 0.6kg
C-BLT25# carbon steel 5.0mm-6.0mm 300mm*16pcs 42x31.35x18.15cm 1.15kg
C-BLT27# carbon steel 6.0mm-7.0mm 300mm*16pcs 44x31.50x20.00cm 1.25kg
C-BLT35# carbon steel 6.0mm-8.0mm 300mm*8pcs 43x31.50x17.00cm
C-BLT45# carbon steel 8.0mm-9.5mm 300mm*8pcs 38x31.50x20.00cm 1.2kg
C-BLT55# carbon steel 9.5mm-11mm 300mm*8pcs 45x31.50x14.50cm 1.75kg
C-BLT65# carbon steel 11mm-13mm 300mm*8pcs 36.5x31.5x21.0cm 2.17kg
C-BLT75# carbon steel 13mm-16mm 300mm*8pcs 34x31.50x22.00cm 3.4kg
C-050 WIRE PIN
Model interchange Picture Material Size Remark
C-0510
Silicon+stainless steel
1.6mm * 30m
C-0511 1.6mm * 50m
C-0520 2.2mm * 30m
C-0530 3.2mm * 30m

3. C-060 Fastener Machine
Model interchange Picture Item Width Remark
C-0610 vise 300mm/150mm
use for 25#&1&,conveyor belt
fastener 1#，need to use with
bench vice
C-0620
hydrailic jack
press machine
300mm
1.with 2pcs vise
2.for conveyor belt fastener 1# to
6#
C-0630
hydrailic pump
press machine
300mm
1.96hooks fastener
2.diameter is 1.0mm's fastener
(eg.CG1#,filter fastener)
C-0641
mechanical press
machine
600mm 1.with 3pcs lacer，same as Felxco
machine
2.for 1-6# fastener
3.can install
C-0642 900mm
C-0643 1200mm
C-070 Bolt Plate Fastening System
Metatial:Carbon Steel
Item Size Belt Thickness Max Belt TensionNumber/BOX Packing, weight
C-071 140# 5.0mm-11mm ≤400 30pcs/box 2.1KG/BOX
C-072 190# 8.0mm-14mm ≤600 30pcs/box 2.6KG/BOX
C-073 1 1/2" 11mm-17mm ≤500 25pcs/box 2.5KG/BOX
C-074 2" 14mm-21mm ≤750 25pcs/box 3.2KG/BOX
C-075 2 1/2" 19mm-25mm ≤800 10PCS/box 3.0KG/BOX
HK-C-MR（MR Series）
Item Material
Belt
thickness
Max belt
tension
Pulley
diameter
Number/BOX Packing, weight
MR1
stainless steel
1.5mm-3.0mm 250(N/mm) 50mm 1200mm*8pcs 5KG/BOX,PIN:4PCS
carbon steel
MR2
stainless steel
3.0mm-5.0mm 400(N/mm) 75mm 1200mm*8pcs 6KG/BOX,PIN:4PCS
carbon steel
MR3
stainless steel
5.0mm-6.0mm 500(N/mm) 100mm 1200mm*8pcs
carbon steel
