1. Shenzhen Southern Machinery Sales
And Service Co. Ltd.
PCB separator introduction

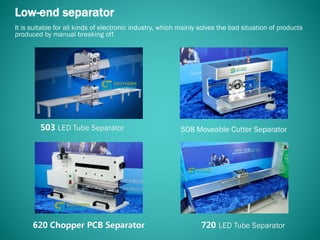

2. 508 Moveable Cutter Separator
Low-end separator
It is suitable for all kinds of electronic industry, which mainly solves the bad situation of products
produced by manual breaking off.

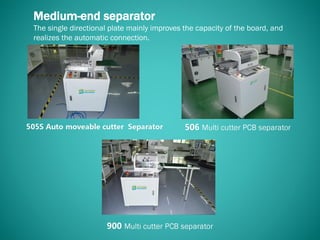

3. Medium-end separator
The single directional plate mainly improves the capacity of the board, and
realizes the automatic connection.

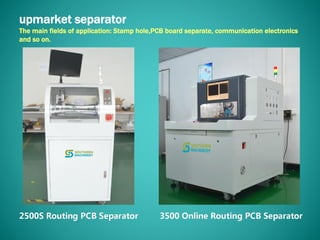

4. upmarket separator
The main fields of application: Stamp hole,PCB board separate, communication electronics
and so on.

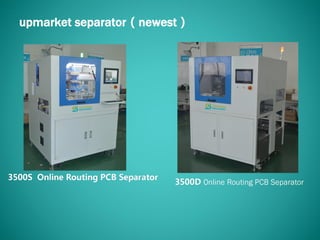

5. upmarket separator（newest）

6. Product introduction
Machine Size(L*W*H):2400x360x190 mm
Nect Weight(KG):33 KG
Packing size(L*W*H):2410x370x200 mm
Gross Weight(KG):65 KG

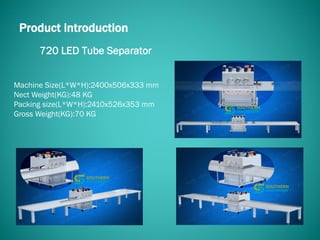

7. 720 LED Tube Separator
Product introduction
Machine Size(L*W*H):2400x506x333 mm
Nect Weight(KG):48 KG
Packing size(L*W*H):2410x526x353 mm
Gross Weight(KG):70 KG

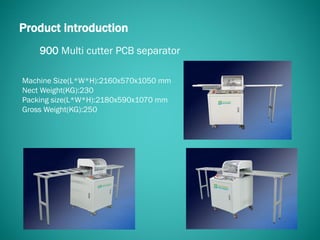

8. 900 Multi cutter PCB separator
Product introduction
Machine Size(L*W*H):2160x570x1050 mm
Nect Weight(KG):230
Packing size(L*W*H):2180x590x1070 mm
Gross Weight(KG):250

9. 508 Moveable Cutter Separator
Product introduction
Machine Size(L*W*H):620x400x430 mm
Nect Weight(KG):45
Packing size(L*W*H):640x420x450 mm
Gross Weight(KG):65

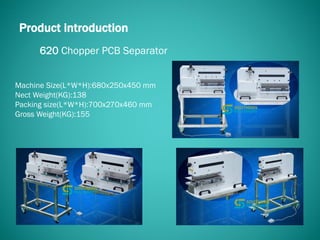

10. 620 Chopper PCB Separator
Product introduction
Machine Size(L*W*H):680x250x450 mm
Nect Weight(KG):138
Packing size(L*W*H):700x270x460 mm
Gross Weight(KG):155

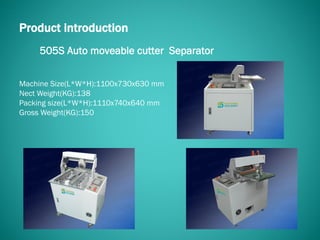

11. 505S Auto moveable cutter Separator
Product introduction
Machine Size(L*W*H):1100x730x630 mm
Nect Weight(KG):138
Packing size(L*W*H):1110x740x640 mm
Gross Weight(KG):150

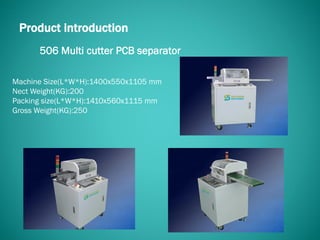

12. 506 Multi cutter PCB separator
Product introduction
Machine Size(L*W*H):1400x550x1105 mm
Nect Weight(KG):200
Packing size(L*W*H):1410x560x1115 mm
Gross Weight(KG):250

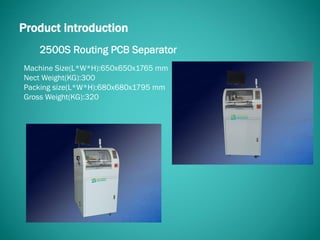

13. 2500S Routing PCB Separator
Product introduction
Machine Size(L*W*H):650x650x1765 mm
Nect Weight(KG):300
Packing size(L*W*H):680x680x1795 mm
Gross Weight(KG):320

14. 3500 Routing PCB Separator
Product introduction

15. Product introduction
3500S Online Routing PCB Separator
Machine Size(L*W*H):2510x1670x1955 mm
Nect Weight(KG):1200
Packing size(L*W*H):2610x1770x2000 mm
Gross Weight(KG):1230

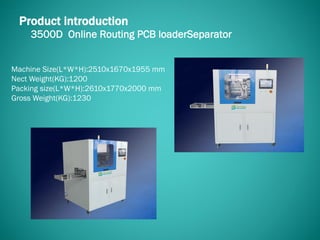

16. 3500D Online Routing PCB loaderSeparator
Product introduction
Machine Size(L*W*H):2510x1670x1955 mm
Nect Weight(KG):1200
Packing size(L*W*H):2610x1770x2000 mm
Gross Weight(KG):1230

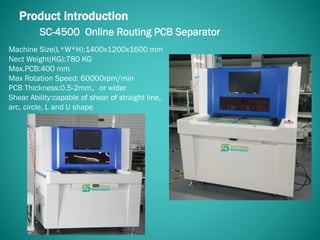

17. SC-4500 Online Routing PCB Separator
Product introduction
Machine Size(L*W*H):1400x1200x1600 mm
Nect Weight(KG):780 KG
Max.PCB:400 mm
Max Rotation Speed: 60000rpm/min
PCB Thickness:0.5-2mm，or wider
Shear Ability:capable of shear of straight line,
arc, circle, L and U shape

18. Thank you！
Shenzhen Southern Machinery Sales And Service Co. Ltd.
PH: 86 132 7773 4640; Email:wendy@smthelp.com website:www.smthelp.com
Rm 1806,Block 3, Jinyun COFCO, Qianjin 2nd Road,Xixiang,Baoan District, Shenzhen, China
