Behavior Driven UI Automation (Agile Testing Days 2017, Potsdam)

Behavior Driven
Web UI Automation
with Selenium and
Cucumber/SpecFlow
Agile Testing Days 2017, Potsdam
16th November, 2017
Gáspár Nagy
coach • trainer • bdd addict • creator of specflow
“The BDD Books: Discovery” • http://bddbooks.com
@gasparnagy • gaspar@specsolutions.eu

Copyright © Gaspar NagyCopyright © Gaspar Nagy
bdd addict
given.when.then
CAUTION!
on the stage
Gáspár Nagy
coach, trainer and bdd addict
creator of SpecFlow
gaspar@specsolutions.eu
https://specsolutions.eu
@gasparnagy

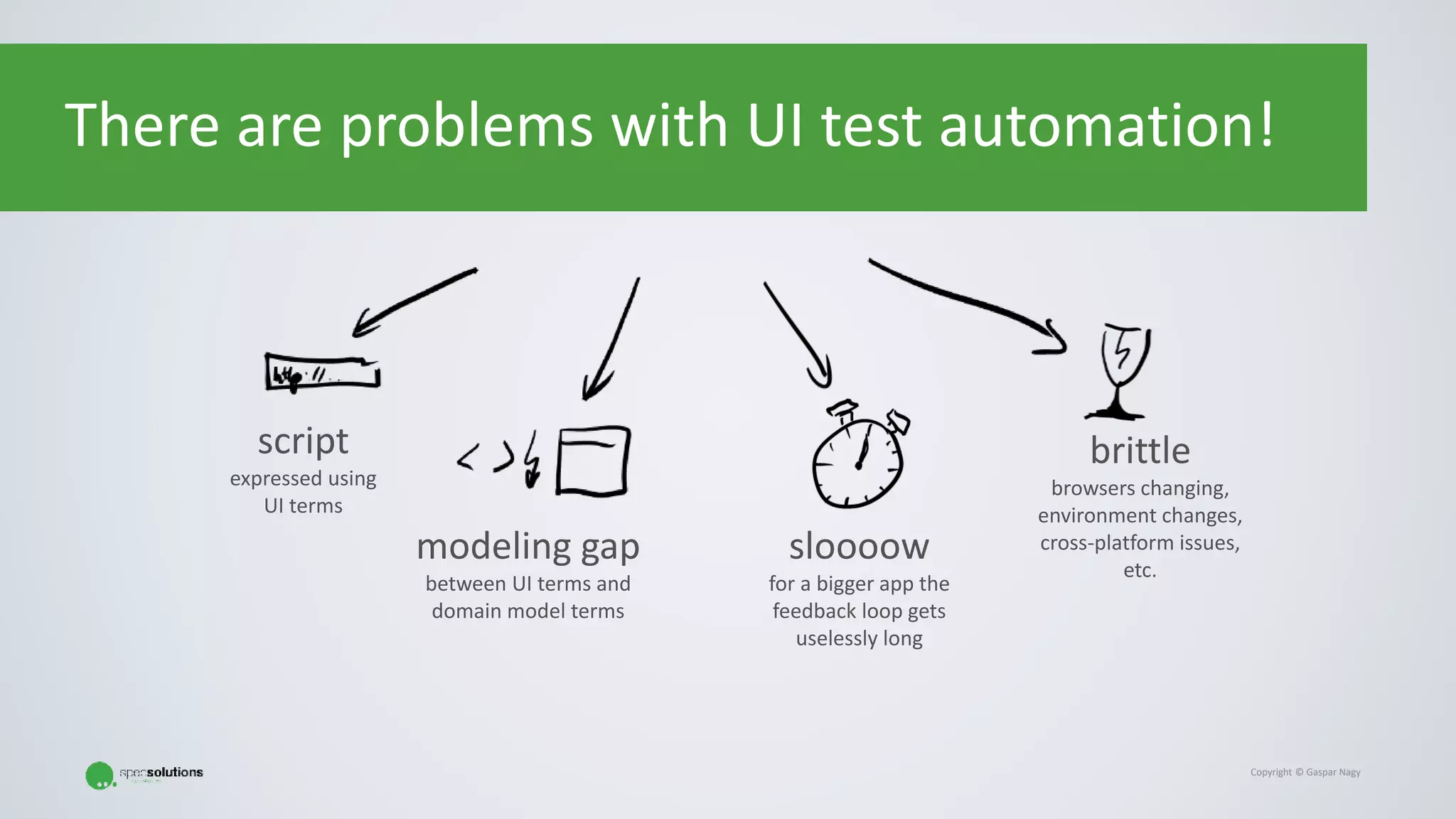

There are problems with UI test automation!
script
expressed using
UI terms
modeling gap
between UI terms and
domain model terms
sloooow
for a bigger app the
feedback loop gets
uselessly long
brittle
browsers changing,
environment changes,
cross-platform issues,
etc.

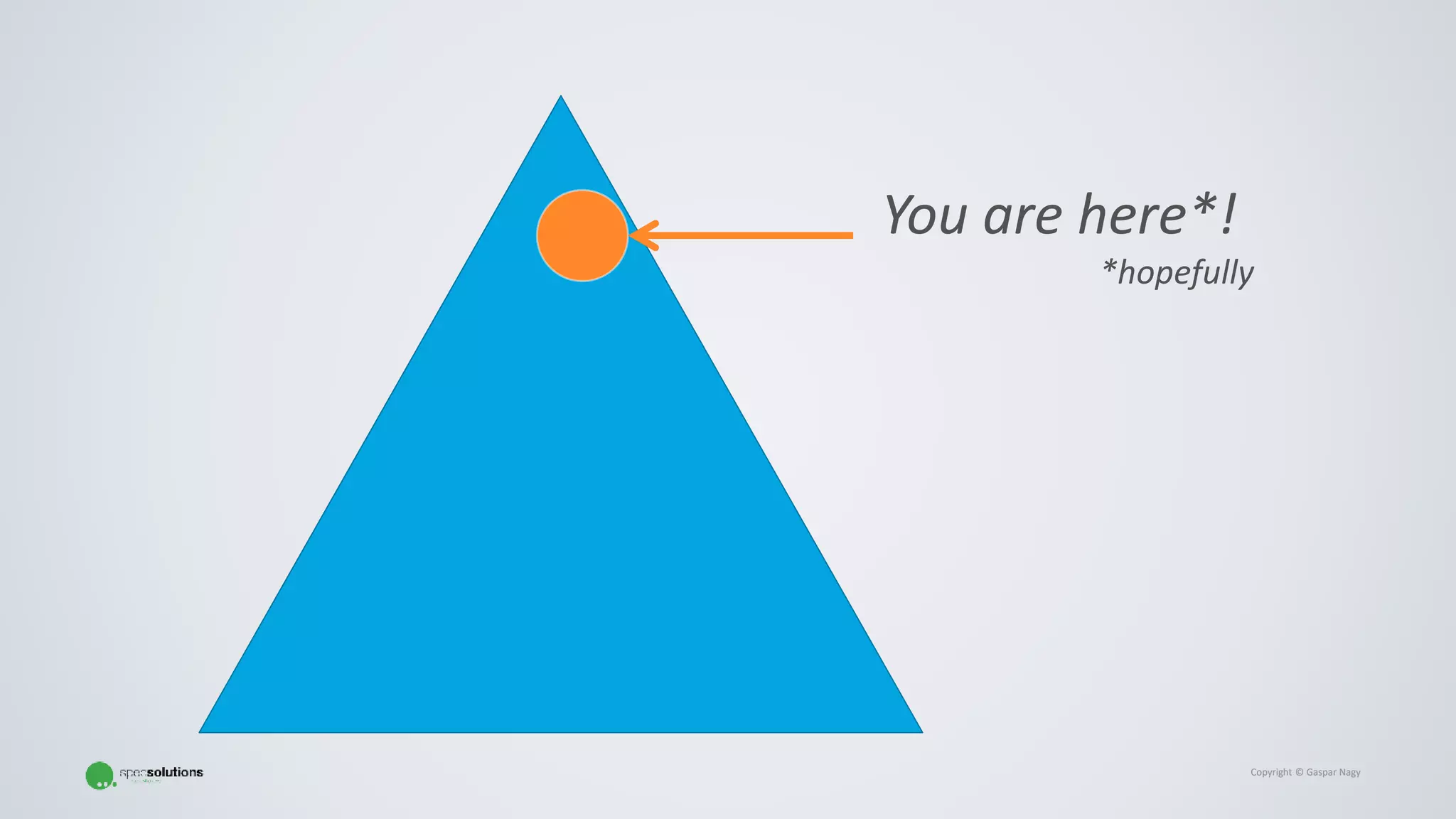

You are here*!
*hopefully

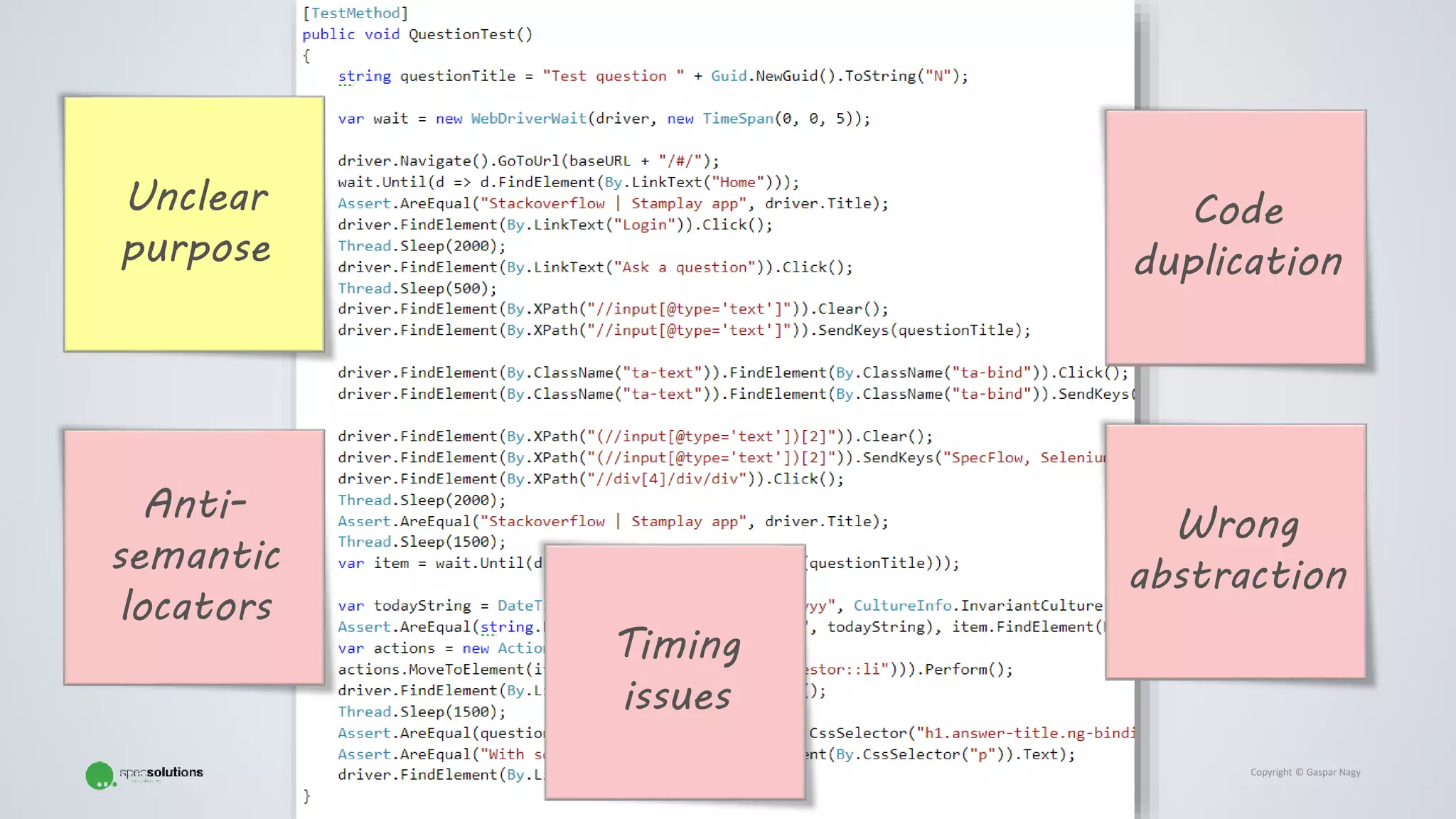

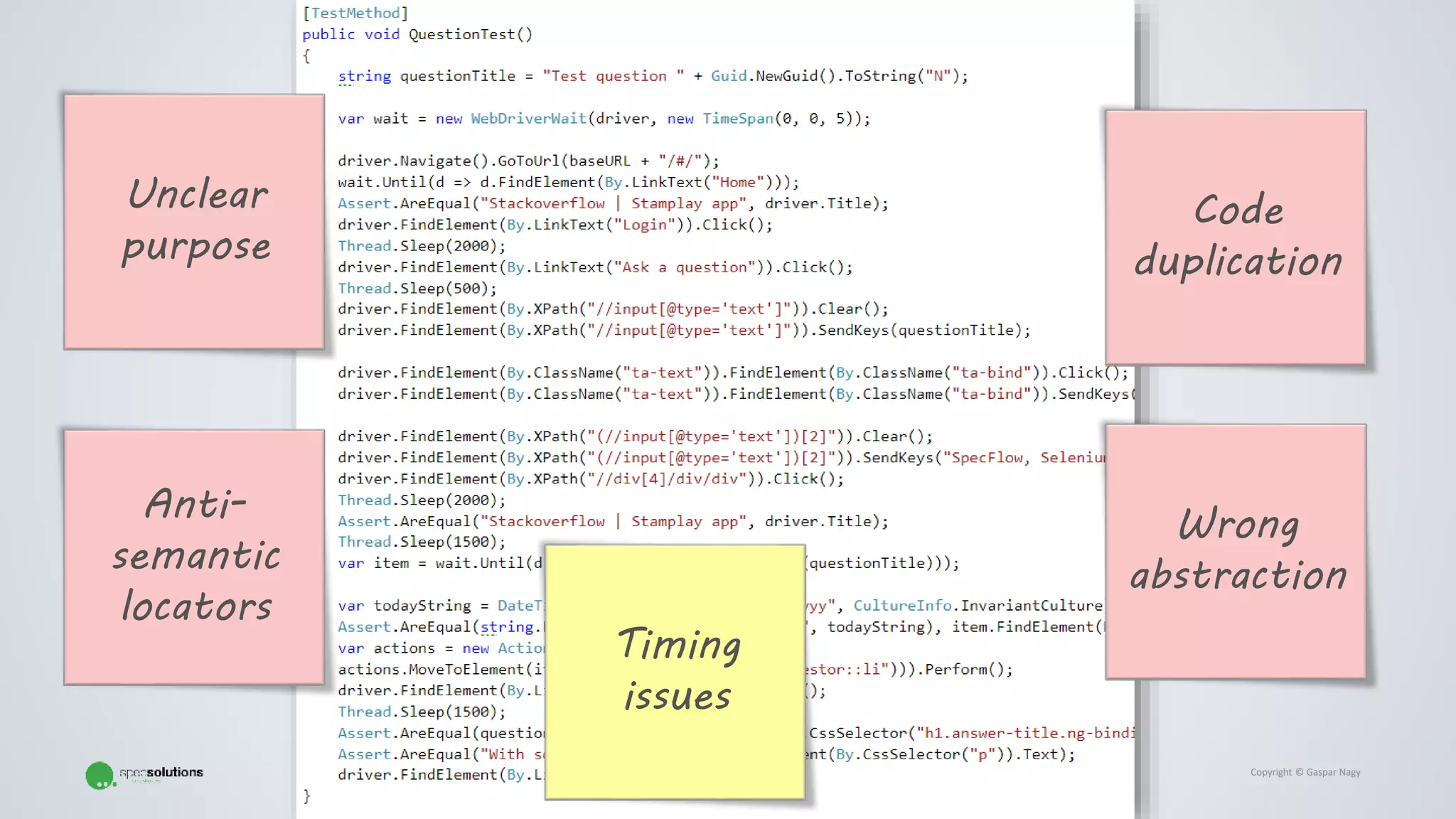

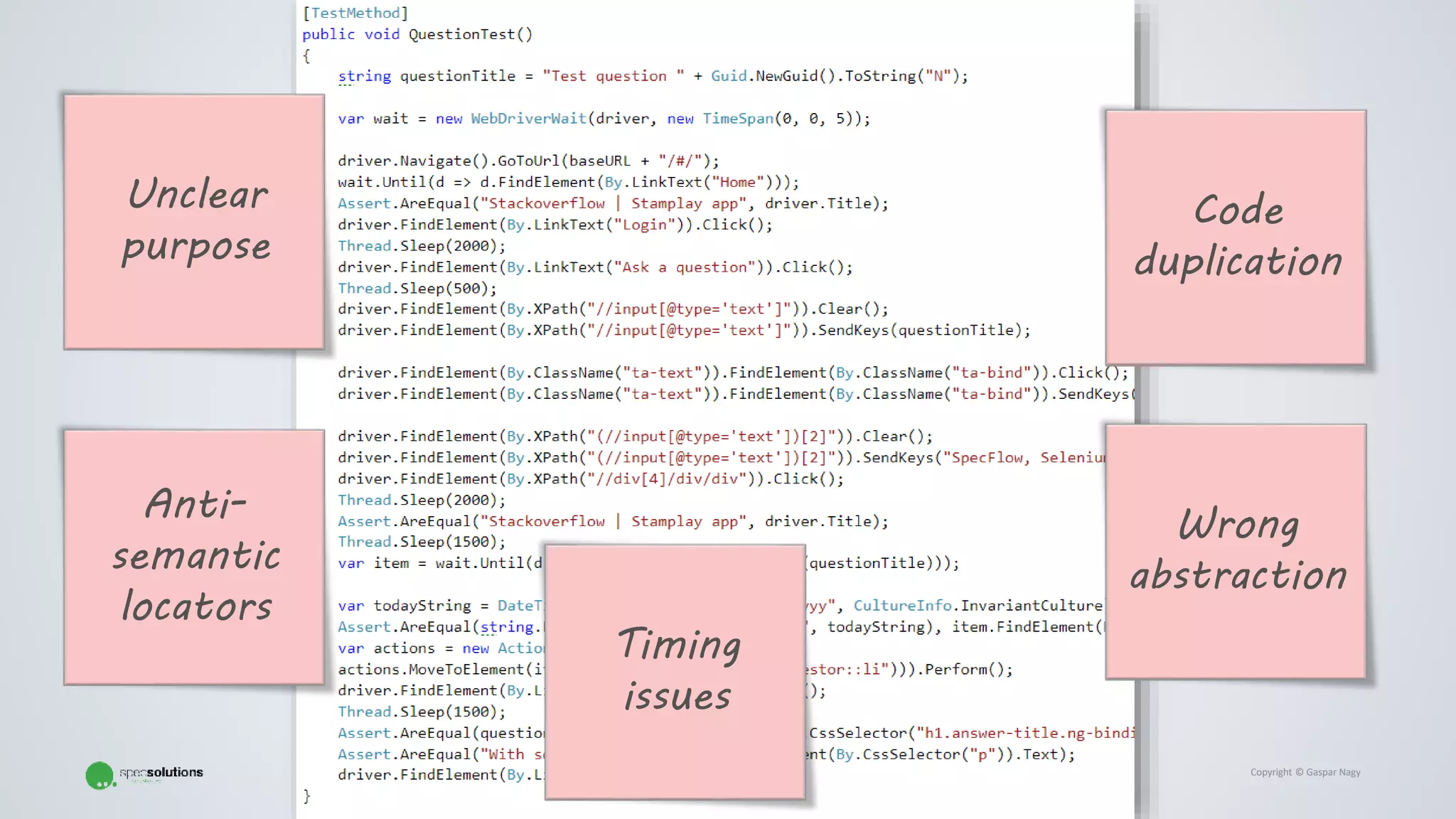

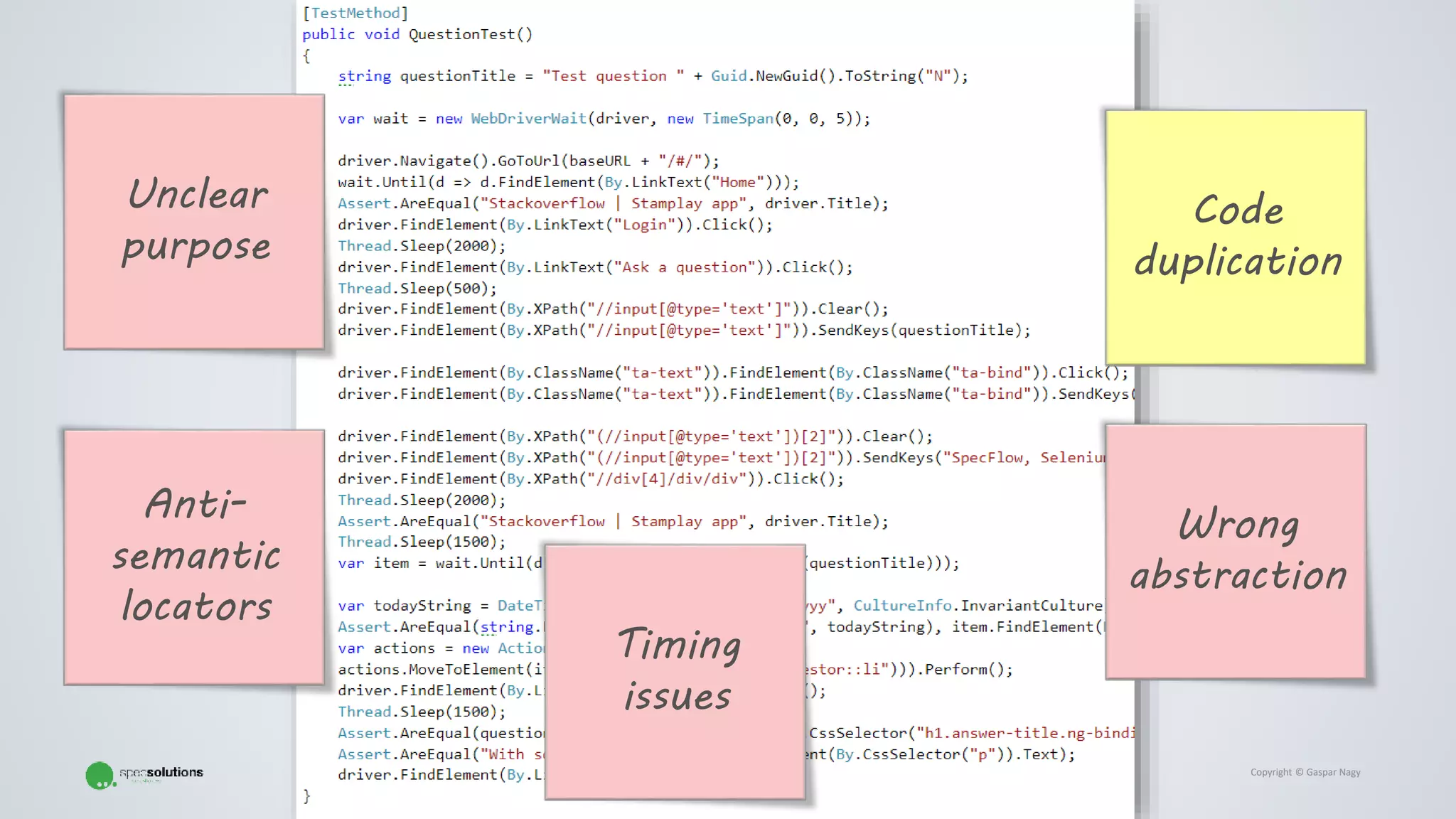

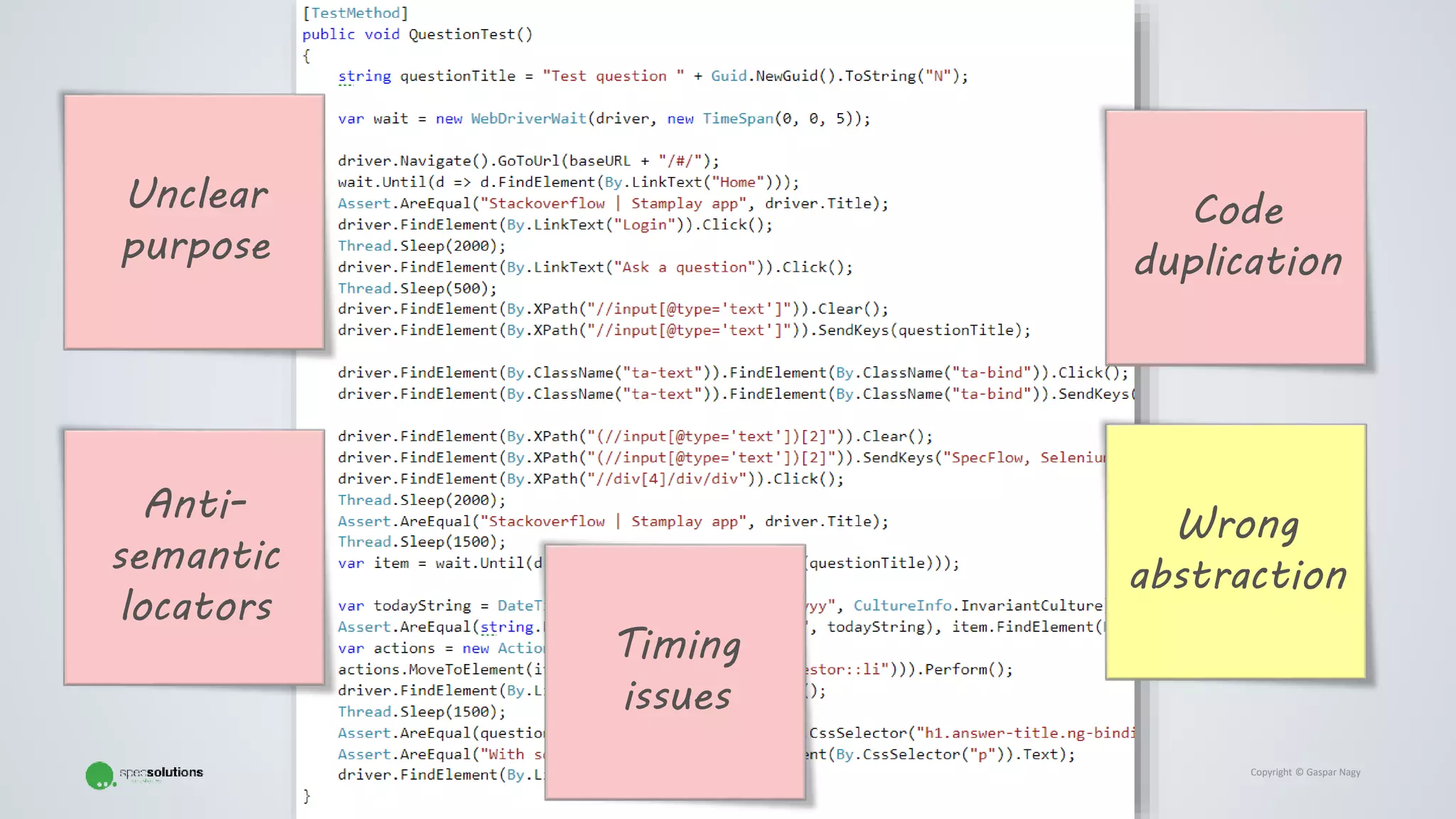

Unclear
purpose
Code
duplication
Anti-
semantic
locators
Wrong
abstraction
Timing
issues

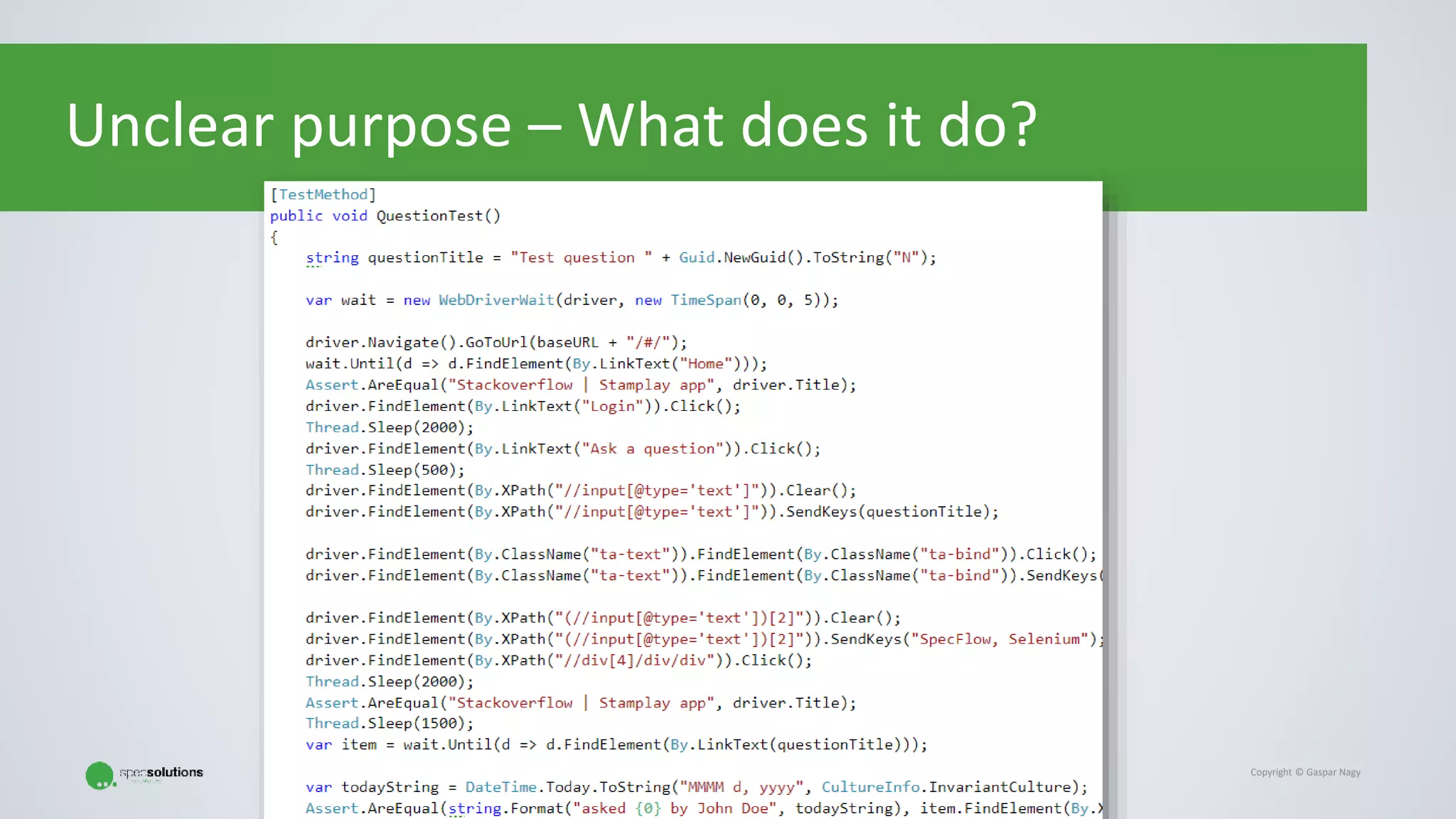

Unclear purpose – What does it do?

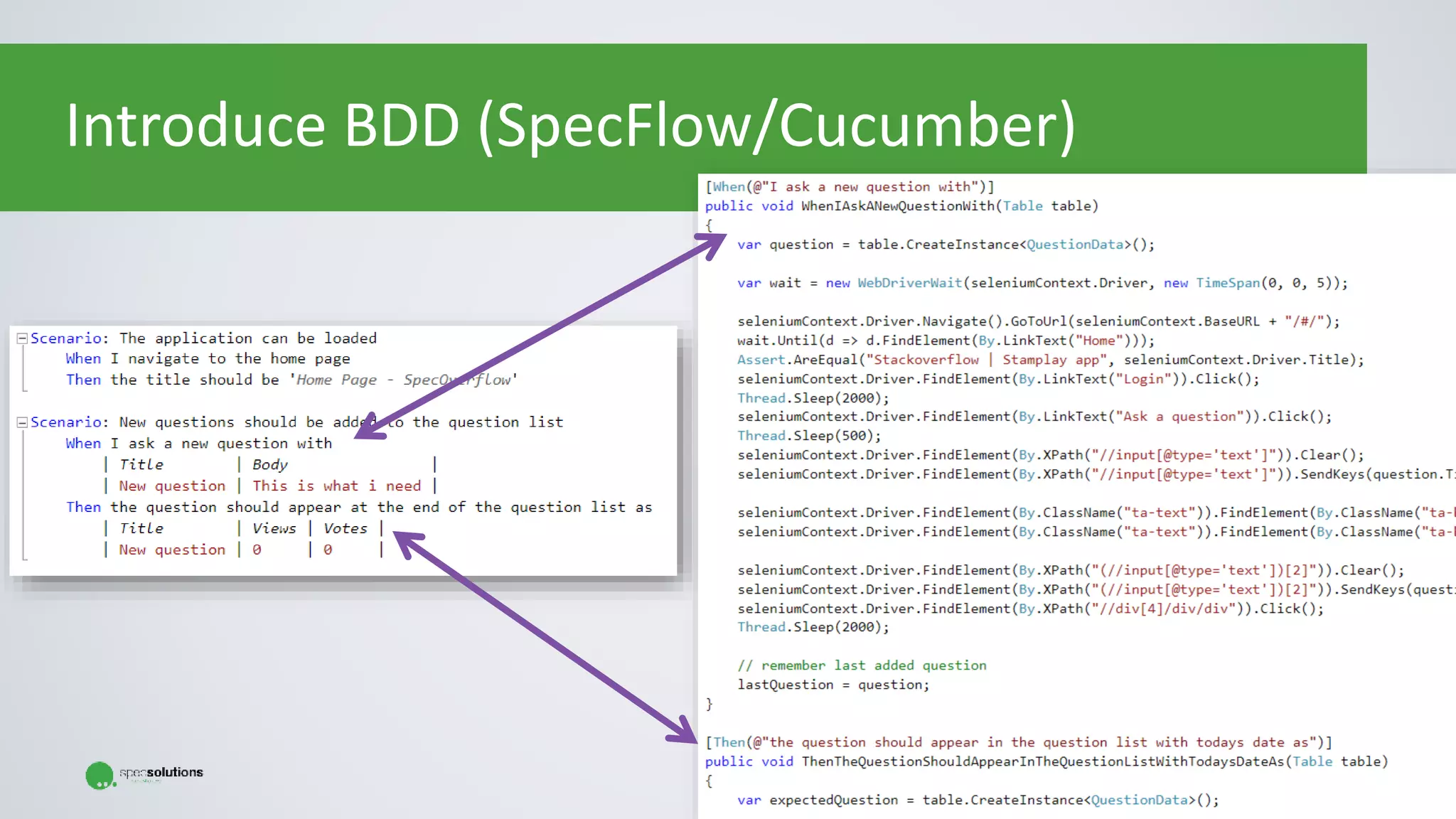

Introduce BDD (SpecFlow/Cucumber)

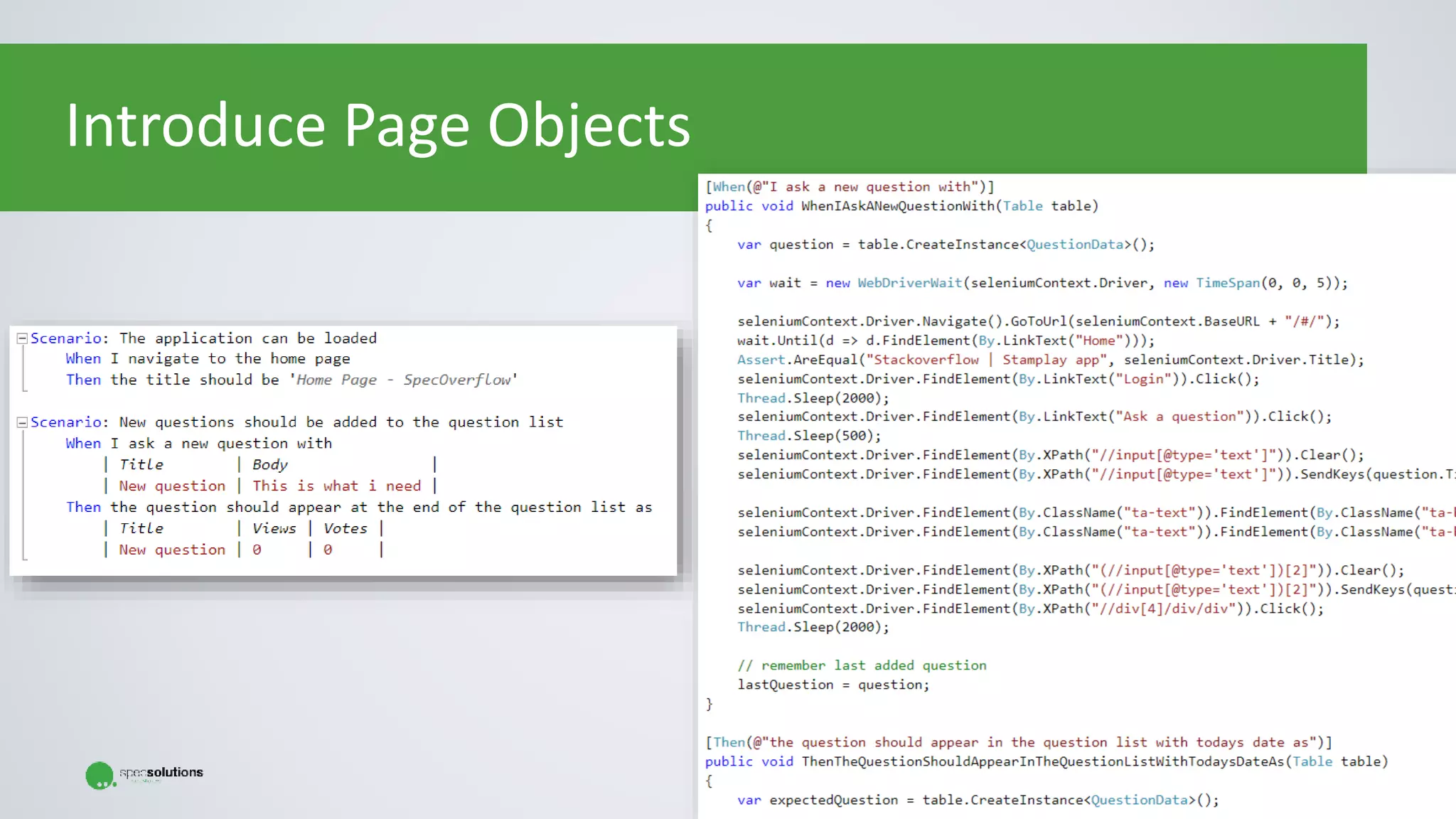

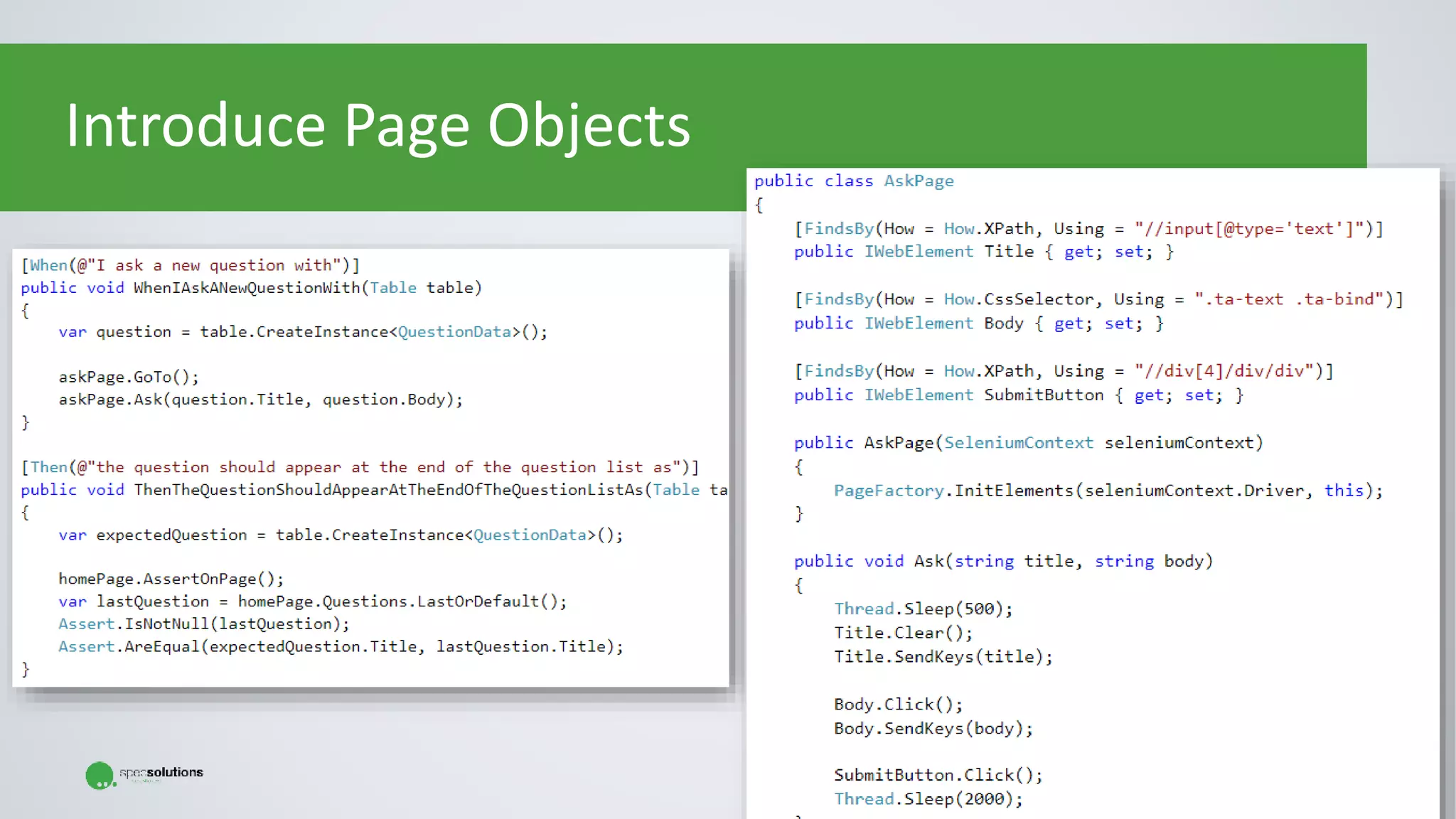

Introduce Page Objects

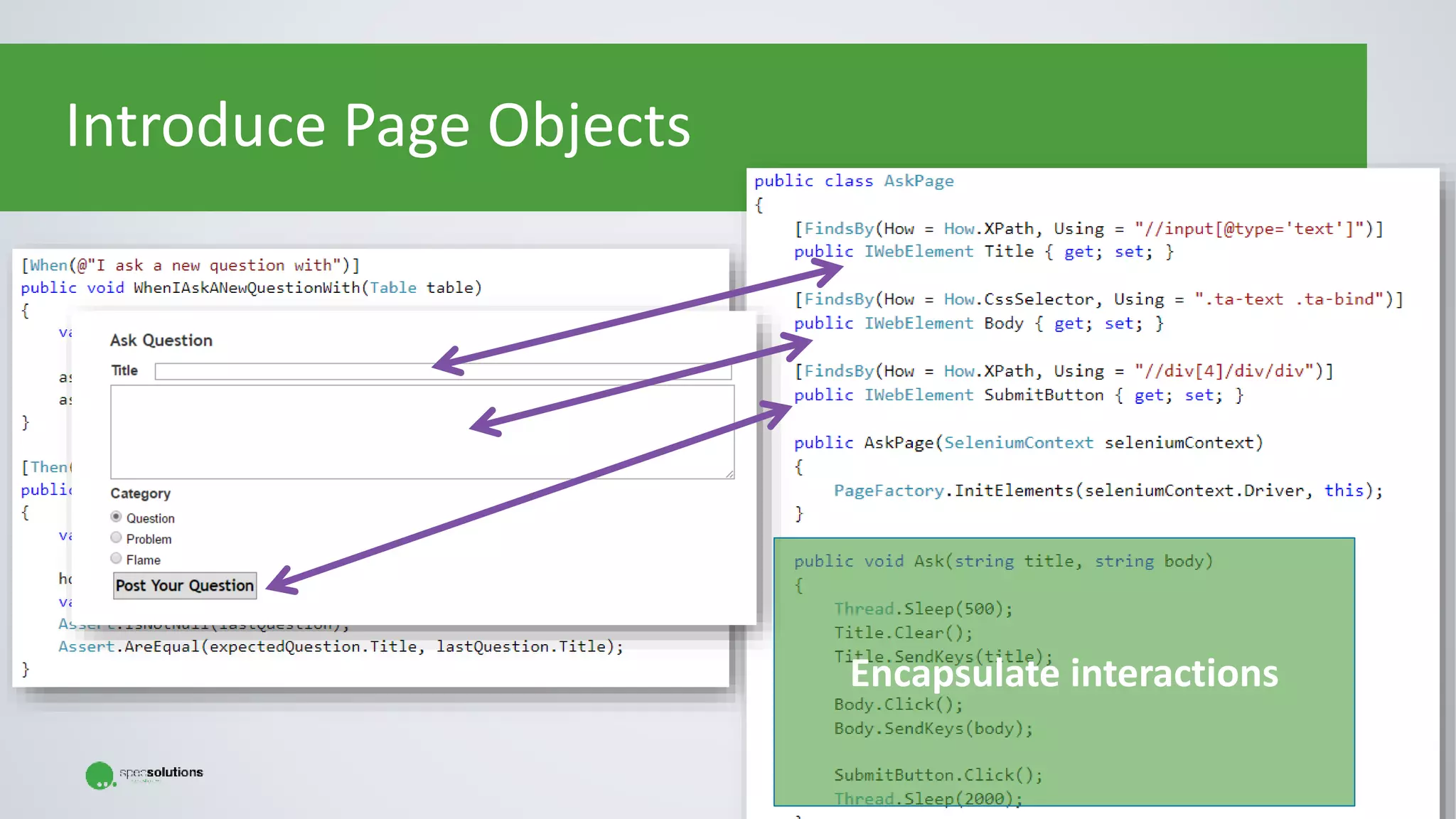

Introduce Page Objects
Encapsulate interactions

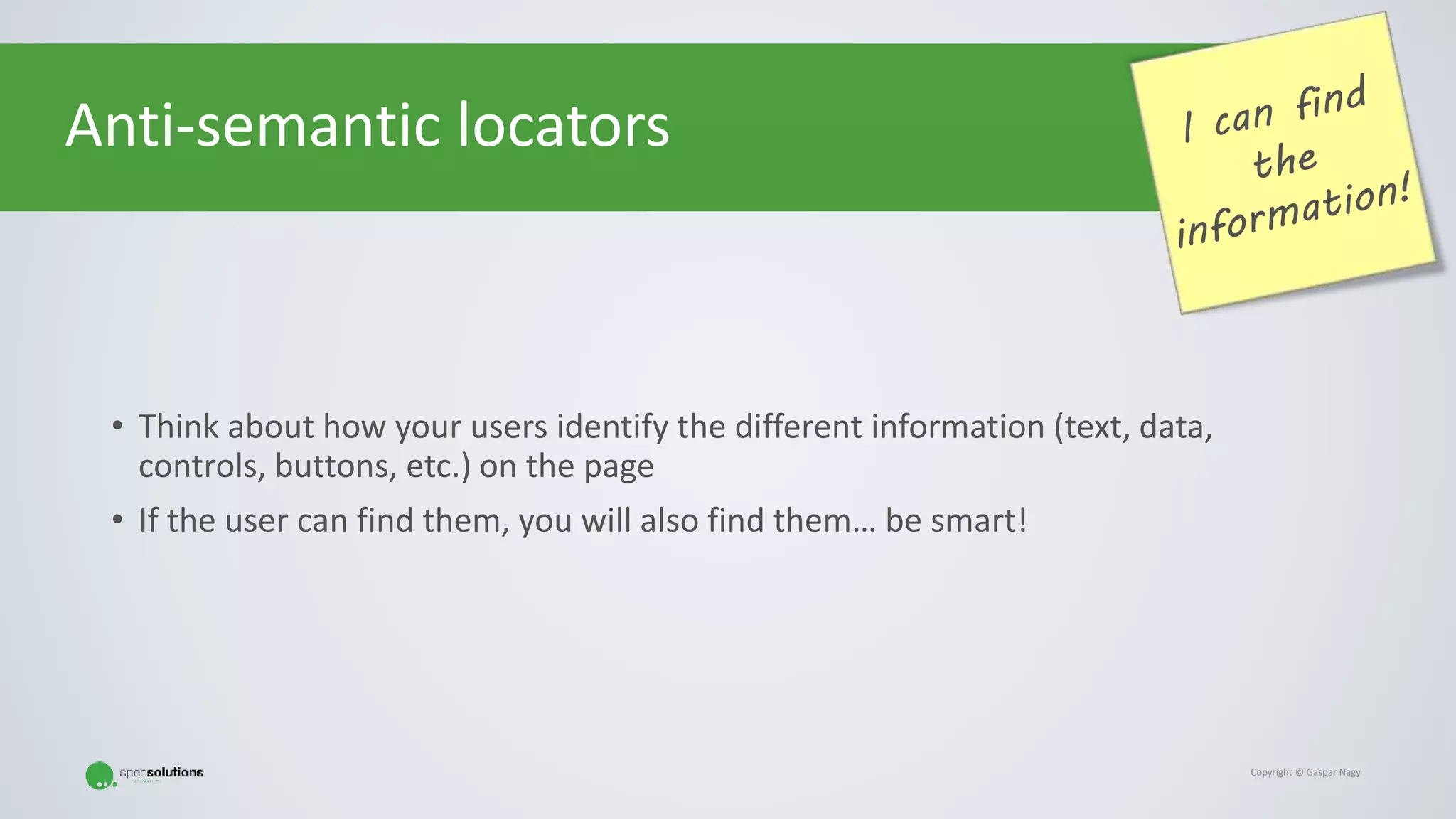

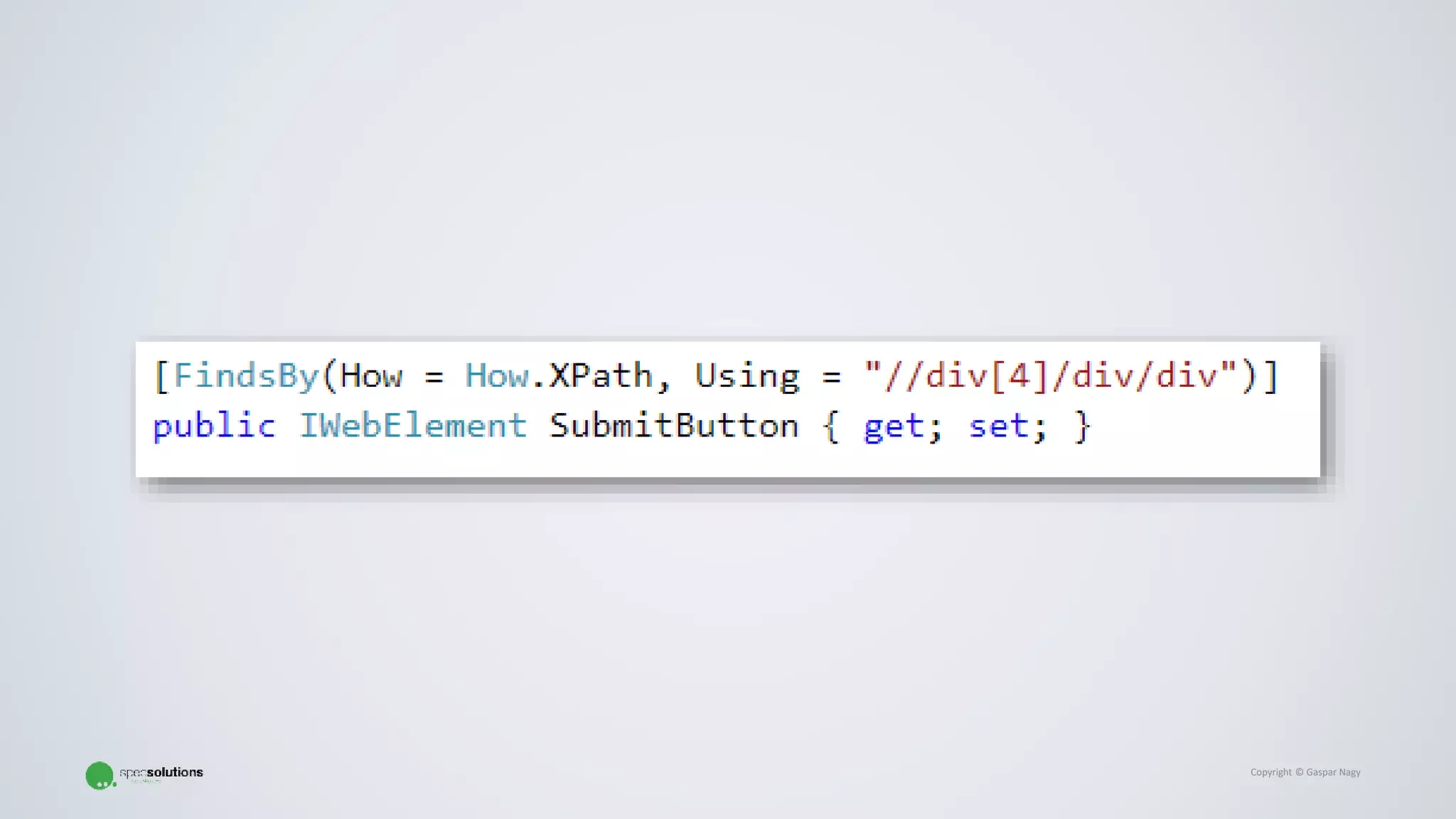

Anti-semantic locators
• Think about how your users identify the different information (text, data,
controls, buttons, etc.) on the page
• If the user can find them, you will also find them… be smart!

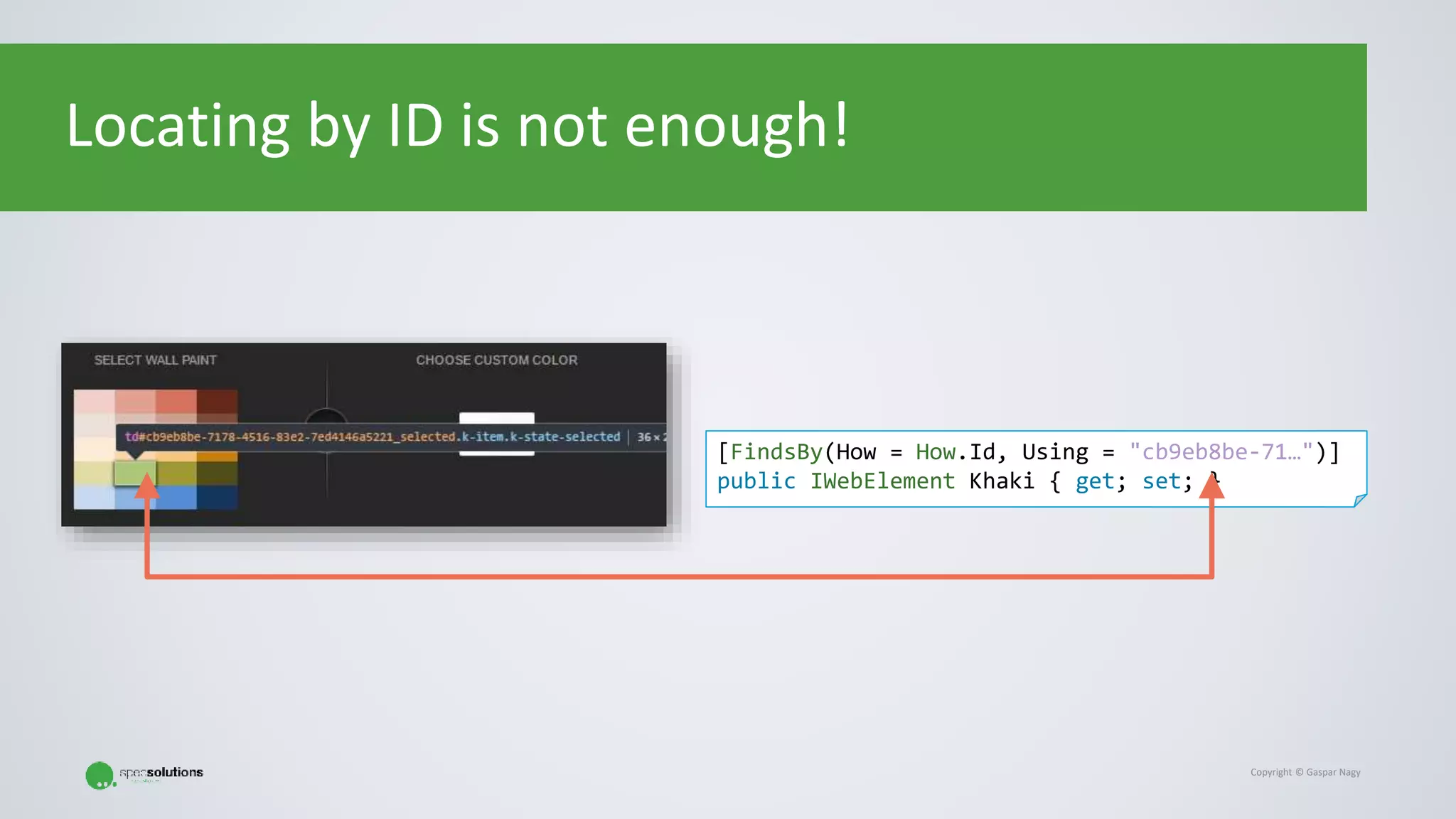

Locating by ID is not enough!
[FindsBy(How = How.Id, Using = "cb9eb8be-71…")]
public IWebElement Khaki { get; set; }

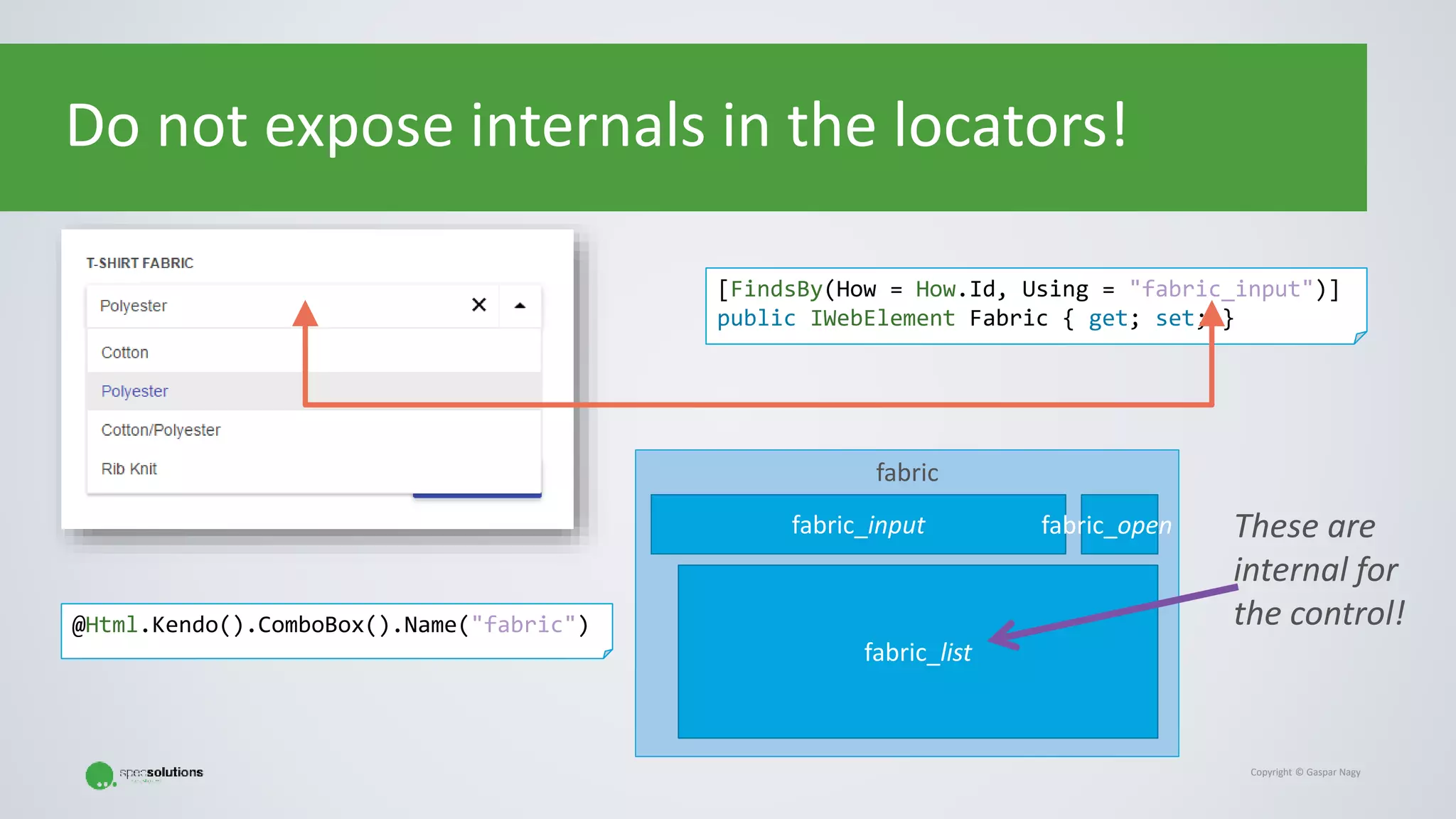

Do not expose internals in the locators!
[FindsBy(How = How.Id, Using = "fabric_input")]
public IWebElement Fabric { get; set; }
fabric
fabric_input
fabric_list
fabric_open
@Html.Kendo().ComboBox().Name("fabric")
These are
internal for
the control!

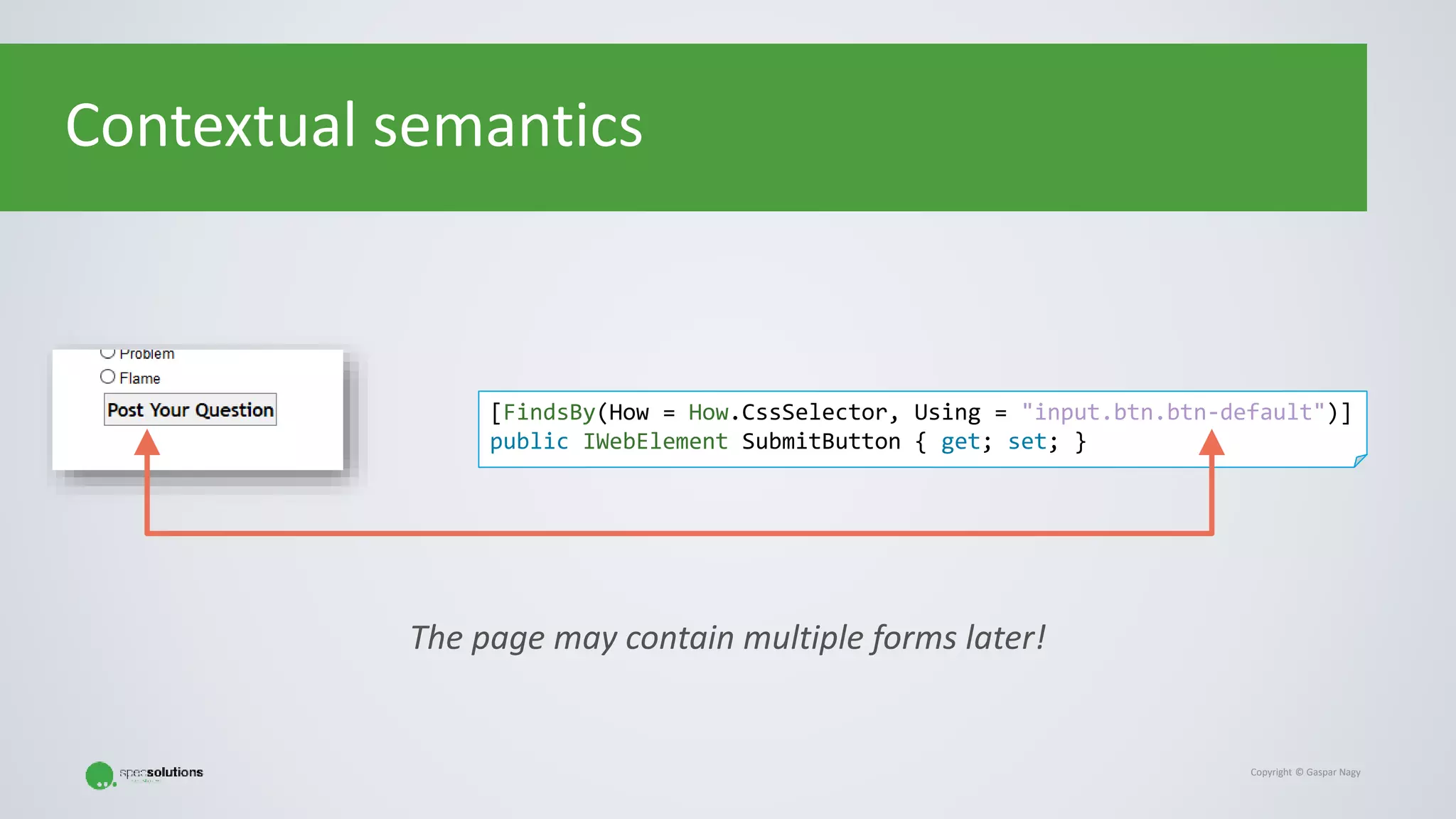

Contextual semantics
[FindsBy(How = How.CssSelector, Using = "input.btn.btn-default")]
public IWebElement SubmitButton { get; set; }
The page may contain multiple forms later!

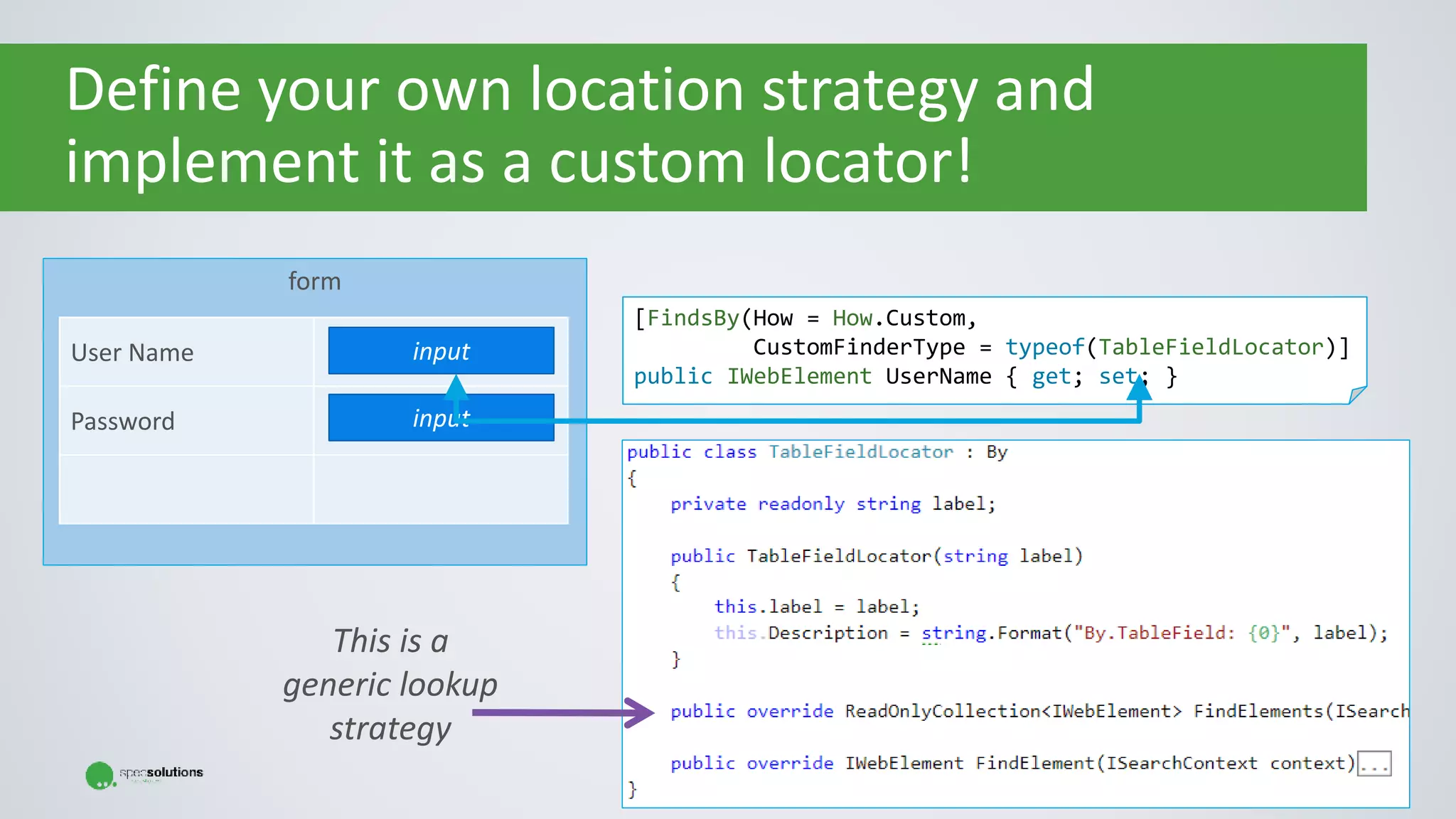

Define your own location strategy and
implement it as a custom locator!
[FindsBy(How = How.Custom,
CustomFinderType = typeof(TableFieldLocator)]
public IWebElement UserName { get; set; }
form
This is a
generic lookup
strategy
User Name
Password
input
input

public IWebElement UserName { get; set; }

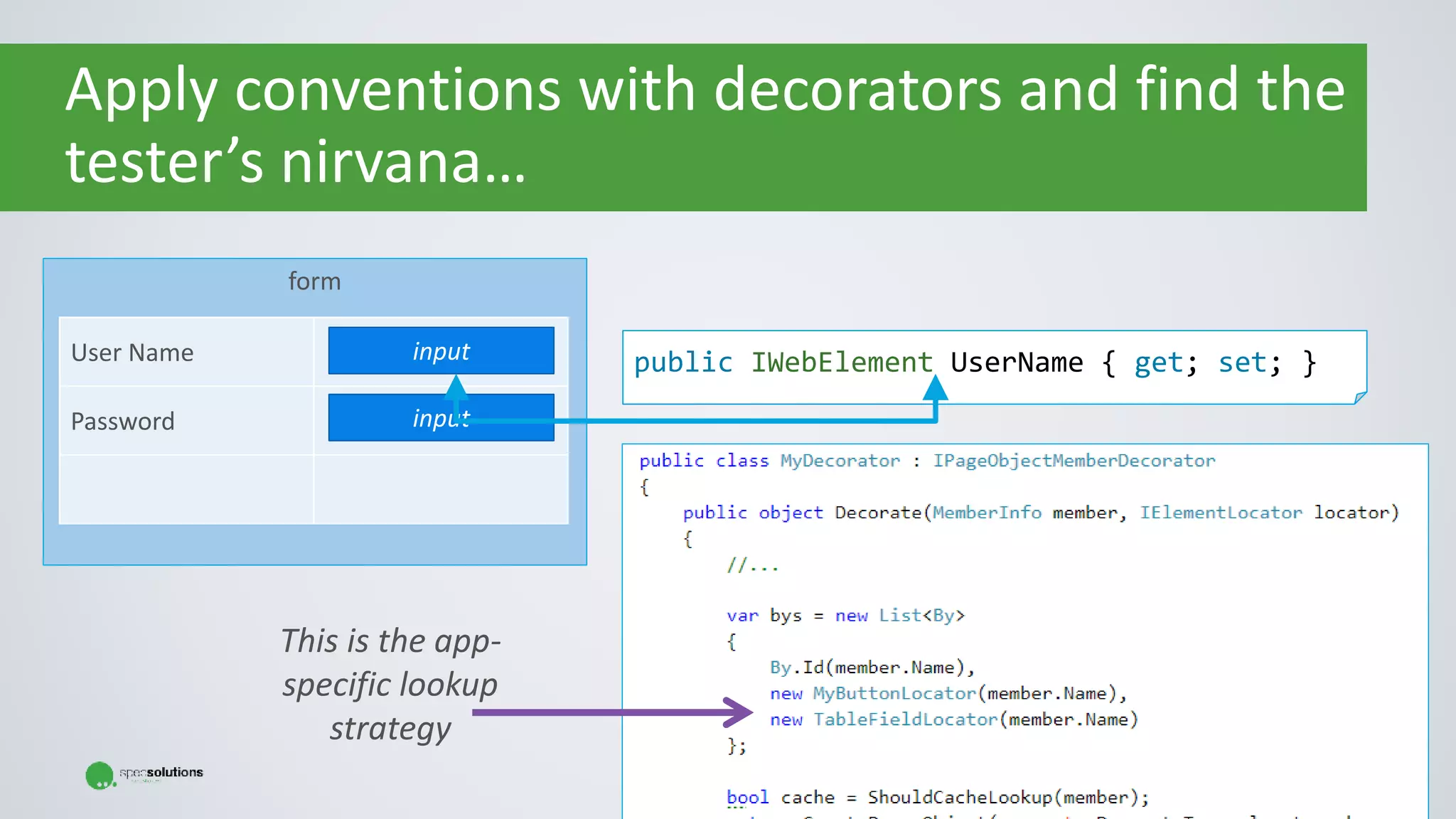

Apply conventions with decorators and find the
tester’s nirvana…
form
This is the app-
specific lookup
strategy
User Name
Password
input
input

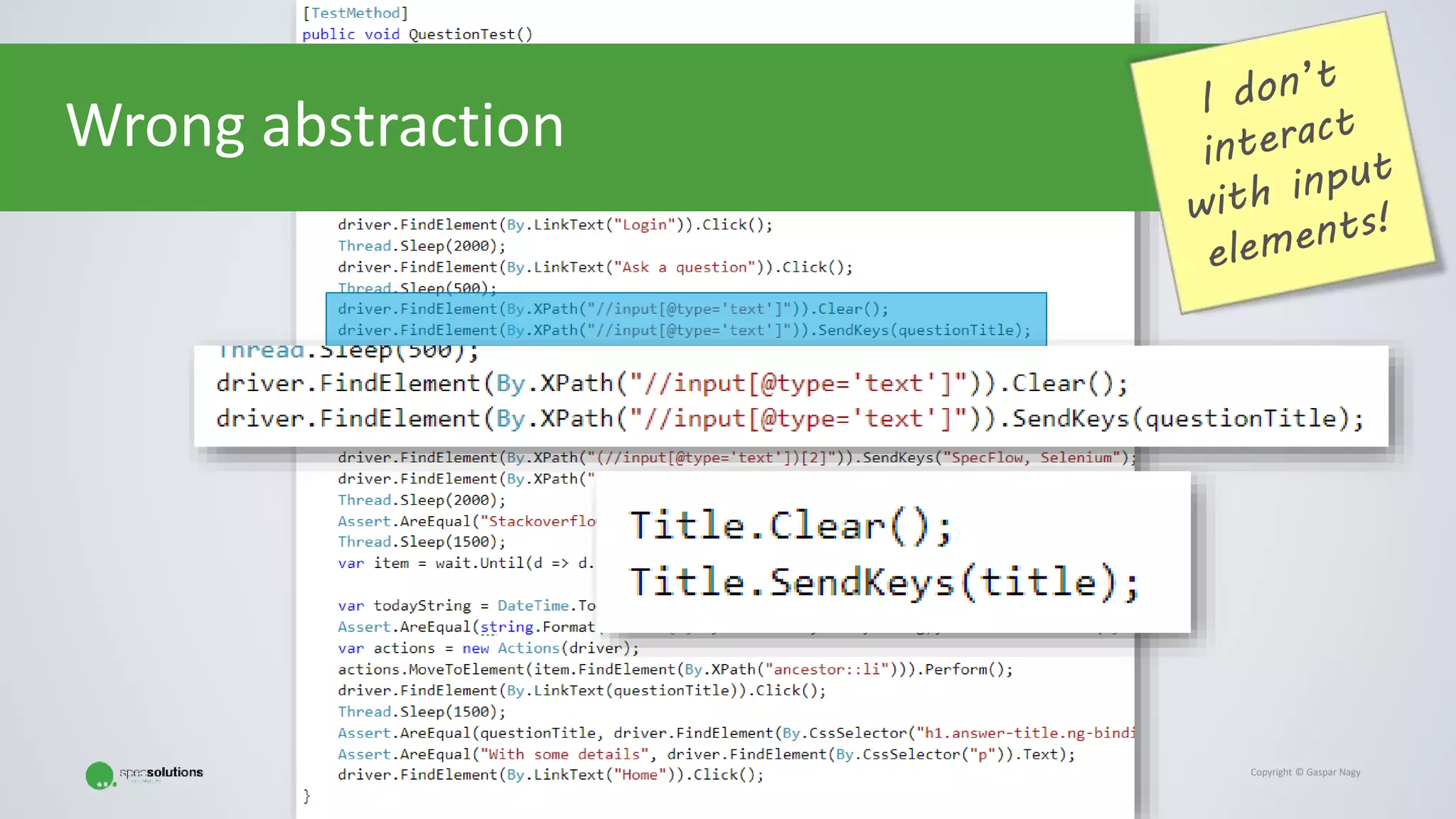

Wrong abstraction

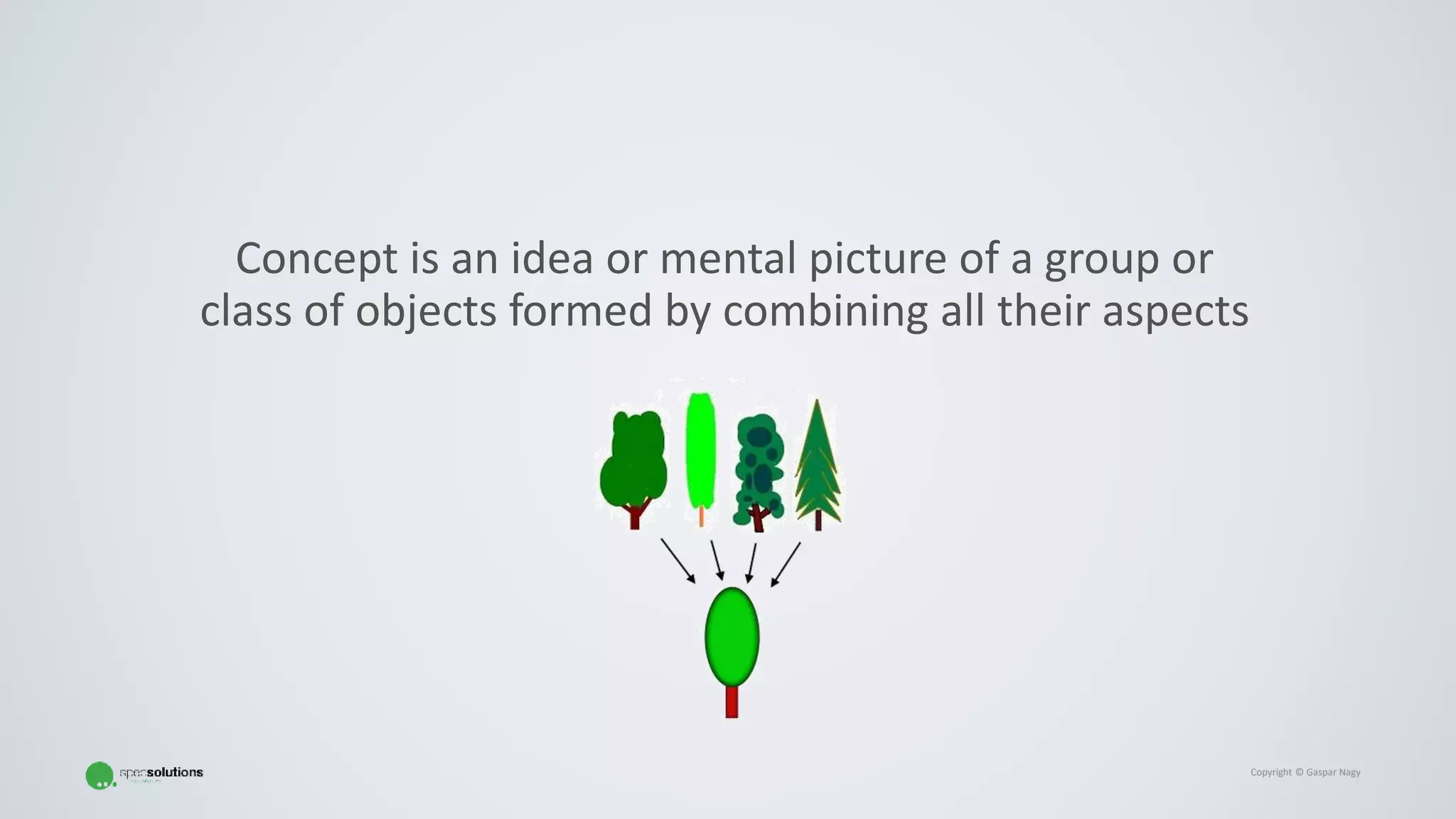

Concept is an idea or mental picture of a group or
class of objects formed by combining all their aspects

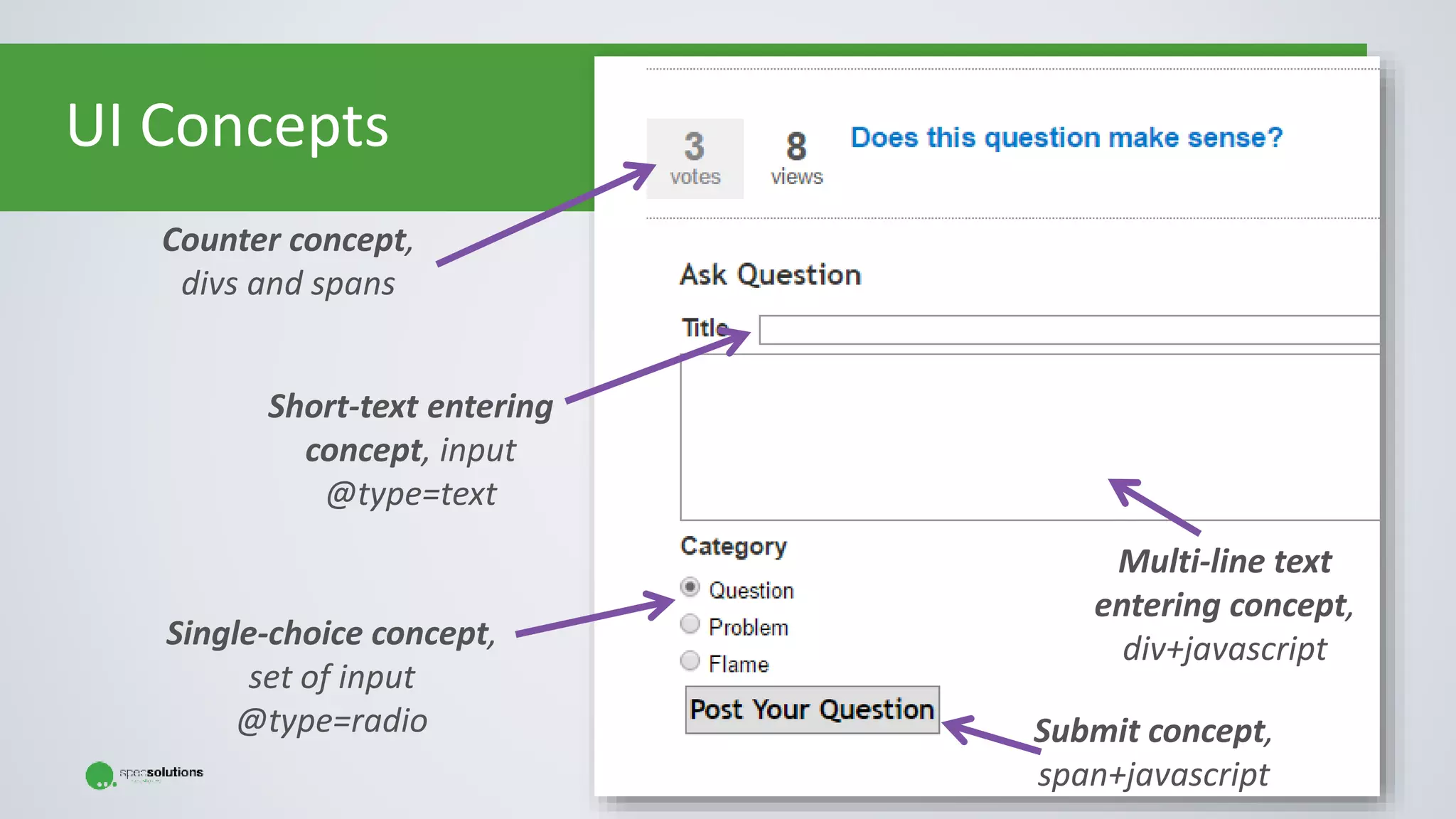

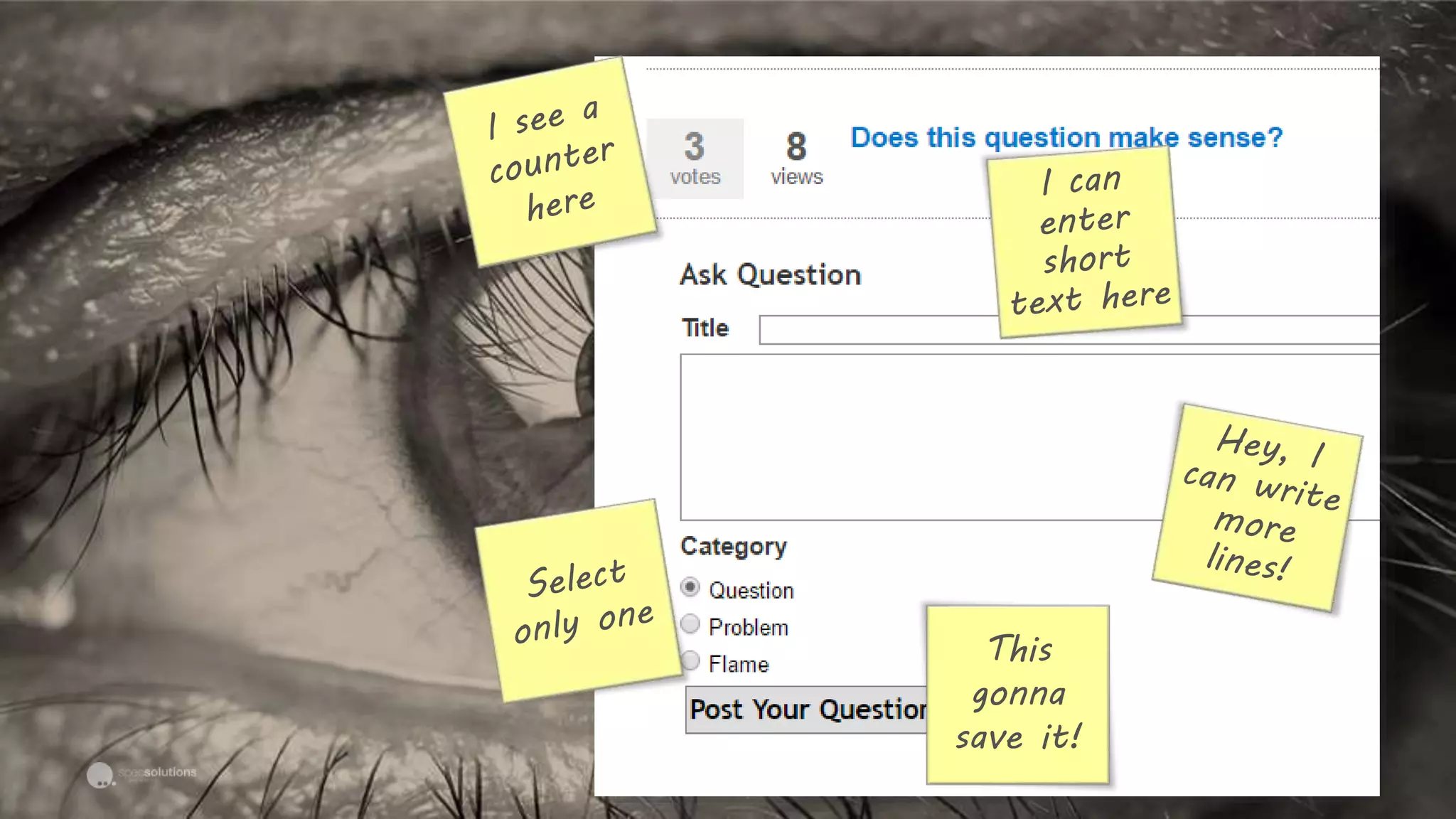

UI Concepts
Counter concept,
divs and spans
Short-text entering
concept, input
@type=text
Multi-line text
entering concept,
div+javascriptSingle-choice concept,
set of input
@type=radio Submit concept,
span+javascript

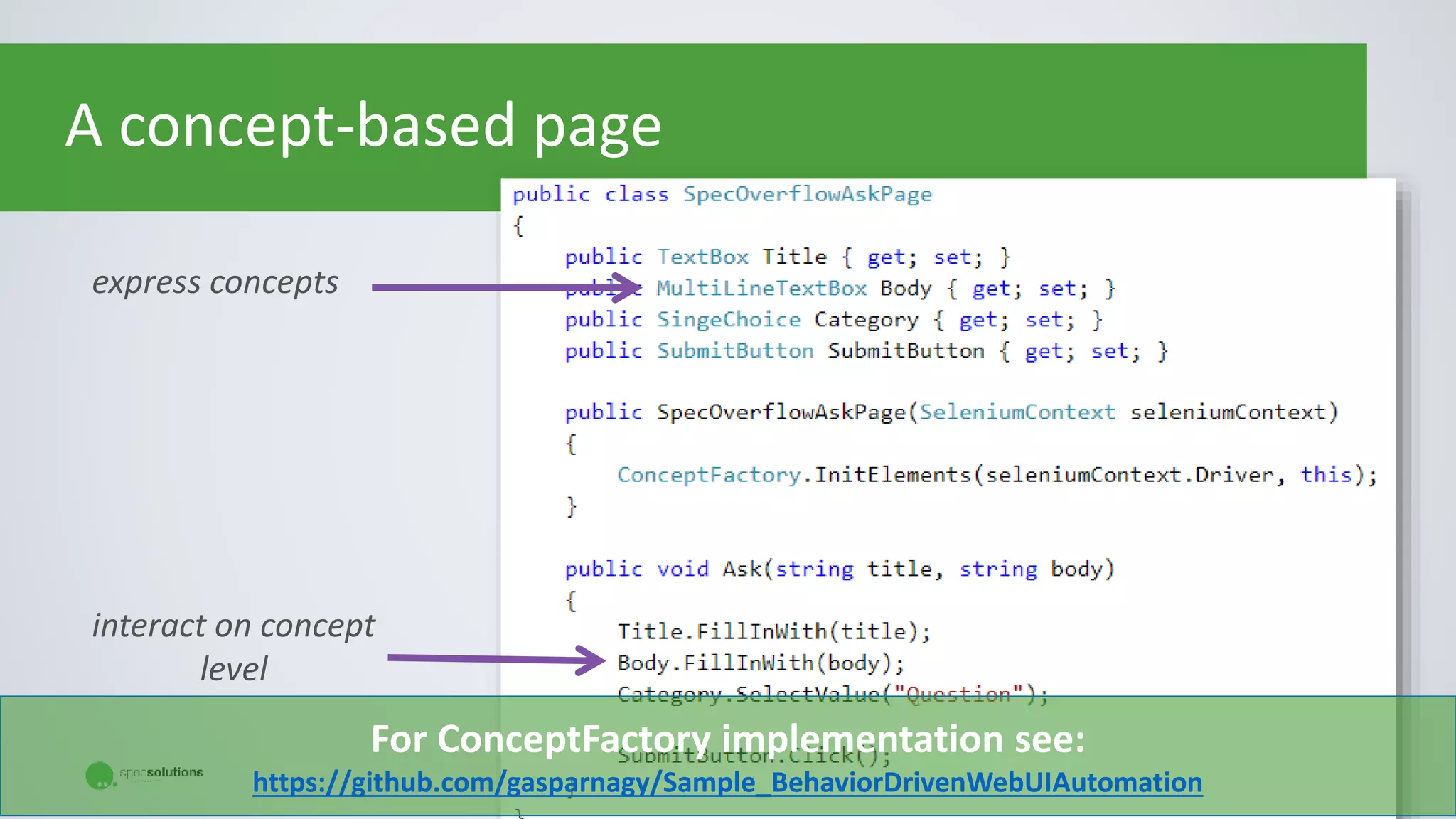

A concept-based page
express concepts
interact on concept
level
For ConceptFactory implementation see:
https://github.com/gasparnagy/Sample_BehaviorDrivenWebUIAutomation

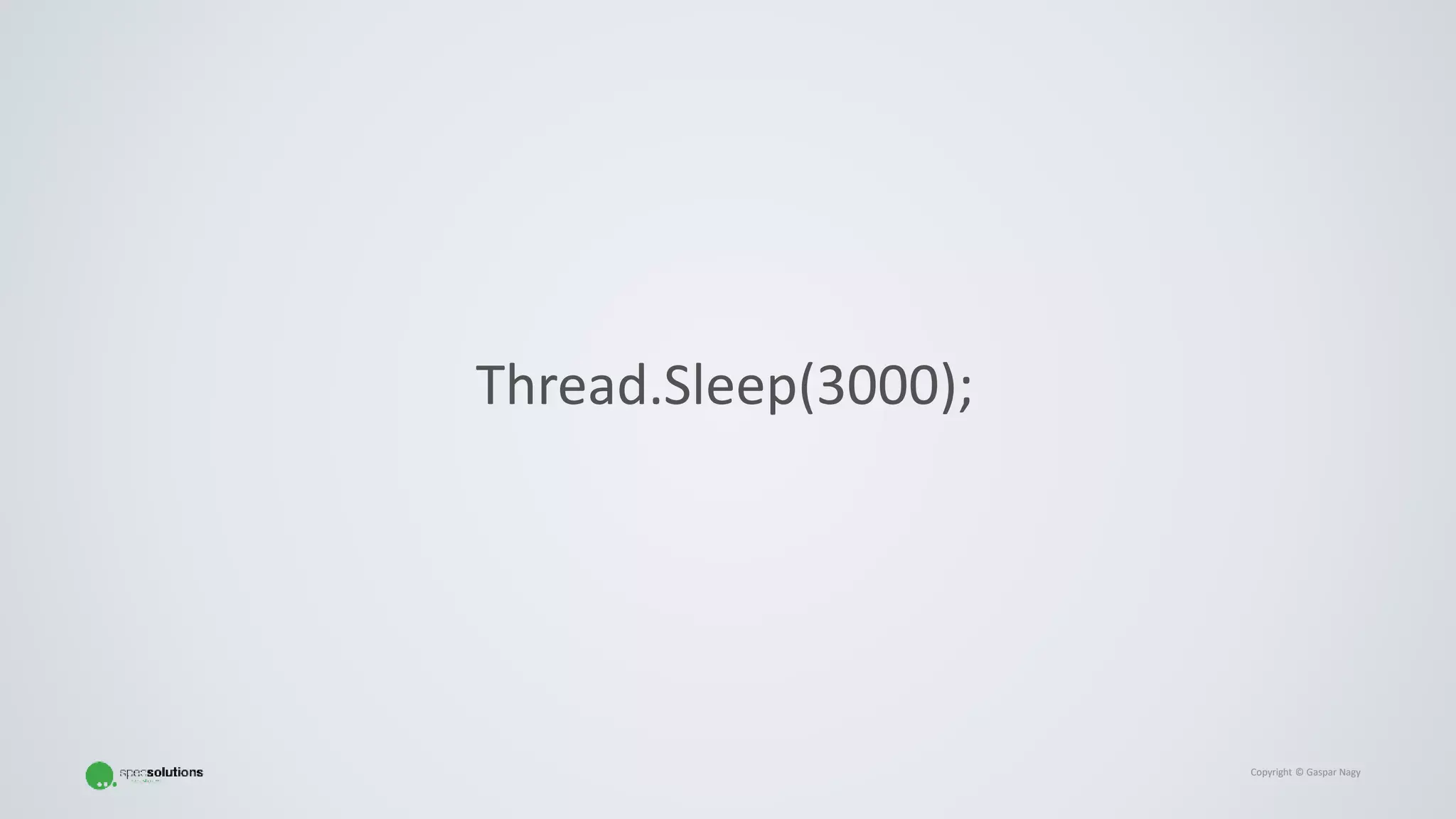

Thread.Sleep(3000);

Why do we have this timing problem?

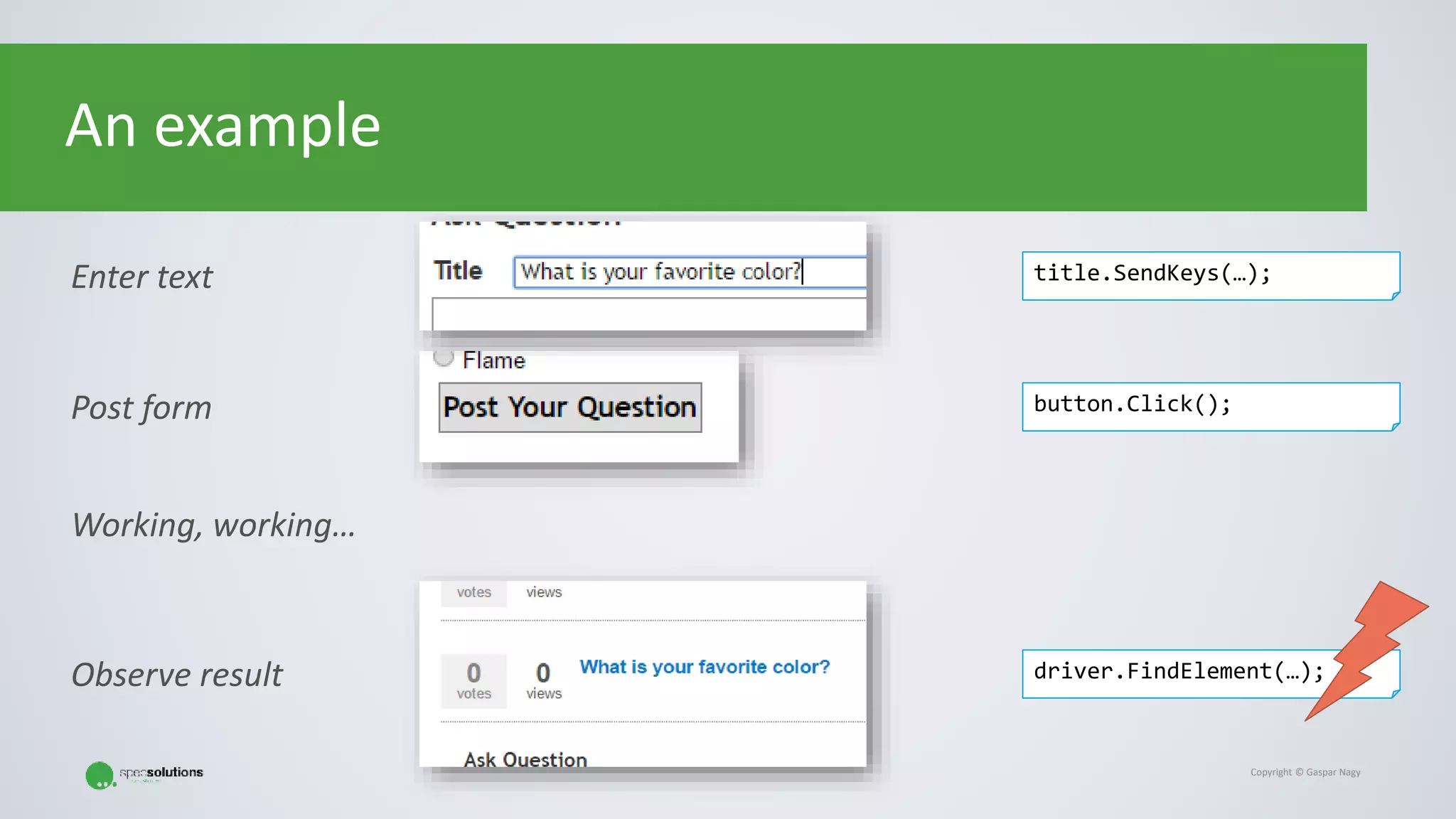

An example
Enter text
Post form
Working, working…
Observe result
title.SendKeys(…);
button.Click();
driver.FindElement(…);

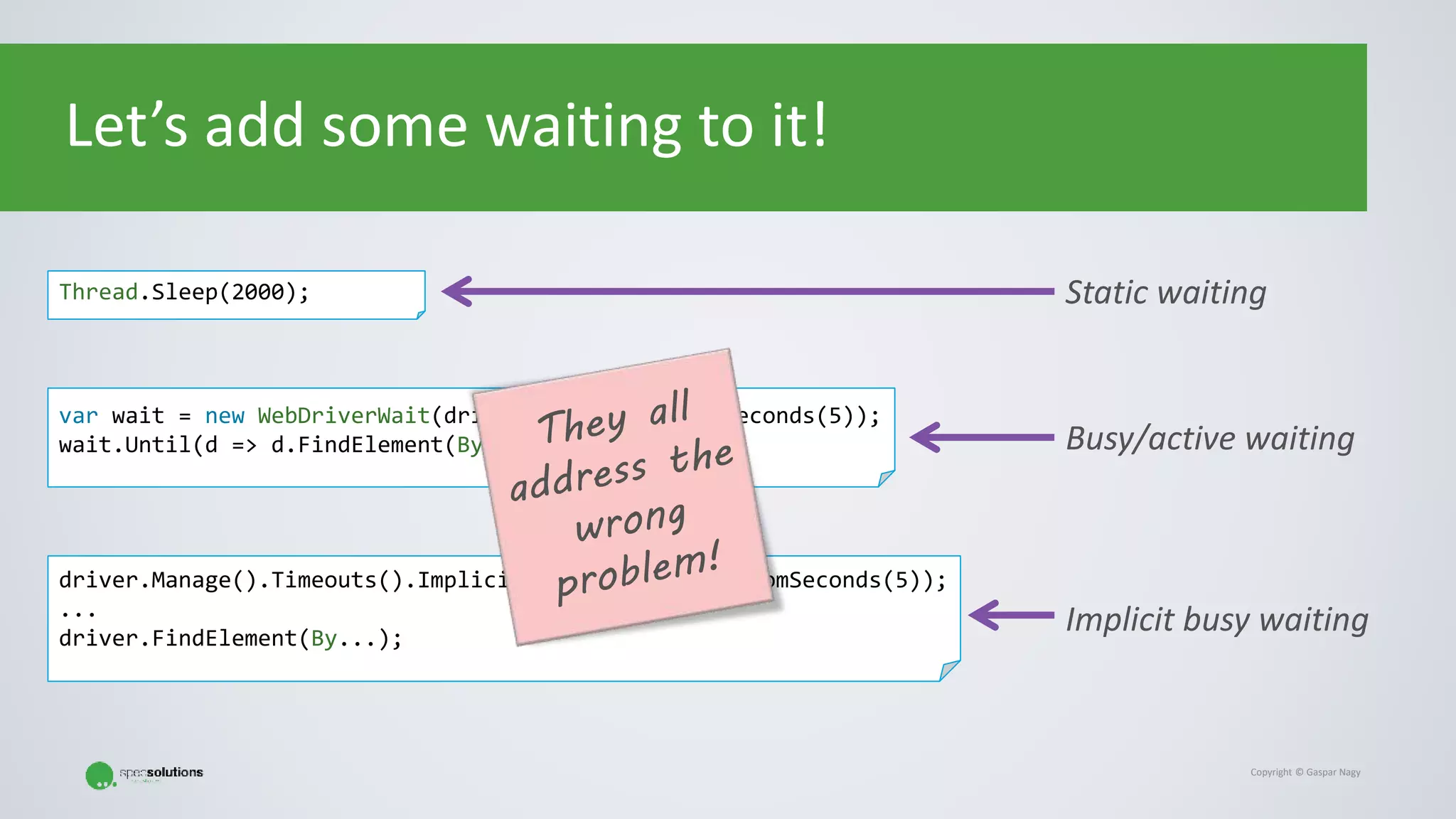

Let’s add some waiting to it!
Thread.Sleep(2000);
var wait = new WebDriverWait(driver, TimeSpan.FromSeconds(5));
wait.Until(d => d.FindElement(By...));
driver.Manage().Timeouts().ImplicitlyWait(TimeSpan.FromSeconds(5));
...
driver.FindElement(By...);
Static waiting
Busy/active waiting
Implicit busy waiting

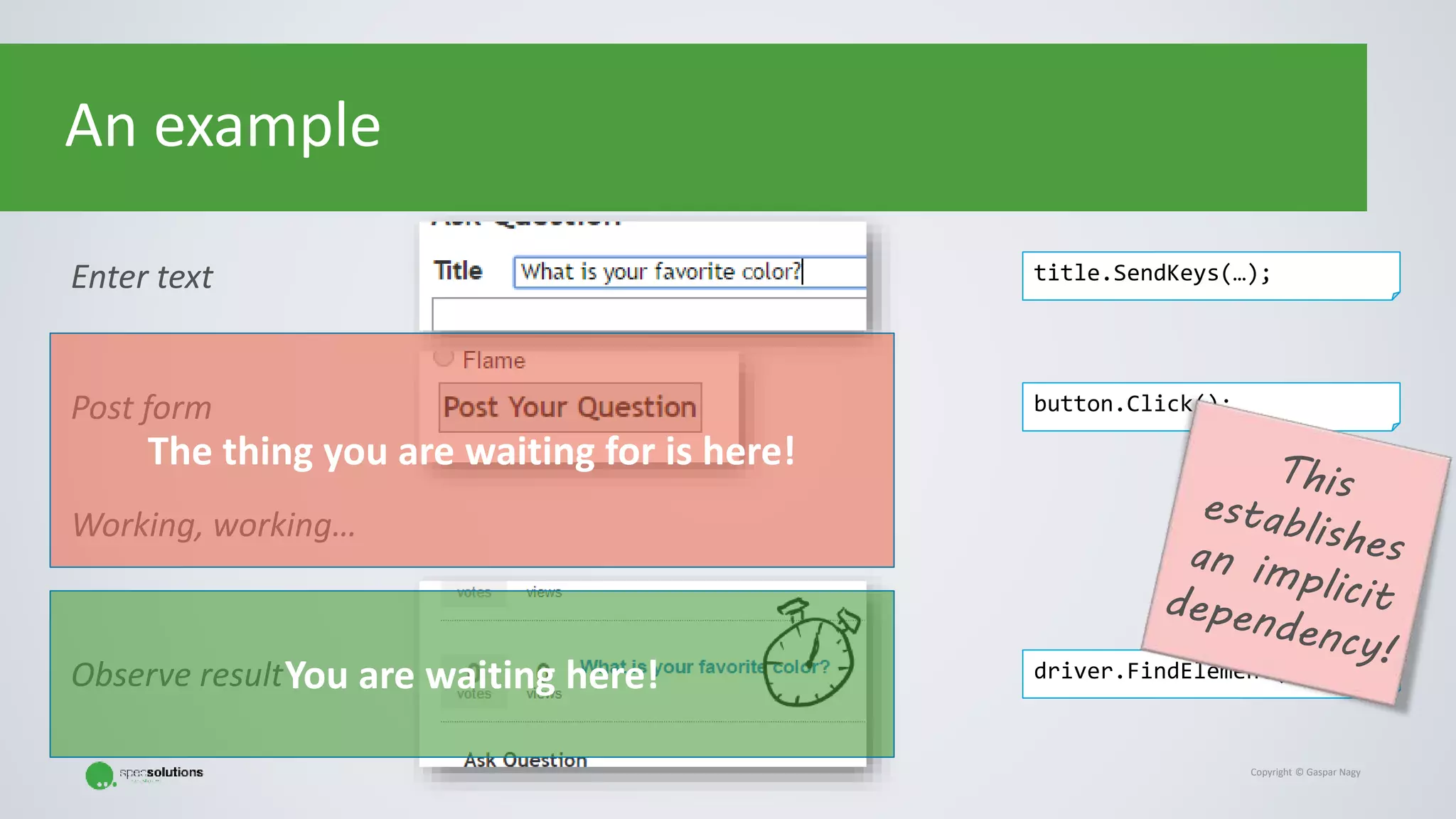

An example
Enter text
Post form
Working, working…
Observe result
button.Click();
The thing you are waiting for is here!
You are waiting here!

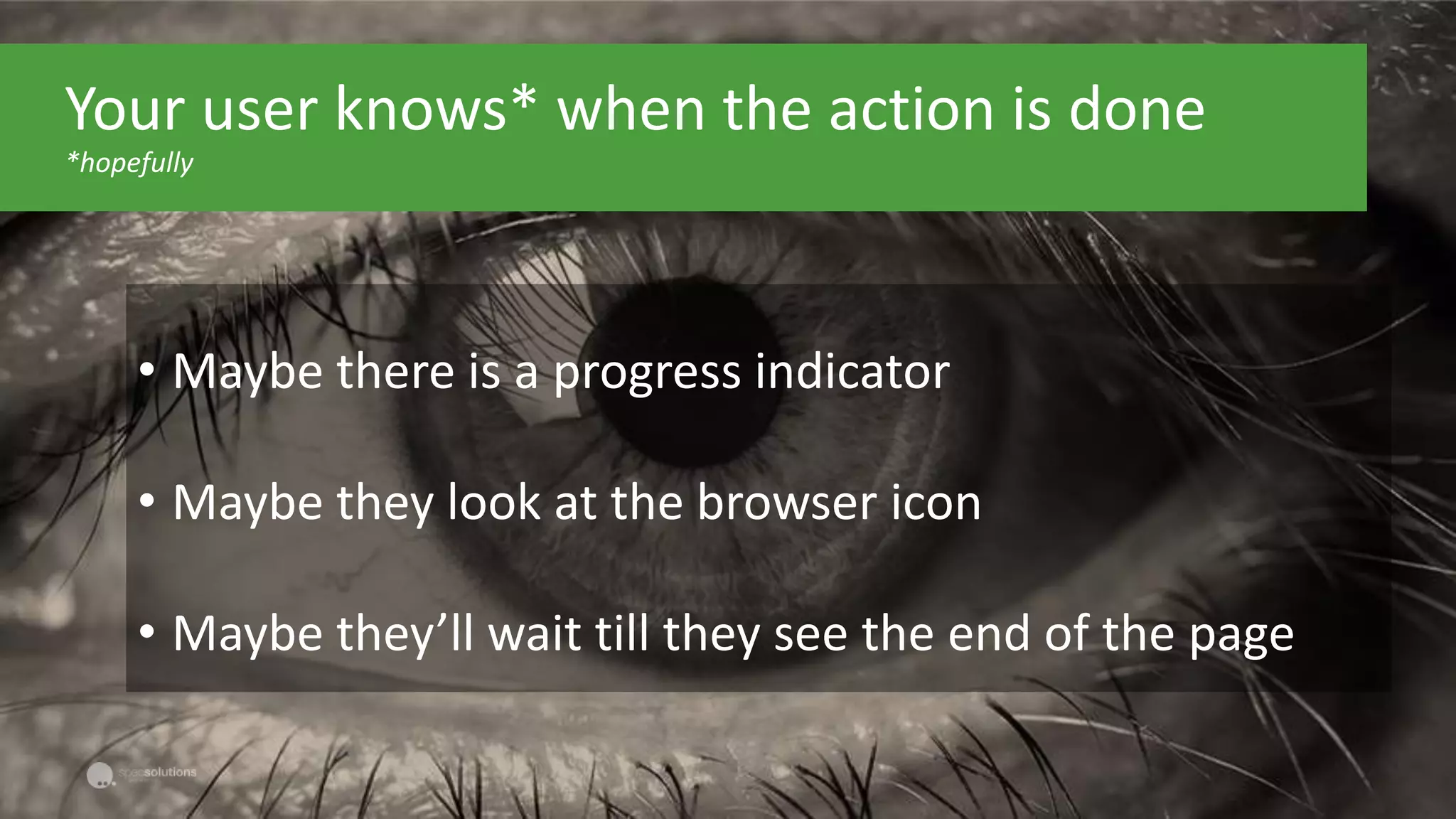

Your user knows* when the action is done
*hopefully
• Maybe there is a progress indicator
• Maybe they look at the browser icon
• Maybe they’ll wait till they see the end of the page

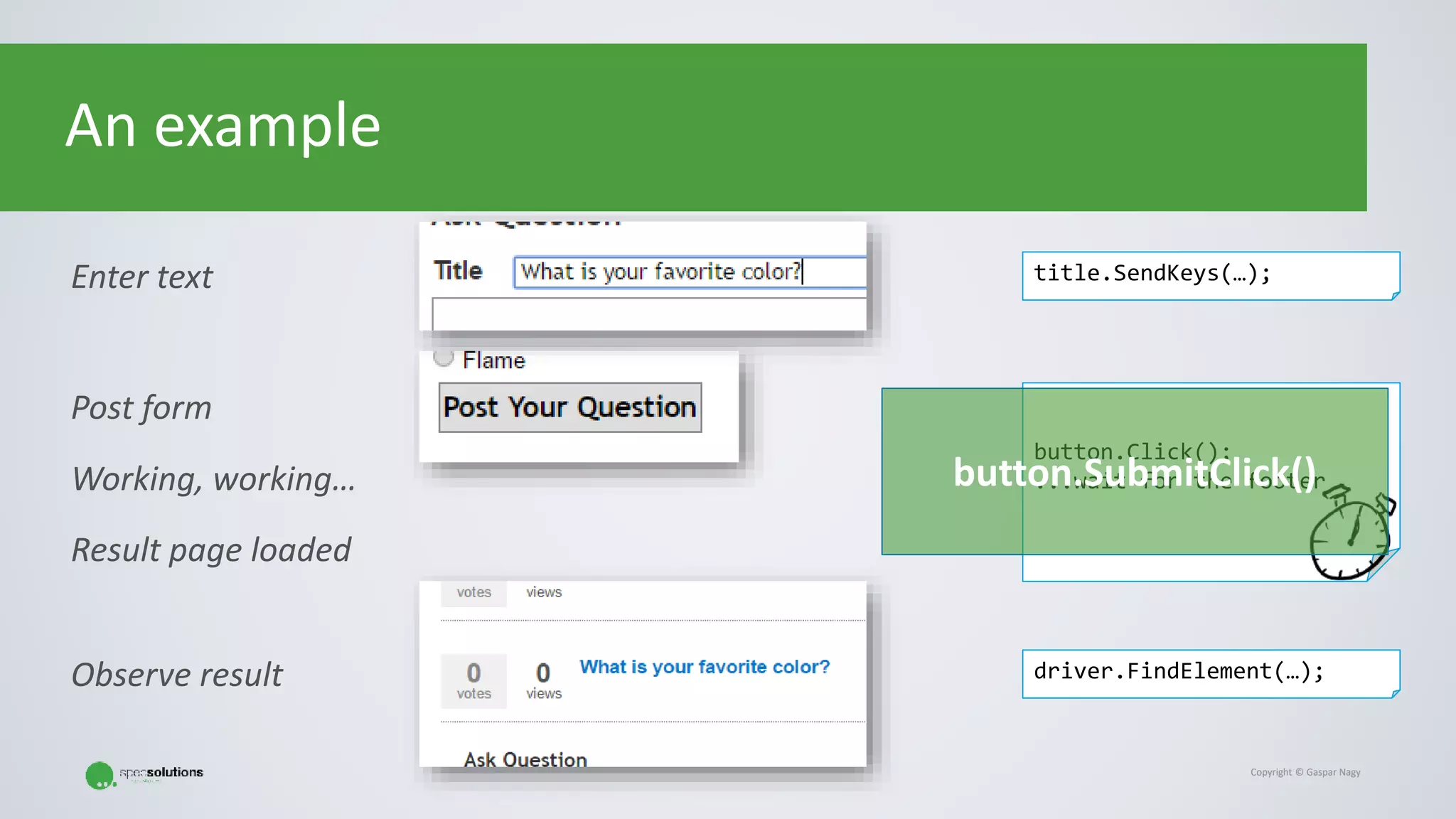

An example
Enter text
Post form
Working, working…
Observe result
button.Click();
...wait for the footer
Result page loaded
button.SubmitClick()

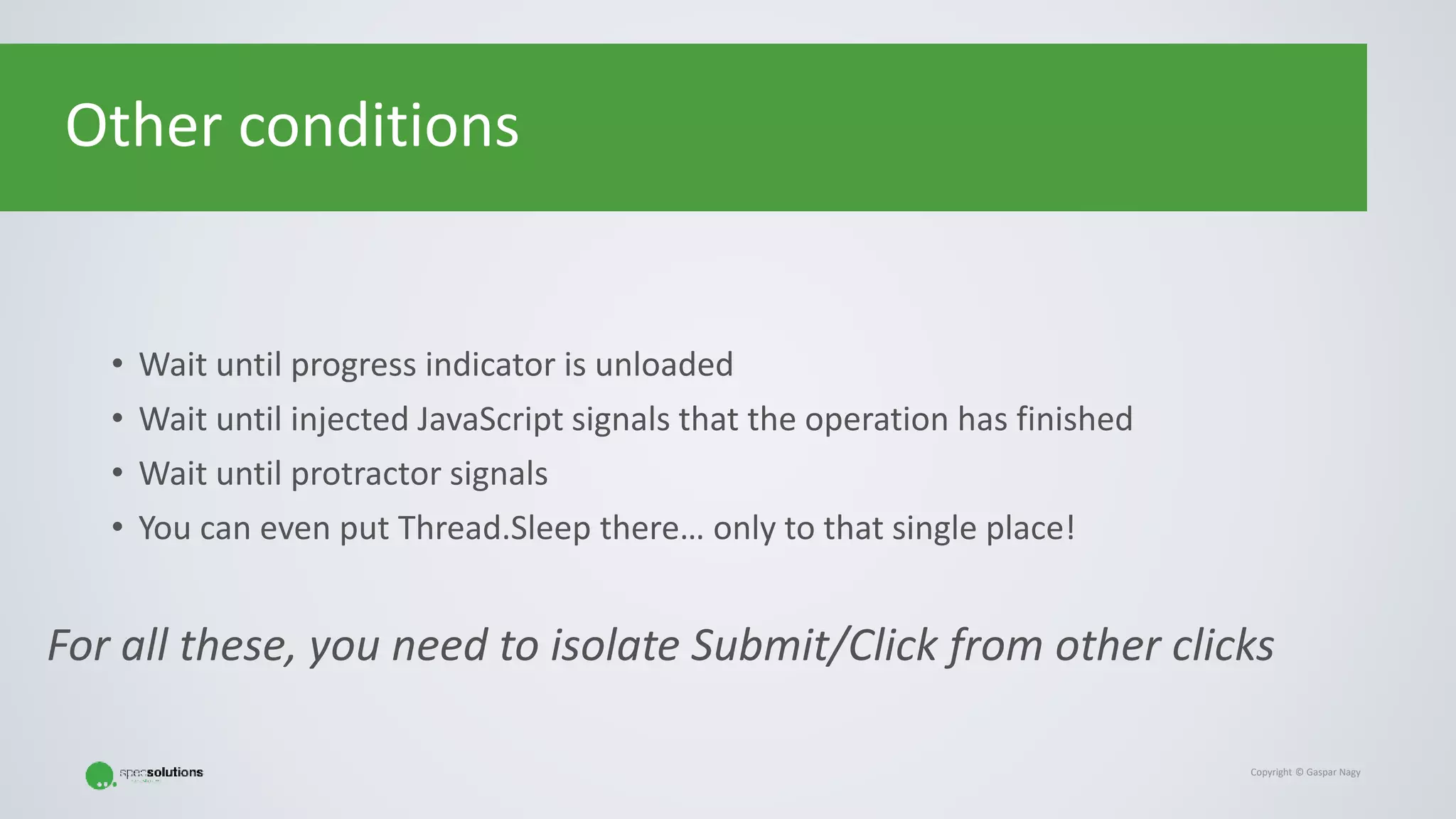

Other conditions
• Wait until progress indicator is unloaded
• Wait until injected JavaScript signals that the operation has finished
• Wait until protractor signals
• You can even put Thread.Sleep there… only to that single place!
For all these, you need to isolate Submit/Click from other clicks

Thank you!
Gáspár Nagy
coach • trainer • bdd addict • creator of specflow
“The BDD Books: Discovery” • http://bddbooks.com
@gasparnagy • gaspar@specsolutions.eu
